USER MANUAL FRESH-AROMA-SWITCH BEEM

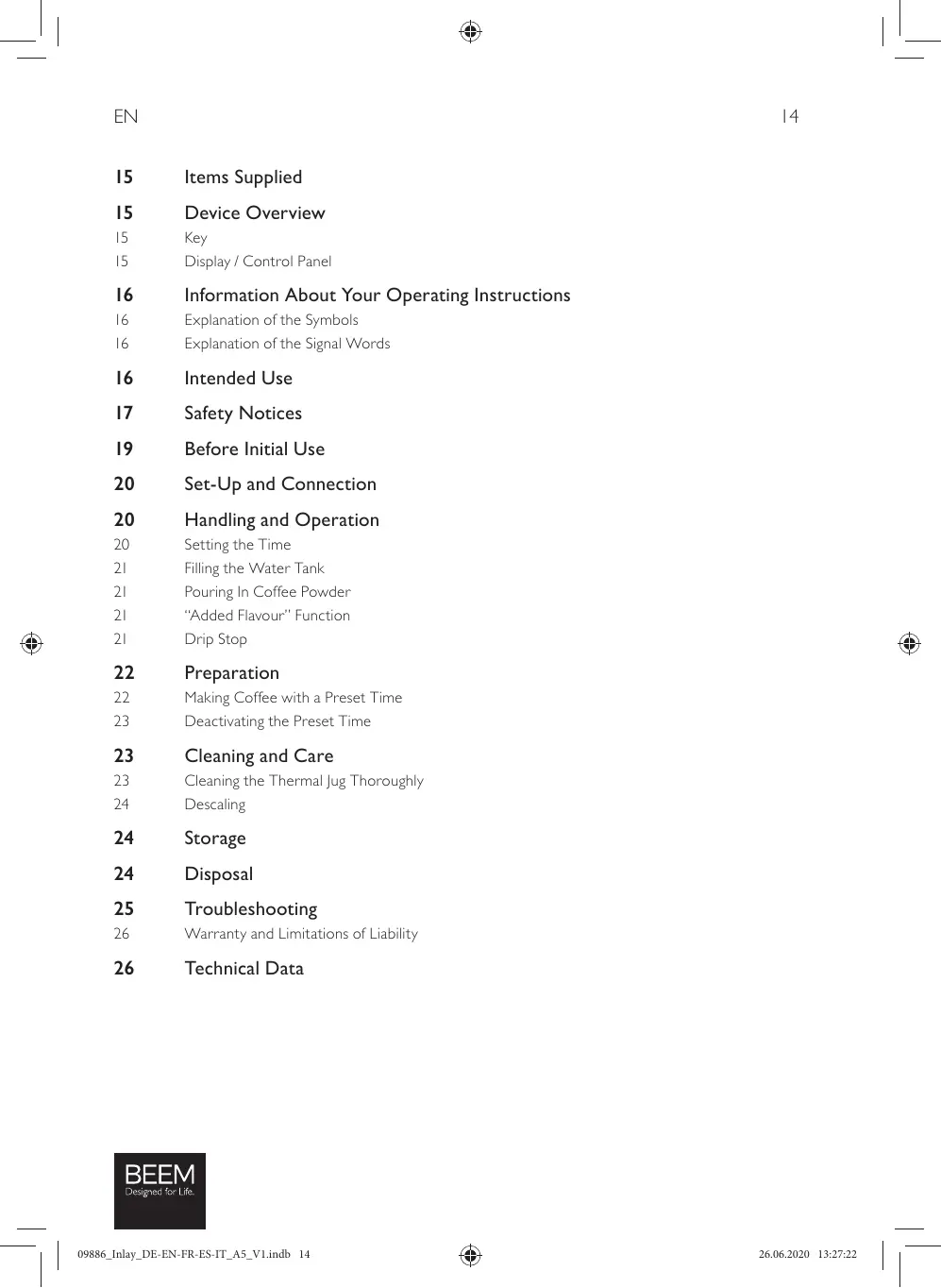

15 Items Supplied
15 Device Overview
15 Key
15 Display/ControlPanel

16 Information About Your Operating Instructions
16 Explanation of the Symbols
16 Explanation of the Signal Words
16 Intended Use
17 Safety Notices
19 Before Initial Use
20 Set-Up and Connection
20 Handling and Operation
20 Setting the Time
21 Filling the Water Tank
21 Pouring In Coffee Powder
21 "Added Flavour" Function
21 Drip Stop
22 Preparation
22 Making Coffee with a Preset Time
23 Deactivating the Preset Time
23 Cleaning and Care
23 Cleaning the Thermal Jug Thoroughly
24 Descaling
24 Storage
24 Disposal
25 Troubleshooting
26 Warranty and Limitations of Liability
26 Technical Data

Items Supplied

• Main unit
  Filter holder
  Permanent filter
  Thermal jug
• Lid of the thermal jug
• Measuring spoon
• Operating instructions

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Device Overview

Key

(See fold-out page for illustrations)

Lid
2 Filter compartment with filter holder and permanent filter
3 Dial
4 Fill-level indicator
5 Coffee outlet
6 Thermal jug with lid
7 Water tank
8 Display
9 Control panel

Display / Control Panel

10 ON/OFF field (switch on and off)
II Time mode display
12 Operating lamp (red)
13 Time
14 "Added Flavour" display
15 Timer control lamp (blue)
16 Timer mode display
17 PROG field (setting mode)

Control panels are shown as follows: ON/OFF

Displays are shown as follows: XX

Key numbers are shown as follows: (I)

Congratulations!

Dear Customer,

We are delighted that you have chosen this coffee machine.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.beem.de

Information About Your Operating Instructions

Before using the device for the first time, please read through the operating instructions carefully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety notices carefully and follow them.

Supplementary information

Caution: hot surfaces!

Suitable for use with food.

Read operating instructions before use!

Explanation of the Signal Words

Signal words indicate hazards if the associated notices are not followed.

DANGER - high risk, results in serious injury or death

WARNING - medium risk, may result in serious injury or death

CAUTION - low risk, may result in minor or moderate injury

NOTICE - may result in risk of damage to material

Intended Use

This device is only intended to be used to make coffee using coffee powder.
- The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
- The device should only be used as described in the operating instructions. Any other use is deemed to be improper.

BEEM

Designed for Life.

Safety Notices

Warning: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  Children must not play with the device.
• Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
• Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.

CAUTION: hot surfaces!

The device and the accessories are very hot during and shortly after use. While the device is in operation, only ever touch the handle, the dial and the control panel. Allow the device to cool down completely before it is cleaned.

• Never exceed the maximum fill level (8 cups). If the water tank is overfilled, the coffee jug could overflow.
• Never immerse the device and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.
• The device is not designed to be operated with an external timer or a separate remote control system.
• The device must always be disconnected from the mains when it is left unattended and before assembling, disassembling, filling or emptying the water tank or cleaning.

EN

• Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable are damaged, they must be replaced or repaired by the manufacturer, customer service department or authorised distributors in order to avoid any hazards.
  It is essential to follow the instructions in the “Cleaning and Care” chapter.

DANGER - Danger of Electric Shock

Use the device only in closed rooms.
- Do not use the device in rooms with high humidity.
- If the device falls into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!
- Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
- Make sure that the steam which emerges does not come into contact with electrical devices and equipment containing electrical components.

WARNING - Danger of Injury

• Keep children and animals away from the packaging material. There is a danger of suffocation!

Danger of scalding from heat, hot steam or condensation!

• Avoid coming into contact with the rising steam. Do not open the lid of the device during the brewing process.
• Do not move the device during the brewing process.

• Be careful when removing the filter holder after operating the device. There may still be hot water remaining in / on the filter holder or permanent filter! Always allow the filter holder and the permanent filter to cool down first before they are removed / cleaned.

• Make sure that the connecting cable does not present a trip hazard. The connecting cable should not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
  Make sure that the connecting cable is kept out of the reach of small children and animals. There is a danger of strangulation!

BEEM

Designed for Life.

WARNING - Danger of Fire

• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
• Do not use the device in conjunction with extension cables.
• Do not operate the device in the vicinity of combustible materials. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
• Do not cover the device during operation.

NOTICE - Risk of Damage to Material and Property

• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
• Never pull or carry the device by the connecting cable.
• Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
• Never place any heavy objects on the device or the connecting cable.
• Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

Before Initial Use

I. Remove all packaging materials and any possible protective films and transport protection. Never remove the rating plate and any possible warnings.
2. Wipe the device with a clean, damp cloth. Clean the thermal jug (6), the filter holder and the permanent filter as well as the measuring spoon with mild detergent and warm water.
3. Set up the device and connect it (see the "Set-Up and Connection" chapter).
4. Before you enjoy your first coffee, we recommend that you carry out a trial run without coffee powder to remove any possible production residues on the device and in the water system. To do this, follow the instructions in the "Handling and Operation" and "Preparation" chapters.

When the device is first used, production-related additives may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

1. Repeat this process twice. Do not drink this water!
2. Clean the device and accessories (see the "Cleaning and Care" chapter).

Set-Up and Connection

PLEASE NOTE!

• Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.
• Lay the connecting cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
• Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!

I. Fully unwind the connecting cable.
2. Place the device on the kitchen unit or another dry, solid, flat, heat-resistant and splash-proof work surface. Ensure there is sufficient clear space on all sides (at least 20 cm to the sides and 30 cm above).
3. Insert the mains plug into a properly installed plug socket. The plug socket must be readily accessible so that the connection to the mains can quickly be isolated.

Handling and Operation

PLEASE NOTE!

• Do not pour milk or other liquids into the water tank. Only ever use water to make coffee!
• Never overfill the permanent filter.

Setting the Time

As soon as the mains plug is plugged into a plug socket, the display lighting turns on and the time 12:00 (13) is shown on the display (8). The clock has a 24-hour time format.

1. Touch the field PROG (17). UHRZEIT (time) (11) appears on the display.
2. Set the hours by turning the dial (3).
3. Wait until the minutes display flashes and set the minutes by turning the dial.

After around 10 seconds, UHRZEIT (time) disappears on the display. The time is now set.

The time is saved until a new time is set or the device has been disconnected from the power supply.

BEEM

Designed for Life.

21

EN

Filling the Water Tank

1. Open the lid (I).
2. Pour the quantity of water required for the number of cups you want (maximum 8 cups) into the water tank (7).
3. Close the lid. You must hear and feel it engage.

All of the water in the water tank is always used.

Pouring In Coffee Powder

1. Open the lid (I).
2. Insert the filter holder into the filter compartment (2).
3. Insert the permanent filter or a filter paper (size 1 × 4 ) into the filter holder.
4. Add the quantity of coffee powder you want to the filter directly using the measuring spoon which is supplied with the device or another suitable spoon. We recommend one level spoonful for each 125ml cup.
5. Flip the lid shut. You must hear and feel it engage.

"Added Flavour" Function

If you like your coffee a little stronger, you can switch on the "Added Flavour" function. Note here that the flow time will be extended as a result.

Touch the field PROG (17) for approx. 3 seconds until ±b±b (14) is shown on the display (8).

The "Added Flavour" function remains selected and is used each time you make coffee until the PROG button is pressed again for approx. 3 seconds. then goes out on the display and the function is switched off.

Drip Stop

The device has a drip stop which prevents water from dripping out of the filter compartment (2) when the thermal jug (6) is removed from the device.

When the device is in operation, the filter compartment must be closed and the thermal jug with the lid placed on it must be placed beneath the filter compartment. The lid of the thermal jug pushes the drip stop upwards and the coffee can flow from the permanent filter through the lid into the thermal jug.

During the brewing process, the thermal jug must not be removed from the main unit for longer than 30 seconds as otherwise the permanent filter could overflow.

Preparation

PLEASE NOTE!

• The device should only be used if it has been correctly assembled! Before each use, check whether the filter holder and the permanent filter are inserted correctly and whether the water tank is filled correctly!
• Do not operate the device without water. If this does happen, the device switches off automatically. In this case, allow the device to cool down before water is poured in and the device is used again.
• Never use the device without a suitable jug below the coffee outlet.

I. Prepare the coffee machine (see the "Handling and Operation" chapter).

We recommend always making at least 4 cups of coffee as the brewing time when making just 2 cups, for example, is very short for making coffee with real flavour and this can have an adverse effect on how the coffee tastes.

1. If you wish, activate the "Added Flavour" function BEFORE starting the brewing process (see the "Handling and Operation" chapter - "Added Flavour Function").
2. Touch the ON/OFF field (10) to start the brewing process. The red operating lamp (12) appears on the display (8). Hot water is poured over the coffee powder to brew it.

The red operating lamp goes out after the end of the brewing process. The thermal jug (6) can then be removed.

To end the brewing process prematurely, touch the ON/OFF field again. The red operating lamp goes out and the brewing process is aborted.

Making Coffee with a Preset Time

To make coffee with a preset time, the clock needs to be set (see the "Handling and Operation" chapter - "Setting the Time").

I. Prepare the coffee machine (see the "Handling and Operation" chapter).
2. If you wish, activate the "Added Flavour" function BEFORE activating the timer (see the "Handling and Operation" chapter - "Added Flavour Function").
3. Touch the PROG field (17) twice. The display shows TIMER (16) and the preset time 12:00 (13).
4. Set the hours by turning the dial (3).
5. Wait until the minutes display flashes and set it by turning the dial.
6. Wait a few seconds or touch the PROG field again. The blue timer control lamp (15) lights up.

Once the preset time has been reached, the brewing process starts automatically. The blue control lamp goes out on the display and the red operating lamp (12) lights up. The red operating lamp goes out after the end of the brewing process.

BEEM

Designed for Life.

Deactivating the Preset Time

To deactivate the preset time, touch the PROG field (17) once. The blue timer control lamp (15) goes out and the programming is deactivated. However, the preset time is retained and can be reactivated at any time until a new preset time is programmed in or the device has been disconnected from the power supply.

Cleaning and Care

PLEASE NOTE!

• Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These may damage the surface.

• Empty the permanent filter or dispose of the filter paper and if necessary empty the thermal jug (6).

• Clean the permanent filter, the filter holder and the thermal jug after every use with a mild detergent and warm water, or in the dishwasher.
• Wipe down the inside and outside of the housing with a damp cloth. If necessary, use a little mild detergent to remove more intense soiling.
• Check the connecting cable regularly for any damage.

Cleaning the Thermal Jug Thoroughly

Coffee grounds and coffee oil residues can contaminate the thermal jug (6) over time. It should therefore be thoroughly cleaned regularly (at least every 4 weeks).

We recommend that you do this using BEEM Premium Cleaning Tablets. They will remove the residues quickly and easily. In addition, the cleaning tablets are gentle on the material and guarantee food-safe and environmentally friendly cleaning - ensuring an authentic coffee flavour. BEEM Premium Cleaning Tablets in a pack of 20 or 50 can be obtained from selected specialist stockists, directly via our website www.beem.de or from our customer service department on request.

Cleaning with the BEEM Premium Cleaning Tablets

I. Dissolve a cleaning tablet in water at 60 - 70^
2. Pour the solution into the thermal jug (6).
3. Move the thermal jug slowly in circular motions to ensure that the inside is wetted with the cleaning solution.
4. Allow the cleaning solution to take effect for a few minutes.
5. Empty the thermal jug and rinse it thoroughly several times with clear water.

The BEEM Cleaning Tablets do not have a descending effect!

Dscaling

Limescale deposits have an adverse effect not only on the quality of the coffee and the water, but they also cause power losses and shorten the lifespan of the device. The thicker a limescale layer is, the more difficult it is to remove.

We therefore recommend regularly removing limescale deposits with a descending agent in accordance with the water quality and how often the device is used (approx. every 2 - 6 weeks).

The first indications that descending is required are a large amount of steam being produced and slower brewing of the coffee.

For descending we recommend the BEEM Premium Descaler Concentrate. The efficient, food-safe and environmentally friendly BEEM Premium Descaler Concentrate is available from selected specialist stockists, via our website www.beem.de or from our customer service department on request.

Dscaling with the BEEM Premium Descaler Concentrate

I. Fill the water tank (7) up to the 8-cup marking with a concentrate/water solution of no more than 1:20 (one part concentrate to 20 parts water).
2. Place the thermal jug (6) under the coffee outlet (5).
3. Touch the ON/OFF field (10) to start the descaling process. The red operating lamp (12) appears on the display (8).
4. When the descending process is finished, empty the thermal jug and place it back under the coffee outlet.
5. To rinse the device, allow two tankfuls (8 cups) of clear water to run through it.
6. Thoroughly clean all accessories (see the "Cleaning and Care" chapter). The device is now descaled and ready to be used again.

Storage

Disconnect the device from the mains power when it is not going to be used for a prolonged period. Clean the device again if necessary (see the "Cleaning and Care" chapter) and let it dry completely.

Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

BEEM

Designed for Life.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact our customer service department.

Do not attempt to repair an electrical device yourself!

Problem	Possible cause	Fix
Nothing is shown on the display (8).	The mains plug is not inserted correctly in the plug socket.	Correct the fit of the mains plug.
	The plug socket is defective.	Try another plug socket.
	There is no mains voltage.	Check the fuse of the mains connection.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
The brewing process is not started.	There is no / not enough water in the water tank (7).	Fill the water tank with a sufficient amount of water.
Water runs out of the device.	There is too much water in the water tank (7).	Do not overfill the water tank!
	The thermal jug (6) was removed from the device during the brewing process and as a result there is too much water in the permanent filter.	During the brewing process, remove the thermal jug from the device for no more than 30 seconds.
	The coffee powder used is too finely ground and the water is unable to pass through the permanent filter.	Use coffee powder with a coarser grind.
The coffee runs very slowly into the thermal jug (6).	The drip stop is blocked.	Clean the filter holder with drip stop.
	The device is furred up.	Descale the device.
	The coffee powder used is too finely ground.	Use coffee powder with a coarser grind.
	Too much coffee powder used.	Do not overfill the permanent filter / filter paper.
A large amount of steam is produced in the brewing process.	The device is furred up.	Descale the device.
During use, an unpleasant smell is detected.	The device is being used for the first time.	A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.
	The device has previously been descaled.	Rinse out the device with fresh water.

Warranty and Limitations of Liability

The warranty does not cover faults caused by incorrect handling, calcification, damage or attempted repairs. The same applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• failure to follow the operating instructions
  non-designated use
  improper or unsuitable handling
• repairs which are not carried out properly
• unauthorised modifications
  use of outside parts or spare parts
  use of unsuitable additional parts or accessories

Keep the original packaging during the warranty period of the device so that the device can be properly packaged up if it needs to be returned. The warranty claim will lapse if any damage is caused during transport.

Technical Data

Article number: 09886

Model number: MD-286BT

Voltage supply: 220 - 240V 50 / 60Hz

Power: 800 W

Protection class:

Capacity: 4-8 cups (approx. 125ml per cup)

ID of operating instructions: Z 09886 M BEVI 0620 uh

All rights reserved.

BEEM

Designed for Life.

Chere cliente, cher client,
