Product type	Refrigerator-freezer
Brand	BEKO
Model	RCNA305K20W
Refrigerant	R600a (flammable)
Temperature setting	Rotary knob from min 1 to max 6 (max = coldest)
Recommended storage temperature	Refrigerator: ≤ +5°C, Freezer: -18°C
Freezing capacity without adjustment	Up to 0.5 kg
Refrigerator defrost	Automatic (drain tube)
Freezer defrost	Automatic (FAN COOLED type)
Interior lighting	LED (replacement by authorized service center)
Circulation fan	Yes (in the freezer)
Power supply	220-240 V, 50 Hz
Mandatory grounding	Yes
Transport	Upright position; wait 4 hours after horizontal transport
Installation	Avoid heat sources, free ventilation space
Minimum ambient temperature	-15°C
Interior cleaning	Warm water and baking soda (1 teaspoon per 0.5 L)
Availability of spare parts	10 years after purchase
Safety	Do not use sharp objects, do not block fans

Frequently Asked Questions - RCNA305K20W BEKO

How to adjust the temperature of my BEKO RCNA305K20W refrigerator-freezer?

Use the control knob located on the ceiling of the refrigerator compartment. The positions range from min 1 (less cold) to max 6 (colder). For first use, set to a medium position and wait 24 hours. The recommended temperature is +5°C for the refrigerator and -18°C for the freezer. Check with an accurate thermometer.

What to do in case of a power failure?

Do not open the door. Frozen food remains intact for up to 19 hours. If the outage lasts longer, inspect the food: consume immediately or cook and refreeze.

How to clean the interior of the appliance?

Unplug the appliance. Use a damp cloth soaked in a solution of baking soda (1 teaspoon per 0.5 liter of warm water). Dry thoroughly. Never use abrasive products, solvents, or sharp utensils.

How to replace the interior light bulb?

The bulb is an LED that must be replaced by an authorized service center. Do not attempt to replace it yourself. Contact the manufacturer or a qualified technician.

Is it possible to change the door opening direction?

Yes, the manual describes the door repositioning procedure (figure 14). You must follow the steps in numerical order. To avoid any risk, it is advisable to call a professional.

What is the defrosting procedure?

The refrigerator defrosts automatically; water drains through a tube into a tray at the back. The freezer is of type FAN COOLED: defrosting is fully automatic. Never use sharp objects or heating devices to speed up the process.

Why is my appliance making noise?

Noises are normal: refrigerant flow, compressor start-up, or fan operation. Make sure the appliance is level, nothing touches the walls, and objects inside do not touch each other. Vibrations can be reduced by adjusting the feet.

Which foods should not be stored in the refrigerator?

Do not store bananas, melons (unless wrapped for short time), toxic substances, flammable products (aerosols), or carbonated drinks in the freezer. Hot food must cool before being placed.

How to freeze fresh food properly?

Set the knob to max 24 hours before. Do not freeze more than the maximum capacity per 24h. Wrap food in aluminum foil or freezer bags removing air. Small quantities (< 0.5 kg) can be frozen without adjustment. After freezing, return the knob to the initial position.

What to do if the appliance does not work after plugging in?

Check that the plug is properly connected, the fuse has not blown, the circuit breaker has not tripped, and the temperature control is set. Test the outlet with another device. If the problem persists, contact after-sales service.

USER MANUAL RCNA305K20W BEKO

Frost Free Refrigerator-Freezer Frost-Free Kuhl-Gefrier Frost Refrigerateur-Congelatour Frost Free Koel-Vriescombinatie He3aMep3aUoye XoJIoNJIbHnK-MOpO3nJIbHnK

Instruction of use Gebrauchsanweisung Notice d'utilisation Gebruiksaanwijzing Иструкция з ekспунатуцii

RCNA295K20W

ENIDIFRINLIUA

WARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

• Do not hinder the free circulation of the air around the appliance.
• Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.
• Do not destroy the refrigerating circuit.
• Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended by the manufacturer.

WARNING!

It is necessary to observe the following rules.

Do not create obstacles to the free circulation of air around the refrigerator. Do not use mechanical devices or instruments to accelerate the defrosting of the refrigerator, except those recommended by the manufacturer. Do not allow damage to the cooling circuit. Do not install electric devices inside the refrigerator compartment, where food is stored, except those recommended by the manufacturer.

EN Index

Safety first /1

Electrical requirements /2

Transportation instructions /2

Installation instructions /2

Getting to know your appliance /3

Suggested arrangement of food in the appliance /3

Temperature control and adjustment /3

Before operating /4

Storing frozen food /4

Making ice cubes /4

Freezing fresh food /4

Defrosting /4

Replacing the interior light bulb /5

Repositioning the door /5

Cleaning and care /5

Do's and don'ts /6

Energy Consumption /6

Information about operating noises /7

Troubleshooting /7

D Inhalt

PnirroTyBaHHK Ky6NKIB NbOy /36

PozmopoxybaHHa /36

3amina lamnoukn Bnytpiushboro ocbitlenna /36

UHueHHraDorIaI/36

IpehenabiBuaHnIbepzT/37

Lcpi i yoro He cpi pobntn /37

Ihopmaizy odo pobochx ymib /38

UcyHeHHHa HecnPaBHOCTeI /38

1

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. Abbildungen und Angaben in dieser Anleitung sind schematisch und können etwas von ihrem Gerä abweichen. Falls Teile nicht zum Lieferumfang des erworbenen Gerätes zahlen, gelten sie für andere Modelle. i Les illustrations presentées dans cette notice d'utilisation sont schématiques et peuvent ne pas correspondre exactement à votre produit. Si certains éléments illustrés ne sont pas inclus dans le produit que vous avez acheté, ils concerneront d'autres modèles. i De afbeeldingen in deze gebruiksaanwijzing zich schematisch en hoeven Niet exact met uw product overeen te komen. Wanner onderdelen Niet tot het product behoren dat u hebt gekocht, gelden deze voor andere modellen. I IJIIOCTpaUNB DaHHOH INHCTpyKcUN YBIAOTcXeMaTHUHBIMN IMOryT OTIIuHaTbcr OT BaSeM MoJeIN. EcIn B npNo6peTeHHOM Bamn N3deJInn Het KaKnx-JInbO n3 NOKa3aHHbIX KOMNOHeHTOB, 3HaHT, OHN NCPOJb3yOTcR B dpyrNX MoJeJx.

2

3

4

5

6

7

8

9

10

11

12

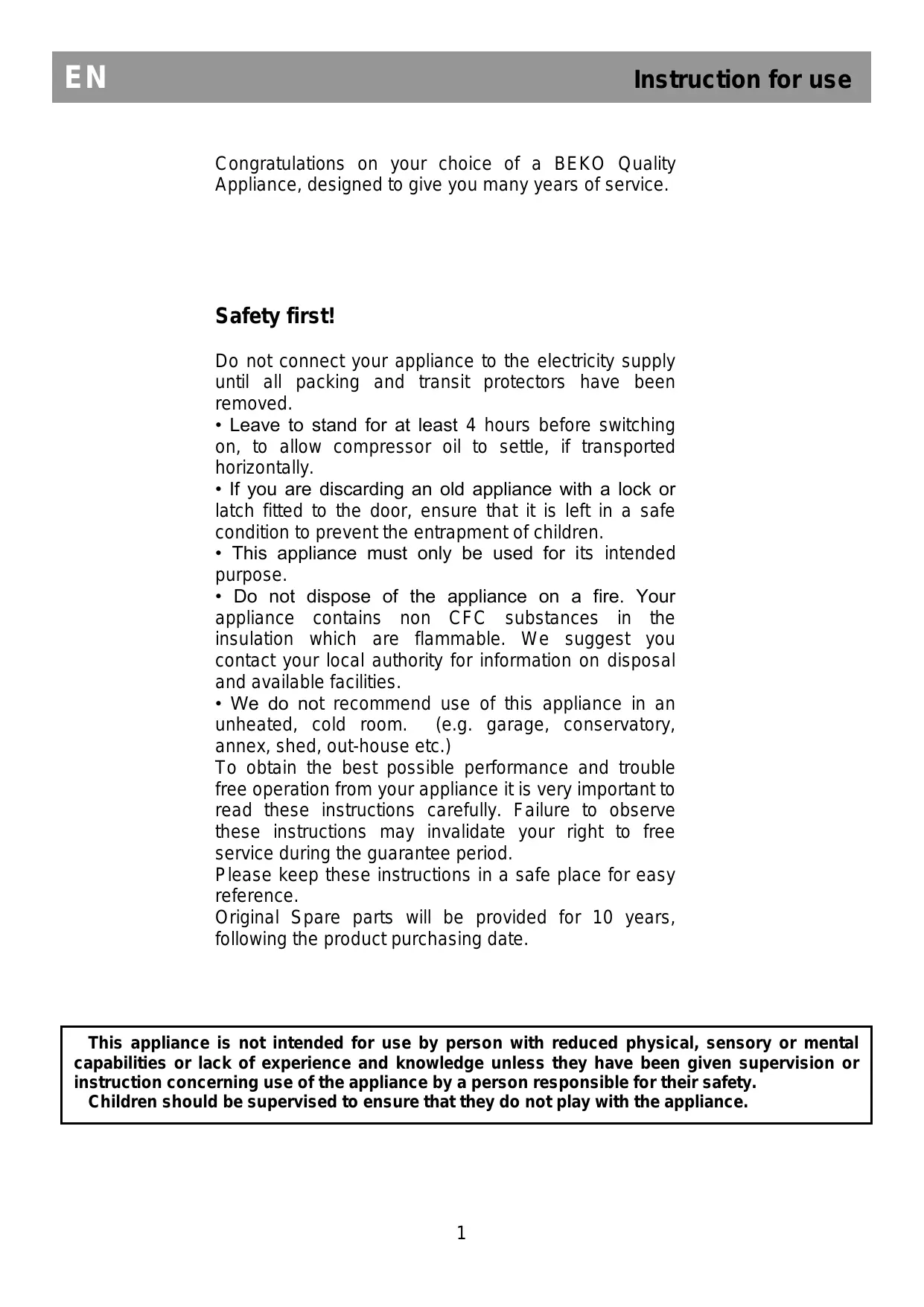

Congratulations on your choice of a BEKO Quality Appliance, designed to give you many years of service.

Safety first!

Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on, to allow compressor oil to settle, if transported horizontally.
• If you are discarding an old appliance with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
• This appliance must only be used for its intended purpose.
• Do not dispose of the appliance on a fire. Your appliance contains non CFC substances in the insulation which are flammable. We suggest you contact your local authority for information on disposal and available facilities.
• We do not recommend use of this appliance in an unheated, cold room. (e.g. garage, conservatory, annex, shed, out-house etc.)

To obtain the best possible performance and trouble free operation from your appliance it is very important to read these instructions carefully. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

Please keep these instructions in a safe place for easy reference.

Original Spare parts will be provided for 10 years, following the product purchasing date.

This appliance is not intended for use by person with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Electrical requirements

Before inserting the plug into the wall socket make sure that the voltage and the frequency shown in the rating plate inside the appliance corresponds to your electricity supply.

We recommend that this appliance is connected to the mains supply via a suitably switched and fused socket in a readily accessible position.

Warning! This appliance must be earthed.

Repairs to electrical equipment should only be performed by a qualified technician. Incorrect repairs carried out by an unqualified person carry risks that may have critical consequences for the user of the appliance.

ATTENTION!

This appliance operates with R600a which is an environmental friendly but flammable gas. During the transportation and fixing of the product, care must be taken not to damage the cooling system. If the cooling system is damaged and there is a gas leakage from the system, keep the product away from open flame sources and ventilate the room for a while.

WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, others than those recommended by the manufacturer.

WARNING - Do not damage the refrigerant circuit.

WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Transportation instructions

1. The appliance should be transported only in an upright position. The packing as supplied must be intact during transportation.
2. If during the transport the appliance, has been positioned horizontally, it must not be operated for at least 4 hours, to allow the system to settle.
3. Failure to comply with the above instructions could result in damage to the appliance, for which the manufacturer will not be held liable.
4. The appliance must be protected against rain, moisture and other atmospheric influences.

Important!

• Care must be taken while cleaning/carrying the appliance not to touch the bottom of the condenser metal wires at the back of the appliance, as this could cause injury to fingers and hands.
• Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
• Make sure that the mains cable is not caught under the appliance during and after moving, as this could damage the cable.
• Do not allow children to play with the appliance or tamper with the controls.

Installation instructions

1. Do not keep your appliance in a room where the temperature is likely to fall below -15 degrees C (5 degrees F) at night and/or especially in winter.
2. Do not place the appliance near cookers or radiators or in direct sunlight, as this will cause extra strain on the appliance's functions. If installed next to a source of heat or freezer, maintain the following minimum side clearances:

From Cookers 30 mm

From Radiators 300 mm

From Freezers 25 mm

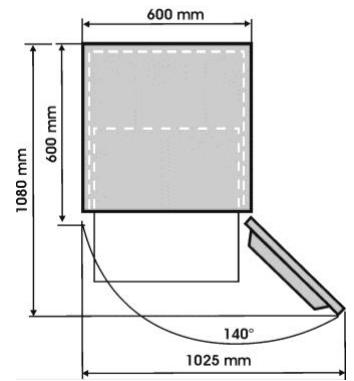

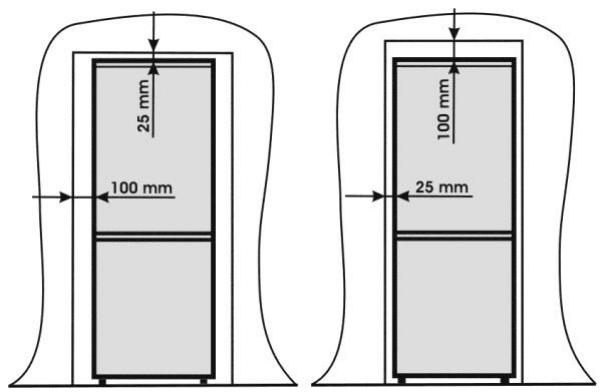

1. Make sure that sufficient room is provided around the appliance to ensure free air circulation (Item 2).

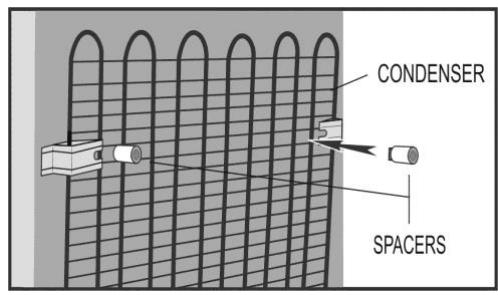

2. Put the back airing lid to the back of your refrigerator to set the distance between the refrigerator and the wall (Item 3).

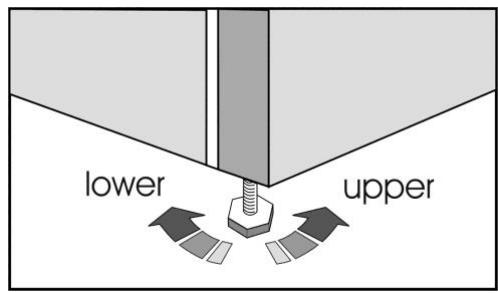

3. The appliance should be positioned on a smooth surface. The two front feet can be adjusted as required. To ensure that your appliance is standing upright adjust the two front feet by turning clockwise or anti-clockwise, until firm contact is secured with the floor. Correct adjustment of feet prevents excessive vibration and noise (Item 4).
4. Refer to "Cleaning and Care" section to prepare your appliance for use.

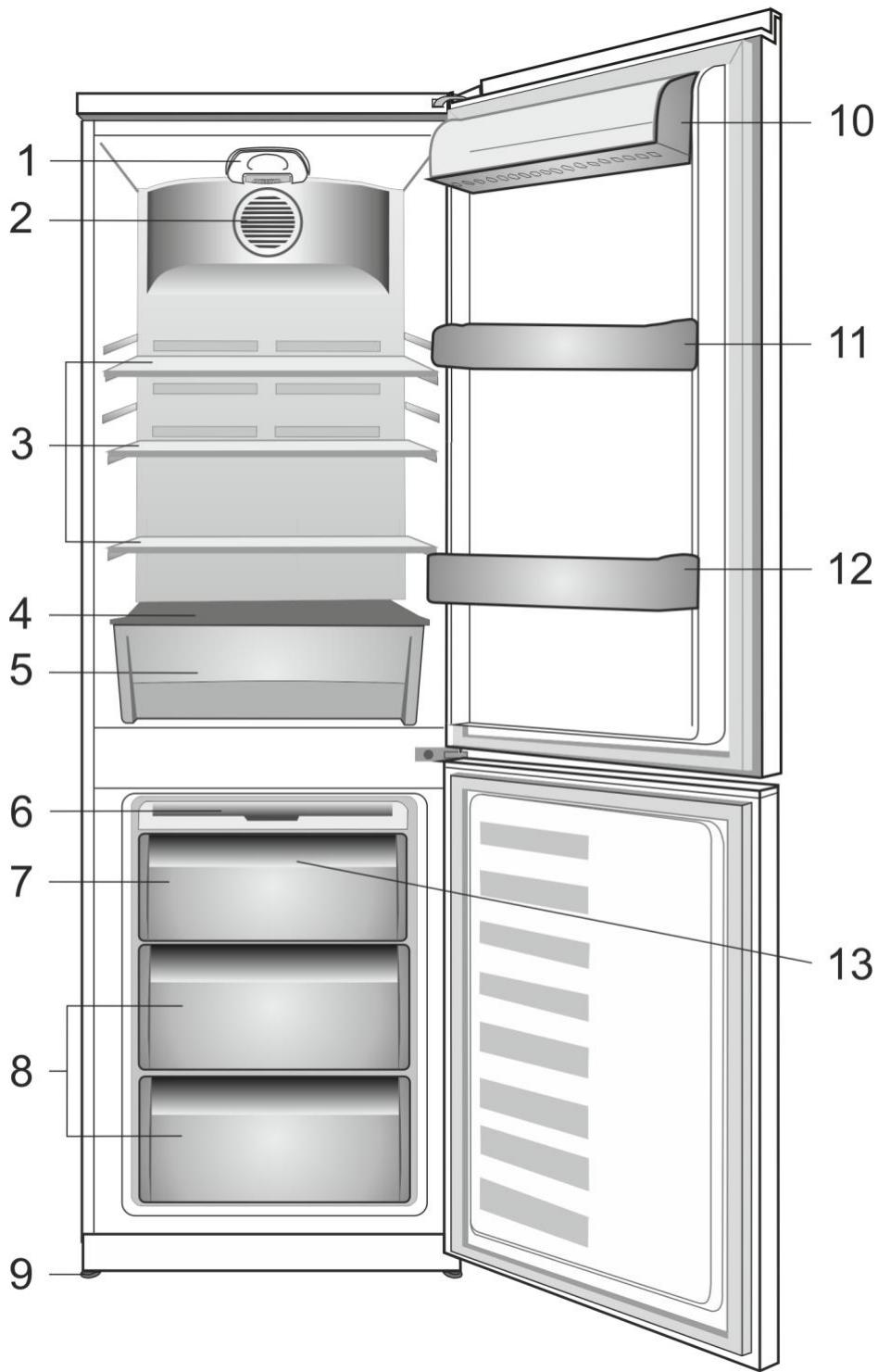

Getting to know your appliance (Item 1)

1 - Setting knob and interior light 2 - Fresh Food fan 3 - Adjustable Cabinet shelves 4 - Crisper cover 5 - Fresh zone compartment/ Crispers 6 - Ice tray support & ice tray 7 - Compartment for quickly freezing 8 - Compartments for frozen foods keeping 9 - Adjustable foot 10 - Dairy Compartment 11 - Shelf for jars 12 - Shelf for bottles 13 - Freezer fan

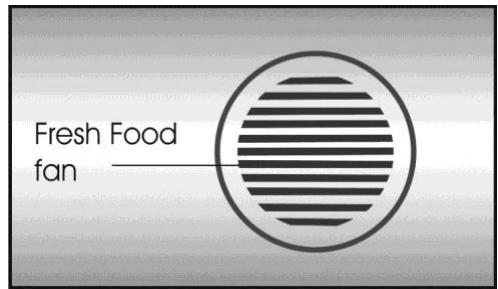

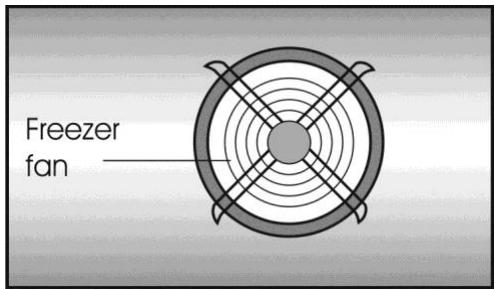

The fans have the purpose to provide the circulation of the air in the compartment. They are connected in parallel with the motor-compressor. When the motor-compressor is off, the fans will also be off.

Suggested arrangement of food in the appliance

Guidelines for obtaining optimum storage and hygiene:

1. The fridge compartment is for the short-term storage of fresh food and drinks.
2. The freezer compartment is rated and suitable for the freezing and storage of pre-frozen food.

The recommendation for storage as stated on the food packaging should be observed at all times. 3. Dairy products should be stored in the special compartment provided in the door liner. 4. Cooked dishes should be stored in airtight containers. 5. Fresh wrapped produce can be kept on the shelf. Fresh fruit and vegetables should be cleaned and stored in the crispers. 6. Bottles can be kept in the door section. 7. To store raw meat, wrap in polythene bags and place on the lowest shelf. Do not allow to come into contact with cooked food, to avoid contamination. For safety, only store raw meat for two to three days. 8. For maximum efficiency, the removable shelves should not be covered with paper or other materials to allow free circulation of cool air. 9. Do not keep vegetable oil on door shelves. Keep the food packed, wrapped or covered. Allow hot food and beverages to cool before refrigerating. Leftover canned food should not be stored in the can.

1. Fizzy drinks should not be frozen and products such as flavoured water ices should not be consumed too cold.
2. Some fruit and vegetables suffer damage if kept at temperatures near 0°C . Therefore wrap pineapples, melons, cucumbers, tomatoes and similar produce in polythene bags.
3. High-proof alcohol must be stored upright in tightly closed containers. Never store products that contain an inflammable propellant gas (e.g. cream dispensers, spray cans, etc.) or explosive substances. These are an explosion hazard.

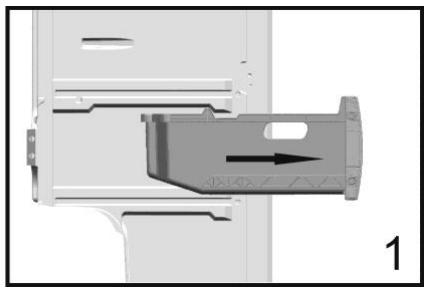

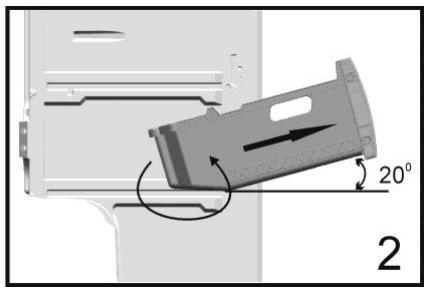

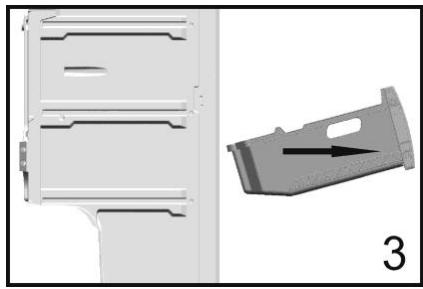

4. To take out the baskets from the freezer compartment please proceed as in item 11.

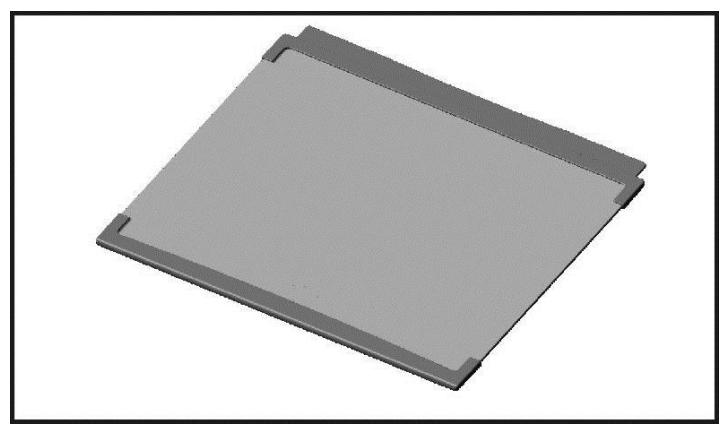

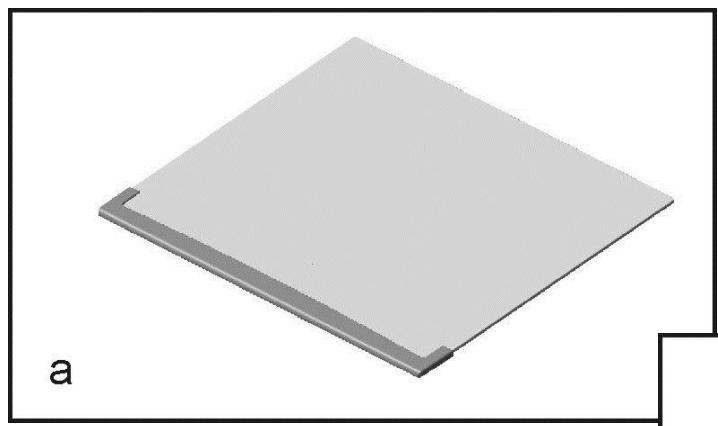

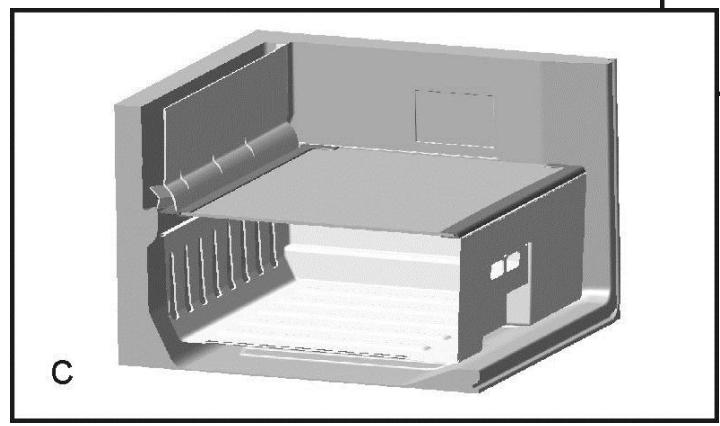

5. In order to transform the chill compartment (used for easy perishable products - Item 1-point 5) into a vegetable box it is necessary to assemble in the rear side of the bottom glass shelf the ornament (Item 12) delivered as accessory according to the picture Item 13 (point a-c). If the ornament will not be assembled the compartment (Item 1-point 5) will have biofresh functionality.

Temperature control and adjustment

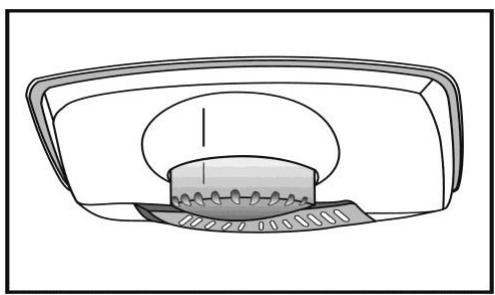

Operating temperatures are controlled by the setting knob (Item 5) located on the ceiling of the fridge compartment. Settings may be made from min, 1 ... 6, max, with max being the coldest position.

When the appliance is switched on for the first time, the setting knob should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5°C (+41°F). We recommend you set the knob halfway between the min and max settings and monitor to obtain the desired temperature. For example, towards max you will obtain a colder fridge temperature and vice versa. Some sections of the fridge may be cooler or warmer (such as the salad crisper and the top part of the cabinet), which is quite normal.

The normal storage temperature of the freezer should be -18°C (0°F). Lower temperatures may be obtained by adjusting the setting knob towards the max position.

We recommend that you check the temperature with an accurate thermometer to ensure that the storage compartments are kept at the desired temperature.

Remember you must take your reading very quickly since the thermometer temperature will rise very rapidly after you remove it from the freezer.

Please remember each time the door is opened cold air escapes and the internal temperature rises. Therefore never leave the door open and ensure it is closed immediately after food is put in or removed.

Before operating

Final Check

Before you start using the appliance check that:

1. The feet have been adjusted for perfect levelling.
2. The interior is dry and air can circulate freely at the rear.
3. The interior is clean as recommended under "Cleaning and care."
4. The plug has been inserted into the wall socket and the electricity is switched on. When the door is open the interior light will come on.

And note that:

1. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also make some noise, whether the compressor is running or not. This is quite normal.
2. Slight undulation of the top of the cabinet is quite normal due to the manufacturing process used; it is not a defect.
3. We recommend setting the knob midway and monitor the temperature to ensure the appliance maintains desired storage temperatures (See section Temperature Control and Adjustment).
4. Do not load the appliance immediately it is switched on. Wait until the correct storage temperature has been reached. We recommend checking the temperature with an accurate thermometer (see; Temperature Control and Adjustment).

Storing frozen food

Your freezer is suitable for the long-term storage of commercially frozen foods and also can be used to freeze and store fresh food.

If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 19 hrs. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

Making ice cubes

Fill the ice - cube tray 3/4 full with water and place it in the freezer. Loosen frozen trays with a spoon handle or a similar implement; never use sharp-edged objects such as knives or forks.

Freezing fresh food

Please observe the following instructions to obtain the best results.

Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

Do not exceed the freezing capacity of your appliance in 24 h.

Placing warm food into the freezer compartment causes the refrigeration machine to operate continuously until the food is frozen solid. This can temporarily lead to excessive cooling of the refrigeration compartment.

When freezing fresh food, to reach the best freezing capacity, put the setting knob to maximum position 24h before placing it. After freezing the knob can be set to the initial position. Small quantities of food up to 1/2 kg . (1 lb) can be frozen without adjusting the temperature control knob.

Take special care not to mix already frozen food and fresh food.

Defrosting

A) Fridge compartment

The fridge compartment defrosts automatically. The defrost water runs to the drain tube via a collection container at the back of the appliance. Check that the tube is permanently placed with its end in the collecting tray on the compressor to prevent the water spilling on the electric installation or on the floor (Item 6).

B) Freezer compartment

The NO FROST type defrost is completely automatic. No intervention from your side is required. The water is collected on the compressor tray. Due to the heat of the compressor, the water is evaporated.

Do not use pointed or sharp-edged objects, such as knives or forks, to remove the frost.

Never use hairdryers, electrical heaters, or other such electrical appliances for defrosting.

Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly (Item 7 & 8). Insert the plug into the wall socket and switch on the electricity supply.

Warnings!

The fans inside the freezer and fresh food compartments circulate cold air. Never insert any object through the guard. Do not allow children to play with the fresh food and freezer fan.

Never store products that contain inflammable propellant gas (e.g., dispensers, spray cans, etc.) or explosive substances.

Don't cover the shelves with any protective materials that may obstruct air circulation.

Do not allow children to play with the appliance or tamper with the controls.

Do not obstruct the fan guards to ensure that you obtain the best possible performance from your appliance. (Item 9 and Item 10)

Warning!

Your appliance is fitted with a circulating fan which is essential for the performance of the refrigerator. Please ensure the fans are not blocked (stopped) or impaired by food or packaging. Blocking (stopping) or impairing the fan can result in an increase of the internal freezer temperature (Thawing).

Replacing the interior light bulb

To change the Bulb/LED used for illumination of your refrigerator, call your Authorised Service. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20°C.

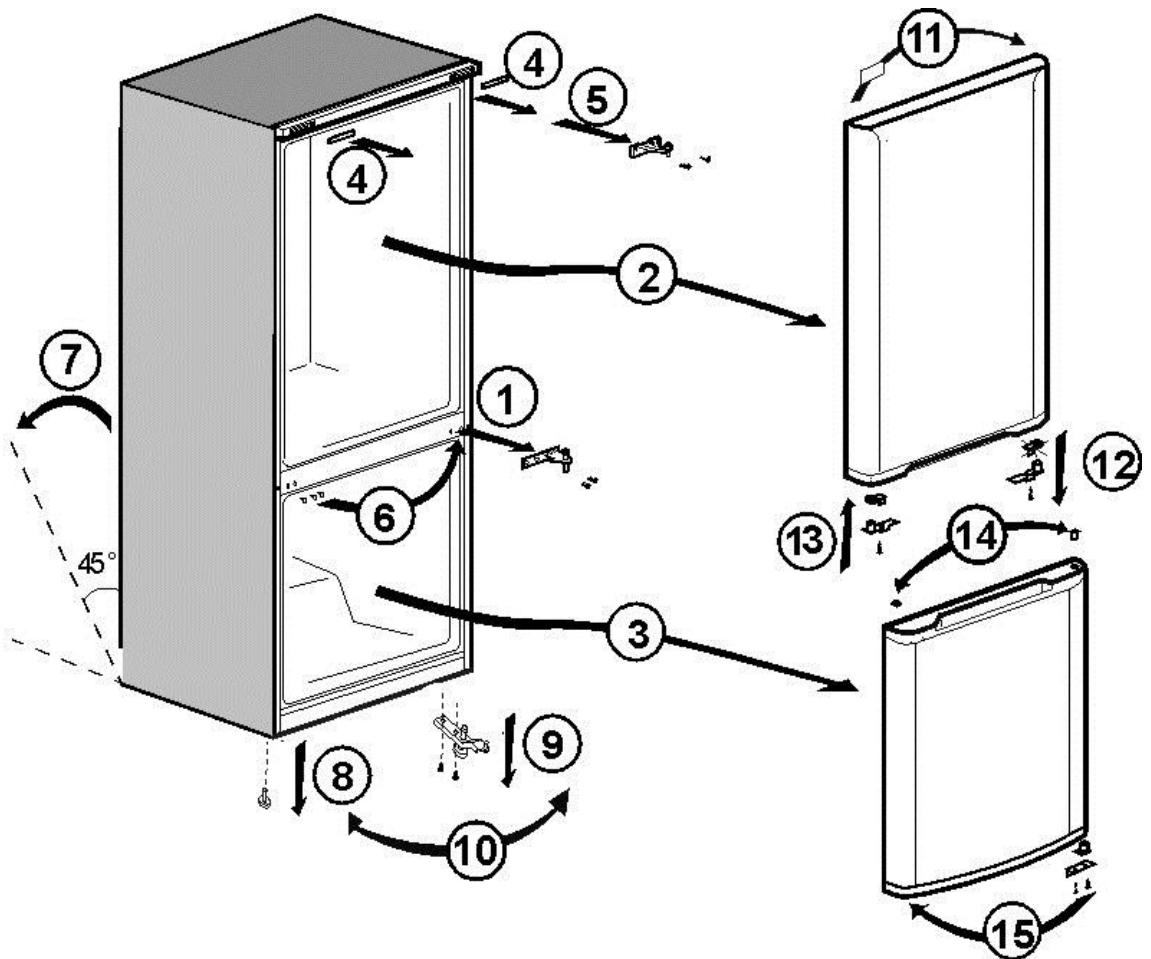

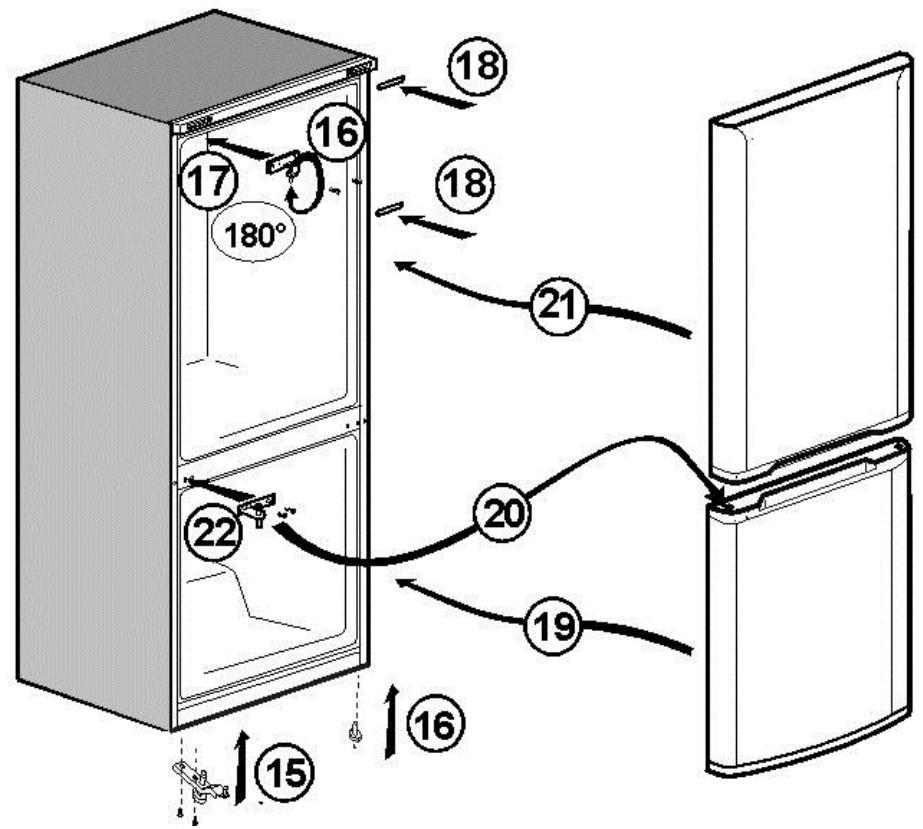

Repositioning the door

Proceed in numerical order (Item 14).

Cleaning and care

1. We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning.
2. Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
3. Use lukewarm water to clean the cabinet of the appliance and wipe it dry.
4. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
5. Make sure that no water enters the temperature control box.
6. If the appliance is not going to be used for a long period of time, switch it off, remove all food, clean it and leave the door ajar.
7. We recommend that you polish the metal parts of the product (i.e. door exterior, cabinet sides) with a silicone wax (car polish) to protect the high quality paint finish.
8. Any dust that gathers on the condenser, which is located at the back of the appliance, should be removed once a year with a vacuum cleaner.
9. Check door seals regularly to ensure they are clean and free from food particles.
10. Never:
11. Clean the appliance with unsuitable material; e.g., petroleum-based products.
12. Subject it to high temperatures in any way.
13. Scour, rub, etc., with abrasive material.
14. Removal of dairy cover and door tray:
15. To remove the dairy cover, first lift the cover up by about an inch and pull it off from the side where there is an opening on the cover.
16. To remove a door tray, remove all the contents and then simply push the door tray upwards from the base.

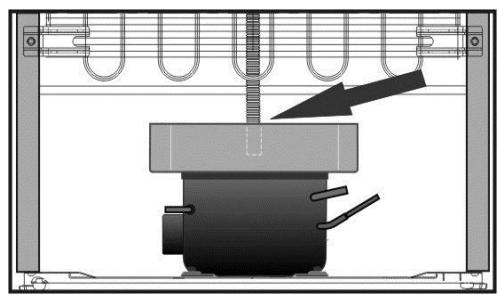

17. Make sure that the special plastic container at the back of the appliance which collects defrost water is clean at all times. If you want to remove the tray to clean it, follow the instructions below:
18. Switch off at the socket outlet and pull out the mains plug.
19. Gently uncrimp the stud on the compressor, using a pair of pliers, so that the tray can be removed.
20. Lift it up.
21. Clean and wipe it dry.
22. Reassemble, reversing the sequence and operations.
23. To remove a drawer, pull it as far as possible, tilt it upwards and then pull it out completely.

Do's and don'ts

Do- Clean your appliance regularly. Do- Keep raw meat and poultry below cooked food and dairy products. Do- Take off any unusable leaves on vegetables and wipe off any soil. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding as much air as possible. For best results, take out of the fridge compartment an hour before eating. Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying. Do- Wrap fish and offal in polythene bags. Do- Wrap food with a strong odour or which may dry out, in polythene bags, or aluminium foil or place in airtight container. Do- Wrap bread well to keep it fresh. Do- Chill white wines, beer, lager and mineral water before serving. Do- Check contents of the freezer every so often. Do- Keep food for as short a time as possible and adhere to "Best Before" and "Use by" etc. dates. Do- Store commercially frozen food in accordance with the instructions given on the packets. Do- Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it. Do- Prepare fresh food for freezing in small portions to ensure rapid freezing. Do- Wrap all food in aluminium foil or freezer quality polythene bags and make sure any air is excluded. Do- Wrap frozen food immediately after purchasing and put it in to the freezer as soon as possible.

Don't- Store bananas in your fridge compartment. Don't- Store melon in your fridge. It can be chilled for short periods as long as it is wrapped to prevent it flavouring other food. Don't- Cover the shelves with any protective materials which may obstruct air circulation. Don't- Store poisonous or any dangerous substances in your appliance. It has been designed for the storage of edible foodstuffs only.

Don't- Consume food which has been refrigerated for an excessive length of time. Don't- Store cooked and fresh food together in the same container. They should be packaged and stored separately. Don't- Let defrosting food or food juices drip onto food. Don't- Leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation. Don't- Use sharp edged objects such as knives or forks to remove the ice. Don't- Put hot food into the appliance. Let it cool down first. Don't- Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer, as they may burst. Don't- Exceed the maximum freezing loads when freezing fresh food. Don't- Give children ice-cream and water ices direct from the freezer. The low temperature may cause 'freezer burns' on lips. Don't- Freeze fizzy drinks. Don't- Try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and refrozen. Don't- Remove items from the freezer with wet hands.

Energy Consumption

Maximum frozen food storage volume is achieved without using the upper shelf cover provided in the freezer compartment. Energy consumption of your appliance is declared while the freezer compartment is fully loaded without the use of the upper shelf cover.

Practical advice concerning the reduction of electricity consumption.

1. Make sure that the appliance is located in well-ventilated areas, far from any source of heat (cooker, radiator, etc.). At the same time, the location of the appliance must be done in such a way that it prevents it from being under the direct incidence of sunbeams.
2. Make sure that the food purchased in refrigerated/frozen condition is placed into the appliance as soon as possible, especially during summertime. It is recommended to use thermal insulated bags to transport the food home.
3. We recommend that the thawing of packets taken out from the freezer compartment be done in the refrigerator compartment. For this purpose, the packet which is going to be thawed will be placed in a vessel so that the water resulting from the thawing does not leak in the refrigerator compartment. We recommend you to start the thawing at least 24 hours before the use of the frozen food.
4. We recommend reducing the number of door openings to the minimum.
5. Do not keep the door of the appliance open more than necessary and make sure that after each opening the door is well closed.

Information concerning the noise and vibrations which might appear during the operation of the appliance.

1. The operation noise can increase during the operation.
2. In order to keep the temperatures at the adjusted temperatures, the compressor of the appliance starts periodically. The noise produced by the compressor becomes stronger when it starts and a click can be heard when it stops.
3. The performance and operation features of the appliance can change according to the modifications of the temperature of the ambient environment. They must be considered as normal.
4. Noises like liquids flowing or being sprayed.
5. These noises are caused by the flow of the refrigerant in the circuit of the appliance and comply with the operation principle of the appliance.
6. Noise similar to wind blowing.
7. It is generated by the fan(s) with which your appliance is endowed. These fans help to the efficient cooling of the appliance. This noise is normal, not a defect.
8. Other vibrations and noises.
9. The level of noise and vibrations can be caused by the type and the aspect of the floor on which the appliance is placed. Make sure that the floor does not have significant level distortions or if it can yield to the weight of the appliance (it is flexible).
10. Another source of noise and vibrations is represented by the objects placed on the appliance. These objects must be removed from the appliance.
11. The bottles and the vessels placed in the refrigerator touching each other. In such cases move the bottles and the vessels so that there is a small distance between them.

Troubleshooting

If the appliance does not operate when switched on, check:

• That the plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance.)
• Whether the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
• That the temperature control has been set correctly.
• That the new plug is wired correctly, if you have changed the fitted, moulded plug.

If the appliance is still not operating at all after above checks, contact the dealer from whom you purchased the unit.

Please ensure that the above checks have been done, as a charge will be made if no fault is found.

The symbol

on the product or on

packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Warning - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning - Do not damage the refrigerant circuit.

Warning - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning - In case of damage, contact the manufacturer, its service agent or a similarly qualified person to avoid a hazard.

Transport instructions

1. Transport the appliance only in a vertical position. Do not lay the packaging on its side during transport. 2. If during transport the refrigerator was in a horizontal position, do not use it for at least 4 hours to allow the system to settle.
2. Failure to follow the above instructions may lead to damage to the appliance, for which the manufacturer is not responsible.
3. The appliance must be protected from rain, moisture and other atmospheric influences.

Important!

Do not touch the appliance with wet or damp hands, and do not touch the cooling tubes on the back surface of the refrigerator, as this can cause injury to fingers or hands. Do not sit or stand on the refrigerator, as it is not designed for that. You may injure yourself or damage the appliance. -Make sure that when moving the appliance or after this, the power cord is not pinched under the refrigerator, as it may damage the cable. Do not allow children to play with the appliance or touch the control elements.

Installation instructions

1. It is not allowed to install the appliance in a room where the temperature can drop (at night or, especially, in winter) below -15 °C.
2. Do not place the refrigerator near heat sources such as radiators, or under direct sunlight, as this may cause it to operate with increased energy consumption. If you install it near a heat source or freezer, keep the following minimum distances from them:

From kitchen stoves - 30 mm, from radiators - 300 mm, from freezers - 25 mm

1. Ensure sufficient free space around the appliance for proper air circulation (item 2). -For air circulation, install spacers on the back wall of the refrigerator to ensure a gap between the appliance and the wall of the room (item 3).
2. The refrigerator must be installed on a level surface. By adjusting the front feet, you can adjust the position of the appliance. To install the appliance vertically, adjust the two front feet by turning them clockwise or counterclockwise until firm contact with the floor is achieved. Correct adjustment of the feet prevents vibration and noise (item 4). 5. For preparing the refrigerator for operation, see the section "Operation and Care".

Short description of the appliance (item 1)

1-Button for interior lighting 2-Ventilator for fresh products 3-Adjustable shelf 4-Lid of the container for fruits and vegetables 5-Drawer for fruits and vegetables 6-Drawer "Fresh zone" (zero temperature zone)/ bracket for tray 7-Drawer for freezing 8-Drawer for storing frozen products 9-Adjustable feet 10-Drawer for frozen products 11-Shelf for cans 12-Shelf for bottles 13-Ventilator for freezer compartment

The ventilator ensures air circulation in the compartment. It operates in parallel with the compressor. When the compressor is switched off, the ventilators are switched off as well.

Recommendations for placing products in the refrigerator

Recommendations for ensuring optimal storage and hygiene:

1. The cold compartment is intended for short-term storage of fresh products and beverages.
2. The freezer compartment has class **** and is intended for freezing and storing previously frozen products.

Always follow the storage recommendations indicated on the product packaging.

1. Dairy products should be stored in the refrigerator specifically designed for this purpose.
2. Dairy products should be stored in airtight containers.
3. Fresh products in the refrigerator may be stored on the shelves. Fresh fruits and vegetables should be stored in the compartments designated for them.
4. Plates can be stored in the refrigerator. 7. For storing raw meat, wrap it in suitable packaging and place it on the bottom shelf. Do not allow contact between meat and prepared food products to avoid contamination. For safety, store raw meat for no more than two to three days.

8. To ensure maximum efficiency and proper cold air circulation, do not cover the shelves with paper or other material. 9. Do not store vegetable oil on the refrigerator shelves. Store it sealed, closed, or covered. Butter and cheese should be kept in the refrigerator before use. Canned goods that cannot be stored in cans should be transferred to other containers. 10. Carbonated drinks should not be frozen, and products such as carbonated juices cannot be consumed if they are too cold. 11. Some fruits and vegetables are damaged if stored at temperatures close to 0°C. Therefore, it is necessary to wrap bananas, pineapples, cucumbers, tomatoes, and similar products in suitable packaging. 12. Strong alcoholic drinks should be stored in an upright position, in a tightly closed container. Never store in the refrigerator containers that contain easily flammable gases (for example, aerosols in spray cans, aerosol cans, etc.), as they may explode. They are explosive and dangerous. 13. To freeze fresh meat, wrap it in foil or plastic wrap, then place it in a suitable container. 14. To store food in the refrigerator, it must be placed in suitable containers or wrapped in foil or plastic wrap. If you want to store food, you need to place it in suitable containers (see point 12), and if you want to freeze it, place it in the freezer (see point 13 (a-c)).

If the compartment is not assembled, the compartment (point 1.6) will work as a "biofresh" compartment.

Also pay attention to the following:

5. You may hear that the compressor does not work. Refrigerant gases, hermetically sealed in the cooling system, may also create some noise, regardless of whether the compressor is working. This is completely normal. 6. Slight unevenness of the surface of the shelves, which is a result of manufacturing, is completely normal; this is not a defect.

1. We recommend setting the temperature control knob to the middle position and monitoring the temperature to ensure the required storage temperatures (see section "Temperature Control and Regulation").
2. Do not overload the refrigerator immediately after switching it on. Wait until the required storage temperature is reached. We recommend checking the temperature with an accurate thermometer (see section "Temperature Control and Regulation").

Storage of frozen products

The freezer compartment is intended for long-term storage of products that are frozen, as well as for freezing and storing fresh products.

If the power goes out, do not open the door. Power outages of 19 hours or less will not affect frozen products. If the power outage is prolonged, check the products and either use them immediately or refreeze them.

Freezing fresh products

For best results, follow the instructions below. Do not freeze too many products at once. The quality of products is best preserved if they freeze quickly. Do not exceed the maximum freezing capacity of the freezer.

Placing warm products in the freezer causes the refrigeration unit to run continuously until they are completely frozen. This may lead to temporary overcooling of the refrigerator compartment. To freeze products at maximum capacity, set the thermostat knob to the maximum position "24h" before placing products in the compartment. After freezing, the knob can be returned to its original position. Products in small quantities (up to 0.5 kg) can be frozen without adjusting the thermostat knob.

Pay special attention to the fact that you cannot mix already frozen and fresh products.

Do not use sharp objects to remove ice, such as knives or scrapers.

Never use heaters, electric heaters, or electric fans during defrosting.

Keep the drain tray dry, as water may accumulate on the lower part of the freezer compartment. After defrosting, carefully wipe the interior dry (item 7.8). Insert the plug into the socket and turn on the appliance.

Warning!

The fans in the freezer compartment and in the compartment for storing fresh products ensure proper cold air circulation. Never insert foreign objects into the fan grille. Do not allow children to play with the fans in the freezer compartment or in the compartment for storing fresh products.

Never store containers in the refrigerator that contain flammable gases (e.g., aerosols, spray cans) or explosive substances.

Do not use any cleaning agents that could damage the cold air circulation.

Do not allow children to play with the appliance or touch the control elements.

Do not block the fan grille to ensure proper air circulation and efficient operation of the refrigerator. (Items 9 and 10)

Warning!

The appliance must be ventilated properly. Make sure the ventilation openings are not blocked or covered by products or packaging. Blocking or covering the ventilation openings can lead to an increase in temperature of the freezer compartment (up to defrosting).

Replacing the interior lighting lamp

To replace the refrigerator lighting lamp, contact an authorized service center.

The lamp(s) in this appliance is/are not intended for room lighting. The intended use of this lamp is to illuminate the placement of products in the refrigerator/freezer in a safe and convenient way.

The lamp used in your appliance must meet strict operating conditions, such as temperatures below -20°C.

Cleaning and maintenance

1. We recommend that before starting cleaning, unplug the appliance and pull the plug out of the socket.
2. Do not use sharp instruments, abrasive agents, household cleaning agents, or solvents for cleaning.
3. Wipe the refrigerator cabinet with water and dry it.
4. For cleaning the interior of the refrigerator, use a cloth soaked in a solution consisting of a teaspoon of baking soda and a liter of water, then wipe dry.
5. Avoid spilling water on the temperature control block.

6. If the appliance is not going to be used for a long time, turn it off, empty it of products, clean it, and leave the door ajar.

1. We recommend cleaning the metal parts of the refrigerator (i.e., the outer panel, door, side panels) with silicone grease (to preserve the shine), to protect the high-quality painted coating.
2. Dust that collects on the condenser at the back of the refrigerator should be removed 2 times a year with a vacuum cleaner.
3. Check the door seals regularly to ensure they are clean and free of damage.
4. Never in any case:
5. Do not clean the refrigerator with unsuitable materials, for example, products based on petroleum.
6. Do not pour water into the refrigerator while it is operating at low temperature.
7. Do not use or wipe with abrasive materials.
8. Removing the shelves for dairy products and the tray in the doors: -To remove the dairy shelf, first lift the shelf slightly and then pull it out from the side until the shelf opens. -The door tray can be removed from the products and simply washed from below with detergent.
9. To ensure the cleanliness of the special plastic container, it is recommended to clean it before first use. If you want to remove the container, follow these instructions: disconnect the power supply and unplug the power cord.
10. Carefully remove the bolt from the compressor using a wrench so that the container can be removed. - Lift it.
11. Wash and dry thoroughly.
12. Assemble the parts in reverse order.
13. To pull out the drawer, pull it as far as possible, tilt it and pull it out completely.

Dispose of the packaging (item 14).

Do's and Don'ts

Do: Regularly clean the refrigerator. Do: Store meat and fish in airtight containers. Do: Store vegetables and fruits in the crisper drawer. Do: Wrap cabbage, cauliflower, and broccoli in plastic wrap. Do: Wrap food first in plastic wrap and then in aluminum foil to prevent air access. It is best to take products out of the refrigerator an hour before eating. Do: Wrap meat and fish tightly in aluminum foil or plastic wrap. This prevents drying out. Do: Wrap fish and offal in plastic bags. Do: Wrap products with a strong smell or those that may dry out in plastic bags, aluminum foil, or place them in airtight containers. Do: Wrap herbs to keep them fresh. Do: Before using, cool down wine, beer, lager, and mineral water. Do: Periodically check the contents of the freezer. Do: Store products for a shorter time and follow the 'best before' dates and 'use by' terms on labels. Do: Store products that are sold frozen according to the instructions on the packaging. Do: Choose high-quality fresh products and wash them before freezing. Do: Divide fresh products into small portions for quick freezing. Do: Wrap all products in aluminum foil or thick plastic bags for the freezer and make sure they are airtight. Do: Do not wrap products that are already frozen, and as soon as possible place them in the freezer.

Don't: Store bananas in the refrigerator.

Don't: Store eggs in the refrigerator. You can cool them for a short time in a closed container so they don't absorb odors from other products.

Don't: Cover the shelves with any materials that could block air circulation.

Don't: Store poisonous or any unsafe substances in the refrigerator. It is intended for storing food products only.

Don't: Use food that has been stored in the refrigerator for too long.

Don't: Store cooked and fresh products together in the same container. They should be wrapped and stored separately.

Do not allow the edges to come into contact with frozen products or juice, as they may stick to other products.

Do not leave the freezer door open for a long time, as this will cause inefficient operation of the refrigerator and contribute to excessive ice formation.

Do not use sharp objects such as knives or screwdrivers to remove ice.

Do not place hot products in the refrigerator. First, let them cool down.

Do not place open or unsealed containers with carbonated drinks in the freezer, as they may burst.

Do not exceed the maximum load capacity of the freezer during freezing of fresh products.

Do not give children ice and water directly from the refrigerator. Low temperature can cause frostbite.

Do not freeze carbonated drinks.

Do not attempt to refreeze thawed frozen products. They should be consumed within 24 hours or cooked and refrozen.

Do not remove products from the freezer with wet hands.
