USER MANUAL CEH90ST CONTINENTAL EDISON

Installation (Mode extraction)

Si le mur comporte une ouverture donnant sur l’extérieur, votre hotte peut être raccordée comme indiqué sur le schéma ci-dessous au moyen d'une gaine d’extraction (non-fournie) ou de n’importe quel conduit d’extraction approprié, par exemple une gaine flexible en aluminium ou constituée d’un autre matériau ininflammable dont le diamètre intérieur est inférieur à 150mm.

Installation de la hotte

Recommandations murale

Find some informations

Read this guide carefully before installing and using this product and keep it for future reference. Thank you for choosing Oceanic. This Use and Maintenance Guide is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance. In order to operate the unit properly and securely, read this user guidecarefully before installing and using the product. Contents Find some informations27 Important safety instructions 28 Lamp 34 Product Description 35 Description of the pieces36 Installing the hood37 Preparation before installation37 Installation (Mode extraction)37 Recommendations for mounting 38 Installation 39 Carbon filter installation44 Cleaning45 Control Panel Functions46 Help 47 Technical informations 48 Further information50

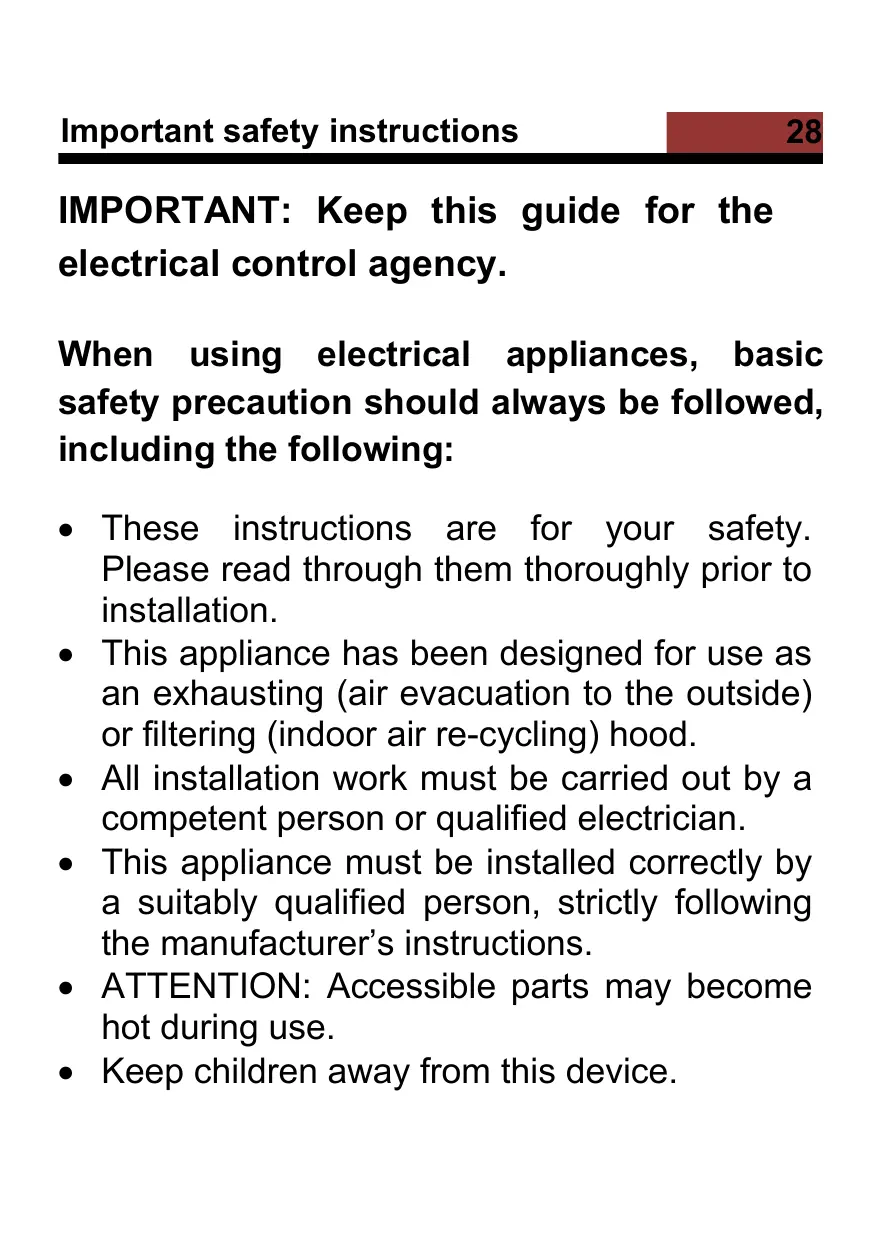

Important safety instructions

IMPORTANT: Keep this guide for the electrical control agency. When using electrical appliances, basic safety precaution should always be followed, including the following:  These instructions are for your safety. Please read through them thoroughly prior to installation.  This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.  All installation work must be carried out by a competent person or qualified electrician.  This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.  ATTENTION: Accessible parts may become hot during use.  Keep children away from this device.

Important safety instructions

 The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.  Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by themanufacturer, its service agent or similarly qualified persons in order to avoid a hazard.  Do not allow the electric cables to touch the hot parts of the appliance.

Important safety instructions

 Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.  Do not use flammable sprays in close vicinity to the appliance.  Please dispose of the packing material carefully.  We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.  A steam cleaner is not to be used.  The appliance is not intended to be operated by means of external timeror separated remote-control system.

Important safety instructions

 Warning: When using for extraction, refer to the national regulations for building ventilation systems. Do not connect the exhaust pipe to a VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the room when there are gas appliances (water heater, gas stove, ...). If in doubt, use the hood in recycling mode.  Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.  Air must not be discharged intoa flue that is used for exhaustingfumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.

Important safety instructions

 Warning: The hood may stop working during an electrostatic discharge (e.g.lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.  To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.  Do not flame under the range hood.  Do not use the hood if it shows signs of damage or imperfection. Contact customer services.  When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed: Gas hobs: 800mm Electric hobs: 700mm

Important safety instructions

 Warning:There is a risk of electric shock and fireif cleaning is not carried out in accordance with the instructions.  Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.  Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.  Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate. Electrical Shock Hazard Failure to follow these instructions can result in death, fire, or electric shock.

The available lamps and the correspondenceILCOS D codes and lamp pictures:Use type lamp (or use in alternative type lamp)DSR-1.5-S-68 (ILCOS D code in according to standardIEC 61231). – Non-replaceable LED lamp – Max wattage: 1.5 W – Voltage range: 12V – Dimensions:

Description of the pieces Index

Lower chimney (500mm)

Lower chimney bracket

Preparation before installation Carefully remove the carton. Wear gloves to protect your hands from sharp edges. Remove the protective film from the product before putting it into service.

Installation (Mode extraction) If the wall has an opening to the outside, your hood may be connected as shown in the diagram below using the suitable exhaust pipe (not supplied), such as ductwork, flexible aluminum or other nonflammable material with an inside diameter of less than 150mm.

Recommendations for wall mounting Do not make any changes to the unit or its mounting bracket on the wall! Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging, humidity, ...). Do not drill a hole near old holes, even plugged It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual. Do not modify the holes for securing the unit or its mounting bracket to the wall. Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust. Regularly check the mounting points of the device on the wall. Tighten them if necessary.

INSTALLATION  Before installing, make sure the unit is not plugged into an electrical outlet.  The hood must be placed at least 70 cm above the hob.

 Drill 3 holes (Φ8mm to adapt your wall plugs) to place the bracket. Screw and tighten the bracket to the wall with the screws 3 Screws (ST4x30mm) and 3 wall plugs (not supplied).

 Place the range hood and hook it by using the two notches on the wall bracket.

 Secure the body with safety screws. Two screws with a diameter of Φ 4 mm and two suitable wall plugs.

 (If the extraction installation mode is chosen) Place the Ø150-Ø153mm plastic pipe (not supplied) on the air outlet as shown below. If the size of your plastic pipe is Ø120 - Ø123mm (not supplied), you must firstly assemble the adapter to the air outlet, as shown below.

Screw the lower chimney bracket on the lower chimney.

 Install the lower chimney on the appliance, and mark the holes position on the wall.  Remove the lower chimney, then drill holes in the wall: hole with diameter Φ4 mm screw.

 Install the lower chimney on appliance again, then screw it to the wall with 2 screws of diameter Φ 4 mm and the corresponding wall plugs (not supplied).

 Fix the upper chimney bracket on the upper chimney by 2 screws of diameter Φ 8 mm.  Pull the upper chimney upwards to the target height and mark the holes on the wall.

 Release the upper chimney and then drill holes on the wall.  Pull out the upper chimney again, then fix it to the wall with 2 screws ST4x30mm.

Carbon filter installation Recycling Mode: If you do not have an outlet to the outside, plastic pipe is not required and the installation is similar to above. And you need to assemble the carbon filters which are used to trap odors. Place the carbon filter into the unit and turn it clockwise. Repeat the same on the other side. Close

NOTE:  Make sure the filter is securely locked. Otherwise, it can fall and cause danger.  When charcoal filters are used, the suction power is decreased.  The carbon filter must be replaced at least once a year depending on how frequent the cooker hood used.

Regarding the instructions for the cleaning and maintenance of the appliance, please refer to below paragraphs of this manual. Attention! Before cleaning switch the unit off and pull out the plug.  Regular Cleaning Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.  Monthly Cleaning for Grease Filter ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Control Panel Functions

On/Off key It’s used for turning on/off the fan. Speed plus key For increasing the speed of the fan Speed decrease key For decreasing the speed of the fan. Light key Digital display Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed,"4"for Booster Quick timer: Press & simultaneously for 1 second. The digital display flashes & the countdown starts for 5 minutes. After 5 minutes, the motor & light will turn off automatic & Buzzer sound for 1 second.

Help Fault Light on, but fandoes not work Fan do not work Serious Vibrationof the unit

Cause The fan bladeis jammed. The motor isdamaged. light burn Power cordlooses. The fan bladeis jammed. The fan motoris not fixedtightly.

Solution Switch of the unit and repairby qualified service personnelonly. Replace the lamp with correct rating. Plug in to the power supplyagain Switch of the unit and repair by qualified service personnel only. Switch of the unit and repair by qualified service personnel only. Take down the unit and check whether the bracket is in proper location.

The unit is nothung properlyon the bracket. The filter is dirty Clean the filter

ELECTRICAL CONNECTION DIAGRAM Technical informations

Symbol Model identification Annual Energy Consumption Energy Efficiency class Time increase factor Fluid Dynamic Efficiency Fluid Dynamic Efficiency class Energy Efficiency Index Measured air flow rate at best efficiency point Measured air pressure at best efficiency point Maximum air flow(Boost setting) Maximum air flow(highest setting) Air flow at working point(highest setting) Air flow at working point(lowest setting) Measured electric power input at best efficiency point Nominal power of the lighting system

Technical informations Average illumination of the lighting system on the cooking surface Lighting Efficiency Lighting efficiency class Grease Filtering Efficiency Grease Filtering Efficiency class Measured power consumption off mode Sound power level

72,5(for with two filters) 71,1(for with three filters)

W LWA Boost setting:66 Highest setting:62 Lowest setting:56

dB The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014

CONTINENTALEDISON 120-126 quai de Bacalan CS11584 33000 Bordeaux Importé par A.M.C. 123 quai Jules Guesde 94400 Vitry sur Seine

Further information Note : The following recommendations specify how to reduce the overall environmental impact of the cooking process. (1) Install the range hood in a suitable location with good ventilation. (2) Clean the cooker hood regularly so that nothing blocks the air. (3) Do not forget to turn off the hood lamp once cooking is complete. (4) Do not forget to turn off the range hood once cooking is complete. Disassembly Information Do not disassemble the unit in a manner that is not indicated in the operating instructions. This device must not be disassembled by the user. At the end of its life cycle, the appliance must not be disposed of with household waste. For recycling tips, please contact your local administration or dealer. ENVIRONMENTAL PROTECTION Electrical and electronic equipment is subject to selective collection. Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection. It is for this reason that your appliance, as indicated by the symbol on its nameplate or on the packaging, must never be thrown in a public or private bin intended for household waste. The user has the right to deposit the device in public collection places that selectively dispose of the waste to be recycled or reused for other applications. The packaging is recyclable..
