USER MANUAL HDI9750TCLCD CONTINENTAL EDISON

Installation (Mode extraction)

Find some informations

Read this guide carefully before installing and using this product and keep it for future reference. Read this guide and keep it Thank you for choosing Continental Edison. This Use and Maintenance Guide is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance. In order to operate the unit properly and securely, read this user guide carefully before installing and using the product. Contents

Find some informations 30 Important safety instructions31 Lamp 37 Product description 38 Description of the pieces39 Installing the hood40 Preparation before installation 40 Installation (Mode extraction)40 Installation (Mode recyclage)42 Fixing the hood to the wall 42 Cleaning 50 Touch control51 Help54 Technical informations 55 Further information56

Important safety instructions

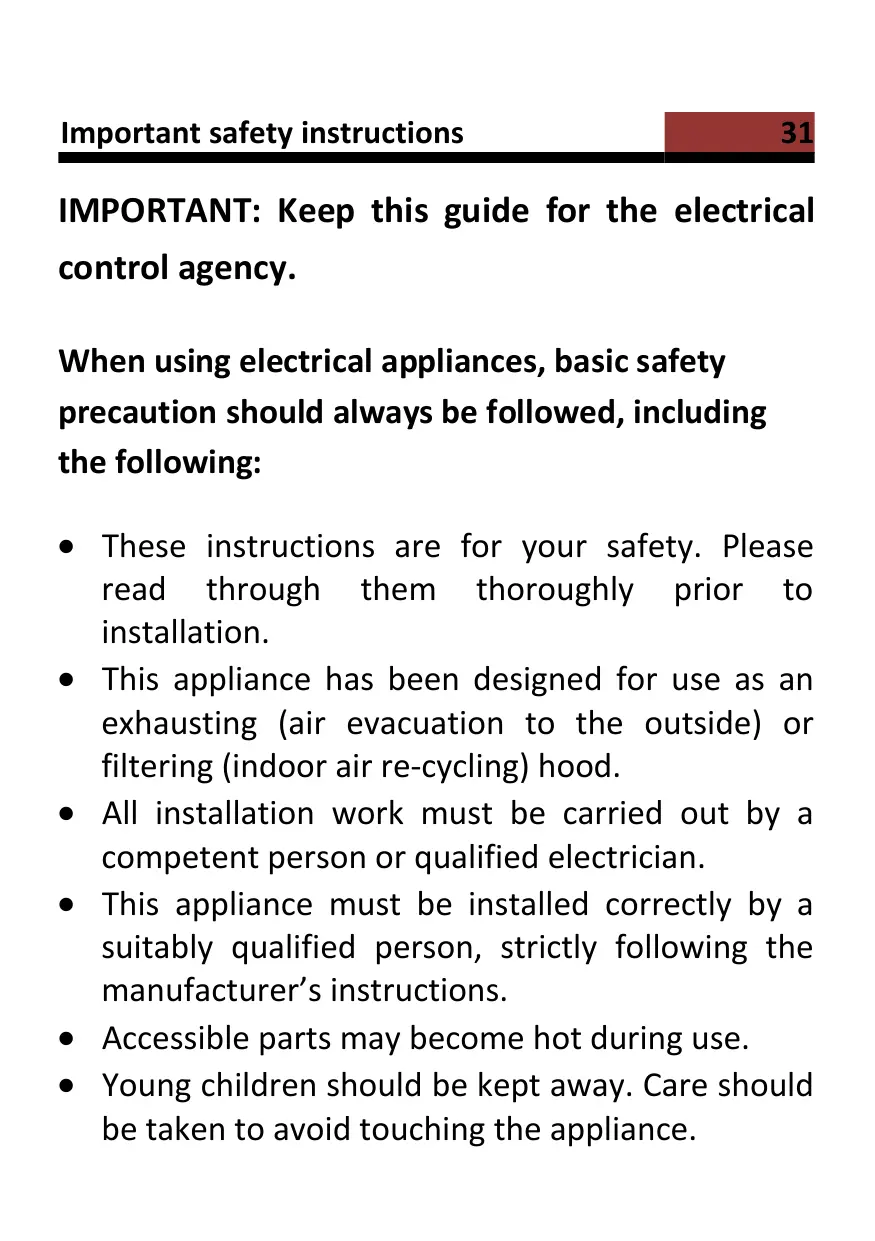

IMPORTANT: Keep this guide for the electrical control agency. When using electrical appliances, basic safety precaution should always be followed, including the following:

 These instructions are for your safety. Please     

read through them thoroughly prior to installation. This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood. All installation work must be carried out by a competent person or qualified electrician. This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. Accessible parts may become hot during use. Young children should be kept away. Care should be taken to avoid touching the appliance.

Important safety instructions

 The Manufacturer highly recommends that this

appliance be kept out of the reach of babies and small children.  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.  Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Important safety instructions

 Do not allow the electric cables to touch the hot     

parts of the appliance. Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable. Do not use flammable sprays in close vicinity to the appliance. Please dispose of the packing material carefully. We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section. A steam cleaner is not to be used.

Important safety instructions

 Warning: When used for extraction, refer to the

national regulations for building ventilation systems. Do not connect the exhaust pipe to a VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disruption with the ventilation of the room when there are gas appliances (water heater, gas cooker, ...). If in doubt, use the hood in recycling mode.  Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.  The air must not be vented through a duct that is used to vent flue gases from appliances burning gas or other fuels. The rules regarding the evacuation of the air must be respected.

Important safety instructions

 Warning: The hood may stop working during an

electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.  To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.  Do not use the hood if it shows signs of damage or imperfection. Contact customer services.  Do not flame under the range hood.

 When installing the appliance, make sure that the

following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed: Gas hobs: 800mm. Electric hobs: 700mm.

Important safety instructions

 Warning: Before connecting the hood: switch

off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.  Warning: There is a risk of electric shock and fire if cleaning is not carried out in accordance with the instructions.  Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.  Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. Electrical Shock Hazard Only plug this unit into a properly earthed outlet.If in doubt seek advice from a suitably qualified engineer.

The available lamps and the correspondence ILCOS D codes and lamp pictures: Use type lamp (or use in alternative type lamp) DSS-1.5-S-120 (ILCOS D code in according to standard IEC 61231). – Non-replaceable LED lamp – Max wattage: 1.5 W – Voltage range: 12V – Dimensions:

Description of the pieces

Lower chimney (500mm)

Lower chimney bracket

Preparation before installation Carefully remove the carton. Wear gloves to protect your hands from sharp edges. Remove the protective film from the product before putting it into service.

Installation (Mode extraction)

If the wall has an opening to the outside, your hood may be connected as shown in the diagram below using the extraction duct provided or any suitable extraction conduit, for example a flexible aluminum sheath or constituted another non-flammable material with an inside diameter of less than 150mm.

Installing the hood Duct Installation :  Determine the exact installation position of the hood.  Plan the path of the air exhaust duct outward.  Make sure that the duct path is as short and straight as possible. To allow optimal use, the duct must not exceed 2.50m long in total.  The duct must lead directly to the outside, and must not lead to attic, a house, a garage or in an enclosed space.  Duct accessories (elbows,fittings and adapters) would reduce the flow of air.  Bent elbows and S-shaped profiles do not provide efficient air extraction,they are not recommended for using.

Installation (Mode recyclage) If you do not have an exit to the outside,the exhaust pipe is not required, and the installation procedures are the same as those described in the "Installation (Extraction Mode)" section.

Fixing the hood to the wall Before installing, make sure the unit is not plugged into an electrical outlet.

The hood should be placed at least 70cm above the cook top.

Recommendations for wall mounting Do not make any changes to the unit or its mounting bracket on the wall! Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging, humidity, ...). Do not drill a hole near old holes, even plugged It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual. Do not modify the holes for securing the unit or its mounting bracket to the wall. Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust. Regularly check the mounting points of the device on the wall. Tighten them if necessary.

Position the hood at the desired height respecting the minimum height above the hob. Mark the location of the wall bracket.(placed the holes between 700 and 800 mm above the worktop) Remove the hood and position the wall bracket to mark the locations of the holes on the wall. Drill the 3 holes in the wall to insert the appropriate fastening system (screw ST4x30mm).

Hang the hood in the notches of the wall bracket.

Once the hood is in place, locate the location of the 4 additional wall mount screws as shown in the following diagram. Remove the hood to puncture the wall and install wall plugs. Secure the body of the hood with 4 screws of 4 mm in diameter using dowels adapted to your wall.

If the extraction mode is selected, place the exhaust air duct on the air outlet as shown.

Attach the lower chimney support to the lower chimney as shown.

Install the lower chimney on the appliance, and mark the holes position on the wall. Remove the lower chimney, then drill holes in the wall: hole with diameter Φ4 mm screw.

Install the lower chimney on appliance again, then screw it to the wall with 2 screws of diameter Φ 4 mm and the corresponding wall plugs (not supplied). Fix the upper chimney bracket on the upper chimney by 2 screws of diameter Φ 8 mm. Pull the upper chimney upwards to the target height and mark the holes on the wall.

Release the upper chimney and then drill holes on the wall. Pull out the upper chimney again, then fix it to the wall with 2 screws ST4x30mm.

Position the activated charcoal filter in the block and turn it clockwise. Do the same on the other side. NOTE: Make sure the filter is properly engaged. Otherwise, it could fall, which is dangerous. When the activated charcoal filter is switched on, the suction force drops. Make sure the filters are properly engaged to prevent it from falling and may cause damage. The carbon filters must be replaced at least once a year, or more often if used intensively.

Attention! Before cleaning switch the unit off and pull out the plug. In standby mode, press for 3 seconds to open the window without turning on the suction or light. To close the window, press for 3 seconds.

Regular Cleaning Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Grease Filter ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Remote control Noted: 1.Before using the remote control, please Remove the battery film!3V CR2032 battery included. 2.Please abandon old batteries at battery collection points

STANDBY MODE After plug in, only

flashing slowly, system in STANDBY MODE.

“ON/OFF” Button: In STANDBY MODE press the window will open. The buttons and the display panel will light. The hood is ready to operate. By default, the hood is set to the minimum suction, lighting off. This is also valid when using the remote control. When you turn the hood back on after first use, it will operate with the same settings previously used. When the hood is in operation, when you press once, the suction will be stopped and the lighting will remain active. If you press and hold for 3 seconds, the hood will be in standby mode: suction, lights off and the window will close.

“FAN SPEED” Button: Button to change the speed of the motor. 1 active support the low suction, a second medium suction and a third the maximum suction. If you press again, suction returns to the down position. “Light” button For lighting On & Off CLOCK SETTING In STANDBY MODE, press + & hold for1 second, the “88:88” flashing & enter the CLOCK SETTING MODE. In this state: pressing

for changing selecting hour or minute

TIMER SETTING When motor is working, press + & hold for1 second, display flashing shows “00:00”, enter the TIMER SETTING MODE. In this state: Pressing

for increase 15 minutes

for decrease 1 minutes

for increase 1minute.

If press + key or without no any operation in CLOCK SETTING MODE for 10 seconds, will save automatically start to count down, display shows the left time. When time up, both motor & light will turn off automatically & come back to STANDBY MODE(but the windows will not closed) LCD display

1. Motor symbol, will rotate when the motor is working 2. Time display 3. Light 4. Cleaning symbol, appear when total working time up to 14 hours or at the first time using after plugging on the appliance. 5. Motor speed

Help Fault Light on, but fan does not work

Cause The fan blade is jammed. The motor is damaged. light burn

Serious Vibration of the unit

Power cord looses. The fan blade is jammed.

The fan motor is not fixed tightly. The unit is not hung properly on the bracket. The filter is dirty

ELECTRICAL CONNECTION DIAGRAM Solution Switch of the unit and repair by qualified service personnel only. Replace the lamp with correct rating. Plug in to the power supply again Switch of the unit and repair by qualified service personnel only. Switch of the unit and repair by qualified service personnel only. Take down the unit and check whether the bracket is in proper location. Clean the filter

Technical informations Model identification Annual Energy Consumption Energy Efficiency class Time increase factor Fluid Dynamic Efficiency Fluid Dynamic Efficiency class Energy Efficiency Index Measured air flow rate at best efficiency point Measured air pressure at best efficiency point Maximum airflow Measured electric power input at best efficiency point Nominal power of thelighting system Average illumination of the lighting system on thecooking surface Lighting Efficiency Lighting efficiency class Grease Filtering Efficiency Grease Filtering Efficiency class Measured power consumption in standby mode Sound power level

55 Symbol AEChotte f FDEhotte EEIhotte

The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014

The following recommendations specify how to reduce the overall environmental impact of the cooking process. (1) Install the range hood in a suitable location with good ventilation. (2) Clean the cooker hood regularly so that nothing blocks the air. (3) Do not forget to turn off the hood lamp once cooking is complete. (4) Do not forget to turn off the range hood once cooking is complete.

Disassembly Information

Do not disassemble the unit in a manner that is not indicated in the operating instructions. This device must not be disassembled by the user. At the end of its life cycle, the appliance must not be disposed of with household waste. For recycling tips, please contact your local administration or dealer.

ENVIRONMENTAL PROTECTION Electrical and electronic equipment is subject to selective collection. Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection. It is for this reason that your appliance, as indicated by the symbol on its nameplate or on the packaging, must never be thrown in a public or private bin intended for household waste. The user has the right to deposit the device in public collection places that selectively dispose of the waste to be recycled or reused for other applications. The packaging is recyclable.
