USER MANUAL RHP67000/1LIN ROSIERES

RHP67000/1LIN, RHP67000/1LPN, RHP67000/1LRB, RHP97000/1LIN, RHP97000/1LRB, RHP97000/1LPN, HHP67000/1LX, HHP67000/1LW, HHP97000/1LX

Cooker Hood Hotte de cuisson Cappa Odsavač nad sporák Digestor

EN Instruction manual 2
FR Manuel d'instructions 15
Manuale di istruzioni 29
cz Navod k použití 43
sk Navod na použitie 57

CONTENT

1. Safety instructions 3
2. Installation 5
3. Start using your cooker hood 8
4. Troubleshooting 9
5. Maintenance and cleaning 10
6. Environment protection 14

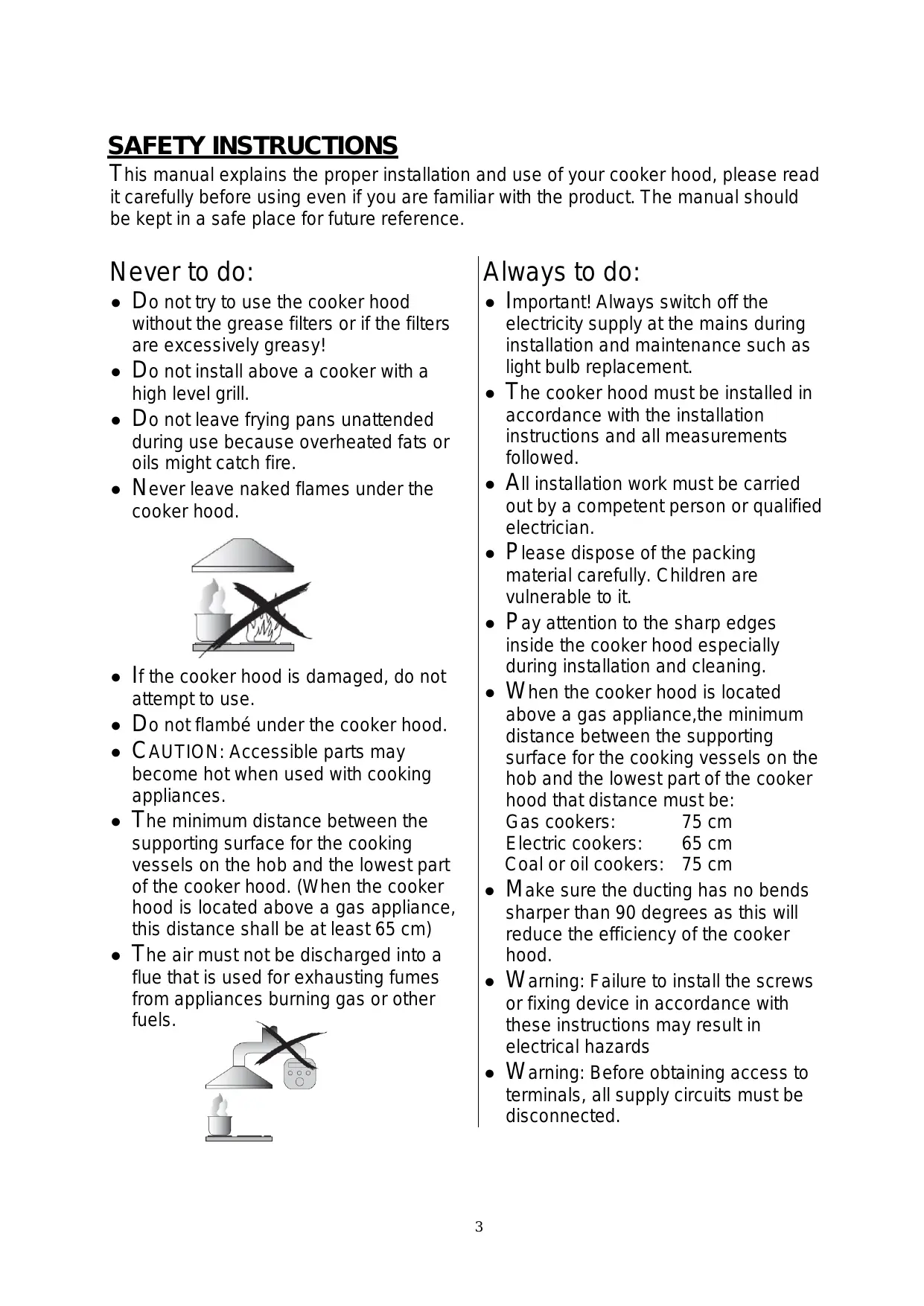

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
• Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
• Do not flambe under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65~cm )
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be:

Gas cookers: 75 cm

Electric cookers: 65 cm

Coal or oil cookers: 75 cm

• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
• Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

• Always put lids on pots and pans when cooking on a gas cooker.
• When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
• There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
• Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Always to do:

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
• There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
• There is a fire risk if cleaning is not carried out in accordance with the instructions
• Regulations concerning the discharge of air have to be fulfilled.
• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
• For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

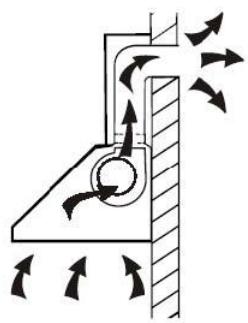

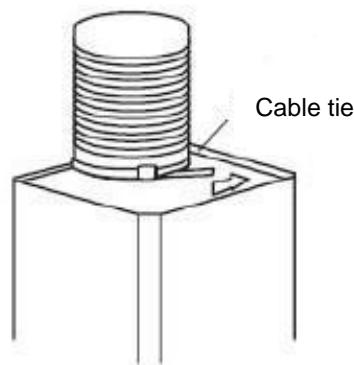

INSTALLATION (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150/120mm)

1. Before installation, turn the unit off and unplug it from the outlet.

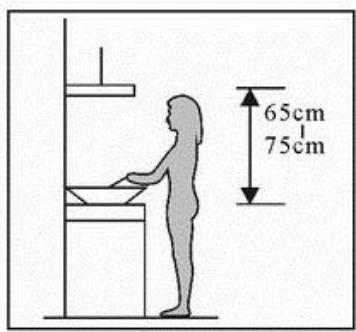

1. The cooker hood should be placed at a distance of 65 75cm above the cooking plane for best effect.

Pic1

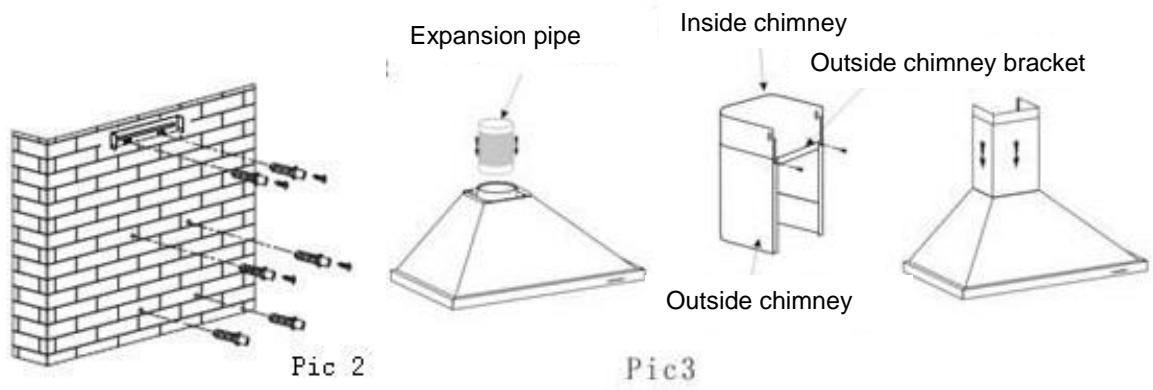

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.
2. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as fixing the expansion pipe. Afterwards, install the expansion pipe and chimney on the cooker hood. See Pic 3.

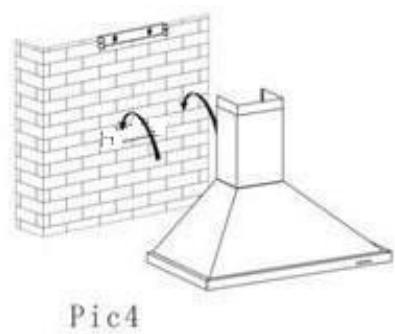

1. Put the cooker hood on the hook. See Pic 4.
2. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 5.

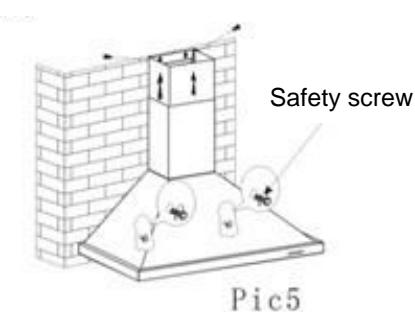

Note: The two safety vents are positioned on the back housing, with diameter of 6mm. Lay the expansion pipe to the wall outlet. Fix the expansion pipe with the cable tie (1) on the wall-outlet if it is aluminium foil pipe.

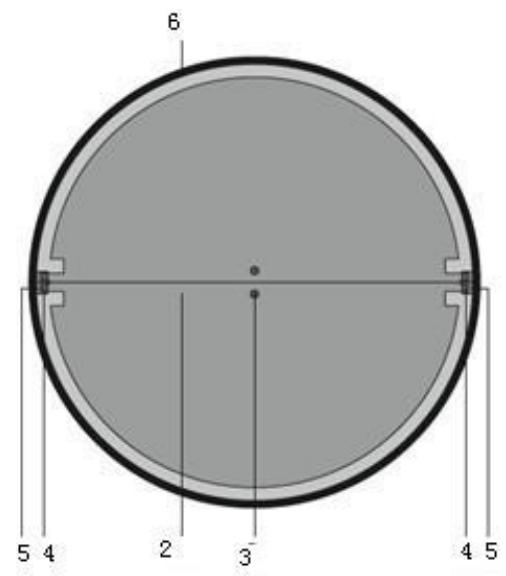

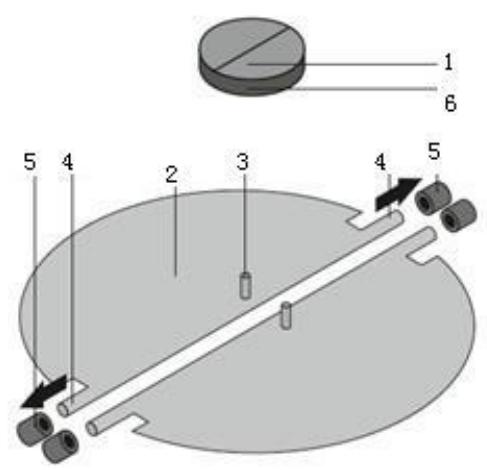

MOUNTING OF THE V-FLAP ( Optional )

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to the its body.

To mount the V-flap 1 you should:
- Mount two half-parts 2 into the body 6
- a pin 3 should be top oriented;
- the axis 4 should be inserted in the holes 5 on body;
- repeat all the operations for the 2nd half-part

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

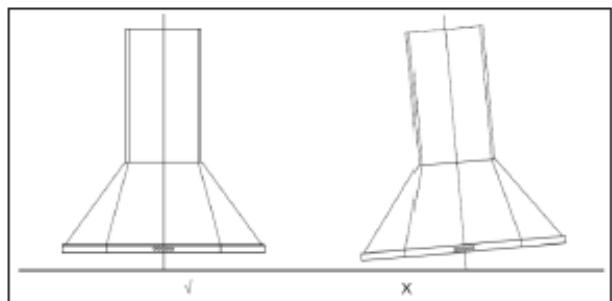

• After the installation, make sure that the cooker hood is level to avoid grease collection at on end.
• Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood LED touch control

LED touch control has five buttons, see pic.

(Decrease), (Increase), (Lamp), (Timer), (Power)

1. Power-on: After connecting the cooker hood to the main supply, the backlight of button will turn on. The backlight will turn off after 30s without any operation and the cooker hood will enter into stand-by mode.

2. (Power) button:
   2.1. Press (Power) button, the backlight of button will be on and the hood will work at the mid speed, and the light will be on. The backlight of the buttons (Decrease), (Increase), (Lamp), and (Power) will be on. Press (Power) button again, the backlight of button will be off and the cooker hood will be turn off and return into stand-by mode and operate by the circle.
   2.2. Those buttons of (Decrease), (Increase) and (Lamp) button could be operated without pressing the (Power) button. Press one of those buttons, the cooker hood will work according to the pressed function button. Press (Power) button, the cooker hood will be turn off without any functions.

3. (Lamp) button:

Press (Lamp) button, the backlight of button and the lights will be on. Press again, the lights will be off. The lights run circularly.

1. (Increase) button:

4.1 Press (Increase) button, the backlight of button will be on, the cooker hood starts to work at the low speed. the LED display will display “1”,
4.2 Press (Increase) button again when it is working on the low speed, the cooker hood works at the mid speed and the LED display will display “2”,
4.3 Press (Increase) button again when it is working on the mid speed, the cooker hood works at the high speed and the LED display will display "3",

4.4 Press (Increase) button again when it is working on the high speed, the cooker hood will still work at the high speed.

5. (Decrease) button

Press (Decrease) button, the cooker hood will decrease one speed, and the display will show the current working speed. When press (Decrease) button again when it is working on the low speed, the cooker hood will turn off and the backlight of the (Decrease) button will be off.

6. (Timer) button:

6.1 The (Timer) button works when the motor and light is on only. The timer setting is 5mins and could be repeat setting. When the time is up, the cooker hood will be turn off and the light will be off.
6.2 When the timer is set, if adjusting the speeds, the timer will re-calculate the working time.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet. Switch power outlet on.
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws.Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures guarantee.

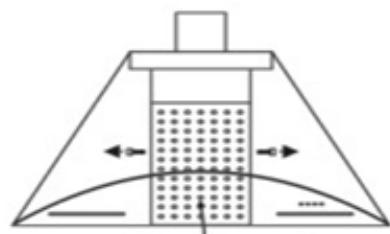

GREASE MESH FILTERS

The mesh filters can be cleaned either by hand or in the dishwasher. After cleaning ensure that the filters are completely dry before refitting.

• By hand: Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)
• In a dishwasher: Ensure that placement of the filters is made so as to not impede the function of the spray arm. Washing the filters in a dishwasher may cause discoloration of the aluminum inner mesh over time although it will not affect their performance.

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

Oil soot filter mesh

Oil soot filter mesh

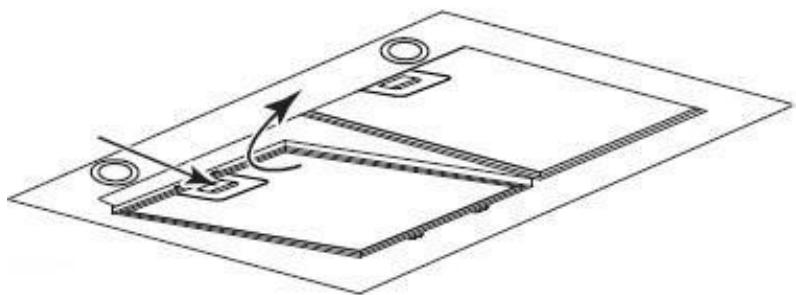

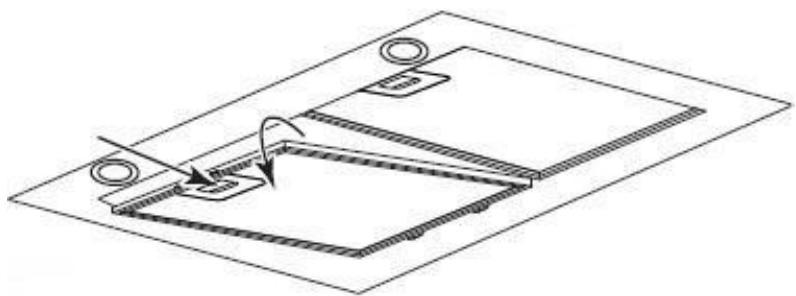

INSTALLING GREASE MESH FILTERS

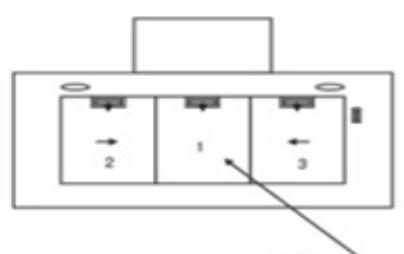

• To install filters for the following four steps (See pic below):
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

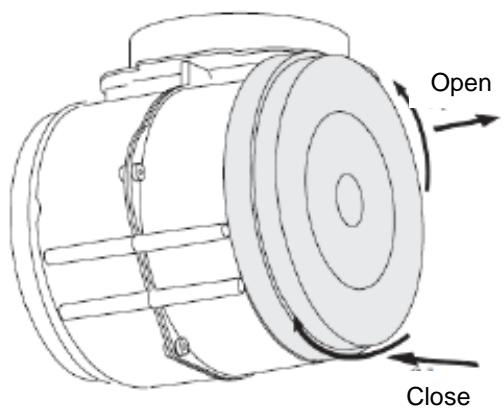

CARBON FILTER-buy separately

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

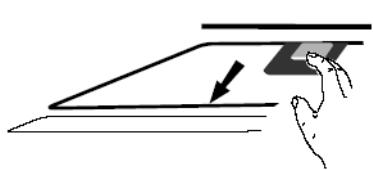

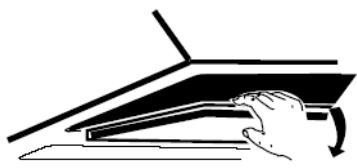

In order to install the activated carbon filter, the aluminium filter should be detached first. Firstly open carefully the stainless steel cover, then press the lock of aluminium filter and remove it.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

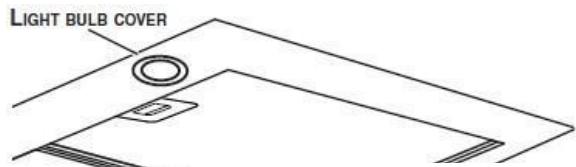

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.

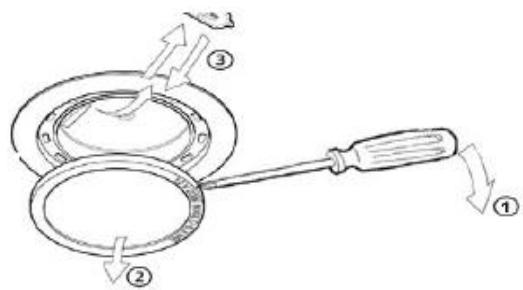

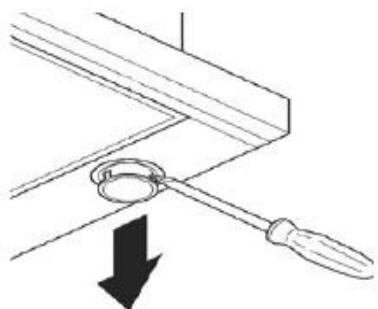

3. Take out the baffle filter and use the screw driver to take out the frame as the below pic showed
4. Replace with same type of bulb (LED 2W Max)

Note: Light replacement should carried out by qualified service personnel only.

• ILCOS D code for this lamp is: DBR-2/65-H-64
• LED modules -round lamp

• Max wattage: 2 W
  Voltage range: AC 220-240V

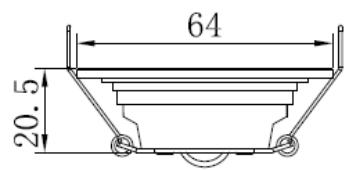

• Dimensions:

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.
