USER MANUAL KD49XH8096 SONY
This TV comes with the following manuals. Please retain the manuals for future reference.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.
Help Guide (On screen Manual)
- Settings, Android TV functions, Internet connection, troubleshooting, etc.
- To open it, press the HELP button on the remote control and select Help Guide.
- You can refer to the Help Guide with your smartphone.
https://rd1.sony.net/help/tv/haep1/h_aep/
IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] → [Device Preferences] → [About] → [Legal information] → [Notices and licences].
Note
- Before operating the TV, please read the "Safety Information".
- Read the supplied safety documentation for additional safety information.
- Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
- The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.
Location of the identification label
Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.
For models with supplied mains adaptor:
Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.
IMPORTANT NOTICE
Notice for Radio Equipment
Hereby, Sony Corporation declares that the radio equipment types KD-85XH8096, KE-85XH8096, KD-75XH8096, KE-75XH8096, KD-65XH8196, KD-65XH8096, KD-65XH8077, KE-65XH8196, KE-65XH8096, KE-65XH8077, KD-55XH8196, KD-55XH8096, KD-55XH8077, KE-55XH8196, KE-55XH8096, KE-55XH8077, KD-49XH8196, KD-49XH8096, KD-49XH8077, KD-43XH8196, KD-43XH8096, KD-43XH8077 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/
For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo : 5150 - 5350 MHz band is restricted to indoor operations only.
Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
- The TV set should be installed near an easily accessible mains socket.
- Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
- Install the TV where it cannot be pulled, pushed, or knocked over.
- Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.
Transporting
- Before transporting the TV set, disconnect all cables.
-
Two or more people (three or more people for KD-85XH80xx, KE-85XH80xx) are needed to transport a large TV set.
-

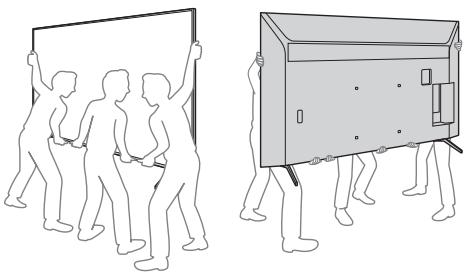

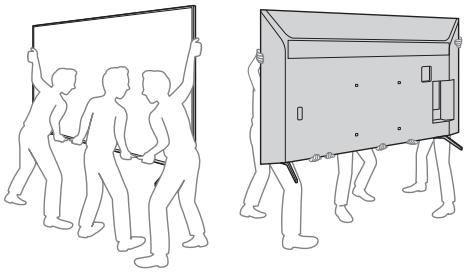

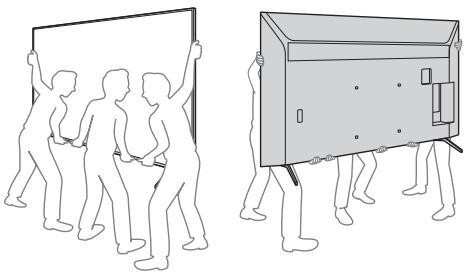

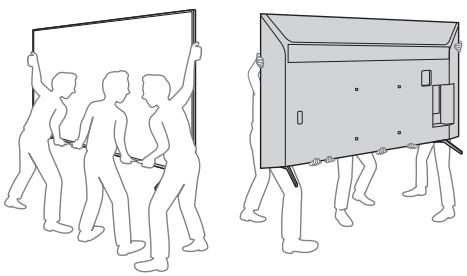

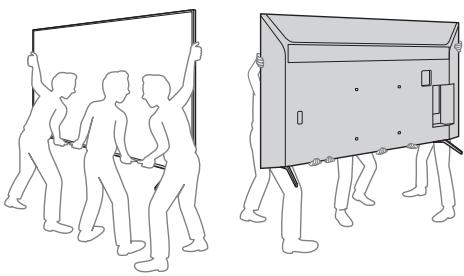

When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
- When lifting or moving the TV set, hold it firmly from the bottom.
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
- When transporting the TV set, do not subject it to jolts or excessive vibration.
- When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.
Topple prevention

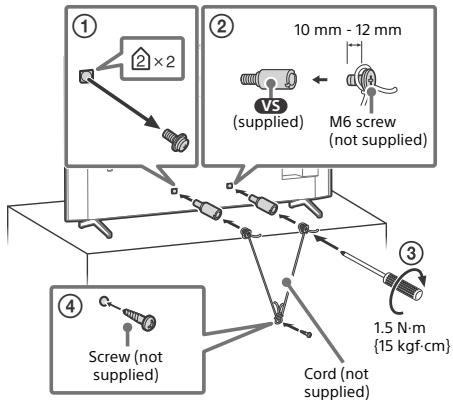

KD-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx, KE-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
② ×2
10 mm - 12 mm
VS
(supplied)
M6 screw
(not supplied)
③
④
Screw (not
supplied)
Cord (not
supplied)
1.5 N·m
{15 kgf·cm}
KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx
M6 screw
(not supplied)
②
1.5 N·m
{15 kgf·cm}
③
Screw (not
supplied)
Cord (not
supplied)

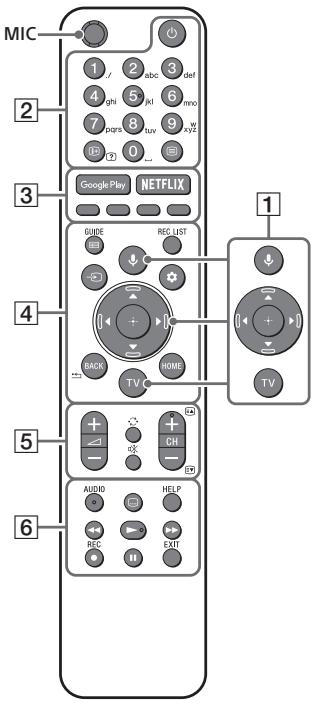

Remote Control and TV
The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.
1 2 abc def
4 gh 5 jki mno
7 pirs 8 tuv W
10 0 XYZ
Google Play NETFLIX
GUIDE REC LIST
SAGE TV HOME
1
TV
5
+ +
-
CH
6
AUDIO HELP
REC EXIT
6
1 ↓ (Microphone): Use the Google
Assistant ^12 or voice search ^2 . For hints on how to control your TV press ↓ (Microphone) button and speak the phrase "voice hints". ^1
▲/▼/◄/►/⊕: On screen menu navigation and selection.
TV: Display TV channel list or switch to input.
2 ⏻ (Power)
Number buttons
i+/? (Info/Text reveal): Display information.
☐ (Text): Display text information.
③ Google Play / NETFLIX*1 / Colour buttons
4 GUIDE/☐: Display the digital programme guide of TV or TV box*1*3.
REC LIST: Display the Rec list of USB HDD/DVR*3.
→ (Input select): Display and select the input source, etc.
(Quck settings): Display Quick Settings.
BACK/←
HOME
5 ∠+/- (Volume)
(Jump)
※ (Mute)^*4
CH +/−/☐/☐: Select the channel, or next (☐) / previous (☐) page.
6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).
(Subtitle setting)
HELP: Display the Help menu.
◀/▶/▶▶/||
● REC: Record the currently viewed programme on USB HDD/DVR*3.
EXIT
7 ⏻ (Power) (except KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx)
8 ⏻ (Power)/+/- (KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx only)
⑨ Remote Control sensor / Light sensor / LED
*1 Only on limited region/country/TV model/language.
*2 The Google Assistant or voice search requires an Internet connection.
*3 [TV box setup] setting is required.
*4 Accessibility shortcut is available by pressing and holding ☐ (Mute).
For more information, refer to the Help Guide.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)\* (not supplied)
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this product.
This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support
Preparing for Wall-Mount Installation
Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide (except KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx).
- Prepare the TV for the Wall-Mount Bracket before making cable connections.
- Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
- Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
- The screws for Wall-Mount Bracket are not supplied.
-
Only qualified service personnel should carry out wall-mount installations.
-
For safety reasons, it is strongly recommended that you use Sony accessories, including:
—Wall-Mount Bracket SU-WL850
—Wall-Mount Bracket SU-WL450
- Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.
KD-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx, KE-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
Screw (M6)
Wall-Mount Bracket
VS
KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx
8 mm - 12 mm
Wall-Mount Bracket
TV's rear cover
- Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
* Only on limited region/country/TV model.
Note
- Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx)
KD-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx, KE-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx

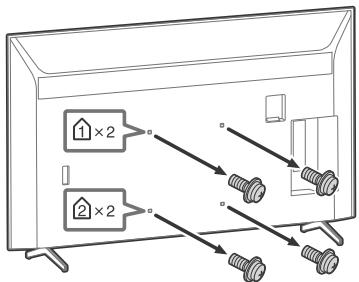

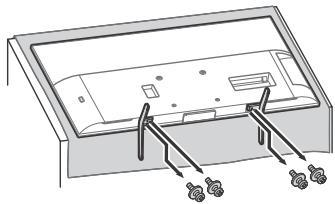

1 Remove the screws from the rear of the TV.


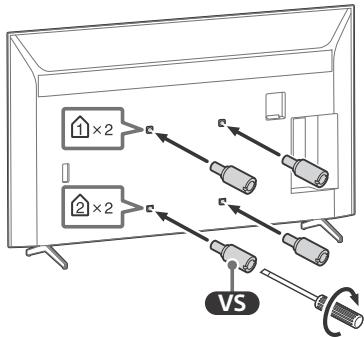

2 Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it parallel with the wall).
2×2
VS
1.5 N·m
{15 kgf·cm}
Note
- If using an electric screwdriver, set the torque at approximately 1.5 N.m {15 kgf.cm}.
- Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.
Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.
Detaching the Table-Top Stand from the TV
KD-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx, KE-85XH80xx / 75XH80xx / 65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx

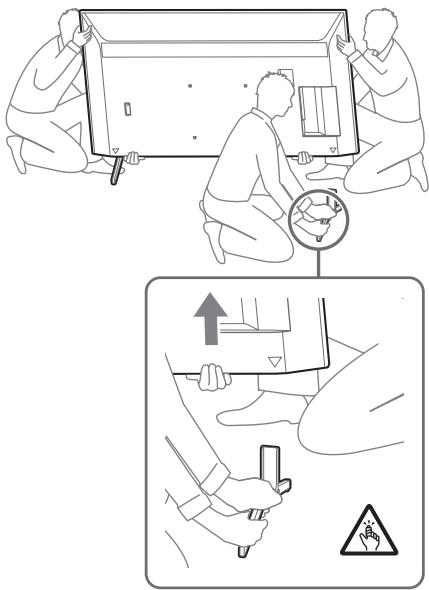

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.
2 Repeat the previous step and remove the other side of the Table-Top Stand.
Note
- Three or more people are required to detach the Table-Top Stand.
- Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
• Take care when handling the Table-Top Stand to prevent damage to the TV.
- Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
- Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.
KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx
Troubleshooting
General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.
1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).
When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.
It takes time to initialize the system. Wait for about one minute, then operate it again.
The remote control does not function.
- Replace the batteries.
The parental lock password has been forgotten.
- Enter 9999 for the PIN and enter the new PIN.
For more information on troubleshooting, refer to the Help Guide.
Specifications
System
Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight
TV system: Depending on your country/area selection/TV model
Analogue: B/G, D/K, I
Digital: DVB-T/DVB-C/DVB-T2*1
Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)
Channel coverage: Depending on your country/area selection/TV model
Analogue: UHF/VHF/Cable
Digital: UHF/VHF/Cable
Satellite ^*1 : IF Frequency 950-2,150 MHz
Sound output: 10 W + 10 W
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth ^® Version 4.2
Frequency band(s)
| Frequency range | Output power |
| Wireless LAN (TV) |
| 2400-2483.5 MHz | < 20.0 dBm |
| 5150-5250 MHz | < 23.0 dBm |
| 5250-5350 MHz | < 20.0 dBm |
| 5470-5725 MHz | < 20.0 dBm |
| 5725-5850 MHz | < 13.9 dBm |
| Bluetooth® (TV) |
| 2400-2483.5 MHz | < 10.0 dBm |
| Bluetooth® (Remote control) |
| 2400-2483.5 MHz | < 10.0 dBm |
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
Satellite antenna ^*1
Female F Type Connector, 75 ohm.
DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single
Cable Distribution EN50494.
→ / → AV IN
Video/Audio input (mini jack)
HDMI IN 1/2/3/4 (support 4K resolution, HDCP 2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz) ^23 , 4096 × 2160p (24 Hz) ^2 , 3840 × 2160p (50, 60 Hz) ^3 , 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 480p, PC Formats ^*4
Audio:
5.1 channel linear PCM: 32/44.1/48/88.2/96/176.4/192 kHz 16/20/24 bits, Dolby Audio, Dolby Atmos, DTS
ARC (Audio Return Channel) (HDMI IN 3 only)*5 Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS
→ DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)
(Stereo mini jack)
Headphone
1, 2 (HDD REC)*6
USB device port (● 2 USB HDD device for REC feature)
USB port 1 supports High Speed USB (USB 2.0)
USB port 2 supports Super Speed USB (USB 3.1 Gen 1)
CAM (Conditional Access Module) slot
LAN
10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)
-C DC IN 19.5 V (models with supplied mains adaptor only)
Mains adaptor input
Power, Product Fiche and others
Power requirements
except models with supplied mains adaptor 220 V - 240 V AC, 50 Hz
models with supplied mains adaptor only 19.5 V DC with mains adaptor
Rating: Input 220 V - 240 V AC, 50 Hz
Energy Efficiency Class
KD-85XH80xx: A
KD-75XH80xx: B
KD-65XH81xx / 65XH80xx: A
KD-55XH81xx / 55XH80xx: A
KD-49XH81xx / 49XH80xx: A
KD-43XH81xx / 43XH80xx: A
Screen size (measured diagonally) (Approx.)
KD-85XH80xx: 214.8 cm / 85 inches
KD-75XH80xx: 189.3 cm / 75 inches
KD-65XH81xx / 65XH80xx: 163.9 cm / 65 inches
KD-55XH81xx / 55XH80xx: 138.8 cm / 55 inches
KD-49XH81xx / 49XH80xx: 123.2 cm / 49 inches
KD-43XH81xx / 43XH80xx: 108.0 cm / 43 inches
Power consumption
In [Standard] mode
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
In [Vivid] mode
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
Annual energy consumption ^7
KD-85XH80xx: 326 kWh per year
Standby power consumption*8*9
0.50 W (25 W in software/EPG update mode)
Display resolution
3,840 dots (horizontal) × 2,160 lines (vertical)
Output Rating
USB 1
5 V =, 500 mA MAX
USB 2
5 V =, 900 mA MAX
Dimensions (Approx.) (w × h × d) (cm)
with Table-Top Stand (without Table-Top Stand)
KD-85XH80xx, KE-85XH80xx: 189.9 × 117.4 × 44.2 (189.9 × 108.9 × 7.1)
KD-75XH80xx, KE-75XH80xx: 168.6 × 104.2 × 41.4 ( 168.6 × 96.9 × 7.2 )
KD-65XH81xx, KE-65XH81xx: 146.2 × 91.0 × 33.7 (146.2 × 84.1 × 7.1)
KD-65XH80xx, KE-65XH80xx: 146.2 × 90.5 × 34.0 ( 146.2 × 84.1 × 7.1 )
KD-55XH81xx, KE-55XH81xx: 124.3 × 78.4 × 33.7 (124.3 × 71.8 × 7.1)
KD-55XH80xx, KE-55XH80xx: 124.3 × 78.2 × 34.0 ( 124.3 × 71.8 × 7.1 )
KD-49XH80xx: 110.1 × 70.4 × 28.6 ( 110.1 × 64.5 × 5.7 )
KD-49XH81xx: 110.1 × 70.4 × 26.2 ( 110.1 × 64.5 × 5.7 )
$$
\begin{array}{l} \begin{array}{l} \text { KD - 43XH80xx: } 9 7. 0 \times 6 3. 0 \times 2 8. 6 (9 7. 0 \times 5 7. 0 \times \ 5. 7) \end{array} \ \begin{array}{l} \text {KD - 43XH81xx:} 9 7. 0 \times 6 3. 0 \times 2 6. 2 (9 7. 0 \times 5 7. 0 \times \ 5. 7) \end{array} \ \end{array}
$$
Mass (Approx.) (kg)
with Table-Top Stand (without Table-Top Stand)
$$
\text { KD - 85XH80xx, KE - 85XH80xx: 45.6 (44.1) }
$$
$$
\text { KD - 75XH80xx, KE - 75XH80xx: 32.9 (31.8) }
$$
$$
\text { KD - 65XH81xx, KE - 65XH81xx: 22.3 (21.7) }
$$
$$
\mathrm{KD-65XH80xx,KE-65XH80xx:22.6(21.7)}
$$
$$
\text { KD - 55XH81xx, KE - 55XH81xx: 16.6 (16.0) }
$$
$$
\text { KD - 55XH80xx, KE - 55XH80xx: 16.8 (16.0) }
$$
$$
\text { KD - 49XH81xx / 49XH80xx: 12.1 (11.6) }
$$
$$
\text { KD - 43XH81xx / 43XH80xx: 9.8 (9.4) }
$$
Others
Optional accessories
$$
\text { Wall - Mount Bracket: SU - WL850 }
$$
$$
(K D - 7 5 X H 8 0 x x / 6 5 X H 8 1 x x / 6 5 X H 8 0 x x /
$$
$$
5 5 X H 8 1 x x / 5 5 X H 8 0 x x, K E - 7 5 X H 8 0 x x /
$$
$$
\begin{array}{l} 6 5 X H 8 1 x x / 6 5 X H 8 0 x x / 5 5 X H 8 1 x x / 5 5 X H 8 0 x x \ \text {only)} \end{array}
$$
$$
\text { Wall - Mount Bracket: SU - WL450 }
$$
Operating temperature: 0 °C – 40 °C
Operating humidity: 10 % – 80 % RH (non-condensing)
*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.
*2 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].
*3 To support 18 Gbps, set [HDMI signal format] to [Enhanced format].
*4 Refer to the online Help Guide for details.
*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.
*6 Only on limited region/country/TV model.
*7 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*8 Specified standby power is reached after the TV finishes necessary internal processes.
*9 Standby power consumption will increase when your TV is connected to the network.
Note
- Optional accessories availability depends on countries/region/TV model/stock.
- Design and specifications are subject to change without notice.
- Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using the Google Assistant.
- Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.
Notes on Digital TV function
- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.
- The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2018 Dolby Laboratories. All rights reserved.
- Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
- Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.
- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
- Netflix is a registered trademark of Netflix, Inc.
- DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
- All other trademarks are the property of their respective owners.
Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)
KE-85XH8096 (358651), KE-75XH8096 (358652), KE-65XH8196 (358661), KE-65XH8096 (358654), KE-65XH8077 (358653), KE-55XH8196 (358662), KE-55XH8096 (358656), KE-55XH8077 (358655), KD-49XH8196 (358663), KD-49XH8096 (358658), KD-49XH8077 (358657), KD-43XH8196 (358664), KD-43XH8096 (358660), KD-43XH8077 (358659).
https://rd1.sony.net/help/tv/haep1/h_aep/
Transport
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
Dépannage
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH80xx : 97,0 × 63,0 × 28,6 (97,0 × 57,0 × 5,7)
KD-43XH81xx : 97,0 × 63,0 × 26,2 (97,0 × 57,0 × 5,7)
Poids (Environ.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Transporte
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
https://www.sony.eu/support
Digital: UHF/VHF/Cable
Satélite ^*1 : Frecuencia IF 950-2 150 MHz
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p
(30, 50, 60 Hz), 720/24p, 576p, 480p,
Formatos de PC*4
Audio:
PCM lineal de 5,1 canales: 32/44,1/48/88,2/
96/176,4/192 kHz 16/20/24 bits, Dolby
Audio, Dolby Atmos, DTS
ARC (Audio Return Channel) (Sólo HDMI IN 3)*5
PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS
→ DIGITAL AUDIO OUT (OPTICAL)
Toma digital óptica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS)
( minitoma estéreo )
Auricular
1, 2 (HDD REC)*6
KD-43XH81xx / 43XH80xx: 108,0 cm /
43 pulgadas
Consumo de energía
KD-43XH81xx / 43XH80xx: 66 W
En el modo [Viva]
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
https://rd1.sony.net/help/tv/haep1/h_aep/
Transport
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
2×2
VS
1,5 N·m
{15 kgf·cm}
Opmerkingen
Problemen oplossen
(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p
(30, 50, 60 Hz), 720/24p, 576p, 480p,
Pc-formaten*4
Audio:
5,1-kanaals lineaire PCM: 32/44,1/48/88,2/
96/176,4/192 kHz 16/20/24 bits, Dolby
Audio, Dolby Atmos, DTS
ARC (Audio Return Channel) (alleen HDMI IN 3)*5
Tweekanaals lineaire PCM: 48 kHz 16 bits,
Dolby Audio, Dolby Atmos, DTS
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm / 43 inch
Stroomverbruik
In stand [Standaard]
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
In stand [Levendig]
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 (97,0 × 57,0 ×
5,7)
KD-43XH81xx: 97,0 × 63,0 × 26,2 (97,0 × 57,0 ×
5,7)
Gewicht (Ong.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Transport
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
Störungsbehebung
(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz),
720p (30, 50, 60 Hz), 720/24p, 576p, 480p,
Computerformate ^4
Audio:
5,1-Kanal linear PCM: 32/44,1/48/88,2/96/
176,4/192 kHz 16/20/24 Bit, Dolby Audio,
Dolby Atmos, DTS
ARC (Audio Return Channel) (nur HDMI IN 3)*5
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm / 43 Zoll
Leistungsaufnahme
Im [Standard]-Modus
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
Im [Brillant]-Modus
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 (97,0 × 57,0 ×
5,7)
KD-43XH81xx: 97,0 × 63,0 × 26,2 (97,0 × 57,0 ×
5,7)
Gewicht (Ca.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Transporte
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
https://www.sony.eu/support
2 Repita o passo anterior e remova o outro lado do Suporte de Mesa do Televisor.
Nota
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p
(30, 50, 60 Hz), 720/24p, 576p, 480p,
Formatos PC*4
Áudio:
PCM linear do canal 5,1: 32/44,1/48/88,2/96/
176,4/192 kHz 16/20/24 bits, Dolby Audio,
Dolby Atmos, DTS
ARC (Audio Return Channel) (apenas
HDMI IN 3)*5
PCM linear de dois canais: 48 kHz 16 bits,
Dolby Audio, Dolby Atmos, DTS
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm /
43 polegadas
Consumo de energia
No modo [Standard]
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
No modo [Vívido]
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 ( 97,0 × 57,0 × 5,7 )
KD-43XH81xx: 97,0 × 63,0 × 26,2 ( 97,0 × 57,0 × 5,7 )
Peso (Aprox.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Trasporto
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
https://www.sony.eu/support
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm /
43 pollici
Potenza assorbita
KD-43XH81xx / 43XH80xx: 66 W
https://rd1.sony.net/help/tv/haep1/h_aep/
Transport
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
2×2
VS
1,5 N·m
{15 kgf·cm}
Obs!
Felsökning
DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm / 43 tum
Energiförbrukning
I [Standard]-läge
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
I [Dagsljus]-läge
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 (97,0 × 57,0 × 5,7)
KD-43XH81xx: 97,0 × 63,0 × 26,2 (97,0 × 57,0 × 5,7)
Vikt (Ca.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Transport
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
2×2
VS
1,5 N·m
{15 kgf·cm}
Bemærk
Fejlfinding
→ DIGITAL AUDIO OUT (OPTICAL)
Digitalt optisk stik (to-kanals lineær PCM: 48 kHz 16 bit, Dolby Audio, DTS)
(Stereo-minijack)
Hovedtelefoner
1, 2 (HDD REC)*6
USB-port (●→2 USB HDD-enhed for REC-funktion)
USB-port 1 understøtter High Speed USB (USB 2.0)
USB-port 2 understøtter Super Speed USB (USB 3.1 Gen 1)
CAM (Conditional Access Module)-holder
LAN
10BASE-T/100BASE-TX-stik
I [Standard] tilstand
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
I [Kraftig] tilstand
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
Mål (Ca.) (b × h × d) (cm)
Inkl. TV-fod (Uden TV-fod)
KD-85XH80xx, KE-85XH80xx: 189,9 × 117,4 × 44,2 (189,9 × 108,9 × 7,1)
KD-75XH80xx, KE-75XH80xx: 168,6 × 104,2 × 41,4 (168,6 × 96,9 × 7,2)
KD-65XH81xx, KE-65XH81xx: 146,2 × 91,0 × 33,7 (146,2 × 84,1 × 7,1)
KD-65XH80xx, KE-65XH80xx: 146,2 × 90,5 × 34,0 (146,2 × 84,1 × 7,1)
KD-55XH81xx, KE-55XH81xx: 124,3 × 78,4 × 33,7 (124,3 × 71,8 × 7,1)
KD-55XH80xx, KE-55XH80xx: 124,3 × 78,2 × 34,0 (124,3 × 71,8 × 7,1)
KD-49XH80xx: 110,1 × 70,4 × 28,6 ( 110,1 × 64,5 × 5,7 )
KD-49XH81xx: 110,1 × 70,4 × 26,2 ( 110,1 × 64,5 × 5,7 )
KD-43XH80xx: 97,0 × 63,0 × 28,6 ( 97,0 × 57,0 × 5,7 )
KD-43XH81xx: 97,0 × 63,0 × 26,2 ( 97,0 × 57,0 × 5,7 )
Vægt (Ca.) (kg)
Inkl. TV-fod (Uden TV-fod)
KD-85XH80xx, KE-85XH80xx: 45,6 (44,1)
KD-75XH80xx, KE-75XH80xx: 32,9 (31,8)
KD-65XH81xx, KE-65XH81xx: 22,3 (21,7)
KD-65XH80xx, KE-65XH80xx: 22,6 (21,7)
KD-55XH81xx, KE-55XH81xx: 16,6 (16,0)
KD-55XH80xx, KE-55XH80xx: 16,8 (16,0)
KD-49XH81xx / 49XH80xx: 12,1 (11,6)
KD-43XH81xx / 43XH80xx: 9,8 (9,4)
Andre
Ekstraudstyr
https://rd1.sony.net/help/tv/haep1/h_aep/
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
2×2
VS
1,5 N·m
{15 kgf·cm}
Huomautus
Vianmääritys
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm / 43 tuumaa
Virrankulutus
[Vakio]-tilassa
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
[Kirkas]-tilassa
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 (97,0 × 57,0 × 5,7)
KD-43XH81xx: 97,0 × 63,0 × 26,2 (97,0 × 57,0 × 5,7)
Paino (Noin) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Bæring
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
(Teksting-innstilling)
HELP: Vis Hjelp-menyen.
◀/▶/▶/||
- REC: Ta opp programmet som vises på USB HDD/DVR*3.
EXIT
7 ⏻ (Strøm) (Gjelder ikke KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx)
8 ⏻ (Strøm)/+/- (Kun KD-49XH81xx / 49XH80xx / 43XH81xx / 43XH80xx)
9 Fjernkontroll-sensor / Lyssensor / LED
https://www.sony.eu/support
Forberede veggmontering
2×2
VS
1,5 N·m
{15 kgf·cm}
Merknader
Feilsøking
→ DIGITAL AUDIO OUT (OPTICAL)
Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Audio, DTS)
( minijack, stereo )
Hodetelefon
1, 2 (HDD REC)*6
KD-43XH81xx / 43XH80xx: 66 W
I [Dynamisk]-modus
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
Mål (ca.) (b × h × d) (cm)
med bordstativ (uten bordstativ)
KD-85XH80xx, KE-85XH80xx: 189,9 × 117,4 × 44,2 (189,9 × 108,9 × 7,1)
KD-75XH80xx, KE-75XH80xx: 168,6 × 104,2 × 41,4 (168,6 × 96,9 × 7,2)
KD-65XH81xx, KE-65XH81xx: 146,2 × 91,0 × 33,7 (146,2 × 84,1 × 7,1)
KD-65XH80xx, KE-65XH80xx: 146,2 × 90,5 × 34,0 (146,2 × 84,1 × 7,1)
KD-55XH81xx, KE-55XH81xx: 124,3 × 78,4 × 33,7 (124,3 × 71,8 × 7,1)
KD-55XH80xx, KE-55XH80xx: 124,3 × 78,2 × 34,0 (124,3 × 71,8 × 7,1)
KD-49XH80xx: 110,1 × 70,4 × 28,6 ( 110,1 × 64,5 × 5,7 )
KD-49XH81xx: 110,1 × 70,4 × 26,2 ( 110,1 × 64,5 × 5,7 )
KD-43XH80xx: 97,0 × 63,0 × 28,6 ( 97,0 × 57,0 × 5,7 )
KD-43XH81xx: 97,0 × 63,0 × 26,2 ( 97,0 × 57,0 × 5,7 )
Vekt (ca.) (kg)
med bordstativ (uten bordstativ)
KD-85XH80xx, KE-85XH80xx: 45,6 (44,1)
KD-75XH80xx, KE-75XH80xx: 32,9 (31,8)
KD-65XH81xx, KE-65XH81xx: 22,3 (21,7)
KD-65XH80xx, KE-65XH80xx: 22,6 (21,7)
KD-55XH81xx, KE-55XH81xx: 16,6 (16,0)
KD-55XH80xx, KE-55XH80xx: 16,8 (16,0)
KD-49XH81xx / 49XH80xx: 12,1 (11,6)
KD-43XH81xx / 43XH80xx: 9,8 (9,4)
Annet
Tilleggsutstyr
Veggmonteringsbrakett: SU-WL850
(Kun KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx)
Veggmonteringsbrakett: SU-WL450
https://rd1.sony.net/help/tv/haep1/h_aep/
Transport
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
https://www.sony.eu/support
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH80xx: 97,0 × 63,0 × 28,6 (97,0 × 57,0 × 5,7)
KD-43XH81xx: 97,0 × 63,0 × 26,2 ( 97,0 × 57,0 × 5,7 )
https://rd1.sony.net/help/tv/haep1/h_aep/
Přeprava
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
2×2
VS
1,5 N·m
{15 kgf·cm}
Poznámka
Řešení problémů
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 66 W
V režimu [Živý]
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 ( 97,0 × 57,0 × 5,7 )
KD-43XH81xx: 97,0 × 63,0 × 26,2 ( 97,0 × 57,0 × 5,7 )
https://rd1.sony.net/help/tv/haep1/h_aep/
Preprava
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
2×2
VS
1,5 N·m
{15 kgf·cm}
Poznámka
- Ak používate elektrický skrutkovač, nastavte krútiaci moment na približne 1,5 N·m {15 kgf·cm}.
Riešenie problémov
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz),
720p (30, 50, 60 Hz), 720/24p, 576p, 480p,
Formáty PC*4
Audio:
5,1 lineárny kanál PCM: 32/44,1/48/88,2/96/
176,4/192 kHz 16/20/24 bitov, Dolby Audio,
Dolby Atmos, DTS
ARC (Audio Return Channel) (len model HDMI IN 3)*5
Dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, Dolby Atmos, DTS
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm /
43 palcov
Príkon
KD-43XH81xx / 43XH80xx: 66 W
V režime [Živý]
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
https://rd1.sony.net/help/tv/haep1/h_aep/
![SONY KD49XH8096 - V režime [Živý] - 1](/content/2024/11/224910/images/9f2b195e8a84eae44d8d6d79df713997924d0442163d6b62ec5f432e8c415c9f.jpg)
Szállítás
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
Hibaelhárítás
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 66 W
[Élénk] üzemmódban
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 ( 97,0 × 57,0 × 5,7 )
KD-43XH81xx: 97,0 × 63,0 × 26,2 ( 97,0 × 57,0 × 5,7 )
Tömeg (Kb.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Transportul
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
https://www.sony.eu/support
Depanare
Analogic: B/G, D/K, I
Digital: DVB-T/DVB-C/DVB-T2*1
Analogic: UHF/VHF/Cablu
Digital: UHF/VHF/Cablu
Satelit*1: Frecvență IF 950-2.150 MHz
(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz),
720p (30, 50, 60 Hz), 720/24p, 576p, 480p,
Formate PC*4
Audio:
PCM liniar pe 5,1 canale: 32/44,1/48/88,2/
96/176,4/192 kHz 16/20/24 biti, Dolby Audio,
Dolby Atmos, DTS
ARC (Audio Return Channel) (Numai
HDMI IN 3)*5
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm / 43 toli
Consum de putere
În modul [Standard]
KD-85XH80xx: 235 W
KD-75XH80xx: 227 W
KD-65XH81xx / 65XH80xx: 137 W
KD-55XH81xx / 55XH80xx: 114 W
KD-49XH81xx / 49XH80xx: 74 W
KD-43XH81xx / 43XH80xx: 66 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 (97,0 × 57,0 × 5,7)
KD-43XH81xx: 97,0 × 63,0 × 26,2 (97,0 × 57,0 × 5,7)
Masă (aprox.) (kg)
https://rd1.sony.net/help/tv/haep1/h_aep/
Пренасяне
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
→ DIGITAL AUDIO OUT (OPTICAL)
Цифров оптичен жак (Двуканален линеен PCM: 48 kHz 16 бита, Dolby Audio, DTS)
KD-43XH81xx / 43XH80xx: 66 W
В [Ярък] режим
KD-85XH8096: 378 W
KD-75XH8096: 374 W
KD-65XH8196 / 65XH8096 / 65XH8077: 250 W
KD-55XH8196 / 55XH8096 / 55XH8077: 207 W
KD-49XH8196 / 49XH8096 / 49XH8077: 120 W
KD-43XH8196 / 43XH8096 / 43XH8077: 108 W
KD-43XH80xx: 97,0 × 63,0 × 28,6 ( 97,0 × 57,0 × 5,7 )
KD-43XH81xx: 97,0 × 63,0 × 26,2 (97,0 × 57,0 × 5,7)
Тегло (прибл.) (kg)
с поставка за маса (без поставка за маса)
KD-85XH80xx, KE-85XH80xx: 45,6 (44,1)
KD-75XH80xx, KE-75XH80xx: 32,9 (31,8)
KD-65XH81xx, KE-65XH81xx: 22,3 (21,7)
KD-65XH80xx, KE-65XH80xx: 22,6 (21,7)
KD-55XH81xx, KE-55XH81xx: 16,6 (16,0)
KD-55XH80xx, KE-55XH80xx: 16,8 (16,0)
KD-49XH81xx / 49XH80xx: 12,1 (11,6)
KD-43XH81xx / 43XH80xx: 9,8 (9,4)
Други
https://rd1.sony.net/help/tv/haep1/h_aep/
Μεταφορά
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p
(30, 50, 60 Hz), 720/24p, 576p, 480p,
→ DIGITAL AUDIO OUT (OPTICAL)
KD-43XH81xx / 43XH80xx: 108,0 cm /
43 ίντσες
Κατανάλωση ισχύος
KD-43XH81xx / 43XH80xx: 66 W
https://rd1.sony.net/help/tv/haep1/h_aep/
Nakliye
KD-85XH80xx, KE-85XH80xx
KD-75XH80xx / 65XH81xx / 65XH80xx /
55XH81xx / 55XH80xx / 49XH81xx / 49XH80xx /
43XH81xx / 43XH80xx, KE-75XH80xx /
65XH81xx / 65XH80xx / 55XH81xx / 55XH80xx
https://www.sony.eu/support
Sorun Giderme
Dijital: UHF/VHF/Kablolu
→ DIGITAL AUDIO OUT (OPTICAL)
https://www.sony.eu/support
