USER MANUAL Bravia KD-49X8300C SONY

Parts and Controls .... 6

Controls and Indicators 6

Inputs and Outputs ....7

Using Remote Control 9

Remote Control Parts Description .....9

Using the Touchpad Remote Control ..... 10

Launching the Touchpad Remote Control Introduction/Tutorial 10

Connecting the TV .....11

Installing the TV to the Wall .....14

SU-WL450 15

Troubleshooting....19

Troubles and Solutions 19

Specifications 20

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Before operating the TV, please read "Safety Information" (page 2).
• Instructions about "Installing the TV to the Wall" are included within this TV's instructions manual.
• Images and illustrations used in Startup Guide and this manual are for reference only and may differ from actual product appearance.

Location of the identification label

Labels for the Model No. and Power Supply rating are located on the rear of the TV.

This television is designed for use in Hong Kong and ensured the usage in Hong Kong only.

Safety Information

WARNING

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC power outlet (mains socket).
• Place the TV set on a stable, level surface to avoid it falling and causing personal injury or damage to the TV.
• Install the TV where it cannot be pulled, pushed, or knocked over.
• Only qualified service personnel should carry out wall installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: — Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by the illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

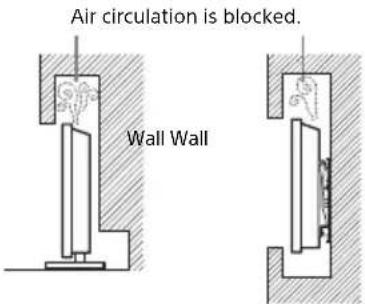

• Never cover the ventilation holes or insert anything in the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation.

Installed on the wall

Leave at least this space around the set.

Installed with stand

Leave at least this space around the set.

• To ensure proper ventilation and prevent the collection of dirt or dust: — Do not lay the TV set flat, install upside down, backwards, or sideways. — Do not place the TV set on a shelf, rug, bed or in a closet. — Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc. — Do not install the TV set as shown below.

AC power cord (mains lead)

Handle the AC power cord (mains lead) and outlet (mains socket) as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

— Insert the plug fully into the AC power outlet (mains socket). Operate the TV set on a 220-240 V AC supply only. - When wiring cables, be sure to unplug the AC power cord (mains lead) for your safety and take care not to catch your feet on the cables. - Disconnect the AC power cord (mains lead) from the AC power outlet (mains socket) before working on or moving the TV set. - Keep the AC power cord (mains lead) away from heat sources. - Unplug the AC power plug (mains plug) and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Note

• Do not use the supplied AC power cord (mains lead) on any other equipment.
• Do not pinch, bend, or twist the AC power cord (mains lead) excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord (mains lead).
• Do not put anything heavy on the AC power cord (mains lead).
• Do not pull on the AC power cord (mains lead) itself when disconnecting the AC power cord (mains lead).
• Do not connect too many appliances to the same AC power outlet (mains socket).
• Do not use a poor fitting AC power outlet (mains socket).

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.
• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on.

Environment:

- Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

- Do not place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

- Do not install the TV in places subject to extreme temperature, such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such conditions which can cause deformation of the enclosure and/or TV malfunction.

Situation:

- Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet (mains socket) and antenna (aerial) during lightning storms.

- Do not install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

Broken pieces:

- Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

- If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord (mains lead). Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the AC power (mains) for environmental and safety reasons.
• As the TV set is not disconnected from the AC power (mains) when the TV set is just turned off, pull the plug from the AC power outlet (mains socket) to disconnect the TV set completely.
• However, some TV sets may have features that require the TV set to be left in standby to work correctly.

For children

• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the AC power cord (mains lead) immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

— AC power cord (mains lead) is damaged. — Poor fitting of AC power outlet (mains socket). — TV set is damaged by being dropped, hit, or having something thrown at it. — Any liquid or solid object falls through openings in the cabinet.

About LCD Monitor Temperature

When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

(3D compatible models only)

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (http://www.sony-asia.com/support) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

- Do not use, store, or leave the 3D Glasses or battery near a fire, or in places with a high temperature, e.g., in direct sunlight, or in sun-heated cars.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord (mains lead) connected to the TV set from AC power outlet (mains socket) before cleaning. To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

- Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as malfunction of the medical equipment may result.
• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Parts and Controls

Controls and Indicators

1 Remote Control sensor ¹ / Light sensor ¹ / Illumination LED / 3D Sync Transmitter ^{1 2}

The illumination LED lights up or blinks according to the status of the TV.

• White When turning on the TV/picture off mode/software update, etc. • Cyan When connecting with a mobile device wirelessly.
• Amber Timer is set.

2 ⏻ (Power) 3 CH +/- (Channel) △+/- (Volume) 4 TV Switch to a TV channel or input from other applications.

5 → (Input select)

Display and select the input source.

*1 Do not place anything near the sensor. *2 3D compatible models only.

Inputs and Outputs

KD-65/55X8500C

GB

KD-49/43X8300C

1 LAN

2 HDMI 3 AUDIO IN →

For HDMI 3 analogue audio connection.

3 DIGITAL AUDIO OUT (OPTICAL)

4 → /→ VIDEO IN 1

For a composite connection*.

5 → VIDEO IN 2, → ⬙/→ COMPONENT IN

• For a composite connection: Use VIDEO IN, and → (L/R) of → / → COMPONENT IN*.
• For a component connection: Use Y, PB, PR, and → (L/R).

6 CABLE/ANTENNA

Connect to your cable or antenna (aerial).

7 (USB 1/2), (USB 3)

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 jack.

8 HDMI IN 1/3/4

• If the device has a DVI jack, connect it to HDMI IN 3 through a DVI - HDMI adaptor interface (not supplied), and connect the device's audio out jack to HDMI 3 AUDIO IN.
• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 4. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

9 AUDIO OUT

To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] → [Sound] → [Headphone/Audio out] and then select the desired item.

10 HDMI IN 2/MHL

You can connect your MHL (Mobile High-definition Link) device using an HD quality MHL cable.

* When connecting mono equipment, connect to the L (MONO) audio jack.

Using Remote Control

Remote Control Parts Description

IR (infrared) Remote Control

1 → /(Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

(TV standby)

Turn on or turn off the TV (standby mode).

DIGITAL/ANALOG

Switch between digital and analogue mode.

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

2 Number buttons

(Twin picture/PIP)*1*2

Display two pictures simultaneously.

Touchpad Remote Control

For models with supplied Touchpad Remote Control.

(Text)

Display text information.

3 Colour buttons

Execute correspondent function at that time.

(Wide mode)

Change the screen format.

TV

Switch to a TV channel or input from other applications.

HELP

Display Help Menu.

4 ACTION MENU

Display a list of contextual functions. You can also display it by sliding your finger down from ACTION MENU on the Touchpad Remote Control.

i+/? (Info/Text)

Display information.

GUIDE/ ^* 1

Display the digital programme guide.

BACK

Return to previous screen.

HOME

Display the TV Home Menu.

DISCOVER

Bring up the Content Bar to search for content.

You can also launch Content Bar by sliding your finger up from DISCOVER on the Touchpad Remote Control.

▲/▼/◀/▶ (Item select/Enter)

5 ∠ +/- (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

※ (Muting)

Mute the sound. Press again to restore the sound.

PROG +/−/▲/▼

In TV mode: Select the channel.

In Text mode: Select the next (▲) or previous (▼) page.

6 AUDIO

Change the language for the programme currently being viewed.

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

7 ◀◀/▶/▶▶/◀◀/||/▶▶/■

Operate media contents on TV and connected BRAVIA Sync-compatible device.

SYNC MENU

Display the BRAVIA Sync Menu.

FOOTBALL

Turn Live Football Mode on or off (when the feature is available).

r8 e(Microphone) I )

Use Voice Function. (e.g., Search various content by voice.)

9 Touchpad

Operate the TV with the touchpad.

10 N (NFC)

Touch the device (e.g., some models of Xperia) that supports the One-touch mirroring function, and its screen will be displayed on the TV.

*1 The location, availability, and function of the remote control button may vary depending on your country/region/TV model. *2 Twin Picture function will be available from July 2015. You will receive Twin Picture function automatically as a network software upgrade. Make sure your TV is connected to the Internet. If you do not have a network connection, you will be able to download the software from the Sony support website using your PC. For details on how to upgrade, please visit the Sony support website.

Using the Touchpad Remote Control

The Touchpad Remote Control can only be used after pairing with the TV.

To pair, follow the instructions on the pairing screen.

The pairing screen can be displayed by pressing the button on the TV for 5 seconds, or by selecting [Settings] - [Touchpad Remote Control settings] - [Pair Touchpad Remote Control].

Launching the Touchpad Remote Control Introduction/Tutorial

1 Press HOME.

2 Select [Settings] - [Touchpad Remote Control settings] - [Start Introduction/Tutorial].

Connecting the TV

Note

• To select an input device connected to the TV, press →.
• When connecting the cable to the Cable/Antenna input, tighten it with your fingers only. Over-tightening the connection can damage the TV.

To connect with an HDMI cable KD-65/55X8500C

KD-49/43X8300C

To connect with component cables

To connect with AV composite cables. To connect MHL device

KD-49/43X8300C The TV simultaneously charges the MHL-

Use authorized MHL CABLE with MHL logo (not supplied)

compatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHL-compatible device.

Note

• If [MHL charging during standby] is set to [On], you can continue charging the MHL-compatible device even when the TV is in standby mode.
• Use authorized MHL 3 CABLE with MHL logo for 4K smartphone or mobile devices.

Picture Quality

• AV composite cable
• Antenna (aerial) cable

- Component cable • HDMI cable

Standard definition (SD) videos have picture signals with a vertical resolution of 480 (NTSC) or 576 (PAL/SECAM) lines.

High definition (HD) videos have picture signals with a vertical resolution of 720 or 1,080 lines. (For 4K vertical resolution: 2,160 lines)

Installing the TV to the Wall

This TV's instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

- Be sure to store the removed screws in a safe place, keeping them away from children.

To change the cable management (KD-55X8500C, KD-49/43X8300C)

SU-WL450

1 Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV.

Refer to the following table on installing the TV to the wall. See page 20-21 (Specifications) for the TV's weight.

Unit: mm

Model Name KD-	Display dimensions		Screen centre dimension	Length for mounting
	a	b	c	d	e
					Standard mounting Slim mounting
65X8500C 1,453 844 21 450 133 91
55X8500C 1,236 722 116 485 115 73
49X8300C 1,093 643 206 536 107 65
43X8300C 961	568 191		483 107 65

Note

• Figures in the table may differ slightly depending on the installation.
• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

2 When installing the TV on the wall, remove the screws from the rear of the TV (KD-65X8500C).

3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "1" of the Wall-Mount Bracket Installation Guide.

Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.

Standard mounting

Slim mounting

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

4 Connect necessary cables to the TV.

Note

- You cannot access any terminal after installing the TV to the wall.

5 Detach the Table-Top Stand from the TV.

6 Install the TV to the Base. Refer to "5" of Installation Guide and "Installing the TV to the Wall" of Operating Instructions supplied with the Wall-Mount Bracket.

Model Name KD- Hook location
65X8500C a
55X8500C	b
49X8300C
43X8300C c

Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.

Troubleshooting

In order to keep your TV software up-to-date, it is necessary to download the latest software information via the digital broadcasting system or internet and to update the software. Select [Update Now] to start a software update. The illumination LED flashes white while the software is updating. Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 30 minutes. If you do not wish to update the software automatically, press HOME and select [Help] → [System software update] → [Automatic software download] → [Off].

When you unplug the TV and plug it in again, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV because it takes time to initialize the system. Wait for about 10 to 20 seconds, then operate it again.

When the illumination LED is flashing red, count how many times it flashes (interval time is three seconds).

If the illumination LED flashes red, reset the TV by disconnecting the AC power cord (mains lead) for two minutes, then turn on the TV. If the problem persists, contact your dealer or Sony service centre with the number of times the illumination LED flashes red (interval time is three seconds). Disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre.

When the illumination LED is not flashing, check the items as follows.

You can also refer to [Troubleshooting] in the Help Guide or perform self-diagnosis by selecting [Help] → [Self diagnostics]. If the problem persists, have your TV serviced by qualified service personnel.

Troubles and Solutions

There is no picture (screen is dark) and no sound.

• Check the antenna (aerial)/cable connection.
• Connect the TV to the AC power (mains), and press ⏻ on the TV or remote control.

Some programmes cannot be tuned.

- Check the antenna (aerial)/cable connection.

The remote control does not function.

- Replace the batteries.

The [Parental lock] password has been forgotten.

- Enter 9999 for the PIN code. (PIN code 9999 is always accepted.)

The TV surrounds become warm.

- When the TV is used for an extended period, the TV surrounds become warm.

You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote control buttons.

- Perform a simple reset of the TV by unplugging the AC power cord (mains lead) for two minutes, then plug it in again.

The ⏻, CH+/-, △+/-, ⊖ and TV buttons cannot be located on the TV.

- See below illustration for location of the buttons on the TV.

Rear of TV

The illumination LED is turned on.

• If you do not wish to light up the illumination LED, you can turn it off. Press HOME, then select [Settings] → [Illumination LED] → [Off].

Cannot connect to a wireless router by WPS (Wi-Fi Protected Setup).

- If you use WEP security, select [Easy] → [Wi-Fi] → [Connect by scan list]. Then, select the network name (SSID) you want to connect.

Cannot find the required network name in network setup.

- Select [Manual entry] and press to enter network name.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Analogue: B/G, I, D/K, M

Digital: DTMB

Colour/video system

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to the Help Guide

Channel coverage

Analogue: UHF/VHF/Cable

Digital: UHF

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n

Bluetooth Version 4.1

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

→/→V I D E O I N 1

Video/Audio input (phono jacks)

- / - C O M P O N E N

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (phono jacks)

→ VIDEO IN 2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4K resolution)

Video (2D):

4096 × 2160p (50, 60 Hz)¹², 4096 × 2160p (24 Hz)², 3840 × 2160p (50, 60 Hz)¹, 3840 × 2160p

Hz², 3840 × 2160p(50, 60Hz)¹, 3840 × 2160p

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

576p, 576i, 480p, 480i, PC Formats

*1 YCbCr 4:2:0 / 8bit only

*2 3840 × 2160p is displayed when 4096 × 2160p is input

*2 3840 × 2160p is displayed when 4096 × 2160p is input

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side: 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under: 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2,

96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby

Digital and DTS

ARC (Audio Return Channel) (HDMI IN 4 only)

MHL (common with HDMI IN 2)

Video (2D):

4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30

Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

* 3840 × 2160p is displayed when 4096 × 2160p is input

Video (3D) (3D compatible models only):

Frame Packing: 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side: 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under: 1080p (50, 60 Hz), 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 5.1 channel linear PCM: 32, 44.1, 48, 88.2, 96, 176.4 and 192 kHz, 16, 20 and 24 bits, Dolby Digital and DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital and DTS)

HDMI 3 AUDIO IN

Headphone, Audio Output, Subwoofer

1, 2, SS 3

USB port 1 and 2 support High Speed USB (USB2.0).

USB port 3 supports Super Speed USB (USB3.0)

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Others

Optional accessories

Touchpad Remote Control: RMF-TX100E (KD-49/43X8300C)

Wall-Mount Bracket: SU-WL450

Wireless subwoofer: SWF-BR100

MHL cable: DLC-MC10, DLC-MC20

Active 3D Glasses: TDG-BT500A (3D compatible models only)

Operating temperature

0°C - 40°C

Operating humidity

10% - 80% RH (non-condensing)

Power and others

Power requirements

220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

KD-65X8500C: 65 inches / 163.9 cm

KD-55X8500C: 55 inches / 138.8 cm

KD-49X8300C: 49 inches / 123.2 cm

KD-43X8300C: 43 inches / 108.0 cm

Display resolution

3,840 pixels (horizontal) × 2,160 lines (vertical)

Power consumption

Indicated on the rear of the TV

Output Rating

USB 1/2: 5 V, 500 mA MAX

USB 3: 5 V, 900 mA MAX

MHL (HDMI IN 2): 5 V, 1.5 A MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-65X8500C: 1,453 × 892 × 265 mm

KD-55X8500C: 1,236 × 759 × 222 mm

KD-49X8300C: 1,093 × 679 × 201 mm

KD-43X8300C: 961 × 604 × 189 mm

without Table-Top Stand

KD-65X8500C: 1,453 × 844 × 78 mm

KD-55X8500C: 1,236 × 722 × 60 mm

KD-49X8300C: 1,093 × 643 × 60 mm

KD-43X8300C: 961 × 568 × 60 mm

Mass (Approx.)

with Table-Top Stand

KD-65X8500C: 25.5 kg

KD-55X8500C: 21.0 kg

KD-49X8300C: 15.4 kg

KD-43X8300C: 12.8 kg

without Table-Top Stand

KD-65X8500C: 24.1 kg

KD-55X8500C: 19.9 kg

KD-49X8300C: 14.4 kg

KD-43X8300C: 11.8 kg

Note

• Optional accessories availability depends on countries/region/TV model/stock.

- Design and specifications are subject to change without notice.

- This TV set incorporates MHL 3.

Trademark information

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- "BRAVIA" and Brea trademarks of Sony Corporation.

- Gracenote, Gracenote eyeQ, Gracenote VideolD, Gracenote Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

- Opera® Devices SDK from Opera Software ASA. Copyright 1995-2014 Opera Software ASA. All rights reserved.

- Wi-Fi, Wi-Fi Direct, Miracast and Wi-Fi Protected Setup are trademarks or registered trademarks of Wi-Fi Alliance.

- MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

- For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

- Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 – 2014

- The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• 2015 RealNetworks, Inc. Patents Pending. All rights reserved. RealNetworks logo is a trademark of RealNetworks, Inc.

- TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

- USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. SS

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

DOLBY. DIGITAL PLUS

gracenote.

OPERA™ software

MHL™

Mobile High-Definition Link

dts®

Digital Surround

Bluetooth®

RealNetworks

4K

Actual resolution: 3840 x 2160 pixels.

For models with supplied Touchpad Remote Control:

- The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Table of Contents

Safety Information 2

Precautions 4

Components and Controls 5

Controls and Indicators 5

Inputs and Outputs 6

Using the Remote Control 8

Remote Control Components 8

Using the Touchpad Remote Control 9

Conditions:

3 DIGITAL AUDIO OUT (OPTICAL)

Lighting LED on.

(50, 60 Hz), 720p (50, 60 Hz), 576p, 576i,

480p, 480i

Audio input (phono jacks)

→ VIDEO IN 2

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 576i, 480p,

480i, PC formats

*1 YCbCr 4:2:0 / 8bit only

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

- Opera® Devices SDK from Opera Software ASA. Copyright 1995–2014 Opera Software ASA. All rights reserved.

- Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 - 2014

Mobile High-Definition Link

dts®

Digital Surround

Bluetooth®

realnetworks

4K

Actual resolution:

3840 x 2160 pixels.

For models with the supplied touchpad remote control:

Customer Support and Contact:

User support and contact:

http://www.sony-asia.com/support
