USER MANUAL TRIO STREETY 3 BEBE CONFORT

Illustration of a baby stroller with black and gray body, no text or symbols present

Pink circular icon with a white stylized bicycle (no text or symbols)

0 M / Max 15 kg

Circular play button icon with a black triangle inside, no text or symbols present

QR code image containing encoded data, no visible human-readable text

EN

IMPORTANT

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FR

IMPORTANT

CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE.

ES

IMPORTANTE

CONSERVAR PARA FUTURAS CONSULTAS.

IT

IMPORTANTE

CONSERVARE QUESTE ISTRUZIONI PER CONSULTAZIONE FUTURA.

PT

IMPORTANTE

GUARDAR ESTE MANUAL PARA CONSULTA POSTERIOR.

RU

ВАЖНО

EN Instructions for use

FR Mode d'emploi

Product photo of a baby stroller with adjustable seat, cord, and blanket (no text or symbols visible)

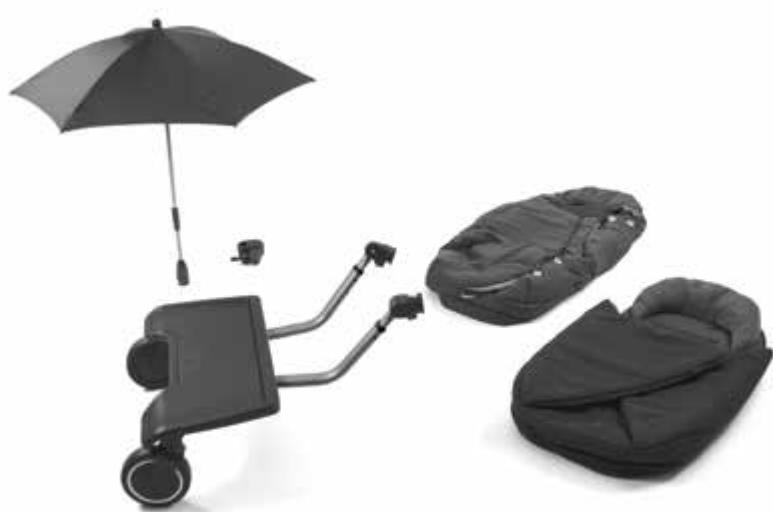

EN - Depending on version

FR - Selon version

ES - Según versión

Two black baby car seat designs shown side by side, no text or symbols visible

Three grayscale product photos: a folded fabric, a small cartoon character with a long hair rod, and a gray bag (no text or symbols visible)

Black stroller with umbrella and two backpacks on a white background (no text or symbols)

Product photo of a stroller with two blue plastic containers beside it (no text or symbols visible)

Black and silver stroller with four wheels, shown against white background (no text or symbols visible)

Person using a blue cleaning brush on a stroller, no text or symbols visible

CLICK!

Two gray circular icons: a wrench and a bicycle, both without any text or symbols.

①

Black and white photo of a baby walker with two wheels and a handle (no visible text or symbols)

②

Close-up of a bicycle suspension mechanism with blue arrow indicating direction (no text or symbols)

Person using a stroller with a blue arrow indicating motion (no text or symbols visible)

Icon of a stroller with an arrow indicating direction (no text or symbols)

Gray oval icon with a white wrench symbol (no text or numbers)

Person using a blue walking stick with a stroller, no text or symbols visible

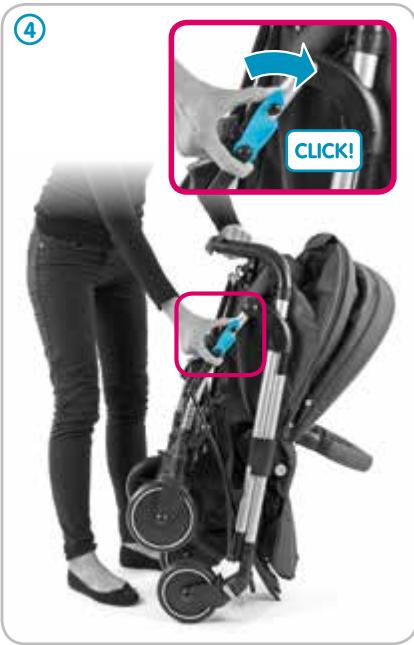

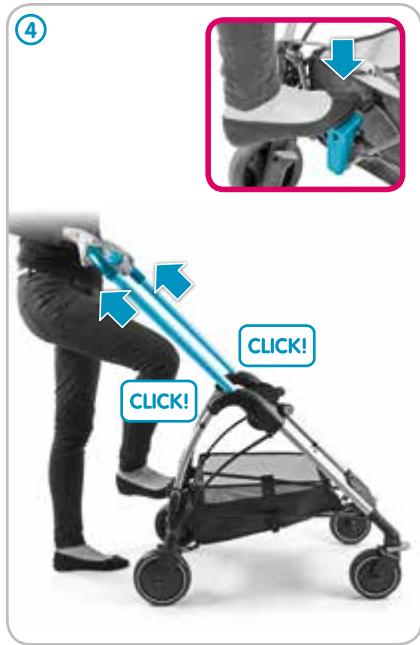

④ CLICK! CLICK!

Two gray circular icons: a wrench and a stroller, both without any text or symbols.

Product photo of a blue baby stroller with a plus button, no visible text or symbols

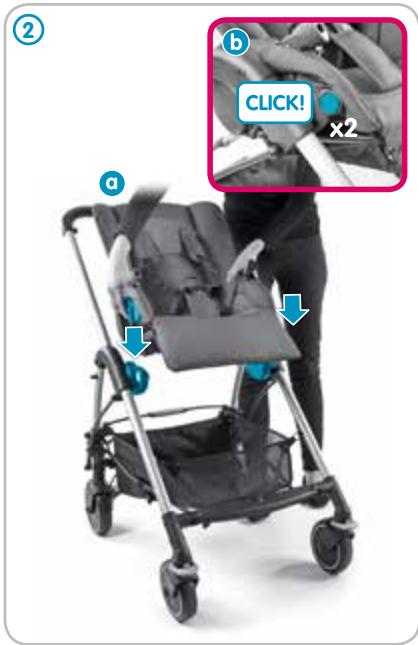

② a b CLICK! x2

b CLICK! x2

Close-up of a baby stroller with blue arrows indicating motion or adjustment points (no text or symbols visible)

③

Black and white photo of a baby stroller with adjustable backrest and wheels (no text or symbols visible)

①

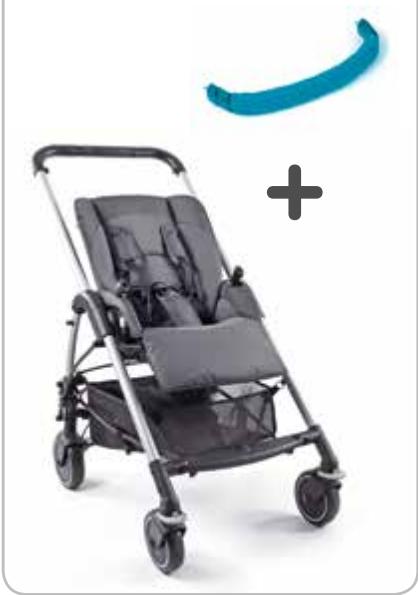

Product photo of a baby stroller with a blue curved arrow and plus sign, no visible text or symbols.

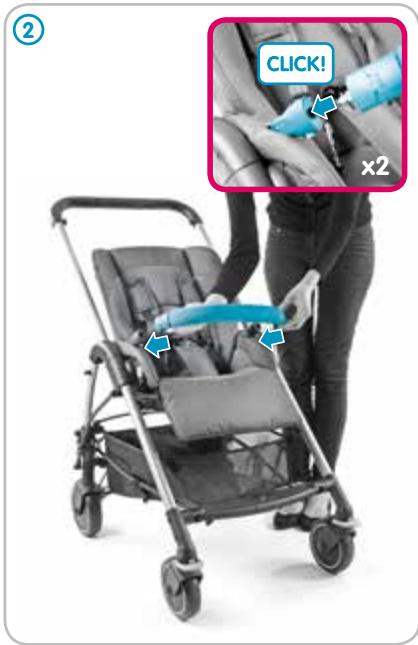

② CLICK! x2

CLICK! x2

①

Blue fabric garment with crumpled texture (no text or symbols)

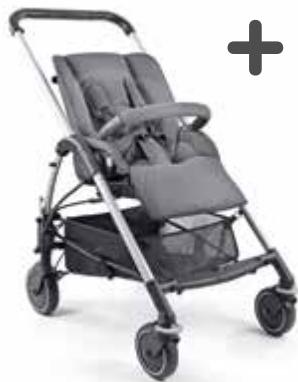

Product photo of a baby stroller with a plus sign, no visible text or symbols on the device itself.

②

x2 CLICK!

Person pushing a baby stroller with blue seat cover, no visible text or symbols

③

Close-up of a hand holding a small mechanical component, labeled 'x2' in the corner (no other text or symbols visible)

Close-up of a baby stroller with a highlighted seat area (no text or symbols visible)

①

Side view of a baby stroller with wheels and a highlighted section (no text or symbols visible)

Close-up of a hand holding a black cable with a blue arrow pointing to a small electronic component (no text or symbols visible)

Side view of a baby stroller with wheels and a highlighted section (no text or symbols visible)

Close-up of a hand holding a black cable with blue directional arrows indicating motion (no text or symbols)

Person pushing a baby stroller with wheels, no visible text or symbols

Close-up of a person's seat with a blue arrow pointing to the seat area, no visible text or symbols

Person using a stroller with a blue arrow pointing to the seat (no text or symbols visible)

④ CLICK!

Side view of a baby stroller with a blue arrow indicating motion (no text or symbols)

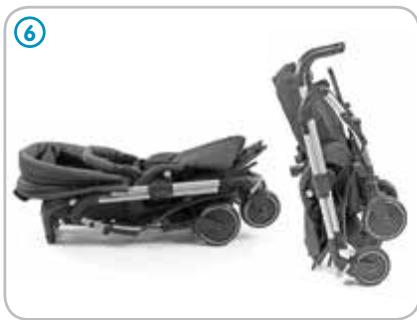

Two strollers shown from front and side views, no text or symbols visible

①

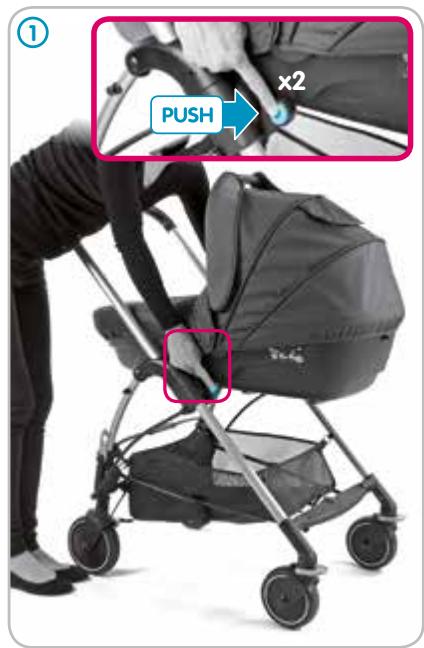

PUSH x2

Blue baby stroller with black frame and silver handle, no visible text or symbols

②

Blue children's stroller with a backpack, shown in motion (no text or symbols visible)

b x2 CLICK!

③

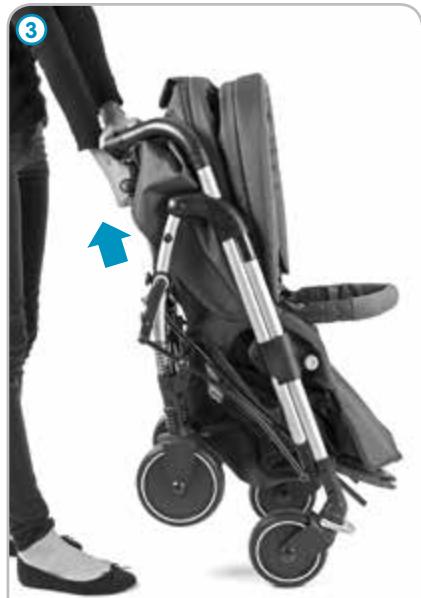

Black and white photo of a baby stroller with extended arms and wheels (no text or symbols visible)

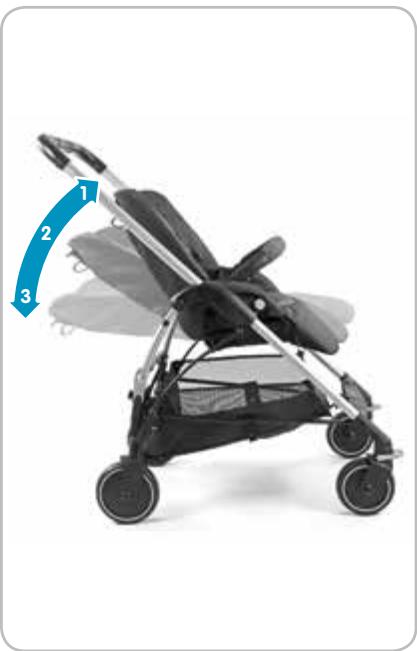

Side view of a baby stroller with three numbered guide arrows indicating motion (no text or symbols on the device itself)

a x2 PULL b

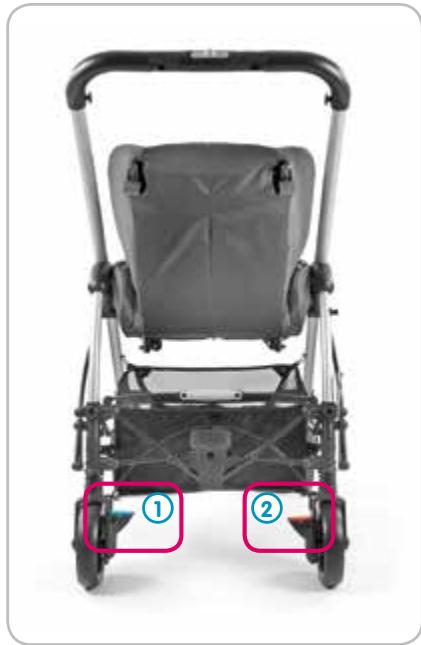

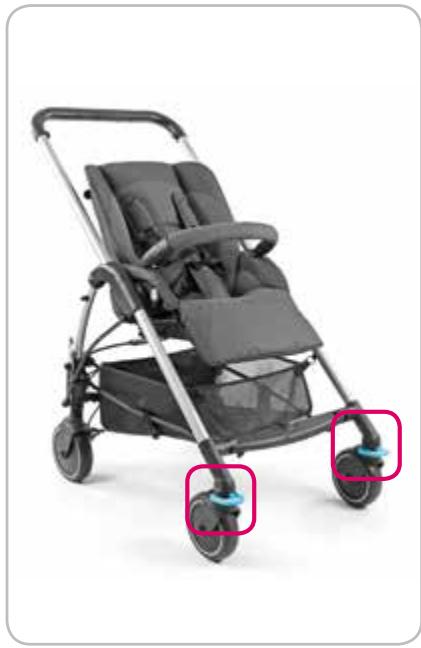

Front view of a baby stroller with two highlighted wheels (① and ②), no text or symbols present.

① CLICK! ② CLICK! STOP

Model of a baby stroller with two wheels, highlighted in red (no text or symbols visible)

Two-step diagram showing a mechanical device with blue directional arrows indicating motion or rotation (no text or symbols)

NO

Illustration of a person pushing a stroller with stairs, no text or symbols present

NO

Simple cartoon face inside a gray oval shape (no text or symbols)

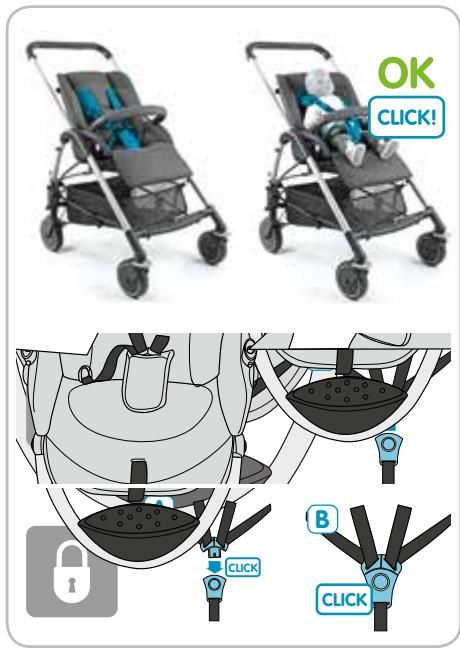

OK CLICK! B CLICK

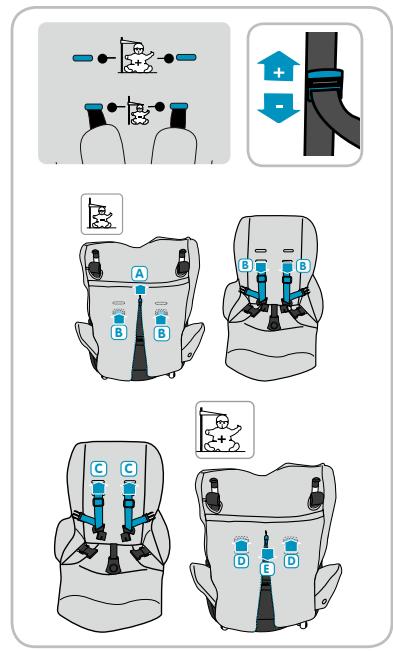

Diagram illustrating car seatbelt usage with labeled positions A, B, C, D and directional arrows indicating movement or positioning.

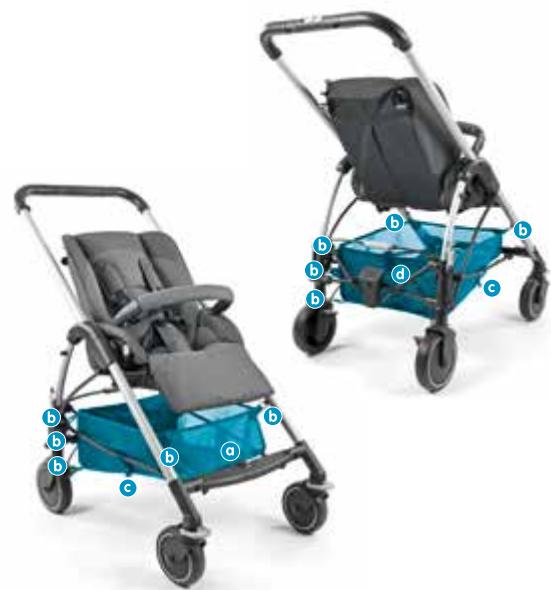

Two baby strollers with labeled parts, one blue and one gray, shown without any text or symbols.

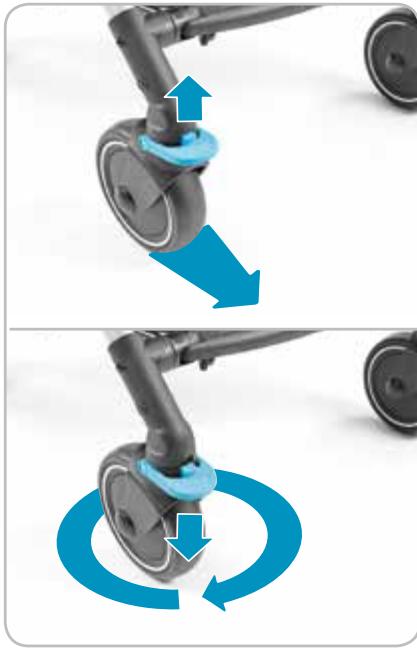

Close-up of a car wheel with a blue plastic clip attached, no visible text or symbols

Close-up of a car's side panel with a blue plastic clip, no visible text or symbols

Close-up of a blue plastic clip attached to a dark surface, no visible text or symbols

Close-up of a mechanical component with a blue highlighted section (no visible text or symbols)

Close-up of gloved hands holding a blue glove, with a magnified view showing a blue arrow and the label 'x2' (no text or symbols on the main image)

b CLICK! CLICK!

Modern baby stroller with gray body, black frame, and blue handle (no text or symbols visible)

a PUSH x2

Close-up of a person in a car seat with a blue tool and magnified view (no text or symbols)

Modern baby stroller with black frame and gray body, no visible text or symbols

Illustration of a sun icon next to two strollers with blue umbrellas, showing a visual change (no text or symbols)

Close-up of a hand holding a white object with a blue arrow pointing to it, against a dark background (no text or symbols visible)

Three identical photos of a blue and black stroller with a blue canopy, showing progressive deformation (no text or symbols)

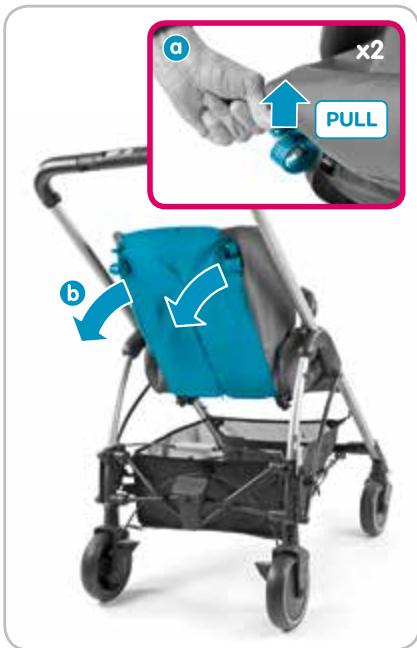

x2 PULL a b

Two blue baby strollers with black handles, one white and one blue, shown side by side (no text or symbols)

(+)

Exterior view of a modern baby stroller with a blue bag labeled 'max 1 kg' (no other text or symbols visible)

Medical scan image showing a blue arrow pointing to a highlighted anatomical structure (no text or symbols present)

Simple blue cartoon character with a long stem and cloud-like body (no text or symbols)

EN - Depending on version

FR - Selon version

ES - Según versión

Side view of a baby stroller with open lid and wheels (no text or symbols visible)

Three stuccoetry car bidders with different colors and designs, one open showing a blue blanket, another closed with a snowflake icon (no text or symbols)

EN - Depending on version

FR - Selon version

ES - Según versión

Person pushing a baby stroller with a blue bag, no visible text or symbols

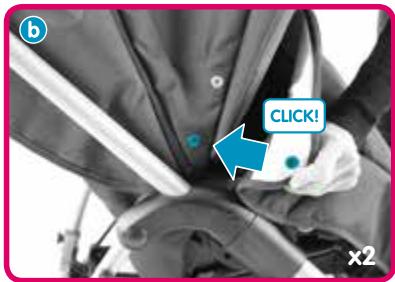

b CLICK! x2

Simple blue icon of a stylized flower or cloud shape with a stem (no text or symbols)

Gray baby stroller with black body, silver handle, and blue tag (no text or symbols visible)

EN - Depending on version

FR - Selon version

ES - Según versión

EN - Depending on version

FR - Selon version

ES - Según versión

Solid blue fabric or cushion with no visible text or symbols

Illustration of a baby stroller with a blue arrow pointing to the interior area (no text or symbols visible)

b x2 a a

Illustration of a cloud with raindrops falling (no text or symbols)

①

Illustration of hands adjusting a blue seatbelt (no text or symbols visible)

Diagram showing a mechanical device with labeled parts b and c, indicating a turning or positioning process.

②

a

b CLICK!

Illustration of a baby stroller with labeled parts and a close-up inset showing the insertion step.

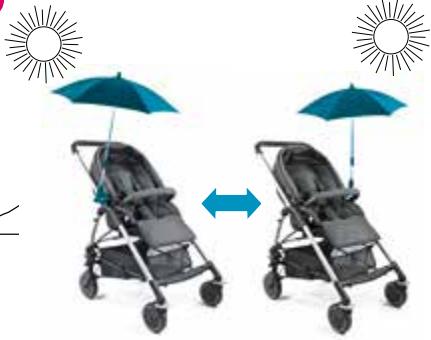

Two strollers with blue umbrellas under sunlight, shown from left and right angles (no text or symbols)

Two gray plastic car parts with a plus sign and a small cartoon character wearing a hat (no text or symbols)

Illustration of a baby stroller with a blue container labeled 'max 2kg' (no other text or symbols)

Black and blue baby stroller with a light blue belly, no visible text or symbols

Stroller with blue and gray body, no visible text or symbols

Model of a baby stroller with blue backrest and black body, no visible text or symbols

Black and white stroller with blue toy carabiner (no text or symbols visible)

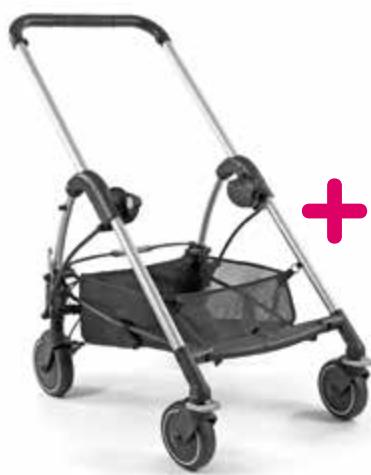

Black stroller with wheels and a pink plus sign (no text or symbols on the device itself)

Illustration of a baby car seat with a curved backrest (no text or symbols)

Citi

Black baby car seat with handle and seatbelt (no visible text or symbols)

Pebble

Gray baby car seat with a strap and seatbelt, no visible text or symbols

CabrioFix

Close-up of a baby car seat with adjustable armrest (no text or symbols visible)

Pebble Plus

Gray plastic cap or seat with a flat top and side clip (no text or symbols visible)

Compact Safety Carrycot

Close-up of a dark-colored cap with a white strap (no visible text or symbols)

Windoo Plus

Silhouette of a green baby stroller with black armrests, no text or symbols present

Silhouette of a red baby stroller with black handle, no text or symbols present

Silhouette of a green sprout in a black stroller with 'OK' text in the corner (no other text or symbols)

Silhouette of a red flower in a black stroller with 'NO' text in red (no other symbols or text)

Model of a baby stroller with black body and wheels, showing a blue arrow labeled 'x2' pointing to the seat area (no text or symbols on the device itself)

② CLICK! x2

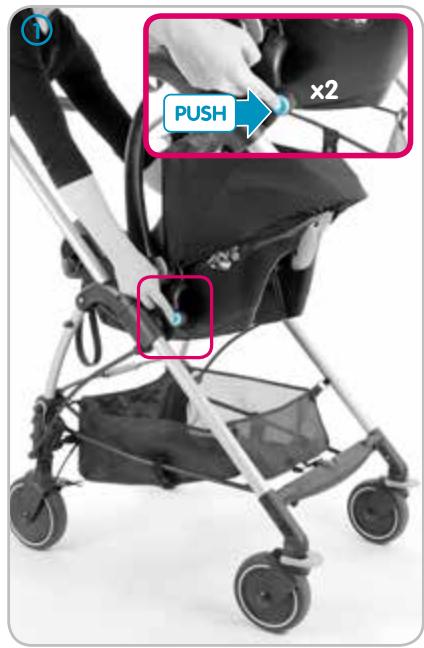

① PUSH x2

Person assembling a baby stroller with a blue arrow indicating upward motion (no text or symbols visible)

Person wearing a stroller with blue arrows pointing to the seat area (no text or symbols visible)

② CLICK! CLICK!

PUSH x2

Close-up of a baby stroller with hand and blue accents, no visible text or symbols

Simple icon of a cup with bubbles inside, no text or symbols present

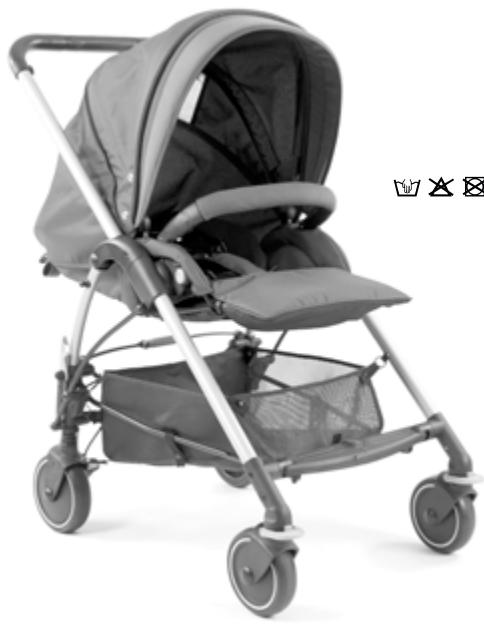

EN Washing
FR Lavage
ES Lavado
IT Lavaggio
PT Lavagem
RU Чистка
TR Yıkama
AR غسل

Circular play button icon with a white circle containing a white tennis ball, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.bebeconfort.com

Black and white photo of a baby stroller with open lid and wheels, no visible text or symbols

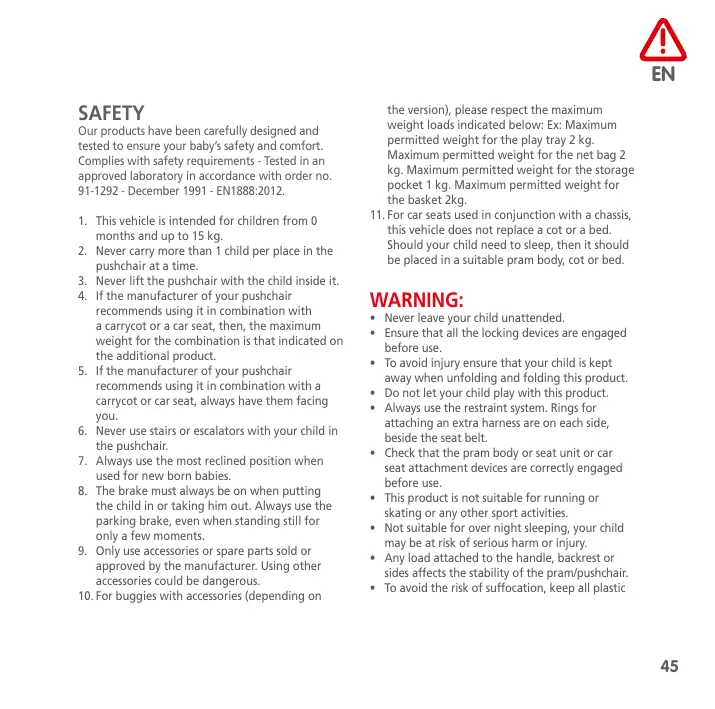

SAFETY

Our products have been carefully designed and tested to ensure your baby's safety and comfort. Complies with safety requirements - Tested in an approved laboratory in accordance with order no. 91-1292 - December 1991 - EN1888:2012.

1. This vehicle is intended for children from 0 months and up to 15 kg.
2. Never carry more than 1 child per place in the pushchair at a time.
3. Never lift the pushchair with the child inside it.
4. If the manufacturer of your pushchair recommends using it in combination with a carrycot or a car seat, then, the maximum weight for the combination is that indicated on the additional product.
5. If the manufacturer of your pushchair recommends using it in combination with a carrycot or car seat, always have them facing you.

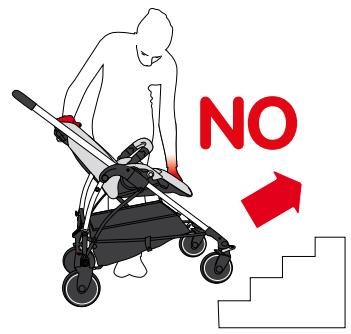

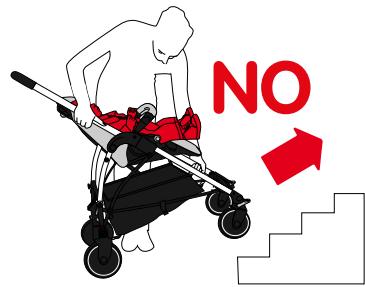

6. Never use stairs or escalators with your child in the pushchair.
7. Always use the most reclined position when used for new born babies.
8. The brake must always be on when putting the child in or taking him out. Always use the parking brake, even when standing still for only a few moments.
9. Only use accessories or spare parts sold or approved by the manufacturer. Using other accessories could be dangerous.

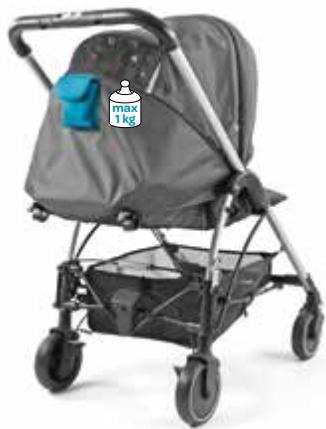

10. For buggies with accessories (depending on

the version), please respect the maximum weight loads indicated below: Ex: Maximum permitted weight for the play tray 2 kg. Maximum permitted weight for the net bag 2 kg. Maximum permitted weight for the storage pocket 1 kg. Maximum permitted weight for the basket 2kg.

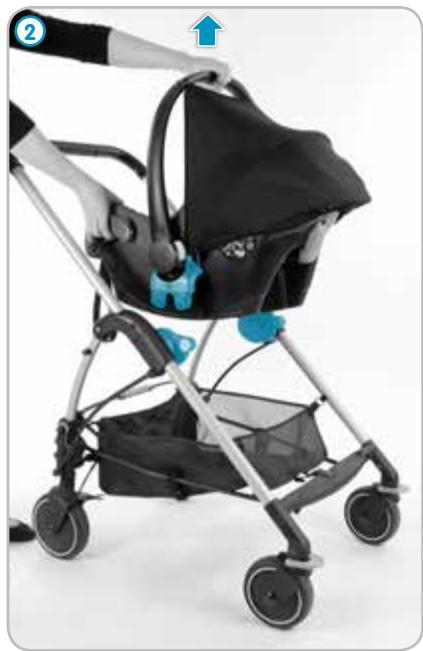

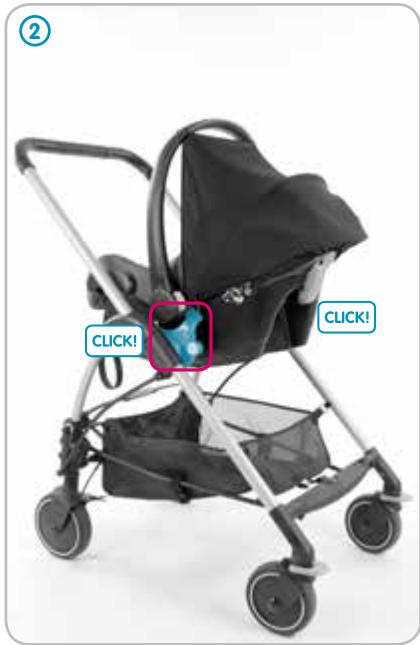

1. For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

WARNING:

• Never leave your child unattended.
- Ensure that all the locking devices are engaged before use.
- To avoid injury ensure that your child is kept away when unfolding and folding this product.
- Do not let your child play with this product.
- Always use the restraint system. Rings for attaching an extra harness are on each side, beside the seat belt.
- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
- This product is not suitable for running or skating or any other sport activities.
- Not suitable for over night sleeping, your child may be at risk of serious harm or injury.
- Any load attached to the handle, backrest or sides affects the stability of the pram/pushchair.
• To avoid the risk of suffocation, keep all plastic

bags and packaging out of reach of babies and young children.

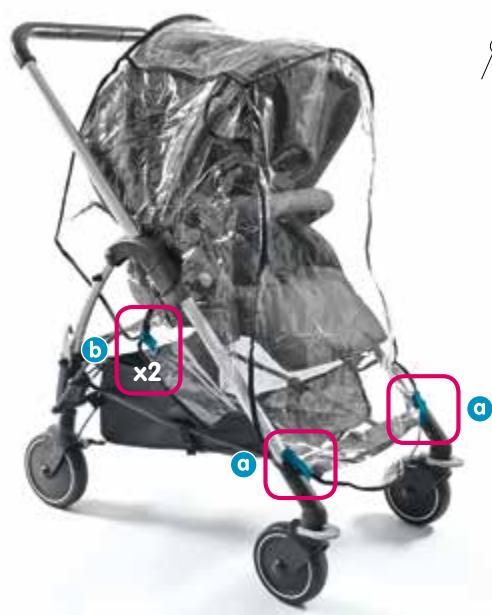

• Raincover uses: Do not use in sunny weather because of excessive heat. Do not use the rain cover without the hood. Use only under adult supervision.
• Always check that the brake is fully engaged before letting go of your stroller.
• Never let your child climb into or out of the stroller alone.

Chassis care advice

1. The product must be maintained regularly to provide full satisfaction. We advise you to check and if necessary clean mechanical parts every fortnight.
2. Clean and dry thoroughly the chassis, every time you've been in muddy or sandy areas, to avoid rust.
3. Do not use grease or oil.
4. Your pushchair may not work properly if it is not maintained regularly.
5. Do not force it if it becomes difficult to fold it up or unfold it. Clean the product.
6. If difficulties persist, contact your supplier.
7. Caring: Use a sponge and mild soap. Do not use detergent.
8. For washing the garment, please consult the instruction label.

Environment

For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

Please contact your local distributor or visit our website. When doing so please have the following information to hand:

• Serial number
• Age (height) and weight of your child.

Warranty

Our 24 months warranty reflects our confidence in the high quality of our design, engineering, production and product performance. We confirm that this product was manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects on materials and workmanship at the time of purchase. Under the conditions mentioned herein, this warranty may be invoked by consumers in the countries where this product has been sold by a subsidiary of the Dorel Group or by an authorized dealer or retailer.

Our 24 months warranty covers all manufacturing defects in materials and workmanship when used in normal conditions and in accordance with our user manual for a period of 24 months from the date of the original retail purchase by the first end-user customer. To request repairs or spare

parts under our warranty for defects in materials and workmanship you must present your proof of purchase, made within the 24 months preceding the service request.

Our 24 months warranty does not apply to defects caused by normal wear and tear, damage caused by accidents, abusive use, negligence, fire, liquid contact or other external cause, damage which is the consequence of failing to comply with the user manual, damage caused by use with another product, damage caused by service by anyone who is not authorized by us, or if the product is stolen or if any label or identification number has been removed from the product or has been changed. Examples of normal wear and tear include wheels and fabric worn down by regular use and the natural breakdown of colors and materials due to normal aging of the product.

What to do in case of defects:

Should problems or defects arise, your first point of contact is the authorized dealer or retailer recognized by us. Our 24 months warranty is recognized by them ^(1) . You must present your proof of purchase, made within the 24 months preceding the service request. It is easiest if you get your service request pre-approved by us. If you submit a valid claim under this warranty, we may request that you return your product to the authorized dealer or retailer recognized by us or that you ship the product to us in accordance with our instructions. We will pay for shipment and for return freight if all instructions are followed. Damage and/or defects neither covered by our warranty nor by the legal rights of the consumer and/or damage and/or defects with respect to products that are not covered by our warranty can be handled at a reasonable fee.

Rights of the consumer:

A consumer has legal rights pursuant to applicable consumer legislation, which may vary from country to country. The rights of the consumer under applicable national legislation are not affected by this warranty.

This warranty is provided by Dorel Netherlands. We are registered in The Netherlands under company number 17060920. Our trading address is Korendijk 5, 5704 RD Helmond, The Netherlands, and our postal address is P.O. Box 6071, 5700 ET Helmond, The Netherlands.

The names and address details of other subsidiaries of the Dorel group can be found on the last page of this manual and on our website for the brand concerned.

(1) Products purchased from retailers or dealers that remove or change labels or identification numbers are considered unauthorized. Products purchased from unauthorized retailers are also considered unauthorized. No warranty applies to these products since the authenticity of these products cannot be ascertained.

SECURITE

5704 RD Helmond The Netherlands.

Tel: [phone] - Fax: [phone]

www.maxi-cosi.com

TÜRKİYE DİSTRİBÜTÖRÜ (İTHALATÇI FİRMA) & SERVİS

İSTASYONLARI:

GRUP ELEKTRONİK İÇ VE DIŞ TİC. LTD. ŞTİ.

Mimar Sinan Mah. Özgürlük Cad.

No: 71/1-2-3-4 Sultanbeyli Istanbul.

Tel: [phone] - Fax: [phone]

E-mail: [e-mail]

www.grupbaby.com.tr

Imperial Place, Maxwell road,

Borehamwood, Hertfordshire,

WD6 1JN

UNITED KINGDOM

DOREL GERMANY
