USER MANUAL 49UM7390 LG

100,0 mm x 55,0 mm x 5,0 mm

Le nom du modèle et le numéro de série sont indiqués à l'arrière et sur le côté du produit. Inscrivez-les ci-dessous pour référence ultérieure. Modèle Nº de série

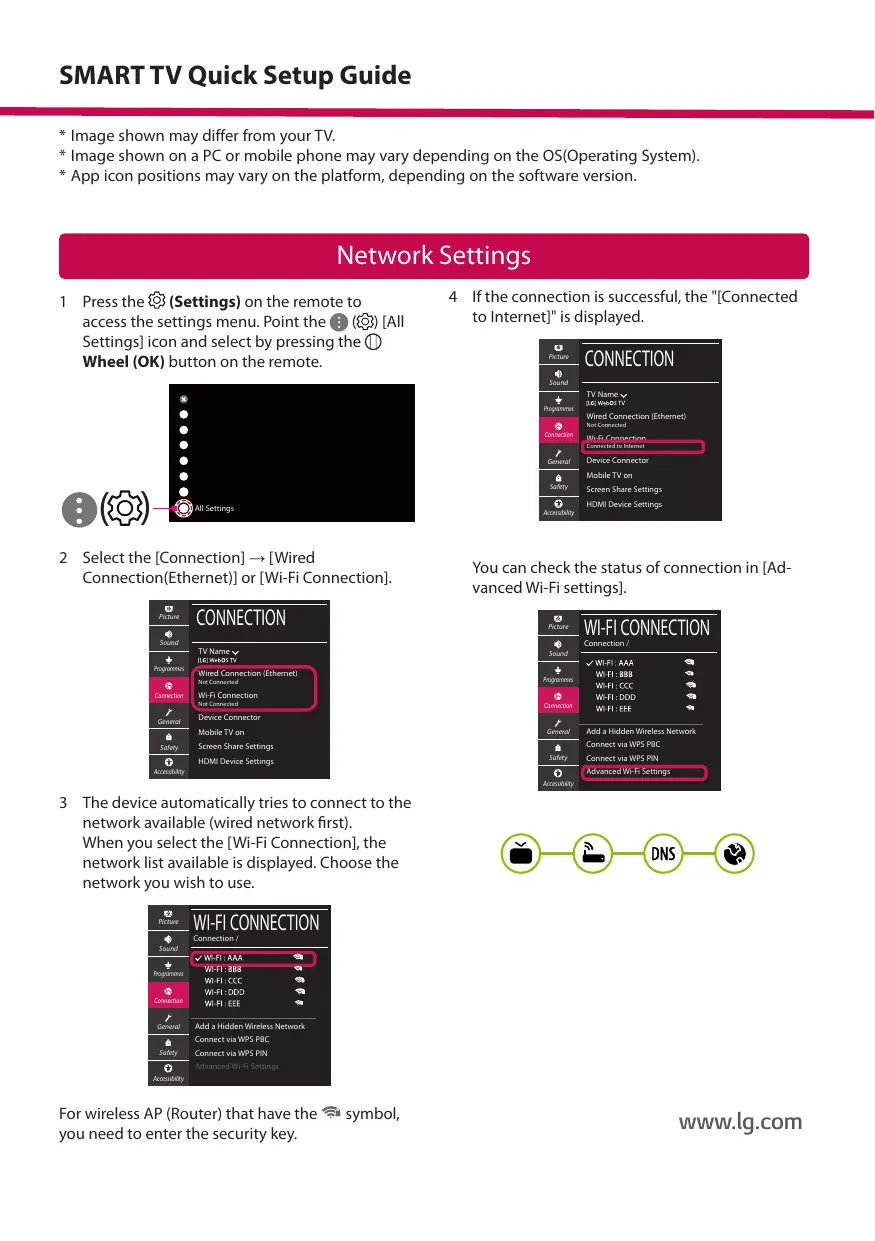

SMART TV Quick Setup Guide * Image shown may differ from your TV. * Image shown on a PC or mobile phone may vary depending on the OS(Operating System). * App icon positions may vary on the platform, depending on the software version.

Network Settings 1 Press the (Settings) on the remote to access the settings menu. Point the ( ) [All Settings] icon and select by pressing the Wheel (OK) button on the remote.

4 If the connection is successful, the "[Connected to Internet]" is displayed. Picture

Wired Connection (Ethernet) Not Connected

Wi-Fi Connection Connected to Internet

Device Connector Mobile TV on

2 Select the [Connection] → [Wired Connection(Ethernet)] or [Wi-Fi Connection]. Picture Sound Programmes

Wired Connection (Ethernet)

Wi-Fi Connection Connection

Device Connector Mobile TV on

WI-FI CONNECTION Connection /

HDMI Device Settings

You can check the status of connection in [Advanced Wi-Fi settings].

CONNECTION Not Connected

Connect via WPS PBC Screen Share Settings Safety

HDMI Device Settings

Connect via WPS PIN Advanced Wi-Fi Settings

Accessibility Accessibility

3 The device automatically tries to connect to the network available (wired network first). When you select the [Wi-Fi Connection], the network list available is displayed. Choose the network you wish to use. Picture

WI-FI CONNECTION Connection /

Sound Programmes Connection General

Add a Hidden Wireless Network

Connect via WPS PBC Safety

Connect via WPS PIN Advanced Wi-Fi Settings

For wireless AP (Router) that have the you need to enter the security key.

Troubleshooting Network Problems 1 Press the (Settings) on the remote to access the settings menu. Point the ( ) [All Settings] icon and select by pressing the Wheel (OK) button on the remote.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

1 Unplug the power cord of the AP (Router) and try to connect after 5 seconds.

2 Initialize (Reset) the AP (Router).

2 Select the [Connection] → [Wired Connection (Ethernet)] or [Wi-Fi Connection] → [Advanced Wi-Fi Settings]. Picture

3 Contact internet service provider or AP (Router) company.

WI-FI CONNECTION Connection /

Wired Connection (Ethernet) Not Connected

When X appears next to DNS:

Connect via WPS PBC Safety

Screen Share Settings

Connect via WPS PIN Advanced Wi-Fi Settings

Add a Hidden Wireless Network

Follow the instructions below that correlate to your network status. Check the TV or the AP (Router).

1 Unplug the power cord of the AP (Router) and try to connect after 5 seconds. 2 Initialize (Reset) the AP (Router). 3 Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.) 4 Check the AP (Router) manufacturer’s website to make sure your router has the latest firmware version installed.

When X appears next to TV: 1 Check the connection status of the TV, AP (Router). 2 Power off and power on the TV, AP (Router). 3 If you are using a static IP, enter the IP directly. 4 Contact internet service provider or AP (Router) company.

SmartShare Connection to Smartphone 1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network. 2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones). 3 Enable your smartphone to share content files with other devices. 4 Select the file type you want to play (movie, audio or photo). 5 Select a movie, music or photo file to play on the TV. 6 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware * If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes. 1

[General] → [About This TV] → [CHECK FOR UPDATES]

2 After checking the version of the software, update it. If you check the "[Allow Automatic Updates]", you can update the software automatically. Picture Sound Programmes

GENERAL AI Service General Safety Accessibility

Location Timers Account Management Eco Mode About This TV Additional Settings

Safety Accessibility

User Guide Quick Help

Please call LG Customer Service if you experience any problems.
