SOHV1920B - Range hood SCHOLTES - Free user manual and instructions

Product type	Range hood
Brand	Scholtes
Model	SOHV1920B
Power supply	220-240 V, 50 Hz, class I
Number of speeds	3 speeds + booster position
Control	Touch control panel + remote control (optional)
Lighting	LED, with decorative LEDs on the chimney (activation by long press of the lighting button)
Operating mode	Extraction or recirculation
Grease filter	Metal, dishwasher safe
Charcoal filter	Active, replacement recommended every 120 hours of use
Minimum safety distance	65 cm above an electric hob, 70 cm above a gas hob
Timer	Programmed shut-off after 15 minutes
Filter saturation indicator	Display "C" on the screen
Bulb type	LED (see declaration label for rated power)
Extraction duct diameter	Minimum 120 mm; 150 mm adapter optional
Included accessories	Inner and outer ducts, plastic adapters, screws, wall plugs, remote control (optional)
Certifications	CE marking (Directives 2014/35/EU, 2014/30/EU, 2011/65/EU)
Exterior cleaning	Soapy water and soft cloth; do not use abrasive products
Warranty	Legal warranty; does not cover consumable parts, corrosion, or improper use

Frequently Asked Questions - SOHV1920B SCHOLTES

How to clean the grease filters of the Scholtes SOHV1920B hood?

The grease filters should be cleaned when the display shows "C" or at least once a month. Use a brush, hot water, and a mild detergent. Rinse and dry thoroughly. They can also be washed in the dishwasher, placed vertically or loosely. After cleaning, reset the display by holding down the timer button for at least 3 seconds (hood off).

How to replace the charcoal filter of the Scholtes SOHV1920B hood?

The charcoal filter retains odors and should be replaced approximately every 120 hours of use. Depending on the model (AF 100 or AF 500), place the filter in its housing and turn it clockwise (AF 100) or press the tab and pull forward (AF 500) until it locks. Order filters from your dealer or authorized technical service.

How to replace the LED lamps of the Scholtes SOHV1920B hood?

First disconnect the power supply. Remove the aluminum filter. Remove the defective bulb by pushing it with your hand. Separate the adhesive tape around the lamps and the plate from the body. Replace with an LED lamp of the same rated power (see label). Remove the protective film from the new lamp before sticking it in place. Caution: lamps may be hot after use.

What is the minimum safety distance between the hood and the cooking surface?

The minimum distance is 65 cm above an electric cooking surface and 70 cm above a gas or fuel cooking surface. If the instructions of the cooking surface indicate a greater distance, that must be observed.

How to use the remote control of the Scholtes SOHV1920B hood?

The remote control is supplied as an optional accessory. It has buttons: on/off, speed increase and decrease, and lighting. Make sure the remote control is paired (no special procedure described, usually it works directly). The remote control allows you to control basic functions remotely.

What to do if the hood does not work at all?

Check that the hood is properly plugged in and that the plug is correctly inserted in the socket. Check the appliance circuit breaker and the main circuit breaker in your home. If the power cord is damaged, have it replaced by a professional.

Why is my hood noisy or has poor performance?

Check the diameter of the extraction duct (minimum 120 mm). Make sure the metal filters are clean and the charcoal filters are recent (if in recirculation mode). Insufficient kitchen ventilation may also reduce performance. If the problem persists, contact after-sales service.

How to activate the decorative LEDs on the chimney?

The decorative LEDs on the chimney are activated by pressing and holding (more than 3 seconds) the lighting button on the control panel. A short press controls the main lighting.

Can I use the hood in recirculation mode without an external outlet?

Yes. In recirculation mode, fumes pass through active charcoal filters, then the purified air is returned to the kitchen via the outlet grilles. Make sure the grilles are clear. Charcoal filters are necessary in this mode and must be installed.

What to do if an error code is displayed?

If the display shows "C", it means the grease filters need to be cleaned. Clean them and reset the display by holding down the timer button for at least 3 seconds (hood off). No other error code is mentioned in the manual.

USER MANUAL SOHV1920B SCHOLTES

Instruction manual/safety instruction - Cooker hood

Schéma technique /

Technical drawing

FIG 1

After completing the installation of hood, the minimum distance must be 650 mm between the product and any electric cooker; and 750 mm between it and any gas ranges or cookers burning other fuels (Fig. 2).

Two-panel illustration showing a magnified view of a circular object and a hand pointing to a textured surface (no text or symbols)

FIG 9

Pure diagram of a mechanical component with arrows indicating direction, no text or symbols present

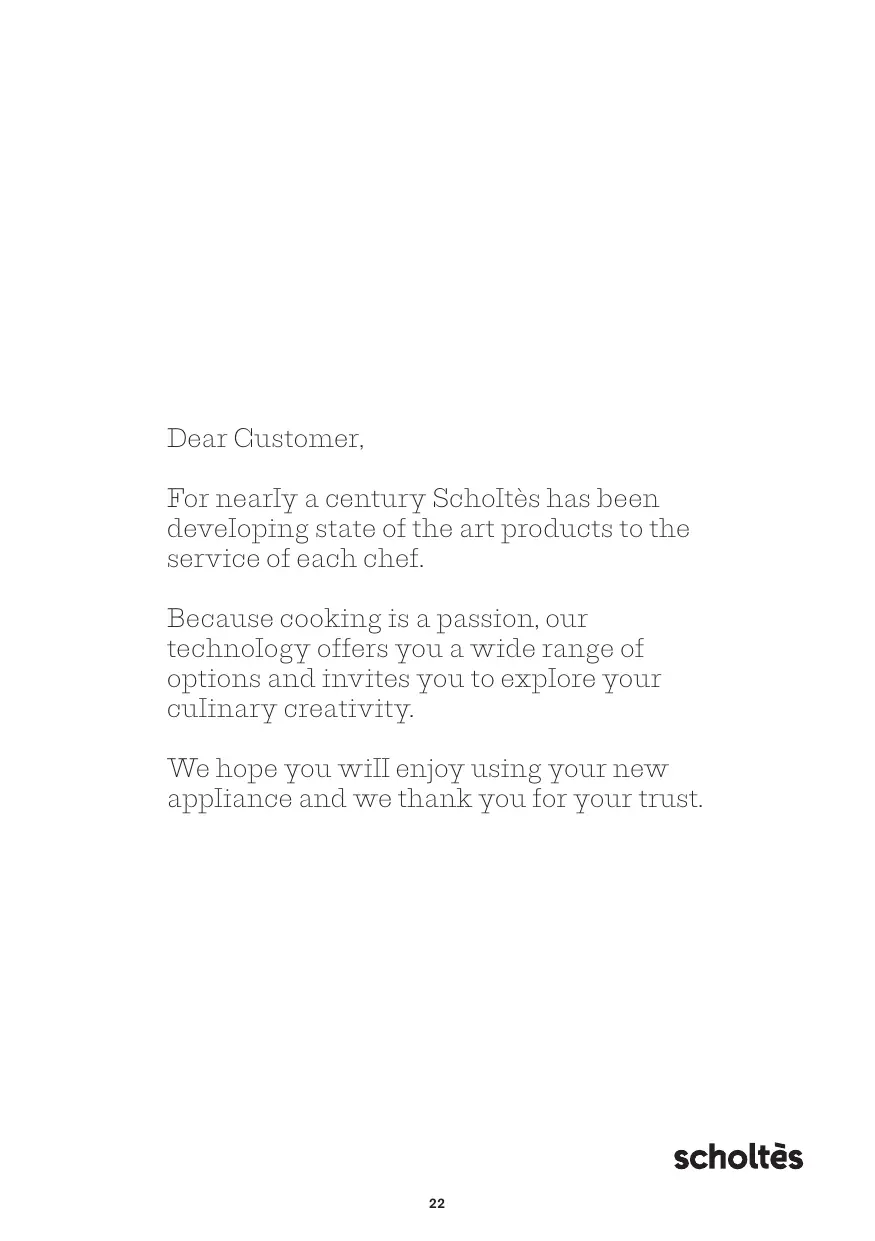

For nearly a century SchoItès has been developing state of the art products to the service of each chef.

Because cooking is a passion, our technology offers you a wide range of options and invites you to explore your culinary creativity.

We hope you will enjoy using your new appliance and we thank you for your trust.

1. SAFETY AND PRECAUTIONS

1.1 Children and vulnerable people safety
1.2 General safety

2. INSTALLATION

2.1 Electrical connection
2.2 Filtering mode
2.3 Installation

3. OPERATION

4. MAINTENANCE

4.1 Cleaning the outer surface
4.2 Cleaning the grease filters
4.3 Charcoal filters replacement
4.4 Replacing the lamps

5. PROBLEMS

6. CARE FOR THE ENVIRONMENT

Please note that safety information should be read with attention. The manufacturer is not responsible of any injuries or damages that are the result of incorrect installation or usage.

Important safety instructions read carefully and keep for future use.

1. SAFETY AND PRECAUTIONS

BEFORE THE INSTALLATION AND USE OF THE APPLIANCE, PLEASE READ THESE INSTRUCTIONS CAREFULLY. THE MANUFACTURER IS NOT RESPONSIBLE OF ANY INJURIES OR DAMAGES THAT ARE THE RESULT OF INCORRECT INSTALLATION OR USAGE. ALWAYS KEEP INSTRUCTIONS IN A SAFE AND ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

1.1 Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Caution : The accessible parts of this appliance maybecome hot when used with cooking appliances.

1.2 General safety

Check if the appliance gets any damage after unpacking it.

Do not connect the appliance if it has been damaged.

Only a licensed professional may install this appliance and replace the cable. Damages caused by incorrect connection is not covered under warranty.

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

Always use gloves to remove or put in accessories or ovenware. Before carrying out any maintenance, disconnect the appliance from the power supply.

The appliance can be disconnected by using anaccessible power outlet or by incorporating a switch inthe fixed lines, in accordance with installation rules.

Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

If the main power supply cable is damaged, it must be replaced by the manufacturer, its authorised service centre or similar qualified persons to avoid an electrical hazard.

Never use steam or high-pressure tools to clean your appliance (due to electrical safety considerations).

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm-houses; bed and breakfast type environments.

Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.

Risk of asphyxiation

Regulations on the evacuation of air must be complied with. Air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

The room must be suitably ventilated when the cooker hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire

Flambing food or turning on gas rings below the hood, unless they are covered by a pan is prohibited, since the flames could be sucked in and damage the appliance. Keep a constant watch on fryers used below the hood.

When heated to very high temperatures, oil and fat can catch fire.

Clean the appliance and replace filters at the recommended frequency.

Accumulated deposits of grease could cause a fire.

Using the hood above a solid fuel range (wood, coal, etc.) is prohibited.

If the hood is installed above a gas-fired appliance, leave at least 65 cm between the top of the hob and the underside of the hood. If the instructions for a hob installed below the hood specify a distance.

2. INSTALLATION

2.1 Electrical connection

This equipment must be connected to a grounding plant. Two types of electrical connection can be used:

1. Using a standard plug to be connected to the power cable and inserted in a mains socket which must be accessible (so that the plug can be disconnected when servicing is carried out). Make sure that the plug is accessible also after the complete installation of the equipment.
2. By means of a fixed mains connection, fitting a bipolar switch, which ensures the disconnection, with an opening distance of the contacts allowing a complete disconnection on the conditions of the overvoltage III category, according to installation regulations. The ground connection (yellow-green wire) must not be interrupted.
   Refer to the rating plate inside the hood for the mains voltage and frequency ratings. If the power cable is damaged, it must be replaced by the manufacturer or by its service agent or a qualified person in order to avoid any risk.

2.2 Filtration modes

This cooker hood can be employed as evacuation or recycling.

Evacuation : Kitchen smokes are driven outside through a flue joined to the exhaust pipe flue connector. This pipe must not under any circumstances be connected to cooker, boiler or burner exhaust pipes, etc.

Recycling: Smokes pass through the activated charcoal filter to be cleaned and recycled in the kitchen environment by means of holes from which the purified air will come out.

These holes must be free and communicating with the kitchen environment.

Charcoal filters should not be implemented when using evacuation installation.

2.3 Installation

Read the instruction manual before installing and/or using the hood.

The unit must be fitted at a distance of at least 65 cm from the cooking hob. If the mounting instructions of the gas cooker indicate a wider distance, respect it.

Respect all the air discharge regulations.

The air must not be discharged in a pipe used to discharge exhaust fumes produced by gas-fed equipment or fuel-fed equipment (this does not apply to filtering hoods).

Fitting the hood (fig. 4)

1. Assemble the cooker hood with the help of the assembly scheme.

2. Fix the assembly pattern on the wall, at the specified height (see the minimum and maximum distances intended for the worktop, in the assembly pattern). Perforate points A, B and C. (Fig. 4)

3. Insert ∅10mm wall plugs into the holes drilled as A, B, C and screw down the screws 5,5 x 60 at the points A + B, in such a way as to remain 5mm space between the screw head and the wall. (Fig. 4)

4. Fix the hanging plate of the hood with the hood body thanks to screws M5x35 (Fig. 4).
5. Hang it on the wall with the hanging plate of the cooker hood (Fig. 4). If needed adjust with M5x35 screws by tightening or loosening the screws.
6. Tighten A + B fixing screw on the wall, and completely secure the product from its point C.
7. Plug to evacuation hole if needed.

Fitting the chimney (fig. 5)

Note : The outer and inner sheet metal flues are assembled one within the other.

1. The cooker hood is set in the midst, and then the flue connecting plate (3) is directly fixed to the wall, under the cover or points E and F are marked.
2. Drill points E and F with ∅6mm drill bit, and insert ∅6mm and plastic dowels. Insert the flue connection plate with 3.9x22 screws.
3. Inner Flue use 1 screw to 2 pull upper left and screw onto the flue connection plate (3) from left and right. (Fig. 5)
4. Fix the outer funnel on the hanging plate sliding it up. (fig. 5)

3. OPERATION

Your hood has 3 speeds and boost position. You can also use the remote control to activate your hood.

Control panel

1. On/off button
2. Decrease speed
3. Display
4. Increase speed
5. Delay stop: You can program your hood extinction by pressing on the touch timer. When timer button is pressed, a 15-minute timer function will be activated. display will give a signal once the timer starts and the motor will switch off automatically after 15 minutes.
6. Light touch : to switch on and off the light. With a long press (>3s) you will activate the decorative leds which are located on the chimney.

Note : When the product is switched to maximum speed (booster) while it is operated, a "b" symbol shall be displayed on the screen. Product shall operate for 7 minutes in this mode and 'b' symbol shall flash on the screen during this period. After 7 minutes, product will automatically switch down to 3 speed.

Remote control

1. On/off touch
2. Increase the speed
3. Decrease the speed
4. Light touch

4. MAINTENANCE

4.1 Cleaning the outer surface

The surface could be damaged due to aggressive and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents.. To clean the outer surfaces on your hood, use soapy water and do not use scouring creams or scouring sponges.

4.2 Cleaning the grease filters

The grease filters can be placed in the dishwasher: Insert them in the dishwasher without tightening them or in an upright position.

Note : In case of washing in dishwasher, a slight change might occur in color. This has no effect on the function of the metal grease filter.

Filters should be cleaned when «C» signal appears on the Display or (due to usage) every 2 or 3 weeks. To delete «C» signal after the filters are cleaned and replaced, press and hold button more than 3 secs (when device is off). Letter «E» will appear on the display and it will switch to normal operation. If operation before deleting the «C» signal is required, active motor speed will appear for 1 sec when you press button and then the motor will resume running.

4.3 Charcoal filters replacement

This filter holds odors, it should be replaced after approximately 120 hours of use. It is available from your dealer or after sales service.

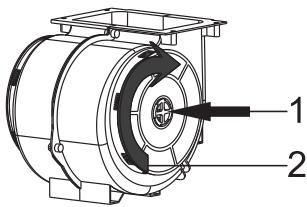

Remplace charcoal filter AF 100

1. Place the carbon filter in its housing.
2. Rotate the carbon filter clockwise and make sure that it is seated completely.

FIG 6

Remplace charcoal filter AF 500

1. Place the lower part of the carbon filter in the engine housing
2. Press the tab of the charcoal filter and pull it forward, and ensure that the tabs on the carbon filter are in contact and locked.

4.4 Replacing the lamps

Disconnect the electrical supply of the hood. Take out the metallic filter. Take off the lamp and replace it with a new one with the same nominal value.

FIG 8

Caution: See the product declaration label for the rated power used. When replacing the lamps, the glass of the lamp can be broken and cause injury. Let the lamps cool down first because you can burn when they are still warm.

Two-panel illustration showing a magnifying glass interacting with a screen and a finger pointing to a textured object (no text or symbols)

FIG 9

1. Push the lamp to take it off.
2. Separate the self-adhesive tape around the lamps and the body plate of each other.
3. Before placing the new LED lamp, remove the protective film, and stick it.

Pure diagram of a mechanical or optical setup with a rectangular block and directional arrows, no text or symbols present.

FIG 10 : LED replacement

5. PROBLEMS

DEFECTS	SOLUTIONS
Illumination lamp does not operate	Make sure that the plug is plugged in, and that the fuses are intact. Check the bulbs. Make sure you unplugged the device before performing this check. Tighten the bulbs if they are loose; you can replace the bulbs if they still don't work.
The device does not run in any way	Check to see if the hood is plugged in or if the plug is fit prop-erly into the socket. Check the fuse, to which the appliance is connected, as well as the main fuse of your house.Is the outlet diameter of the appliance's flue adequate? (min.120mm). Are the metal filters clean? Please check..
If the device performance is not enough and it creates high noise while running	If you use the hood without flue, make sure that the carbon filters have been renewed.Be attentive to ventilate your kitchen adequately, in order to provide an airflow. If you are still not satisfied with the perform-ance of the appliance, consult the authorized technical service.

Technical data

Supply voltage	220-240V 50Hz
Insulation Class of Motor	Classe F
Insulation Class	Classe I

6. CARE FOR THE ENVIRONMENT

This appliance's packaging can be recycled. Recycle and contribute towards protecting the environment by disposing of packaging in local waste containers designed for this purpose. Your appliance also contains a lot of recyclable material.

This logo indicates that used appliances must not be mixed with other waste. Appliance recycling organised by your manufacturer is carried out under optimum conditions, in accordance with European Directive 2002/96/EC on the disposal of waste electrical and electronic equipment.

Contact your local authority or retailer for information on used appliance collection points close to your home.

Thank you for helping to protect the environment.

Information on the meaning of the conformity marking C€

The CE marking indicates that the product meets the main requirements of European Directives 2014/35 / CE (Low Voltage), 2014/30 / CE (Electromagnetic Compatibility), 2011/65 / EU (Reduction of the use of certain dangerous substances in EEE).

The warranty does not cover wearing parts of the product, nor problems or damage resulting from :

1. Surface deterioration due to normal wear and tear of the product;
2. Defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects;
3. Any unauthorized incident, abuse, misuse, modification, disassembly or repair;
4. Any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage;
5. Any use of accessories not supplied or not approved by the manufacturer.
6. The warranty will be void if the product nameplate and / or serial number is removed.

Scholtes.com
