USER MANUAL DBHBS 94 LM X BAUKNECHT

EN Instructions for use

FR Mode d'emploi

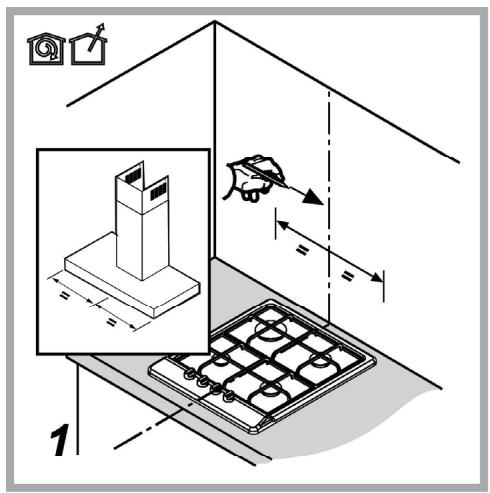

Diagram illustrating building ventilation system with labeled components and directional arrows, including a book icon and page number 19.

Simple line drawing of a hand holding a cup (no text or symbols)

Warning symbols and hand gesture illustration showing warning, human figure, and hand gesture

Technical diagram showing a roof structure with labeled components and directional arrows, including a magnified inset of a tower component.

Diagram illustrating a mechanical assembly or cleaning process with labeled components and directional arrows

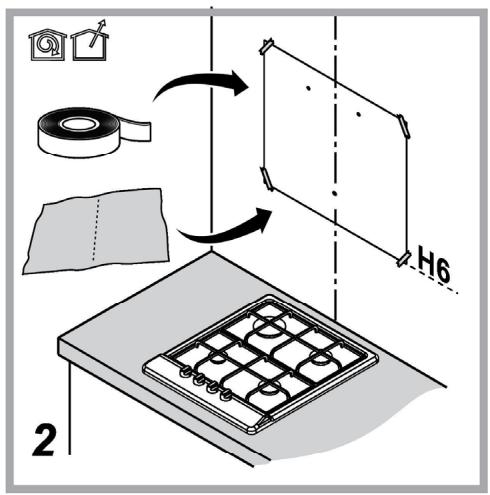

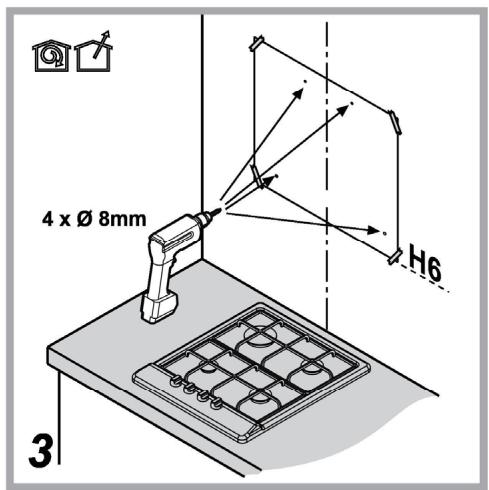

4 x Ø 8mm H6 3

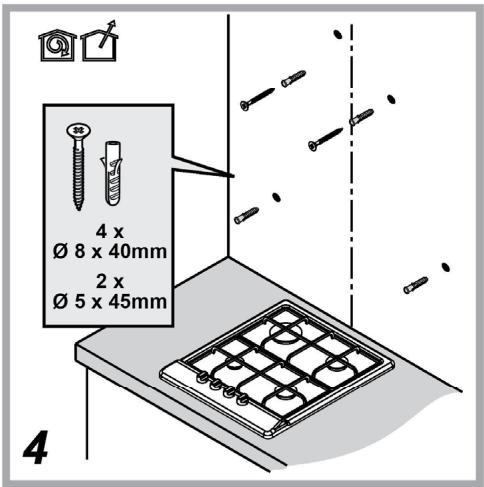

4 x Ø 8 x 40mm 2 x Ø 5 x 45mm 4

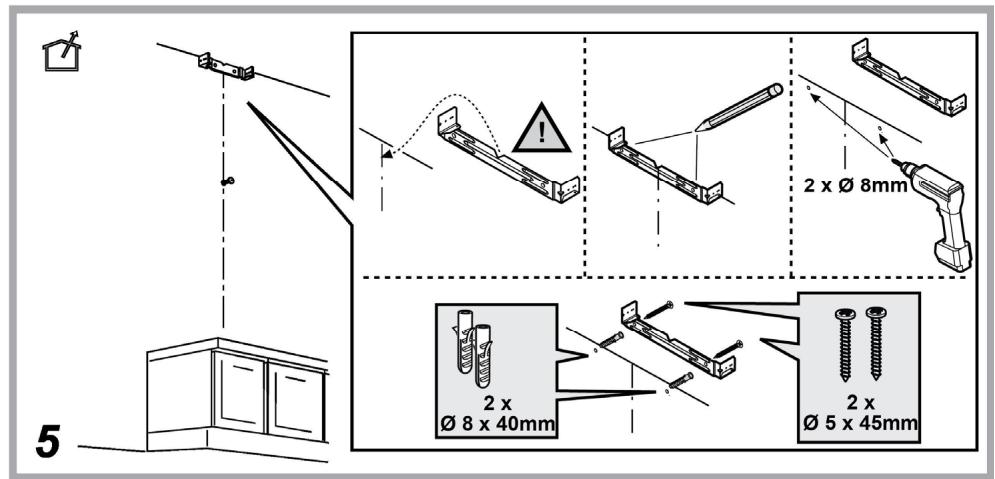

2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm 5

Simple line drawing of a brick chimney with steam rising from the chimney (no text or symbols)

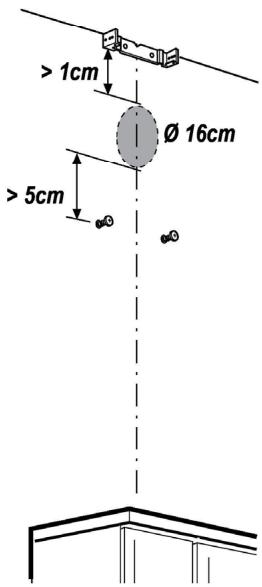

> 1cm Ø 16cm > 5cm

6

Simple line drawing of a chimney with steam rising from the chimney (no text or symbols)

9,5cm Ø 16cm

7

Isometric line drawing of a three-tiered cabinet or enclosure with X cm dimension label (no text or symbols on the diagram itself)

> 1cm X - 2cm > 3cm V ~ Hz

8

Simple line drawing of a roof structure with vertical supports (no text or symbols)

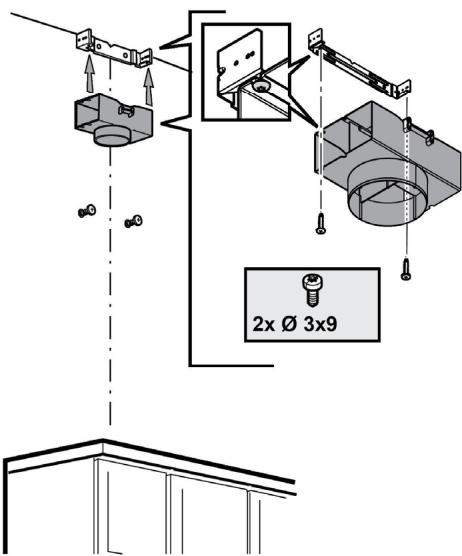

2x Ø 3x9

9

10

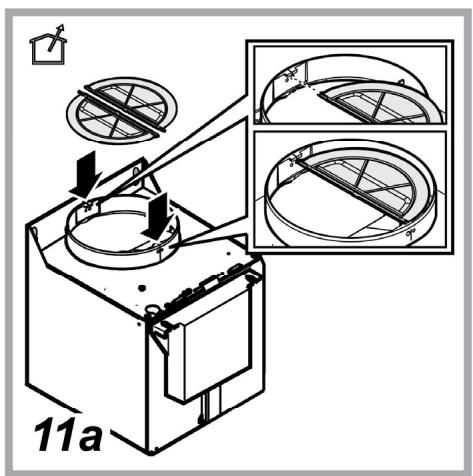

11a

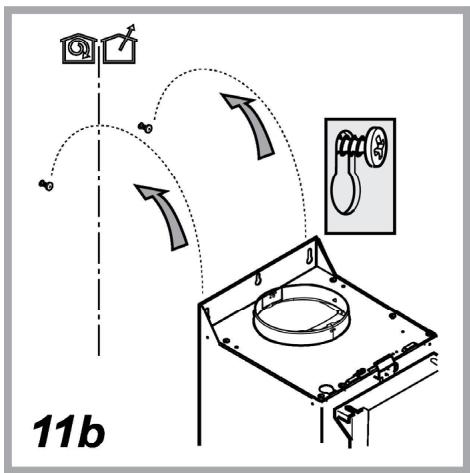

11b

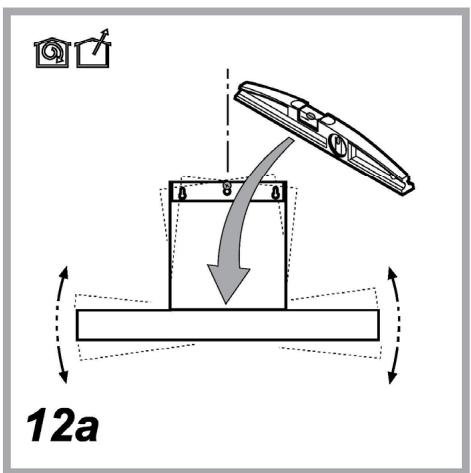

12a

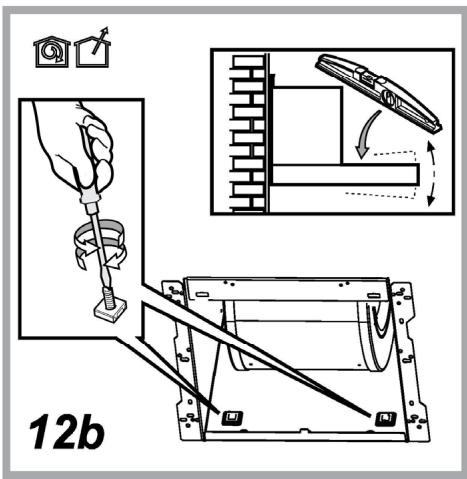

12b

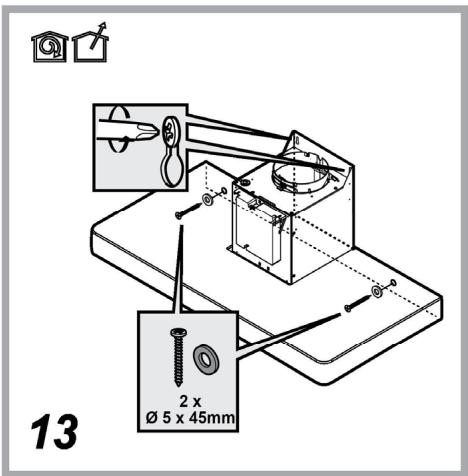

2 x Ø 5 x 45mm 13

图图

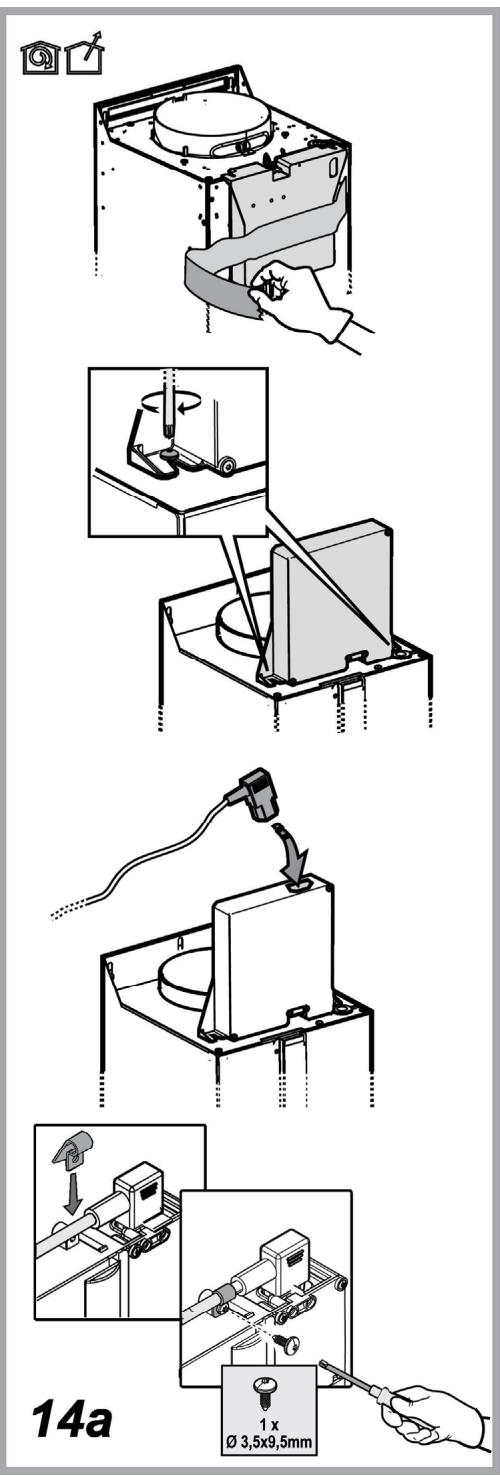

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

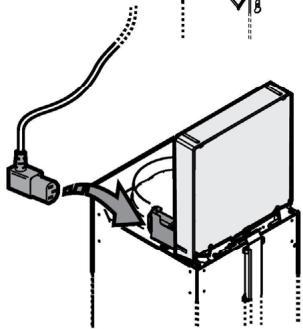

Diagram of an electrical connector with wiring and grounding, showing no text or symbols

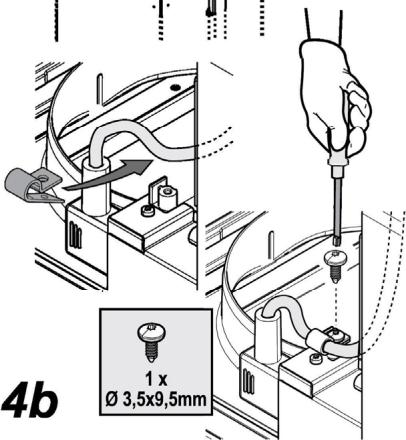

4b 1 x Ø 3,5x9,5mm

14b

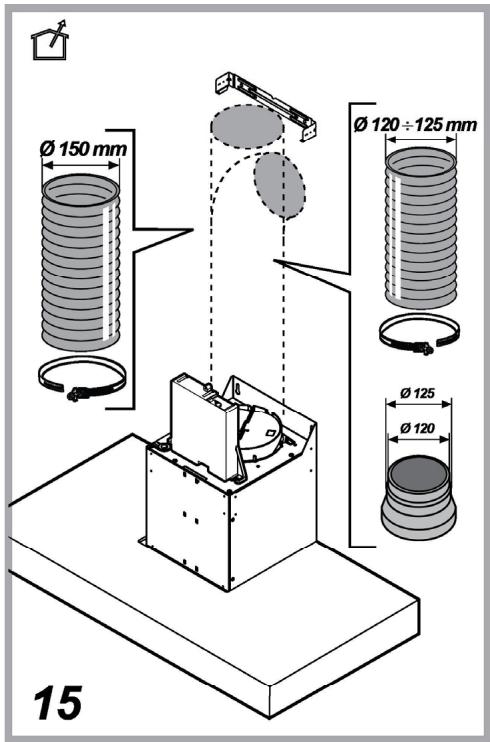

Ø 150 mm Ø 120 ÷ 125 mm Ø 125 Ø 120 15

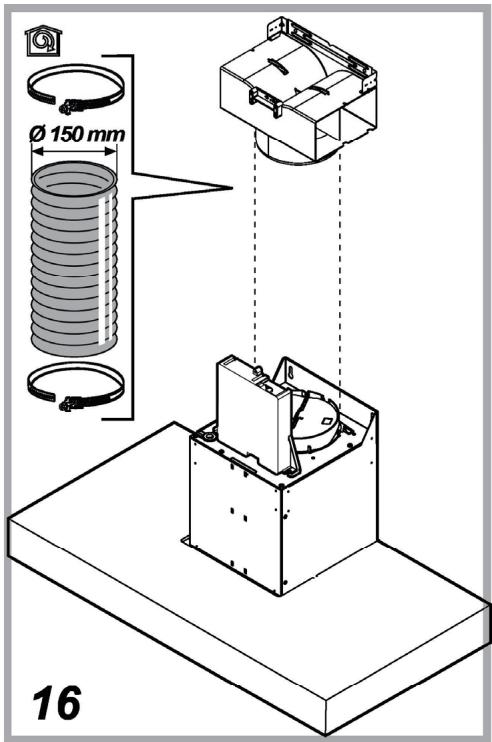

Ø 150 mm 16

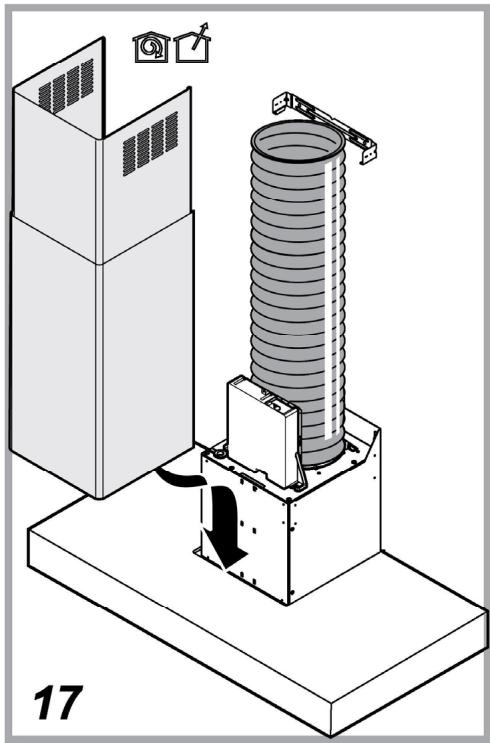

Isometric diagram of a mechanical device with a cylindrical component mounted on a base, showing internal structure and directional arrows (no text or symbols)

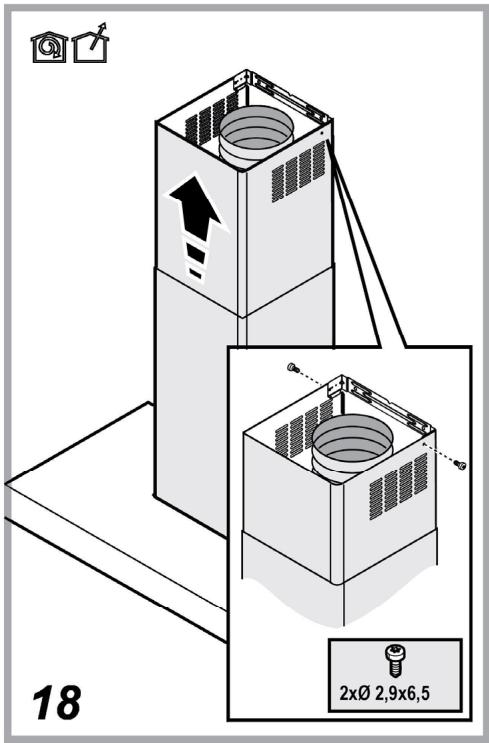

18 2xØ 2,9x6,5

19

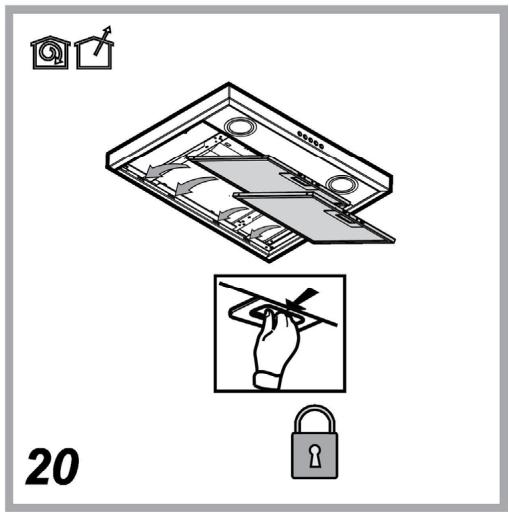

20

EN

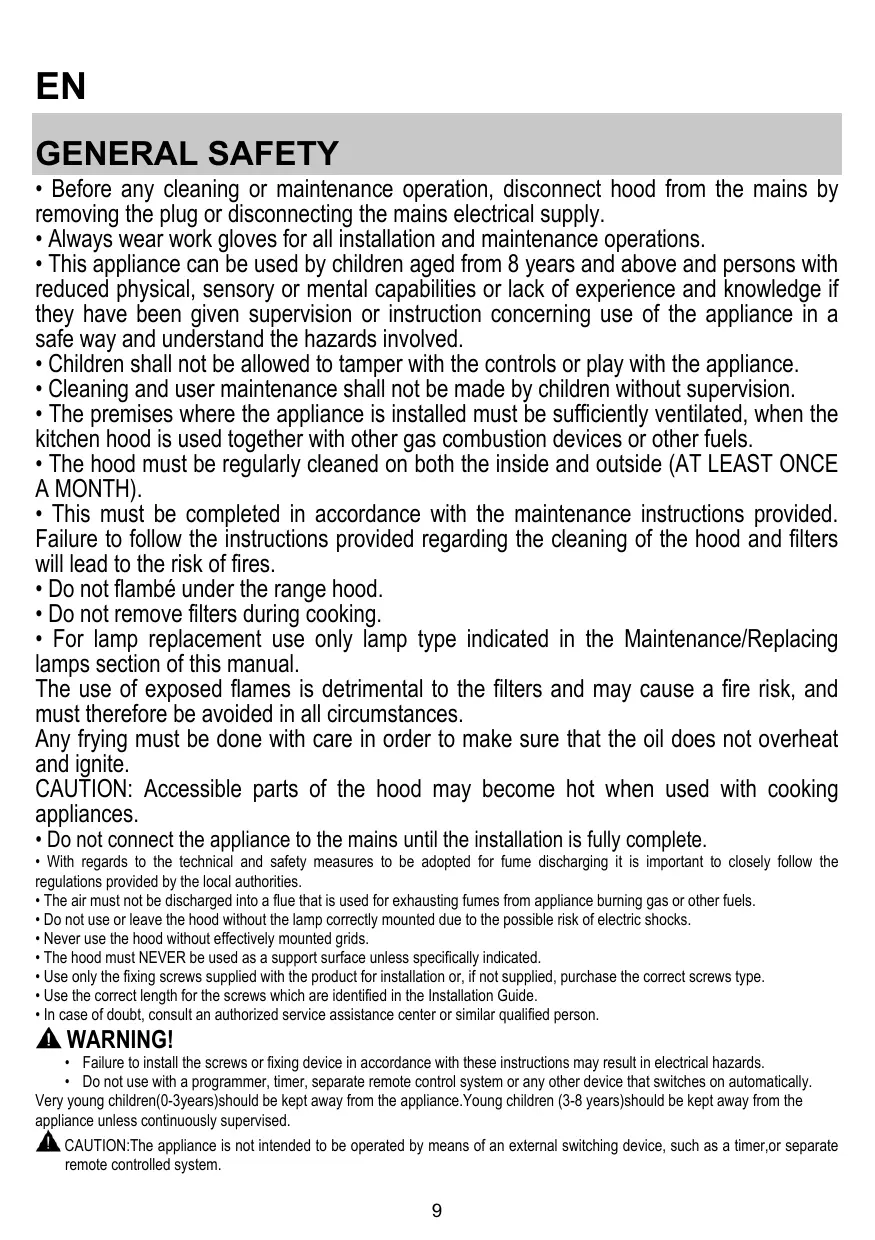

GENERAL SAFETY

- Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

• Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- Do not remove filters during cooking.

- For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide.

- In case of doubt, consult an authorized service assistance center or similar qualified person.

▲ WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is not for professional use. Do not use the appliance outdoors.

The appliance must be handled and installed by two or more persons-risk of injury.

⚠️ Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

▲ WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

N : blue

L : brown

Replacing the power cable

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

T1

T2

Five labeled icons representing radiation warning symbols, signal, speaker, dot pattern, and light bulb

L1

L5

T3

T4

T1. Button ON/OFF suction motor
T2. Selection button for medium, high and intensive operating suction speed (power).

Note: Intensive suction speed (power) (LED L1 flashing) lasts for approximately 5 minutes, then the medium suction speed (power) is automatically set.

T3. Selection button for 'silent' suction speed (power)

T4. Button ON/OFF lighting

L1. Status icon suction speeds (powers)
L2. Status icon saturation indicator for grease filter
L3. Status icon low (silent) suction speed (power)
L4. Status icon saturation indicator charcoal filter
L5. Status icon lighting

Reset filter saturation indicator

After performing maintenance of the filter, press and hold button T3, the icon indicating saturation will switch off. Repeat the operation if both icons indicating saturation (grease and charcoal) are on.

Activation of the icon for charcoal filter saturation

The icon for charcoal filter saturation is normally disabled. To activate it, proceed as follows:

With the hood off, press and hold for a long time and simultaneously T1 and T3: L4 flashes at first then it switches on with steady light to indicate successful activation.

Disabling the icon for charcoal filter saturation: repeat the above operation, L4 switches on with steady light then flashes and in the end switches off to indicate successful disabling.

Automatic operation at high temperature

The hood is fitted with a sensor that detects the temperature. When this becomes too high, the sensor automatically activates the medium suction speed (power). The hood switches off when the temperature detected by the sensor has lowered significantly.

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

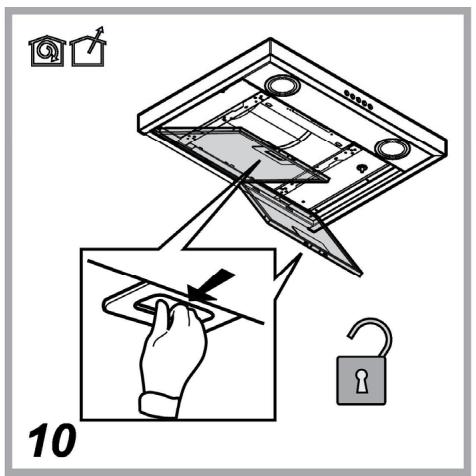

To remove the grease filter, pull the spring release handle.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Maintenance of the charcoal filter

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

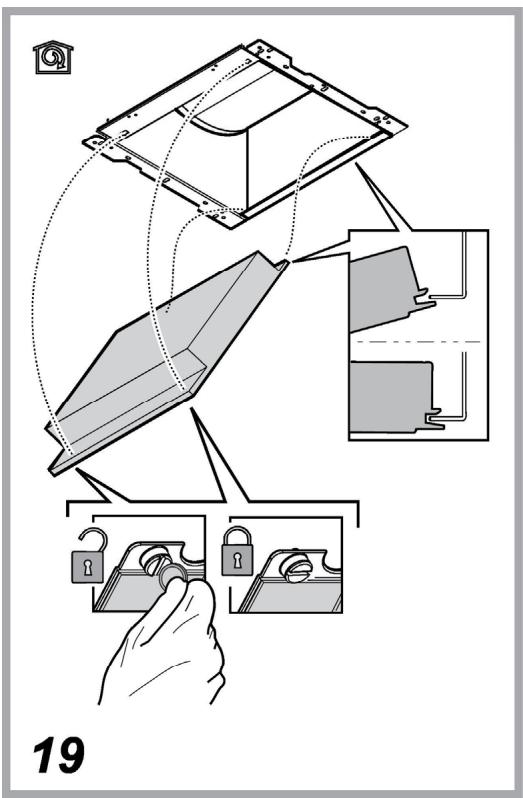

Assembly

Hook the charcoal filter at the back on the metal tongue of the hood first, then on the front with the two knobs.

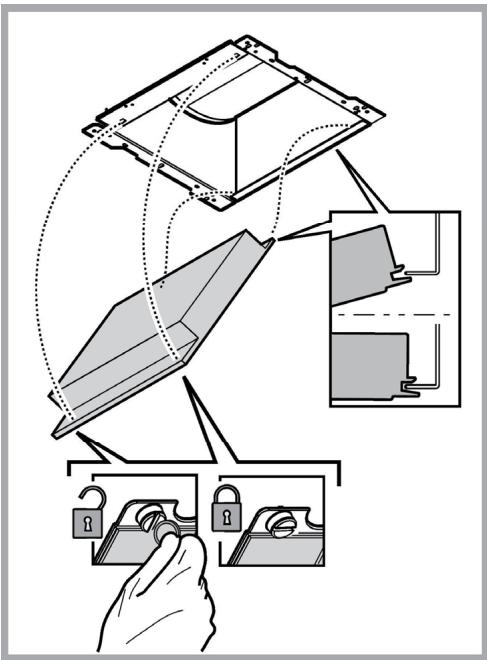

Disassembly

Remove the charcoal filter by turning the knobs fixing it to the hood by 90°.

Diagram illustrating a mechanical assembly process with labeled components and hand holding keys

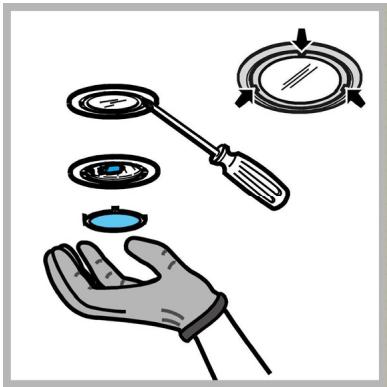

Replacing lamps

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp

Use only 12V halogen lamps, max 20W-G4. For further details, see the attached sheet "ILCOS D" (alphanumeric position "2b").

Illustration of a hand holding a magnifying glass with a blue component, alongside a compass and circular components (no text or symbols)

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. - Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. - EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

- The power has not been disconnected. - A speed has been selected.

• If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- The motor speed selected is sufficient for the amount of smoke and vapours released. - The kitchen is sufficiently ventilated to allow air intake. - The charcoal filter is not worn (hood in filtering version).

• If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

- The power has not been disconnected. - the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)	Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
^[XZBT] 61,9-114,7 ^ 70,6-114,7	89,8	45	15 - 12,5 - 12
^[B4HZ] 61,9-114,7 ^ 70,6-114,7	59,8	45	15 - 12,5 - 12

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

QR code image containing encoded data, no visible human-readable text

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.hotpoint.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

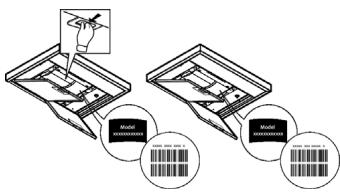

Diagram illustrating two device setups with labeled components and barcode indicators

FR

SÉCURITÉ GÉNÉRALE

Electrical hazard symbol and four common electrical symbols: radiation, speaker, dot-dotted, and bulb

L1

L2

L3

L4

L5

T3

T4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly with labeled components and lock mechanism, showing hand holding key parts.

Illustration of a hand holding a magnifying glass over a circular dial, with no text or symbols present.

ÉLIMINATION

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating two device setups with labeled components and barcode indicators

SEGURIDAD GENERAL

Five labeled icons representing radiation warning symbols, signal, speaker, dot pattern, and light bulb

L1
L2

L4

L5

T3

T4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly with labeled components and lock mechanisms, showing hand holding keys to install parts.

Illustration of a hand holding a compass and a magnifying glass, with no text or symbols present.

ELIMINACIÓN

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a scanning process with labeled components including 'RANGE REFLECTIVE' and barcode indicators.

PT

SEGURANÇA GERAL

Five labeled icons representing radiation warning symbols, signal, speaker, dot, and light bulb symbols

L1

L2

L4

L5

T3

T4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly with labeled components and lock mechanisms, showing hand holding keys.

Illustration of a hand holding three circular components with a compass and pointer (no text or symbols)

ELIMINAÇÃO

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating two device setups with labeled components and barcode indicators

IT

SICUREZZA GENERALE

Image displaying five distinct symbols: a radiation warning symbol, a speaker icon, a dot pattern, a light bulb, and a gear-like symbol.

L1

T3

T4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a mechanical assembly with labeled components and lock mechanisms, showing hand holding keys.

Illustration of a hand holding a magnifying glass over a circular dial, with no text or symbols present.

SMALTIMENTO

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a device's internal structure with labeled components and barcode indicators

Silhouette of a person pushing a shopping cart (no text or symbols)

Diagram illustrating a scanning process with labeled components including 'Share' and 'Label' boxes, alongside barcode icons.

QR code image containing encoded data, no visible human-readable text

Technical diagram illustrating a mechanical assembly process with labeled components and hand holding keys

استبideal المصابيح

Illustration of a hand holding a magnifying glass with a blue lens, alongside a circular dial and pointer (no text or symbols)

ال Compression

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

صيانة مرشح الكربون

Image displaying five distinct symbols: a radiation warning symbol, a grid of speaker icons, a dot pattern, and a light bulb.

L1

T3

T4

ل Omega小微企业 Combined Together with Alters, Desites
