Product type	Range hood
Brand	AEG
Model	AWH9430AM
Category	Fitted kitchen
Minimum safety distance	650 mm
Air outlet diameter	≥ 120 mm
Grease filter material	Dishwasher-safe (every 2 months)
Odor filter material	Not washable, replace every 4 months
Number of speeds	3 (V1, V2, V3)
Lighting	Yes (L control)
Control type	Push buttons
Use	Domestic
Surface maintenance	Damp cloth and mild detergent
Power supply	Mains (check voltage on rating plate)
Earth connection required	Yes (Class I)
Disconnect power before maintenance	Yes
Maximum allowable depression	0.04 mbar
Double-pole switch required	Yes (gap ≥ 3 mm)
Prohibited use with flambéing	Yes (fire risk)
After-sales service	Use original parts
Accessories available	Yes (AEG online shop)

Frequently Asked Questions - AWH9430AM - 942 492 890 AEG

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm. For gas hobs, follow the distance indicated in the installation instructions if it is greater.

How to clean the grease filters?

The grease filters are dishwasher-safe. It is recommended to wash them about every 2 months, or more frequently with heavy use.

How often should the odor filter be replaced?

The odor filter (type W II) is not washable or regenerable. It must be replaced at least every 4 months, or more often with heavy use.

Can I use the hood with a gas cooker?

Yes, but you must ensure adequate ventilation of the room. The depression must not exceed 0.04 mbar. If necessary, make an opening to the outside.

How to change the hood bulb?

The bulb replacement procedure is not described in this manual. Please refer to the complete manual or contact customer service for more information.

What to do if the hood does not work?

First check the power supply and the fuse. Make sure the hood is properly plugged in and the double-pole switch is in the on position. If the problem persists, contact customer service.

How to use the different speeds?

The hood has three speeds: V1 (minimum speed for quiet operation), V2 (medium speed for normal use), and V3 (maximum speed for heavy steam emissions). Use the motor control 'S' to turn on/off.

Can the hood operate in recirculation mode?

The manual does not explicitly mention recirculation mode. However, the hood is designed to be connected to an external air outlet via ducting. For recirculation use, specific kits may be required.

Where to find spare parts for my AEG hood?

You can buy original spare parts on the AEG online shop (www.aeg.com/shop). Always use original parts to ensure safety and performance.

What safety precautions should I follow?

Never leave open flames under the hood. Do not flambé food. Monitor deep fryers to prevent oil ignition. Always unplug the hood before maintenance. Children must be supervised.

USER MANUAL AWH9430AM - 942 492 890 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at:

www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containersto recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility orcontact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available

The information can be found on the rating plate.

Model

PNC

Serial Number

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account.

Regulations concerning the discharge of air have to be fulfilled.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flâbè under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances".

3. MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

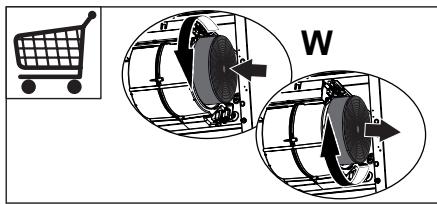

• Activated charcoal filter W These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

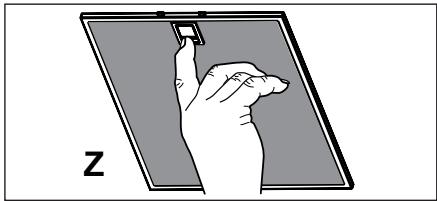

• Grease filters Z The filters must be cleaned

every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

S

V1

V2

V3

L

L	Light	Switches the lighting system on and off.
S	Led	Motor running led.
V1	Motor	Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2	Speed	Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
V3	Speed	Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

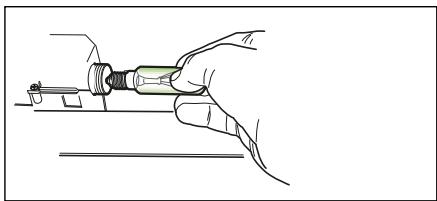

5. LIGHTING
