USER MANUAL VOLAR T2 AVERMEDIA

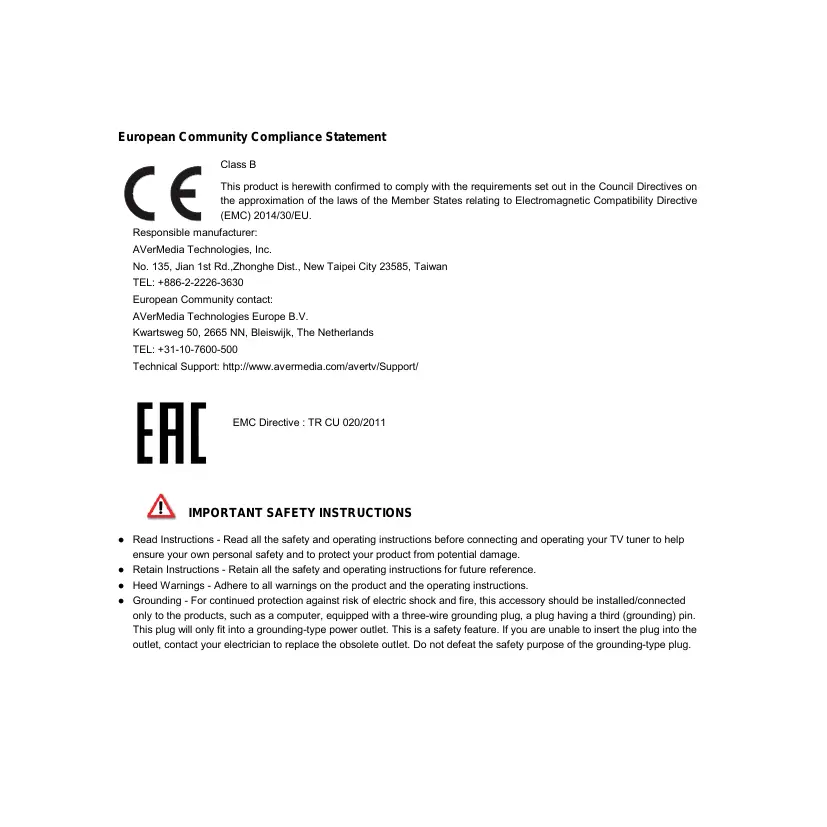

Quick Guide European Community Compliance Statement Class B This product is herewith confirmed to comply with the requirements set out in the Council Directives on the approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive (EMC) 2014/30/EU. Responsible manufacturer: AVerMedia Technologies, Inc. No. 135, Jian 1st Rd.,Zhonghe Dist., New Taipei City 23585, Taiwan

Read Instructions - Read all the safety and operating instructions before connecting and operating your TV tuner to help ensure your own personal safety and to protect your product from potential damage. Retain Instructions - Retain all the safety and operating instructions for future reference. Heed Warnings - Adhere to all warnings on the product and the operating instructions. Grounding - For continued protection against risk of electric shock and fire, this accessory should be installed/connected only to the products, such as a computer, equipped with a three-wire grounding plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace the obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

Lightning - For added protection and to prevent damage due to lightning and power-line surges, unplug the host system, such as a computer, from the wall power outlet and disconnect the antenna or cable system. Unplug the host system from the wall power outlet when left unattended or unused for long periods of time. Never insert anything metallic into the TV tuner openings. Doing so may create the danger of electric shock. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other light or power circuits, or where it can fall into such power lines or circuits. Antenna Installation - When installing an outside antenna system, extreme care should be taken to prevent it from touching such power lines or circuits, as contact with them may be fatal. Outdoor Antenna Grounding - If an outside antenna is connected to the product, ensure that the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810.21 of the National Electric Code, ANSI/NFPA No.70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to the antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection of grounding electrodes, and requirements for the grounding electrode. (for CATV system installer) This reminder is provided to call the CATV systems installer's attention to Section 820.93 of the National Electric Code, ANSI/NFPA 70:2005 (for US/Canada) and/or EN60728-11:2005 standard (for Europe), which provide guidelines for proper grounding and, in particular, specify that the coaxial cable shield shall be connected to the grounding system of the building, as close to the point of cable entry as practical. The mark of crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product. Disclaimer All the screen shots in this documentation are only example images. The images may vary depending on the product and software version. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice. Copyright ©2015 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part, may be reproduced, transmitted, transcribed, altered or translated into any language in any form by any means without the written permission of AVerMedia Technologies, Inc. Information and specification contained in this manual are subject to change without notice and do not represent a commitment on the part of AVerMedia. For more information, please refer to www.avermedia.com. "AVerMedia" is a trademark or registered trademark of AVerMedia Technologies, Inc. The pictures contained in this manual are provided for reference purposes only. Made in Taiwan (Except Accessories). Quick Installation Guide Package Contents English

AVerTV Hybrid Volar T2 High Gain Antenna Quick Installation Guide FM Radio Antenna S-Video/ Composite 2-in-1 Cable Remote Control (Batteries Included) English–1 Quick Installation Guide

Item S-Video Cable (Not Supplied) Set-up Box

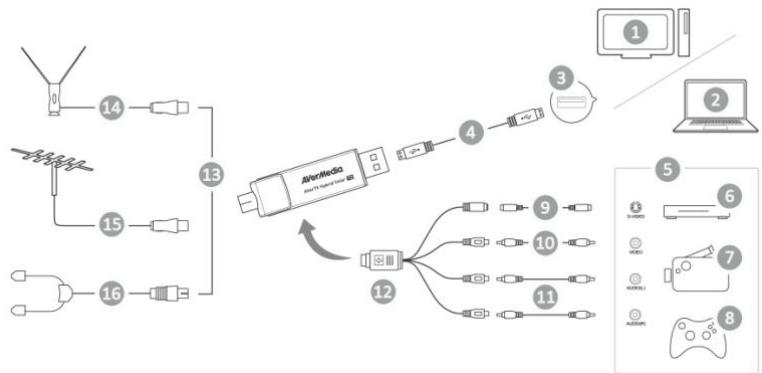

FM Radio Antenna Notebook USB Port USB Cable (Not Supplied) Example English–2 Video Cable (Not Supplied) Audio Cable (Not Supplied) S-Video/ Composite 2-in-1 Cable High Gain Antenna

English Quick Installation Guide Installation Installing Drivers and the TV Software Utility After the device is installed properly, turn on the computer. The system will automatically detect the new device. Simply skip the wizard, and install the driver and TV software utility that you download from AVerMedia Official website.

Installing Drivers and the Application in Windows 7 / Windows 8 /

Windows 8.1 To install the driver and application, Windows 7 MCE users need to exit and switch to Windows mode if they are in Media Center Edition mode.

The “Found New Hardware Wizard” dialog box will appear. Just click Cancel to skip the Wizard installation procedures.

Launch software package you downloaded from AVerMedia Official website.

When the installation main screen appears, choose Install AVerTV 3D.

If the “User Account Control” dialog box appears, select Allow/Yes to continue the process.

Click Next to continue the installation process.

Read the license agreement and if you agree to the terms, select “I accept the English–3 Quick Installation Guide terms of the license agreement” and then click Next.

Choose Complete to install all the necessary software, including AVerTV 3D, and Driver. Then click Next. For advanced users, it is recommended that you choose Custom to select the software you want. To choose a different destination folder, click Browse.

Then click Finish to complete the installation. The product does not come with a software DVD decoder. If users can playback

DVD or MPEG-2 video files on the computer, there is no need to install a DVD decoder. However, if the Decoded Error message appears on the screen, please install the compatible DVD decoder via the Windows® XP Media Center Edition Partners site. The 3DTV functions in AVerTV 3D are not supported under the Windows XP

operating system. Activating the AVerTV 3D Application

Windows 7 To run the application from the Programs menu, choose Start Programs / All Programs AVerMedia AVerTV 3D AVerTV 3D. English–4 Quick Installation Guide

Click on AVerTV 3D on the Metro Start screen or double click on AVerTV 3D on the Desktop. Uninstalling Application and Drivers

To remove the installed TV software utility from the system, simply choose Start

When the “User Account Control” dialog box appears, select Allow/Yes.

Right click on AVerTV 3D on the Metro Start screen, and click on Uninstall.

Select Remove All Next OK Finish. English–5 English

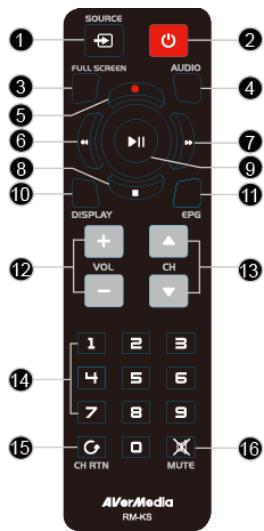

Remote Control After installing drivers and applications, you can use a remote control to turn on/off the programs, select channels, and adjust volume and so on. English–6

SOURCE Switch between available signal sources.

POWER Turn on/off the application

FULL SCREEN Display TV in full screen.

AUDIO Switch between available audio modes.

● (Record) Switch to PVR mode and record the current program or video into your hard drive. TimeShift Mode: - Press to skip backward 10 seconds. Playback Mode: - Disabled TimeShift Mode: - Press to skip forward 10 seconds. Playback Mode: - Fast Play Speed Loop (0.5x/1x/1.1x/1.2x/1.5x/2x) - End the Playback or recording. - End the TimeShift mode and return to real-time TV or Radio mode. Play the last recorded or played file. / Freeze the playback. Display information.

(Forward) Description

(Play) PAUSE DISPLAY

EPG Launch the Electronic Program Guide.

VOL＋/－ Volume up/down.

CH ▲/▼ Go up or down to the next active channel.

CH RTN - Select a TV channel. - Under the 16-Channel preview mode, use 2 4 6 8 to highlight the intended channel. Go to the previously selected channel.

MUTE Turn on/off the sound. English Battery Safety Information

Store the batteries in a cool dry place. Do not dispose of used batteries in domestic waste. Dispose of batteries at special collection points or return to point of sale if applies. Remove the batteries during long periods of non-use. Always remove exhausted batteries from the remote control. Battery leakage and corrosion can damage this remote control, dispose of batteries safely. Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). Do not dispose of batteries in a fire. The batteries may explode or leak. Never short circuit the battery terminals. English–8 Краткое руководство по установке Комплект поставки AVerTV Hybrid Volar
