USER MANUAL LIDO 900 CLEAN-R ROBLIN

FITTING THE APPLIANCE

OPERATION

USEFUL HINTS

MAINTENANCE

GUARANTEE AND AFTER-SALES-SERVICES

REMARKS

Thank you for buying a Robin product which has been manufactured to the highest quality standards to meet your requirements.

We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descri - tions of individual features that do not apply to your specific appliance

1 ELECTRICAL

• This cooker hood is fitted with a 3-core mains cable with a standard 10/16 earthed plug.
• Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole.
• Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
• Technical Specification: oltage 220-240, single phase 50 / 60Hz

2 INSTALLATION ADVICE

• It is a possible fire risk if the hood is not sited as recommended
• To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence.
  Ducting
• If the room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue typ
• If other types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not large.
• The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting.
• The ducting used must be made from fire retardant materials and the correct diameter must be used as incorrect sized ducting will affect the performance of this cooker hood.
• When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room.
• The appliance is for domestic use only and should not be operated by children or people who are infirm without supervision
• This appliance must be positioned so that the wall socket is accessible.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

3 FITTING

Any permanent electrical installation must comply with the latest regulations concerning this type of installation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void.

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

• green / yellow : earth

• blue : neutral

• brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manufacturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a faulty hanging due to the drilling and the setting up of plugs.

1) Unpack the hood parcel.

LAYING OUT BEFORE FITTING THE HOOD

2) Mark the centre of the cooking appliance onto the ceiling with a plumb line. Draw the horizontal axes running parallel to the stove top onto the ceiling as illustrated Fig. 1.
3) Place the drill gauge (D) centred on the axes aligning the axes (C) on the drill gauge centrally (I) over these axes as illustrated Fig. 2.

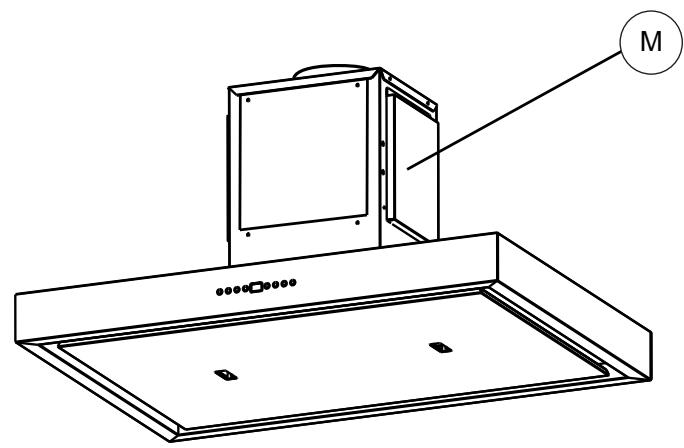

4) Fig. 3 : Remove the recirculation spigot (R) hood support (S) by the screws (F) remove the drawer (G) (charcoal filter) blocked by 2 screws not reusable after remova .

FITTING THE CANOPY BRACKET

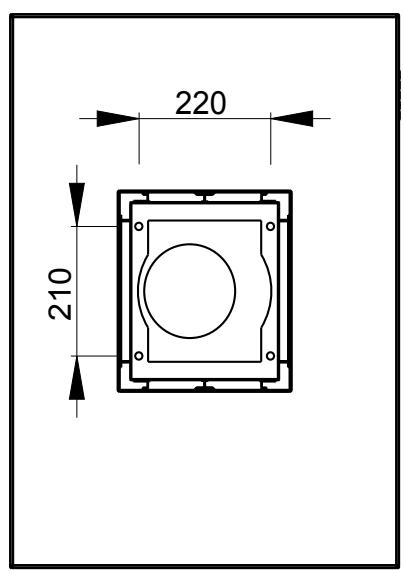

5) Mark the positions on the ceiling for : - The cut-out for the ducting 150mm in the extraction mode and 200mm in the remote mode when ducting runs through the ceiling. - The mains supply cords - The 4 fixing holes for 10mm nuts and bolts
Drill the different holes with the appropriate masonry bit. When fixing the cooker hood to a plasterboard ceiling ensure it is reinforced as illustrated in Fig. 5 and attach using four 10mm nuts and bolts; ensuring the bolts as sleeved between the plasterboard and the joist supports to prevent the ceiling being damaged when the bolts are tightened up.
6) Replace the deflector (R
7) Fig. 6/7 : Connect the ducting 150mm (K) (6 INS) not provided between motors item 6 and the recirculation spigot (R) and secure the connections with appropriate clamping rings or adhesive tape.
If the ceiling is concrete, use eight 10 mm steel rawl bolts (H). Plastic rawl plugs must not be used.

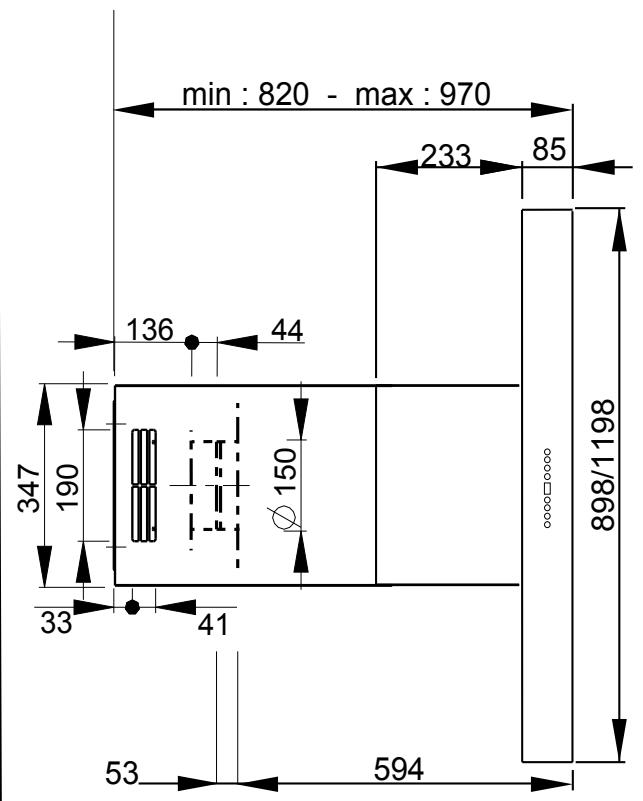

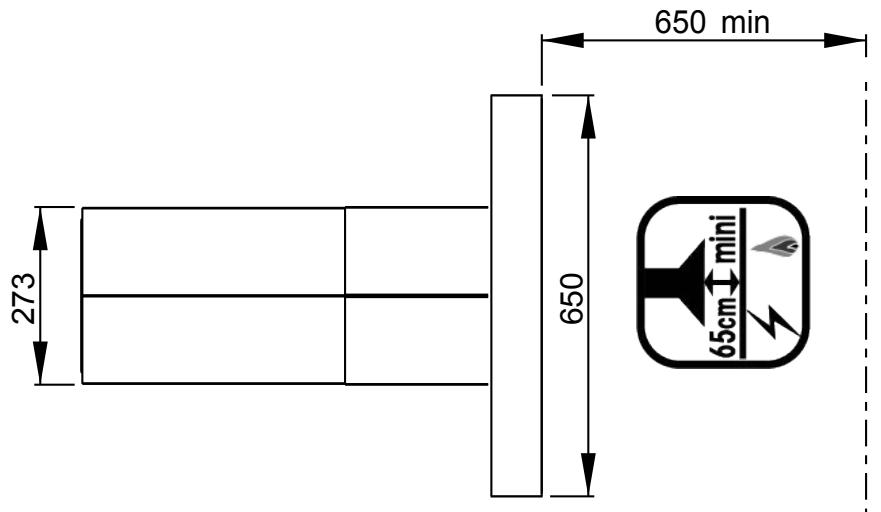

8) Fig. 8 : The height of the cooker hood can be adjusted in 50~mm stages. 650~mm when fitting above an electric hotplate and 700~mm when fitting above a gas hotplate. Select the height required using the measurements and fix the metal di fuser to the frame of the chimney brackets (S) using the height 5 × 10T hexagonal headed screws (N). A drawing on the drill gauge defines the positioning for the control (Fig. 2/4).
Attention: 2 persons are necessary to secure this operation.
9) Check the vertical of the chimney.

- IN THE RECIRCULATION MODE:

a. Make the electrical connection as described in the section titled ELECTRICAL.

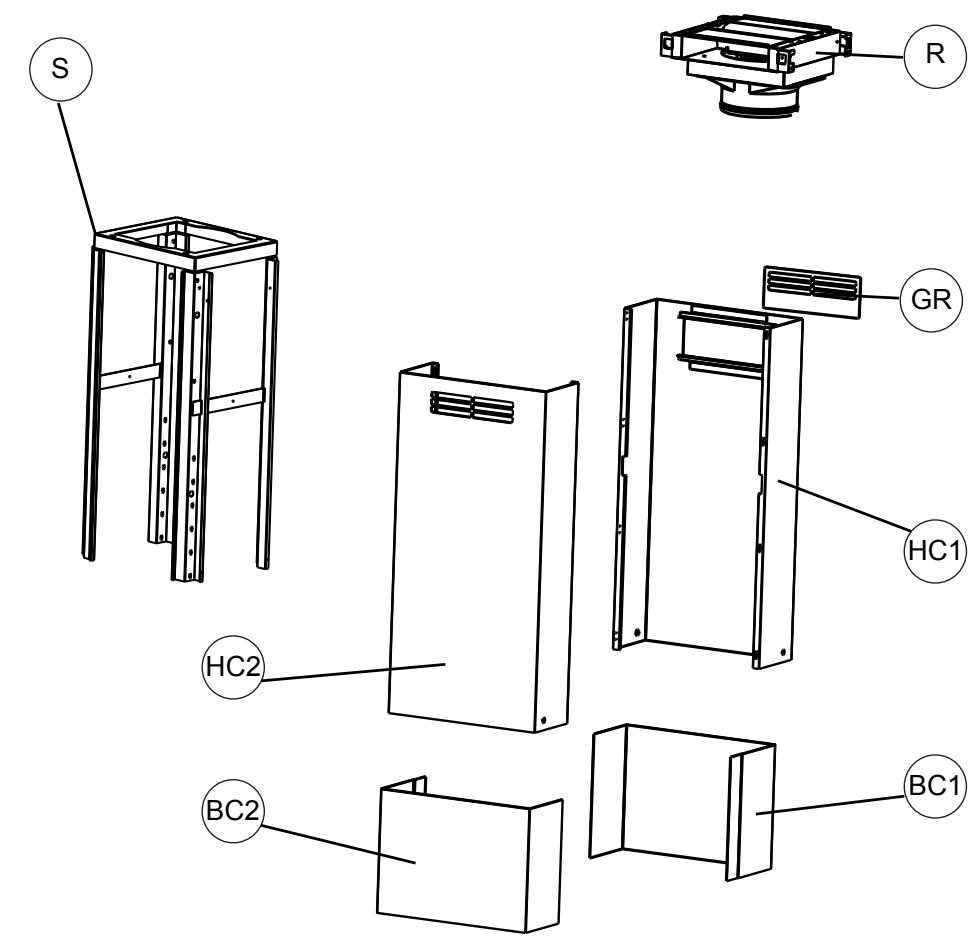

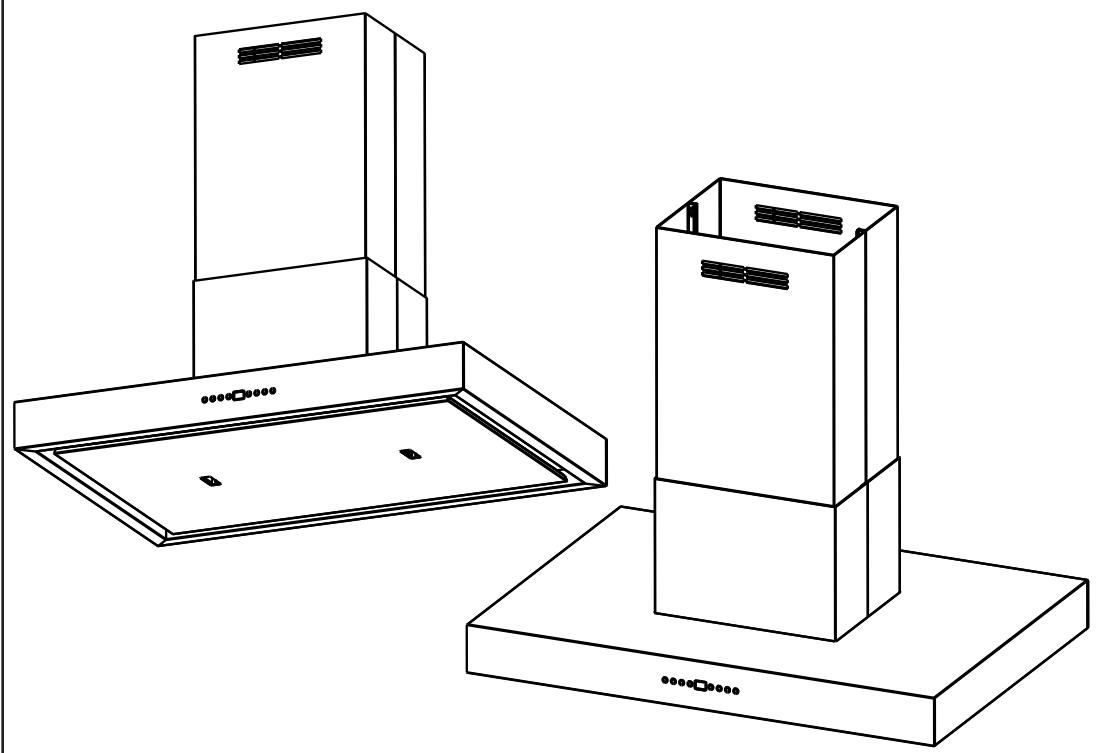

b- Fig . 9: Put in place the top of conduit ( HC1 ) with a removable grid ( GR) first on the hood support ( S) with 2 screws ( Q). The location of the grid must be located in front of the slide ( G ) of the deflector ( R ) c- Fig . 10 assembling the top duct ( HC2 ) of the high conduit ( HC1 ) using the 8 slots ( T) and screws ( Q ) .

d-. Check the vertical of the chimney.
e-. Place the lower chimney (BC1; BC2) as illustrated in Fig 11.
10) Test the lights and the fan motor.
11) Remove the metal grease filter. Insert the charcoal filter into the base of the motor housing and secure the filter with two securing straps (a) as illustrated Fig. 15
12) Fit the metal grease filters
13) Fit the 2 + 2 deflectors (U.

4 OPERATION

Control panel

Button	Function	Display
A	Turns the suction motor on and off at the last speed used.	Displays the speed set
B	Decrease the working speed.Turns off the engine (and deactivates the delayed shutdown function, if it is active).	Reduces the speed used.Hood off and on: press C while turning the hood on, then 2 lines scroll on the display, release the button: the configuration is possible for 3s. Configure the function with a short press on the key C :the function is active when EF flashes twice on the display the function is deactivated when EF flashes 1 time on the display
C	Increase the working speed.
D	Activates intensive speed from any other speed even with the motor off. This speed is timed to run for 10 minutes, after which the system returns to the previous speed. Suitable to deal with maximum cooking fumes.	Displays HI and the bottom right hand spot flashes once a second.
E	Activates the motor at a speed that allows extraction of 100m3 / h for 10 minutes every hour. After 24 hours, this function stops.When the filter alarm is on, press the button for approximately 3 seconds to reset the alarm. These signs are visible only when the engine is off.	Displays 24 and the bottom right hand spot flashes, while the motor is turned on.On completing the procedure the previous indicator is turned off:FF ou FG indicates that the metal grease filters need washing. The alarm is triggered after the Hood has been in operation for 100 hours.EF indicates that the activated charcoal filter needs changing and the metal grease filters need washing. The alarm is triggered after the Hood has been in operation for 200 hours.These operations are only possible when the motor and the lighting is turned off.
F	Activates automatic shutdown after 30'. Suitable to complete elimination of residual odours. Can be activated from any position, and is turned off by pressing the button or switching the motor off.	Alternately displays the working speed and the time remaining before the hood turns off. The bottom right hand spot flashes.
G	Turns the main lighting system on and off.
H	Decreases or increases the brightness by a long press.

5 USEFUL HINTS

• To obtain the best performance it is advisable to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing
• IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD
• Do not leave frying pans unattended during use as over-heated fat and oil might catch fire.
• Do not leave naked flames under this cooker hood.
• Switch 'OFF' the electric and gas before removing pots and pans.
• Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate and cooker hood simultaneously.

6 MAINTENANCE

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply. The cooker hood must be kept clean; a build up of fat or grease can be a fire hazard

Casing

• Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing a mild detergent and wrung out.
• Never use excessive amounts of water when cleaning particularly around the control panel.
• Never use scouring pads or abrasive cleaners.
• Always wear protective gloves when cleaning the cooker hood.

Metal Grease Filters

The metal grease filters absorb grease and dust during cooking to help keep the cooker hood clean inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day.

To remove and replace the metal grease filters

• Remove the metal grease filters one at a time by releasing the catches on the filters; the filters now be removed.
  The metal grease filters should be washed, by hand, in mild soapy water or in a dishwash.
• Allow to dry before replacing.

Active Charcoal Filter

The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day.

To remove and replace the filter

• Remove the metal grease filters
• Press against the two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed.
• Clean the surrounding area and metal grease filters as directed above
• Insert the replacement filter and ensure the two retaining clips are correctly located
• Replace the metal grease filters

Lighting.

If the lamp fails to function check to ensure it is fitted correctly into the holde. If lamp failure has occurred then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

Clean air.

UV lamps have a life of about 6000 hours depending on usage of the hood.

Clean-air filters following the life cycle of UV lamps

Change the filters clean-air at the same time as the UV lamps

7 GUARANTEE AND AFTER SALES SERVICE

• In the event of any malfunction or anomaly, notify your fitter who will have to check the appliance and its connection.
• In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who have the necessary tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee.
• Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood.
• When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease filters inside the hood
  Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced. This Guarantee does not cover :
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or filters or removable parts of glass or plastic

These items are considered to be consumable under the terms of this guarantee.

8 REMARKS

This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compatibility and Directive 93/68 on EC marking.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European directive 2002/96/EC. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic product. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

9 ENERGY SAVING TIPS.

When you start cooking, switch on the range hood at minimum speed, to control moisture and remove cooking odor.

Use boost speed only when is strictly necessary.

Increase the range speed only when the amount of vapor makes it necessary.

Keep range hood filter(s) clean to optimize grease and odor efficiency.

Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

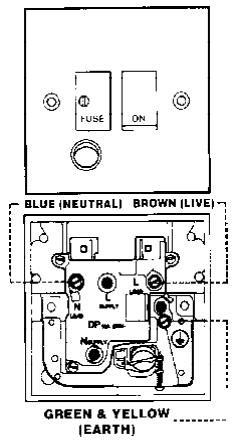

ELECTRICAL CONNECTION

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply via a double-pole switch having 3mm minimum contact gap on each pole. A Switched Fuse Connection Unit to BS.1363 Part 4, fitted with a 3 Amp fuse, is a commended mains supply connection accessory to ensure compliance with the Safety Requirements applicable to fixed wiring instructions.

The wires in this mains lead are coloured in accordance with the following code:

Green & Yellow

Earth

Blue

Neutral

Brown

Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit, proceed as follows:-

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red.

CH

Rating plate of the cookerhood
