NATURE

HOTTE MURALE

Line drawing of a computer monitor with ventilation grilles and control buttons (no text or symbols)

FR Mode d'emploi et d'installation P. 4
EN Instructions for installation and use P. 9
DE Gebrauchs- und Installationsanleitung P. 14
IT Istruzioni per l'installazione e l'uso P. 19
ES Manual de empleo e instalación P. 24
NL Gebruiksaanwijzing en installatie P. 29
CH Suisse, cordon d'alimentation P. 34

Composants, Components, Komponenten, Componenti, Componentes, Onderdelen P. 35 Shéma électrique, Electrical diagram, Stromlaufplan, Schema elettrico, Esquema eléctrico, Elektrisch schema P. 36 Dessin technique, Technical drawing, Technische Zeichnung, Disegno tecnico, Dibujo técnico, Technische tekening P. 37 Montage, Assembly, Montage, Montaggio, Montaje, Montage P. 38 Entretien, Maintenance, Instandhaltung, Manutenzione, Mantenimiento, Onderhoud P. 42 Commande, Controls, Bedienung, Comando, Mandos, Bediening, P. 44 Aide au diagnostic, Diagnostic aid, Zeichenerklärungen, Aiuto alla diagnostica, Ayuda a la diagnosis, Diagnosetabel P. 46

Version recyclage Recirculation version Umluftausführung Versione riciclo Versión recirculación Versie recirculatie

Version évacuation extérieure verticale Vertical exterior extraction version Vertikale Außenabluftausführung Versione evacuazione esterna e verticale Versión evacuación exterior vertical Versie verticale evacuatie naar buiten

Version évacuation extérieure horizontale Horizontal exterior extraction version Horizontale Außenabluftausführung Versione evacuazione esterna e orizzontale Versión evacuación exterior horizontal Versie horizontale evacuatie naar buiten

Version recyclage systeme «Clean-air» «Clean-air» system recirculation version Umluftausführung «Clean-air»-System Versione riciclo sistema «Clean-air» Versión sistema de recirculación «Clean-air» Versie “clean-air” recirculatie systeem

This manual applies to several appliance versions.

It may contain descriptions of accessories not included in your appliance.

THIS EQUIPMENT IS COMPLIANT WITH THE FOLLOWING STANDARDS:

EN 60 335-1:2012+A11:2014, EN 60 335-2-31:2014, EN 62233:2008 + C1:2008, EN 61 000-3-2:2006 + A1/A2: 2009, EN

61 000-3-3:2008, EN 55 014-1:2006 + A1:2009 + A2:2011, EN 55 014-2:1997 + A1:2001 + A2:2008, EN 61591:1997/

A2:2011, EN 50564:2011, EN 50581:2012, 2014/35/CE relating to electrical safety, 2014/30/EC relating to electromagnetic compatibility, 2009/125/EC relating to ecodesign, 2011/65/EC relating to the limitation of the use of certain hazardous substances in electrical and electronic equipment and to the main requirements of European Directives 66/2014.

When the symbol of a crossed out wheelie bin is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Your product is designed and manufactured with materials and components of high quality that can be recycled and used again:

• You should find out about the local system of separation of electrical and electronic waste,
  You should act according to the local rules and not dispose of your used product with normal domestic waste,
  Correct disposal of your old product will help prevent the potential negative consequences on the environment and human health.

This appliance must not be used by persons (including children) with diminished psychical, sensory or mental capacities, nor by persons not having the experience and knowledge of this type of appliance, unless they are under the control and the training of persons responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

ASSEMBLY RECOMMENDATIONS

Assembly and connection must be done by a qualified installer ^(1) .

Use suitable anchors for the support medium. Obtain information from the manufacturers; seal if necessary. The company disclaims any responsibility in case of faulty anchoring due to the hole or the anchor system.

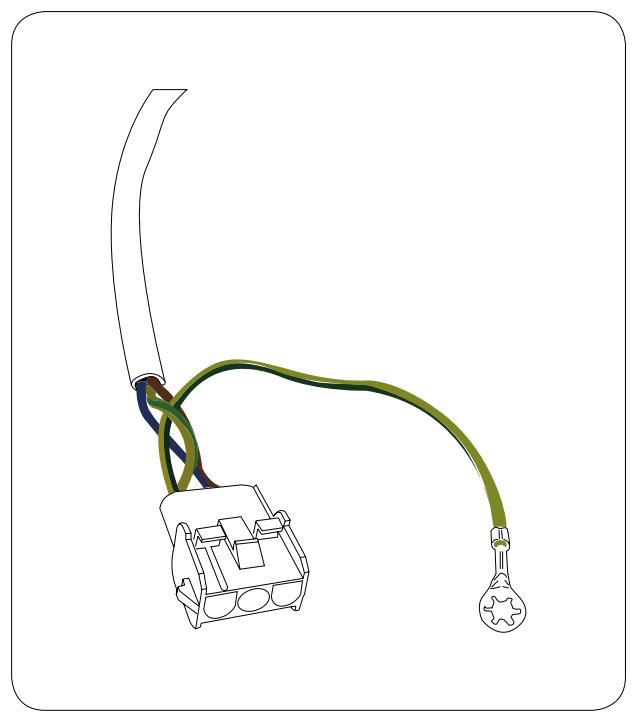

The hood is equipped with a HO5VVF 3 x 0.75 mm ^2 power cable with a standard 10/16A plug with earth.

Mode of protection: class 1

Supply voltage: 220-240V single phase - 50/60Hz.

Check that the mains voltage is the same as the values indicated on the manufacturer's plate on the inside of the hood.

If the hood is connected directly to the mains (without a plug), an all-pole circuit breaker switch with a contact opening of 3 mm must be installed before the hood. The earth wire (yellow and green) must not be broken by this switch.

• Respect the diameter of the appliance output: the hood must not in any circumstances be connected to a controlled mechanical ventilation duct.
• If it releases the stale air into an outlet duct, it is essential to ensure that the latter is not already used to carry gas or smoke from appliances powered by energy other than electricity.
• Position the cooking surface as close as possible to the outlet and avoid the formation of elbows in the duct, to reduce pressure loss to the minimum.
• When installing situations, make sure that the air renewal in the kitchen is satisfactory. Be sure to create one or more air inlets with a section greater than or equal to the diameter of the outlet pipe in order not to create a vacuum in the kitchen.
• Make sure there is sufficient ventilation if a cooking or other appliance uses the ambient air of the room where the hood is installed at the same time.
• The maximum vacuum created in the room should be less than 0.04 mbar; this prevents return of the combustion gases.
• The appliance must be positioned in such a way that the power plug is accessible.

POWER SAVING TIPS

1. Preferably use a low suction speed; only use the high speed if it is really necessary.
2. A well ventilated kitchen makes hood operation more efficient.
3. Clean the anti-grease filters regularly to maintain their efficiency.
4. A saturated filter is not efficient and cannot be used for long.

RECOMENDATIONS FOR USE

NEVER FLAME DISHES UNDER THE APPLIANCE

Never leave open flames under the hood while it is operating.

Fried foods require a permanent monitoring, overheated oil may catch fire.

The accessible parts of the hood may become hot when it is used with cooking appliances.

To obtain maximum efficiency in the absorption of smoke or fumes, run the hood for approximately 5 minutes before and after cooking food:

• low speeds are recommended when cooking on a low heat and for sauces, simmering, etc.
  • intermediate speeds are recommended for fast cooking, and fried or grilled foods.
• high speeds are recommended for cooking that creates a lot of fat or vapour.
  • the extra fast speed is recommended in cases of sudden excessive release of vapours and fumes.

Avoid fire risk by cleaning the hood according to the maintenance instructions :

Turn the hood off before any maintenance operation or electrical work. Wear gloves.

• Clean the bodywork regularly using non-abrasive detergent products and a slightly damp sponge.
  • To renovate external stainless steel parts (at intervals of one year minimum), it is preferable to use the product ref. 1 12.0 172.94 1
  • Never use soaked sponges or rags..
• Do not insert any object, or your hands, into the opening serving for the extraction of the air.
• Clean the inside of the extraction body once per year.

- Check the flow of stale air every 6 months.

- Observe local regulatory requirements covering the extraction of stale air.

- It is essential to clean anti-grease filters in a dishwasher at a maximum temperature of 50^ C, once per month or according to the indications on the order (see order page). Allow the filters to dry in the open air. These filters have a service life of 10 years.

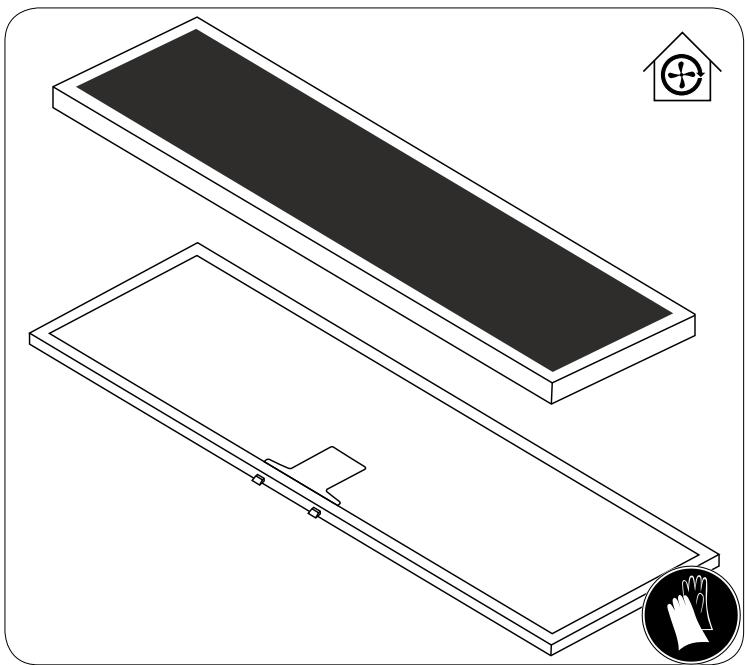

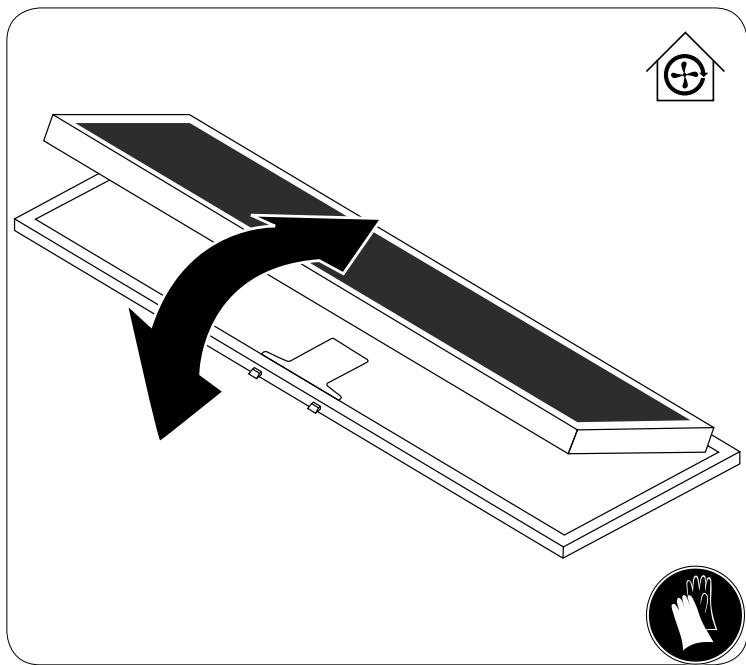

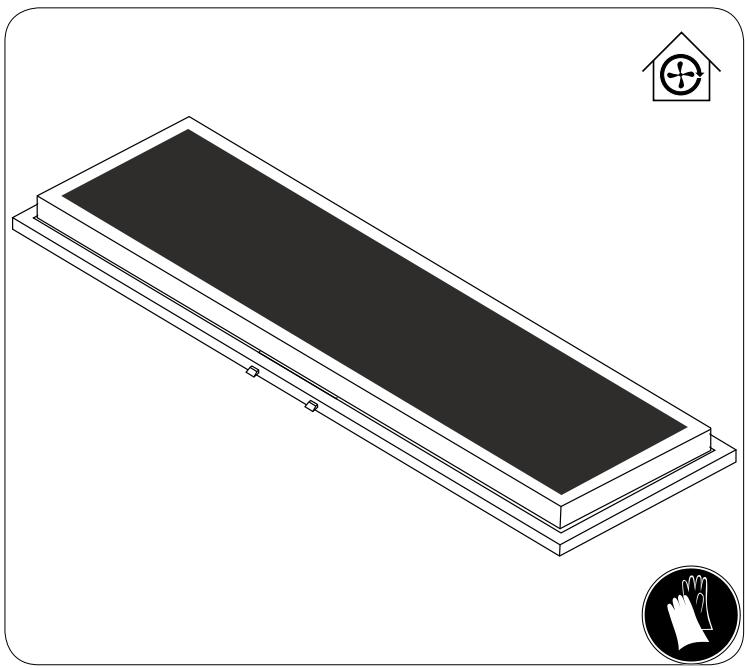

• If your hood is equipped with washable anti-odour filters ^(3) , they must be cleaned in a dishwasher at high temperature (without other kitchen utensils) every 2 months and dried by the dishwasher or in the open air for approximately 30 minutes.
• Once washed and dried, reactivate the washable anti-odour filters by placing them in an oven for 10 minutes at 100°C maximum. Cleaning of the washable anti-odour filters should systematically be accompanied by cleaning of the anti-fat filters.
• Active charcoal ^(3) anti-odour filters need replacement at least every 3 months, or more often if the hood is used more than 3 hours per day. Or according to the indications of the order (see the order page). Replacement of the active charcoal anti-odour filters should systematically be accompanied by cleaning of the anti-fat filters.

CLEAN-R

• The ultraviolet bulbs have a life expectancy of approximately 6000 hours. The life cycle of the clean-air filters (catalysts) follows that of the ultraviolet lamps.
• The replacement of an ultraviolet bulb (every 3 years) should systematically be accompanied by the replacement of the associated clean air filter.

- The replacement of faulty LEDs should only be done by a certified professional specialist.

AVAILABILITY OF SPARE PARTS

Pursuant to Article R 111-3 of the Consumer Code, for products placed on the market as of March 1, 2015, ROBLIN guarantees the availability of spare parts essential for the use of its products for a period of 10 years. years from the purchase of the product by the consumer, the invoice being authentic, provided that it is within 12 months of the date of sale by ROBLIN to the Customer. In the event of a malfunction, inform your installer who will have to check the device and its connection.

UK ELECTRICAL CONNECTION - ELECTRICAL REQUIREMENTS

FUSE ON

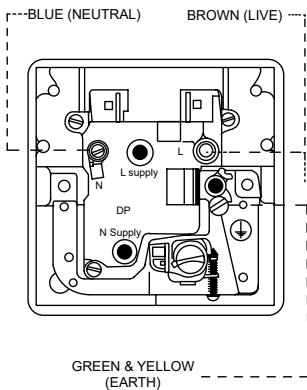

BLUE (NEUTRAL) BROWN (LIVE) N L supply DP N Supply GREEN & YELLOW (EARTH)

Any permanent electrical installation must comply with the lastet I.E.E Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contactor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating inside the cooker hood.

This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply

via a double-pole switch having 3mm minimum contact gap on each pole. A switched Fuse Connection Unit to BS.1363 Part 4, fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure compliance with the Safety Requirements applicable to fixed wiring instructions.

The wires in this mains lead are coloured in accordance with the following code :

Green & yellow : Earth

Blue :

Neutral

Brown :

Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit, proceed as follows :

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red.

BEFORE FITTING

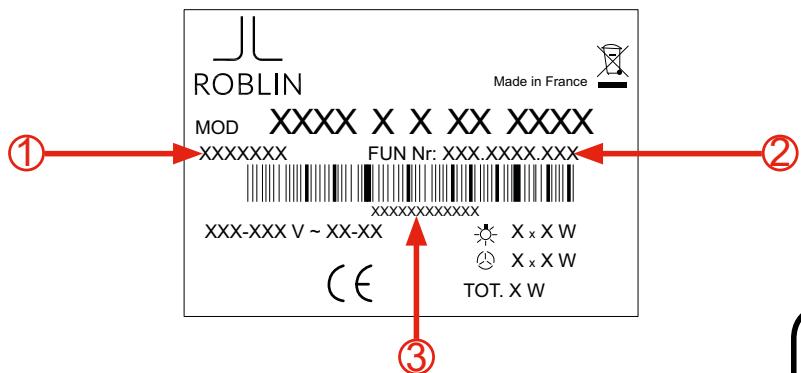

ROBLIN MOD XXXX X X XX XXXX XXXXXXX FUN Nr: XXX.XXXX.XXX XXXXXXXXXXXX XXX-XXX V ~ XX-XX CE Made in France X x X W X x X W TOT. X W ① ② ③

Copy and keep the references below

Check the label affixed to the body of the hood, inside, behind the filters. The information on this label is necessary for the After Sales Service assistance contact to provide technical assistance.

Assistance contact. Service Department: 04.88.78.59.93.

INFORMATION TO BE GIVEN TO THE SERVICE DEPT IN CASE OF NEED.

①

PRODUC CODE :

②

FUN CODE :

③

SERIAL No :

Simple geometric diagram of a triangle inside a rectangle (no text or symbols)

GLUE A COPY OF THE LABEL HERE

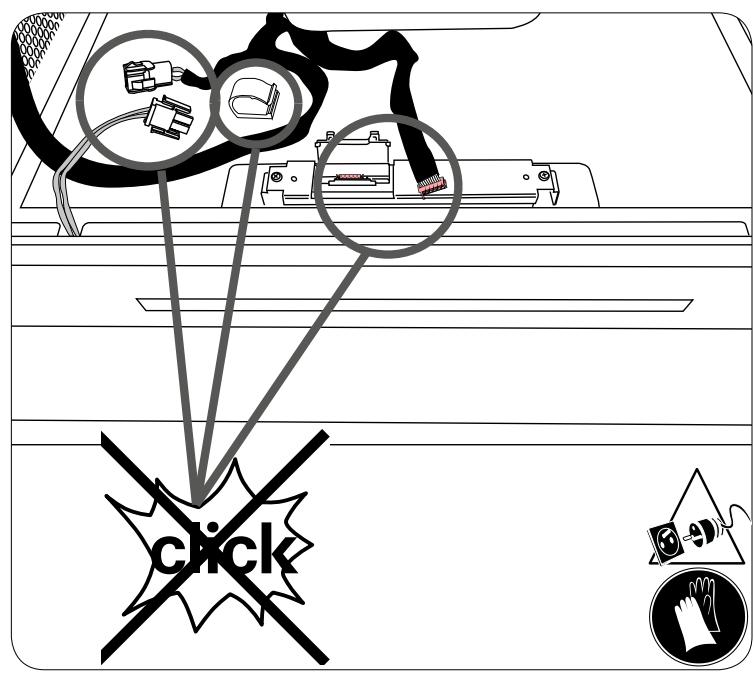

IF AN ELECTRIC COMPONENT IS DAMAGED IT CAN ONLY BE REPLACED BY A REPAIR SHOP APPROVED BY THE MANUFACTURER BECAUSE SPECIAL TOOLS ARE REQUIRED.

• In the event of faulty operation notify your installer who will check the appliance and its connection.
- Disconnect the appliance completely.
- Always require the use of genuine spare parts (non-compliance with this requirement can compromise the safety of the appliance).
- When ordering spare parts, quote the serial number of the appliance (see on the page opposite) on the plate located inside the hood.
- Only the purchase invoice of the appliance can serve as proof for the implementation of the contractual warranty (this warranty does not cover consumables such as: lighting, filters, LEDs, etc.).

Pursuant to Article R 111-3 of the Consumer Code, for products placed on the market as of March 1, 2015, ROBLIN guarantees the availability of spare parts essential for the use of its products for a period of 10 years. years from the purchase of the product by the consumer, the invoice being authentic, provided that it is within 12 months of the date of sale by ROBLIN to the Customer. In the event of a malfunction, inform your installer who will have to check the device and its connection.

The commercial guarantee provided by FRANKE France SAS for ROBLIN brand products is limited to retailers. It is applicable to continental France, Corsica, and DOM TOM.

The commercial guarantee is a guarantee of 2 years parts (excluding labor costs and displacement). It applies from the date of invoicing of the device to the consumer provided that it is within 12 months of the date of sale by ROBLIN to the Customer.

In order to satisfy the consumer during any after-sales service, the Customer undertakes to direct him to the service set up by ROBLIN to organize the care as soon as possible. The after-sales service can be reached at the following number: 04 88 78 59 93.

The elements to communicate to the ROBLIN after-sales service are:

• A description of the failure observed
• the commercial reference of the product as well as its serial number
- the copy of the consumer’s invoice and his contact information

This warranty applies to all technical or functional problems. Are excluded from the commercial guarantee:

• Faults concerning accessories or consumable parts (filters, bulbs ...),
- Damages, failures and defects due to causes of external origin,
• Damage due to corrosion, poor connection or power supply,
- Damages due to non-compliance with the instructions provided by ROBLIN (installation, assembly, ...),
- Failures resulting from the modification of the construction and features of the ROBLIN branded device,
- Breakdowns and damage resulting from the use of spare parts not in conformity with those provided by origin by ROBLIN or a lack of maintenance,
• Breakdowns resulting from professional or commercial use of the devices.

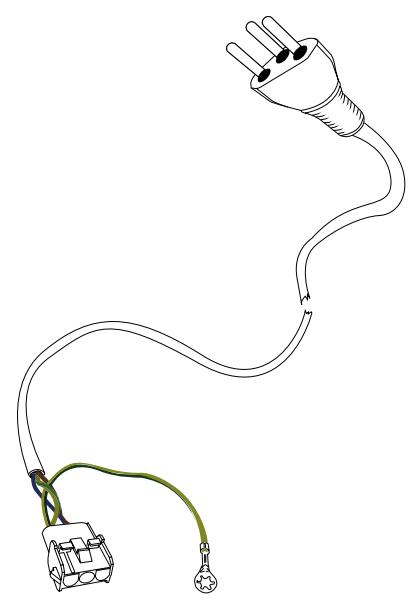

Line drawing of a three-pin electrical plug (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Line drawing of a flat-screen monitor with a black tray and stand, labeled 'x1' (no text or symbols on the device itself)

x1

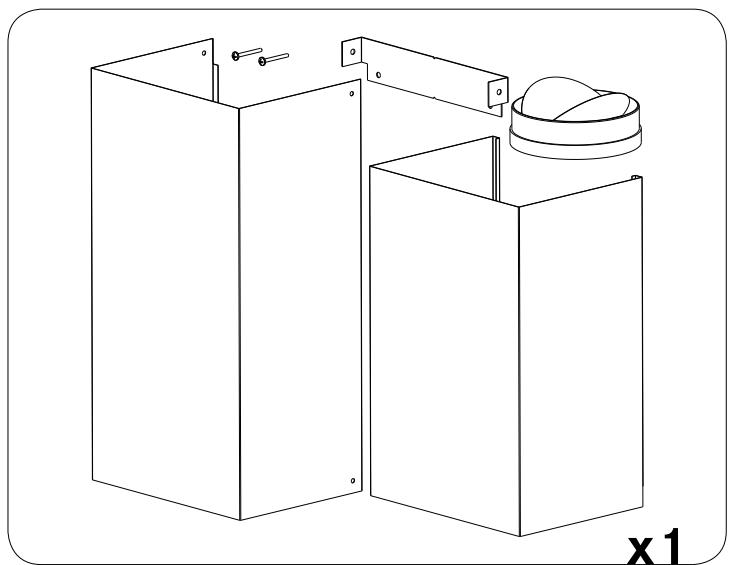

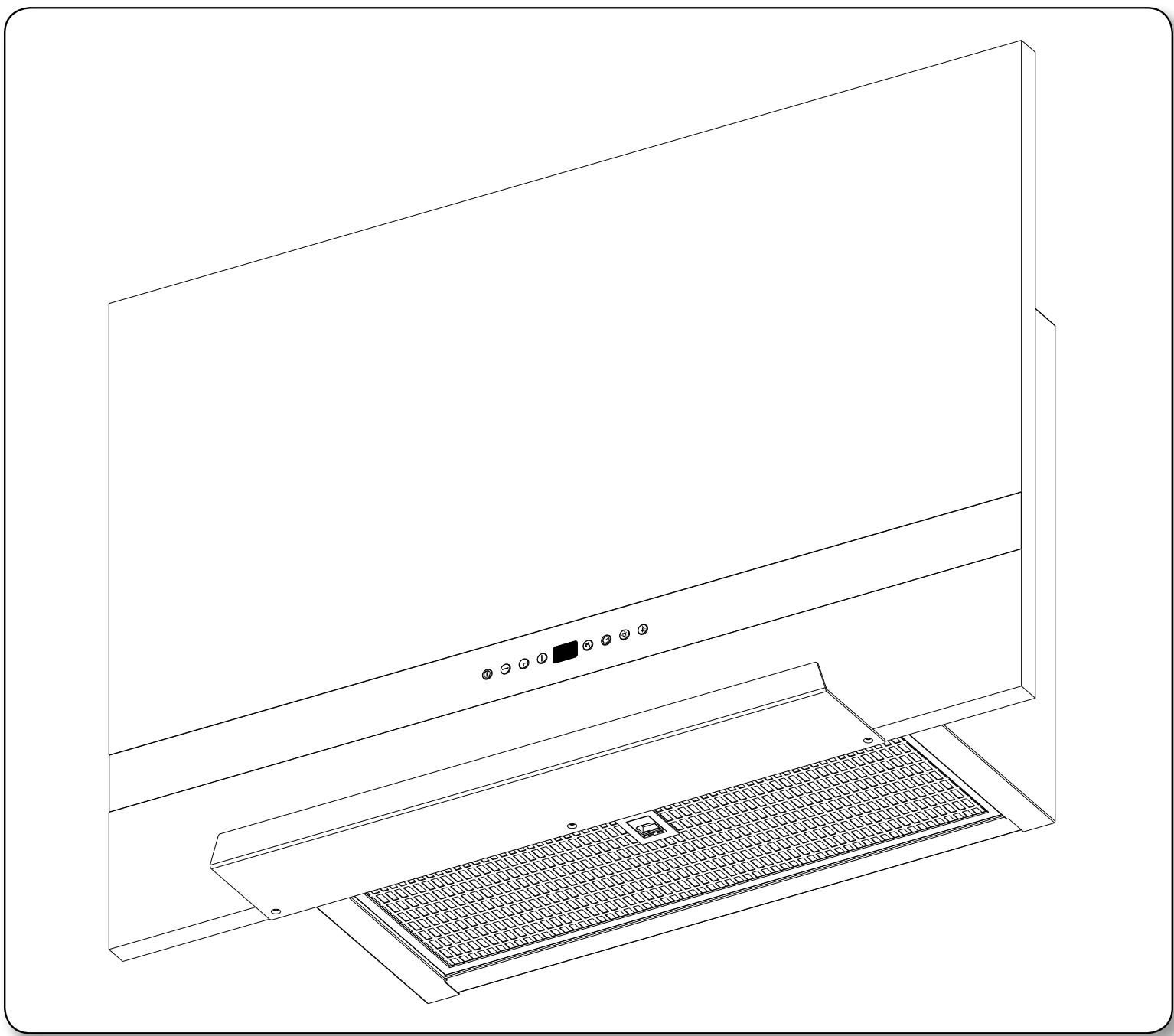

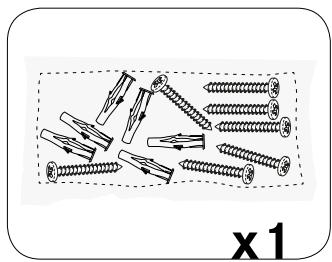

Notice NATURE HOTTE MURALE x1

Diagram showing multiple screw fasteners with arrows indicating direction, enclosed in a dashed box labeled 'x1' (no text or symbols on the diagram itself)

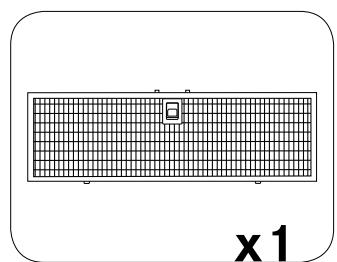

Simple diagram of a rectangular grid structure with a small icon, labeled 'x1' at bottom (no text or symbols within the diagram itself)

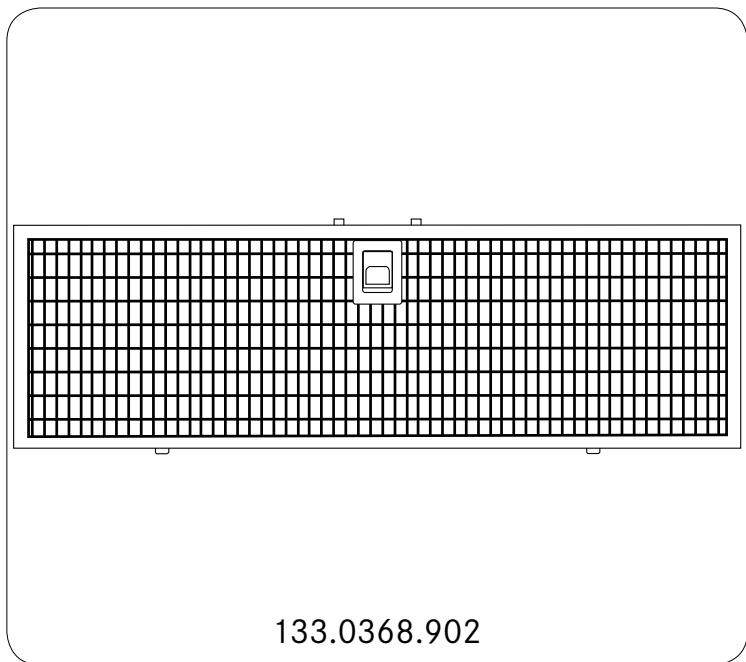

133.0368.902

accessoires - accessories - Zubehör - accessori - accesorios - accessoires

ROBIN x1

112.0540.798

x1

112.0356.226

Technical line drawing of two rectangular metal cabinets with a lid and mounting bracket (no text or symbols)

112.0570.782

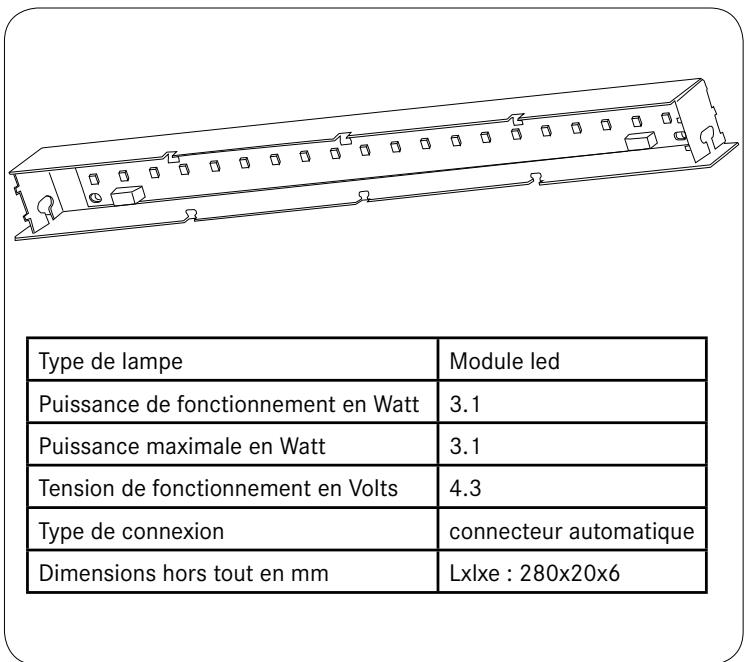

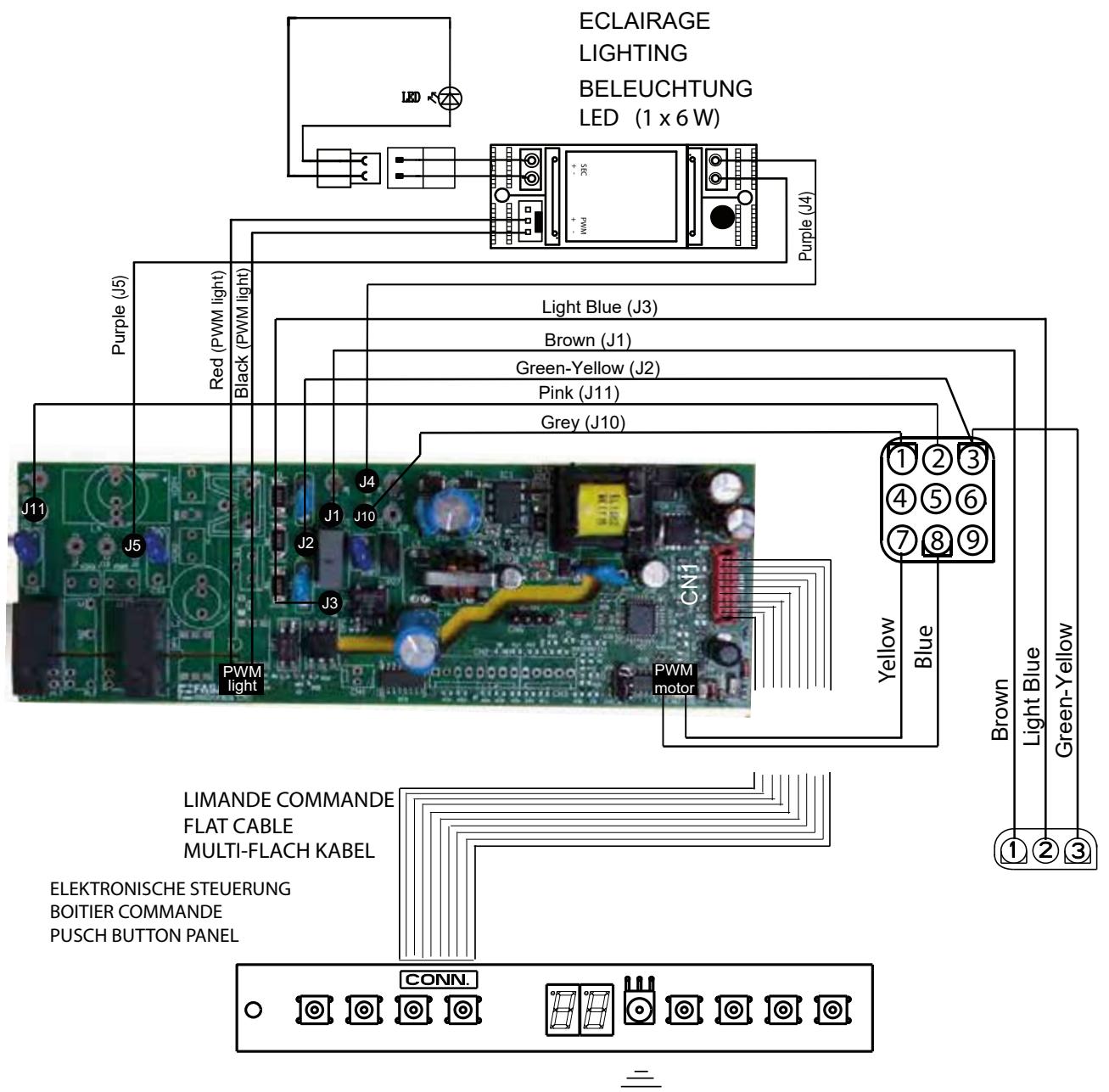

ECLAIRAGE LIGHTING BELEUCHTUNG LED (1 x 6 W) Purple (J4) Red (PWM light) Black (PWM light) Light Blue (J3) Brown (J1) Green-Yellow (J2) Pink (J11) Grey (J10) J11 J5 J2 J10 J4 PWM light CN1 PWM motor LIMANDE COMMANDE FLAT CABLE MULTI-FLACH KABEL ELEKTRONISCHE STEUERUNG BOITIER COMMANDE PUSCH BUTTON PANEL CONN. ①②③ ④⑤⑥ ⑦⑧⑨ Yellow Blue Brown Light Blue Green-Yellow

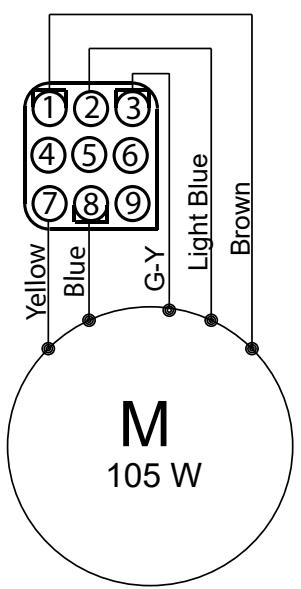

①②③ ④⑤⑥ ⑦⑧⑨ Yellow Blue G-Y Light Blue Brown M 105 W

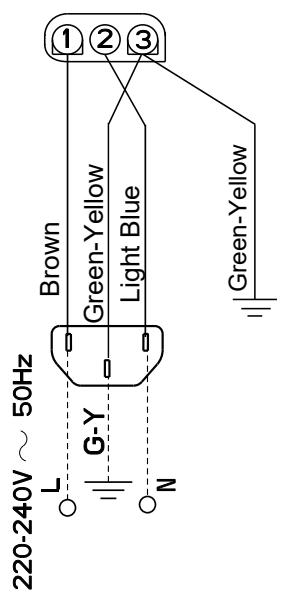

220-240V ~ 50Hz ①②③ Brown Green-Yellow Light Blue G-Y L N Green-Yellow

A : azur, azur, azur blau / BK : black, noir, schwarz / B : blue, bleu, blau / Br : brown, brun, braun / G-Y : green-yellow, vert-jaune, grün-gelb / Gr : grey, gris, grau / LB : light blue, bleu clair, hell blau / P : pink, rose, rosa / V : purple, mauve, malver farbig / R : red, rouge, rot / W : white, blanc, weiss / W-P : white-pink, blanc-rose, weiss-rosa / Y : yellow, jaune, gelb

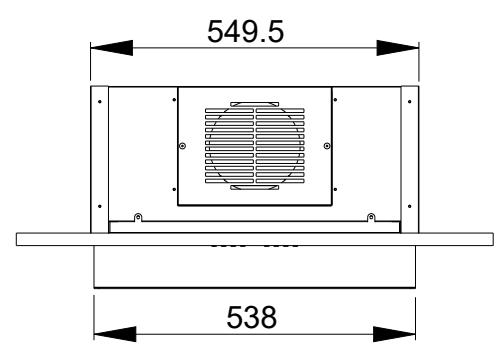

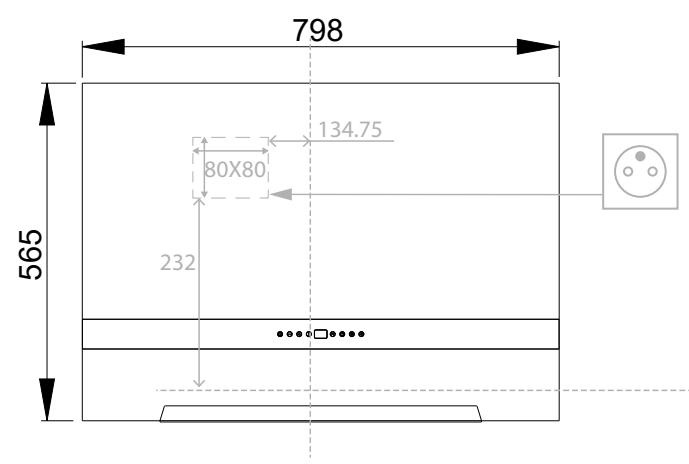

798 134.75 80X80 232 565

549.5 538

246 21 80 435 52 560 min. 93 27

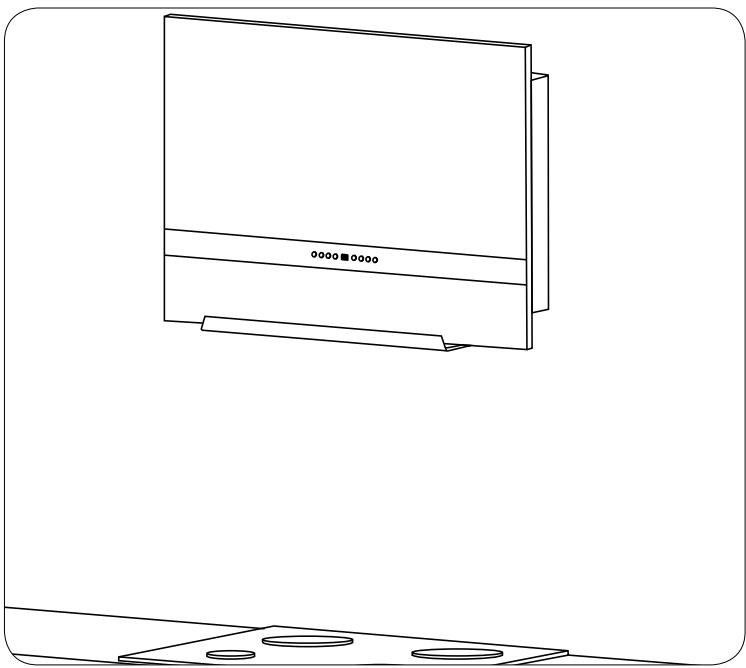

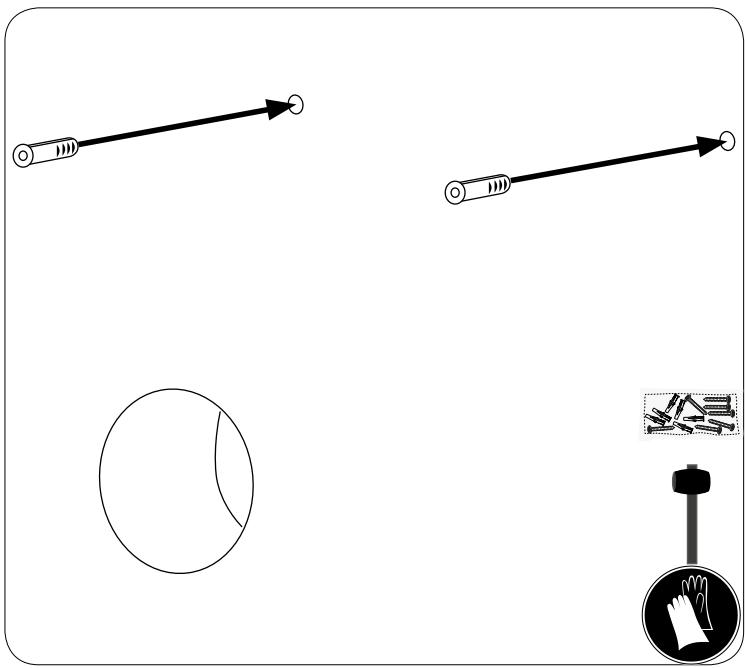

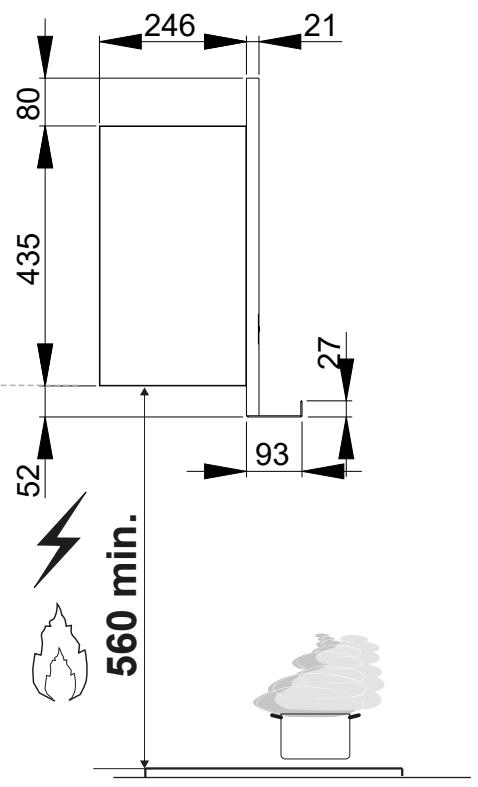

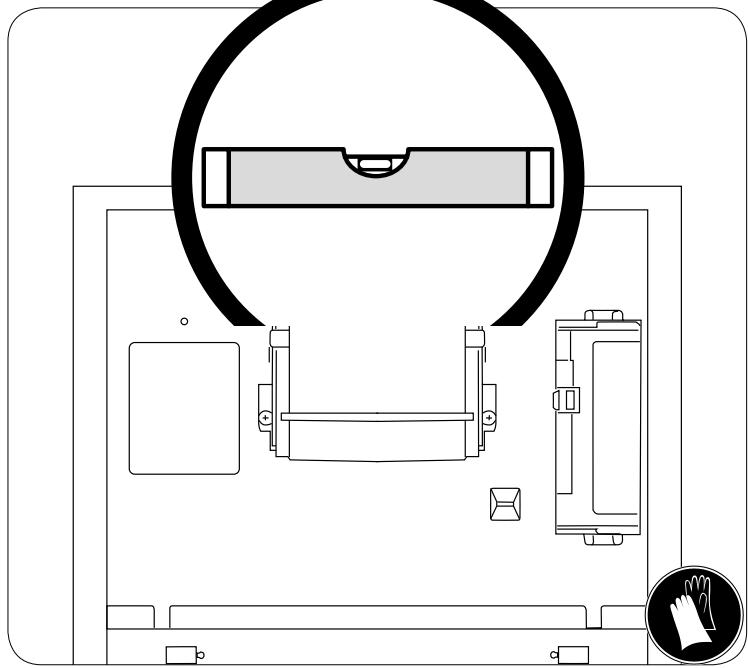

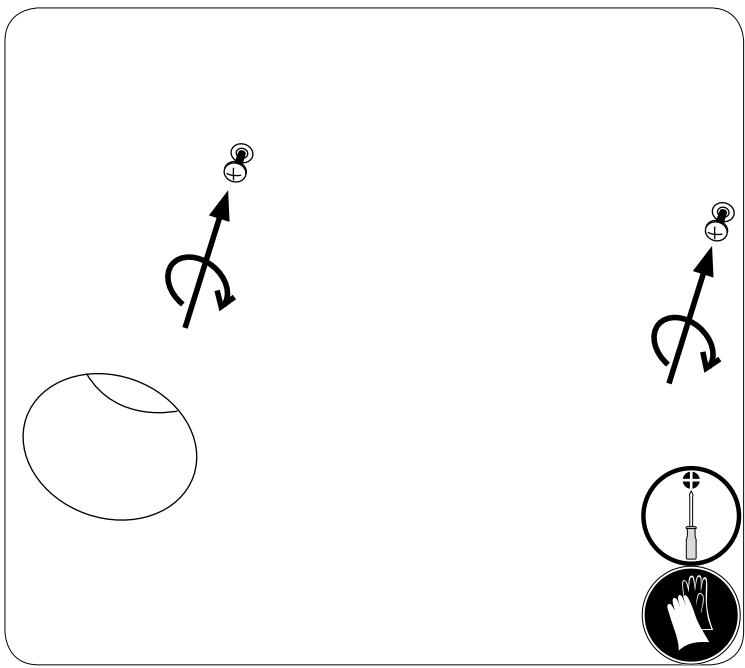

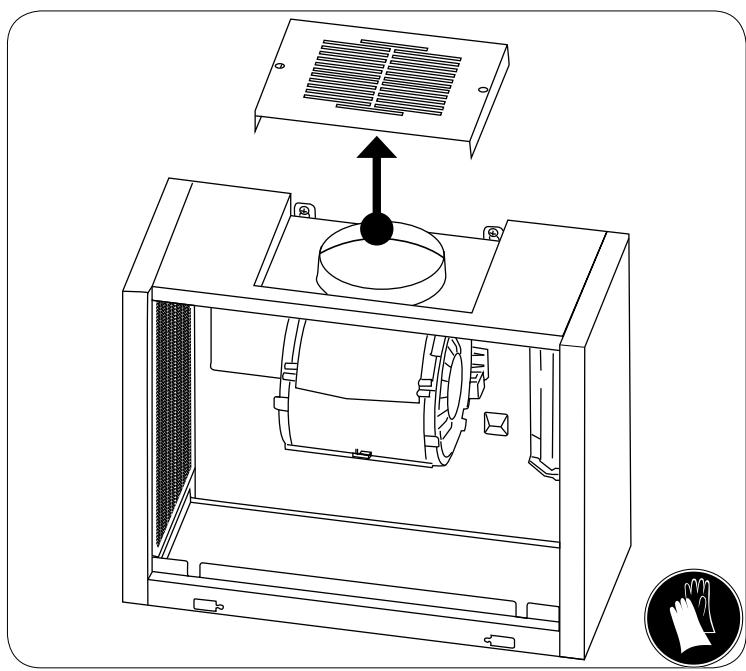

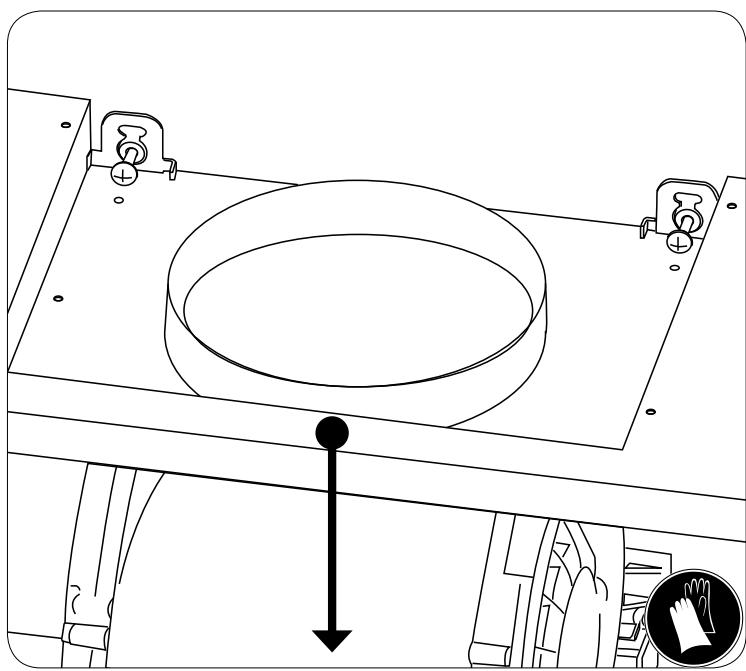

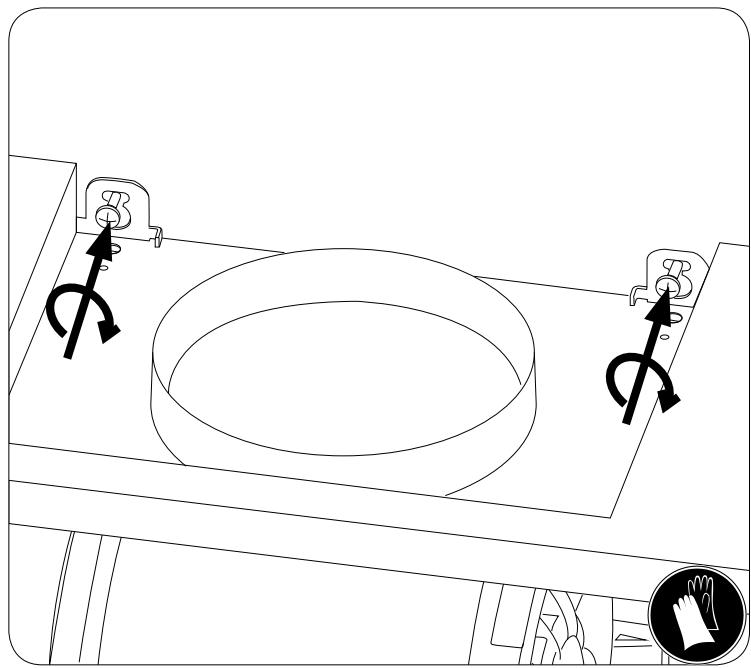

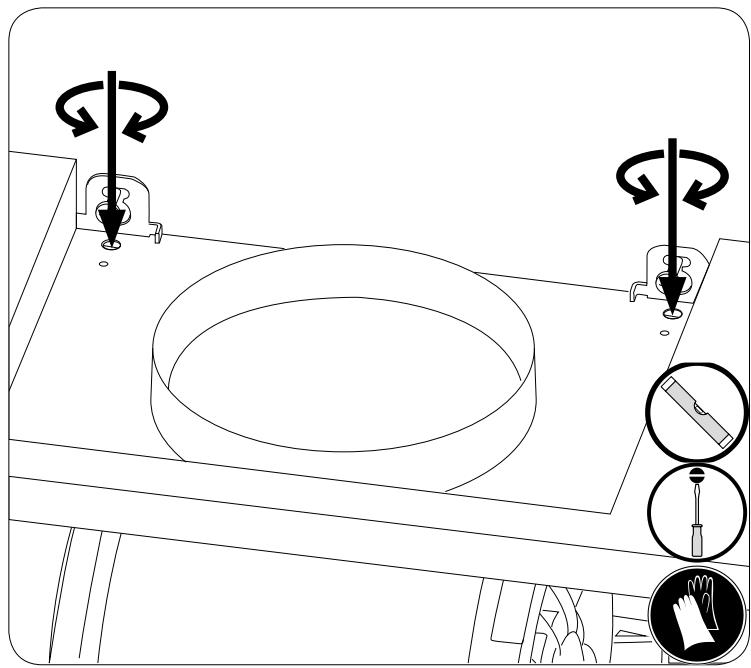

montage - fitting - Montage - montaggio - montaje - Montage

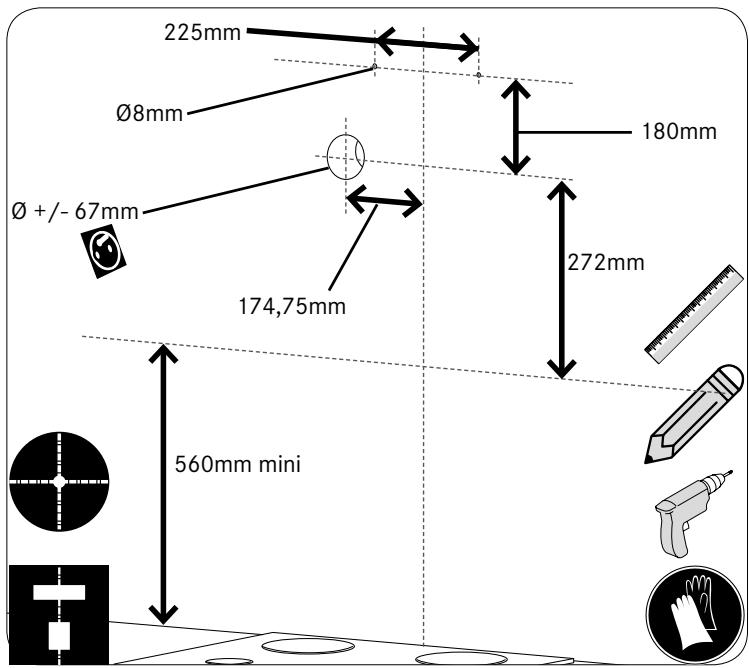

225mm Ø8mm Ø +/- 67mm 174,75mm 180mm 272mm 560mm mini

Diagram showing a rod with arrows indicating direction, a circle, and a hand gesture (no text or symbols)

Simple geometric diagram with a circle and two small circles inside a rounded rectangle (no text or symbols)

Diagram showing directional arrows and icons (no text or labels)

Diagram showing a computer monitor with a keyboard inserted, and a hand icon pointing to it (no text or symbols present)

Diagram of a door opening with two hand gestures and a magnified inset showing eye detail (no text or symbols)

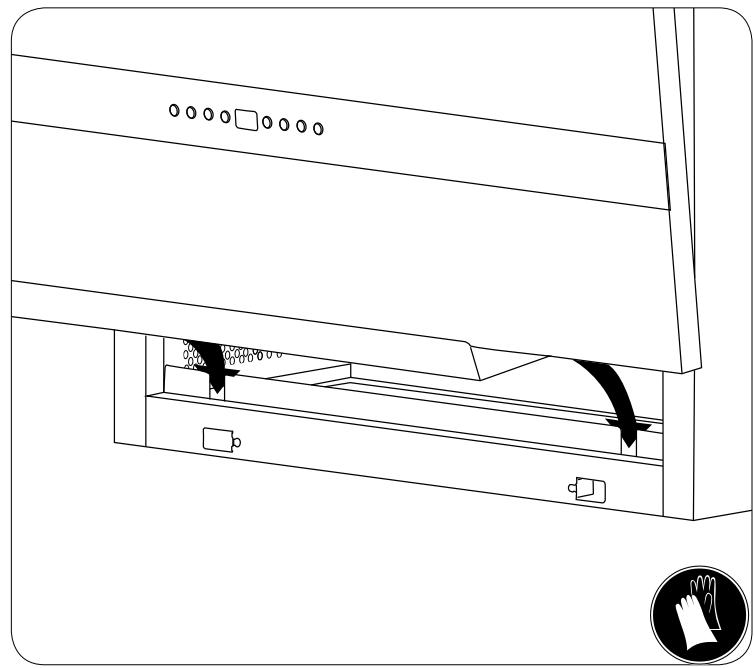

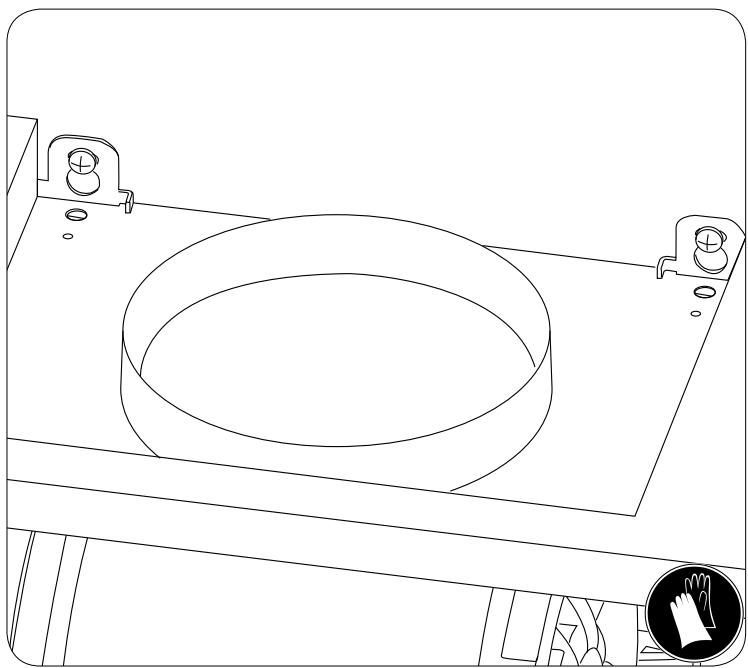

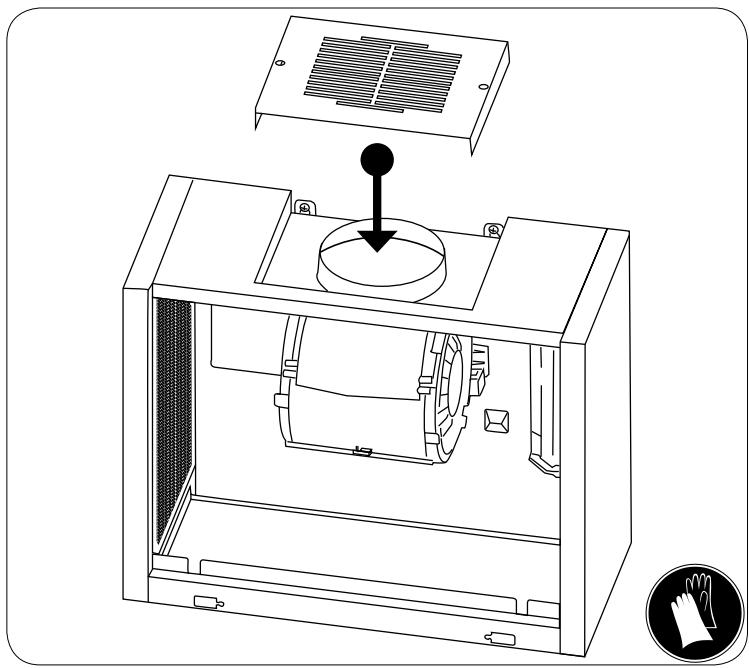

montage - fitting - Montage - montaggio - montaje - Montage

click

Diagram of a mechanical or electrical setup with rotating components and a base plate, showing no text or symbols.

Technical line drawing of a device with an upward arrow and a hand icon (no text or symbols)

Technical line drawing of an open microwave oven with a lid and ventilation cover (no text or symbols)

Illustration of a safe with a circular vent, showing airflow and human silhouettes (no text or symbols)

Technical line drawing of a mechanical component with a circular opening and hand gesture indicator (no text or symbols)

Diagram illustrating a mechanical assembly with rotating components and labeled parts including a screwdriver, hand gesture, and tool.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a kitchen sink with directional arrows indicating rotation, no text or symbols present

Technical line drawing of a mechanical component with a circular opening and mounting brackets (no text or symbols)

Technical line drawing of an open microwave oven with a lid and ventilation cover (no text or symbols)

Diagram showing a mechanical device with a curved arrow indicating motion, no text or symbols present

Line drawing of a door handle mechanism with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation, no text or symbols present

click

Diagram of a mechanical or electrical component with rotating arms and a grid-like structure, no text or symbols present.

Line drawing of a computer monitor with a keyboard and mouse, showing an open lid and a hand icon (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting base (no text or symbols)

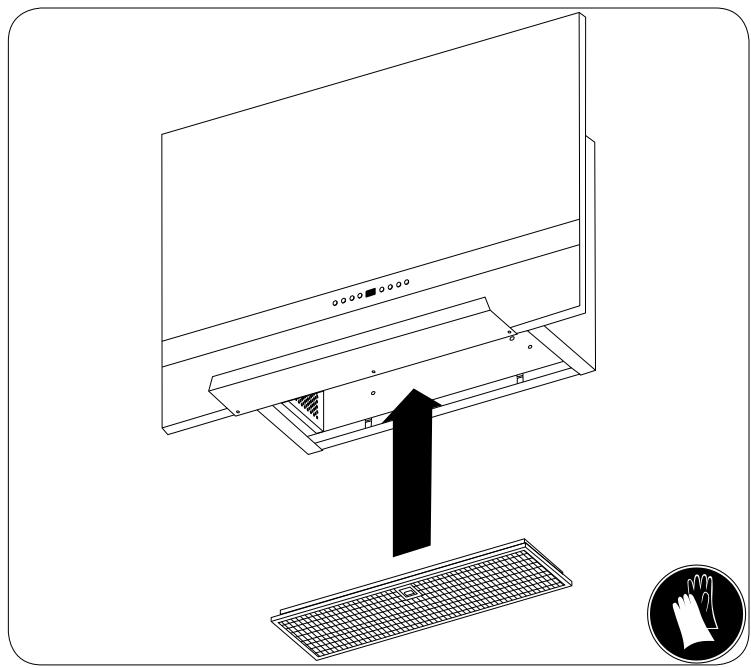

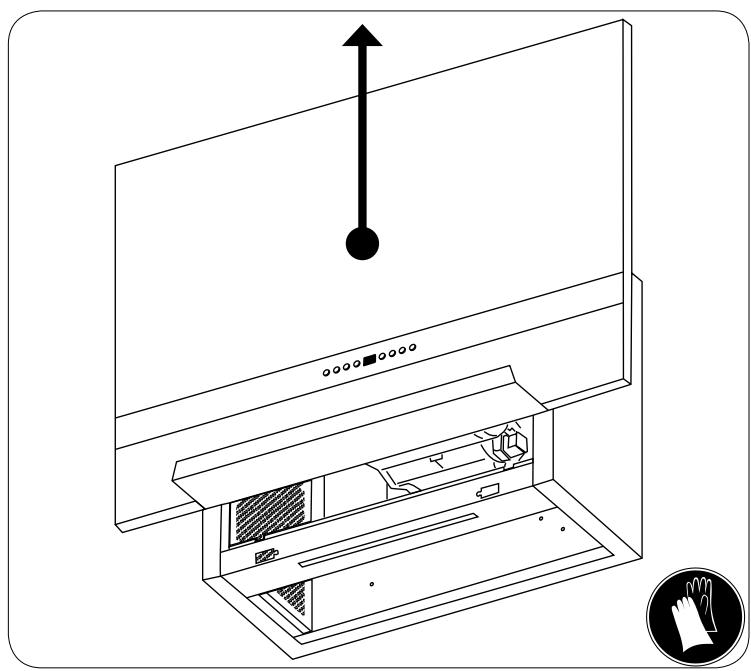

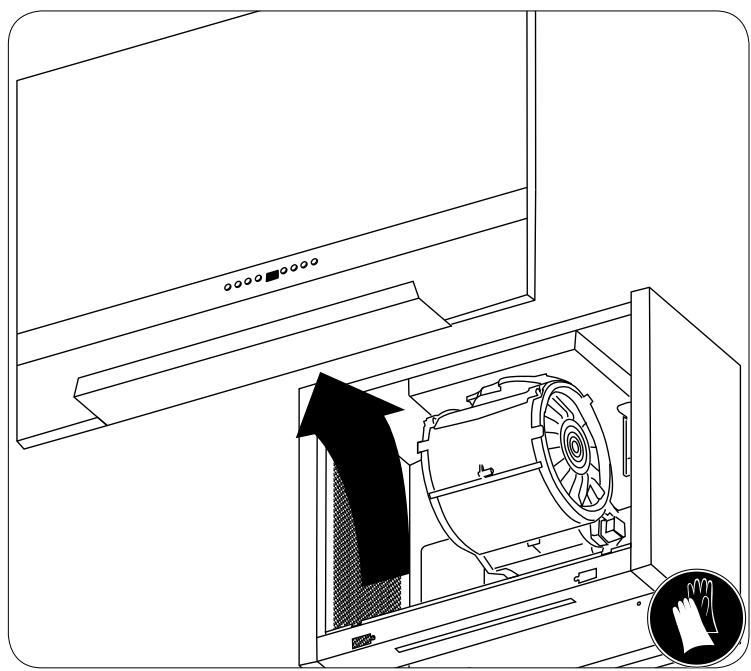

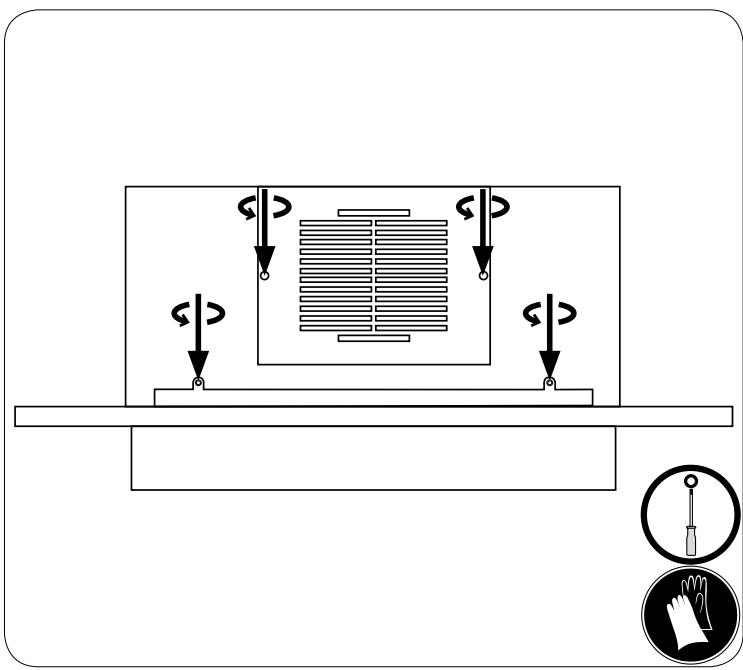

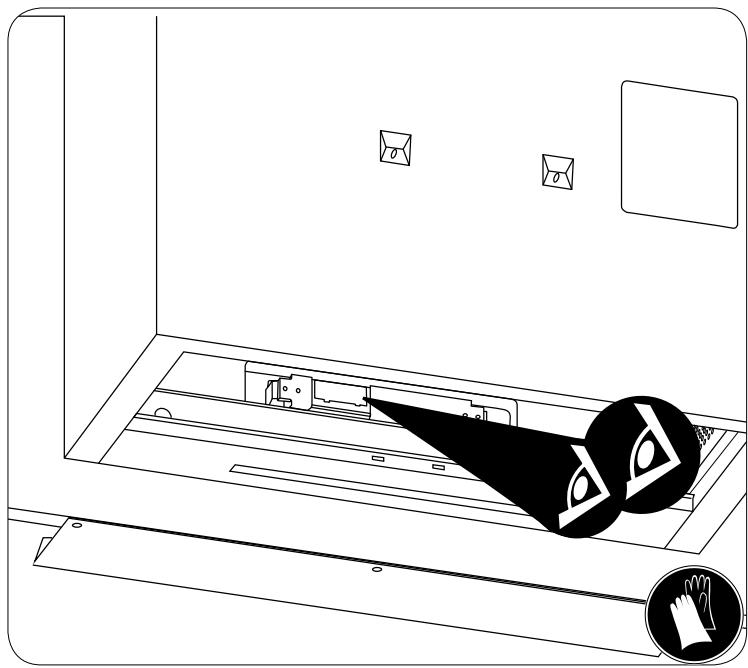

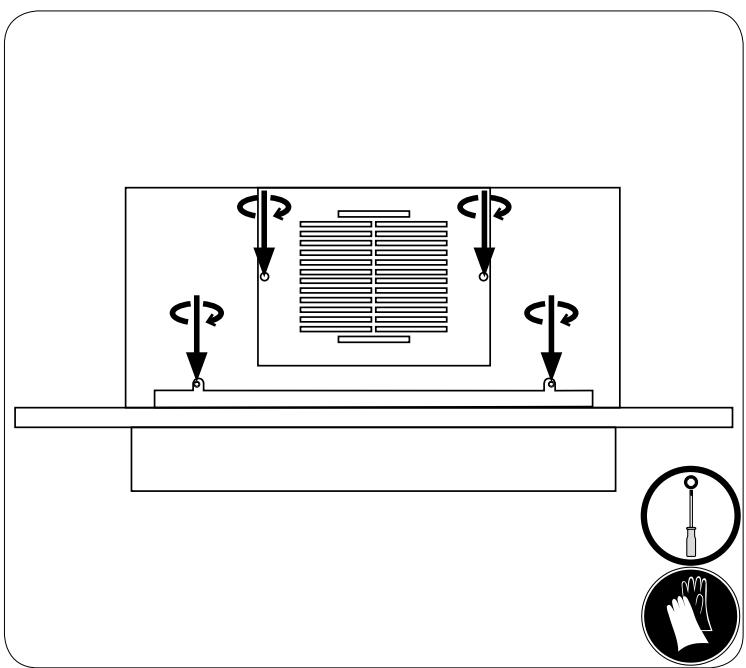

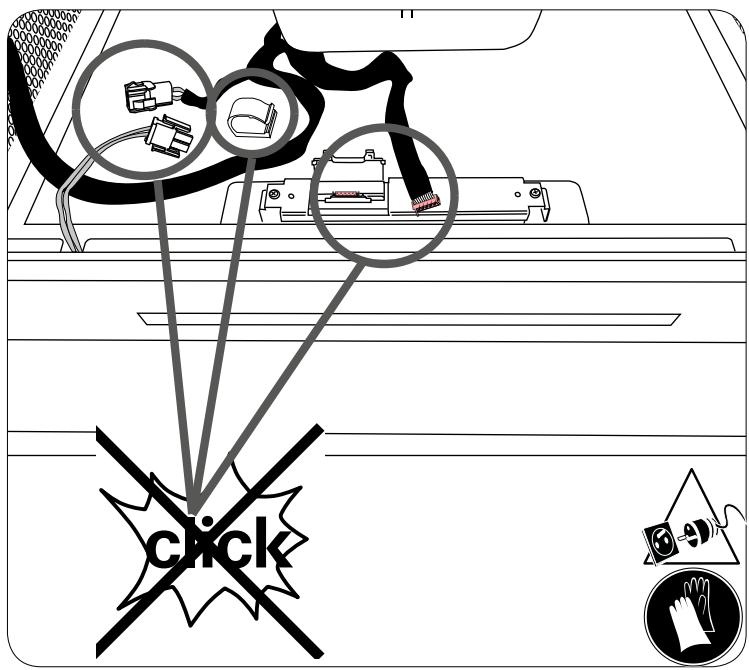

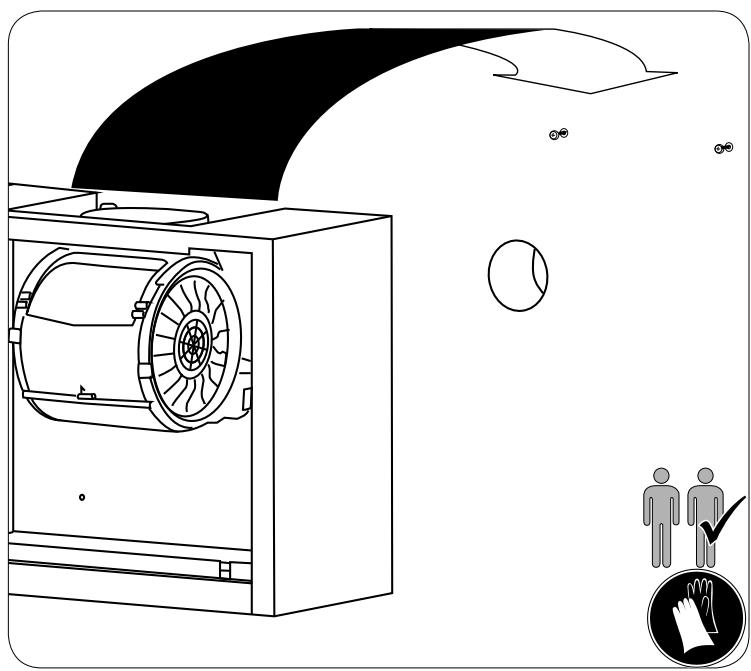

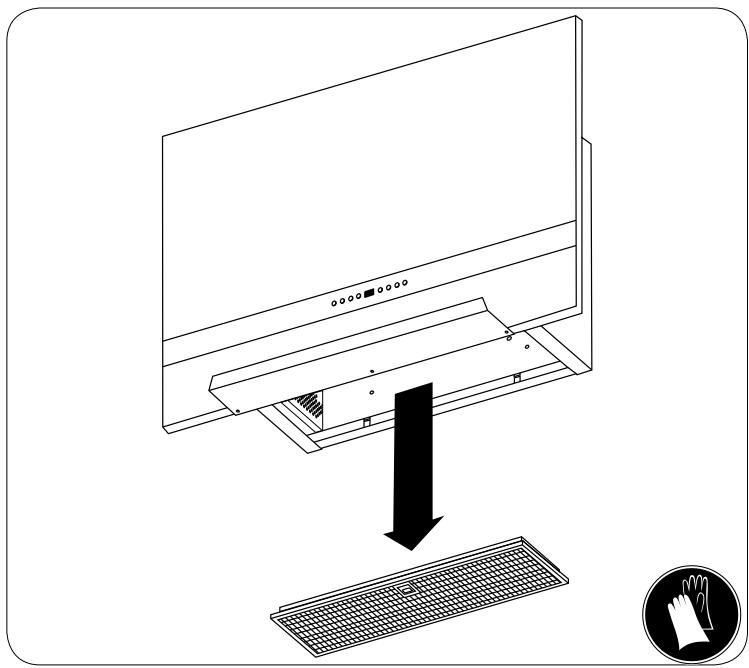

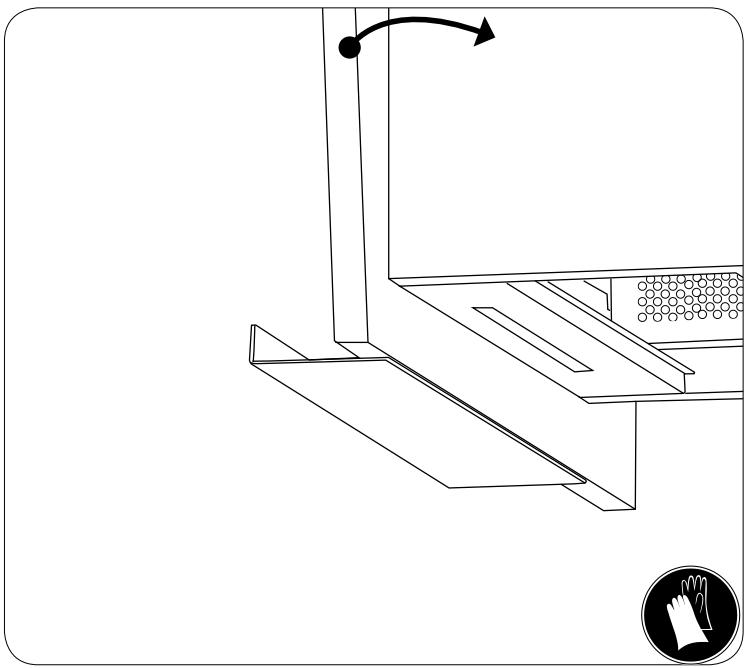

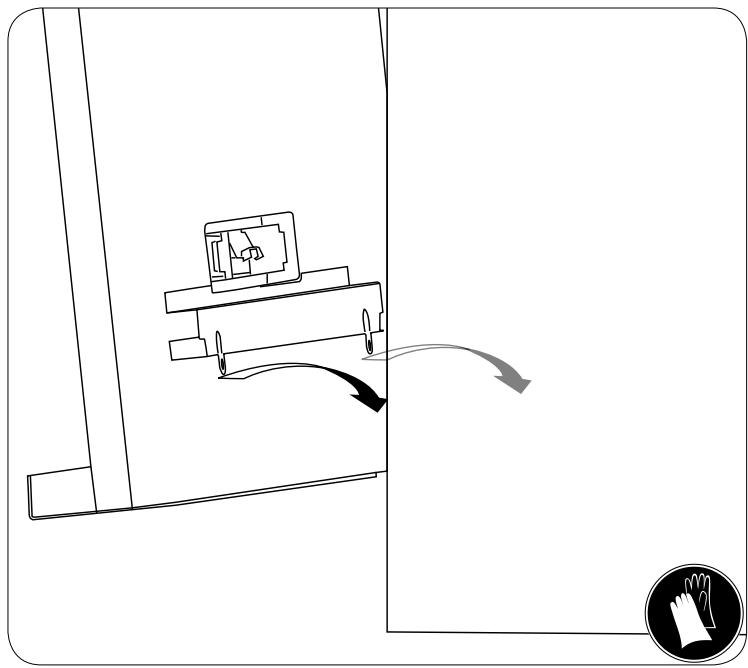

entretien - maintenance - Instandhaltung - manutenzione - mantenimiento - Onderhoud

Diagram showing a computer monitor with a keyboard being inserted, no text or symbols present

Isometric line drawing of a rectangular panel with a dark top and two small markers, no text or symbols present.

Diagram illustrating a moving solar panel with a curved arrow indicating direction, accompanied by a house icon and a hand gesture symbol.

Technical line drawing of two rectangular panels with a door handle and a hand icon, no text or symbols present.

112.0356.226

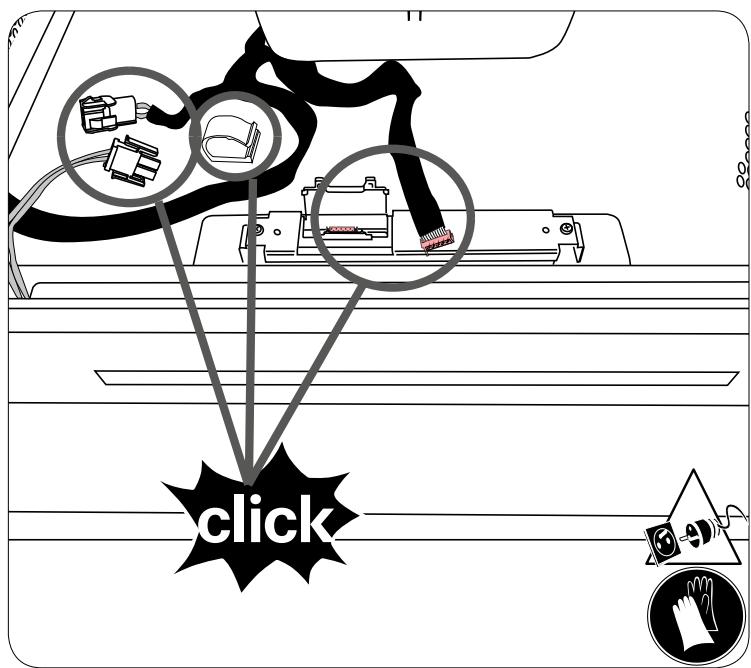

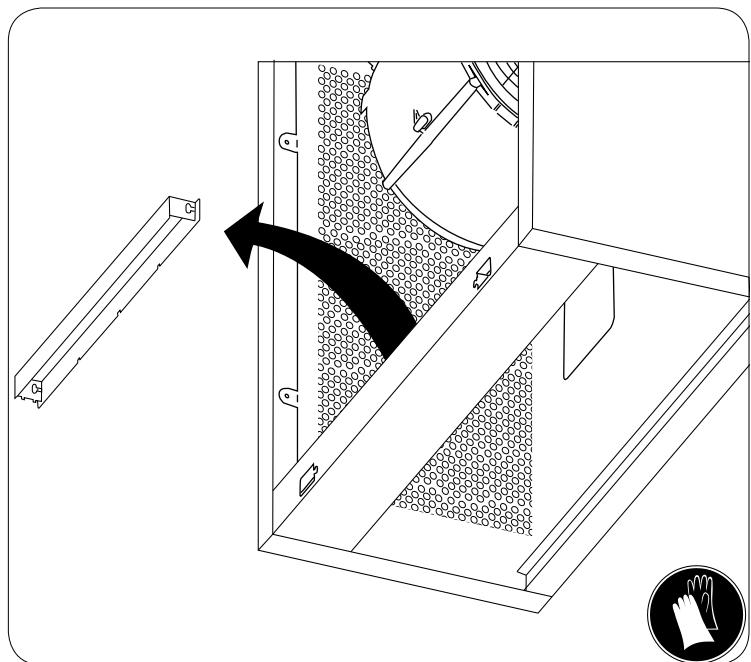

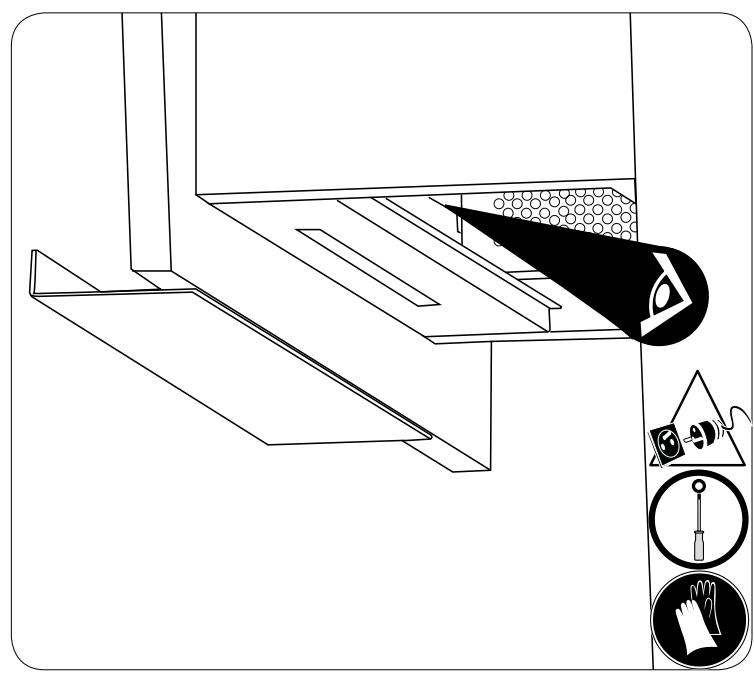

entretien - maintenance - Instandhaltung - manutenzione - mantenimiento - Onderhoud

Technical diagram showing a structural assembly with labeled components and safety symbols

click

Diagram of an air conditioner unit with a hand gesture indicating the interior panel (no text or symbols present)

Technical diagram of a mechanical assembly with directional arrows and component symbols (no readable text or labels)

Technical diagram of a door frame with a hand gesture indicating clockwise motion (no text or symbols)

Turns on the aspirated engine at the last speed of use.

Turns off the engine (and deactivates the delayed shutdown function, if it is active).

Reduces the speed used.

Increases the speed used.

Indicates the adjustment speed.

Reduces the speed used.

Hood off and on: press ⏻ while turning the hood on, then 2 lines scroll on the display, release the button: the configuration is possible for 3s.

Configure the function with a short press on the key : the function is active when EF flashes twice on the display the function is deactivated when EF flashes 1 time on the display induce la velocità utilizzata.

Activates the intensive speed, even if the engine is off, for 6 minutes, and then returns to the previously used speed.

Active engine 10 minutes every hour for 24 hours at a suction speed of 100m3 / h.

Hold for 3s: resets to zero the activated filter alarm

These signals are only visible when the engine is off.

Display 24 and a bottom right point flickers while the engine is operational;

Once the procedure has ended; the previously displayed signal is turned off.

FG/FF: indicates the need to wash the metal filters (FA) every 100 hours of operation.

EF: indicates the need to wash the metal filters and the carbon filter (FO), every 200 hours of operation.

Activates the 30-minute delayed engine shutdown.

Deactivates the delayed shutdown.

Alternately displays the user speed and the remaining time until the engine is shut down.

The bottom right point flickers.

Turns the lighting on or off at the last intensity used.

Reduces or increases the lighting intensity.

Please observe the recommendations previously cited in the MAINTENANCE and WARRANTY AND AFTER-SALES SERVICE PARAGRAPHES.

		Step 1	Step 2
Problems	Details and/or conditions of the problems	Checking operations	Action to be taken if «Step 1» has not helped to solve the problem or if it requires an additional maintenance operation.
The hood does not work.	No function operates (suction, lighting, etc.).	Check the general electrical distribution board.Check the connection of the power cable to the hood and its connection to the domestic electricity mains.	If you observe a fault in the electricity power supply (1 or 2) call in an electrician.If everything is OK but the problem persists, call in a specialized repairer
The hood does not answer to the remote control.		Check that the batteries are correctly positioned in the remote control unit.Check the state of charge of the remote control batteries.The distance between the hood and the remote control is too long or the direction (angle) of the remote control in relation to the hood is not good.The receiver is off.	Reposition the batteries.Change the batteries (2LR03 1.5 volts) in the remote controlChange the position of the remote control.Check the remote control.If everything is OK but the problem persists, call in a specialized repairer.
Noise, vibration or suction problem.	Recirculation version.	Check the condition of your filters (anti-odour).Check the positioning and fitting of the anti-odour filter.Check the condition of your anti-grease filters.	Clean or change the anti-odour filters.Replace the anti-odour filters.Clean your anti-grease filters.If everything is OK but the problem persists, call in a specialized repairer.
	External ventilating version, low suction despite satisfactory motor speed.	Check the condition of your anti-grease filters.Check the installation of the hood, (fume hood and outlet duct, valve, pipe length, number of elbows and pipe diameter).	Clean your anti-grease filters.If you observe faulty installation or fitting: call in your dealer / installerIf everything is OK but the problem persists, call in a specialized repairer.
Faulty lighting.		Check the condition of the light sources.	Change faulty bulbs.For LEDS call in a specialized repairer.
