CX922DE - CX923DTE - CX923DXE - CX924DTE - CX924DXE - Laser MFP LEXMARK - Free user manual and instructions

Product type	Color laser multifunction printer
Models	CX922DE, CX923DTE, CX923DXE, CX924DTE, CX924DXE
Brand	Lexmark
Main functions	Print, copy, scan, fax
Print speed	Up to 50 ppm (A4) depending on model
Print resolution	1200 x 1200 dpi
Supported paper sizes	A4, A5, A6, JIS B5, Letter, Legal, Executive, Folio, Oficio, 11x17, 12x18, A3, SRA3, Universal, envelopes (7 3/4, 9, 10, B5, C5, DL)
Media types	Plain paper, card stock, labels, envelopes, transparencies, glossy paper, recycled paper, letterhead
Standard paper capacity	2 x 500 sheets (tray 1 and 2)
Maximum paper capacity	Up to 3000 sheets with options (2500- or 3000-sheet tray)
Power supply	Single-phase, 110-127 V or 220-240 V AC, 50/60 Hz
Power consumption	Standby mode: 15 W, deep standby mode: 0.5 W (typical values)
Connectivity	Ethernet 10/100/1000, USB 2.0 high speed, optional Wi-Fi, Wi-Fi Direct, AirPrint, Google Cloud Print, Mopria
Touch screen	7-inch (17.8 cm) color display with numeric keypad
Security features	Confidential printing (PIN), hard disk encryption, secure data erasure, LDAP authentication
Accessibility	Voice guidance, magnification mode, optional braille keyboard
Available options	Stapling finisher, staple/hole punch finisher, booklet finisher, 2500-sheet tray, 3000-sheet tray
Maintenance	Exterior and interior cleaning, replacement of supplies (toner, photoconductor, waste toner bottle, staples)
Original supplies	Lexmark toner cartridges, photoconductor, maintenance kit
Operating temperature	10 to 30 °C (50 to 86 °F)
Relative humidity	20 to 80% non-condensing
Approximate weight	Over 20 kg (44 lb) depending on configuration

Frequently Asked Questions - CX922DE - CX923DTE - CX923DXE - CX924DTE - CX924DXE LEXMARK

How to load paper in the standard tray?

Pull the tray, adjust the guides, fan and stack the paper, then load it following the indicated direction. Make sure the stack does not exceed the fill indicator. Close the tray and, if necessary, set the paper size and type from the control panel.

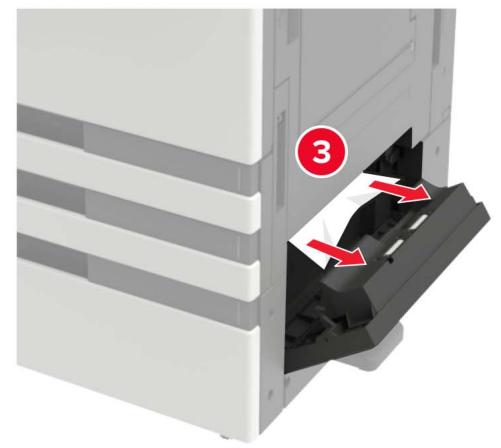

How to clear a paper jam?

Check the screen to locate the jam. Open the indicated doors (door C, D, F as applicable) and gently remove the stuck paper. Avoid tearing the paper. Use the green handles to release the rollers. Close all doors and restart printing.

How to print from an Android smartphone?

You can use Google Cloud Print, Mopria or Wi-Fi Direct. For Mopria, install the app from Google Play, connect to the same network, select the document and choose Print. Make sure the printer is connected to the network.

How to set up confidential printing?

In the printer driver, select Print and Hold, then choose Confidential. Assign a 4-digit PIN. On the printer, go to Held Jobs, select your name, enter the PIN and start printing.

How to clean the exterior of the printer?

Turn off the printer and unplug the power cord. Use a soft, slightly damp cloth to wipe the external surfaces. Do not use liquid or aerosol cleaners. Wait until everything is dry before plugging back in.

What to do if the printer does not respond?

Check that the power cord is plugged in and the printer is on. Restart the printer by turning it off for 30 seconds. Check the network connection (Ethernet or Wi-Fi). Print a network setup page to verify connectivity. If the problem persists, contact Lexmark Support.

How to replace the toner cartridge?

Open the front door, remove the old cartridge by pulling the handle. Take the new cartridge out of its packaging, shake it gently to distribute the toner, then insert it until it clicks. Close the door. The status message should disappear.

How to activate voice guidance?

On the control panel, press and hold the 5 key until you hear a voice message. Follow the instructions to activate Voice Guidance mode. You can also plug in a headset to activate it automatically.

How to adjust Eco settings?

From the home screen, press Eco Settings. You can enable Eco Mode which prints on one side, reduces toner intensity and disables color mode. You can also schedule power modes to save energy.

How to connect the printer to a Wi-Fi network?

From the control panel, go to Settings > Network/Ports > Wireless. Enable Wi-Fi, then select your network. Enter the password. You can use the Push Button method (WPS) if your router supports it.

USER MANUAL CX922DE - CX923DTE - CX923DXE - CX924DTE - CX924DXE LEXMARK

Diagram of a printer internal structure showing internal components and a red arrow indicating compression (no text or symbols present)

Three-step illustration showing a foldable object being folded, then being folded with red arrows indicating rotation (no text or symbols)

Diagram of a computer tower with an open drive and a red arrow indicating compression or disassembly (no text or symbols present)

Remarques :

Diagram of a printer drawer with an inset showing a close-up of the component (no text or symbols visible)

Three-step illustration showing a folding or folding process with arrows indicating rotation and direction (no text or symbols)

3D illustration of a printer or printer with a highlighted internal structure, showing paper feeding into a slot (no text or symbols visible)

Three-step illustration showing a folding or folding process with red arrows indicating direction (no text or symbols)

3D diagram of an open computer case with a red arrow indicating a component, showing internal structure and a magnified inset (no text or symbols)

Interior view of a printer or scanner with a red arrow pointing to a device component (no visible text or symbols)

Three-step illustration showing a folding or folding process with arrows indicating direction of movement (no text or symbols)

Remarques :

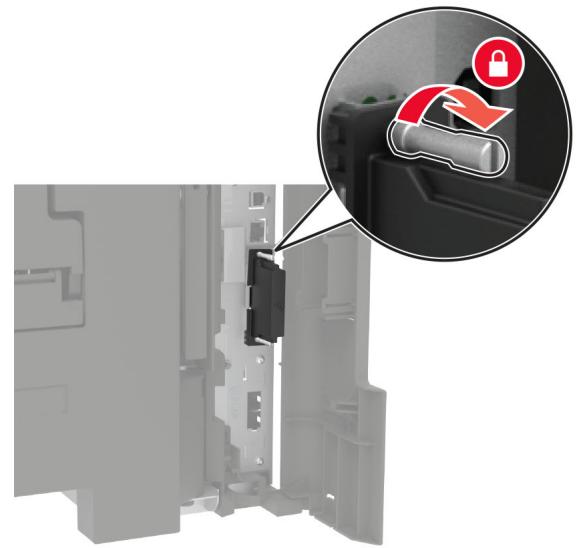

Diagram showing a lock icon on an electronic device with a close-up view of the internal components (no text or symbols present)

Diagram of a server rack with two red arrows pointing to a black panel, labeled with number 2 (no text or symbols on the diagram itself)

Interior view of a printer or printer with a black strip being inserted, showing internal components and a numbered callout (no text or symbols on the diagram itself)

3D diagram of a printer internal structure with a red arrow and numbered annotation (no text or symbols on the diagram itself)

4 Fermez la porte.

Diagram of a cylindrical device with internal components and red directional arrows indicating flow or movement (no text or symbols)

Interior view of a server rack with a highlighted internal component and red arrows indicating ports (no text or symbols present)

Interior view of a printer or printer with visible circuit board and paper tray (no text or symbols)

Diagram of a server rack with labeled components and a red arrow indicating a specific part (no text or symbols present)

Diagram of a server rack with two red arrows pointing to a black internal component, labeled with number 2 (no text or symbols on the diagram itself)

3D diagram of a printer internal structure with a green and black component, no visible text or symbols

Interior view of a computer printer showing the spine and rack with a red arrow pointing to a component (no text or symbols visible)

Diagram of a server rack with labeled component '2' and directional arrow (no text or symbols beyond label)

Diagram of a server rack with two red arrows pointing to a black internal component, labeled with number 2 (no text or symbols on the diagram itself)

Interior view of a computer printer showing the base panel and internal components (no text or symbols visible)

Three views of a robotic machine with visible wheels and mechanical components (no text or symbols)

Diagram of a printer internal structure showing internal components and a red arrow indicating a process (no text or symbols present)

Close-up of a printer's internal structure with a magnified inset showing a lock mechanism (no text or symbols visible)

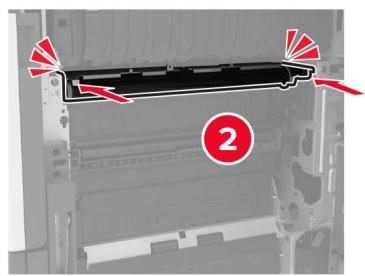

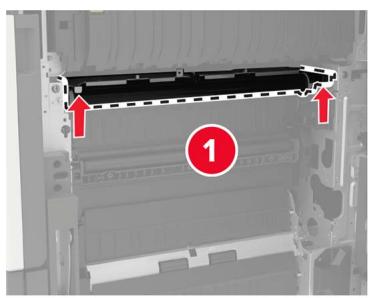

5 Retirez le guide-papier.

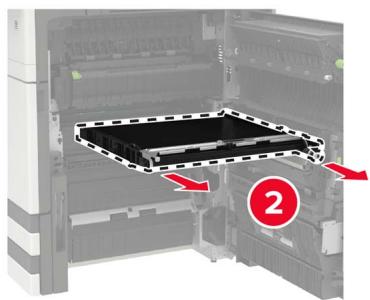

6 Retirez la courroie de transfert.

Close-up of a server rack with highlighted component (number 1) and red arrows indicating movement or assembly (no text or symbols beyond labels)

Interior view of a server rack with a highlighted internal component and red arrows indicating direction (no text or symbols)

Diagram of a computer drive showing internal components and a numbered label (1), no readable text or symbols present.

Diagram of a server rack with red laser indicators and a numbered marker (2), no readable text or symbols present.

Diagram showing a device with internal components and a red arrow indicating direction (no text or symbols present)

5 Fermez la porte.

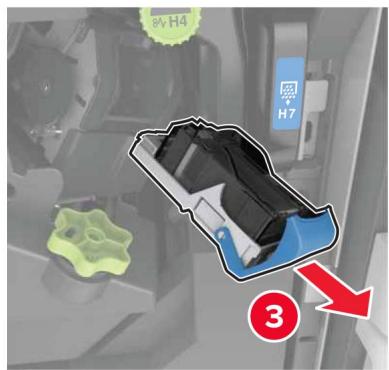

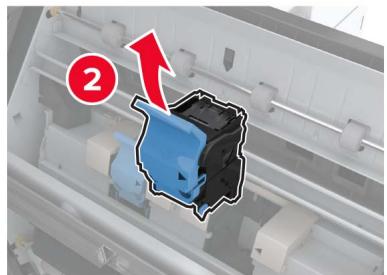

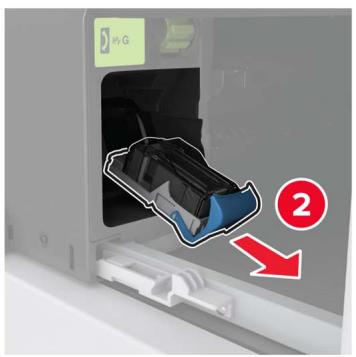

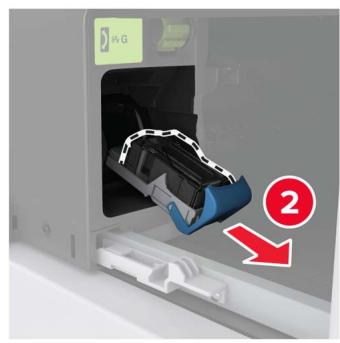

2 Retirez la cartouche d'agrafes vide.

Illustration of a printer with an inset showing a blue object being inserted, labeled with number 1 (no text or symbols on the printer itself)

Close-up of a mechanical device with a blue gear and black plastic component inserted into a container, showing a red arrow labeled '2' pointing to it (no text or symbols on the device itself)

Diagram of a device's internal structure showing a component being cut with a red arrow indicating direction (no text or symbols present)

5 Fermez la porte.

Diagram of a printer with an open lid and green-labeled slots, showing internal components (no text or symbols)

Three-step illustration showing a folding or folding process with red arrows indicating direction (no text or symbols)

Exterior view of a dual printer with labeled parts (no text or symbols beyond labels)

Close-up of a black plastic device with red arrows indicating internal components (no text or symbols visible)

Three-step illustration showing hands folding a folded paper or document with red arrows indicating motion (no text or symbols)

Diagram of a printer internal structure showing internal components and a red arrow indicating a process (no text or symbols present)

Remarques :

Interior view of a printer or printer with paper inside, showing internal structure and a numbered annotation (2) pointing to a paper sheet.

- Zone recto verso

3D diagram of a computer tower with a highlighted internal component and red arrows indicating motion (no text or symbols)

Remarques :

3D rendering of a gray electronic device casing with red directional arrows indicating internal components (no text or symbols)

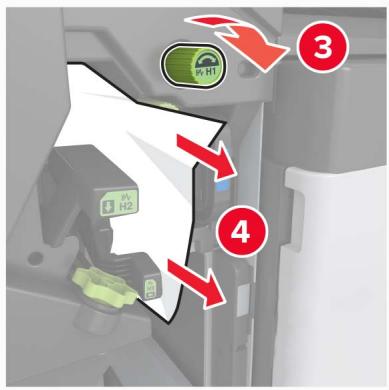

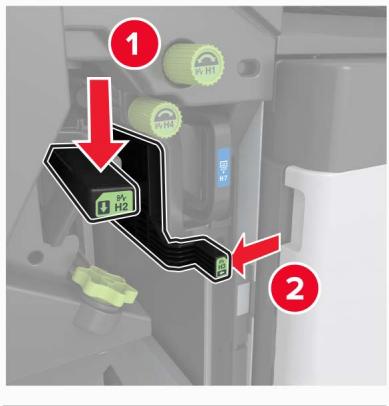

- Zones H1 et H2

- Zone H6

Diagram of an open industrial machine with a red arrow indicating a component, shown in perspective (no text or symbols present)

- Zone H9

- Zone H10

Illustration of a printer with a magnified inset showing a blue and red arrow indicating process (no text or symbols present)

Illustration of a printer with a magnified inset showing a blue and red printer inside (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a blue plastic component, no visible text or symbols.

Close-up of a mechanical component with a blue plastic housing and red arrow indicating a specific part (no text or symbols present)

Fournitures non-Lexmark

Three horizontal color blocks: yellow, white, and gray (no text or symbols)

Remarques :

Remarques :

Close-up of a mechanical component with a red arrow and numbered label (1), showing a close-up view without any readable text or symbols.

3D model of a printer or printer with visible internal structure and red arrows indicating directional movement (no text or symbols)

3D rendering of a printer with a highlighted black component and red arrow indicator (no text or symbols)

Pure diagram of a mechanical or electrical component with dashed lines indicating hidden connections (no text or symbols)

3D mechanical component with a highlighted connector and red arrow indicator (no text or symbols)

3D rendering of a printer or printer with visible internal components and red arrows indicating alignment (no text or symbols)

3D rendering of a printer with a black rectangular component and red arrow indicator (no text or symbols)

Diagram showing a device with an earphone connected to a folder, highlighting a red arrow (no text or symbols present)

Diagram showing a computer interface with an attached device and a magnified view of the internal components (no text or symbols present)

3D mechanical component with a highlighted connector and red arrow indicator (no text or symbols)

3D rendering of a printer or printer with visible internal components and red arrows indicating alignment (no text or symbols)

3D rendering of a printer with a black rectangular component and red arrow indicator (no text or symbols)

Pure diagram of a mechanical or electrical component with dashed lines indicating hidden connections (no text or symbols)

3D rendering of a computer monitor case with a red arrow pointing to the side panel (no text or symbols visible)

Diagram showing a device's internal structure with an inset close-up highlighting a mechanical component (no text or symbols present)

Diagram showing a device inside a computer case with an inset close-up highlighting a component (no text or symbols present)

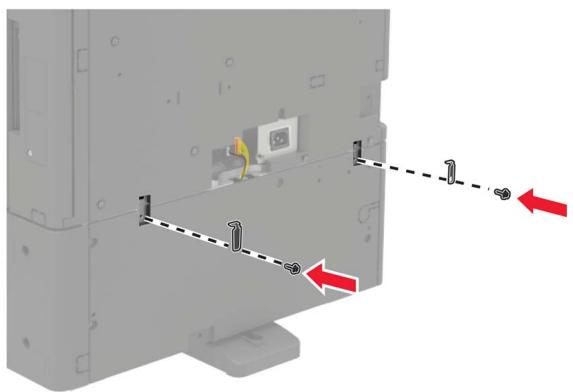

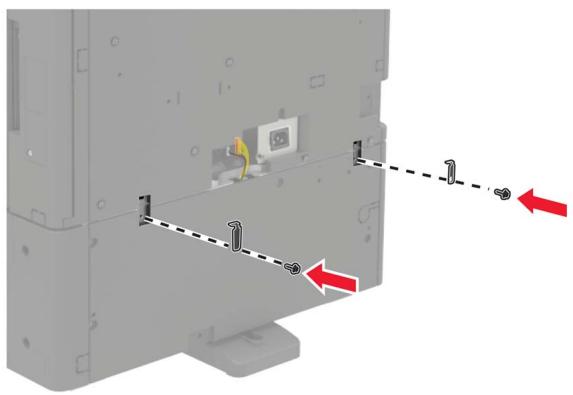

8 Fixez les vis.

Diagram of a computer monitor rear panel with an inset close-up showing internal components (no text or symbols)

Close-up of a mechanical component with a magnified inset showing a lock mechanism (no text or symbols visible)

Diagram showing a device with a blue cable inserted into a green internal panel, connected to a magnified inset of its cable (no text or symbols visible)

Illustration of people assembling a large electronic device with a red arrow indicating compression (no text or symbols present)

Mechanical component with a red arrow and numbered callout (1), showing a connector or insertion point (no text or symbols on the component itself)

Diagram showing a computer monitor with an inset close-up highlighting a device component (no text or symbols present)

3D diagram of a computer monitor with an inset close-up showing a component, no text or symbols present.

Diagram of a server rack with two red arrows indicating compression or cooling process (no text or symbols present)

3D diagram of a machine with internal components and a magnified inset showing tool paths (no text or symbols)

- Arrière

Close-up of a server rack with a black cover and red arrows indicating compression or cooling process (no text or symbols)

3D diagram of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

- Arrière

3D diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Illustration of people assembling a stacked electronic device with a red upward arrow indicating motion (no text or symbols)

Illustration of people assembling a multi-tiered electronic device with a red arrow indicating compression (no text or symbols present)

Two views of a computer monitor case with red arrows indicating component alignment (no text or symbols present)

- Arrière

3D rendering of a mechanical device with internal components and a red arrow indicating a connection point (no text or symbols)

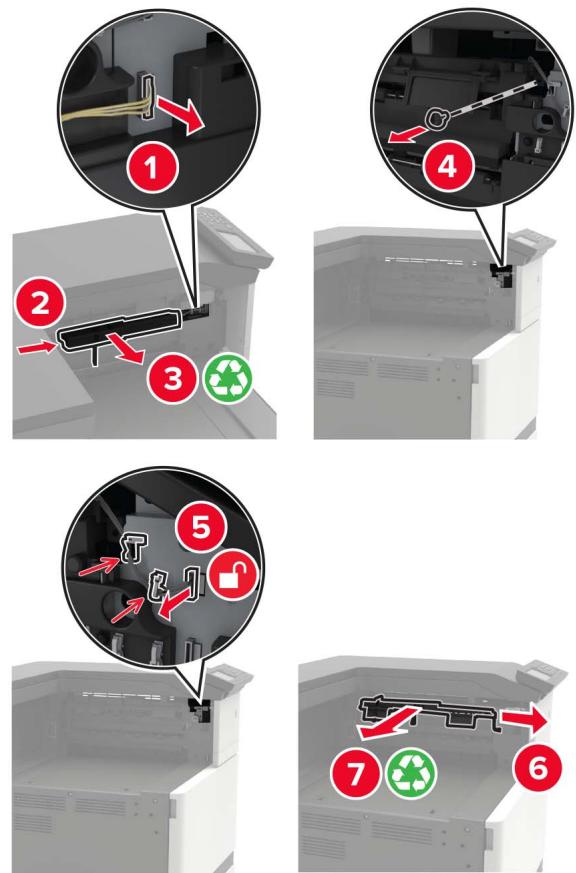

7 Retirez les guide-papier.

Interior view of a printer or printer with visible internal components and red arrows indicating motion or flow (no text or symbols)

Mechanical assembly diagram showing a component with a highlighted section and numbered annotation (no text or symbols present)

3D model of a printer or printer with visible internal structure and red annotations (no text or symbols)

3D rendering of a computer monitor with a highlighted black panel and red arrow indicator (no text or symbols)

3D rendering of a gray industrial machine casing with a red arrow pointing to a black panel (no text or symbols visible)

3D mechanical component with a highlighted rectangular component and red arrow indicator (no text or symbols)

Diagram showing a mechanical device with red arrows indicating motion, no text or symbols present

3D model of a printer or printer with visible internal structure and red annotations (no text or symbols)

3D rendering of a computer monitor with a highlighted black panel and red arrow indicator (no text or symbols)

3D diagram of a computer monitor with internal components and directional arrows indicating movement (no text or symbols)

© 2017 Lexmark International, Inc.

Macintosh, App Store, Safari, and AirPrint are trademarks of Apple Inc., registered in the U.S. and other countries. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

Symbolic icon of a hand holding a pen, enclosed in a triangle (no text or symbols)

Line drawing of an open industrial machine with internal components and a cable inserted (no text or symbols)

Industry Canada compliance statement

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standard ICES-003.

Lexmark International, Inc., Lexington, KY

This limited warranty applies to the United States and Canada. For customers outside the U.S., refer to the country-specific warranty information that came with your product.

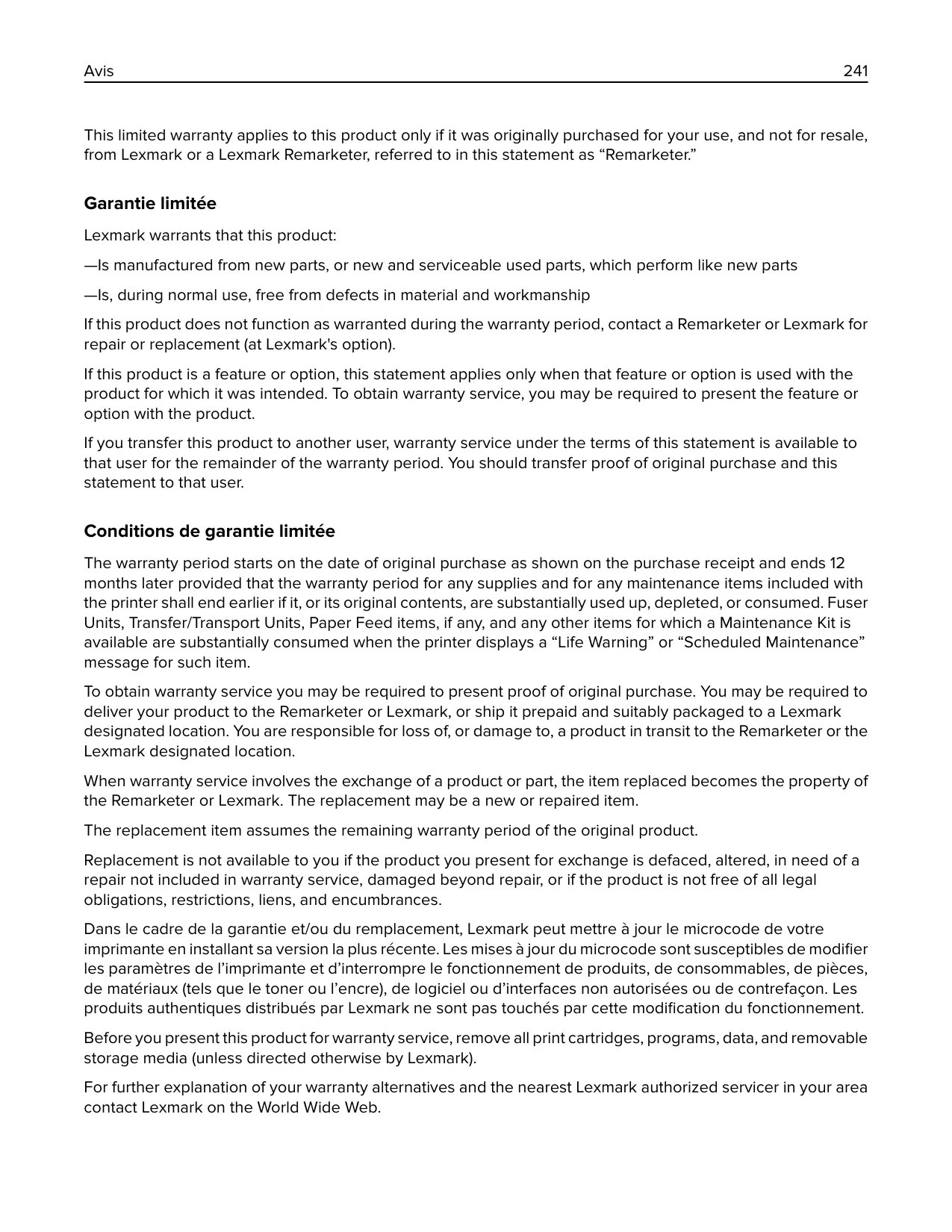

This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark Remarketer, referred to in this statement as “Remarketer.”

Garantie limitée

Lexmark warrants that this product:

—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts

—Is, during normal use, free from defects in material and workmanship

If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair or replacement (at Lexmark's option).

If this product is a feature or option, this statement applies only when that feature or option is used with the product for which it was intended. To obtain warranty service, you may be required to present the feature or option with the product.

If you transfer this product to another user, warranty service under the terms of this statement is available to that user for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that user.

The warranty period starts on the date of original purchase as shown on the purchase receipt and ends 12 months later provided that the warranty period for any supplies and for any maintenance items included with the printer shall end earlier if it, or its original contents, are substantially used up, depleted, or consumed. Fuser Units, Transfer/Transport Units, Paper Feed items, if any, and any other items for which a Maintenance Kit is available are substantially consumed when the printer displays a “Life Warning” or “Scheduled Maintenance” message for such item.

To obtain warranty service you may be required to present proof of original purchase. You may be required to deliver your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location. You are responsible for loss of, or damage to, a product in transit to the Remarketer or the Lexmark designated location.

When warranty service involves the exchange of a product or part, the item replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item.

The replacement item assumes the remaining warranty period of the original product.

Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not included in warranty service, damaged beyond repair, or if the product is not free of all legal obligations, restrictions, liens, and encumbrances.

Before you present this product for warranty service, remove all print cartridges, programs, data, and removable storage media (unless directed otherwise by Lexmark).

For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area contact Lexmark on the World Wide Web.

Remote technical support is provided for this product throughout its warranty period. For products no longer covered by a Lexmark warranty, technical support may not be available or only be available for a fee.

Lexmark does not warrant uninterrupted or error-free operation of any product or the durability or longevity of prints produced by any product.

Warranty service does not include repair of failures caused by:

—Modification or unauthorized attachments
—Accidents, misuse, abuse or use inconsistent with Lexmark user's guides, manuals, instructions or guidance
—Unsuitable physical or operating environment
—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer
—Operation of a product beyond the limit of its duty cycle
—Use of printing media outside of Lexmark specifications
—Refurbishment, repair, refilling or remanufacture by a third party of products, supplies or parts
—Products, supplies, parts, materials (such as toners and inks), software, or interfaces not furnished by Lexmark

TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS OR REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. ANY WARRANTIES THAT MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES, AND SERVICES ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.

Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance or nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover actual damages up to the limit set forth in the following paragraph.

Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the product that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL LEXMARK BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR CONSEQUENTIAL DAMAGES. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.

This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's and its Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers are intended beneficiaries of this limitation.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations or exclusions contained above may not apply to you.

This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Index

A

Fourniture non-Lexmark 155

mémoire volatile 94 effacement 93

menu 802.1x 80

Types de supports 69

USB 82

Wi-Fi Direct 83

XPS 64

menu Sans fil 73

menus

Sans fil 73

menus de l'imprimante 47

Fourniture non-Lexmark 155

Wi-Fi Protected Setup 97
