USER MANUAL FMA907BKXS FRANKE

Instructions for use and installation

Cooker Hood

RECOMMENDATIONS AND SUGGESTIONS 4

CHARACTERISTICS 7

INSTALLATION 8

USE 11

MAINTENANCE 12

INDEX

IT

CONSIGLI E SUGGERIMENTI....14

CARATTERISTICHE....17

INSTALLAZIONE 18

USO 21

MANUTENZIONE 22

SOMMAIRE

TIPS AND SUGGESTIONS....24

FEATURES....27

INSTALLATION 28

USE 31

MAINTENANCE 32

TABLE OF CONTENTS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

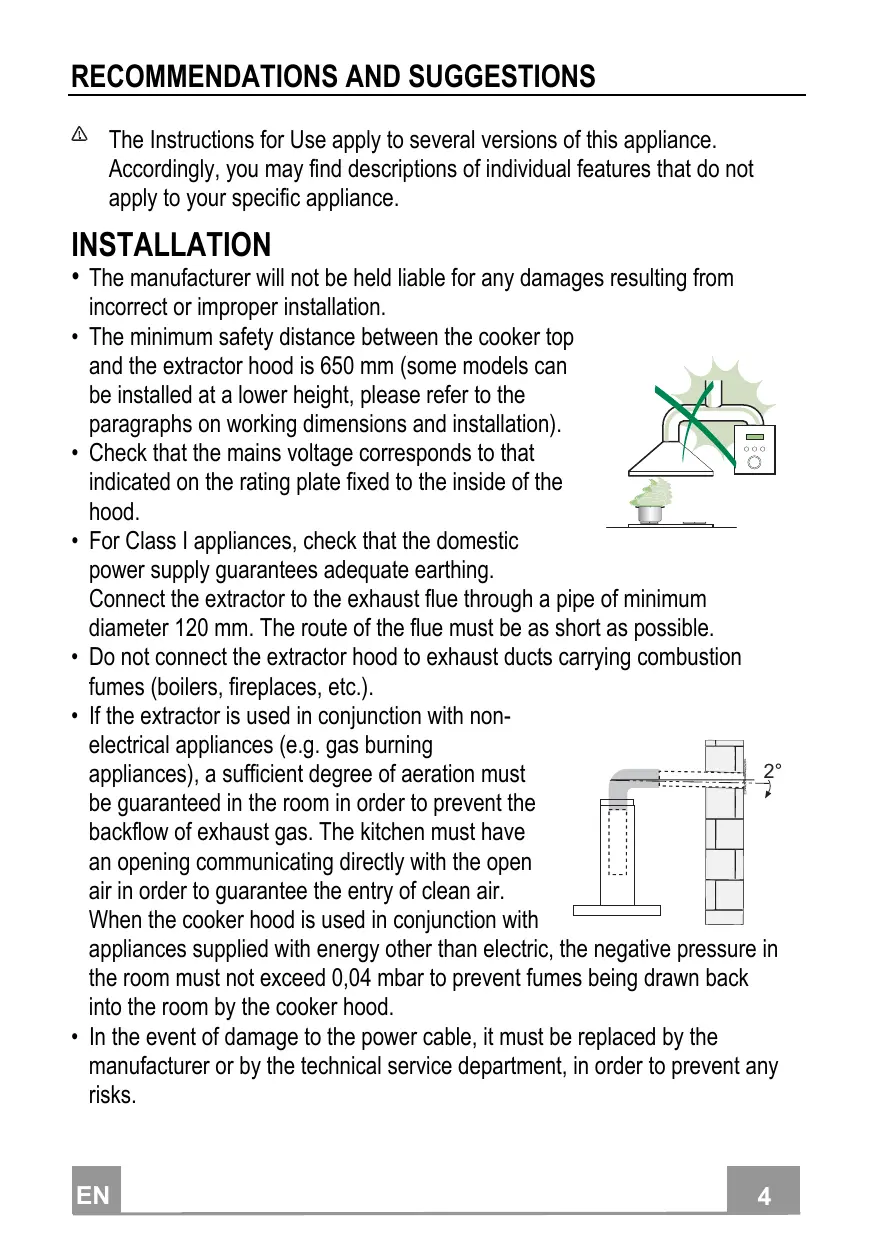

INSTALLATION

  • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
  • The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
  • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
  • For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

  • Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
  • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.

In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols).

2°

  • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
  • Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

  • The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
  • Never use the hood for purposes other than for which it has been designed.
  • Never leave high naked flames under the hood when it is in operation.
  • Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
  • Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
  • Do not flambé under the range hood; risk of fire.
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a cooking setup with a pot and stove, featuring a crossed green pan and smoke (no text or symbols).

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

  • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
  • Clean and/or replace the Filters after the specified time period (Fire hazard).
  • The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
  • The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
  • Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol — on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

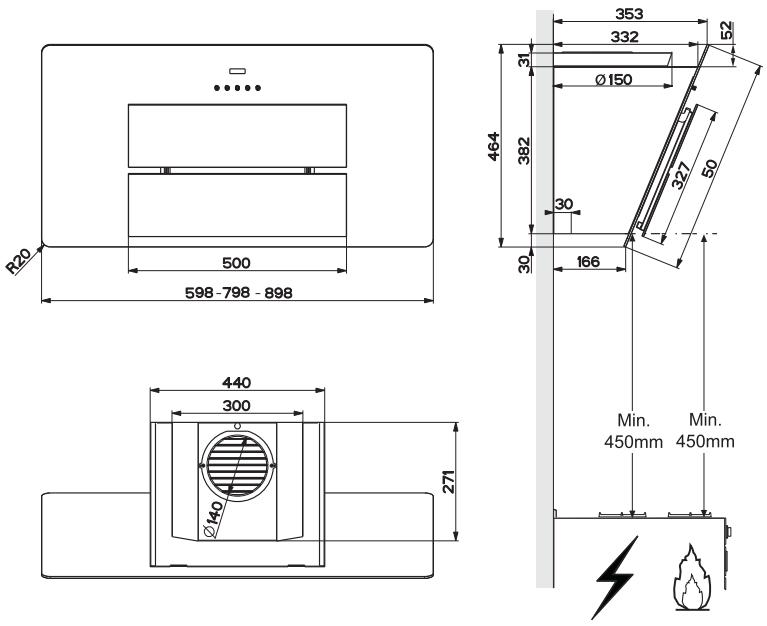

DimensionsFRANKE FMA907BKXS - MAINTENANCE - 1

Components

Ref.Q.tyProduct Components
11Hood Body, complete with: Controls, Light, Blower, Filters
81Directional Air Outlet grille
161Filter cover
Ref.Q.tyInstallation Components
112Wall Plugs
11a2Wall Plugs SB 12/10
12a2Screws 4,2 x 44,4
12c4Screws 2,9 x 6,5
12d2Screws 2,9 x 9,5
Q.tyDocumentation
1Instruction Manual

FRANKE FMA907BKXS - MAINTENANCE - 2

11a 1 11 12a

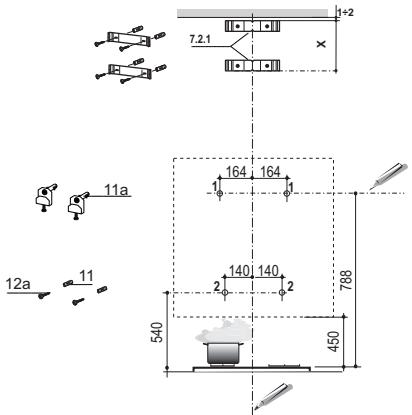

Wall drilling and bracket fixing

7.2.1 1+2 11a 164 164 12a 11 140 140 2 2 540 788 450

As a first step, proceed with the following drawings:

  • a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;
  • a horizontal line at a minimum 788 mm above the cooker top.
  • Mark a point (1) on the horizontal line, 164 mm to the right of the vertical reference line.
  • Repeat this operation on the other side, checking that the two marks are levelled.
  • Mark a reference point (2) as indicated at 140 mm from the vertical reference line and 540 mm above the cooker top.
  • Repeat this operation on the other side, checking that the two marks are levelled.
  • Drill at the marked points (1), using a 12 mm diameter drill bit.
  • Drill at the marked points (2) using an 8 mm diameter drill bit.
  • Insert the bracket plugs 11a into the holes (1) and tighten the screws.
  • Insert plug 11 into holes (2).

To install a decorative chimney (optional)

  • Place bracket 7.2.1 on the wall, about 1-2 mm from the ceiling or from the upper limit, aligning the centre (notch) with the vertical reference line. Mark the wall at the centres of the bracket holes.
  • Place the bracket 7.2.1 on the wall at X mm below the first bracket (X = height of the upper chimney section), aligning the centre (notch) with the vertical line. Mark the wall at the centres of the bracket holes.
  • Drill 8 mm diameter holes at all the marked centre points.
  • Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a screws (4.2 x 44.4) supplied with the hood.

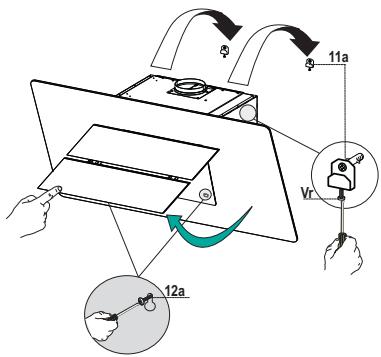

Fitting the hood body

  • Open the doors/the door (See section Open Panels).
  • Remove the Metal grease filters using the handles provided.
  • Adjust the two screws Vr, in the brackets 11a, so that they are at the start of their travel.
  • Hook the hood body to the two brackets 11a.
  • From the inside of the hood body, turn screws Vr to level the hood body itself.
  • Fasten the safety screw 12a.
  • Close the doors/the door again.

11a Vr 12a

Air outlet – Recirculation Version

  • Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 6.5).
  • Fix the directional Grid 8 on the recycled air outlet, using 2 screws 12d (2.9 x 9.5) provided.
  • Open the Door/Doors (See paragraph Opening Panels).
  • Remove the Metal grease filters using the handles provided.
  • Make sure that the Activated charcoal odour filter has been fitted.

8 12d 12c 16

Diagram showing a wooden beam supported by a brick wall, with arrows indicating force direction (no text or symbols).

Diagram showing a cross-shaped construction or reinforcement system with arrows indicating direction (no text or symbols present).

Connections

AIR OUTLET - DUCTING VERSION

To install the hood in the ducting version, please refer to the instructions provided in the ducting kit specific to the hood.

ELECTRICAL CONNECTION

  • Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
  • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with an inset view of a tool interacting with a bracket (no text or symbols present).

Control panel

T1T2T3T4L
|||||
12➉3i
ButtonFunction
T1Turns the Motor off.
T2Turns the motor on at speed oneButtons T1+T2 are lit.
T3Turns the Motor on at speed twoButtons T1+T3 are lit.
Press and hold for 2 seconds to activate switch-off with a 30 minute delay (Motor+Lights). It is possible to change the operating speed with this function activated.Buttons T1+ (T2 or T3 or T4, respectively) flash.
T4Turns the Motor on at speed threeButtons T1+T4 are lit.
Press and hold for 2 seconds to activate Intensive speed with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.The Button flashes.
LTurns the Lighting system on and off at maximum intensity.Button on

Opening Panel

  • Open the Panel by pulling it.
  • The panel can be locked in any position.
  • Clean the outside with a damp cloth and neutral detergent.
  • Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

Illustration of a hand pressing down on a laptop screen with a green arrow indicating rotation (no text or symbols).

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

  • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
  • Pull the comfort panels to open them.
  • Remove the filters one by one, pushing them towards the back side of the hood unit and simultaneously pulling downwards.
  • Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood, make sure that they are completely dry. (The colour of the filter surface may change over time, but this has no influence on the filter efficiency.)
  • When fitting the filters into the hood, pay attention that they are mounted in the correct position, with the handle facing outwards.
  • Close the comfort panel.

Illustration of a hand interacting with a smartphone displaying a green arrow (no text or symbols).

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

  • Open the comfort panels by pulling them downwards.
  • Remove the metal grease filters.
  • Remove the saturated activated charcoal filter as shown (A). • Fit the new filters (B).
  • Replace the metal grease filters.
  • Close the comfort panels.

Technical line drawing of a mechanical assembly with an inset detail showing a close-up of a component (no text or symbols present).

Mechanical assembly diagram showing a motor with two wheels and a labeled component B (no text or symbols present).

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7μW. Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- For replacement, contact technical support. ("To purchase, contact technical support")

Illustration of a chemical experiment setup with a conical flask, test tube, and control panel (no text or symbols).

2°

Diagram showing a wooden beam supported by a brick wall, with arrows indicating force direction (no text or symbols)

Diagram of a construction or scaffolding structure with no visible text, numbers, or symbols

Connections

AIR OUTLET, EXTRACTOR VERSION

Control panel

T1T2T3T4L
|||||
12➉3i

Grease filters

CLEANING THE SELF-SUPPORTING METAL GREASE FILTERS

Mechanical assembly diagram showing a cylindrical component with two wheels and a labeled part B (no text or symbols present)

Lighting

2°

Diagram showing a wooden beam supported by a brick wall, with arrows indicating force direction (no text or symbols)

Diagram showing a brick wall with directional arrows and a crossed-out black cross.

Connections

AIR OUTLET, EXTRACTOR VERSION

Mechanical assembly diagram showing a cylindrical component with two wheels and a labeled part B.

Lighting

Diagram showing a wooden beam leaning against a brick wall, with arrows indicating force direction.

Diagram showing a construction or scaffolding structure.

Connections

AIR OUTLET FOR EXTRACTOR VERSION

Diagram showing a mechanical component with an inset view of a tool interacting with a bracket.

Control panel

T1T2T3T4L
|||||
12➉3i

Grease filters

CLEANING THE SELF-SUPPORTING METAL GREASE FILTERS

Mechanical assembly diagram showing a motor with two wheels and a labeled component B.

Lighting

LED spotlight

2°

Diagram showing a wooden beam supported by a brick wall, with arrows indicating force direction.

Diagram showing a cross-shaped construction or reinforcement system with arrows indicating direction.

Connections

AIR OUTLET IN EXTRACTOR SYSTEM

Control panel

T1T2T3T4L
|||||
12➉3i

Odor-preventing activated carbon filters (filtered system)

Mechanical assembly diagram showing a motor with two wheels and a labeled component B.

Lighting

Diagram showing a wooden beam supported by two stacked bricks with directional arrows indicating force or movement (no text or symbols).

Diagram of a construction or scaffolding structure with no visible text, numbers, or symbols.

Connections

AIR OUTLET - DUCTED MODEL

Control panel

T1T2T3T4L
|||||
12➉3i

Grease filter

CLEANING OF SELF-SUPPORTING METAL GREASE FILTERS

Mechanical diagram of a cylindrical device with two wheels and a labeled component (B), no text or symbols present.

Lighting

It may catch fire.

Diagram showing a wooden beam leaning against a brick wall, with arrows indicating force direction (no text or symbols).

Diagram showing a brick wall with diagonal lines and directional arrows, crossed by a black X (no text or symbols).

Connections

Control panel

T1T2T3T4L
|||||
12➉3i

Grease filters

Mechanical assembly diagram showing a cylindrical component with two wheels and a labeled part B.

Management

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : FRANKE

Model : FMA907BKXS

Category : Home Appliances
