5476164 - Kitchen hood FABER - Free user manual and instructions

USER MANUAL 5476164 FABER

Technical line drawing of a mechanical assembly with a vertical stack and base plate (no text or symbols)

EN USER MANUAL....3
DE GEBRAUCHSANLEITUNG......6
FR MANUEL D'UTILISATION....9
NL GEBRUIKSAANWIJZING 12
ES MANUAL DE USO 15
PT LIVRO DE INSTRUÇÕES PARA UTILIZAÇÃO 18
IT LIBRETTO DI USO 21
SV ANVÄNDNINGSHANDBOK....24
NO BRUKSVEILEDNING....27
FI KÄYTTÖOHJEET....30
DA BRUGSVEJLEDNING....33
RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 36
ET KASUTUSJUHEND 39
LV LIETOŠANAS PAMĀCĪBA 42
LT NAUDOTOJO VADOVAS....45
UK ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 48
HU HASZNÁLATI ÚTMUTATÓ....51
CZ NÁVOD K POUŽITÍ....54
SK NÁVOD NA POUŽÍVANIE....57
RO MANUAL DE FOLOSIRE 60
PL INSTRUKCJA UŻYTKOWANIA....63
HR KNJIŽICA S UPUTAMA....66
SL NAVODILO ZA UPORABO 69
GR OΔΗΓΙΕΣ ΧΡΗΣΗΣ 72
TR KULLANIM KITAPÇIĞI....75
BG РЪКОВОДСТВО НА ПОТРЕБИТЕЛЯ....78
KK ПАЙДАЛАНУШЫ НУСКАУЛЫFЫ 81
MK УПАТСТВО ЗА КОРИСНИК....84
SQ UDHËZUES PËR PËRDORIMIN....87
SR КОРИСНИЧКО УПУТСТВО....90
AR 93 كتَبَّب الاستعمال

EN Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order

to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please

contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

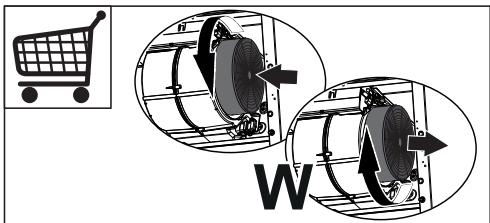

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

Diagram illustrating a shopping cart and a circular mechanical device with labeled components, likely representing a retail or industrial process.

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a tablet with a finger pointing at it, enclosed in an oval frame (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

| A

| B

|c

| D

Button	Function
A	Turns the lighting system on and off at maximum intensity, by a brief pressure. Lights can be switch on and off at every speed.
	DelaySuitable to complete elimination of residual odours. Long pressure: activates the automatic switch - off with a 5 minutes delay. It can be activated at every speed. When active, the icon of the speed is blinking. It can be desabled pressing the speed button, turning the motor off.
B	Brief pressure. Turns the suction motor on and off at speed one.
C	Brief pressure. Turns the suction motor on and off at speed two.
D	Brief pressure. Turns the suction motor on at speed three. Press a second time to activate INTENSIVE speed, which is timed to run for 6 minutes, after which the hood will turn off automatically. This function is suitable to deal with maximum levels of cooking fumes. Press button D again to deactivate INTENSIVE mode and turn the motor off.

Lighting

- For replacement contact technical support (“To purchase contact technical support”).

Diagram illustrating shopping and industrial automation with labeled components and directional arrows

Illustration of a hand holding a tablet with a stylus, enclosed in a circular frame (no text or symbols)

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a clipboard with a pen, no text or symbols present

	1	2	3i
[B]	|	|	|
	C	D

Diagram illustrating a shopping cart and car with directional arrows and a letter 'W' below, likely representing vehicle sales or logistics.

Illustration of a hand holding a clipboard with a pen, no text or symbols present

Diagram illustrating shopping and transportation modes with labeled icons and arrows, including a shopping cart icon and 'W' text.

Illustration of a hand pointing at a smartphone with a Z symbol on the screen (no text or symbols present)

Diagram illustrating a shopping cart and two circular insets showing gear movement with directional arrows, labeled 'W' at the bottom.

Illustration of a hand pointing at a smartphone screen with a 'Z' symbol (no text or numbers present)

Diagram illustrating a shopping cart and a circular mechanical device with directional arrows, labeled 'W' at the bottom.

Illustration of a hand pointing at a smartphone with a Z symbol on the screen (no text or symbols present)

Diagram illustrating shopping and transportation modes with labeled arrows and a shopping cart icon

Illustration of a hand holding a tablet with a 'Z' symbol, no text or symbols present

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a clipboard with a tool, no text or symbols present

Illustration showing a shopping cart and two circular insets depicting mechanical components (no text or symbols)

Illustration of a hand holding a clipboard with a checkmark and letter Z, no text or symbols present

Diagram illustrating shopping and industrial automation with labeled components and directional arrows

Illustration of a hand holding a tablet with a finger pointing at it, no text or symbols present

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram illustrating shopping and recycling process with labeled arrows and a 'W' symbol

Illustration of a hand holding a clipboard with a compass and letter 'Z' (no text or symbols on the diagram itself)

Diagram illustrating shopping and transportation modes with labeled arrows and a shopping cart icon

Illustration of a hand holding a smartphone with a 'Z' symbol on the screen (no text or symbols present)

Diagram illustrating a shopping cart and two circular insets showing mechanical components with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a clipboard with a checkmark and letter Z, enclosed in a circular frame (no text or symbols on the diagram itself)

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a tablet with a Z symbol, no text or symbols present

Diagram showing shopping cart icon, two circular insets depicting a fan with arrows and a letter 'W', likely illustrating a retail or logistics concept.

Illustration of a hand holding a tablet with a 'Z' symbol, no text or symbols present

Diagram illustrating a shopping cart and two circular insets showing a car with wheels and directional arrows, labeled 'W'.

Illustration of a hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram illustrating a shopping cart and two circular insets showing gear movement with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram illustrating a shopping cart and a car with directional arrows, labeled 'W' in the corner.

Illustration of a hand holding a tablet with a finger pointing at it, enclosed in an oval frame (no text or symbols)

Diagram illustrating shopping and recycling process with labeled arrows and a shopping cart icon

Illustration of a hand holding a tablet with a Z symbol, no text or symbols present

Diagram illustrating shopping and transportation-related icons with arrows and a 'W' label, alongside a shopping cart icon.

Illustration of a hand holding a smartphone with a 'Z' symbol, no text or symbols present

- Očistite napu koristeći vlažnu krpu i neutralni tekući deterdžent.

Komande

(x720)	1	2	3i
A	B	C	D

Tipka	Funkcija
A	Uključuje i isključuje rasvjetni uređaj na maksimalan intenzitet kratkim pritiskom na tipku. Može se aktivirati s bilo koje brzine.
	OdgodaPrikladna za dovršetak uklanjanja preostalih mirisa. Može se aktivirati sa svake brzine. Dugim pritiskom aktivira automatsko isključivanje odgođeno za 5 minuta. Kad je aktivirana, ikona brzine bljeska. Deaktivira se pritiskom na tipku brzine, isključivanjem motora.
B	Kratki pritisak. Uključuje motor na prvu brzinu.
C	Kratki pritisak. Uključuje motor na drugu brzinu.
D	Kratki pritisak. Uključuje usisni motor na treću brzinu. Pritisnuta drugi put aktivira INTENZIVNU brzinu tempiranu na 6 minuta, po isteku kojih se napa automatski isključi. Ova funkcija prikladna je za suzbijanje maksimalnih emisija para od kuhanja. Ponovnim pritiskom na tipku D deaktivira se INTENZIVAN način i isključuje motor.

Rasvjeta

- Za zamjenu kontaktirajte tehničku podršku ("Za kupnju se obratite tehničkoj podršci").

SL

Diagram illustrating shopping and transportation modes with labeled arrows and a shopping cart icon

Illustration of a hand holding a tablet with a 'Z' symbol, no text or symbols present

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a clipboard with a compass and letter 'Z' (no text or symbols on the diagram itself)

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a tablet with a stylus, no text or symbols present

Diagram illustrating a shopping cart and fan with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a tablet with a finger pointing at it, enclosed in a circular frame (no text or symbols)

Diagram illustrating a shopping cart and two circular insets showing gear movement with directional arrows, labeled 'W' at the bottom.

Illustration of a hand pointing at a tablet with a Z symbol on the screen (no text or symbols present)

	1	2	3i
(8C=1)	|B	|C	|D

Diagram illustrating shopping order with a shopping cart and two circular insets showing gear movement, labeled 'W'

Diagram showing a hand holding a clipboard with a 'Z' label, indicating a process or action.

Diagram illustrating a shopping cart and two circular insets showing a car with wheels and directional arrows, labeled 'W'.

Illustration of a hand pointing at a tablet with a Z symbol on the screen (no text or symbols present)

Diagram illustrating a shopping cart and car with directional arrows and a letter 'W' below, likely representing vehicle sales or logistics.

Illustration of a hand holding a clipboard with a compass, no text or symbols present

Diagram illustrating a shopping cart and two circular insets showing mechanical components with directional arrows, labeled 'W' at the bottom.

Illustration of a hand holding a tablet with a Z symbol, no text or symbols present
