TASSIMO SUNY TAS3102 - Coffee maker BOSCH - Free user manual and instructions

Product type	Single-serve coffee maker (T DISC pods)
Brand	Bosch (licensed by Tassimo)
Model	TASSIMO SUNY TAS3102
Dimensions (L x W x H)	Approximately 18 x 30 x 30 cm
Weight	Approximately 2.5 kg
Power supply	220-240 V, 50/60 Hz, 1300 W
Water tank capacity	0.7 liter
Pump pressure	Not specified (vibrating pump)
Brewing system	Lockable closure with barcode reader
Pod type	T DISC (only)
Main functions	Preparation of coffee, tea, hot chocolate, milk-based drinks
Beverage volume adjustment	Customizable by pressing the Start/Stop button
Cup support	Removable and height-adjustable
Descaling indicator	Yes, LED indicator
Cleaning	Use of yellow Service T DISC; manual cleaning of the piercing crown
Safety	Auto shut-off after use; not for children under 8 years old
Descaling	Recommended regularly with Tassimo descaling tablets
Customer service	TASSIMO Infoline at 09 69 39 29 39 or authorized Bosch service centers
Warranty	According to dealer's terms

Frequently Asked Questions - TASSIMO SUNY TAS3102 BOSCH

How to start the machine?

Press the On/Off button. Wait until the status LED stays lit continuously. Open the brewing system, insert a T DISC with the barcode facing down, close the lock until it clicks, place a cup, then press Start/Stop.

What should I do if my drink does not dispense?

Check that the water tank is correctly placed and contains enough water. If there is air in the system, run a cleaning cycle with the yellow Service T DISC (see chapter 'First use'). Unstick the float if necessary.

How to descale the appliance?

Use the yellow Service T DISC and Tassimo descaling tablets. Follow the instructions in the 'Descaling' chapter of the manual. The descaling indicator lights up when needed.

Why is the water refill indicator lit even though the tank is full?

The float in the tank may be stuck. Remove the tank, clean it, and unstick the float. Also check that the tank is properly engaged.

What to do if the T DISC barcode is not recognized?

Clean the T DISC reading window with a soft, damp cloth. Smooth the T DISC film with your finger. If the problem persists, use a new T DISC.

How to adjust the beverage volume?

During brewing, press Start/Stop to interrupt the cycle (reduced volume) or hold it until the desired volume (increased volume). The default setting is optimized by the barcode.

Can I use pods other than T DISC?

No, this appliance is designed exclusively for T DISC pods. Using other pods may damage the machine and void the warranty.

My appliance does not turn on, what should I do?

Check the power outlet and cable. Ensure the On/Off button is pressed. If nothing lights up, contact TASSIMO customer service.

The crema of my coffee is no longer good, why?

Clean the spout with a damp cloth and run a cleaning cycle with the yellow Service T DISC. If the problem persists, perform a descaling.

Where to find spare parts?

Contact an authorized Bosch service center or TASSIMO Infoline (09 69 39 29 39). The yellow Service T DISC has reference 624088.

USER MANUAL TASSIMO SUNY TAS3102 BOSCH

For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO:

Phone: [phone] (UK only. Freephone - calls made from a mobile phone might be charged) Mail: Freepost MDLZ, Mondelēz UK, Consumer Response, Uxbridge, UB8 1DH.

FR TASSIMO Conseil

Symmetrical abstract flower-like pattern composed of five interlocking loops (no text or symbols)

TQSSIMO

SUNY

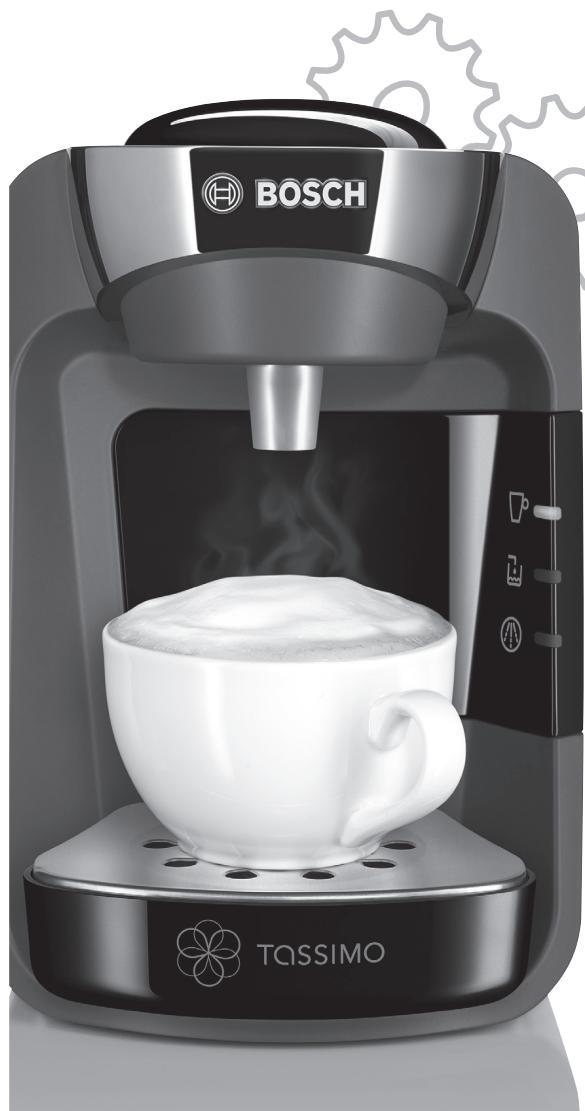

Exterior view of a Bosch coffee maker with white cup and steam, no visible text or symbols on the device itself.

TAS 32xxEU

de Gebrauchsanleitung
en Instruction manual
fr Mode d'emploi
es Instrucciones de uso
pt Instruções de serviço
it Istruzioni per l'uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
el Oδηγίες χρήσης

1

BOSCH

1 Deutsch
7 English
13 Français
19 Español
25 Português

For all other countries: www.tassimo.com

Gebrauchsanleitung

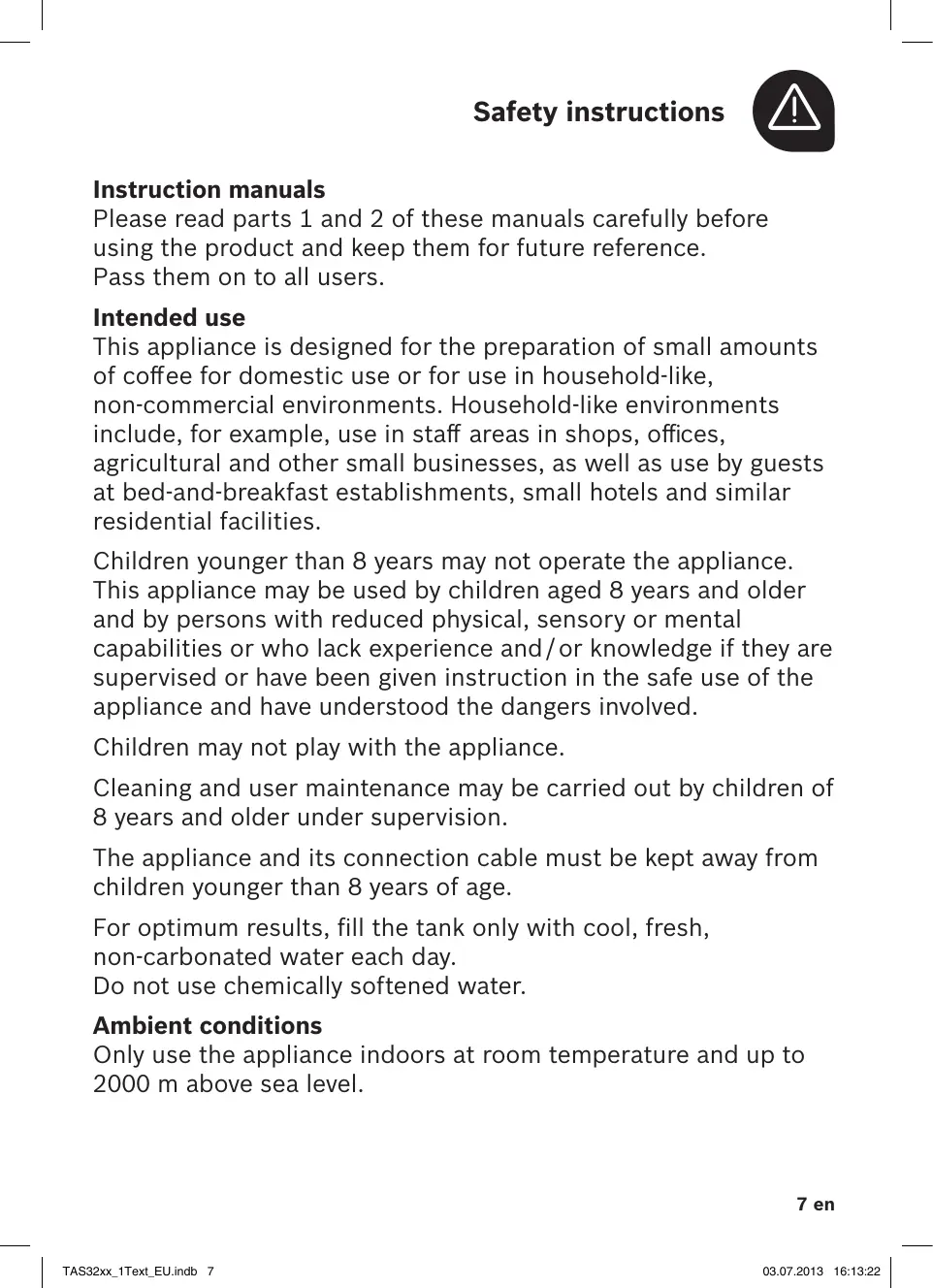

Please read parts 1 and 2 of these manuals carefully before using the product and keep them for future reference.

Pass them on to all users.

Intended use

This appliance is designed for the preparation of small amounts of coffee for domestic use or for use in household-like, non-commercial environments. Household-like environments include, for example, use in staff areas in shops, offices, agricultural and other small businesses, as well as use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Children younger than 8 years may not operate the appliance. This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and/or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved.

Children may not play with the appliance.

Cleaning and user maintenance may be carried out by children of 8 years and older under supervision.

The appliance and its connection cable must be kept away from children younger than 8 years of age.

For optimum results, fill the tank only with cool, fresh, non-carbonated water each day.

Do not use chemically softened water.

Ambient conditions

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Power connection

Operate and connect the appliance only in accordance with the instructions given on the nameplate.

Only use your TASSIMO appliance if the power cable and appliance show no signs of damage.

Repairs

Disconnect the appliance from the mains as soon as a fault is detected.

Any repairs, such as replacing a damaged power cable, may only be carried out by our Customer Services team in order to avoid potential danger.

Risk of burns!

Never attempt to open the brewing unit during operation.

Please note that any escaping liquids will be very hot.

The T DISC, the piercing unit and the beverage outlet may be very hot immediately after brewing. Allow to cool first.

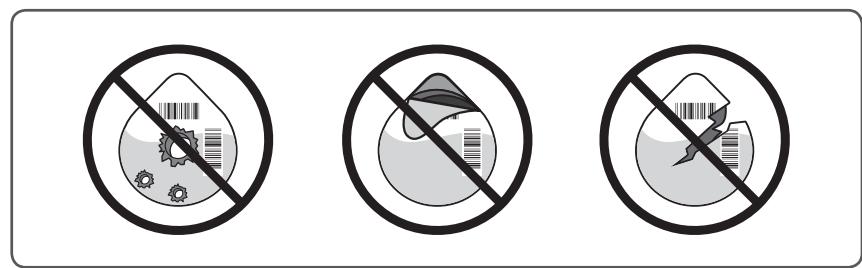

Do not use T DISCs that are damaged.

Only use each T DISC once.

Risk of electric shock!

Before cleaning, switch off the appliance using the On/Off switch and disconnect from the mains.

Never immerse the appliance or power cable in water.

Risk of injury!

Under no circumstances should you drink the descaling liquid.

Saving energy

You should switch off your TASSIMO appliance after every use in order to save energy.

en 8

Before reading on, please unfold the illustrations page at the start of the booklet.

1 On/Off switch
2 Start/Stop button with display elements

a Status LED □°
b Fill water tank 📋
c Descale

3 Brewing unit

a Lid
b T DISC support
c T DISC piercing unit
d T DISC reading window
e Beverage outlet
f Splash guard

4 Removable water tank

a max mark
b "Descaling" ⏻ mark
c Float
d Handle

5 Storage compartment

a Yellow Service T DISC
b Brief cleaning/descaling instructions

6 Cup stand

(removable and height adjustable)

a Drip grate
b Drip tray

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Info

Bosch is the manufacturer of the TASSIMO machine. Therefore, it cannot provide any delivery guarantee for the TASSIMO T DISCs.

TASSIMO T DISCs are available from specialist retailers.

Or visit www.tassimo.com to discover the large variety of beverages available and to order your discs online.

The following table contains solutions to problems or faults which may occur during operation of the appliance and that can be easily rectified at home. If you are not satisfied with the solutions provided here, please contact our Customer Service department. Further customer service information can also be found online: www.tassimo.com

Problem	Cause	Solution
The appliance is not working and none of the display elements (LEDs) are lighting.	The appliance has no power supply.	Check to see whether the appliance is connected to the mains.
	The appliance is not switched on.	Make sure the appliance has been switched on.
The brewing starts, however there is no beverage dispensed.	The water tank is not inserted correctly.	Check that the water tank is correctly inserted.
	The water tank was removed during the brewing stage or there is air in the system.	Start the cleaning process with the yellow Service T DISC. Please refer here to the section First Time Use, Steps 2 – 14.
	The float in the water tank is stuck.	Clean the water tank and free the float.
The brewing will not start.	No T DISC inserted.	Check that a T DISC has been inserted.
	The appliance does not recognise the T DISC bar code.	Clean the T DISC reading window with a soft, damp cloth.
		Smooth out the foil of the T DISC with your finger so that the bar code can be read.
		Use a new T DISC.
		If the problem persists, contact the TASSIMO careline.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
	The appliance was not switched on when inserting the T DISC.	Switch on the appliance before inserting the T DISC
The brewing unit cannot be closed.	The piercing unit and/or the T DISC support have not been correctly inserted.	Press the piercing unit into its holder using both thumbs and check the position of the T DISC support.
	The T DISC has not been correctly inserted.	Replace the damaged T DISC with a new one. Place the T DISC with the printed side facing downwards so that the tab is resting in the intended slot.
	The brewing unit is not closed properly.	Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area.
		Press the lid down until it audibly clicks into place.

en 10

Problem	Cause	Solution
The brewing unit cannot be opened.	The brewing unit is still locked.	Wait until the Status LED ☐ has stopped blinking before attempting to open the brewing unit.
		If the brewing unit stays locked, contact the TASSIMO careline.
Fill water tank lights up.	There is not enough water in the water tank.	Fill the tank with cold, fresh water as far as the max mark. Reinsert the water tank.
Fill water tank lights up even though there is enough water in the water tank.	The float in the water tank is stuck.	Clean the water tank and free the float.
	The water tank is not inserted correctly.	Check that the water tank has been correctly inserted.
Fill water tank and Descale are flashing simultaneously and it is not possible to prepare drinks.	There is a fault on the machine.	Turn the machine off using the On/Off switch, wait approximately 5 minutes and turn the machine back on. If and are still flashing, please contact the TASSIMO careline.
Descale lights up or starts flashing.	The appliance needs to be descaled.	Descale the appliance. Please refer here to the section Descaling.
Descale lights up or starts flashing even though decalcified water has been used.	Even decalcified water contains low amounts of calcium carbonate.	Descale the appliance. Please refer here to the section Descaling.
The quality of the crema has deteriorated.	The beverage outlet is sticky or dirty.	Clean the beverage outlet. Please refer here to the section Cleaning.
		Clean the brewing unit with the yellow Service T DISC. Please refer here to the section Cleaning.
	Build-up of limescale in the appliance.	Descale the appliance. Please refer here to the section Descaling.
Water is dripping from the brewing unit.	The T DISC is damaged or leaky. The T DISC has not been pierced correctly.	Do not use T DISCs that are damaged. Only use each T DISC once. Wait until the brewing stage has come to an end and the appliance has cooled down. Remove the T DISC and clean the brewing unit. Please refer here to the section Cleaning.
	The piercing unit has not been inserted correctly.	Press the piercing unit into its holder using both thumbs (until an audible click is heard).
On the surface below the cup stand there is water.	This is condensation.	Condensation may appear and is not caused by any fault with the appliance. Wipe the water away with a cloth.
The yellow Service T DISC is damaged or lost.		The yellow Service T DISC can be requested from Bosch Customer Services (item no. 624088, contact information included at the end of these instructions).
The beverage quantity does not meet your requirements.	The T DISC bar code provides the recommended volume for every beverage selected. This volume can also be adapted to personal requirements.	Reduced quantity:During the brewing process, press the Start/Stop button to interrupt this stage.Increased quantity:Press and hold the Start/Stop button until the required beverage quantity has been reached.
	Build-up of limescale in the appliance could cause reduced quantity.	Descale the appliance. Please refer here to the section Ⓞ Descaling.
