USER MANUAL MWI 222.1 INDESIT

Welcome to the Indesit Registration Programme!

Many advantages with just one click

On-line registration is the most convenient way to register the Indesit warranty for your new household appliance: call 08448 226 226 or visit www.indesitservice.co.uk. As well as all of the advantages that you will gain from the warranty you will receive details of the latest offers, initiatives and services provided by Indesit.

Tantivantaggiin un solo click

Customer service in all countries

CLEANING AND CARE FOR OVEN AND HOB
Call the 08448 225 225 or visit www.indesitservice.co.uk, to get cleaning and maintenance products delivered right to your home. Prolong the life and improve the performance of your appliance.

SPARE PARTS AND ACCESSORIES Call 08448 225 255 or visit

www.indesitservice.co.uk, to view and purchase a wide range of genuine spare parts and accessories.

EXTENDED WARRANTY Call 08448 226 226 or visit

www.ingesitservice.co.uk, and enquire about purchasing a repair protection plan to give you peace of mind by avoiding unexpected repair bills after the standard manufacturer's warranty ends.

CLEANING AND CARE FOR YOUR OVEN AND HOB

Call the Country specific Call centre (see the phone numbers below) or visit indesit.com, choose your country, then click on Service. Prolong the life and improve the performance of your appliance.

SPARE PARTS AND ACCESSORIES

Call the Country specific Call centre (see the phone numbers below) or visit indesit.com, choose your country, then click on Service. You can also substitute at once grills, trays, knobs.

EXTENDED WARRANTY

Call the Country specific Call centre (see the phone numbers below) or visit indesit.com, choose your country, then click on Service. Avoid unexpected repair bills after manufacturers' warranty period.

Customer service in all countries

2) Continue a pressionar "

” ou rode

UPE3MEPHOTo CBU OBJyEHNJ

(a) He nbItaTecb BkIIOuATb Neyb C OTKpbITOn DBepuei, TaK KaK 3TO BeDeT K BpeHOMy BO3deJCTBnO CBY 6bnyeHn. 3TO BaKHO BO n36exKaHne NOBpeKdEHHa 3aunTHoB 6nOKnpO
(b) He nomeuTe HnkaKe npeMeTb MeJdy DBePcEi npAMKoI neu, ydaJIaIe 3aRpa3HeHn I OCTaTKI MOUeIero BeIeCTBa C yNIOHTeJIbHbIX NOBepxHOCTeI.
(c) IPEyIpyEKeJDEHHe: Ecn nDbepca nn yIIOThEnn IDBepcbl IOBpeKJeHbI, HeIb3r IOnIb3OBaTbCra neybO do ee peMOHTa ByIPOIHOMoUeHHOM cepBnCe.

ПУЛОЖЕНМ

Ecnn n3dJIne He coJepKNTcB YnCTOte,ero NOBepxHOCTb NOPNTcY,TO COKpaaET cPOK cnjXkbI n3dJIINr I MOKeT PnVBecTN K ONaChbIM CNTyaCnIaM.

TexHnueckne daHHbIe

peryIaTOp " ！nBbICTabNeHnI npOIOJXHTeJIbHOCTn ot 0:05do95:00.HaxMnte KhoNky" (START) eue pa3 dIra Na npiroTOBHeHnI.

Примет:ЕслВамТребуETСИСПОЛБЗВАТь80%CB4-MоцноCTиДЯпriгOTOBеHЯВTeчЕнe20MHyT，BblOJIHHTeСLEdYUOUINEИСТPyKUIN:

1) Hαχmnte KhoNky “ ≅ ≅ ” oOnH pa3. Ha DiuCnIee noka3bIbAeTcR “P100”.
2) Haxmnte KhoNky " "" eue pa3 nIINIOBepHnte peyIaTOp " 1nA BbI6opa 80% CBU-MOuHOCTn.
3) HaxmTe KhoNky " (START) "Для подеверкdeHЯ. Ha dinCnIee noka3bIbAeTcR "P 80".
4) ПовернITE рergyларетор "h" Дли BAICTaBNeHnnpoДОЛЖИТЕльбЮСТи пriROTOВЛeHnЯ Do NOYBЛeHnЯ HaДисплee "20:00".
5) HαχmιTe KHOπKy “START” Дλη Ḥαγαλη πριστοθνηνη.

PnIroTOBJIeHn6JIIOB BpeKIMe
TpINb peKOMeHdyeM nepeBepHyTb
PPOdyKT,3aKpbITb DBePcy HHaKaTb
KHONKY "START" JIy IpoDoJIXeHnI
PnIroTOBJIeHnI.B IpOTnbHOM cIyae
PnIroTOBJIeHne PPOdoJXaETcY.

Tablina MouHocn CBY-neu

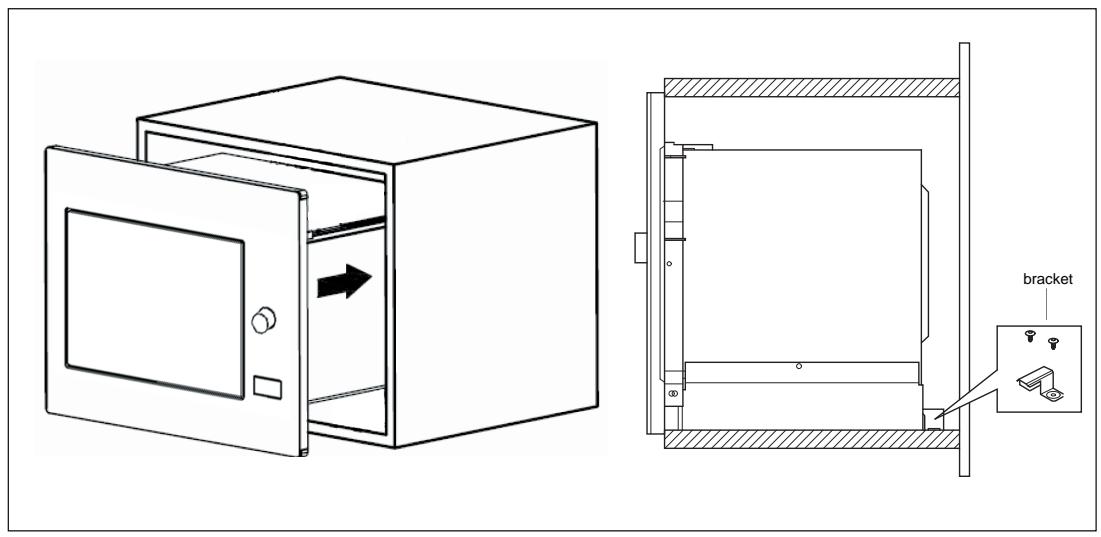

1. BCTaBbTe neuB HnIy.
   CeteboI npoOd He doJxKeH 6bItb cXaT nn CoHyt.

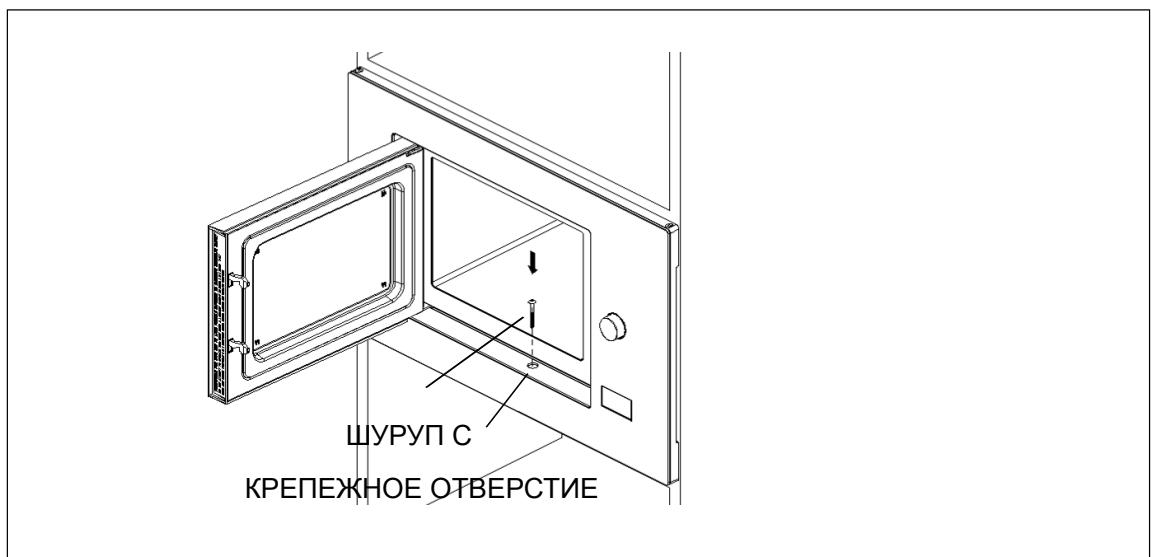

1. OtkpoTe DBepy; npKpeNte ney K HnIe UYPYlOM C B COOTBeTCTBn C KPEIEXHbIM OTBEPCTIEM n3 KPEIEXHOrO KOMJIeKTA.

PL

IT

FR

ES

Italiano

Français

Espanol

Portuges

Nederlands

DE

Deutsch

Pycckn

Poliski

English

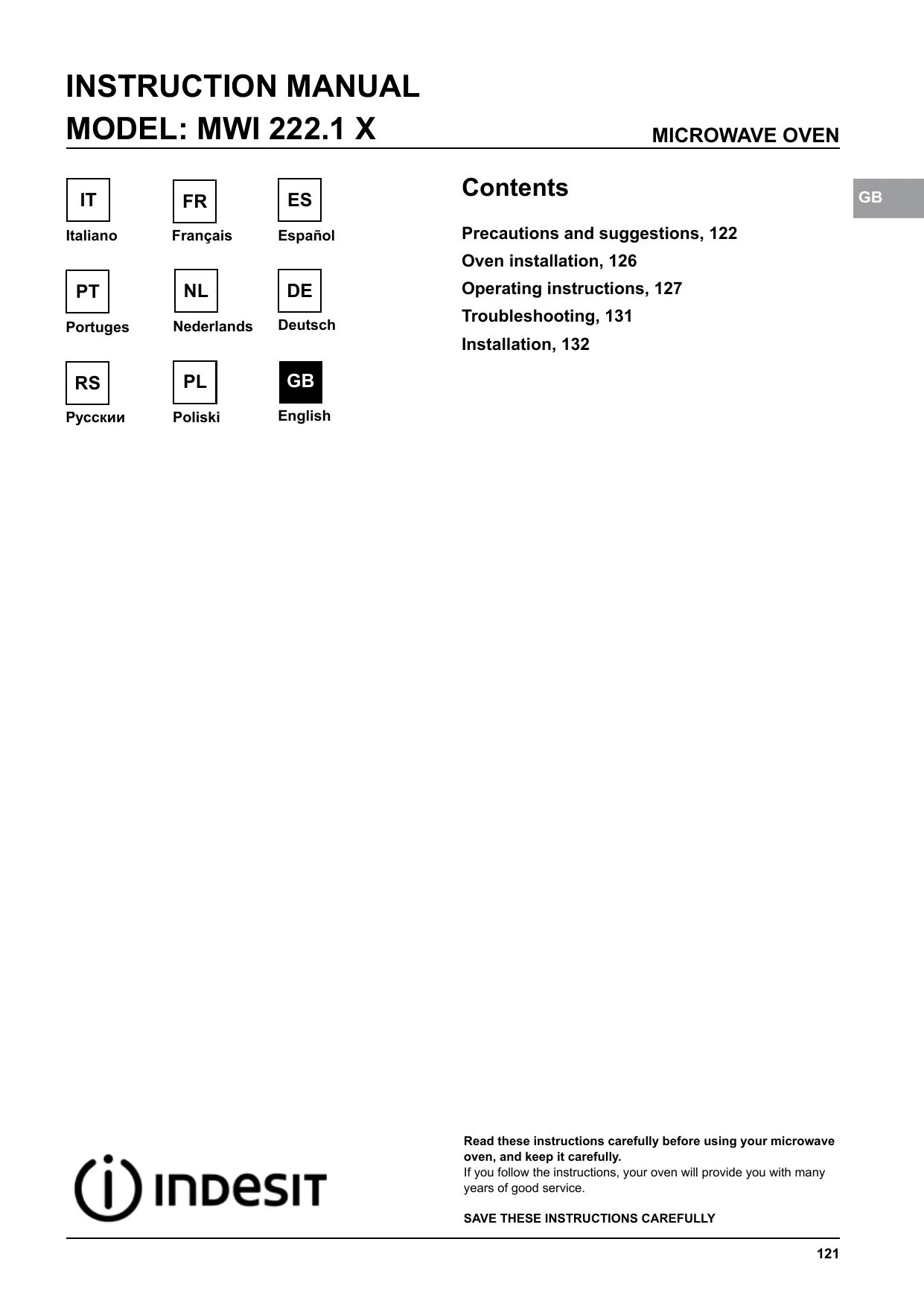

Spis tresci

Zalecenia i srodki ostrożnosci, 107

Precautions and suggestions, 122

Oven installation, 126

Operating instructions, 127

Troubleshooting, 131

Installation, 132

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

GB

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MWI 222.1 X
Rated Voltage:	230V~50Hz
Rated Input Power (Microwave):	1450W
Rated Output Power (Microwave):	900W
Rated Input Power (Grill):	1100W
Rated Input Power (Convection):	2500W
Oven Capacity:	25 L
Turntable Diameter:	Ø 315mm
External Dimensions:	594x470x388mm
Net Weight:	19.25Kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.

26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
29. Accessible parts may become hot during use. Young children should be kept away.
30. Steam cleaner is not to be used.
31. Surface of a storage drawer can get hot.
32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
33. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
34. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
35. During the first use there is a particular smell due to production oils to protect some components.

36. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

37. Keep the appliance and its cord out of reach of children less than 8 years.

38. This appliance is intended to be used in household and similar applications such as:
39. staff kitchen areas in shops, offices and other working environments;
40. by clients in hotels, motels and other residential type environments;
    -farm houses;
    -bed and breakfast type environments.
41. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

UTENSILS

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

GB

Materials you can use in microwave oven Utensils Remarks

Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven coking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

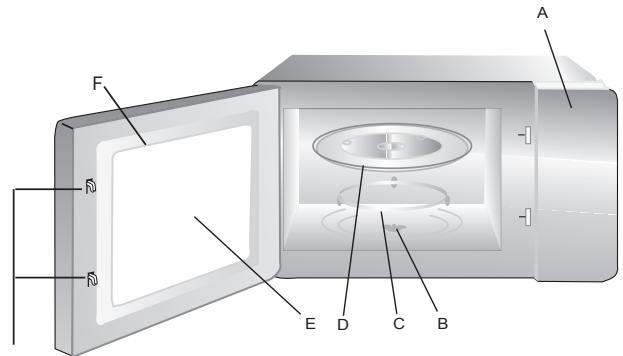

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

G

Grill Rack(Only for Grill series)

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

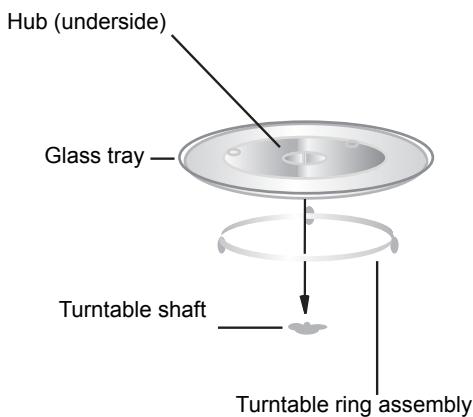

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.

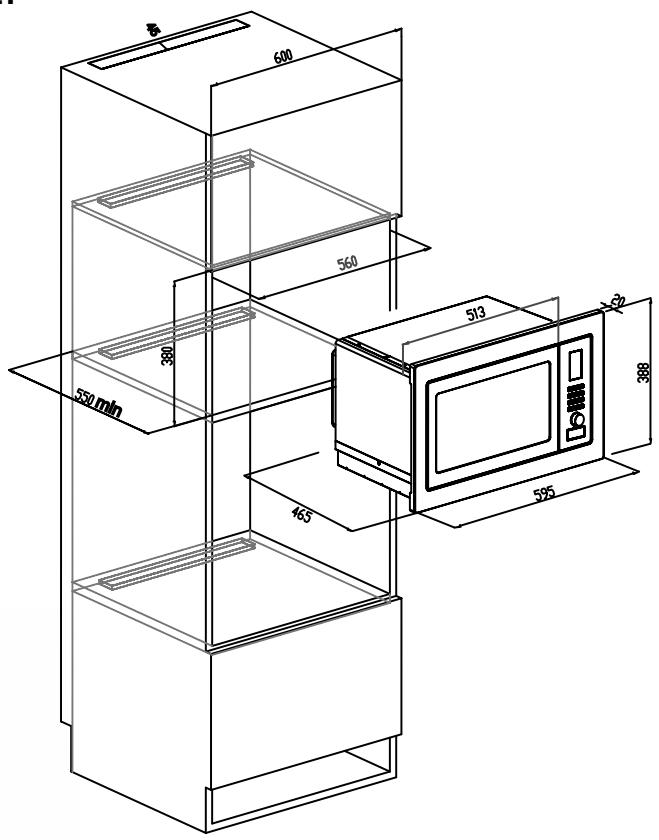

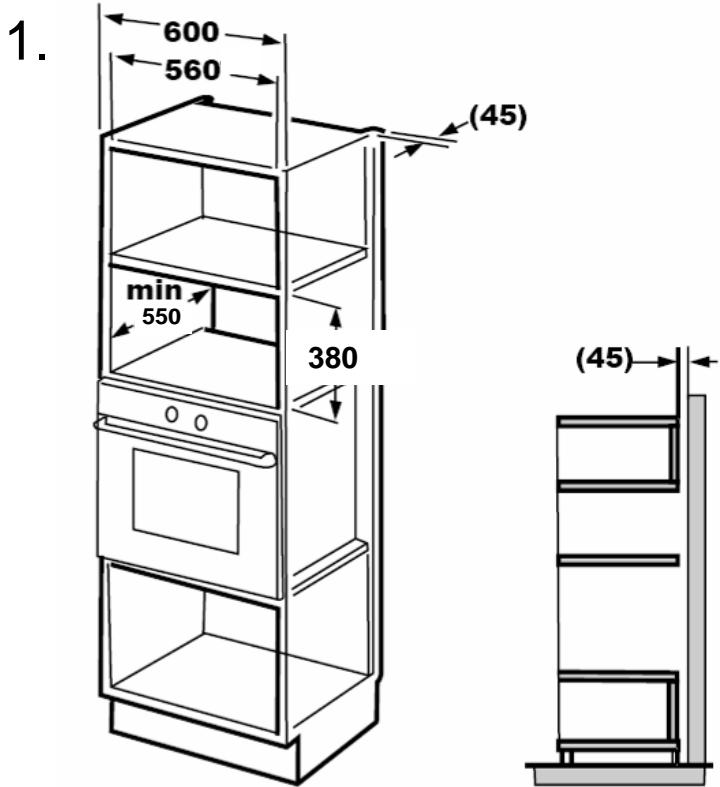

4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire. Questo forno a microonde è dotato di un moderno sistema di controllo elettronico per regolare al meglio i parametri di cottura in base alle esigenze dell'utente.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1.Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press “ / ” once. “00:00” displays.
2) Turn " to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press “ / ”, the minute figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press “ / ” to finish clock setting. “.” will flash.

Note: 1) If the clock is not set, it would not function when powered. 2) During the process of clock setting, if you press "PAUSE", the oven will go back to the previous status automatically.

2. Kitchen Timer

(1) Press “ / ” twice, LED will display 00:00.
(2) Turn "h" to enter the correct timer.(The maximum cooking time is 95 minutes.)
(3) Press "START" to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times.

If the clock be set(24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.

3. Microwave Cooking

Press “ ” the LED will display "P100".Press “ ” for times or turn “ ” to choose the

power you want, and “P100”, “P80XXXP50”, “P30” or “P10” will display for each added press. Then press

" START " to confirm, and turn "h" to set cooking time from 0:05 to 95:00.

Press " START" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " 必 ” once, the screen display "P100".
2) Press “ 🏻 🏻 ” once again or turn “ 🏻 🏻 ” to choose 80% microwave power.
3) Press "START" to confirm, and the screen displays "P 80".
4) Turn "®" to adjust the cooking time until the oven displays "20:00".
5) Press "START" to start cooking.

4. Grill or Combi. Cooking

Press " the LED will display "G-1",and

press “ 🏻 🏻 ” for times or turn the “ 📷 📷” to choose the power you want, and “G-1”,“C-1”,“C-2”,“C-3” or “C-4” will display for each added press. Then press “ 🕶 🁶 ” to confirm, and turn “ 📷 📷” to set cooking time from 0:05 to 95:00. Press “ 🕶 🁶 ” again to start cooking

Example: If you want to use grill power to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " 三 once, the screen display "G-1".
2) Press " START" to confirm.
3) Turn "h" to adjust the cooking time until the oven displays "10:00".
4) Press " " to start cooking.

If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "START" to continue cooking. If no operation, the oven will continue working.

Microwave Power Chart

Press	Once	Twice	Thrice	4 times	5 times
Microwave Power	100%	80%	50%	30%	10%

Note: Combination instructions

Instructions	Display	Microwave	Grill	Convection
1	C-1	●		●
2	C-2	●	●
3	C-3		●	●
4	C-4	●	●	●

5. Convection Cooking (With preheating function)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the "

"key once," 130" flash.

” or turn

2) Keep pressing "

the convection function.

Note: the temperature can be chosen from 130 degrees to 220 degrees.

3) Press the “ _ART ” to confirm the temperature.
4) Press the “START” to start preheating.

When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door.

Turn "h" to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the “ ” key to start cooking.

Note: a. Cooking time cannot be input until the preheating temperature arrives.

If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

6. Convection Cooking

(Without pre-heating function)

1) Press the "

"key once," 130" flash.

2) Keep pressing "

” or turn

to select

the convection function.

Note: the temperature can be chosen from 130 degrees to 220 degrees.

3) Press the "

” to confirm the temperature

4) Turn "Q"

to adjust the cooking time.

(The maximum setting time is 95 minutes.)

5) Press the "

” key to start cooking.

7. Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu and preheating cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " display "d-2"; 日 /日 ” twice, the screen will
2) Turn " to adjust the defrost time of 5 minutes;
3) Press " ” once;
4) Turn " " to choose 80% microwave power till "P80" display;
5) Press " (START) " to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press " (START) " to start cooking.

8. Speedy Cooking

1. Speedy Cooking 1) In waiting state, press “START” key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
   2) During microwave, grill, convection, combination and defrost by weight, press “START” key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds.

Note: this function cannot work under defrost by W.T., multi-stage or auto menu cooking.

9. Speedy Microwave Cooking

In waiting state, turn “” left to choose cooking time directly then press “START” key to cook with 100 % microwave power.

Note: This program can be set as one of multi-stage.

10. Auto Menu

1) In waiting state, turn "right to choose the function wanted, and "A1", "A2", "A3"... "A10" will be displayed.
2) Press " " to confirm the menu you need.
3) Turn "..." to choose the weight of menu, and "g" indicator will light.
4) Press " _ART " to start cooking.

Note: When you choose A9 cake, please do not put the cake into the oven at the beginning. The oven needs to be preheated to 180 degree first. After several minutes, the buzzer sounds twice to remind you to put the cake into the oven. After putting the cake in the oven, please press "START" again. The timer will count down, and the cake will be cooked perfectly.

11. Defrost by W.T.

1) Press " ( ) * ” pad once, the oven will display

2) Turn “h” to select the weight of food. At the same time, “g” will lights, the weight should be 100-2000g.
3) Press "START" key to start defrosting.

12. Defrost by Time

1) Press " display “d-2”
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes
3) Press “ ” key to start defrosting.

13. Inquiring Function

(1) During cooking state, press “ / ” to check the current time. It will be displayed for 2-3 seconds.
(2) In cooking state, press " 電 ”, “ 電 ” or “ 電 ”, the current power or temperature set will be displayed for 2-3 seconds.

14. Lock-out Function for Children

Lock: In waiting state, press “PAUSE” for 3 seconds, there will be a long “beep” denoting entering into the children-lock state and “O” indicator will light. LED will display current time or 0:00.

Lock quitting: In locked state, press “STOP” for 3 seconds, there will be a long “beep” denoting that the lock is released, and “ O” indicator will disappear.

15. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) “ _START ” must be pressed to continu cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, " is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished.

Auto menu Chart

Menu	Weight (g)	Display	Power
A1PIZZA	200	200	C-4
	300	300
	400	400
A2Potato	1 (about 230g)	1	100%
	2 (about 460g)	2
	3 (about 690g)	3
A3Meat	150	150	100%
	300	300
	450	450
	600	600
A4Fish	150	150	80%
	250	250
	350	350
	450	450
	650	650
A5Vegetable	150	150	100%
	350	350
	500	500
A6Beverage / Coffee	1 (about 240g)	1	100%
	2 (about 480g)	2
	3 (about 720g)	3
A7Pasta	50 (with water 450ml)	50	80%
	100 (with water 800ml)	100
	150 (with water 1200ml)	150
A8 Popcorn	50	50	100%
	100	100
A9 Cake	475	475	Preheat at 180 degrees
A10Chicken	500	500	C-4
	750	750
	1000	1000
	1200	1200
Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may can out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started	(1) Power cord not plugged in tightly	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuits breaker works.	Replace fuse or reset circuits breaker (repaired by professional personnel of your company)
	(3) Trouble with outlet	Test outlet with other electrical appliances.
Oven does not head	(4) Door not closed well	Close door well
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom	Refer to “Maintenance of Microwave” to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

GB

Please Read the Manual Carefully Before Installation

Please Note

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap at least 3mm.

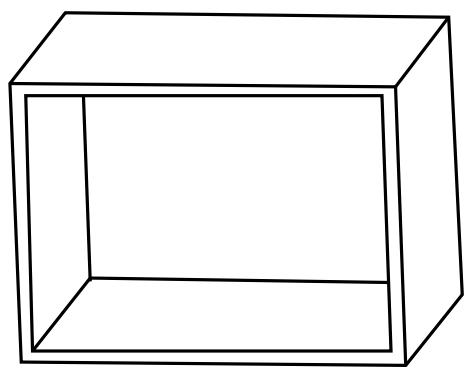

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm

Do not cover ventilation slots and air intake points.

2.

B. Prepare the Cabinet.

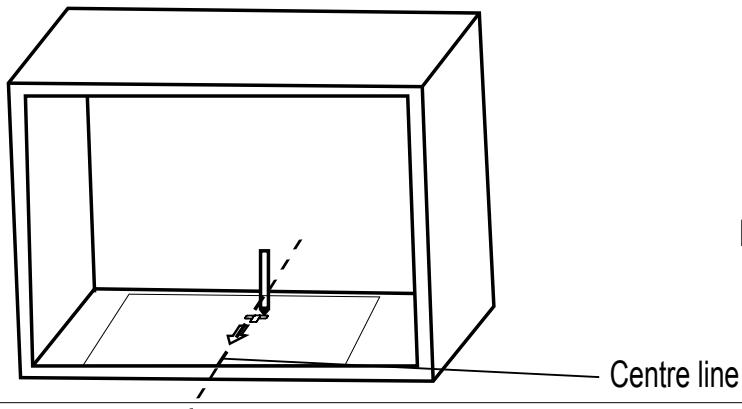

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

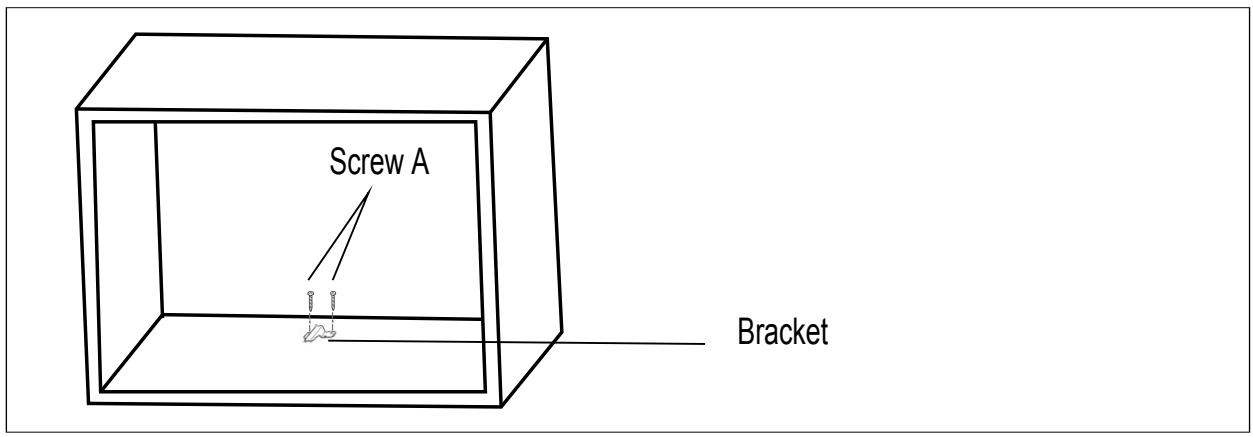

Screw A

Bracket

1. Make marks on the bottom plane of cabinet according to marks “a” of the template.

1. Remove the BOTTOM CABINET TEMPLATE, and fix the BOTTOM BRACKETS with SCREW A.

C. Install the oven.

1. Install the oven into the cabinet.
2. Do not trap or kink the power cord.

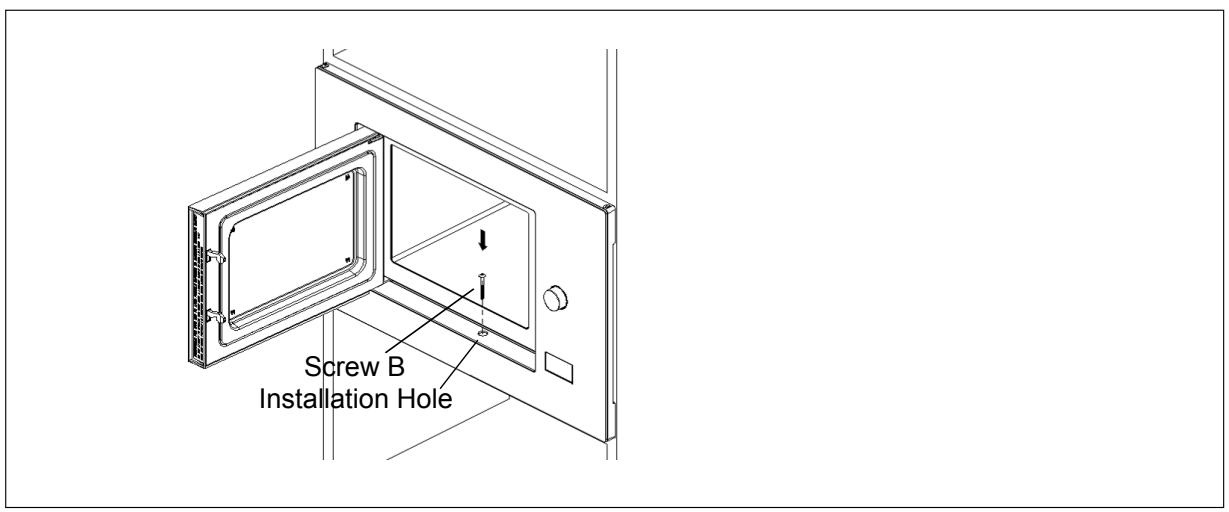

1. Open the door; fix the oven to the cabinet with SCREW C at the INSTALLATION HOLE of TRIM KIT.
