USER MANUAL IMAGEFORMULA DR-M1060 CANON

• Please read this manual before operating this scanner. • After you finish reading this manual, store it in a safe place for future reference.

FCC REGULATIONS (For 120 V model)

RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUE (For 120 V models)

Document Scanner, Model M111201 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A. Inc. One Canon Park, Melville, NY 11747, U.S.A. Tel. No. (800)652-2666

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, NMB-003 édictée par l’Industrie Canada.

ENERGY STAR® Office Equipment Program This program is for U.S.A and Canada. As an ENERGY STAR® Partner, CANON ELECTRONICS INC. has determined that this machine meets the ENERGY STAR® Program guidelines for energy efficiency. The ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment, such as computers, monitors, printers, fax, machine, copiers, and scanners. The standards and logos are uniform among participating nations. This model doesn’t provide setting options for power management.

European Union (and EEA) only. This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2002/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household waste disposal service. For more information regarding return and recycling of WEEE products, please visit www.canon-europe.com/environment. (EEA: Norway, Iceland and Liechtenstein)

RADIO INTERFERENCE REGULATIONS (For 120 V models) This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interferencecausing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry Canada.

• iDRSTM SDK 15 Windows 32 - 64 bit technology by Image Recognition Integrated Systems S.A. Copyright 1987 - 2019, I.R.I.S. S.A. All rights reserved. • Other product and company names herein may be the trademarks of their respective owners. However, the TM and ® symbols are not used in this document.

Für EMVG Dieses Produkt ist zum Gebrauch im Wohnbereich, Geschäfts-und Gewerbebereich sowie in Kleinbetrieben vorgesehen.

Model Names The following name may be provided for the safety regulations in each sales region of the Document Scanner. DR-M1060: Model M111201

Copyright Copyright 2017 by CANON ELECTRONICS INC. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of CANON ELECTRONICS INC.

Reproduction Warning This device is designed to be used in a legal manner, in accordance with all applicable laws, including, but not limited to, counterfeit and copyright laws, as well as laws pertaining to national security. Any person(s) found to have reproduced any of the following materials (regardless of whether such reproduction was intentional or not) for the purpose of misrepresenting such material as the original may be prosecuted in accordance with the applicable laws and regulations. • Paper money or bank notes (domestic and foreign) • Postage stamps, revenue stamps, or other similar stamps • Stock certificates, bond certificates, promissory notes, cheques, or other valuable certificates • Passports, licenses, or other certificates or documents issued by government officials or agencies This is not an exhaustive list. Canon is not responsible for how this scanner is used by an individual. Please note that certain intellectual property is protected by copyright law, and copyrighted items may not be reproduced without the express permission of the copyright holder except for personal or household use under limited circumstances.

Disclaimers The information in this document is subject to change without notice. CANON ELECTRONICS INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXPECT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT. CANON ELECTRONICS INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL. CANON ELECTRONICS INC. IS NOT LIABLE FOR THE STORAGE AND HANDLING OF DOCUMENTS SCANNED WITH THIS PRODUCT, OR THE STORAGE AND HANDLING OF RESULTING SCANNED IMAGE DATA. IF YOU INTEND TO DISCARD THE ORIGINALS OF SCANNED DOCUMENTS, YOU THE CUSTOMER ARE RESPONSIBLE FOR INSPECTING THE SCANNED IMAGES AND VERIFYING THAT DATA IS INTACT. THE MAXIMUM LIABILITY OF CANON ELECTRONICS INC. UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY.

Trademarks • Canon and the Canon logo are registered trademarks, of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. • imageFORMULA is a trademark of CANON ELECTRONICS INC. • Microsoft, Windows, PowerPoint, and SharePoint are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. • Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation. • ENERGY STAR® is a registered trademark of the United States Environmental Protection Agency. • ISIS is a registered trademark of Open Text in the United States.

Introduction Thank you for purchasing the Canon imageFORMULA DR-M1060 Document Scanner. Please read the following manuals carefully and familiarize yourself with the functions of the scanner before use to ensure you sufficiently understand the functions and make the most of the scanner’s capabilities. After reading the manuals, store them in a safe place for future reference.

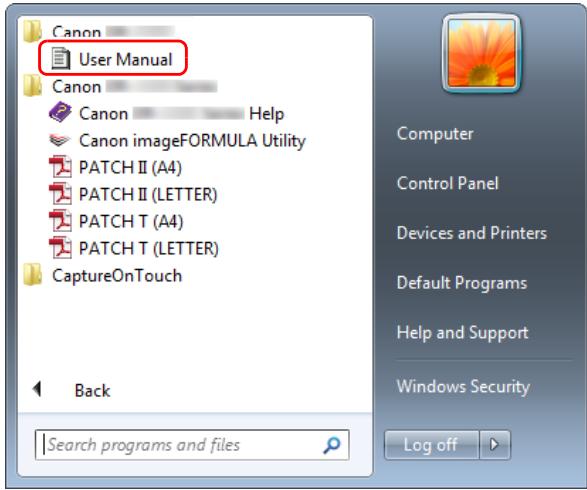

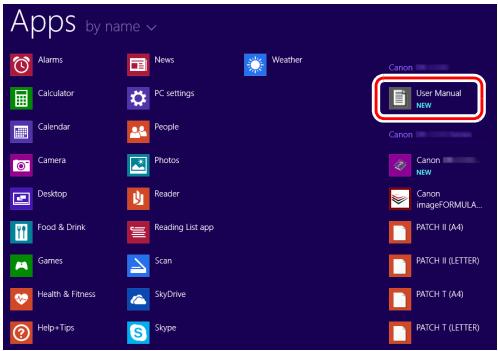

Hint • The User Manual is installed with the software as electronic manuals in the following location. User Manual

Manuals for the Scanner Documentation for this scanner consists of the following manuals. ● Product Safety Guide Before using the scanner, be sure to read and follow these instructions. ● Setup Guide This describes setup procedures for the scanner. Read this manual when you first use the scanner. ● User Manual (this manual) This manual contains the operating procedures of the scanner. (PDF electronic manual only)

• The manual is registered to the following location in Windows 8.1.

Symbols Used in This Manual The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that should be observed for safety.

WARNING Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the scanner safely, always pay attention to these warnings.

CAUTION Indicates a caution concerning operations that may lead to injury to persons, or damage to property if not performed correctly. To use the scanner safely, always pay attention to these cautions.

IMPORTANT Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the scanner correctly, and avoid damaging the scanner.

Hint Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes is highly recommended.

Daily Maintenance 45

Before Using the Scanner 7

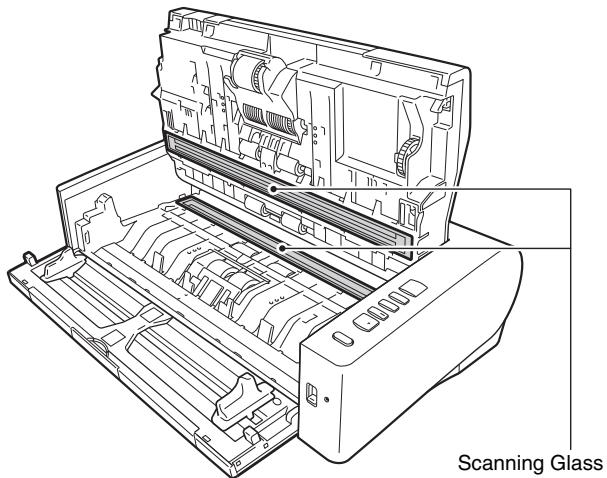

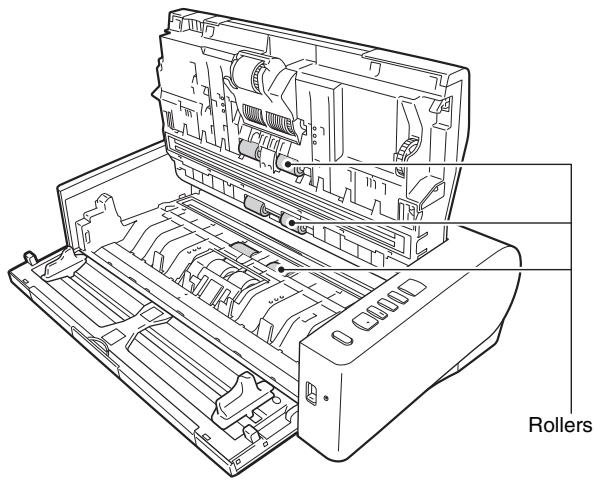

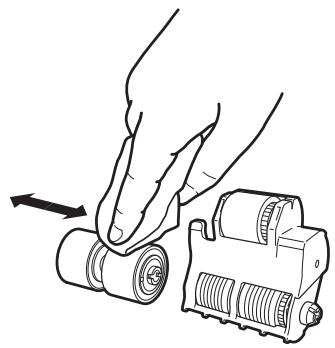

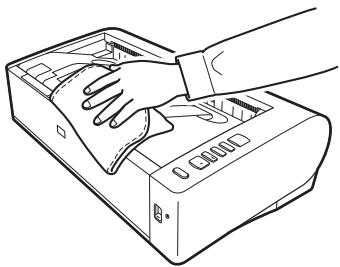

Cleaning the Scanner 45 Cleaning the Inside of the Scanner 45 Cleaning the Sensor Glass and the Rollers 45 Adjusting the Reduction Ratio 48 Replacing Consumable Parts 49 Auto Power Off Setting 54

System Requirements of Software 7 Turning the Power ON 8 Turning Off the Power 8

Important Safety Instructions 9 Installation Location 9 AC Adapter 9 Moving the Scanner 10 Handling 10 Disposal 11 When sending the scanner for repairs 11

Troubleshooting 56 Common Problems and Solutions Software Troubleshooting Useful tips Clearing Paper Jams, Skewed Documents, Stapled Documents, and Feed Errors Uninstalling the Software

Features of the Scanner 12 Names and Functions of Parts 14

Switching the Feed and Eject Methods 19 Placing Documents 20 Placing Cards 22 Placing Folded Documents 22 Setting the Long Document Mode 23 Detecting a document double feed 25 Detecting Skewed Documents 27 Detecting Staples and Feed Errors 28

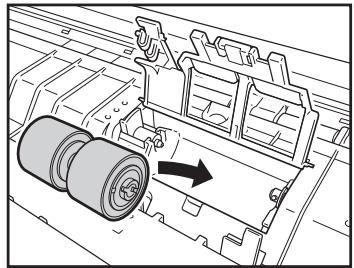

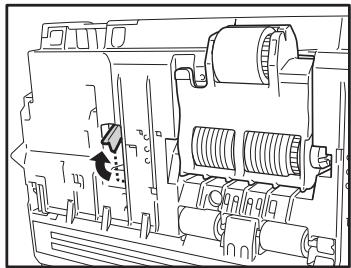

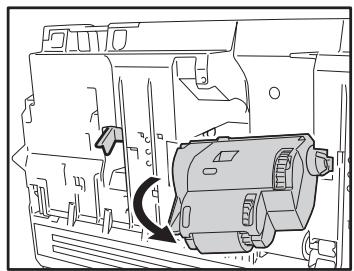

Replacement Parts 65 Option 65 About the Flatbed Scanner Unit 101/201 66 Dimensions 66

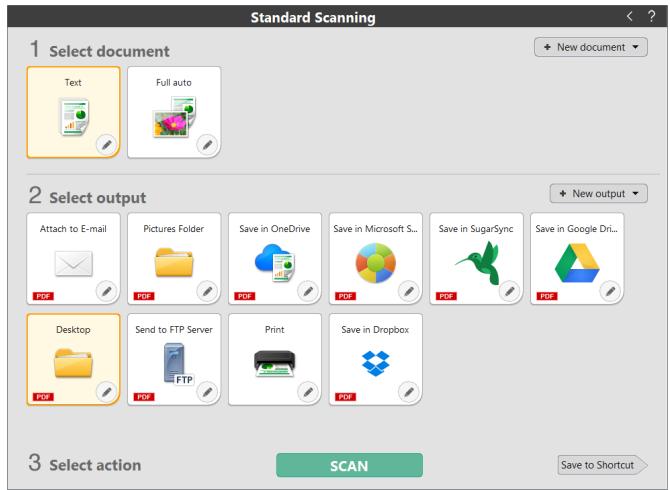

Scanning methods 30 Scanning with CaptureOnTouch 30 What is CaptureOnTouch? 30

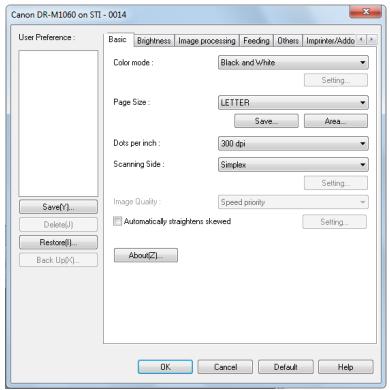

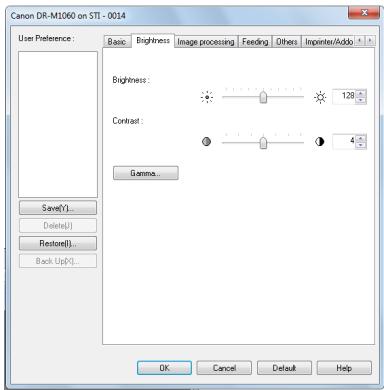

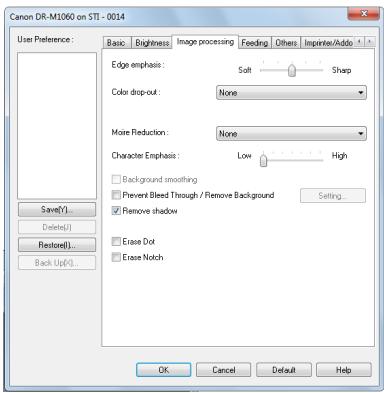

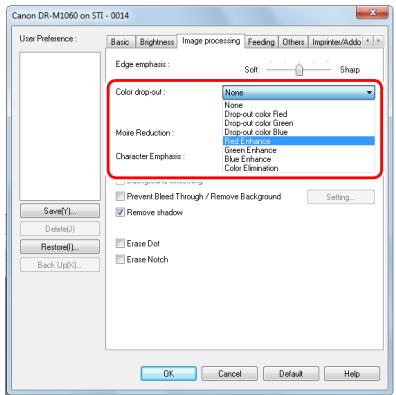

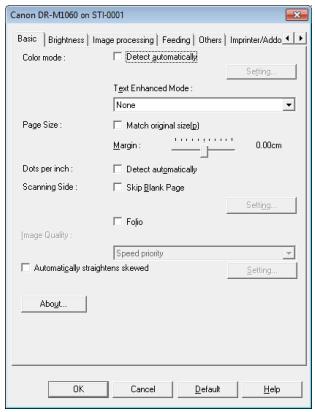

Setting the Scanner Driver 31 Configuration and Functions of the Scanner Driver 31 Setting Basic Scanning Conditions 33

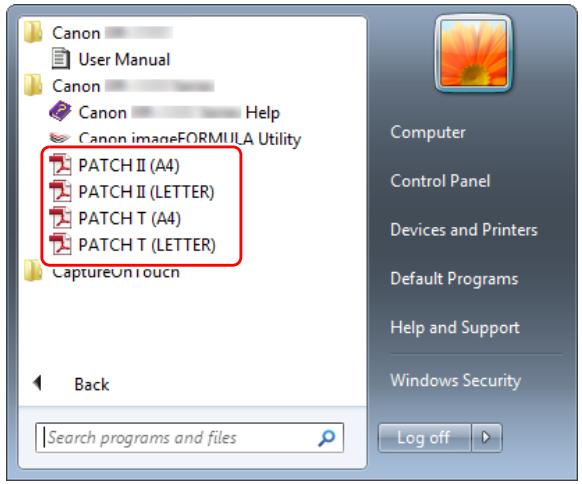

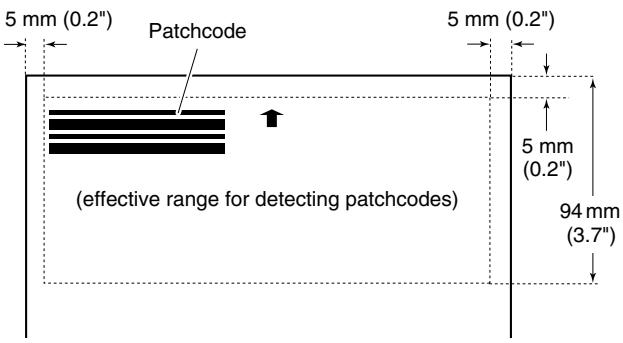

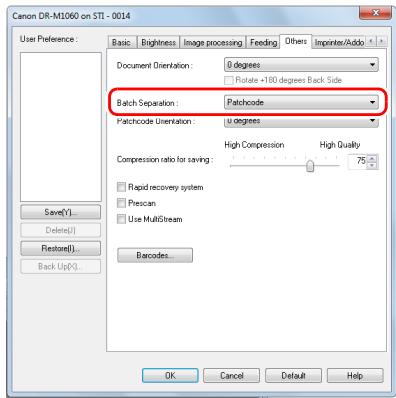

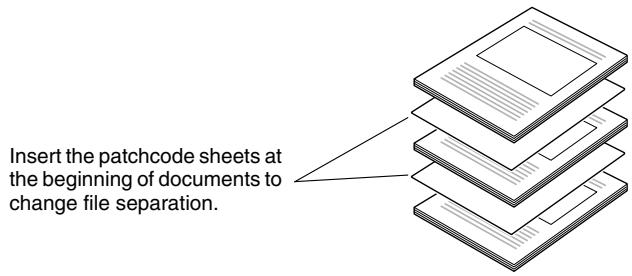

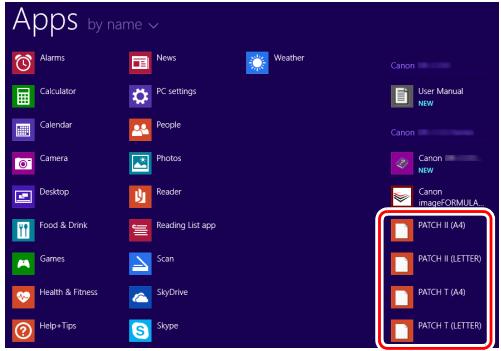

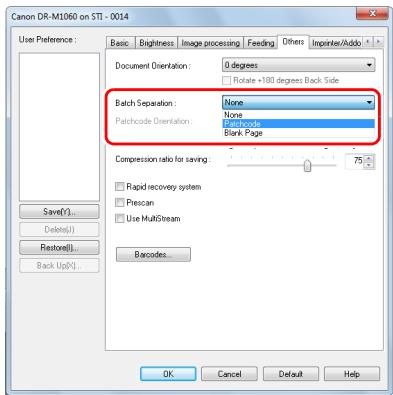

More Advanced Scanning Methods 43 Using a Patchcode for Scanning 43

Before Using the Scanner System Requirements of Software To use the scanner, your computer must satisfy the following system requirements.

IMPORTANT • Use the USB interface provided as standard with your computer. However, normal operation is not guaranteed with all USB interfaces, even if present as standard equipment on the computer. For details, consult your local authorized Canon dealer. • Scanning speeds are lower if your computer’s standard USB interface is USB Full-Speed (equal to USB 1.1.) • The USB cable you are using should be the one originally included with the scanner. • If the CPU, memory, interface card, and other specifications do not satisfy the installation requirements, the scanning speed may be greatly reduced and transmission may take a long time. • Even if the computer satisfies the system requirements, the scanning speed may vary, depending on the specification of the computer and the environment. • The scanner drivers provided with the scanner do not necessarily operate on all ISIS or TWAIN-compatible applications. For details, contact your application software retailer. • In Windows 10 tablet mode, the software may disrupt the display. • The Desktop Experience feature must be enabled for Windows Server 2012 R2.

Computer CPU: Memory: Hard disk: USB interface: Monitor: Optical drive:

Intel Core 2 Duo 1.66GHz or faster 1 GB or more 3 GB or more available space required for installation of all software Hi-Speed USB2.0 Resolution of 1024 × 768 (XGA) or better recommended. Drive capable of reading CDs/DVDs.

Operating system • Microsoft Windows 8.1 (32-bit and 64-bit editions) • Microsoft Windows 10 (32-bit and 64-bit editions) • Microsoft Windows Server 2012 R2 • Microsoft Windows Server 2016 • Microsoft Windows Server 2019 This is the environment as of December 2019. For the latest software support information, go to the Products page on the Canon website.

Precautions for Use in 64-bit Operating Systems (Windows only)

Other requirements • An ISIS-compatible application (Windows only) or a TWAINcompatible application that is compatible with the above operating systems. • .NET Framework 4.5 or later (Windows only)

• The ISIS/TWAIN driver supplied with this product supports scanning with 32bit applications only. • Even with 32-bit applications, not all ISIS/TWAIN compliant applications are guaranteed to operate. • Scanning speed may vary depending on the specifications of your computer.

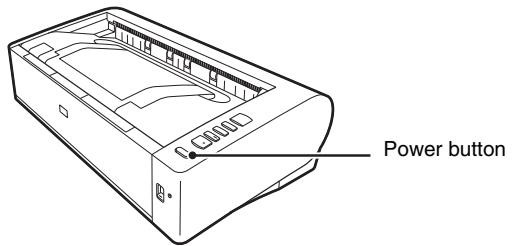

Turning the Power ON The power of the scanner can be turned ON and OFF with the power button on the front of the scanner.

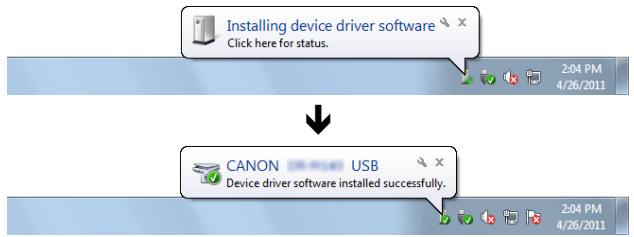

When the scanner is properly connected to the computer, the (CaptureOnTouch) icon appears on the taskbar as follows.

Make sure that the scanner and computer are connected properly.

If the taskbar icon appears as , the scanner is not properly connected to the computer. Check the status of the power switch and USB cable.

Press the power button.

Turning Off the Power Press and hold the power button until the indicator goes out.

IMPORTANT Power button

• After turning the scanner off, wait at least 10 seconds before turning it back on. • If you will not be using the scanner for an extended period, you should disconnect the power cord from the AC outlet for safety. The power button lights blue when the power turns ON. Hint Hint

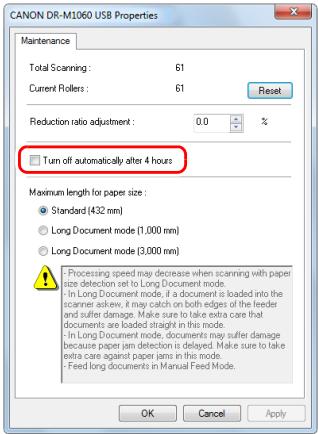

The scanner’s auto power off setting is enabled by default, and the scanner will turn off automatically if it is not operated for 4 hours. For details on how to disable this setting, see “Auto Power Off Setting” on p. 54.

A balloon message such as shown below appears on the task bar. If you wait a while, automatic scanner recognition will end and the scanner will become ready to use.

Important Safety Instructions ● Avoid locations that are subject to vibration. ● Avoid exposing the scanner to rapid changes in temperature. If the room in which the scanner is installed is cold but rapidly heated, water droplets (condensation) may form inside the scanner. This may result in a noticeable degradation in scanning quality. The following conditions are recommended for optimal scanning quality: Room temperature: 10 °C to 32.5 °C (50 °F to 90.5 °F) Humidity: 20% to 80% RH ● Avoid installing the scanner near equipment that generates a magnetic field (e.g. speakers, televisions, or radios.)

To ensure the safe operation of this scanner, be sure to read the safety warnings and precautions described below.

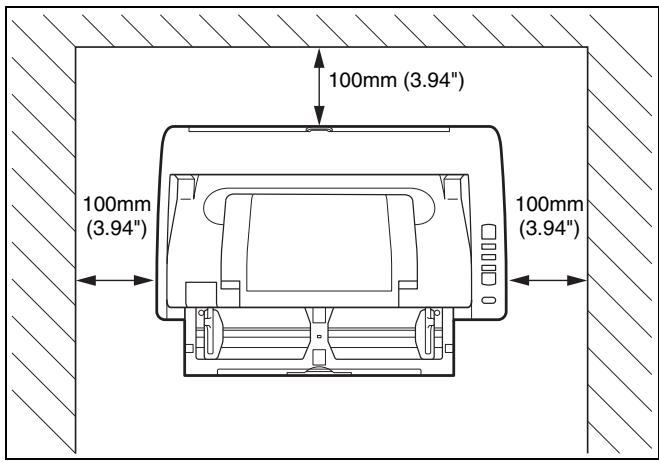

Installation Location The performance of this scanner is affected by the environment in which it is installed. Make sure that the location where the scanner is installed meets the following environmental requirements. ● Provide adequate space around the scanner for operation, maintenance, and ventilation.

AC Adapter 100mm (3.94")

● Connect only to a power outlet of the rated voltage and power supply frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz depending on your region). ● Do not connect other electrical equipment to the same power outlet to which the scanner is connected. Also, when using an extension cord, make sure that the extension cord is rated for the current requirements of the scanner. ● Never try to take the AC adapter apart or modify it in any way, as this is dangerous. ● The power cord may become damaged if it is often stepped on or if heavy objects are placed on it. ● Do not use the power cord while it is coiled. ● Do not pull directly on the power cord. When disconnecting the power cord, grasp the plug and remove it from the outlet. ● Keep the area around the power cord clear of objects so that the power cord can be disconnected easily in an emergency. ● Do not use an AC adapter other than the one provided with the scanner. Do not use the AC adapter provided with the scanner with other products. ● If you have any questions regarding the power supply, contact your local authorized Canon dealer or service representative for further information.

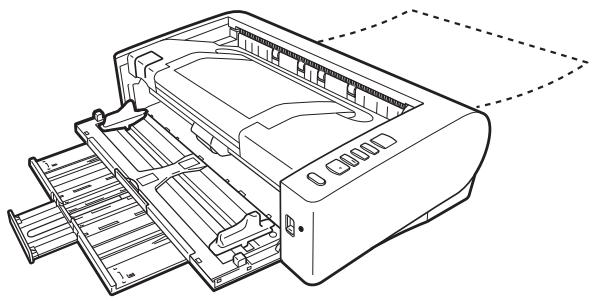

● When scanning documents using the straight path, provide adequate space in back of the scanner for scanned document output. ● Avoid installing the machine in direct sunlight. If this is unavoidable, use curtains to shade the scanner. ● Avoid locations where a considerable amount of dust accumulates as dust may adversely affect the inside of the scanner. ● Avoid warm or humid locations, such as in the vicinity of a water faucet, water heater, or humidifier. Avoid locations where ammonia gas is emitted. Avoid locations near volatile or flammable materials, such as alcohol or paint thinner.

● The supplied power cord set is intended for use with this scanner only. Do not use it with other electronic equipment. In addition, do not use power cord sets other than the one supplied with the scanner. Doing so may result in fire or electric shock. ● Do not take the scanner apart or modify it. ● Never try to take the AC adapter apart or modify it in any way, as this is dangerous. ● Do not use flammable spray near the scanner. ● When cleaning the scanner, push the power button to turn it OFF and disconnect the power cord from the power supply. ● Clean the scanner using a slightly dampened cloth which has been well wrung out. Never use alcohol, benzene, paint thinner, or any other flammable substances. ● If the scanner makes strange noises, or gives off smoke, heat, or strange odors, or the scanner does not function or other abnormalities occur when you use the machine, immediately push the power button to turn it off, and disconnect the power plug from the power outlet. Then, contact your local authorized Canon dealer or service representative to have the unit serviced. ● Do not drop the scanner, or subject it to impact or strong shock. Should the scanner ever become damaged, immediately push the power button to turn it OFF, and disconnect the power plug from the power outlet. Then, contact your local authorized Canon dealer or service representative to have the unit serviced. ● Before moving the scanner, be sure to push the power button to turn it OFF, and disconnect the power plug from the power outlet ● To customers with cardiac pacemakers The scanner generates a weak magnetic field. If customers using cardiac pacemakers experience any abnormalities, move away from the scanner and consult a physician.

Moving the Scanner ● When moving the scanner, always hold it with both hands to avoid dropping it. ● Make sure to disconnect the interface cable and AC adapter before moving the scanner. If the scanner is transported with these items connected, the plugs and connectors may be damaged.

Handling WARNING Note the following precautions whenever using the scanner. Failure to do so may result in a fire or electric shock. ● Never use alcohol, benzene, paint thinner, aerosol sprays, or any other highly flammable substance near the scanner. ● Do not cut, damage, or modify the power cord. Do not place heavy objects on the power cord, and do not pull or excessively bend the power cord. ● Never connect the power cord when your hands are wet. ● Do not connect the scanner to a multi plug power strip. ● Do not knot or coil the power cord as this may result in a fire or electric shock. When connecting the power cord, make sure that the power plug is securely and completely inserted into the power outlet.

CAUTION ● Do not install the scanner on a surface that is unstable or tilted, or in an area subject to excessive vibrations, as this may cause the scanner to fall, resulting in personal injury or damage to the scanner.

● Never place small metal objects such as staples, paper clips, or jewelry on the scanner. These items may fall into the scanner, and cause a fire or electric shock. Should such objects ever fall inside the scanner, immediately push the power button to turn it OFF, and disconnect the power plug from the power outlet. Then, contact your local authorized Canon dealer or service representative to have the unit serviced. ● Do not install the scanner in a humid or dusty location. Doing so might cause a fire or electric shock. ● Do not place objects on top of the scanner. Such objects may tip or fall over, resulting in personal injury. ● Connect only to a power outlet of the rated voltage and power supply frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz depending on your region). Doing so might cause a fire or electric shock. ● When unplugging the power cord, grasp it firmly by its plug. Do not pull directly on the power cord, as this may damage or expose the cord’s internal wiring, resulting in a fire or electric shock. ● Leave sufficient space around the power plug so that it can be unplugged easily. If objects are placed around the power plug, you will be unable to unplug it in an emergency. ● Do not allow water or flammable substances (alcohol, paint thinner, benzene, etc.) to spill into the scanner, as this may result in a fire or electric shock. Doing so might cause a fire or electric shock. ● Push the power button to turn the scanner OFF for safety when not using the scanner for a long period of time, such as overnight. Also, push the power switch to turn it OFF, and disconnect the power cord from the power outlet for safety when the machine will not be used for an extended period of time, such as during consecutive holidays. ● Do not block the ventilation holes. Doing so might cause overheating. ● Do not wear loose clothing or jewelry that may get caught in the scanner while you are using it, as this may result in personal injury. Be extra careful of neckties and long hair. If anything becomes caught in the scanner, immediately disconnect the power cord to stop the scanner. ● Be careful when loading paper into the scanner and when removing jammed paper, as it is possible to cut your hand on the edge of a sheet of paper.

TEMPERATURE WARNING ● Parts on which this warning is affixed can become very hot, and improper handling of these parts may result in burns. To ensure safe operation, follow the instructions of the warning carefully.

Disposal When disposing of this scanner, be sure to follow all local ordinances and laws or consult with the retailer who sold you the scanner.

When sending the scanner for repairs When a request is made for repairs, the scanner needs to be sent to the specified address. When sending the scanner, use the packing box in which it came. Firmly secure the scanner with packaging material when you place it in the packing box.

Features of the Scanner ● Auto Resolution Detection When enabled in the CaptureOnTouch or scanner driver settings, this function detects the content of documents and determines the scanning resolution automatically. ● Folio Scan You can scan folded documents. The scanner will scan both sides and combine the scanned images into a single image. By using this function in conjunction with Long Document mode, you can scan documents up to the A1 size. ● Deskew The scanner is equipped with a deskew function that straightens images before saving them when documents are scanned askew. The scanned images are straightened, as opposed to the actual document sheets. ● Ultrasonic Double Feed Detection Ultrasonic waves are used to detect pages that are fed at the same time, and scanning stops if a double feed is detected. ● Double Feed Detection Ignore When a double feed is detected, the DFR button on the operation panel is lit. You can continue scanning by pressing the DFR button. ● Text Enhancement Modes The scanner is equipped with an Advanced Text Enhancement Mode to enhance the text of documents with dark or uneven backgrounds, and an Advanced Text Enhancement II mode to enhance the text when both the text and background are light. These modes may not work, depending on the type of document. ● Color Drop-out The scanner is equipped with a Color Drop-out function that enables you to specify a color for the scanner to omit from the scanned image during black and white or grayscale scanning. ● Skip Blank Page Function The scanner is equipped with a Skip Blank Page function that enables you to scan a document without storing images of blank pages, regardless of whether each page of the document is twosided or one-sided. Both sides are scanned, but saving the image is skipped for scan images judged to be from a blank page.

The main features of the DR-M1060 document scanner are described below. ● Highly Efficient Scanning with A3 Compatibility The front-side input/output U-turn path design allows smooth feeding and output of documents. The scanner supports a variety of document sizes, handling documents that are up to A3 in size. ● Fast Document Feeding A4 documents can be scanned at a speed of up to 60 pages per minute in any scanning mode, including black and white, grayscale, and color. * Scanning conditions: A4 horizontal, duplex, 200 dpi ● Two Eject Paths for Scanning a Variety of Documents Use the space saving U-turn path to scan paper of standard thickness, or use the straight path to scan cards and other thick documents. ● High Image Quality The 600 dpi optical resolution sensor incorporated in the scanner enables documents to be scanned with high image quality. ● USB 2.0 Interface The scanner supports Hi-Speed USB 2.0. ● Color/Grayscale Support Documents can be scanned in 24-bit color or 256-level grayscale. ● Supports a Variety of Scanning Modes The scanner supports the following scanning modes, depending on the document type: • Single-sided or double-sided scanning (with Skip Blank Page function) • Continuous or single sheet feed ● Card Scan You can scan business or ID cards. ● Paper Size Detection The scanner automatically detects the size of a scanned document and eliminates any unnecessary space around the edges of the image when storing the image, even when storing a document of irregular size. ● Auto Color Detection The scanner detects whether the scanned document is in color, grayscale, or black and white, and saves the image accordingly.

● Prescan Function The scanner is equipped with a Prescan function that allows you to adjust the contrast and brightness of a prescanned image and then send the adjusted image to the application software, without needing to scan the document again. ● Character/Line Emphasis Function If characters and lines in scanned images are not clearly visible, you can use this function to adjust their thickness during scanning. ● Skew Detection Function The scanner automatically stops operation when documents are fed at an excessive slant to prevent damage to documents. ● Staple Detection When documents that are stapled together are detected, the scanner automatically stops the scanning operation. ● Feed Error Detection When a feed error is detected, the scanner automatically stops the scanning operation. ● Start Scanning from the Operating Panel You can start scanning by launching CaptureOnTouch with the operating panel buttons. By default, Job No.1 is assigned to Scanning Shortcut, which allows you to easily scan a document by just following the instructions on the screen. ● Auto Start The scanner is equipped with an auto start function, which enables scanning to be automatically started when a document placed in the feeder is detected. ● Sleep Mode The scanner is designed to save energy by automatically entering the sleep mode if 10 minutes elapse without scanning or another operation being performed. ● Barcode and 2D code reading function Barcodes and 2D codes on documents can be read. Hint Some functions may not be available depending on the software you are using.

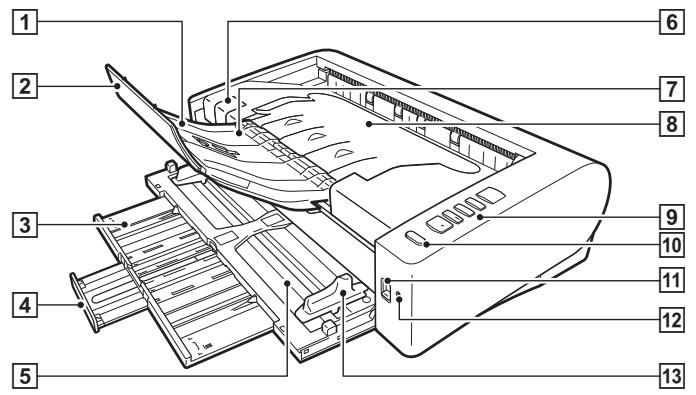

Names and Functions of Parts Front View (With the Feed Tray Open)

A F B G H C I J K L D E M A Eject Support

Open this when scanning documents that are 150 mm (A5 horizontal) or longer.

Raise this to stop the leading edge of ejected documents and prevent them from falling off of the scanner.

B Eject Support Extension

H Document Eject Tray / Upper Unit

Extend this when scanning documents that are longer than 279 mm (LTR, vertical).

Scanned documents are output here. Open this when cleaning the inside of the scanner or replacing rollers.

Extend this when loading documents that are longer than 150 mm (A5 horizontal).

A range of scanning operations can be performed with this, such as starting and stopping scans, executing registered jobs, and cancelling double feed detection. (See p. 15)

D Feed Support Extension Extend this when loading documents that are longer than 216 mm (LTR horizontal).

J Power button Press this to turn on the scanner. The button remains lit while the power is on. Press and hold the button until the light goes out to turn off the scanner.

E Document Feed Tray Place the document.

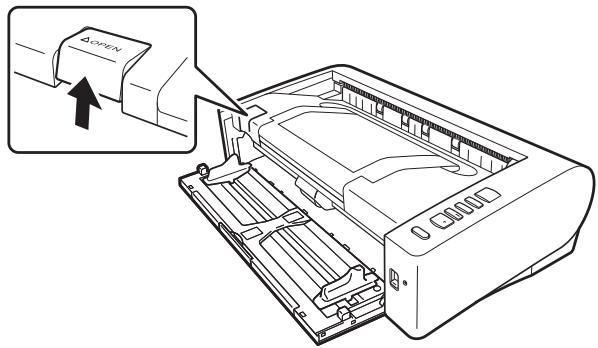

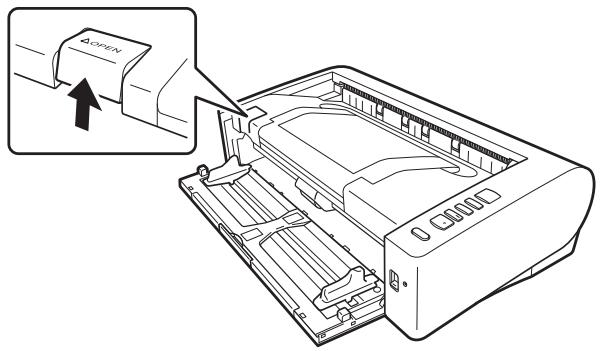

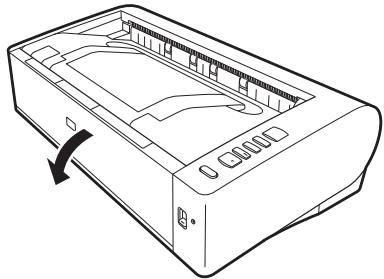

F OPEN Lever Raise this to open the upper unit.

The power button lights or flashes as follows depending on the scanner status. Power Button Indication

Connect the supplied USB cable to this connector.

D Power Connector Connect the supplied AC adapter to this connector.

K Feed Selection Lever Use this to change the way documents are fed. Set the lever to the lower position when scanning documents consecutively. (See p. 19) Set the lever to the upper position when scanning documents one page at a time or scanning multi-page documents that are fastened together. (See p. 19)

L LED Indicator (Orange) This lights during non separation feeding mode.

M Document Guides Align the document guides with both edges of the document to ensure that the document feeds straightly.

A Job No. Indicator This displays the number of the job selected with the operating panel, errors, and other information.

B Job Select Button This selects registered jobs. Every time the button is pressed, the Job No. displayed in the Job No. Indicator changes.

C DFR (Double Feed Release) Button This is lit when a document double feed is detected. Pressing this button cancels the double feed detection function, allowing you to continue scanning.

This stops active jobs.

D This executes the job displayed in the Job No. Indicator.

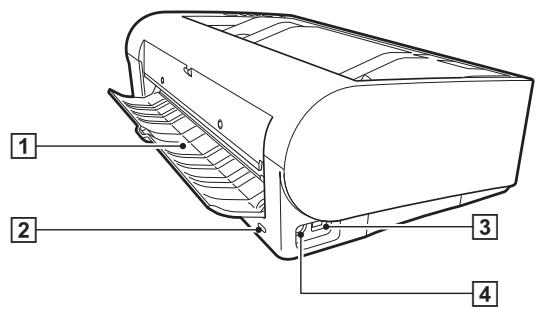

A Straight Path Tray When using the straight path, scanned documents are output here.

B Kensington Slot Connect an anti-theft key chain or the like.

Displayed Error Codes When a scanning error occurs, the following error codes are displayed in the Job No. Indicator. : displayed when the upper unit is open. : displayed when a paper jam is detected. : displayed when a double feed is detected while scanning. : displayed when skewed documents, staples, or feed errors are detected. : displayed for other errors.

Other Displays When the straight path tray is opened or closed, the eject method is displayed in the Job No. Indicator. : flashes during straight path mode. : animates during U-turn path mode.

Basic Operation Documents The scanner can scan documents ranging in size from business cards to A3. (Up to A1 size is possible with folio scanning in Long Document mode.) The document sizes that this scanner can scan are shown below.

IMPORTANT The documents to be scanned must satisfy certain criteria. Read the following items carefully. • When scanning multiple documents of different sizes, place the documents so that they cover the entire span of the feed rollers by aligning the centers and leading edges of the documents.

Plain Paper Size Width: 50.8 mm to 300 mm (2" to 11.8") Length: 70 mm to 432 mm (2.8" to 17") Up to 3,000 mm (118.1") in Long Document mode Paper thickness U-turn path (page separation): 27 to 128 g/m2 (0.04 to 0.15 mm) U-turn path (bypass): 27 to 164 g/m2 (0.04 to 0.2 mm) Straight path: 27 to 255 g/m2 (0.04 to 0.3 mm)

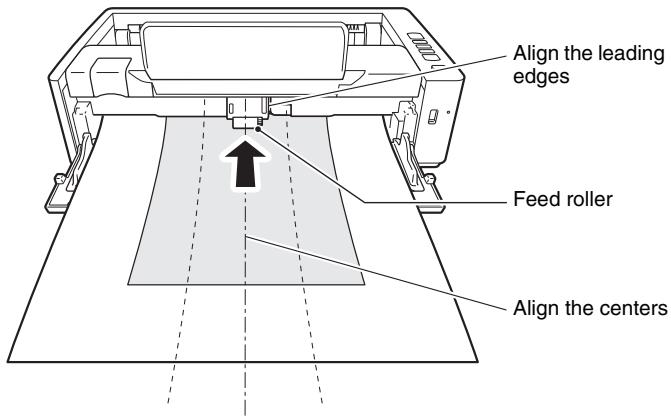

Align the leading edges

• It is recommended that documents exceeding 432 mm (17") size are fed one sheet at a time. • Scanning documents before the ink is dry can cause problems with the scanner. Always make sure that the ink on a document is dry before scanning it. • Scanning documents that are written in pencil or similar material may make the rollers and scanning glass dirty, which can lead to smudges on the scanned image and transfer the dirt to subsequent documents. Always clean the internal parts of the scanner after scanning such documents. • When scanning a two-sided document that is printed on thin paper, the image on the opposite side of each page may show through. In this case, adjust the scanning intensity in the application software before scanning the document.

• Laminated documents may not be scanned correctly, depending on the document. • It is recommended that thin documents be fed one page at a time. • Scanning the following types of documents can cause a paper jam or malfunction. To scan such a document, make a photocopy of the document and then scan the photocopy. There are creases or fold lines.

The surface is coated.

Extremely thin document such as semi-transparent thin paper.

There are clips or staples.

Documents with excessive paper dust particles.

Card (plastic) Size: Card thickness:

54 mm x 86 mm (2.1" x 3.4") (ISO standard) 0.76 mm (0.03") or less, 1.4 mm (0.055") or less for the embossment Orientation: Vertical feeding only Eject method: Straight path only Loading capacity: 3 cards (non-embossed), 1 card (embossed) Scanning resolution: Up to 300 dpi (embossed card) CAUTION

• Use the straight path when scanning cards. • Embossed cards may not be able to be scanned correctly, depending on the type of embossment. • When scanning cards, clear the [Detect by Ultrasonic] check box in the [Feeding] tab on the scanner driver settings screen. (See p. 25)

Width: 50.8 mm to 55 mm (2" to 2.2") Length: 85 mm to 91 mm (3.4" to 3.6") Paper thickness: 128 to 380 g/m2 (0.15 to 0.45 mm) Orientation: Vertical feeding only Eject method: Straight path only

IMPORTANT If a stack of business cards cannot be fed properly, reduce the number of cards in the stack. Postcard Size:

Width: 89 mm to 108 mm (3.5" to 4.3") Length: 127 mm to 152 mm (5" to 6") Paper thickness: 128 to 300 g/m2 (0.15 to 0.4 mm) Eject method: Straight path only

How to Place Documents Standard feeding is used to feed documents one page at a time. Non separation feeding is used to feed bound or fastened multi-page documents or folded documents without separating them.

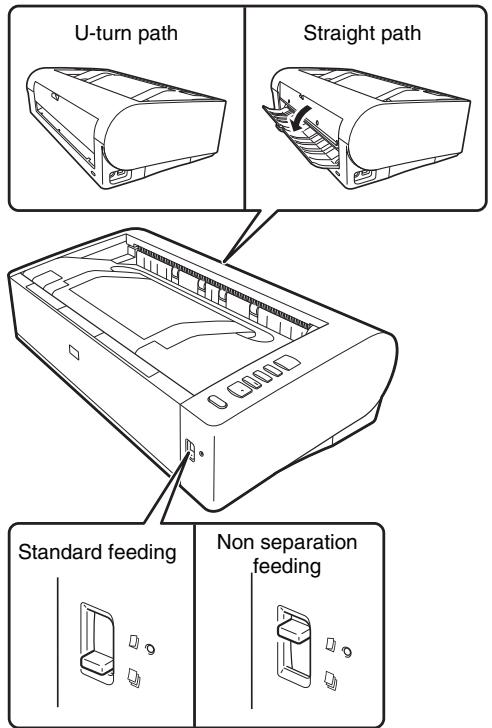

Switching the Feed and Eject Methods

Feed and Eject Methods for Different Document Types

Switch the feed and eject methods based on the type of document you are scanning. The U-turn path is used when the straight path tray at the rear of the scanner is closed, and the straight path is used when it is opened. U-turn path

Place cards vertically.

Place cards vertically.

Bound or fastened paper (e.g., invoices)

Hint When scanning documents that contain both plain paper and plastic cards, place the cards at the top and use the straight path.

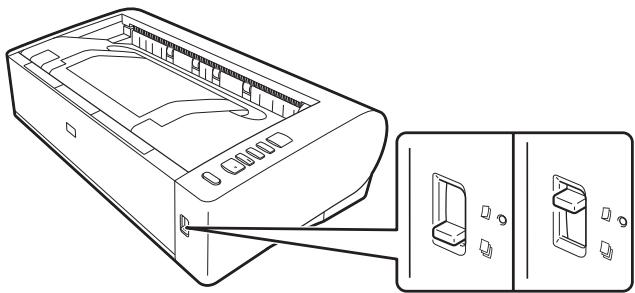

Standard feeding is used when the feed selection lever at the front of the scanner is lowered, and non separation feeding is used when it is raised.

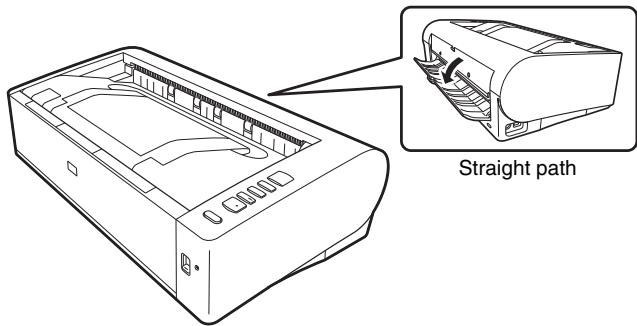

Ordinarily, you should scan with the straight path tray at the rear of the scanner closed (U-turn path). When scanning business cards, plastic cards, or other documents you do not want to bend, open the straight path tray (straight path). For details on the eject methods for each document type, see p. 19.

Switch the feed method based on the type of document you are scanning. When scanning plain paper or business cards, set the feed selection lever to the standard feeding position (lower position). The pages of a multi-page document will be separated and fed one page at a time. When scanning bound or fastened paper (e.g., invoices), set the feed selection lever to the non separation feeding position (upper position). As documents are scanned without page separation, place the documents one page at a time (one set in the case of bound or fastened paper). For details on the feed methods for each document type, see p. 19.

Switch the eject method based on the type of document you are scanning.

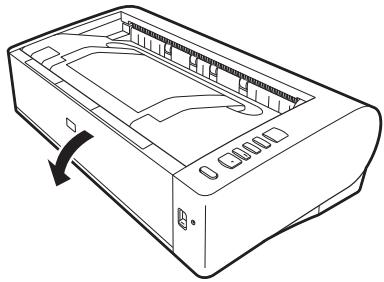

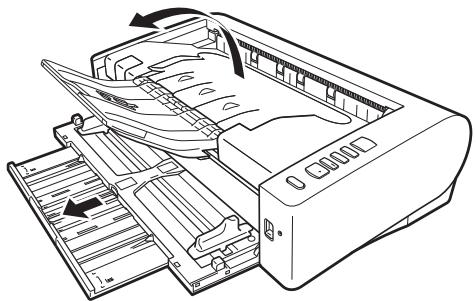

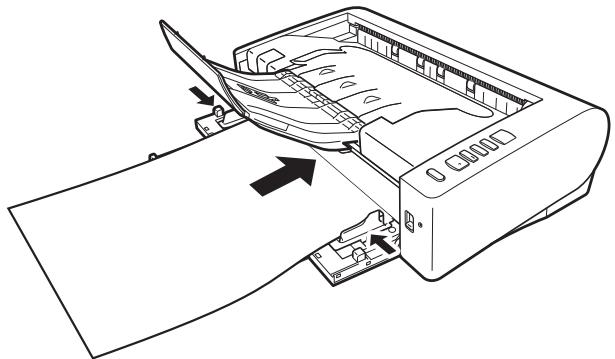

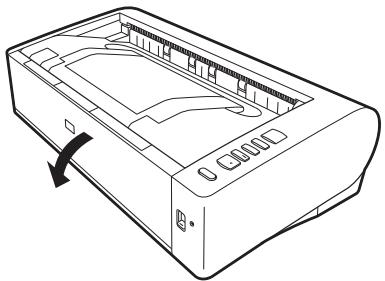

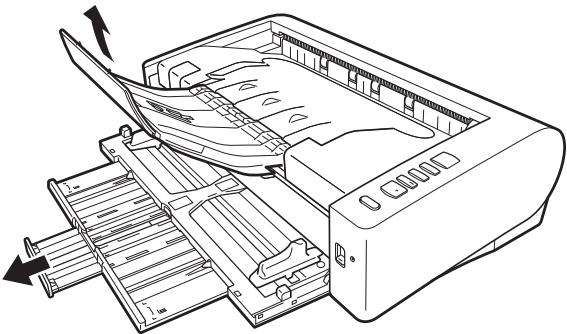

Open the document feed tray.

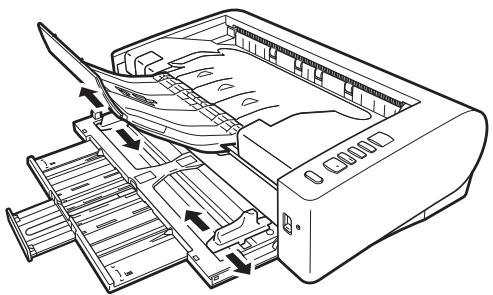

If you are scanning long documents with the U-turn path, extend the document feed support and open the eject support.

When scanning documents longer the LTR horizontal (216 mm), extend the feed support and eject support extensions.

Adjust the document guides to fit the width of the document to be scanned.

After placing the document, align the document guides with both edges of the document. IMPORTANT • When placing documents into the feed tray, take care not to cut your hand on the edges of the paper. • Make sure that the document does not exceed the loading limit marks ( ) on the document guides. Up to 80 pages of ordinary plain paper (80 g/m2) can be loaded at the same time. • Before you place a document, check to make sure it does not contain paper clips, staples, or other small metal objects. These items may cause a fire or electrical shock, damage the document, or cause a paper jam or scanner malfunction. • Do not wear loose clothing or jewelry that may get caught in the scanner while you are using it, as this may result in personal injury. Be extra careful of neckties and long hair. If anything gets caught in the scanner, immediately turn OFF the power switch, and disconnect the power cord from the power outlet to stop scanning. • Always smooth out any folds or curls in your documents before placing them into the feeder. If the leading edge of a document is curled, it may cause a paper jam. • If feeding stops due to a system error or paper jam while the scanner is scanning, resolve the problem, make sure that the scanned image of the last page that was successfully fed has been stored, and then resume scanning the remaining document pages.

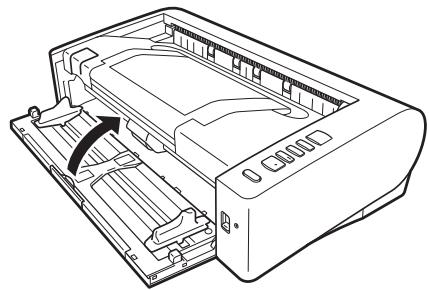

• After you finish scanning, close the document feed tray, document eject extension support, and straight path tray to prevent damage to the scanner while it is not being used. • When scanning multi-page documents that are fastened together (e.g., invoices), place the document so that the fastened edge is toward the feed tray. • Be careful when scanning paper that is longer than A3 size or thin paper, as the documents may fall off of the eject tray after scanning. • When using the straight path, documents will be ejected from the rear of the scanner. Do not place any obstructions near the document eject outlet. To ensure that the documents are ejected smoothly, make sure that the scanner is placed on a smooth, flat surface.

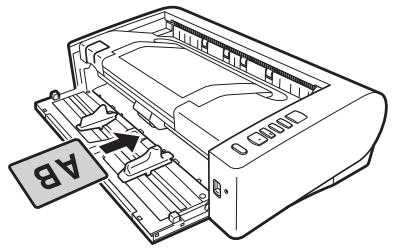

Adjust the document guides to fit the width of the card to be scanned. Place the card. Up to three non-embossed cards can be placed vertically at one time. Embossed cards must be placed one at a time and vertically.

CAUTION • Use the straight path when scanning cards. • Embossed or laminated cards may not be scanned correctly, depending on the card. • When scanning cards, clear the [Detect by Ultrasonic] check box in the [Feeding] tab on the scanner driver settings screen. (See p. 25)

Placing Folded Documents

Folio scanning allows you to scan documents that are larger than A3 and that do not fit in the feeder. To use the function, fold the document in half lengthwise and place it into the feeder. The scanner will scan both sides and combine the scanned images into a single image. By using this function in conjunction with Long Document mode, you can scan documents up to the A1 size.

Set the feed selection lever to the standard feeding position (lower position). Open the document feed tray. Open the straight path tray.

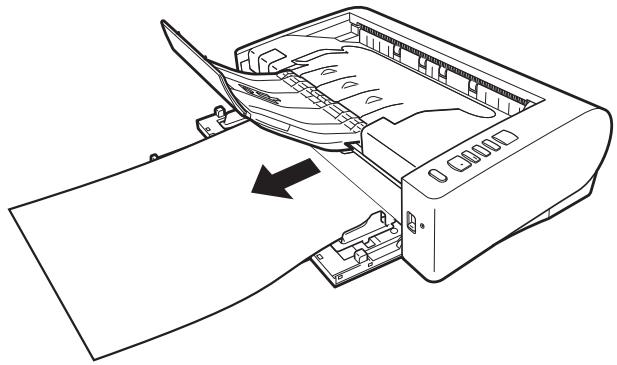

CAUTION Open the straight path tray when scanning cards. Scanning with the U-turn path may damage the card.

Set the feed selection lever to the non separation feeding position (upper position). Open the document feed tray.

Fold the document in half.

• The front side of the folded document will appear on the left side of the combined image. • The maximum size for the combined image is A1. When scanning a folded document of a size other than the standard formats, set [Page Size] on the scanner driver settings screen to [Match original size]. (See p. 34)

Crease the document firmly down its center to fold the document in half. Fold the document so that its edges are neatly aligned. If the document is not folded properly, paper jams may occur or distortions may appear in the combined scanned image. IMPORTANT A portion of the scanned image will be missing at the fold line.

Setting the Long Document Mode

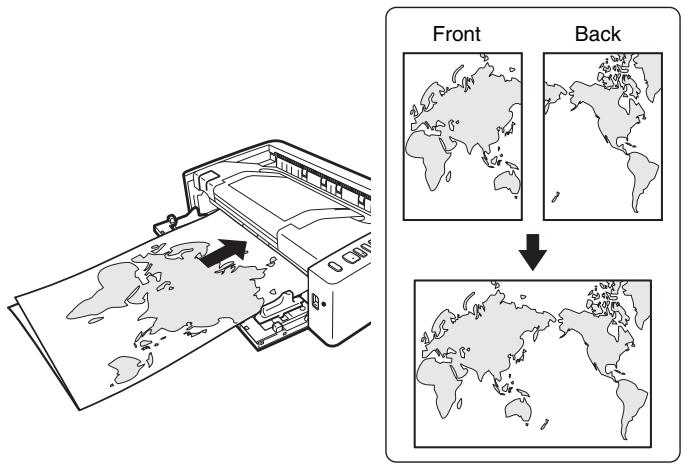

Place the document with the folded edge facing right.

The length of documents that can be scanned with the scanner is normally 432 mm (17"), but you can scan documents up to 3,000 mm (118.1") long by setting the scanner to the Long Document mode.

After placing the document, align the document guides with both edges of the document. Front

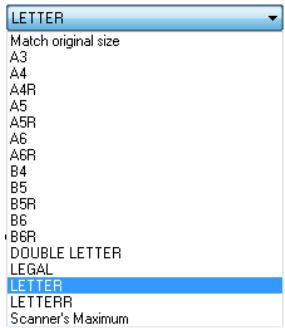

IMPORTANT By selecting the Long Document mode and setting the [Page Size] in the scanner driver settings screen to auto-detection, documents of up to 3,000 mm (118.1") (2,700 mm (106.3") with 600 dpi) in length can be scanned. Note the following when using the Long Document mode: • When scanning in the Long Document mode, if the document is placed on the scanner in a skewed position, it may hit the edges of the feeding area and be damaged. Be careful to place the document so that it is not skewed. • When scanning with the Long Document mode, paper jam detection may react slowly, resulting in damage to the document. Be careful to avoid paper jams. • When scanning long documents, make sure to set the feed selection lever to “non separation feeding mode,” and scan the documents one page at a time. • When scanning large-sized documents with the Long Document mode, scanning may be slower. Errors also occur due to memory shortage, and scanning may be disabled. • Be careful when scanning paper that is longer than A3 or letter (LTR) size or thin paper, as the documents may fall off of the eject tray after scanning.

IMPORTANT Adjust the document guides to fit the width of the document. Otherwise, the image may scan as skewed or shifted.

Start Windows and log in as a user with administrator privileges.

Click [CANON DR-M1060 USB] and click [Properties]. Scanner properties are displayed.

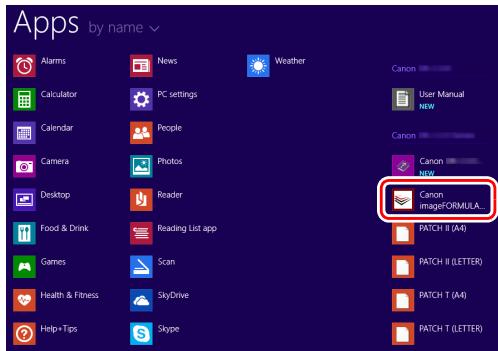

Click the Start button, and then click [All Programs], [Canon DR-M1060], and [Canon imageFORMULA Utility].

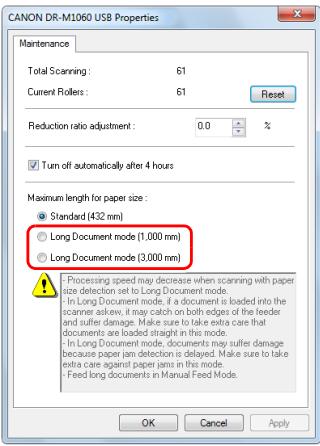

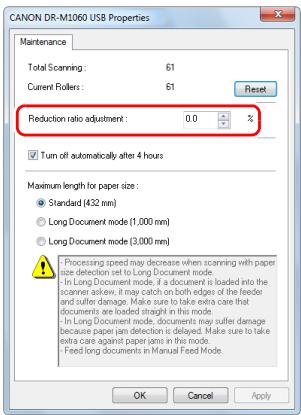

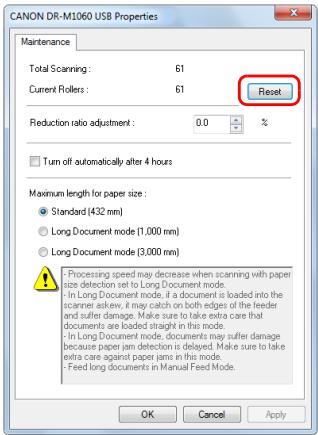

Click the [Maintenance] tab, and then select a Long Document mode. Select [Long Document Mode (1000 mm)] or [Long Document Mode (3000 mm)] depending on the length of the document.

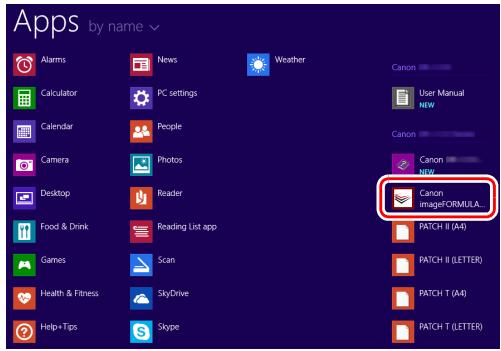

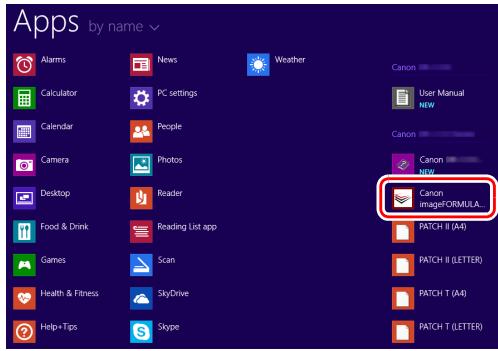

Hint Canon imageFORMULA Utility is registered to the following location in Windows 8.1.

imageFORMULA Utility starts.

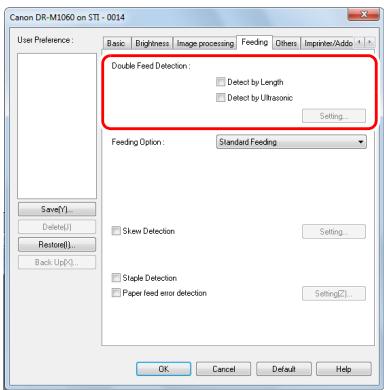

Detecting a document double feed This scanner includes a function to detect document double feeds. By using this function, the scanner will automatically stop when it detects that multiple documents have been fed at the same time. You can also specify whether to save the scanned image after scanning has finished and continue scanning the document (double feed detection ignore function). To use the double feed detection function, you must first open the scanner driver settings screen and enable double feed detection. It is also necessary to set [Rapid recovery system] to use the double feed detection ignore function.

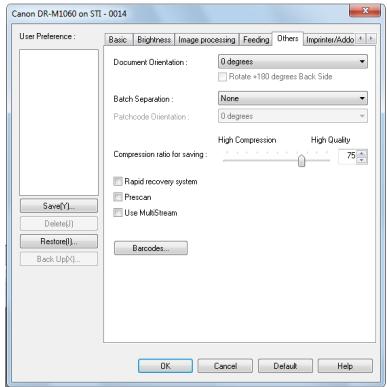

To use the double feed detection ignore function, open the [Others] tab and select the [Rapid recovery system] check box.

The settings screen for the scanner driver appears. (See p. 31) Click the [Feeding] tab.

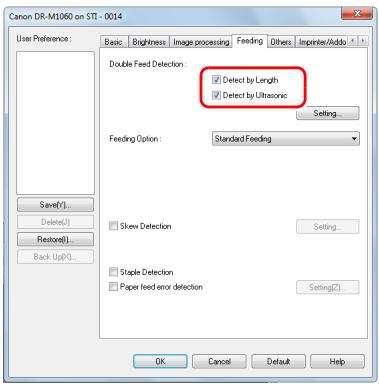

Select either the [Detect by Length] or the [Detect by Ultrasonic] check box (or both).

Click the [OK] button and close the settings screen. Place the document as described in the “Placing Documents” procedure on p. 20.

What to do when a double feed is detected

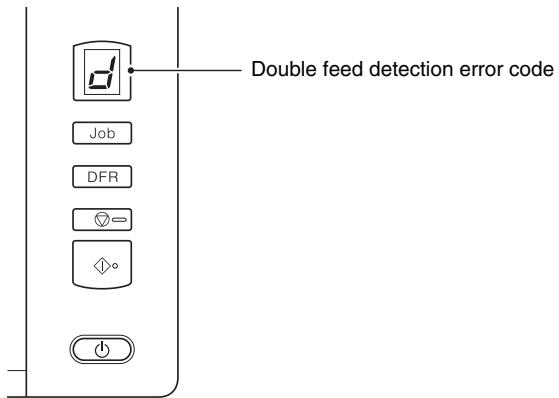

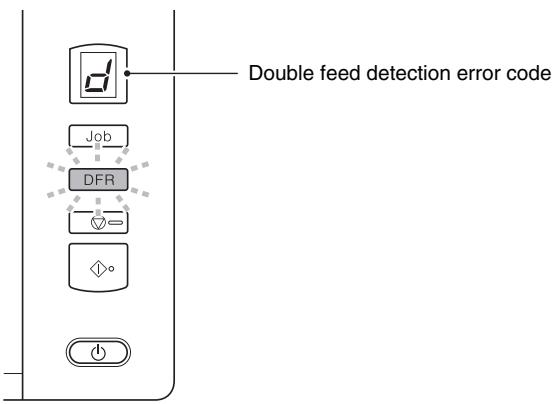

Double feed detection error code

When not using the double feed detection ignore function If a document double feed is detected during scanning, document feeding stops when the double fed documents are ejected. When this happens, the following error code is displayed in the Job No. Indicator of the operating panel.

Double feed detection error code

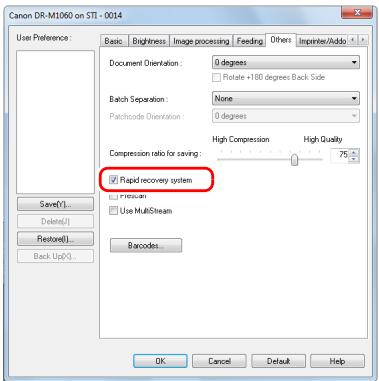

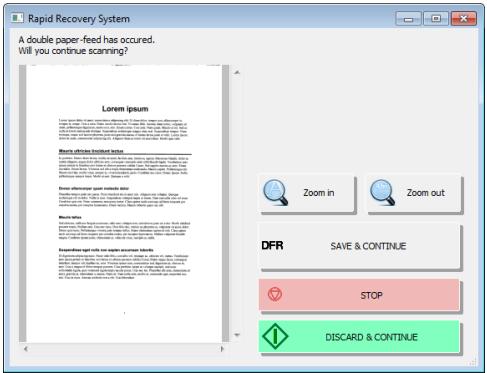

Also, the [Rapid Recovery System] screen appears to enable you to specify whether to continue scanning.

Also, a message screen is displayed to notify you that a double feed has been detected.

When this happens, stop the scanning in the application and then scan the documents again.

When using the double feed detection ignore function If a document double feed is detected during scanning, document feeding stops when the double fed documents are ejected. The following error code is displayed in the Job No. Indicator of the operating panel, and the DFR button lights.

Buttons of [Rapid Recovery System] Screen

Buttons of Operating Panel

Saves the preview image as a scanned image and scans the rest of the document.

Discards the preview image and stops scanning.

Discards the preview image and continues scanning. Place the double fed document again before clicking this button.

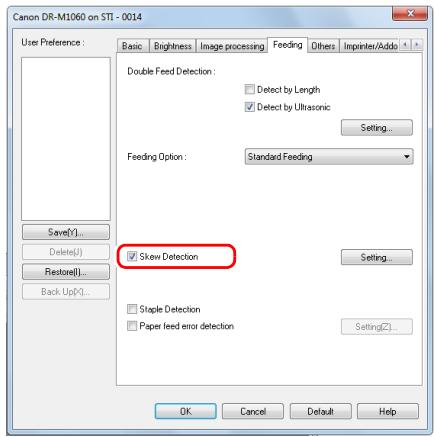

Detecting Skewed Documents This scanner includes a function that can detect when a document has been fed at a slant. When this function is used, the scanner will stop a scanning operation automatically when it detects a skewed document that exceeds a fixed angle, thereby preventing damage to the document. This function is useful for documents that are 148 mm (5.9") or larger in width. To use the skew detection function, open the scanner driver settings screen and enable the skew detection function beforehand.

Place the document as described in “Placing Documents” (see p. 20). IMPORTANT When this function is enabled, small documents and documents that have been placed to the left or right of the center of the feed inlet may be detected as skewed, and the scanning operation may stop. Place documents in the center of the feed inlet, or disable the skew detection function.

Click the [OK] button to close the settings screen.

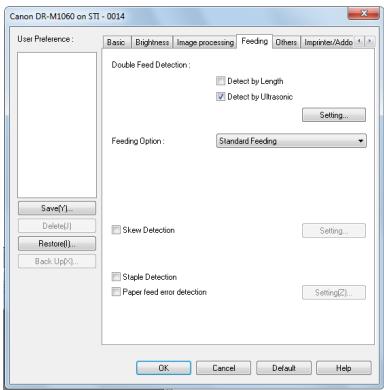

Open the scanner driver settings screen. (See p. 31) Click the [Feeding] tab.

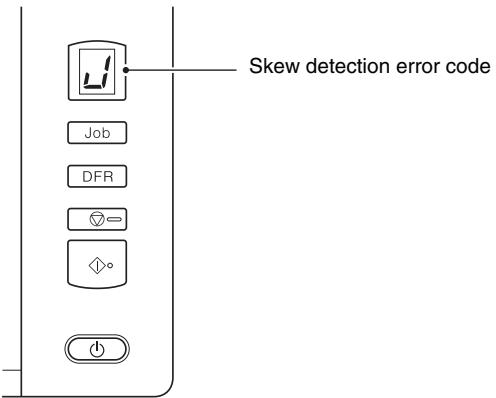

When a skewed document is detected

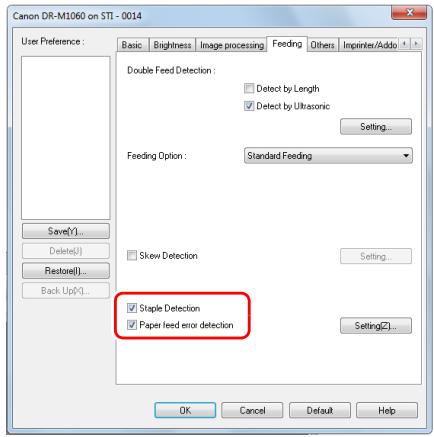

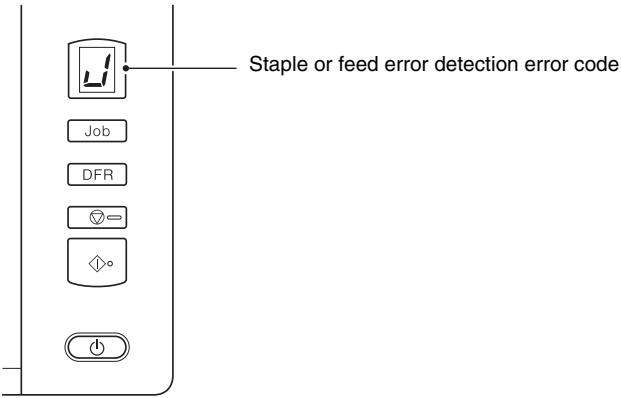

Detecting Staples and Feed Errors

Feeding automatically stops when a skewed document is detected during scanning. The following error code is also displayed in the Job No. Indicator of the operating panel.

This scanner includes a function that can detect documents that are stapled together and a function that can detect feed errors. When these functions are used, the scanner will stop a scanning operation automatically when a stapled document is fed or a feed error occurs, thereby preventing damage to the document. The feed error detection function is useful for documents that are 148 mm (5.9") or larger in width. To use the staple detection or feed error detection function, open the scanner driver settings screen and enable the staple detection or feed error detection function beforehand.

Skew detection error code

Also, a message screen is displayed to notify you that a skewed document has been detected.

Hint If [Rapid recovery system] is enabled in the [Others] tab of the scanner driver settings screen, the following screen appears instead of the above message screen. In such cases, reload the document and click [Yes] to continue scanning.

Open the scanner driver settings screen. (See p. 31) Click the [Feeding] tab. Select the [Staple Detection] or [Paper feed error detection] check box.

Click the [OK] button and close the settings screen.

• When [Rapid recovery system] is enabled in the [Others] tab of the scanner driver settings screen, the following screen appears instead of the above message screen. In such cases, place the document again, and then click [Yes] to resume scanning.

Place the document as described in “Placing Documents” (see p. 20).

When a stapled document or feed error is detected Feeding automatically stops when a stapled document or feed error is detected during scanning. The following error code is also displayed in the Job No. Indicator of the operating panel. • When sensors at both sides of the feed inlet detect the bent corner of a stapled document, an error message appears and feeding stops. Staple detection may not operate properly in the following cases where bending does not occur in documents. – The document is stapled at two or more corners. – The document is size smaller than STMT/A5.

Staple or feed error detection error code

A notification that a feed error was detected also appears on the screen.

Scanning methods Scanning with CaptureOnTouch What is CaptureOnTouch? CaptureOnTouch is a scanning application that enables you to scan a document with a simple operation merely by selecting the screen panel.

For details about the operations and functions, see the help of CaptureOnTouch.

Setting the Scanner Driver [Basic] tab

When you load the driver for the first time, the selected scanner and a dialog for selecting the default paper size are displayed. Hint • These settings will apply when [Default] is clicked in the ISIS driver dialog box. • For the TWAIN driver, the default size will be set to A4 and this cannot be modified. When you scan a document in an ISIS compatible application or TWAIN compatible application (CaptureOnTouch, etc.), open the scanner driver and configure the scanning conditions and other settings. This section describes the configuration and functions of the scanner driver.

Configuration and Functions of the Scanner Driver

Configure basic scanning conditions such as the mode, page size, resolution, and scanning side. In addition, you can click the [Area] button and specify the area to be scanned.

The scanner driver consists of the following tabs. Hint For details on the setting screen, see the Help of the scanner driver. Click the [Help] button of the driver to display help related to the corresponding tab or dialog box.

Adjust the brightness and contrast of scanned images. In addition, you can also click [Gamma] and set the gamma correction value for scanned images.

Hint Depending on the ISIS compatible application, the application may have its own screen for setting scanning conditions. If the scanner driver is opened in such an application, setting items related to the functions provided by the scanner driver other than scanning conditions will be displayed on the [Basic] tab.

[Image processing] tab

Set the processing method for scanned images.

[Feeding] tab [Brightness] tab

Specify scanner operations related to document feeding.

Setting Basic Scanning Conditions This section provides an overview of the basic setting items that are the minimum requirements when configuring the scanner settings.

Confirming Basic Conditions for Scanning When you scan a document, make sure you confirm the [Color mode], [Page Size], [Dots per inch], and [Scanning Side] basic conditions in the Basic settings dialog box.

Configure special scan method and image processing settings.

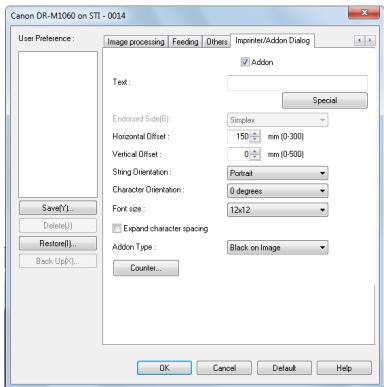

[Imprinter / Addon Dialog] tab

Color mode Select the scanning mode.

Configure settings for text that can be added onto scanned images.

• [Advanced Text Enhancement] and [Advanced Text Enhancement II] remove or process the background color and background surrounding text to enhance the text for easy reading. When [Advanced Text Enhancement II] is selected, you can make the text in scanned images easier to read by adjusting the contrast on the [Brightness] tab.

• [Detect automatically] detects whether the document is in color, grayscale, or black and white. You can configure advanced settings related to the detection method by clicking [Setting]. For details, see the Help.

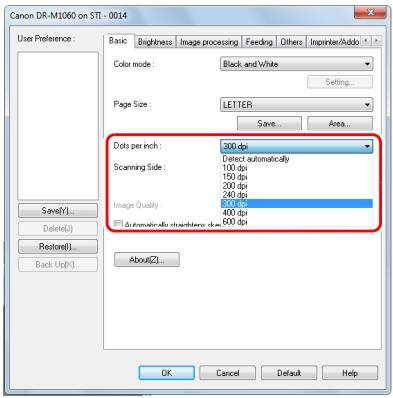

Select the scanning resolution.

Page Size Select the page size that matches the document to be scanned.

• Higher resolutions provide clearer images but result in larger file sizes and slower scanning. • When [Detect automatically] is specified, the resolution is detected automatically from the content printed in the document. • The [Moire Reduction] setting in the [Image processing] tab is enabled when the resolution is 300 dpi or lower, while the [Image Quality] setting is enabled when the resolution is set to 400 dpi or 600 dpi.

If [Match original size] is selected, the edges of the document are detected and images that match the size of the document are saved.

• When [Speed priority] is selected, a 400-/600-dpi image is generated from the image scanned at 300 dpi. The scanning speed will be faster, but the quality will be slightly reduced. • When [Image quality priority] is selected, documents will always be scanned at 600 dpi. When [Dots per inch] is set to [400 dpi], a 400dpi image will be generated from the image scanned at 600 dpi. The scanning speed will be slightly reduced.

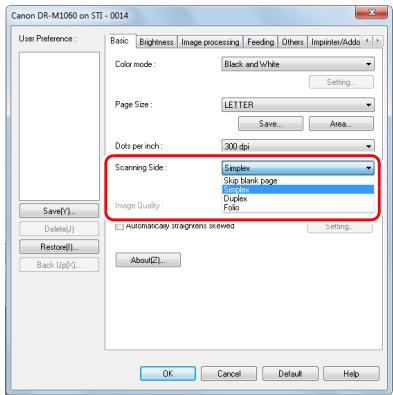

Select which of the sides of the document to scan.

Scanning Documents of Unregistered Page Sizes You can register a non-standard page size that has not been registered as a page size by naming and registering it as a custom page size in the Custom Paper Size dialog box, which is opened from the [Save] button on the [Basic] tab.

If the scanning side is set to [Skip blank page], the images of blank pages are deleted when images are saved.

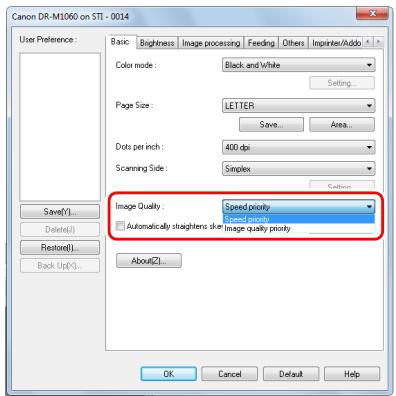

Image Quality Select the scanning quality for images. This can be configured when [Dots per inch] is set to [400 dpi] or [600 dpi].

Specifying the Scan Area

Configuring Scanner Settings According to Purpose

Configure the following settings when you want to specify the area of the document to be scanned.

Set the scanning conditions according to the scanning purpose.

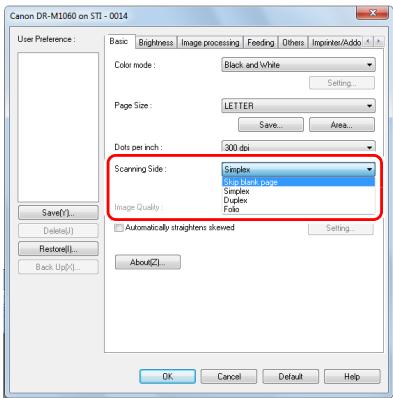

When you want to delete the images of the blank pages in two-sided documents

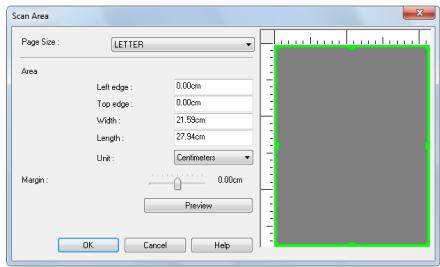

Specify the area of the document to be scanned in the Scan Area dialog box, which is opened from the [Area] button on the [Basic] tab.

Set the scanning side setting to [Skip Blank Page] on the [Basic] tab to delete the images of the blank pages in the document.

If [Skip Blank Page] is selected, the [Setting] button is enabled, and you can adjust the level for judging whether pages are blank.

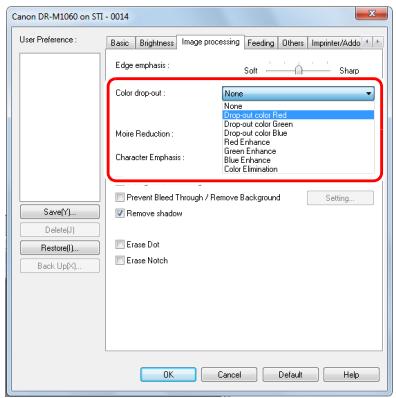

When you do not want to scan colored lines and text

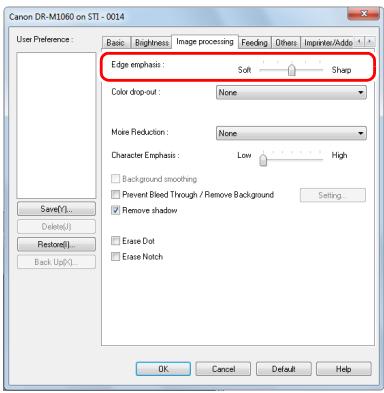

When you want to enhance contours in images

Specify the color (red, green, blue, all colors) to be ignored (dropped out) in the color drop-out settings on the [Image processing] tab, and that color will be removed from the scanned image.

Adjust the edge emphasis setting on the [Image processing] tab.

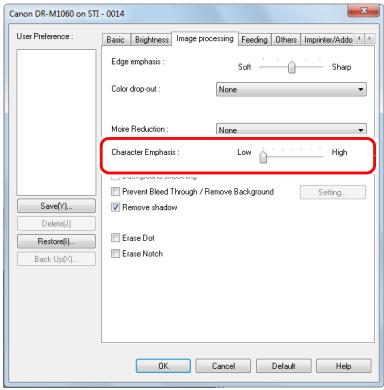

When you want to make lines and text in scanned images thicker or thinner When you want to enhance a particular color

Drag the [Character Emphasis] slider in the [Image processing] tab to make lines and text in the scanned images thicker or thinner.

Specify the color (red, green, blue) to be enhanced in the color dropout settings on the [Image processing] tab, and that color will be enhanced in the scanned image.

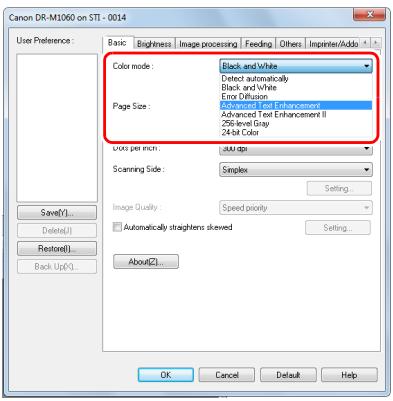

When you want to enhance text that is difficult to read because of factors such as the background of the scanned document

When you want to detect multiple pages fed at the same time Select the [Double Feed Detection] check box on the [Feeding] tab. You can enable either one or both of [Detect by Ultrasonic] and [Detect by Length].

Select [Advanced Text Enhancement] or [Advanced Text Enhancement II] in the mode setting on the [Basic] tab. The background behind the text is removed or processed so that the text is emphasized for better readability.

• Advanced Text Enhancement is suitable for a document with a light background color or a document with a non-uniform background (such as a pattern). If the background is uniform, it is removed where it surrounds the text, and if the background is non-uniform, it is processed to enhance text readability. • Advanced Text Enhancement II is suitable for scanning a document with a uniform background color and light text and background. If the background is non-uniform, such as a pattern, the background may not be able to be completely removed and the text may become difficult to read. If necessary, you can make the text in scanned images easier to read by adjusting the contrast on the [Brightness] tab.

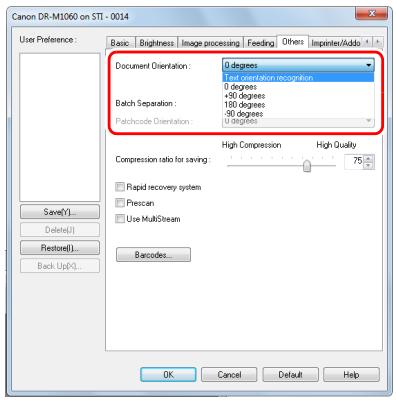

When you want to match the orientation of images to the text when scanning a mixture of pages with different text orientations

When you want to use batch separation for scanning When you want to divide and scan a document, you can separate a batch at the timing with which each next document is placed and scanned. (Only enabled for applications that support batch separation.) In this case, set the scanner driver as follows. • Set [Feeding Option] on the [Feeding] tab to [Panel-Feeding] or [Automatic Feeding].

Select [Text orientation recognition] in [Document Orientation] on the [Others] tab. The text orientation on each page is detected, and the scanned image is rotated in 90-degree increments to correct the orientation.

• Set [Batch Separation] on the [Others] tab to [Auto].

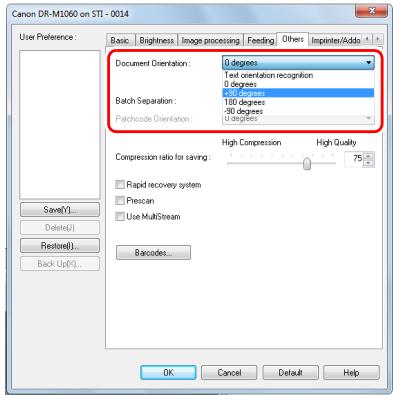

When you want to rotate the images of a document placed horizontally to correct the orientation Specify the rotation angle in [Document Orientation] on the [Others] tab.

When [Batch Separation] is set to [Auto], the batch is separated after the next document is placed and scanning is continued.

A When you want to specify different scanning conditions for the front and back pages of a document, select [Skip Blank Page] or [Both] for [Scanning Side] on the [Basic] tab in advance. B Specify the number of scanning conditions to apply in [Stream count of Front]. Up to three can be specified. C Select [Front 1st], and then open the other tabs and set the scanning conditions. Depending on the value specified for [Stream count of Front], configure the remaining [Front 2nd] and [Front 3rd] in the same way. D When specifying the scanning conditions of the back, configure the settings in the same way as described in B to C. In this case, specify [Stream count of Back], and then set the scanning conditions for each of [Back 1st] to [Back 3rd].

When [Patchcode] is set, batch separation can be performed by using a patchcode. (See p. 43) When [Blank Page] is set, batch separation is performed when an image of a blank page is inserted. Hint • When [Batch Separation] is set to [Patchcode] or [Blank Page], [New File] cannot be specified for [Increment Trigger] and [Reset Trigger] under [Counter] in the [Imprinter / Addon Dialog] tab. • When [Increment Trigger] or [Reset Trigger] is set to [New File] under [Counter] in the [Imprinter / Addon Dialog] tab, [Patchcode] or [Blank Page] cannot be specified for [Batch Separation].

When you want to use multistream settings for scanning

Multi-stream allows you to output multiple different scanned images with a single scan operation, and output scanned images with different scanning conditions for each of the front and back pages (multistream settings). When you want to use the multistream settings for scanning, select the [Use MultiStream] checkbox on the [Others] tab to display the setting items related to multistream, and then configure the setting items in the following order.

The following shows the setting conditions that can be set in the multistream settings.

Items that can be set

[Color mode] and [Dots per inch] (excluding [Auto-detection] for both)

[Brightness] and [Contrast]

None (only [Use MultiStream] is enabled)

• Select the [Erase Notch] check box to remove notches that protrude from object outlines in scanned images.

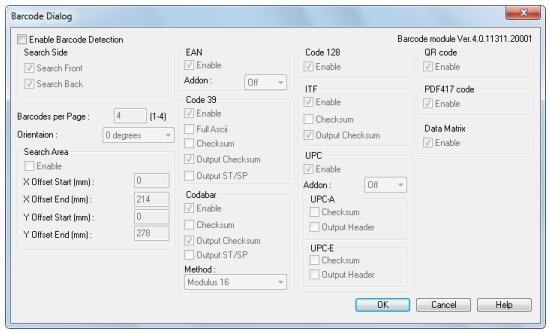

Click the [Barcode] button on the [Others] tab to configure barcode scanning conditions.

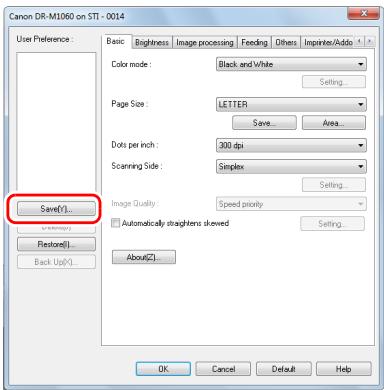

When you want to save a scanner driver setting When you finish configuring a setting, click the [Save] button of [User Preference] to save the setting.

See Help for details about settings.

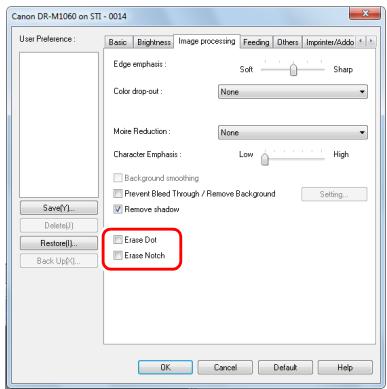

When you want to remove dots and notches that appear in documents You can remove dots and notches protruding from object outlines that appear in documents from scanned images.

The saved setting is registered to the list. You can delete a setting from the list with the [Delete] button, and save or load a configuration file with the [Back Up] or [Restore] button.

• Select the [Erase Dot] check box to automatically remove isolated black dots (3 x 3 dot size) from white backgrounds (or white dots from black backgrounds).

Function Restrictions Depending on Mode Setting Some of the setting items in each of the driver tabs are disabled as follows depending on the setting for [Color Mode] on the [Basic] tab. [Brightness] tab

(O: Available for setting, X: Not available for setting)

(O: Available for setting, X: Not available for setting)

(O: Available for setting, X: Not available for setting) 1) Not available for setting if all of the following conditions in the [Auto Image Type Detection Settings] dialog box are met. • [Detection mode] is not set to [Color or Gray] • [Mode in case of binary] in the [Settings for in case of binary] tab is set to [Advanced Text Enhancement] or [Advanced Text Enhancement II] 2) Not available for setting if either one of the following two conditions are met. • [Detection mode] in the [Auto Image Type Detection Settings] dialog box is set to [Color or Gray] • [Mode in case of binary] in the [Settings for in case of binary] tab is set to [Error Diffusion] 3) Not available for setting if [Detection mode] is set to [Color or Gray] in the [Auto Image Type Detection Settings] dialog box.

More Advanced Scanning Methods The following operations are performed when using patchcodes for scanning.

Using a Patchcode for Scanning DR-M1060 supports batch separation (automatic file separation) functions by using patchcodes. By tucking patchcode sheets supplied with this scanner into a document and scanning it, the scanner can automatically separate files by images of documents containing patchcode sheets (or documents after the patchcode sheet).

Click [Start] – [All Programs] – [Canon DR-M1060] and then select [Patchcode] from the menu. Patchcodes can be printed in A4 and letter (LTR) sizes. Open the application and print a patchcode that is the same size as the document to be scanned.

Hint Patchodes are included with this product in PDF format. Applications that can read PDF files are required to use this function. The following patchcodes are installed together with the scanner driver as PDF files. Type of Patchcode

Files are separated from the page after the page printed with this patchcode. You specify in the application whether to include the page printed with the patchcode in the scanned image.

Files are separated from the page printed with this patchcode. The page with the printed patchcode is always included in the scanned image.

Print patchcode with a printer.

• Keep the patchcode sheet clean. Take particular care to keep the patchcode detection range area clean. Also, do not bend, fold or crease the sheet.

Hint The patchcode sheets are registered to the program list in Windows 8.1.

Place the documents in the scanner after inserting the patchcode sheet in front of the page that separates the files.

Insert the patchcode sheets at the beginning of documents to change file separation.

• Patchcodes must be printed in their normal size. If patchcodes are enlarged or reduced, they may not be recognized correctly. • When copying provided patchcodes to create different sized patchcodes, ensure that the patchcode fits inside the effective range shown in the following diagram. Also, when copying patchcodes, ensure that they are the same size and shade as the original. 5 mm (0.2")

5 mm (0.2") (effective range for detecting patchcodes)

Open the scanner driver settings screen and select [Patchcode] in [Batch Separation] on the [Others] tab.

Maintenance Daily Maintenance Clean the scanner on a regular basis, as described below, to maintain peak scanning quality.

Cleaning the Inside of the Scanner Dust or paper particles inside the scanner may cause lines or smudges to appear on scanned images. Use a dry cloth, for example, to periodically remove dust and paper particles from the inside of the scanner. Use compressed air to remove any dust that cannot be removed with the cloth. After finishing a large scanning job, turn OFF the scanner and then clean out any paper particles remaining inside the scanner.

CAUTION • When cleaning the scanner and the inside of the scanner, turn OFF the power switch and disconnect the power cord from the power outlet. • Do not use spray cleaners to clean the scanner. Precision mechanisms, such as the light source, may get wet, and cause a malfunction. • Never use paint thinner, alcohol, or other organic solvents to clean the scanner. The exterior of the scanner may become deformed, discolored, or melted. It may also cause a fire or electric shock.

Cleaning the Sensor Glass and the Rollers If scanned images contain streaks, or if the scanned documents become dirty, the sensor glass or rollers inside the scanner may be dirty. Clean them periodically.

Cleaning the Scanner To clean the outside of the scanner, wipe off any dirt with a cloth that has been dampened with water and thoroughly wrung out, and then wipe the scanner dry with a clean dry cloth.

Open the document feed tray.

Raise the OPEN lever, and open the upper unit.

Wipe any dirt off the scanning glass. Wipe any dirt off the scanning glass with a cloth that has been dampened with water and thoroughly wrung out, and then wipe the glass dry with a clean, dry and soft cloth.

Use a dry cloth, for example, to remove dust and paper particles from the inside of the scanner. Use compressed air to remove any dust that cannot be removed with the cloth. Scanning Glass

CAUTION Do not spray water or neutral detergent directly on the scanner. Precision mechanisms, such as the light source, may get wet, and cause a malfunction. TEMPERATURE WARNING The inside of the scanner can become very hot after continuous operation. Do not touch the scanning glass and metallic portions of the retard roller directly. Be sure to allow sufficient cooling before performing cleaning or replacement. IMPORTANT Scratches on the sensor glass may cause marks on the images, as well as feeding errors. If there are scratches on the sensor glass, contact your local authorized Canon dealer or service representative.

Clean the rollers. Clean the rollers while turning them. Wipe the rollers with a cloth that has been dampened with water and thoroughly wrung out, and then use a clean, dry and soft cloth to wipe away any moisture.

Remove the retard roller and feed roller. (See p. 51, p. 52) IMPORTANT Remove the retard roller and feed roller from the scanner to clean them, and be sure to reattach them to the scanner when cleaning is finished.

Wipe the removed rollers with a cloth that has been dampened with water and thoroughly wrung out.

Reattach the retard roller and feeding roller. (See p. 51, p. 52) Close the upper unit by gently pushing down on the left and right sides. Push until it clicks into place to make sure that it is completely closed.

10 Close the document feed tray.

Hint Canon imageFORMULA Utility is registered to the following location in Windows 8.1.

Adjusting the Reduction Ratio As the rollers installed in the scanner wear out, scanned images may become stretched in the vertical direction. If this happens, you can reduce the amount of stretching of the image by adjusting the reduction ratio.

imageFORMULA Utility starts.

Start Windows and log in as a user with administrator privileges. Click the Start button, and then click [All Programs], [Canon DR-M1060], and [Canon imageFORMULA Utility].

Replacing Consumable Parts

Scanner properties are displayed.

The feed roller and retard roller are consumable parts. The feed roller and retard roller wear with scanning. If the feed roller and retard roller are worn, documents may not feed correctly and paper jams and double feeds may occur. When more than 250,000 pages have been fed (total number of pages fed by the scanner), a message prompting you to replace the rollers is displayed when the computer is started.

Click the [Maintenance] tab and then change the value of [Reduction ratio adjustment]. The adjustment value can be set within the range from -3.0% to 3.0%.

If this message begins to be displayed at startup, purchase an exchange roller kit and replace the worn parts with the consumable parts included in the kit (feed roller and retard roller). See p. 65 for details about the exchange roller kit. Furthermore, the counter in the scanner that records the number of pages fed also needs to be reset when you replace the rollers. (See p. 53)

Opening and Closing the Upper Unit

Click [OK] to close the scanner properties.

Open the document feed tray.

Raise the OPEN lever, and open the upper unit.

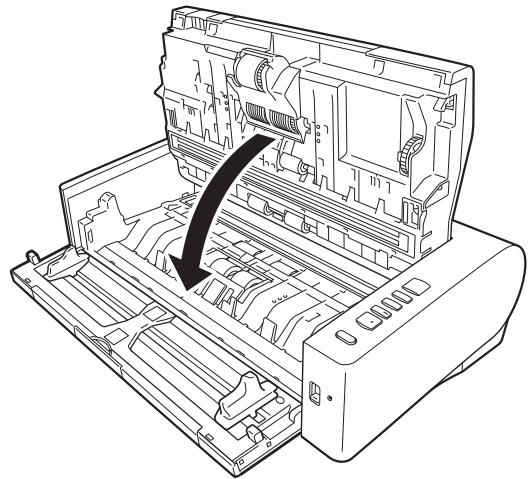

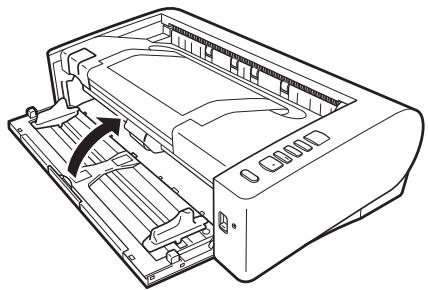

Close the upper unit by gently pushing down on the left and right sides. Push until it clicks into place to make sure that it is completely closed.

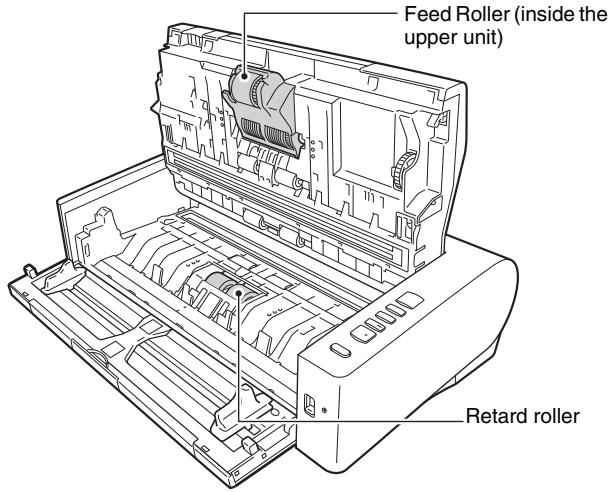

Hint The location of each of the consumable parts is shown below. Feed Roller (inside the upper unit)

Close the document feed tray.

TEMPERATURE WARNING The inside of the scanner can become very hot after continuous operation. Do not touch the scanning glass and metallic portions of the retard roller directly. Be sure to allow sufficient cooling before performing cleaning or replacement.

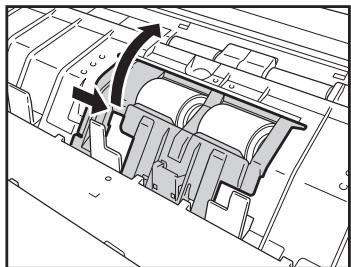

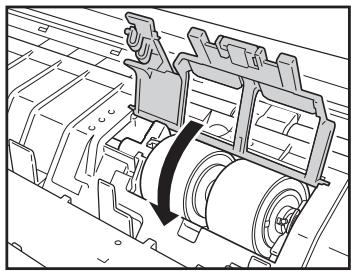

Slide the roller cover from the left to the center while opening it.

Raise the securing lever for the retard roller toward you, and slide it to the left.

Slide the securing lever for the retard roller to the right, and lower it backward.

Press the roller cover to close it.

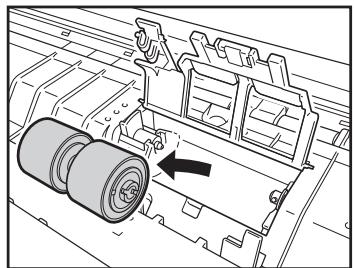

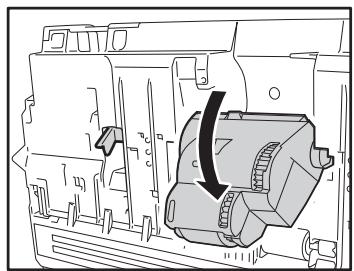

Lower the feed roller toward you while removing it from the left.

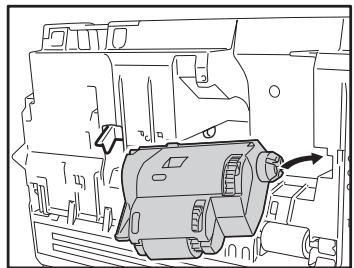

Replacing the Feed Roller

Lift the securing lever for the feed roller forward.

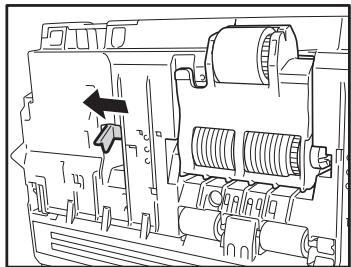

Slide the securing lever for the feed roller to the left.

Remove the feed roller.

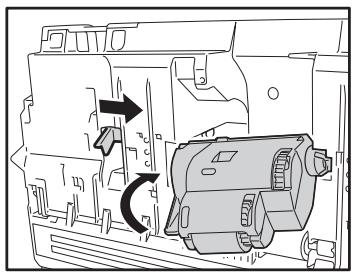

Attach the right joint of the new feed roller.

Attach the left side of the feed roller, and slide the securing lever for the feed roller to the right.

Canon imageFORMULA Utility is registered to the following location in Windows 8.1.

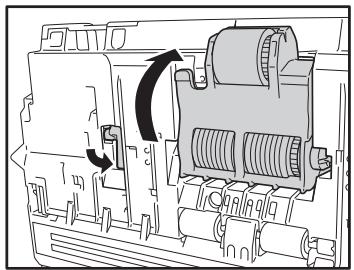

Raise the feed roller toward the back until the securing lever clicks into place. imageFORMULA Utility starts.

Resetting the counter

Click [Canon DR-M1060 USB] and click [Properties]. Scanner properties are displayed.

Start Windows and log in as a user with administrator privileges. Click the Start button, and then click [All Programs], [Canon DR-M1060], and [Canon imageFORMULA Utility].

The scanner automatically turns off if 4 hours elapse without scanning or another operation being performed. To disable this setting, follow the procedure below.

Start Windows and log in as a user with administrator privileges. Click the Start button, and then click [All Programs], [Canon DR-M1060], and [Canon imageFORMULA Utility]. Hint Canon imageFORMULA Utility is registered to the following location in Windows 8.1.

The counter for [Current Rollers] resets.

Click [OK] to close the scanner properties.

imageFORMULA Utility starts.

Click [Canon DR-M1060 USB] and click [Properties]. Scanner properties are displayed.

Click the [Maintenance] tab and then clear the [Turn off automatically after 4 hours] check box.

Click [OK] to close the scanner properties.

Troubleshooting Common Problems and Solutions This section provides recommended solutions to common problems. If you have a problem that is not solved by the following, contact your local authorized Canon dealer. Problem 1

The scanner will not turn on.

Confirm that the AC adapter is plugged firmly into a power outlet.

The scanner is not recognized.

(1) Confirm that the scanner is properly connected to the computer with a USB cable. (2) Confirm that the scanner is turned on. See the previous problem (1) if the scanner does not turn on. (3) The computer’s USB interface may not support the scanner. The scanner cannot be guaranteed to work with all USB interfaces. (4) Confirm that the supplied USB cable is used to connect the scanner to the computer. The scanner cannot be guaranteed to work with all available USB cables. (5) If the scanner is connected to the computer via a USB hub, try removing the hub and connecting directly to the computer.

Documents feed askew (scanned images are slanted).

(1) Align the document guides to fit the documents as closely as possible, and load the documents so that they feed straightly. (2) Enable [Skew Detection] in the scanner driver settings. (3) If many pages have been scanned since roller cleaning, clean the rollers. If documents still feed askew, roller replacement or other maintenance may be needed. See Chapter 7 Maintenance for roller replacement procedures.

Documents are not scanned according to the settings configured in the scanner driver.

When you scan using [Select document] panel registered with CaptureOnTouch, the CaptureOnTouch settings have priority over the scanner driver settings. Edit settings in the [Select document] panel, or create a new [Select document] panel using the desired scanning conditions.

If white lines or streaks appear in scanned images.

Clean both sides of the scanner glass, and the rollers. If a sticky substance such as glue or correction fluid is found, carefully wipe with just enough pressure to clean the area where the lines appear. If the problem cannot be solved by cleaning, the internal glass may be scratched. Contact your local authorized Canon dealer.

When the scanner driver’s [Scanning Side] setting is [Skip Blank Page], documents with very little black may be unintentionally skipped. Click the [Setting] button and decrease the [Set the likelihood of skipping blank page] value, or select another scan mode setting such as [Simplex] or [Duplex]. If pages are skipped due to the document double feeding, see “Problem 7 Documents jam (or double-feed)”.

Documents jam (or double-feed).

(1) If the roller has been installed correctly, clean it if necessary. (2) Proper scanning may not be possible when document pages stick together due to static electricity. Fan the documents before you load them. (3) Set the scanner to Non separation feeding mode, and manually feed the scanner one page at a time.

Multiple pages of scanned images cannot be saved to a single file.

Depending on the file format, multiple scanned image pages cannot be saved as a single file with CaptureOnTouch. File type

Processing for multiple pages

PNG Scanned images are always saved one page per file.

PPTX Multi-page images are always saved to a single file.

TIFF, PDF You can save multiple pages to a single file by clicking and selecting [Create 1 file for pages of a document] in the displayed dialog box.

All of the placed documents have been scanned, but the scanned image does not appear on the application.

When [Panel-Feeding] or [Automatic Feeding] is selected as the feeding method on the scanner driver’s setting screen, a scanning operation will not continue after all of the documents are fed, as the scanner awaits additional documents to be fed. You can finish the operation and send the scanned images to the application by pressing the Stop button on the operating panel.

Problem 11 Memory becomes insufficient and scanning stops. Solutions

Problem 12 The CaptureOnTouch plug-in and Captiva Cloud do not function. Solutions

Problem 10 Scanned images of multiple pages cannot be saved in a single JPEG or BMP file. Solutions

If you configure scanning conditions that use a large amount of the computer’s memory, scanning may stop because of insufficient memory. Although this depends on the computer’s memory size, the possibility of insufficient memory increases if any of the following scanning conditions overlap. • [Color Mode] is set to [24-bit Color] • A large page size (e.g. A3) is specified as the [Page Size]. Alternatively, the page size is set to [Scanner’s Maximum]. • A high resolution (600dpi etc.) is specified for [Dots per inch]. If an error message appears due to insufficient memory while scanning is in progress, exit the application, change the scanning conditions (e.g. reduce the resolution or page size) and then try scanning again. In addition, the amount of memory used can be contained by turning off [Moire Reduction] and [Prevent Bleed Through / Remove Background] if they are set to on.

Multiple scanned images cannot be saved in a single JPEG or BMP file. Save the images in either multi-page TIFF or PDF format.

• Install .NET Framework if it is not already installed. • If you are using Windows Server 2012 R2, verify that Microsoft .NET Framework is enabled. If .NET Framework is disabled on the operating system, the above applications will not function.

Software Troubleshooting This section describes troubleshooting problems and solutions for operating the supplied software (CaptureOnTouch). If scanning is too slow (1) Close other running programs, if any. (2) Scanning can be slowed down by memory shortage caused by memory-resident applications such as anti-virus programs. Close such memory-resident programs if necessary to free up memory space. (3) When insufficient hard disk space is available, the scanner may be unable to create the necessary temporary files for scanned data. Delete unneeded data on the hard disk to free up more space. (4) Scanning is slow if the computer’s USB port is not Hi-Speed USB 2.0 compliant. (5) If using a common USB cable that is not Hi-Speed USB 2.0 compliant, replace the cable with the supplied compliant cable. (6) When the scanner is connected to the computer via a USB hub that is not Hi-Speed USB 2.0 compliant, remove the hub and connect the scanner directly to the computer. If scanned image files cannot be opened in an application (1) Scanned images saved as multi-page TIFF files can be opened only by programs that support this file format. (2) Images saved as compressed TIFF files (single- as well as multipage) can only be opened by programs that support the compressed format. This can occur with programs that are not compatible with CaptureOnTouch. In this case, select “None” as the image file compression format before scanning. There is a display glitch on the UI screen of CaptureOnTouch. Depending on the computer that you are using, a display glitch may occur on the UI screen when there are too many Scan mode panels, Select output panels, or Scanning Shortcut panels. Delete any panel that you will not use.

Useful tips Click the [Detail Settings] button on this screen. You can set the file names of scanned images by setting all or some of the three items shown below.

Here are some useful tips for scanning documents. Where are scanned images saved? Can the save destination be changed? Images are saved to the following locations, according to program settings. All destination locations can be changed to other folders. Both Standard Scanning and Scanning Shortcut save the output to the destination set in the [Select output] panel. How are the scan settings configured? By clicking the Edit button ([ ]) in the [Select document] panel, you can edit the scan settings when the [Select document edit screen] opens. How do I save multiple pages in one file, or save one file per page? When scanned images are saved in BMP,JPEG or PNG format, each image is always saved in a separate file. When scanned images are saved in PDF or TIFF format, you can specify multi- or single-page files. See also “Problem 8” in “Common Problems and Solutions”.

Any specified text string to be included in the file name.

Appends the date and time to file names. Select the date format from the list box. YYYY = year, MM = month, and DD = day of month. The time is appended after the date.

Add counter to file name

Append serial numbers in the order of scanned image saving. Specify the number of digits and starting number.

A sample file name is displayed as the [File name] in the [File name settings] dialog box. How do I scan half-folded documents (folio scanning)? Fold the document in half, and set it in the scanner with the fold at the right. Specify half-size document (the size after folding) and select [Folio] for the [Scanning side], then scan. For details, see p. 22.

Can I copy or back up scanner setting configurations? The setting configurations can be backed up and restored using [Back Up/Restore] on the [Basic settings] tab on the [Environmental settings] dialog box.

How can I skip blank pages, and scan only non-blank pages? Specify [Skip Blank Page] on the scanner driver setting screen, then scan.

What rules apply to scanned image file names? For both Standard Scanning and Scanning Shortcut, the file names of scanned images are set based on the settings in the [Select output] panel. This screen opens when you click the Edit button ([ ]) in the [Select output] panel.

How do I scan cards? Place the cards in the scanner vertically. Specify the size of the card (or [Match original size]) in the scanner settings, and then scan. For details, see p. 22. How do I load and scan documents with mixed sizes? Set [Page Size] to [Match original size] on the scanner driver setting screen, then scan. For details, see p. 34.

What is the best way to scan business cards or photos? Set [Page Size] to [Match original size] on the scanner driver setting screen, then scan. Alternatively, register the size of the cards or photos to be scanned. For details, see p. 35. How do I print scanned data? • For both Standard Scanning and Scanning Shortcut, select [Print] in the [Select output] panel. • To use this function, you need to install a plug-in. • The plug-in can be installed by selecting its checkbox when installing CaptureOnTouch. I want to save to other folders • In CaptureOnTouch, destinations other than [Save to folder] are provided as a plug-in. • By installing the plug-in, the scanned image can be printed, attached in an e-mail, or shared using various cloud services. • The plug-in can be installed by selecting its checkbox when installing CaptureOnTouch. • The available output destinations vary depending on the installed plug-in. How can I attach scanned data to an e-mail (or send it as e-mail)? • For both Standard Scanning and Scanning Shortcut, select [Attach to E-mail] in the [Select output] panel. • To use this function, you need to install a plug-in. • The plug-in can be installed by selecting its checkbox when installing CaptureOnTouch. How do I add Bates numbering to scanned images? Enter the necessary items under [Text] in the [Imprinter/Addon Dialog] tab on the scanner driver setting screen, then scan.

Clearing Paper Jams, Skewed Documents, Stapled Documents, and Feed Errors When paper jams and skewed documents are detected during scanning, the following error codes are displayed in the scanner’s display panel and scanning is interrupted.

Raise the OPEN lever, and open the upper unit.

Paper jam error code Skew, staple, or feed error detection error code

When a paper jam or double feed occurs during scanning, use the following procedures to clear them. CAUTION Be careful when removing jammed paper. take care not to cut your hand on the edges of the paper.

The “C” error code appears in the operating panel when the upper unit is open..

Remove the jammed document.

Close the upper unit by gently pushing down on the left and right sides. Push until it clicks into place to make sure that it is completely closed.

TEMPERATURE WARNING The inside of the scanner can become very hot after continuous operation. Do not touch the scanning glass and metallic portions of the retard roller directly. Be sure to allow sufficient cooling before performing cleaning or replacement.

After removing the jammed paper, check to see if the last page was scanned correctly, and then continue scanning. Hint When the [Rapid recovery system] check box is enabled in the scanner driver settings screen, you can resume a scanning operation even if it is interrupted by a paper jam by removing the document and resuming from the document that was being fed when the interruption occurred. As the image of the document that was being fed at the time of the interruption may not be saved in such cases, be sure to verify the last scanned image before resuming the operation.

IMPORTANT Make sure to pull the document out carefully, without applying too much force. If the jammed paper tears while you are pulling it out, make sure to remove any remaining pieces from inside the scanner.

Uninstalling the Software If the ISIS/TWAIN driver, CaptureOnTouch is not operating normally, follow the procedure below to uninstall them. Then, re-install the software from the Setup disc. IMPORTANT Log on to Windows as an Administrator.

From the Windows task bar, click Start button  click [Windows System]  click [Control Panel]. The Control Panel appears.

Click [Uninstall a program]. From the Programs list, select the software you want to remove and then click [Remove]. The delete confirmation screen appears.

Click [Yes]. Click [Finish]. Uninstallation of the software is now complete.

Appendix Specifications Main Unit

Eject method: Straight path only Card Size: 54 mm x 86 mm (2.2" x 3.4") (ISO standard) Card thickness: 0.76 mm (0.03") or less, 1.4 mm (0.055") or less for the embossment Orientation: Vertical feeding only Eject method: Straight path only Loading capacity: 3 cards (non-embossed), 1 card (embossed) Scanning resolution: Up to 300 dpi (embossed card) Scanning Sensor Contact image sensor Light source LED Scanning Side Simplex/duplex Scanning modes Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color Scanning resolution (Primary Scan Lines x Secondary Scan Lines) 100 x 100dpi/150 x 150dpi/200 x 200dpi/ 240 x 240dpi/300 x 300dpi/400 x 400dpi/ 600 x 600dpi Scanning Speed (Conditions: Core i7 2.8 GHz CPU, 4 GB memory, A4 horizontal document size) Grayscale Simplex 200dpi 60 pages/min. 300dpi 60 pages/min. Duplex 200dpi 120 images/min. 300dpi 120 images/min. 24-bit Color Simplex 200dpi 60 pages/min. 300dpi 40 pages/min. Duplex 200dpi 120 images/min. 300dpi 80 images/min. Interface Hi-Speed USB 2.0 Other functions Folio scanning, double feed detection ignore

Type Desktop sheetfed scanner Scanning Document Size Plain Paper Size Width: 50.8 mm to 300 mm (2" to 11.8") Length: 70 mm to 432 mm (2.8" to 17") (You can scan documents up to 3,000 mm (118.1") long by setting the scanner to the Long Document mode.) Paper weight: U-turn path (page separation): 27 to 128 g/m2 (0.04 mm to 0.15 mm) U-turn path (bypass): 27 to 164 g/m2 (0.04 mm to 0.2 mm) Straight path: 27 to 255 g/m2 (0.04 mm to 0.3 mm) Loading capacity: 80 sheets (Size: A3 or smaller (Same type document only), Paper weight: 70-100 g/m2, Temperature: 15°C to 27.5°C (59 °F to 81.5 °F), Humidity: 25% to 75% RH) Total thickness: 10 mm or less Scanning mixed-size documents in the same batch: A4 size or smaller: Maximum of 60 sheets (Make sure stacks do not exceed 11 mm in height.) Larger than A4 size: Maximum of 25 sheets (Make sure stacks do not exceed 8 mm in height.) (for 80 g/m2 (22 lb bond) paper in both case) Business Card Size: Width: 50.8 mm to 55 mm (2" to 2.2") Length: 85 mm to 91 mm (3.4" to 3.6") Paper thickness: 128 to 380 g/m2 (0.15 mm to 0.45 mm) Orientation: Vertical feeding only Eject method: Straight path only Postcard Size: Width: 88.9 mm to 108 mm (3.5" to 4.3") Length: 127 mm to 152.4 mm (5" to 6") Paper thickness: 128 to 300 g/m2 (0.15 mm to 0.4 mm)

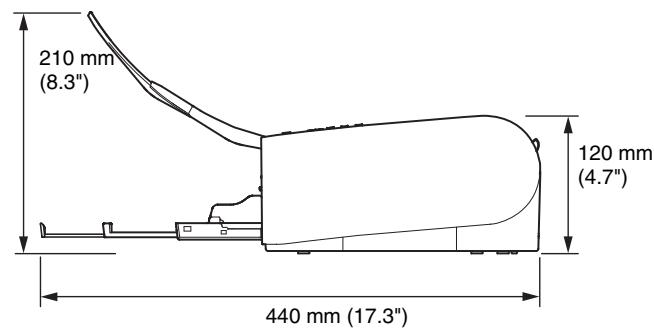

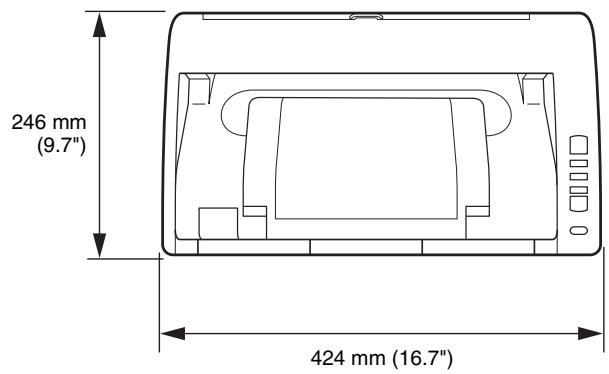

External Dimensions When trays are closed: 424 mm (16.7") (W) × 246 mm (9.7") (D) × 120 mm (4.7") (H) When trays are opened: 424 mm (16.7") (W) × 440 mm (17.3") (D) × 210 mm (8.3") (H) Weight (without AC adapter) Approximately 6.1 kg (13.5 lb) Power Supply (using AC adapter) DC24V 1.3A Power Consumption Scanning: Maximum 32.5 W In the Sleep mode: Maximum 2.5 W With power switch OFF: Maximum 0.5 W Noise Not more than 56 dB Operating Environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)

Humidity: 20% to 80% RH Option Flatbed scanner unit 102 (product code: 2152Cxxx) Flatbed scanner unit that can be connected to and used with a DR scanner. Connecting the unit to this scanner enables you to use this scanner as a flatbed scanner with an automatic document feeder. Flatbed scanner unit 201 (product code:6240Bxxx) A flatbed scanner unit that can be used by connecting to a DR scanner and supports A3 size paper. Connecting the unit to this scanner enables you to use this scanner as a flatbed scanner with an automatic document feeder. Network adapter NA10 (product code: 2998Cxxx) This is an optional adapter for connecting the scanner to the network via wired LAN. Network adapter WA10 (product code: 2999Cxxx) This is an optional adapter for connecting the scanner to the network via wired LAN or wireless LAN.

AC Adapter (100 to 240 V type) Model Number Input Output Weight

MG1-5039 AC100 to 240V, 50/60 Hz, 1.06 to 0.6 A DC24V 2.0A Approximately 0.3kg (0.66 lb) (excluding power cord)

Specifications are subject to change without notice due to product improvements.

Specifications are subject to change without notice due to product improvements.

Replacement Parts Exchange roller kit (product code: 9691B001) Kit to replace the rollers (feed roller unit, retard roller). • For the replacement procedure, see “Replacing Consumable Parts” on p. 49. • Contact your local authorized Canon dealer or service representative for detailed information about the replacement parts.

About the Flatbed Scanner Unit 101/ 201

The optional Flatbed Scanner Unit 101/201 can be connected to and used with this scanner.

System requirements The computer must comply with the necessary system requirements of Flatbed Scanner Unit 101/201. The scanner driver of Flatbed Scanner Unit 101/201 needs to be installed to use the unit.

About Use with CaptureOnTouch About Assigning Function to Start Button When you connect Flatbed Scanner Unit, you can assign Scanning Shortcut of CaptureOnTouch to the start button of Flatbed Scanner Unit.

Limitation of Restarting with Start Button When CaptureOnTouch is set not to be resident in memory, CaptureOnTouch cannot be restarted by pressing the start button on Flatbed Scanner Unit after you end CaptureOnTouch.

About Setting up the Scanner Driver When functions of this scanner cannot be selected with the Flatbed Scanner Unit settings dialog box, click [Option] in the dialog box to open the scanner driver and make the required settings.

210 mm (8.3") 120 mm (4.7")

A Adjusting the Reduction Ratio 48 Auto Power Off Setting 54

Scanner Driver Basic Settings 33 Configuring Settings According to Purpose 36 Scanning Glass Cleaning 45 Start Button 15 Stop Button 15 System Requirements of Software 7

C CaptureOnTouch 30 Card 22

D DFR button 15, 26 Documents Card 22 Folded documents, placing 22 Loading Documents 19 Double feed detection 25

F Flatbed scanner unit 102 65 Flatbed scanner unit 201 65

J Job No. Indicator 15 Job Select Button 15

N Network adapter NA10 65 Network adapter WA10 65

O Operating Panel 15

© CANON ELECTRONICS INC. 2017
