USER MANUAL EXPLOIT FALMEC

INSTRUCTIONS BOOKLET

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

NEW FIXING SYSTEM WITH MAGNETS

Fig. H3

AVVERTENZE

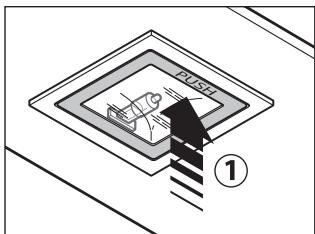

3. PANNELLO REMOVIBLE

Square halogen light

3. LAMPADA FLUORESCENTE

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for the your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorised service/spare parts centre.

Always check that all the electrical parts (lights, exhaust device), are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1,5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance The technical specifications of the appliance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

Minimum distance: distance between the pan supports of the cooker and the bottom-most section of the hood. When the hood is positioned above a gas equipment this minimum distance must be at least 65~cm (see picture C1) or even more, if this is specified in the instructions for use of the gas cooker.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10% ) upwards, so as to better convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere. If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, "standardised" plugs must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,
• the blue wire must be used for the neutral,
• the brown wire must be used for the phase; the cable must not come into contact with hot parts (over 70^ ).
• fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

For appliances that come supplied with cable and plug please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE

DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

RECIRCULATING RANGE

HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor's outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption.

The range hood should be switched on when starting to cook, and left on until the odours disappear.

OPERATION

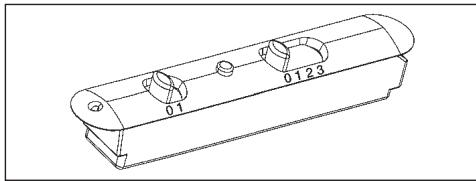

1. TWO BUTTON CONTROL PANEL

LIGHT - Switch A

Position 0: the light is off.

Position 1: the light is on.

SPEED - Switch B

This is used to start and set the speed of the motor, from 1 to 3, or with continuous speed variator, depending on the version.

LIGHT-C

Motor operation indicator light.

2. FIVE BUTTON CONTROL PANEL

LIGHT- button

Pressed: the light is on

Released: the light is off

MOTOR button - 1, 2, 3, OFF

1: starts the motor at minimum speed
2: starts the motor at medium speed
3: starts the motor at maximum speed

OFF: stops the motor

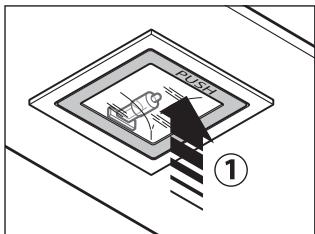

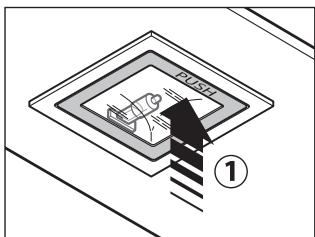

3. ELECTRONIC CONTROL PANEL

Light pushbutton

• ON: light on (the pushbutton is lit);
• OFF: light off;

Pushbutton -

Press to reduce motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

Pushbutton +

Press to increase motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

(In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).

Mode pushbutton

Function: it turns hood motor on and off.

The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.

Optional: version with remote control (some versions only).

WARNING:

Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.

Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.

Light pushbutton on remote control: light on/off.

• and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).

Timer pushbutton: see instructions below.

Timer and 'filter clogged' alarm pushbutton

• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).
• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

FILTERS REMOVING AND REPLACING'S INSTRUCTIONS

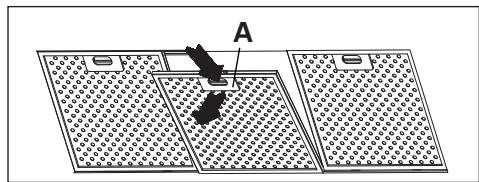

1. METAL FILTERS

To remove the metal grease-trapping filter, simply pull the handle A until releasing it from the front guide; then tilt it slightly downwards, and slide it out of the rear guide. To reposition the filter, repeat the operation in the reverse order.

Hoods with perimeter suction:

• Open the panel (see fig. 1). Use handle A to remove the metal grease filter.

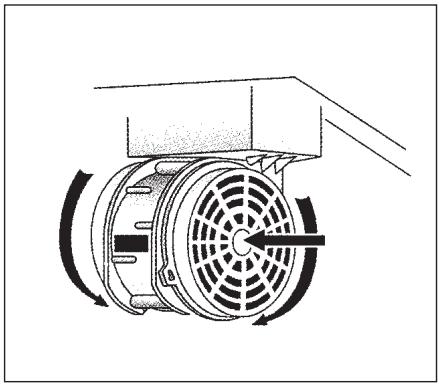

2. CHARCOAL FILTERS

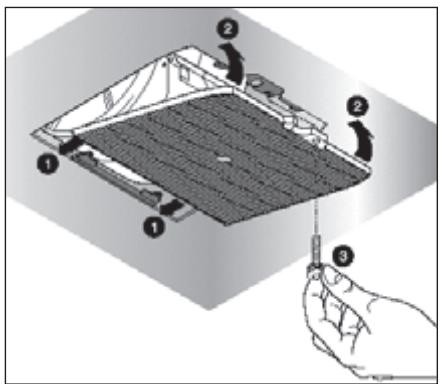

To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed.

To install the new filters see picture.

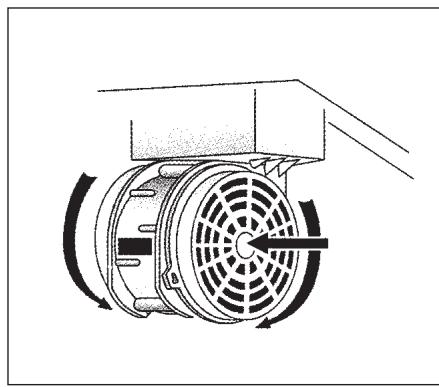

In case of hood with the motor box the filter is located on the bottom part of the motor box.

To install the new filters see picture.

To order new charcoal filters contact the distributor/retailer.

VALID ONLY FOR ITALY: download the appropriate order form from:

www.falmec.com (access the assistance drop-down menu).

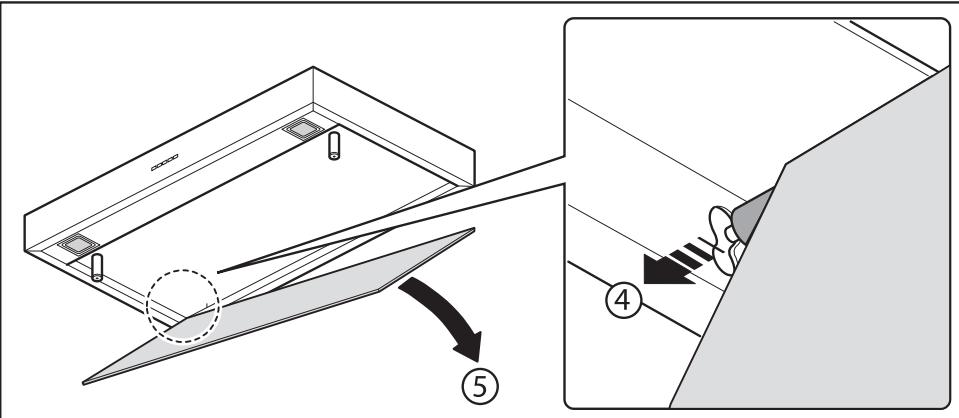

3. REMOVABLE PANEL

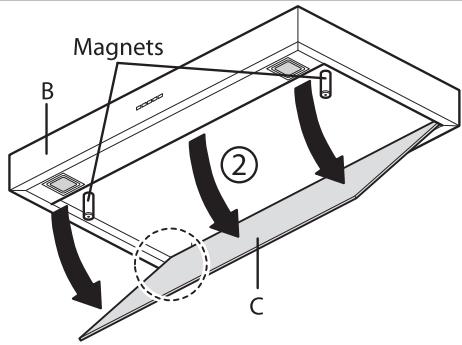

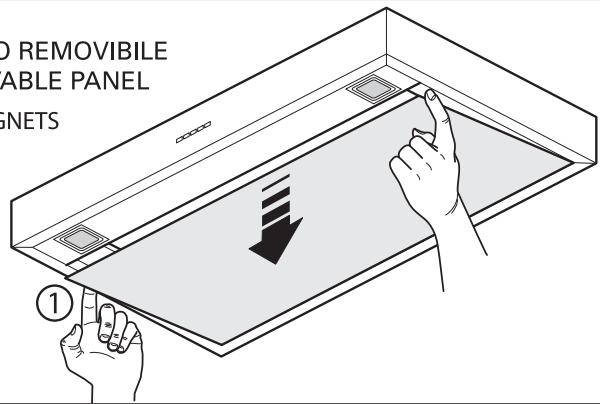

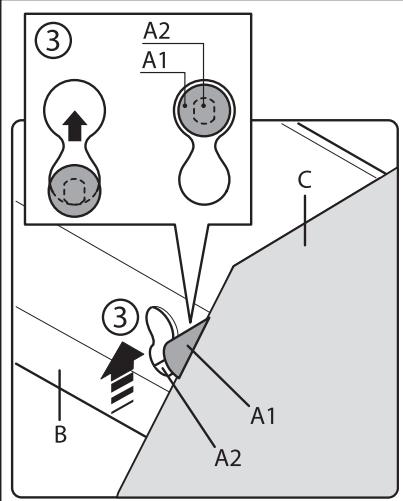

Follow the instructions on fig. H3 to remove the panel.

LIGHTING ASSEMBLY AND REPLACEMENT

1. LIGHT BULB

To replace the light bulb:

a) Make sure the appliance is disconnected from the mains power supply.
b) Unscrew the support screw A and remove the light cover.
c) Replace the light bulb with the same model as the original (max 25 W, see the markings near the light).

WARNING! Light bulbs with different shapes and power ratings from the original may seriously damage the light compartment.

2. SPOTLIGHT

To replace the lamp for "Round halogen light":

a) Make sure the appliance is disconnected from the mains power supply.

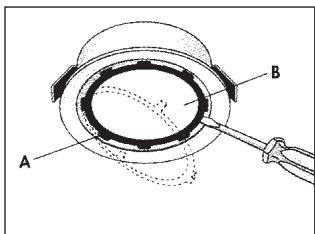

b) Remove, by levering with a screwdriver, the support ring A for the cover glass.
c) Remove the cover glass B to access the light compartment.
d) Replace the lamp with the same type (halogen, max 20 W, 12 Volt, G4 fitting).
e) Replace the glass cover B and fasten it using the special ring A.

Round halogen light

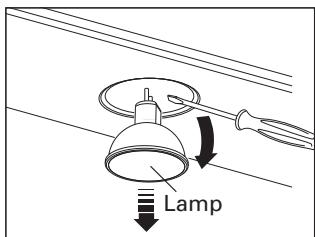

How to replace the dicroic lamp:

a) Check that the equipment is disconnected from the power supply.
b) Remove the lamp with the help of a screwdriver (see figure)
c) Replace the lamp with a similar one (dichroic, max 20 W, 12 Volt).

Dicroic spot

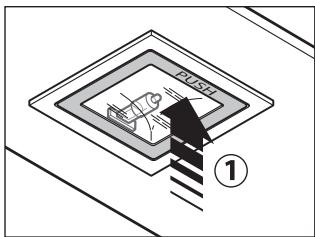

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply.

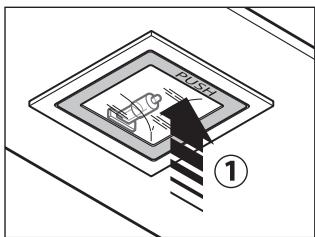

b) Open the panel completely till 90^ (see figure) pressing the PUSH button
c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).
d) Close the panel. If the panel does not close correctly repeat the operation at point b.

Square halogen light

3. FLUORESCENT TUBE

(Section reserved for qualified installers)

Replacing the fluorescent tube:

a) Disconnect the device from the mains;
b) Unscrew the fixing screws and remove the bottom panel;
c) Remove the fluorescent tube, by rotating through 90^ , and replace it with one of similar features (8W-13W-21W-28W according with the model);
d) Reconnect the device to the mains.

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them.

To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS

These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

It is advised to clean the external hood surfaces at least every 15 days in order to avoid that oily or greasy substances affect the steel surfaces. The outside of the range hhod should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with. Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products.

All the above operations must be performed after having disconnected the appliance from the mains power supply.

SAFETYWARNINGS

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65~cm .

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

• Ensure there is adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• Do not flambe under the rangehood
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer dis

claims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty.

The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

MOUNTING INSTRUCTIONS, RANGE HOODS WITH BOX

Step 1

• Rest the support bar against the wall (A-Fig. 1) at a height from the cooktop determined by the sum of the distance X + Y + 320 mm .
• Check the horizontal alignment with a spirit level and mark the 2 holes to be drilled at the ends of the bar.
• Drill the holes, insert 2 × 8mm dia. screw anchors, and fasten the bar using the corresponding screws.

Step 2

• Hook the range hood to the support bar (Fig. 2).
• Adjust the alignment of the range hood using the screws on the brack-ets (Fig. 2). The top screw (B) adjust the distance from the wall, the bottom screw (C) adjust the height.

Step 3

• Fix the hood on the wall with an expansion anchor and with a screw, using the holes on the back side of the hood or with the cover brackets, in order to prevent it from detaching due to the pressure below.

In case of the suction version, connect the outlet fitting of the fan to the external discharge with appropriate pipes.

• Carry out the electrical connections after having disconnected the hood power supply.

Step 4

• Insert the extension cable (H) in the cook hood stack (G) and fix the assembly on the hood body using the 8 screws as shown in (V1).
• Unfold the extension cable (H) until reaching the required length.
• Once the ideal position is reached, lay the bracket (L) on the wall and check the horizontal alignment using a spirit level and mark 2 holes at the edges.
• Drill the holes and insert 2 expansion anchors with a diameter of 4mm and fasten the bracket (L) with the screws.
• Tighten the extension cable (H) to the bracket (L) by means of the screws (M) Power the hood in compliance with the regulations in force (section D).

HINWEISE

3. ELEKTRONISCHES BEDIENFELD

Lichtknopf

Square halogen light

Square halogen light

Square halogen light

E BbITJXHOE YCTPOICTBO C BbIbPOCOM BO3dUXA HAPYKU

B 3ToM oDJI n DbIM n nap O T rOToBKn Bbl6paCbIbAOTc HApJyU p3 Tpy6y.

Tpy6aДЯ BBy6pOca, KOTOPaBbICTynaTn3 BpxH YAcTHn BbITJxKKn DOLXHa 6bITb COdINHc Tpy6oN, KOTOPaBbIOdNT DbIM n Nap BH NOMUHN, PNC.

B daHHoM oJIn CHImaIOTc qJIbTpbl Ha aKTbUropOBaHHom yJI, cJN OHYcTaHOBJHb; KaK OHN CHImaIOTc, CM. NyHKT F. EcJN KyXOHHa BbITaKKaNCNoJIb3yTcO JHOBPMHNO I dJr dpYrNX np6OpOB, pa60taIOxN Ha ra3yIJn DpyROM TOnJIHB, POMsH NdoJIxHo IMMb BO3MOxHOCt b DOCTaTOHOro IPOBTPuBaHn.

BbITJXHOE YCTPOIcTBOC PEUNPKUJIaIeN BO3dYXA (cФиьТрацn)

B 3toM MoIIN BO3dyN npoxOHT p3 fIbTpbl C aKTHBnPOBaHHbIM yTJIM, IOnuATcN BO3BpaaATcR B NOMUHN KUYHNI.

Y6nTcB, YTO yOrbHbI qInbTpbl yCTaHOJIbI Ha MOTop, pnc. 6, B npOTNBOM cnUya yCTaHOBnT nX, KaK yKa3aHO B nyHKT F INCHtpkun.

PKOMHdyTCB KBIIOUaTb BbITAKKy, KOrDa Bbl HauHHAT RTOBHTb N OCTABNtbpaoBotaOuI Do NC3HOBHNcJIbHbIX 3anaxOB.

PABOTA

1.ДБУХКНОЧHOEУПРавЛЕнUE

OCBELSEHNE - npKlouaTlb A

ПОLOЖИ 0: OCBUHIN BbIKHOUHO.

CKOPOCTb - npKJIIOUaTlb B

I03BOJIAT BKNIOUaTb n pryJINPOBaTb ckOpoCTb pa6oTb MOtopaB

3aBnCIMoCTNOTMOdJInc1no3，JIb6OcHnppbIBHOprJnPoBKOCKOpocTn.

ИндIKATOPHЯ ЛAMПА - C

KnaBnua OcBeueHnHa npNbTe:CBETBKn./BbIKn. (on/off).

KnaBnla - e + yMeHbWeHne/YBeIuYeHne cKOpocTn (Дя 3anycka MToopa MoKHO HaKaTb KaK KnaBnUy +, TaK N KnaBnUy -).

KnaBnua TaImepa: cm. HNKe INHCTpyKUIO.

KnaBnwa TaMepa n HacbIeHnA qNlBtpoB

IyCTaHOBKn/3aMeHbICM.

B BbITaXkax C MOTOpHbIM OTCEKOM ΦnIbTp paCNoJoxeH B HIXKHeY qactN 3TOrO OTcKa.ДЯ yCTaHOBKn/3aMeHbI CM.

ДяЗаказа HOьIx yroIbHbIX ΦильТpoB 6рaTnTeCb K ДиСТрИБуTOpy/ npOdaBu.

TOJIbKO JIIA NTAJIN: 3aRpy3nTe CneuNaIbHbI FOpMyIap 3aKa3a INbIbTpcaCaIa: www.falmec.com (N3 BbIpaHaOeRo MeHIO cepBcHOrO 06CnyKuBaHna).

3. CMEHHA rpynna

CneyuTe 3a nHCTpykunmHa pnc.H3, yTo6bI ydaIaIbI rpynny.

OCBELSEHNE yCTAHOBKA 3AMEHA

1. JIAMNIOUKA

Длзамениламочкн Heo6xOДМО:

a) y6eIHTbcra, yTO npn6Op OTKlnouet OT 3neKtpocetn;
6) OTKpyTnTB KpeNexHbBnHT A n ChrTaB pHaΦoH;
B) 3aMeHnTb IaMnOuKy Ha dpyrIy ToKaO Jx Me MoJeN (MaKc. 25 Bt, cm. MapKnIpOBky y CamoJ IaMnOuKN).

BHIMAHHE!JaMbbl,ΦopMOI MIOUHOCTbIO OTINuHbI OTOpRnHaJIbHbIX, MOrTy BbI3BaTb Cpb3HbI NOBpXdHnB O TCK OCBUHNJ.

2. RAJIOREHHOE OCBELEHNIE

Square halogen light

3.ФЛYOPECUEHTHAJ LAMNA (pa3dIe IЯс cIeuaJIncTOB)

3aMeHaФnyopeceHTHOJ lambli:

a) OTKJIouHTb np6Op OT cETn NITaHn;
6) CHaTb MeTaJIInueckyIO nAHeJIb, OTKpyTNB KpeNexHbIe BnHTbl, ecII TaKOBaY IMeETcR.

B ueJx 6e3oNaChOCTn paCCToHHe OT BapOCHIOBepXHOCTn Do BbITaKKN DOJIKNHO COCTaBJTb He MeHee 65 cm.

Helenzra roTOBnTB nIuHa OTKpbITOM orHe nOД bblrKoN. CJeDnte 3a dpHTOpHnUcAmn: nepepeTeOE macNo moKet 3aropeTbcra.

• Y6eIntecb B TOM, UTO B NOMESEHIN IMeETcA DOCaTouHae BEHTnJIaCJIA, ECJIY BbITJXKA IcNOLb3yeTcB COBMecTHO C dpyrIMn pnp6OpAMn, pa6oTaIOUcIMn Ha rase nIIN dpyrom Tropuoyem.
• He 3axniratne OTKpbTbI OROHb IOD BbITXKoN.
• He подклочауп prибор К Трубам, OTвогдяшм ДыIM OT croрань ТОПЛВА (КOTлbl, КAMINHbl И.T..).
• Y6eIITecb B C06JIIODeHnBCEx DeIcTByIOUx HOpM N0 BBIOy B03dyXa HApJyN3 NOMEuEHH, PpeKdYe Hm N0lb3OBaTbCByBbTJIKoN.

Ipepe npoBeHnem IIO6bIX MaHnnylaun no QnCTKe nIy uxOdy BbIKJIOUHTe np6Op, BbITaunB BNkky n3 PO3ETKn IIN C NOMOuBo OoJero BbIKJIOUHTeJI. PpeepnTne-Im3ROTOBNTeH He Hecet OTBETCTBEHHOCTH 3a BO3MOxHbI BpeD, pnpuHHeHH, pPMAO INKOCBeHH, IIOJAM, PpeMeTaM INI DOMaHIM XJBOTHbIM BCJeDCTBHe HecOBnIODeHH npeDnucAHN, Yka3aHHbIX B PykoBOdCTBe NO 3KcnNyataun, Oco6eHH B TOM, YTO Kacaetc npabUN yctahOBKn IN 3KcnNyataun np6Opa n yxoDa 3a HmM.

ГAPAHТИN

Hobb np6op haoDITcnoD nCTBm rapaHTn.

TapaHTnHbI yCIOBnI NOHOCtBIO npVBdHbI Ha NocNdH CTpaHnI 3TOI n3DaHnI.

Pon3BODNTlb H OTBuat 3a BO3MOXHbI HTOUHOCTN N OwHbK B daHHOM n3daHn, BO3HKn npn pTuATn nn npnTaTBaHnn. PON3BOIDTlb OCTabJrT 3a c6oB npaBO Ha T MoDnΦHKaCn CO6CTBHHO npOyKcN, KOTOpbl COHTT Ho6XoHmblIMn nn NOJ3HbIMn, a TaKx B INHTpcax NOJb3OBaTJr, H BJIraIOuHa rIaBbHbI ΦyHKcNoHaJIbHbI XapaktpnCTNK N 63OnacHOctb.

B BbITaKke BCaCbBaIOUeRo Tnna Heo6XoDNMO NODcoEINHHTb BbIpyCKHO NaTpPy6OK BeHTnJIToPA K HApYxHOMy BblNcKHO MyOTBepCTNUO C NOMOuBIO COOTBeTCTByIOUe Tpy6bl.

• BbIpoJIHnITb IOnkJIHOueHHe K NcTOUHNY 3JIeKTPnueCKO rNtAHrToTobko PocIe OTKJIHOueHnE 3JIeKTPnueCKO rNtAHr CaMOB bItJxKn.

3tan 4

• BCTaBnTb ydIINHnTeJIb (H) B dIbIMOByTO Tpy6y (G) I 3akpeNtB INX BmecTe K KOpNcy BbITJAKKc C NOMOuBIO 8 BNHTOB (V1).
• PpOaBnHyTb ydlnHntJIb (H) Do HUxKHO BbICOTbl.
• Nocle HaxoJdHnO ONTImaJIbHO NOLOXeHnI npNJIOxNtK cTeHe CkO6y

(L), npOBepntb c nOMOosbIy yOBHb BbipaBnBaHne no rOpN3oHTaII N OTMeNTb Ha KOHcax 2 TOUKN DJIe CBepHeHJ.

• BbINOHNtB CBePHeHn, BCTaBHTb DBa 2ДIO6eIg 4MM n npNKpeINrB cKo6y (L) COOTBEcTByIOUIMN BnHTaMn.
  -ПиВИNTИТВИNTaMn(M)уДЛINHTeNb(H)ксКо6e(L).
  -Подать Злелктуческoe питаяне на Вьтяжky,придерхиваясь HOPM Deистуюцero 3akOHODaTeIbCTBa (pa3Д. D).

OSTRZEŽENIA

FILTRY INSTRUKCJE WYJMOWANIA I WYMIANY

1. FILTRY METALOWE

Square halogen light

3. LAMPA JARZENIOWA
