DO2332CG - DOMO - Free user manual and instructions

USER MANUAL DO2332CG DOMO

Combi microwave oven

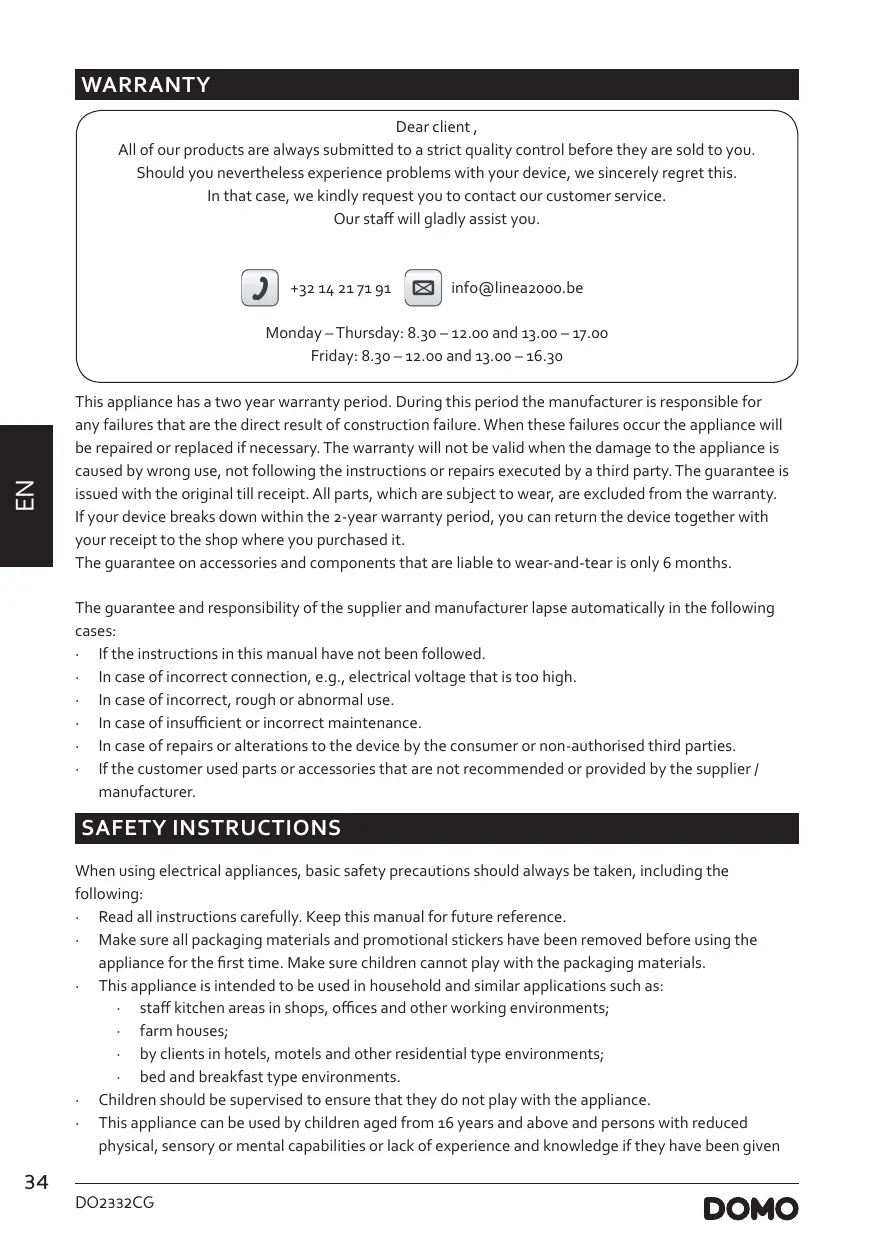

WARRANTY Dear client ,

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our staff will gladly assist you.

EN Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases: ·· If the instructions in this manual have not been followed. ·· In case of incorrect connection, e.g., electrical voltage that is too high. ·· In case of incorrect, rough or abnormal use. ·· In case of insufficient or incorrect maintenance. ·· In case of repairs or alterations to the device by the consumer or non-authorised third parties. ·· If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

·· Read all instructions carefully. Keep this manual for future reference. ·· Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials. ·· This appliance is intended to be used in household and similar applications such as: ·· staff kitchen areas in shops, offices and other working environments; ·· farm houses; ·· by clients in hotels, motels and other residential type environments; ·· bed and breakfast type environments. ·· Children should be supervised to ensure that they do not play with the appliance. ·· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

·· ·· ·· ·· ·· ·· ·· ·· ··

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

Keep the appliance and its cord out of reach of children younger than 16 years. Attention: This appliance cannot be used with an external timer or a separate remote control. Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home. Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair. Close supervision is necessary when the appliance is used near or by children. The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord. Do not leave a working appliance unattended. Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. Do not use the appliance outdoors. Only use the appliance for its intended use. Always use the appliance on a steady, dry and level surface. Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual. Never immerse the appliance, the cord or the plug in water or any other liquid. Keep the cord away from sharp edges and hot parts or other heat sources. Warning: Liquids and other foods must not be heated in sealed containers since they can explode. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. Only use utensils suitable for use in microwave ovens. The oven should be cleaned regularly and any food remainders should be removed. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Do not overcook food. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. Install or locate this oven only in accordance with the installation instructions provided. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Use this appliance only for its intended uses as described in this manual. Do not use corrosive

chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

The oven can become hot during use. Keep the cord away from hot parts and surfaces and do not cover the oven. Do not let the cord hang over the edge of the table or counter. Failure to maintain the oven in a clean condition could lead to damaging of the appliance and could possibly result in a hazardous situation. The content of feeding bottles and baby food jars always needs to be stirred or shaken. The temperature needs to be checked before consumption, in order to avoid burns. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container. This appliance should not be placed into a cupboard. Do not use a steam cleaner to clean the appliance. Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, since they can scratch the surface, which may result in shattering of the glass. During use the appliance becomes hot. Do not touch any heating elements inside the oven. The door or the outer surface of the appliance may get hot when the appliance is operating. Save these warnings

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

·· Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. ·· Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. ·· WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ·· If the appliance is not maintained properly, the appliance could be damaged, which may affect the lifespan of the apparatus and may lead to a dangerous situation. TO REDUCE THE RISK OF INJURY ·· Caution: touching some of the internal components may cause serious personal injury or death. ·· Do not disassemble this appliance. ·· Improper use of the appliance and the grounding can result in electric shock. Do not turn on the appliance until it is properly installed and grounded. ·· This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. ·· A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. ·· If a long cord set or extension cord is used, the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. If it is necessary to use an extension cord, onlyuse a 3-wire extension cord. ·· The extension cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled by children or tripped over unitentionally.

DO2332CG Materials that can be used in the microwave oven

·· Aluminum foil: Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to the oven walls. The foil should be at least 2,5cm away from the oven walls. ·· Dinnerware: microwave-safe only. Do not use cracked or chipped dishes. ·· Glass jars: always remove the lid. Use only to heat up food until it is just about warm. Most glass jars are not heat-resistant and may break. ·· Glassware: heat-resistant oven glass ware only. Make sure there is no metallic elements or parts. Do not use cracked or chipped dishes. ·· Oven cooking bags: follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. ·· Plastic: microwave-safe only. Follow the manufacturer’s instructions. Should be labeled „microwave safe“. Some plastic containers soften, as the food inside gets hot. ‚Boiling bags“ and tightly colsed plastic bags should be slit, pierced or vented. ·· Plastic wrap: microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. ·· Thermometers: microwave-safe only.

EN In the list below you can find which materials can and can not be used in the microwave oven. If in doubt, or if you can not find the material in the list below, you can test the utensil in question, following the procedure below:

Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil. Cook on maximum power for 1 minute. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. CAUTION: Do not exceed the 1 minute cooking time.

Materials to be avoided in the microwave oven

·· Aluminum tray: may cause arcing. Transfer food into a microwave-safe dish. ·· Food carton with metal handle: may cause arcing. Transfer food into a microwave-safe dish. ·· Metal or metal-trimmed utensils: metal shields the food from microwave energy. Metal trim may cause arcing. ·· Metal twist ties: may cause arcing and could cause a fire in the oven. ·· Paper bags: may cause a fire in the oven. ·· Plastic foam: plastic foam may melt or contaminate the liquid inside when exposed to high temperature. ·· Wood: wood will dry out when used in the microwave oven and may split or crack.

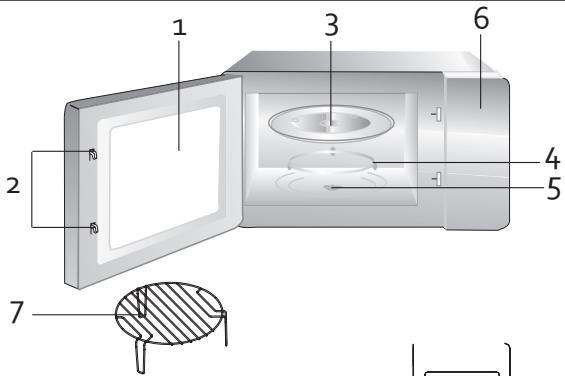

PARTS EN Observation window

Safety interlock system Glass tray Turntable ring assembly Turntable shaft 2 Control panel Grill rack Display Microwave/grill/combi/convection 7 setting Defrost function Setting the clock Stop button Start button Turning knob Protection cover wave guide - never remove this cover!

First place the turntable ring in the middle of the microwave oven.

Place the turntable on the ring. Make sure that the middle of the turntable fits into the turntable shaft.

·· Never place the glass tray upside down. The glass tray should never be restricted. ·· Both glass tray and turntable ring assembly must always be used during cooking. ·· All food and containers should be placed onto the glass turntable during cooking at all times. ·· If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. INSTALLATION ·· Check the oven for any damage, such as dents or a damaged door. Do not use the oven if it is damaged. Remove the protective film around the machine, this is applied to avoid scratches. ·· Choose a place to install the microwave, where there is sufficient open space for the air intake and exhaust. The microwave oven must stand at least 85 cm high. Make sure that the left, right and back side are at least 10 cm from the wall or cupboard. The open space above the microwave must be at least 20 cm. ·· Never remove the feet from the underside of the oven.

·· Blocking the air intake and exhaust opening can lead to damage.

·· Place the oven as far as possible away from radio and TV, because the oven may cause reception problems. ·· Plug the plug of your oven into the wall outlet, check that the voltage at home is consistent with that indicated on the label of your machine. ·· Warning: Do not place the oven above a stove or other heat producing device. This may damage the machine and void your warranty. ·· The accessible part of your machine may become warm during use.

SETTING THE CLOCK EN To set the clock on the appliance, do the following:

1. Put the plug in the socket, and the display should show “0:00”. 2. Press the “set clock” button on the control panel to set the time. The time can be set from “0:00” to “23.59”. 3. Turn the knob to set the hours between 0-23. Press the “set clock” button again to confirm the hours and to set the minutes. 4. Turn the knob to set the minutes between 0-59. Press the “set clock” button again to confirm.

USE COOKING WITH THE MICROWAVE There are 5 different power settings for the microwave.

1. Press the “microwave” button to select the desired power setting or turn the turning knob. The display will show “P100”, which means: use 100 % of the microwave power. This also applies for P80 (80 %), P50 (50 %), P30 (30 %) and P10 (10 %). 2. Press the start button to confirm the desired setting. 3. Turn the knob to set the desired cooking time. The maximum amount of time that can be set is 95 minutes. 4. Press start to start the selected setting. COOKING WITH THE GRILL The microwave can also be used as a grill. 1. Press “grill” to select the grill. “P100” will appear on the display. Press this button again or turn the turning knob until “G-1” appears on the display. 2. Press the start button to confirm this setting. Turn the knob to set the desired cooking time. The maximum amount of time that can be set is 95 minutes. 3. Press start to start the selected setting. Note: when half of the grill time has elapsed, a signal will sound, which is normal. To obtain a better grill effect when preparing food, it is recommended to turn the food over halfway through the grill time. If you open the door, close it, and press start, the cooking process will continue. If you do not open the door, the cooking process will continue after a few seconds. COMBINATION With this function you can combine cooking with the microwave and the grill. 1. Press the “combi” button to set the combination. “P100” will appear on the display. Press this button again or turn the turning knob until “C-1”, “C-2”, “C-3” or “C-4” appears on the display. www.domo-elektro.be

DISPLAY MICROWAVE C-1

GRILL CONVECTION x x x

2. Choose one of these settings and press start. 3. Turn the knob to set the desired time. The maximum amount of time that can be set is 95 minutes. 4. Press start to start the selected setting.

CONVECTION EN The convection function makes it possible to use the appliance as an oven. The microwave function is not used here.

Convection function with pre-heat function 1. Press the “convection” button. “P100” will appear on the display. Press this button again or turn the turning knob until “110 °C” appears on the display. 2. The temperature can be set from 110 °C to 200 °C. Select the desired temperature and press start. 3. Press once again to start the pre-heating. You will hear a signal when the desired temperature is reached. 4. Turn the knob to set the desired time. The maximum amount of time that can be set is 95 minutes. 5. Press start to start the selected setting. Note: the time cannot be set until the appliance has been pre-heated. If the appliance has pre-heated and you do not set the desired time within 5 minutes, the appliance will stop pre-heating. Convection function without pre-heat function 1. Press the “convection” button. “P100” will appear on the display. Press this button again or turn the turning knob until “110 °C” appears on the display. 2. The temperature can be set from 110 °C to 200 °C. Select the desired temperature and press start. 3. Turn the knob to set the desired time. The maximum amount of time that can be set is 95 minutes. 4. Press start to start the selected setting. QUICK USE You can use the microwave, grill, combination or convection with a time set as you wish. 1. Select the desired setting and press the start button, and the appliance will be set for 30 seconds. 2. Each push of this button will increase the set time by 30 seconds. You can also turn the turning knob to set the desired time. The maximum amount of time that can be set is 95 minutes. 3. Press start again to start the appliance. TIMER You can also use the appliance as a timer. The appliance will not heat up but simply function as a timer. 1. Press the button twice to set the time. “00:00” will appear on the display. 2. Turn the knob to set the desired time. The maximum amount of time that can be set is 95 minutes. 3. Press start to start the selected timer. When the time has elapsed, the appliance will emit a sound.

DO2332CG DEFROST Defrost according to weight

1. Press the button to set the defrost function. “dEF1” will appear on the display. 2. Turn the knob to set the weight of the food to be defrosted. This can be from 100 g to a maximum of 2000 g. Select the suitable weight and confirm with the start button. 3. The selected setting will begin. 4. Halfway through the defrost time, you will hear a signal. This is to indicate that you must turn the food over in order to achieve good results. 5. Once the food is defrosted, you will hear a signal. Defrost according to time 1. Press the button twice to set the defrost function. “dEF2” will appear on the display. 2. Turn the knob to set the desired time. The maximum amount of time that can be set is 95 minutes. 3. Press start to start the desired setting.

AUTOMATIC COOKING PROGRAMME MENU WEIGHT POWER A1 - Pizza

The appliance is equipped with ten different automatic cooking programmes.

1. Turn the knob to select a programme. The display will show “A1” to “A10”. 2. Select one of these programmes and press start. 3. Turn the knob once more to set the desired weight. 4. Press start to start the desired setting.

First pre-heat to 160°C A10 - Roast chicken

C-2 Note: when you select programme A9 - Cake, you will have to heat the appliance first. Once the appliance has pre-heated, you can put the cake in and select this programme.

CLEANING AND MAINTENANCE

Always make sure you remove the plug from the socket before cleaning the appliance.

Clean the inside of the appliance after every use with a slightly damp cloth. Clean the parts like the grill, the glass turntable,... in warm water with a mild detergent. The door, the lock and the control panel can be cleaned with a slightly damp cloth when dirty.

PROBLEMS If you think that the microwave oven is not functioning properly, first consult the instructions below before contacting a service centre.

PROBLEM POSSIBLE SOLUTION The microwave oven is causing disruptions to radio or TV.

This is normal. The reception can be disrupted by the operation of the microwave oven.

The light in the oven is dim.

When cooking on low power, the light may be less bright in the oven. This is normal.

The oven is started without food in it. The machine operates when empty.

Turn the oven off immediately. The oven may never be used without food in it. This is very dangerous.

DO2332CG The microwave oven does not start.

It may be that the plug is not correctly plugged in to the outlet. Pull the plug out and after 10 seconds plug it back into the outlet.

Check the fuse in the fusebox and have it repaired by a professional if necessary. There may be something wrong with the outlet. Test the outlet with devices and have it repaired by a professional if necessary.

The oven does not heat up.

Make sure the door is shut properly.

The revolving glass plate makes noise when the oven is in use.

The floor of the oven and the ring on which the revolving glass plate sits may be dirty. Clean the oven according to the instructions.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

EN ENVIRONMENTAL GUIDELINES The packaging is recyclable. Please treat the packaging ecologically.

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Domo accessories and parts online at:

webshop.domo-elektro.be
