Product Type	Mini Electric Chopper
Brand	Hamilton Beach
Model	72860
Bowl Capacity	700 ml (max liquid: 355 ml, max solid: 473 ml)
Power Supply	220-240 V, 50/60 Hz (UK model with 13A fuse)
Power	Approx. 250 W (estimated)
Materials	Plastic bowl, stainless steel blades, plastic base
Main Functions	Chopping, mincing, mixing vegetables, fruits, nuts, herbs, cheese, crumbs
Control	Press lid for on/off (pulse)
Maximum Continuous Use Time	30 seconds
Safety	Lockable lid, sharp blades (handle with care), automatic stop when lid is released
Care and Cleaning	Wipe base with a damp cloth; bowl, lid, and blades hand washable in warm soapy water (no SANI cycle in dishwasher)
Spare Parts and Repairability	Repairs by manufacturer or authorized agent; original accessories recommended
Warranty	Visit hamiltonbeach.global
Usage	Household use only, small quantities

Frequently Asked Questions - 72860 HAMILTON BEACH

How to use the Hamilton Beach 72860 chopper?

Place the bowl on the base, insert the blade onto the center shaft, add food, secure the lid, then press down to chop. Release to stop. Wait for blades to stop completely before removing the lid.

What is the maximum bowl capacity?

The bowl has a capacity of 700 ml. For solid foods, do not exceed 473 ml; for liquids, do not exceed 355 ml (1 1/2 cups). Observe the max fill line.

Can I wash the parts in the dishwasher?

Yes, but do not use the SANI cycle (too high temperature). Wash the bowl, lid, and blade in warm soapy water or dishwasher without SANI cycle. Never immerse the base.

Are the blades removable and how to clean them?

Yes, the blade can be removed from the center shaft after disassembly. Be careful as it is very sharp. Wash by hand or in the dishwasher (without SANI) and dry thoroughly.

What foods can I chop in this appliance?

Vegetables cut into 2.5 cm pieces, fruits, nuts, herbs, cheese (parmesan in cubes), garlic, parsley, breadcrumbs or biscuits. Do not chop raw meat, coffee beans or hard spices.

How long can I run the appliance continuously?

Do not exceed 30 seconds of continuous use. Release the lid to stop, then wait a few seconds before resuming if needed.

What to do if the appliance does not start?

Check that the lid is properly locked and the plug is inserted. If the problem persists, contact Hamilton Beach customer service. Repairs must be done by a professional.

Is the appliance suitable for people with reduced mobility?

According to the manual, it is not intended for persons with reduced capabilities without close supervision. It must be used under the supervision of a responsible person.

Can I use an adapter or extension cord?

It is not recommended to use accessories not provided by the manufacturer. If necessary, use a suitable and undamaged extension cord, but do not let the cord hang from the table.

How to get spare parts or warranty information?

Visit the website hamiltonbeach.global for more information on products, spare parts, and warranty. Use only original accessories.

USER MANUAL 72860 HAMILTON BEACH

GB Visit https://hamiltonbeach.global for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

AR

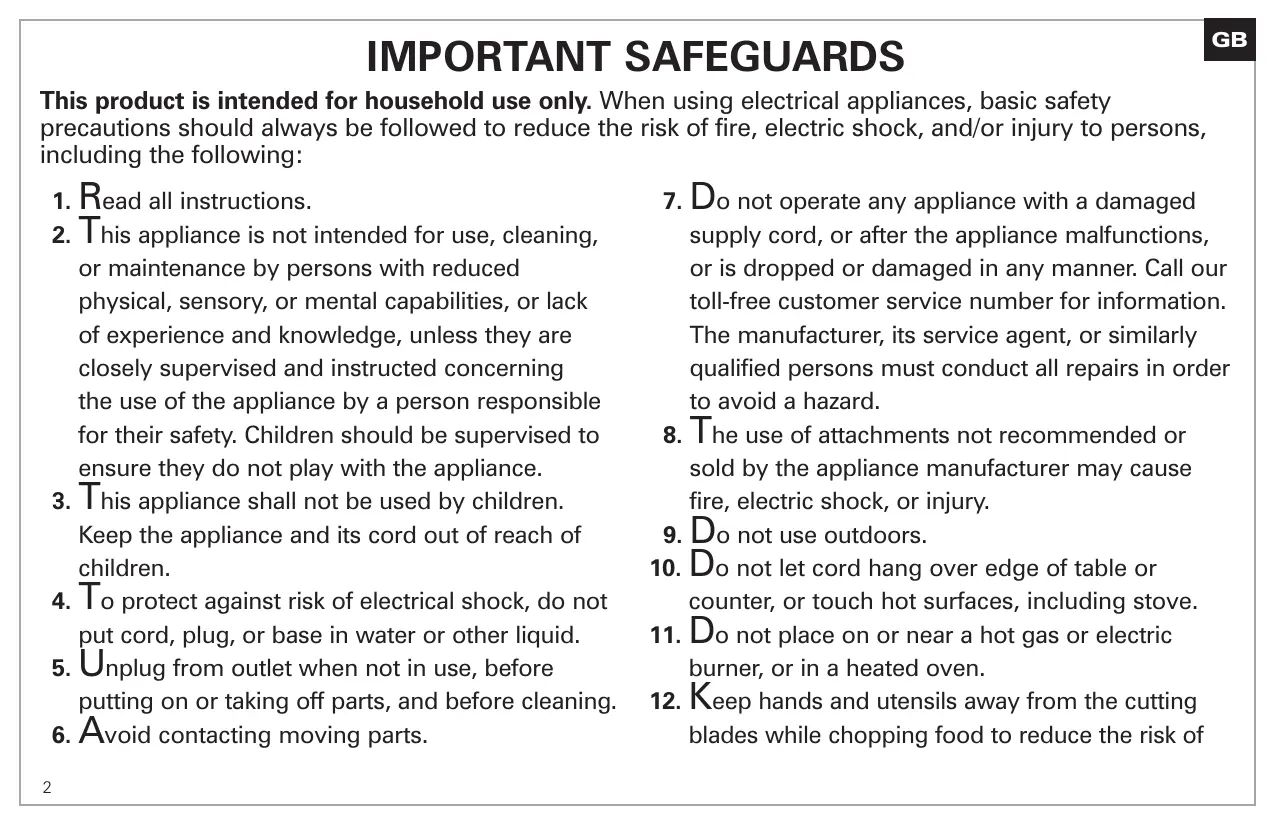

This product is intended for household use only. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use, cleaning, or maintenance by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. To protect against risk of electrical shock, do not put cord, plug, or base in water or other liquid.
5. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

6. Avoid contacting moving parts.

7. Do not operate any appliance with a damaged supply cord, or after the appliance malfunctions, or is dropped or damaged in any manner. Call our toll-free customer service number for information. The manufacturer, its service agent, or similarly qualified persons must conduct all repairs in order to avoid a hazard.

8. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Keep hands and utensils away from the cutting blades while chopping food to reduce the risk of

severe injury to persons or damage to the food chopper. A scraper may be used but must be used only when the food chopper is not running.

1. Blades are sharp. Handle carefully when emptying food contents and during cleaning.
2. This appliance is intended for processing small quantities of food for immediate consumption. This appliance is not intended to prepare large quantities of food at one time.
3. Be careful if hot liquid is poured into the bowl as it can be ejected out of the appliance due to sudden steaming.

4. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.

5. Be certain lid is securely locked in place before operating appliance.

6. Do not attempt to defeat the lid interlock mechanism.
7. Do not use appliance for other than intended use.
8. UK Models ONLY: The UK plug is provided with a 13-amp fuse approved by ASTA to B.S. 1362. If you need a replacement fuse carrier, it must be replaced with the same colour-coded carrier with the same markings. Fuse covers and carriers can be obtained from approved service agents.
9. Do not operate more than 30 seconds ON at a time. Please refer to the relevant instructions for special recipes.

SAVE THESE INSTRUCTIONS

m = 311

Recycling the Product at the End of Its Service Life

The wheeled bin symbol marked on this appliance signifies that it must be taken over by a selective collection system conforming to the WEEE Directive so that it can be either recycled or dismantled in order to reduce any impact to the environment. The user is responsible for returning the product to the appropriate collection facility, as specified by your local code. For additional information regarding applicable local laws, please contact the municipal facility and/or local distributor.

Parts and Features

BEFORE FIRST USE: Unpack chopper. Handle blades carefully; they are very sharp. Wash all parts except base in hot, soapy water. Rinse; then dry.

ON/OFF Pulse Symbol:

Blades will turn when lid is pressed down.

Release lid to turn off.

Model: 72860-SAU

Type:FC11

Ratings:

220-240 V～ 50-60 Hz 175 W

How to Use the Chopper

WARNING Laceration Hazard.

Handle blade carefully; it is very sharp.

Make sure unit is off and is unplugged.

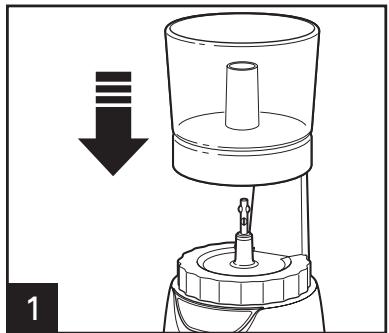

Make sure chopper is unplugged. Place bowl onto base.

Carefully place blade in bowl over center shaft. Turn until blade slips down to bottom of bowl.

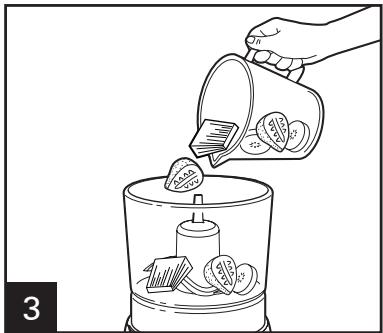

Place food in bowl.

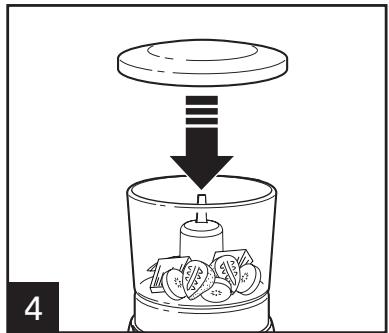

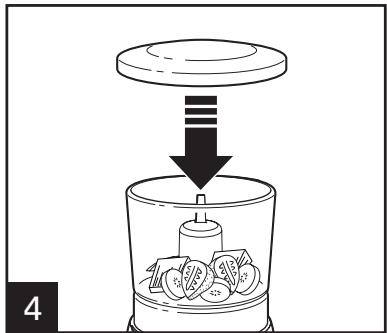

Place lid on bowl.

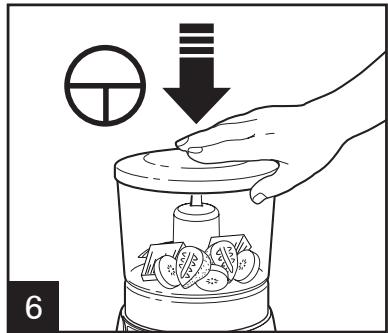

Press lid to chop. To turn off, release lid. Do not remove lid until blade has stopped turning.

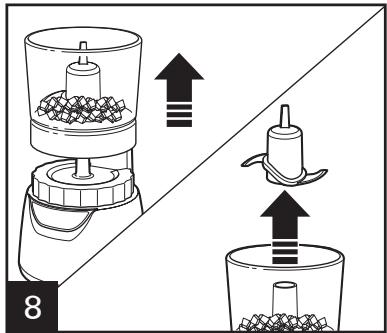

Remove bowl from base.
Carefully remove blade.

Chopping Tips

• The bowl has a capacity of 700ml . For liquid ingredients, do not exceed 355ml (MAX LIQUID FILL line on bowl).
• For more control, process by pressing lid briefly, then releasing. Check consistency and continue if desired.

• Tear bread into pieces; then process to make bread crumbs. Break crackers or cookies into pieces; then process into crumbs for use as recipe ingredients or pie crusts.

• To chop carrots, celery, mushrooms, capsicum, or onion, cut into 2.54-cm (1-inch) chunks and place in bowl. This will result in more uniform consistency.

• Chop nuts; mince coriander, parsley, basil, chives, or garlic.
• Do not process raw meat, coffee beans, or whole, hard spices in the food chopper. This could damage the electric chopper.

Processing Chart

TO MAKE	INSTRUCTIONS	PROCESSING TIME (seconds)
Bread Crumbs	Tear bread slices (up to 3) into 6 pieces.	5
Cheese, Parmesan	Cut in 1.3-cm (1/2-inch) cubes. Process 118 ml of cubes at a time.	10
Cookie Crumbs	Break into pieces. Use up to 473 ml of pieces.	20
Fruit, Chopped	Cut fruit into large chunks. Place up to 473 ml of pieces into chopper.	15
Garlic, Minced	Peel; then process 1 or more cloves at a time.	5
Herbs, Chopped	Place up to 237 ml in chopper.	15
Nuts, Chopped	Place up to 237 ml in chopper.	5
Parsley	Pinch off sprigs from bunch.	5
Vegetables	Cut vegetables into 2.54-cm (1-inch) chunks. Place up to 473 ml in chopper at a time.	30

Care and Cleaning

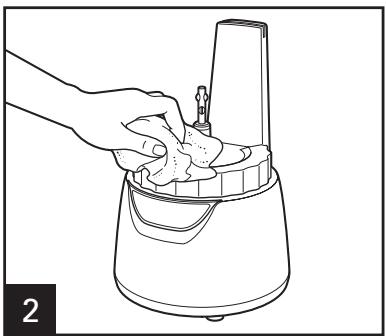

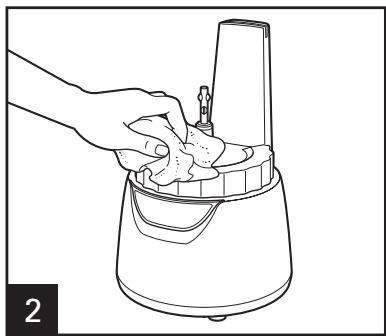

Wipe chopper base with a damp cloth or sponge. To remove stubborn spots, use a mild, nonabrasive cleanser.

WARNING Electric Shock Hazard.

Do not immerse base, cord, or plug in water or any other liquid.

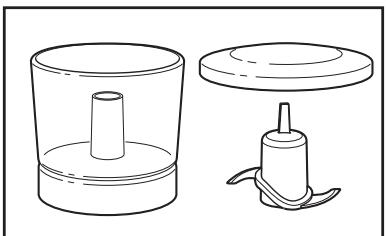

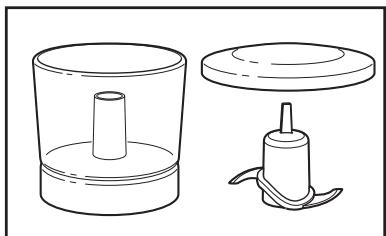

TOP-RACK DISHWASHER-SAFE

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. Parts may also be washed with hot, soapy water. Care should be taken when handling the cutting blades as they are very sharp. Rinse and dry thoroughly. Do not soak.

jll l j 10 15 17

.18

.19

a a a a a a a a a a a a a a a a a a a a

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aegao pleabll ao jao uogai Lioic 2!

pabll lgyg jyj yj yj yj.13

plaiuuiu pleall jia o yua cius iayed paas qiiial li.14

plebl 1000s Cuaa 12y paas yie ciiall lla .

jss 4i jiee eie g jn jil jil jil jil jil jil jil .15

j

le aebll s jaiill 15 cii 2 ayuaaui jaiil jaii .16

1

Aaiae aegellil iie eaiiail ygdiis

aal 1/100000000000000000000000000000000000000000000000000000000000

00 1111111111111111111111111111111

aai aie ai 1iabgai jiaai baa iaiy

j 1 j00000000000000000000000000000000000000

a

Jbai jai jao clduol JcJy Jilao

a 8

a

Aa

as jaiall 1jajyL aySsJyLi .6

#

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

e 51

. clll g plabll

2gall ggl gll gla jay o jayell 1. cll gll gll gll jii gj o jaiy jy jy all

j 100000000000000000000000000000000000000000000

.

j j 10000000000000000000000000000000000000000000000000000000000000000

Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus

Aaia aiaaa. jyauall yjauall cally sxcial laoe jai

Jil

72860-SAU:

FC11:

a

220-240V\~50-60Hz175W

j 1

Jaiol 11cbill biin pi Liic

jglll 1

700 aay j 8

（）

ii 1

Jilu Jilu Jilu Jilu Jilu Jilu Jilu Jilu

a b c d e f g h i j k l

a a a a a a a a a a a a a a a a a a a a a a a

"SANIL 1
"SANIL
"JLJ 1
"JLJ 1
"JLJ 1
"JLJ 1
"JLJ 1
"JLJ 1
"JLJ 1
"JLJ 1

aaiw! jilabaaaba aagall oal gnuol
bila piaiwl aayll all jy b

p jll aloc juii

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

aalaa a aalaa aalaa Jall Jall Jn Jn Jn Jn Jn Jn Jn Jn Jn

a a a a a a a a a a a a a a a a

ailll" b) 355 jglii 2. aillllllllllllll l 700 eie all

(celege ball "Jullly oall

joo 0o joo ooo o ool ool ool ooll

ailll aalll lllll 1

j 1

GB For more product and warranty information, please visit https://hamiltonbeach.global
