LK1051 - Heating QLIMA - Free user manual and instructions

USER MANUAL LK1051 QLIMA

White Qilmu air conditioner unit with four wheels and ventilation slots (no visible text or symbols)

guarantee

2

YEARS

E	INSTRUCCIONES DE USO	6
F	MANUEL D’UTILISATION	16
GB	OPERATING MANUAL	26
I	ISTRUZIONI D’USO	36
NL	GEBRUIKSAANWIJZING	48
P	INSTRUÇÕES DE USO	60
SLO	NAVODILA ZA UPORABO	72

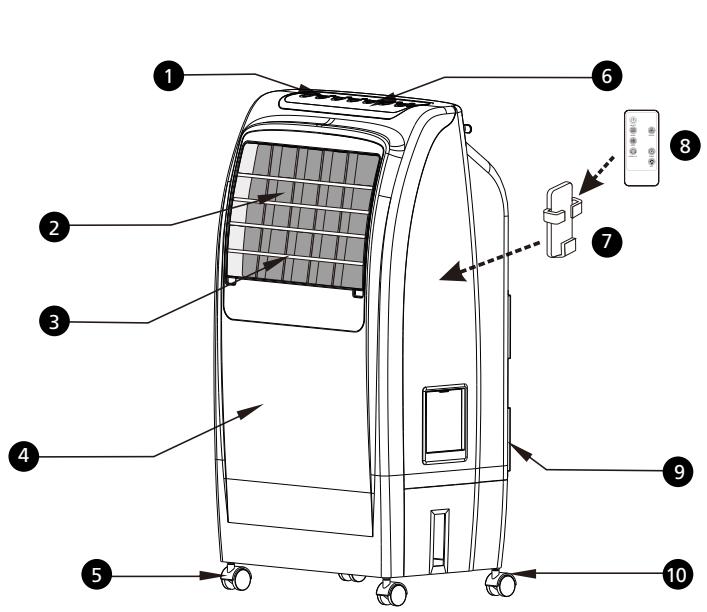

Diagram of a portable air conditioner unit with numbered parts and labeled control panel

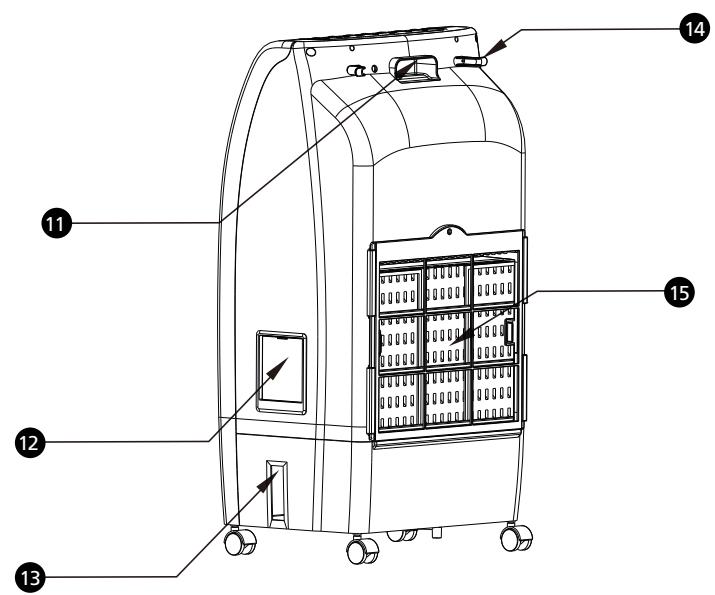

Technical diagram of a portable air purifier with numbered components and labeled parts

	ES	FR	GB	IT	NL	PT	SI
1	Botón	Bouton	Button	Pulsante	Knop	Botão	Gumb
2	Salida de aire	Sortie d'air	Air outlet	Uscita aria	Luchtuitlaat	Saída do ar	Odvod zraka
3	Conducto de ventilación	Ventilation	Air vent	Sfiato aria	Ontluchting	Ventilador de ar	Zračni ventilator
4	Carcasa frontal	Coque avant	Front shell	Copertura posteriore	Voorplaat	Capa dianteira	Sprednji del ohišja
5	Ruedas	Roulettes	Casters	Ruote orientabili	Wielen	Rodas	Kolesca
6	Panel	Panneau d'affichage	Display panel	Pannello di visualizzazione	Weergavepaneel	Painel do visor	Zaslon
7	Colgador	Crochet	Hanger	Gancio	Hanger	Cabide	Obešalnik
8	Controlador	Contrôleur	Controller	Telecomando	Regelaar	Controlador	Krmilnik
9	Carcasa trasera	Coque arrière	Rear shell	Copertura anteriore	Achterplaat	Capa traseira	Zadnji del ohišja
10	Bloqueo de ruedas	Roulettes ver-rouillables	Lock casters	Bloccaggio per le ruote	Vergrendeling wielen	Rodas de bloqueio	Kolesca z zavoro

11	Gancho para cable	Crochet du câble d'alimentation	Power wire hook	Gancio del cavo di alimentazione	Netsnoerhaakje	Gancho de alimentação	Kavelj za električni kabel
12	Entrada lateral de agua	Entrée d'eau latérale	Side water inlet	Ingresso acqua laterale	Zijdelingse waterinlaat	Entrada de água lateral	Stranski vhod za vodo
13	Nivel máximo	Niveau maximum	Maximum level	Livello massimo	Maximumpeil	Nível máximo	Najvišji nivo
14	Asas	Poignées de transport	Carry hands	Maniglie per il trasporto	Handvaten	Pegas de transporte	Nosilni ročici
15	Filtro estático	Filtre statique	Static filter	Filtro statico	Statische filter	Filtro estático	Statični filter

Technical line drawing of a portable air purifier with labeled components (no text or symbols present)

	1	2
ES	Máximo	Mínimo
FR	Maximum	Minimum
GB	Maximum	Minimum
IT	Massimo	Minimo
NL	Maximum	Minimum
PT	Máximo	Mínimo
SI	Največ	Najmanj

F.3

	ES	FR	GB	IT	NL	PT	SI
	Encendido/apagado	Marche/arrêt	On/off	On/off	Aan/uit	On/off	Vklop/izklop
1H 2H0.5H 4H	Timer	Minuterie	Timer	Timer	Timer	Temporizador	ČAsovnik
	Nivel de agua	Niveau d'eau	Water level	Livello del-l'acqua	Waterpeil	Nível de água	Nivo vode
	Frío	Frais	Cool	Freddo	Koel	Frio	Hladno
	Alta	Élevé	High	Alta	Hoog	Alto	Visoko
	Media	Moyen	Medium	Media	Medium	Médio	Srednje
	Baja	Faible	Low	Bassa	Laag	Baixa	Nizko
	Balanceo i/d	Oscillationgauche/droite	Swing l/r	Oscillaziones/d	Draaien l/r	Oscilação e/d	NihanjeI/d
	Dormir	Veille	Sleep	Sospensione	Slapen	Inativo	Spanje
	Natural	Naturel	Natural	Naturale	Natuurlijk	Natural	Naravno
	Normal	Normal	Normal	Normale	Normaal	Normal	Običajno

F.4

ON/OFF HEAT SPEED COOL SWIN G L/R TIMER LED

ES	Control remoto	Mínimo
FR	Télécommande	Minimum
GB	Remote control	Minimum
IT	Telecomando	Minimo
NL	Afstandsbediening	Minimum
PT	Controlo remoto	Mínimo
SI	Daljinsko upravljanje	Najmanj

F.5

Diagram showing a device transitioning from a flat top to a double bottom with a black X mark (no text or symbols present)

F.6

Diagram of a vehicle with a cross symbol crossed out, enclosed in a rectangular frame (no text or labels)

F.7

Line drawing of two identical containers with water droplets and a black X symbol (no text or labels)

Estimado cliente,

L N C H M L M M1 M2 W

TECHNICAL SPECIFICATIONS

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

- Children of less than 3 years should be kept away unless continuously supervised.

M1: Oscillation Gauche/Droite

M2: Pompe à eau

L N C H M L M1 M2 W

TECHNICAL SPECIFICATIONS

CONDITIONS DE GARANTIE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

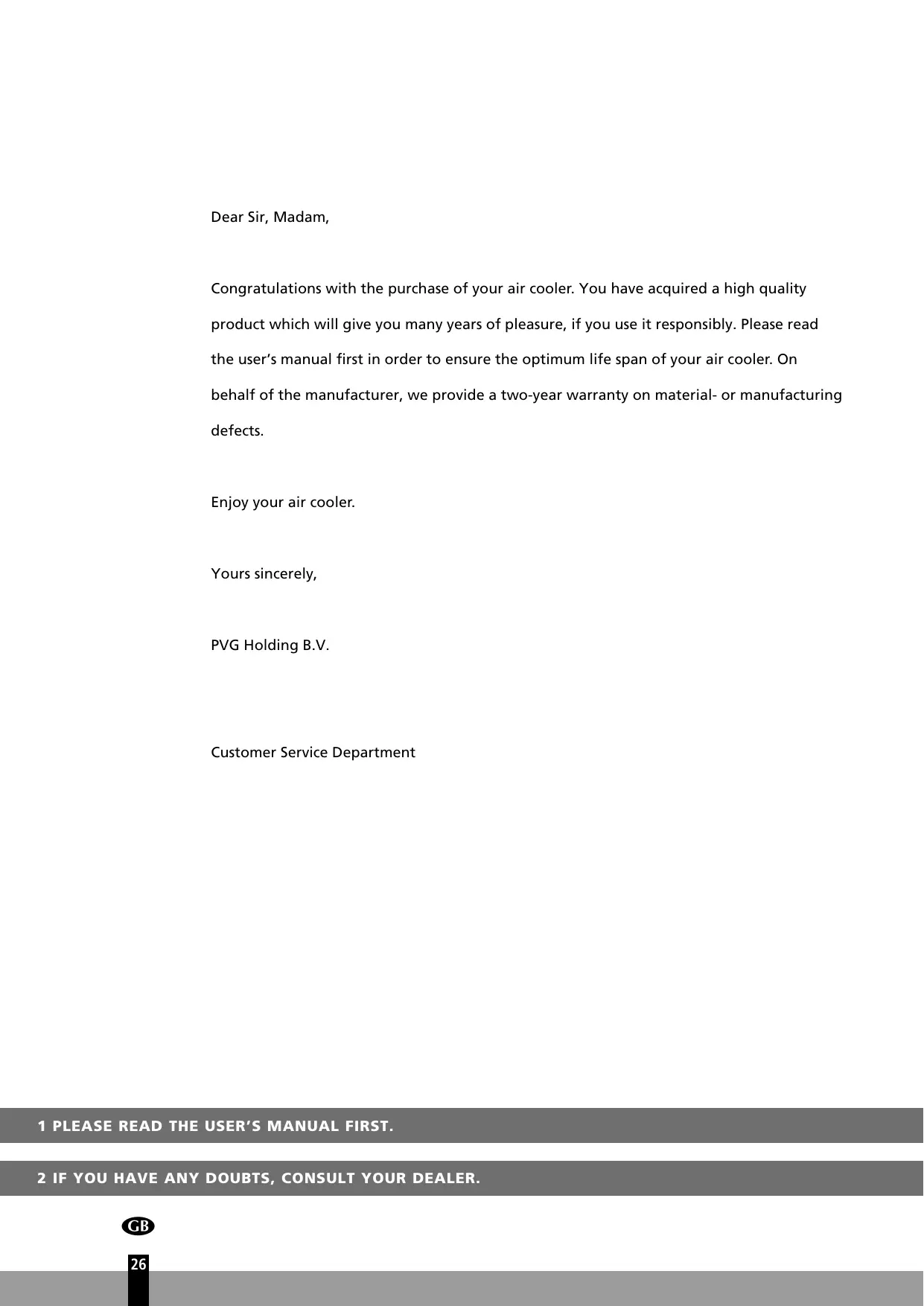

Congratulations with the purchase of your air cooler. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your air cooler. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your air cooler.

Yours sincerely,

PVG Holding B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

• Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.
• The air cooler is designed for indoor and outdoor use.
• After unpacking, check the appliance for any damages. When in doubt, do not use the appliance, but contact customer service at your local dealer's. Keep the packaging materials (plastic bags, etc.) away from children, as they may cause hazardous situations to children.
• No modifications to the safety system are allowed.
• This product is constructed in conformity with relevant texts in the EN 60335 standard

Warnings

• Read the Directions for Use before using the air cooler. The safety of this product is guaranteed only by its correct usage in accordance with these instructions, therefore it is recommended that they are retained for future reference.
• Only use the device for its intended purpose. Other usage may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc.
  • Install the product only if it complies with local regulations, laws and standards;
  • Make sure that the available voltage

does not exceed the voltage stated in the specifications of this manual.

- Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.

- The appliance is suitable for mains voltages ranging from 220-240V.

- Always make sure that you actually see the appliance when you want to switch it on. Never use things like a timer, programmer or any other device (including Internet apps) that switches on the appliance automatically as this may cause fire!

• Install the product according to the instructions as described in the installation section of the directions for use;

- This product is manufactured according to CE safety standards. Nevertheless, as with any other device, care must be taken;

- RISK OF FIRE Never use the product in places where inflammable and/or harmful Gases, products or fumes may be present (e.g. exhaust Gases, paint fumes, curtains, paper, clothes);

- Do not use any extension cords or multi-socket adapters.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- If the supply cord is damaged, it shall be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Children should be supervised to ensure that they do not play with the appliance.

- The device must not be located immediately below a socket outlet.

- Do not use this product in the immediate surroundings of a bath, a shower or a swimming pool.

- The guard of this unit is intended to prevent direct access to moving parts and must be in place when the unit is in use.

- Disconnect the power plug before dismantling, assembling or before cleaning.

- Make sure the air cooler is on a dry and even surface.

- Do not insert objects into the openings of the device.

- The guard does not give full protection for young children and infirm persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved.

- Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- Switch off the appliance when it is unattended.

- Do not cover or obstruct the product when in use.

- Disconnect from mains during installation and cleaning.

- Do not use the unit if the ambient temperature is above 40^ C.

- When using electrical appliances, always adhere to basic safety precautions to prevent the risk of fire, electric shocks and physical injury. Even more attention and care is required when using electrical appliances incorporating a container of water: should the water overflow, immediately unplug the adaptor from the outlet, check that the electrical parts of the unit are not wet, and if they are, dry them thoroughly and carefully. If in doubt consult a qualified professional.

- Do not leave the appliance exposed to the weather (sun, rain, etc).

- The water should be replaced every 3-4 days, even if it has not been used. If the fan has not been used for long periods, remove the water from the tank and the base of the humidifier.

- Care should be taken when using the appliance due to the emission of hot water vapour.

- Unplug the appliance during filling and cleaning.

If you fail to consult and/or follow up the rules, instructions and explanation, the warranty will no longer be valid, and the manufacturer will no longer deal with any damage to the appliance and/or your environment under the warranty.

OPERATION GUIDE

1. Open the package and take the machine out. Check the content with on Instruction Manual.
2. The unit should be placed on a level surface and must always stand in a verticaposition. Check the power supply of the correct rating. (Refer to the nameplate located at the back side of the unit) (F.3).

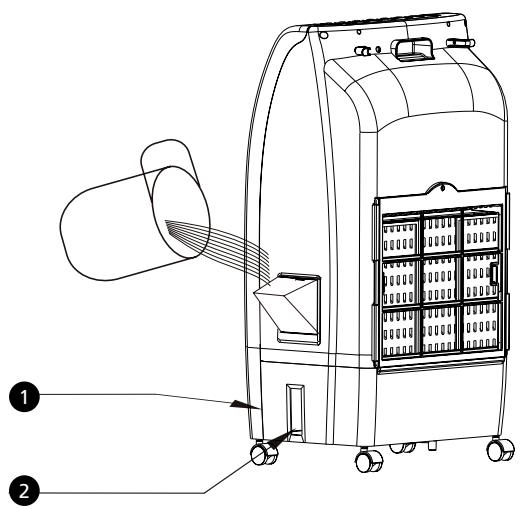

3. Filling water: When the machine is new or unused for a long period, it is necessary to fill in clean water before using. Be sure to unplug the unit before filling water for preventing electrical parts from damage. Open the water tank lock and pull out the water tank, then fill the water into tank.
   Notice that the water does not exceed the maximum set level.
4. Adjustable Up and Down winds swing: Open air shutter before the unit turn on. Adjust the louvers up and down manually to comfortable direction.
5. Timer: Press this key, time setting can be made with the range of 0.5-7.5 hours, with an interval of one hour. When the timer light is off, the unit is in the continuous condition.
6. Remote control: Its function is the same as control panel, ensure there is no obstruction between remote control and unit when using it.
7. Storage: In case the unit is unused for a long time, the water tank should be drained out and keep the unit running with fan only for a period. Especially the strainer should be entirely dry. Pack it with plastic bag and put it in box.

FUNCTIONS OF ALL BUTTONS

ON/OFF[ZSDW]	Switch on this button to open the air cooler, with a short sound“BI” signaling the starting of normal operation. Meanwhile, functions indicators for cooling and swinging(normal wind type) are turned on automatically. Medium windy from the starting after 3 seconds, it will change to low speed. To close the air cooler, switch off the “ON/OFF” button. A short sound of “BI” signals stop of all operation.
MODE[SHWC]	The Normal mode is set automatically after opening the air cooler. Pressing this button will switch the Normal mode to sleep. Pushing it again will switch the sleep mode to Natural. All of the three types are available for choice. (Remark: When the “Natural” or “Sleep” mode is on, the wind speed will not be changed).
COOL[CZZDC]	This function is started automatically after opening the air cooler. To stop cooling function, push the button. To press it once more will open this function again. (When the cooling function operates, fans automatically t Remark: urn to low speed 30 seconds).
SWING L/R	This function is started immediately after opening the air cooler, shown by the lighted SWING L/R indicator. Under this condition, the wind board slowly sways form left to right. To stop this function as well as the indicator, just push this button. Pushing it once more will start the swaying of wind board once again.
SPEED[8KCZ]	Push this button to change the speed of wind after starting the air cooler. Wind speed can be changed from low, medium to high. Indicator for low wind speed turns on when the air cooler works in low speed. So do medium and high speed indicators.
TIMER	The timer function turn on when press this button on standby mode, and can set timer power on from 1 hour to 7.5 hours by hour. After turn on the machine, press this button to set timer power off function from 1 hour to 7.5 hours by hour. Release this function can press this button to change the time and can press “ON/OFF”button directly.
LED	The LED display panel light and the control light turn on at the same time when the machine is on. The LED display panel will turn off automatically after 10 seconds from the unit is off but the control light will not turn off.
WATER LEVEL	The LED light is blue when the tank have water, The Led is red and the machine also make voice alarm when water is lacking in tank. The water is lacking if the machine is in cooling mode, need to add water and press cooling button to turn cooling function.

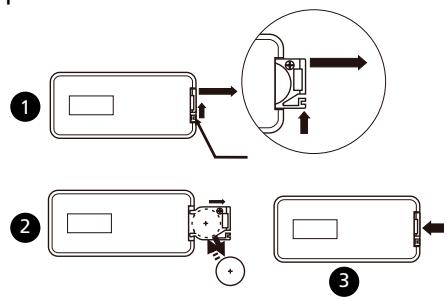

HOW TO CHANGE BATTERY FOR THE CONTROLLER

1: Pull the battery outward.
2: Put in the new battery with the "+" on the top.
3: Put the battery box in the controller

Diagram illustrating three-step assembly of a device with labeled components and directional arrows indicating process flow.

CAUTION

1. Use normal power supply. (F.5)
2. Do not place objects on the top of the unit. Do not cover the air outlet when in use and obstructed of front and back in one meter. (F.6)

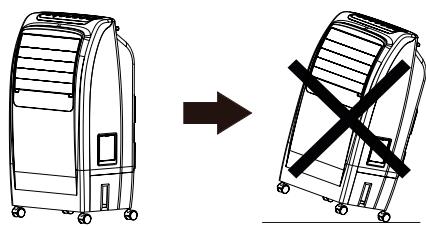

3. After filling with water, do not tilt or collide the unit, when you need to move the unit, push the side surface slowly so as to avoid water splashing out. Do not overturn the unit in service to prevent accident.
4. The body of the unit may not be placed in area with extremely high or low temperature. In hot summer, the water in its water tank is liable to deterioration

with odor and should be changed frequently. In winter, at room temperature lower than 0 degree, it is necessary to remove the water and clean with dry towel to avoid frost.

1. In cleaning the outer surface of the unit, wet cloth (or with some detergent) should be used. Do not use any corrosive cleaner or solvent for this purpose. Rinsing with water is absolutely not allowed. (F.7)
2. If packed for storage or transportation, please drain the water and make the unit working a few minutes, after totally dry then pack it, in order to avoid the peculiar smell.
3. Don't keep the plug connecting when long time no using the unit, it will be damaged.
4. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
5. The unit has strong humidity effect, please shut this function in the airtight environment.
6. Filling water when it is in the low water level.
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning se of the appliance by a person responsible for their safety.
8. Children should be supervised to ensure that they do not play with the appliance.

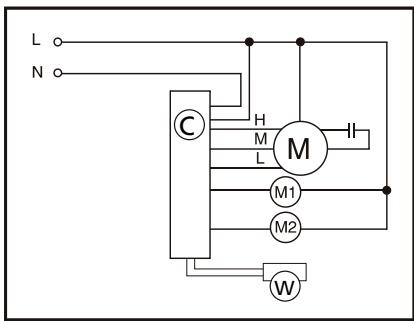

ELECTRICAL SCHEMATIC DIAGRAM

M: Fan Motor

M1: Swing Motor L/R

M2: Water Pump

C: Control board

W: Water level sensor

L N C H M L M1 M2 W

TECHNICAL SPECIFICATIONS

Model	Voltage	Input Power	Noise Power Level	Water Tank Capacity	Evaporation Capacity	Air Flow Rate	N.W.	Dimension(mm) L X W X Hdel
Lk1051	AC220-240V,50Hz	65W	50dB(A)	6.5 l	1.2L/h	510m3/h	6 kg	360×275×703

Remark:
1. The water consumption is depend on the environment's humidity.
2. The above datum are for reference only. Users should refer to parameter on the rating label.

TROUBLESHOOTING

Problem	Cause	Solution
No air flow	1.Power is not connected.2.Power is not turned ON.3.Body damaged.	1.Plug the power cable properly.2.Press the Air Speed key to start.3.Return to Service Center.
Continuous blowing of fan	Body damaged.	Return to Service Center.
Abnormal sound	1.Foreign article inside the body.2.Loose air wheel.3.Motor defect.	1.Remove rear cover and strainer, remove foreign articles.2.Return to Service Center.3.Return to Service Center.
No evaporation	1.Filter of water inlet broken.2.Water trough was be jamminged3.Other cause.	1.Cleaning the inlet filter.2.Cleaning the water trough.3.Return to Service Center.
Air flow direction can not be controlled	Defective front synchronization motor.	Return to Service Center.

GUARANTEE CONDITIONS

The appliance is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral and/or consequential damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as filters, batteries, lamps and heating elements are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to it.
6. The guarantee is invalid for damage caused by neglect and/or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the appliance or components of the appliance shall always be for the account of the purchaser
8. Damage caused by not using suitable spare parts is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the appliance to your dealer for repairs if these instructions do not provide a solution.

www.qlima.com

ENVIRONMENTAL PROTECTION

Never dispose of non-biodegradable products in the environment, but dispose of them in accordance with current national legislation.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

Egregio signore, gentile signora,

L N C H M L M1 M2 W

SPECIFICHE TECNICHE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

L N C H M L M I M1 M2 W

TECHNISCHE SPECIFICATIES

Model	Spanning	In-gangs-vermo-gen	Geluidsniveau	Capaciteit watertank	Verdampingscapaciteit	Luchtdebiet	N.G.	Dimension(mm)L X W X Hdel
Lk1051	220-240 V AC, 50 Hz	65 W	50 dB(A)	6,5 l	1,2 l/h	510 m3/h	6 kg	360×275×703

Pure electrical circuit lines without any symbols

Diagram illustrating three-step assembly of a device with labeled components and directional arrows indicating process flow.

CUIDADO

L N C H M L M1 M2 W

ESPECIFICAÇÕES TÉCNICAS

L N C H M L M M1 M2 W

TEHNIČNI PODATKI

Model	Napetost	Vho-dna moč	Raven zvočnega hrupa	Kapaciteta rezervoarja za vodo	Kapaciteta hlapenja	Hitrost zračnega pretoka	N.W.	Mere (mm) D x Š x V
Lk1051	220-240 V AC, 50 Hz	65 W	50 dB(A)	6,5 l	1,2 l/h	510 m3/h	6 kg	360×275×703

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Distributed in Europe by PVG Holding B.V.

Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.qlima.com, oder setzen Sie sich mit unserem Kundendienst in Verbindung (Telefonnummer auf www.qlima.com).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.qlima.com eller det lokale Kundecenter (telefonnumre findes i www.qlima.com).
Es Si necesita información o si tiene algún problema, visite nuestra página Web www.qlima.com, o póngase en contacto con el servicio cliente (hallará el número de teléfono en www.qlima.com).
F Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.qlima.com) ou contactez notre service client (vous trouverez l'adresse et numéro de téléphone sur www.qlima.com).
FIN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.qlima.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (www.qlima.com).
(GB) If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support (you find its phone number on www.qlima.com)
Per informazioni e in caso di problemi, visitate il sito Web www.qlima.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero di telefono, consultate www.qlima.com).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.qlima.com. Alternativt kan du kontakte med PVG' forbrukertjeneste (telefonnummeret i www.qlima.com).
NL Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.qlima.com) of neem contact op met de afdeling sales support (adres en telefoon op www.qlima.com).
Se necessitar de informações ou se tiver problemas, visite o Web site www.qlima.com ou contacte o Centro de Assistência (número de telefone o www.qlima.com)
PL W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.qlima.com lub skontaktuj się z Centrum kontaktów Qlima (www.qlima.com)
Om du behöver service eller information eller har problem med apparaten kan du besöka www.qlima.com eller kontakta Qlima kundtjänst (du hittar telefonnumret på www.qlima.com).
SLO Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.qlima.com ali pokličite na telefonsko (www.qlima.com).
TR Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.qlima.com adresindeki Qlima Internet sitesini ziyaret edin veya ülkenizde bulunan Qlima müşteri merkeziyle iletişim kurun (telefon numarasını: www.qlima.com).
