USER MANUAL PDT660SSFSS GE

Safety Instructions 2-3

Operating Instructions

Control Panel and Settings. 4-6

Using the Dishwasher 7-8

Loading the

Dishwasher Racks. 9

Care Instructions

Care and Cleaning 10-11

Troubleshooting Tips ... 12-13

Consumer Support

Warranty 14

Consumer Support 15

Write the model and serial

numbers here:

Model #

Serial #

You can find them on a label on the

tub wall just inside the door.

Owner's Manual

Stainless Steel

Tall Tub With Top

Controls

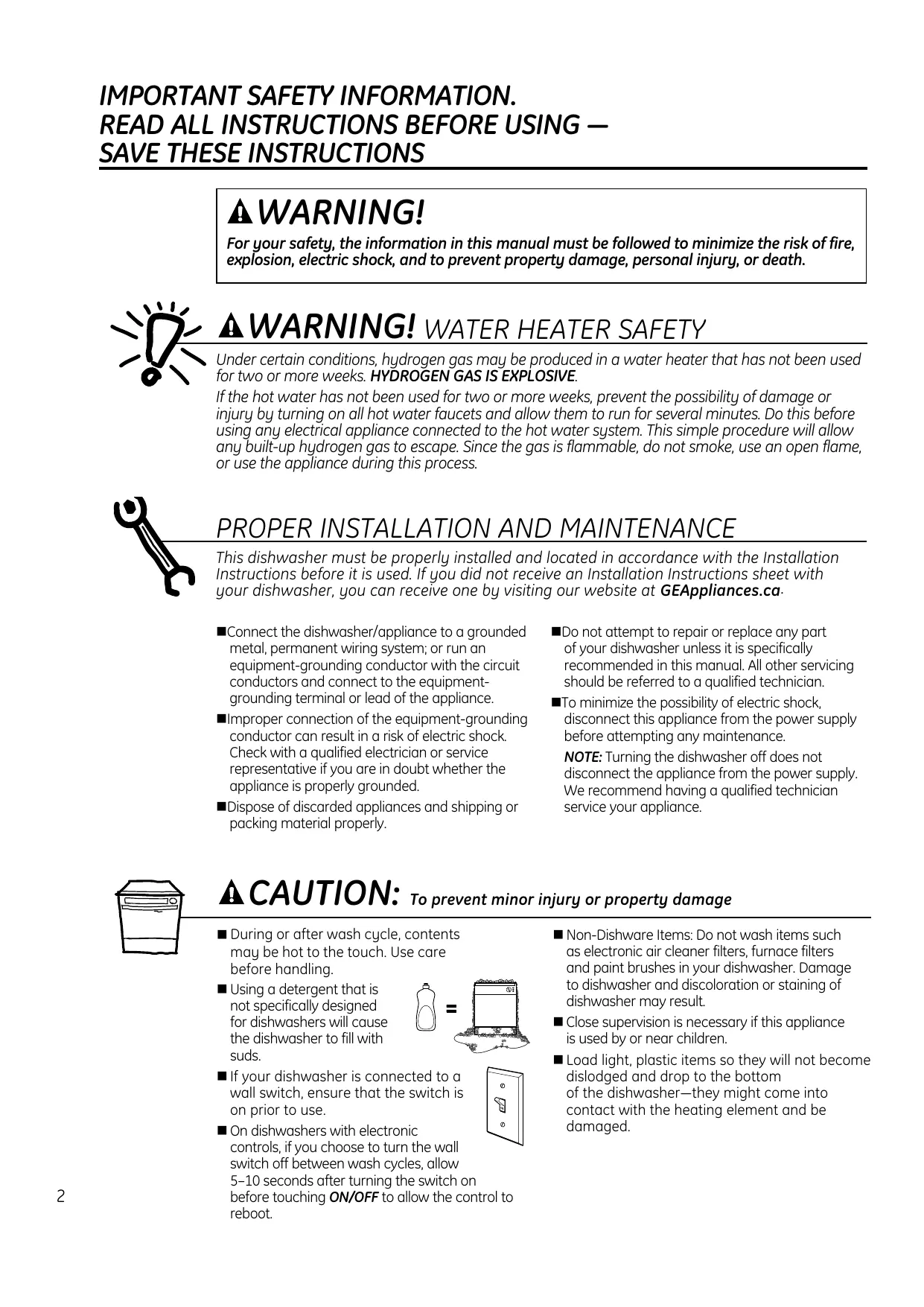

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING! WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allow them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our website at GEAppliances.ca.

• Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.

■ Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

■ Dispose of discarded appliances and shipping or packing material properly.

• Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
• To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

CAUTION: To prevent minor injury or property damage

During or after wash cycle, contents may be hot to the touch. Use care before handling.
Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.
If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.
- On dishwashers with electronic controls, if you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching ON/OFF to allow the control to reboot.

Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to dishwasher and discoloration or staining of dishwasher may result.
- Close supervision is necessary if this appliance is used by or near children.
- Load light, plastic items so they will not become dislodged and drop to the bottom of the dishwasher—they might come into contact with the heating element and be damaged.

WARNING! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous... even if they will sit for "just a few days." If you are getting rid of your old dishwasher, please follow the instructions below to help prevent accidents.

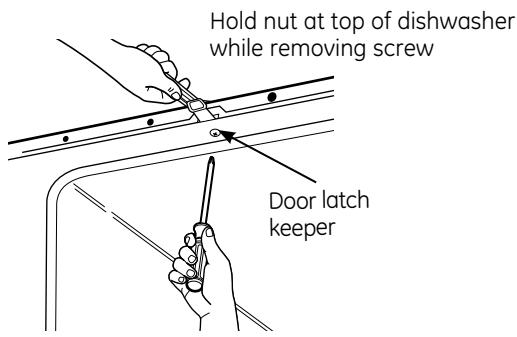

Before You Throw Away Your Old Dishwasher:

Take off the door of the washing compartment or remove the door latch keeper (as shown).

WARNING!

When using your dishwasher, follow basic precautions, including the following:

Use this appliance only for its intended purpose as described in this Owner's Manual.
- Use only powder, tabs, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children.
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- Do not wash plastic items unless marked "Dishwasher Safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
- Do not touch the heating element during or immediately after use.

• Do not operate your dishwasher unless all enclosure panels are properly in place.
  Do not tamper with controls.
• Do not abuse, sit on or stand on the door or dish rack of the dishwasher.
• Do not allow children to play around dishwasher when opening or closing door due to the possibility of small fingers being pinched in door.
• Do not discard a dishwasher without first removing the door of the washing compartment or the door latch.
• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Do not allow children to play with, on or inside this appliance or any discarded appliance.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

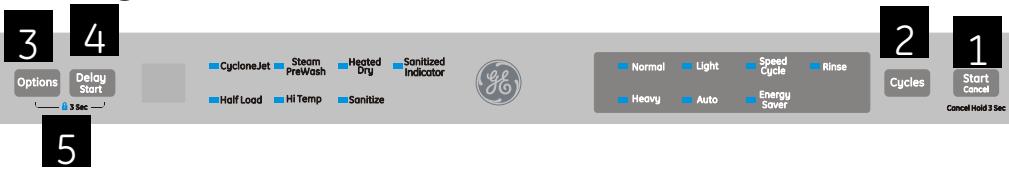

Control Settings

1 Start Cancel

Open door to select the desired cycle and options. Press the Start/Cancel button and close the door to start the cycle or begin the Delay Start countdown. The wash cycle will begin shortly after closing the door.

Note: Once the Start button is pressed and the door is closed, the dishwasher will start operating within a few seconds.

Cycles

With the dishwasher door open, you can press the Cycles button to select the wash cycle. A light on the display will indicate which cycle has been selected.

NOTE : The following information about cycle duration and water consumption are approximate. Results will vary based on various factors, including but not limited to incoming water temperature and pressure as well as soil level.

Cycle	To Select Cycle	Soil Level	Water (approx.)	Time* (mins)	Washes/ Rinses
Heavy Wash For pots, pans, casseroles and dinnerware with dried-on or baked-on soils.	Select HEAVY WASH and desired OPTIONS. HI-TEMP WASH will automatically be provided.		6.0 gal. 22.5 liters	140	3 washes 3 rinses
Normal Wash For regularly soiled dishes and silverware.	Select NORMAL WASH and desired OPTIONS.	Heavy	3 gal. 11.4 liters	110	1 washes 2 rinses
		Medium	3 gal. 11.4 liters	110	1 wash 2 rinses
		Light	3 gal. 11.4 liters	90	1 wash 2 rinses
Light Wash For lightly soiled loads	Select Light Wash and desired OPTIONS.		5.0 gal. 18.8 liters	120	3 washes 2 rinses
Auto Wash A fast wash for lightly soiled dishes and silverware.	Select AUTO WASH and desired OPTIONS.	Max	5 gal. 18.8 liters	120	3 washes 2 rinses
		Min	3 gal. 11.4 liters	97	1 washes 2 rinses
Speed Cycle For lightly soiled loads	Select SPEED CYCLE and desired OPTIONS.		4 gal. 15.1 liters	65	2 washes 2 rinses
Energy Saver For lightly soiled and pre-rinsed dishes and silverware.	Select Energy Saver and desired OPTIONS.		5 gal. 18.8 liters	110	3 washes 2 rinses
Rinse For rinsing dishes that will be washed later.	Select RINSE DO NOT USE detergent.		2 gal. 7.7 liters	15	2 rinses

3 Options

When the wash cycle has been selected, you can choose the option by pressing the "Options" button.

Press the OPTIONS button, "Cyclone Jet" will be selected;
Press the OPTIONS button twice, the "Half Load" will be selected;
Press the OPTIONS button three times, the "Steam PreWash" will be selected.
4 Press the OPTIONS button four times, the "Hi Temp" option will be selected.
Press the OPTIONS button five times, the "Heated Dry" option will be selected.
6 Press the OPTIONS button six times, the "Sanitize" option will be selected.
Press the OPTIONS button seven times, the "Heated Dry" and "Cyclone Jet" options will be selected.
Press the OPTIONS button eight times, the "Heated Dry" and "Half Load" options will be selected.
Press the OPTIONS button nine times, the "Heated Dry" and "Steam PreWash" options will be selected.
10 Press the OPTIONS button ten times, the "Heated Dry" and "Hi Temp" options will be selected.
11 Press the OPTIONS button eleven times, the "Heated Dry" and "Sanitize" options will be selected.

About the options:

Sanitize When "Sanitize" option is selected, the temperature of the water will reach a maximum of 70^ C (158°F)

Note : it is possible that the 70^ C( 158^ F) may not be reached if the temperature of the incoming hot water does not meet the suggested temperatures.

Hi Temp When the "Hi Temp" option is selected, the temperature of the water will be maintained at 60^ (140°F) max.

Heated Dry When the "Heated Dry" option is selected, the heater will work during the dry process.

Steam PreWash For use with heavily soiled items, this STEAM option adds 30 minutes to the cycle time. The option is available with"Heavy""NORMAL""AUTO"cycle.

Half Load Select this option to wash a small load of dishes. We recommend that you place dishes in the lower rack when you use this feature. When you select Half Load, the dishwasher will not wash dishes placed in the middle or third rack. If you select the Half Load option, both water and electricity consumption are reduced.

Cyclone Jet Use this option when you want to wash pots and pans, durable serving bowls, and other large, very dirty, hard to clean dishes. To use Cyclone Jet, place the dishes face down in the lower rack directly above the CycloneJet wash arm in the back left corner.

4 Delay Start

This option allows you to delay the start of a wash cycle for up to 24 hours. When the dishwasher is on, press the DELAY START button to choose the number of hours you want to delay the start of the wash cycle.

The hours will show in the display window (ifequipped) or the corresponding LED will light up.

5 Child Lock

Press the OPTIONS and DELAY START buttons for 3 seconds the LOCK light will display on the LCD. No buttons can be operated when the dishwasher controls are locked.

To cancel the "Child Lock" option, press the OPTIONS and DELAY START buttons for 3 seconds, the LOCK light will no longer be shown on the LCD and the dishwasher controls will be unlocked.

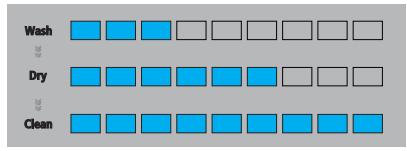

CYCLE PROGRESS INDICATOR (on some models)

Located on the right side of the front of the dishwasher, these lights indicate how far along is the current wash cycle when the dishwasher is operation.

1 WASH	When the dishwasher is in a wash or rinse portion of a cycle, the Wash lights are illuminated.
2 DRY	When the dishwasher is in a drying portion of a cycle, the Wash and Dry lights are illuminated.
3 CLEAN	After the dishwasher has completed all portions of a cycle, all indicator lights are illuminated. If you open the door when the Clean lights are illuminated, they will turn off immediately.

On Control Panel

Sanitized indicator Displayed at end of the cycle when the Sanitize option has been selected and dishwasher has met requirements for sanitization. See Sanitize for complete description. Closing door or pressing any button will turn off light.

Check the Water Temperature

The entering water should be at least 49^ C ( 120^ F ) and not more than 65^ F ( 150^ F ) for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat

thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising.

Use Rinse Agent

Rinse agent removes spots and prevents new film buildup on your dishes, glasses, flatware, cookware and plastic.

Filling the Dispenser

The rinse agent dispenser holds approximately 100 ml of rinse agent. Under normal conditions, this will last approximately one month. Try to keep it full, but do not overfill.

1 Make sure the dishwasher door is fully open.
Turn the dispenser cap to the left and lift it out.
3 Add rinse agent until the indicator window looks full.
4 Clean up any spilled rinse agent with a damp cloth.
Replace the dispenser cap.

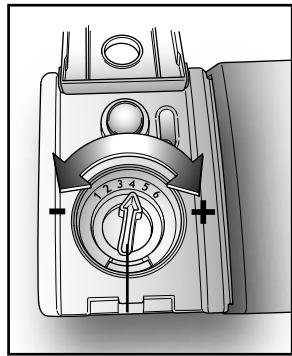

Rinse Aid Setting

The amount of rinse agent released into the final wash can be adjusted. The factory setting is at the midpoint. If there are rings of calcium (hard water) spots on dishes, try a higher setting. If you observe foam in the final rinse, try a lower setting.

To adjust the setting

Remove the dispenser cap; then turn the adjuster counterclockwise to increase the amount of rinse agent or clockwise to reduce the amount of rinse agent dispensed.

Dish Preparation Prior to Loading

Scrape off hard soils, bones, toothpicks, skins and seeds.
- Remove large quantities of any remaining food.

• Remove leafy vegetables, meat, trimmings and excessive amounts of grease or oil.
• Remove acidic food soils that can discolor stainless steel.

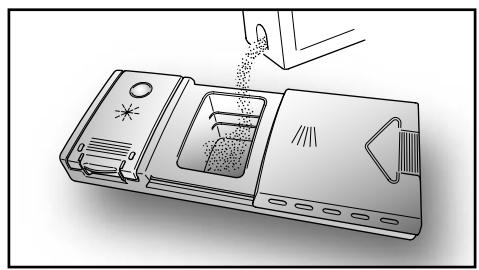

Proper Use of Detergent

Use only detergent specifically made for use in dishwashers.

Keep your detergent fresh and dry. Don't put detergent into the dispenser until you're ready to wash dishes.

The amount of detergent to use depends on whether your water is hard or soft. With hard water, you need extra detergent. With soft water, you need less detergent.

Protect your dishes and dishwasher by contacting your water department and asking how hard your water is. Twelve or more grains is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve, which could stick while open and cause flooding. Too much detergent with soft water can cause a permanent cloudiness of glassware, called etching.

Use the information in the table below as a guideline to determine the amount of automatic dishwasher detergent to place in the dispenser.

When using automatic dishwasher detergent tablets, simply place one tablet in the dispenser and close the cover.

Number of Grains	Detergent Level to Fill
Less than 8	line 15
8 to 12	line 25
Greater than 12	above line 25

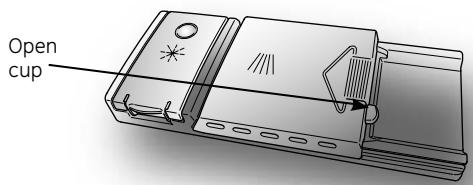

To open the wash cover, press the button and the cover will flip back.

Forgot to Add a Dish?

A forgotten dish can be added any time before the main wash.

1 Open the door slightly to disengage the latch and stop the cycle.
2 Do not open the door until the water spray action stops. Steam may rise out of the dishwasher.
action stops. Steam may rise out of the dishwasher.

For heavily-soiled loads, use the HEAVY wash cycle and add a little extra detergent.

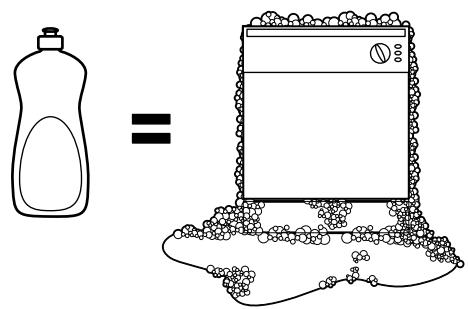

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated to work with dishwashers.

3Add forgotten dishes.
4 Close the door and push it in to relatch.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

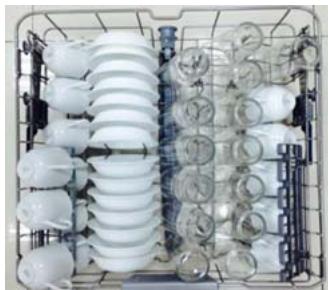

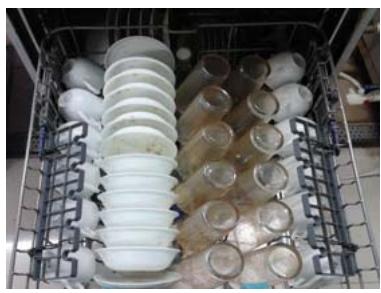

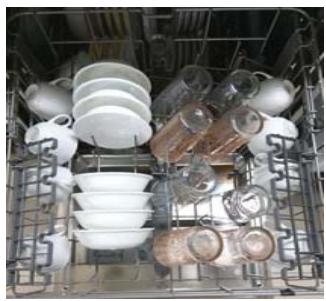

Upper Rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty).

Position the dishes and cookware so that they do not get moved by the spray of water

Upper Rack 8 place settings

Upper Rack 12 place settings

Upper Rack 14 place settings

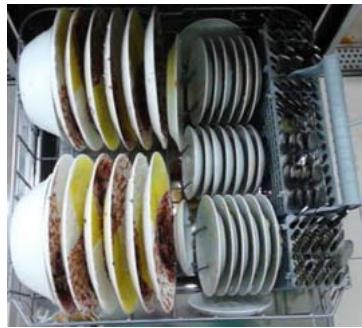

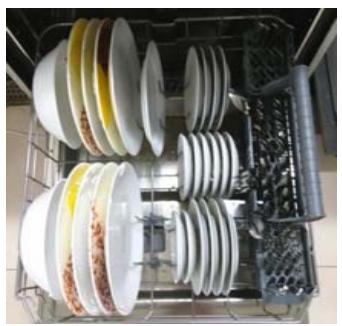

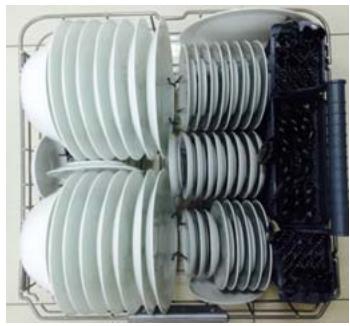

Lower Rack

We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.

Bottom Rack 8 place settings

Bottom Rack 12 place settings

Bottom Rack 14 place settings

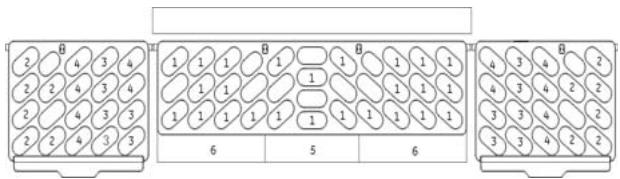

Silverware Basket

Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots.

1. spoons
2. knives
3. salad forks
4. forks
5. large forks
6. large spoons

WARNING!

Do not let any item extend through bottom.

To clean the control panel, use a lightly dampened cloth, then dry thoroughly. To clean the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Exterior

Cleaning the Door Panel

Before cleaning the front panel, make sure you know what type of panel you have. Refer to the last two letters of your model number. You can locate your model number on the left-hand tub wall just inside the door. If your model number ends with BB or WW, then you have a Painted Door panel. If your model number ends with SS, then you have a Stainless Steel Door panel.

Follow the instructions below for cleaning the door panel for your specific model.

Painted Door Panel (model numbers ending in BB-black or WW-white)

Use a clean, soft, lightly dampened cloth, then dry thoroughly. You may also use a good appliance wax or polish.

Stainless Steel Door Panel (model numbers ending in SS)

The stainless steel panels can be cleaned with Stainless Steel Magic or a similar product using a clean, soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel doors.

You can order Stainless Steel Magic through GE Parts by calling 800.661.1616.

Do not wipe the dishwasher with a soiled dish cloth or wet towel. These may leave a residue. Do not use scouring pads or powdered cleaners because these products can scratch the finish.

Cleaning the Control Panel

To clean the control panel, use a lightly dampened cloth; then dry thoroughly. Do

not use sharp objects, scouring pads or harsh cleaners on the control panel.

Stainless Steel Interior Tub and Inner Door

The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a GE

dishwasher. If the dishwasher tub or inner door is ever scratched or dented during during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

Cleaning the Spray Arms and the Filters

The dishwasher will flush away all normal food soils. However, objects (fruit pits, bones, etc.) may collect in openings and should be removed occasionally to avoid clogging the drain system.

CAUTION

Personal injury hazard. Before cleaning the interior, wait at least 20 minutes after a cycle for the heating element to cool down. Failure to do so could result in burn injuries.

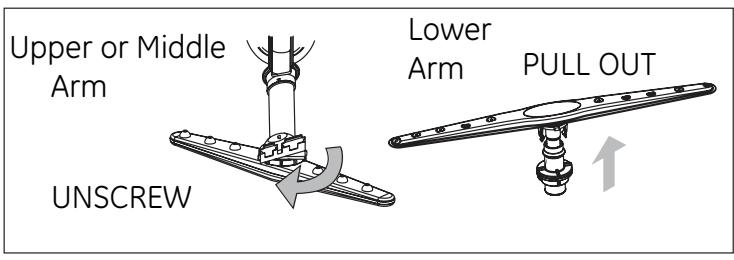

Cleaning the Spray Arms

Because hard water chemicals will clog the spray arm jets and bearings, it is necessary to clean the spray arms regularly. Wash the arms in soapy, warm water and use a soft brush to clean the jets. Replace them after rinsing thoroughly.

To remove the upper or middle spray arm, unscrew the nut clockwise.

To remove the lower spray arm, pull upward.

Caring for the dishwasher.

Cleaning the Spray Arms and the Filters (Continued)

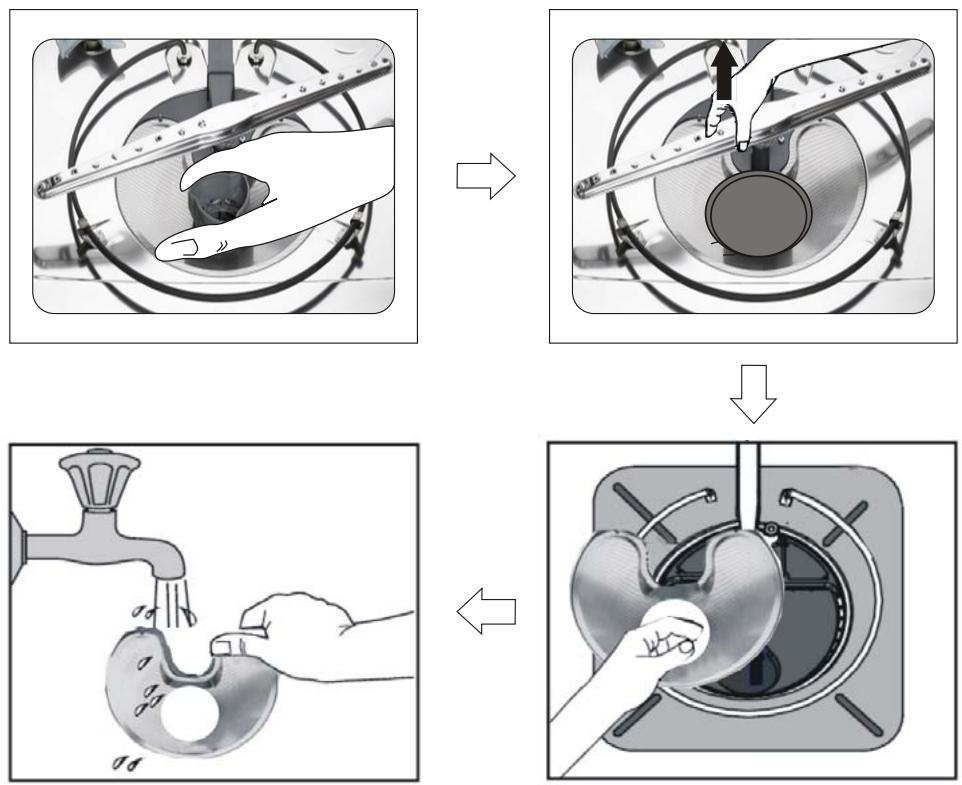

Cleaning the Filters

For best performance and results, the filter assembly must be cleaned once a month. The filter efficiently removes food particles from the wash water, allowing water to be recirculated during the cycle. For this reason, it is a good idea to remove the large food particles trapped in the filter frequently by rinsing the

main filter and cup under running water. To remove the filter assembly, follow the 3 steps shown below. To clean the main filter and fine filter, use a cleaning brush. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and may damage dishes and utensils.

General Care Instructions

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

Cut off electrical power to the dishwasher. Remove fuses or trip circuit breaker.
Turn off the water supply and disconnect the water inlet line from the water valve.

Drain water from the water inlet line and water valve. (Use a pan to catch the water.)
4 Reconnect the water inlet line to the water valve.

Check the air gap any time your dishwasher isn't draining well.

Does Your Dishwasher Have an Air Gap?

An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.

The air gap is easy to clean.

1 Turn off the dishwasher and lift off the chrome cover.
2 Remove the plastic cap and clean with a toothpick.

Before you call for service...

Troubleshooting Tips - Save time and money! Review the charts on the following pages, or visit GEAppliances.ca. You may not need to call for service.

Problem	Possible Causes	What To Do
Noise	Some of the sounds you'll hear are normal	Detergent cup opening. The motor starting during the drying period. Water draining out of the tub immediately after you start the dishwasher.
	Utensils are not secure in the rack or something small has dropped into the rack	Make sure everything is secured in dishwasher.
	Motor hums	Dishwasher has not been used on a regular basis. If you do not use your dishwasher often, set it to fill and pump out once every week. This will help keep the seal moist. Dishwasher control was not advanced properly to the start of the desired cycle. Advance the control to the start of the desired cycle.
Detergent left in dispenser cups	Dishes are blocking the detergent cups	Reposition the dishes.
Water standing in the bottom of the tub	Drain is clogged	If you have an air gap, clean it. Check to see if your kitchen sink is draining well. If not, you may need a plumber. If the dishwasher drains into a dispenser, run dispenser clear.
	This is normal	A small amount of clean water around the outlet of the tub bottom at the back of the tub keeps the water seal lubricated.
Suds in the tub	Correct detergent wasn't used	Use only automatic dishwasher detergents to avoid sudsing. To remove suds from the tub, open the dishwasher and let suds evaporate. Add 3.8 liters of cold water to the tub. Close and latch the dishwasher. Repeat if necessary.
	Rinse agent was spilled	Always wipe up rinse agent spills immediately.
Stained dishwasher parts	Detergent with colorant was used	Some detergents contain colorant (pigment or dyes) that will discolor the tub interior with extended use. Check the detergent cup for signs of any discoloration. If cup is discolored, change to detergent without any colorant.
	Some tomato-based foods can stain	Use of the RINSE ONLY cycle after adding the dish to the load can decrease the level of staining.
Dishwasher won't run	Fuse is blown, or the circuit breaker tripped	Replace fuse or reset circuit breaker. Remove any other appliances from the circuit.
	Power is turned off	In some installations, the power to the dishwasher is proved through a wall switch, often located next to the dispenser switch. Make sure it is on.
	Reboot your control	Turn off power to the dishwasher (at circuit breaker or wall switch) for 30 seconds, then turn back on.
Steam	This is normal	Steam comes through the vent during washing, drying and when water is being pumped out.
Beeping at the end of the cycle	This is normal	The dishwasher will beep 3 times (unless interrupted) and the CLEAN light will display at the end of the wash cycle.

Before you call for service...

Problem	Possible Causes	What To Do
Dishes and flatware not clean	Low inlet water temperature	• Make sure inlet water temperature is correct (see page 6).
	Water pressure is temporarily low	• Turn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher.
	Air gap is clogged	• Clean the air gap.
	Improper rack loading	• Make sure large dishware does not block the detergent dispenser or the wash arms.
	No air gap or high drain loop	• Verify that you have an air gap or a high drain loop. Refer to the Installation Instructions.
	Filter needs cleaning	• The filter assembly must be cleaned regularly to allow the filter to efficiently remove food particles from the wash water. See Cleaning the Filter section on page 1.
Spots and filming on glasses and flatware	Extremely hard water	• Use rinse agent to remove spots and prevent new film buildup.
	Low inlet water temperature	• Make sure water temperature is at least 49°C (120°F).
	Overloading the dishwasher / Improper loading	• Load dishwasher as shown in the Loading the Dishwasher Racks section.
	Old or damp powder detergent	• Make sure detergent is fresh.
	Rinse agent dispenser empty Too little detergent	• If water is extremely hard, a water softener may be required.
Cloudiness on glassware	Combination of soft water and too much detergent	• This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get them clean.
	Water temperature entering the dishwasher exceeds 65°C (150°F)	• Lower the water heater temperature.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	• Remove marks with a mild, abrasive cleaner.
Yellow or brown film on inside surfaces	Tea or coffee stains	• Remove the stain by hand, using a solution of 1/2 cup bleach and 3 cups warm water. ▲WARNING Before cleaning interior wait at least 20 minutes after a cycle for the heating element to cool down. Failure to do so can result in burns.
	An overall yellow or brown film can be caused by iron deposits in water	• A special filter in the water supply line is the only way to correct this problem. Contact a water softener company.
White film on inside surfaces	Hard water minerals	• To clean the interior, apply dishwasher detergent to a damp sponge. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or suding.
Dishes don't dry	Low inlet water temperature	• Make sure inlet water temperature is correct (see page 6).
	Rinse agent dispenser is empty	• Check the rinse agent dispenser.
Control panel responded to input but dishwasher never filled with water	Door latch may not be properly seated	• Make sure the door is firmly closed.
	Water vale may be turned off	• Make sure water valve (usually located under the sink) is turned on.
Dishwasher beeps once every 60 seconds	This is normal	• Close the door after opening it mid-cycle.
	This is a reminder that the door has been left open during operation	• Press ON/OFF to turn OFF the dishwasher.

GE Dishwasher Warranty.

All warranty service provided by our authorized service technicians.To schedule service, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year From the date of the original purchase

Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part.

What Is Not Covered (for customers in Canada):

Service trips to your home to teach you how to use the product.
Improper installation.

If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting failures.

• Cleaning or servicing of the air gap device in the drain line.

Product not accessible to provide required service.

Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
- Damage to the product caused by accident, fire, floods or acts of God.
Damage caused after delivery.
- Incidental or consequential damage caused by possible defects with this appliance.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by MC Commercial to provide.

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

Warrantor: MC Commercial, Burlington, ON, Canada, L7R 5B6

Consumer Support.

GE Appliances Website

GEAppliances.ca

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year!

Schedule Service

GEAppliances.ca

Expert GE repair service is only one step away from your door.

Call 1.800.561.3344 during normal business hours.

Real Life Design Studio

GEAppliances.ca

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today.

In Canada, contact: Director, Customer Relations, MC Commercial

Bureau 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

GEAppliances.ca

Please consult your local listings for extended warranty suppliers.

Parts and Accessories

GEAppliances.ca

Consult the yellow pages for the nearest authorized GE parts distributor , or call 1.800.661.1616.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

GEAppliances.ca

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to:

Register Your Appliance

Director, Consumer Relations, MC Commercial

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

GEAppliances.ca

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise.

You may also mail in the pre-printed registration card included in the packing material.

m = 311 ;

Energy

12x - 1 > 0

Cancel

Cancel Hold 3 Sec

5

1 Départ/Annuler (Start Cancel)
