BAMBINO - Coffee machine SAGE - Free user manual and instructions

Product Type	Espresso machine with steam wand
Brand	Sage
Model	BAMBINO
Water tank capacity	1.9 L
Compatible coffee type	Ground coffee (freshly ground or pre-ground)
Included filter baskets	4 baskets: 2 single wall (1 cup and 2 cups), 2 dual wall (1 cup and 2 cups)
Pump pressure	Not explicitly specified, but designed for espresso extraction
Main functions	1 cup, 2 cup brewing; steam for milk; milk temperature and foam settings; programmable shot volume; manual pre-infusion; automatic milk preparation; automatic steam wand purge
Dimensions (W x D x H)	Not provided, approximately 20 x 30 x 30 cm
Weight	Not provided, estimated between 4 and 5 kg
Power supply	See label on the appliance (standard household)
Included accessories	54 mm portafilter, 54 mm tamper, steam wand cleaning tool, Razor™ dosing tool, 4 filter baskets, stainless steel milk pitcher, cleaning tablets, cleaning disc, water filter holder with filter
Routine maintenance	Regular cleaning of the portafilter, baskets, steam wand, drip tray; automatic cleaning cycle every 200 extractions; descaling when lights flash
Water filter replacement	Every 3 months or 40 litres
Warranty	2 year limited (domestic)
Safety	Auto shut-off, thermal safety, overheat protection, automatic steam purge, 30 mA residual current device recommended
Materials	Stainless steel (pitcher, portafilter, baskets); plastic (tank, housing)
Repairability	Spare parts available through Sage authorized center; internal maintenance by professional

Frequently Asked Questions - BAMBINO SAGE

How do I descale my BAMBINO machine?

When the 1 CUP, 2 CUP and STEAM buttons flash alternately, the machine needs descaling. Turn off the machine, fill the tank to the DESCALE level with water and descaling solution, place a 2 L container under the outlets, then press and hold the 1 CUP and STEAM buttons for 5 seconds. Follow the on-screen instructions.

What types of coffee can I use with the BAMBINO?

You can use freshly ground coffee or pre-ground coffee. Use single wall filter baskets for freshly ground coffee and dual wall baskets for pre-ground.

How do I adjust the espresso volume?

Press and hold the 1 CUP or 2 CUP button for 2 seconds until the lights flash. Press the same button again to start extraction, then press once more when the desired amount is reached to stop. The volume is then saved.

What should I do if the espresso flows too slowly or not at all?

This may be due to a grind that is too fine, an excessive dose, or too much tamping pressure. Use a coarser grind, reduce the dose, and tamp with 15-20 kg of pressure. Also check that the filter basket is not clogged and that the machine needs descaling.

How do I clean the steam wand?

After each use, wipe the wand with a damp cloth. If it is clogged, use the cleaning tool located under the water tank: remove the tip, unblock the holes with the pin, rinse and reassemble. Then perform a manual purge by pressing and holding the STEAM button for 5 seconds (wand lowered).

Can I use milk other than cow's milk?

The machine is designed for fresh, cold milk. Plant-based milks may give varying results. Use only the provided stainless steel milk pitcher.

How do I know when to replace the water filter?

The water filter should be replaced every 3 months or after 40 litres of use. A reminder can be set during installation.

Why is my machine making a pumping noise?

The pumping noise is normal during extraction or steam production. If the noise is excessive, check the water level in the tank and make sure it is properly locked.

How do I reset the espresso volume to factory settings?

Turn off the machine by pressing 1 CUP and STEAM simultaneously for 5 seconds. Then press and hold 1 CUP and 2 CUP for 5 seconds until the lights turn on. Press 1 CUP or 2 CUP to confirm; the light will flash 3 times.

What should I do if the milk does not froth?

Make sure the milk pitcher is correctly positioned on the temperature sensor and that the steam wand is clean. Select a higher froth setting (MILK FOAM). Use fresh, cold milk, and check that the temperature settings are not too high.

USER MANUAL BAMBINO SAGE

Exterior view of a modern coffee machine with a glass control panel and side-mounted screwdriver (no visible text or symbols)

EN QUICK GUIDE

FR GUIDE RAPIDE

IT GUIDA RAPIDA

PT MANUAL RÁPIDO

DE KURZANLEITUNG

NL SNELSTARTGIDS

ES GUÍA RÁPIDA

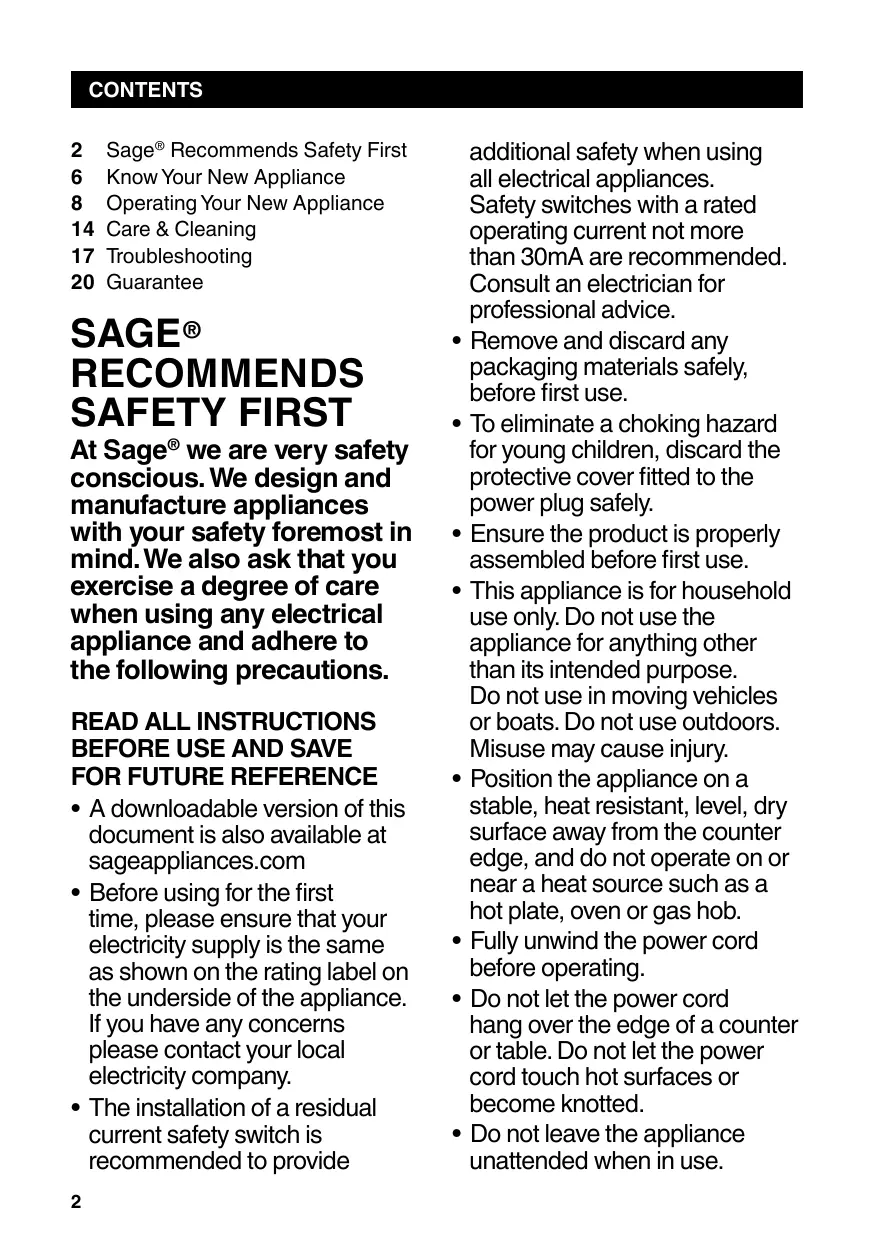

CONTENTS

2 Sage® Recommends Safety First
6 Know Your New Appliance
8 Operating Your New Appliance
14 Care & Cleaning
17 Troubleshooting
20 Guarantee

SAGE® RECOMMENDS SAFETY FIRST

At Sage® we are very safety conscious. We design and manufacture appliances with your safety foremost in mind. We also ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

• A downloadable version of this document is also available at sageappliances.com
• Before using for the first time, please ensure that your electricity supply is the same as shown on the rating label on the underside of the appliance. If you have any concerns please contact your local electricity company.
• The installation of a residual current safety switch is recommended to provide

additional safety when using all electrical appliances.

Safety switches with a rated operating current not more than 30mA are recommended. Consult an electrician for professional advice.

• Remove and discard any packaging materials safely, before first use.
• To eliminate a choking hazard for young children, discard the protective cover fitted to the power plug safely.
• Ensure the product is properly assembled before first use.
• This appliance is for household use only. Do not use the appliance for anything other than its intended purpose. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.
• Position the appliance on a stable, heat resistant, level, dry surface away from the counter edge, and do not operate on or near a heat source such as a hot plate, oven or gas hob.
• Fully unwind the power cord before operating.
• Do not let the power cord hang over the edge of a counter or table. Do not let the power cord touch hot surfaces or become knotted.
• Do not leave the appliance unattended when in use.

WE RECOMMEND SAFETY FIRST

- If the appliance is to be:

• left unattended
• cleaned
• moved
• assembled; or
• stored

always switch off the espresso machine by pressing the POWER button to OFF. Switch off and unplug from the power outlet.

• Regularly inspect the power cord, plug and actual appliance for any damage. If found to be damaged in any way, immediately cease use of the appliance and return the entire appliance to the nearest authorised Sage Service Centre for examination, replacement or repair.
• Keep the appliance and accessories clean. Follow the cleaning instructions provided in this book. Any procedure not listed in this instruction booklet should be performed at an authorised Sage Service Centre.

• The appliance can be used by children aged 8 or older and persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with the appliance.

• Cleaning of the appliance should not be carried out by children unless they are 8 years or older and under adult supervision.

• The appliance and its cord should be kept out of reach of children aged 8 years and younger.
• Do not use attachments other than those provided with the appliances.
• Do not attempt to operate the appliance by any method other than those described in this booklet.
• Do not move the appliance whilst in operation.
• Do not use any other liquid apart from cold mains/town water. We do not recommend the use of highly filtered, de-mineralised or distilled water as this may affect the taste of the coffee and how the espresso machine is designed to function.
• Never use the appliance without water in the water tank.
• Ensure the portafilter is firmly inserted and secured into the brewing head before using the machine.
• Never remove the portafilter during the brewing operation as the machine is under pressure.

• Do not place anything on top of the appliance.

• Use caution when operating machine as metal surfaces are liable to get hot during use.

• Do not touch hot surfaces. Allow the product to cool down before moving or cleaning any parts.
• Heating element surface is subject to residual heat after use.
• Always ensure the appliance is turned OFF, unplugged at the power outlet and has been allowed to cool before cleaning, attempting to move or storing.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The use of attachments not sold or recommended by Sage may cause fire, electric shock or injury.
• Always turn the appliance to the off position, switch off at the power outlet and unplug at the power outlet when the appliance is not in use.
• Any maintenance other than cleaning should be performed by an authorised Sage® service centre.
• Do not use the appliance on a sink drain board.
• Do not operate the appliance if it is in an enclosed space, or within a cupboard.

- Use caution when descaling as hot steam may be released. Before descaling, ensure drip tray is empty and inserted. Refer to ‘Care & Cleaning’ for further instructions.

- Use caution after milk texturing as the ‘Auto Purge’ function may purge hot steam when the steam wand is lowered.

NOTICE TO CUSTOMERS REGARDING MEMORY STORAGE

Please note that in order to better serve our customers, internal memory storage has been imbedded into your appliance. This memory storage consists of a small chip to collect certain information about your appliance including the frequency of use of the appliance and the manner in which your appliance is being used. In the event your appliance is returned for service, the information collected from the chip enables us to quickly and efficiently service your appliance.

The information collected also serves as a valuable resource in developing future appliances to better serve the needs of our consumers. The chip does not collect any information regarding the individuals who use the product or the household where the product is used. If you have any questions regarding the memory storage chip please contact us at [e-mail]

SPECIFIC INSTRUCTIONS FOR WATER FILTER

• Filter cartridge should be kept out of reach of children.
• Store filter cartridges in a dry place in the original packaging.
• Protect cartridges from heat and direct sunlight.
• Do not use damaged filter cartridges.
• Do not open filter cartridges.
• If you are absent for a prolonged period of time, empty the water tank and replace the cartridge.

The symbol shown indicates that this appliance should not be disposed of in normal household waste. It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council office.

To protect against electric shock, do not immerse the power cord, power plug or appliance in water or any other liquid.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

A. 1.9L removable water tank

B. Control panel

1 CUP, 2 CUP and STEAM buttons

With preset shot durations or programmable durations and volumes

C. MILK TEMP settings

Select from Warm, Ideal and Hot

D. MILK FOAM settings

Select from Low, Medium and High

E. Group head

F. 54mm stainless steel portafilter

G. Steam wand grip

H. Extra-tall cup clearance for tall mugs

I. Steam wand

With automatic milk texturing

J. Milk jug temperature sensor

K. Removable drip tray grid

L. Removable drip tray With full indicator

KNOW YOUR NEW APPLIANCE

Exploded view diagram of various electronic devices and components (no text or labels)

ACCESSORIES

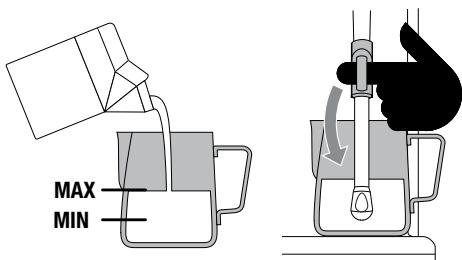

A. Stainless steel milk jug With MIN and MAX markings
B. 54mm tamper
C. Steam wand tip cleaning tool (Located under the water tank)
D. The Razor ^TM precision trimming tool

E. Dual wall filter baskets (1 cup & 2 cup)
F. Single wall filter baskets (1 cup & 2 cup)
G. Espresso cleaning tablets
H. Cleaning disc
I. Water filter holder with filter

BEFORE FIRST USE

Machine Preparation

Remove and discard all labels and packaging materials attached to your machine. Ensure you have removed all parts and accessories before discarding the packaging.

Clean the drip tray, drip tray grid, portafilter, filter baskets and milk jugs using warm water and a gentle dish washing liquid. Rinse well and dry thoroughly before use.

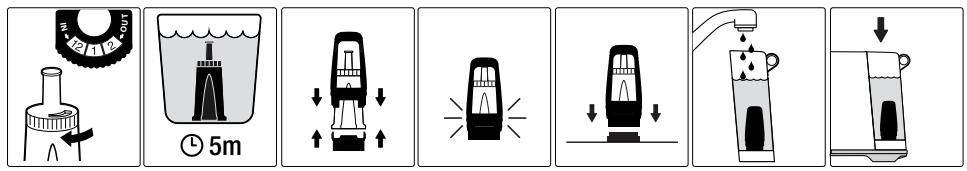

INSTALLING THE WATER FILTER

1. Remove the water filter and water filter holder from the packaging.
2. Set the reminder for the next month of replacement. We recommend to replace the filter after 3 months.

1. Soak the filter in cold water for 5 minutes.
2. Wash the filter holder with cold water.

Diagram of a mechanical device with downward and upward arrows indicating motion (no text or symbols)

Simple black-and-white icon of a vehicle with headlights and exhaust lines (no text or symbols)

Simple line drawing of a mechanical device with downward arrows indicating motion or force (no text or symbols)

1. Insert the filter into the two parts of the filter holder. Ensure they are connected.
2. Remove the water tank from the machine. Align the base of the filter holder with the adapter inside the water tank. Push down to lock into place.

Simple line drawing of a hand washing a glass with liquid and bubbles (no text or symbols)

Simple line drawing of a container with liquid and a handle, no text or symbols present

1. Fill the water tank with cold potable water and reattached the machine, ensuring it is properly attached and sitting flush to the back of the machine.

FIRST USE

1. Remove the water tank and fill with potable water to the indicated MAX line. Replace the water tank onto the machine.
2. Ensure that the drip tray is correctly positioned on the machine.
3. Plug the power cord into the power outlet and switch on.
4. Press the 1 CUP, 2 CUP or STEAM buttons to turn the machine on.

1. Press the 1 CUP button and the machine will commence its first use cycle.
2. Once complete, the machine will go into ready mode and all lights will be illuminated. The first use cycle is to rinse the machine and prime the heating system.

TURNING OFF MACHINE

To turn the machine off, press the 1 CUP and STEAM button simultaneously.

FILLING THE WATER TANK

Lift the water tank from the machine. Remove the water tank lid and add potable water to the water tank, filling to the MAX marking indicated.

OPERATING YOUR NEW APPLIANCE

Replace the water tank onto the machine, ensuring it is properly attached and sitting flush against the back of the machine.

If the 1 CUP, 2 CUP and STEAM buttons illuminate, the water tank has been correctly attached.

The machine will detect when the water level is low. The 1 CUP, 2 CUP and STEAM buttons will not be illuminated.

Pure electrical circuit lines without any symbols

When this occurs, add water to the water tank. Once there is sufficient water, all buttons will be illuminated and the machine can be used.

FILTER BASKETS

This machine includes 4 filter baskets:

2 x Single Wall and 2 x Dual Wall.

Use the 1 cup filter basket when brewing a single cup and the 2 cup filter baskets when brewing 2 cups or a stronger single cup or mug.

The provided filter baskets are designed for:

1 Cup filter basket = 8–10g.
2 Cup filter basket = 19–22g

SINGLE WALL FILTER BASKETS

Single Wall filter baskets should be used when grinding fresh whole coffee beans. They allow you to experiment with grind, dose and tamp to create a more balanced espresso.

DUAL WALL FILTER BASKETS

Dual Wall filter baskets should be used when using pre-ground coffee. They regulate the pressure and help to optimise the extraction regardless of the grind, dose and tamp pressure or freshness.

You may need to experiment with how much coffee is dosed into the filter baskets or how long the grinder needs to run to achieve the correct dose. For example; when using a finer espresso grind with the Single Wall filter baskets, you may need to increase the grind amount to ensure the filter basket is correctly dosed.

COFFEE DOSE AND TAMPING

• Insert the filter basket into the portafilter.
• Grind enough coffee to fill the filter basket.
• Tap the portafilter several times to collapse and distribute the coffee evenly in the filter basket.
• Using the tamper, tamp down firmly (approx. 15-20kgs of pressure). The amount of pressure is not as important as the consistent pressure every time.

- As a guide, the top edge of the cap on the tamper should be level with the top of the filter basket AFTER the coffee has been tamped.

NOTE

Use Razor™ dose trimming tool to precisely control the dose of ground coffee AFTER you tamp.

TRIMMING THE DOSE

The Razor ^™ precision dose trimming tool allows you to trim the puck to the right level for a consistent extraction.

• Insert the Razor™ tool into the coffee basket until the shoulders of the tool rest on the rim of the basket.
• Rotate the Razor™ dosing tool back and forth while holding the portafilter on an angle over the knock box to trim off excess coffee grinds. Your coffee filter is now dosed with the correct amount of coffee.

Illustration of a hand turning a mechanical component with rotation arrows (no text or symbols)

- Wipe excess coffee from the rim of the filter basket to ensure a proper seal is achieved in the group head.

PURGING THE GROUP HEAD

Before placing the portafilter into the group head, run a short flow of water through the group head by pressing the 1 CUP button. This will stabilise the temperature prior to extraction.

INSERTING THE PORTAFILTER

Place the portafilter underneath the group head so that the handle is aligned with the INSERT position. Insert the portafilter into the group head and rotate the handle towards the centre until resistance is felt.

Place your cup/s under the portafilter on the drip tray.

PRE-PROGRAMED SHOT VOLUME - 1 CUP

Press the 1 CUP button once, the button will flash indicating that it has been selected. A preset single espresso volume of approximately 30mls will be extracted. The machine will automatically stop once the pre-set volume has been extracted.

Pure electrical circuit lines without any symbols

OPERATING YOUR NEW APPLIANCE

PRE-PROGRAMED SHOT VOLUME - 2 CUP

Press the 2 CUP button once, the button will flash indicating that is has been selected. A preset single espresso volume of approximately 60mls will be extracted. The machine will automatically stop once the pre-set volume has been extracted.

Pure diagram of circular and rectangular shapes with icons, no text or symbols present

NOTE

Pressing the 1 CUP or 2 CUP buttons during a programmed espresso will immediately stop the extraction.

MANUAL PRE-INFUSION AND SHOT VOLUME

Press and hold the 1 CUP or 2 CUP button for the desired pre-infusion time. Release the button to start the extraction. Press the flashing button again to stop the extraction.

PROGRAMMING SHOT VOLUME

Press and hold the 1 CUP and 2 CUP buttons for 2 seconds, the buttons will illuminate and flash.

To set the 1 CUP volume:

• Press the 1 CUP button to start the extraction.
• Press the 1 CUP button again to stop the extraction. The modified volume will be saved.

To set the 2 CUP volume, follow the above steps but select the 2 CUP button to start and stop the extraction.

SETTING THE MILK TEMPERATURE

The machine has 3 milk temperature settings; 1 Warm

2 Ideal

3 Hot

When turning on the espresso machine, the milk temperature setting will default to the last chosen setting. Press the MILK TEMP button until the desired temperature is illuminated.

SETTING THE MILK FOAM

The machine has 3 milk foam settings; 1 Low

2 Medium

3 High

When turning on the machine, the milk foam setting will default to the last chosen setting. Press the MILK FOAM button until the desired foam setting is illuminated.

NOTE

Prior to texturing milk, it is recommended to momentarily purge the steam wand. To do this press the STEAM button to start purging and press it again to stop.

• Start with fresh cold milk.
• Fill the milk jug to between the min and max position.
• Lift the steam wand and insert into the milk jug.
• Lower the steam wand, ensuring it is fully down.
• The milk jug must rest on the milk temperature sensor located on the drip tray and the milk should cover the steam wand tip.

Milk should cover this part

Diagram of a laboratory setup with a funnel and beaker, showing an arrow pointing to the funnel (no text or symbols present)

• Press the MILK TEMP and MILK FOAM buttons to select the desired settings.
• Press the STEAM button, the button will flash while texturing.
• The milk texturing will stop automatically when the selected milk temperature is reached.
• Lift the steam wand to remove the milk jug.
• Wipe the wand and tip with a clean damp cloth.
• Lower the steam wand to the down position and the steam wand will automatically purge.

NOTE

Pressurised steam can still be released, even after the machine has been switched off. Children must always be supervised.

NOTE

When the machine creates steam, a pumping noise can be heard. This is normal operation.

NOTE

Use only the supplied stainless steel milk jug to froth milk using this machine. The use of other containers may lead to dangerous conditions.

MANUAL MILK TEXTURING

• Auto milk texturing and auto shut-off are disabled during manual milk texturing.
• Fill the milk jug to between the MIN and MAX markings.
• Lift the steam wand and insert into the milk jug with the steam wand tip 1-2cm below the surface of the milk, close to the right-hand side of the jug at a 3 o'clock position.
• Press the STEAM button to begin texturing.

Pure electrical circuit lines without any symbols

• Keep the steam wand tip just under the surface of the milk until the milk is spinning clockwise, producing a vortex (whirlpool effect).
• With the milk spinning, slowly lower the jug. This will bring the steam wand tip to the surface of the milk and start to introduce air into the milk.
• Gently break the surface of the milk with the tip to get the milk spinning fast enough.
• Keep the steam wand tip at or slightly below the surface, continuing to maintain the vortex. Texture the milk until sufficient volume is obtained.
• Lift the jug to lower the tip beneath the surface but keep the vortex spinning. The milk is at the correct temperature (60-65°C) when the jug is hot to touch.

Simple line drawing of a spoon stirring a circular object with concentric rings (no text or symbols)

• When texturing is complete, press the STEAM button.
• Remove the steam wand from the milk jug.
• Wipe the wand and tip with a clean, damp cloth.
• Lower the steam wand to the down position and the steam wand will automatically purge.

STEAM WAND PURGING

After texturing milk, the steam wand must be returned to the lowered position and allowed to automatically purge. Not doing so, could result in the steam wand blocking.

If the steam wand remains in the raised position, the machine will display a lower steam wand alert; illuminating the MILK TEMP and MILK FOAM lights in a downwards pattern, identifying that the steam wand needs to be lowered.

To manually commence the steam wand purge, with the steam wand lowered, press and hold the STEAM button for 5 seconds.

OPERATING YOUR NEW APPLIANCE

EXTRACTION TIPS

A great espresso is about achieving the perfect balance between sweetness, acidity, and bitterness.

The flavour of your coffee will depend on many factors, such as the type of coffee beans, degree of roast freshness, coarseness or fineness of the grind, dose of ground coffee and tamping pressure.

Experiment by adjusting these factors just one at a time to achieve the taste of your preference.

CORRECT EXTRACTION

Illustration of a hand pouring liquid into two beakers with liquid droplets (no text or symbols)

• Flow starts after 8-12 secs
• Flow slow like warm honey
• Crema is golden brown with a fine mousse texture
• Espresso is dark brown

AFTER EXTRACTION

Illustration of a hand using a tool to remove debris from a container (no text or symbols)

REMOVE USED GRINDS

Used grinds will form a coffee 'puck'. If the puck is wet, refer to the 'Under Extraction' section.

RINSE FILTER BASKET

Keep the filter basket clean to prevent blockages. Without ground coffee in the filter basket, lock the portafilter into the machine and run hot water through.

UNDER EXTRACTION

Illustration of a hand pouring liquid into two cups (no text or symbols)

• Flow starts after 1-7 secs
• Flow fast like water
• Crema is thin and pale
• Espresso is pale brown
  • Tastes bitter/sharp, weak and watery

SOLUTIONS

EXPERIMENT WITH GRIND:

• Grind needs to be finer for a slower extraction.
• Ensure you are controlling dose with the Razor™.

Adjust & re-test

ALWAYS TAMP TO LINE
Adjust & re-test

Tamp using 15-20kgs of pressure. The top edge of metal cap on the tamper should be level with the top of the filter basket AFTER tamping.

Trim the puck to the right level using the Razor™ precision dose trimming tool.

OVER EXTRACTION

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

• Flow starts after 13 secs
• Flow drips or not at all
• Crema is dark and spotty
• Espresso is very dark brown
• Tastes bitter and burnt

SOLUTIONS

EXPERIMENT WITH GRIND:

• Grind needs to be coarser for a faster extraction.
• Ensure you are controlling dose with the Razor™.

Adjust & re-test

ALWAYS TAMP TO LINE
Adjust & re-test

Tamp using 15-20kgs of pressure. The top edge of metal cap on the tamper should be level with the top of the filter basket AFTER tamping.

Trim the puck to the right level using the Razor™ precision dose trimming tool.

REPLACING THE WATER FILTER

The provided water filter helps prevent scale build-up in and on many of the inner functioning components. Replacing the water filter after 3 months or 40L will reduce the need to descale the machine.

CLEANING CYCLE

The machine will detect when 200 extractions have been carried out since the last cleaning cycle; this will be shown by the 1 CUP and 2 CUP buttons alternately flashing.

Three simple line drawings of suns, cups, and a hand gesture (no text or symbols)

1. Insert the provided cleaning disc into the filter basket in the portafilter.
2. Place a cleaning tablet on top of the cleaning disc.
3. Lock the portafilter into the group head.
4. Empty the drip tray and replace onto the machine. Place a 2L / 68 fl.oz container under the portafilter and steam wand sitting on the drip tray.

1. Fill the water tank to the MAX line then reattached to the machine, ensuring it is correctly attached.
2. Press and hold the 1 CUP and 2 CUP buttons for 5 seconds to enter the cleaning cycle mode.

1. The 1 CUP and 2 CUP buttons will remain illuminated. Press either 1 CUP or 2 CUP to begin the cleaning cycle. When the cycle is in progress, the lights will alternatively flash.
2. Once the cycle is complete the machine will go back to ready mode.
3. Remove and rinse the portafilter, cleaning disc, drip tray and container.

DESCALING

After regular use, hard water can cause mineral build up in and on many of the inner functioning components, reducing the brewing flow, brewing temperature, power of the machine, and the taste of the espresso.

The machine will indicate that it requires descaling when the 1 CUP and STEAM button and the 2 CUP button flash alternately for 15 seconds. Pressing any of these buttons will cancel the alert and return the machine to ready mode.

WARNING

Do not immerse the power cord, power plug or appliance in water or any other liquid. The water tank should never be removed or completely emptied during descaling.

TO DESCALE

1. Empty the drip tray and re-insert into position on the machine.
2. Fill the water tank to the DESCALE line indicated and add the descaling agent to the water.

1. Place a 2L / 68 fl.oz container under the grouphead and steam wand.

2. Turn the machine off by simultaneously pressing the 1 CUP and STEAM buttons, and allow it to completely cool before descaling.

1. With the machine off, press the 1 CUP and STEAM buttons simultaneously for 5 seconds to enter descale mode.

Three simple line drawings of suns with water droplets and icons below (no text or symbols)

1. The 1 CUP and STEAM buttons will illuminate, indicating that the machine is ready to start descaling.

1. Press the 1 CUP or STEAM button to begin the descale cycle. These buttons will alternately flash throughout the cycle.
2. Once the descale solution has been used up, the descale mode will pause. Refill the water tank to the MAX line and empty the waste water container, then replace both parts on to the machine.
3. The 1 CUP and STEAM buttons will illuminate when the machine is ready. Press the 1 CUP or STEAM button to resume descaling.
4. When descaling is complete, the 1CUP and STEAM button will alternately flash. The machine will then go into standby mode.

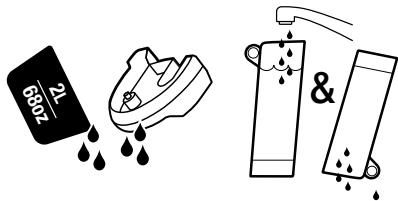

1. Remove and empty the waste water container. Rinse the drip tray and water tank and dry thoroughly before replacing them back onto the machine.

STEAM WAND BLOCKED

During milk texturing, if the machine detects that the steam wand is blocked, it will immediately stop operating and the STEAM button light will be off. Both the milk temperature and milk foam lights will fully illuminate and flash. These lights will flash until a manual steam purge has been completed.

CLEANING THE STEAM WAND

- The steam wand should always be cleaned after texturing milk. Wipe the steam wand with a damp cloth.

CARE & CLEANING

• If any of the holes in the tip of the steam wand become blocked, it may reduce frothing performance. Manually purge the steam wand to try and clear the holes.
• If the steam wand remains blocked, unscrew the steam wand tip using the steam tip cleaning tool. Then use the cleaning tool to unblock the holes. Cleaning tool is located in the back of the machine, under the water tank.

Diagram showing two mechanical components with arrows indicating rotation and assembly (no text or symbols)

- Rinse the steam tip and wipe with a clean, dry cloth. Reassemble the steam wand by screwing the steam tip back on to the steam wand. Purge the steam wand after cleaning.

CLEANING THE FILTER BASKETS AND PORTAFILTER

• The filter baskets and portafilter should be rinsed under hot water directly after use to remove all residual coffee oils.
• If the holes in the filter baskets become blocked, use the steam wand cleaning tool to unblock the holes.

• The group head interior and shower screen should be wiped with a damp cloth to remove any ground coffee particles.
• Periodically run hot water through the machine with the filter basket and portafilter in place, without any ground coffee, to rinse out any residual coffee.

CLEANING THE DRIP TRAY

• The drip tray should be removed, emptied and cleaned after each use or when the drip tray indicator rises through the drip tray grid.
• Remove the drip tray grid and wash both parts in warm soapy water.

• Cleaning the Outer Housing
- Wipe the outer housing with a soft, damp cloth and then polish with a soft, dry cloth.

NOTE

Do not use any abrasive cleaners, pads or cloths which can scratch the surfaces of the machine.

NOTE

Do not clean any of the parts or accessories in the dishwasher.

WARNING

Do not immerse the power cord, power plug or machine in water or any other liquid.

STORING YOUR MACHINE

Before storing, turn the machine off, switch off and remove the power plug from the power outlet. Empty the water tank and drip tray and ensure the machine is cool, clean and dry. Store in an upright position.

Do not place anything on top of machine.

RESET FACTORY ESPRESSO VOLUME SETTINGS

1. Turn the machine off, by pressing the 1 CUP and STEAM buttons simultaneously for 5 seconds.
2. Press and hold the 1 CUP and 2 CUP buttons for 5 seconds. Buttons will illuminate.
3. Press the 1 CUP or 2 CUP buttons and the light will flash 3 times to indicate that all volumes have been reset.
4. Machine will then return to ready mode.

NOTE

Press any other button to exit factory reset mode.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSES	EASY SOLUTION
Water does not flow from the group head. No hot water.	Water tank is empty.	Fill tank.
	Water tank is not fully inserted and locked into position.	Push water tank down completely to lock into place.
	Machine needs to be descaled.	Perform descale cycle.
	Coffee is ground too finely and/or too much coffee in filter basket and/or over tamping and/or filter basket is blocked.	See below, 'Espresso only drips from the portafilter spouts or not at all'.
Espresso only drips from the portafilter spouts or not at all.	Coffee is ground too finely.	Use slightly coarser grind.Refer to 'Coffee Dose and Tamping' on page 10 and 'Extraction Tips' on page 13.
	Too much coffee in the filter basket.	Lower dose of coffee.After tamping, trim the coffee dose using the RazorTM dose trimming tool. Refer to 'Coffee Dose and Tamping' on page 10 and 'Extraction Tips' on page 13.
	Coffee tamped too firmly.	Tamp between or 15–20kg of pressure.
	Water tank is empty.	Fill tank.
	Water tank is not fully inserted and locked into position.	Push water tank down completely to lock into place.
	The filter basket may be blocked.	Use the pin on the end of the provided cleaning tool to unblock the hole(s).
	Machine needs to be descaled.	Perform descale cycle.
Water doesn't come through (the machine makes loud noise).	Water tank is empty or water level is below MIN.	Fill tank.
	Water filter has been inserted without soaking.	Ensure that the water filter has been soaked for 5 minutes before inserting into the water tank.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSES	EASY SOLUTION
Espresso runs out too quickly.	Coffee is ground too coarsely.	Use slightly finer grind.Refer to 'Coffee Dose and Tamping' on page 10 and 'Extraction Tips' on page 13.
	Not enough coffee in the filter basket.	Increase dose of coffee. Tamp then use the Razor^TM dose trimming tool to trim off excess coffee. Refer to 'Coffee Dose and Tamping' on page 10 and 'Extraction Tips' on page 13.
	Coffee tamped too lightly.	Tamp between 15–20kg of pressure.
Espresso runs out around the edge of the portafilter.	Portafilter not inserted in the group head correctly.	Ensure portafilter is completely inserted and rotated until resistance is felt.
	There are coffee grounds around the filter basket rim.	Clean excess coffee from the rim of the filter basket to ensure a proper seal in group head.
	Too much coffee in the filter basket.	Lower dose of coffee. Refer to 'Coffee Dose and Tamping', page 10. After tamping, trim the coffee dose using the Razor^TM dose trimming tool.
No steam.	Machine has not reached operating temperature.	Allow time for the machine to reach operating temperature.
	Water tank is empty.	Fill tank.
	Water tank is not fully inserted and locked into position.	Push water tank down completely to lock into place.
	Machine needs to be decalcified.	Perform descale cycle.
	Steam wand is blocked.	Refer to 'Cleaning the Steam Wand', page 15.
Pulsing/pumping sound while extracting espresso or steaming milk.	The machine is carrying out the normal operation of the pump.	No action required as this is the normal operation of the machine.
	Water tank is empty.	Fill tank.
	Water tank is not fully inserted and locked into position.	Push water tank down completely to lock into place.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSES	EASY SOLUTION
Coffee not hot enough.	• Portafilter not pre-heated.	Rinse portafilter under hot water outlet. Dry thoroughly.
Milk too hot.	• Jug incorrectly positioned.	Ensure milk jug is correctly positioned on sensor. Adjust milk temperature setting.
No crema.	• Coffee tamped too lightly.	Tamp betweenes or 15–20kg of pressure.
	• Coffee is ground too coarsely.	Use slightly finer grind.Refer to 'Coffee Dose and Tamping' on page 10 and 'Extraction Tips' on page 13.
	• Coffee beans or pre-ground coffee are not fresh.	If grinding fresh whole coffee beans, use freshly roasted coffee beans with a 'Roasted On' date and consume between 5–20 days after that date.If using pre-ground coffee, use within a week of grinding.
	• The filter basket may be blocked.	Use the pin on the end of the provided cleaning tool to unblock the hole(s).
	• Single Wall filter baskets are being used with pre-ground coffee.	Ensure you use Dual Wall filter baskets with pre-ground coffee
Water leaking.	• Auto purge feature.Immediately after the steam function, the machine will purge water into the drip tray.This ensures the thermocoil is at the optimal temperature.	Ensure the drip tray is firmly pushed in place and emptied whenever the indicator is displayed.
	• Water tank is not fully inserted and locked into position.	Push water tank down completely to lock into place.
Machine is on but ceases to operate.	• The safety thermal-cut out may have activated due to the pump overheating.	Press the 1 CUP and STEAM button simultaneously for 5 seconds to switch the machine off and unplug from the power outlet. Allow to cool for about 30–60 minutes.If problem persists, call Sage Support.
Too much/too little espresso is being delivered to the cup.	• Grind amount and/or grind size settings and/or shot volumes require adjustment.	Adjust the grind amount and/or grind size settings. Refer to 'Coffee Dose and Tamping', page 10 and 'Extraction Tips', page 13.

2 YEAR LIMITED GUARANTEE

Sage Appliances guarantees this product for domestic use in specified territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances).

All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com.

the Bambino™ Plus

Exterior view of a modern coffee machine with a glass control panel and side-mounted screwdriver (no visible text or symbols)

DE

KURZANLEITUNG

Sage®

INHALT

Exploded view diagram of various electronic devices and components (no text or labels)

ZUBEHÖR

Diagram of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Simple black-and-white icon of a vehicle with radiating lines, no text or symbols present.

Simple line drawing of a vehicle or vehicle with downward arrows indicating motion (no text or symbols)

Simple line drawing of a container with liquid and a handle, connected to a pipe (no text or symbols)

Simple line drawing of a container with liquid and a handle, no text or symbols present

Pure electrical circuit lines without any symbols

FÜLLEN DES WASSERTANKS

Pure electrical circuit lines without any symbols

Illustration showing coffee beans and a coffee maker with a plus sign (no text or symbols)

SO KÖNNEN SIE IHR NEUES GERÄT VERWENDEN

DOPPELWANDIGE SIEBEINSÄTZE

Diagram of a mechanical press or valve mechanism with downward force arrows and a central component (no text or symbols)

Pure mechanical diagram showing a valve or pump assembly with no text, numbers, or symbols

Illustration of a hand turning a mechanical component with directional arrows (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

HINWEIS

Pure electrical circuit lines without any symbols

Simple line drawing of a spoon stirring a circular object with concentric rings (no text or symbols)

Illustration of a pipette dispensing liquid into two beakers (no text or symbols)

Illustration of a hand pouring liquid into a container with granular material, emitting a black arrow (no text or symbols)

KAFFEESATZ ENTFERNEN

Illustration of a hand pouring liquid into two cups (no text or symbols)

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

Three simple line drawings of suns and cups with directional arrows, no text or symbols present

Three simple line drawings of suns and cups with no text or symbols

Diagram showing mechanical assembly steps: rotation of a tool and a separate view of a component with directional arrows (no text or labels)

Exterior view of a modern coffee machine with a glass control panel and side-mounted screwdriver (no visible text or symbols)

FR

GUIDE RAPIDE

Sage®

TABLE DES MATIÈRES

Exploded view diagram of various electronic devices and components (no text or labels)

ACCESSOIRES

Diagram of a mechanical device with downward arrows indicating motion or force (no text or symbols)

Simple line drawing of a vehicle with headlights and exhaust lines (no text or symbols)

Simple line drawing of a mechanical device with downward arrows indicating motion or force (no text or symbols)

Simple line drawing of a water dispenser pouring liquid into a container (no text or symbols)

Simple line drawing of a container with liquid and a handle, no text or symbols present

REMLISSAGE DU RÉSERVOIR D'EAU

Pure diagram of circular and rectangular shapes with icons, no text or symbols present

PANIERS-FILTRES À DOUBLE PAROI

Diagram of a mechanical press or valve mechanism with downward force arrows and a handle (no text or symbols)

Pure mechanical diagram showing a valve or pump assembly with no text, numbers, or symbols

Illustration of hands operating a mechanical device with a rotating knob (no text or symbols)

Pure electrical circuit lines without any symbols

FONCTIONNEMENT DE VOTRE NOUVEL APPAREIL

VOLUME DE PRÉPARATION PRÉDÉFINI - 2 TASSES

Pure electrical circuit lines without any symbols

REMARQUE

Pure electrical circuit lines without any symbols

Simple line drawing of a bowl with a spoon and circular patterns inside (no text or symbols)

Illustration of a hand pouring liquid into two beakers with liquid droplets (no text or symbols)

Illustration of a hand pouring liquid into a container with a black arrow indicating flow (no text or symbols)

RETIREZ LA MOUTURE UTILISÉE

Illustration of a hand pouring liquid into two glasses (no text or symbols)

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

Three simple line drawings of suns and cups with corresponding icons below (no text or symbols)

Illustration of a shoe and a digital washing machine (no text or symbols)

Three simple line drawings of suns and a laptop with icons below (no text or symbols)

Diagram showing two mechanical or electrical component configurations with arrows indicating rotation and adjustment (no text or symbols)

Exterior view of a modern coffee machine with no visible text or symbols on the main body

NL

SNELSTARTGIDS

Sage®

INHOUD

Technical line drawings of various electronic components and parts (no text or symbols)

ACCESSOIRES

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Simple line drawing of a vehicle with headlights and exhaust lines (no text or symbols)

Simple line drawing of a mechanical device with downward arrows indicating motion or force (no text or symbols)

Simple line drawing of a water dispenser pouring liquid into a container (no text or symbols)

Simple line drawing of a container with liquid and a handle, no text or symbols present

VULLEN VAN HET WATERRESERVOIR

Pure electrical circuit lines without any symbols

Pure mechanical diagram showing two configurations of a valve or pump assembly with downward force arrows (no text or symbols)

UW NIEUWE APPARAAT GEBRUIKEN

Illustration of hands operating a mechanical device with rotating arrows (no text or symbols)

Pure electrical circuit lines without any symbols

VOORGEPROGRAMMEERD

SHOTVOLUME: 2 KOPJES

Pure electrical circuit lines without any symbols

OPMERKING

Pure electrical circuit lines without any symbols

Simple line drawing of a bowl with a handle and circular pattern, no text or symbols present

Illustration of a hand pouring liquid into two beakers with liquid droplets (no text or symbols)

Illustration of a hand using a tool to remove debris from a container (no text or symbols)

Illustration of a hand pouring liquid into two cups (no text or symbols)

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

Three simple line drawings of suns and cups with corresponding icons below (no text or symbols)

Illustration of a shoe and a 2L water dispenser (no text or symbols)

Three simple line drawings of suns and water droplets with icons below (no text or symbols)

Diagram showing two mechanical or electrical component configurations with arrows indicating rotation and assembly (no text or symbols)

DE FILTERBAKJES EN HET PORTAFILTER REINIGEN

UW APPARAAT OPBERGEN

Exterior view of a modern coffee machine with no visible text or symbols on the device itself.

GUIDA RAPIDA

Sage®

Exploded view diagram of various electronic devices and components (no text or labels)

ACCESSORI

Diagram of a vehicle seatbelt with directional arrows indicating movement (no text or symbols)

Simple line drawing of a vehicle with headlights and exhaust lines (no text or symbols)

Simple black-and-white diagram of a vehicle or vehicle with downward arrows indicating motion or force (no text or symbols)

Simple line drawing of a container with liquid and a drop funnel, no text or symbols present

Simple line drawing of a container with liquid and a handle, no text or symbols present

RIEMPIRE IL SERBATOIO DELL'ACQUA

Pure electrical circuit lines without any symbols

Diagram of a mechanical press or valve mechanism with downward force arrows and a central component (no text or symbols)

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

Illustration of a hand turning a button with directional arrows indicating rotation (no text or symbols)

Pure electrical circuit lines without any symbols

VOLUME TAZZA PREPROGRAMMATO - 2 TAZZE

Pure electrical circuit lines without any symbols

NOTA

Pure electrical circuit lines without any symbols

Simple line drawing of a spoon stirring a circular object with concentric rings (no text or symbols)

Illustration of a hand pouring liquid into two beakers with liquid droplets (no text or symbols)

Illustration of a hand pouring liquid into a container with granular material, emitting a black arrow (no text or symbols)

RIMUOVERE IL CAFFÈ USATO

Illustration of a hand pouring liquid into two cups (no text or symbols)

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

Three simple line drawings of suns, cups, and a circle with a hand gesture (no text or symbols)

Three simple line drawings of suns and water droplets with icons below (no text or symbols)

Illustration showing two steps of a hand holding a pad and a tool interacting with a curved mechanical component (no text or symbols)

PULIRE I FILTRI E IL PORTAFILTRO

Exterior view of a modern coffee machine with no visible text or symbols on the device itself.

ES

GUÍA RÁPIDA

Sage®

ÍNDICE

Exploded view diagram of various electronic devices and components (no text or labels)

ACCESORIOS

Diagram of a mechanical component with downward and upward arrows indicating motion (no text or symbols)

Simple black-and-white icon of a traffic light with no text or symbols

Simple line drawing of a vehicle or vehicle with downward arrows indicating motion (no text or symbols)

Simple line drawing of a hand pouring liquid into a container with a handle (no text or symbols)

Simple line drawing of a container with liquid and a handle, no text or symbols present

Pure electrical circuit lines without any symbols

Pure mechanical diagram showing two configurations of a valve or pump assembly with downward force arrows (no text or symbols)

Illustration of a hand turning a component with directional arrows indicating rotation (no text or symbols)

Pure electrical circuit lines without any symbols

VOLUMEN DE DOSIS

PREPROGRAMADO: 2 TAZAS

Pure electrical circuit lines without any symbols

NOTA

Pure electrical circuit lines without any symbols

Simple line drawing of a circular object with concentric rings and a rod inserted, resembling a stylized lamp or fan (no text or symbols)

Illustration of a hand pouring liquid into two beakers with liquid droplets (no text or symbols)

Illustration of a hand using a tool to remove debris from a container (no text or symbols)

DESECHA LOS POSOS DE CAFÉ

Illustration of a hand pouring liquid into two cups (no text or symbols)

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

Three simple line drawings of suns, cups, and a circle with a hand gesture (no text or symbols)

Illustration of a blender with liquid droplets and a 2L scale indicator (no text or symbols on the diagram itself)

Three simple line drawings of suns and water droplets with icons, no text or symbols present

Diagram showing two mechanical or electrical component configurations with arrows indicating rotation and movement (no text or symbols)

LIMPIEZA DEL FILTRO Y DEL PORTAFILTROS

Exterior view of a modern coffee machine with no visible text or symbols on the main body

MANUAL RÁPIDO

Sage®

ÍNDICE

Technical line drawings of various electronic devices and components (no text or labels)

ACESSÓRIOS

Diagram of a mechanical device with downward and upward arrows indicating motion (no text or symbols)

Simple line drawing of a vehicle with headlights and exhaust lines (no text or symbols)

Simple line drawing of a mechanical device with downward arrows indicating motion or force (no text or symbols)

Simple line drawing of a water dispenser pouring liquid into a container (no text or symbols)

Simple line drawing of a container with liquid and a handle, no text or symbols present

ENCHER O DEPÓSITO DE ÁGUA

Pure diagram of circular and rectangular shapes with icons, no text or symbols present

Illustration of a hand using a mechanical device to press or adjust a component (no text or symbols visible)

Pure electrical circuit lines without any symbols

VOLUME DA DOSE PRÉ-PROGRAMADO - 2 CHÁVENAS

Pure electrical circuit lines without any symbols

NOTA

Pure diagram of circular and square shapes with icons, no text or symbols present

Simple line drawing of a bowl with a handle and circular pattern, no text or symbols present

Illustration of a hand pouring liquid into two beakers with liquid droplets (no text or symbols)

Illustration of a hand using a tool to remove debris from a container (no text or symbols)

REMOVA OS GRÃOS MOÍDOS

Illustration of a hand pouring liquid into two glasses (no text or symbols)

Illustration of a hand pouring liquid into two glasses with dark liquid, no text or symbols present

Three simple line drawings of suns, cups, and a circle with a hand gesture (no text or symbols)

Illustration of a kitchen sink and an espresso machine (no text or symbols)

Three simple line drawings of suns and water droplets with icons, no text or symbols present

Diagram showing two mechanical components with rotational arrows, one with a handle and the other with a curved tool (no text or symbols)

LIMPAR OS CESTOS DE FILTRO E O MANÍPULO DE CAFÉ

www.sageappliances.com

Registered in Germany No. HRB 81309 (AG Düsseldorf).

Registered in England & Wales No. 8223512.

- Due to continued product improvement, the products illustrated or photographed in this document may vary slightly from the actual product.
