USER MANUAL SM22030CN SWAN

Installation 1. Take out allthe packing. lfthere is a safe film over the ven, tear it off before Use. Check carefuly for damage. if any, immediately notify dealer or send to the manufacturer's service center. 2. Microwave ovens must be placed under dry and non-corrosive environments, kept away from heat and humidity, such as gas burner or water tank. 8. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side ta the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm: The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance or noise may oceur. The appliance must be positioned so that the plug is accessible, and must ensure a good earth connection The microwave aven must be aperated with the door closed The microwave oven must not be placed in a cabinet, The microwave oven is intended to be used freestanding. The back of the oven must be placed against a wall mous The following basic precautions should always be followed when using electrical appliances:

1. Read all instructions before using

2. Make sure the voltage in your Iving area corresponds to the one shown on the rating label of the appliance . And the wall socket is properiy earthed.

3. To reduce the risk of fire in the oven cavity

+ Do not overcock the food +_ Remove wire twist ies from paper or plastic bags before placing bags in the oven + Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built up grease may overheat and begin to cause smoke or catch fire If materials inside the oven should smoke or ignite , keep aven door closed, turn oven aff and disconnect the power supply. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material

4. To reduce the risk of explosion and sudden boiling

+ Do not place sealed containers in the oven . Baby botties fitted with a screw cap or teat are considered to be sealed containers When bailing liquid in the oven, use a wide-mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruption boiling of liquids Potatoes, sausage and chestnuts should be pegled or pierced before cooking. Eggs in their shell whole hard-boiled eggs should not be heated in micro- wave ovens since they may explode, even after microwave heating has ended The cooked liquid should not be removed immediately, Wait several moments before removing in order to avoid possible hazards caused by delayed se2seo nude 2 & osnemois 1720

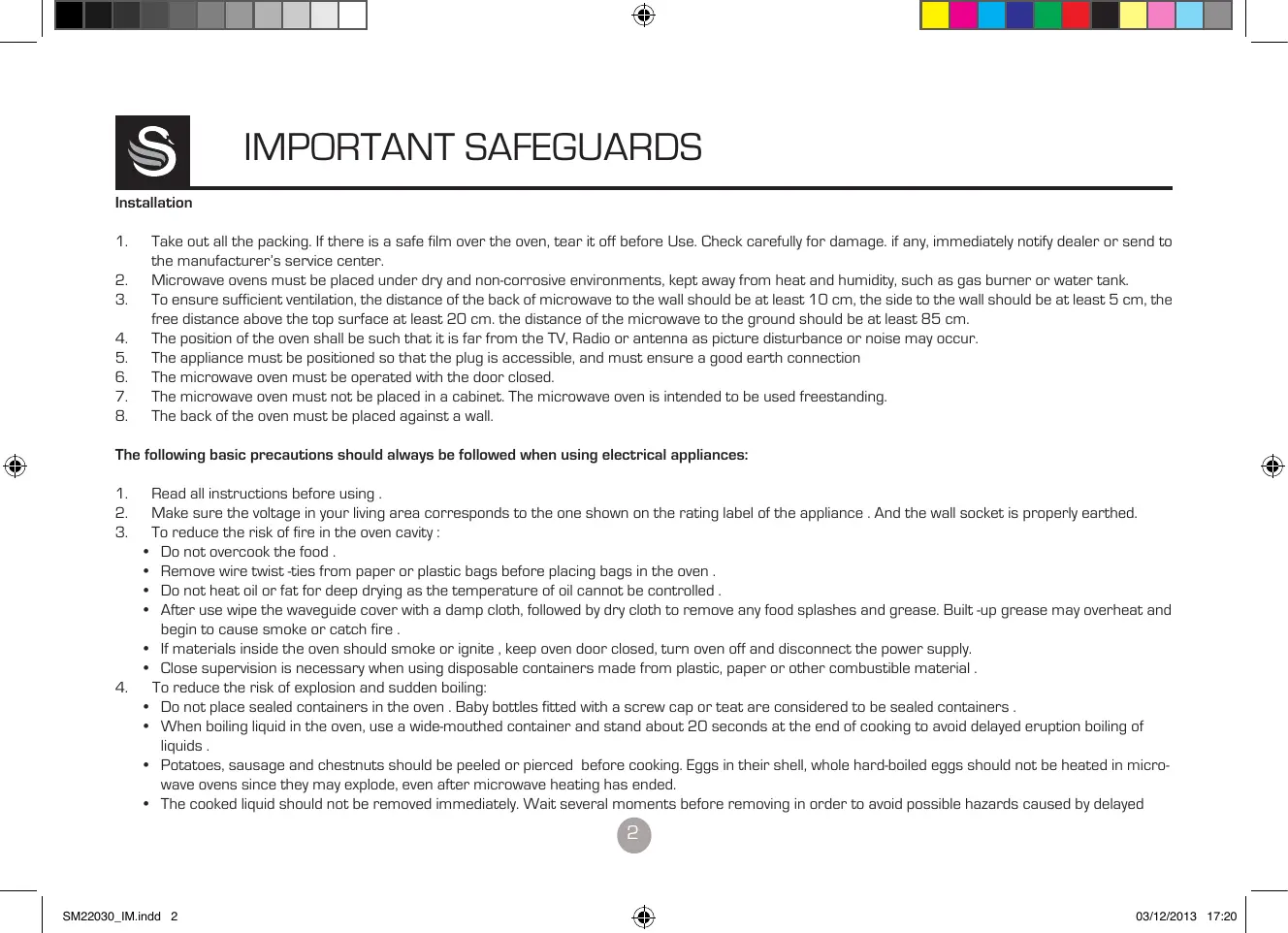

S IMPORTANT SAFEGUARDS

eruption boiling of liquids: +_ The contents of feeding botties and baby food jars should be stirred or shaken and the temperature should be checked befare consumption, in order to avoid burns 5. Don't operate the oven further if the door or door seal is damaged, or if the oven is malfunctioning, or supply cord is damaged . Return the appliance to the nearest authorised service center for repair and maintenance . Never try to adjust or repair the oven yourself 6. _Ifthe supply cord is damaged, i must be replaced bythe manufacturer or its service agent or a qualified technician in order to avoid a shock hazard 7. After cooking, the container could be very hot . Use glaves to take out the food and avoid steam burns by directing steam away from the face and hands 8. Slow li the furthest edges of dish cover and microwave plastic wraps and carefully open popcorn and oven cooking bags away from the face.

9. To prevent the tumtable from breaking

+ Letthe turntable cool down before cleaning. + Do not place hot foods or utensils on the cold turntable + Do not place frozen faods or utensils on the hot turntable

10. Make sure the utensils do not touch the interior walls during cooking

11. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and pos- sibly resufrin a hazardous situation. 12 . Only use utensils that are suitable for use in microwave ovens.

13. Do not store food or any other things inside the oven

14. Do not operate the oven without any liquid or food inside the oven . This would damage the oven.

15. This appliance is not intended for using by young children or infirm persons without supervision

16. When the appliance is operated in the combination mode, children should only use the aven under adult supervision due to the temperatures generated

17. Any accessories not recommended by the manufacturer may cause injuries to persons.

18. Do not use outdoors:

19. Save these instructions,

20. WARNING : k is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy

21. WARNING: Liquids and other faods must not be heated sealed container since they are liable to explode

22. WARNING: Oniy allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use

28. When heating food in plastic or paper containers, keep an eye on the oven due to the possibilty of ignition

24. 1fsmoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames

25 . The contents of feeding bottes and baby food jars shall be stirred or shaken and the temperature checked before consumption in order ta avoid burns

26. WARNING: Accessible parts may become hot during use . Young children should be kept away

se2se0 Mn à & osnemois 1720

27. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shatter- ing ofthe glass 28. This appliance is not intended for use by persons {including children] with reduced physical , sensory or mental capabilties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety 29 . Children should be supervised to ensure that they do not play with the appliance 30 . The appliance is not intended to be operated by means of an external timer or separate remote -control system

88. This appliance is intended to be used in househald and similar applications such as

• staff kitchen areas in shops, offices and other working environments; + farm houses;

• by clients in hotels, motels and other residential environments; + bed and breakfast type enviranments. 39. The microwave oven is intended for heating food and beverages. Drying of food ar clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. 40. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experi- ence and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than B years. Cleaning and user maintenance shall not be made by children without supervision

41. The door or the outer surface may get hot when the appliance is operating,

UTENSILS GUIDELINE It is strongly recommended to use containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use metal containers for microwave cooking and combination cooking as sparks are likely to occur. door interlock oven door glass turntable housing CONTROL PANEL oven cavity rotating axis rotating ring /\ WARNING Start a. Do not remove the Waveguide cover during cleaning b. Make sure the Waveguide cover is properly in place during cooking SM22030_IMindd 5 & Menu selector-To select the desired cooking menu To set cooking time or weight Press once to stop cooking Press lwice lo clear seltings 08/12/2013 17:20

AN CAUTION The LED flashes 8 times when plugged into power supply. Then REFERENCE TABLE it shows “00:00”, prompting you to input the cooking menu and time. During setting the cooking process, it will return to standby state automatically if no entry is made within 2 minutes.

When your preset cooking selection has finished, the LED Display will show End and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door or turn the Menu Selector, the beep will be sounded at an interval of 3 minutes.

The oven will start express cooking by selecting this menu. After setting this menu by turning Menu Selector knob, press Start button to start cooking, and its default cooking time is 30 seconds. You can increase cooking time by pressing start button, each press will increase cooking time by 30 seconds up to a max setting of 10 minutes.

Turning the Menu Selector to Clock enables you to input current time SM22030_IMindd 6 & For example: to set 12:30 Depress Display 1 Power-up the ov 00:00 2 Tum the Menu Selector to Clock 00:00 3 Press Enter for 3 seconds to enter clock setting 4 Turn Time. Weight knob to set exact hours. 12:00 5 Press Enter button once again. 12:00 6 Turn Time. Weight knob to set exact minutes. 12:30 ; Press Enter button once again or wait for 1 minute, and the numbers will go steadily. 08/12/2013 17:20

Microwave cooking This function is used for cooking and heating food. There are three selections for microwave cooking by turning the Menu Selector. High power 100%microwave pawer. Applicable far quick andtharaugh cooking Medium Pemicrowave pawer. Applicable far medium express cooking High power EDémicrowave power. Applicable far steaming food Medium power Medium 40% microwave power. Applicable for defrosting food Low poser AN CAUTION a. The max time which can be set is 60minutes. b. Never operate the oven empty. c. If you turn the food during operation, press the Start button once and the preset cooking procedure will continue. d. If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation during next use. SM22030_IMindd 7 & Example To cook at PB0for 10minutes. Press Display 1 After pawer-up, the colon flashes : 2 Select the desired microwave pouer by depressing Micro | BOP Power button consecutiveh 3 Set cooking time by turning Time. Weight knob 10: 00 a Press Instant/Start button and LED will count doun to Shaw running time. æ&

You may change the cooking time during cooking. And it is recommended turning the food halfway, after you turn the food. Press Start button once to continue. 08/12/2013 17:20

Defrost This function use for defrost food , turning the Menu Selector to AN CAUTION Defrost is available to carry out this function. The weight range to a. It is necessary to turn over the food during operation defrost is 0.1 kg”2.0 kg. Example: To defrost 0.4kg poultry SM22030_IMindd 8 Depress Display 1 Power-up the oven 00:00 2 Tum Menu Selector to Defrost dEF 3 Turn Time. Weight knob to set the defrost weight 0.4 4 Start cooking by pressing Start button 5:16 In half way during defrosting 3 beep sound will be heard two times to prompt you tum over the food. 5 Open the door and turn over the food and shield the warm portion. Then close the door. Press Start button again to continue defrosting

to obtain uniform effect. b. Usually defrosting will need longer time than that of cooking the food. c. If the food can be cut by knife, the defrosting process can be considered completed. d. Microwave penetrates around 4cm into most food e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again Auto cooking The oven has default cooking menu for simple operation. When the oven in standby state , turn the Menu Selector to Auto cooking, then turn Time. Weight knob to select auto cooking menu. Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced. 08/12/2013 17:20

À | | | Example: Steam 0.4kg fish Display | Kind Weight Depress Display All together there are two choices A-01 |Popcom get 8 two cholces “%Pouer up the oven 00:00 {3.007 and 3.502) 2.Tum Menu Selector to Auto cooking A-01 All together there are two choices A-02 |Potato (0.45Kg and 0.65Kg) 3. Tum Time. Weight to select auto cooking menu A-05 A-03 |Vegetable All together there are five choices Press Enter to confirm A-05 {0.1 0.2—0.5Kg) ) ur Time, Weight knob to set the eight 0.4 A-04 |Meat All together there are six choices 6. Start cooking by pressing Start button 10:00 ai {0.2 0.3-—0.7Kg) A-05 i All together there are six choices : : Fish (0.2 0.3-———0.7K a) Child lock function u _ Use this feature to lock the control panel when you A-06 |Chicken All together there are six choices are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) To set child lock, press and hold Pause/Cancel button

A-07 |Reheat . All together there are two choices A-08 |Beverage {250MI and 500MI) about 3 seconds. All together th, five cho 2) To cancel child lock, press and hold Pause/ Cancel button A-09 : together there are five choices Rice (0.1 0.2-—0.5Kg) about 3 seconds. A-10 |past All together there are five choices asta {0.1 0.2——0.5Kg) A-11 |Bread All together there are five choices Tea {0.1 0.2-—0.5Kg) A-12 |pizza All together there are two choices {1 share and 2 share) SM22030_IMindd 9 08/12/2013 17:20

Cooking Tips The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the Centre and spreadit evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, PS stir it from outside to centre of dish once or twice during cooking Allow standing time After cooking time ends, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cools it down in a gradual manner Whether the food is done. Color and hardness of food help to determine if it is done, these include: - Steam coming out from all parts of food, not just the edge - Joints of poultry can be moved easily - Pork or poultry shows no signs of blood - Fish is opaque and can be sliced easily with a fork SW22030 inde 10 & can2mors 1720

Browning dish When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded SU22030 inde 11 & can2mors 1720

The oven should be cleaned regularly and any food deposits removed. /\CAUTION 1. Itis hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy

2. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when

cleaning. 3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation The oven should be cleaned regularly and any food deposits removed Details for cleaning door seals, cavities and adjacent parts. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance Do not remove the waveguide cover When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them: a. Place several lemon slices in a cup, then heat with high power for 2-3 min. b. Place a cup of red tea in oven, then heat with high power. c. Put some orange peel into oven, and then heat them with high power for 1 minute. yours Wipe exterior parts with a dampened soft cloth Wipe clean the interior surfaces with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed on it Turntable / Rotation ring / Rotation axis: Wash with mild soapy water. Rinse with clean water and allow drying thoroughly. Glass turntable is OK to put in the dishwasher SM22030_IMindd 12 & 08/12/2013 17:20

SM22030_IMindd 13 SA SERVICING Please check the following before calling for service: a. Place one cup of water (approx.150mil)in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min. b. Does the oven lamp light? c. Does the cooling fan work? (Put your hand over the rear ventilation openings.] d. Does the turntable rotate? (The turntable can rotate Clockwise or counter Clockwise. This is quite normal.) e. ls the water inside the oven hot? IF"NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT SERVICE on 01 733 404703 à /\ WARNING Ifthe door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person: It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. Liquids or other foods must not be heated in sealed containers since they are liable to explode. 08/12/2013 17:20

SERVICING SAFEGUARDS ARNINCG (Gi MICROWAVE RADIATION! It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible surfaces may be high when the appliance is operating The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chas- sis (use a screwdriver) to discharge before touching. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

2. High voltage transformer 5. High voltage capacitor

4. High voltage diode

5. High voltage fuse

The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron:; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damaged /NCAUTION 1. If LED displays ErrO during working .it indicates that sensor has been short circuited and you need replace it at the near- est repaired department. 2. If LED displays Err1 during working, it indicates that sensor is open circuit and you need replace it at the nearest service- centre se2630 Mind 14 & osnemois 1720

WEEE Directive S) Warranty Disposal of Unit This product is guaranteed for 2 years from the date of original purchase. If Disposal instructions for Swan items in accordance with the Any defect arises due to faulty materials of workmanship the faulty products VEEE directive. Applances bearing the symbol shoun here Must be retumed to the place of purchase. Refunds or replacement is at the may not be disposed of in domestic rubbish. You are required discretion of the store. to dispose of old electrical and electronic appliances like this separatel Please visit wwwrecyclemarecouk, or www. The following conditions apply: recyclenow.co.uk for access ta information about the recycling of electrical items. The WEEE directive, introduced in August The product must be returned to the retailer with proof of purchase. 2006, states that all electrical items must be recycled, rather The product must be installed and used in accordance with the instructions than taken to land. Please arrange to take this appliance to Contained in this instruction guide. I: must be used only for domestic purposes your local Civic Amenity site for recycling, ance it has reached lt does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liabilty for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire On. S) BS Plug Wiring The wires in the mains lead are coloured in accordance with the fallowing code: the end of its life. BLUE NEUTRAL BROWN LIVE

As the colours ofthe wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/ YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol] and is coloured GREEN ar GREEN YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

SM22030_IMindd 15 & 08/12/2013 17:20
