USER MANUAL SM22080PN SWAN

Swan Retro designed for life 25L Combi Microwave with Grill Model: SM22080 (all colours) Helpline: 01733 404703

IMPORTANT SAFEGUARDS

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity: a. Do not overcook the food. b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven. c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire. e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply. f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

4. To reduce the risk of explosion and sudden boiling: a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

b. Use the wide-mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after

microwave heating has ended.

d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.

2. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

3. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

4. To prevent the turntable from breaking:

a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.

2. Only use utensils that are suitable for use in microwave ovens.

3. Do not store food or any other things inside the oven.

4. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.

5. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

6. Any accessories not recommended by the manufacturer may cause injuries to persons.

7. Do not use outdoors.

IMPORTANT SAFEGUARDS

1. Save these instructions.

2. WARNING: If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;

3. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

4. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

5. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container;

6. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

7. The lamp of microwave oven is not intended for other purposes.

8. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

9. This appliance is intended to be used in household and similar applications, such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential environments;

• Bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.

5. A steam cleaner is not to be used.

6. The door or the outer surface may get hot when the appliance is operating.

7. WARNING: Accessible parts may become hot during use. Young children should be kept away.

8. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

9. The surfaces are liable to get hot during use.

Household use only

INSTALLATION

1. Remove all packaging. If there is a safe film over the oven, tear it off before Use.
2. Check carefully for damage. If any damage is found, immediately notify dealer or send to the manufacturer's service center.
3. Microwave ovens must be placed under dry and non-corrosive environments, kept away from heat and humidity, such as gas burner or water tank.
4. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
5. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. The distance should be more than 5m.
6. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
7. The microwave oven must be operated with the door closed.
8. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
9. The back of the oven must be placed against a wall.
10. A slight smell and whisps of vapour maybe observed during first time use. This is normal and is a result of preserving oils evaporating

: CAUTION:HOT SURFACE

HOW TO USE YOUR OVEN

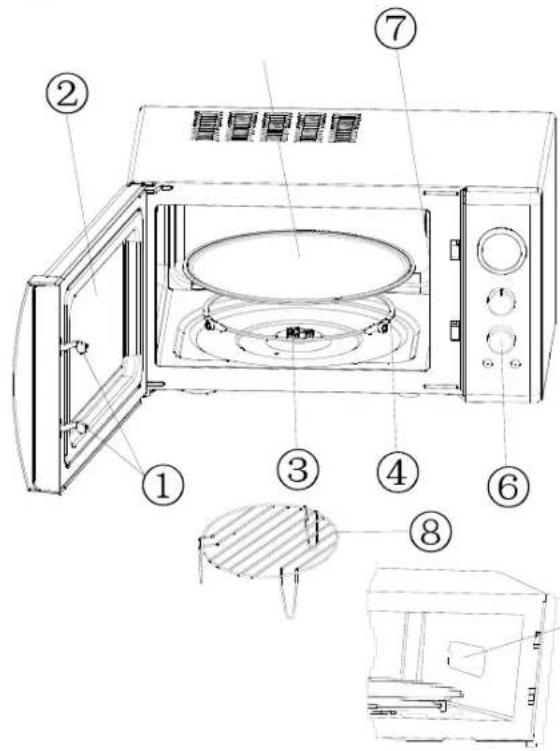

Labeled diagram of a microwave oven with numbered parts for identification

Waveguide Cover

1. Door lock. Microwave oven door must be properly closed in order for it to operate
2. Viewing window. Allows user to see the cooking status
3. Rotating axis. The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate
4. Rotating ring. The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating
5. Turntable. The food sits on the turntable, its rotation during operation helps to cook food evenly. Place the rotating ring first Fit the turntable onto the rotating axis and make sure that it is geared in properly
6. Control panel. Details below
7. Waveguide cover. It is inside the microwave oven, next to the wall of control panel.
8. Grill rack. Use to place food for roasting/grilling

WARNING

Never remove the waveguide cover

HOW TO USE YOUR OVEN

INTRODUCTION

This is a combination microwave, grill & convection oven. You can use one or all in combination to get better results than a conventional microwave.

Combination ovens have all the benefits of fast microwave cooking but with the additional benefit of a regular oven, like crispy food!

METAL IN MICROWAVES

Under normal circumstances you would never put metal in a microwave because microwaves cannot penetrate metal! It can also interfere with the shape of the radio wave patterns used to cook the food and lead to arcing etc.

With this oven, there are some microwave/combination cooking modes that ALLOW the use of this grill [8] accessory.

However, the panel on the right lists some limitations:

METAL IN MICROWAVES cont.

• DO NOT use the grill rack for ANY microwave only cooking programme. This includes the auto modes
• For combination oven/microwave cooking where the grill rack is required, use ONLY the grill rack that came with the microwave
• In microwave/grill/convection modes the oven limits the microwave power to short periods so microwave hot spots cannot develop in the metal grill rack.
• For all combination modes that use microwaves, the same limitations on metal apply: No metal trays, plates or containers. No metal utensils, tin foil or crockery with metal (gold leaf type) printing. No recycled paper please as this can contain tiny fragments of metal as well!
• Please refer to this page again if you are uncertain wether to use the grill rack or not.

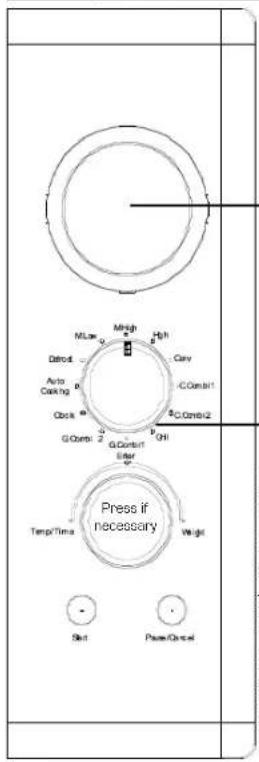

HOW TO USE YOUR OVEN

MLow High Clay Auto Cooking C.Gomb1 Clock G.Comb2 G.Comb3 QHI G.Comb4 G.Comb5 G.Comb6 G.Comb7 G.Comb8 G.Comb9 G.Comb10 G.Comb11 G.Comb12 Press if necessary Temp/Time Weight - - - Set Power/Control

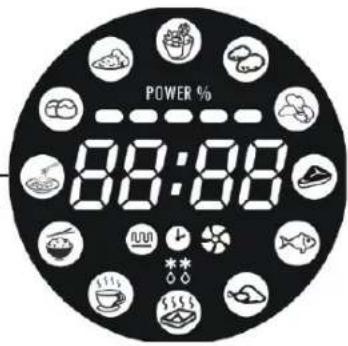

POWER % 88:88

Menu Selector

BEFORE COOKING

1] The LED flashes 3 times when plugged in power supply. Then it shows "1:00", prompting you to input the cooking menu and time.
[2] During setting the cooking process, it will return to standby state or clock state automatically if no data is entered for 2 minutes.

TEMP.TIME/WEIGHT KNOB

You can increase or decrease cooking time, weight or temperature during operation by turning Temp.Time/Weight knob. In some modes you may need to press this knob to access further options.

PAUSE/CANCEL

1] At the initial or input stage: press once to cancel input programs and resume initial stage.
2] During cooking: press once to stop oven operation, press twice to cancel cooking programs.

START BUTTON

1] After setting the desired program, press Start to start cooking.
2) During cooking at microwave power, convection and grill [combinations included], pressing Start button is available to increase working time:
- Within 5 minutes, each press can increase 10 seconds;
- In between 5-10 minutes, each press can increase 30 seconds;
- Beyond 10 minutes, each press can increase 1 minute.

AUTO REMINDER

When your preset cooking procedure have finished, the LED

HOW TO USE YOUR OVEN

display will show END and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door, the beep will be sounded at an interval of 3 minutes.

CLOCK SETTING

Turning the Menu Selector to Clock will give access to edit the time.

Example: to set 12:30
	Steps Display
1 Power	up the oven 1:00
2 Turn the	Menu Selector to Clock 1:00
3 Press	and hold Enter for 3 seconds to enter clock setting
4 Turn T	Temp.Time/Weight knob to set exact hours	12:00
5 Press	Enter once again 12:00
6 Turn T	Temp.Time/Weight knob to set exact minutes	12:00
7 Press	Enter button once again. Clock is now set

MICROWAVE COOKING

GRILL RACK CANNOT BE USED FOR ANY OF THESE MODES

This function is used for cooking and heating food. There are three selections for microwave cooking by turning the Menu Selector:

High 100P =	100% microwave power. Applicable for quick and thorough cooking
M. High 80P	= 80% microwave power. Applicable for medium express cooking
M. Low 40P	= 40% microwave power. Applicable for defrosting food

• The max time which can be set is 60 minutes.
• Never operate the oven empty.
• If you turn the food during operation, press the Start button once and the preset cooking procedure will continue.
• If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation of next time use.
• At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

HOW TO USE YOUR OVEN

MICROWAVE COOKING cont.

Example: To cook at 80% (80P) for 10 minutes
	Steps Display
1 Power up the oven 1:00
2 Select the desired microwave power by turning Menu Selector to M. High		80P
3 Set cooking time by turning Temp Time/Weight knob		10:00
4 Press Start button and LED will count down, showing remaining running time

GRILL OR GRILL COMBINATION

Grill rack can be used in these modes.

Turn the Menu Selector to Grill, G.Combi1 or G.Combi2 to select grilling cooking:

Grill Grill, th	he heat element will be energized during operation. good for grilling/browning thin meats or pork, sausage or chicken wings etc
G.Combi1	Combination of grill and microwave cooking. 30% of time microwave output and 70% of time grilling
G.Combi2	Combination of grill and microwave cooking. 55% of time microwave output and 45% of time grilling

In grilling mode, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.

: CAUTION:HOT SURFACE

HOW TO USE YOUR OVEN

GRILL OR GRILL COMBINATION cont.

Example: To grill food with Grill for 10 minutes
	Steps Display
1 Power up the oven 1:00
2 Turn Menu Selector to Grill G
3 Set cooking time by turning Temp Time/Weight knob		10:00
4 Press Start to start cooking

CONVECTION OR CONVECTION COMBINATION

Turn the Menu Selector to Conv, C.Combi1 or C.Combi2 to select convection cooking

Conv Convection, convection fan will be energized during entire operation time. In this mode, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly.

C.Combi1 Combination of Convection Grill and microwave cooking. 30% of time microwave output and 70% of time Convection Grill

C.Combi2 Combination of Convection Grill and microwave cooking. 55% of time microwave output and 45% of time Convection Grill

Temperature setting

Select operating temperature by different task, temperature includes 100C, 140C, 180C, 200C, 210C. In combination mode, the cooking temperature you set cannot exceed 180C

Example: To cook with convection function Conv at 180C for 20 minutes
	Steps Display
1 Power up the oven 1:00
2 Turn the Menu Selector to Conv
3 Set the operating temperature by turning Temp.Time/Weight knob		180C
4 Press Enter button to confirm 180C
5 Set cooking time by turning Temp Time/Weight knob		20:00
6 Press Start to start cooking

HOW TO USE YOUR OVEN

DEFROST

This function is used to defrost food; turning the Menu Selector to Defrost is available to carry out this function. At defrost mode, turn Temp.Time/Weight knob to select the food type: Ad-1, Ad-2, Ad-3.

Ad-1 For defrosting meat, the weight range from 0.1 to 2.0 kg.

Ad-2 For defrosting poultry, the weight range from 0.2 to 3.0kg

Ad-3 For defrosting seafood, the weight range from 0.1 to 0.9kg

• It is necessary to turn over the food during operation to obtain uniform effect.
  • Usually defrosting will need longer time than that of cooking the food.
• If the food can be cut by knife, the defrosting process can be considered completed.
• Microwave penetrates around 4cm into most food
• Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

Example: To defrost 0.4kg poultry
	Steps Display
1 Power up the oven 1:00
2 Turn the Menu Selector to Defrost Ad-1
3 Turn the Temp.Time/Weight knob to sert defrost type		Ad-2
4 Press Enter button to confirm Ad-2
5 Turning Temp Time/Weight knob to set the defrost weight		0.4
6 Start cooking by pressing Start button
7 Half way through defrosting, beep sounds will be heard to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Start button again to continue defrosting.

11

HOW TO USE YOUR OVEN

AUTO COOKING

GRILL RACK CANNOT BE USED FOR ANY OF THESE MODES

The oven has default cooking menu for simple operation. When the oven in standby state, turning the Menu Selector to Auto cooking, then turn Temp.Time. Weight knob to select auto cooking menu.

Choose the appropriate menu according to the food type and weight.

• The temperature of food before cooking should be 20-25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
• The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

Display Kind Weight
A-01 Popcorn There is one choice (0.1kg)
A-02 Potato 2 choices: 0.45kg, 0.65kg
A-03 Vegetable 5 choices 0.1 - 0.5kg
A-04 Meat 6 choices 0.2 - 0.7kg
A-05 Fish 6 choices 0.2 - 0.7kg
A-06 Chicken 6 choices 0.2 - 0.7kg
A-07 Reheat 5 choices 0.2 - 1.0kg
A-08 Beverage 2 choices: 1 cup, 2 cups
A-09 Rice 5 choices 0.1 - 0.5kg
A-10 Pasta 5 choices 0.1 - 0.5kg
A-11 Bread 5 choices 0.1 - 0.5kg
A-12 Pizza 2 choices: 1 slice, 2 slices

HOW TO USE YOUR OVEN

Example: Steam 0.4kg fish
	Steps Display
1 Power up the oven 1:00
2 Turn the Menu Selector to Auto cooking		A-01
3 Turn Temp.Time/Weight knob to select auto cooking menu		A-05
4 Press Enter button to confirm A-05
5 Turn Temp Time/Weight knob to set the weight		0.4
6 Press Start to start cooking

CHILD LOCK FUNCTION

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised.

All the buttons are rendered inoperable in this mode.

Set child lock, Hold Pause/Cancel button about 3 seconds.

Cancel child lock: Hold Pause/Cancel button about 3 seconds.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material M.wave Grill Conv Combi Note
Heat res.t ceramic	Yes Yes	Yes Yes	No meta	rims or print
Heat res.t plastic	Yes No	No No Refer to container			instructions
Heat res.t glass	Yes Yes	Yes Yes
Plastic film Yes	No No	No Don't	Use with meat
Grill rack	No	Yes Yes	Yes See page 6
Metal con-tainer	No	No No	No Micro	wave sca	not penetrate metal

HOW TO USE YOUR OVEN

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

CLEANING & MAINTENANCE

The oven should be cleaned regularly and any food deposits removed.

CAUTION

1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy
2. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
4. The oven should be cleaned regularly and any food deposits removed
5. Details for cleaning door seals, cavities and adjacent parts.
6. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
7. Do not remove the waveguide cover
8. When the microwave oven has been used for a long time, there may be some strange odors exist in oven. Following 3 methods can get rid of them: a. Place several lemon slices in a cup, then heat with high power for 2-3 min. b. Place a cup of red tea in oven, then heat with high power. c. Put some orange peel into oven, and then heat them with high power for 1 minute.

Wipe exterior parts with a dampened soft cloth

Wipe clean the interior surfaces with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed on it

Turntable / Rotation ring / Rotation axis:

Wash with mild soapy water. Rinse with clean water and allow drying thoroughly. Glass turntable is OK to put in the dishwasher

SERVICING

Please check the following before calling for service:

a. Place one cup of water [approx.150ml] in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
b. Does the oven lamp light?
c. Does the cooling fan work? [Put your hand over the rear ventilation openings.]
d. Does the turntable rotate? (The turntable can rotate Clockwise or counter Clockwise. This is quite normal.)
e. Is the water inside the oven hot?
If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT SERVICE on 01733 404703

WARNING

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.

Liquids or other foods must not be heated in sealed containers since they are liable to explode.

SERVICING SAFEGUARDS

WARNING

MICROWAVE RADIATION!

It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible surfaces may be high when the appliance is operating

The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

1. Magnetron
2. High voltage transformer
3. High voltage capacitor
4. High voltage diode
5. High voltage fuse

The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damaged.

CAUTION

1. If LED displays ErrO during working, it indicates that sensor has been short circuited and you need replace it at the nearest repaired department.
2. If LED displays Err1 during working, it indicates that sensor is open circuit and you need replace it at the nearest service-centre

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase. The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE

NEUTRAL

BROWN

LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

18

©

Stylized white swan logo on black background, no text or symbols present

www.swan-brand.co.uk

Scan this QR code

to hear about

our story

We love

what we do

we're proud

of our quality

Find us on Facebook

Copyright © 2013

Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
