USER MANUAL 2DT70B OCEANIC

Specifications techniques

Note :

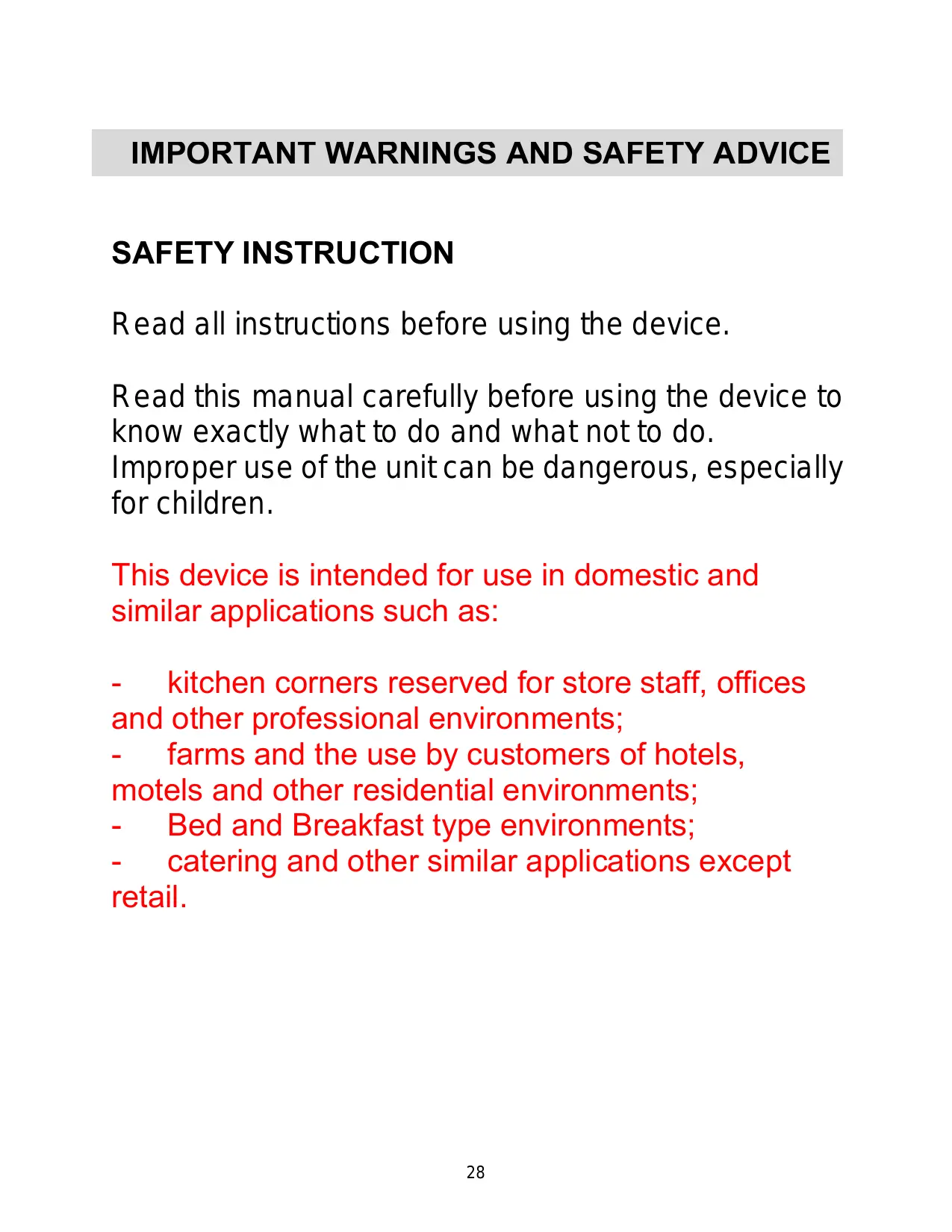

Read all instructions before using the device.

Read this manual carefully before using the device to know exactly what to do and what not to do.

Improper use of the unit can be dangerous, especially for children.

This device is intended for use in domestic and similar applications such as:

• kitchen corners reserved for store staff, offices and other professional environments;
• farms and the use by customers of hotels, motels and other residential environments;
• Bed and Breakfast type environments;
• catering and other similar applications except retail.

This unit can be used by children aged 8 years and by people with physical, sensory or mental capabilities or lack of experience or knowledge, they (if they) are properly monitored (e) s or relative to use of the device safely instructions were given and whether the risks they were apprehended. Children should not play with the appliance. The cleaning and maintenance by the user should not be made by children without supervision.

It should supervise children to ensure they do not play with the device.

WARNING: Keep ventilation openings in the enclosure of the device or in the mounting structure.

CAUTION: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

CAUTION: Do not damage the refrigerant circuit.

CAUTION: Do not use electrical appliances inside the storage compartment of commodities, unless they are of the type recommended by the manufacturer.

If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard.

Do not store this device in explosive substances such as aerosols containing flammable propellants.

The packaging materials are recyclable, do not give up in the environment, bring them to a specialized center in order to be recycled.

The electrical safety of this apparatus is ensured only when connected to an electrical installation provided with an earth connection in good condition, according to the standard. If in doubt, conduct a careful inspection of the installation by a qualified technician.

• Before you throw your device: remove the door and leave the shelves in place so that children do not play easily inside.
• Never allow children to operate or play with the appliance.
• Never clean the unit's elements with flammable fluids. The fumes are a fire hazard or can cause explosions.
• Do not store or use gasoline or other flammable vapors and liquids in or near this unit. The fumes can cause fire or explosion.
• Do not install in a place with extreme weather conditions such as inadequate ventilation, temperatures below 10^ C or above 30^ C

This product complies with European safety standards for electrical appliances. He was subjected to lengthy trials and meticulous tests to evaluate the safety and reliability.

Before connecting the machine, check that the data on the rating plate correspond to those of your installation.

The use of this device, as with any electrical appliance implies observance of some basic rules:

• Do not touch the appliance with hands or feet are wet or damp;

• Do not pull the power cord to disconnect the plug from the socket;

• Do not leave the appliance exposed to atmospheric agents;

• Do not allow the appliance to be used by children without supervision;

• Do not unplug and plug into the socket with wet hands; Before carrying out any cleaning or maintenance operations, disconnect the appliance from the mains power supply by disconnecting the plug or turning off the main switch of the installation; The socket must be accessible after installation of the unit.

• In case of breakdown or malfunction switch off the appliance and do not damage it. WARNING: When positioning the appliance, make sure the power cord is not pinched or damaged.

WARNING: Do not place a portable socket multiple sockets or portable power supplies in the back of the unit.

Children aged 3 to 8 years are allowed to load and unload refrigeration.

To prevent contamination of foods, please observe the following:

• Prolonged opening of the door may cause a significant increase in temperature in the compartments of the unit.

• Regularly clean surfaces that may come into contact with food and drainage systems accessible.

• Keep raw meat and fish in suitable containers in the refrigerator, so they are not in contact and they do not drip onto other foods.

• The two stars compartments for frozen products are suitable for storing frozen food, storage or manufacture of ice and making ice.

• The compartments in one, two and three stars are not suitable for freezing fresh food.

• If the refrigeration unit remains empty for long periods, turn it off, defrost, clean, dry and leave the door open to prevent mold growth in the unit.

Place the unit against a wall at a distance greater than or equal to 100 ~mm .

Refrigerant

The refrigerant gas in the circuit of this unit is isobutane (R 600a), but slightly hazardous flammable gas.

During transportation and installation of the device, ensuring not to damage any part of the refrigerant circuit

• Do not use any sharp or cutting tool to defrost the unit.
• Do not use electrical appliances inside the appliance.

WARNING: When positioning the appliance, make sure the power cord is not pinched or damaged.

WARNING: Do not place a portable socket multiple sockets or portable power supplies in the back of the unit.

Only authorized personnel can change the lamp in case of failure.

Suitable for food

Information on the meaning of conformity marking

Marking indicates that the product meets the essential requirements of the European Directives 2014/35 / EU (Low Voltage), 2014/30 / EU (electromagnetic compatibility), 2011/65 / EU (Reducing the Use of Certain Hazardous Substances in Electrical Equipment Electronic).

SUMMARY

IMPORTANT WARNINGS AND SAFETY ADVICE 28

I.DESCRIPTION OF APPAREIL 35
II. TECHNICAL CHARACTERISTICS 37
III. INSTALLATION 39
IV. UTILISATION 41

Operation 41
Coldest area of refrigerator 41
Installing the temperature indicator 42
Temperature indicator: the coldest area of your refrigerator 42
Checking the temperature in the coldest area 42
Compliance with food hygiene rules 43
Storing food in the refrigerator according to their nature 44

V.CARE AND MAINTENANCE 46

VI. TROUBLESHOOTING 47
VII. DISPOSAL 50
VIII. WARRANTY 51

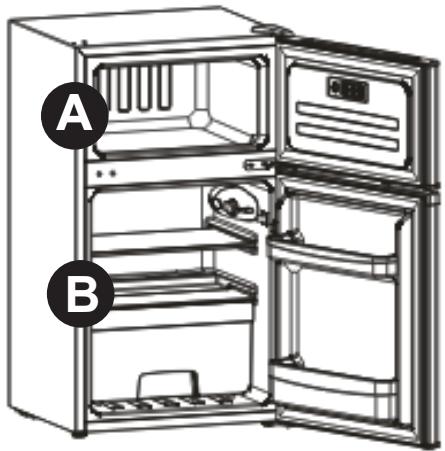

I. DESCRIPTION OF THE APPLIANCE

Structure of the Device:

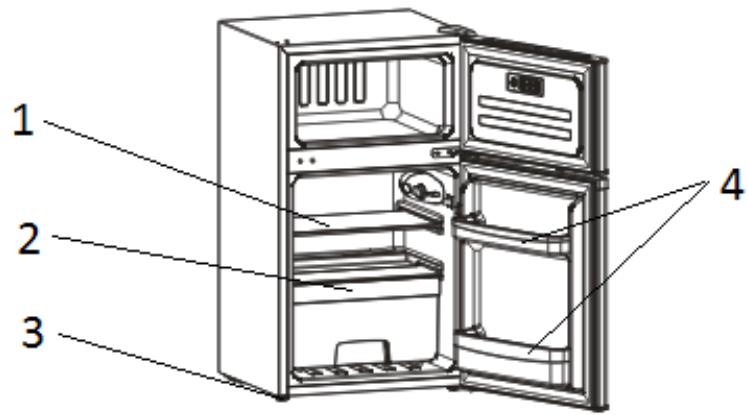

1- Refrigerator shelves (1)
2-Crisper
3- Adjustable feet
4- Door bins

It is only an illustration, for more, please see the appendix.

How to reverse the door?

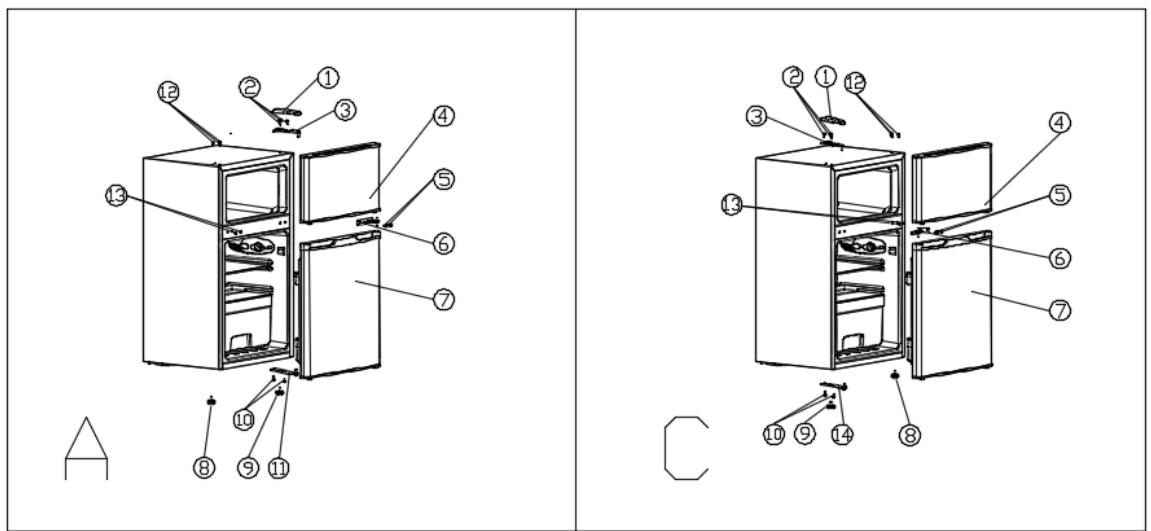

1. Image A - Remove the door and all parties, in sequence

①②③④⑤⑥⑦⑧⑨⑩⑪⑫；

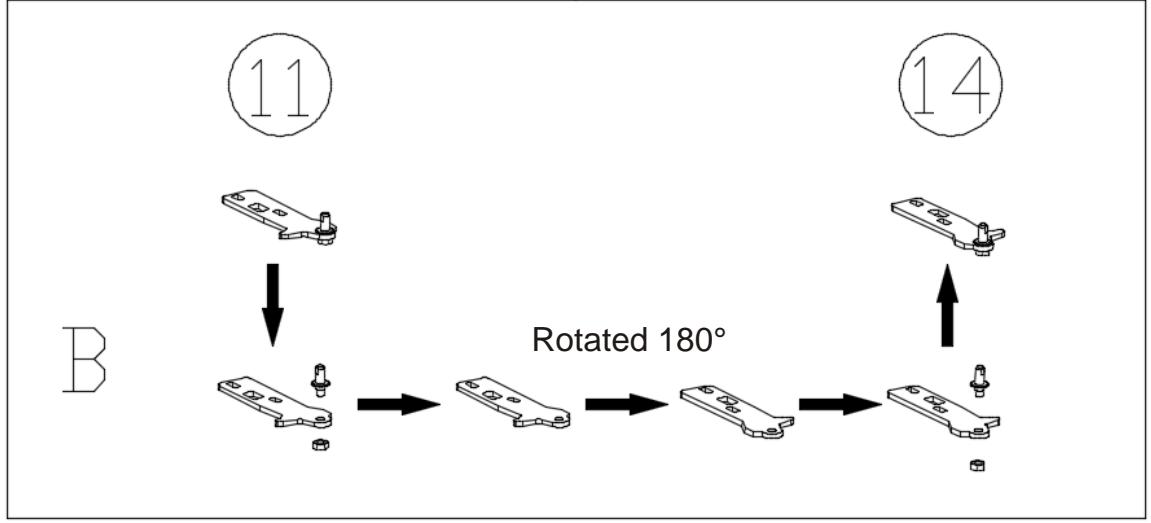

1. Image B - disassembly parts ⑪ exchange of parts ⑭;
2. Image C – Assembly the door and all parties in sequence

13121410987654321

II. TECHNICAL CHARACTERISTICS

Mark:	OCEANIC
Reference	OCEA2DT70S OCEA2DT70W OCEA2DT70B
Power supply	220-240V~
Electric power	50Hz
Dimensions WxDxH	480 x 445 x 845 mm
Net weight	23 kg
Refrigerant:	R600a (29g)
Insulating:	Cyclopentane

Data sheet according to regulation (EU) No. 1060/2010

Mark:	OCEANIC
Commercial reference:	OCEA2DT70S OCEA2DT70W OCEA2DT70B
Refrigerator category:	7 Refrigerator Freezer
Energy efficiency class:	A+
Annual energy consumption in kWh	160 kWh
Energy consumption 160 kWh per year, calculated on the basis of the result obtained for 24 hours under standard conditions. The actual energy consumption depends on the conditions of use and location of the unit.
Useful capacity refrigerator (I)	48
Useful capacity freezer (I)	21
No Frost (Frost Free)	Non
Climate class:	N-ST
Climate class: N-ST. This device is intended for operation at an ambient temperature between 16 °C and 38 °C.
Sound level in dB (A) re 1 pW:	42 dB
Installation type:	Freestanding
Number of stars for the freezer	* ***
Autonomy in case of break	10 h
Freezing power:	2.5 Kg/24h

III. INSTALLATION

Instructions for installation

The product must be installed in accordance with national rules Installation

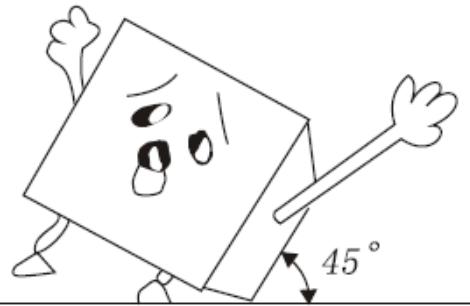

1. Do not tilt the refrigerator more than 45^ when moving it.

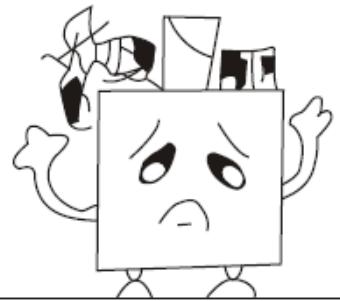

Do not force parts of the apparatus as the condenser, the door and its handle, not to deform the refrigerator or affect its performance.

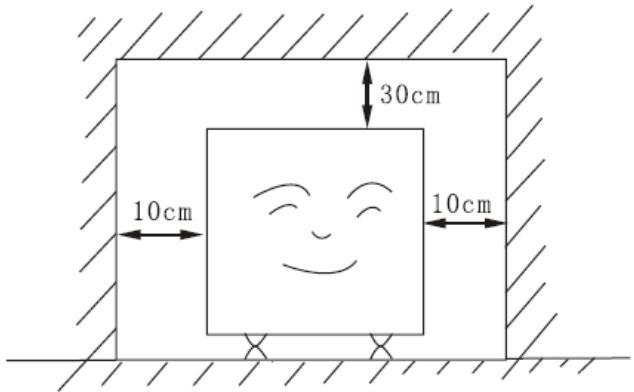

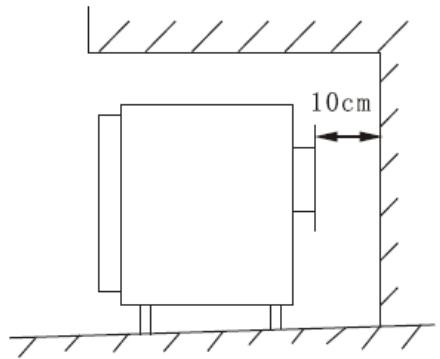

1. Make sure there is enough space around the refrigerator to work properly.

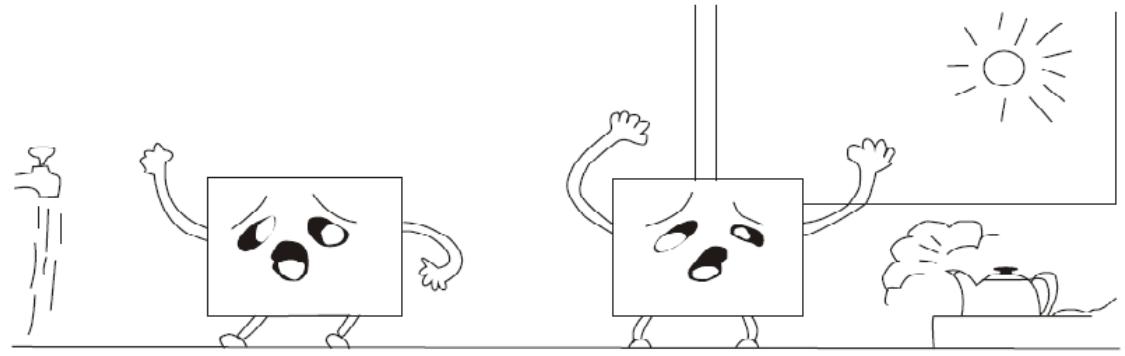

1. The refrigerator should not be near a heat source or exposed to sunlight or moisture.

Precautions to take

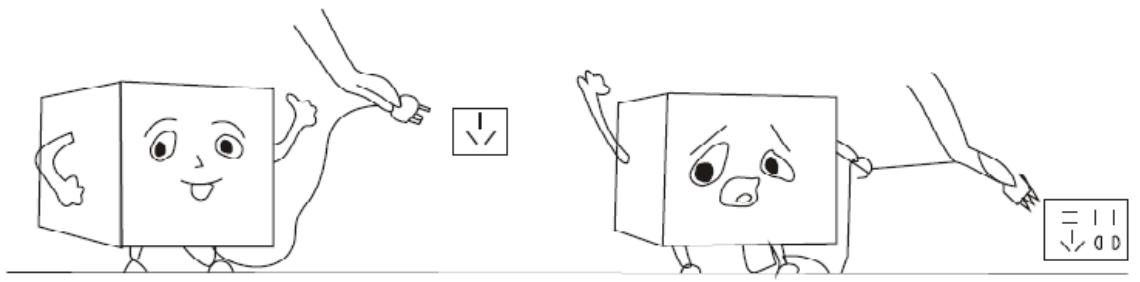

1. Make sure that the voltage used is the same as the rated voltage before using the refrigerator.
2. The plug of the device must be connected to a separate socket so that there is no overheating due to other sockets.

The socket of the installation must always be provided with a connection to the ground. If the power supply is not connected to the earth; you do not have to connect the device.

The outlet must be accessible after installation or the power cord must incorporate a switch in accordance with regulations.

1. Do not squirt water on the refrigerator, to avoid malfunction of the appliance or electric shocks.

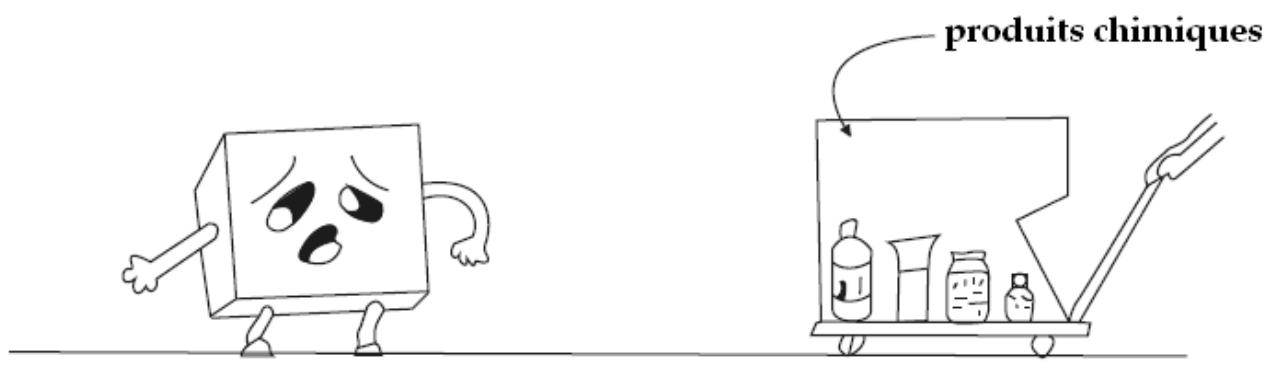

2. Do not store flammable materials such as alcohol, gasoline, liquefied petroleum gas, glue, etc. in the refrigerator.

IV. UTILISATION

Operation

1. When operating the refrigerator for the first time, set the thermostat to 3, and let it run without putting food. It must be left in this way generally 2 to 3 hours. Then adjust the thermostat as you wish and place the food in the refrigerator.
2. The refrigerator temperature can be adjusted by turning the thermostat knob as needed, the 4 5 setting being most suitable for the usual conditions. If you put it higher, you increase the cooling capacity.

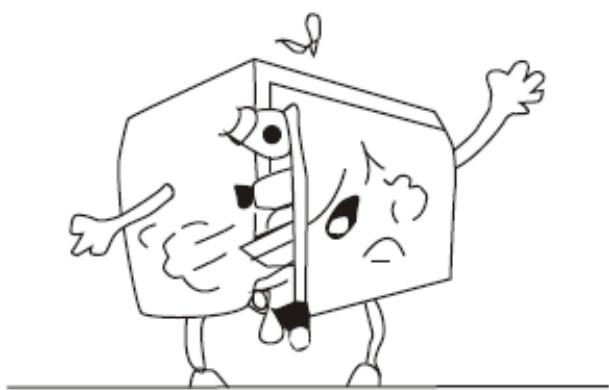

3. Do not put too much food in the refrigerator. Do not open the door too often to maintain refrigerator temperature and save electricity.

1. The refrigerator can defrost automatically. Defrost the freezer when the frost layer is 3 or 4mm . When you do, remove all food, set the thermostat to 0 and open the door. Once the frost has melted, remove the water and dry the inside of the refrigerator, then you can restart the refrigerator by turning the thermostat to the desired setting.

COLDEST AREA OF REFRIGERATOR

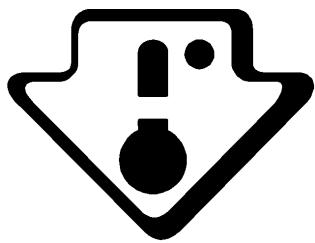

The symbol opposite indicates the location of the coldest zone of your refrigerator. This zone is delimited at the bottom by the window of the vegetable crisper, and at the top by the symbol or the shelf positioned at the same height.

In order to guarantee the temperatures in this zone, take

care not to modify the positioning of this shelf.

In refrigerators with forced air (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside them is homogeneous.

INSTALLING THE TEMPERATURE INDICATOR

To help you fine tune your refrigerator, it is equipped with a temperature gauge that will control the average temperature in the coldest zone.

WARNING: This indicator is designed to operate only with your refrigerator, do not use it in another refrigerator (indeed, the coldest zone is not the same), or for any other use.

TEMPERATURE INDICATOR: THE COLDEST AREA OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• With the temperature indicator you can regularly check that the temperature of the coldest zone is correct. In fact, the temperature inside the refrigerator depends on several factors such as ambient room temperature, the amount of stored products, the frequency of opening the door. Take these factors into consideration when the machine setting.

When the indicator says "OK", it means that your thermostat is set correctly, and that the indoor temperature is correct.

If the color of the indicator is white, it means that the temperature is too high, it is necessary in this case to increase the setting of the thermostat and wait 12 hours to perform a new visual check of the indicator.

After loading or opening the door, it is possible that the indicator become white after a few moments.

Correct setting

Temperature too high, set the thermostat

Interior light on the right inside the cabinet

Warning! There is a risk of electric shock! Before changing the bulb, always switch off and unplug it, or remove the fuse or switch off the circuit breaker. Bulb Features: 220-240V, max. 15 W.

To turn off the appliance, turn the temperature controller to 0.

Unplug the mains.

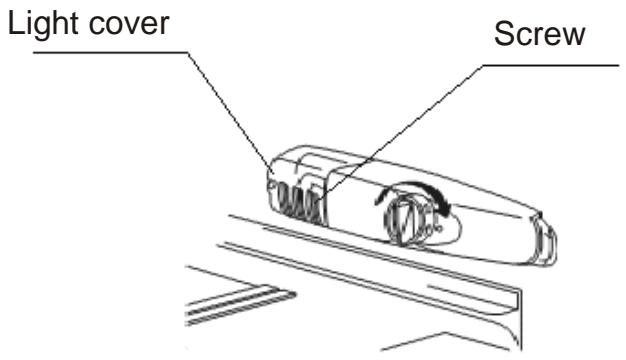

Remove the light cover.

To change the bulb, unscrew the screw.

Change the defective bulb.

Restart the refrigerator.

COMPLIANCE WITH FOOD HYGIENE RULES

Frequently clean the refrigerator using a mild detergent without oxidizing effect on metal parts, then rinse with water with lemon juice, vinegar or any disinfectant adapted to refrigerator.

Remove packaging trade before placing food in the refrigerator (eg yoghurt packs packaging).

Observing the following tips is likely to avoid cross-contamination and to prevent poor food preservation:

Pack systematically products to prevent food may contaminate each other. Wash hands before touching food and many times during the preparation of the meal if it involves repeated handling of different products, and after, of course, when sitting down to eat as the hygiene rules dictate .

Do not reuse utensils that have been used (wooden spoon, chopping board) without having properly cleaned beforehand.

Wait for the complete cooling of preparations before storing (eg soup). Limit the number of door openings and, in any event, do not leave it open too long to avoid a rise in temperature of the refrigerator.

Arrange them so that air can circulate freely foods around.

STORING FOOD IN THE REFRIGERATOR ACCORDING TO THEIR NATURE

• Store food according to their nature in the appropriate box:

Coldest zone: Meat, poultry, fish, meats, prepared dishes, salads, and pastries prepared with eggs or cream, fresh pasta, pastry, pizza / quiches, fresh cheeses and raw milk products, vegetables ready for use sold in plastic bag and generally fresh product whose use-by date (DLC) is associated with a lower storage temperature below +4^ .

Warnings

• When defrosting, never use sharp or metal object to remove the ice on the evaporator surface to avoid damaging it.
• Do not put a bottle containing a drink in the freezer because it could explode and damage the refrigerator.
• Wait 10 minutes before plugging the outlet.

SECURITY:

This device is intended solely for domestic and indoor use. The product must be installed in accordance with national rules Installation

Taking the installation must always be equipped with a ground connection.

If the supply current is not connected to ground; you need not connect the device.

If the power cable is damaged it must be replaced by the manufacturer, its after sales service or similarly qualified persons to avoid a hazard

Child Safety:

• This device is not intended for use by persons (including children) whose physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given by 'means a person responsible for their safety, of supervision or instruction concerning use of the device.'
• It should supervise children to ensure they do not play with the appliance
• Do not store this device in explosive substances such as aerosols containing flammable propellants.

SPECIAL WARNINGS :

• WARNING: Keep clear of obstructions the ventilation openings in the enclosure of the device in its outer part or in recessed structure.
• CAUTION: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• CAUTION: Do not damage the refrigerant circuit.
• CAUTION: Do not use electrical appliances inside the compartment for the storage of food, unless they are of the type recommended by the manufacturer.

WARNING: To avoid danger caused by jitter, it must be installed and secured in accordance with the instructions in the installation manual.

V. CARE AND MAINTENANCE

Cleaning and Maintenance:

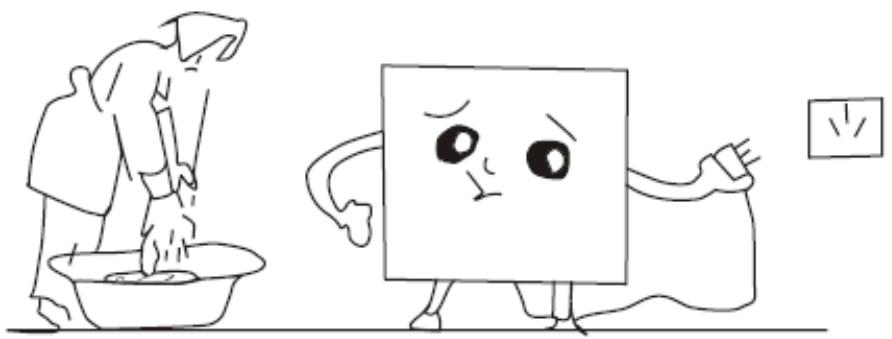

1. Unplug the refrigerator when cleaning. Rub thoroughly with a cloth moistened with a neutral cleaner, then wipe it with clean water.

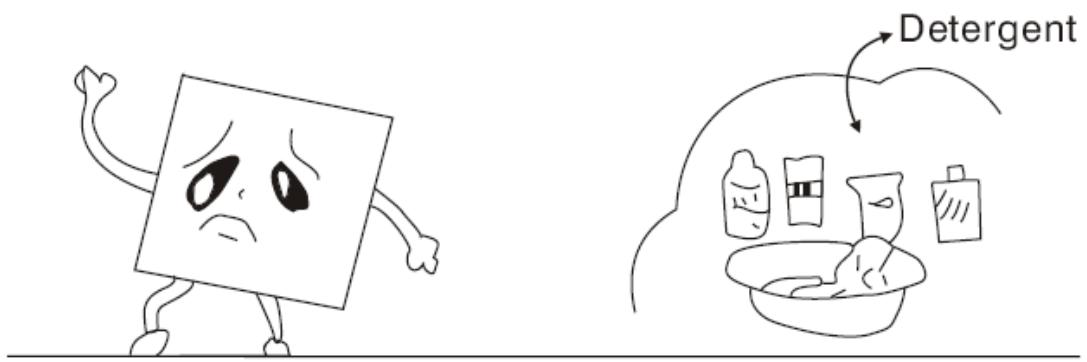

1. Never use acid, chemical solution, thinner, gasoline or similar products to clean the refrigerator because they can damage paint and plastic parts.

VI. TROUBLESHOOTING

Diagnosis of breakdowns

1. When the refrigerator does not work: Make sure

2. There are electric current and the voltage is normal.
   The fuse has blown.

3. The male plug is fully inserted into the socket.

4. When the refrigerator does not cool enough: make sure

The thermostat setting is adequate.
- There is enough space around the refrigerator.
- The doors are not opened too frequently and for too long.
- The refrigerator is not subject to direct sunlight or placed near a heat source.
- There is not too much food and hot food in the refrigerator.

1. When food in the refrigerator is frozen:

The thermostat setting is adequate.
- There is not too much food in the refrigerator.

1. When the refrigerator is too noisy:

2. The refrigerator is straight (and do not lean).

3. The refrigerator is not in contact with surrounding objects.
4. Solid containers or packages stored inside are not touching.

Note :

When the relative humidity is high, there may be moisture forming on the surface of the refrigerator. This is not a malfunction. You can simply wipe yourself. If your refrigerator is still not working normally after performing the above checks, please contact without delay maintenance department.

If the power cable is damaged it must be replaced by the manufacturer, its after sales service or similarly qualified persons to avoid a hazard.

Technical specifications

Note:

For detailed specifications, thank you refer to the nameplate of the unit. Specifications are subject to change without notice, due to improvements in products

The energy label provides the following information:

1) Supplier's name or trademark.
2) model identification code, provided by the supplier.
3) ranking model in energy efficiency on a scale from A + (most efficient) to G (least efficient). The class number is the height of the corresponding arrow.
4) Power consumption, calculated in accordance with Article 1 paragraph 2 of Directive 94/2 / EC but expressed in kWh per year (that is to say by 24 × 365), defined as "annual consumption energy in kWh, calculated on the basis of results for 24 hours under standard conditions. Actual consumption depends on the conditions of use and the location of the device."
5) Sum of the useful volume of all no star compartments (that is to say, operating at a temperature higher than -6^ ).
6) Sum of the useful volume of all storage compartments frozen food classified at least "one star" (that is to say that operate at a temperature less than or equal to -6^ ).
7) Star storage compartment frozen food as determined in accordance with current standards. If the compartment is "no star" this section is left blank.
8) If necessary, the noise level is measured in accordance with the dirtive 86/594 / EEC

Tips - Saving energy

How to arrange the drawers, bins and shelves so that the energy is used as rationally as possible by the apparatus.

• Install the appliance in a cool, dry and properly ventilated room.
• Do not expose the unit to direct sunlight or place it near a direct source of heat (for example, near a radiator).
• Never block the ventilation holes or grilles of the appliance.
• Allow food to cool before placing in the appliance.
• Place the frozen products in the refrigerator to thaw them.
• The low temperature of the frozen products will help cool the food in the refrigerator.
• Defrost the freezer when ice has accumulated. A thick layer of ice can affect the transfer of cold to frozen products and increase the energy consumption of the appliance.

• Do not leave the appliance doors open for too long when storing or removing food from the appliance.

• Ice will not form as much in the freezer as you will leave the door open for the shortest possible time.

• When you are freezing foods or want to store them in the freezer, place them directly in the upper freezer compartment.
• how to arrange the drawers, bins and shelves so that the energy is used as rationally as possible by the appliance; and
  Install the unit in a cool, dry, properly ventilated room.

A - Freezer compartment B - Refrigerator compartment

VII. DISPOSAL

The European Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE), requires that old appliances are not thrown in the normal municipal waste stream. Old appliances must be collected separately in order to optimize the rate of recovery and recycling of the materials they contain and reduce the impact on human health and the environment

The symbol of the dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their device.

VIII. WARRANTY

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) superficial deterioration due to normal wear of the product;
(2) defects or deterioration caused by the product coming into contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, misuse, misuse, alteration, disassembly or unauthorized repair;
(4) improper maintenance, use not in accordance with product instructions or incorrect voltage connection;
(5) any use of accessories not supplied or not approved by the manufacturer.

The warranty will be void if the nameplate and / or serial number of the product is removed.

oceanic

OCEA2DT70W_S_B IM 2019 V.2

www.oceanic.eu
