USER MANUAL OCEARTT90W3 OCEANIC

IMPORTANT SAFETY INSTRUCTIONS. 19

INSTALLATION INSTRUCTIONS 22

POWER FAILURE 23

CLEANING AND MAINTENANCE 23

TECHNICAL SPECIFICATIONS. 24

NAMES OF PARTS 25

INSTALLATION 26

USE 27

BREAKDOWNS AND SOLUTIONS 31

GUARANTEE 32

Read these operating instructions carefully before using the appliance and keep them for future use.

WARNING: When positioning the appliance, ensure the power cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: Risk of child entrapment.

WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING: Do not use this product in a place where children can touch it, and do not leave children to use it unattended.

Before disposing of your used appliance:

• Remove the doors and leave the shelves in place so that a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into the unit.

• Never clean the components of the unit with flammable liquids.

• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.
• Do not use abrasive cleaners or solvents to clean your appliance. Glass cleaners or soapy water give excellent results.

WARNING: Risk of fire/flammable material

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

• Leave 10cm of free space at the back of the unit to allow for ventilation of the cooling system.
  In order to store your food at a stable temperature, avoid leaving the door open for too long.
• Do not install your appliance near a heat source, and avoid direct sunlight.

Install your appliance on a flat, clean and stable floor.
Do not install any other electrical equipment on your
appliance.

To ensure your safety, do not place your appliance in damp places.

This appliance is intended to be used in household and similar applications, but not in the following cases:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• This appliance is designed for use inside a house or apartment. For optimal use, it is essential that the temperature of the room in which it is used is not lower than 10^ or higher than 38^ .
  Children aged between 3 and 8 years are allowed to load and unload refrigerating appliances.

This appliance may be used by children 8 years of age or
- Older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, provided that they are properly supervised or have received instructions on the safe use of the appliance and the associated risks.
Children must not play with the appliance.
- Cleaning and user maintenance must not be done by children without supervision.

• To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  This refrigerating appliance is not intended to be used as built-in appliance.
  If the supply LED bulb is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the appliance responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.
- Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

Before putting your appliance into service

Remove all inner and outer packaging components.
Check that none of the following parts are missing:

NO. Contents	OCEARTT90W3
1 Main appliance 1 unit
2 Operation manual 1 copy

Before connecting your appliance to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.
- Clean the inner surfaces of the unit with a soft cloth and warm water.

• Place your unit on a floor strong enough to support the weight of the fully filled unit.

• Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the appliance rests on its feet in a stable manner.

• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.
  The unit is not designed to be installed in a basement or appliance.
• Caution: Make sure that the unit is kept away from any substance that may cause combustion.
  Check that the water tank is in place before connecting the unit.

If there is a power failure, do not open the appliance door. The food will remain cold for about four to six hours after the power down.

CLEANING AND MAINTENANCE

Cleaning your appliance

Unplug your appliance and remove all the food.
Clean the inner surfaces with warm water and a mild detergent.
Remove the water tank at the bottom of the unit, then wash it.

Moving your appliance

Remove food and disconnect the appliance.
▶Tape all loose parts inside your appliance.

To avoid damage, turn the feet to adjust their height to the minimum.
- Tighten the door to keep it closed.
Be sure to keep the appliance upright during transport.

Reference OCEARTT90W3
Model HOR248EMW
Voltage 220-240 V~
Frequency 50 Hz
Current 0.8 A
Refrigerant R600a(22g)
Dimensions (H*W*D/mm)	850*452*479
Energy class E
Energy consumption of 85 kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Fresh food compartment volume	90 L
Climate class SN, N, ST
This unit is designed for use at an ambient temperature between +10°C et and +38°C
Noise emissions 37 dB

ENERG

RÉFERENCE: OCEARTT90W3
MODELE: HOR248EMW

oceanic

A
B
C
D
E
F
G

85 kWh/annum

90 L

ABCD

9102/5102

2019/2016 on the energy labelling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product.

https://eprel.ec.europa.eu/qr//2006308

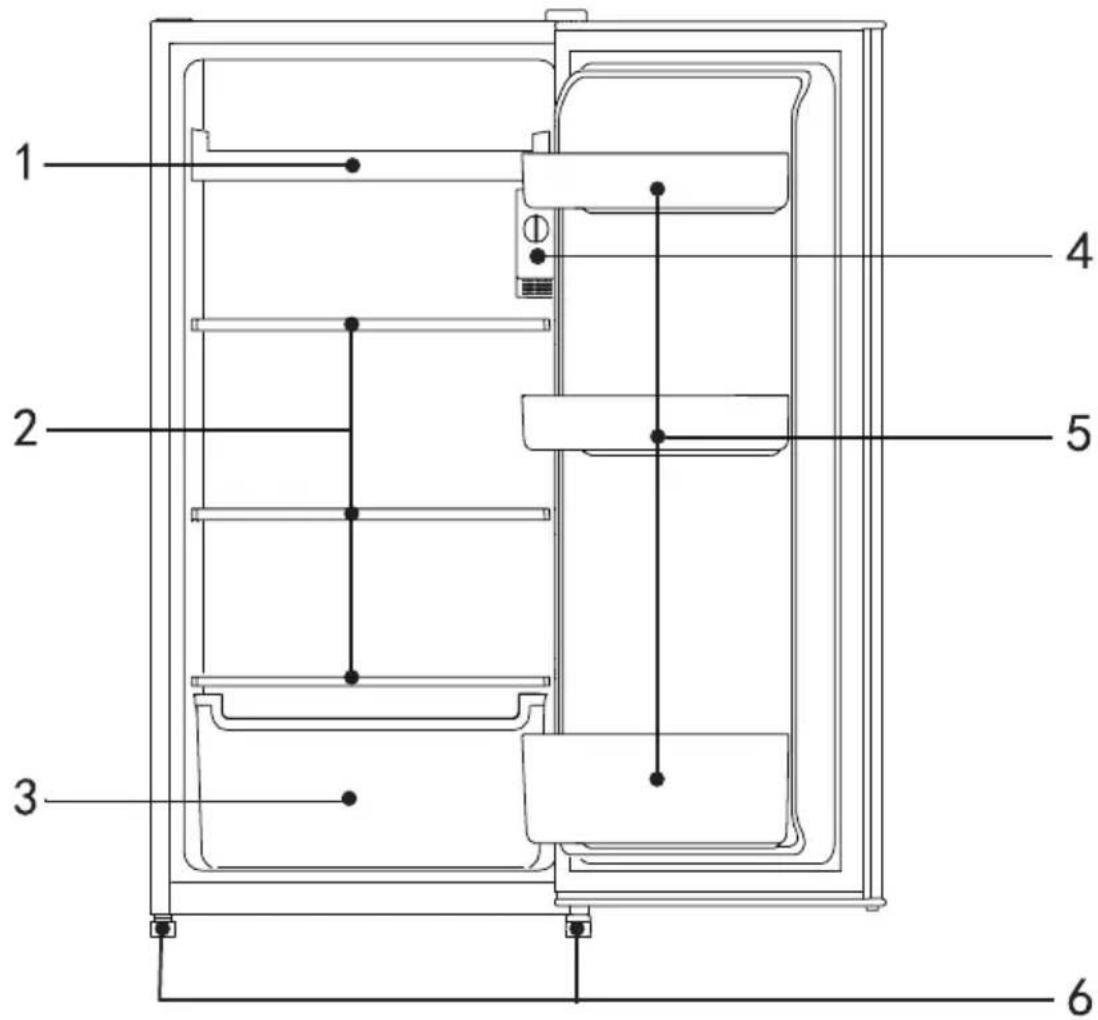

N° Description

1 Tray

2 Shelves

3 Fridge drawer

4 Controller

5 Door rack

6 Adjustable feet

Unpacking

RNING!

The appliance is heavy. Always handle with at least two persons.

• Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.

Take the appliance out of the packaging.

Remove all packaging materials.

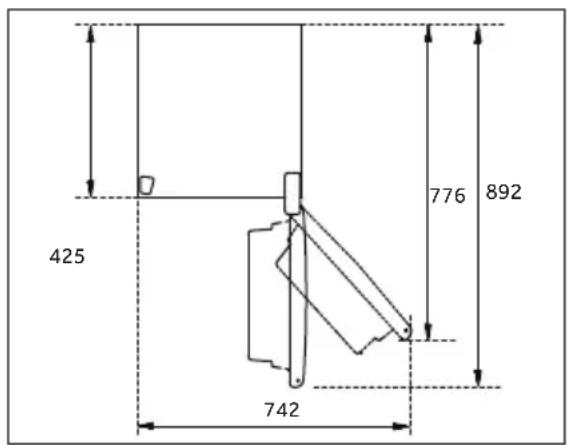

Space recommend

Recommend space when door is opened.

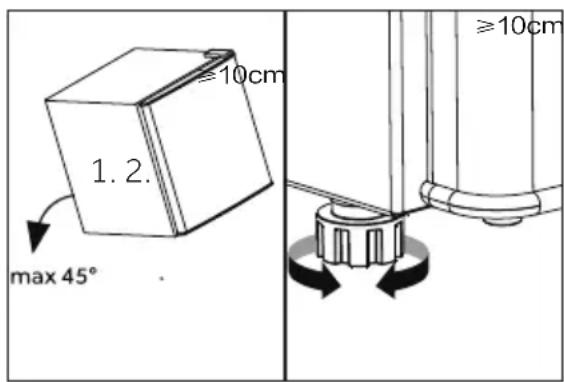

Aigning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.

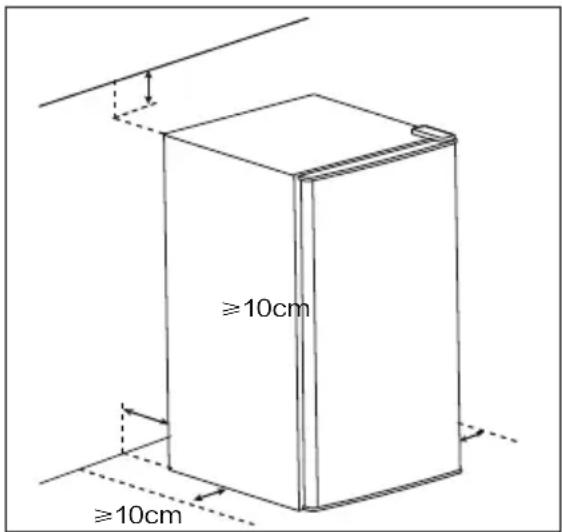

Make sure the distance to the wall on the hinge side is at least 10cm for the door to open properly.

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

TICE

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Gear Description

MID OFF MAX
The temperature in the refrigerator is adjusted by the temperature controller knob. the gare "MIN,MID,MAX,OFF" on the scale means the refrigeration effect. The worse the refrigeration effect, the higher the temperature in the cabinet. and the smaller the power consumption of the refrigerator; The stronger the refrigeration effect, the lower the temperature in the box and the greater the power consumption of the refrigerator. The „MAX“ position of the scale is the lowest temperature gear in the refrigerator. This position can be used for quick freezing. After the food is completely coolen, please turn the scale back to the original setting gear. The „OFF“ position on the knob is the shutdown position. When this position is set, the refrigerator will not cool. If the refrigerator needs to be stopped for a long time, please unplug the power plug.
Proposal	The common gear of the refrigerator is the "MID" position of the scale turned on. If the temperature in the box is too high, please increase the scale appropriately. If the temperature in the box is too low, please reduce the gradient appropriately. Please select the position of the temperature controller knob scale according to the actual needs.
Reminder	When the ambient temperature of the refrigerator is high, if the scale number set is large, the ice may not stop, and the temperature in the cabinet may be too low. When the ambient temperature of the refrigerator is low, if the scale number is set to be small, the refrigerator may not be started, resulting in high temperature in the box, which is not conducive to food storage and preservation. After the temperature is adjusted, it takes a period of time to achieve the temperature balance in the box. And the length of this period depends on the size of the changed gear, the ambient temperature, the frequency of opening the door, and the amount of food stored in the box.

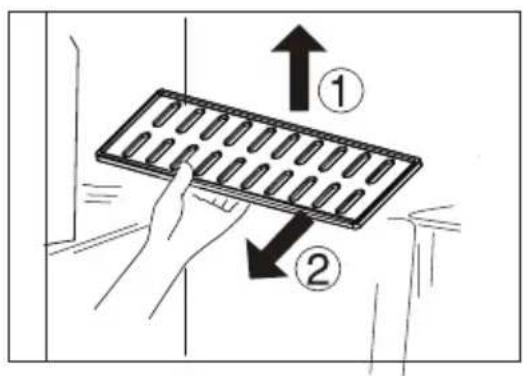

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.
2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

NOTICE

Ensure that all ends of a shelf are level.

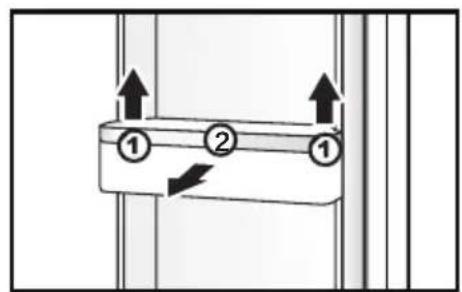

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
- Allow warm food to cool down before placing it in the appliance.
- Open the appliance door as little and as briefly as possible.
Do not overfill the appliance to avoid obstructing the air flow.
- Avoid air within the food packaging.
- Keep door seals clean so that the door always closes correctly.
- Defreeze frozen food in the fridge storage compartment.

The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance is the default configuration after you open the package.

FOOD CONSERVATION

• Carefully wrap fresh foods to ensure that they keep their flavor, color, moisture and freshness. This also prevents the taste of some foods contaminating the taste of others. Only vegetables, fruit and salad vegetables can be stored in the vegetable compartment without being packed. Let hot dishes and drinks cool down outside the appliance. Remove the cardboard packs from around yoghurt pots. Check the consume-by dates on the products you have bought.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with and cannot drip onto other food.

ARRANGING FOOD IN YOUR REFRIGERATOR

The temperature inside your refrigerator is not uniform. Some areas are colder than others, and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely.
- Leave a space between food items to allow the air to circulate freely and prevent different products contaminating each other.
- Do not put packages and food in contact with the wall at the back of the appliance; this is a particularly cold and damp area of the appliance and water droplets and frost condense there as part of your refrigerator's normal operation.
The coldest area, at the bottom of the fridge, is designed for delicate, sensitive and highly perishable food such as meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream based dishes and pastries, fresh pasta, pastry, quiches, fresh produce and raw milk cheese, ready-to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4^ or below.

The following symbol shows the coolest zone in the refrigerator. This zone is between the fruit and vegetable glass shelf and the symbol, or the shelf located at the same height. To guarantee temperatures in this zone, do not modify the positioning of the shelves.

Temperature indicator

To help you set your refrigerator, it should be equipped with a temperature indicator which will help to control the average temperature in the coolest zone. This indicator is provided with the product.
CAUTION: this indicator is set to work with this refrigerator. Do not use it in another refrigerator or for another purpose.
Temperature check in the coolest zone
This indicator allows you to check that the temperature in the coolest zone is correct. The temperature inside the refrigerator differs according to several factors such as the ambient temperature, the quantity of food loaded in the refrigerator and the frequency with which the door is opened. Take these factors into consideration when setting the temperature of the appliance.
- When the indicator reads OK, it means that your thermostat is set correctly, and that the indoor temperature is correct. If there is no color on the indicator, this means that the temperature is too high. In this case, increase the setting of the thermostat and wait for a while before performing another visual check of the indicator. After loading or opening the door, the indicator may show no color for a while.

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a technician, please consult the following table. If the issue persists, you need to access professional repair services.

PROBLEM POSSIBLE CAUSES	& SOLUTIONS
The appliance does not work.	The appliance is not connected to a power supply. The circuit-breaker is tripped, or the fuse is damaged. Check if the outlet is powered by connecting another electrical device.
The appliance is not cold enough.	Check the temperature setting. A high ambient temperature may require setting the appliance to a colder tempera-ture. The door is being opened too often. The door is not completely closed. The door seal is not properly positioned. There is not enough space around the appliance to allow ventilation.
The appliance operates continuously.	The room temperature is higher than the maximum supported. There is too much food inside the appliance. The door is being opened too often. The door is not completely closed. The temperature control is not calibrated correctly. The door seal is not properly positioned.
The light doesn't work.	The appliance is not plugged in. The circuit-breaker has been tripped or a fuse is damaged. The LED light doesn't work. The light button is set to „OFF".
The appliance vibrates. Check	to make sure the appliance is level.
The appliance seems to be making too much noise.	The appliance is not level, or a foot is incor-rectly adjusted.
The door does not close properly.	The appliance is not level. The shelves are out of position and blocking the door closure.
There is water under the appliance.	Water is being collected incorrectly in the water tank on the back of the unit. Check that the water tank is in place. Empty the water tank.

Your refrigerating appliance is guaranteed by the manufacturer for a period of 24 months from the purchase date (as stated on the purchase receipt).

EXCLUSIONS OF GUARANTEE:

The guarantee does not cover the normal wear of the product, nor problems or damages resulting from:

(6) superficial deteriorations due to the normal wear of the product;
(7) defects or deteriorations due to contact with food or liquids or corrosion generated by rust;
(8) any incident, abuse, misuse, modification, disassembly or unauthorized repairs;
(9) any incorrect maintenance operations, improper use and connection to an incorrect power supply;
(10) any use of unofficial or unapproved accessories.

Note: Removing the rating plate or/and product serial number will void the guarantee.

REPAIR SERVICES

In case of a malfunction during the guarantee period, repair requests must be addressed to the retailer from which you purchased the appliance.

After the expiry of the guarantee period, refer to the document "Spare parts and repairs" in the documentation related to your refrigerating appliance available on the website

www.oceanic.eu

SPARE PARTS

Spare parts for your product are available for at least 7 years, in accordance with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document "Spare parts and repairs" in the documentation related to your refrigerating appliance, which is available on the website „www.oceanic.eu". This will inform you about:

• the availability of each spare part;
• the spare part purchasing terms;
• professional repair services.

Disposal of the appliance

To avoid any harm to the environment or human health caused by improper disposal of electrical waste,recycle the appliance responsibly to promote the reuse of material resources.Disposal must be done safely at public collection points provided for this purpose. Older refrigerators may contain CFCs that destroy the ozone layer;contact your nearest waste treatment center for more details on proper disposal procedures.

OCEANIC

120-126 Quai de Bacalan

CS11584

33000 Bordeaux

IMPORTE PAR

A.M.C

123 quai Jules Guesde,

94400, VITRY SUR SEINE,

France

oceanic
