Product type	Cordless vacuum cleaner
Brand	AEG
Model	FX9-1-IBM
Usage	Domestic, indoor
Power supply	Lithium-ion battery 36 V
Runtime (Max mode)	Approximately 17 minutes
Runtime (Normal mode)	Approximately 30 minutes
Runtime (Long duration mode)	Approximately 60 minutes
Charging time	Approximately 4 to 6 hours
Storage temperature	5°C to 35°C, humidity 20% to 80%
Rotating brush	Yes, removable for cleaning
Filtration	Cyclone and washable filters
Dust container capacity	Not specified (estimated 0.5 L)
Weight	Approximately 3 kg
Dimensions (L x W x H)	Approximately 25 x 20 x 110 cm
Noise level	Not specified (estimated 75 dB)
Repairability index	Not specified
Spare parts available	Yes, on www.aeg.com/shop
Warranty	Manufacturer's warranty (excluding battery and normal wear)
Included accessories	Charging stand, main brush, crevice tool?

Frequently Asked Questions - FX9-1-IBM AEG

How to charge the AEG FX9-1-IBM vacuum cleaner?

Place the main unit in the low position on the charging stand. Connect the charger plug to the back of the stand and the adapter to the socket. Ensure the connectors are in contact. Charging takes approximately 4 to 6 hours.

What to do if the vacuum cleaner does not start?

Check that the battery is not empty (flashing LED). Clean the rotating brush to remove blockages. If the product has overheated, turn it off and let it cool for 2 hours before trying again.

How to clean the vacuum cleaner filters?

Remove the dust container and filters. Clean them with warm water and let them dry completely before reinstalling. Replace them if necessary via www.aeg.com/shop.

Why is the suction decreasing?

Check that the filters are not clogged or missing. Clean the suction path and cyclone. Also check the brush and hose for any blockages.

What to do if the rotating brush does not spin?

After changing the brush, restart the vacuum cleaner. If the problem persists, turn off the unit and check that the brush is correctly installed and not obstructed.

What is the battery runtime?

The runtime varies by mode: approximately 17 min in Max mode, 30 min in Normal mode, and 60 min in Long duration mode. These values are based on AEG internal tests.

How to store the vacuum cleaner to preserve the battery?

Store the unit in a dry place between 5°C and 35°C with humidity of 20% to 80%. Charge the battery to above 50% before prolonged storage.

The vacuum cleaner has sucked water, what to do?

Turn off the unit immediately and let it dry for 48 hours without placing it on the charging stand. If the motor is damaged, contact an AEG authorized service center. Water damage is not covered by the warranty.

Why does charging take more than 6 hours?

If the ambient temperature exceeds 35°C, the charging time increases. Recharge the vacuum cleaner in a room at normal temperature (between 5°C and 35°C) for optimal charging.

Where to find spare parts for the FX9-1-IBM?

Spare parts are available on the official AEG website: www.aeg.com/shop. You will find filters, brushes, batteries and other accessories.

USER MANUAL FX9-1-IBM AEG

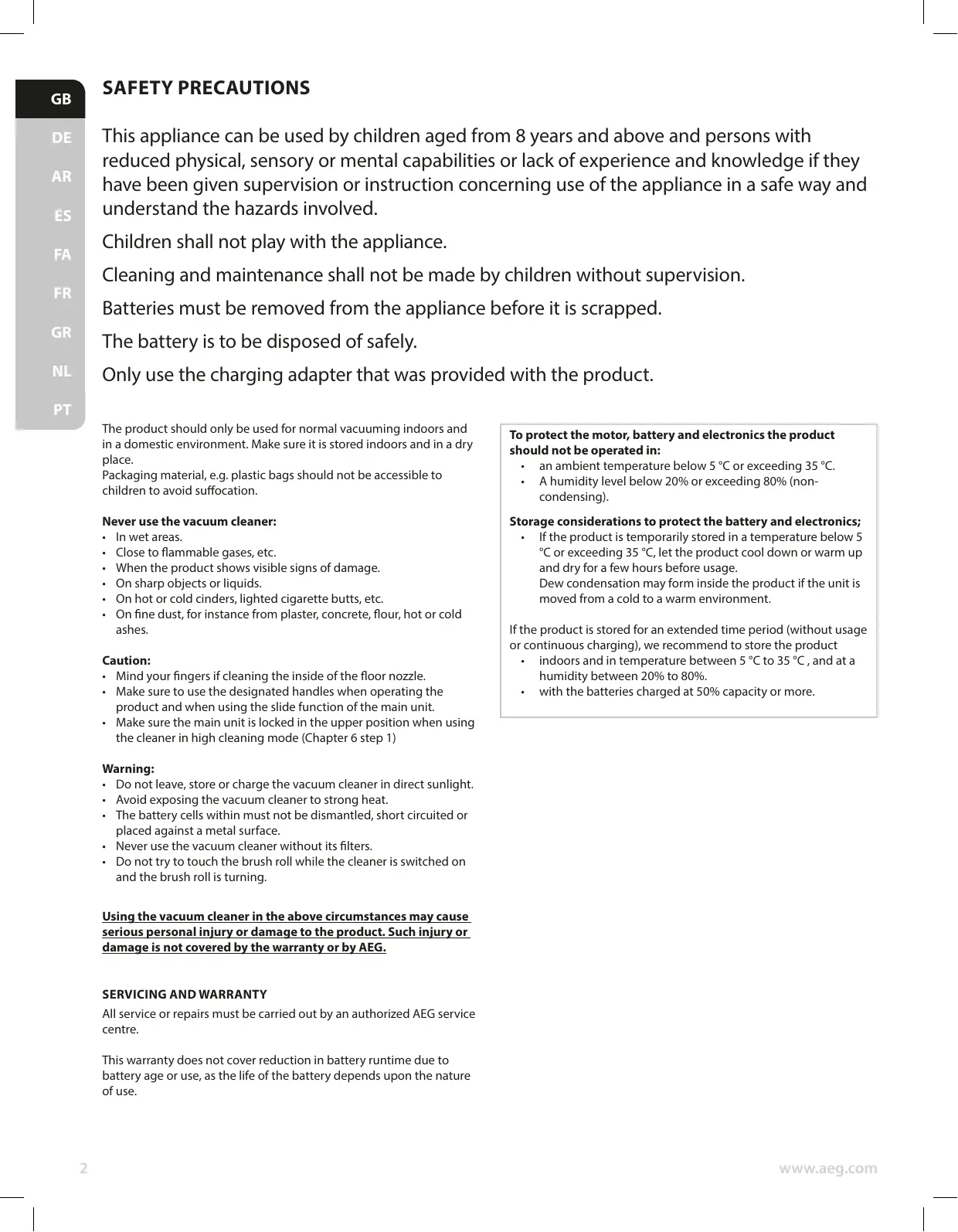

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

The product should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored indoors and in a dry place.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

In wet areas.
- Close to flammable gases, etc.
- When the product shows visible signs of damage.
- On sharp objects or liquids.
- On hot or cold cinders, lighted cigarette butts, etc.
- On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Mind your fingers if cleaning the inside of the floor nozzle.
• Make sure to use the designated handles when operating the product and when using the slide function of the main unit.
• Make sure the main unit is locked in the upper position when using the cleaner in high cleaning mode (Chapter 6 step 1)

Warning:

• Do not leave, store or charge the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by AEG.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized AEG service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the nature of use.

To protect the motor, battery and electronics the product should not be operated in:

• an ambient temperature below 5^ C or exceeding 35^ C .
• A humidity level below 20% or exceeding 80% (non-condensing).

Storage considerations to protect the battery and electronics;

• If the product is temporarily stored in a temperature below 5 ^ C or exceeding 35^ C , let the product cool down or warm up and dry for a few hours before usage.

Dew condensation may form inside the product if the unit is moved from a cold to a warm environment.

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product

• indoors and in temperature between 5^ C to 35^ C , and at a humidity between 20% to 80% .
  with the batteries charged at 50% capacity or more.

TROUBLESHOOTING

PROBLEM	CAUSE	SOLUTION
The product stops or does not start	The brushroll is blocked	Clean and remove entangled hair, threads and fibres from the brush roll.
	The product might be overheated	Turn off the vacuum cleaner. Then check if the nozzle, tube, hose or filters are blocked and/or dirty. Let the product cool down for minimum 2 hours on the charging stand before starting it again. If the product still is not working, please contact an authorized AEG Service Centre.
	The battery is empty (last LED blinks)	Charge the vacuum cleaner.
Reduction or no suction power	Filters / Nose Cone is dirty or missing	- Clean or wash the filters and put them back (See also Instruction book section 7). - Change or replace the filters (www.aeg.com/shop).
	Air Channel / Cyclon is blocked	- Remove the dust container and check the air channel and air inlet in the dust container to see if something is stuck.
	Floor nozzle is blocked	- Remove Floor nozzle and check if something is stuck in the nozzle.
	Hose is blocked	- Remove Floor nozzle and check if something got stuck in the hose. If so use a stick to remove the obstacle. However, be careful in case the obstruction.
		Note: The warranty does not cover any damage to the hose caused by cleaning it.
Water or other liquids has been sucked into the product		- Stop the product and let it dry for 48h (do not put it in the charging stand!). If the product is not working anymore it will be necessary to replace the motor at an authorized AEG service centre. Note: Damage to the motor caused by the penetration of water is not covered by the warranty.
The product is not charging	Main unit is in wrong position	Push the main unit down to the lowest position. It should not be locked in the upper position and/or in between.
	Product is placed wrong in the charging stand	Check if the connectors from the back of the main unit are connected to the charging stand.
	Charging pin is not plugged in	Make sure charging pin is connected in the back of the charging stand, and charging adapter is plugged in the socket.
	Wrong or no nozzle attached	Make sure the main floor nozzle is attached to the product or it will not charge.
	To protect the battery and electronics, charging will not occur if room temperature is below 5°C or over 35°C.	Store and charge the product indoor and in a room temperature between 5 - 35°C.
Charging is taking longer than 6 hours	Room temperature is over 35°C	Charging time will be longer if the temperature is high, which is normal. Store and charge the product in a normal room temperature.
		Please also see Instruction book chapter 2.
Brushroll is not rotating	Changing the floor nozzle while product is running	After changing the nozzle restart the product.

GB

DE

AR

ES

FA

FR

GR

NL

PT

BATTERY LAMPS INDICATION

Charging	What does it mean?	During usage	What does it mean?
\!\ /\!\!\/\!\	Blink slowly = 100 % fully charged	###	75 - 100 % capacity
### → ###	50 - 95 % charged	###	50- 75 % capacity remaining
### → ### → ###	0 - 50 % charged	###	25 - 50 % capacity remaining
		\!\!\!\!\!\!\/!\	FX9® needs to be recharged.

RUNNING TIMES FOR FX9

	36V	32,4 V
High power mode	Approx. 17 min*	Approx. 15 min*
Normal mode	Approx. 30 min*	Approx. 25 min*
Long runtime mode	Approx. 60 min*	Approx. 55 min*
*based on AEG Internal Testing

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

This symbol on the product indicates that this product contains a built-in rechargeable battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

CUSTOMER CARE AND SERVICE

When contacting the AEG service center, ensure that you have following data available:

• Model number,
• PNC number
• Serial number

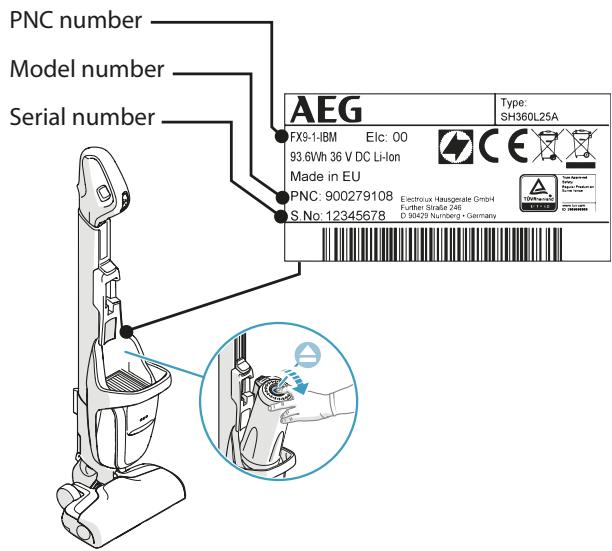

The information can be found on the rating plate.
