Product type	Canister vacuum cleaner
Brand	Rowenta
Model	RH8897WO EXTREME POWER PRO
Power supply	Mains (cord with rewind)
Variable power	Yes, electronic and mechanical
Filtration system	HEPA filter cassette
Bag type	Wonderbag Universal bag or textile bag (ref. RS-RT2274)
Included accessories	ERGO COMFORT SILENCE hose, ergonomic handle, telescopic metal tube, all-floor nozzle
Special parquet nozzle	Rectangular and DELTA (optional)
Turbo brush	Yes (optional)
Parking function	Yes (vertical parking position)
Safety	Bag and HEPA filter presence detectors
Reduced noise level	EXTREME SILENCE system
Maintenance	Emptying the textile bag or replacing the Wonderbag; cleaning or replacing the HEPA cassette
Repairability	Rowenta Authorized Service Centers
Warranty	Subject to conditions, void if used improperly

Frequently Asked Questions - RH8897WO EXTREME POWER PRO ROWENTA

How to assemble the Rowenta RH8897WO vacuum cleaner?

Insert the hose into the suction opening and turn until it locks. Attach the telescopic tube to the handle until you hear a 'click'. Then attach the all-floor nozzle to the end of the tube. Use the telescopic system to adjust the tube length.

How to adjust the suction power?

Use the electronic power control on the body (positions MIN, Medium, MAX) and the mechanical control on the handle to manually reduce the power if necessary.

When should the bag be changed?

Replace the bag when the bag change indicator remains red after setting the power to maximum and lifting the nozzle. Wonderbag bags (Classic, Freshline, Endura) or textile bags (ref. RS-RT2274) are compatible.

How to maintain the HEPA filter?

For models with Wonderbag bag, replace the HEPA filter cassette (ref. ZR002901) once a year. For models with textile bag, clean the cassette (ref. ZR005201) by tapping it over a trash can.

What to do if the vacuum cleaner no longer sucks?

Check for blockages in the hose or accessories, make sure the bag is not full and the cover is properly closed. If the problem persists, replace the bag or clean the HEPA filter.

How to use the vacuum on hardwood floors?

Use the all-floor nozzle in the brush out position (2-position button) or a specific parquet nozzle (rectangular or DELTA, optional) to avoid scratches.

How to store the vacuum after use?

Stop and unplug the appliance. Press the cord rewind pedal to store the cord. Place the nozzle in the vertical parking position to transport and store the vacuum.

Can I use non-Wonderbag bags?

No, use exclusively Wonderbag Universal bags (Classic, Freshline, Endura) or Rowenta textile bags (ref. RS-RT2274). Wonderbag COMPACT bags are not compatible and would damage the appliance.

What to do if the cord does not retract completely?

Pull the cord out slightly and press the cord rewind pedal again. Make sure it is not stuck or twisted.

Is the noise level really reduced?

Yes, the vacuum is equipped with the EXTREME SILENCE system which guarantees a significant reduction in noise during use.

USER MANUAL RH8897WO EXTREME POWER PRO ROWENTA

10 a - Parking vertical

Retirez le support de sac du compartment SAC (fig.15).

Retirez le sac Wonderbag* du support de sac (fig.16).

Retirez le support de sac du compartment SAC (fig.20).

Retirez le sac textile* du support de sac (fig.21).

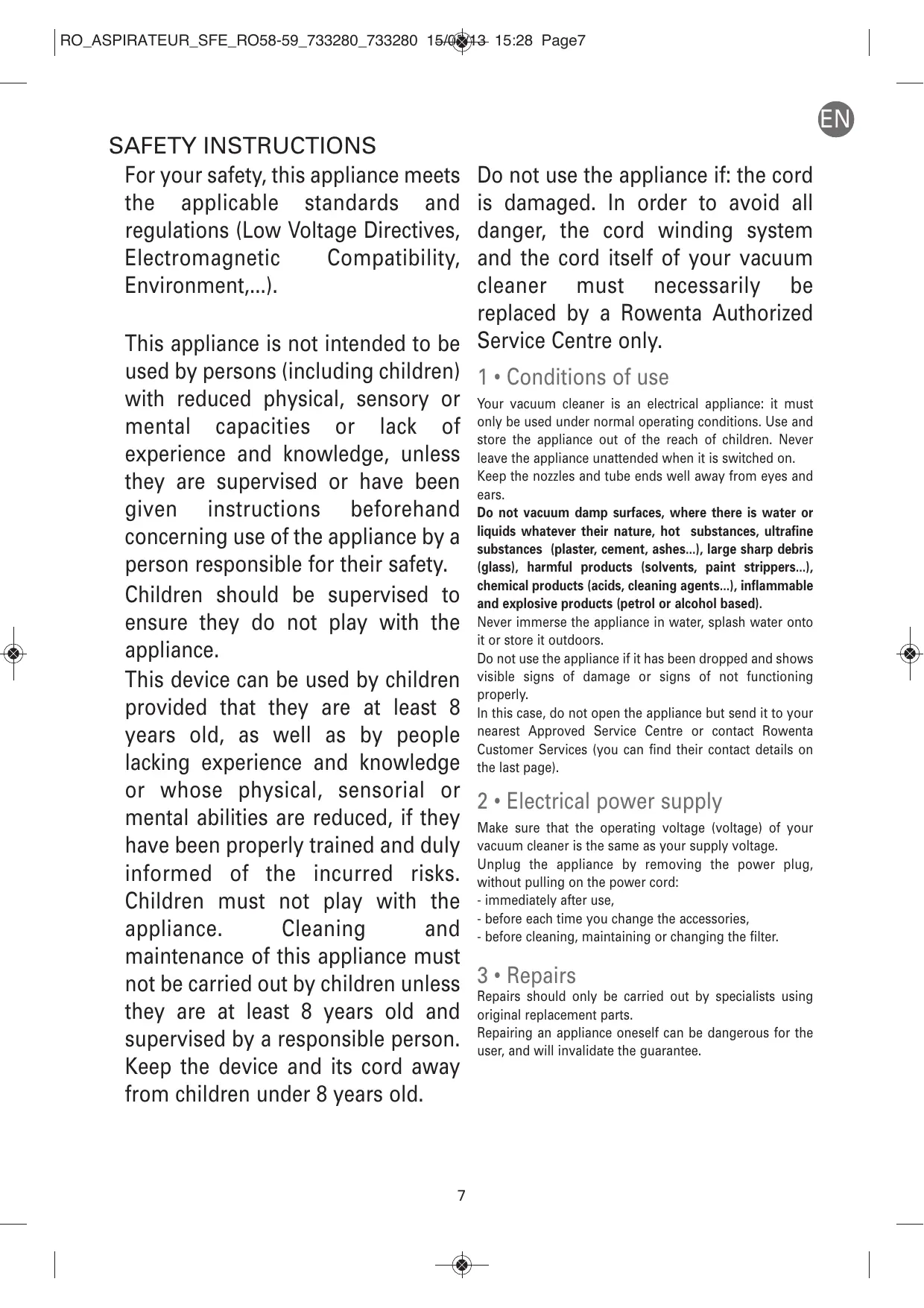

For your safety, this appliance meets the applicable standards and regulations (Low Voltage Directives, Electromagnetic Compatibility, Environment,...).

This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.

This device can be used by children provided that they are at least 8 years old, as well as by people lacking experience and knowledge or whose physical, sensorial or mental abilities are reduced, if they have been properly trained and duly informed of the incurred risks. Children must not play with the appliance. Cleaning and maintenance of this appliance must not be carried out by children unless they are at least 8 years old and supervised by a responsible person. Keep the device and its cord away from children under 8 years old.

Do not use the appliance if: the cord is damaged. In order to avoid all danger, the cord winding system and the cord itself of your vacuum cleaner must necessarily be replaced by a Rowenta Authorized Service Centre only.

1. Conditions of use

Your vacuum cleaner is an electrical appliance: it must only be used under normal operating conditions. Use and store the appliance out of the reach of children. Never leave the appliance unattended when it is switched on.

Keep the nozzles and tube ends well away from eyes and ears.

Do not vacuum damp surfaces, where there is water or liquids whatever their nature, hot substances, ultrafine substances (plaster, cement, ashes...), large sharp debris (glass), harmful products (solvents, paint strippers...), chemical products (acids, cleaning agents...), inflammable and explosive products (petrol or alcohol based).

Never immerse the appliance in water, splash water onto it or store it outdoors.

Do not use the appliance if it has been dropped and shows visible signs of damage or signs of not functioning properly.

In this case, do not open the appliance but send it to your nearest Approved Service Centre or contact Rowenta Customer Services (you can find their contact details on the last page).

2 · Electrical power supply

Make sure that the operating voltage (voltage) of your vacuum cleaner is the same as your supply voltage.

Unplug the appliance by removing the power plug, without pulling on the power cord:

• immediately after use,
• before each time you change the accessories,
• before cleaning, maintaining or changing the filter.

3·Repairs

Repairs should only be carried out by specialists using original replacement parts.

Repairing an appliance oneself can be dangerous for the user, and will invalidate the guarantee.

DESCRIPTION

1 Cover
2 Cover opening
3 Carrying power nozzle
4 Power cord rewind button
5 On/Off button
6 Bag change indicator
7 Vacuum inlet
8 ROWENTA EXTREME SILENCE SYSTEM
9 Electronic power switch
10 a - Vertical parking

b - Horizontal parking

11 Bag compartment
12 Bag support for Wonderbag bag or synthetic bag
13 Bag in vacuum cleaner sensor
14 Bag support sensor
15 (H)EPA filter cassette compartment
16 (H)EPA filter cassette sensor
17 a - (H)EPA filter cassette (ref. ZR002901) for Wonderbag bags

b-(H)EPA filter cassette (ref. ZR005201) for synthetic bags

18 a - Wonderbag UNIVERSAL bag (Classic, Freshline, Endura ref. WB4xxx)
b - Textile baf (ref. RS-RT2274)

Accessories

19 Flexible hose with power nozzle ERGO COMFORT SILENCE

20A* a - Ergonomic nozzle ERGO COMFORT SILENCE

b-In-built brush (EASY BRUSH)
c - Manual power switch (POWER CONTROL)

20B* a - Ergonomic nozzle ERGO COMFORT SILENCE

b - Manual power switch (POWER CONTROL)
c-In-built brush (EASY BRUSH)

21 Metal telescopic tube ERGO COMFORT SILENCE

a - Nozzle/tube locking system (LOCK SYSTEM)
b - Tube adjustment button (TELESCOPIC SYSTEM)

22 All floor type nozzle ERGO COMFORT SILENCE

a - Tube/nozzle locking system (LOCK SYSTEM)
b - 2 position button: brush in retracted position for rugs and carpets / brush in advanced position for parquets and smooth floors.

23 Telescopic crevice tool
24 Upholstery nozzle
25 Rectangular parquet nozzle
26 Parquet nozzle DELTA
27 Turbobrush
28 Mini turbobrush

BEFORE USING FOR THE FIRST TIME

Thanks to the exclusive ROWENTA EXTREME SILENCE SYSTEM we promise you'll notice just how much quieter your vacuum cleaner is.

1·Removing packaging

Unpack your appliance and remove any unwanted stickers. Keep your guarantee form and read the instructions carefully before using your appliance for the first time.

2·Advice and precautions

Each time before use, the power cord must be unwound completely.

Do not jam it and do not allow it to rub against sharp edges.

If you're using an electrical extension, check that it is in perfect condition and that it is suited to the power of your vacuum cleaner. Never unplug the appliance by pulling on the power cord.

Never operate the vacuum cleaner without a bag in it and without its filtration system (cassette).

For your peace of mind your vacuum cleaner is fitted with two safety check systems: for the bag (13 & 14) and for the (H)EPA filter cassette (16).

Do not move the vacuum cleaner by pulling on the power cord, the appliance must be moved using its carrying handle. Do not use the power cord for lifting the appliance.

Switch off and unplug your vacuum cleaner each time you've finished using it. Always switch off and unplug your vacuum cleaner before maintaining or cleaning it.

Only use original Rowenta or Wonderbag bags and filters. Only use Rowenta original accessories. Check that all the filters are correctly in place.

If you experience difficulties getting hold of the accessories and filters for this vacuum cleaner, please contact Rowenta customer services (you can find their contact details on the last page).

USING THE APPLIANCE

1. Assembling the elements of the appliance

Push the flexible hose into the vacuum inlet (Fig.1) and turn until it locks. To remove it, turn in the opposite direction and pull.

• Push the metal telescopic tube into the end of the power nozzle until you hear a locking 'click' (Fig.2) (to release it, push the locking button on the tube and remove it).
• Push the all floor type nozzle (22) into the end of the metal telescopic tube until you hear a locking 'click' (Fig.3) (to release it, push the locking button on the nozzle and remove it).
• Adjust the telescopic metal tube to the required length using the telescopic system (TELESCOPIC SYSTEM) (Fig.4)

Fit the appropriate accessory to the end of the metal telescopic tube or the power nozzle:

• For rugs and carpets: use the all floor type nozzle in the retracted brush nozzle position or the Turbobrush* (fibres and animal hairs):
• For parquets and smooth floors: use the all floor type nozzle in the advanced position or, for a better result, use the parquet nozzle*.
• For corners and hard to reach spots: use the telescopic crevice tool*.
• For furniture and fragile surfaces: use the brush built into the power nozzle (EASY BRUSH) or the upholstery nozzle*.

IMPORTANT Never operate your vacuum cleaner without its bag and without its filtration system (cassette).

IMPORTANT Always switch off and unplug your vacuum cleaner before changing the accessories.

COMFORT TIPS

ERGO COMFORT SILENCE Chain

Comfortable to use, the ERGO COMFORT SILENCE range has been designed to make using your vacuum cleaner an easier and more enjoyable experience.

So that you can keep an upright position and avoid bending your back, make sure you:

1. Adjust the length of the metal telescopic tube ERGO COMFORT SILENCE to suit your body build (Fig.5).
2. Place your second hand in front of the power nozzle handle ERGO COMFORT SILENCE (Fig.6).

2 • Plugging in the power cord and switching on the appliance

Unwind the power cord completely, plug in your vacuum cleaner and press on the On/Off button (Fig.7).

Remark: you can use your vacuum cleaner in the horizontal position (sleigh position) but also in the vertical position, notably when you are vacuuming the stairs or removing dust from the curtains.

Adjust the suction power:

using the electronic power control (Fig.8):

• Position (MIN) for vacuuming delicate fabrics (net curtains, textiles)
• Position (Medium) for everyday vacuuming for all types of floors, which are only slightly dirty
• Position (MAX) for vacuuming hard floors and very dirty rugs and carpets.

with the manual power nozzle switch :

open the power control flap in order to reduce the suction power manually and avoid the nozzle "sticking" to the surface that has been vacuumed (Fig. 9a or 9b) e.g.: net curtains, fragile surfaces...

3 • Storing and carrying your vacuum cleaner

After use, switch off your vacuum cleaner by pressing the On/Off switch and unplug it (Fig.10). Rewind the power cord by pressing the power cord rewind button (Fig.11). In the vertical position place the nozzle in the parking position (Fig.12).

This allows you to carry and store your vacuum cleaner when it is in the parking position (Fig.13).

CLEANING AND MAINTAINING

The air we breathe contains particles that may be allergens: mite larvae and droppings, mould, pollen, smoke and animal residues (hair, skin, saliva, urine). The smallest particles penetrate deep into the respiratory system where they can cause inflammation and lung impairment.(H)EPA filters (High Efficiency Particulate Air) are used to filter out the smallest particles. With the (H)EPA filter, the air released back into the room is healthier than the air that is vacuumed.

IMPORTANT Always switch off and unplug your vacuum cleaner before servicing it.

1·Changing the bag

The change bag light tells you that the bag is full or saturated. If you notice that your vacuum cleaner is not working as well as it should be, turn the power up to maximum and hold the lifted nozzle above the floor. If the light stays red, replace the bag.

a) If your vacuum cleaner is fitted with a Wonderbag* (18a):

IIMPORTANT Wonderbag* UNIVERSAL (Classic,

Freshline, Endura ref. WB4xxx) bags are available from retail outlets and at Approved Service Centres.

IMPORTANT Wonderbag* COMPACT bags can't be used on this appliance. Using them could damage the vacuum cleaner and may invalidate the appliance guarantee.

Open the cover to your vacuum cleaner (Fig.14).

Remove the bag support from the bag compartment (Fig.15).

Remove the Wonderbag* bag from the bag support (Fig.16).

Throw the Wonderbag* bag away (Fig.17).

Place a new Wonderbag* bag in the bag support using its ring (Fig.18).

Place the bag support in the bag compartment and fit the bag inside the compartment (Fig.19).

Make sure that the bag is correctly positioned before closing the cover.

b) If your vacuum cleaner is fitted with a synthetic (textile) bag* (18b):

Synthetic bags* (ref.RS-RT2274) are available from Approved Service Centres.

Open the cover to your vacuum cleaner (Fig.14).

Remove the bag support from the bag compartment (Fig.20).

Remove the synthetic bag* from the bag support (Fig.21).

Open the synthetic bag* using the zip (Fig.22) then empty it into a dustbin (Fig.23).

Check that the zip is properly closed once more before putting the bag back in again (Fig.24).

Place the synthetic bag* on the bag support using its cardboard holder (Fig.25), place the bag support in the bag compartment and fit the bag inside the compartment (Fig.26).

Make sure that the bag is correctly positioned before closing the cover.

IMPORTANT Never operate the vacuum cleaner without a bag.

For your peace of mind your vacuum cleaner is fitted with a safety system which tells you that the bag is inside (the cover won't close unless you've put the bag in).

2 • Changing the (H)EPA* filter cassette (ref. ZR 0029 01*) (for all appliances fitted with a Wonderbag* bag)

IMPORTANT Replace the filtration system once a year.

The (H)EPA filter cassette ref. ZR 0029 01* is available from all retail outlets and at approved Service Centres.

Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.15), then remove the (H)EPA* filter cassette (Fig.27) and throw the cassette into a bin (Fig.28).

Fit the new (H)EPA filter cassette (ref. ZR 0029 01) into its compartment (Fig.29)

Put the bag support back into the compartment (Fig.19).

Make sure that the (H)EPA* filter cassette is correctly positioned before closing the cover.

3 • Cleaning the HEPA* filter cassette (ref ZR0052 01*) (for appliances which come with a synthetic bag*)

IMPORTANT! This cleaning procedure is only for (H)EPA filter cassettes ref. ZR0052 01*

The (H)EPA filter cassette ref.ZR0052 01 is available from all retail outlets and at approved Service Centres.

Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.20), then remove the (H)EPA* filter cassette (Fig.30).

Tap the (H)EPA* filter cassette above a dustbin (Fig.31).

Put the (H)EPA filter cassette (ref. ZR005201) back in its compartment (Fig.32).

Put the bag support back with the synthetic bag* in the bag compartment.

Make sure that the (H)EPA* filter cassette is correctly positioned before closing the cover.

IMPORTANT Never use the vacuum cleaner without a (H)EPA filter cassette.

For your peace of mind your vacuum cleaner is fitted with a safety system which tells you that the (H)EPA cassette filter is in place (the cover won't close unless you've put the (H)EPA) filter cassette in.

TROUBLESHOOTING

IMPORTANT: As soon as you notice that your vacuum cleaning is not working as well as it should be and before carrying out any checks, switch it off using the On/ Off button.

If your vacuum cleaner won't start

• The appliance has not got any power: check that the appliance is correctly plugged in.

If your vacuum cleaner doesn't have any suction power

• An accessory or the flexible hose is blocked: unblock the accessory or the flexible hose.
• The cover won't close properly: check the positioning of the bag, bag support and (H)EPA filter cassette and close the cover.

If your vacuum cleaner has less suction power, makes noise, whistles

• An accessory or the flexible hose is partially blocked: unblock the accessory or the flexible hose.
• The bag is full or saturated with fine dust: replace the Wonderbag bag (18a) or empty the synthetic bag (18b).
• The filtration system is saturated: change the (H)EPA filter cassette (ref ZR002901) and put it back into its housing or clean the (H)EPA filter cassette (ref ZR005201) as indicated in the procedure.
• The mechanical power control switch (20c) is open: close the

GUARANTEE

• This appliance has been designed for domestic use only; the manufacturer will accept no responsibility in the event of any inappropriate use or failure to comply with the instructions and the guarantee will cease to apply.

4 • Cleaning your vacuum cleaner

Wipe the body of the appliance and the accessories with a soft cloth (Fig.33). Do not use detergents, chemical or abrasive products.

power nozzle adjustable manual power switch.

If the change bag light stays on Red

• The bag is saturated: replace the Wonderbag bag (18a) or empty the synthetic bag (18b).

If the cover won't close (presence sensors 13, 14, 16)
- Check that the bag support is fitted as well as the bag and that it is positioned correctly.
- Check that the (H)EPA filter cassette is fitted or that it is correctly positioned.

If the nozzle is difficult to move

• Reduce the power by opening the power nozzle adjustable manual power switch (20c) or by moving the electronic power control (9) to the MIN position.

If the power cord does not rewind completely

• The power cord is slowed down when rewinding: pull the power cord out again and press the power cord rewind button.

If a problem persists, take your vacuum cleaner to your local Rowenta Approved Service Centre. Check the list of Rowenta Approved Service Centres or contact Rowenta Customer Services (you can find contact details on the last page).

• Read the instructions for use carefully before using your appliance for the first time: any use of the appliance which does not conform to these instructions will release Rowenta from any liability.

WHERE TO BUY ACCESSORIES

ACCESSORIES*	USE	FITTING AN ACCESSORY	PURCHASE LOCATIONS
Wonderbag® UNIVERSAL Bag	Universal bag.	Fit the ring on to the bag support.	Rowenta Approved Service Centres (see attached list of addresses).
Upholstery brush	For cleaning furniture.	Fix the upholstery brush to the end of the nozzle.	Rowenta Approved Service Centres (see attached list of addresses).
Upholstery nozzle	For cleaning furniture.	Fit the upholstery nozzle to the end of the nozzle or the tube.	Rowenta Approved Service Centres (see attached list of addresses).
Telescopic crevice tool	To get into corners and places that are hard to reach.	Fit the telescopic crevice tool to the end of the nozzle or the tube.	Rowenta Approved Service Centres (see attached list of addresses).
Rectangular parquet nozzle	For fragile floors.	Fit the parquet nozzle to the end of the tube.	Rowenta Approved Service Centres (see attached list of addresses).
DELTA parquet nozzle	For fragile floors.	Fit the DELTA parquet nozzle to the end of the tube.	Rowenta Approved Service Centres (see attached list of addresses).
Mini turbobrush	For cleaning furniture fabrics thoroughly.	Fit the mini turbobrush to the end of the tube.	Rowenta Approved Service Centres (see attached list of addresses).
Turbobrush	For removing threads and animal fur embedded in rugs and carpets.	Fit the turbobrush to the end of the tube.	Rowenta Approved Service Centres (see attached list of addresses).

ENVIRONMENT

• In accordance with current regulations, any appliance which is no longer needed must be rendered unusable once and for all: unplug and cut off the power cord before disposing of the appliance.

Help us take care of the environment!

① Your appliance contains many materials which can be recovered or recycled.
Leave it at a waste collection point so that it can be processed.

VEILIGHEIDSINSTRUCTIES

18 a - Bolsa Wonderbag UNIVERSAL (Classic, Freshline, Endura ref. WB4xxx)
b - Bolsa textil (ref. RS-RT2274)

Accesorios

19 Tubo flexible con tobera ERGO COMFORT SILENCE

20A* a - Tobera ergonímica ERGO COMFORT SILENCE

ATENCIón Las bolsas Wonderbag* COMPACT noSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEYOY AGARIA.
