USER MANUAL NR1508 MARANTZ

AV Surround Receiver

Accessories Inserting the batteries Operating range of the remote control unit Features High quality sound High performance Easy operation Part names and functions Front panel Display Rear panel Remote control unit

Connecting a TV Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) Connection 3 : TV equipped without an HDMI connector Connecting a playback device Connecting a set-top box (Satellite tuner/cable TV) Connecting a DVD player or Blu-ray Disc player Connecting a video camcorder or game console Connecting a turntable Connecting a USB memory device to the USB port Connecting an FM/AM antenna Connecting to a home network (LAN) Wired LAN Wireless LAN Connecting an external control device REMOTE CONTROL jacks Connecting the power cord

Connections Speaker installation Connecting speakers Before connecting speakers Standard connection

Playback Basic operation Turning the power on Selecting the input source Adjusting the volume Turning off the sound temporarily (Muting) Playback a DVD player/Blu-ray Disc player Playing a USB memory device Playing files stored on USB memory devices Listening to music on a Bluetooth device Playing music from Bluetooth device Pairing with other Bluetooth devices Reconnecting to this unit from a Bluetooth device Listening to FM/AM broadcasts Listening to FM/AM broadcasts Tuning in by entering the frequency (Direct Tune) Changing the tune mode (Tune Mode) Tuning in to stations and presetting them automatically (Auto Preset) Presetting the current broadcast station (Preset Memory) Listening to preset stations Specify a name for the preset broadcast station (Preset Name) Skipping preset broadcast stations (Preset Skip) Cancelling Preset Skip

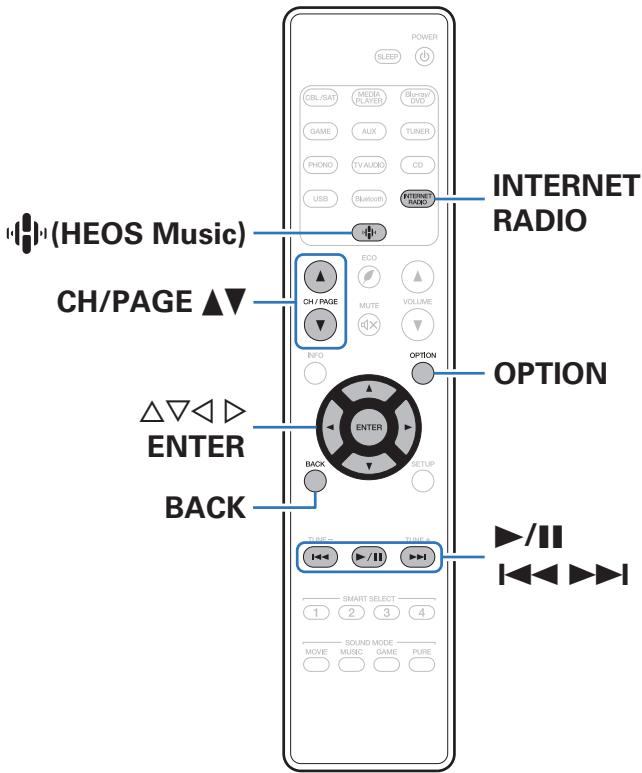

Listening to Internet Radio Listening to Internet Radio Playing back files stored on a PC or NAS Playing back files stored on a PC or NAS Getting the HEOS App HEOS Account Playing from streaming music services Listening to the same music in multiple rooms AirPlay function Playing songs from your iPhone, iPod touch or iPad Playing iTunes music with this unit Perform iTunes playback operations with the remote control unit of this unit Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2) Spotify Connect function Playing Spotify music with this unit Convenience functions Adding to HEOS Favorites Playing back HEOS Favorites Deleting a HEOS Favorites Adjusting the volume of each channel to match the input source (Ch Level Adjust) Adjusting the tone (Tone) Displaying your desired video during audio playback (Video Select)

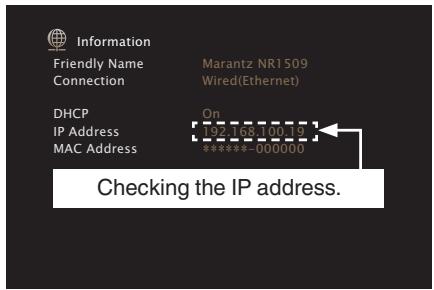

Network Information Connection Wi-Fi Setup Settings Network Control Friendly Name Diagnostics HEOS Account You have not signed in You have already signed in

Tips Troubleshooting Power does not turn on / Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Desired sound does not come out Sound is interrupted or noise occurs No video is shown on the TV The menu screen is not displayed on the TV The color of the menu screen and operations content displayed on the television is different from normal AirPlay cannot be played back USB memory devices cannot be played back Bluetooth cannot be played back The Internet radio cannot be played back Music files on PC or NAS cannot be played back Various online services cannot be played The HDMI Control function does not work Cannot connect to a wireless LAN network Update/upgrade error messages Resetting factory settings Resetting network settings

Appendix About HDMI Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output Sound modes and surround parameters Types of input signals, and corresponding sound modes Explanation of terms Trademark information Specifications Index License

Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference.

Check that the following parts are supplied with the product.

Warranty (for USA/for CANADA)

NOTE 0 To prevent damage or leakage of battery fluid: 0 Do not use a new battery together with an old one. 0 Do not use two different types of batteries. 0 Remove the batteries from the remote control unit if it will not be in use for long periods. 0 If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.

Remove the rear lid in the direction of the arrow and remove it.

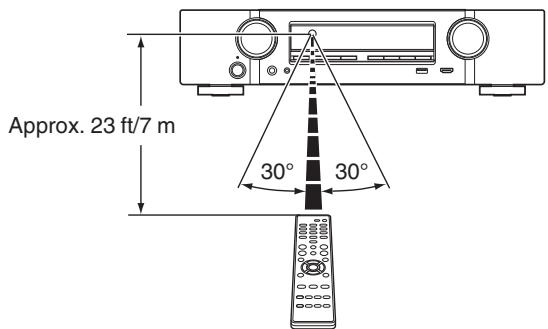

Operating range of the remote control unit .

Point the remote control unit at the remote sensor when operating it.

Insert two batteries correctly into the battery compartment as indicated. Batteries

Put the rear cover back on.

Features High quality sound

0 With discrete circuit technology, the power amplifier provides

0 4K 60Hz input/output supported

identical quality for all 5-channels (60 Watts x 5-channels) For optimum realism and stunning dynamic range, the power amplifier section features discrete power devices (not integrated circuitry). By using high current, high power discrete power devices, the amplifier is able to easily drive high quality speakers.

When 4K Ultra HD (High Definition) is used, an input/output speed of 60 frames per second (60p) is achieved for video signals. When connected to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy the sense of realism only available from high-definition images, even when viewing fast-moving video. This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit videos. By processing the video at the original resolution, this unit lets you enjoy flawless, high-definition picture quality. This unit also supports HDR (High Dynamic Range) and BT.2020 wide color gamut. 0 HDCP 2.2

This unit is compatible with HDCP 2.2 copyright protection standard.

0 HDMI connections enable connection to various digital AV Tips

0 The device is equipped with a AirPlay® function in addition to

devices (6 inputs, 1 output)

network functions such as Internet radio etc. (v p. 84)

This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling connection to various HDMI compatible devices such as Blu-ray Disc players, game consoles and HD video camcorders.

You can enjoy a wide variety of content, including listening to Internet Radio, playing audio files stored on your PC. This unit also supports Apple AirPlay which lets you stream your music library from an iPhone®, iPad®, iPod touch® or iTunes®. 0 Supports AirPlay 2® wireless audio

Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback. This unit supports AirPlay 2 and requires iOS 11.4 or later.

0 Playback of DSD and FLAC files via USB and networks

0 Compatible with the “Marantz 2016 AVR Remote” Appz for

performing basic operations of the unit with an iPad, iPhone or Android™ devices (Google, Amazon Kindle Fire)

This unit supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.

0 Wireless connection with Bluetooth devices can be carried out

Along with many new features, the graphics and user interface have been completely overhauled. The new app gives you full control of the AVR as well as access to its setup menu for detailed adjustments from your phones or tablets. “Marantz 2016 AVR Remote” App also gives you quick access to the receiver's status display, option menus, Marantz Blu-ray Disc player control, and online owner's manual for your convenience. .

z Download the appropriate “Marantz 2016 AVR Remote” App for your iOS or Android devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPhone or iPod touch is connected to.

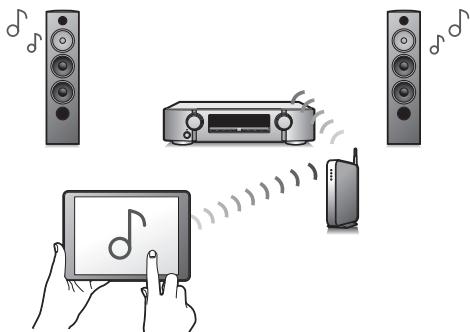

You can enjoy music simply by connecting wirelessly with your smartphone, tablet, PC, etc. 0 Energy-saving design

This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, and also an auto-standby function that automatically turns off the power supply when the unit is not in use. This helps reduce unnecessary power use.

0 HEOS provides streaming music from your favorite online music

0 “Setup Assistant” provides easy-to-follow setup instructions

First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.

0 Easy to use Graphical User Interface

This unit is equipped with a Graphical User Interface for improved operability.

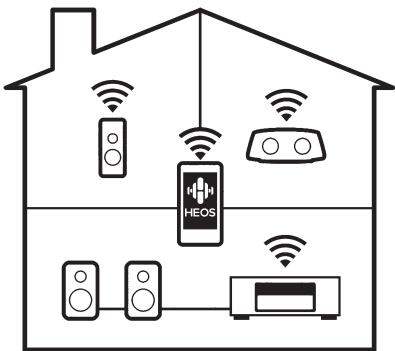

HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home. By utilizing your existing home network and the HEOS App (available for iOS, Android and Amazon devices), you can explore, browse, and play music from your own music library or from many online streaming music services. When multiple HEOS devices are connected to the same network, HEOS devices can be grouped to play back the same music on all devices simultaneously, or different music can be played on each separate HEOS device.

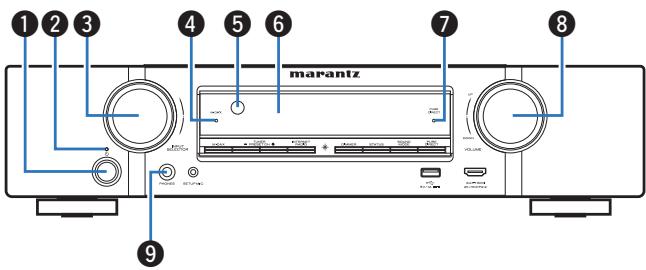

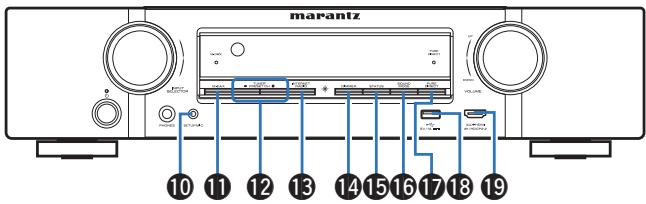

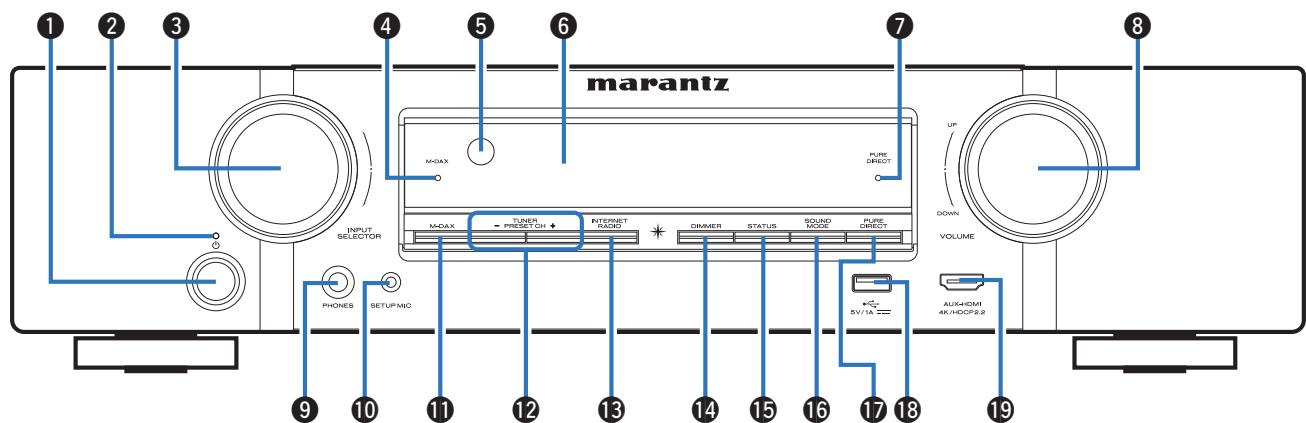

Part names and functions Front panel w

For details, see the next page.

E Remote control sensor This receives signals from the remote control unit. (v p. 9) F Display This displays various pieces of information. (v p. 17)

G PURE DIRECT indicator This lights when the “Pure Direct” mode is selected as the sound mode. (v p. 97)

A Power operation button (X) Used to turn the power on/off (standby). (v p. 51) B Power indicator This is lit as follows according to the power status: 0 Off: Power on 0 Red: Normal standby 0 Orange: 0 When “HDMI PassThrough” is set to “On” (v p. 136) 0 When “HDMI Control” is set to “On” (v p. 137) 0 When “Network Control” is set to “Always On” (v p. 167)

H VOLUME knob This adjusts the volume level. (v p. 52) I Headphones jack (PHONES) This is used to connect headphones. When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors. NOTE 0 To prevent hearing loss, do not raise the volume level excessively when using headphones.

R USB port (T) This is used to connect USB storages (such as USB memory devices). (v p. 43)

S AUX-HDMI connector This is used to connect HDMI output compatible devices such as video camcorders and game consoles. (v p. 41)

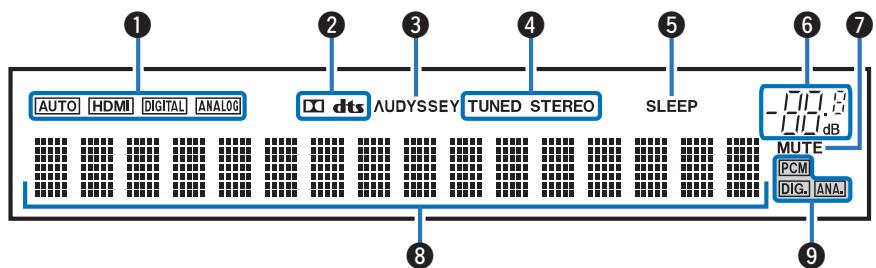

C Audyssey® indicator This lights when “MultEQ®”, “Dynamic EQ” or “Dynamic Volume” has been set up. (v p. 131)

D Tuner reception mode indicators These light up according to the reception conditions when the input source is set to “Tuner”. TUNED: Lights up when the broadcast is properly tuned in. STEREO: Lights up when receiving FM stereo broadcasts.

B Decoder indicators These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.

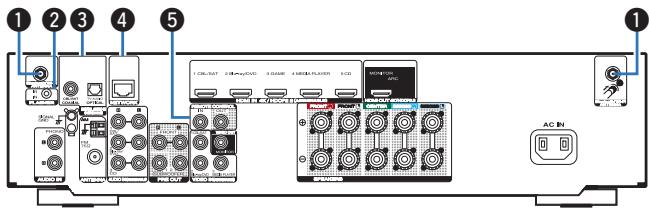

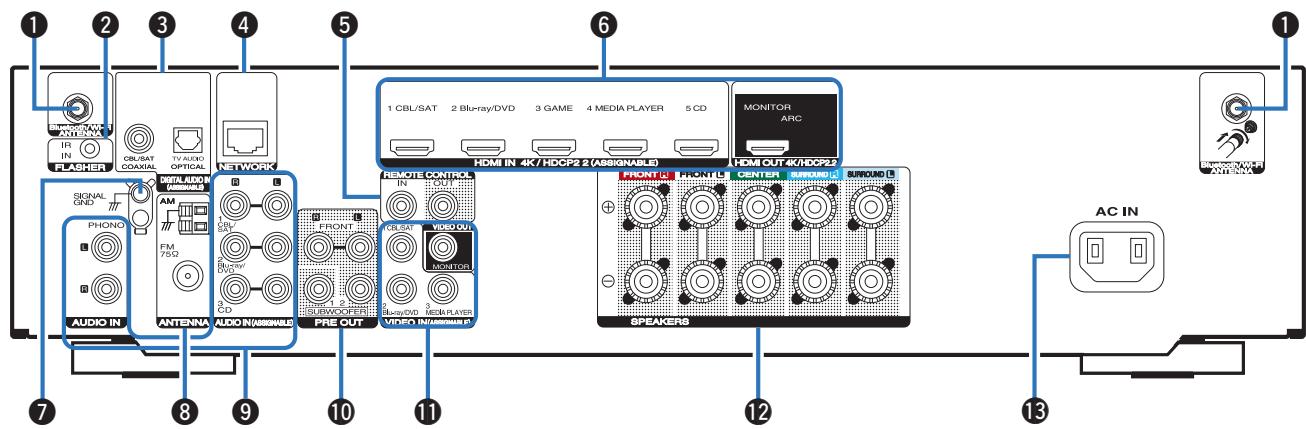

For details, see the next page.

D NETWORK connector Used to connect to a LAN cable when connecting to a wired LAN network. (v p. 46)

A Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear. B Turn clockwise until the antennas is fully connected. C Rotate the antenna upwards for best reception.

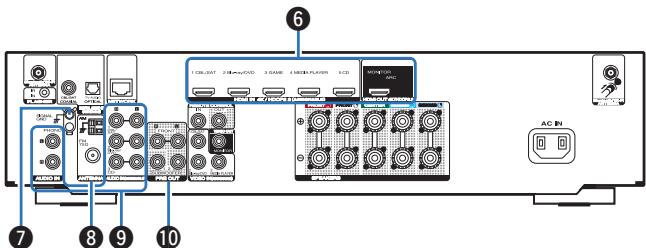

E REMOTE CONTROL jacks Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (v p. 48)

C Digital audio connectors (DIGITAL AUDIO) Used to connect devices equipped with digital audio connectors. 0 “Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)” (v p. 36) 0 “Connection 3 : TV equipped without an HDMI connector” (v p. 37) 0 “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 39)

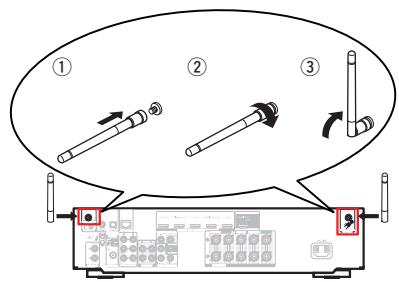

A Bluetooth/wireless LAN antenna connectors Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. (v p. 47)

B FLASHER IN jack Used when using a control BOX or other such control devices to control this unit.

I Analog audio connectors (AUDIO) Used to connect devices equipped with analog audio connectors. 0 “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 39) 0 “Connecting a DVD player or Blu-ray Disc player” (v p. 40) 0 “Connecting a turntable” (v p. 42)

F HDMI connectors Used to connect devices equipped with HDMI connectors. 0 “Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)” (v p. 35) 0 “Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)” (v p. 36) 0 “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 39) 0 “Connecting a DVD player or Blu-ray Disc player” (v p. 40)

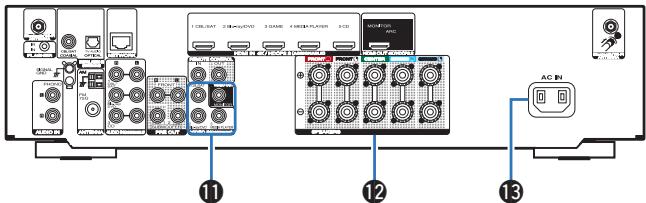

J PRE OUT connectors Used to connect a subwoofer with a built-in amplifier. (v p. 30)

K Video connectors (VIDEO) Used to connect devices equipped with video connectors. 0 “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 39) 0 “Connecting a DVD player or Blu-ray Disc player” (v p. 40) L Speaker terminals (SPEAKERS) Used to connect speakers. (v p. 29) M AC inlet (AC IN) Used to connect the power cord. (v p. 49) NOTE 0 Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

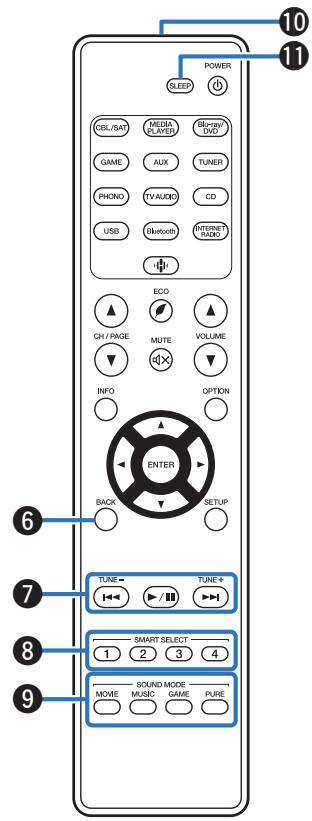

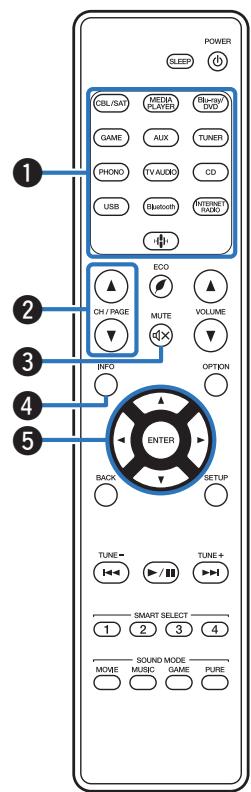

F BACK button This returns to the previous screen. G System buttons These perform playback related operations. Tuning up / Tuning down buttons (TUNE +, –) These select either FM broadcast or AM broadcast. (v p. 62)

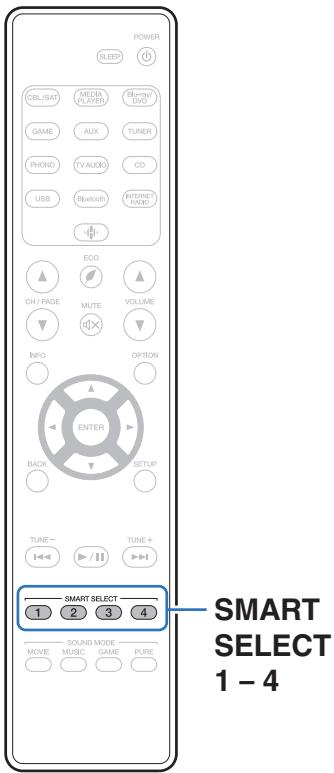

H SMART SELECT buttons (1 – 4) These call up settings registered to each button, such as input source, volume level and sound mode settings. (v p. 110) I SOUND MODE buttons These select the sound mode. (v p. 95) J Remote control signal transmitter This transmits signals from the remote control unit. (v p. 9) K SLEEP button This sets the sleep timer. (v p. 108)

o Cables used for connections Provide necessary cables according to the devices you want to connect.

Connecting a playback device

Connecting a USB memory device to the USB port

Connecting to a home network (LAN)

Connecting an external control device

Connecting the power cord

Subwoofer cable HDMI cable .

Connecting an FM/AM antenna

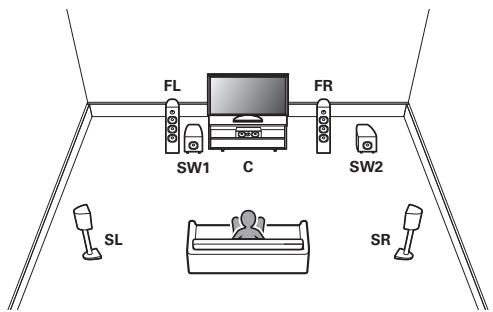

Speaker installation

0 Do not plug in the power cord until all connections have been completed. However, when the “Setup Assistant” is running, follow the instructions in the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) screen for making connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.) 0 Do not bundle power cords together with connection cables. Doing so can result in noise.

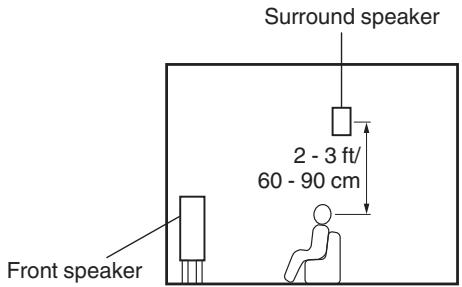

Speaker installation Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room. Speaker installation is explained using this example of a typical installation.

C SL FL/FR (Front speaker left/ right):

Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.

Place the CENTER speaker in between the front speakers and above or below your TV.

SL/SR Place the SURROUND left and right speakers an (Surround speaker left/ equal distance to the left and right sides of the right): main listening position.

SR Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room.

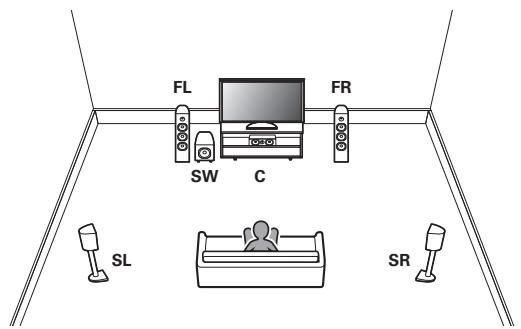

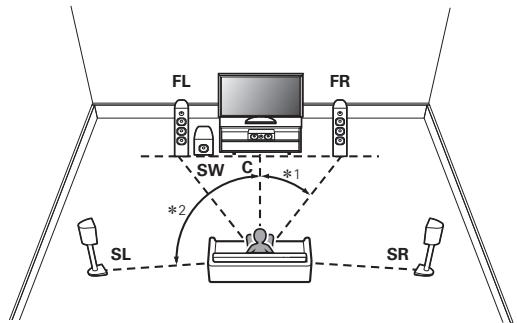

o When 5.1-channel speakers are installed 0 Use the illustration below as a guide for how high each speaker should be installed. The height does not need to be exactly the same.

FR FL Surround speaker

GViewed from the sideH Front panel

Connecting speakers Here we connect the speakers in the room to this unit.

Before connecting speakers

0 Disconnect this unit’s power plug from the power outlet before connecting the speakers. Also, turn off the subwoofer. 0 Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other. (“Protection circuit” (v p. 223)) 0 Never touch the speaker terminals while the power cord is connected. Doing so could result in electric shock. When the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) is running, follow the instructions in the “Setup Assistant” screen for making connections. (Power is not supplied to the speaker terminals while the “Setup Assistant” is running.) 0 Use speakers with an impedance of 4 – 16 Ω/ohms.

0 Carry out the following settings when using a speaker with an impedance of 4 – 6 Ω/ohms. 1. Press and hold the main unit’s TUNER PRESET CH + and STATUS at the same time for at least 3 seconds. “V.Format:< NTSC>” appears on the display. 2. Press DIMMER on the main unit three times. “Sp.Imp.:<8ohms>” appears on the display. 3. Press TUNER PRESET CH + or TUNER PRESET CH - on the main unit to select the impedance. 8ohms (Default):

Select when the impedance for all of the connected speakers is 8 Ω/ohms or over.

Select when the impedance for any of the connected speakers is 6 Ω/ohms.

Select when the impedance for any of the connected speakers is 4 Ω/ohms.

4. Press the main unit’s STATUS to complete the setting.

o Connecting the speaker cables

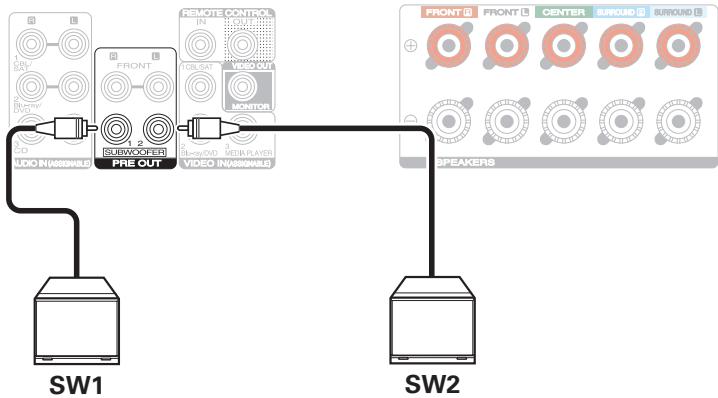

o Connecting the subwoofer

Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.

Use a subwoofer cable to connect the subwoofer. Two subwoofers can be connected to this unit. The same signal is output from the respective subwoofer terminals.

Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.

Turn the speaker terminal counterclockwise to loosen it.

Insert the speaker cable’s core wire to the hilt into the speaker terminal.

Turn the speaker terminal clockwise to tighten it.

o About the cable labels (supplied) for channel identification

G How to attach the cable labels H Speaker This unit

Attach the cable label for each channel to its speaker cable as shown in the diagram. Refer to the table and attach the label to each speaker cable. Then, make connection so that the color of the speaker terminal matches that of the cable label.

The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable. Attach the cable label corresponding to each speaker to each speaker cable. This makes it easy to connect the correct cable to the speaker terminals on the rear panel. Speaker

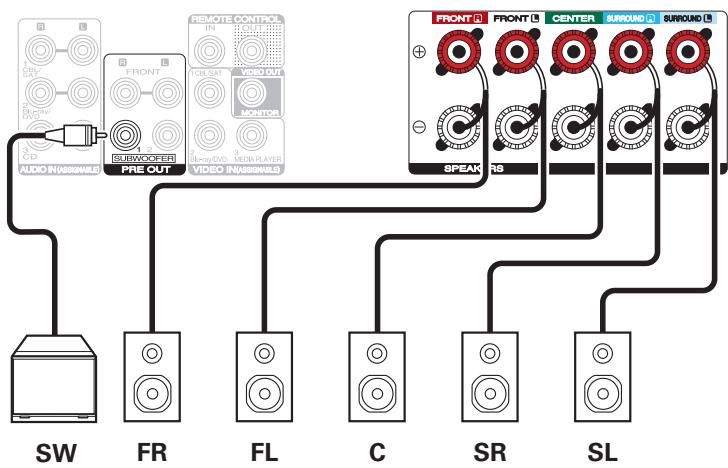

Standard connection This serves as a basic 5.1-channel surround system.

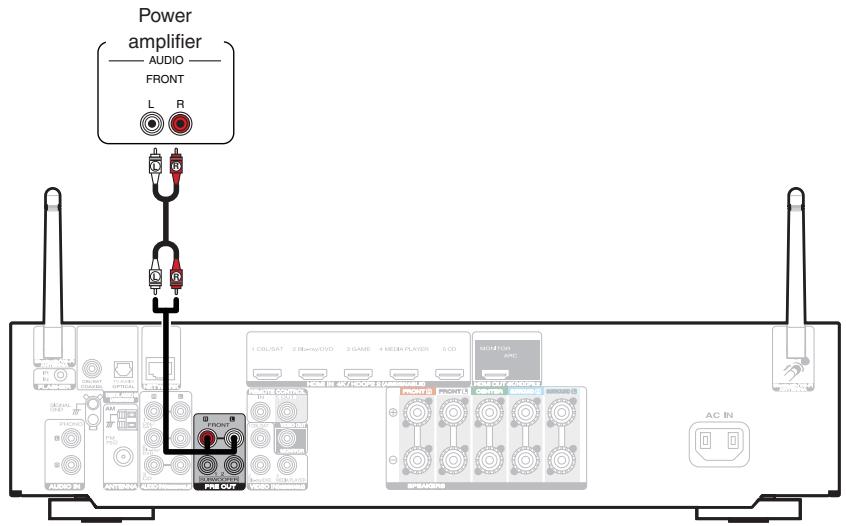

o Connecting a front speaker that uses a power amplifier This unit supports connection of a front speaker that uses an external power amplifier to increase its output. Connect a separately sold power amplifier to the PRE OUT (FL/FR) connector of this unit. Power amplifier

Connecting a TV Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV. ARC (Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.

Is the TV equipped with an HDMI connector? Yes

Is the TV compatible with the ARC (Audio Return Channel) ? No

Yes “Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)” (v p. 35)

“Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)” (v p. 36)

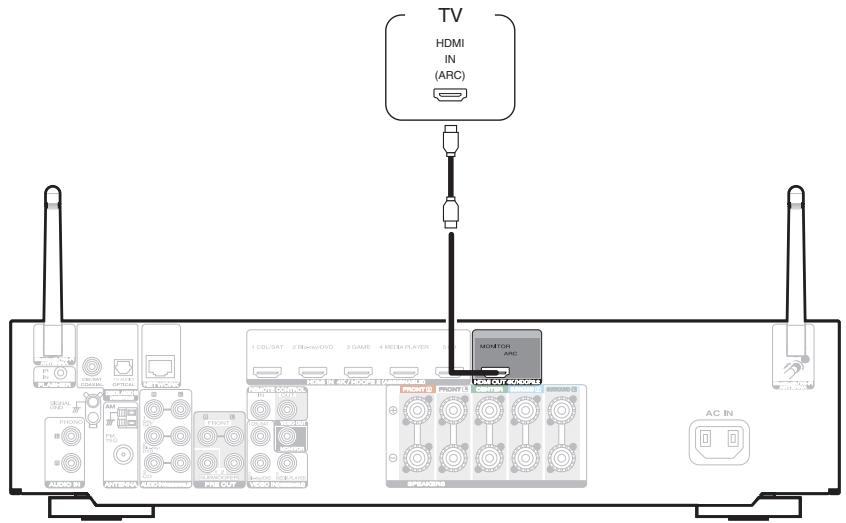

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) Use an HDMI cable to connect a TV that is compatible with the ARC function to this unit. Set “HDMI Control” to “On” when using a TV that supports the ARC function. (v p. 137) TV

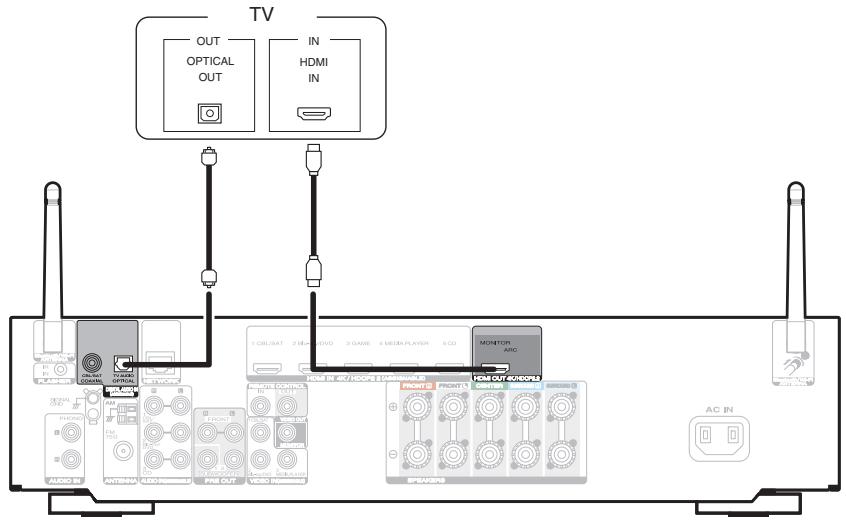

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.

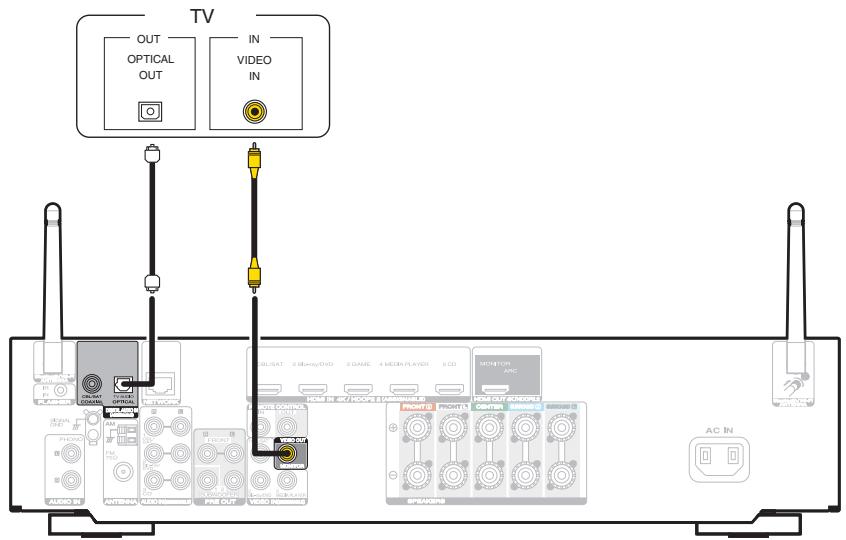

Connection 3 : TV equipped without an HDMI connector Use a video cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.

Connecting a playback device This unit is equipped with two types of video input connectors (HDMI and composite video) and three types of audio input connectors (HDMI, digital audio and audio). Select input connectors on this unit according to the connectors equipped on the device you want to connect. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections. In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable. 0 0 0 0

“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 39) “Connecting a DVD player or Blu-ray Disc player” (v p. 40) “Connecting a video camcorder or game console” (v p. 41) “Connecting a turntable” (v p. 42)

0 Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit. 0 The source that is assigned to the HDMI IN, DIGITAL AUDIO IN, VIDEO IN and AUDIO IN connectors can be changed. See “Input Assign” on how to change the input source assigned to the input connectors. (v p. 143) 0 To play back audio signals that are input to this unit on a TV connected via HDMI, set in the menu “HDMI Audio Out” to “TV”. (v p. 135) 0 To enjoy content that is copyright protected by HDCP 2.2, use a playback device and TV compatible with HDCP 2.2 only.

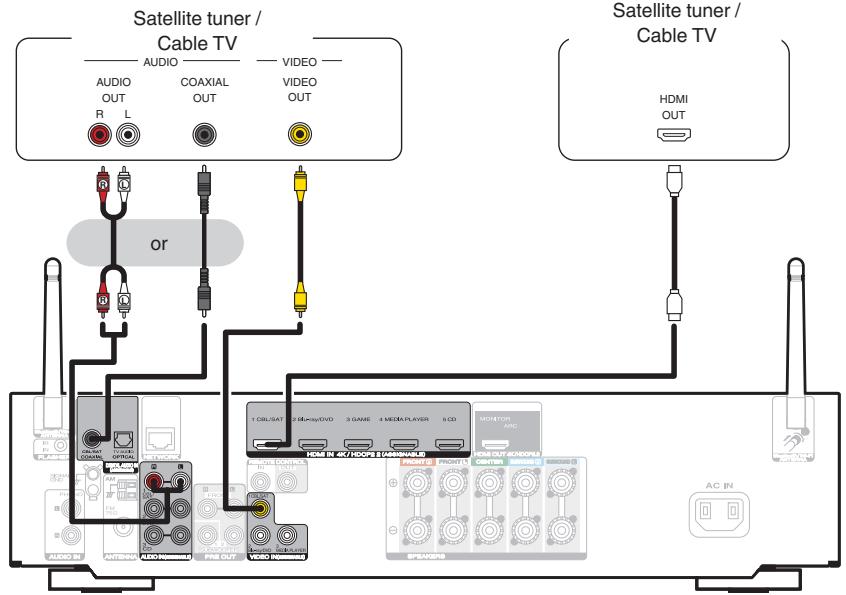

Connecting a set-top box (Satellite tuner/cable TV) This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Satellite tuner /

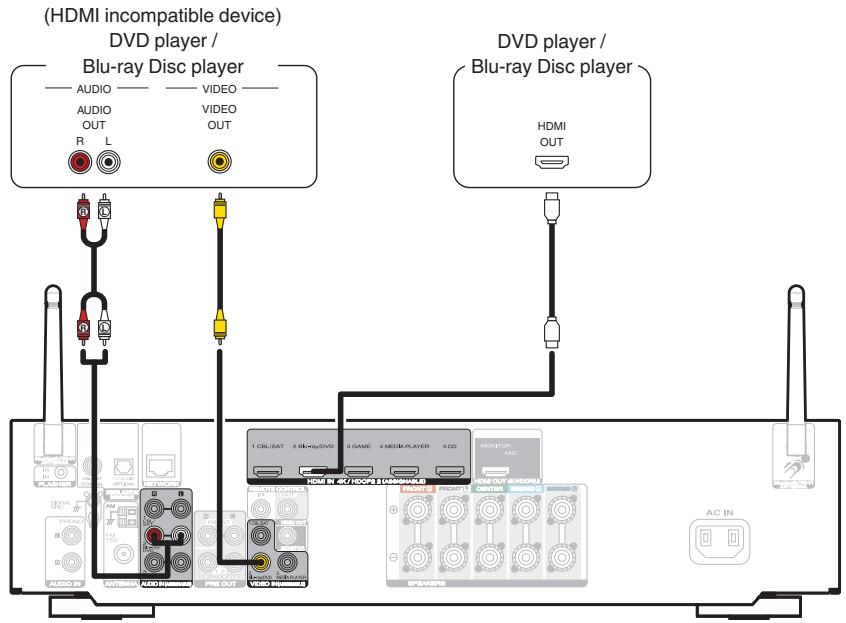

Connecting a DVD player or Blu-ray Disc player This explanation uses the connection with a DVD player or Blu-ray Disc player as an example. (HDMI incompatible device) DVD player / Blu-ray Disc player

AUDIO VIDEO AUDIO OUT R L VIDEO OUT L R L HDMI OUT

R DVD player / Blu-ray Disc player

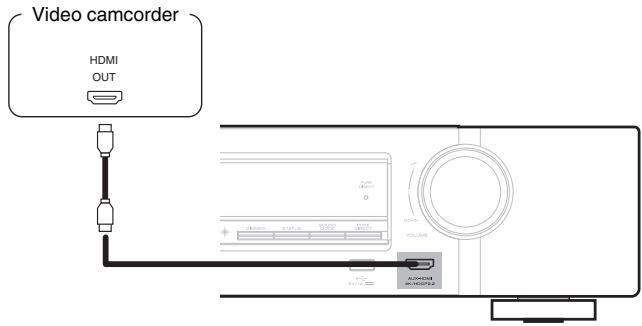

Connecting a video camcorder or game console This explanation uses the connection with a video camcorders as an example. Connect a playback device to this unit, such as a video camcorder or game console. Video camcorder

0 The 4K 60/50Hz video signal cannot be input to this connection using a format other than YCbCr 4:2:0. If your playback device does not support YCbCr 4:2:0 for the 4K 60/50Hz output format, use an HDMI connector on the rear panel.

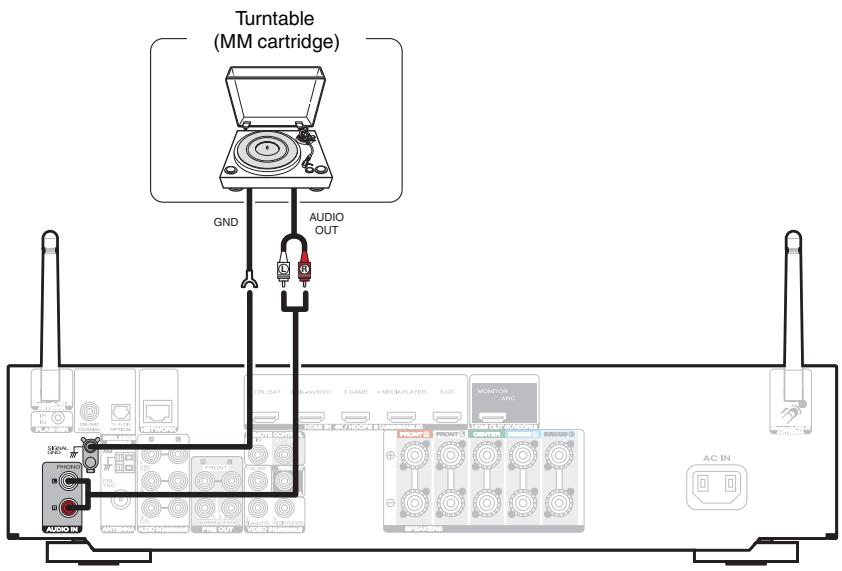

Connecting a turntable This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer. If you set this unit’s input source to “Phono” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise from the speakers. Turntable (MM cartridge)

AUDIO OUT GND L R NOTE 0 The earth terminal (SIGNAL GND) of this unit is not for safety grounding purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.

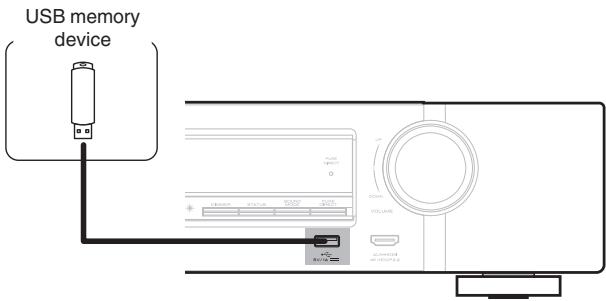

Connecting a USB memory device to the USB port For operating instructions see “Playing a USB memory device” (v p. 53).

0 Marantz does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter.

NOTE 0 USB memory devices will not work via a USB hub. 0 It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable. 0 Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.

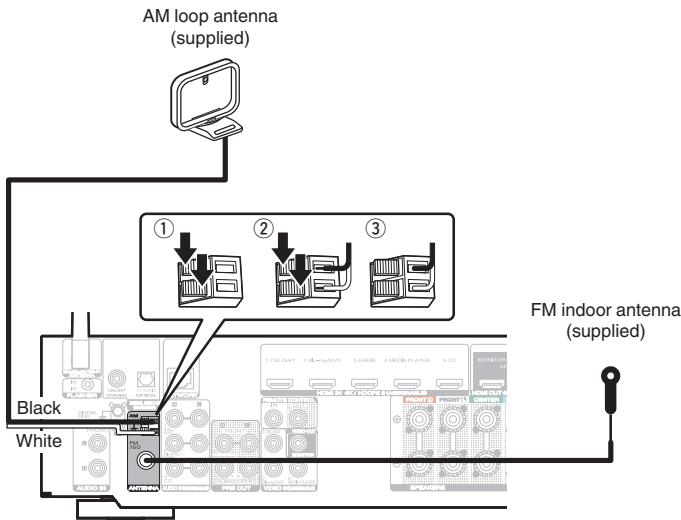

Connecting an FM/AM antenna Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. (“Listening to FM/AM broadcasts” (v p. 61))

AM loop antenna (supplied)

0 If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

0 Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

FM indoor antenna (supplied)

Suspending on a wall Suspend directly on a wall without assembling.

Put the stand section through the bottom of the loop antenna from the rear and bend it forward. Insert the projecting part into the square hole in the stand. Stand Square hole

Nail, tack, etc. Loop antenna

Standing alone Use the procedure shown above to assemble. When assembling, refer to “AM loop antenna assembly”.

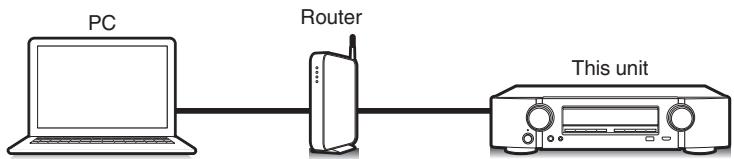

Connecting to a home network (LAN) This unit can connect to a network using a wired LAN or wireless LAN. You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below. 0 Playback of network audio such as Internet Radio and from your media server(s) 0 Playback of streaming music services 0 Using the Apple AirPlay function 0 Operation on this unit via the network 0 Operation with the HEOS wireless multi-room sound system 0 Firmware Update

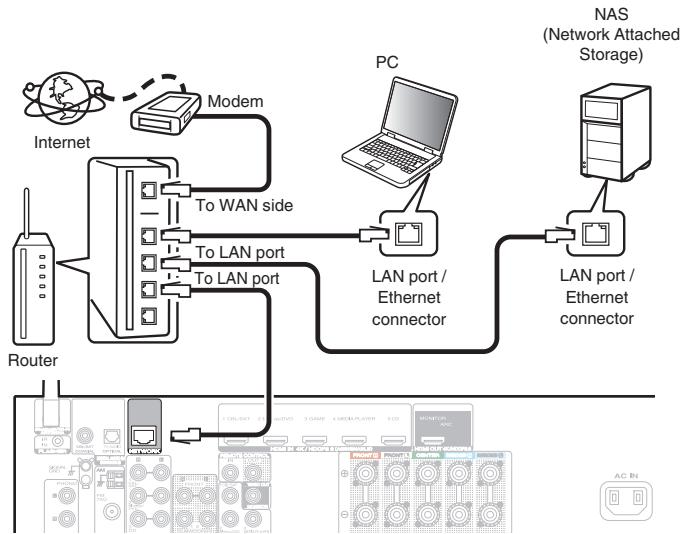

Wired LAN To make connections via wired LAN, use a LAN cable to connect the router to this unit as shown in the figure below.

PC NAS (Network Attached Storage)

For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.

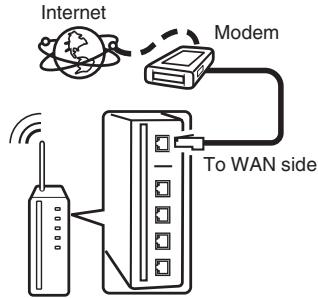

Wireless LAN Appendix

0 When using this unit, we recommend you use a router equipped with the following functions:

When connecting to the network via wireless LAN, connect the external antennas for Bluetooth/wireless connectivity connection to the rear panel and stand them upright. See “Wi-Fi Setup” on how to connect to a wireless LAN router. (v p. 164) Internet

0 Built-in DHCP server This function automatically assigns IP addresses on the LAN. 0 Built-in 100BASE-TX switch When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater. 0 Only use a shielded STP or ScTP LAN cable (readily available at electronics stores). (CAT-5 or greater recommended) 0 The normal shielded-type LAN cable is recommended. If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise. 0 When using this unit connected to a network with no DHCP function, configure the IP address, etc. in “Network”. (v p. 163)

NOTE 0 The types of routers that can be used depend on the ISP. Contact your ISP or a computer shop for details. 0 This unit is not compatible with PPPoE. A PPPoE compatible router is required if your contracted line is not set using PPPoE. 0 Do not connect a NETWORK connector directly to the LAN port / Ethernet connector on your computer. 0 Various online services may be discontinued without prior notice.

Router with access point

Connecting an external control device REMOTE CONTROL jacks o Performing operations by RC on this unit without visual contact

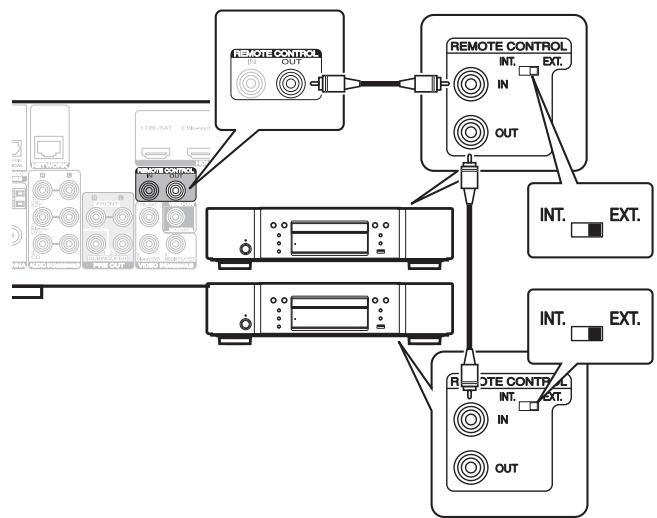

o Remotely connecting Marantz devices When you are using a Marantz device other than this unit that supports remote connection, you can transmit remote control signals just by connecting the device to the REMOTE CONTROL IN/OUT connector with a monaural cable. Set the remote control switch located on the rear panel of the connected audio component to “EXTERNAL” or “EXT.” to use this feature.

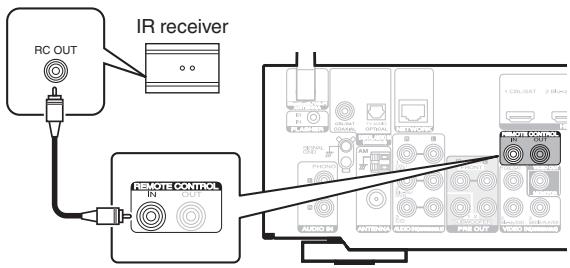

You can connect an external IR receiver to the REMOTE CONTROL connectors to perform operations on this unit with the supplied remote control unit without visual contact. This might be necessary if the unit is hidden in a cupboard or corner, so you can’t directly point with the remote control unit to the device. To do this, disable the remote control signal receiving function (“Remote lock function” (v p. 115)). IR receiver

0 When the remote control signal receiving function is disabled, you can not perform operations with the remote control unit.

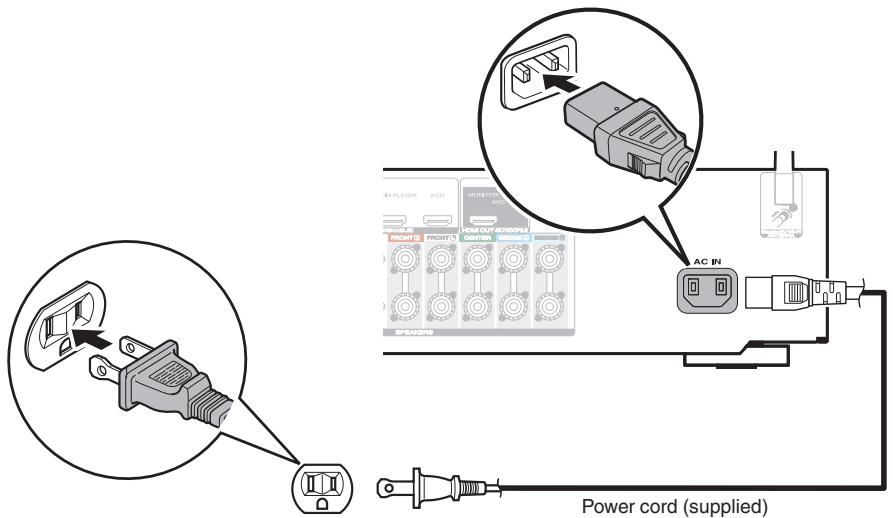

Connecting the power cord After completing all the connections, insert the power plug into the power outlet.

Power cord (supplied)

Playback network audio/service

Basic operation Turning the power on

Selecting the input source

Adjusting the volume

Turning off the sound temporarily (Muting)

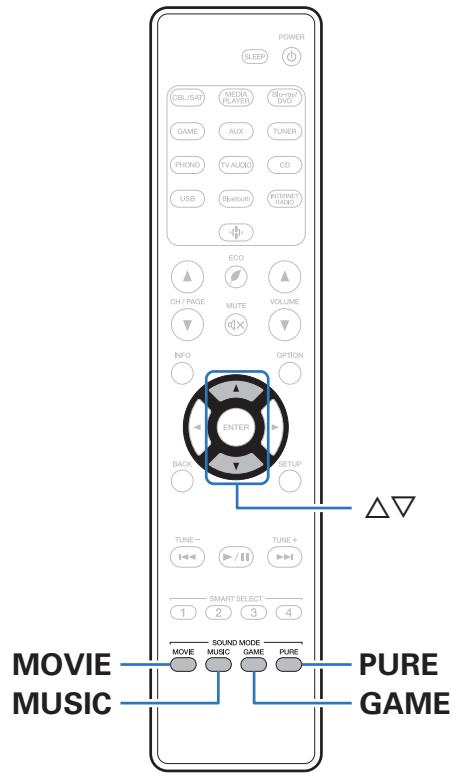

Selecting a sound mode

Playing a USB memory device

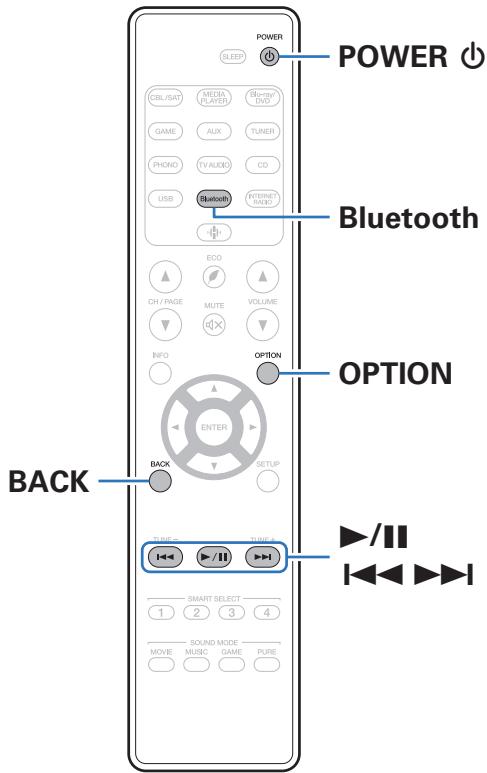

Listening to music on a Bluetooth device

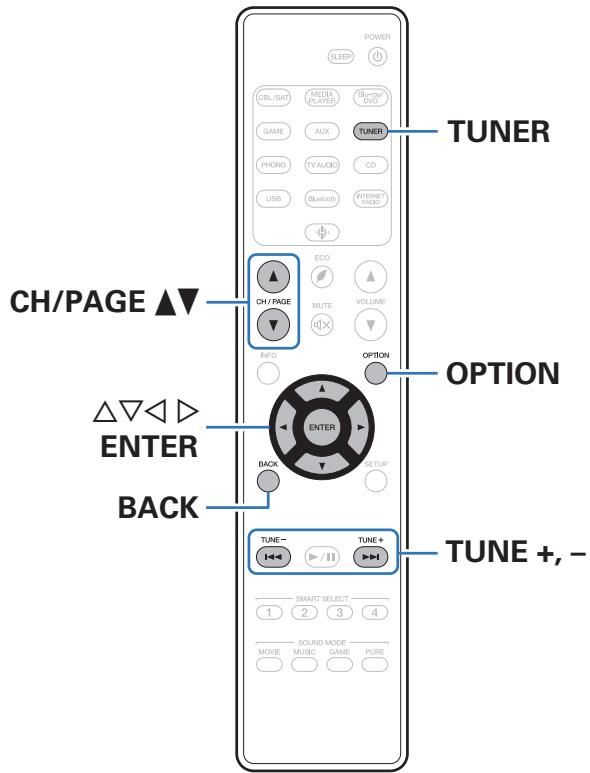

Listening to FM/AM broadcasts

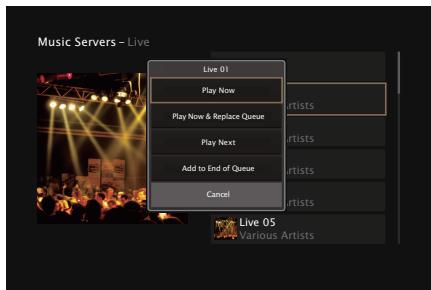

Playing back files stored on a PC or NAS

Getting the HEOS App

Playback a device Playing a DVD player/Blu-ray Disc player

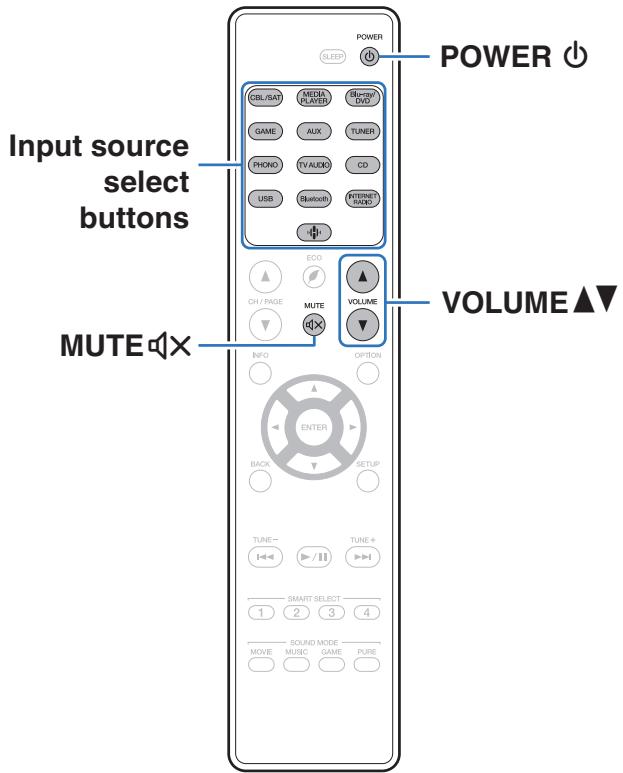

Basic operation Turning the power on

POWER X Input source select buttons

Press POWER X to turn on power to the unit.

0 You can press the input source select button when the unit is in standby mode to turn on the power. 0 You can also switch the power to standby by pressing X on the main unit.

Selecting the input source

Press the input source select button to be played back. The desired input source can be selected directly.

0 You can also select the input source by turning INPUT SELECTOR on the main unit.

Adjusting the volume

Use VOLUME df to adjust the volume.

The following describes the procedure for playing DVD player/Blu-ray Disc player.

Turning off the sound temporarily (Muting)

0 MUTE indicator on the display flashes. 0 : appears on the TV screen.

Prepare for playback. A Turn on the power of the TV, subwoofer and player. B Change the TV input to the input of this unit.

Press POWER X to turn on power to the unit. Press Blu-ray/DVD to switch an input source for a player used for playback. Play the DVD player or Blu-ray Disc player.

o Surround playback (v p. 95)

0 The sound is reduced to the level set at “Mute Level” in the menu. (v p. 130) 0 To cancel mute, either adjust the sound volume or press MUTE : again.

Playback a DVD player/Blu-ray Disc player

0 The variable range differs according to the input signal and channel level setting. 0 You can also adjust the master volume by turning VOLUME on the main unit.

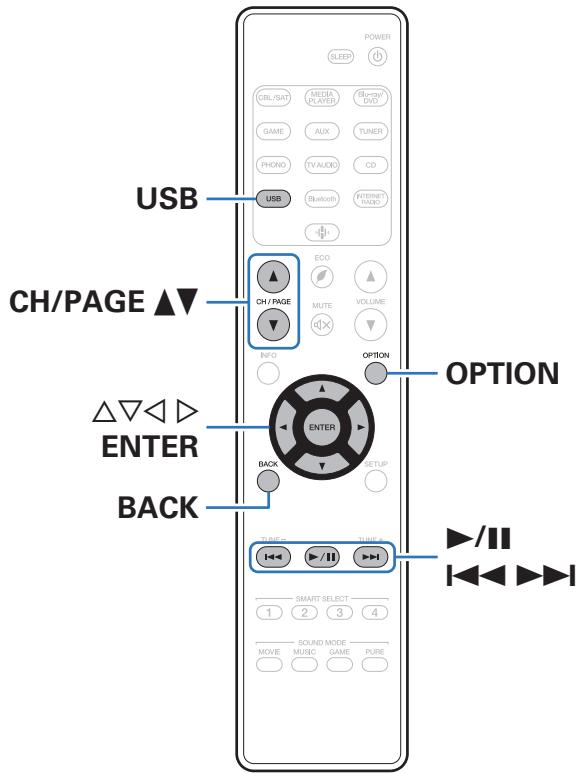

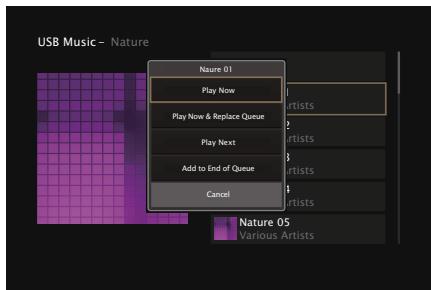

Playing a USB memory device 0 Playing back music files stored on a USB memory device.

0 Only USB memory devices conforming to mass storage class standards

can be played on this unit.

0 This unit is compatible with USB memory devices in “FAT16” or

0 The audio format types and specifications supported by this unit for

playback are as follows. See “Playing back a USB memory devices” (v p. 206) for details.

Playing files stored on USB memory devices

Insert a FAT32 formatted USB memory device into the USB port.

Browse the music on your USB memory device and select something to play. 0 When you select something to play you will be asked how you want to queue up your music.

Press USB to switch the input source to “USB”. Select the name of this unit.

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

Play Now & Replace Queue:

Clears the queue and plays the selected item immediately.

Inserts the item into the queue after the current song and plays it when the current song ends.

Add to End of Queue:

Adds the item to the end of the queue.

USB Music - Nature Naure 01 Play Now

Nature 01 Various Artists

Play Now & Replace Queue Play Next

Nature 02 Various Artists Nature 03 Artists

Add to End of Queue Various Cancel

Nature 04 Various Artists Nature 05 Various Artists

Skip to previous track / Skip to next track

Switch to the previous page/next page in the list display

0 When an MP3 music file includes album art data, the album art can be displayed while playing the file.

NOTE Nature 01 - Various Artists 2:45

0 Note that Marantz will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.

o Operations accessible through the option menu 0 “Adjusting the volume of each channel to match the input source (Ch

Level Adjust)” (v p. 92)

0 “Adjusting the tone (Tone)” (v p. 93)

0 “Displaying your desired video during audio playback (Video

Listening to music on a Bluetooth device Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device. Communication is possible up to a range of about 98.4 ft/30 m.

POWER X NOTE 0 To play back music from a Bluetooth device, the Bluetooth device needs to support the A2DP profile.

Playing music from Bluetooth device In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device must first be paired with this unit. Once the Bluetooth device has been paired, it does not need to be paired again.

Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.

Connect to the Bluetooth device while “Pairing” is being displayed on the display of the unit. Perform the connection with the Bluetooth device close to the unit (about 3.3 ft/1 m).

Prepare for playback.

A Connect the supplied external antennas for Bluetooth/wireless connectivity to the Bluetooth/wireless LAN antenna connectors on the rear panel. (v p. 20) B Press POWER X to turn on power to the unit.

Play music using any app on your Bluetooth device. 0 The Bluetooth device can also be operated with the remote

control of this unit.

0 The next time the Bluetooth button is pressed on the remote

control unit, this unit automatically connects to the last Bluetooth device that was connected.

Press Bluetooth. When using for the first time, the unit will go into the pairing mode automatically and “Pairing...” will appear on the display of the unit.

Activate the Bluetooth settings on your mobile device.

Skip to previous track / Skip to next track

0 Press STATUS on this unit during playback to switch the display between Title name, Artist name, Album name, etc.

Pairing with other Bluetooth devices

NOTE Activate the Bluetooth settings on your mobile device. Press and hold Bluetooth on the remote control unit for at least 3 seconds.

o Operations accessible through the option menu

This unit will go into the pairing mode.

Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.

0 “Pairing with other Bluetooth devices” (v p. 59)

0 “Adjusting the volume of each channel to match the input source (Ch

Level Adjust)” (v p. 92)

0 “Adjusting the tone (Tone)” (v p. 93)

0 “Displaying your desired video during audio playback (Video

0 This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th Bluetooth device is paired, it will be registered in place of the oldest registered device. 0 You can also enter pairing mode by pressing the OPTION button when the Bluetooth playback screen is displayed and selecting “Pairing Mode” from the displayed option menu.

0 To operate the Bluetooth device with the remote control of this unit, the Bluetooth device needs to support the AVRCP profile. 0 The remote control of this unit is not guaranteed to work with all Bluetooth devices. 0 Depending on the type of Bluetooth device, this unit outputs audio that is coupled to the volume setting on the Bluetooth device.

Pair a Bluetooth device with this unit.

Reconnecting to this unit from a Bluetooth device After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit. This operation also needs to be performed when switching the Bluetooth device for playback.

If a Bluetooth device is currently connected, deactivate the Bluetooth setting of that device to disconnect it. Activate the Bluetooth setting of the Bluetooth device to be connected. Select this unit from the Bluetooth device list on your Bluetooth device. Play music using any app on your Bluetooth device.

0 The screen automatically switches to the “Bluetooth” playback screen if a Bluetooth device is connected while the power of this unit is on. 0 When the “Network Control” setting of this unit is set to “Always On” and a Bluetooth device is connected with the unit in the standby state, the power of the unit will be turned on automatically. (v p. 167)

Listening to FM/AM broadcasts You can use the built-in tuner of this unit to listen to FM broadcasts and AM broadcasts. Make sure the FM antenna and AM loop antenna are connected to this unit first.

Listening to FM/AM broadcasts

When listening to an FM broadcast.

When listening to an AM broadcast.

Press TUNE + or TUNE – to select the station you want listen to.

0 The modes for receiving FM broadcasts consists of “Auto” mode that automatically searches available broadcast stations and “Manual” mode that lets you tune in using buttons to change the frequency. The default setting is “Auto”. You can also use “Direct Tune” to tune in by entering the frequency directly. In “Auto” mode, you cannot tune in to radio stations if the reception is not good. If this is the case, then use the “Manual” mode or “Direct Tune” mode to tune in.

Selects the radio station (up/down)

Selects preset radio stations

Selects the radio station (up/down)

Selects preset radio stations

The option menu screen is displayed.

Use ui to select “FM/AM”, then press ENTER. This displays the reception band input screen.

Scanning is performed until it finds an available radio station. When it finds a radio station, it stops the scan automatically and tunes in.

o Operations accessible through the option menu 0 “Tuning in by entering the frequency (Direct Tune)” (v p. 63)

You can enter the receiving frequency directly to tune in.

0 “Tuning in to stations and presetting them automatically (Auto

0 “Presetting the current broadcast station (Preset

0 “Specify a name for the preset broadcast station (Preset 0

Tuning in by entering the frequency (Direct Tune)

Press OPTION when the input source is “Tuner”. The option menu screen is displayed.

Use ui to select “Direct Tune”, then press ENTER. The screen that lets you enter the frequency is displayed.

Use ui to select a number, then press p. 0 If o is pressed, the immediately preceding input is cancelled.

Repeat step 3 and enter the frequency of the radio station you want to hear. When setting is completed, press ENTER. The preset frequency is tuned in.

Press OPTION when the input source is “Tuner”. The option menu screen is displayed.

Use ui to select “Tune Mode”, then press ENTER. Use o p to select the tune mode, then press ENTER. Auto:

Automatically search for and tune to a receivable radio station.

Manually change the frequency one step at a time each time the button is pressed.

Tuning in to stations and presetting them automatically (Auto Preset)

You can change the mode for tuning into FM and AM broadcasts. If you cannot tune in automatically with “Auto” mode, change the mode to “Manual” and tune in manually.

Press OPTION when the input source is “Tuner”. The option menu screen is displayed.

Use ui to select “Auto Preset”, then press ENTER. Press ENTER. The unit starts to tune in to radio stations automatically and preset them. 0 When presetting is completed, “Completed” is displayed for about 5 seconds and the option menu screen turns off.

0 The preset memory is overwritten.

Presetting the current broadcast station (Preset Memory)

Tune in the broadcast station you want to preset. (“Listening to FM/AM broadcasts” (v p. 62))

Your favorite broadcast stations can be preset so that you can tune them in easily. Up to 56 stations can be preset.

The option menu screen is displayed.

Use ui to select “Preset Memory”, then press ENTER. The list of already preset channels is displayed.

Use ui to select the channel you want to preset, then press ENTER.

Listening to preset stations

The current broadcast station that is preset. 0 To preset other stations, repeat steps 1 to 4.

Use CH/PAGE df to select the desired preset channel.

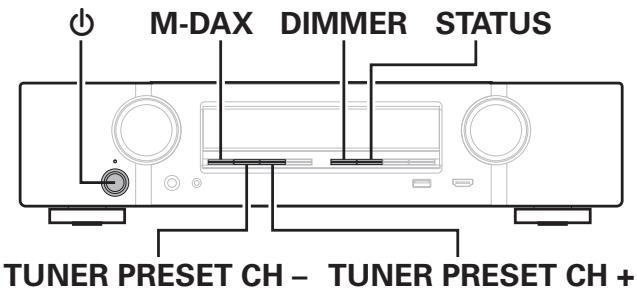

0 You can also select preset broadcast stations by pressing TUNER PRESET CH + or TUNER PRESET CH – on the main unit.

Specify a name for the preset broadcast station (Preset Name) You can set the name to the preset broadcast station or change it. Up to 8 characters can be input.

Press OPTION when the input source is “Tuner”. The option menu screen is displayed.

Use ui to select “Preset Name”, then press ENTER.

Use ui to select a name label, then press ENTER. The screen that lets you edit the Preset Name is displayed. 0 If you select “Set Defaults”, then the unit returns to displaying the frequency.

Enter the characters, then press “OK”. Press OPTION to return to the previous screen.

The “Preset Name” screen is displayed.

Use o p to select the group of the broadcast station you want to name. Use ui to select the broadcast station you want to name, then press ENTER.

Skipping preset broadcast stations (Preset Skip)

A Use o p to select the group of broadcast stations you want to skip. B Use ui to select the broadcast station you want to skip. C Use o p to select “Skip”. The station you selected is not displayed.

Press OPTION when the input source is “Tuner”.

The option menu screen is displayed.

Press OPTION to return to the previous screen.

Use ui to select “Preset Skip”, then press ENTER. The “Preset Skip” screen is displayed.

n To set the stations you want to skip by groups

A Use o p to select the group of broadcast stations you want to skip. B Press u to select “Set No.z – z to Skip”, then press ENTER. Skip all the broadcast stations that are included in the selected group “z-z”. (z is the selected group number.)

n To set the stations you want to skip by stations

Perform auto preset memory to save all the broadcasting stations that can be received in the memory. Selecting a broadcast station becomes easier by skipping unnecessary memories.

While the “Preset Skip” screen is displayed, use o p to select a group containing a broadcast station to cancel the skip for. Use ui to select a broadcast station to cancel the skip for. Use o p to select “On”. The skip is cancelled.

NOTE 0 “Preset Skip” cannot be cancelled for groups.

Listening to Internet Radio 0 Internet Radio refers to radio broadcasts distributed over the Internet.

Internet Radio stations from around the world can be received.

0 The Internet Radio station list on this unit the database service provided

by TuneIn Radio service.

0 The audio format types and specifications supported by this unit for

playback are as follows. See “Playing back Internet Radio” (v p. 209) for details.

0 WMA INTERNET RADIO

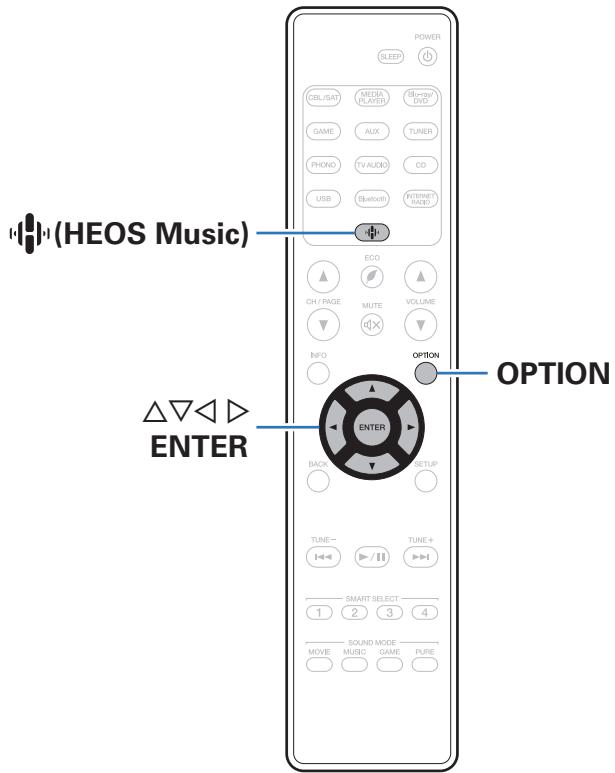

0 You can also press R (HEOS Music). Use ui to select “TuneIn

NOTE 0 The radio station database service may be suspended or be otherwise unavailable without notice.

Select the station you want to play.

o Operations accessible through the option menu

Skip to previous track / Skip to next track

Switch to the previous page/next page in the list display

0 “Adding to HEOS Favorites” (v p. 90)

0 “Adjusting the volume of each channel to match the input source (Ch

Level Adjust)” (v p. 92)

0 “Adjusting the tone (Tone)” (v p. 93)

z Enabled when playing Podcasts.

0 “Displaying your desired video during audio playback (Video

0 The display switches between track title and radio station name etc. each time the main unit’s STATUS is pressed.

Playing back files stored on a PC or NAS 0 This unit can play back music files and playlists (m3u, wpl) from DLNA

compatible servers including PCs and NAS devices on your network.

0 Supported file formats:

For details, see “Playing back a file saved on a PC or NAS” (v p. 208). 0 WMA 0 MP3

Playing back files stored on a PC or NAS Use this procedure to play music files or playlists stored on DLNA files servers on your local network.

Browse the music on your PC/NAS and select something to play. 0 When you select something to play you will be asked how you want to queue up your music.

Press R (HEOS Music). Use ui to select “Music Servers”, then press ENTER.

MUSIC TuneIn Internet Radio

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

Play Now & Replace Queue:

Clears the queue and plays the selected item immediately.

Inserts the item into the queue after the current song and plays it when the current song ends.

Add to End of Queue:

Adds the item to the end of the queue.

HEOS Favorites Music Servers USB Music Music Servers - Live

Add to End of Queue Various Cancel

Select the name of your networked PC or NAS (Network Attached Storage) server.

0 The display switches between track title, artist name, and album title each time the main unit’s STATUS is pressed. 0 When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album art data, the album art can be displayed while the music files are playing. 0 If you use Ver.11 or later of Windows Media Player, the album art for WMA files can be displayed.

NOTE 0 When playing back music files with your PC or NAS connected through wireless LAN, audio may be interrupted depending on your wireless LAN environment. In this case, connect using a wired LAN. 0 The order in which the tracks/files are displayed depends on the server specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.

Operation buttons 1/3

Skip to previous track / Skip to next track

Switch to the previous page/next page in the list display

o Operations accessible through the option menu 0 “Adjusting the volume of each channel to match the input source (Ch

Level Adjust)” (v p. 92)

0 “Adjusting the tone (Tone)” (v p. 93)

0 “Displaying your desired video during audio playback (Video

Getting the HEOS App

You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose from. Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”.

o Changing your HEOS Account

HEOS Accounts can be registered in “HEOS Account” (v p. 169) in the menu of this unit or by tapping “Music” tab - “Settings” icon a in the HEOS App.

o What is a HEOS Account?

A HEOS Account is master account or “keychain” for managing all of your HEOS music services with one single username and password.

o Why do I need a HEOS Account?

Tap the “Music” tab. Select the Settings icon a in the upper left corner of the screen. Select “HEOS Account”. Change your location, change your password, delete your account or sign out of your account.

With the HEOS Account you just have to enter your music services login names and passwords one time. This allows you to easily and quickly use multiple controller apps on different devices. You just log into your HEOS Account on any device and you will have access to all of your associated music services, play history and custom playlists, even if you are at a friend’s house listening to music on their HEOS system.

o Signing up for a HEOS Account You will be instructed to signup for a HEOS Account the first time you try to access any music service from the main “Music” menu of the HEOS App.

Playing from streaming music services

Rooms Drag one room into another to group them

A music service is an online music company that provides access to vast music collections via free and/or paid subscriptions. Depending upon your geographical location, there are several options to choose from.

Dining L + Dining R Song Name 1

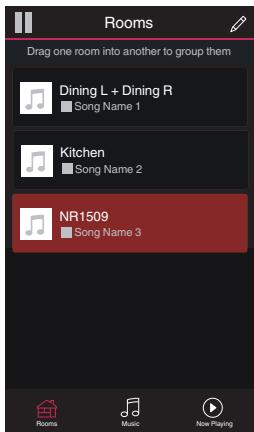

o Selecting a room/device

Tap the “Rooms” tab, and select “NR1509” if there are multiple HEOS devices.

o Selecting the music track or station from music sources

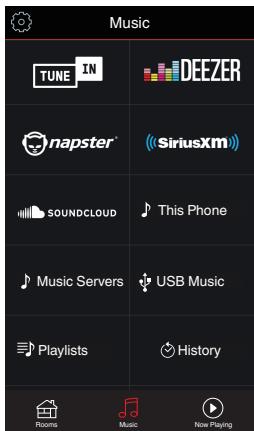

Tap the “Music” tab and select a music source. 0 All music services displayed may not be available in your location. This Phone

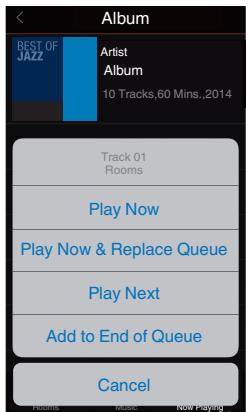

Browse the music to play.

After selecting a music track or radio station the app will automatically change to the “Now Playing” screen.

Album 10 Tracks,60 Mins.,2014

0 When you select a music track to play you will be asked how you want to queue up your music.

Inserts the item into the queue after the currently playing track and plays the selected item immediately.

Play Now & Replace Queue:

Clears the queue and plays the selected item immediately.

Inserts the item into the queue after the current song and plays it when the current song ends.

Add to End of Queue:

Adds the item to the end of the queue.

Play Now Track 01 Artist Album

Play Next Add to End of Queue Cancel Rooms

Plays the selected item immediately.

Add to HEOS Favorites: Adds to HEOS Favorites.

0 When you select a radio station the following items are displayed.

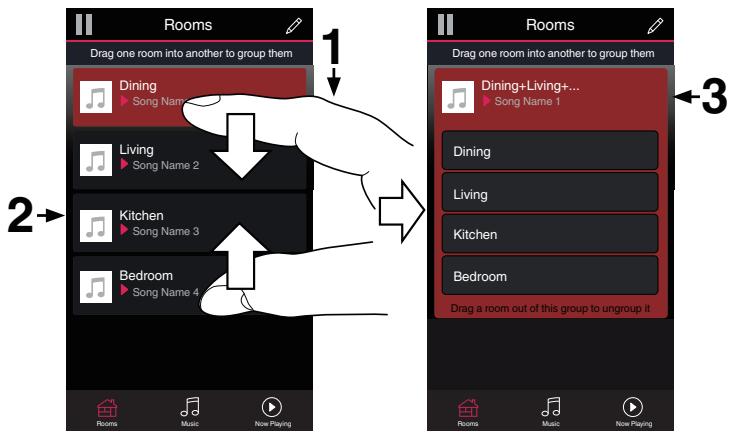

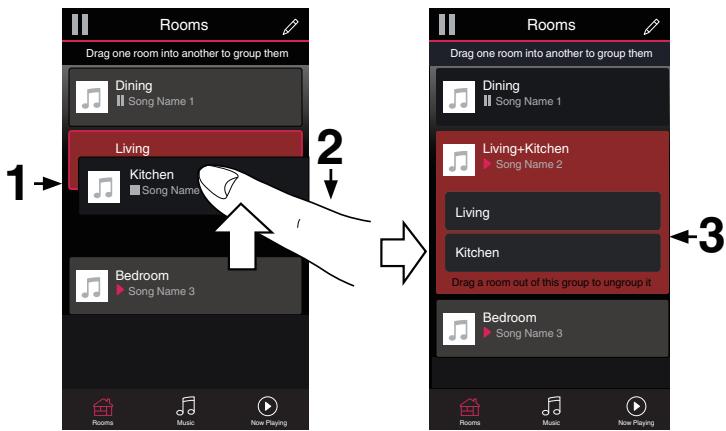

Listening to the same music in multiple rooms

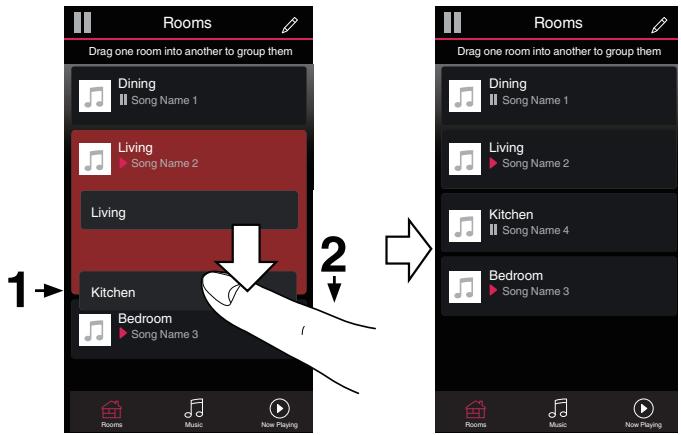

Drag one room into another to group them

Drag one room into another to group them

The HEOS system is a true multi-room audio system that automatically synchronizes audio playback between multiple HEOS devices so that the audio coming from different rooms is perfectly in sync and always sounds amazing! You can easily add up to 32 HEOS devices to your HEOS system. You can join or group up to 16 individual HEOS devices into a group of HEOS devices that function as if they were a single HEOS device.

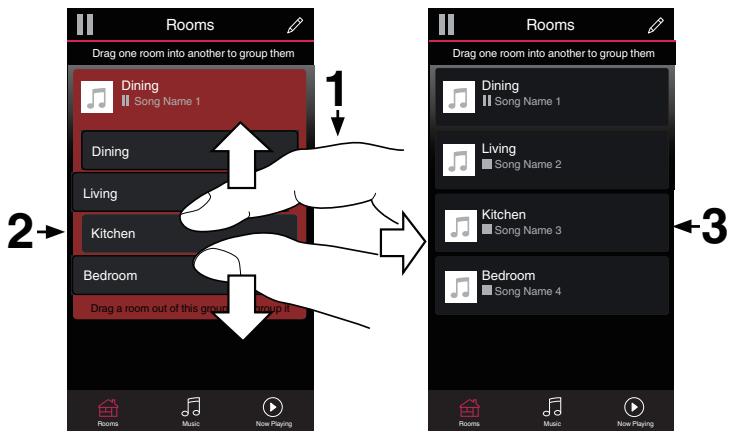

Drag a room out of this group to ungroup it

Press and hold your finger on room that is not playing music.

Drag it into the room that is playing music (indicated by the red outline) and lift your finger. The two rooms will be grouped together into a single device group and both rooms will be playing the same music in perfect sync.

0 When you select external inputs of this AV receiver for group playback, please make sure the selected audio devices are connected to the AV receiver via analog audio inputs. HDMI, optical and coax connections are not supported for HEOS group playback.

Press and hold your finger on room that you want to remove from the group.

Drag one room into another to group them

Drag one room into another to group them

Drag it out of the group and lift your finger.

0 You can not remove the first room that started playing the music before grouping.

o Grouping all rooms (party mode)

You can easily group 16 rooms together into Party Mode by using a "pinch" gesture.

Drag one room into another to group them

Rooms Drag one room into another to group them

Place two fingers on the screen over the list of rooms.

Quickly pinch your two fingers together and release.

All of your rooms will be joined together and begin playing the same music in perfect sync.

Song Name 4 Drag a room out of this group to ungroup it

o Ungrouping all rooms You can easily ungroup all of your rooms and exit Party Mode by using a "spread" gesture.

Rooms Drag one room into another to group them

Place two fingers close together on the screen over list of rooms.

All of your rooms will be ungrouped.

Song Name 4 Drag a room out of this group to ungroup it

Quickly spread your two fingers apart from each other and release.

Drag one room into another to group them

AirPlay function Music files stored on your iPhone, iPod touch, iPad or iTunes can be played on this unit via the network.

Source input will be switched to “HEOS Music” when AirPlay playback is started. You can stop AirPlay playback by choosing other input source. To see song and artist names together, press STATUS on the main unit. For information about how to use iTunes, also see the Help for iTunes. The screen may differ depending on the OS and software versions.

This device supports AirPlay 2. .

Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback. 0 This unit supports AirPlay 2 and requires iOS 11.4 or later.

If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later, you can stream music stored in your “iPhone/iPod touch/iPad” directly to this unit.

Connect your iPhone, iPod touch or iPad Wi-Fi to the same network as this unit. 0 For details, see your device’s manual.

Install iTunes 10, or later, on a Mac or Windows PC that is connected to the same network as this unit. Turn this unit ON. Set “Network Control” to “Always On” for this unit. (v p. 167)

NOTE Play the song on your iPhone, iPod touch or iPad.

0 When “Network Control” is set to “Always On”, the unit consumes more standby power.

AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.

Playing iTunes music with this unit

Playing songs from your iPhone, iPod touch or iPad

Select the speaker (devices) you want to use.

Choose a song and click play in iTunes. The music will stream to this unit.

Perform iTunes playback operations with the remote control unit of this unit

NOTE 0 In playback using the AirPlay function, the sound is output at the iPhone, iPod touch, iPad or iTunes volume setting level. You should turn down the iPhone, iPod touch, iPad or iTunes volume prior to playback and then adjust it to a suitable level.

With this unit’s remote control unit, you can perform iTunes song play, pause, and auto search (cue) operations.

Select the “Edit” - “Preferences...” in the iTunes menu. Select “Devices” in the iTunes setting window. Check “Allow iTunes audio control from remote speakers”, and then click “OK”.

0 This does not need to be set if using version 12 or later of iTunes.

Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2)

Tap the AirPlay icon. Displays a list of devices/speakers that can be played back on the same network. 0 A circle is displayed to the right of AirPlay 2 compatible devices.

Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can be synced with multiple AirPlay 2 supported devices for simultaneous playback.

iPhone Marantz xxxxxxxx Speakers

Play the song on your iPhone, iPod touch or iPad. .

AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.

Tap the devices/speakers you want to use. 0 Multiple AirPlay 2 compatible devices can be selected.

0 Volume can be adjusted for each device individually or for all

synced devices simultaneously.

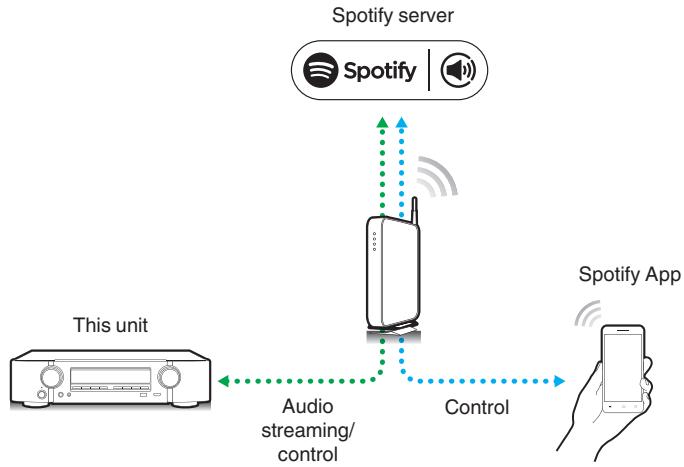

Spotify Connect function Spotify is the world’s most popular streaming service. If you subscribe to Spotify Premium, you can control your new speaker with your phone or tablet. Because Spotify is built-in to your speaker, you can still take calls or use other apps - the music never stops. For information on how to set up and use Spotify Connect please visit www.spotify.com/connect

Playing Spotify music with this unit Download the “Spotify App” onto your Android or iOS device beforehand. To play a Spotify track in this unit, you need to register in the Spotify premium account first.

Connect the Wi-Fi settings of the iOS or Android device in the same network as this unit. Launch the Spotify App. Play back the Spotify track. Tap the Spotify icon F to select the unit.

The music will stream to this unit.

Spotify App This unit

Audio streaming/ control

Convenience functions 0 This section explains how to use convenient functions that can be used

for each input source.

While content is playing, press OPTION. The option menu screen is displayed.

Adding to HEOS Favorites

Browse the content and select something to play.

Deleting a HEOS Favorites

While the HEOS Favorites content list is displayed, use ui to select the item you want to remove from HEOS Favorites, then press OPTION. Use ui to select “Remove from HEOS Favorites”, then press ENTER.

Adjusting the volume of each channel to match the input source (Ch Level Adjust)

Use uio p to select “Exit”, then press ENTER.

0 Select “Reset” and press ENTER if you want to restore the adjustment values of the various channels to “0.0 dB” (Default). 0 Headphone volume can be adjusted when a headphone is connected. 0 “Ch Level Adjust” settings are stored for each input source. 0 You can only set this for speakers that output audio. In addition, you cannot set this when in the menu “HDMI Audio Out” is set to “TV”. (v p. 135)

An option menu screen is displayed. 0 When the input source is “HEOS Music”, an option menu for online music is displayed. Select “AVR Options…”, then press ENTER.

Use ui to select “Ch Level Adjust”, then press ENTER. The “Ch Level Adjust” screen is displayed.

Use ui to select the channel that you wish to adjust.

The volume of each channel can be changed while listening to music. You can set this for each input source.

Adjusting the tone (Tone) Adjusts the tonal quality of the sound.

Press OPTION. An option menu screen is displayed. 0 When the input source is “HEOS Music”, an option menu for online music is displayed. Select “AVR Options…”, then press ENTER.

The “Tone” screen is displayed. 0 0 0 0

Use o p to set the tone control function to on/off. On:

Allow tone adjustment (bass, treble). Playback without tone adjustment.

Select “On” in step 3 and press i to select the sound range to be adjusted. Bass:

“Tone” settings are stored for each input source. This cannot be set when the sound mode is set to “Direct” or “Pure Direct”. This item cannot be set when “Dynamic EQ” is set to “On”. (v p. 132) You cannot set this when no audio signal is input or in the menu “HDMI Audio Out” is set to “TV”. (v p. 135)

Displaying your desired video during audio playback (Video Select)

This unit can display video from a different source on TV during audio playback. You can set this for each input source.

n Supported input sources: CDz / Tuner / HEOS Music / Phono

If you selected “On” in step 3, press i and select “Source”. Use o p to select the input source for video you want to play back, then press ENTER.

0 “Video Select” settings are stored for each input source.

z This cannot be set when any of the HDMI or video connectors are assigned.

Press OPTION. An option menu screen is displayed. 0 When the input source is “HEOS Music”, an option menu for online music is displayed. Select “AVR Options…”, then press ENTER.

Use ui to select “Video Select”, then press ENTER. The “Video Select” screen is displayed.

Use o p to select the Video Select mode. Off (Default):

Selecting a sound mode This unit allows you to enjoy various kinds of surround and stereo playback modes. Disc formats such as Blu-ray Disc and DVD, as well as being supported by digital broadcasting, and even by streaming movies and music from internet-based subscription services. This unit supports playback of almost all of these multi-channel audio formats. It also supports surround playback of audio formats other than multi-channel audio such as 2-channel stereo audio. 0 For audio formats recorded on a disc, see the disc jacket or label.

that can be selected. Each time you press MOVIE, MUSIC or GAME, the sound mode changes. 0 While the list is displayed, you can also use ui to select a sound mode. 0 Try out various sound modes and enjoy sound mode in your favorite mode.

Press MOVIE, MUSIC or GAME to select a sound mode. MOVIE :

Switches to the sound mode suitable for enjoying movies and TV programs.

Switches to the sound mode suitable for enjoying music.

Switches to the sound mode suitable for enjoying games.

GExampleH When MOVIE is pressed

MOVIE SOUND Stereo Dolby PLg Movie DTS Neo:6 Cinema Multi Ch Stereo Virtual

0 The MOVIE, MUSIC, or GAME button memorizes the last sound mode selected for its button. Pressing MOVIE, MUSIC, or GAME recalls the same sound mode as the one selected at the previous playback. 0 If the content played back does not support the previously selected sound mode, the most appropriate sound mode for the content is automatically selected. 0 You can also select the sound mode by pressing SOUND MODE on the main unit.

Selecting a sound mode

Pure Direct playback

Sound recorded in source is played as is.

This mode is for playback with higher sound quality than in Direct playback mode. This mode turns off the main unit display and analog video circuit. Doing so suppresses noise sources that affect sound quality.

Press PURE to select “Direct”. Direct playback begins.

0 This can also be set by pressing PURE DIRECT on the main unit.

Press PURE to select “Pure Direct”. The display goes dark, and Pure Direct playback begins. The PURE DIRECT indicator lights.

0 In Direct and Pure Direct sound modes, the following items cannot be adjusted. 0 Tone (v p. 93) 0 M-DAX (v p. 128) 0 MultEQ® (v p. 131) 0 Dynamic EQ (v p. 132) 0 Dynamic Volume (v p. 133) 0 Manual EQ (v p. 133) 0 This can also be set by pressing PURE DIRECT on the main unit.

NOTE 0 Video signals are only output when HDMI signals are played in the Pure Direct mode. 0 When the Pure Direct mode has been selected, the display turns off after about 5 seconds.

Auto surround playback This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback. Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.

Press PURE to select “Auto”. Auto surround playback begins.

0 This can also be set by pressing PURE DIRECT on the main unit.

This mode can be selected when the Dolby PLg decoder is used to play back 2-channel sources in 5.1-channel surround sound with an enveloping surround sound experience.

This mode can be selected when playing sources recorded in Dolby Digital.

Dolby TrueHD This mode can be selected when playing sources recorded in Dolby TrueHD.

This mode can be selected when playing sources recorded in Dolby Digital Plus.

This mode can be selected when the DTS Neo:6 decoder is used to play back 2-channel sources in 5.1-channel surround sound. There are two playback modes: “Cinema” mode that is optimized for movie playback, “Music” mode that is optimized for music playback.

This mode can be selected when playing sources recorded in DTS.

This mode can be selected when playing sources recorded in DTS 96/24.

DTS-HD This mode can be selected when playing sources recorded in DTS-HD.

This mode can be selected when playing sources recorded in DTS Express.

Description This mode can be selected when playing multi-channel PCM sources.

This mode is for enjoying stereo sound from all speakers.

This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones.

Auto sound mode Sound mode type Auto

Description In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-HD, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode. If the input signal is analog or PCM (2-channel), stereo playback is used. For Dolby Digital or DTS, the music is played back according to the respective channel number.

Description This mode plays 2-channel stereo audio with no additional surround sound processing. 0 Sound is output from the front left and right speakers, and subwoofer if connected. 0 When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing.

This mode plays back audio as recorded in the source.

This mode plays back an even higher quality sound than the “Direct” mode. The following circuits are stopped in order to further improve sound quality. 0 Display indicator circuit of the main body (display will go off.) 0 The analog video input/output switcher and processor is disabled.

Sound mode that can be selected for each input signal 0 The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

0 Adjust the sound field effect with the menu “Surr.Parameter” to enjoy surround sound the way you like it. (v p. 124)

z1 2-channel also includes analog input. z2 This mode plays back 2-channel sources in 5.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.

S S S Multi Ch Stereo

z3 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see “Types of input signals, and corresponding sound modes” (v p. 214).

A Shows a decoder to be used. 0 A Dolby Digital Plus decoder is displayed as “X”.

B Shows the name of the input source being played back.

HDMI Control function A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection.

Turn the power on for all the devices connected by HDMI cable.

Set the HDMI Control function for all devices connected by HDMI cable.

When you turn the TV’s power to standby, check that the power of this unit also goes to standby.

0 Please consult the operating instructions for the connected

0 Some functions may not operate depending on the connected TV or player. Check the owner’s manual of each device for details beforehand.

devices to check the settings.

0 Carry out steps 2 and 3 should any of the devices be unplugged.

Switch the input source of this unit to check that video from the player connected by HDMI is played back correctly.

Switch the television input to the HDMI input connected to this unit.

Smart Menu function This function can be used to configure the settings of this unit, select an input source and set Tuner and Internet Radio stations using the TV remote control.

Enjoy content from the input source currently selected on this unit.

Enable the HDMI control function of this unit and the TV. (v p. 137)

Switch the input of this unit. If you select “HEOS Music” or “Tuner”, you can continue to operate this unit using the TV remote control.

Set “Smart Menu” to “On” on this unit. (v p. 139) Select “AV Receiver” in a TV menu such as “Input”z or “Operate Connected HDMI Device”z.

The Smart Menu of this unit is displayed on the TV. 0 This unit can be operated with the TV remote control while the Smart Menu is displayed.

Change the sound mode of this unit. You can select from the following three sound modes.

z The selection method differs depending on your TV.

Surround sound playback according to the input signal.

Multi-channel stereo playback.

Now Playing Blu-ray/DVD Smart Select 1

o Smart Select Calls up the “Smart Select” items registered to this unit. NOTE 0 If the “HDMI Control” or “Smart Menu” settings have been changed, always reset the power to connected devices after the change. 0 The Smart Menu function may not work properly depending on the specifications of your TV. In this case, set “Smart Menu” to “Off”. (v p. 139)

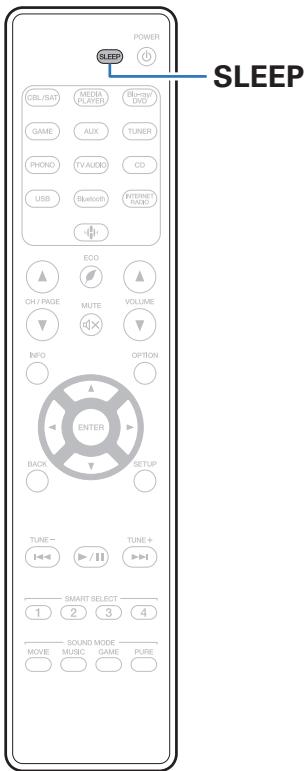

Sleep timer function You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep.

o Checking the remaining time

Press SLEEP when the sleep timer is in operation. The remaining time appears on the display.

Press SLEEP and display the time you want to set.

o To cancel the sleep timer

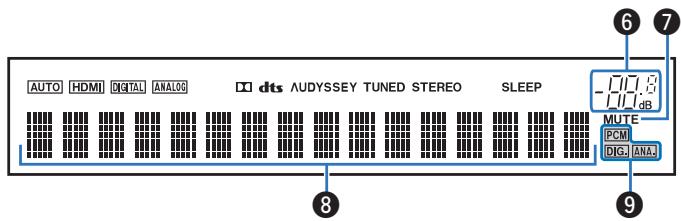

0 The SLEEP indicator lights up on the display and the sleep timer

starts. 0 You can set the sleep timer in the range from 10 to 120 minutes in steps of 10 minutes.

Press SLEEP to select “Off”. The SLEEP indicator on the display turns off. 0 The sleep timer setting is canceled when the unit switches to standby mode.

NOTE 0 The sleep timer function cannot turn off the power of devices connected to this unit. To turn off the power of those connected devices, set up sleep timers on the connected devices themselves.

Smart select function Settings such as the input source, volume level and sound mode can be registered to the SMART SELECT 1 - 4 buttons. You can simply press one of the registered SMART SELECT buttons in subsequent playbacks to switch to the group of saved settings in a batch. By saving frequently used settings at the SMART SELECT 1 – 4 buttons, you will always be able to easily call up the same playback environment.

Calling up the settings

Press SMART SELECT. The Smart Select settings registered to the button you pressed are called up. 0 The default settings for the input source are as shown below.

0 Volume is not registered to Smart Select in the factory default settings. See “Changing the settings” to register volume to Smart Select. (v p. 112)

Changing the settings

Press and hold the desired SMART SELECT until “Smartz Memory” appears on the display.

The current settings will be memorized. z is displayed the number for the SMART SELECT button you pressed.

Set the items below to the settings you want to register. A Input source (v p. 51) B Volume (v p. 52) C Sound mode (v p. 95) D Audyssey (Audyssey MultEQ®, Audyssey Dynamic EQ®, Audyssey Dynamic Volume®) (v p. 131) E “ M-DAX ” (v p. 128) F “Adjusting the volume of each channel to match the input source (Ch Level Adjust)” (v p. 92) G “Displaying your desired video during audio playback (Video Select)” (v p. 94)

o Changing the Smart Select Name The Smart Select name displayed on the TV screen or display of this unit can be changed to a different name. For the name change method, see “Smart Sel.Names”. (v p. 173)

0 Press and hold SMART SELECT while a radio station is being received is being played back with any of the following sources, the current radio station is memorized. 0 Tuner / Internet Radio Station

Panel lock function To prevent accidental operation of this unit, you can disable operation of the buttons on the front panel.

X Disabling all key button operations

Press X while you press and hold M-DAX and DIMMER with the unit in standby mode. Use TUNER PRESET CH + or TUNER PRESET CH – to select “FP/VOL LOCK On”. Press STATUS to enter the setting. All button operations except X are disabled.

TUNER PRESET CH – TUNER PRESET CH +

Disabling all button operations except VOLUME

Press X while you press and hold M-DAX and DIMMER with the unit in standby mode. Use TUNER PRESET CH + or TUNER PRESET CH – to select “FP LOCK On”. Press STATUS to enter the setting. All button operations except X and VOLUME are disabled.

Press STATUS to enter the setting. The Panel lock function is canceled.

0 Even when the Panel lock function is set, you can operate the unit using the remote control unit.

Remote lock function When connecting an IR receiver, enable the Remote lock function. When the function is enabled, you can not perform operations with the remote control unit. By default, this function is disabled.

X Disabling the sensor function of the remote control unit

Press X while you press and hold M-DAX and DIMMER with the unit in standby mode. Use TUNER PRESET CH + or TUNER PRESET CH – to select “RC LOCK On”. Press STATUS to enter the setting. The infrared light receiving function is disabled.

Press STATUS to enter the setting. Infrared light receiving function on the main unit is enabled.

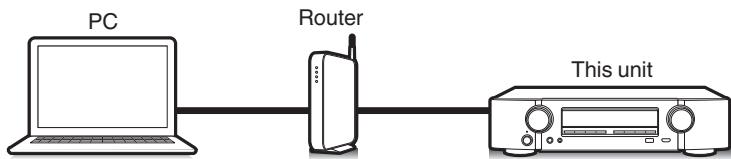

PC Controlling the unit from a web control

Friendly Name Connection

Marantz NR1509 Wired(Ethernet)

DHCP IP Address MAC Address

On 192.168.100.19 zzzzzz-000000

Checking the IP address.

0 This unit and the PC or tablet need to be connected correctly to the network in order to use the web control function. (v p. 46) 0 Depending on the settings of your security-related software, you may not be able to access this unit from your PC. If this is the case, then change the settings of the security-related software.

Enter the IP address of this unit in browser’s address box.

For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”. http://192.168.100.19 Edit View

Favorites Tools Help

When the top menu is displayed on the web browser, click on the menu item you want to operate.

Menu map When using menu operations, connect this unit to a TV and operate this unit while viewing the TV. The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.

Adjusts the center channel volume to clarify the dialog for all sources.

Adjusts the subwoofer channel volume for all input sources.

M-DAX Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback.

Compensates for incorrect timing between video and audio.

Sets the volume setting.

Makes Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® settings.

Manual EQ Uses the graphic equalizer to adjust the tone of each speaker.

Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings.

Set the 4K signal format when the TV or playback device is 4K compatible.

Sets the video signal format to be output for the TV you are using.

Changes input connector assignment.

Removes from the display input sources that are not used.

Adjusts the playback level of the audio input.

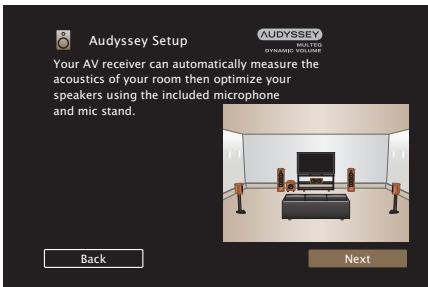

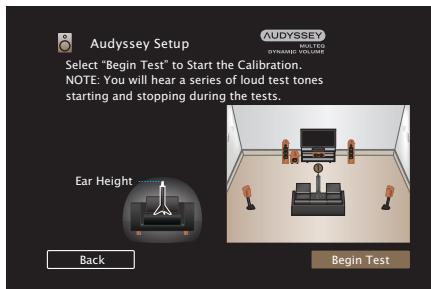

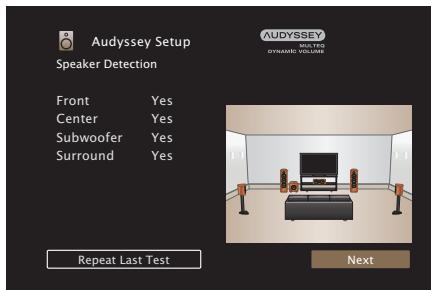

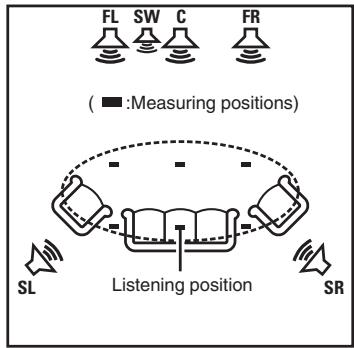

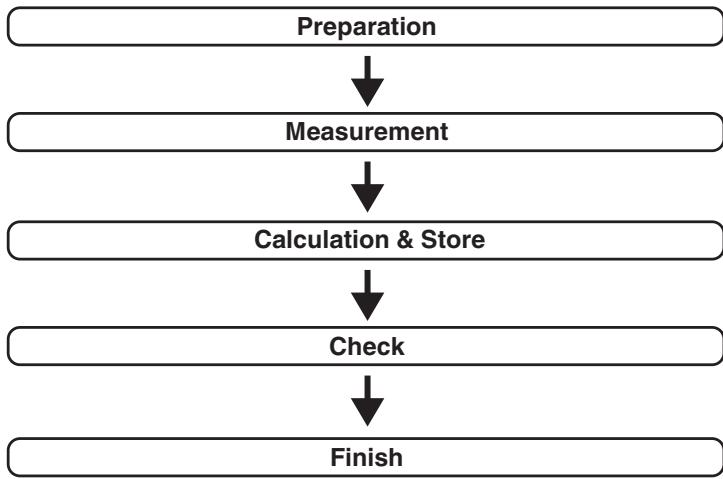

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically.

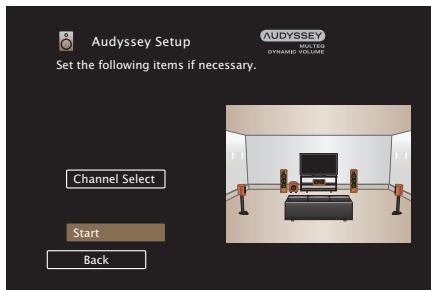

Sets up the speakers manually or changes Audyssey® Setup settings.

Selects whether to connect the home network to a wireless LAN or a wired LAN.

Used for manually setting the IP address.

Enables network communication in standby power mode.

The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.

Used to check the network connection.

【When the user is signed out the HEOS Account】

I have a HEOS Account

If you forgot your password, we'll send you an email with instructions about how to reset it.

【When the user is signed in the HEOS Account】

Selects your location.

Changes your HEOS Account Password.

Deletes your HEOS Account.

Sign out of your HEOS Account.

Changes the language of the display on the TV screen.

Changes the Smart Select Name display title to one you prefer.

Makes settings related to the display on this unit.

Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display.

Shows information about this unit settings, input signals, etc.

Selects whether or not to send anonymous usage data to Marantz.

Save and restore device settings by using a USB memory device.

Protects settings from inadvertent changes.

Various settings are reset to the factory default values.

Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen.

Sets individual setting items according to the guidance displayed on the TV screen.

Speaker Setup Setup Assistant Sp.Calibration Network Setup TV Audio Connect Input Setup Mobile Apps

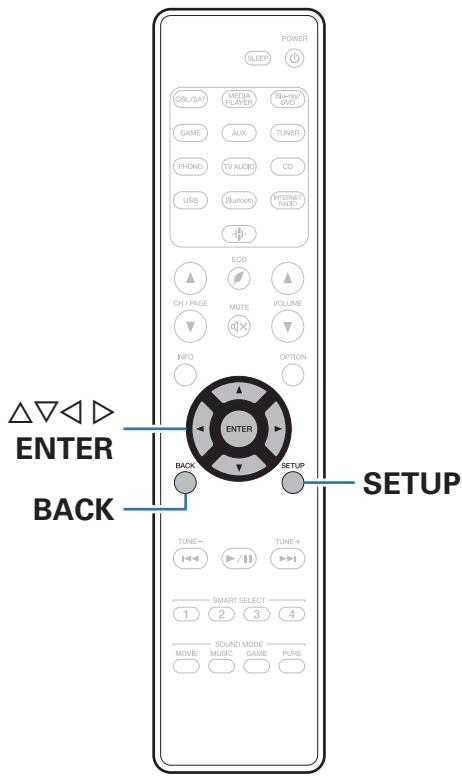

Press SETUP. The menu is displayed on the TV screen.

Use ui p to select the menu to be set or operated, then press ENTER. Use o p to change to desired setting. Press ENTER to enter the setting. 0 To return to the previous item, press BACK.

0 Exiting the menu, press SETUP while the menu is displayed. The

menu display disappears.

Audio Make audio-related settings.

Adjusts the center channel volume to clarify the dialog for all sources.

Adjusts the subwoofer channel volume for all input sources.

Adjusts the volume output from the center channel.

Adjusts the volume level for the subwoofer.

–12.0 dB – +12.0 dB (Default: 0.0 dB)

–12.0 dB – +12.0 dB (Default: 0.0 dB)

0 This setting is also reflected in the center channel level in the “Speakers” “Levels” menu settings. (v p. 160)

0 This setting is also reflected in the subwoofer channel level in the “Speakers” “Levels” menu settings. (v p. 160)

This sets whether to output as specified in “Dynamic Comp.” or output directly without compressing the dynamic range of audio recorded in the disc.

You can adjust the surround audio sound field effects to match your preferences. The items (parameters) that can be adjusted depend on the signal being input and the currently set sound mode. For details on the adjustable parameters, see “Sound modes and surround parameters” (v p. 211).

Outputs are given based on enabling the settings made in “Dynamic Comp.” and Dialogue normalization function.

0 Some setting items cannot be set while playback is stopped. Make the settings during playback. 0 “Surr.Parameter” settings are stored for each sound mode.

“Dynamic Comp.” settings and Dialogue normalization are disabled, and the signals on the disc are output as is.

0 “Loudness Mngmt” can be set when Dolby TrueHD signal is input.

Gently softens the upper treble range of movie soundtracks to reduce possible harshness and improve clarity. On:

“Cinema EQ” is used.

“Cinema EQ” is not used.

Adjust the low frequency effects level (LFE).

Compress dynamic range (difference between loud and soft sounds). Auto:

Automatic dynamic range compression on/off control according to source.

Low / Medium / High:

These set the compression level.

Dynamic range compression is always off.

-10 dB – 0 dB (Default: 0 dB)

0 For proper playback of the different sources, we recommend setting to the values below. 0 Dolby Digital sources: 0 dB 0 DTS movie sources: 0 dB 0 DTS music sources: -10 dB

0 “Dynamic Comp.” can be set when Dolby Digital, Dolby Digital Plus, Dolby TrueHD or DTS signal is input. 0 The default setting is “Off”. When the input signal is the Dolby TrueHD source, the default setting is “Auto”. 0 “Auto” cannot be set when inputting a DTS signal.

Distributes the dialogue output from the center channel to the front left and right channels and widens the sound image in the front.

Shift sound image center to front or rear to adjust playback balance. 0 – 6 (Default : 3)

0.0 – 1.0 (Default : 0.3)

0 You can set this when the sound mode is Dolby PLg in the “Music” mode. 0 As you set a smaller number, the surround sound field shifts backward; as you set a larger number, the surround sound field shifts forward.

0 You can set this when the sound mode is DTS Neo:6 in the “Music” mode. 0 The smaller the value, the more dialogue is concentrated on the center channel. The larger the value, the more dialogue is distributed to front left and right channels, and the more the sound image widens in the front.

o Center Width Distributes the dialogue output from the center channel to left and right channels and widens the sound image in the front.

o Panorama The front sound field is expanded further towards the back to create a seamlessly inclusive sound impression. On:

0 You can set this when the sound mode is Dolby PLg in the “Music” mode. 0 The smaller the value, the more dialogue is concentrated on the center channel. The larger the value, the more dialogue is distributed to front left and right channels, and the more the sound image widens in the front.

0 You can set this when the sound mode is Dolby PLg in the “Music” mode.

o Subwoofer Turn subwoofer output on and off. On (Default):

The subwoofer is used.

The subwoofer is not used.

0 You can set this when the sound mode is “Direct” or “Stereo” and in the menu “Subwoofer Mode” is set to “LFE+Main”. (v p. 162)

o Set Defaults The “Surr.Parameter” settings are returned to the default settings.

M-DAX 0 The M-DAX indicator lights. 0 This item can be set with analog signals or PCM signal (Sample Rate = 44.1/48 kHz) is input. 0 This item default setting for “HEOS Music” is “Low”. All others are set to “Off”. 0 This cannot be set when the sound mode is set to “Direct” or “Pure Direct”. 0 “M-DAX” settings are stored for each input source. 0 This can also be set by pressing M-DAX on the main unit.

Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The “M-DAX” function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also restores the original bass characteristics for a rich and expanded tonal range.

Optimized mode for compressed sources with very weak highs (64 kbps and under).

Apply suitable bass and treble boost for all compressed sources (96 kbps and under).

Optimized mode for compressed sources with normal highs (96 kbps and over).

The timing mismatch between the picture and sound needs to be corrected manually.

Compensates for incorrect timing between video and audio.

0 ms – 500 ms (Default : 0 ms) 0 “Audio Delay” settings are stored for each input source.

0 You can also finely adjust the delay correction value set by “Auto Lip Sync”.

Automatically adjusts the audio processing time to compensate for delays in audio/video timing from TV compatible with Auto Lip Sync. On (Default):

Correct automatically.

Do not correct automatically.

0 Automatic correction may not be performed depending on the specifications of your TV even when “Auto Lip Sync” is set to “On”.

Define the volume setting that is active when the power is turned on.

Set the volume setting.

Use the memorized setting from the last session.

Set how volume is displayed.

Always use the muting on condition when power is turned on.

Display in the range 0 (Min) to 98.

1 – 98 (–79 dB – 18 dB) :

The volume is adjusted to the set level.

Display ---dB (Min), in the range –79.5 dB to 18.0 dB.

0 The dB value is displayed when the “Scale” setting is “ –79.5 dB – 18.0 dB”. (v p. 130)

Set the amount of attenuation when muting is on.

60 (–20 dB) / 70 (–10 dB) / 80 (0 dB) Off (Default)

0 The dB value is displayed when the “Scale” setting is “ –79.5 dB – 18.0 dB”. (v p. 130)

The sound is muted entirely.

The sound is attenuated by 40 dB down.

The sound is attenuated by 20 dB down.

MultEQ® compensates for both time and frequency characteristics of the listening area based on “Audyssey® Setup” measurement results. Selection is done from three types of compensation curves. We recommend the “Reference” setting.

Set Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume®. These can be selected after Audyssey® Setup has been performed. For additional information on Audyssey technology, please see “Explanation of terms” (v p. 217).

0 “MultEQ®”, “Dynamic EQ”, “Ref.Lev.Offset” and “Dynamic Volume” settings are stored for each input source. 0 When the sound mode is in the “Direct” or “Pure Direct” mode, “MultEQ®”, “Dynamic EQ” and “Dynamic Volume” settings cannot be configured.

Reference (Default):

Selects the default calibrated setting with a slight roll off at high frequencies, which is optimized for movies.

Selects the reference setting, but bypasses MultEQ® on the front left and right speakers.

Selects the calibrated setting which is optimized for small rooms where your listening position is closer to the speakers.

Do not use “MultEQ®”.

0 When using headphones, “MultEQ®” is automatically set to “Off”.

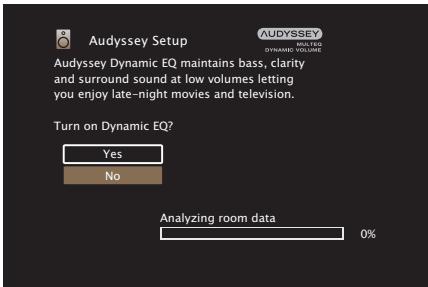

Solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Works with MultEQ®. On (Default):

Do not use “Dynamic EQ”.

Audyssey Dynamic EQ® is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard. Recommended setting levels for content are shown below. 0 dB (Film Reference) (Default):

0 When the menu “Dynamic EQ” setting is “On”, it is not possible to do “Tone” adjustment. (v p. 93)

Optimized for content such as movies. Select this setting for content that has a very wide dynamic range, such as classical music. Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference. Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.

Most adjustment to softest and loudest sounds.

Medium adjustment to loudest and softest sound.

Least adjustment to loudest and softest sounds.

Do not use “Dynamic Volume”.

Manual EQ Solves the problem of large variations in volume level between TV, movies and other content (between quiet passages and loud passages, etc.) by automatically adjusting to the user’s preferred volume setting. Works with MultEQ®. Heavy:

Uses the graphic equalizer to adjust the tone of each speaker. 0 Speakers for which “Manual EQ” can be set differ according to the sound mode. 0 This can be set when “MultEQ®” setting is “Off”. (v p. 131) 0 This cannot be set when the sound mode is set to “Direct” or “Pure Direct”. 0 If you are using headphones, you can set the equalizer for headphones. (v p. 133)

o Manual EQ / Headphone EQ Set whether to use the graphic equalizer or not. On:

Use the graphic equalizer.

Do not use the graphic equalizer.

0 If “Dynamic Volume” is set to “Yes” in “Audyssey® Setup”, the setting is automatically changed to “Medium”. (v p. 147) 0 “Headphone EQ” is set in the menu when headphones are used.

Select whether to adjust tones for individual speakers or for all speakers. All:

Adjust all speaker tones together.

Left/Right (Default) :

Adjust the left and right speaker tones together.

Adjust the tone for each speaker.

Copy the Flat correction curve created in Audyssey® Setup.

0 “Curve Copy” is displayed after Audyssey® Setup has been performed. 0 “Curve Copy” cannot be used when using headphones.

o Set Defaults The “Manual EQ” settings are returned to the default settings.

o Adjust EQ Adjust tonal balance for each frequency band. 1. Select the speaker. 2. Select the adjustment frequency band. 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz 3. Adjust the level. –20.0 dB – +6.0 dB (Default : 0.0 dB)

Video Make video-related settings.

Make settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings. NOTE 0 When “HDMI PassThrough” and “HDMI Control” is set to “On”, it consumes more standby power. (“ HDMI PassThrough ” (v p. 136), “ HDMI Control ” (v p. 137)) If you are not using this unit for an extended period, it is recommended that you unplug the power cord from the power outlet.

Play back through speakers connected to the unit.

Play back through TV connected to the unit.

0 When the HDMI Control function is activated, priority is given to the TV audio setting. (v p. 105) 0 When the power of this unit is on and “HDMI Audio Out” is set to “TV”, audio is output as 2-channel from the HDMI OUT connector.

Transmits the selected HDMI input through this unit’s HDMI output when this unit is in standby power mode.

No HDMI signals are transmitted through this unit’s HDMI output in standby power mode.

Set whether to allow this unit to be turned on by the input source select button on the remote control when this unit is on standby. Power On+Source (Default):

The power of this unit is turned on and the input source changes.

The HDMI input source changes while this unit is on standby. The power display of this unit blinks when the input source select button of the remote control is pressed.

o Pass Source Sets the HDMI connector that inputs HDMI signals when in standby. Last:

The most recently used input source will go into standby mode.

CBL/SAT / Blu-ray/DVD / Game / AUX / Media Player (Default : CBL/SAT)：

Pass through the selected input source.

0 “RC Select” can be set when “HDMI Control” is set to “On” or “HDMI PassThrough” is set to “On”. (“ HDMI PassThrough ” (v p. 136), “ HDMI Control ” (v p. 137))

0 “Pass Source” can be set when “HDMI PassThrough” is set to “On” or “HDMI Control” is set to “On”. (“ HDMI PassThrough ” (v p. 136), “ HDMI Control ” (v p. 137))

o ARC You can link operations with devices connected to HDMI and compatible with HDMI Control.

On the TV connected to the HDMI MONITOR connector, set whether to receive sound from the TV via HDMI.

Do not use ARC function.

0 Please consult the operating instructions for each connected device to check the settings. 0 Refer to “HDMI Control function” for more information about the HDMI Control function. (v p. 105)

0 You can adjust the volume of this unit using the TV remote control. 0 If using this function, use a TV compatible with ARC (Audio Return Channel) and enable the HDMI Control function of the TV. 0 When “HDMI Control” is set to “On”, the “ARC” settings automatically switch “On”. (v p. 137)

0 If the “HDMI Control” settings have been changed, always reset the power to connected devices after the change.

0 If the “ARC” settings have been changed, always reset the power to connected devices after the change.

Sets automatic switching to the “TV Audio” input when a TV connected via HDMI sends an appropriate CEC control command to this unit. On (Default):

Select the “TV Audio” input automatically when receiving a command from the TV.

Do not select the “TV Audio” input automatically when receiving a command from the TV.

Links the power standby of this unit to external devices.

0 “TV Audio Switching” can be set when “HDMI Control” is set to “On”. (v p. 137)

If power to a connected TV is turned off independently of the input source, power to this unit is automatically set to standby.

With an input source being selected that is assigned either “HDMI” or “VIDEO”, when you turn the power of the TV off, power to this unit is automatically set to standby. (v p. 144)

This unit does not link with power to a TV.

0 “Pow.Off Control” can be set when “HDMI Control” is set to “On”. (v p. 137)

If “TV Speaker” is set as the audio output setting of your TV, this unit is automatically set to standby mode to reduce power consumption. This function is activated in the following cases. 0 When “TV Audio” is selected as the input source of this unit 0 When playing content from a device connected by HDMI On:

Use Power Saving function.

Do not use Power Saving function.

This function can be used to configure the settings of this unit, select an input source and set Tuner and Internet Radio stations using the TV remote control. On:

Use Smart Menu function.

Do not use Smart Menu function.

0 “Smart Menu” can be set when “HDMI Control” is set to “On”. (v p. 137)

NOTE 0 If the “Smart Menu” settings have been changed, always reset the power to connected devices after the change. 0 The Smart Menu function may not work properly depending on the specifications of your TV. In this case, set “Smart Menu” to “Off”.

0 “Power Saving” can be set when “HDMI Control” is set to “On”. (v p. 137)

Show display continuously.

Show display for 30 seconds after operation.

Sets where to display the volume level. Bottom (Default): Top: Off:

Display at the bottom. Display at the top. Turn display off.

0 When the master volume display is hard to see when superimposed text (closed captioning) or movie subtitles are present, set to “Top”.

o Info Displays status of operation temporarily when the input source is switched. On (Default): Off:

GRelation between the “4K Signal Format” setting and supported resolutionsH

4K Signal Format Set the 4K signal format to be played back by this unit when the TV or playback device connected to this unit is HDMI 4K (60Hz/50Hz) signal compatible.

Set the format of the 4K signal played back by this unit.

4K Signal Format Enhanced

Select if your TV and playback devices support standard 4K 60p 4:2:0 8 bit video signals.

4K 60p, 4K 50p YCbCr 4:2:0 8 bit

Select if your TV, playback devices, and cables support high quality 4K 60p 4:4:4, 4:2:2 or 4K 60p 4:2:0 10 bit video signals.

0 When setting this to “Enhanced”, we recommend using a “Premium High Speed HDMI Cable” or “Premium High Speed HDMI Cable with Ethernet” that has an “HDMI Premium Certified Cable” label attached to the product package. 0 When this setting is “Enhanced”, configure the television or playback device settings to match this setting. 0 When this setting is “Enhanced”, video may not be output correctly depending on the connected playback device or HDMI cable. In this case, change this setting to “Standard”. 0 “Custom” is displayed for the setting item if our service engineers or custom installers has configured the HDMI signal format for this unit. 0 “4K Signal Format” can also be set by the following procedure. However, the menu screen is not displayed. Watch the display while configuring the setting.

Set the video signal format to be output for the TV you are using.

o Format NTSC (Default):

0 “Format” can also be set by the following procedure. However, the menu screen is not displayed. Following the display content to make the setting.

1. Press and hold the main unit’s TUNER PRESET CH + and STATUS at the same time for at least 3 seconds. “V.Format:<NTSC>” appears on the display. 2. Press the main unit's DIMMER. “4K :<Standard>” appears on the display. 3. Use the main unit's TUNER PRESET CH + or TUNER PRESET CH – and select the 4K Signal Format. 4. Press the main unit’s STATUS to complete the setting.

1. Press and hold the main unit’s TUNER PRESET CH + and STATUS at the same time for at least 3 seconds. “V.Format:<NTSC>” appears on the display. 2. Use the main unit’s TUNER PRESET CH + or TUNER PRESET CH – and set the video signal format. 3. Press the main unit’s STATUS to complete the setting.

NOTE 0 When a format other than the video format of the connected TV is set, the picture will not be displayed properly.

Inputs Perform settings related to input source playback. You do not have to change the settings to use the unit. Make settings when needed.

0 By default, each item is set as follows.

By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device. Please change the assignment of the HDMI input connector, digital audio input connector, analog audio input connector and video input connector when connecting an input source that differs from that printed to the audio/ video input connectors of this unit.

n TV set top box/satellite users please note When using the digital audio output on a TV/satellite box: To play the video signal assigned to “HDMI” combined with the audio signal assigned at “Input Assign” - “DIGITAL”, you will also need to select “Digital” in the “Input Mode”. (v p. 146)

o ANALOG Set this to change the HDMI input connectors assigned to the input sources.

Set this to change the analog audio input connectors assigned to the input sources.

Do not assign an HDMI input connector to the selected input source.

0 When “HDMI Control” or “ARC” is set to “On” in the menu, “HDMI” cannot be assigned to “TV Audio”. (v p. 137) 0 No information on changing the volume or sound mode is displayed when the 4K signal is input.

Set this to change the composite video input connectors assigned to the input sources. 1 / 2 / 3:

Set this to change the digital audio input connectors assigned to the input sources. COAX (Coaxial) / OPT (Optical):

Assign a digital audio input connector to the selected input source.

Do not assign a digital audio input connector to the selected input source.

Assign a analog audio input connector to the selected input source. Do not assign a analog audio input connector to the selected input source.

Assign the video input connector to the selected input source. Do not assign a video input connector to the selected input source.

o Set Defaults The “Input Assign” settings are returned to the default settings.

Change the display name for input source. This is convenient when the name of your device and the input source name of this unit are different. You can change the name to suit your needs. When the renaming is completed, the name is displayed on this unit’s display and on the menu screen. CBL/SAT / Blu-ray/DVD / Game / Media Player / TV Audio / AUX / CD / Phono:

Change the display name for input source.

The “Source Rename” settings are returned to the default settings.

Remove from the display input sources that are not used. Show (Default) :

Do not use this source.

Source Level This function corrects the playback level of the selected input source’s audio input. Make this setting if there are differences in the input volume levels between the different sources. -12 dB – +12 dB (Default : 0 dB)

0 Up to 12 characters can be input. 0 “Source Level” settings are stored for each input source.

Input Select Set the audio input mode of each input source. The input modes available for selection may vary depending on the input source. 0 “Input Select” settings are stored for each input source.

o Input Mode Set the audio input modes for the different input sources. It is normally recommended to set the audio input mode to “Auto”. Auto (Default):

Automatically detect input signal and perform playback.

Play only signals from HDMI input.

Play only signals from digital audio input.

Play only signals from analog audio input.

0 When digital signals are properly input, the ~ indicator lights on the display. If the ~ indicator does not light, check “Input Assign” and the connections. (v p. 143) 0 If “HDMI Control” is set to “On” and a TV compatible with the ARC is connected via the HDMI MONITOR connectors, the input mode whose input source is “TV Audio” is fixed to ARC.

Speakers The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey® Setup”. You do not have to perform Audyssey® Setup when you have already performed “Sp.Calibration” in “Setup Assistant”. To set up the speakers manually, use “Manual Setup” on the menu. (v p. 157)

Audyssey® Setup To perform measurement, place the Sound calibration microphone in multiple locations all around the listening area. For best results, we recommend you measure in six positions, as shown in the illustration. When measuring the second and subsequent positions, install the Sound calibration microphone within 2 ft (60 cm) of the first measurement position (main listening position).

FR FL Front speaker (L) FR Front speaker (R) C Center speaker SW Subwoofer SL Surround speaker (L) SR Surround speaker (R)

NOTE The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey® Setup, place the Sound calibration microphone in the main listening position. Audyssey MultEQ® uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

0 Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices (radios, air conditioners, fluorescent lights, etc.). The measurements could be affected by the sounds emitted by such devices. 0 During the measurement process, place cell phones outside the listening room. Cell phone signals could disrupt the measurements. 0 Do not stand between the speakers and Sound calibration microphone or allow obstacles in the path while the measurements are being made. Also, install the Sound calibration microphone at least 20 inches (50 cm) away from the wall. Failure to do so will result in inaccurate readings. 0 During the measurement process, audible test tones will come from the speakers and subwoofer(s), but this is part of normal operation. If there is background noise in the room, these test signals will increase in volume. 0 Operating VOLUME d f on the remote control unit or VOLUME on the main unit during the measurements will cancel the measurements. 0 Measurement cannot be performed when headphones are connected. Unplug the headphones before performing Audyssey® Setup.

Procedure for speaker settings (Audyssey® Setup)

Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it at the main listening position.

When installing the Sound calibration microphone, point the tip of the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.

If using a subwoofer capable of the following adjustments, set up the subwoofer as shown below.

n When using a subwoofer with a direct mode Set the direct mode to “On” and disable the volume adjustment and crossover frequency setting.

Connect the Sound calibration microphone to the SETUP MIC jack of this unit.

Select “Start”, then press ENTER. Audyssey® Setup can also make the following settings. 0 Channel Select If channels that are not to be used are set in advance, measurement for the set channels is skipped, and measuring time can be reduced. Audyssey Setup

When the Sound calibration microphone is connected, the following screen is displayed.

Set the following items if necessary.

Audyssey Setup Your AV receiver can automatically measure the acoustics of your room then optimize your speakers using the included microphone and mic stand.

Follow the instructions on the screen display and press “Next” to proceed further.

When the detected speaker is displayed, select “Next” and then press ENTER.

When the following screen is displayed, select “Begin Test” and then press ENTER.

Audyssey Setup Speaker Detection

Start the measurement of the first position.

Select “Begin Test” to Start the Calibration. NOTE: You will hear a series of loud test tones starting and stopping during the tests.

0 Measurement requires several minutes.

The measurement of the second position starts. Measurements can be made in up to six positions.

Repeat step 9, measuring positions 3 to 6. 0 To skip measuring the fourth and subsequent listening position, press o to select “Complete” and press ENTER to proceed to step 12.

Audyssey Setup Place the microphone ear level at the 2nd listening position, which should be no more than 2ft (60cm) away from the 1st position, then select “Continue”...

Select “Continue”, then press ENTER. Audyssey Setup Measurements Complete. Select “Continue” to analyze the data...

Start the analysis and storage of the measurement results. 0 Analysis takes several minutes to complete. The more speakers and measurement positions that there are, the more time it takes to perform the analysis. NOTE 0 When the measurement results are being saved, make sure the power is not turned off.

Perform the settings for Audyssey Dynamic EQ® and Audyssey Dynamic Volume®.

0 Dynamic EQ corrects the frequency response in consideration of

the audio characteristics of the room and human hearing ability so that sound can be heard even at low volume. This is recommended when using the unit with the volume turned down, e.g. when enjoying a movie or TV program in the middle of the night. 0 Dynamic Volume adjusts the output volume to the optimal level while constantly monitoring the level of the audio input to the unit. Optimal volume control is performed automatically without any loss in the dynamism and clarity of the sound when, for example, the volume suddenly increases for commercials shown during television programs.

The following screen is displayed during the analysis. Configure the settings as preferred. Audyssey Setup Audyssey Dynamic EQ maintains bass, clarity and surround sound at low volumes letting you enjoy late-night movies and television. Turn on Dynamic EQ? Yes No

Audyssey Setup Audyssey Dynamic Volume automatically adjusts volume to deliver the perfect levels for day or night listening. Turn on Dynamic Volume? Yes No

When the analysis and storage ends, unplug the Sound calibration microphone from the SETUP MIC jack on the main unit and then press “Next”.

Select “Details” and press ENTER to verify the measurement results.

0 Subwoofers may measure a greater reported distance than the

actual distance due to added electrical delay common in subwoofers.

Audyssey Setup Now Analyzing and correcting the your room data.

NOTE 0 Do not change the speaker connection or subwoofer volume after Audyssey® Setup. If these are changed, run Audyssey® Setup again in order to configure the optimum equalizer settings.

Analyzing room data Next

Error messages An error message is displayed if Audyssey® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections. Examples

0 Sound calibration microphone is not

0 Connect the included Sound calibration microphone to the

0 Not all speakers could be detected.

0 Check the speaker connections.

Ambient noise is too high or level is too 0 There is too much noise in the room. low 0 Speaker or subwoofer sound is too low.

SETUP MIC jack of this unit.

0 Either turn off any device generating noise or move it away. 0 Perform again when the surroundings are quieter. 0 Check the speaker installation and the direction in which the

speakers are facing.

0 Adjust the subwoofer’s volume.

0 The displayed speaker could not be

0 Check the connections of the displayed speaker.

0 The displayed speaker is connected with the

even if the speaker is properly connected. If you are sure the connection is correct, press p to select “Ignore”, then press ENTER.

Retrieving Audyssey® Setup settings If you set “Restore...” to “Restore”, you can return to Audyssey® Setup measurement result (value calculated at the start by MultEQ®) even when you have changed each setting manually. Audyssey Setup Set the following items if necessary.

Channel Select Check Results Restore... Start

Speaker Config. Select whether or not speakers are present, playback capacity for low bass frequencies and speaker size.

Perform when setting the speakers manually or when changing settings made in Audyssey® Setup. 0 If you add or remove a speaker after performing Audyssey® Setup, you will no longer be able to select Audyssey MultEQ®, Audyssey Dynamic EQ® or Audyssey Dynamic Volume®. (v p. 131) 0 “Manual Setup” can be used without changing the settings. Please set if necessary.

o Front Set the front speaker size. Large (Default):

Use a large speaker that can adequately play back very low bass frequencies.

Use a small speaker that has inadequate playback capacity for very low bass frequencies.

0 When “Subwoofer” is set to “No”, “Front” is automatically set to “Large”. 0 When “Front” is set to “Small”, you cannot set speakers other than “Front” to “Large”.

Set the presence and size of the surround speakers.

Set the presence and size of the center speaker. Large:

Use a large speaker that can adequately play back very low bass frequencies.

Use a large speaker that can adequately play back very low bass frequencies.

Use a small speaker that has inadequate playback capacity for very low bass frequencies.

Use a small speaker that has inadequate playback capacity for very low bass frequencies.

Select when a center speaker is not connected.

Select when the surround speakers are not connected.

Select when a subwoofer is not connected.

0 When “Subwoofer” is set to “No” and you set “Front” to “Small”, “Subwoofer” is automatically set to “Yes”.

0.0 ft – 60.0 ft / 0.00 m – 18.00 m

Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each speaker.

0 The speakers that can be selected differ depending on the “Speaker Config.” settings. (v p. 157) 0 Default settings: Front L / Front R / Center / Subwoofer: 12.0 ft (3.60 m) Speakers other than the above: 10.0 ft (3.00 m) 0 Set the difference in the distance between the speakers to less than 20.0 ft (6.00 m).

o Unit Set the unit of distance. Feet (Default) Meters

Set the minimum variable width of the distance.

The “Distances” settings are returned to the default settings.

1 ft / 0.1 ft (Default: 1 ft) 0.1 m / 0.01 m

Levels Set the volume of the test tone to be the same at the listening position when it is output from each speaker.

o Test Tone Start A test tone is output from the selected speaker. While listening to the test tone, adjust the volume output from the selected speaker. –12.0 dB – +12.0 dB (Default : 0.0 dB)

0 The set “Levels” are reflected in all sound modes. 0 If you wish to adjust the channel level for each input source, carry out the settings in “Ch Level Adjust” (v p. 92). 0 When headphones are connected to the PHONES connector on this unit, you cannot set “Levels”.

o Set Defaults The “Levels” settings are returned to the default settings.

o Set the crossover frequency

40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 80 Hz)

Set in accordance with the lower limit frequency of the base frequencies that can be played back through each speaker. See the speaker manual for information concerning speaker crossover frequency.

0 “Crossovers” can be set when the “Subwoofer Mode” setting is “LFE+Main”, or when you have a speaker that is set to “Small”. (v p. 162) 0 The default crossover frequency is “80 Hz”, which will work best with the widest variety of speakers. We recommend setting to a higher frequency that the crossover frequency when small speakers are used. For example, set to “250 Hz” when the frequency range of the speakers is 250 Hz – 20 kHz. 0 Sound below the crossover frequency is cut off from the output of the speakers set in “Small”. This cut off bass frequency is output from the subwoofer or front speakers. 0 The speakers that can be set when “Individual” is selected differ depending on to the “Subwoofer Mode” setting. (v p. 162)

Selects how to set the crossover frequency. All (Default):

Sets the same crossover frequency for all speakers.

Selects the crossover points for each speaker individually.

0 When “LFE” is selected, speakers set to “Small” at “Speaker Config.” can be set. If the speakers are set to “Large”, “Full Band” is displayed and the setting cannot be made. (v p. 157) 0 When “LFE+Main” is selected, speakers can be set regardless of the “Speaker Config.” setting. (v p. 157)

Set LFE signal playback range. Set this when you want to change the playback frequency (low pass filter point) of the subwoofer.

Set subwoofer and LFE signal range playback.

80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default: 120 Hz)

Select low range signals to be reproduced by subwoofer. LFE (Default):

The low range signal of the channel set to “Small” speaker size is added to the LFE signal output from the subwoofer.

The low range signal of all channels is added to the LFE signal output from the subwoofer.

0 “Subwoofer Mode” can be set when “Speaker Config.” - “Subwoofer” on the menu is set to other than “No”. (v p. 158) 0 Play music or a movie source and select the mode offering the strongest bass. 0 If “Speaker Config.” - “Front” and “Center” are set to “Large”, and “Subwoofer Mode” is set to “LFE”, no sound may be output from the subwoofers, depending on the input signal or selected sound mode. (v p. 157) Select “LFE+Main” if you want the bass signals to always be produced from the subwoofer.

Network To use this unit by connecting it to a home network (LAN), you must configure network settings. If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN). When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address” settings, and enter information about your home network (LAN) such as the gateway address and subnet mask, etc.

Choose whether to connect the home network to a wireless LAN or a wired LAN. When connecting to the network using wired LAN, select “Wired(Ethernet)” after connecting a LAN cable. When connecting to the network using wireless LAN, select “Wireless(WiFi)” and configure the “Wi-Fi Setup”. (v p. 164)

Friendly Name / Connection / SSID / DHCP / IP Address / MAC Address (Ethernet) / MAC Address (Wi-Fi) / Wi-Fi signal strength

o Connect Using Select the method for connecting to the home network (LAN).

Use a LAN cable to connect to a network.

Wireless(Wi-Fi) (Default):

Use the wireless LAN (Wi-Fi) function to connect to a network.

Use your iOS device (iPhone/iPod/iPad) to connect to the network. By connecting your iOS device to this unit using Wi-Fi, the unit can be automatically connected to the same network as your device.

Connect to a wireless LAN (Wi-Fi) router. The router can be connected in the following ways. Select the connection method to suit your home environment.

1. Select “Use iOS Device” on the TV screen. 2. Check that your iOS device is connected to the wireless LAN (WiFi) router and select “Marantz NR1509” from “SET UP NEW AIRPLAY SPEAKER...” at the bottom of the Wi-Fi configuration screen of your iOS device. 3. Tap “Next” on the screen of the iOS device.

o Scan Networks Select the network you wish to connect to from the list of possible networks shown on the TV screen. 1. Select the network you wish to connect to from the list of wireless networks. Select “Rescan” if the network cannot be found. 2. Enter your password and select “OK”.

0 The iOS device firmware version needs to support iOS 7 or later.

o WPS Router Use a WPS-compatible router to connect using the push button method. 1. Select “Push Button” on the TV screen. 2. Switch to the WPS mode by pressing the WPS button of the router you wish to connect to. 0 The time for pressing the button varies depending on the router. 3. Select “Connect” on the TV screen within 2 minutes.

Configure the IP address. 0 If you are using a broadband router (DHCP function), the information required for network connection such as the IP address will be automatically configured since the DHCP function is set to “On” in the default settings of this unit. 0 Set up the IP Address, Subnet Mask, Default Gateway and DNS server information only when assigning a fixed IP address or when connecting to a network without DHCP function.

1. Set the following items. Input the name of the wireless network (SSID).

Select the encryption method according to the encryption setting of the access point you are using.

Enter the name (SSID) and password of the network you wish to connect to. SSID:

2. Select “Connect” at the end of the setting.

DHCP -IP Address -Subnet Mask -Default Gateway -DNS

0 The wireless LAN (Wi-Fi) settings of this unit can also be configured from a PC or tablet that supports wireless LAN connection. 1. Press and hold the M-DAX and SOUND MODE buttons on the main unit for at least 3 seconds when the power of the unit is on. 2. Connect the wireless LAN of the PC or tablet used to “Marantz NR1509” when the message “Connect your Wi-Fi device to Wi-Fi network called “Marantz NR1509”.” appears in the display. 3. Start up the browser and enter “192.168.1.16/Settings/” in the URL. 4. Use the browser to enter the settings, select “Connect” and then exit the settings.

0 The Default key of this unit is fixed at “1”. Set Default key of the router to “1” to use.

Selects how to connect to the network.

When connected to a gateway (router), input its IP address.

Configure the network settings automatically from your router.

Configure the network settings manually.

o DNS Enter the DNS address indicated in the documentation supplied by your provider.

o IP Address Set the IP address within the ranges shown below. 0 The Network Audio function cannot be used if other IP addresses are set. CLASS A: 10.0.0.1 - 10.255.255.254 CLASS B: 172.16.0.1 - 172.31.255.254 CLASS C: 192.168.0.1 - 192.168.255.254

0 If you cannot connect to the Internet, recheck the connections and settings. (v p. 46) 0 If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the store from which you purchased your computer.

o Subnet Mask When connecting an xDSL modem or connector adapter directly to this unit, input the subnet mask indicated in the documentation supplied by your provider. Normally input “255.255.255.0”.

Enables network communication in standby power mode. Off In Standby:

Suspend network function during standby.

Always On (Default) :

Network is on during standby. Main unit operable with a network compatible controller.

The Friendly Name is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences.

o Name Selects Friendly Name from the list. When you select “Other”, you can change the Friendly Name according to your preferences. Home Theater /Living Room / Family Room / Guest Room / Kitchen / Dining Room / Master Bedroom / Bedroom / Den / Office / Other

0 When using the web control function, Marantz 2016 AVR Remote App or HEOS App, use with the “Network Control” setting set to “Always On”.

NOTE 0 When “Network Control” is set to “Always On”, the unit consumes more standby power.

0 Up to 30 characters can be input. 0 The default Friendly Name on first use is “Marantz NR1509”.

o Set Defaults Restores Friendly Name, which you had changed, to the default setting.

Checks whether this unit has access to the Internet (WAN).

Used to check the network connection.

o Physical Connection

Checks the physical LAN port connection.

OK Failed to connect to the Internet. Check the Internet connection environment or router settings.

The LAN cable is not connected. Check the connection.

0 When connected using a wireless LAN, “Connection displayed.

Wireless(Wi-Fi)” will be

o Router Access Checks the connection from this unit to the router. OK Error:

Failed to communicate with the router. Check the router settings.

HEOS Account Make HEOS Account-related settings. HEOS Account is needed in order to use HEOS Favorites. The menu displayed differs depending on the status of the HEOS Account.

You have not signed in

You have already signed in

o I have a HEOS Account

If you already have a HEOS Account, enter the current account name and password to sign in.

The currently signed in HEOS Account is displayed.

Change the regional settings for the signed in HEOS Account.

If you do not have a HEOS Account, create a new HEOS Account.

Change the password for the signed in HEOS Account.

If you have forgotten the password, an email explaining how to reset the password will be sent.

o Delete Account Delete the signed in HEOS Account.

o Sign Out Sign out from the HEOS Account.

General Make various other settings.

ECO Set the language for display the menu on the TV screen.

Configure the ECO Mode and auto standby mode settings.

English / Français / Español (Default: English)

o ECO Mode This mode can reduce the power consumption and heat generation of your AV receiver when power on. This is done by reducing the power supply line to the power amplifier, in turn the maximum power output.

0 “Language” can also be set up by the following operation. However, the menu screen is not displayed. Watch the display while configuring the settings. 1. Press and hold the main unit’s TUNER PRESET CH + and STATUS at the same time for at least 3 seconds. “V.Format:< NTSC>” appears on the display. 2. Press DIMMER on the main unit twice. “Lang.:<ENGLISH >” appears on the display. 3. Use the main unit’s TUNER PRESET CH + or TUNER PRESET CH – and set the language. 4. Press the main unit’s STATUS to complete the setting.

Power savings are always active, regardless of volume or input signal.

Gives you the best balance between power savings and maximum power output: For low volume levels, the power savings are active. If you increase the volume level, the power savings are switched off automatically, so you can enjoy maximum output power without distortion. If the volume is set to a high level but no input signal is detected for more than 2 minutes, this unit will enable power savings. When an input signal is detected again or the input source is changed, this unit will automatically turn off power savings again at high volume levels.

0 When the unit is switching between the different power saving states in “ECO Mode: Auto”, you may notice a click noise from the inside of this unit, this is normal. 0 If content is paused for more than 2 minutes and playback is resumed from the same source at these high volume levels, there may be short delay before maximum power is restored. 0 “ECO Mode” can also be switched by pressing ECO G on the remote control unit.

Set the mode to ECO when the power is on. Last (Default) :

The ECO Mode will be set to the previous setting before the power was switched off.

When power is turned on, the mode will always be switched to the ECO Mode in “On”.

When power is turned on, the mode will always be switched to the ECO Mode in “Auto”.

When power is turned on, the mode will always be switched to the ECO Mode in “Off”.

Display the power consumption of this unit using a meter on the TV screen. Always On:

o Auto Standby Set so the unit power automatically switches to standby. Sets the time for switching to auto standby when there are no audio or video signals input into this unit. Before the unit enters standby mode, “Auto Standby” is displayed on the unit display and the menu screen.

The unit goes into standby after 60 minutes.

The unit goes into standby after 30 minutes.

The unit goes into standby after 15 minutes.

The unit does not go into standby automatically.

Change the smart select name that appears on the TV screen to one you prefer.

Makes settings related to the display on this unit.

Smart Select 1 / Smart Select 2 / Smart Select 3 / Smart Select 4 Set Defaults:

Adjust the display brightness of this unit.

The default setting is restored for the edited smart select name.

0 Up to 16 characters can be input.

Normal display brightness.

Reduced display brightness.

Very low display brightness.

Turns the display off.

0 You can also adjust the display by pressing DIMMER on the main unit.

Turns on Automatic Updates so that futures updates are automatically downloaded and installed when this unit is in standby mode.

Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display for upgrades.

This unit will automatically update to the newest firmware when in standby mode.

Check for firmware updates. The firmware can be updated if a firmware update has been released. Update Now:

Execute the update process. When the update starts, the menu screen is shut down. During the update, the progress is shown on the display.

Turns on Automatic Updates.

Turns off Automatic Updates.

n Time Zone Change the time zone. Set the time zone that matches the area where you live.

0 This unit automatically retries updating if updating fails. If an update still cannot be performed, an “Update Error” message appears in the display. See “Troubleshooting” – “Update/upgrade error messages” for information on update error messages. (v p. 200) Check the conditions according to the message and try the update again. 0 This menu cannot be selected when “Allow Update” is set to “Off”.

0 This menu cannot be selected when “Allow Update” is set to “Off”.

Enable or disable updates and upgrades for this unit. On (Default):

Enables this unit to receive updates and upgrades.

Prevents this unit from receiving update and upgrade.

When the latest Upgrade firmware is available, a notification message is displayed on the TV screen at power on. The notification message is displayed for about 40 seconds when the power is turned on. On (Default):

Display upgrade message.

Do not display upgrade message.

0 This setting causes Incompatibilities between this unit and HEOS App. 0 This menu cannot be selected when “Allow Update” is set to “Off”.

Notes concerning use of “Update” and “Add New Feature”

Display the items to be upgraded.

Display a list of the additional functions provided by the upgrade.

requirements and settings for an Internet connection. (v p. 46)

0 Do not turn off the power until updating or upgrading is completed. 0 Approximately 1 hour is required for the updating/upgrading procedure

0 Once updating/upgrade starts, normal operations on this unit cannot

Execute the upgrade process. When the upgrade starts, the menu screen is shut down. During the upgrade, the amount of upgrade time which has elapsed is displayed.

be performed until updating/upgrading is completed. Furthermore, there may be cases where backup data is reset for the parameters, etc., set on this unit.

0 If the update or upgrade fails, press and hold the X on the main unit for

more than 5 seconds, or remove and re-insert the power cord. After about 1 minute, “Please wait” appears on the display and update restarts. If the error continues, check the network environment.

0 Information regarding the “Update” function and “Add New Feature” will be announced on the Marantz website each time related plans are defined. See the Marantz website for details about upgrades. 0 When the procedure is complete, “Registered” is displayed in this menu and upgrades can be carried out. If the procedure has not been carried out, “-------” is displayed. The ID number shown on this screen is needed when carrying out the procedure. The ID number can also be displayed by pressing and holding the main unit’s STATUS and SOUND MODE for at least 3 seconds. 0 If the upgrade is not successful, “Upgrade Error” message appears in the display. See “Troubleshooting” – “Update/upgrade error messages” for information on upgrade error messages. (v p. 200) Check the settings and network environment and then perform the upgrade again. 0 This menu cannot be selected when “Allow Update” is set to “Off”.

0 In order to use these functions, you must have the correct system

Display new features that can be downloaded to this unit and perform an upgrade.

Show information about this unit settings, input signals, etc.

Resolution / HDR / Color Space / Pixel Depth

Show the audio information. Sound Mode:

The currently set sound mode.

The input signal type.

The number of input signal channels (presence of front, surround, LFE).

The input signal’s sampling frequency.

The dialogue normalization correction value.

This is displayed when inputting signals including a surround back channel. “MATRIX” is displayed with DTS-ES Matrix input signals, “DISCRETE” with DTS-ES Discrete signals.

o Status Show information about current settings. This item shows information about settings for this unit. The information displayed differs according to the input source.

Displays information for the current firmware.

To help us improve our products and customer service, Marantz collects anonymous information about how you use this unit (such as frequently used input sources and sound modes and speaker settings). Marantz will never provide any information we collect to third parties.

Notif.Alerts Notification messages are displayed.

Notification messages are not displayed.

Provide information on the operating status of this unit.

Do not provide information on the operating status of this unit.

0 Press INFO on the remote control unit to display current source name, volume, sound mode name, and other information at the bottom of the screen.

SOURCE SOURCE SIGNAL AUDYSSEY Blu-ray/DVD Dolby Audio - TrueHD Dolby Audio - TrueHD MultEQ : Reference Dynamic EQ : On Dynamic Volume : Medium

Displays and sets notifications. Also, sets whether or not to display the notification when the power is turned on. On (Default):

Save and restore device settings by using a USB memory device.

Protect settings from inadvertent changes.

0 Use a USB memory device that has at least 128 MB of free space and is formatted to FAT32. Data may not Save/Load correctly to some USB memory devices. 0 It may take up to 10 minutes for data to Save/Load. Do not turn off the power until the process is complete.

Turn protection off.

o Save Configuration Current unit settings are stored on the USB memory device. When the settings are saved correctly, “Saved” appears on the display and the file “config.avr” is created on the USB memory device.

0 When cancelling the setting, set “Lock” to “Off”.

NOTE 0 When “Lock” is set to “On”, no setting items are displayed except for “Setup Lock”.

0 Do not change the file name of the created file. Doing so will prevent the file from being recognized as a settings file when restoring.

o Load Configuration Settings saved on the USB memory device are restored. When the saved settings are restored correctly, “Loaded” appears on the display and the unit automatically restarts.

Reset Returns settings to the factory default. Initialization can be performed for all unit settings or for Network settings only.

o All Settings All settings are reset to the factory default values.

o Network Settings Only network settings are reset to the factory default values.

0 Before returning the settings to the default settings, use the “Save & Load” function from the menu to save and restore the details of various settings configured on the unit. (v p. 179) 0 The “Reset” operation can also be performed by using the button on the main unit. For details on resetting all of the settings to the factory defaults see “Resetting factory settings” (v p. 201), and for details on resetting the network settings to the factory defaults see “Resetting network settings” (v p. 202).

NOTE 0 Do not disconnect the power or turn the device off during network settings initialization.

Tips I want the volume not to become too loud by mistake

I want to keep the volume at the same level when I turn the power on

I want to have the subwoofer always output audio

I want to make human voices in the movies clearer

I want to keep bass and clarity during playback at a lower volume level I want to automatically adjust the volume level difference in content such as TV and movies

Operations cannot be performed through the remote control unit

Display on this unit shows nothing

Desired sound does not come out

Sound is interrupted or noise occurs

The color of the menu screen and operations content displayed on the television is different from normal

I want to skip unused input sources

I want to operate this unit using the TV remote control

The menu screen is not displayed on the TV I want to combine a desired video with the current music

Power does not turn on / Power is turned off

No video is shown on the TV I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one

AirPlay cannot be played back

USB memory devices cannot be played back

Bluetooth cannot be played back

The Internet radio cannot be played back

Music files on PC or NAS cannot be played back

Various online services cannot be played

The HDMI Control function does not work

Cannot connect to a wireless LAN network

Tips I want the volume not to become too loud by mistake 0 Set the volume upper limit for “Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake.

I want to keep the volume at the same level when I turn the power on 0 By default, the volume setting when power was previously set to standby on this unit is applied at next power on with no change. To use a fixed volume

level, set the volume level at power on for “Power On Level” in the menu. (v p. 130)

I want to have the subwoofer always output audio 0 Depending on the input signals and sound mode, the subwoofer may not output audio. When “Subwoofer Mode” in the menu is set to “LFE+Main”, you

can have the subwoofer always output audio. (v p. 162)

I want to make human voices in the movies clearer 0 Use “Center Level” in the menu to adjust the level. (v p. 123)

I want to keep bass and clarity during playback at a lower volume level 0 Set “Dynamic EQ” in the menu to “On”. This setting corrects the frequency characteristics to allow you to enjoy clear sound without the bass being lost

even during playback at a lower volume level. (v p. 132)

I want to automatically adjust the volume level difference in content such as TV and movies 0 Set “Dynamic Volume” in the menu. Volume level changes (between quiet scenes and loud scenes) in TV shows or movies are automatically adjusted

to your desired level. (v p. 133)

I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one 0 Perform Audyssey® Setup. This automatically makes the optimized speaker settings for the new listening environment. (v p. 147)

I want to combine a desired video with the current music 0 Set “Video Select” in the option menu to “On”. You can combine the current music with your desired video source from a Set-top Box or DVD, etc. while

listening to music from the Tuner, CD, Phono, HEOS Music, USB or Bluetooth. (v p. 94)

I want to skip unused input sources 0 Set unused input sources for “Hide Sources” in the menu. This allows you to skip unused input sources when turning the INPUT SELECTOR knob on

this unit. (v p. 145)

I want to operate this unit using the TV remote control 0 Select “AV Receiver” in a TV menu such as “Input”z or “Operate Connected HDMI Device”z. The Smart Menu of this unit is displayed on the TV. This

Smart Menu can be operated using the remote control of your TV.

z The selection method differs depending on your TV. See the owner's manual of your TV for details.

Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other devices operating properly? 0 If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem. Continue pressing the X button on the unit until “Restart” appears in the display, or remove and re-insert the power cord of the unit.

If this unit does not operate properly, check the corresponding symptoms in this section. If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power immediately and contact the store where you purchased this unit.

Power does not turn on / Power is turned off Power does not turn on. 0 Check whether the power plug is correctly inserted into the power outlet. (v p. 49)

Power automatically turns off. 0 The sleep timer is set. Turn on the power again. (v p. 108)

0 “Auto Standby” is set. “Auto Standby” is triggered when there is no operation for a set amount of time. To disable “Auto Standby”, set “Auto Standby” on

the menu to “Off”. (v p. 172)

Power turns off and the power indicator flashes in red approx. every 2 seconds. 0 The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down

sufficiently, and then turn the power on again. (v p. 223)

0 Please re-install this unit in a place having good ventilation.

Power turns off and the power indicator flashes in red approx. every 0.5 seconds. 0 Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a

core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (v p. 29) 0 Turn down the volume and turn on the power again. (v p. 51) 0 This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.

The power to this unit does not turn off when you press the Power operation button. “HEOS On” appears on the display. 0 A HEOS device on the same network is playing an input source from this unit. Stop playback on the HEOS device when turning this unit off (setting it to

standby). The power of this unit will turn off automatically after around 20 minutes.

Operations cannot be performed through the remote control unit Operations cannot be performed through the remote control unit. 0 Batteries are worn out. Replace with new batteries. (v p. 9)

0 Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 9)

0 Remove any obstacle between this unit and the remote control unit.

0 Insert the batteries in the proper direction, checking the q and w marks. (v p. 9)

0 The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the

remote control sensor will not be exposed to strong light.

0 When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV

and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not affect operations from the remote control unit of this unit.

Display on this unit shows nothing Display is off. 0 Set “Dimmer” on the menu to something other than “Off”. (v p. 173)

0 When the sound mode is set to “Pure Direct”, the display is off. (v p. 97)

No sound comes out No sound comes out of speakers. 0 Check the connections for all devices. (v p. 29) 0 Insert connection cables all the way in.

0 Check that input connectors and output connectors are not reversely connected.

0 Check cables for damage.

0 Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 29)

0 Cancel the mute mode. (v p. 52)

0 Check the digital audio input connector setting. (v p. 143)

0 Check the digital audio output setting on the connected device. On some devices, the digital audio output is set to off by default.

0 When a headphone is plugged into the PHONES jack on the main unit, sound is not output from the speaker terminal and PRE OUT connector.

No sound comes out when using the DVI-D connection. 0 When this unit is connected to a device equipped with a DVI-D connector, no sound is output. Make a separate audio connection.

Desired sound does not come out The volume does not increase. 0 The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. (v p. 130)

0 Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit.

No sound comes out with the HDMI connection. 0 Check the connection of the HDMI connectors. (v p. 35)

0 When outputting HDMI audio from the speakers, set “HDMI Audio Out” on the menu to “AVR”. To output from the TV, set “TV”. (v p. 135)

0 When using the HDMI Control function, check that the audio output is set to the AV amplifier on the TV. (v p. 105)

No sound comes out of a specific speaker. 0 Check that speaker cables are properly connected.

0 Check that a selection other than “None” is set for the “Speaker Config.” setting in menu. (v p. 157)

0 When the sound mode is “Stereo” and “Virtual”, audio is only output from the front speakers and subwoofer.

No sound is produced from subwoofer. 0 Check the subwoofer connections.

0 Turn on the subwoofer’s power.

0 Set “Speaker Config.” – “Subwoofer” on the menu to “Yes”. (v p. 158)

0 When “Speaker Config.” - “Front” in the menu is set to “Large”, depending on the input signal and the sound mode, no sound may be output from the

subwoofer. (v p. 157)

0 When no subwoofer audio signal (LFE) is included in the input signals, no sound may be output from the subwoofer. (v p. 162) 0 You can make the subwoofer always output sound by setting the “Subwoofer Mode” to “LFE+Main”. (v p. 162)

DTS sound is not output. 0 Check that the digital audio output setting on the connected device is set to “DTS”.

Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output. 0 Make HDMI connections. (v p. 39)

0 Check the digital audio output setting on the connected device. On some devices, “PCM” is set by default.

Dolby PLg mode or DTS Neo:6 mode cannot be selected. 0 It cannot be selected when “Speaker Config.” - “Surround” is set for “None”. (v p. 158) 0 Dolby PLg or DTS Neo:6 cannot be selected when using headphones.

Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® cannot be selected. 0 These cannot be selected when you have not performed Audyssey® Setup. (v p. 147) 0 Switch to a sound mode other than “Direct” or “Pure Direct”. (v p. 97)

0 These cannot be selected when using the headphones.

“M-DAX” cannot be selected. 0 Check that an analog signal or PCM signal (Sample Rate = 44.1/48 kHz) is input. For playback of multichannel signals such as Dolby Digital or DTS

surround, “M-DAX” cannot be used. (v p. 128)

0 Switch to a sound mode other than “Direct” or “Pure Direct”. (v p. 97)

Sound is interrupted or noise occurs During playback from the Internet radio or USB memory device, sound is occasionally interrupted. 0 When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.

0 The network communication speed is slow or the radio station is busy.

When making a call on iPhone, noise occurs in audio output on this unit. 0 When making a call, keep a distance of 0.7 ft/20 cm or longer between iPhone and this unit.

Noise often occurs in FM/AM broadcasting. 0 Change the antenna orientation or position. (v p. 44)

0 Separate the AM loop antenna from the unit.

0 Use an outdoor antenna. (v p. 44)

0 Separate the antenna from other connection cables. (v p. 44)

The sounds appear to be distorted. 0 Lower the volume. (v p. 52)

0 Set “Off” to the “ECO Mode”. When “On” or “Auto” is in the “ECO Mode”, the audio may by distorted when the playback volume is high. (v p. 170)

Sound cuts out when using Wi-Fi connection. 0 The frequency band used by the wireless LAN is also used by microwave ovens, cordless telephones, wireless game controllers and other wireless

LAN devices. Using such devices at the same time as this unit may cause sound to cut out due to electronic interference. Sound cut out can be improved using the following methods. (v p. 46) - Install devices that cause interference away from this unit. - Turn off the power supply to devices that cause interference. - Change the settings of the router channel to which this unit is connected to. (See the instruction manual of the wireless router for details on how to change the channel.) - Switch to a wired LAN connection. 0 Particularly when you play back large music files, depending on your wireless LAN environment, the playback sound may be interrupted. In this case, make the wired LAN connection. (v p. 164)

No video is shown on the TV No picture appears. 0 Check the connections for all devices. (v p. 35)

0 Insert connection cables all the way in.

0 Check that input connectors and output connectors are not reversely connected.

0 Check cables for damage.

0 Match the input settings to the input connector of the TV connected to this unit. (v p. 143) 0 Check that the proper input source is selected. (v p. 51)

0 Check the video input connector setting. (v p. 143)

0 Check that the resolution of the player corresponds to that of the TV. (v p. 177)

0 Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output

correctly. (v p. 205)

0 To enjoy content that is copyright protected by HDCP 2.2, use a playback device and TV compatible with HDCP 2.2 only.

0 To play back a 4K (60/50Hz) video, use a “High Speed HDMI Cable” or an “High Speed HDMI Cable with Ethernet”. In order to achieve a higher fidelity

for 4K (60/50Hz) videos, it is recommended to use a “Premium High Speed HDMI Cables” or an “Premium High Speed HDMI Cables with Ethernet” that has an HDMI Premium Certified Cable label on the product package.

No video is shown on the TV with the DVI-D connection. 0 With the DVI-D connection, on some device combinations, devices may not function properly due to the copy guard copyright protection (HDCP).

While the menu is being displayed, no video is shown on the TV. 0 The video being played will not appear in the background of the menu when the menu is operated during playback of the following video signals.

- Some images of 3D video contents - Computer resolution images (example: VGA) - Video with an aspect ratio other than 16:9 or 4:3 - 4K video - Some kind of HDR signals

The menu screen is not displayed on the TV The menu screen or status information screen is not displayed on the TV. 0 The menu screen is only displayed on this unit and a TV connected with an HDMI cable. If this unit is connected to a TV using a different video output

connector, operate while watching the display on this unit.

0 The status information will not appear on the TV when the following video signals are being played.

- Some images of 3D video content - Computer resolution images (example: VGA) - Video with an aspect ratio other than 16:9 or 4:3 - Some kind of HDR signals 0 When a 2D video is converted to a 3D video on the TV, the menu screen or status information screen is not displayed properly. (v p. 178) 0 In the pure direct playback mode, the menu screen or status information is not displayed. Switch to a sound mode other than the pure direct mode. (v p. 96) 0 Set the “TV Format” setting in the menu to a selection that is appropriate for the TV. (v p. 142)

The color of the menu screen and operations content displayed on the television is different from normal The color of the menu screen and operations content displayed on the television is different. 0 Performing operations on this unit during playback of a Dolby Vision signal may cause variance in the color display of the menu screen and operations

content. This is a characteristic of the Dolby Vision signal and is not a malfunction.

AirPlay cannot be played back The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad. 0 This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (v p. 46)

0 The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay. Update the firmware to the latest version.

Audio is not output. 0 The volume on iTunes / iPhone / iPod touch / iPad is set to the minimum level. The volume on iTunes / iPhone / iPod touch / iPad is linked with the

volume on this unit. Set a proper volume level.

0 The AirPlay playback is not performed, or this unit is not selected. Click the AirPlay icon on the iTunes / iPhone / iPod touch / iPad screen and select this

Audio is interrupted during the AirPlay playback on iPhone / iPod touch / iPad. 0 Quit the application running in the background of the iPhone/iPod touch/iPad, and then play using AirPlay.

0 Some external factors may be affecting the wireless connection. Modify the network environment by taking measures such as shortening the distance

from the wireless LAN access point.

iTunes cannot be played back through the remote control unit. 0 Enable the “Allow iTunes audio control from remote speakers” setting on iTunes. Then, you can perform playback, pause, and skip operations through

the remote control unit.

USB memory devices cannot be played back USB memory device is not recognized. 0 Disconnect and reconnect the USB memory device. (v p. 43)

0 Mass storage class compatible USB memory devices are supported.

0 This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.

0 The USB memory device must be formatted to FAT16 or FAT32.

0 Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive

compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.

Files on the USB memory device are not displayed. 0 Files of a type not supported by this unit are not displayed. (v p. 53)

0 This unit is able to display files in a maximum of eight folder layers. A maximum of 5000 files (folders) can also be displayed for each layer. Modify the

folder structure of the USB memory device.

0 When multiple partitions exist on the USB memory device, only files on the first partition are displayed.

iOS and Android devices are not recognized. 0 The USB port of this unit does not support playback from iOS and Android devices.

Files on a USB memory device cannot be played. 0 Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 206)

0 You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.

0 Playback may not be possible if the album art file size exceeds 2 MB.

Bluetooth cannot be played back Bluetooth devices cannot be connected to this unit. 0 The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function. 0 Bring the Bluetooth device near to this unit.

0 The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.

0 Turn the power of the Bluetooth device off and on again, and then try again.

The sound is cut off. 0 Bring the Bluetooth device near to this unit.

0 Remove obstructions between the Bluetooth device and this unit.

0 To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.

0 Reconnect the Bluetooth device.

The Internet radio cannot be played back A list of broadcasting stations is not displayed. 0 The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (v p. 46) 0 Perform the network diagnostic mode.

Internet Radio cannot be played. 0 The selected radio station is broadcasting in a format that is not supported by this unit. Formats that can be played back in this unit are MP3, WMA and

0 The firewall function is enabled on the router. Check the firewall setting. 0 The IP address is not properly set. (v p. 165)

0 Check the power of the router is on.

0 To obtain the IP address automatically, enable the DHCP server function on the router. Also, set the DHCP setting to “On” on this unit. (v p. 165) 0 To obtain the IP address manually, set the IP address on this unit. (v p. 165)

0 Some radio stations broadcast silently during some time period. In this case, no audio is output. Wait for a while and select the same radio station, or

select another radio station. (v p. 70)

0 The selected radio station is not in service. Select a radio station in service.

Cannot connect to favorite radio stations. 0 Radio station is not currently in service. Register radio stations in service.

Music files on PC or NAS cannot be played back Files stored on a computer cannot be played. 0 Files are stored in a non-compatible format. Record in a compatible format. (v p. 208) 0 Files that are copyright protected cannot be played on this unit.

0 The USB port of this unit cannot be used for connection to a computer.

0 Media sharing settings on the server or NAS do not allow this unit. Change the settings to allow this unit. For details, see the owner’s manual of the

Server is not found, or it is not possible to connect to the server. 0 The computer’s or router’s firewall is activated. Check the computer’s or router’s firewall settings. 0 Computer’s power is not turned on. Turn on the power.

0 Server is not running. Launch the server.

0 IP address of this unit is wrong. Check the IP address of this unit. (v p. 163)

Music files on PC cannot be played back. 0 Even if PC is connected to the USB port on this unit, music files on it cannot be played back. Connect PC to this unit through the network. (v p. 46)

Files on PC or NAS are not displayed. 0 Files of a type not supported by this unit are not displayed. (v p. 208)

Music stored on a NAS cannot be played. 0 If you use a NAS in conformity with the DLNA standard, enable the DLNA server function in the NAS setting.

0 If you use a NAS that does not conform with the DLNA standard, play the music via a PC. Set Windows Media Player’s media sharing function and add

NAS to the selected play folder.

0 If connection is restricted, set audio equipment as the connection target.

Various online services cannot be played Various online services cannot be played. 0 The online service may have been discontinued.

The HDMI Control function does not work The HDMI Control function does not work. 0 Check that “HDMI Control” in the menu is set to “On”. (v p. 137)

0 You cannot operate devices that are not compatible with the HDMI Control function. In addition, depending on the connected device or the settings, the

HDMI Control function may not work. In this case, operate the external device directly. (v p. 105)

0 Check that the HDMI Control function setting is enabled on all devices connected to this unit. (v p. 105)

0 When you make connection related changes such as connecting an additional HDMI device, the link operation settings may be initialized. Turn off this

unit and devices connected via HDMI, and turn them on again. (v p. 105)

Cannot connect to a wireless LAN network Cannot connect to the network. 0 The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting

details of this unit. (v p. 165)

0 Shorten the distance from the wireless LAN access point and remove any obstructions to improve access first before re-connecting again. Place the

unit away from microwave ovens and other network access points.

0 Configure the access point channel settings away from channels that are being used by other networks. 0 This unit is not compatible with WEP (TSN).

Cannot connect to a WPS Router. 0 Check that the WPS mode of the router is operating.

0 Press the WPS button on the router and then press the “Connect” button displayed on the TV within 2 minutes.

0 A router/settings that are compatible with WPS 2.0 standards are required. Set the encryption time to “None”, “WPA-PSK (AES)” or WPA2-PSK (AES).

0 If the router encryption method is WEP/WPA-TKIP/WPA2-TKIP, you cannot connect by using the WPS button on the router. In this case, use the “Scan

Networks” or “Manual” method to connect.

Cannot connect to the network using iPhone/iPod touch/iPad. 0 Update the iPhone/iPod touch/iPad firmware to the latest version.

0 When configuring the settings via a wireless connection, iOS 7 or later needs to be supported.

Update/upgrade error messages If an update/upgrade is interrupted or fails, an error message appears. Display

Connection failed. Please check your network, then try The network connection is unstable. again. Connection to the server failed. Check your network environment and try the update again. Update failed. Please check your network, then try again.

The download of the firmware failed. Check your network environment and try the update again.

Upgrade failed. Please check your network, then try again.

The download of the firmware failed. Check your network environment and try the upgrade again.

Please check your network, unplug and reconnect the power cord, and try again.

The update failed. Press and hold the X on the main unit for more than 5 seconds, or remove and re-insert the power cord. The update restarts automatically.

Please contact customer service in your area.

This unit may be broken. Contact our Customer Service Center in your area.

Resetting factory settings If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 184) If the operations are not improved by restarting the unit, follow the steps below. Various settings are reset to the factory default values. Make settings again.

Turn off the power using X. Press X while simultaneously pressing TUNER PRESET CH + and M-DAX. Remove your fingers from the two buttons when “Initialized” appears on the display.

TUNER PRESET CH + 0 Before returning the settings to the default settings, use the “Save & Load” function from the menu to save and restore the details of various settings configured on the unit. (v p. 179) 0 You can also reset all settings to the factory defaults using “Reset” - “All Settings” in the menu. (v p. 180)

Resetting network settings If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 184) If the operations are not improved by restarting the unit, follow the steps below. Network settings are reset to the factory default values. Make settings again. However, the menu “Speaker Config.” and “Video” settings are not reset.

Press X to turn on power to the unit. Turn INPUT SELECTOR to select “HEOS Music”. Press and hold the main unit's TUNER PRESET CH + and DIMMER at the same time for at least 3 seconds. Remove your fingers from the two buttons when “Network Reset...” appears on the display. “Completed” is shown in the display when reset is complete.

0 Before returning the settings to the default settings, use the “Save & Load” function from the menu to save and restore the details of various settings configured on the unit. (v p. 179) 0 You can also reset the network settings to the factory defaults using “Reset” “Network Settings” in the menu. (v p. 180)

NOTE 0 Do not turn the power off until reset is complete.

About HDMI HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. With the HDMI connection, high definition video and high quality audio formats adopted by Blu-ray Disc players (Dolby Digital Plus, Dolby TrueHD, DTS-HD, DTS-HD Master Audio) can be transmitted, which is not possible with the analog video transmission. Furthermore, in the HDMI connection, audio and video signals can be transmitted through a single HDMI cable, while in conventional connections it is necessary to provide audio and video cables separately for connection between devices. This allows you to simplify the wiring configuration that tends to be quite complex in a home theater system. This unit supports the following HDMI functions.

0 3D This unit supports input and output of 3D (3 dimensional) video signals of HDMI. To play back 3D video, you need a TV and player that provide support for the HDMI 3D function and a pair of 3D glasses.

0 4K This unit supports input and output of 4K (3840 x 2160 pixels) video signals of HDMI.

The color space defined by Adobe Systems Inc. Because it is a wider color space than RGB, it can produce more vivid and natural images.

An imaging technology supported by HDMI. Unlike RGB or YCbCr, which uses 8 bits (256 shades) per color, it can use 10 bits (1024 shades), 12 bits (4096 shades), or 16 bits (65536 shades) to produce colors in higher definition. Both devices linked via HDMI must support Deep Color.

Each of these color spaces defines a palette of available colors that is larger than the traditional RGB color model.

This function lets HDTVs display colors more accurately. It enables display with natural, vivid colors. “x.v.Color” is trademark of Sony Corporation.

This function can automatically correct delay between the audio and video. Use a TV that is compatible with the Auto Lip Sync function. Even when the power to this unit is set to standby, signals input from the HDMI input connector are output to a TV or other device that is connected to the HDMI output connector.

If you connect the unit and an HDMI Control function compatible TV or player with an HDMI cable and then enable the HDMI Control function setting on each device, the devices will be able to control each other. 0 Power off link This unit power off can be linked to the TV power off step. 0 Audio output destination switching From the TV, you can switch whether to output audio from the TV or the AV amplifier. 0 Volume adjustment You can adjust this unit’s volume in the TV volume adjustment operation. 0 Input source switching You can switch this unit input sources through linkage to TV input switching. When playing the player, this unit input source switches to the source for that player.

This function transmits audio signals from the TV to this unit through the HDMI cable and plays back the audio from the TV on this unit based on the HDMI Control function. If a TV without the ARC function is connected via HDMI connections, video signals of the playback device connected to this unit are transmitted to the TV, but this unit can not play back the audio from the TV. If you want to enjoy surround audio for TV program, a separate audio cable connection is required. In contrast, if a TV with the ARC function is connected via HDMI connections, no audio cable connection is required. Audio signals from the TV can be input to this unit through the HDMI cable between this unit and the TV. This function allows you to enjoy surround playback on this unit for the TV.

o Supported audio formats 2-channel Linear PCM

2-channel, 32 kHz – 192 kHz, 16/20/24 bit 7.1-channel, 32 kHz – 192 kHz, 16/20/24 bit

In order to play back digital video and audio such as BD video or DVD video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (Highbandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV devices. This unit supports HDCP. 0 If a device that does not support HDCP is connected, video and audio are not output correctly. Read the owner’s manual of your television or player for more information.

Dolby Digital / DTS / Dolby TrueHD / Dolby Digital Plus / DTS-HD Master Audio / DTS-HD High Resolution Audio / DTS Express

o Supported video signals 0 480i

Copyright protection system

Multi-channel Linear PCM Bitstream

0 When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC functions, use a “High Speed HDMI cable with Ethernet” that bears the HDMI logo.

Playing back a USB memory devices 0 This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.

0 This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. 0 This unit is compatible with WMA META tags.

0 If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then music may not

be played back properly.

o Compatible formats WMAz1 MP3 WAV MPEG-4

Channel 2-channel 2-channel

z1 Only files that are not protected by copyright can be played on this unit. Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings. z2 The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).

The limits on the number of folders and files that can be displayed by this unit are as follows. Media

This unit supports the following Bluetooth profile. 0 A2DP (Advanced Audio Distribution Profile): When a Bluetooth device that supports this standard is connected, monaural and stereo sound data can be streamed at a high quality. 0 AVRCP (Audio/Video Remote Control Profile): When a Bluetooth device that supports this standard is connected, the Bluetooth device can be operated from this unit.

FAT16 : 2 GB, FAT32 : 2 TB Number of folder directory levels z1

o About Bluetooth communications

z1 The limited number includes the root folder. z2 The allowable number of files may differ according to the USB memory device capacity and the file size.

Playing back a Bluetooth device

o Maximum number of playable files and folder

Radio waves broadcast from this unit may interfere with the operation of medical devices. Make sure you turn off the power of this unit and Bluetooth device in the following locations as radio wave interference may cause malfunctions. 0 Hospitals, trains, aircraft, petrol kiosks and places where flammable gases are generated 0 Near automatic doors and fire alarms

Playing back a file saved on a PC or NAS 0 This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.

0 This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. 0 This unit is compatible with WMA META tags.

0 If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then

music may not be played back properly.

0 A server or server software compatible with distribution in the corresponding formats is required to play music files via a network.

For playing mentioned audio formats via a network a server software, for example Twonky Media Server or jRiver Media Server, needs to be installed on your computer or NAS for full support. There are other server software available too. Please check supported formats.

o Specifications of supported files WMAz1 MP3 WAV MPEG-4

Channel 2-channel 2-channel

z1 Only files that are not protected by copyright can be played on this unit. Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings. z2 The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).

Personal memory plus function

o Playable broadcast station specifications

The most recently used settings (input mode, HDMI output mode, sound mode, tone control, channel level, MultEQ®, Dynamic EQ, Dynamic Volume, M-DAX and audio delay, etc.) are saved for each input source.

WMA Sampling frequency 32/44.1/48 kHz

0 “Surr.Parameter” settings are stored for each sound mode.

This function stores the settings which were made before going into the standby mode.

Sound modes and channel output

S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. (v p. 157)

Cinema EQ S S S S S S S S S S S Loudness Mngmt z2

S S S S S S S S S S S S S S S S S S S S S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S Subwoofer Level Sz10 S Sz11

S S S S S S S S S S S S MultEQ® z6z7

Audyssey Dynamic EQ z8

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

During playback in Pure Direct mode, the surround parameters are the same as in Direct mode. This item can be selected when a Dolby TrueHD signal is played. This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or DTS signal is played. This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played. This item cannot be set when “Dynamic EQ” is set to “On”. (v p. 132)

This item cannot be set when Audyssey® Setup (Speaker Calibration) has not been performed. z7 This item cannot be selected when the Dolby TrueHD or DTS-HD input signal sampling frequency exceeds 96 kHz. z8 This item cannot be set when “MultEQ®” is set to “Off”. (v p. 131) z9 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz. z10 This setting is available when “Subwoofer Mode” in the menu is set to “LFE+Main”. (v p. 162) z11 This item can be set when “Front” is set to “Small” or “Subwoofer Mode” is set to “LFE+Main”. (v p. 157, 162)

Types of input signals, and corresponding sound modes

Multi-channel signal DTS (-HD)

Multi-channel signal

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S Rear panel

The “Cinema” mode or “Music” mode can be selected. The “Movie” mode, “Music” mode or “Game” mode can be selected. This item can be selected when the input signal is DTS-HD Master Audio. This item can be selected when the input signal is DTS-HD Hi Resolution. This item can be selected when the input signal is DTS 96/24. The default sound mode for the AirPlay playback is “Direct”.

Explanation of terms o Audyssey

Audyssey MultEQ® Audyssey MultEQ® is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, MultEQ® calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated surround system setup.

Audyssey Dynamic EQ® Audyssey Dynamic EQ® solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Audyssey Dynamic EQ® works in tandem with Audyssey MultEQ® to provide well-balanced sound for every listener at any volume level.

Audyssey Dynamic Volume® Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ® is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same.

Dolby Digital Dolby Digital is a multi-channel digital signal format developed by Dolby Laboratories. A total of 5.1-channels are played: 3 front channels (“FL”, “FR” and “C”), 2 surround channels (“SL” and “SR”) and the “LFE” channel for low frequency effects. Because of this, there is no crosstalk between channels and a realistic sound field with a “three-dimensional” feeling (sense of distance, movement and positioning) is achieved. This delivers a thrilling surround sound experience in the home.

Dolby TrueHD Dolby Digital Plus is an improved Dolby Digital signal format that is compatible with up to 7.1-channels of discrete digital sound and also improves sound quality thanks to extra data bit rate performance. It is upwardly compatible with conventional Dolby Digital, so it offers greater flexibility in response to the source signal and the conditions of the playback device.

Dolby TrueHD is a high definition audio technology developed by Dolby Laboratories, using lossless coding technology to faithfully reproduce the sound of the studio master. This format provides the facility to support up to 8 audio channels with a sampling frequency of 96 kHz/24 bit resolution and up to 6 audio channels with a sampling frequency of 192 kHz/24 bit resolution.

o DTS Dolby Pro Logic g is a matrix decoding technology developed by Dolby Laboratories. Regular music such as that on CDs is encoded into 5-channels to achieve an excellent surround effect. The surround channel signals are converted into stereo and full band signals (with a frequency response of 20 Hz to 20 kHz or greater) to create a “three-dimensional” sound image offering a rich sense of presence for all stereo sources.

DTS This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. DTS delivers a powerful and dynamic surround sound experience, and is found in the world’s finest movie theaters and screening rooms. DTS 96/24 DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1-channels with a sampling frequency of 96 kHz and 24 bit quantization on DVD-Video.

DTS Digital Surround

DTS-HD High Resolution Audio

DTS™ Digital Surround is the standard digital surround format of DTS, Inc., compatible with a sampling frequency of 44.1 or 48 kHz and up to 5.1-channels of digital discrete surround sound.

DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital sound. High data bit rate performance provides high quality sound. This format is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS Express DTS Express is an audio format supporting low bit rates (max. 5.1channels, 24 to 256 kbps).

DTS-HD DTS-HD Master Audio is a lossless audio format created by Digital Theater System (DTS). This format provides the facility to support up to 8 audio channels with a sampling frequency of 96 kHz/24 bit resolution and up to 6 audio channels with a sampling frequency of 192 kHz/24 bit resolution. It is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray Disc. This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1-channels are supported in Blu-ray Disc.

DTS Neo:6™ Surround DTS Neo:6™ is a matrix decoding technology for achieving 6.1-channel surround playback with 2-channel sources. It includes “DTS Neo:6 Cinema” suite for playing movies and “DTS Neo:6 Music” suited for playing music.

FLAC (Free Lossless Audio Codec) FLAC stands for Free lossless Audio Codec, and is a lossless free audio file format. Lossless means that the audio is compressed without any loss in quality. The FLAC license is as shown below. Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 0 Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 0 Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 0 Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

Apple Lossless Audio Codec This is a codec for lossless audio compression method developed by Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data compressed to approximately 60 – 70 % can be decompressed to exactly the same original data.

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4 These are the names for digital compression format standards used for the encoding of video and audio. Video standards include “MPEG-1 Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”. WMA (Windows Media Audio) This is audio compression technology developed by Microsoft Corporation. WMA data can be encoded using Windows Media® Player. To encode WMA files, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the file may not work properly. Sampling frequency

LFE Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal). The number of readings taken in one second is called the “sampling frequency”. The larger the value, the closer the reproduced sound is to the original.

This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensified by outputting 20 Hz to 120 Hz deep bass to the system subwoofer(s). MP3 (MPEG Audio Layer-3) This is an internationally standardized audio data compression scheme, using the “MPEG-1” video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.

Speaker impedance This is an AC resistance value, indicated in Ω (ohms). Greater power can be obtained when this value is smaller.

Progressive (sequential scanning) This is a scanning system of the video signal that displays 1 frame of video as one image. Compared to the interlace system, this system provides images with less flickering and jagged edges.

Dialogue normalization function This function operates automatically during playback of Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD sources. It automatically corrects the standard signal level for individual program sources.

AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod touch/iPad to a compatible device via the network.

The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.

WEP Key (network key)

This is key information used for encrypting data when conducting data transfer. On this unit, the same WEP key is used for data encryption and decryption, so the same WEP key must be set on both devices in order for communications to be established between them.

This function converts the number of channels of surround audio to a lower number of channels and plays back according to the system’s configuration.

Wi-Fi® Wi-Fi Certification assures tested and proven interoperability by the Wi-Fi Alliance, a group certifying interoperability among wireless LAN devices.

WPA (Wi-Fi Protected Access) This is a security standard established by the Wi-Fi Alliance. In addition to the conventional SSID (network name) and WEP key (network key), it also uses a user identification function and encrypting protocol for stronger security.

HDCP When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.

WPA2 (Wi-Fi Protected Access 2)

This is a new version of the WPA established by the Wi-Fi Alliance, compatible with more secure AES encryption. This is a simple authentication system for mutual authentication when a preset character string matches on the wireless LAN access point and client.

Pairing (registration) is an operation that is required in order to connect a Bluetooth device to this unit using Bluetooth. When paired, the devices authenticate each other and can connect without mistaken connections occurring. When using Bluetooth connection for the first time, you need to pair this unit and the Bluetooth device to be connected.

Network Names (SSID: Service Set Identifier)

When forming wireless LAN networks, groups are formed to prevent interference, data theft, etc. These groups are based on “SSID (network names)”. For enhanced security, a WEP key is set so that communication is unavailable unless both the “SSID” and the WEP key match. This is suitable for constructing a simplified network.

This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage occurs or over temperature for any reason.

WPA-PSK/WPA2-PSK (Pre-shared Key)

Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® are registered trademarks of Audyssey Laboratories.

Apple, AirPlay, iPad, iPad Air, iPad Pro and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. The trademark "iPhone" is used in Japan with a license from Aiphone K.K. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Other trademarks and trade names are those of their respective owners.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi Alliance. Wi-Fi Certification provides assurance that the device has passed the interoperability test conducted by the Wi-Fi Alliance, a group that certifies interoperability among wireless LAN devices.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Front: 50 W + 50 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) 60 W + 60 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Center: 50 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) 60 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Surround: 50 W + 50 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) 60 W + 60 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 4 – 16 Ω/ohms

130 mV Frequency response:

10 Hz – 100 kHz — +1, –3 dB (Direct mode)

98 dB (IHF–A weighted, Direct mode)

±1 dB (20 Hz to 20 kHz)

5 Hz – 10 MHz — 0, –3 dB Front panel

(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10 –15 W) Reception frequency range:

87.5 MHz – 107.9 MHz

Effective sensitivity:

MONO ― 0.7 % (1 kHz) STEREO ― 1.0 % (1 kHz)

o Wireless LAN section Network type (wireless LAN standard): Security:

Conforming to IEEE 802.11a/b/g/n (Wi-Fi® compliant) z1 WEP 64 bit, WEP 128 bit WPA/WPA2-PSK (AES) WPA/WPA2-PSK (TKIP)

Used frequency range:

z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.

Bluetooth Specification Power Class 1

Maximum communication range:

Approx. 98.4 ft/30 m in line of sight z2

FHSS (Frequency-Hopping Spread Spectrum)

z2 The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.

o General Power supply:

180 W Power consumption in standby mode:

Power consumption in CEC standby mode:

z When “Network Control” in the menu is set to “Off In Standby” and “HDMI PassThrough” is set to “Off”. For purposes of improvement, specifications and design are subject to change without notice.

o Dimensions (Unit : in. (mm))

Blu-ray Disc player 40, 52

External control device 48

Bluetooth device 58

Resetting factory settings 201

License o License information for the software used in the unit

n GPL Open Source Used bridge-utils busybox ebtables Linux kernel mtd-utils ntfs-3g_ntfsprogs ntpclient u-boot wireless-tools

About GPL (GNU-General Public License), LGPL (GNU Lesser General Public License) License This product uses GPL/LGPL software and software made by other companies. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in the product. Marantz provides the source code based on the GPL and LPGL licenses at the actual cost upon your request to our customer service center. However, note that we make no guarantees concerning the source code. Please also understand that we do not offer support for the contents of the source code. This section describes software license used for this unit. To maintain the correct content, the original (English) is used.

Version 0.8.3 2.9 0.6.2 5.4.2

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.

n Babel MIT License Copyright (c) 2014-2018 Sebastian McKenzie <sebmck@gmail.com> Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

n e2fsprogs-libs-1.40.8/lib/uuid

Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

1. Redistributions of source code must retain the above copyright notice, and the entire permission notice in its entirety, including the disclaimer of warranties. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

THIS SOFTWARE IS PROVIDED “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH ARE HEREBY DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

http://cvsweb.netbsd.org/bsdweb.cgi/src/lib/libc/stdlib/ Copyright (c) 1987, 1993, 1994 The Regents of the University of California. All rights reserved.

Copyright 2014 jQuery Foundation and other contributors http://jquery.com/ Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

License: BSD Copyright (c) 1998-2003 University of Illinois Board of Trustees Copyright (c) 1998-2003 Mark D. Roth All rights reserved. Developed by: Campus Information Technologies and Educational Services, University of Illinois at Urbana-Champaign Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal with the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: 0 Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimers. 0 Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimers in the documentation and/or other materials provided with the distribution. 0 Neither the names of Campus Information Technologies and Educational Services, University of Illinois at Urbana-Champaign, nor the names of its contributors may be used to endorse or promote products derived from this Software without specific prior written permission. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE CONTRIBUTORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS WITH THE SOFTWARE.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. The names of the authors may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

The majority of the source code in the mDNSResponder project is licensed under the terms of the Apache License, Version 2.0, available from: <http://www.apache.org/licenses/LICENSE-2.0> To accommodate license compatibility with the widest possible range of client code licenses, the shared library code, which is linked at runtime into the same address space as the client using it, is licensed under the terms of the “Three-Clause BSD License”. The Linux Name Service Switch code, contributed by National ICT Australia Ltd (NICTA) is licensed under the terms of the NICTA Public Software Licence (which is substantially similar to the “Three-Clause BSD License”, with some additional language pertaining to Australian law).

https://github.com/cesanta/mongoose/ Copyright (c) 2004-2013 Sergey Lyubka Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

n openssl-1.0.0d Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)” 4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org. 5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project. 6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).

Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved.

Copyright (c) 1990 The Regents of the University of California. 0 All rights reserved. 0 Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

0 Copyright (c) 2005-2011 Paul Hsieh 0 All rights reserved.

0 Redistribution and use in source and binary forms, with or without

modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. A ll advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors. 4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

0 THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. 0 IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

License ======= The MIT License (MIT) Copyright (c) 2012 Maxim Salov

SQLite Copyright SQLite is in the Public Domain All of the code and documentation in SQLite has been dedicated to the public domain by the authors. All code authors, and representatives of the companies they work for, have signed affidavits dedicating their contributions to the public domain and originals of those signed affidavits are stored in a firesafe at the main offices of Hwaci. Anyone is free to copy, modify, publish, use, compile, sell, or distribute the original SQLite code, either in source code form or as a compiled binary, for any purpose, commercial or non-commercial, and by any means. The previous paragraph applies to the deliverable code and documentation in SQLite - those parts of the SQLite library that you actually bundle and ship with a larger application. Some scripts used as part of the build process (for example the “configure” scripts generated by autoconf) might fall under other open-source licenses. Nothing from these build scripts ever reaches the final deliverable SQLite library, however, and so the licenses associated with those scripts should not be a factor in assessing your rights to copy and use the SQLite library. All of the deliverable code in SQLite has been written from scratch. No code has been taken from other projects or from the open internet. Every line of code can be traced back to its original author, and all of those authors have public domain dedications on file. So the SQLite code base is clean and is uncontaminated with licensed code from other projects.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

0 Copyright (c) 1998 Todd C. Miller <Todd.Miller@courtesan.com>

www.sourceforge.net/projects/tinyxml This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

0 Permission to use, copy, modify, and distribute this software for any

purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies. 0 THE SOFTWARE IS PROVIDED “AS IS” AND THE AUTHOR DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions: 1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required. 2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software. 3. This notice may not be removed or altered from any source distribution.

n taglib-1.5 copyright : (C) 2002 - 2008 by Scott Wheeler email : wheeler@kde.org “The contents of this file are subject to the Mozilla Public License Version 1.1 (the “License”); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/ Software distributed under the License is distributed on an “AS IS” basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

http://wiki.xiph.org/index.php/Tremor Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

http://www.zlib.net/ zlib.h -- interface of the ‘zlib’ general purpose compression library version 1.2.3, July 18th, 2005 Copyright (C) 1995-2004 Jean-loup Gailly and Mark Adler This software is provided ‘as-is’, without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required. 2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software. 3. This notice may not be removed or altered from any source distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

n The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses
