USER MANUAL BRI860 LUMEA ESSENTIAL PHILIPS

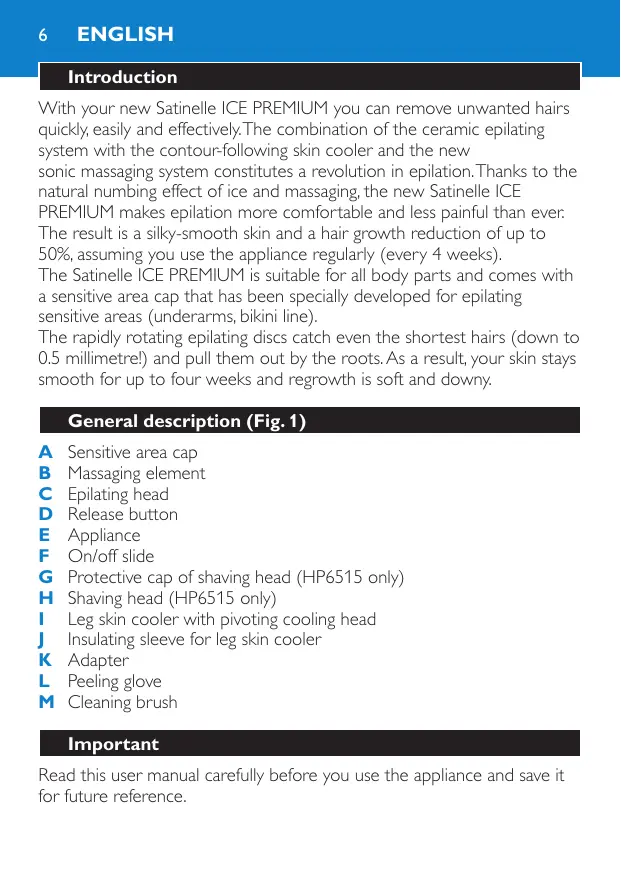

With your new Satinelle ICE PREMIUM you can remove unwanted hairs quickly, easily and effectively. The combination of the ceramic epilating system with the contour-following skin cooler and the new sonic massaging system constitutes a revolution in epilation. Thanks to the natural numbing effect of ice and massaging, the new Satinelle ICE PREMIUM makes epilation more comfortable and less painful than ever. The result is a silky-smooth skin and a hair growth reduction of up to 50%, assuming you use the appliance regularly (every 4 weeks). The Satinelle ICE PREMIUM is suitable for all body parts and comes with a sensitive area cap that has been specially developed for epilating sensitive areas (underarms, bikini line). The rapidly rotating epilating discs catch even the shortest hairs (down to

0.5 millimetre!) and pull them out by the roots. As a result, your skin stays

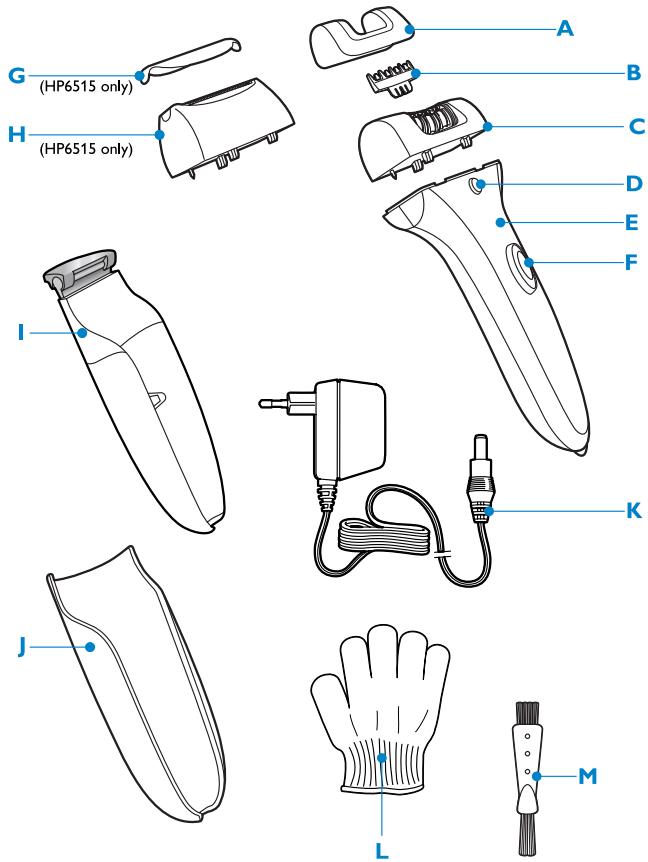

smooth for up to four weeks and regrowth is soft and downy. General description (Fig. 1)

Sensitive area cap Massaging element Epilating head Release button Appliance On/off slide Protective cap of shaving head (HP6515 only) Shaving head (HP6515 only) Leg skin cooler with pivoting cooling head Insulating sleeve for leg skin cooler Adapter Peeling glove Cleaning brush Important Read this user manual carefully before you use the appliance and save it for future reference. English

Danger Keep the appliance and the adapter dry. Do not use the appliance near or over a washbasin or bath filled with water Do not use the appliance in the bath or in the shower. If you use the appliance in the bathroom, do not use an extension cord. Warning Check if the mains voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. Only use the appliance in combination with the adapter supplied. Do not use the appliance if the adapter or the appliance itself is damaged. If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard. The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Caution Only epilate the underarms and bikini line with the sensitive area cap attached. To prevent damage and injuries, keep the running appliance away from scalp hair, eyebrows, eyelashes, clothes, threads, cords, brushes etc. Do not use the appliance on irritated skin or skin with varicose veins, rashes, spots, moles (with hairs) or wounds without consulting your doctor first. People with a reduced immune response or people who suffer from diabetes mellitus, haemophilia or immunodeficiency should also consult their doctor first.

English Your skin may become a little red and irritated the first few times you use the epilator. This phenomenon is absolutely normal and quickly disappears. As you use the appliance more often, your skin gets used to epilation, skin irritation decreases and regrowth becomes thinner and softer. If the irritation has not disappeared within three days, we advise you to consult a doctor. HP6515 only: Always check the shaving head before you use the appliance. Do not use the shaving head if the foil is damaged, as this may cause injury. Do not use the peeling glove immediately before or after epilation. Do not expose the appliance to temperatures lower than 5°C or higher than 35°C. General Regular massages with the peeling glove may help to prevent ingrowing hairs. Regular cleaning and proper maintenance ensure optimal results and a long life for the appliance. Electromagnetic fields (EMF) This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Preparing for use Freezing the leg skin cooler 1 Put the skin cooler WITHOUT the insulating sleeve in the freezer or freezing compartment (***) at least 4 hours before you start to epilate. When the fluid has turned completely blue, the skin cooler is ready for use. Make sure the outside of the skin cooler is completely dry before you freeze it. Tip:You can store the skin cooler in the freezer permanently. English

Using the appliance General information about epilation

Epilation is easier just after a bath or shower. Make sure your skin is completely dry when you start to epilate. When you use the appliance for the first time, we advise you to try it out on an area with only light hair growth. This helps you get accustomed to the epilation process. For optimal epilating results, the hairs should not be longer than 10 millimetres (Fig. 2) To epilate longer hairs, follow one of two procedures below: (Fig. 2) shorten the hairs to a maximum length of 10mm with a trimmer. In this case, you can start to epilate right away. shave the hairs completely. In this case you can start to epilate after a few days (the hairs must be at least 0.5mm long). Your skin may become a little red and irritated the first few times you use the epilator. This phenomenon is absolutely normal and quickly disappears. As you use the appliance more often, your skin gets used to epilation, skin irritation decreases and regrowth becomes thinner and softer. If the irritation has not disappeared within three days, we advise you to consult a doctor. We advise you to epilate before you go to bed at night, as this allows any skin irritation that may develop to diminish overnight. Epilating with the leg skin cooler Only use the leg skin cooler to epilate your legs. Make sure your skin is clean, entirely dry and free from grease. Do not use any cream before you start to epilate. 1 Slide the insulating sleeve onto the skin cooler. (Fig. 3) The insulating sleeve prevents an unpleasant sensation of coldness in your hand while you use the appliance. It also keeps the skin cooler cold as long as possible. Sometimes the pivoting cooling head freezes onto the skin cooler and does not move when you take the skin cooler from the freezer. The

English pivoting cooling head starts to pivot again after you have passed it over your leg a few times. 2 Snap the appliance onto the skin cooler (Fig. 4). 3 Insert the appliance plug into the bottom of the appliance and put the adapter in the wall socket. 4 Select the desired speed to switch on the appliance (Fig. 5). Select speed I for areas with little hair growth and for areas where bones are located directly beneath the skin, such as knees and ankles. Select speed II for larger areas with stronger hair growth. 5 Stretch your skin with your free hand to make the hairs stand upright. 6 Place the appliance perpendicularly onto the skin with the epilating head pointing forward. Move the appliance against the direction of hair growth at a moderate speed. (Fig. 6) Make sure both the epilating discs and the skin cooler are in proper contact with the skin. Press the appliance lightly onto the skin. , If you are not completely satisfied with the epilation result, try moving the epilator more slowly over your skin. 7 Use the tab on the bottom end of the appliance to remove the appliance from the skin cooler (Fig. 7). Epilating without the leg skin cooler

If you do not want to use the skin cooler, for instance because you have grown accustomed to the sensation of epilation, you can also use the appliance without the skin cooler. Make sure that you place the epilator perpendicularly onto your skin and that you move it against the direction of hair growth. Epilating the underarms and bikini line Your epilator comes with a sensitive area cap that reduces the number of active epilating discs. This makes the appliance ideal for epilating the more delicate areas of the body, such as the underarms and bikini line. English 11 Note:You get the best results when the hairs are not too long (max.1cm). Do not use the leg skin cooler to epilate your underarms and bikini line. 1 Put the sensitive area cap on the epilating head (Fig. 8). The sensitive area cap can only be fitted onto the appliance in one way. 2 Insert the appliance plug into the bottom of the appliance and put the adapter in the wall socket. 3 Switch on the appliance by selecting the desired speed. (Fig. 5) We advise you to use speed II. 4 Stretch the skin with your free hand. 5 Place the appliance perpendicularly onto your skin, with the on/off slide pointing in the direction in which you are going to move the appliance. 6 Move the appliance slowly over the skin, against the direction of the hair growth. - Epilate your bikini line as shown in the figure (Fig. 9). - Epilate your underarms as shown in the figure (Fig. 10). 7 For a cool sensation, you can dab the area you have just epilated with a cloth soaked in cold water. 8 Remove the sensitive area cap from the epilator after use (Fig. 11). Shaving (HP6515 only) You can use the shaving head to shave sensitive body parts, such as your underarms and bikini line. With the shaving head, you obtain a smooth result in a comfortable and gentle way. 1 Make sure the appliance is switched off. 2 Remove the skin cooler (Fig. 7). 3 Press the release button (1) and pull the epilating head off the appliance (2) (Fig. 12).

English 4 Place the shaving head on the appliance and press it onto the appliance until it snaps home (‘click’) (Fig. 13). 5 Insert the appliance plug into the bottom of the appliance and put the adapter in the wall socket. 6 Switch on the appliance by selecting speed II. 7 Place the shaving head onto your skin and move the appliance slowly and smoothly against the direction of hair growth. Press the appliance lightly (Fig. 14). Using the peeling glove Use the peeling glove in the shower. Regular massages with the peeling glove may help to prevent ingrown hairs. Do not use the peeling glove immediately before or after epilation. Cleaning and maintenance Never rinse the adapter or the appliance itself with water. Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. 1 Make sure the appliance is switched off and disconnected from the mains. 2 Remove the leg skin cooler from the appliance and slide the insulating sleeve off the skin cooler. 3 Clean the pivoting cooling head of the leg skin cooler with the brush supplied or with a moist cloth after each use. Make sure the outside of the skin cooler is completely dry before you freeze it again. Cleaning the epilating head Clean the epilating head after every use. 1 Make sure the appliance is switched off and disconnected from the mains. English 13 2 Remove the epilating head (Fig. 12). Press the release button (1) and pull the epilating head off the appliance (2). 3 Remove the massaging element (Fig. 15). 4 Clean all accessible parts, including the bottom of the epilating head and the epilating discs, with the brush (Fig. 16). 5 You can also rinse the epilating head (not the appliance!) under the tap to clean it more thoroughly (Fig. 17). Never try to detach the epilating discs from the epilating head. 6 Reattach the massaging element to the epilating head. Then place the epilating head on the appliance and press it until it snaps home (‘click’) (Fig. 18). The epilating head only fits onto the appliance in one way. Cleaning the shaving head (HP6515 only) Clean the shaving head after every use. 1 Make sure the appliance is switched off and disconnected from the mains. 2 Remove the shaving head. 3 Pull the cutter unit out of the shaving head. (Fig. 19) 4 Brush the hairs off the cutter unit and the shaving head. Make sure that you also brush away any hairs that have collected under the trimmers (Fig. 20). 5 You can also rinse the cutter unit and the rest of the shaving head (not the appliance!) under the tap (Fig. 21). 6 Put the cutter unit back into the shaving head and snap the shaving head back onto the appliance (‘click’) (Fig. 22). Do not exert pressure on the shaving foil to avoid damage. 7 Rub a drop of sewing machine oil onto the trimmers and shaving foil of the cutter unit twice a year.

English Storage 1 HP6515 only: Put the protective cap on the shaving head (‘click’). (Fig. 23) 2 Store the appliance and the accessories in the pouch. Replacement (HP6515 only) If you use the shaving head several times a week, replace the cutter unit (type HP6193) after one or two years. If the cutter unit is damaged, replace it right away. Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 24). Guarantee & service If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV. Troubleshooting Problem Possible cause Solution Reduced epilating performance. You moved the epilator in the wrong direction. Move the appliance against the direction of hair growth. English 15 Problem The appliance does not work. Possible cause Solution You placed the epilating head on the skin at the wrong angle. Make sure you place the appliance perpendicularly onto the skin. The epilating head did not touch the skin. Make sure the epilating head (and the leg skin cooler, if present) are in proper contact with your skin during epilation. The sensitive area cap was on the appliance when you epilated your legs. Only use the sensitive area cap to epilate your underarms and bikini line. You moistened your skin with water or a cream or other skincare product prior to epilation. Make sure your skin is entirely dry and free from grease. Do not put any cream, body milk or other skincare product on your skin before you start to epilate. You moved the appliance over the skin too fast. Move the appliance over the skin at moderate speed. The socket to which the appliance is connected is not live. Make sure the socket you use is live. If you use a socket in a bathroom cabinet, you may need to switch on the light to activate the socket.

English Problem Possible cause Solution The appliance is Switch on the appliance. not switched on. Skin irritation occurs. You did not attach the epilating head correctly. Place the epilating head on the appliance and press it onto the appliance until it snaps home (‘click’). You used the epilator for the first time or after a long period of disuse. Some skin irritation may occur the first few times you use the appliance. This is absolutely normal and usually disappears quickly. For tips to reduce skin irritation, see the first section of chapter ‘Using the appliance’. Also make sure you keep the epilating head clean. You have Do not use any pressure when applied too you move the appliance over skin much pressure to the appliance The leg skin cooler is not cold enough. You did not freeze the leg skin cooler long enough. Put the skin cooler without the insulating sleeve in the freezer or freezing compartment (***) for at least 4 hours. When the colour of the fluid has changed from white to completely blue, the skin cooler is ready for use. You did not put the leg skin cooler in the freezer or freezing compartment. Put the skin cooler without the insulating sleeve in the freezer or freezing compartment (***) for at least 4 hours. Do not store the skin cooler in the refrigerator. English 17 Problem Possible cause Solution The leg skin cooler did not touch the skin. Make sure the skin cooler is always in proper contact with your skin during epilation. Only use the leg skin cooler to epilate your legs. The pivoting cooling head of the leg skin cooler does not move. The pivoting cooling head is frozen. Pass the skin cooler over your leg a few times to make it pivot again. Always make sure the outside of the skin cooler is completely dry before you freeze it. It is not possible to remove the epilating head. You did not press the release button. Press the release button and pull the epilating head off the appliance. HP6515 only: It is not possible to remove the shaving head. You did not press the release button. Press the release button and pull the shaving head off the appliance. HP6515 only: Reduced shaving performance. The shaving head is dirty. Switch off the appliance, unplug it and remove the shaving head. Then clean the cutter unit and the shaving head with the cleaning brush supplied. Remove any hairs that are stuck under the trimmers. The cutter unit is damaged or worn. The cutter unit is damaged or worn. HP6515 only: Stronger skin irritation than usual after shaving.
