USER MANUAL AXISSFIX PLUS BEBE CONFORT

QR code image containing encoded data, no visible human-readable text

DOREL BELGIUM

BITM Brussels

International Trade Mart

Atomiumsquare 1, BP 177

1020 Brussels

BELGIQUE / BELGIE

DOREL NETHERLANDS

Postbus 6071

5700 ET Helmond

NEDERLAND

DOREL HISPANIA S.A.

C/Pare Rodés n°26

Torre A 4°

Edificio Del Llac Center

08208 Sabadell (Barcelona)

ESPAÑA

DOREL ITALIA S.P.A.

a Socio Unico

Via Verdi, 14

24060 Telgate (Bergamo)

ITALIA

DOREL PORTUGAL

Rua Pedro Dias, 25

4480-614 Rio Mau (VDC)

PORTUGAL

DOREL SWITZERLAND S.A.

Chemin de la Colice 4

1023 Crissier

SWITZERLAND / SUISSE

DRU0924A15

www.bebconfort.com

Group 2/3 / 15-36 kg

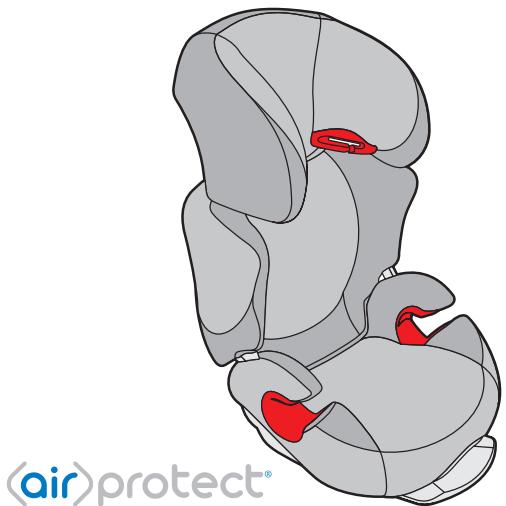

Rodi AirProtect

3D model of a car seat with red highlighted areas, no text or symbols present

Revolutionary side impact protection

EN

Congratulations on your purchase.

For the maximum protection and comfort of your child, it is essential that you read through the entire manual carefully and follow all instructions.

FR

Diagram of car seat components with labeled parts A through M, showing front and side views of the seat assembly.

INDEX

6 i 15

EN 15 TR 55
FR 19 RO 59
DE 23 BG 63

NL 27

ES 31

IT 35

PT 39

PL 43

RU 47

EL 51

Instructions for use/Warranty
Mode d'emploi/Garantie
Gebrauchsanweisung/Garantie
Gebruiksaanwijzing/Garantie
Instrucciones de uso/Garantía
Istruzioni d'uso/Garanzia
Instruções de utilização/garantia
Instrukcja obsługi/ Gwarancja
Инструкция по использованию / Гарантия
Οδηγίες χρήσης/Εγγύηση
Kullanım için talimatlar / Garanti
Instrucțiuni de utilizare/Garanție
Упътване за употреба/Гаранция

A B C D

Diagram showing car seat positioning with red and green labels indicating correct and incorrect positions

Diagram of a car seatbelt with a red X mark indicating no change, showing no text or symbols.

Safety warning symbol for a hand holding a small object, indicating no protection or dislocation

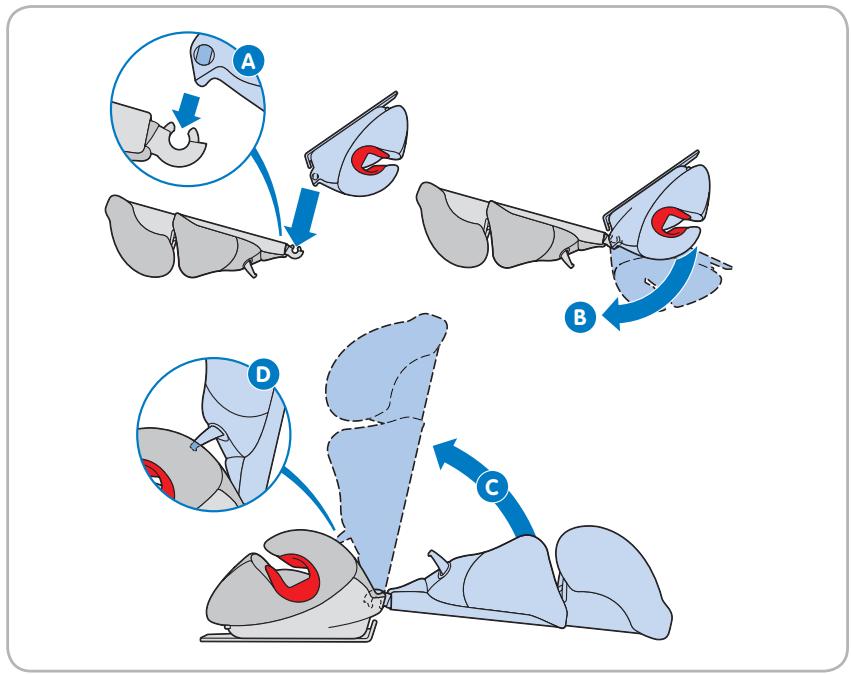

Diagram illustrating car seat assembly with labeled parts A and B, showing seat arrangement and adjustment arrows.

Diagram illustrating car seatbelt usage with labeled steps A, B, C, and D showing how to adjust seatbelt.

A B

Diagram illustrating mechanical assembly steps with labeled components A, B, and C

1 cm

Diagram showing a car seatbelt buckle with red straps and a red X mark indicating no text or symbols

CLICK A B

zzz

Diagram showing a car seatbelt with a blue arrow indicating leftward movement, marked with a red 'X' symbol.

A B C D E F G H I

J M L K

A Headrest
Belt hook
C Shoulder support
D Backrest
E Belt guide
F Seat
G Position adjustment handle
Comfort Base
Anchor
J Elastic tensioner
K Headrest positioning handle
L Instruction label
M Instruction booklet

Safety

General instructions Rodi AirProtect

1. You are personally responsible for the safety of your child at all times.
2. Never hold your child on your lap when driving.
3. The Rodi AirProtect is for car use only.
4. Do not use second-hand products whose history is unknown.
5. Replace the Rodi AirProtect after an accident.
6. Read this instruction manual carefully and keep it in the storage space under the Rodi AirProtect.

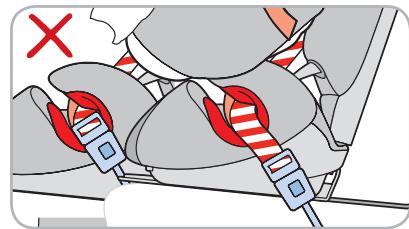

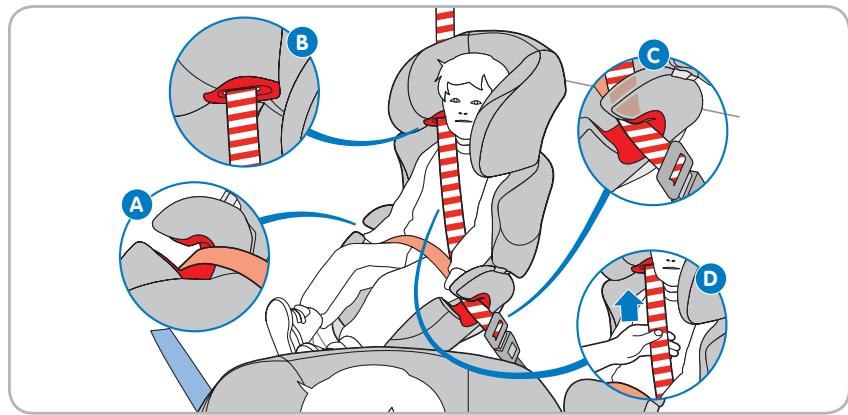

WARNING: Correct fitting of the car seat belt is essential for the safety of your child. The car seat belt must be installed following the red parts of the Rodi AirProtect. NEVER fit the seat belt in a way other than described.

WARNING: Do not make any changes to the Rodi AirProtect, as this could lead to unsafe situations.

Rodi AirProtect in the car

1. Use the Rodi AirProtect only on a front-facing seat that is fitted with an automatic or static 3-point belt that has been approved according to the ECE R16 standard or similar. Do NOT use a 2-point belt.
2. Make sure the car seat can be installed properly in your car before purchasing it.
3. Always fully install the Rodi AirProtect with the car seat belt, even if there is no child in it.
4. Deactivate the airbag if using the AirProtect on the front passenger seat. If this is not possible, place the passenger seat in the rearmost position.
5. Always install both components of the Rodi AirProtect: seat + back support.

6. Make sure that fold-down rear seats are locked into position and that the back rest of the car seat is upright position.

7. Prevent the Rodi AirProtect from becoming trapped or weighed down by luggage, seats and/or slamming doors.

8. Make sure all luggage and other loose objects are secured.
9. Always cover the Rodi AirProtect when exposed to direct sunlight in the car. Otherwise, the cover may discolour and plastic parts may become too hot for your child's skin.

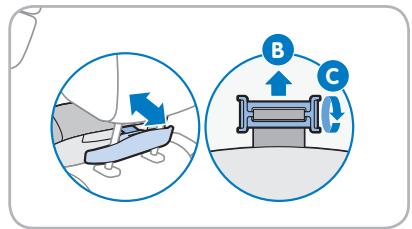

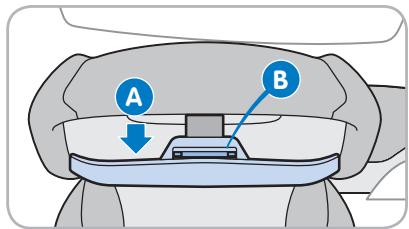

10. Use the anchor attached to the Rodi AirProtect headrest for better stability.

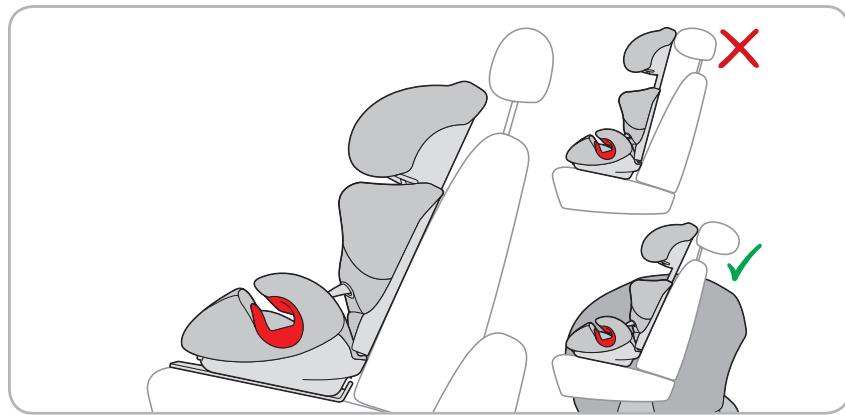

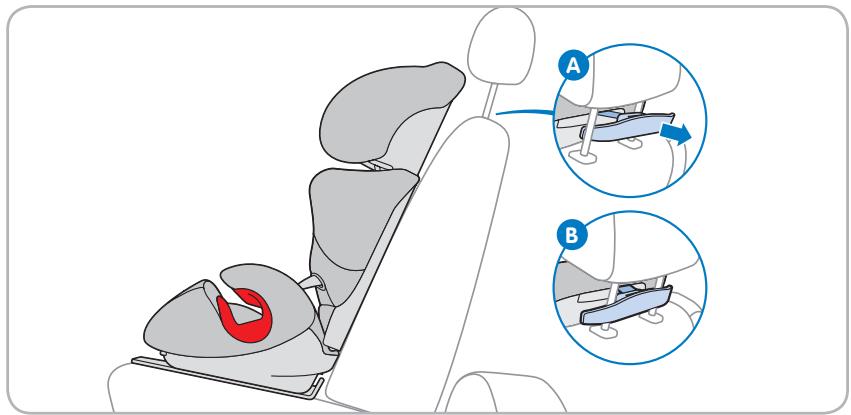

11. Turn the car's headrest the other way round or remove it if the Rodi AirProtect does not fit.

WARNING: The Rodi AirProtect must only be installed in the car in a forward-facing position

Your child in the Rodi AirProtect

1. Never leave your child unattended.
2. Always secure your child with the seat belt.

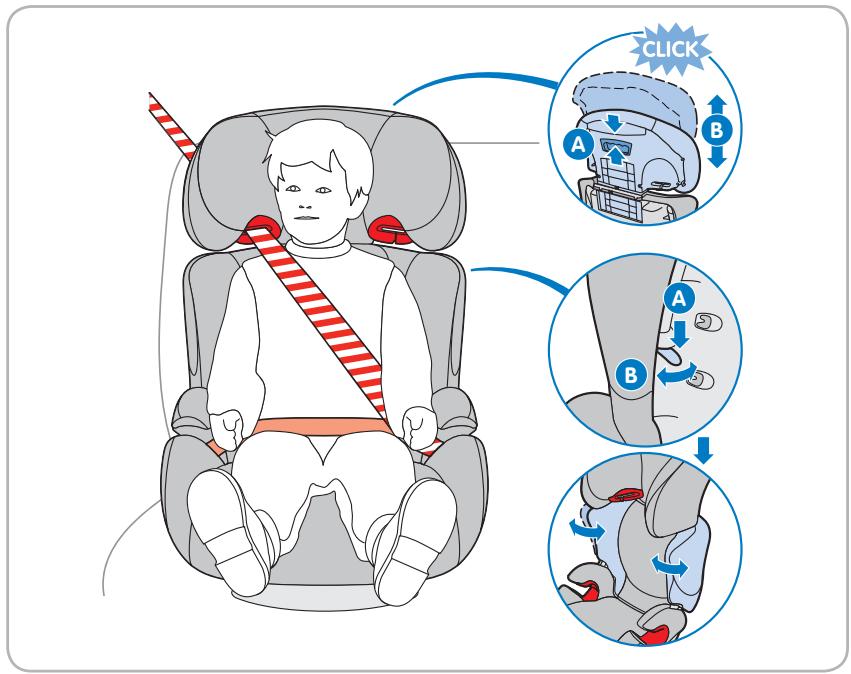

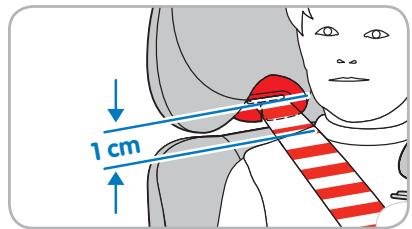

3. Make sure the headrest is adjusted to the proper height.
4. Before every use, make sure the seat belt is not damaged or twisted.

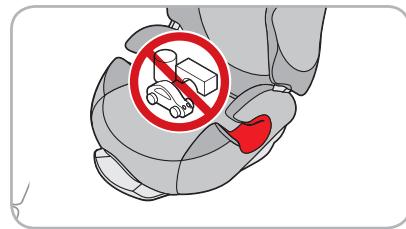

5. Remove all objects from the child's coat and trouser pockets so they cannot get stuck between the child and the seat belt. Such objects could cause injury in case of an accident.

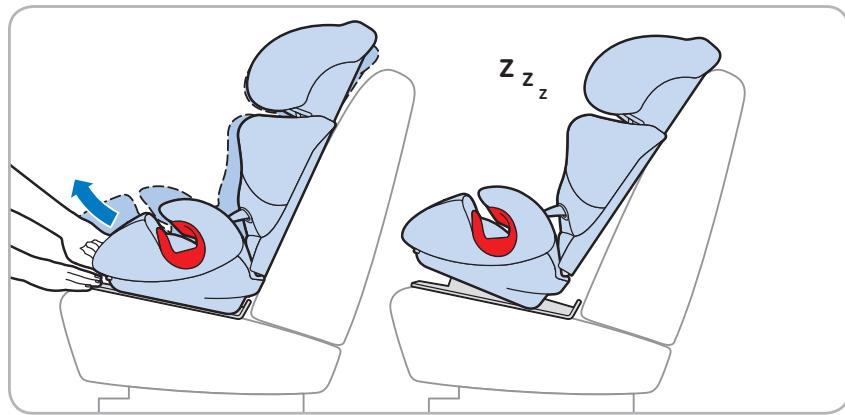

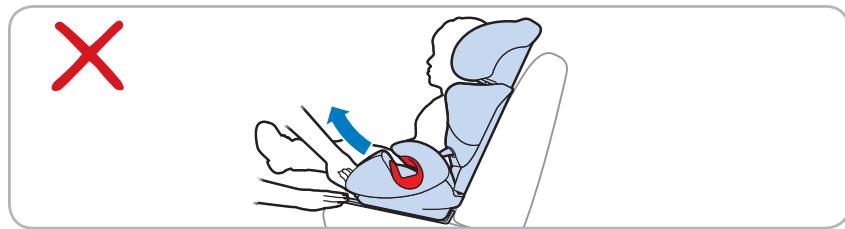

6. Never adjust the recline position of the Rodi AirProtect whilst your child is in it.

7. Tell your child not to play with the seat belt buckle and to keep its head against the headrest.

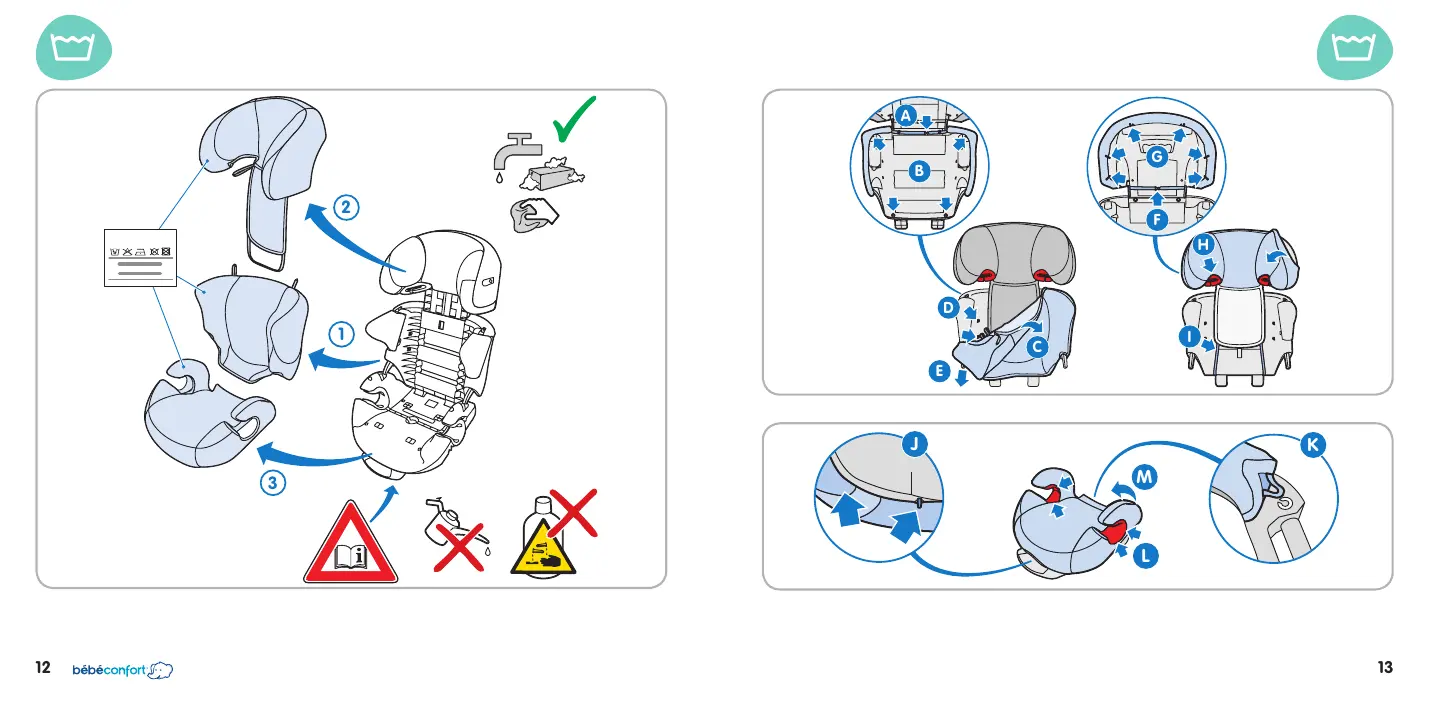

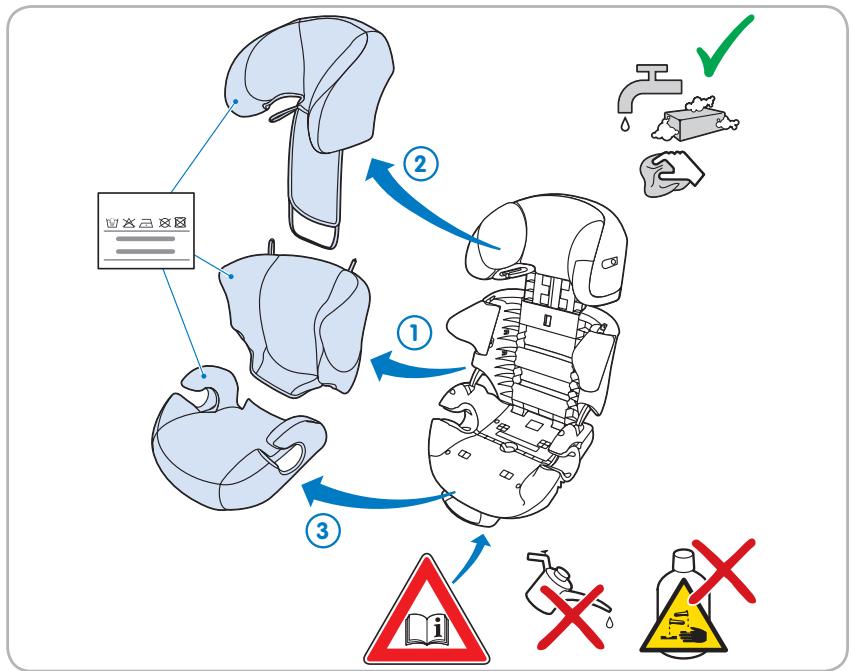

Maintenance instructions Rodi AirProtect

1. Use the original cover only, since it is part of the safety features of this product.
2. The AirProtect cushion and the foam parts of the headrest and backrest may not be removed.
3. Clean the Rodi AirProtect regularly with lukewarm water, soap and a soft cloth. Do not use any lubricants or aggressive cleaning agents on this product.

The Rodi AirProtect has been approved in accordance with the latest European safety standards (ECE R44/04) and is suitable for children from 15 to 36 kg (approx. 3,5 years, with a maximum height of 1,50 m).

Environment

Keep all plastic packaging materials out of reach of your child to avoid the risk of suffocation.

For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

If you have any questions, contact your local Bébé Confort retailer (see www.bebconfort.com for contact information). Make sure that you have the following information on hand:

• Serial number on the orange ECE sticker at the bottom of the Rodi AirProtect base;
• Car make and model and seat on which the Rodi AirProtect is used;
• Age, height and weight of your child.

Warranty

Our 24 months warranty reflects our confidence in the high quality of our design, engineering, production and product performance. We confirm that this product was manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects on materials and workmanship at the time of purchase.

Our 24 months warranty covers all manufacturing defects in materials and workmanship when used in normal conditions and in accordance with our user manual. To request repairs or spare parts under warranty for defects in materials and workmanship you must present your proof of purchase, made within the 24 months preceding the service request.

Our 24 months warranty does not cover damage caused by normal wear and tear, accidents, abusive use, negligence or the consequence of failing to comply with the user manual. Examples of normal wear and tear include wheels and fabric worn down by regular use and the natural breakdown of colors and materials over extended period of time and use.

What to do in case of defects:

Should problems or defects arise, your first point of contact is your Bébé Confort dealer or retailer. Our 24 months Warranty is recognized by them (1). You must present your proof of purchase, made within the 24 months preceding the service request. It is easiest if you get your service request pre-approved by Bébé Confort Service. In principle, we pay for shipment and for return freight connected to service requests under the warranty. Damage not covered by our warranty or on products outside of warranty can be handled at a reasonable fee.

This Warranty is in compliance with to European Directive 99/44/EG of 25 May 1999.

(1) Products purchased from retailers or dealers that remove or change labels or identification numbers are considered unauthorized. Products purchased from unauthorized retailers are also considered unauthorized. No warranty applies to these products since the authenticity of these products cannot be ascertained.
