USER MANUAL CLICK&STYLE S728/20 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

Question? Contact Philips

Close-up of a Philips 34-pin electric shaver with three rotary dials and a green power button (no text or symbols visible on the device body)

PT919

PT866

PT860

PT845

PT739

PT737

PT731

PT730

PT727

PT726

PT725

PT723

PT721

PT720

User manual

PHILIPS

Exploded diagram of a Philips electric shaver with labeled parts including power shaver, cable, and accessories

ENGLISH 4

DANSK 15

DEUTSCH 26

ΕΛΛΗΝΙΚΑ 37

ESPAÑOL 49

SUOMI 61

FRANÇAIS 72

ITALIANO 84

NEDERLANDS 96

NORSK 108

PORTUGUÊS 119

SVENSKA 131

TÜRKÇE 142

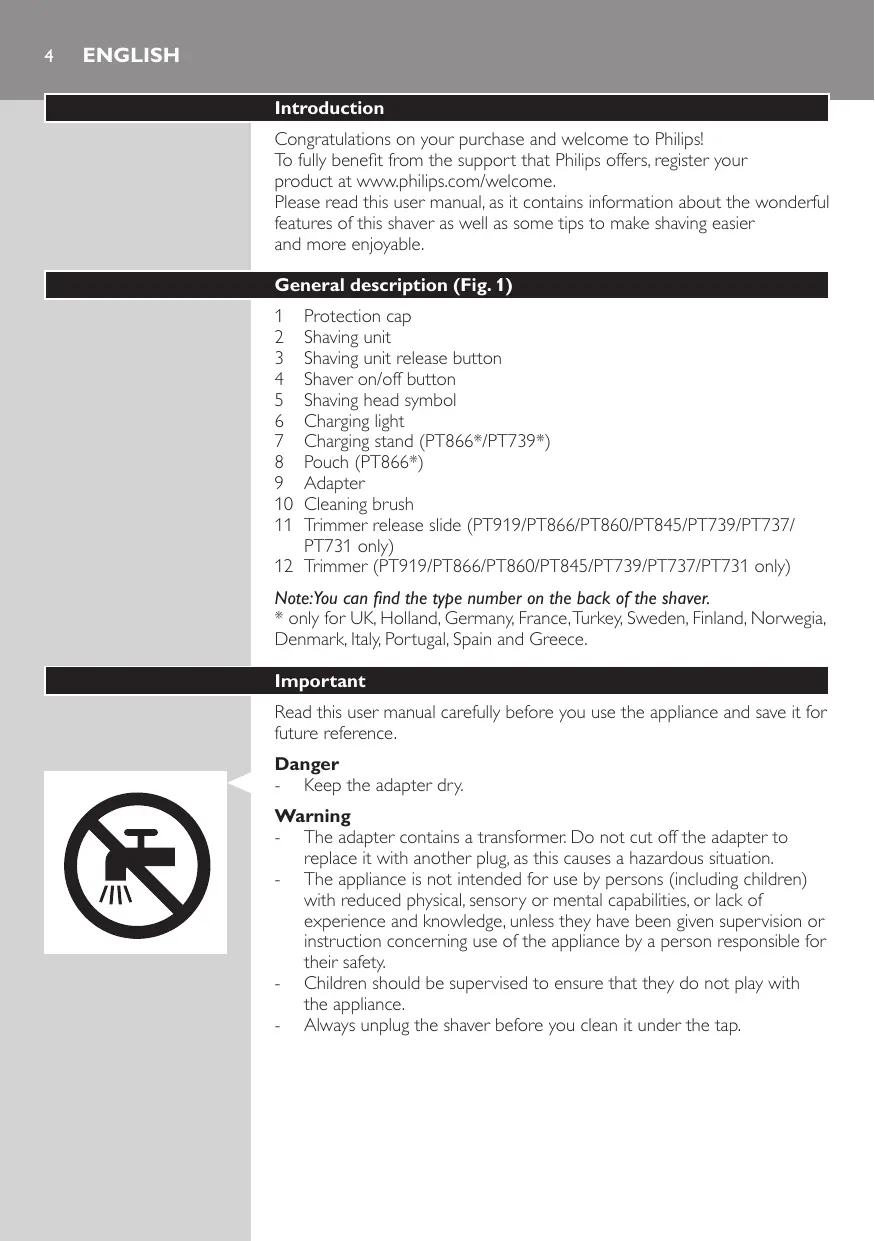

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

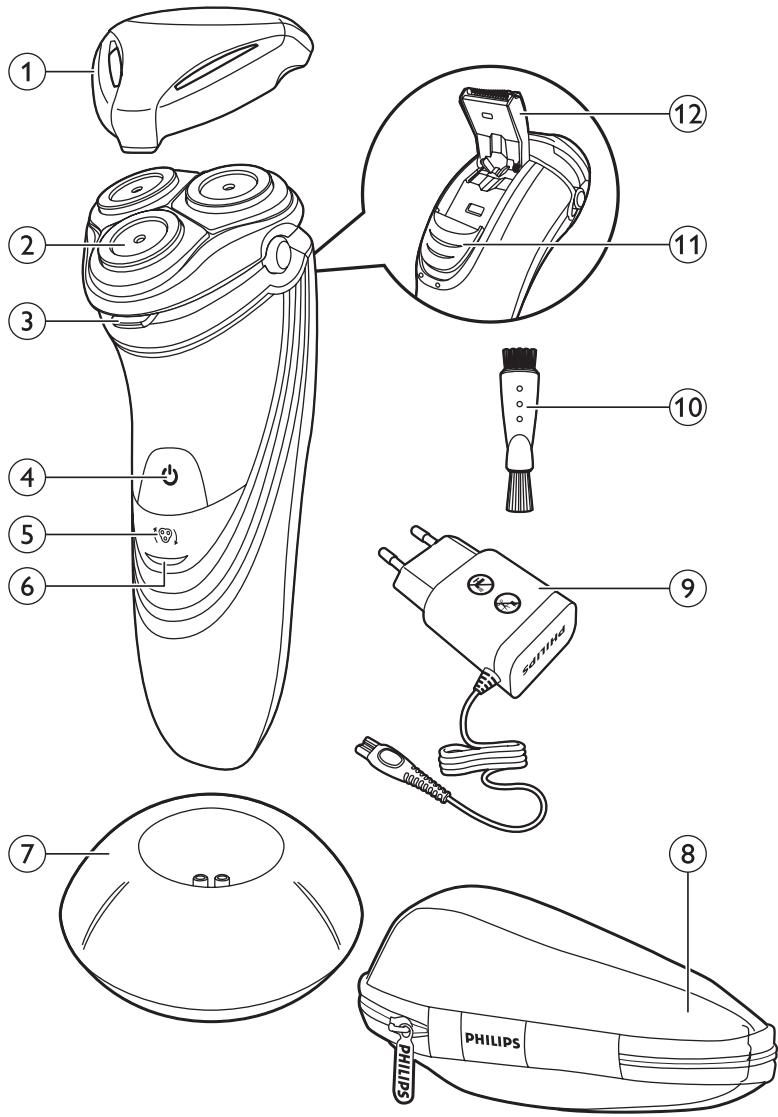

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button
5 Shaving head symbol
6 Charging light
7 Charging stand (PT866*/PT739*)
8 Pouch (PT866*)
9 Adapter
10 Cleaning brush

11 Trimmer release slide (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

12 Trimmer (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

Note: You can find the type number on the back of the shaver.

* only for UK, Holland, Germany, France, Turkey, Sweden, Finland, Norwegia, Denmark, Italy, Portugal, Spain and Greece.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the shaver before you clean it under the tap.

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text or symbols)

Illustration of a pair of eyeglasses with a prohibition symbol (no text or labels)

Caution

• Never immerse the shaver in water.
• Do not use the shaver in the bath or in the shower.
• Never use water hotter than 80^ C to rinse the shaver.
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.
• The shaver is not dishwasher-proof.
• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
• Do not use the shaver, adapter or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charger or part with one of the original type.
• Use, charge and store the appliance at a temperature between 10^ C and 35^ C.
• Always place and use the shaver on a surface that is fluid-resistant.
• Only use the adapter, charger and accessories supplied.
• Always put the protection cap on the shaver to prevent damage and to avoid dirt accumulation in the shaving heads.

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Compliance with standards

- This Philips appliance complies with all standards and regulations regarding exposure to electromagnetic fields (EMF) and can be safely cleaned under the tap.

General

• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

PT919/PT866/PT860: It takes approx. 1 hour to fully charge the shaver. PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720: It takes approx. 8 hours to fully charge the shaver.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

A fully charged shaver provides up to 50 (PT919/PT866/PT860) or up to 45 shaving minutes (PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720).

The shaving time may be less than 50 (PT919/PT866/PT860) or 45 shaving minutes (PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720) as a result of your shaving behaviour, your cleaning habits or your beard type.

Charge indications

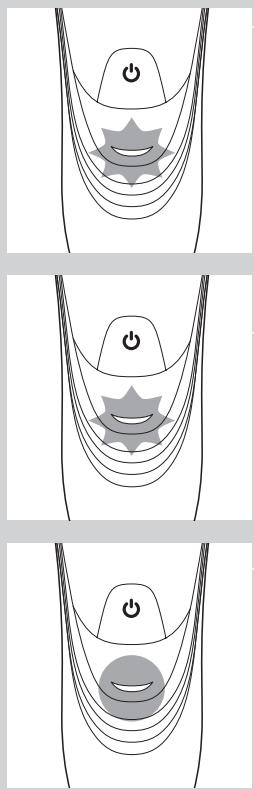

Battery low

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.
• When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Quick charging

- When you start charging the empty battery, the charging light alternately flashes orange and green. After approx. 3 minutes, the charging light continues to flash green. The shaver now contains enough energy for a 5-minute shave.

Charging

- When the shaver is charging, the charging light flashes green.

Battery fully charged

- When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging with the adapter

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.
The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Charging in the charging stand (PT866/PT739 only)

1071 B Palluhr

1 Put the small plug in the charging stand.
2 Put the adapter in the wall socket.
3 Place the shaver in the charging stand.
The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Using the shaver

Note: You can also use the shaver directly from the mains. Simply connect the shaver to the mains.

Shaving

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads over your skin. Make circular movements.
- Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.
3 Press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Trimming (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

Diagram of a hairbrush with a black arrow indicating direction (no text or symbols)

You can use the trimmer to groom your sideburns and moustache.

1 Press the on/off button once to switch on the shaver.
2 Push the trimmer slide downwards to open the trimmer.
You can now start trimming.

Diagram of a hand inserting a USB into a device component, showing pin and cable structure (no text or symbols)

3 After trimming, close the trimmer and switch off the shaver.

Cleaning and maintenance

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

• Clean the shaver after every shave for optimal shaving performance.
• Regular cleaning guarantees better shaving performance.
• For the best cleaning results, we advise you to use the Philips Cleaning spray (HQ110).
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Diagram of a hand inserting a plug into a device with internal components (no text or labels)

Illustration of a mechanical device emitting liquid from a piping bag (no text or symbols)

Illustration of a dental implant being inserted into a jawbone (no text or symbols present)

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols)

Cleaning the shaving unit under the tap

1 Switch off the shaver and disconnect it from the mains.

2 Press the release button to open the shaving unit.

3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving heads and the coupling spindles.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.

2 Press the release button to open the shaving unit.

3 Pull the shaving unit off the shaver.

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational movement or assembly.

4 Turn the lock anticlockwise (A) and remove the retaining frame (B).

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion or movement (no text or symbols)

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

- Remove the cutter from the shaving guard and clean it with the brush.

Illustration of a mechanical assembly with tool and component, no text or symbols present

- Clean the inside and outside of the shaving guard with the brush.

Illustration of a hand placing a small object into a bowl with a downward arrow (no text or symbols)

6 Put the shaving heads back into the shaving unit.

Diagram illustrating a food preparation step with labeled steps and directional arrows indicating processing or labeling.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

A B

Illustration of two dental implant devices with arrows indicating process (no text or symbols)

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).
8 Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush (PT919/PT866/PT860/PT845/PT739/PT737/PT731 only)

Diagram of a device's internal structure with arrows indicating flow or movement (no text or symbols)

Clean the trimmer every time you have used it.

1 Switch off the shaver and disconnect it from the mains.
2 Push the trimmer slide downwards to open the trimmer.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3 Clean the trimmer with the short-bristled side of the cleaning brush. Brush up and down along the trimmer teeth.
4 Close the trimmer ('click').

OIL

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Diagram of a hand turning a circular object into a base, showing mechanical components (no text or symbols)

• Put the protection cap on the shaver after use to prevent damage and to avoid dirt accumulation in the shaving heads.
• PT866 only: Store the appliance and the accessories in the pouch.

Replacement

Illustration of a toothbrush with a magnified inset showing facial features (no text or symbols)

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away. Only replace the shaving heads with original HQ8 or HQ9 (PT919 only) Philips Shaving Heads.

Illustration of a hand holding a device with internal components, no text or symbols present

1 The shaving head symbol lights up orange continuously.
2 Switch off the shaver. Disconnect the shaver from the mains.
3 Press the release button to open the shaving unit.
4 Pull the shaving unit off the shaver.

Diagram showing hand positioning of a mechanical device with labeled points A and B, indicating movement or positioning.

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).

Illustration of a hand placing a small bowl into a tray with a downward arrow (no text or symbols)

6 Remove the shaving heads and place new ones in the shaving unit.

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

A B

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

Illustration of two dental implant devices with arrows indicating process (no text or symbols)

8 Insert the lug of the new shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

5 sec. PHILIPS PHILIPS

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Accessories

To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace with HQ8 or HQ9 (PT919 only) Philips Shaving Heads

Cleaning

- Use Cleaning spray (HQ110) to clean the shaving heads thoroughly.

2yrs

Environment

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

- Do not throw away the appliance with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver.

Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains.
2 Let the shaver run until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the power unit.

Be careful, the hooks are sharp.

6 Remove the battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem	Possible cause	Solution
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’) or connect the shaver to the mains.
	The temperature of the shaver is too high. In this case, the shaver does not work.	As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.
Water leaks from the shaver after cleaning.	This is normal and not dangerous.	During rinsing some water may collect between the power unit and the housing. After rinsing this water flows out through the socket. The power unit is completely watertight so water cannot reach the electronic parts of the shaver. Your shaver continues to be absolutely safe.

Introduktion

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text or symbols)

Illustration of a pair of eyeglasses with a prohibition symbol (no text or labels)

Simple black-and-white icon of a faucet with raindrops, enclosed in a square frame (no text or symbols)

Forsigtig

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a hairdryer with a device inserted, showing internal components and arrows indicating flow direction (no text or labels)

Diagram of a hand inserting a USB into a device component with arrows indicating insertion (no text or symbols present)

Illustration of a hand holding a device with a mechanical component, no text or symbols present

Illustration of a medical procedure showing fluid flow from a tube into a patient's ear (no text or symbols present)

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Illustration of a medical procedure showing a hand holding a device with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a medical device with an arrow pointing to a component (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational movement or assembly.

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion or movement (no text or symbols)

Illustration of a robotic arm operating a gear and two circular components (no text or symbols)

Illustration of a hand placing a small object into a bowl with a downward arrow (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and directional arrows indicating steps to resolve or adjust tissue.

Illustration of two dental implant devices with arrows indicating process (no text or symbols)

Diagram of a device's internal structure showing a connector and airflow direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a circular object into a base, showing mechanical components (no text or symbols)

Illustration of a toothbrush with a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of a hand pressing down on a mechanical component with a circular inset showing a knob (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view and directional arrows indicating processing steps.

Illustration of a hand placing a dental implant component into a jawbone (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Achtung

PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720:

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a device with a power button and a smiley face, no text or symbols present

Akku fast leer

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a hairbrush with a black arrow indicating direction (no text or symbols)

Diagram of a hand inserting a USB into a device component, showing pin and cable structure (no text or symbols)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Illustration of a hand inserting a plug into a device with internal components (no text or symbols)

Diagram of a mechanical device emitting liquid from a piping bag (no text or symbols)

Line drawing of a person holding a device with arrows indicating movement or force (no text or symbols)

Diagram showing a hand holding a mechanical component with an arrow pointing to a detail (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational movement.

Illustration of a hand holding three mechanical parts with upward arrows indicating motion (no text or symbols)

Illustration of a mechanical assembly with tool and component, no text or symbols present

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Illustration of two mechanical components with arrows indicating motion, no text or symbols present

Diagram of a hairpin with a connector and black arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a leaf with three blades, showing the blade and handle (no text or symbols)

Diagram of a stylized brush or plow with a magnified inset showing a smiley face (no text or symbols present)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of a hand pressing down on a mechanical component with a circular inset showing a ring labeled 'e' (no text or symbols present)

Diagram illustrating food preparation steps with labeled icons and arrows indicating steps to prepare or prepare.

Illustration of a hand holding a mechanical component with arrows indicating assembly or process (no text or symbols present)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Symbol of a trash bin crossed out by a diagonal line, representing no waste or discharge (no text or labels)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text or symbols)

Illustration of a pair of electric shakers with a prohibition symbol (no text or labels)

Black and white icon of a faucet with raindrops falling (no text or symbols)

Προσοχή

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a device's internal structure with arrows indicating flow or movement (no text or symbols)

Diagram of a hand inserting a USB into a device component, showing internal structure and a downward arrow (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a medical procedure showing fluid flow from a tube into a patient's ear (no text or labels)

Illustration of a mechanical device emitting powder into a container (no text or symbols visible)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing a hand holding a mechanical component with an arrow indicating direction, alongside a close-up of a mechanical component (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled points A and B, indicating rotational or movement paths.

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion or movement (no text or symbols)

Illustration of two hands using a tool to clean or inspect a mechanical component, with no visible text or symbols.

Illustration of a hand pressing down on a mechanical component with a circular inset showing a ring labeled 'e' (no text or symbols present)

Diagram illustrating a food preparation step with labeled steps and directional arrows indicating processing or labeling.

Illustration of a hand holding a medical device with an arrow indicating process (no text or symbols present)

Diagram of a hairpin with a connector inserted, showing internal structure and arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a leaf with three blades, showing the blade's center and blade tip (no text or symbols)

Illustration of a hairbrush with decorative swirls and a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical component with labeled parts A and B, indicating rotational motion.

Illustration of a hand pressing down on a small bowl with a downward arrow (no text or symbols)

Diagram illustrating a hand holding a bowl with a magnified view of the mouth, showing anatomical features and directional arrows.

Illustration of two dental implant devices with arrows indicating process (no text or symbols)

5 sec. PHILIPS PHILIPS

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by a diagonal line, representing no waste or elimination (no text or numbers present)

Prohibition sign of a faucet without any text or symbols

Illustration of a pair of electric shakers with a prohibition symbol (no text or labels)

Simple black-and-white icon of a faucet with raindrops falling (no text or symbols)

Precaución

Modelos PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/

PT720: Se tarda aproximadamente 8 horas en cargar completamente la afeitadora.

Illustration of a person using a handheld device to address teeth (no text or symbols present)

Diagram of a hairbrush with black arrows indicating direction (no text or symbols)

Diagram of a hand using a tool to insert a component, showing a black arrow pointing to the component (no text or symbols present)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand inserting a plug into a socket with liquid flowing out (no text or symbols)

Illustration of a mechanical device emitting fluid or material from a nozzle (no text or symbols)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Diagram showing a hand holding a mechanical component with an arrow indicating assembly or adjustment (no text or symbols present)

Diagram showing hand positioning of a mechanical component with labeled parts A and B, indicating rotational motion.

Illustration of a hand holding a tray with mechanical components and upward arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to clean a mechanical component, with another bowl nearby (no text or symbols)

Illustration of a hand holding a small mechanical component with a circular inset showing a ring (no text or symbols)

Diagram illustrating a hand holding a bowl with a magnifying glass, showing a hand inserting a device into a tray with a checkmark and arrows indicating process steps.

Illustration of a hand holding a mechanical component with arrows indicating assembly or process (no text or symbols)

Diagram of a device's internal structure showing a connector with arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a three-pin electric shaver (no text or symbols present)

Diagram of a hand holding a platter with a magnified circular inset showing a smiley face (no text or symbols present)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational or movement directions.

Illustration of a hand placing a small object into a circular component with a lid (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view and a checkmark indicating a step.

Illustration of a hand holding a mechanical component with arrows indicating process (no text or symbols)

5 sec. PHILIPS PHILIPS

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Prohibition sign of a faucet with diagonal line indicating no pollution or leakage (no text present)

Illustration of a pair of eyeglasses with a prohibition symbol (no text or labels)

Simple black-and-white icon of a faucet with raindrops, enclosed in a square frame (no text or symbols)

Varoitus

Mallit PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/

Illustration of a medical or electronic device with a downward arrow pointing to a circular component labeled 'Pensuit' (no text or symbols on the device itself)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Illustration of a hand inserting a plug into a device with visible internal components (no text or symbols)

Illustration of a mechanical device emitting liquid from a nozzle (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational motion or assembly.

Illustration of a hand holding a tray with multiple circular objects and upward arrows indicating motion or movement (no text or symbols)

Illustration of a robotic arm operating a gear and a bowl, no text or symbols present

Illustration of a hand placing a small object into a bowl with a downward arrow (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Illustration of a hand inserting a small object into a device, showing internal components and motion arrows (no text or symbols)

Diagram of a device's internal structure showing a connector and airflow direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a circular object into a base, showing mechanical components (no text or symbols)

Illustration of a hairbrush with a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a device with internal components, no text or symbols present

Diagram showing hand positioning of a mechanical device with labeled points A and B, indicating rotational or movement directions.

Illustration of a hand placing a small object into a bowl with a downward arrow (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view and directional arrows indicating processing steps.

Illustration of two dental implant devices with arrows indicating process (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed out by a diagonal line, representing no waste or elimination (no text present)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with raindrops (no text or symbols)

Attention

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a hairbrush with a connector and internal mechanism (no text or symbols)

Illustration of a hand holding a connector with an arrow pointing to it, showing internal components (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand washing a shoe with a piping bag above (no text or symbols)

Illustration of a mechanical component being lifted by a pipette (no text or symbols)

Illustration of a hand holding a device with an open lid and internal components, no text or symbols present

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of a hand holding a tray with three small food items and upward arrows indicating rotation or movement (no text or symbols)

Illustration of a robotic arm operating a gear and a bowl, with no visible text or symbols

Illustration of a hand pressing down on a mechanical component with a circular inset showing a ring labeled 'e' (no text or symbols present)

Diagram illustrating a food preparation step with labeled steps and directional arrows indicating processing or labeling.

Illustration of a hand holding a medical device with an arrow indicating the process (no text or symbols present)

Diagram of a hairbrush with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols present)

Diagram of a hand turning a leaf with three blades, showing the blade's center and blade tip (no text or symbols)

Illustration of a hairbrush with decorative swirls and a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of hands assembling a mechanical component with a circular inset showing a lid (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and directional arrows indicating steps to resolve or adjust.

Illustration of a hand holding a small mechanical component with arrows indicating motion or assembly (no text or symbols present)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Attenzione

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a central button labeled 'Power' (no text or symbols beyond the icon)

Batteria scarica

Diagram of a handheld device with a circular base and a curved cable, showing a downward arrow (no text or symbols present)

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a hairbrush with a black arrow indicating direction (no text or symbols)

Illustration of a hand inserting a device into a device component with arrows indicating insertion (no text or symbols present)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Diagram of a medical procedure showing fluid flow from a tube into a patient's ear (no text or labels)

Diagram of a mechanical device emitting liquid from a piping bag (no text or symbols)

Illustration of a person inserting a device into a device with arrows indicating direction (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled points A and B, indicating movement direction.

Illustration of a hand holding a tray with three circular components and upward arrows indicating motion (no text or symbols)

Illustration of a robotic arm performing a tool on a mechanical component, with a bowl and tray nearby (no text or symbols)

Illustration of a hand turning a circular component with a knob, no text or symbols present

Diagram illustrating a medical procedure with labeled steps and directional arrows indicating process flow

Illustration of two hands performing a mechanical or electrical operation, showing a device with internal components and a rotating arrow (no text or symbols)

Diagram of a device's internal structure showing airflow or movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a leaf with three blades, showing the blade's center and blade tip (no text or symbols)

Diagram of a hand holding a platter with a magnified circular inset showing a smiley face (no text or symbols present)

Line drawing of a person inserting a device into a device housing (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of a hand pressing down on a mechanical component with a circular inset showing a lid (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Illustration of a hand holding a medical device with internal components, showing a close-up of the device's internal structure (no text or symbols present)

Symbol of a waste bin with crossed lines indicating no waste, and a blank rectangular block below (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text or symbols)

Illustration of a pair of electric shakers with a prohibition symbol (no text or labels)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Let op

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a central button labeled 'Power' (no text or symbols beyond the icon)

Accu bijna leeg

Illustration of a person using a handheld device to address teeth (no text or symbols present)

Diagram of a hairdryer with a device inserted, showing internal components and arrows indicating flow direction (no text or symbols)

Diagram of a hand holding a tool interacting with a device component, showing a black arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Illustration of a mechanical device pouring liquid into a container (no text or symbols)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical component with labeled parts A and B, indicating rotational motion.

Illustration of a hand holding a tray with mechanical components and upward arrows indicating motion (no text or symbols)

Illustration of two hands using pipette to clean a mechanical component, with a bowl nearby (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a circular inset showing a lid (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating inspection.

Illustration of a hand holding a medical device with an arrow indicating the process (no text or symbols present)

Diagram of a device's internal structure showing a connector with arrows indicating flow or movement (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a leaf into a three-cylinder electric shaver (no text or symbols)

Diagram of a hairbrush with a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of hands using a tool to adjust or install a small object on a plate (no text or symbols visible)

Diagram illustrating a hand holding a bowl with a magnifying glass, showing steps to remove or restore a food item.

Illustration of a hand holding a dental implant component, showing disassembly and assembly (no text or symbols)

Prohibition sign showing a faucet with a diagonal line and raindrops (no text or symbols)

Black and white icon of a faucet with raindrops falling (no text or symbols)

Forsiktig

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a hairbrush with a black arrow indicating direction (no text or symbols)

Diagram of a hand holding a connector to a device, with arrows indicating the process (no text or symbols present)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Diagram of a medical procedure showing fluid flow from a tube into a patient's ear (no text or labels)

Illustration of a mechanical device emitting liquid from a piping bag (no text or symbols)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational motion or assembly.

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion or movement (no text or symbols)

Illustration of a robotic arm operating a gear and a bowl, with no visible text or symbols

Illustration of a hand placing a small object into a bowl with a downward arrow (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Illustration of a hand inserting a small object into a device, showing internal components and motion arrows (no text or symbols)

Diagram of a device's internal structure with arrows indicating flow or movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a three-pin shaver with a top handle (no text or symbols)

Illustration of a hand holding a platter with a magnified circular inset showing rotational motion (no text or symbols)

Illustration of a hand holding a mechanical component with a curved top section (no text or symbols visible)

Diagram showing hand positioning of a mechanical device with labeled points A and B, indicating movement or positioning.

Illustration of a hand holding a small bowl with a downward arrow, no text or symbols present

Diagram illustrating a hand holding a bowl with food items, showing a magnified view and directional arrows indicating processing steps.

Illustration of a hand placing a dental implant component into a jawbone (no text or symbols present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Prohibition sign showing a faucet with a diagonal line and raindrops, no text or symbols present.

Illustration of a pair of electric shakers with a prohibition symbol (no text or labels)

Simple black-and-white icon of a faucet with raindrops falling (no text or symbols)

Cuidado

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a stylized smiley face with curved lines and a central button labeled 'Power' (no text or symbols beyond the icon)

Bateria fraca

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a device's internal structure with arrows indicating flow or movement (no text or symbols)

Illustration of a hand inserting a plug into a device component with arrows indicating direction (no text or symbols)

Line drawing of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Medical illustration showing a hand inserting a device into a patient's ear with tubing (no text or labels)

Illustration of a mechanical device with a tool emitting liquid into a component (no text or symbols visible)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Diagram showing a hand holding a mechanical component with an arrow indicating assembly or adjustment (no text or symbols present)

Diagram showing hand positioning of a mechanical component with labeled parts A and B, indicating rotational motion.

Illustration of a hand holding a tray with mechanical components and upward arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to clean a mechanical component, with another bowl nearby (no text or symbols)

Illustration of a hand holding a small mechanical component with a circular inset showing a ring (no text or symbols)

Diagram illustrating a hand holding a bowl with a magnifying glass, showing a hand inserting a device into a tray with a checkmark and arrows indicating process steps.

Illustration of a hand holding a mechanical component with arrows indicating assembly or process (no text or symbols)

Diagram of a device's internal structure showing a connector with arrows indicating flow or movement (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a leaf into a three-cylinder electric shaver (no text or symbols)

Diagram of a hairbrush with a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

1 O símbolo da cabeça de corte permanece continuamente aceso a cor de laranja.

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational motion.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram illustrating a hand holding a small bowl with a magnified view of the bulb, showing a hand inserting a device into a tray with a screw and a valve.

Illustration of a hand holding a mechanical component with arrows indicating process (no text or symbols)

5 sec. PHILIPS PHILIPS

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text or symbols)

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

Försiktighet

Illustration of a medical or electronic device with a downward arrow pointing to a circular component labeled 'Pensuit' (no text or symbols on the device itself)

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Diagram of a device's internal structure with arrows indicating flow or movement (no text or symbols)

Illustration of a hand inserting a USB into a device component (no text or symbols visible)

Illustration of a hand holding a device with a mechanical component, no text or symbols present

Illustration of a medical procedure showing fluid flow from a tube into a patient's ear (no text or symbols present)

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled parts A and B, indicating rotational motion or assembly.

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion or movement (no text or symbols)

Illustration of a robotic arm operating a gear and a bowl, with no visible text or symbols

Illustration of a hand placing a small object into a bowl with a downward arrow (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and directional arrows indicating steps to resolve or adjust.

Illustration of a hand inserting a small object into a device, showing internal components and motion arrows (no text or symbols)

Diagram of a device's internal structure showing a connector and directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a circular object into a base, showing mechanical components (no text or symbols)

Illustration of a hairbrush with a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a device with internal components, no text or symbols present

Diagram showing hand positioning of a mechanical device with labeled points A and B, indicating rotational or movement directions.

Illustration of a hand placing a small bowl into a tray with a downward arrow (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Illustration of a hand placing a dental implant component into a jawbone (no text or symbols present)

Prohibition sign of a faucet with no text or symbols

Illustration of a pair of electric shakers with a prohibition symbol (no text or labels)

Dikkat

Black and white icon of a faucet with raindrops falling (no text or symbols)

PT845/PT739/PT737/PT731/PT730/PT727/PT726/PT725/PT721/PT720:

Pure electrical circuit lines without any symbols

Düşük pil

Diagram of a stylized smiley face with curved lines and a power button, no text or symbols present

Diagram of a device with a power button and a smiley face, no text or symbols present

Şarj etme

Illustration of a person using a handheld device to address teeth (no text or symbols present)

Diagram of a hairpin with a black arrow indicating direction (no text or symbols)

Diagram of a hand inserting a USB into a device component, showing pin and cable structure (no text or symbols)

Illustration of a hand holding a device with an arrow indicating the process (no text or symbols present)

Illustration of a hand washing a shoe with a piping bag above (no text or symbols)

Diagram of a mechanical device emitting fluid from a piping bag (no text or symbols)

Illustration of a hand holding a dental implant component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating assembly (no text or symbols present)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of a hand holding a tray with multiple circular objects and upward arrows indicating motion or movement (no text or symbols)

Illustration of a hand using a tool to clean a mechanical component, with another bowl nearby (no text or symbols)

Illustration of a hand placing a small object into a tray with a lid (no text or symbols)

Diagram illustrating a procedure for handling a food item, with labeled steps and directional arrows indicating process flow.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram of a device's internal structure showing a connector with arrows indicating flow or movement (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand turning a leaf with three blades, showing the blade and inner blades (no text or symbols)

Diagram of a hand holding a cigarette with a magnified inset showing facial features (no text or symbols)

Illustration of a hand holding a small mechanical component with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical device with labeled points A and B indicating movement directions.

Illustration of a hand pressing down on a mechanical component with a circular inset showing a lid (no text or symbols)

Diagram illustrating a hand holding a bowl with food items, showing a magnified view of the lid and a checkmark indicating a step.

Illustration of a hand holding a dental implant component, showing two views of the implant (no text or symbols present)

5 sec. PHILIPS PHILIPS
