MILESTONE - Car seat GRACO - Free user manual and instructions

Product type	Child car seat (Group 0+/1)
Brand	Graco
Model	Milestone (ref. 8H98)
Child weight	Less than 18 kg (up to about 4 years)
Rear-facing use	Children under 13 kg (from birth to about 1 year)
Forward-facing use	Children from 9 to 18 kg (about 1 to 4 years)
Harness	5-point, height adjustable (4 positions)
Adjustable recline	4 positions forward-facing, 1 position rear-facing (angle 5)
Top tether	Used in rear-facing mode only
Newborn insert cushion	Included, for children under 6 months
Certification	ECE R44/04, Universal
Materials	Plastic, metal, fabric
Cover maintenance	Hand wash cold, do not machine wash or dry clean
Spare parts	Replace only with genuine Graco parts
Seat weight	Approximately 9 kg
Country of manufacture	China

Frequently Asked Questions - MILESTONE GRACO

What is the maximum weight for using the seat in rear-facing mode?

Rear-facing mode is for children weighing less than 13 kg (approximately from birth to 1 year).

Can I use this seat on a front seat with airbag?

No, never install this seat on a seat equipped with safety airbags. Use only the rear seats of the vehicle.

How do I adjust the harness height?

Open the rear cover of the seat, then press the harness height adjustment button and slide the lever. There are 4 positions possible. The harness should be positioned just above the child's shoulders.

Can I machine wash the cover?

No, the cover must be washed by hand in cold water. Do not machine wash or dry clean. Remove the foam from the inner cushions before washing.

From what age can I switch to forward-facing mode?

Forward-facing mode is suitable for children weighing between 9 and 18 kg (about 1 to 4 years). Do not switch to this mode before the child weighs 9 kg.

What to do after an accident?

After any accident, even minor, replace the child seat as its structure may be damaged without visible signs.

How to install the seat in rear-facing mode?

Attach the top tether, then buckle the vehicle's seat belt. Route the lap belt through the front hooks and the diagonal belt through the rear hooks. Tighten the belt and check that the seat does not move.

Is the newborn insert mandatory for a newborn?

Yes, for children under 6 months, the newborn insert (head and crotch cushion) must be used for optimal support.

Can I use this seat without the cover?

No, the seat must never be used without its original cover. It is an integral part of the restraint system and should not be replaced with a model not recommended by the manufacturer.

How do I know if the seat is properly installed?

After installation, push the seat forward and backward: it should not move more than 2.5 cm. Check that the belts are not twisted and that the harness is properly adjusted.

USER MANUAL MILESTONE GRACO

Line drawing of a car seat with straps and seat covers (no text or symbols)

English.... 12

Français....22

Nederlands.... 33

Deutsch.... 44

Español 55

Português 67

Italiano....78

Svenska 89

Dansk....99

Norsk 109

Suomi....119

Polski 129

Fig. 1

Fig. 2

Pure technical line drawing of a mechanical component with no text or symbols

Fig. 3

Line drawing of a car seat with hand placement and highlighted grip (no text or symbols)

Fig. 4

Fig. 5

Fig. 6

Simple line drawing of a hand holding a tool, with a pink curved arrow indicating motion (no text or symbols)

Fig. 7

Line drawing of a hand pressing down on a mechanical component with a red arrow indicating the motion direction (no text or symbols)

Fig. 8

Fig. 9

Line drawing of a car seatbelt buckle being adjusted for a hand (no text or symbols)

Fig. 10

Line drawing of a car comfort seat with a belt buckle (no text or symbols)

Fig. 11

Fig. 12

Fig. 13

Line drawing of a person's seatbelt being held by hands, no text or symbols present

Fig. 14

Fig. 15

Fig. 16

Three sequential illustrations of a climbing rope knot, showing different grip configurations (no text or symbols)

Fig. 17

Fig. 18

Fig. 19

Line drawing of a car seat with pink safety belt (no text or symbols)

Fig. 20

Fig. 21

Illustration of a medical procedure showing hands connecting a patient's neck to a surgical instrument (no text or symbols present)

Fig. 22

Fig. 23

Fig. 24

Line drawing of a person adjusting a pink belt on a car seat (no text or symbols)

Fig. 25

Illustration of a hand holding a pink clip against a car wheel, with no text or symbols present.

Fig. 26

Fig. 27

Illustration of a hand holding a small object with a pink upward arrow indicating motion (no text or symbols)

Fig. 28

Line drawing of a medical procedure showing hand placement and insertion into a device (no text or symbols)

Fig. 29

Fig. 30

Line drawing of a baby in a seatbelt inside a car seat, with a hand adjusting the seatbelt (no text or symbols)

Fig. 31

Line drawing of a medical procedure showing hands performing a procedure on a patient's abdomen with a pink catheter (no text or symbols)

Fig. 32

Line drawing of a human face with a pink highlighted area on the lower lip (no text or symbols)

Fig. 33

Line drawing of a car seatbelt buckle being adjusted for a seatbelt (no text or symbols)

Fig. 34

Line drawing of a hand inserting a pink ribbon into a seated anatomical structure (no text or symbols)

Fig. 35

CONGRATULATIONS!

You have purchased a high quality, fully certified child safety car seat. This product is suitable for the use of children weighing UNDER 18 kg (approximately 4 years old or under).

Do carefully read to understand the provisions and follow the installing steps contained in this instruction manual because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product.

Do keep this instruction manual carefully and handy for future adjustments of the seat during different growing stages of your child, and also for emergency assistance.

Do make sure that this car seat is suitable to use on your vehicle, and please consult your vehicle owner's manual if you are uncertain.

Seat belts may differ in design and length according to maker, manufacturing date, and type of the vehicle. Only suitable for use in the listed vehicles fitted with 3-point retractor safety-belts, approved to ECE Regulation No. 16 or other equivalent standards.

READ THIS INSTRUCTION CAREFULLY BEFORE INSTALLING YOUR CAR SEAT.

Contents

Warnings to Parents and Other Users.... 14

Emergency 15

Important Information.... 15

Product Details 15

Parts List 16

Reclining Adjustment.... 16

Shoulder harnesses Height Adjustment.... 16

Installation to the Vehicle

(Rear Facing Mode, for child under 13 kg)....17

Installation to the Vehicle

(Forward Facing Mode, for child between 9\~18kg)....18

Securing your Child in the Vehicle 19

Care and Maintenance 19

Additional Information 20

Notice 21

GB

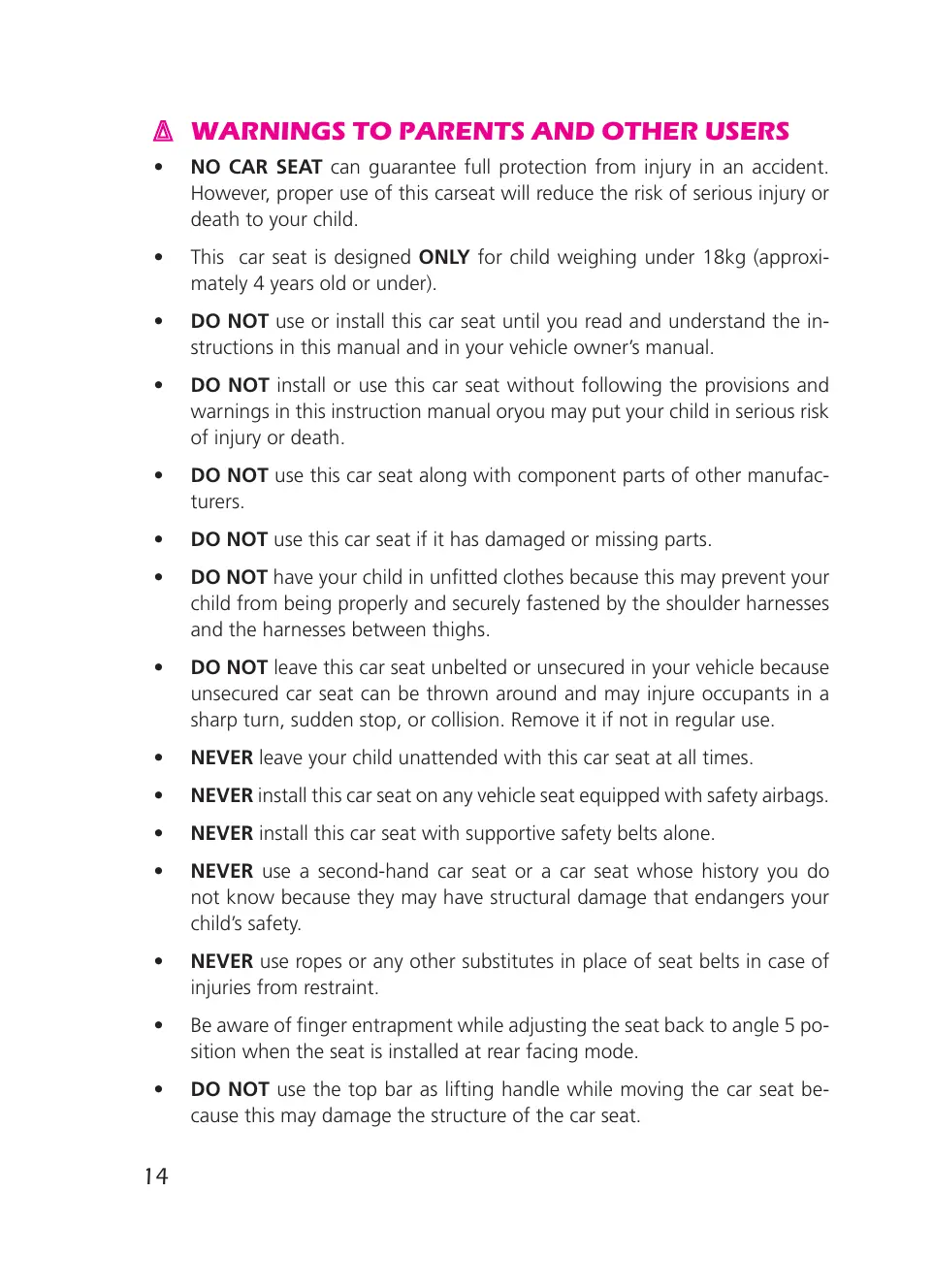

⚠️ WARNINGS TO PARENTS AND OTHER USERS

• NO CAR SEAT can guarantee full protection from injury in an accident. However, proper use of this carseat will reduce the risk of serious injury or death to your child.
• This car seat is designed ONLY for child weighing under 18kg (approximately 4 years old or under).
• DO NOT use or install this car seat until you read and understand the instructions in this manual and in your vehicle owner's manual.
• DO NOT install or use this car seat without following the provisions and warnings in this instruction manual or you may put your child in serious risk of injury or death.
• DO NOT use this car seat along with component parts of other manufacturers.
  • DO NOT use this car seat if it has damaged or missing parts.
• DO NOT have your child in unfitted clothes because this may prevent your child from being properly and securely fastened by the shoulder harnesses and the harnesses between thighs.
• DO NOT leave this car seat unbelted or unsecured in your vehicle because unsecured car seat can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision. Remove it if not in regular use.
  • NEVER leave your child unattended with this car seat at all times.
• NEVER install this car seat on any vehicle seat equipped with safety airbags.
  • NEVER install this car seat with supportive safety belts alone.
• NEVER use a second-hand car seat or a car seat whose history you do not know because they may have structural damage that endangers your child's safety.
• NEVER use ropes or any other substitutes in place of seat belts in case of injuries from restraint.
• Be aware of finger entrapment while adjusting the seat back to angle 5 position when the seat is installed at rear facing mode.
• DO NOT use the top bar as lifting handle while moving the car seat because this may damage the structure of the car seat.

Emergency

GB

In case of emergency or accidents, it is most important to have your child taken care of with first aids and medical treatment immediately.

Important Information

1 Carefully read and understand this instruction manual before installing this car seat.
2 Keep this instruction manual carefully inside the rear cover located at the seat back.
3 This car seat is designed and fully certified for infant or child weighing under 18kg (approximately 4 years old or under).
4 Always have the car seat securely fastened on the vehicle seat whether in use or not; in case any part of the seat or harness is caught up by the door or gets under the seat which may interfere with other passengers or proper closure of the door.
5 Never leave your child unattended in the vehicle.
6 Replace the car seat after accidents of any kind because some structural damages of the car seat cannot be easily seen.

Product Details

Product Description: Graco Gr 0+/1

Model Number: 8H98

Suitable for: child weighing below 18kg (or under 4 years old)

Gr.0+/1

Materials: plastics, metal, fabrics

Manufacturing Location: China

Manufacturer: Graco Children Products.

Parts List

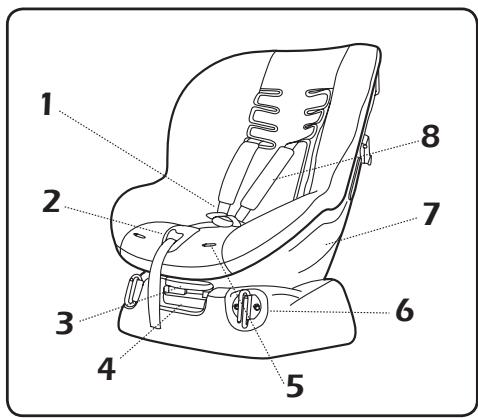

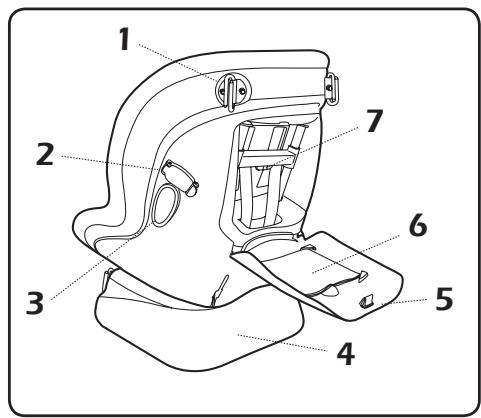

Fig. 1.1 5-point safety buckle

Fig. 1.2 Harness adjuster

Fig. 1.3 Angle adjustment button

Fig. 1.4 Secondary latch

Fig. 1.5 Top bar juncture

Fig. 1.6 Rear facing seat belt hook

Fig. 1.7 Body

Fig. 1.8 Protective shoulder straps

Fig. 2.1 Rear facing seat belt

Fig. 2.2 Lock-off latch for forward facing mode

Fig. 2.3 Front belt cover

Fig. 2.4 Base

Fig. 2.5 Rear cover

Fig. 2.6 Instruction manual

Fig. 2.7 Harness height adjuster button

Fig. 3 Anti-slippery pad

Reclining Adjustment

After adjustment, please move the car seat back and forth to make sure if the car seat is securely fastened to the vehicle seat.

Forward Facing Mode (for child between 9\~18kg)

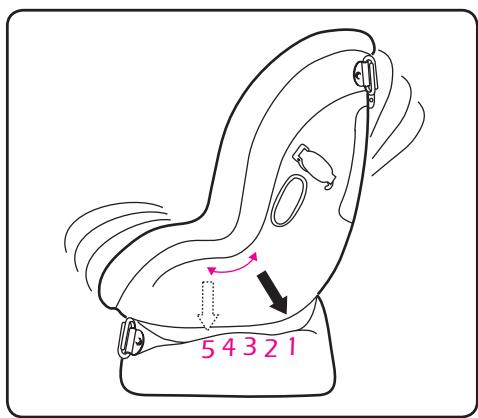

There are four reclining angles 1\~4 (Fig. 5). Simply press the angle adjustment button to adjust the car seat angles (Fig. 4) – Push up.

Rear Facing Mode (for child under 13kg)

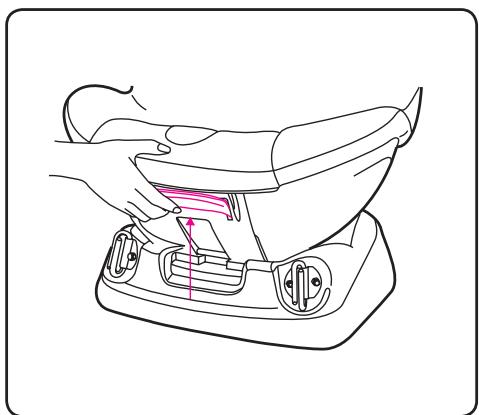

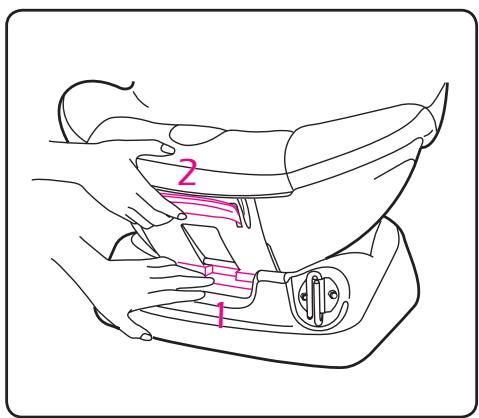

Press the secondary latch first and then the reclining adjustment button (Fig. 6). Car seat installed in this mode MUST be adjusted to angle 5 (Fig. 5).

⚠ Beware of finger entrapment when performing this task.

Shoulder harnesses Height Adjustment

Improper adjustment of shoulder height may throw your child off the car seat when accident occurs.
Make sure the shoulder height is not too high or too low before installing this car seat.

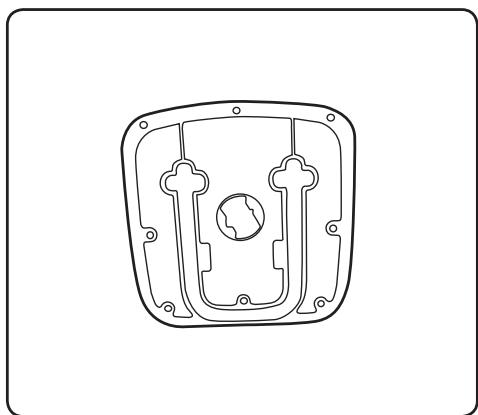

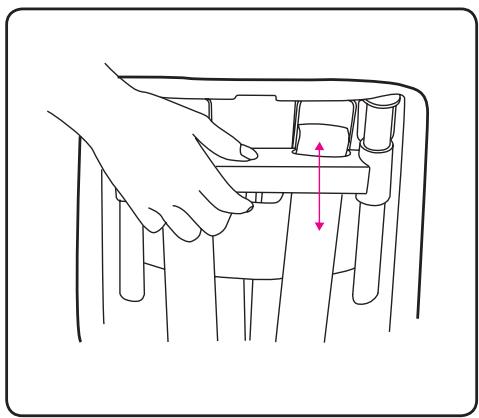

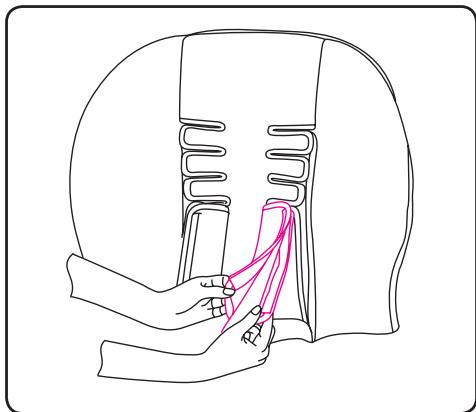

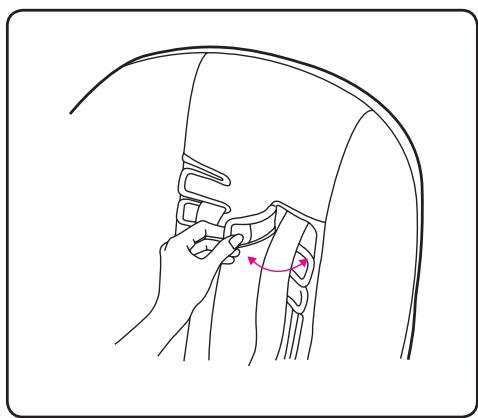

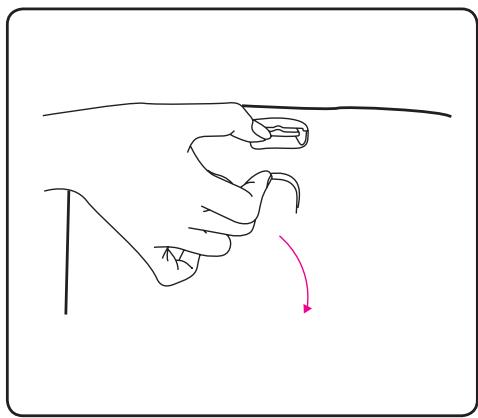

1 Open the rear cover located at the seat back (Fig. 7)

2 Move the slide lever up or down by pressing the harness height adjuster button (Fig. 8). There are four pitches of shoulder height for adjustment.

3 Adjust the shoulder harness to appropriate height of insertion outlet cover after the height adjustment (Fig. 10).

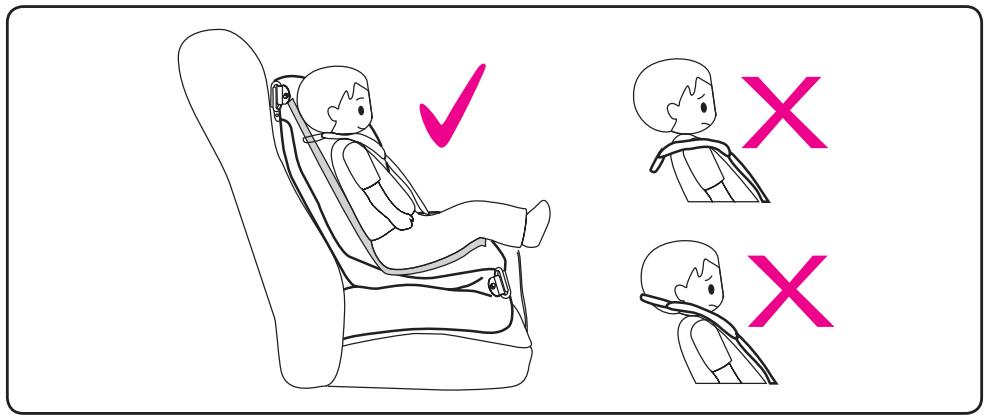

4 The shoulder harness MUST lay across child's shoulders according to height (Fig. 9).
The position of shoulder harness MUST be set slightly above child's shoulders.

Installation to the Vehicle

(Rear Facing Mode, for child under 13 kg)

Note that this mode must ONLY be used for child weighing under 13 kg (approximately 1 year old or under) (Fig. 11).
DO NOT install on vehicle seat equipped with safety airbags (Fig. 12).
It is highly recommended to have your car seat installed at the back seats of your vehicle.
Note that you MUST adjust the car seat to the most reclining angle, or angle 5, in rearfacing Mode. (Turn to page 16 for adjustment details)
Both top bar and inner cushion MUST be installed in rearfacing mode.

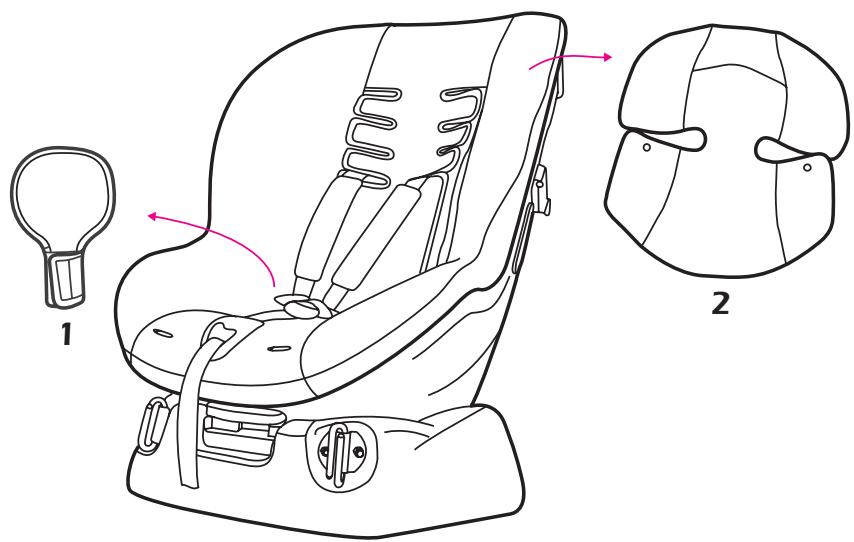

1 Attach the inner cushions to the seat (including the Head Pad, Seat Pad, and Protective Crotch Strap)

• Inner cushion is designed to provide extra protection and comfort for infant under 6 months old.
• Child under 6 months MUST use this car seat with inner cushions (Fig. 13).
  • The inner cushion is removable for washing.

Fig. 13.1 Protective crotch strap

Fig. 13.2 Head pad

Make sure to adjust the shoulder harness to the appropriate height when using the inner cushions. (Turn to page 16 for adjustment details)

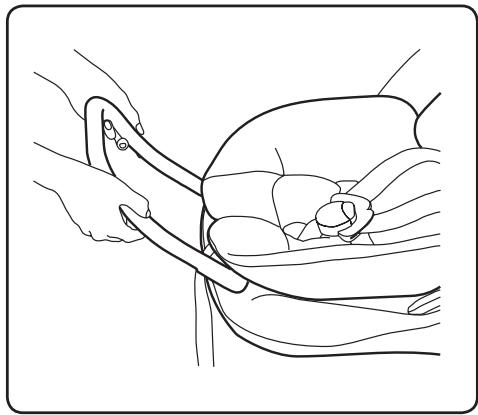

2 Use of top bar (Fig. 14).
⚠️ Note that the insertion is directional.

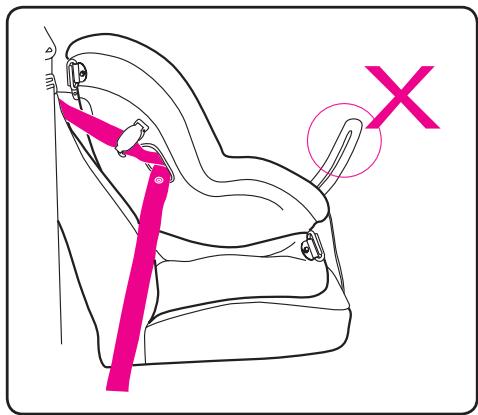

Do not use the top bar as a lifting handle.

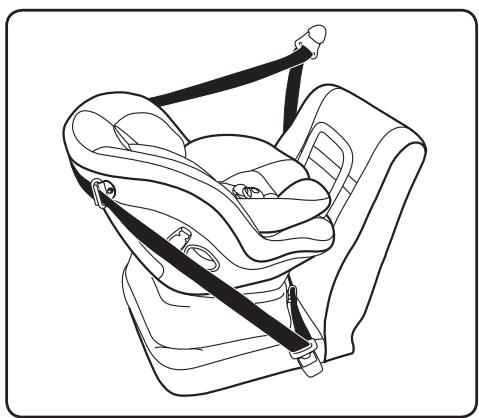

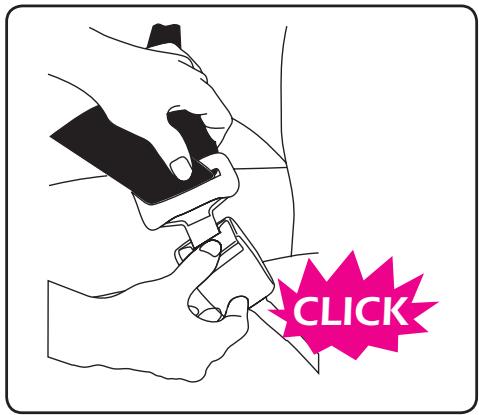

3 Buckle the vehicle seat belt (Fig.15).

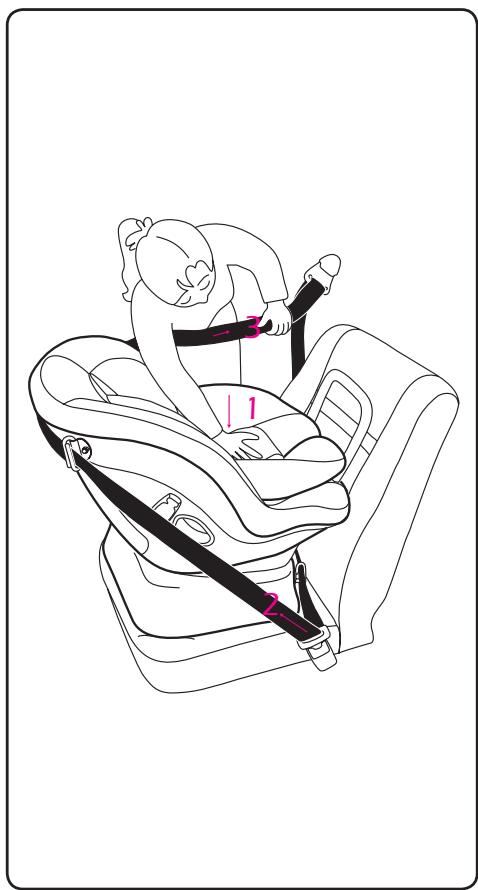

4 Installation of vehicle seat belts (Fig.16).

I. Attach the lap belt to the two rear-facing seat belt hooks locate at the front bottom of the safety seat.
II. Pull the diagonal belt to suitable length to get around the back of the seat, and then attach the diagonal belt to the rear-facing seat belt hooks that locate at the back top of the seat.

Fig. 16.1 Diagonal belt

Fig. 16.2 Lap belt

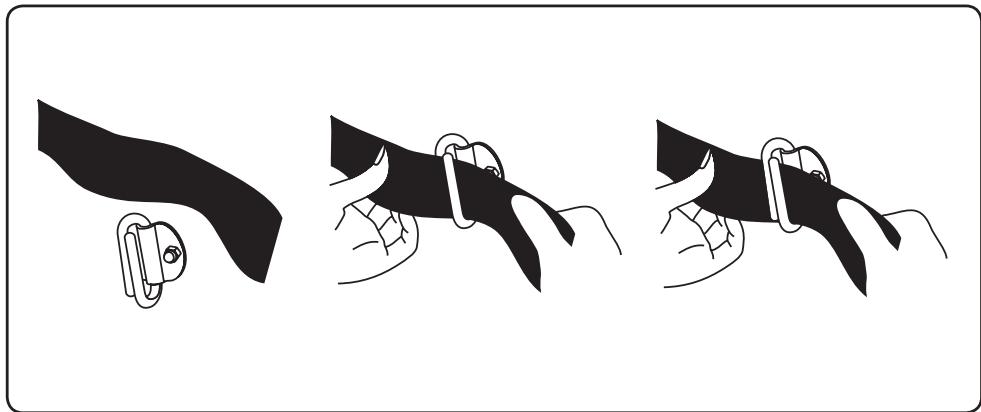

• Attaching the seat belt to the hooks (Fig.17).

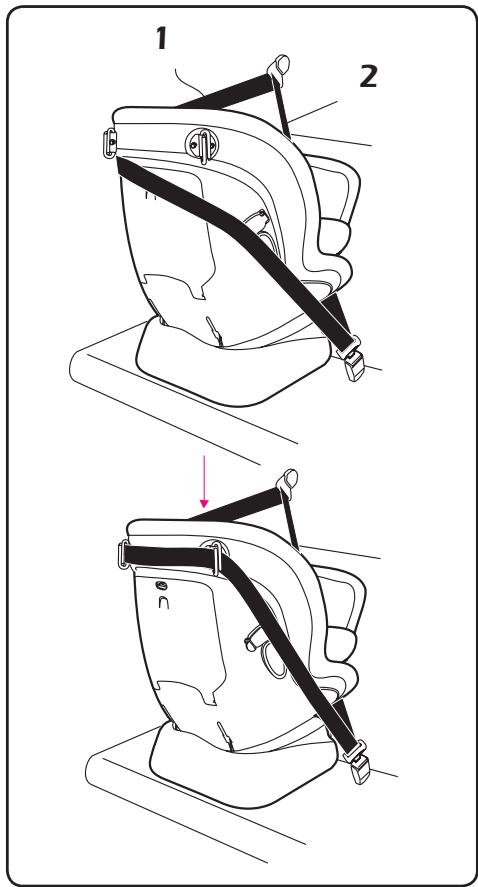

  5 Push the car seat down and against the vehicle seat. At the same time, pull the seat belts to the direction so that the car seat is tightly and securely fitted (Fig.18).
  6 Recheck if the car seat is securely fitted after completing the above installations. (Check by moving the car seat back and forth)

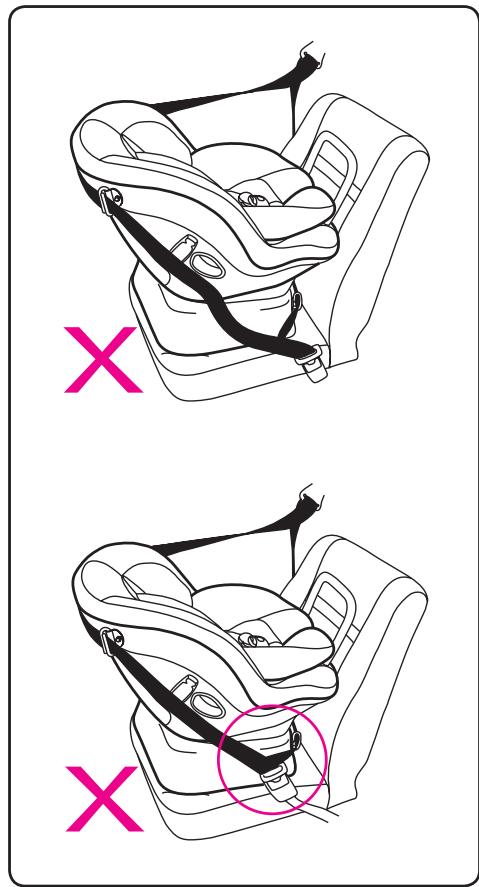

Make sure that both the lap belt and diagonal belt are not twisted or folded, and will not prevent the vehicle seat belt to be fully and rightly functioned (Fig. 19).

Installation to the Vehicle

(Forward Facing Mode, for child between 9\~18kg)

Note that this mode must ONLY be used for child weighing between 9-18 kg (approximately between 1-4 years old)

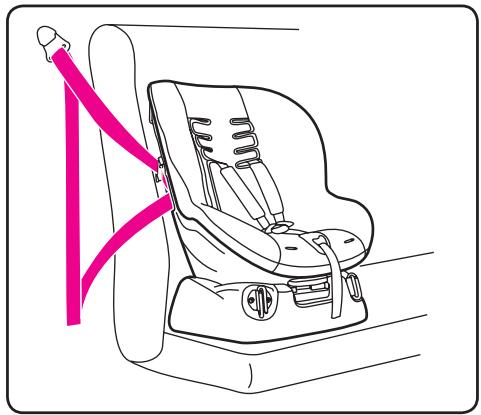

It is highly recommended to have the car seat installed at the back seats of your vehicle. (Fig. 20)

1 Pull the vehicle seat belt to suitable length then follow the following steps to secure the safety seat.

I. Pull the vehicle seat belt through one front belt cover (Fig. 21)

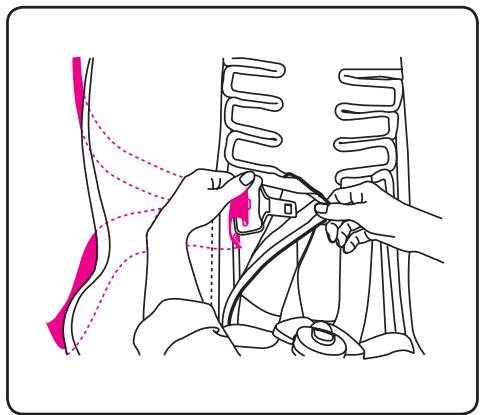

II. Open the seat pad cover and pull the vehicle seat belt through (Fig. 22).
III. Pass through the vehicle seat belt to the other front belt cover (Fig. 23).

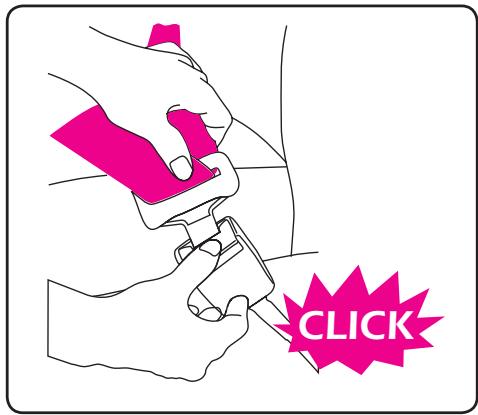

IV. Secure the vehicle seat belt until a "CLICK" sound is heard (Fig. 24).

2 Push the car seat down against the vehicle seat. At the same time, pull the seat belt to the direction as the figure shown so that the car seat is tightly and securely fitted (Fig. 25) – Push down.

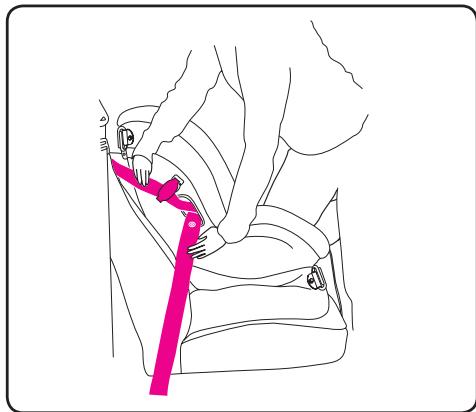

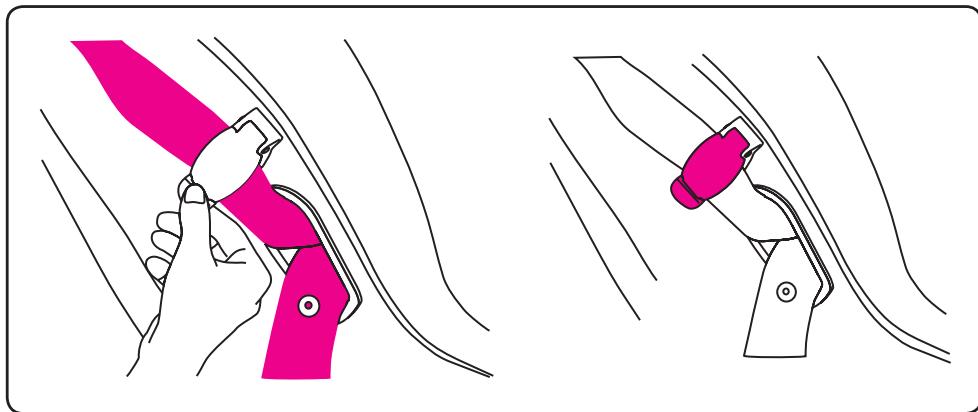

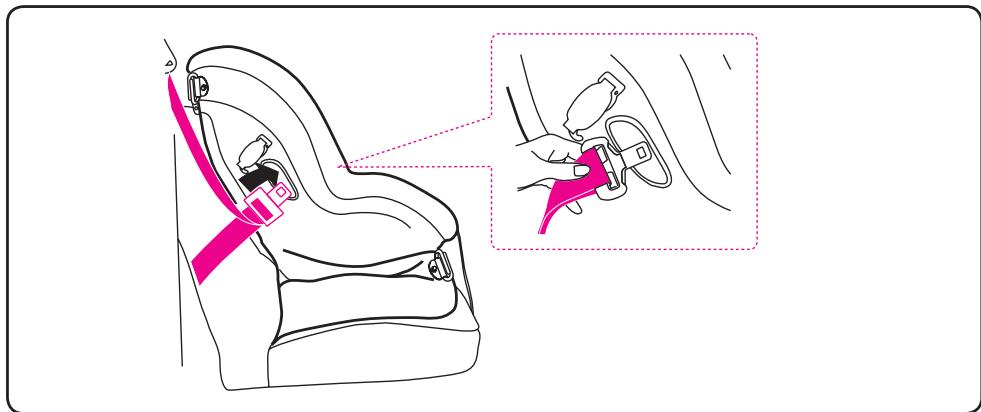

3 Secure the vehicle's diagonal belt with the lock-off latch (Fig. 26).

I. Release the lock-off latch.
II. Place the seat belt through the lock-off latch and pull it tight.
III. Lockup the lock-off latch.

4 Recheck if the car seat is securely fitted after completing the above operation. (Check by moving the car seat back and forth)

Make sure that both the lap belt and diagonal belt are not twisted or folded, and will not prevent the vehicle seat belt to be fully and rightly functioned.
DO NOT insert the top bar in forward facing mode (Fig. 27).

Securing your Child in the Vehicle

DO NOT remove the protective shoulder straps, which is designed to prevent your child from slipping.

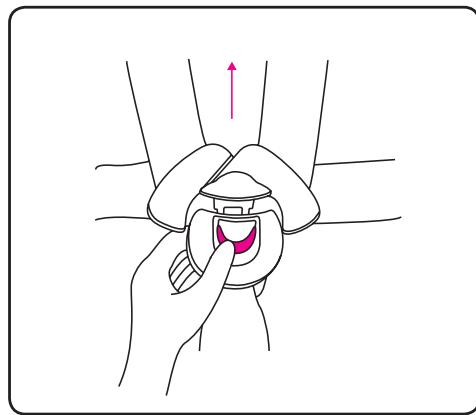

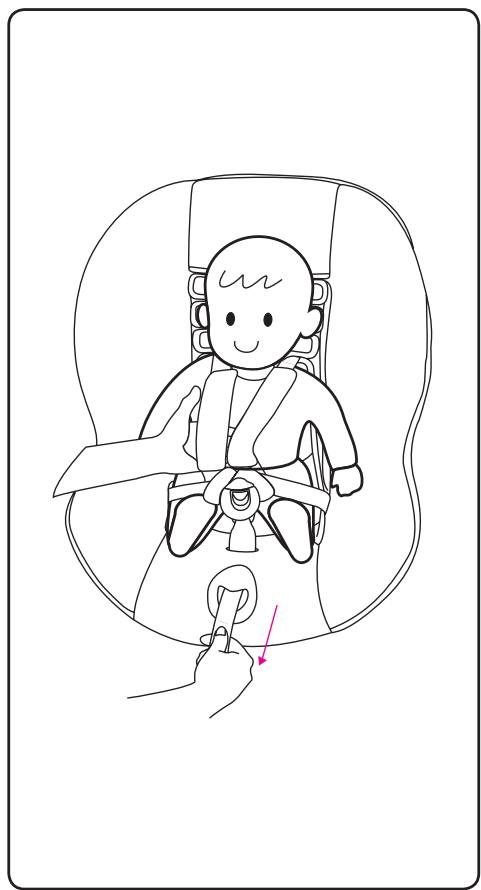

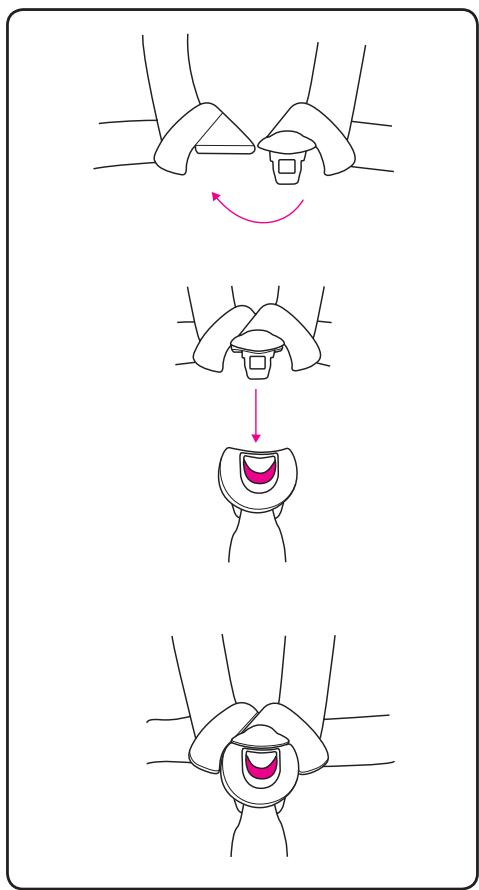

1 Press the red button to release the harness buckle (Fig. 28).

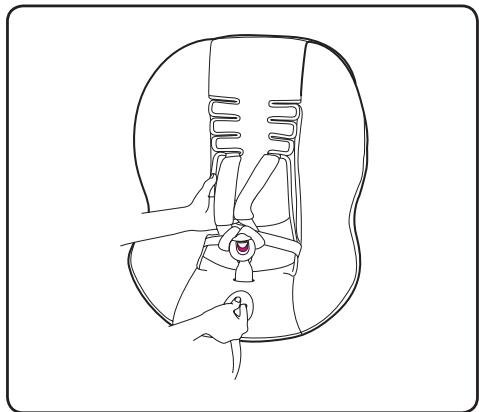

2 Loosen the harness by pressing the harness adjuster and adjust the shoulder harness to suitable length (Fig. 29) – Press.

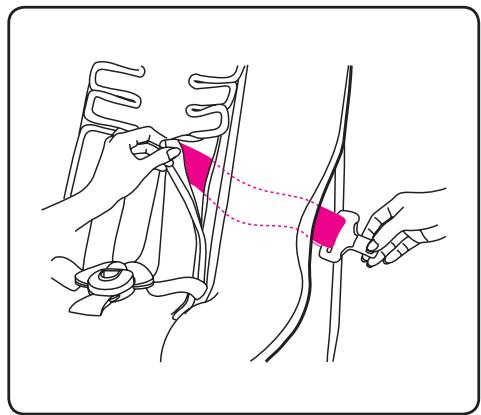

3 Attach both shoulder straps together then insert it into the harness buckle (Fig. 30).
4 Pull the harness adjuster webbing to adjust the shoulder strips to suitable length that allow your child tightly secured at the car seat (Fig. 31) – Pull.

Care and Maintenance

1 The seat pad is removable. Use cold water for hand washing and refer to the washing label attached on the car seat for correct method. DO NOT clean by machine wash or dry cleaning.
2 Remove the foam in the inner cushions before washing.
3 The child restraint must not be used without the cover. The seat cover should not be replaced with any other than the one recommended by the manufacturer because the cover constitutes an integral part of the restraint performance.

4 To remove the seat pad, release the attaching pads on both side of the seat pad. Pull the seat pads away from the seat.
5 To restore the seat pad

I. Cover the seat front with the seat pad.

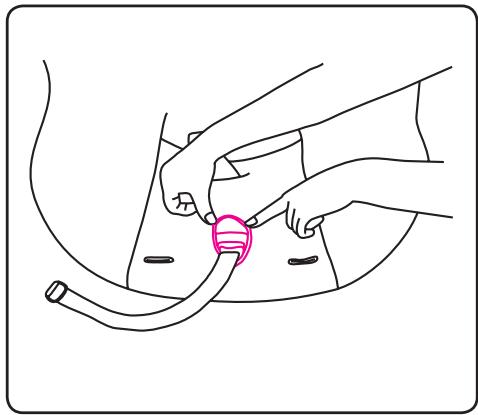

II. Pull the harnesses and straps out through the designated opening on the seat pad. Make sure the seat pad fits correctly and tightly onto the seat (Fig. 32).

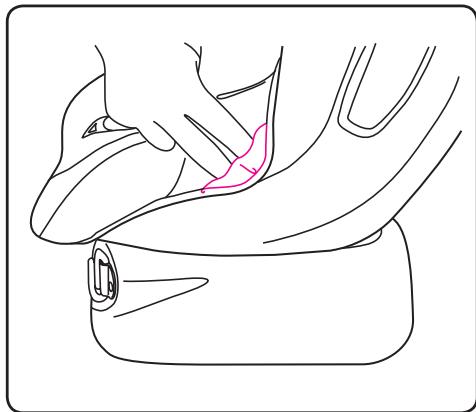

III. Stuff the edge of the seat pad into the back plastic cover of the seat, and attach the attaching pads to secure the seat pad (Fig. 33).

6 Installing the protective shoulder straps.

I. Open the rear cover located at the seat back.
II. Insert the protective shoulder strap from one side to the other, so that the webbing in between passes through the seat back (Fig. 34).

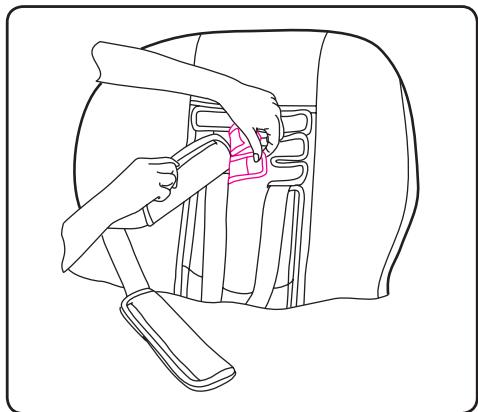

III. Install the shoulder harness to the protective shoulder strap (Fig. 35).

Additional Information

1 Make sure that your car seat is securely fastened in the vehicle when not in use in case it throws around and injures occupants in a sharp turn, sudden stop or collision.
2 DO NOT make any modification to the structure or safety belt system of the car seat. For your child's safety, DO check or immediately replace your car seat after an accident of any kind.
3 It is highly recommended that any luggage or other objects to be fastened up, they are liable to cause injuries in the event of a collision.
4 According to statistics, children are safer when properly restrained in rear vehicle seating positions than front seating positions. Hence, it is highly recommended to have your car seat installed at the back seats of your vehicle.
5 The car seat can become very hot after a lengthy exposure under the sun. Contact with these parts can burn your child's skin. Always touch the surface of any metal or plastic parts before putting your child in the car seat.

1 This is a “Universal” child restraint. It is approved to European Regulation No. 44, 04 series of amendments and Chinese National Standard 11497, for general use in vehicles and it will fit most, but not all car seats.

ECE.R44/04

UNIVERSAL

0-18kg

04443639

2 To ensure the proper installation of this product, please refer to your vehicle owner's manual to check if this safety seat of this age group is suitable to install onto your vehicle.
3 This child safety system has been classified as "Universal" under the latest and more stringent conditions than those earlier conditions that applied to earlier designs that do not carry this notice.
4 If in doubt, consult either the child restraint manufacturer or the retailer.

FÉLICITATIONS !!

Fabricant : Graco Children Products.

Fig. 2.3 Front belt cover

Fig. 2.4 Base

Installation i fordonet,

Installation i fordonet

(Vendt bakover, for barn under 13 kg)....114

Vendt forover (for barn mellom 9-18 kg)

Vendt bakover (for barn under 13 kg)

Trykk først på den sekundære låsen og deretter på ryggreguleringsknappen (Fig. 6). Når barnesetet er installert i denne stillingen, MÅ det justeres til vinkel 5 (Fig. 5).

(Vendt bakover, for barn under 13 kg)

Producent: Graco Children Products.

Lista części

Graco Children's Products

Halifax Avenue

Fradley Park

Lichfield WS138SS

United Kingdom
