HONOR 5X - Smartphone HUAWEI - Free user manual and instructions

Product type	Smartphone
Brand	HUAWEI (Honor)
Model	HONOR 5X
Dimensions	152.6 x 76.2 x 8.2 mm
Weight	158 g
Display	5.5-inch IPS LCD
Resolution	1080 x 1920 pixels
Processor	Qualcomm Snapdragon 616 octa-core
RAM	2 GB or 3 GB depending on version
Internal storage	16 GB
Battery	3000 mAh Li-Po (model HB406689ECW)
Power adapter	Power adapter HW-050200X01 (5V/2A)
Operating system	Android 5.1 Lollipop with EMUI 3.1
Network	GSM / HSPA / LTE
Dual SIM	Yes, two nano-SIM slots
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.1, micro-USB 2.0, 3.5 mm headphone jack
Rear camera	13 MP with LED flash
Front camera	5 MP
Sensors	Ambient light sensor, accelerometer, proximity, fingerprint
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products. Protect the screen with the pre-installed film.
Safety	Keep away from heat and moisture. Maintain distance from electronic implants (15 cm). Use approved accessories.
Spare parts and repairability	Battery and screen replaceable by a professional. Use approved original parts.

Frequently Asked Questions - HONOR 5X HUAWEI

How to insert SIM and microSD cards in the HONOR 5X?

Use the provided ejection pin to open the card tray located on the side. Insert the nano-SIM and microSD cards into the designated slots, respecting the orientation. Make sure the device is turned off before removing or inserting cards.

Is the HONOR 5X compatible with dual SIM standby?

Yes, it supports dual SIM standby. When using one SIM card for a call or data, the other card is temporarily unavailable. To avoid missing calls, subscribe to the call forwarding service from your operator.

How to restart or force restart the HONOR 5X?

To restart normally, press and hold the power button, then select the power off option. To force restart, press and hold the power button until the device vibrates.

What is the SAR value of the HONOR 5X?

The maximum SAR value measured is 0.39 W/kg at the ear and 0.93 W/kg on the body (EU). For FCC standards, the values are 0.79 W/kg at the ear and 0.52 W/kg on the body.

Can I use non-approved accessories with my HONOR 5X?

It is strongly recommended not to use non-approved accessories (charger, battery, earphones). This could damage the device, cause a fire, or reduce its lifespan. Use only Huawei-certified accessories.

How to view legal and safety information on the HONOR 5X?

Go to Settings > About phone > Legal information to view legal terms, safety, and certifications.

Is the HONOR 5X waterproof or dustproof?

No, it is not certified waterproof. Avoid dusty, humid, or dirty environments to prevent internal damage.

How to recycle my HONOR 5X at end of life?

Do not dispose of it with household waste. Take it to a WEEE collection point or visit http://consumer.huawei.com/en/ to find a recycling center near you.

What are the usage precautions for people with implants?

Maintain a distance of at least 15 cm between the phone and the implant. Place the phone on the side opposite the implant during calls.

How to access the online user guide?

Open the HiCare app and tap the Manuals tab to view online guides. You can also visit https://consumer.huawei.com/en/ to download the documentation.

USER MANUAL HONOR 5X HUAWEI

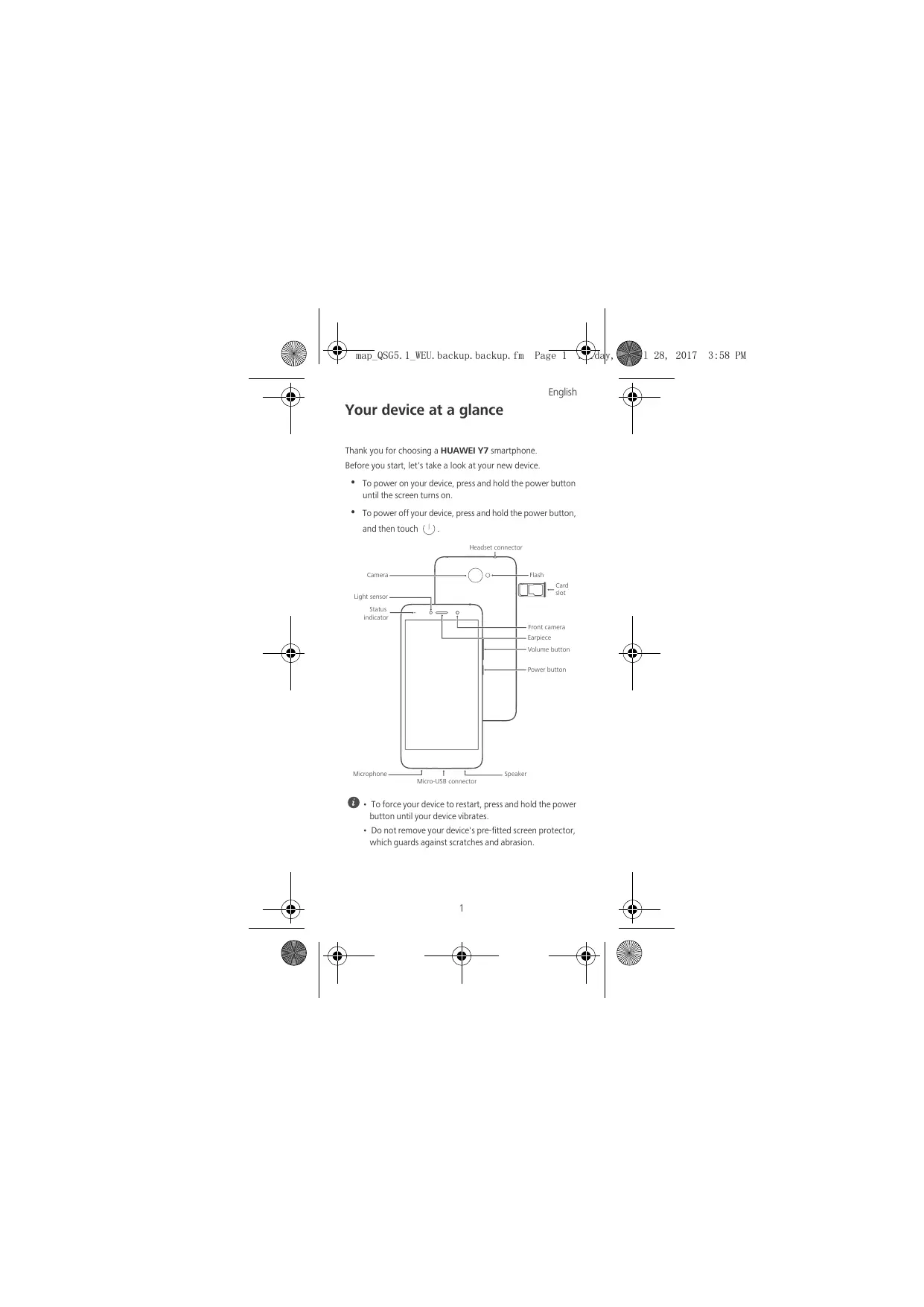

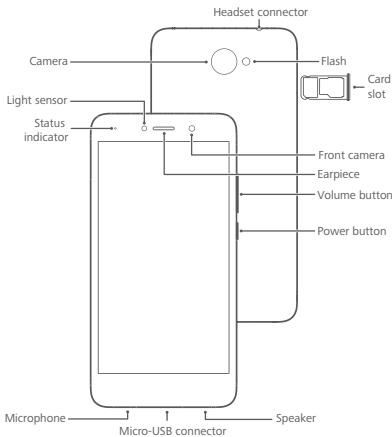

Your device at a glance

Thank you for choosing a HUAWEI Y7 smartphone.

Before you start, let's take a look at your new device.

• To power on your device, press and hold the power button until the screen turns on.
• To power off your device, press and hold the power button, and then touch ⏻.

• To force your device to restart, press and hold the power button until your device vibrates.
- Do not remove your device's pre-fitted screen protector, which guards against scratches and abrasion.

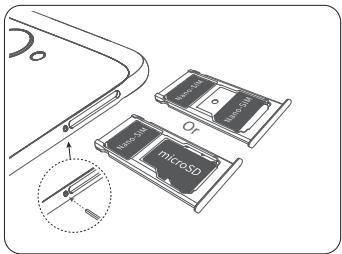

Inserting and removing cards

Follow the instructions in the following figures to set up your device.

• Do not insert or remove the SIM card when your device is powered on.
• Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.

Be careful not to scratch your device or hurt yourself when using the eject pin. Store the eject pin out of the reach of children to prevent accidental swallowing or injury.

Do not use cut or modified SIM or microSD cards with your device as these may not be recognised and could damage the card tray.

Dual card dual standby single pass

Your phone supports dual SIM cards. Both SIM cards are available at the same time when you are not using your phone. However, while one SIM card is active, the other is unavailable. This is known as dual card dual standby single pass.

For example, while you are using SIM card 1's data service, SIM card 2's data service will be disabled. And, while you are on a call using SIM card 1, SIM card 2 will be unavailable. Someone calling SIM card 2 while you are on a call using SIM card 1 will either reach your voicemail or hear a message such as "The person you called cannot be reached at the moment. Please try later." The message heard will vary depending on service provider.

Your phone's single pass feature helps reduce power consumption and increase standby time.

Contact your service provider for information about subscribing to notification services.

For more information

If you encounter any problems whilst using your device, you can get help from the following resources:

Go to HiCare. You can:

• Touch the Manuals tab to view online user guides.
• Touch the Forum tab to request help in the Huawei forums.
• Touch the Service tab for service center, helpline, and customer service information.

Log on to the official Huawei website. You can:

• Visit http://consumer.huawei.com/en/ to download user guides, view frequently asked questions and other information.
• Visit http://consumer.huawei.com/en/support/hotline for the most up-to-date contact information for your country or region.

Go to 📄 Settings and touch About phone > Legal information to view legal information for your product.

Go to 📍 Settings and touch About phone > Legal information > Safety information to view safety information for your product.

Go to Ⓧ Settings and touch About phone > Authentication info to view regulatory information for your product.

Go to Ⓞ Settings and touch About phone > Certification logos to view more information on certification logos for your product.

All pictures and illustrations in this guide, including but not limited to the product color, size, and display content, are for your reference only. The actual product may vary. Nothing in this guide constitutes a warranty of any kind, express or implied.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and safety

Warning symbol with a triangle containing an ear and sound waves (no text or numbers)

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger or battery may damage your device, shorten its lifespan or cause a fire, explosion or other hazards.
• Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C.
• Pacemaker manufacturers recommend maintaining a minimum distance of 15 cm between a pacemaker and a wireless device to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
• Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves or radiators.
• Adhere to local laws and regulations while using the device. To reduce the risk of accidents, do not use your device while driving.

• While flying in an aircraft or immediately before boarding, ensure that you use your device according to the instructions provided. Using a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operations or be illegal under law.

• To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp or dirty environments or near magnetic fields.

• When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.
• Unplug the charger from the electric socket and from the device when not in use.
• Do not use, store or transport the device where flammables or explosives are stored (e.g. in a petrol station, oil depot or chemical plant). Using your device in these environments increases the risk of explosion or fire.
• Dispose of this device, the battery and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion or other hazards.
• Please consult your doctor and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device.
• Adhere to any rules or regulations set forth by hospitals and health care facilities.
• If you must make or answer a call, stop your vehicle at a safe location first.
• Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service

stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.

Disposal and recycling information

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

The crossed-out wheelie bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in normal household waste. It is the responsibility of the user to dispose of the equipment using a designated collection point or service for separate recycling of waste electrical and electronic equipment (WEEE) and batteries according to local laws.

Proper collection and recycling of your equipment helps ensure EEE waste is recycled in a manner that conserves valuable materials and protects human health and the environment.

Improper handling, accidental breakage, damage, and/or improper recycling at the end of its life may be harmful for your health and the environment. For more information about where and how to drop off your EEE waste, please contact your local authorities, retailer or household waste disposal service or visit the website http://consumer.huawei.com/en/.

Reduction of hazardous substances

This device and any electrical accessories are compliant with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH, RoHS and Batteries (where included) regulations, etc. For declarations of conformity about REACH and RoHS, please visit our web site

http://consumer.huawei.com/certification.

EU regulatory conformance

Body worn operation

The device complies with RF specifications when used near your ear or at a distance of 0.50 cm from your body. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

The highest SAR value reported for this device type when tested at the ear is 0.39 W/kg, and when properly worn on the body is 0.93 W/kg.

Statement

Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

The most recent and valid version of the DoC (Declaration of Conformity) can be viewed at

http://consumer.huawei.com/certification.

This device may be operated in all member states of the EU.

Observe national and local regulations where the device is used.

This device may be restricted for use, depending on the local network.

Restrictions in the 2.4 GHz band:

Norway: This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund.

Frequency Bands and Power

(a) Frequency bands in which the radio equipment operates: Some bands may not be available in all countries or all areas. Please contact the local network provider for more details. (b) Maximum radio-frequency power transmitted in the frequency bands in which the radio equipment operates: The maximum power for all bands is less than the highest limit value specified in the related Harmonized Standard.

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows: GSM 900: 37 dBm, GSM 1800: 34 dBm, WCDMA 900/2100: 25.7 dBm, LTE Band 1/3/7/8/20: 25.7 dBm, Wi-Fi 2.4G: 20 dBm, Bluetooth: 20 dBm.

Accessories and Software Information

Some accessories are optional in certain countries or regions. Optional accessories can be purchased from a licenced vendor as required. The following accessories are recommended:

Adapters: HW-050200X01 (X represents the different plug types used, which can be either C, U, J, E, B, A, I, R, Z or K, depending on your region)

Batteries: HB406689ECW

Earphones: 1311-3291-3.5mm-229, MEMD1632B580C00, EMC309-001, NA12, 1293#+3283# 3.5MM-150, HA1-3, MEMD1532B528000

The product software version is TRT-LX1C900B061. Software updates will be released by the manufacturer to fix bugs or enhance functions after the product has been released. All software versions released by the manufacturer have been verified and are still compliant with the related rules.

All RF parameters (for example, frequency range and output power) are not accessible to the user, and cannot be changed by the user.

For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at http://consumer.huawei.com/certification.

FCC Regulatory Compliance

Body worn operation

The device complies with RF specifications when used near your ear or at a distance of 1.50 cm from your body. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

Certification information (SAR)

This device is also designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA).

The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported to the FCC for this device type complies with this limit.

The highest SAR value reported to the FCC for this device type when using at the ear is 0.79 W/kg, and when properly worn on the body is 0.52 W/kg, and when using the Wi-Fi hotspot function is 0.61 W/Kg.

FCC statement

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to perform one or more of the following operations to try to correct the interference:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the device into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications to this device not expressly approved by Huawei Technologies Co., Ltd. for compliance could void the user's authority to operate the device.

Legal Notice

Trademarks and Permissions

HUAWEI, HUAWEI

and

are trademarks or

registered trademarks of Huawei Technologies Co., Ltd.

Android™ is a trademark of Google Inc.

LTE is a trade mark of ETSI.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license.

Wi-Fi ^® , the Wi-Fi CERTIFIED logo and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy.

Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.

THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES.

Français

Warning symbol with a triangle containing a stylized ear icon (no text or numbers)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning symbol of an ear inside a triangle (no text or numbers)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning symbol with a sine wave inside a triangle (no text or numbers)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning symbol with a triangle containing a stylized ear and sound waves (no text or numbers)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Warning symbol with a sine wave inside a triangle (no text or numbers)

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Warning symbol of an ear inside a triangle (no text or numbers)

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

Warning symbol with a triangle containing an ear and sound waves (no text or numbers)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Bantian, Longgang District Shenzhen 518129, P.R. China

Tel:[phone]

Web: www.huawei.com

E-mail: [e-mail]

Web: www.huawei.com/tr/

E-posta: [e-mail]

Enerji Tasarrufu

Note: Remember the Google account your phone last logged in to.

During an untrusted factory settings restoration or microSD card-based update, Google's anti-theft mechanism requires you to enter the Google account your phone last logged in to on the startup navigation screen for identity authentication. Your phone can properly power on only after the identity authentication passes.

Please visit

http://consumer.huawei.com/en/support/hotline for recent updated hotline and email address in your country or region.

Model: TRT-LX1
