USER MANUAL AZ528 - PIXPRO AZ522 - PIXPRO AZ525 KODAK

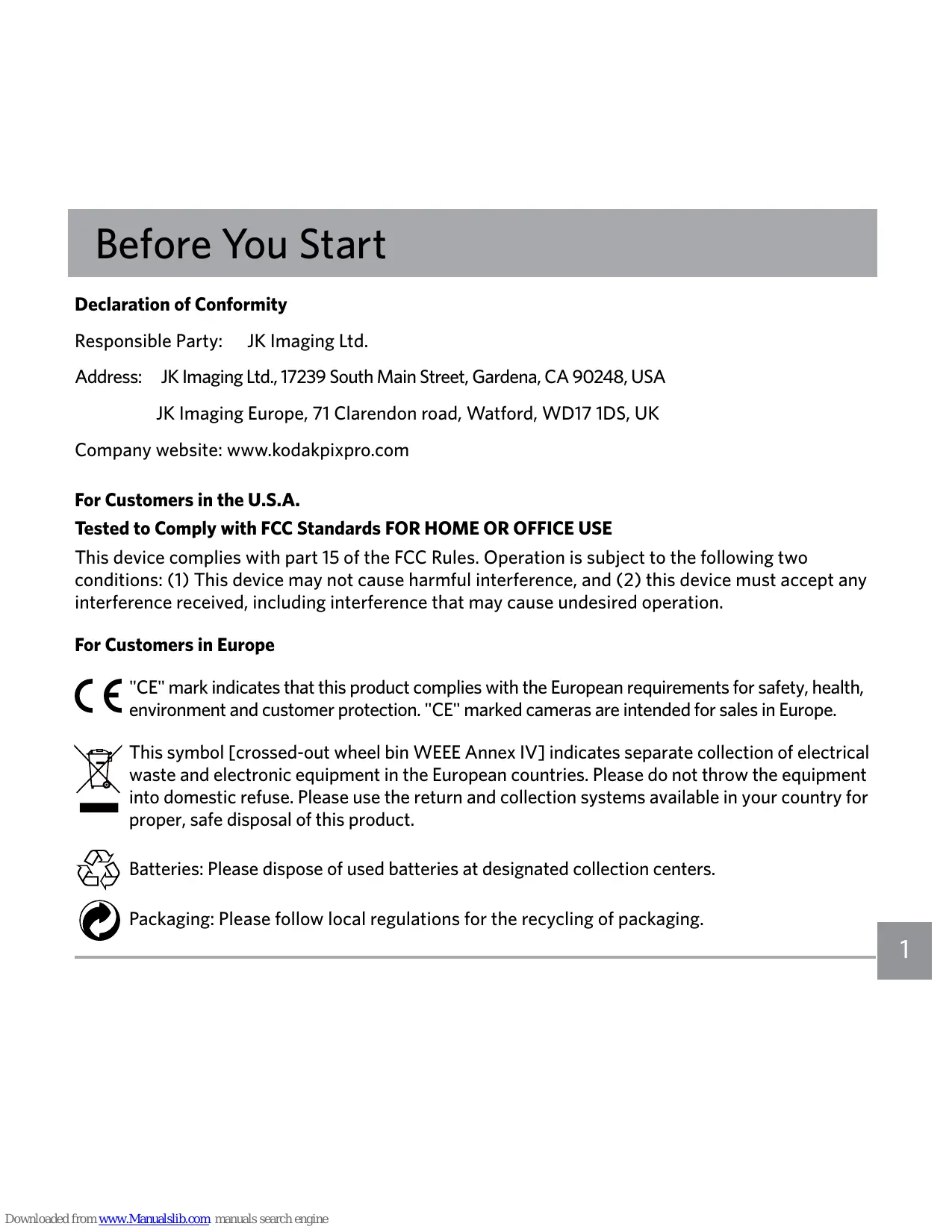

User Manual Downloaded from www.Manualslib.com manuals search engine Before You Start Declaration of Conformity Responsible Party: JK Imaging Ltd. Address: JK Imaging Ltd., 17239 South Main Street, Gardena, CA 90248, USA JK Imaging Europe, 71 Clarendon road, Watford, WD17 1DS, UK Company website: www.kodakpixpro.com For Customers in the U.S.A. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For Customers in Europe "CE" mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. "CE" marked cameras are intended for sales in Europe. This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical waste and electronic equipment in the European countries. Please do not throw the equipment into domestic refuse. Please use the return and collection systems available in your country for proper, safe disposal of this product. Batteries: Please dispose of used batteries at designated collection centers. Packaging: Please follow local regulations for the recycling of packaging.

Downloaded from www.Manualslib.com manuals search engine About this Manual Thank you for purchasing this KODAK PIXPRO digital camera. Please read this manual carefully and keep it in a safe place for future reference. JK Imaging Ltd. reserves all rights of this document. No part of this published manual may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form, by any means, without the prior written permission of JK Imaging Ltd.. All trademarks mentioned in this manual are used for identification purposes only and are properties of their respective owners. This manual will instruct you on how to operate the KODAK PIXPRO digital camera. JK Imaging Ltd. has tried its utmost to ensure the correctness of the user manual contents, but reserves the right to modify as necessary. All of these contents are subject to change without prior notice. Throughout this manual, the following symbols are used to help you locate information quickly and easily: Indicates useful information. In the instructions below, the following symbols may be used throughout this manual on how to operate the camera. This is to facilitate better understanding： 「Item properties」： The optional properties in the camera interface are indicated by the symbol「 」.

Downloaded from www.Manualslib.com manuals search engine Safety Notes Safety notes for this camera Do not drop the camera or allow it to hit solid objects. Do not attempt to disassemble or repair the camera. Do not use or store the camera in dusty places or on a beach to prevent dust or sand from entering the camera, causing possible damage to it. Do not use or store the camera in a hot environment or under direct sunlight. Do not use or store the camera near a powerful magnetic field, for example near a magnet or transformer. Avoid touching the lens of the camera. Do not expose the camera to direct sunlight for a long period of time. To prevent the camera from being damaged by moisture, do not use or store the camera in very humid environments, such as in rain or near bodies of water. If water accidentally comes in contact with the camera, turn the camera off, remove the battery and the memory card, and dry it within 24 hours. When you take the camera from a cold place to a warmer environment, condensation may occur. Please wait for a reasonable period of time before you turn it on. Before you remove the battery and memory card, the camera should be turned off. When you clean the body of the camera, do not use abrasive, alcohol-based or organic cleaner. Use a professional lens wiping cloth and dedicated cleaner to wipe and clean the lens. Download your photos and remove the memory card when you are going to store the camera for a long period of time. If this camera is not in use for a long time, please keep it in a dry and clean condition. Our company will not pay compensation for any failure of playback of pictures or videos caused by improper operation. Downloaded from www.Manualslib.com manuals search engine

Safety notes for battery Please use a battery that is the same type as the one included. Please use the attached charger to charge the battery. If battery fluid leaks inside the camera, contact our customer service department. If battery fluid leaks onto your skin, rinse your skin with clean water and seek immediate medical attention. Disposal of used batteries should be carried out in accordance with the local (national or regional) regulations. To prevent the battery from being damaged, do not drop the battery or allow it to hit solid objects or to be scratched by the objects. Do not let the battery come in contact with metal objects (including coins) to avoid short circuiting, discharging, excessive heat, or possible leakage. Do not attempt to disassemble the battery. Do not expose the battery to water. Always keep the battery contacts dry. Do not heat the battery or throw it into a fire to avoid a possible explosion. Do not store the battery in a hot environment or in direct sunlight. If the battery overheats during charging or use, stop charging or use immediately. Turn off the product, remove the battery carefully, and wait until it cools down. When the camera is stored for a long period of time, remove the battery and keep it in a dry place that is not accessible to infants and children. In a colder environment, the performance of the battery could be noticeably reduced. When you install the battery, install it according to the positive and negative markings on the battery compartment. Never force it into the battery compartment.

Downloaded from www.Manualslib.com manuals search engine Safety notes for memory card We suggest buying only well-known, name brand memory cards to ensure peak performance. Format the memory card using the camera before you use it or insert a new one. Do not drop the memory card or allow it to hit solid objects to avoid damaging it. Do not attempt to disassemble or repair the memory card. Do not expose the memory card to water. Always keep it dry. Do not remove the memory card when the camera is turned on. Otherwise, the memory card could be damaged. Do not directly edit the data on the memory card. Copy the data to your PC before you edit them. When the camera is stored for a long period of time, be sure to download your photos and remove the memory card. Store it in a dry environment. Do not modify the name of the files or folders of the memory card using your PC. Modifying the file names may cause the files to not be recognized on the camera or a possible error may occur. A photo taken with the camera will be stored in the folder that is automatically generated on the memory card. Do not store photos that are not taken using this camera in these folders as the pictures cannot be recognized during the playback. When you insert a memory card, make sure the notch of the card matches the markings on the top of the card slot.

Downloaded from www.Manualslib.com manuals search engine Other Safety Notes Do not disconnect the power or turn the camera off during the update process. Doing so may cause incorrect data to be written and the camera may not power on later. When using your camera on an airplane, observe the relevant rules specified by the airline. Due to the limitations of manufacturing technology, the LCD may have a few dead or bright pixels. These pixels do no effect the quality or performance of the camera, photos or video. Do not expose the LCD to water. In a humid environment, only wipe it with a soft and dry cleaning cloth. If the LCD screen is damaged, pay particular attention to the liquid crystal in the screen. If any of the following situations arise, take the recommended immediate action indicated below:

1. If liquid crystal comes in contact with your skin, please wipe with a dry cloth, wash thoroughly

with soap, and rinse with plenty of clean water.

2. If liquid crystal gets into your eye, flush the eye immediately with plenty of clean water for at

least 15 minutes and then seek for medical assistance.

3. If liquid crystal is swallowed, immediately flush your mouth thoroughly with clean water and

induce vomiting. Seek for medical assistance.

Downloaded from www.Manualslib.com manuals search engine Contents Before You Start 1 Safety Notes 3 Contents 7 Getting Ready 11 Accessories Included 11 Part Names 12 Installing Battery and Memory Card 14 Charging Battery 16 Turning Camera On and Off 17 How to take pictures 17 Set your Language, Date/Time 18 Mode Overview 21 LCD Screen Display 21 Overview of the Screen Icons in Photo Shooting Mode 21

Downloaded from www.Manualslib.com manuals search engine Getting Ready Accessories Included Your camera box should contain the camera model you purchased along with the following accessories. If anything is missing or appears to be damaged, please contact your retailer. (Based on sales in different countries or regions, the shape of the AC adapter will vary. Please subject to the actual product will prevail.) Rechargeable Li-ion battery Quick S

AC adapter rt Guid Wrist strap STOP

Quick start guide Micro USB cable Warranty card Service card

Downloaded from www.Manualslib.com manuals search engine Part Names

5. AF assist beam/Self-timer lamp

Fast video recording button

C Delete button/Arrow button (Down)

acro button/Self-timer button/ Arrow button (Left)

Downloaded from www.Manualslib.com manuals search engine Installing Battery and Memory Card

1. Open the battery cover.

2. Insert the battery into the battery

compartment according to the negative and positive directions as illustrated in the picture. Push the battery down until it locks in place.

3. Insert the memory card into the memory

card slot as shown in the diagram below:

4. Close the battery cover.

Write protection buckle

The memory card (SD/SDHC) is optional and not included in all camera packaging. It needs to be purchased separately. Please use an original memory card which is Class 4 or higher and has a capacity of 4GB to 32GB. To remove your memory card, open the battery cover, gently press the memory card to eject it and remove it carefully.

Downloaded from www.Manualslib.com manuals search engine Charging Battery Indicator lamp Please insert the battery and charge it under shutdown mode.

1. Connect the camera and the power charger

using the supplied Micro USB cable.

2. Insert the plug of the power charger into the

power outlet to charge the battery.

3. When the camera is turned off, you can also

connect the camera to your PC using a Micro USB cable to charge the battery. After the battery is stored for a long period of time, use the supplied power charger to charge the battery prior to use. Charging indicator: Steady orange: Charging. The indicator will go out once charging is finished. To have maximum battery life, charge the battery for at least 4 hours the first time. Please charge the battery indoors between 0°C and 40°C. The camera will only charge while powered off. If the camera is turned on while connected to power, normal camera functions will be available for use, but the camera will not charge until it is turned off.

Downloaded from www.Manualslib.com manuals search engine Turning Camera On and Off Press the power button to turn the camera on. To turn the camera off, press the power button again. Power Button How to take pictures

1. Hold the camera with both hands , not

blocking the flash and lens by fingers.

2. Aim the camera at the object and then

3. Use the zoom lever to select Tele or Wide

positions to zoom in or out on your subject.

4. Press the shutter button half way to focus

on the subject. When the focus frame turns green, press the shutter button completely down to take the picture. When the power is off, press and hold the button to power on and enter playback mode.

Downloaded from www.Manualslib.com manuals search engine Set your Language, Date/Time Set your Language, Date/Time after the first power-on

1. When you turn the camera on for the

first time, the language selection screen appears.

2. Press the direction buttons to select your

3. After you press the

button to confirm the selection, the Date/Time settings screen appears.

4. Press the left/right button to select

the Date/Time to be adjusted: Time is displayed in YYYY.MM.DD HH:MM.

5. Press the up/down button to adjust the

value for the selected Date/Time.

button to confirm the time settings and the snapshot screen appears.

Downloaded from www.Manualslib.com manuals search engine Resetting your Language After you set your language for the first time, follow the instructions below to reset your language.

3. Press the up/down button to

select「Language」and press the button or right button to enter the menu.

4. Press the direction buttons to select your

desired language and press the button to confirm.

button and the snapshot screen appears.

Downloaded from www.Manualslib.com manuals search engine Resetting Date/Time After you set your Date/Time for the first time, follow the instructions below to reset date and time.

value for your selected block. After you finish your settings, press the button to confirm.

button and the following snapshot screen appears.

Downloaded from www.Manualslib.com manuals search engine Mode Overview LCD Screen Display Overview of the Screen Icons in Photo Shooting Mode

OIS (Optical Image Stabilization) Eye-Fi ON (with signal)

White Balance Color Effect Number of remaining shots

Remaining Recording time Exposure Compensation Focus Frame Shutter Speed Histogram

Overview of the Screen Icons in Movie Mode

Macro Mode Self-timer Zoom Display (By turning the Zoom Lever) Memory Card/Built-in Memory

Color Effect Video Quality Remaining Recording time

Image Stabilization Eye-Fi ON (with signal)

Exposure Compensation Using the Mode Button This camera provides a convenient mode button that allows you to switch easily among different modes. After pressing the button to enter the mode selection menu, press the left/right button to choose the selected mode. Press the button to confirm your selection. All the available modes are listed below: Mode Name Icon Description Auto Mode In this mode, the optimal conditions for taking pictures will be set based on the subject and environment. It is the most commonly used mode for taking pictures. Manual Mode This mode is for manually setting EV, shutter speed and ISO value. Portrait Mode The best setting for portrait shooting, enables AE/AF for faces. The camera is set to automatically adjust exposure for realistic capture of skin tones. Movie Mode Record videos. Panorama Mode In this mode, up to 4 frames can be stitched together to create a single panoramic photo. Scene Mode Choose from 20 different pre-set scene types and effects for your photos.

Downloaded from www.Manualslib.com manuals search engine Panorama Mode Panorama Mode allows you to create a panoramic picture. The camera will automatically compose a panoramic picture using the individual shots that you take. Follow these easy steps to create a panoramic picture:

button to select panorama mode (

2. Press the direction buttons to select a

shooting direction. (The right direction is used as default if you do not make any choice) 2 seconds later, the camera is ready to take pictures. You can also press the button or half press the shutter button to be ready to take pictures.

3. Compose the first view of the panoramic

picture on the LCD and press the Shutter button to capture the image.

4. After the first shot is taken, the

semi-transparent image of the first shot will appear at the edge of the screen. You can use this image to compose your picture before you press the Shutter button to capture and finish manual stitching.

5. If continuous pictures are less than 4 shots,

press the button, the camera will splice the pictures automatically. Press playback button to enter playback mode to see the effect.

6. If you take 4 pictures, the camera will splice

the pictures automatically. Press playback button to enter playback mode to see the effect. Scene Mode During shooting, the flash, selftimer, macro modes and exposure compensation are not available. Focus adjustment is also not available at this time. In Panorama Mode, up to 4 photos can be captured when the image size is set at 2M. You can select an appropriate mode from the 20 scene modes according to the type of environment you are shooting. The camera then configures the most appropriate settings automatically.

button to select scene mode ). The LCD will display a menu like the example below: Auto Scene During panorama mode shooting, press the button to interrupt shooting and save the current pictures taken. Press the down button ( ) to cancel shooting and not to save the previously taken pictures.

2. Press the direction buttons to select a

scene, and press the button to confirm.

3. If any need of changing the scene, please

press the button and then the button and finally the direction buttons to reselect the scene.

Downloaded from www.Manualslib.com manuals search engine Scene Auto Scene Landscape Sport Description Identifies the scene automatically; Person, Backlighting, Landscape, Macro, Night Scene, Night Scene Person, Auto. For landscapes and outdoor shots. Vivid reproduction of green and blue. For fast-moving subjects. Capture sharp, action shots with minimal blur. This mode is not recommended for shooting indoors. Beach For taking pictures in areas with strong sunlight. Sunset For sunsets. Capture subjects in strong sunlight. Fireworks For fireworks at night. Slower shutter speed is adjusted for brilliant images. The use of a tripod is recommended. Night Landscape For night scenes. The use of tripod is recommended. Snow For snow scenes. Reproduce natural, clear white scenes. Children

Turns off flash automatically. Avoids disturbing subject, suitable for taking photos of children. For shooting ID size photos. (It is recommended to print using 6-inch 4R (6X4) photographic paper). Glass For objects behind transparent glass. Photo Frame For adding interesting frame effects to the photo.

Downloaded from www.Manualslib.com manuals search engine Scene Panning Shot Description Suitable for capturing fast moving objects to have a clear subject with a blurred background. Fish Eye For interesting fish eye effect. Party Suitable for taking indoor party pictures, even under the complicated lighting conditions. Indoor For indoor settings. Reduce blur and improve color accuracy. Leaf For plants. Capture brilliant shots of greenery and blossoms. Museum For museums or flash-free areas. Retain color and reduce blur. Night Portrait For portraits against night scenery. Sketch For taking photos with pencil sketch effect.

Downloaded from www.Manualslib.com manuals search engine Auto Scene Mode (ASCN) In “ASCN” scene mode, the camera can detect different environments intelligently and automatically select the best scene and photo settings for you. “ASCN” can intelligently detect the following scenes: Mode Name Description Landscape Mode For landscapes, will automatically adjust the exposure and reproduce vivid green and blue colors. Portrait Mode Most suitable for capturing people with focus on their faces. Night Portrait When you take portraits at night, or in low light conditions, will automatically adjust the exposure for people and night scenes. Backlit Portrait When the sun or any other light source is behind you, will automatically adjust the foreground exposure to produce the best pictures possible. Night Landscape Mode For night scenes, will automatically increase the ISO value to compensate for low light. Macro Mode The Macro setting is ideal for shooting small objects or close-up photos. Auto Mode The camera will automatically adjusts the exposure and focus to ensure the best possible pictures.

Downloaded from www.Manualslib.com manuals search engine Basic Operation Using the Zoom Function Your camera is equipped with two types of zoom functions: optical zoom and digital zoom. Toggle the zoom lever of the camera to zoom in or out of the subject while taking pictures. Zoom Out Zoom Lever Zoom Indicator Zoom In When the optical zoom reaches the threshold as digital zoom, release and turn the zoom lever to T to switch between the optical zoom and digital zoom.

Downloaded from www.Manualslib.com manuals search engine Display Setting Press the button to display the settings: Classic, Full, Off. Classic: D isplays the camera parameters on Off: Does not display any additional icons on screen screen

Downloaded from www.Manualslib.com manuals search engine 400 ISO Macro Mode The Macro setting is ideal for shooting small objects or close-up photos. This mode allows you to focus on subjects very close to the camera.

Macro Off Select this option to disable macro.

Macro On Select this option to make focusing on the object closer to the lens (At the W side, the shooting distance should be more than 3 cm).

button to confirm the settings and enter the shooting screen.

Downloaded from www.Manualslib.com manuals search engine Self-timer Setting Use this function to take pictures at pre-set intervals. First choose 2 seconds, 10 seconds,or by smile detection. and then take the pictures.

press the down button ( self-timer menu. Self-timer 10 sec A single picture is shot 10 seconds after the shutter button is pressed.

Self-timer Smile Press the shutter button and a picture will be taken immediately after a smile is detected. ) , and then ) to enter the

button to confirm the settings and enter the shooting screen.

Self-timer Off Disables the Self-timer.

Self-timer 2 sec A single picture is shot 2 seconds after the shutter button is pressed.

Downloaded from www.Manualslib.com manuals search engine When enabling the self-timer, pressing the shutter or the ( ) button can disable the self-timer and return to the shooting screen while keeping the self-timer setting. When enabling the smile detection, pressing the shutter or the button can disable the self-timer and return to the shooting screen without keeping the Self-timer Smile setting. Flash Mode The flash provides supplemental light for the scene. The flash is usually used when shooting against the light to highlight the object; it is also suitable for metering and shooting in darker scenes to improve the exposure.

1. Pop up the flash manually as shown below

(as shown in the figure).

following 6 modes: Force Off Flash is turned off. Downloaded from www.Manualslib.com manuals search engine

Flash Auto Camera flash goes off automatically based on existing light conditions. Fill Flash The flash will engage with each shot even if there is enough available light to take the photo without flash. Slow Sync. This allows you to take pictures of people at night that clearly show both your subjects and the night time backdrop. The use of a tripod is recommended when shooting with this setting. Slow Sync. + Red-Eye Use this mode for slow synchrony shots with red-eye reduction. Red-Eye Reduction The camera emits a brief pre-flash before the picture is taken to reduce red-eye effects.

button to confirm the settings and enter the shooting screen.

EV Setting The EV function menu of the camera includes functions, such as EV, shutter adjustment, ISO. Using the appropriate function settings can improve your pictures. To select the best setting for optimum photos, follow these steps:

screen. Exposure Compensation Set up to adjust the picture brightness. In the case of a very high contrast between the photographed object and the background, the brightness of the picture can be appropriately adjusted. (Adjustable in Mode) button to display the settings

2. Press the left/right button to select the

3. Press the up/down button to adjust the

button to confirm the settings and enter the shooting screen. The adjustable range of exposure value is from EV -2.0 to EV+2.0.

Downloaded from www.Manualslib.com manuals search engine ISO Shutter Adjustment The ISO function allows you to set the sensitivity of the camera's light sensor based on the brightness of the scene. To improve the camera's sensor performance in darker environments, a higher ISO value is required. A lower ISO value is needed when shooting in brighter conditions. For shutter speed, the camera may automatically set the aperture value corresponding to the manually set shutter speed so as to obtain a most suitable exposure value. The movement of object may be shown by adjusting the shutter speed. High shutter value can make you clearly capture the movement of fast moving object while low shutter value can allow you to take a picture for fact moving object with a strong sense of movement. (Adjustable in Mode) Pictures taken at higher ISO settings will generally have more noise than those taken at lower ISO settings. (Adjustable in Mode) The camera's ISO settings include: Auto, 80, 100, 200, 400, 800, 1600.

Downloaded from www.Manualslib.com manuals search engine Using Quick Recording In shooting mode, press the button to begin recording video. After recording, press the button or the shutter button to stop recording. The camera will store the video and return to the shooting screen.

File Protection Memory space (indicating the current number of photos and total number of photos) Memory Card/Built-in Memory Battery Status Zoom Magnification Area

Eye-Fi ON (with signal) Red-Eye Reduction HDR

Downloaded from www.Manualslib.com manuals search engine Viewing Photos and Videos To view the captured photos and video clips on the LCD:

1. After pressing the

button, the last photo or video clip taken will be displayed on the LCD.

2. Use the left/right navigation buttons to scroll through the photos or video clips stored in the

internal memory or on the memory card.

3. To play a selected video clip, press the

button to enter the movie playback mode. An operation guide appears on the screen when playing back a video. Press the appropriate buttons to enable the corresponding functions. Under Playback Paused Mute 00:00:47

Back to the beginning of the video

Play video forward Cancel playback Play video backward Downloaded from www.Manualslib.com manuals search engine Thumbnail View When in playback mode, rotate the zoom lever counter to the position to display thumbnail images of the photos and videos on the screen.

2. Press the direction buttons to select a

picture or video clip to view and press the button to restore it to the original size. When the icon is a video file. appears, it means this

1. Slide the zoom lever to switch between 3x3

Downloaded from www.Manualslib.com manuals search engine Using Zoom Playback (for still pictures only) When playing back photos, you can also use the zoom lever to zoom in on the photos 2 to 8 times.

button to switch to playback mode.

2. Press the left/right button to select a picture to

3. Rotate the zoom lever to

to zoom in. T Zoom In

4. The screen will display the number of times and

area of the photo zooming operation.

5. Press the direction buttons to navigate and select

a part of the image to be zoomed in.

button to return the image to its original scale. Movie images cannot be magnified.

Downloaded from www.Manualslib.com manuals search engine Slideshow This setting allows you to view all the stored images as a slideshow.

button to enter playback screen.

button to confirm the setting. Slide playing function supports movie playing. Images don’t rotate in the slideshow playback.

Downloaded from www.Manualslib.com manuals search engine Photos and Video Deletion In playback mode, press the down button ( to delete your photos and videos. To delete photos or videos:

mode. button to switch to playback

2. Press the left/right button to select the

photos and videos to be deleted.

3. Press the down button ( ) and the

deletion screen is displayed.

4. Press the up/down button to

select「Delete One」or「Exit」and press the button to confirm. Erased photos/video clips cannot be recovered. Please refer to page 61 for instructions on deleting more than one image at a time. Using the Menus Shooting Menu Functions that can be enabled are different under each mode. Mode: Expo Metering Use this setting to select the "target" size of the camera's field of view to be metered.

1. In photo shooting mode, press the

button to enter the shooting menu.

2. Press the up/down button to select the

shooting menu to be set.

3. Press the left/right button to select the

shooting menu to be set and press the button to confirm. Refer to the following pages for more details about each setting.

Downloaded from www.Manualslib.com manuals search engine AIAE (Artificial Intelligence AE) Automatically selects the central and peripheral metering, to calculate the reasonable value of metering by weighting. Spot For metering targets a small area in the center of the camera's field of view. Center For metering targets a slightly larger area in the center of the cameras field of view.

Image Size OIS (Optical Image Stabilization) The size setting refers to the image resolution in pixels. A higher image resolution allows you to print that image in larger sizes without degrading the image quality. This mode can help reduce photo blur caused by unintentional hand shake, low light. The larger the number of recorded pixels, the larger the file size and the fewer files that can be saved on your memory card.

OIS: On Use this image stabilization mode in dark environments. Shooting in a windy or unstable environment (such as a moving vehicle) may cause blurred images.

Downloaded from www.Manualslib.com manuals search engine White Balance Setting Cont. AF The white balance setting allows you to adjust the color temperature for different lighting sources to ensure the most accurate color reproduction. Enable the continuous AF to be able to continuously focus automatically when taking pictures.

Focus Setting Continuous Shot In different photo shooting modes, you can select different focus methods. Use this setting to perform continuous shooting. After entering this mode, you can shoot multiple images by continuously holding the shutter button down.

Single-AF The focus frame appears on the center of the LCD to focus on the subject. Multi-AF The camera automatically focuses the subject in a wide area to find the focus point.

Time-Lapse 10min Color Effect The flash is disabled in the continuous shooting in order to achieve quick succession of shots. The image color setting allows you to select different effects.

1. In photo shooting mode, press the

button to enter the shooting menu.

2. Press the up/down button to select the

image color setting menu, press the button to enter the menu.

3. Press the left/right button to select the

image color setting options. Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine Shooting Setting Menu Quality Mode:

button in photo shooting mode and press the up/down button to select

• Best (16M Average File Size: 4.0MB)
• Fine (16M Average File Size: 2.5MB)
• Normal (16M Average File Size: 2.0MB)

4. Press the up/down button to select the item

to be set and press the button or right button to enter the menu.

5. Press the up/down buttons to select an

option and press the button to confirm.

Downloaded from www.Manualslib.com manuals search engine AF Assist Beam Digital Zoom In a darker environment, AF assist beam can be turned on for better focus. This setting is for adjusting digital zoom. If this function is disabled, only optical zoom can be used.

Downloaded from www.Manualslib.com manuals search engine Date Imprint Quick Review Include a Date/Time stamp on the photo image. This option allows quick review of the photos immediately after they are taken. Each photo is displayed on the LCD based on the selected time.

Face Detection For detecting and focusing on faces to make all faces as clear as possible in photo mode.

2. Press the shutter button half-way down

to focus. The LCD will show a green focus frame when the subject is in focus. F2.9

1. Hold the camera steadily and then focus on

the object to detect its face. A focus frame will appear at the face on the screen when a face is detected. 1/50

3. Press the shutter button all the way down to

take pictures. The closed eyes detection is usually on. If the camera detects in the course of quick review there is a face with eyes closed, a prompt of closed eyes will appear

Downloaded from www.Manualslib.com manuals search engine Movie Menu Mode:

button, select the mode and press the button to enter the movie menu. Expo Metering Use this setting to select the "target" size of the camera's field of view to be metered.

2. Press the up/down button to select the

movie menu to be set.

3. Press the left/right button to select the

movie menu to be set and press the button to confirm.

Downloaded from www.Manualslib.com manuals search engine AIAE (Artificial Intelligence AE) Automatically selects the central and peripheral metering, to calculate the reasonable value of metering by weighting. Spot For metering targets a small area in the center of the camera's field of view. Center For metering targets a slightly larger area in the center of the cameras field of view.

Video Quality Set the image resolution used during video recording.

• The longest recording time is 29 minutes at one time. When recording in higher pixel resolutions for extended periods of time, this can cause the camera to generate heat. This is not a camera malfunction. The speed requirements for reading and writing high image pixel images to memory card are as follows: Frame Recommendation Recording time (4GB) About No. Image Pixel

Downloaded from www.Manualslib.com manuals search engine OIS (Optical Image Stabilization) Color Effect This mode can help reduce images blur caused by unintentional hand shake, low light. The image color setting allows you to select different effects.

button to select the Image color setting menu.

image color setting options.

OIS: On Use this image stabilization mode in dark environments. Shooting in a windy or unstable environment (such as a moving vehicle) may cause blurred images.

Downloaded from www.Manualslib.com manuals search engine Movie Setting Menu Mode:

button, and select the video recording screen. Digital Zoom to enter

4. Select the items to be set and press the

5. Press the up/down buttons to select an

option and press the button to confirm. Downloaded from www.Manualslib.com manuals search engine This setting is for adjusting digital zoom. If this function is disabled, only optical zoom can be used.

button to display the playback screen and press the button to enter the menu. With the HDR function, pictures that are overexposed may be corrected to optimize the highlights and lowlights captured to more accurately represent the actual scene.

2. Press the up/down button to select the

playback to be set and press the button to enter.

3. Press the left/right buttons to select an

option and press the button to confirm. : HDR : Cancel Refer to the following pages for more details about each setting. After using the HDR function, the image will be saved as a new file and the original file is still stored in the memory.

Downloaded from www.Manualslib.com manuals search engine Red-Eye Reduction Rotate You can use this setting to reduce the Red-Eye of the picture. You can use this setting to change the orientation of the picture. : Red-Eye Reduction

Cancel Videos and panoramic pictures cannot be rotated. The rotated picture file will replace the original photo.

Downloaded from www.Manualslib.com manuals search engine Resize Color Effect This setting allows you to resize a picture to a particular resolution and saves it as a new picture. This setting allows you to change the picture color effect. The file is saved as a new photo and stored in memory together with the original photo. : Resize to 1024x768 : Resize to 640x480 ： Cancel Only for adjusting pictures with high resolution to those with low resolution. : Cancel : Vivid : Sepia : Black and White

Downloaded from www.Manualslib.com manuals search engine Playback Setting Menu Mode:

button to show the playback screen, press the button, and press the up/down button to select

4. Press the up/down button to select the

5. Press the up/down buttons to select an

option and press the button to confirm. button to enter the menu. Refer to the following pages for more details about each setting.

Downloaded from www.Manualslib.com manuals search engine Protect Delete To prevent any pictures or videos from being accidentally erased, use this setting to lock one or all of the files. You can delete one or all photo/video files.

• All: Lock the selected photo or video if they are unprotected; unlock the selected photo or video if they are protected. Lock all photos or videos.

• Reset: Cancel all locked photos or videos.

• One: Delete one photo or video.

• All: Delete all photos or videos. The “ ” indicator means a file is protected. File protection must be removed first before a file can be deleted. Deleting files will cause DPOF settings to be reset.

Downloaded from www.Manualslib.com manuals search engine DPOF (Digital Print Order Format) Trim The DPOF feature allows you to compile and select a group of pictures that you would like to print and will save your selection on the memory card so that you can use the memory card to print without having to individually specify the photos you want to print. The Trim Setting allows you to crop photos and save them as new pictures. The printer that supports DPOF is needed for printing.

button and the「Save Change?」 prompt appears. Select「 」to change and save the picture. Select「 」to cancel changes and return to the trim prompt screen. The image cannot be clipped/trimmed again once it has been clipped to 640X480.

4. Press the up/down button to select the

item to be set and press the button or right button to enter the menu.

5. Press the up/down buttons to select an

option and press the button to confirm. Refer to the following pages for more details about each setting.

Downloaded from www.Manualslib.com manuals search engine Sound Settings Power Saver With this setting you may adjust the sound volume. This setting allows you to save power and get the maximum possible running time for your camera’s batteries. Turn the LCD and camera off automatically after a consecutive period of inactivity. Press the left/right button to adjust the volume and Press the button to confirm.

Downloaded from www.Manualslib.com manuals search engine LCD power off time 3 min 1 min 30 s Turn off time 5 min 3 min 1 min Language Date & Time Refer to the “Reset your language” section on page 19. Refer to the “Reset Date/Time” section on page 20. World Time LCD Brightness The world time setting is a useful function for your overseas trips. This feature enables you to display the local time on the LCD while you are abroad. Use this setting to adjust the brightness of your LCD.

1. Press the up/down to select the departure

place ( ) and destination ( ) fields.

2. Press the left/right button to select a city

located in the same time zone as that of the field. Press the button to confirm settings. LCD Brightness

and press the button or right button to enter the menu. Please note: formatting enables you to delete all contents in the memory card and built-in memory, including protected photo and movie files. Format Copy to Card File Numbering Reset FW Version

4. Press the up/down button to select the

item to be set and press the button or right button to enter the menu.

5. Press the up/down buttons to select an

option and press the button to confirm.

Downloaded from www.Manualslib.com manuals search engine If you select「Yes」the camera formats its memory. If there is no memory card in the camera, the built-in memory will be formatted; if there is a memory card, it will be formatted only. Copy to Card File Numbering Use this setting to copy the files stored in the built-in memory to a memory card. After you take a picture or video clip, the camera will save it with a sequential number. You can use this to reset the file numbering to

If there is no card available in the camera, this function will not be displayed.

Downloaded from www.Manualslib.com manuals search engine Reset FW Version Use this setting to restore the camera to its original default settings. Use this setting to view the current camera firmware version. FW Version Current Ver: X.XX Back When there is a new firmware version in the memory card, select「Yes」to update. FW Version Current Ver: X.XX New Ver: X.XX Update Firmware? Yes Cancel

Downloaded from www.Manualslib.com manuals search engine Connection Settings Connecting to a Computer You can use a Micro USB cable to connect the camera and copy (transmit) photos to a computer, printer or other device.

4. Press the up/down buttons to select「PC」

and press the button to confirm. Setting the USB Mode The camera’s USB port can be set to connect with either a computer or a printer. The following steps will allow you to ensure that the camera is correctly configured to connect with a PC.

Downloaded from www.Manualslib.com manuals search engine Transferring files to your computer The computer will automatically detect the camera as a removable drive. Double-click the my computer icon on the desktop to locate the removable drive and to copy folders and files in the drive to a directory on your PC as you would copy any typical folder or file. Follow the steps below to connect the camera to a computer.

1. Make sure the computer is turned on.

2. Connect one end of the supplied Micro USB

cable to the USB port on your camera.

3. Connect the other end of the Micro USB

cable to an available USB port on your computer.

4. After the transmission is complete,

disconnect the Micro USB cable according to the instructions specifying how to safely remove USB devices.

Downloaded from www.Manualslib.com manuals search engine Connecting to a PictBridge Compatible Printer PictBridge technology allows printing of the photos saved in the memory card by the printer.

3. Press the up/down button to select「USB」

and press the button or right button to enter the menu. To find out if a printer is PictBridge compatible, simply look for the PictBridge logo on the packaging or check the owner's manual for specifications. With the PictBridge function on your camera, you can print the captured photos directly to a PictBridge compatible printer using the supplied Micro USB cable, without the need for a PC.

4. Press the up/down button to select

「Printer」and press the button to confirm. Setting the USB Mode The camera’s USB port can be set to connect with either a PC or a Printer, the following steps will ensure that the camera is correctly configured to connect with a Printer.

button, press the up/down button to select and press the button to enter the menu. After the camera is reset, it will switch to PC mode automatically from USB mode.

Downloaded from www.Manualslib.com manuals search engine Connecting to your Printer

1. Make sure the printer is turned on.

2. Connect one end of the supplied Micro USB

cable to the USB port on your camera. If the camera is not connected to a PictBridge compatible printer, the following error message will appear on the LCD.

3. Connect the other end of the Micro USB

cable to the USB port on the printer. The error message above will also appear if the USB mode is set incorrectly, in which case you should disconnect the Micro USB cable, check the USB mode settings, ensure that the Printer is turned on, and then try connecting the Micro USB cable again.

Downloaded from www.Manualslib.com manuals search engine Using the PictBridge Menu After setting the USB mode to Printer, the PictBridge menu will appear. Print (with Date) If you have set the date and time on your camera, the date and time will be recorded and saved with each photo you take.

1. In the PictBridge menu, select「Print (with

Date)」and the screen as shown below appears. Press the up/down button to select a menu item and press the button or right button to enter the item. Refer to the following sections for more detailed information on each setting.

2. Press the left/right button to select a photo

Downloaded from www.Manualslib.com manuals search engine Print (without Date)

3. Press the up/down button to select

the number of copies for the currently displayed photo.

button and the following screen will appear.

5. Select「Yes」and press the

button to confirm printing; select「Cancel」and press the button to cancel printing. Use this setting to print the photos without dates on them.

1. In the PictBridge menu, select「Print

(without Date)」and the screen as shown below appears.

the number of copies for the currently displayed photo.

button and the following screen will appear.

Downloaded from www.Manualslib.com manuals search engine Print Index You can print all photos in the camera via this function.

1. In the PictBridge menu, select「Print

Index」and the screen as shown below appears.

5. Select「Yes」and press the

button to confirm printing; select「Cancel」and press the button to cancel printing.

2. Select「Yes」and press the

button to confirm printing; select「Cancel」and press the button to cancel printing.

Downloaded from www.Manualslib.com manuals search engine Print DPOF Images Exit To use DPOF printing, you must select your photos for printing using the DPOF settings beforehand. See “DPOF” section on page 62. Select「Exit」to exit the PictBridge menu. At this time, the message「Remove USB Cable!」 appears on the screen.

1. In the PictBridge menu, select「Print DPOF

Images」and the screen as shown below appears. Disconnect the Micro USB cable from the camera and printer.

2. Select「Yes」and press the

button to confirm printing; select「Cancel」and press the button to cancel printing.

Downloaded from www.Manualslib.com manuals search engine Video System You can use the AV cable (which should be purchased separately) to connect the camera and the television for realizing the video output. Connect one end of the AV cable to AV port of the camera, connect the other end to AV-OUT port of the television. Adjust the format of the video output system according to your requirements, and the steps are as follows:

button or right button to enter the menu.

4. Press the up/down button to

select「NTSC」or「PAL」and press the button to confirm. NTSC: English, Chinese (Traditional), Japanese, French, Korean, Russian, Vietnamese, Greek, Hungarian PAL: German, Spanish, Italian, Chinese (Simplified), Portuguese, Swedish, Danish, Finnish, Indonesia, Norwegian, Dutch, Turkish, Polish, Thai, Croatian, Czech, Arabic, Hindi The video output system would change accordingly based upon the changes of the selected language.

Downloaded from www.Manualslib.com manuals search engine Set Eye-Fi Card Connection Mode This camera supports wireless connection for Eye-Fi memory cards. Enable the Eye-Fi connection by following the steps below.

button to confirm. If the Eye-Fi card is not available in the camera, this feature is not displayed.

Downloaded from www.Manualslib.com manuals search engine Appendices Product Specifications Design and specifications are subject to change without notice. Image Sensor Lens Type 1/2.3"CCD Effective Pixels

Downloaded from www.Manualslib.com manuals search engine Panorama Up to 180° (Horizontal） LCD Display 3.0inch (230k Pixels) Image Auto Rotation Yes ISO Sensitivity Auto, ISO80/100/200/400/800/1600 AF Method Single AF, Multi-AF (TTL 9-point), Face-Detection Exposure Metering Method Artificial Intelligence AE (AiAE), Center-Weighted Average, Spot (Fixed to Center of Frame), Face AE Exposure Control Method Program AE (AE-Lock Available) Exposure Compensation ±2EV in 1/3 Step Increments Shutter Speed 1/2000 ~ 4 Seconds (Manual: 30 Seconds) Continuous Shooting Yes Playback Modes White Balance Control Single Photo, Index (9/16 Thumbnails), Slide Show Zoom (Approx. x2~x8) AWB, Daylight, Cloudy, Fluorescent, Fluorescent CWF, Incandescent, Manual WB

Downloaded from www.Manualslib.com manuals search engine Flash Flash Method Pop-up (Manual) Flash Modes Force Off, Flash Auto, Fill Flash, Slow Sync., Slow Sync. + Red-Eye, Red-Eye Reduction Internal Memory: Approx. 8MB Recording Media SD/SDHC Card (Up to 32GB Support) (MMC Card Not support ) Multi-Language Support 27 Languages Jacks AV-OUT/USB 2.0 (Micro 5 pin USB) Eye-Fi Support Yes Power Rechargeable Li-ion Battery LB-052, 3.7V 880mAh, In-Camera Charging Shooting Capability (Battery Performance) Approx. 210 Shots (Based on CIPA Standards) Operation Environment Temperature: 0 ~ 40 C, Humidity: 0 ~ 90% Dimensions (W×H×D) Approx. 108.4×69.9×32.8mm (Based on CIPA Standards) Weight Approx. 185g (Body Only)

Prompts and Warning Messages Message Description Action Warning! Battery exhausted. The camera battery is used up. It is a warning indicating that the camera is going to shut down. Charge the battery. Lens obstruction, Re-start Camera. The lens is jammed or some foreign object is preventing the lens from functioning properly. Turn off the camera and restart it to reset the lens. Suggest using tripod. The message will appear when shooting in low light/illuminated scenes. Use of a tripod or other support is suggested. Battery temperature is too high. The battery temperature reaches 58°C. Let the battery cool before attempting to use the camera again. The message will disappear after 2 seconds. Built-in memory error! An error occurs in internal memory. Format the internal memory. Slow shutter is on: may easily cause overexposure. When the B shutter is on, the prompt appears on the screen after you go back to the photo shooting screen. The message will disappear after 2 seconds.

Downloaded from www.Manualslib.com manuals search engine Message Description Action Improper alignment. Please try again. The offset is too big for panorama shooting. The message will disappear after 2 seconds. Connection Failed! In the case of failing to connect to a PC or a printer. Remove transmission line to stop connection, and the message is removed. Warning! Do not turn off your camera during update! The message appears during the firmware update process. The message disappears after the camera update and restart. Remove USB Cable！ Indicates that you can disconnect the Micro USB cable. The message disappears after you disconnect the Micro USB cable. Write Protect ! The memory card is locked. Unlock the write-protect switch of the memory card. Card Full ! Indicates that the memory card is full. Insert a new memory card or delete unwanted images.

Downloaded from www.Manualslib.com manuals search engine Message Description Action Memory Full ! Indicates that the internal memory is full. Insert a new memory card or delete unwanted images. Card Error ! The memory card cannot be recognized after being formatted. Insert a new memory card or format the card with this camera. Card is not formatted. The inserted memory card is unformatted or has been formatted on a computer or other device and is not compatible with this camera. Disappear after 2 seconds and enter the formatting process. Slow access When a memory card lower than Class 4 is used to record a HD movie, the writing speed will be slower and recording will not continue. Use an memory card with Class 4 or higher. No Red-Eye Detected! Red eyes have not been detected in the image. The message will disappear after 2 seconds.

Downloaded from www.Manualslib.com manuals search engine Message Description Action This image cannot be edited. The file format does not support editing or the edited file cannot be edited again. The message will disappear after 2 seconds. Exceeded maximum folder number. Prompt message when the archives or file folders in the memory card have reached the maximum (9999 for archives, 999 for file folder). Copy the images to your PC and format the memory card with this camera. Too many pictures for quick processing. During the playback by date, the images exceed specifications so that it is not possible to play by date. This may be solved by deleting unnecessary images. Unable to recognize files. The format of the file to be viewed is not supported or the file is corrupted so it cannot be properly read. You may be able to play it back on another brand of camera or on your computer. No Picture! When you press the playbutton, no image files exist in the camera or memory card. The message disappears 2 seconds later to return to the photo shooting screen. Protected! Undeletable! The file is protected. The message appears when you delete it. Unprotect the file before deleting.

Downloaded from www.Manualslib.com manuals search engine Troubleshooting Problem Camera does not turn on Camera turns off suddenly during operation The picture is blurred Images and video files cannot be saved Possible causes The battery has been depleted. The battery is not inserted correctly. The batteries have been depleted. Camera shakes while taking a picture. The memory card is full. The memory card is locked. The camera is not connected to the printer correctly. Images will not print from the connected printer The printer is not PictBridge compatible. The printer is out of paper or ink. The printer paper is jammed. Solution Recharge the battery. Correctly reinstall the battery. Recharge the battery. Turn on OIS feature. Use another memory card or delete unnecessary files. Unlock the memory card. Check the connection between the camera and printer. Use a PictBridge compatible printer. Load paper into the printer or replace the ink cartridge in the printer. Remove the jammed paper.

Downloaded from www.Manualslib.com manuals search engine Problem Saving data to memory card is slow Possible Causes Using a memory card below Class 4 may result in slower recording times. Solution Use a memory card with write Class 4 or higher than 4 to improve performance. Cannot write to the memory card The memory card has been locked. Too many movies to process The number of pictures or folders in the memory card exceed the specifications, so the playback of data folder can not be displayed. Release the write lock of the memory card or replace with another card. Delete unwanted files. The flash screen. Current shooting environment requires flash. flashes on the LCD

Downloaded from www.Manualslib.com manuals search engine Turn on flash. The Kodak trademark and trade dress are used under license from Kodak. © 2015 by JK Imaging Ltd. All Rights Reserved. JK Imaging Ltd., 17239 South Main Street, Gardena, CA 90248, USA JK Imaging Europe, 71 Clarendon road, Watford, WD17 1DS, UK www.kodakpixpro.com Ver. 2 Downloaded from www.Manualslib.com manuals search engine
