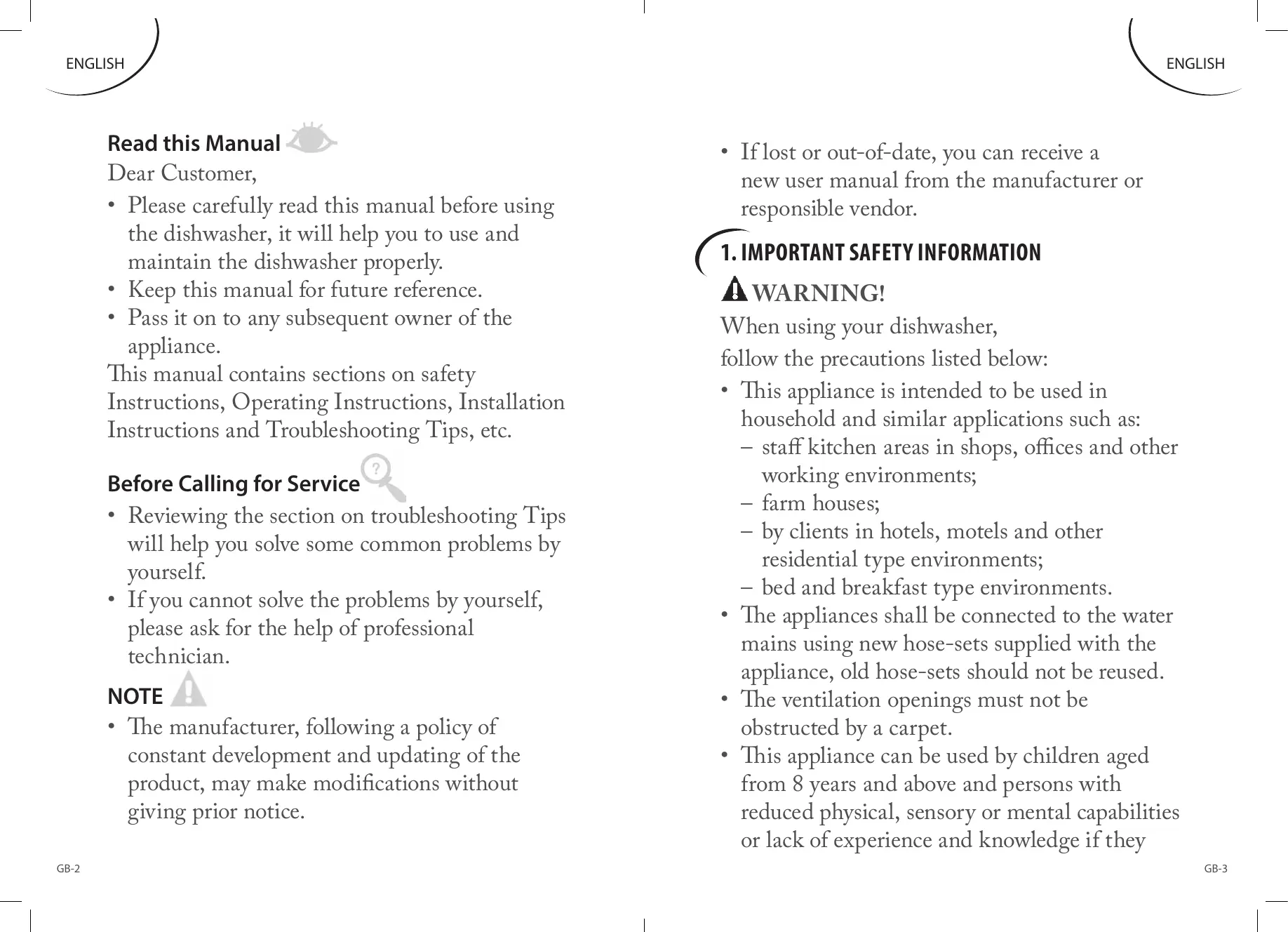

GB-1 ENGLISH Read this Manual Dear Customer,

• Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
• Keep this manual for future reference.
• Pass it on to any subsequent owner of the appliance. This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc. Before Calling for Service
• Reviewing the section on troubleshooting Tips will help you solve some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for the help of professional technician. NOTE
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. GB-2 ENGLISH

• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

1. IMPORTANT SAFETY INFORMATION

WARNING! When using your dishwasher, follow the precautions listed below:

• This appliance is intended to be used in household and similar applications such as: –– staff kitchen areas in shops, offices and other working environments; –– farm houses; –– by clients in hotels, motels and other residential type environments; –– bed and breakfast type environments.
• The appliances shall be connected to the water mains using new hose-sets supplied with the appliance, old hose-sets should not be reused.
• The ventilation openings must not be obstructed by a carpet.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they GB-3 ENGLISH

GB-4 ENGLISH have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Knives and other utensils with

sharp points must be loaded in the basket with their points down or placed in a horizontal position. The door should not be left in the open position since this could present a tripping hazard. Appliances are not intended to be operated by means of an external timer or separate remote- control system If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For installation and connection, please refer to page 54-60. For maintenance and cleaning, please refer to page 46. The maximum number of place settings to be washed: 12

• The minimum inlet water pressure is 0,04Mpa.
• The maximum inlet water pressure is 1Mpa.
• Concerning <how to load the dishwasher>, please refer to the chapter <Loading the Dishwasher Baskets> page 32.

EARTHING INSTRUCTIONS This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of anelectric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipmentearthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. GB-5 ENGLISH

• Do not modify the plug provided with the appliance; If it does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1. Locate sharp items so that they are not

likely to damage the door seal;

2. Warning: Knives and other utensils with

sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• Check that the detergent powder is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. GB-6 ENGLISH

• For plastic items not so marked, check the manufacturer’s recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Children should be supervised to ensure that they do not play with the appliance.
• The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused. Disposal
• Dispose of the dishwasher packaging material correctly.
• All packaging materials can be recycled. GB-7 ENGLISH

• Plastic parts are marked with the standard international abbreviations: PE - for polyethylene, e.g. sheet wrapping material. PS - for polystyrene, e.g. padding material. POM - polyoxymethylene, e.g. plastic clips. PP - polypropylene, e. g. Salt filler. ABS - Acrylonitrile Butadiene Styrene, e.g. Control Panel. WARNING!
• Packaging material could be dangerous for children!
• For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. GB-8 ENGLISH

• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. GB-9 ENGLISH ENGLISH

For detailed operating method read the corresponding content on the instruction manual. Open the door, press the On/ Switch on the Off button to switch on the appliance appliance . Compartment A: With each wash cycle. Compartment B: For programmes with Fill the pre- wash only. (Follow the detergent user instructions!) dispenser A B

Check the regeneration salt level Load the baskets Select a programme Check the rinse aid level GB-10 Mechanical indicator C. Electric indicator on control panel (if provided). Running the dishwasher (On models with water softener system only.) Electric indicator on control panel (if provided). If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run. To load the baskets, refer to the section entitled “Loading the Dishwasher Baskets”. Press the Programme Button until the selected programme lights up. ( See the section entitled“Operation instruction”) Turn on the water tap ,close the door . The machine will start working at once. GB-11 ENGLISH

1. A running cycle can only

be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent

• Changing dispenser must be refilled. the programme 2. P ress the Start/Pause button to stop the machine . Press the Program b utton more than 3 seconds , the machine will be in standby state, then you can change the program to the desired cycle setting. GB-12 ENGLISH 1.Press the Start/Pause Button to stop the washing. WARNING! Open the door care fully. Look out for hot steam when opening the door!

• Adding fo rgotten d 2.Open the door a little . ishes in the 3.After the spray arms stop dishwasher. working, you can open the door completely. 4.Add forgotten dishes. 5.Close the door 6.Press the Start/Pause Button, the dishwasher will run after 10 seconds.
• If the appliance is switched off during a wash cycle,
• If the when switched on again, appliance please re-select the washing is switched cycle and operate the off during a wash cycle. dishwasher according to the original Power-on state. GB-13 ENGLISH When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop . Switch off the Turn off the appliance using appliance the ON/OFF button. Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.

Warning: wait a few minutes

(about 15 minutes) before unloading the dishwasher to Turn off the avoid handling the dishes and water tap, utensils while they are still hot unload the and more susceptible to break. baskets The dishes will also dry better. First start unloading the lower basket. GB-14 ENGLISH

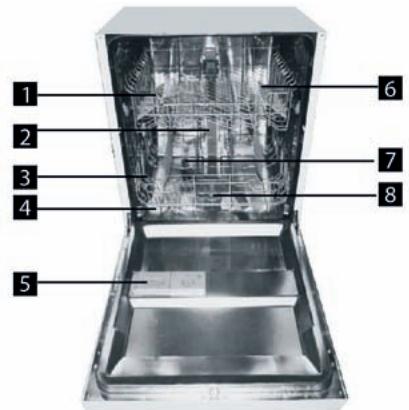

3. OPERATION INSTRUCTION

IMPORTANT! To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel

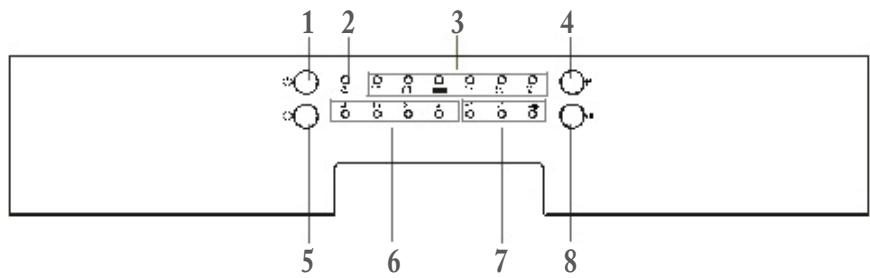

1. On/Off Button: To turn on/off the power

2. Power indicator: Lights up when the power

3. Program indicators: Show which program

4. Washing Program Button: Press the button

to select appropriate Program.

5. Delay Start Button: Press this button to set

the delay start time.

6. Delay start indicators: Shows the delay start

time options (3/6/9/12) GB-15 ENGLISH ENGLISH

when the salt container or dispenser need to be refilled Finish light: Lights up when the washing program finished

4. PRIOR TO FIRST TIME USE

Before using your dishwasher for the first time: A. Set the water softener B. Add 1.5Kg dishwasher salt and then full fill the salt container with water C. Fill the rinse aid dispenser D. Fill in detergent A. Water Softener

• The water softener must be set manually, using the water hardness dial.
• The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
• The more minerals there are, the harder your water is
• The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting Salt Consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed GB-17 ENGLISH based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. Please follow the steps below for adjustment in salt consumption.

1. Close the door, Switch on the appliance;

2. Press the start/pause button for more than

5 seconds to start the water softener set model within 60seconds after the appliance is switched on (The Salt and Rinse aid warninglights will be on periodically when it get in the set model);

3. Press the Program button to select the proper

set according to your local environment, the sets will change in the following sequence: H4->H5->H6->H1->H2->H3;

4. Press the Power button to end the set up

model. GB-18 ENGLISH WATER HARDNESS °dH °fH °Clarke mmol/l Selector Position 0~5 0~9 0~6 6-11 10-20 7-14 12-17 21-30 18-22 31-40 22-28 23-34 41-60 29-42 35-55 61-98 15-21 43-69 0~0.94 H1--Rapid indicator lights 1.0-2.0 H2--90Min indicator lights 2.1-3.0 H3--90Min, Rapid indicators light 3.1-4.0 H4--Glass indicator lights 4.1-6.0 H5--Glass Rapid indicators light 6.1-9.8 H6--Glass 90M inindicatosr light Salt consumption (gram/cycle)

Note:1 1°dH=1.25 °Clark =1.78°fH=0.178mmol/l dH: German degree fH : French degree Clark: British degree Note:2 The manufactory setting: H4 (EN 50242). Contact your local water board for information on the hardness of your water supply. GB-19 ENGLISH NOTE: If your model does not have any water softener, you may skip this section. WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water. B. Loading the salt into the softener Always use the salt intended for dish washer use. The salt container is located be neath the lower basket and should be filled as explained in the following: Warning!

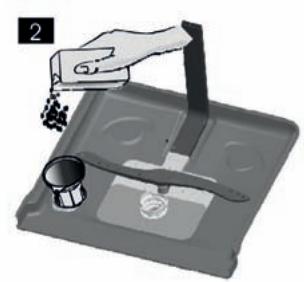

• Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. Incase of damages caused by the use GB-20 ENGLISH of unsuitable salt the manu facturer does not give any warranty nor is liable for any damages caused.

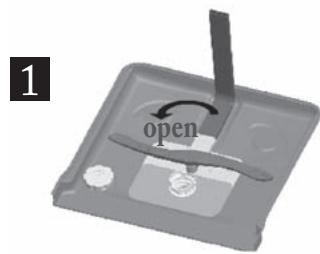

• Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. open A. After the lower basket has been removed, unscrew and remove the cap from the salt container. 1 B. Place the end of the funnel (supplied) into the hole and poor in about 1. 5kg of dishwasher salt . C. Fill the salt container to its maximum limit with water. It is normal for a small amount of water to come out of the salt container. 2 GB-21 ENGLISH D. After filling the container, screw back the cap tightly. E. The salt warning light will stop being after the salt container has been filled with salt. F. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. NOTE:

1. The salt container must only be refilled when

the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

2. If salt has spilled, run a soak or quick

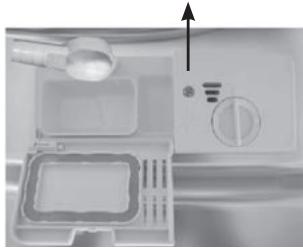

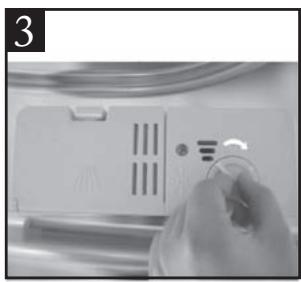

program to remove it. GB-22 ENGLISH C. Filling the rinse aid dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by preventing residual moisture. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside, on the door and next to the deter gent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aidcontainer is about 110ml. Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, a spot and streak free drying. Warning! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. GB-23 ENGLISH ENGLISH When to Refill the Rinse Aid Dispenser Unless the rinse-aid warning light on the control panel is on, you can always estimate the amount from the color of the optical level indicator " C " located next to the cap. When the rinse- aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse- aid diminishes. You should never let the rinse aid level be less than 1/4 full. As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full C (Rinse-Aid indicator) 3 / 4 full 1 / 2 full 1 / 4 full - Should refill to eliminate spotting Empty GB-24

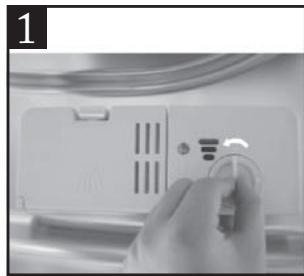

1. To open the dispenser, turn the cap to the

"open" (left) arrow and lift it out.

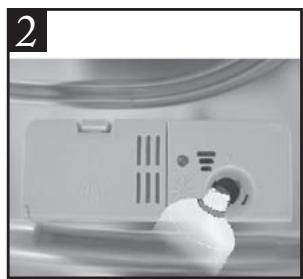

2. Carefully pour in the rinse-aid into its

dispenser, whilst avoiding it to overflow.

3. Replace the cap by inserting it aligned with

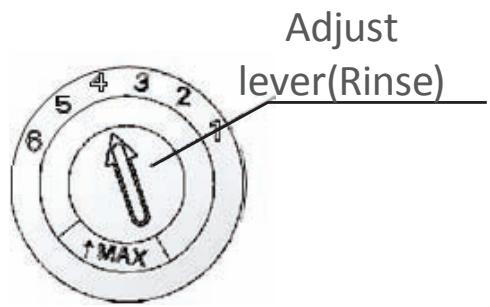

"open" arrow and turning it to the closed (right) arrow. NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming next wash. Don't forget to replace the cap before you close the dishwasher door. GB-25 ENGLISH Adjusting Rinse Aid Dispenser The rinse aid Adjust dispenser has six lever(Rinse) or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or show spots, adjust the dial to the next higher lever until your dishes a respot-free. The recommended setting is "4". (Factory value is "4".) NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there a re sticky whitish stains on your dishes or a bluish film on glassware or knife blades. GB-26 ENGLISH D. Function of Detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose . WARNING! Proper Use of Detergent. Use only detergent specifically made for dishwasher use. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you are ready to wash dishes. Detergents There are 3 sorts of detergents

1. With phosphate and with chlorine

2. With phospha te and without chlorine

3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If GB-27 ENGLISH detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types:

• Conventional, alkaline detergents with caustic components
• Low alkaline concentrated detergents with natural enzymes Detergent Tablets Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals. GB-28 ENGLISH Detergent Dispenser The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly. GB-29 ENGLISH ENGLISH Amount of Detergent to Use 1 Push latch to open

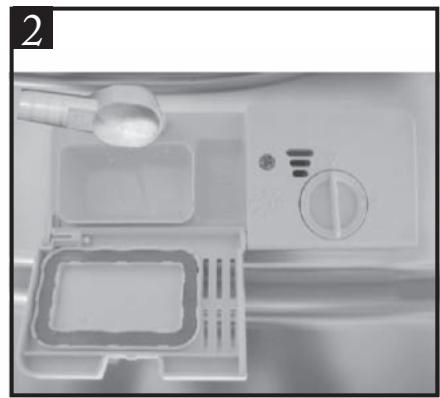

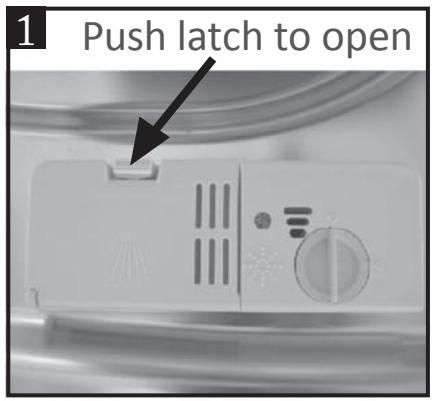

• If the lid is closed: press release button. The lid will spring open.
• Always add the detergent just before starting each wash cycle.
• Only use branded detergent aid for dishwasher.

Dishwasher detergent is corrosive! Take care to keep it out of reach of children. GB-30 Filling the detergent dispenser Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: A. Place the main wash cycle detergent here. B. Place the pre-wash cycle detergent here. Please observe the manufacturers dosing and storage. Recommendations as stated on the detergent packaging. Close the lid and press on it until it locks into place. A B If the dishes are heavily soiled, place an additional detergent dose in the prewash detergent chamber. This detergent will take effect during the pre-wash phase. NOTE:

• You will find information about the amount of detergent for the single programme on page

• Be aware that depending on the soiling of water, setting may be different.
• Please observe the manufacturer's recommendations on the detergent packaging. GB-31 ENGLISH

5. PREPARING AND LOADING DISHES

• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
• For particular items, select a program with lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. GB-32 For washing the following cutlery/dishes Are not suitable
• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or cooper items
• Steel items subject to rusting
• Items made from synthetic fibres ENGLISH Are of limited suitability
• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolour during washing
• Glazed patterns may fade if machine washed frequently Recommendations for loading and unloading the dishwasher (For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are

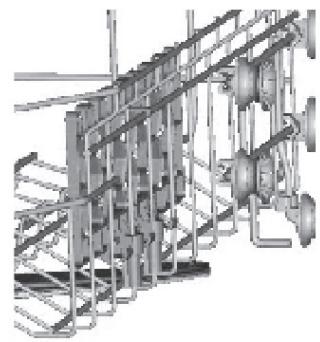

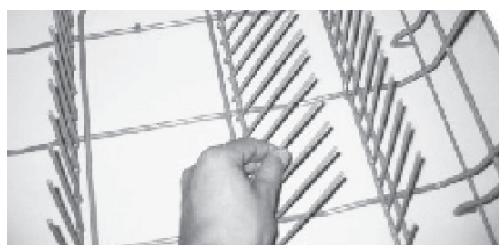

2. Curved items, or ones with recesses, should

be loaded aslant so that water can run off.

3. All utensils are stacked securely and can not

tip over. GB-33 ENGLISH

4. All utensils are placed in the way that the

spray arms can rotate freely during washing. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

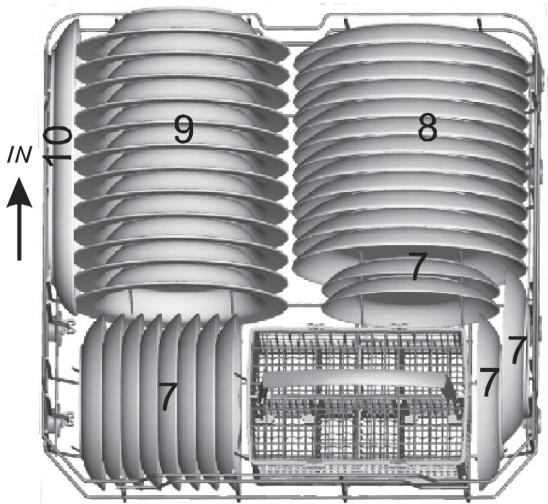

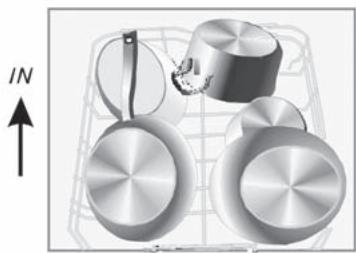

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage, glasses should not touch one another.
• Load large and difficult to clean items in the lower basket.

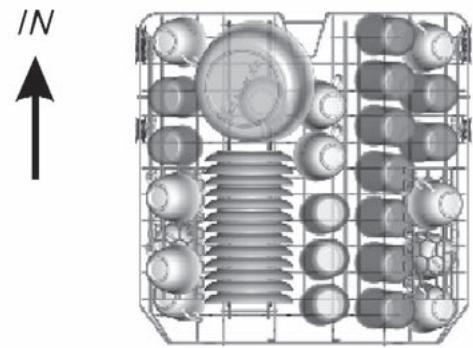

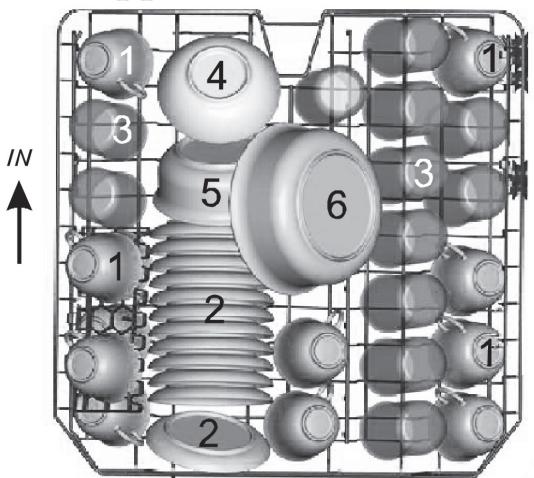

• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. GB-34 ENGLISH

• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. Removing the Dishes To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket. Standard Loading Pattern A. Loading the Upper Basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. GB-35 ENGLISH B. Loading the Lower Basket We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it. Please be reminded that:
• Pots, serving bowls, etc, must always be placed top down.
• Deep pots should be slanted to allow water to flow out.

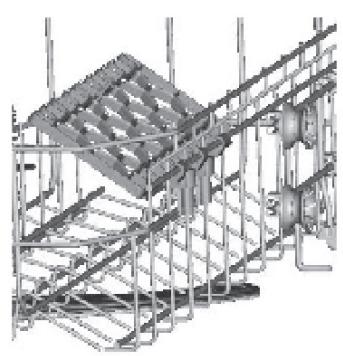

• The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded. GB-36 ENGLISH C. Adjusting the Upper Basket The height of the upper rack can be easily adjusted to accommodate taller dishes in either the upper and lower rack. The height of the upper basket can be adjusted by placing the wheels on different height of therails. Lower position Upper position Wheels GB-37 ENGLISH ENGLISH D. Folding back the cup shelives For better stacking of cups, the spikes can be folded down as show in the picture below. F. Loading the Cutlery Basket Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots. Long utensils should especially be placed in the horizontal position at the front of the upper basket as shown in the picture. For a top quality cleaning, place the sliverware un the basketmaking sure that: For better stacking of pots and pans, the spikes can be folded do wn as show in the picture below.

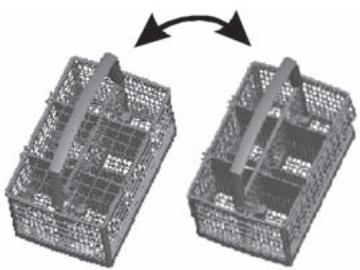

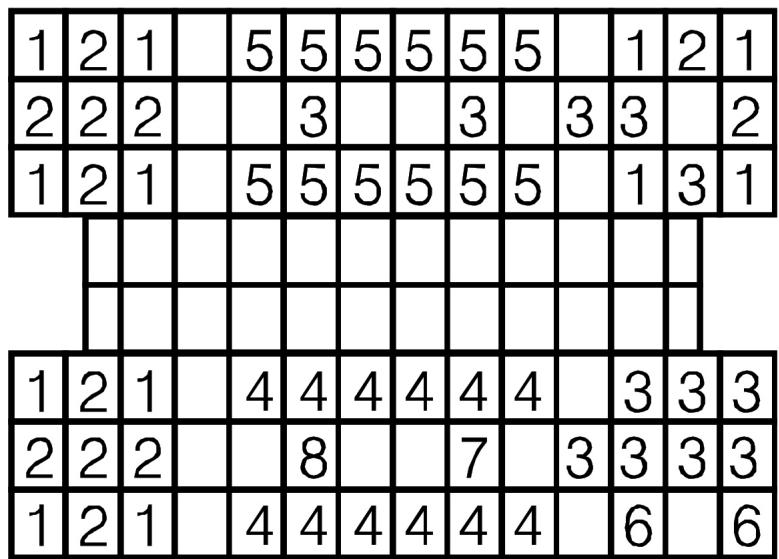

• They do not nest together.
• Sliverware is placed with the male face up.
• Long utenslls in the middle. WARNING!
• Do not let any item extend through the bottom.
• Always load sharp utensils with the sharp point down! GB-38 GB-39 ENGLISH ENGLISH

6. STATING A WASHING PRODRAM

Cycle Program Selection Information Wash Cycle Table Note: ( ) Means: Rinse- aid dispenser needs to be filled. Cycle Program Selection Information For heaviest soiled crockery, Intensive and normally soiled pots pans dishes etc with dried on soiling. Normal ECO (*EN 50242) GB-40 For normally soiled loads, such as pots, plates,glasses and lightly soiled pans. Standard daily cycle for normally soiled loads, such as pots, plates, glasses. For lightly soiled loads, such as glasses, crystal and fine china. Glass Description Detergent Running Energy Water Rinse of Cycle pre/main time(min) (Kwh) (L) Aid Prewash (50˚C) Wash (60˚C) 5 /25g Rinse 1or2 pieces Rinse Rinse (65˚C) Drying Prewash (45˚C) Wash (55˚C) 5/25g Rinse Rinse (65˚C) Drying Prewash Wash (45˚C) Rinse (65˚C) Drying 5/25g

Fo r norm allysoiled loads that need quick wash. Description Detergent Running Energy Water Rinse of Cycle pre/main time(min) (Kwh) (L) Aid Prewash Wash (40˚C) Rinse Rinse (60˚C) Dry Wash (65˚C) Rinse Rinse (65˚C) Drying A shorter wash Wash (45˚C) for lightly soiled loads Rinse that do not Rinse (55˚C) need drying. 5/25g

NOTE: *EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

• Capacity: 12 settings

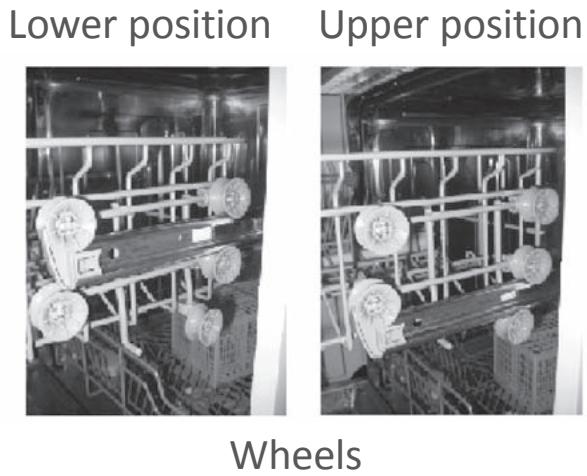

• Position Upper basket: upper wheels on rails
• Rinse aid setting: 6
• PI: 0.49w; Po:0.45w GB-41 ENGLISH Turning On the Applince Starting a cycle wash

1. Draw out the lower and upper basket,

load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled “Loading the Dishwasher”).

2. Pour in the detergent (see the section entitled

Salt, Detergent and Rinse Aid).

3. Insert the plug into the socket. The power

supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

4. Open the door, press the power button, and

the On/Off light will turn on.

5. Press the program Button, the wash program

will be changed as follows direction: Intensive -> Normal -> Eco -> Glass -> 90Min -> Rapid; If a program is selected, the response light will turn on. Then close the door, the dishwasher will start its cycle. GB-42 ENGLISH Changing the Program Mid-Cycle Premise:

1. A running cycle can only be changed if

it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled “Loading the Detergent”).

2. Open the door, press the Start/Pause button

to stop the machine. Press the Program button more than 3 seconds, the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle..."). NOTE: If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working again. GB-43 ENGLISH Forgot to Add a Dish? A forgotten dish can be added any time before the detergent cup opens.

1. Open the door a little .

2. After the spray arms stop working, you can

open the door completely.

3. Add forgotten dishes.

5. The dishwasher will start running again.

At the End of the Wash Cycle When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better.

• Switching Off the Dishwasher The program light is on but is not blinking, only in this case has the program ended. GB-44 ENGLISH

1. Open the door.Switch off the dishwasher by

pressing the ON/OFF button.

2. Turn off the water tap!

• Open the door carefully. Hot dishes are sensitive to shocks. The dishes should cool down for around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.
• Unloading the dishwasher It is normal for the dishwasher to be wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one. WARNING! It is dangerous to open the door when washing, because the hot water may scald you. GB-45 ENGLISH

7. MAINTENANCE AND CLEANING

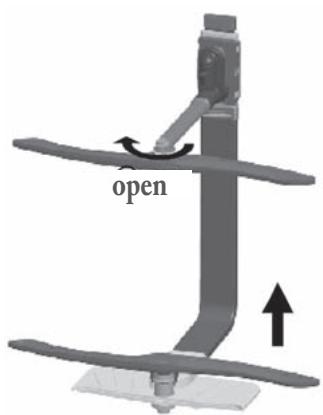

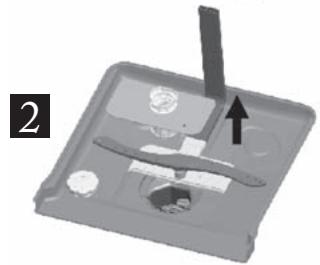

Fliter System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter 1 Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down the drain. Coarse filter 2 Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out. GB-46 ENGLISH Fine filter 3 This filter holds soil and food residues in the sump area and prevents them from being redeposited on the dishes during wash cycle. Filter assembly The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction. WARNING!

• The dishwasher must never be used without the filters.
• Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils. GB-47 ENGLISH

ENGLISH open Step 1: Turn the filter counterclockwise, Step 2: lift the filter assy up NOTE: When following this procedure from step 1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed. GB-48 Remarks: –– After each cycle, check for any debris in the filter to avoid future blockage. –– By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cle aned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on page 45-47 and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards. WARNING! When cleaning the filters, do not knock them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased. GB-49 ENGLISH Caring for the Dishwasher The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly. For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. Cleaning The Door To clean the edge around the door, you should only use a soft, ward and damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. WARNING!

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
• Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface. GB-50 ENGLISH Winterzing Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher

at the supply source.

2. Turn off the water supply and disconnect the

water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water

valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water

5. Remove the filter at the bottom of the tub

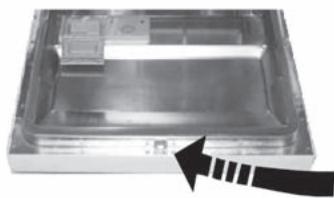

and use a sponge to soak up water in the sump. NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons Cleaning the Spray Arms It is necessary to clean the spray arms regularly for hard open GB-51 ENGLISH water chemicals will clog the spray arm jets and bearings. To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. How to Keep Your Dishwasher in Shape

• After Every Wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.
• Remove the Plug Before cleaning or performing maintenance, always remove the plug from the socket.
• No Solvents or Abrasive Cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of GB-52 ENGLISH the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.
• When not in use for a long time It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.
• Moving the Appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.
• Seals One of the factors that cause odours to form in the dishwasher is remaining food strapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. GB-53 ENGLISH ENGLISH

8. INSTALLATION INSTRUCTION

Attention: The installation of the pipes and electrical equipments should be done by professionals. WARNING! Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock. Installation preparation The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher. Note: please check the accompanying installation accessories (hook for aesthetic panel, screw) GB-54 Please carefully read the installation instruction. Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place.

1. Choose a place near the sink to facilitate

the installation of inlet and drain hoses (see figure 1).

2. If dishwasher is in stalled at the corner of

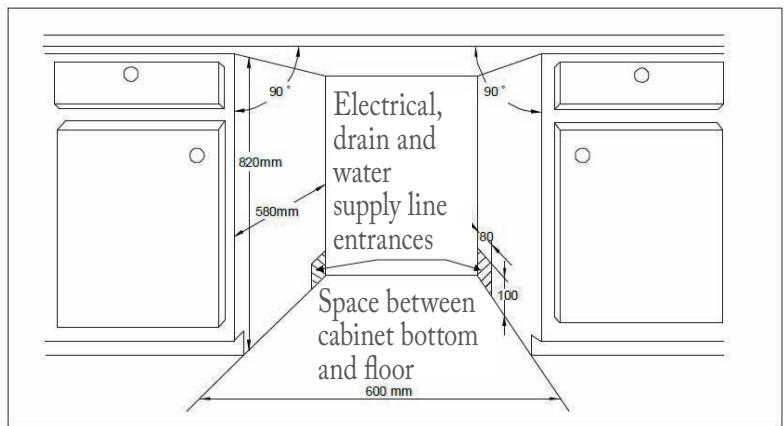

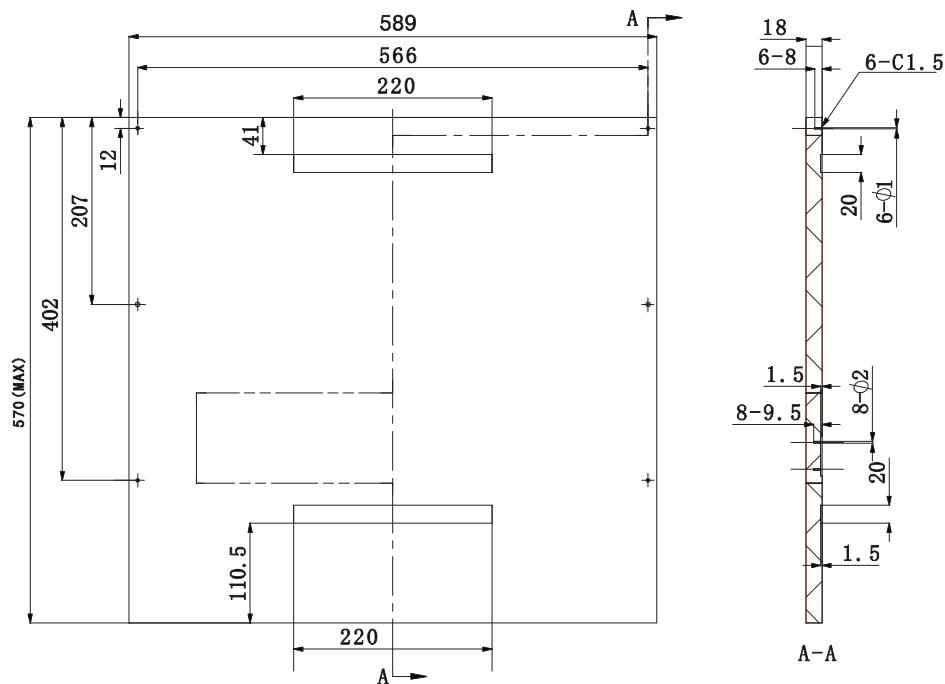

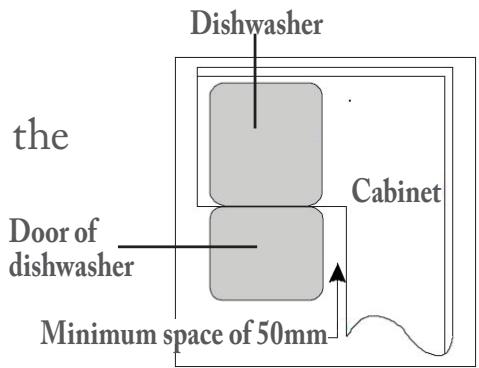

the cabinet, there should be some space (illustrated in figure 2) when the door is opened. GB-55 ENGLISH ENGLISH [Figure1] Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet. [Figure3] The aesthetic panel should be processed in accordance with the illustrated dimensions Electrical, drain and water supply line entrances Space between cabinet bottom and floor [Figure2] Minimum space when the door is opened Dishwasher Door of dishwasher Minimum space of 50mm GB-56 Aesthetic panel's dlimensions and installation

1. The aesthetic wooden panel could be

processed according to the Figure 3 . Cabinet

2. Magical paster A and magical paster B be

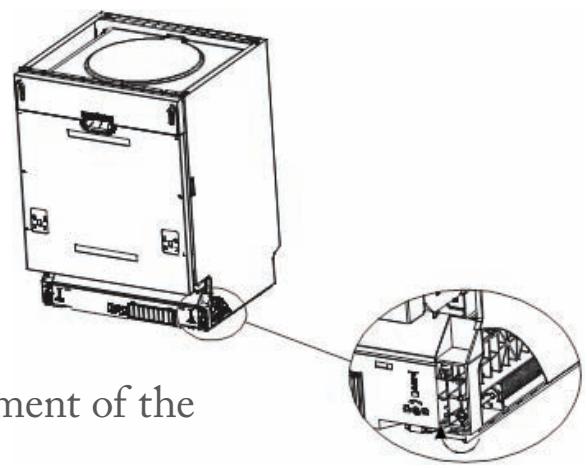

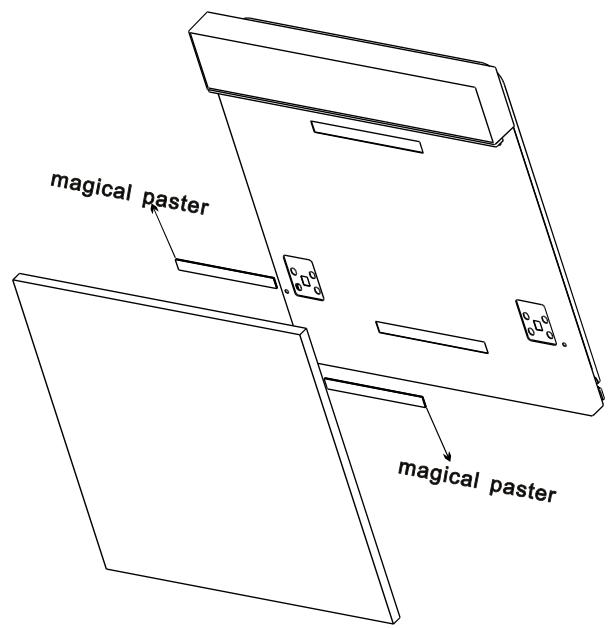

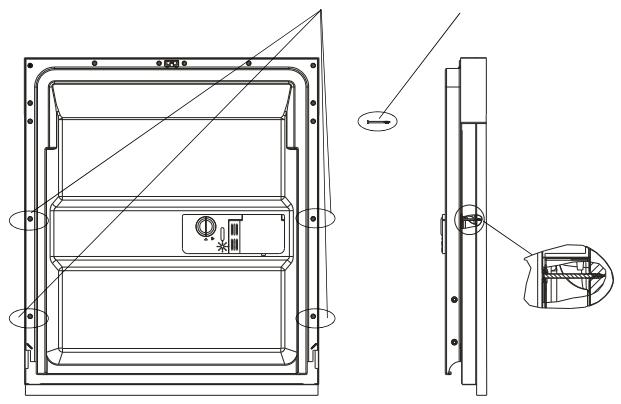

disjionedon,magical paster A on the aesthethetic wooden panel and felted magical paster B of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) GB-57 ENGLISH ENGLISH adjusting screw to drive the ad justor to strain or relax the steel cable (see figure 5 ). Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger. [Figure4a] Installation of aesthetic panel [Figure4b] Ins tallation of aesthetic wood en panel

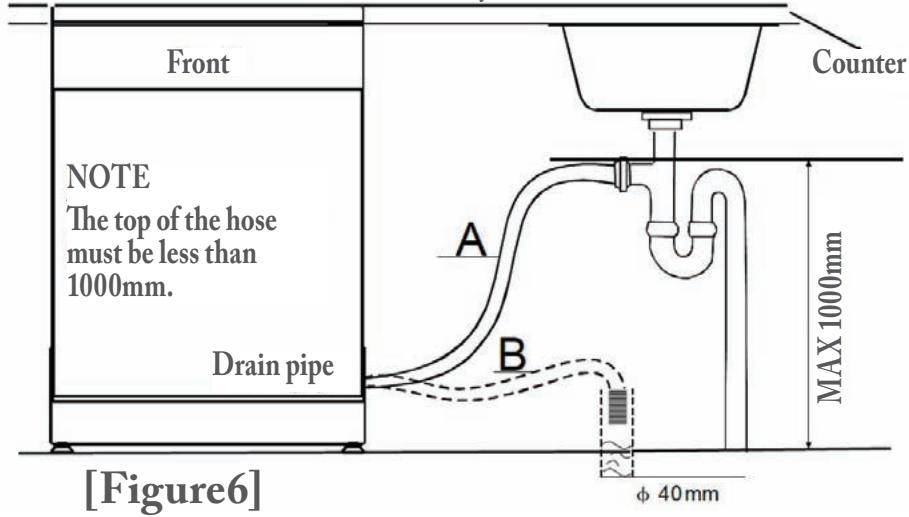

long screws Take away the Pin up the four four short screws long screws Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the GB-58 [Figure5] Tension adjustment of the door spring Connection of drain hoses Insert the drain hose into a drain pipe with a minimum diameter of 40 mm, or let it run into the sink, making sure to avoid bending or crimping it. The height of the drain pipe must be less than 1000mm. GB-59 ENGLISH ENGLISH Please Fix The Drain Hose Either Way Of A,B NOTE The top of the hose must be less than 1000mm. Drain pipe Counter MAX 1000mm Front [Figure6] Dishwasher installation steps

1. Install the furniture door to the outer door of

the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.

2. Adjust the tension of the door springs by

using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).

3. Connect the inlet hose to the cold water

4. Connect the drain hose. Refer to diagram.

5. Connect the power cord.

6. Affix the condensation strip under the

work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.

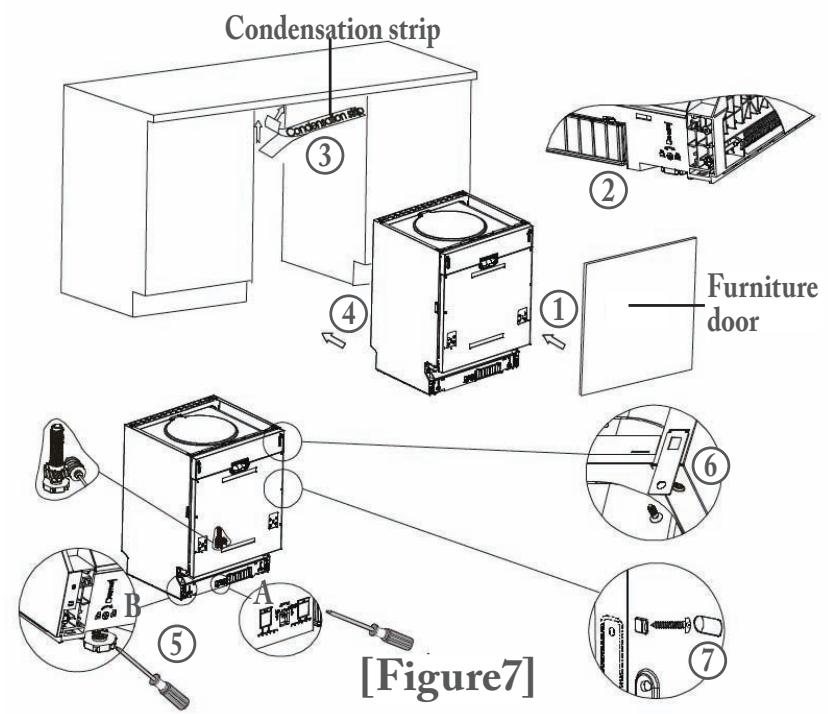

7. Place the dishwasher into position.

8. Level the dishwasher. The rear food can be

adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5 A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).

9. The dishwasher must be secured in place.

There are two ways to do this: A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6). B. Marble orgranite work top: Fix the side with Screw. (Illustration 7). GB-61 ENGLISH ENGLISH Condensation strip

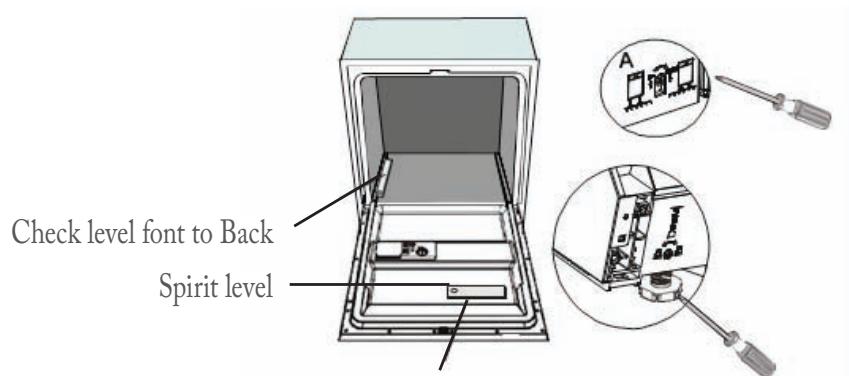

Furniture door [Figure8] Illustration of feet adjustment NOTE: The maximum adjustment height of the feet is 50 mm.

Dishwasher must be level for proper dish rack operation and wash performance.

1. Place a spirit level on door and rack track

inside the tub as shown to check that the dishwasher is level.

2. Level the dishwasher by adjusting the three

levelling legs individually.

3. When level the dishwasher, please pay

attention not to let the dishwasher tip over. GB-62 Check level side to side About Electricity Connecting WARNING! For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing.
• Connection from the power cord. GB-63 ENGLISH ENGLISH Electrical Requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Electrical Connection Ensure the voltage and frequency of the power being corresponds to those on the rating plate.Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug , replace the socket, rather than using a adaptors or the like as they could cause overheating and burns. GB-64 Ensure that proper earthing exists before use Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. WARNING! Please close the hydrant after use. GB-65 ENGLISH Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. Water Outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed. Extension Hose If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise GB-66 ENGLISH the cleaning effect of the dishwasher could be reduced. Syphon Connection The distance between the drain connection and the bottom of the appliance must not be longer than 1000mm. The water drain hose should be fixed. Start of Dishwasher The following things should be checked before starting the dishwasher.

1. The dishwasher is levelled and fix ed properly

2. The inlet valve is open

3. To avoid any water leak, check if inlet valve is

correctly screwed to the dishwasher

4. The wires are tightly connected

5. The power is switched on

6. The inlet and drain hoses are knotted

7. All packing materials and printings have

been removed from the dishwasher. ATTENTION: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users. GB-67 ENGLISH ENGLISH

9. TROUBLESHOOTING TIPS

Problem Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Technical problems GB-68 Possible Causes What To Do Fuse blown, or Replace fuse or reset circuit breaker. the circuit breaker Remove any other appliances sharing the tripped same circuit with the dishwasher. Make sure the dishwasher is turned on Power supply is not and the door is closed securely. Dishwasher turned on Make sure the power cord is properly doesn’t start plugged into the wall socket. Water pressure is Check that the water supply is connected low properly and the water is turned on. Door of dishwasher Make sure to close the door properly and not properly closed. latch it. Kink in drain hose Check drain hose. Check the coarse filter. Water not Filter clogged (see section titled "Cleaning The Filter") pumped Check the kitchen sink to make sure it form is draining well. If the kitchen sink is dishwasher Kitchen sink not draining properly, you may need a clogged plumber rather than a serviceman for dishwashers. General problems Possible Causes What To Do Use only the special dishwasher detergent to avoid Improper detergent suds. If this occurs, open the dishwasher and let suds evaporate Add 1 gallon of cold water to Improper detergent the tub. Close and latch the dishwasher, Suds in the then select any cycle. Dishwasher will tub drain out the water at the first step. Open the door after draining is over and check if the suds have disappeared. wipe up rinse-aid spills Spilled rinse-aid Always immediately. Stained tub Detergent with Make sure that the detergent is the one interior colorant was used without colorant. To clean the interior, use a damp sponge White film Hard water with dishwasher detergent and wear on inside rubber gloves. Never use any other cleaner minerals surface than dishwasher detergent for the risk of foaming or suds. The affected items are not corrosionresistant. There are rust stains on cutlery A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. The lid of the softer is loose Always run the quick wash programme. without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt. Check the lid. Ensure the fix is fine. GB-69 ENGLISH Noise ENGLISH Problem Knocking noise in the wash cabinet Rattling noise in the wash cabinet Possible Causes What To Do A spray arm is Interrupt the programme, and rearrange knocking against the items which are obstructing the spray an item in a basket arm. Items of crockery are loose in the wash cabinet This may be Knocking caused by on-site noise in the installation or the water pipes cross-section of the piping. The dishes were not loaded correctly. The programme was not powerful enough. Not enough detergent was dispensed. dishes Unsatisfactory The Items are blocking not washing result are the path of spray clean arms. The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked. GB-70 Interrupt the programme, and rearrange the items of crockery. This has no influence on the dishwasher function. if in doubt, contact a suitably qualified plumber. See notes in “Loading the Dishwasher Baskets”. Select a more intensive programme. See “Wash Cycle Table”. Use more detergent, or change your detergent. Rearrange the items so that the spray can rotate freely. Clean and/or fit the filter combination correctly. Clean the spray arm jets. See “Cleaning the Spray Arms”. Problem Possible Causes What To Do Use less detergent if you have soft water Cloudiness Combination soft water and too and select a shortest cycle to wash the on glassware much detergent. glassware and to get them clean. Black or Aluminum utensils Use a mild abrasive cleaner to eliminate Unsatisfactory gray marks have rubbed those marks. washing result on dishes against dishes. Detergent left in Dishes block Re-loading the dishes properly. dispenser detergent cups. cups the dishwasher as suggested in the Improper loading Load directions. Too little Increase the amount of rinse-aid/refill the rinse-aid rinse-aid dispenser. Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Dishes are removed Begin unloading the dishwasher only once the dishes are barely warm to the dishes too soon Unsatisfactory The touch. Empty the lower basket first to not drying result are prevent any water from dripping into the drying lower basket. With a short program, the washing Wrong program temperature is lower, decreasing cleaning has been selected performance. Choose a program with a long washing time. Water drainage is more difficult with Use of cutlery items. Cutlery or dishes of this with a low-quality these type are not suitable for washing in the coating dishwasher. GB-71 ENGLISH ENGLISH Error Codes In case of malfunctions, the appliance will display error codes to warn you: Codes The Rapid light flickers fleetly Meanings Longer inlet time. The Glass Overflow. light flicker fleetly

or clos e do with th Possible Causes Faucets is not opened, or water intake is restricted,or water pressure is too low. Some element of dishwasher leaks. lem WARNING!

• If overflow occurs, turn off the main water supply before calling a service.

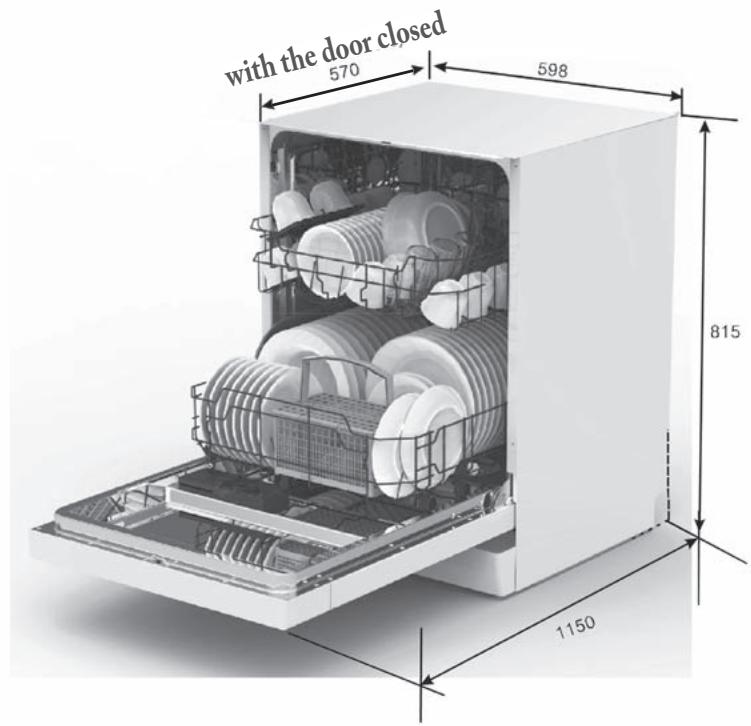

• If the base pan overflows: –– Turn off the main water supply before calling for service –– Remove the excess water before restarting the dishwasher. GB-72 Technical Information Height : Width : Depth : Water pressure: Power supply: Capacity: 815mm 598 mm 570mm (with the door closed) 0.04-1.0MPa see rating label 12 place settings GB-73 ENGLISH LOADING THE BASKETS:

cups Saucers Glasses Small serving bowl

Medium serving bowl Large serving bowl Dessert dishes Dinner plates Soup plates GB-74 Oval platter

Dessert spoons Serving spoons Serving forks Gravy ladles Information for comparability tests in accordance with EN 50242 Capacity: 12 place settings Position of the upper basket: lower position Programme: ECO Rinse aid setting: 6 Softener setting: H4 GB-75 ENGLISH ENGLISH TECHNICAL DATASHEET Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer Type / Description Standard place settings Energy efficiency class (1) Annual energy consumption (2) Energy consumption of the standard cleaning cycle Power consumption of offmode Power consumption of lefton mode Annual water consumption (3) Drying efficiency class (4) Standard cleaning cycle (5) Program duration of the standard cleaning cycle Noise level Mounting Could be built-in GB-76 FAR

3080 liter ECO 45°C 185 min 49 dB(A) re 1 pW Build under Yes Height Width Depth (with connectors) Power consumption Rated voltage / frequency

1. A + + + (highest efficiency) to D (lowest

2. Energy consumption “258” kWh per year,

based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.

3. Water consumption “3080”litres per year,

based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.

4. A (highest efficiency) to G (lowest efficiency)

5. This program is suitable for cleaning soiled

normally soiled tableware and that it is the GB-77 ENGLISH most efficient programme in terms of its combined energy and water consumption for that type of tableware. The device meets the European standards and the directives in the current version at delivery:

• ErP 2009/125/EC The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc. The manual is based on the European Union's standards and rules. GB-78 ENGLISH

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. GB-79 CONFORAMA France SA 80 Boulevard du Mandinet Lognes 77432 Marne la Vallée Cedex 2 FRANCE
