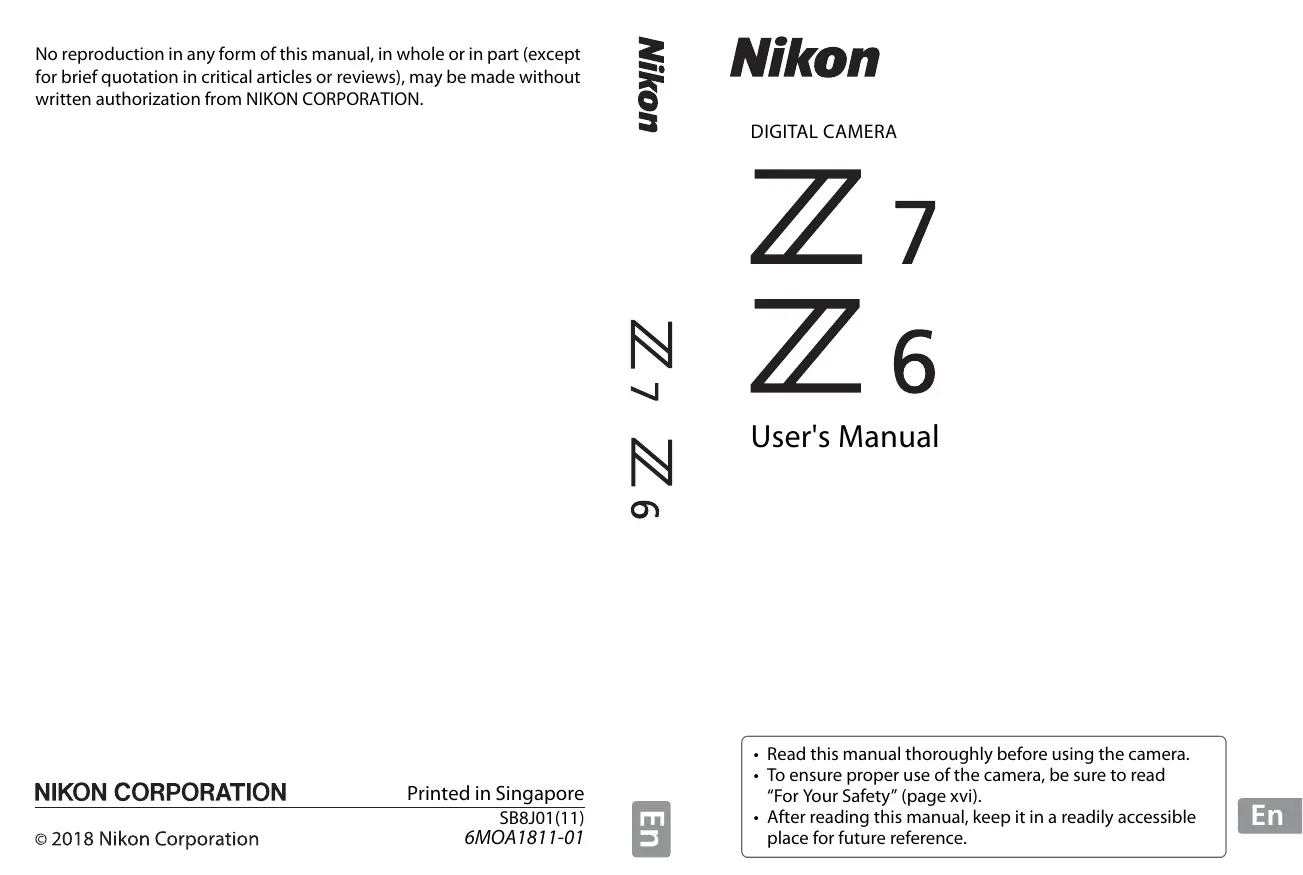

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

DIGITAL CAMERA User's Manual

Printed in Singapore

• Read this manual thoroughly before using the camera. • To ensure proper use of the camera, be sure to read “For Your Safety” (page xvi). • After reading this manual, keep it in a readily accessible place for future reference.

Choose from 3 different manuals.  For a guide to basic shooting and playback, read: The User’s Manual (this manual) Master basic camera operations as well as features specific to this camera. • Table of Contents iv • Getting to Know the Camera 1 • First Steps27 • Basic Photography and Playback 41 • Basic Settings 53 • Shooting Controls69 • The i Button 91 • Troubleshooting 157

 For information on wireless connections, read: The Network Guide (pdf) Learn how to use Wi-Fi or Bluetooth to connect the camera to a computer or a smart device such as smartphone or tablet.

Also included is information on such topics as the tasks that can be accomplished using a WT-7 wireless transmitter.

The Network Guide is available from the Nikon Download Center.

nikon download center Z 7 Z 7: https:// downloadcenter.nikonimglib.com/ en/products/492/Z_7.html

Z6 Z 6: https:// downloadcenter.nikonimglib.com/ en/products/493/Z_6.html

Z 7 Model Name: N1710 Z 6 Model Name: N1711

 For a guide to all aspects of camera operation, read: The Reference Manual (pdf) In addition to the material covered in the User’s Manual (this manual), the Reference Manual details the options available in the camera menus and covers such topics as connecting the camera to other devices (for information on wireless networks, see the Network Guide).

Among the topics covered in the Reference Manual are: • Basic shooting and playback operations • Advanced shooting options • The camera menus • Connecting to computers, printers, and HDMI devices • Flash photography using optional flash units

The Reference Manual is available from the Nikon Download Center in pdf format.

nikon download center Z 7 Z 7: https:// downloadcenter.nikonimglib.com/ en/products/492/Z_7.html

Z6 Z 6: https:// downloadcenter.nikonimglib.com/ en/products/493/Z_6.html

The Reference Manual can also be viewed online in html format.

Package Contents Be sure all items listed here were included with your camera. BF-N1 body cap

DK-29 rubber eyecup (comes attached to camera, 0 186) Camera EN-EL15b rechargeable Li-ion battery with terminal cover MH-25a battery charger (comes with either an AC wall adapter or power cable of a type and shape that varies with the country or region of sale) AN-DC19 strap Warranty User’s Manual

EH-7P charging AC adapter (Z 7 only; supplied with a plug adapter attached in countries or regions where required; shape depends on country of sale— 0 29) HDMI/USB cable clip (0 188) UC-E24 USB cable BS-1 accessory shoe cover (0 187)

Memory cards are sold separately. Purchasers of lens or mount adapter kits should confirm that the package contains a lens or mount adapter (manuals for the lens or adapter may also be provided).

The Nikon Download Center In addition to the Reference Manual, you can also visit the Nikon download center to download product manuals, firmware updates, and software such as ViewNX-i. https://downloadcenter.nikonimglib.com/

About This Manual This manual is for use with both the Z 7 and Z 6. The illustrations show the Z 7.

Symbols and Conventions To make it easier to find the information you need, the following symbols and conventions are used:

D This icon marks notes, information that should be read before using this product.

A This icon marks tips, additional information you may find helpful when using this product.

This icon marks references to other sections in this manual.

Menu items, options, and messages that appear in the camera displays are shown in bold. Throughout this manual, the display in camera monitor and viewfinder during shooting is referred to as the “shooting display”; in most cases, the illustrations show the monitor. Throughout this manual, smartphones and tablets are referred to as “smart devices”.

Camera Settings The explanations in this manual assume that default settings are used. A For Your Safety Before using the camera for the first time, read the safety instructions in “For Your Safety” (0 xvi).

Nikon User Support Contact a Nikon representative for technical assistance with the operation of your Nikon product or products. For information on the Nikon representatives in your area, visit https://www.nikon-asia.com/support.

Basic Photography and Playback

Taking Photographs (b Mode) 41 Shooting Movies (b Mode)45 Basic Playback49 Viewing Movies 49 Deleting Unwanted Pictures 51 Basic Settings

Focus 53 Choosing a Focus Mode 53 AF-Area Mode 55 The Touch Shutter 58 Manual Focus 60 White Balance 62 Silent Photography66 Rating Pictures 67 Protecting Pictures from Deletion 68 Shooting Controls

A Camera Menus More information on camera menus is available in a Reference Manual, available for download from: Z 7: https://downloadcenter.nikonimglib.com/en/products/ 492/Z_7.html Z 6: https://downloadcenter.nikonimglib.com/en/products/ 493/Z_6.html You can also consult the online manual, located at: https://onlinemanual.nikonimglib.com/z7_z6/en-nsg/

D The Playback Menu: Managing Images123 Delete123 Playback folder 123 Playback display options 124 Image review124 After delete 124 After burst, show124 Rotate tall124 Slide show 124 Rating124 C The Photo Shooting Menu: Shooting Options125 Reset photo shooting menu125 Storage folder 125 File naming 125 Choose image area 125 Image quality 126 Image size126

For Your Safety To prevent damage to property or injury to yourself or to others, read “For Your Safety” in its entirety before using this product. Keep these safety instructions where all those who use this product will read them. DANGER: Failure to observe the precautions marked with this icon carries a high risk of death or severe injury. WARNING: Failure to observe the precautions marked with this icon could result in death or severe injury. CAUTION: Failure to observe the precautions marked with this icon could result in injury or property damage.

WARNING • Do not use while walking or operating a vehicle. Failure to observe this precaution could result in accidents or other injury. • Do not disassemble or modify this product. Do not touch internal parts that become exposed as the result of a fall or other accident. Failure to observe these precautions could result in electric shock or other injury. • Should you notice any abnormalities such as the product producing smoke, heat, or unusual odors, immediately disconnect the battery or power source. Continued operation could result in fire, burns or other injury. • Keep dry. Do not handle with wet hands. Do not handle the plug with wet hands. Failure to observe these precautions could result in fire or electric shock. • Do not let your skin remain in prolonged contact with this product while it is on or plugged in. Failure to observe this precaution could result in low-temperature burns. • Do not use this product in the presence of flammable dust or gas such as propane, gasoline or aerosols. Failure to observe this precaution could result in explosion or fire.

• Do not directly view the sun or other bright light source through the lens. Failure to observe this precaution could result in visual impairment. • Do not aim the flash or AF-assist illuminator at the operator of a motor vehicle. Failure to observe this precaution could result in accidents. • Keep this product out of reach of children. Failure to observe this precaution could result in injury or product malfunction. In addition, note that small parts constitute a choking hazard. Should a child swallow any part of this product, seek immediate medical attention. • Do not entangle, wrap or twist the straps around your neck. Failure to observe this precaution could result in accidents. • Do not use batteries, chargers, or AC adapters not specifically designated for use with this product. When using batteries, chargers, and AC adapters designated for use with this product, do not: - Damage, modify, forcibly tug or bend the cords or cables, place them under heavy objects, or expose them to heat or flame. - Use travel converters or adapters designed to convert from one voltage to another or with DC-to-AC inverters. Failure to observe these precautions could result in fire or electric shock. • Do not handle the plug when charging the product or using the AC adapter during thunderstorms. Failure to observe this precaution could result in electric shock. • Do not handle with bare hands in locations exposed to extremely high or low temperatures. Failure to observe this precaution could result in burns, or frostbite.

CAUTION • Do not leave the lens pointed at the sun or other strong light sources. Light focused by the lens could cause fire or damage to product’s internal parts. When shooting backlit subjects, keep the sun well out of the frame. Sunlight focused into the camera when the sun is close to the frame could cause fire.

• Turn this product off when its use is prohibited. Disable wireless features when the use of wireless equipment is prohibited. The radio-frequency emissions produced by this product could interfere with equipment onboard aircraft or in hospitals or other medical facilities. • Remove the battery and disconnect the AC adapter if this product will not be used for an extended period. Failure to observe this precaution could result in fire or product malfunction. • Do not fire the flash in contact with or in close proximity to the skin or objects. Failure to observe this precaution could result in burns or fire. • Do not leave the product where it will be exposed to extremely high temperatures, for an extended period such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could result in fire or product malfunction. • Do not look directly at the AF-assist illuminator. Failure to observe this precaution could have adverse effects on vision. • Do not transport cameras or lenses with tripods or similar accessories attached. Failure to observe this precaution could result in injury or product malfunction.

DANGER (Batteries) • Do not mishandle batteries. Failure to observe the following precautions could result in the batteries leaking, overheating, rupturing, or catching fire: - Use only rechargeable batteries approved for use in this product. - Do not expose batteries to flame or excessive heat. - Do not disassemble. - Do not short-circuit the terminals by touching them to necklaces, hairpins, or other metal objects. - Do not expose batteries or the products in which they are inserted to powerful physical shocks.

• Charge only as indicated. Failure to observe this precaution could result in the batteries leaking, overheating, rupturing, or catching fire. • If battery liquid comes into contact with the eyes, rinse with plenty of clean water and seek immediate medical attention. Delaying action could result in eye injuries.

WARNING (Batteries) • Keep batteries out of reach of children. Should a child swallow a battery, seek immediate medical attention. • Do not immerse batteries in water or expose to rain. Failure to observe this precaution could result in fire or product malfunction. Immediately dry the product with a towel or similar object should it become wet. • Discontinue use immediately should you notice any changes in the batteries, such as discoloration or deformation. Cease charging EN-EL15b rechargeable batteries if they do not charge in the specified period of time. Failure to observe these precautions could result in the batteries leaking, overheating, rupturing, or catching fire. • When batteries are no longer needed, insulate the terminals with tape. Overheating, rupture, or fire may result should metal objects come into contact with the terminals. • If battery liquid comes into contact with a person's skin or clothing, immediately rinse the affected area with plenty of clean water. Failure to observe this precaution could result in skin irritation.

Notices • No part of the manuals included with • Nikon will not be held liable for any this product may be reproduced, damages resulting from the use of transmitted, transcribed, stored in a this product. retrieval system, or translated into • While every effort has been made to any language in any form, by any ensure that the information in these means, without Nikon’s prior written manuals is accurate and complete, permission. we would appreciate it were you to • Nikon reserves the right to change bring any errors or omissions to the the appearance and specifications attention of the Nikon of the hardware and software representative in your area (address described in these manuals at any provided separately). time and without prior notice.

Notice Concerning Prohibition of Copying or Reproduction Note that simply being in possession of material that has been digitally copied or reproduced by means of a scanner, digital camera, or other device may be punishable by law. • Items prohibited by law from being copied • Cautions on certain copies and reproductions or reproduced The government has issued cautions Do not copy or reproduce paper on copies or reproductions of money, coins, securities, government bonds, or local securities issued by private companies (shares, bills, checks, gift government bonds, even if such certificates, etc.), commuter passes, copies or reproductions are or coupon tickets, except when a stamped “Sample.” minimum of necessary copies are to The copying or reproduction of be provided for business use by a paper money, coins, or securities company. Also, do not copy or which are circulated in a foreign reproduce passports issued by the country is prohibited. government, licenses issued by Unless the prior permission of the public agencies and private groups, government has been obtained, the ID cards, and tickets, such as passes copying or reproduction of unused and meal coupons. postage stamps or post cards issued • Comply with copyright notices by the government is prohibited. Under copyright law, photographs The copying or reproduction of or recordings of copyrighted works stamps issued by the government made with the camera cannot be and of certified documents used without the permission of the stipulated by law is prohibited. copyright holder. Exceptions apply to personal use, but note that even personal use may be restricted in the case of photographs or recordings of exhibits or live performances.

Use Only Nikon Brand Electronic Accessories Nikon cameras are designed to the highest standards and include complex electronic circuitry. Only Nikon brand electronic accessories (including chargers, batteries, AC adapters, and flash accessories) certified by Nikon specifically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry. The use of non-Nikon electronic accessories could damage the camera and may void your Nikon warranty. The use of third-party rechargeable Li-ion batteries not bearing the Nikon holographic seal shown at right could interfere with normal operation of the camera or result in the batteries overheating, igniting, rupturing, or leaking. For more information about Nikon brand accessories, contact a local authorized Nikon dealer.

D Before Taking Important Pictures Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.

D Life-Long Learning As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and education, continually-updated information is available on-line at the following sites: • For users in the U.S.A.: https://www.nikonusa.com/ • For users in Europe and Africa: https://www.europe-nikon.com/support/ • For users in Asia, Oceania, and the Middle East: https://www.nikon-asia.com/ Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently-asked questions (FAQs), and general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area. See the following URL for contact information: https://imaging.nikon.com/

Getting to Know the Camera Take a few minutes to familiarize yourself with the names and functions of camera controls and displays. You may find it helpful to bookmark this section and refer to it as you read through the rest of the manual.

Parts of the Camera Refer to this section for the names and locations of camera controls and displays.

Mode dial 69 Eyelet for camera strap 27 Mode dial lock release 69 Stereo microphone118 Movie-record button 45 Power switch38, 41 Shutter-release button 41 E button 81

Getting to Know the Camera

The Camera Body (Continued) 1

6 13 1 Image sensor 192 2 Monitor mode button 8, 149 3 AF-assist illuminator 43, 140 Red-eye reduction lamp 107 Self-timer lamp 86 4 Cover for accessory terminal and USB and HDMI connectors 5 Cover for headphone and microphone connectors

Lens mounting mark 36 Headphone connector 138 CHARGE lamp29 USB connector 184, 188 HDMI connector 184, 188 Accessory terminal 184 Connector for external microphone 184 13 Body cap36, 184 6 7 8 9 10 11 12

D Do Not Touch the Image Sensor Under no circumstances should you exert pressure on the image sensor, poke it with cleaning tools, or subject it to powerful air currents from a blower. These actions could scratch or otherwise damage the sensor. For information on cleaning the image sensor, see “Image Sensor Cleaning” (0 192).

Getting to Know the Camera

11 12 13 14 15 16 17 18 19 20

Sub-selector17, 88 i button21, 91 Memory card slot cover 32 Memory card access lamp....33, 85 J button 18, 146, 148 Multi selector 18 G button 18 c (E) button 83 W (Q) button 20 X button 60

D The Monitor The angle of the monitor can be adjusted as shown.

Getting to Know the Camera

The Camera Body (Continued) 6 7 1 8

Sub-command dial 17 6 Fn1 button 24, 62 7 Fn2 button 24, 53 8 Battery-chamber cover latch32 9 Battery-chamber cover 32 10

Lens mount36 Lens release button 37 CPU contacts Tripod socket 76 Power connector cover 189

D Product Serial Number The serial number for this product can be found by opening the monitor.

Getting to Know the Camera

The Control Panel The control panel lights when the camera is on. At default settings, the following indicators are displayed; for a full list of the indicators that appear in the control panel, see “The Control Panel” (0 178).

Shutter speed 70, 71 Aperture 71 Battery indicator 34 “k” (appears when memory remains for over 1000 exposures) 34

5 5 Number of exposures remaining 34, 234 6 Release mode 83 7 ISO sensitivity 78

Getting to Know the Camera

The Monitor and Viewfinder At default settings, the following indicators appear in the monitor and viewfinder in photo mode; for a full list of indicators, see “The Camera Display and Control Panel” (0 169). Monitor

Getting to Know the Camera

The following items appear in movie mode.

1 Recording indicator 45 Recording disabled 46 2 Time remaining 45 3 Frame size and rate/ image quality 116, 133, 134 4 File name 133

Getting to Know the Camera

Camera Controls This section outlines how to use various camera controls and displays.

The Viewfinder Placing your eye to the viewfinder activates the eye sensor, switching the display from the monitor to the viewfinder (note that the eye sensor will also respond to other objects, such as your fingers). The viewfinder can be used for menus and playback if desired.

The Monitor Mode Button Press the monitor mode button to cycle between viewfinder and monitor displays.

D The Diopter Adjustment Control To focus the viewfinder, lift and rotate the diopter adjustment control, being careful not to put your fingers or fingernails in your eye. Push the control back in once focus is adjusted to your satisfaction.

A Extended Use When using the viewfinder for extended periods, you can adjust viewfinder brightness and hue for ease of viewing by selecting Off for Custom Setting d8 (Apply settings to live view).

A Monitor Mode You can limit the choice of monitor modes available using the Limit monitor mode selection option in the setup menu.

Getting to Know the Camera

Press the monitor mode button to cycle through the displays as follows. Automatic display switch: The display switches from the monitor to the viewfinder when you place your eye to the viewfinder, and from the viewfinder to the monitor when you take your eye away. Viewfinder only: The viewfinder is used for shooting, menus, and playback; the monitor remains blank.

Monitor only: The monitor is used for shooting, menus, and playback; the viewfinder display will remain blank even if you put your eye to the viewfinder.

Prioritize viewfinder: The camera functions in a manner similar to existing digital SLR cameras. Placing your eye to the viewfinder turns the viewfinder on and taking your eye away turns the viewfinder off. In photo mode, the monitor remains blank, while in movie mode, during playback, or while menus are displayed, the monitor will turn on when you take your eye away from the viewfinder.

Getting to Know the Camera

Touch Controls The touch-sensitive monitor can be used to adjust camera settings, focus and release the shutter, view photos and movies, enter text, and navigate the menus. Touch controls are not available while the viewfinder is in use.

❚❚ Focusing and Releasing the Shutter Touch the monitor to focus on the selected point (touch AF). In photo mode, the shutter will be released when you lift your finger from the display (touch shutter). Touch AF settings can be adjusted by tapping the W icon (0 58).

10 Getting to Know the Camera

❚❚ Adjusting Settings Tap highlighted settings in the display and choose the desired option by tapping icons or sliders. Press J to select the chosen option and return to the shooting display or tap Z to exit without changing settings.

❚❚ Playback Flick left or right to view other pictures during full-frame playback.

In full-frame view, touching the bottom of the display brings up a frameadvance bar. Slide your finger left or right over the bar to scroll rapidly to other pictures.

Getting to Know the Camera 11

Use stretch and pinch gestures to zoom in and out and slide to scroll. You can also give the display two quick taps to zoom in from full-frame playback or cancel zoom. To “zoom out” to a thumbnail view, use a pinch gesture in full-frame playback. Use pinch and stretch to choose the number of images displayed from 4, 9, and 72 frames.

❚❚ Movie Playback Tap the on-screen guide to start movie playback (movies are indicated by a 1 icon). Tap the display to pause or resume, or tap Z to exit to full-frame playback. Guide

12 Getting to Know the Camera

❚❚ The i Menu Tap the i icon to display the i menu during shooting (0 21, 91).

Tap items to view options.

❚❚ Text Entry When a keyboard is displayed, you can enter text by tapping the keys (to cycle through the upper- and lower-case and symbol keyboards, tap the keyboard selection button) or move the cursor by tapping in the text display area.

Getting to Know the Camera 13

❚❚ Navigating the Menus Slide up or down to scroll.

Tap a menu icon to choose a menu.

Tap menu items to display options and tap icons or sliders to change.

To exit without changing settings, tap Z.

D The Touch Screen The touch screen responds to static electricity and may not respond when covered with third-party protective films, when touched with fingernails or gloved hands, or when touched simultaneously in multiple locations. Do not use excessive force or touch the screen with sharp objects.

A Enabling or Disabling Touch Controls Touch controls can be enabled or disabled using the Touch controls option in the setup menu (0 150).

14 Getting to Know the Camera

The DISP Button Use the DISP button to view or hide indicators in the monitor or viewfinder.

❚❚ Photo Mode In photo mode, pressing the DISP button cycles the display as follows: Indicators on

1 Not displayed when Off is selected for Custom Setting d8 (Apply settings to live view) or On is selected for Overlay shooting in multiple exposure mode. 2 Not displayed in the viewfinder. 3 Displayed when an optional SB-5000, SB-500, SB-400, or SB-300 flash unit is mounted on the accessory shoe or a WR-R10 wireless remote controller commands a flash unit via radio flash control.

Getting to Know the Camera 15

❚❚ Movie Mode In movie mode, pressing the DISP button cycles the display as follows: Indicators on

16 Getting to Know the Camera

The Sub-Selector Use the sub-selector as a joystick to select the focus point, or press the center of the sub-selector to lock focus and exposure (0 88, 89).

The AF-ON Button In autofocus mode, the AF-ON button can be used to focus.

The Command Dials Use the command dials to adjust shutter speed or aperture or in combination with other buttons to change camera settings.

Getting to Know the Camera 17

The G Button Press the G button to view the menus.

18 Getting to Know the Camera

2 Select a menu. Press 1 or 3 to select the desired menu.

3 Position the cursor in the selected menu. Press 2 to position the cursor in the selected menu.

4 Highlight a menu item. Press 1 or 3 to highlight a menu item (items that are displayed in gray are not currently available and cannot be selected).

Getting to Know the Camera 19

5 Display options. Press 2 to display options for the selected menu item.

6 Highlight an option. Press 1 or 3 to highlight an option (options that are displayed in gray are not currently available and cannot be selected).

7 Select the highlighted item. Press J to select the highlighted item. To exit without making a selection, press the G button. To exit the menus and return to shooting mode, press the shutter-release button halfway. You can also navigate the menus using touch controls (0 14).

A The d (Help) Icon If a d icon appears at the bottom left corner of the display, you can view a description of the currently selected option or menu by pressing the W (Q) button. Press 1 or 3 to scroll the text, or press W (Q) again to return to the menus.

20 Getting to Know the Camera

The i Button (i Icon) For quick access to frequently-used settings, press the i button or tap the i icon in the display. or

Tap the desired item or highlight items and press J to view options. You can also adjust settings by highlighting items and rotating the command dials. The items displayed in photo mode (0 92) differ from those displayed in movie mode (0 114).

A The Playback i Menu Pressing the i button during playback displays a context-sensitive menu of frequently-used playback options.

Getting to Know the Camera 21

❚❚ Customizing the i Menu The items displayed in the photo-mode i menu can be chosen using Custom Setting f1 (Customize i menu).

1 Select Custom Setting f1. In the Custom Settings menu, highlight Custom Setting f1 (Customize i menu) and press J (for information on using the menus, see “The G Button”, 0 18).

2 Choose a position. Highlight a position in the menu you want to edit and press J.

3 Choose an option. Highlight an option and press J to assign it to the selected position and return to the menu displayed in Step 2. Repeat Steps 2 and 3 as desired.

4 Exit. Press the G button to save changes and exit.

22 Getting to Know the Camera

A Options That Can Be Assigned to the i Menu The following options can be assigned to the i menu for photo mode: • Choose image area • Flash compensation • Electronic front• Image quality • Focus mode curtain shutter • Image size • AF-area mode • Apply settings to live • Exposure • Vibration reduction view compensation • Auto bracketing • Split-screen display • ISO sensitivity • Multiple exposure zoom settings • HDR (high dynamic • Peaking highlights • White balance range) • Monitor/viewfinder • Set Picture Control • Silent photography brightness • Color space • Release mode • Bluetooth • Active D-Lighting • Custom control connection • Long exposure NR assignment • Wi-Fi connection • High ISO NR • Exposure delay • Metering mode • Flash mode The movie-mode i menu can be customized using Custom Setting g1 (Customize i menu); the options available differ from those for photo mode.

Getting to Know the Camera 23

The Function Buttons (Fn1 and Fn2) The Fn1 and Fn2 buttons can also be used Fn1 button for quick access to selected settings during shooting. The settings assigned to these buttons can be chosen using Custom Setting f2 (Custom control assignment) and the selected setting adjusted either by pressing the button or Fn2 button by pressing the button and rotating the command dials. At default settings, the Fn1 button is used for white balance and the Fn2 button to select focus and AF-area modes.

❚❚ Customizing the Function Buttons The function performed by the function buttons in photo mode are chosen using Custom Setting f2 (Custom control assignment).

1 Select Custom Setting f2. In the Custom Settings menu, highlight Custom Setting f2 (Custom control assignment) and press J (for information on using the menus, see “The G Button”, 0 18).

24 Getting to Know the Camera

2 Choose a button. Highlight the option for the desired button and press J. Select Fn1 button to choose the role played by the Fn1 button, Fn2 button to choose the role played by the Fn2 button.

3 Choose an option. Highlight an option and press J to assign it to the selected button and return to the menu displayed in Step 2. Repeat Steps 2 and 3 to choose the role played by the remaining button.

4 Exit. Press the G button to save changes and exit.

Getting to Know the Camera 25

A Roles That Can Be Assigned to the Function Buttons The following roles can be assigned to the function buttons in photo mode: • AF-ON • Sync. release • Flash mode/ • AF lock only selection compensation • AE lock (hold) • + NEF (RAW) • Focus mode/AF-area • AE lock (reset on • Framing grid display mode release) • Zoom on/off • Auto bracketing • AE lock only • MY MENU • Multiple exposure • AE/AF lock • Access top item in • HDR (high dynamic • FV lock MY MENU range) • c disable/enable • Playback • Exposure delay • Preview • Protect mode • Matrix metering • Choose image area • Shutter spd & • Center-weighted • Image quality/size aperture lock metering • White balance • Peaking highlights • Spot metering • Set Picture Control • Rating • Highlight-weighted • Active D-Lighting • Choose non-CPU metering • Metering lens number • Bracketing burst • None The roles played by the function buttons in movie mode can be chosen using Custom Setting g2 (Custom control assignment); the options available differ from those for photo mode.

26 Getting to Know the Camera

First Steps Complete the steps in this chapter before taking pictures for the first time.

Attach the Camera Strap A strap is supplied with the camera; additional straps are available separately. Attach the strap securely to the camera eyelets.

Charge the Battery The battery can be charged using the supplied battery charger or a charging AC adapter (a charging AC adapter is supplied with the Z 7, and can be purchased separately for the Z 6). D The Battery and Charger Read and follow the warnings and cautions in “For Your Safety” (0 xvi) and “Caring for the Camera and Battery: Cautions” (0 197).

The Battery Charger Insert the supplied EN-EL15b battery and plug the charger in. Depending on the country or region, the charger comes with either an AC wall adapter or a power cable. • AC wall adapter: Insert the AC wall adapter into the charger AC inlet (q). Slide the AC wall adapter latch as shown (w) and rotate the adapter 90 ° to fix it in place (e). Insert the battery and plug the charger in. AC wall adapter latch

• Power cable: After connecting the power cable with the plug in the orientation shown, insert the battery and plug the cable in.

The CHARGE lamp will flash while the battery charges. An exhausted battery will fully charge in about two hours and 35 minutes.

Charging AC Adapters When inserted in the camera, EN-EL15b rechargeable Li-ion batteries will charge while the camera is connected to a charging AC adapter (the charging AC adapter cannot be used to charge EN-EL15a and EN-EL15 batteries; use the supplied MH-25a battery charger instead). An exhausted battery will fully charge in about two hours and 35 minutes. Note that in countries or regions where required, charging AC adapters are supplied with a plug adapter attached; the shape of the plug adapter varies with the country of sale.

1 Insert the EN-EL15b into the camera (0 32).

2 After confirming that the camera is off, connect the charging AC adapter and plug the adapter in. Insert the plug or plug adapter straight into the socket rather than at an angle, and observe the same precaution when unplugging the charging AC adapter. CHARGE lamp

The camera CHARGE lamp lights amber while charging is in progress and turns off when charging is complete. Note that although the camera can be used while connected, the battery will not charge and the camera will not draw power from the charging AC adapter while the camera is on.

3 Unplug and disconnect the charging AC adapter when charging is complete.

D The CHARGE Lamp If the battery cannot be charged using the charging AC adapter, for example because the battery is not compatible or the temperature of the camera is elevated, the CHARGE lamp will flash rapidly for about 30 seconds and then turn off. If the CHARGE lamp is off and you did not observe the battery charging, turn the camera on and check the battery level.

Insert the Battery and a Memory Card Before inserting or removing the battery or memory cards, confirm that the camera power switch is in the OFF position. Insert the battery in the orientation shown, using the battery to keep the orange battery latch pressed to one side. The latch locks the battery in place when the battery is fully inserted.

Holding the memory card in the orientation shown, slide it straight into the slot until it clicks into place.

D Removing the Battery To remove the battery, turn the camera off and open the battery-chamber cover. Press the battery latch in the direction shown by the arrow to release the battery and then remove the battery by hand.

D Removing Memory Cards After confirming that the memory card access lamp is off, turn the camera off, open the memory card slot cover, and press the card in to eject it (q). The card can then be removed by hand (w).

Battery Level The battery level is shown in the shooting display and control panel while the camera is on.

The battery level display changes as the battery level diminishes, from L through K, J, I, and finally, H. When the battery level falls to H, suspend shooting and charge the battery or ready a spare battery. When the battery is exhausted, the H icon will flash; charge the battery or insert a fullycharged spare battery.

Number of Exposures Remaining When the camera is on, the shooting display and control panel show the number of photographs that can be taken at current settings (values over 1000 are rounded down to the nearest hundred; e.g., values between 1400 and 1499 are shown as 1.4 k).

D Memory Cards • Memory cards may be hot after use. Observe due caution when removing memory cards from the camera. • Turn the power off before inserting or removing memory cards. Do not remove memory cards from the camera, turn the camera off, or remove or disconnect the power source during formatting or while data are being recorded, deleted, or copied to a computer or other device. Failure to observe these precautions could result in loss of data or in damage to the camera or card. • Do not touch the card terminals with your fingers or metal objects. • Do not bend, drop, or subject to strong physical shocks. • Do not apply force to the card casing. Failure to observe this precaution could damage the card. • Do not expose to water, heat, high levels of humidity, or direct sunlight. • Do not format memory cards in a computer.

D No Memory Card If no memory card is inserted, a “no memory card” indicator will appear in the shooting display and [–E–] will appear in both the control panel and the shooting display.

Attach a Lens The camera can be used with Z mount lenses. Before attaching or removing lenses, confirm that the camera power switch is in the OFF position. Be careful to prevent dust from entering the camera when the lens or body cap is removed, and be sure to remove the lens cap before taking pictures. The lens generally used in this manual for illustrative purposes is a NIKKOR Z 24– 70mm f/4 S. Remove the camera body cap

Remove the rear lens cap

Mounting mark (camera)

Align the mounting marks

G Do not touch the image sensor or lens contacts. Mounting mark (lens)

Rotate the lens as shown until it clicks into place

D F Mount Lenses Be sure to attach the FTZ mount adapter (supplied or available separately, 0 226) before using F mount lenses. Attempting to attach F mount lenses directly to the camera could damage the lens or image sensor.

D Lenses with Retractable Barrels Lenses with retractable barrels must be extended before use. Rotate the lens zoom ring as shown until the lens clicks into the extended position.

D Detaching Lenses Be sure the camera is off when removing or exchanging lenses. To remove the lens, press and hold the lens release button (q) while turning the lens clockwise (w). After removing the lens, replace the lens caps and camera body cap.

Choose a Language and Set the Clock The language option in the setup menu is automatically highlighted the first time menus are displayed. Choose a language and set the camera clock.

1 Turn the camera on. Rotate the power switch to ON.

2 Select Language in the setup menu. Press the G button to display the camera menus, then highlight Language in the setup menu and press 2 (for information on using menus, see “The G Button”, 0 18).

3 Select a language. Press 1 or 3 to highlight the desired language and press J (the languages available vary with the country or region in which the camera was originally purchased).

4 Select Time zone and date. Highlight Time zone and date and press 2.

5 Choose a time zone. Select Time zone and choose your current time zone (the display shows selected cities in the chosen zone and the difference between the time in the chosen zone and UTC). Press J to save changes and return to the time zone and date menu.

6 Turn daylight saving time on or off. Select Daylight saving time, then highlight On or Off and press J. Selecting On advances the clock by one hour.

7 Set the clock. Select Date and time and use the multi selector to set the clock. Press J when the clock is set to the current date and time (note that the camera uses a 24-hour clock).

8 Choose a date format. To choose the order in which the year, month, and day are displayed, select Date format, then highlight the desired option and press J.

9 Exit to shooting mode. Press the shutter-release button halfway to exit to shooting mode.

D The t (“Clock Not Set”) Icon The camera clock is powered by an independent, rechargeable power source, which is charged as necessary when the main battery is installed. Two days of charging will power the clock for about a month. If a t icon flashes in the display, the clock has been reset and the date and time recorded with new photographs will not be correct. Use the Time zone and date > Date and time option in the setup menu to set the clock to the correct time and date (0 149).

A SnapBridge Use the SnapBridge app to synchronize the camera clock with the clock on a smartphone or tablet (smart device). See SnapBridge online help for details.

Basic Photography and Playback This chapter explains the basics of taking and viewing photos.

Taking Photographs (b Mode) Follow the steps below to take photographs in b (auto) mode, an automatic “point-and-shoot” mode in which the majority of settings are controlled by the camera in response to shooting conditions.

1 Turn the camera on. The monitor and control panel will light.

2 Select photo mode. Rotate the photo/movie selector to C.

Pressing the mode dial lock release on top of the camera, rotate the mode dial to b. Mode dial lock release

Basic Photography and Playback 41

4 Ready the camera. Hold the handgrip in your right hand and cradle the camera body or lens with your left. Bring your elbows in against the sides of your chest. Framing photos in the viewfinder

Landscape (wide) orientation

Portrait (tall) orientation

Framing photos in the monitor

Landscape (wide) orientation

Portrait (tall) orientation

5 Frame the photograph. Frame the shot and use the subselector or multi selector to position the focus point over your subject. Focus point

42 Basic Photography and Playback

6 Focus. To focus, press the shutter-release button halfway or press the AF-ON button (the AF-assist illuminator may light if the subject is poorly lit). If the camera is able to focus, the focus point will be displayed in green; otherwise, the focus point will flash red. D The AF-Assist Illuminator Do not obstruct the AF-assist illuminator while it is lit.

Basic Photography and Playback 43

7 Shoot. Smoothly press the shutter-release button the rest of the way down to take the photograph (you can also take a photograph by touching the monitor: touch your subject to focus and lift your finger to release the shutter). The memory card access lamp will light while the photo is recorded to the memory card. Do not eject the memory card or remove or disconnect the power source until the lamp has gone out and recording is complete. Memory card access lamp

D The Standby Timer If no operations are performed for about 30 seconds, the display will dim for a few seconds before the monitor, viewfinder, and control panel turn off to reduce the drain on the battery. Press the shutter-release button halfway to reactivate the display. The length of time before the standby timer expires automatically can be selected using Custom Setting c3 (Power off delay) > Standby timer.

44 Basic Photography and Playback

Shooting Movies (b Mode) b (auto) mode can also be used for simple, “point-and-shoot” movie recording.

1 Turn the camera on. The monitor and control panel will light.

2 Select movie mode. Rotate the photo/movie selector to 1. Note that optional flash units cannot be used when the camera is in movie mode.

Pressing the mode dial lock release on top of the camera, rotate the mode dial to b. Mode dial lock release

Basic Photography and Playback 45

4 Start recording. Press the movie-record button to start recording. While recording is in progress, the camera will display a recording indicator and the time remaining. The camera can be refocused at any time during recording by pressing the AF-ON button or tapping your subject in the display. Sound is recorded via the built-in microphone; do not cover the microphone during recording.

Movie-record button Recording indicator

5 End recording. Press the movie-record button again to end recording. The memory card access lamp will light while the camera finishes saving the movie to the memory card. Do not eject the memory card or remove or disconnect the power source until the lamp has gone out and recording is complete.

Memory card access lamp

D The 0 Icon A 0 icon indicates that movies cannot be recorded. 46 Basic Photography and Playback

In movie mode, photos can be taken without interrupting recording by pressing the shutter-release button all the way down. A C icon will flash in the display when a photo is taken.

D Taking Photos in Movie Mode Note that photos can be taken even when the subject is not in focus. Photos are recorded in finem-quality JPEG format at the dimensions currently selected for movie frame size. In continuous release modes, the frame advance rate while recording is paused varies with the option selected for Frame size/frame rate, but only one photo will be taken each time the shutter-release button is pressed while recording is in progress. Up to 50 photographs can be taken with each movie.

D During Shooting Flicker, banding, or distortion may be visible in the display and in photos and movies shot under fluorescent, mercury vapor, or sodium lamps or with subjects that are in motion, particularly if the camera is panned horizontally or an object moves horizontally at high speed through the frame. Jagged edges, color fringing, moiré, and bright spots may also appear. Bright regions or bands may appear in some areas of the frame with flashing signs and other intermittent light sources or if the subject is briefly illuminated by a strobe or other bright, momentary light source, while noise (randomly-spaced bright pixels, fog, or lines) and unexpected colors may appear if you zoom in on the view through the lens. Flicker may occur when power aperture is used during movie recording. Avoid pointing the camera at the sun or other strong light sources. Failure to observe this precaution could result in damage to the camera’s internal circuitry.

Basic Photography and Playback 47

D Recording Movies Recording ends automatically when the maximum length is reached or the memory card fills or if the lens is removed, another mode is selected, or the photo/movie selector is rotated to C. Note that the built-in microphone may record sounds made by the camera or lens during vibration reduction, autofocus, or changes to aperture.

48 Basic Photography and Playback

Basic Playback Photographs and movies can be viewed on the camera.

1 Press the K button. A picture will appear in the display.

2 View additional pictures. Press 4 or 2 to view additional pictures. When pictures are displayed in the monitor, you can view other pictures by flicking a finger left or right over the display. To end playback and return to shooting mode, press the shutterrelease button halfway.

Viewing Movies Movies are indicated by a 1 icon. Tap the a icon in the display or press J to start playback; your current position is shown on the movie progress bar. 1 icon

Current position/total length

Movie Volume progress bar

Basic Photography and Playback 49

The following operations can be performed: Operation Pause Play

Start slow-motion playback Skip 10 s Skip to last or first frame Adjust volume Trim movie Exit Return to shooting mode

Description Press 3 to pause playback. Press J to resume playback when playback is paused or during rewind/advance. Press 4 to rewind, 2 to advance. Speed increases with each press, from 2× to 4× to 8× to 16×; keep the control pressed to skip to the beginning or end of the movie (the first frame is indicated by a h in the top right corner of the display, the last frame by a i). If playback is paused, the movie rewinds or advances one frame at a time; keep the control pressed for continuous rewind or advance. Press 3 while the movie is paused to start slowmotion playback. Rotate the main command dial one stop to skip ahead or back 10 s. Rotate the sub-command dial to skip to the last or first frame. Press X to increase volume, W (Q) to decrease. To view movie editing options, pause playback and press the i button. Press 1 or K to exit to full-frame playback. Press the shutter-release button halfway to exit to shooting mode.

50 Basic Photography and Playback

Deleting Unwanted Pictures Press the O button to delete the current picture. Note that pictures cannot be recovered once deleted.

1 Display a picture you wish to delete. Display a photo or movie you wish to delete as described in “Basic Playback” (0 49).

2 Delete the picture. Press the O button. A confirmation dialog will be displayed; press the O button again to delete the picture and return to playback. To exit without deleting the picture, press K.

A Delete To delete selected pictures, all pictures taken on selected dates, or all pictures in a chosen location on the memory card, use the Delete option in the playback menu.

Basic Photography and Playback 51

52 Basic Photography and Playback

Basic Settings This chapter covers basic shooting and playback settings.

Focus Focus can be adjusted automatically, manually, or using touch controls. How the camera focuses is governed by your choice of focus mode and AF-area mode.

Choosing a Focus Mode The focus mode controls how the camera focuses. The focus mode can be selected using the Focus mode items in the i menu and the photo and movie shooting menus (0 113, 131, 137). At default settings, the focus mode can also be selected by holding the Fn2 button and rotating the main command dial (0 24).

AF-S Single AF Description For stationary subjects. Press the shutter-release button halfway to focus. If the camera is able to focus, the focus point will be displayed in green; focus will lock while the shutter-release button is pressed halfway. If the camera fails to focus, the focus point will flash red. At default settings, the shutter can only be released if the camera is able to focus (focus priority).

AF-C AF-F MF Description For moving subjects. The camera focuses continuously while the shutter-release button is pressed halfway; if the subject moves, the camera will Continuous predict the final distance to the subject and adjust AF focus as necessary. At default settings, the shutter can be released whether or not the subject is in focus (release priority). The camera adjusts focus continuously in response to Full-time subject movement or changes in composition. Focus AF locks when the shutter-release button is pressed halfway. This option is only available in movie mode. Manual Focus manually (0 60). The shutter can be released focus whether or not the subject is in focus.

D Autofocus The display may brighten or darken while the camera focuses and the focus point may sometimes be displayed in green when the camera is unable to focus. The camera may be unable to focus in the following situations: • The subject contains lines parallel to the long edge of the frame • The subject lacks contrast • The subject in the focus point contains areas of sharply contrasting brightness, or includes spot lighting or a neon sign or other light source that changes in brightness • Flicker or banding appears under fluorescent, mercury-vapor, sodium-vapor, or similar lighting • A cross (star) filter or other special filter is used • The subject appears smaller than the focus point • The subject is dominated by regular geometric patterns (e.g., blinds or a row of windows in a skyscraper)

D Turning the Camera Off The focus position may change if you turn the camera off and then on again after focusing.

A Low-Light AF For improved focus when lighting is poor, select AF-S and choose On for Custom Setting a11 (Low-light AF).

AF-Area Mode AF-area mode controls how the camera selects the focus-point for autofocus. AF-area mode can be selected using the AF-area mode items in the i menu and the photo and movie shooting menus (0 113, 131, 137). At default settings, AF-area mode can also be selected by holding the Fn2 button and rotating the sub-command dial (0 24).

Description Use for pinpoint focus on a selected spot in the frame. This option is only available when photo Pinpoint AF mode is selected and Single AF is chosen for Focus mode. Focusing may be slower than with single-point AF. The camera focuses on a point selected by the Single-point AF user. Use with stationary subjects. The camera focuses on a point selected by the user. If the subject briefly leaves the selected point, the camera will focus based on information from surrounding focus points, letting you Dynamic-area AF concentrate on composition in shots of moving subjects. This option is only available when photo mode is selected and Continuous AF is chosen for Focus mode.

f Wide-area AF (S) The camera focuses on a point selected by the g

user. Use with stationary subjects. The focus points for Wide-area AF (S) are wider than those Wide-area AF (L) for Single-point AF, while the focus points for Wide-area AF (L) are wider than those for Widearea AF (S). The camera automatically detects the subject and selects the focus area. At default settings, the camera gives priority to portrait subjects; if a portrait subject is detected, the selected subject Auto-area AF will be indicated by a yellow border (if multiple faces are detected, you can choose your subject using the multi selector). Subject tracking (0 57) can be activated by pressing the J button.

A Quick Focus-Point Selection For quicker focus-point selection, choose Every other point for Custom Setting a5 (Focus points used) to use only a quarter of the available focus points (the number of points available for Wide-area AF (L) does not change). If you prefer to use the sub-selector for focuspoint selection, you can choose Select center focus point for Custom Setting f2 (Custom control assignment) > Sub-selector center to allow the center of the sub-selector to be used to quickly select the center focus point.

❚❚ Subject Tracking When Auto-area AF is selected for AFarea mode, pressing J enables focus tracking. The focus point will change to a targeting reticule; position the reticule over the target and either press J again or press the AF-ON button to start tracking. The focus point will track the selected subject as it moves through the frame (in the case of portrait subjects, focus will track the subject’s face). To end tracking, press J a third time. To exit subject-tracking mode, press the W (Q) button.

D Subject Tracking The camera may be unable to track subjects if they move quickly, leave the frame or are obscured by other objects, change visibly in size, color, or brightness, or are too small, too large, too bright, too dark, or similar in color or brightness to the background.

The Touch Shutter Touch controls can be used to focus and release the shutter. Touch the display to focus and lift your finger to release the shutter. Tap the icon shown in the illustration to choose the operation performed by tapping the display in shooting mode. Choose from the following options: • W: Touch the display to position the focus point and focus (autofocus only; the touch shutter cannot be used to focus in manual focus mode). Focus locks while your finger remains on the display; lift your finger to release the shutter. Available only in photo mode. • V: As above, except that lifting your finger from the display does not release the shutter. If auto-area AF is selected for AFarea mode, the camera will track the selected subject as it moves through the frame; to switch to a different subject, tap it in the display. • X: Touch shutter disabled.

D Taking Pictures Using Touch Shooting Options The shutter-release button can be used to focus and take pictures even when the W icon is displayed to show that touch shooting options are active. Use the shutter-release button to take photographs in continuous shooting mode and during movie recording (touch shooting options can be used only to take pictures one at a time in continuous shooting mode and cannot be used to take photographs during movie recording). In self-timer mode, focus locks on the selected subject when you touch the monitor and the number of shots currently selected in self-timer mode will be taken starting about 10 seconds after you lift your finger from the display.

Manual Focus Manual focus can be used when autofocus does not produce the desired results. Position the focus point over your subject and rotate the focus or control ring until the subject is in focus. For greater precision, press the X button to zoom in on the view through the lens.

When the subject is in focus, the focus point will light green and the in-focus indicator (I) will appear in the display. In-focus indicator

Focus distance indicator

Description Subject in focus. Focus point is between camera and subject. Focus point is behind subject.

Camera unable to determine whether subject is in focus.

When using manual focus with subjects not suited to autofocus, note that the in-focus indicator (I) may be displayed when the subject is not in focus. Zoom in on the view through the lens and check focus. Use of a tripod is recommended when the camera is having trouble focusing.

D Lenses with Focus-Mode Selection Manual focus can be selected using the controls on the lens.

D Focal Plane Position To determine the distance between your subject and the camera, measure from the focal plane mark (E) on the camera body. The distance between the lens mounting flange and the focal plane is 16 mm (0.63 in.).

A Focus Peaking If focus peaking is enabled using Custom Setting d10 (Peaking highlights), objects that are in focus will be indicated by colored outlines in manual focus mode. Note that peaking highlights may not be displayed if the camera is unable to detect outlines, in which case focus can be checked using the view through the lens in the display.

White Balance White balance ensures that white objects appear white, regardless of the color of the light source. The default setting (j) is recommended with most light sources. If the desired results cannot be achieved with auto white balance, choose another option as described below. White balance can be selected using the White balance items in the i menu and the photo and movie shooting menus (0 98, 127, 134). At default settings, white balance can also be selected by holding the Fn1 button and rotating the main command dial (0 24).

When 4 (Auto), I (Fluorescent), K (Choose color temperature), or L (Preset manual) is selected, you can choose a sub-option by holding the Fn1 button and rotating the sub-command dial.

4 Auto Keep white (reduce warm colors) Keep overall atmosphere

Keep warm lighting colors

D Natural light auto

Description White balance is adjusted automatically for optimal results with most light sources. Eliminate warm color cast produced by incandescent lighting. Partially preserve warm color cast produced by incandescent lighting. Preserve warm color cast produced by incandescent lighting. When used under natural light, this option produces colors closer to those seen by the naked eye. Use with subjects lit by direct sunlight. Use in daylight under overcast skies.

8000 Use in daylight with subjects in shade.

3000 Use under incandescent lighting.

Fluorescent Sodium-vapor lamps Warm-white fluorescent White fluorescent Cool-white fluorescent Day white fluorescent Daylight fluorescent High temp. mercury-vapor 5 Flash

2700 3000 3700 4200 5000 6500 7200 5400

Use under fluorescent lighting; choose bulb type according to light source.

Description Choose color temperature from list of Choose color 2500– values or by holding Fn1 button and K temperature 10,000 rotating sub-command dial. Measure white balance for subject or light source (press and hold Fn1 button to enter direct measurement — mode, 0 101), copy white balance L Preset manual from existing photograph, or choose existing value by holding Fn1 button and rotating sub-command dial. * Color temperature. All values are approximate and do not reflect fine-tuning (if applicable).

A 4 (“Auto”) The photo info for pictures shot using auto white balance lists the color temperature selected by the camera at the time the picture was taken. You can use this as reference when choosing a value for Choose color temperature. To view shooting data during playback, go to Playback display options in the playback menu and select Shooting data.

D D (“Natural Light Auto”) D (Natural light auto) may not produce the desired results under artificial light. Choose 4 (Auto) or an option that matches the light source.

D Studio Flash Lighting 4 (Auto) may not produce the desired results with large studio flash units. Use preset white balance or set white balance to 5 (Flash) and use fine-tuning to adjust white balance.

D White Balance Fine-Tuning At settings other than Choose color temperature, white balance can be fine-tuned using the White balance items in the i menu and the photo and movie shooting menus (0 99).

A Color Temperature The perceived color of a light source varies with the viewer and other conditions. Color temperature is an objective measure of the color of a light source, defined with reference to the temperature to which an object would have to be heated to radiate light in the same wavelengths. While light sources with a color temperature in the neighborhood of 5000–5500 K appear white, light sources with a lower color temperature, such as incandescent light bulbs, appear slightly yellow or red. Light sources with a higher color temperature appear tinged with blue. “Warmer” (redder) colors

“Cooler” (bluer) colors

In general, choose lower values if your pictures have a red cast or to intentionally make colors colder, higher values if your pictures are tinged blue or to intentionally make colors warmer.

Silent Photography To enable the electronic shutter and eliminate the noise and vibration caused by operation of the mechanical shutter, select On for Silent photography in the photo shooting menu. An icon is displayed while silent photography is in effect. When the shutter is released, the display will briefly go dark to signal that a photo has be taken. Enabling silent photography changes the frame advance rates for continuous release modes (0 84) and disables some features, including the flash, beep speaker, long exposure noise reduction, and the electronic front-curtain shutter.

D Silent Photography Although the noise of the mechanical shutter is muted, other sounds may still be audible, for example during autofocus or aperture adjustment or if the G or K button is pressed when an option other than Off is selected for Vibration reduction. During silent photography, flicker, banding, or distortion may be visible in the display and in the final picture under fluorescent, mercury vapor, or sodium lamps or with subjects that are in motion, particularly if the camera is panned horizontally or an object moves horizontally at high speed through the frame. Jagged edges, color fringing, moiré, and bright spots may also appear. Bright regions or bands may appear in some areas of the frame with flashing signs and other intermittent light sources or if the subject is briefly illuminated by a strobe or other bright, momentary light source.

Rating Pictures Selected pictures can be rated or marked as candidates for later deletion. Ratings can also be viewed in Capture NX-D and ViewNX-i. Protected pictures cannot be rated.

1 Select an image. Press the K button to start playback and display a picture you want to rate.

2 Display the i menu. Press the i button to view the i menu.

3 Select Rating. Highlight Rating and press J.

4 Choose a rating. Rotate the main command dial to choose a rating of from zero to five stars, or select d to mark the picture as a candidate for later deletion. Press J to complete the operation.

Protecting Pictures from Deletion Use the Protect option in the i menu to protect pictures from accidental deletion. Note that this does NOT prevent pictures being deleted when the memory card is formatted.

1 Select an image. Press the K button to start playback and display a picture you want to protect.

2 Display the i menu. Press the i button to view the i menu.

3 Select Protect. Highlight Protect and press J. Protected pictures are indicated by a P icon; to remove protection, display the picture and repeat Steps 2–3.

A Removing Protection from All Pictures To remove protection from all pictures in the folder or folders currently selected for Playback folder in the playback menu, select Unprotect all in the i menu.

Shooting Controls This chapter describes controls that can be used during shooting.

The Mode Dial Press the mode dial lock Mode dial release and rotate the mode dial to choose from the following modes: • b Auto: A “point-and-shoot” mode in which the camera sets exposure and hue Mode dial lock release (0 41, 45). • P Programmed auto: The camera sets shutter speed and aperture for optimal exposure. Recommended for snapshots and in other situations in which there is little time to adjust camera settings. • S Shutter-priority auto: You choose the shutter speed; the camera selects the aperture for best results. Use to freeze or blur motion. • A Aperture-priority auto: You choose the aperture; the camera selects the shutter speed for best results. Use to blur backgrounds or bring both foreground and background into focus. • M Manual: You control both shutter speed and aperture. Set shutter speed to “bulb” or “time” for long time-exposures. • U1, U2, U3 User settings modes: Assign frequently-used settings to these positions for quick recall.

Shooting Controls 69

P: Programmed Auto In this mode, the camera automatically adjusts shutter speed and aperture according to a built-in program to ensure optimal exposure in most situations. Different combinations of shutter speed and aperture that produce the same exposure can be selected by rotating the main command dial (“flexible program”). While flexible program is in effect, a flexible program indicator (U) is displayed. To restore default shutter speed and aperture settings, rotate the main command dial until the indicator is no longer displayed, choose another mode, or turn the camera off.

S: Shutter-Priority Auto In shutter-priority auto, you choose the shutter speed while the camera automatically selects the aperture that will produce the optimal exposure. To choose a shutter speed, rotate the main command dial. Shutter speed can be set to “×200” or to values between 30 s and 1/8000 s and can be locked at the selected setting (0 146).

A: Aperture-Priority Auto In aperture-priority auto, you choose the aperture while the camera automatically selects the shutter speed that will produce the optimal exposure. To choose an aperture between the minimum and maximum values for the lens, rotate the sub-command dial. Aperture can be locked at the selected setting (0 146).

M: Manual In manual exposure mode, you control both shutter speed and aperture. Rotate the main command dial to choose a shutter speed, and the sub-command dial to set aperture. Shutter speed can be set to “×200” or to values between 30 s and 1/8000 s, or the shutter can be held open indefinitely for a long time-exposure (0 76). Aperture can be set to values between the minimum and maximum values for the lens. Use the exposure indicators to check exposure. Monitor

Shutter speed Shutter speed

Shutter speed and aperture can be locked at the selected settings.

Shooting Controls 71

D Exposure Indicators The exposure indicators show whether the photograph would be under- or over-exposed at current settings. Depending on the option chosen for Custom Setting b1 (EV steps for exposure cntrl), the amount of under- or overexposure is shown in increments of 1/3 or 1/2 EV. If the limits of the exposure metering system are exceeded, the displays will flash. Custom Setting b1 set to “1/3 step” Underexposed Overexposed Optimal exposure by 1/3 EV

by over 3 EV Monitor

A Auto ISO Sensitivity Control (Mode M) If auto ISO sensitivity control (0 80) is enabled, ISO sensitivity will automatically be adjusted for optimal exposure at the selected shutter speed and aperture.

72 Shooting Controls

User Settings: U1, U2, and U3 Modes Assign frequently-used settings to the U1, U2, and U3 positions on the mode dial.

❚❚ Saving User Settings Follow the steps below to save settings:

1 Select a mode. Rotate the mode dial to the desired mode.

2 Adjust settings. Choose a focus point and make the desired adjustments to flexible program (mode P), shutter speed (modes S and M), exposure and flash compensation, aperture (modes A and M), and settings in the photo shooting, movie shooting, and Custom Settings menus.

3 Select Save user settings. Highlight Save user settings in the setup menu and press 2.

4 Select a position. Highlight Save to U1, Save to U2, or Save to U3 and press 2.

Shooting Controls 73

5 Save user settings. Highlight Save settings and press J to assign the settings selected in Steps 1 and 2 to the mode dial position selected in Step 4.

❚❚ Recalling User Settings Rotating the mode dial to U1, U2, or U3 recalls the settings last saved to that position.

❚❚ Resetting User Settings To reset settings for U1, U2, or U3 to default values:

1 Select Reset user settings. Highlight Reset user settings in the setup menu and press 2.

2 Select a position. Highlight Reset U1, Reset U2, or Reset U3 and press 2.

3 Reset user settings. Highlight Reset and press J to restore default settings for the selected position. The camera will function in mode P.

74 Shooting Controls

D User Settings The following cannot be saved to U1, U2, or U3. Photo shooting menu: Movie shooting menu: • Storage folder • Choose image area • Choose image area • Manage Picture Control • Manage Picture Control • Multiple exposure • Interval timer shooting • Time-lapse movie • Focus shift shooting

Shooting Controls 75

Long Time-Exposures (Mode M) Select the following shutter speeds for long time-exposures of moving lights, the stars, night scenery, or fireworks. • Bulb: The shutter remains open while the shutter-release button is held down. • Time: The exposure starts when the shutter-release button is pressed and ends when the button is pressed a second time.

• Shutter speed: Bulb (35-second exposure) • Aperture: f/25

To prevent blur, mount the camera on a tripod or use an optional wireless remote controller (Time only) or remote cord. Nikon also recommends using a fully-charged battery or an optional AC adapter and power connector to prevent loss of power while the shutter is open. Note that noise (bright spots, randomly-spaced bright pixels, or fog) may be present in long exposures. Bright spots and fog can be reduced by choosing On for Long exposure NR in the photo shooting menu.

1 Ready the camera. Mount the camera on a tripod or place it on a stable, level surface.

2 Select mode M. Rotate the mode dial to M.

76 Shooting Controls

3 Choose a shutter speed. Rotate the main command dial to choose a shutter speed of Bulb or Time.

4 Open the shutter. Bulb: After focusing, press the shutter-release button all the way down. Keep the shutter-release button pressed until the exposure is complete. Time: Press the shutter-release button all the way down.

5 Close the shutter. Bulb: Take your finger off the shutter-release button. Time: Press the shutter-release button all the way down.

Shooting Controls 77

The S (ISO Sensitivity) Button Hold the S button and rotate the main command dial to adjust the camera’s sensitivity to light according to the amount of light available. The current setting is shown in the shooting display and control panel. Choose from settings of from ISO 64 to ISO 25600 (or in the case of the Z 6, of from ISO 100 to ISO 51200); settings of from about 0.3 to 1 EV below the lowest of these values and 0.3 to 2 EV above the highest are also available for special situations. b mode offers an additional ISO-A (auto) option.

D ISO Sensitivity The higher the ISO sensitivity, the less light needed to make an exposure, allowing faster shutter speeds or smaller apertures, but the more likely the image is to be affected by noise (randomly-spaced bright pixels, fog, or lines). Noise is particularly likely at settings between Hi 0.3 and Hi 2.

D Hi 0.3–Hi 2 Hi 0.3 through Hi 2 correspond to ISO sensitivities 0.3–2 EV over the highest numerical value. Hi 0.3 is equivalent to ISO 32000 (Z 7) or 64000 (Z 6), Hi 2 to ISO 102400 (Z 7) or 204800 (Z 6).

78 Shooting Controls

D Lo 0.3–Lo 1 Lo 0.3 through Lo 1 correspond to ISO sensitivities 0.3–1 EV below the lowest numerical value. Lo 0.3 is equivalent to ISO 50 (Z 7) or 80 (Z 6), Lo 1 to ISO 32 (Z 7) or 50 (Z 6). Use for larger apertures or slow shutter speeds when lighting is bright. Highlights may lose some detail; in most cases, ISO sensitivities at or above the lowest numerical value are recommended.

Shooting Controls 79

Auto ISO Sensitivity Control In modes P, S, A, and M, auto ISO Sub-command dial sensitivity control can be enabled or disabled by holding the S button and rotating the sub-command dial. When auto ISO sensitivity control is enabled, ISO sensitivity will automatically be adjusted if optimal exposure cannot be achieved at the value selected with the S button and main command dial. To prevent ISO sensitivity going too high, S button you can choose an upper limit of from ISO 100 (Z 7) or 200 (Z 6) to Hi 2 using the ISO sensitivity settings > Maximum sensitivity item in the photo shooting menu. When auto ISO sensitivity control is enabled, the shooting display will show ISO AUTO and control panel ISO-A. When sensitivity is altered from the value selected by the user, the altered value is shown in the display.

D Auto ISO Sensitivity Control If the ISO sensitivity selected by the user is higher than that chosen for Maximum sensitivity when auto ISO sensitivity control is enabled, the value selected by the user will be used instead. When a flash is used, shutter speed will be restricted to values between the speed selected for Custom Setting e1 (Flash sync speed) and the speed selected for Custom Setting e2 (Flash shutter speed).

80 Shooting Controls

The E (Exposure Compensation) Button In modes other than b, exposure compensation can be used to alter exposure from the value suggested by the camera, making pictures brighter or darker. Choose from values between –5 EV (underexposure) and +5 EV (overexposure) in increments of 1 /3 EV. In general, positive values make the subject brighter while negative values make it darker.

−1 EV No exposure compensation

+1 EV To choose a value for exposure compensation, press the E button and rotate the main command dial until the desired value is displayed. E button

Control panel Main command dial

Shooting Controls 81

At values other than ±0.0, a E icon will be displayed after you release the E button. The current value for exposure compensation can be confirmed in the exposure indicator by pressing the E button.

Normal exposure can be restored by setting exposure compensation to ±0. Exposure compensation is not reset when the camera is turned off.

D Mode M In mode M, exposure compensation affects only the exposure indicator; shutter speed and aperture do not change.

D Flash Photography When an optional flash unit is used, exposure compensation affects both flash level and exposure, altering the brightness of both the main subject and the background. Custom Setting e3 (Exposure comp. for flash) can be used to restrict the effects of exposure compensation to the background only.

82 Shooting Controls

The c/E (Release Mode/Self-Timer) Button The “release mode” determines what happens when the shutterrelease button is pressed. To choose a release mode, hold the c (E) button and rotate the main command dial. Press J when the desired option is highlighted; the selected option is indicated by icons in the shooting display and control panel.

The following options are available in photo mode. Option

U V W Description The camera takes one photograph each time the Single frame shutter-release button is pressed. While the shutter-release button is held down, the camera records 1–5 frames per second. The frame Continuous L rate can be chosen by rotating the sub-command dial when Continuous L is highlighted in the release-mode menu. While the shutter-release button is held down, the Continuous H camera records up to about 5.5 frames per second.

Shooting Controls 83

X E Description While the shutter-release button is held down, the camera records up to about 9 frames per second Continuous H (Z 7) or 12 frames per second (Z 6). Exposure is fixed (extended) at the value for the first shot in each series; optional flash units cannot be used. Flicker reduction has no effect. Self-timer Take pictures with the self-timer (0 86).

D The Shooting Display In continuous low-speed and continuous high-speed modes, the display is updated in real time even while shooting is in progress.

D Frame Advance Rate Frame advance rate varies with camera settings. The approximate maximum rates at different settings are given in the table below. Release mode

JPEG/TIFF Continuous L NEF (RAW)/

Bit depth — 12 14 — 12 14 — 12 14

Silent photography Off On Z 7: 4 fps Z 6: 4.5 fps 5 fps Z 7: 3.5 fps Z 6: 4 fps Z 7: 4 fps 5.5 fps Z 6: 4.5 fps Z 7: 5 fps Z 7: 3.5 fps Z 6: 5.5 fps Z 6: 4 fps Z 7: 9 fps Z 7: 8 fps Z 6: 12 fps Z 6: 12 fps Z 7: 8 fps Z 7: 6.5 fps Z 6: 9 fps Z 6: 8 fps

D The Memory Buffer The camera is equipped with a memory buffer for temporary storage, allowing shooting to continue while photographs are being saved to the memory card. The frame rate will drop when the buffer is full (r00). The approximate number of images that can be stored in the buffer at current settings is shown in the exposure-count displays while the shutter-release button is pressed halfway.

Monitor Control panel While photographs are being recorded to the memory card, the memory card access lamp will light. Depending on shooting conditions and memory card performance, recording may take from a few seconds to a few minutes. Do not remove the memory card or remove or disconnect the power source until the access lamp has gone out. If the camera is switched off while data remain in the buffer, the power will not turn off until all images in the buffer have been recorded. If the battery is exhausted while images remain in the buffer, the shutter release will be disabled and the images transferred to the memory card.

Shooting Controls 85

In movie mode, you can choose the operation performed when the shutter-release button is pressed (0 45). Regardless of the option selected, a maximum of 50 photos can be taken with each movie. Option

Description The camera takes one photograph each time the Single frame shutter-release button is pressed. The camera takes photographs for up to 3 (Z 7) or 2 (Z 6) seconds at a time while the shutter-release button is held down, up to the maximum displayed when the shutter-release button is pressed halfway. Continuous The frame rate varies with the option selected for Frame size/frame rate in the movie shooting menu. Only one photograph can be taken at a time while movie recording is in progress.

The Self-Timer In self-timer mode, pressing the shutter-release button starts a timer, and a photo is taken when the timer expires.

1 Select self-timer mode. Keeping the c (E) button pressed, rotate the main command dial to highlight E (self-timer).

2 Choose the shutter-release delay. Rotate the sub-command dial to select the shutter-release delay and press J.

86 Shooting Controls

3 Frame the photograph and focus. If AF-S is selected for focus mode, the timer will not start unless the camera is able to focus.

4 Start the timer. Press the shutter-release button all the way down to start the timer. A E icon will appear in the display and the self-timer lamp will start to flash, stopping two seconds before the photograph is taken.

D Taking Multiple Shots Use Custom Setting c2 (Self-timer) to choose the number of shots taken, and the interval between the shots taken, when the self-timer finishes counting down.

Shooting Controls 87

The Sub-Selector Use the sub-selector as a joystick to select the focus point, or press the center to lock focus and/or exposure.

Focus-Point Selection Use the sub-selector to select the focus point in the shooting display. Focuspoint selection is not available when auto-area AF is selected for AF-area mode (0 55). Focus point

Autoexposure (AE) Lock Pressing the center of the sub-selector locks exposure at the current setting. AE lock can be used to recompose shots after metering a subject that will not be in the selected focus area in the final composition, and is particularly effective with spot or center-weighted metering.

Focus Lock The center of the sub-selector can be used to lock focus on the current subject when AF-C is selected for focus mode. When using focus lock, choose an AF-area mode other than auto-area AF.

88 Shooting Controls

❚❚ Locking Focus and Exposure Follow the steps below to use focus and exposure lock.

1 Set focus and exposure. Position the subject in the selected focus point and press the shutter-release button halfway to set focus and exposure. Check that the focus point is displayed in green.

2 Lock focus and exposure.

Shutter-release button

With the shutter-release button pressed halfway, press the center of the sub-selector to lock both focus and exposure (an AE-L icon will be displayed).

Shooting Controls 89

3 Recompose the photograph and shoot. Focus will remain locked between shots if you keep the shutter-release button pressed halfway (AF-S) or keep the center of the sub-selector pressed, allowing several photographs in succession to be taken at the same focus setting. Do not change the distance between the camera and the subject while focus lock is in effect. If the subject moves, focus again at the new distance.

D AF-S When AF-S is selected for focus mode, focus will lock while the shutterrelease button is pressed halfway (focus will also lock while the center of the sub-selector is pressed).

D Using the Shutter-Release Button for Exposure Lock If On (half press) is selected for Custom Setting c1 (Shutter-release button AE-L), exposure will lock while the shutter-release button is pressed halfway.

90 Shooting Controls

The i Button Pressing the i button displays the i menu: a menu of frequently-used settings for the current mode.

Using the i Menu Press the i button to display the i menu.

Highlight items using the multi selector and press J to view options, then highlight an option and press J to select it and return to the i menu (to exit to the previous display without changing settings, press the i button).

A The Command Dials You can also adjust settings for highlighted items by rotating the main command dial to choose an option and then pressing J (suboptions, if available, can be selected by rotating the sub-command dial; in some cases, the same options can be selected using either dial). The current option will also be selected if you highlight another item with the multi selector or press the shutter-release button halfway.

The Photo-Mode i Menu At default settings, the following items appear in the i menu for photo mode.

Set Picture Control Choose a Picture Control according to the subject or type of scene. Option

Description The camera automatically adjusts hues and tones based on the Standard Picture Control. The complexions of portrait subjects will appear Auto softer, and such elements as the foliage and sky in outdoor shots more vivid, than in pictures taken with the Standard Picture Control. Standard processing for balanced results. Standard Recommended for most situations. Minimal processing for natural results. Choose Neutral for photographs that will later be processed or retouched. Pictures are enhanced for a vivid, photoprint Vivid effect. Choose for photographs that emphasize primary colors. Monochrome Take monochrome photographs. Process portraits for skin with natural texture Portrait and a rounded feel. Landscape Produces vibrant landscapes and cityscapes. Details are preserved over a wide tone range, from highlights to shadows. Choose for Flat photographs that will later be extensively processed or retouched. Choose from the following Picture Controls, each a unique combination of hue, tone, saturation, and other settings tuned for a Creative Picture particular effect: Dream, Morning, Pop, Control Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, and Carbon.

To view Picture Control settings, highlight a Picture Control and press 3. Changes to settings can be previewed in the display (0 95). The current Picture Control is indicated by an icon in the display during shooting.

❚❚ Modifying Picture Controls Picture Controls can be modified to suit the scene or the photographer’s creative intent. Highlight Set Picture Control in the i menu and press J to display the Picture Control list, then highlight a Picture Control and press 3 to display Picture Control settings. Press 1 or 3 to highlight the desired setting and press 4 or 2 to choose a value in increments of 1, or rotate the sub-command dial to choose a value in increments of 0.25 (the options available vary with the Picture Control selected). Default settings can be restored by pressing the O button. After adjusting settings to your satisfaction, press J to put the changes into effect and return to the i menu. Picture Controls that have been modified from default settings are indicated by an asterisk (“U”). D Previous Settings The j indicator under the value display in the Picture Control setting menu indicates the previous value for the setting.

A The “n Auto“ Picture Control If n Auto is selected for Set Picture Control, settings can be adjusted in the range A−2 to A+2.

The following settings are available: Option Effect level Quick sharp

Sharpening Mid-range sharpening Clarity Contrast Brightness Saturation Hue Filter effects Toning

Description Mute or heighten the effect of Creative Picture Control. Quickly adjust levels for balanced Sharpening, Midrange sharpening, and Clarity, or select A to let the camera adjust sharpening automatically. You can also make individual adjustments to the following parameters: • Sharpening: Control the sharpness of details and outlines. • Mid-range sharpening: Adjust sharpness according to the fineness of the patterns and lines in mid-tones affected by Sharpening and Clarity. • Clarity: Adjust overall sharpness and the sharpness of thicker outlines without affecting brightness or dynamic range. Adjust contrast manually or select A to let the camera adjust contrast automatically. Raise or lower brightness without loss of detail in highlights or shadows. Control the vividness of colors. Select A to adjust saturation automatically according to the type of scene. Adjust hue. Simulate the effect of color filters on monochrome pictures. Choose the tint used in monochrome pictures. Pressing 3 when an option other than B&W (black-and-white) is selected displays saturation options.

D “A” (Auto) Results for auto (A) vary with exposure and the position of the subject in the frame.

D Filter Effects Choose from the following: Mode Y (yellow) O (orange) R (red) G (green)

Setting These options enhance contrast and can be used to tone down the brightness of the sky in landscape photographs. Orange produces more contrast than yellow, red more contrast than orange. Green softens skin tones and can be used for portraits.

White Balance Adjust white balance (for more information, see “White Balance”, 0 62). Option

4 Auto Keep white (reduce warm colors) Keep overall atmosphere Keep warm lighting colors D Natural light auto

H G M J Direct sunlight Cloudy Shade Incandescent

The current white balance option is indicated by an icon in the display during shooting.

❚❚ Fine-Tuning White Balance Selecting White balance in the i menu displays a list of white balance options. If an option other than Choose color temperature is highlighted, fine-tuning options can be displayed by pressing 3. Any changes to fine-tuning options can be previewed in the display. Increase green

Tap the arrows in the display or use the multi selector to finetune white balance, or rotate the main or sub-command dial to fine-tune white balance respectively on the Amber–Blue or Green–Magenta axis. Press J to save settings and return to the i menu. An asterisk (“U”) next to the white balance icon in the shooting display indicates that fine-tuning is in effect.

❚❚ Choosing a Color Temperature Selecting White balance in the i menu displays a list of white balance options. When Choose color temperature is highlighted, color temperature options can be viewed by pressing 3.

Value for Amber–Blue axis

Value for Green–Magenta axis

Press 4 or 2 to highlight digits on the Amber–Blue or Green– Magenta axis and press 1 or 3 to change. Press J to save settings and return to the i menu. If a value other than zero is selected for the Green–Magenta axis, an asterisk (“U“) will be displayed next to the white balance icon. D Choose Color Temperature Note that the desired results will not be obtained with flash or fluorescent lighting. Choose 5 (Flash) or I (Fluorescent) for these sources. With other light sources, take a test shot to determine if the selected value is appropriate.

❚❚ Preset Manual Preset manual is used to record and recall up to six custom white balance settings for shooting under mixed lighting or to compensate for light sources with a strong color cast. Follow the steps below to measure a value for preset manual white balance.

1 Display white balance presets. Highlight Preset manual in the i menu white balance display and press 3 to display a list of white balance presets.

2 Select a preset. Highlight the desired white balance preset (d-1 to d-6) and press J to select the highlighted preset and return to the i menu. D Protected Presets Presets indicated by a g icon are protected and cannot be changed.

3 Select direct measurement mode. Highlight White balance in the i menu and press and hold J until the L icons in the shooting display and control panel start to flash and white balance target (r) is displayed at the selected focus point.

4 Measure white balance. To measure white balance, tap a white or gray object, or use the multi selector to position the r over a white or gray area of the display and either press J or press the shutterrelease button all the way down (note that the r cannot be repositioned when an optional flash unit is attached, in which case you will need to measure white balance with a white or gray object positioned in the center of the frame). If the camera is unable to measure white balance, a message will be displayed. Try measuring white balance again with a different target.

5 Exit direct measurement mode. Press the i button to exit direct measurement mode.

D Measuring Preset Manual White Balance Preset manual white balance cannot be measured while HDR or multiple exposure shooting is in progress.

D Direct Measurement Mode Direct measurement mode will end if no operations are performed in the time selected for Custom Setting c3 (Power off delay) > Standby timer.

D Managing Presets The White balance > Preset manual option in the photo shooting menu can be used to copy white balance from an existing photograph to a selected preset, add comments, or protect presets.

D Preset Manual: Selecting a Preset To choose a preset, select White balance > Preset manual in the photo shooting menu, then highlight a preset and press J. If no value currently exists for the selected preset, white balance will be set to 5200 K, the same as Direct sunlight.

Image Quality Choose a file format for photographs. Option NEF (RAW) + JPEG finem NEF (RAW) + JPEG fine NEF (RAW) + JPEG normalm NEF (RAW) + JPEG normal NEF (RAW) + JPEG basicm NEF (RAW) + JPEG basic NEF (RAW) JPEG finem JPEG fine JPEG normalm JPEG normal JPEG basicm JPEG basic TIFF (RGB)

Description Record two copies of each photo: an NEF (RAW) image and a JPEG copy. Only the JPEG copy is displayed during playback, but deleting the JPEG copy also deletes the NEF (RAW) image. The NEF (RAW) image can only be viewed using a computer. Record photos in NEF (RAW) format. Record photos in JPEG format. Compression increases and file size decreases as quality progresses from “fine” through “normal” to “basic”. Choose options with m to maximize quality, options without m to ensure that all images have more or less the same file size. Record photos in uncompressed TIFF-RGB format at a bit depth of 8 bits per channel (24-bit color).

The option currently selected is shown in the display during shooting.

A NEF (RAW) NEF (RAW) image files (extension “*.nef”) contain the raw data output from the image sensor. Using Nikon’s ViewNX-i or Capture NX-D software, you can adjust and re-adjust settings such as exposure compensation and white balance as often as you please without degrading image quality, making this format ideal for photos that will be processed in multiple different ways. ViewNX-i and Capture NX-D are available free-of-charge from the Nikon Download Center. The process of converting NEF (RAW) images to other formats is referred to as “NEF (RAW) processing”. You can save NEF (RAW) images in other formats using the ViewNX-i and Capture NX-D computer applications or the NEF (RAW) processing option in the camera retouch menu.

Image Size Choose the size at which photographs are recorded. Option Large NEF (RAW) Medium Small Large JPEG/TIFF Medium Small

Description Choose the size for photos recorded in NEF (RAW) format. NEF (RAW) is available only when an NEF (RAW) option is selected for image quality. Choose the size for photos recorded in JPEG or TIFF format.

The option currently selected is shown in the display during shooting.

The physical dimensions of the photos in pixels varies with the option selected for Choose image area.

FX (36 × 24) DX (24 × 16) 5 : 4 (30 × 24) 1 : 1 (24 × 24) 16 : 9 (36 × 20)

Image area Z 6: Image area

Flash Mode Choose a flash mode for optional flash units. The options available depend on the mode selected with the mode dial. Option

I Fill flash J Red-eye

M Rear-curtain sync P, S, A, M b, P, S, A, M b, P, S, A, M s Flash off

K Slow sync + red-eye

P, A L Slow sync The option currently selected is indicated by an icon in the display during shooting.

Metering Metering determines how the camera sets exposure. The following options are available: Option

Description The camera meters a wide area of the frame and sets exposure according to tone distribution, Matrix metering color, composition, and distance for results close to those seen by the naked eye. The camera meters the entire frame but assigns the greatest weight to an area in the center of the frame, the size of which can be chosen using Center-weighted Custom Setting b3 (Center-weighted area). This metering is the classic meter for portraits and is also recommended when using filters with an exposure factor (filter factor) over 1×. The camera meters a 4 mm circle (equivalent to approximately 1.5% of the frame) centered on the current focus point, making it possible to meter off-center subjects (if auto-area AF is in effect, the Spot metering camera will instead meter the center focus point). Spot metering ensures that the subject will be correctly exposed, even when the background is much brighter or darker. The camera assigns the greatest weight to Highlighthighlights. Use this option to reduce loss of detail weighted in highlights, for example when photographing metering spotlit performers on-stage.

The option currently selected is indicated by an icon in the display during shooting.

Wi-Fi Connection Enable or disable Wi-Fi. Enable Wi-Fi to establish wireless connections to computers or between the camera and smartphones or tablets (smart devices) running the SnapBridge app. The camera displays a Wi-Fi icon when Wi-Fi is enabled.

To turn Wi-Fi off, highlight Wi-Fi connection in the i menu and press J. If Wi-Fi is currently enabled, a Close Wi-Fi connection prompt will be displayed; press J to end the connection.

A Wireless Connections For information on establishing wireless connections to computers or smart devices, see the Network Guide, available from the Nikon Download Center: Z 7: https://downloadcenter.nikonimglib.com/en/products/ 492/Z_7.html Z 6: https://downloadcenter.nikonimglib.com/en/products/ 493/Z_6.html More information on using SnapBridge is available via the app’s online help.

Active D-Lighting Active D-Lighting preserves details in highlights and shadows, creating photographs with natural contrast. Use for highcontrast scenes, for example when photographing brightly lit outdoor scenery through a door or window or taking pictures of shaded subjects on a sunny day. It is most effective when used with matrix metering.

Description The camera automatically adjusts Active D-Lighting in response to shooting conditions (in mode M, however, Y Auto is equivalent to Q Normal).

Extra high High Normal

Choose the amount of Active D-Lighting performed from Z Extra high, P High, Q Normal, and R Low.

Active D-Lighting off.

The option currently selected is indicated by an icon in the display during shooting.

D Active D-Lighting Noise (randomly-spaced bright pixels, fog, or lines) may appear in photos taken with Active D-Lighting. Uneven shading may be visible with some subjects. Active D-Lighting does not apply at high ISO sensitivities (Hi 0.3–Hi 2).

Release Mode Choose the operation performed when the shutter-release button is pressed all the way down. For more information, see “The c/E (Release Mode/Self-Timer) Button” (0 83). Option

V Continuous L W Continuous H Option

X Continuous H (extended) E Self-timer

When Continuous L or Self-timer is highlighted, additional options can be displayed by pressing 3. Pressing 3 when Continuous L is highlighted displays frame advance rate options.

Pressing 3 when Self-timer is highlighted displays options for the shutter-release delay and the number of shots taken when the timer expires. The current release mode is shown by icons in the shooting display and control panel.

Vibration Reduction Choose whether to enable vibration reduction. The options available vary with the lens. Option On C Normal

Description Choose for enhanced vibration reduction when photographing static subjects. Choose when photographing athletes and other subjects that are moving rapidly and unpredictably. Vibration reduction off.

Options other than Off are shown by an icon in the display during shooting.

D Vibration Reduction Vibration reduction may be unavailable with some lenses. When using vibration reduction, wait for the image in the display to stabilize before shooting. With some lenses, the image in the display may also jiggle after the shutter is released; this is normal and does not indicate a malfunction. Sport or On is recommended for panning shots. In Sport, Normal, and On modes, vibration reduction applies only to motion that is not part of the pan (if the camera is panned horizontally, for example, vibration reduction will be applied only to vertical shake). To prevent unintended results, select Off when the camera is mounted on a tripod unless the tripod head is unsecured or the camera is mounted on a monopod, in which case Normal, Sport, or On is recommended.

AF-Area Mode AF-area mode controls how the camera selects the focus-point for autofocus. For more information, see “AF-Area Mode” (0 55). Option

3 Pinpoint AF d Single-point AF e Dynamic-area AF

f Wide-area AF (S) g Wide-area AF (L)

h Auto-area AF The option currently selected is shown by an icon in the display during shooting.

Focus Mode The focus mode controls how the camera focuses. For more information, see “Choosing a Focus Mode” (0 53). Option

Single AF AF-S AF-C Continuous AF MF Option Manual focus

The option currently selected is shown by an icon in the display during shooting.

The Movie-Mode i Menu At default settings, the following items appear in the i menu for movie mode.

A “Same as Photo Settings” If Same as photo settings is selected for Set Picture Control, White balance, Active D-Lighting, or Vibration reduction in the movie shooting menu, a h icon will appear at the top left corner of the i menu, indicating that the options selected for these settings in photo mode also apply in movie mode and vice versa.

Set Picture Control Choose a Picture Control for movie recording. For more information, see “Set Picture Control” (0 93).

White Balance Adjust white balance for movie recording. For more information, see “White Balance” (0 62, 98).

Frame Size, Frame Rate, and Movie Quality Select the movie frame size (in pixels) and frame rate. You can also choose from two Movie quality options: High quality (indicated by frame size/rate icons with “m”) and Normal. Together, these options determine the maximum bit rate, as shown in the following table. Max. bit rate (Mbps) High quality Normal

Frame size/frame rate 1 3840 × 2160 (4K UHD); 30p

r s t w x y/y z/z 1/1 2/2 3/3

A B C Max. recording time

1 Actual frame rates for values listed as 120p, 60p, 30p, and 24p are respectively 119.88 fps, 59.94 fps, 29.97 fps, and 23.976 fps. 2 Movie quality fixed at High quality. 3 Image area fixed at DX (Z 7) or FX (Z 6); face detection not enabled in auto-area AF AF-area mode. 4 Each movie may be recorded across up to 8 files of up to 4 GB each. The number of files and the length of each file vary with the options selected for Frame size/frame rate and Movie quality.

The option currently selected is shown by an icon in the display.

❚❚ Slow-Motion Movies To record silent slow-motion movies, select a “slow-mo” option for Frame size/frame rate. Slow-motion movies are recorded at 4 or 5 times the rated speed and play back at the rated speed. Movies shot at 1920 × 1080; 30p ×4 (slow-mo), for example, are recorded at a frame rate of roughly 120 fps and play back at around 30 fps, meaning that 10 seconds recording produces about 40 seconds of footage. Approximately 10 s Recording

Playback Approximately 40 s

Recording and playback speeds are shown below. Frame size/frame rate

A 1920 × 1080; 30p ×4 (slow-mo) 120p (119.88 fps) 30p (29.97 fps) 25p (25 fps) B 1920 × 1080; 25p ×4 (slow-mo) 100p (100 fps) C 1920 × 1080; 24p ×5 (slow-mo) 120p (119.88 fps) 24p (23.976 fps) D Slow-Motion Movies Features such as flicker reduction, electronic vibration reduction, and time code output cannot be used when a “slow-mo” option is selected.

Microphone Sensitivity Turn the built-in or external microphones on or off or adjust microphone sensitivity. Choose bA to adjust sensitivity automatically or Microphone off to turn sound recording off or adjust microphone sensitivity manually by choosing a value between b1 and b20 (the higher the value, the higher the sensitivity). At settings other than bA, the option currently selected is shown by an icon in the display.

If the sound level is displayed in red, the volume is too high. Reduce microphone sensitivity.

D The 2 Icon Movies recorded with the microphone off are indicated by a 2 icon in full-frame and movie playback.

Choose Image Area Choose the size of the area on the image sensor used to record movies. Select FX to shoot movies in what is referred to as “FXbased movie format”, DX to shoot in “DX-based movie format”. The differences between the two formats are shown in the illustration.

FX DX The dimensions of the area recorded vary with the frame size: Format

FX-based movie format DX-based movie format

3840 × 2160 1920 × 1080 3840 × 2160 1920 × 1080

Area recorded (approximate) Z7 Z6 35.9 × 20.2 mm 35.8 × 20.1 mm 35.9 × 20.1 mm 23.4 × 13.2 mm 23.5 × 13.2 mm 23.4 × 13.1 mm

The option currently selected is shown by an icon in the display.

Metering Choose how the camera sets exposure in movie mode. For more information, see “Metering” (0 108), but note that spot metering is not available.

Wi-Fi Connection Enable or disable Wi-Fi. For more information, see “Wi-Fi Connection” (0 109).

Active D-Lighting Choose an Active D-Lighting option for movie mode. For more information, see “Active D-Lighting” (0 110). Note that if Same as photo settings is selected for Active D-Lighting in the movie shooting menu and Auto is selected in the photo shooting menu, movies will be shot at a setting equivalent to Normal.

Electronic VR Select On to enable electronic vibration reduction in movie mode. Electronic vibration reduction is not available at frame sizes of 1920 × 1080; 120p, 1920 × 1080; 100p, or 1920 × 1080 (slow-mo). Note that when electronic vibration reduction is on, the angle of view will be reduced, slightly increasing the apparent focal length, and the maximum sensitivity for movie recording is fixed at ISO 25600 (Z 7) or 51200 (Z 6). An icon appears in the display while On is selected.

Vibration Reduction Choose vibration reduction option for movie mode. For more information, see “Vibration Reduction” (0 112).

AF-Area Mode Choose how the camera selects the focus point when autofocus is enabled in movie mode. For more information, see “AF-Area Mode” (0 55, 113). Option

d Single-point AF f Wide-area AF (S)

h Auto-area AF Focus Mode Choose how the camera focuses in movie mode. For more information, see “Choosing a Focus Mode” (0 53). Option

AF-S Single AF AF-C Continuous AF Option

AF-F Full-time AF MF Manual focus

Menu List This section lists the options available in the camera menus. A Camera Menus More information on camera menus is available in a Reference Manual, available for download from: Z 7: https://downloadcenter.nikonimglib.com/en/products/ 492/Z_7.html Z 6: https://downloadcenter.nikonimglib.com/en/products/ 493/Z_6.html You can also consult the online manual, located at: https://onlinemanual.nikonimglib.com/z7_z6/en-nsg/

D The Playback Menu: Managing Images Delete Selected Select date All Playback folder (Folder name) All Current

Delete multiple images.

(defaults to All) Choose a folder for playback.

Playback display options Add info Focus point Additional photo info Exposure info Highlights RGB histogram Shooting data Overview None (image only) Image review On On (monitor only) Off After delete Show next Show previous Continue as before After burst, show First image in burst Last image in burst Rotate tall On Off Slide show Start Image type Frame interval Rating

Choose the information available in the playback photo information display.

(defaults to Off) Choose whether pictures are displayed automatically immediately after shooting. (defaults to Show next) Choose the picture displayed after an image is deleted. (defaults to Last image in burst) Choose whether the camera displays the first or the last photo in the burst after photos are taken in continuous release mode. (defaults to On) Choose whether to rotate “tall” (portrait-orientation) pictures for display during playback. View a slide show of the pictures in the current playback folder.

Rate selected images.

C The Photo Shooting Menu: Shooting Options Reset photo shooting menu Yes No Storage folder Rename Select folder by number Select folder from list File naming File naming

Choose image area FX (36 × 24) DX (24 × 16) 5 : 4 (30 × 24) 1 : 1 (24 × 24) 16 : 9 (36 × 20)

Select Yes to reset photo shooting menu options to their default values. Select the folder in which subsequent pictures will be stored.

Choose the three-letter prefix used in naming the image files in which photographs are stored. The default prefix is “DSC”. (defaults to FX (36 × 24)) Choose the image area (crop) for photos. 5 : 4 (30 × 24) is available with the Z 7 only.

Image quality NEF (RAW) + JPEG finem NEF (RAW) + JPEG fine NEF (RAW) + JPEG normalm NEF (RAW) + JPEG normal NEF (RAW) + JPEG basicm NEF (RAW) + JPEG basic NEF (RAW) JPEG finem JPEG fine JPEG normalm JPEG normal JPEG basicm JPEG basic TIFF (RGB) Image size JPEG/TIFF NEF (RAW) NEF (RAW) recording NEF (RAW) compression NEF (RAW) bit depth ISO sensitivity settings ISO sensitivity Auto ISO sensitivity control

(defaults to JPEG normal) Choose a file format and compression ratio (image quality). The compression for options indicated by a star (“m”) prioritizes quality, while that for images without a star gives priority to reducing file size.

Choose the image size, in pixels. Separate options are available for JPEG/ TIFF and for NEF (RAW) images. Choose the type of compression and the bit depth for NEF (RAW) images. Adjust ISO sensitivity settings for photographs.

White balance Auto Natural light auto Direct sunlight Cloudy Shade Incandescent Fluorescent Flash Choose color temperature Preset manual

(defaults to Auto) Match white balance to the light source.

D Text Entry A keyboard is displayed when text entry is required. Tap letters on the screen (to cycle through the upper- and lower-case and symbol keyboards, tap the keyboard selection button) or use the multi selector to highlight characters and press J to insert them at the current cursor position (note that if a character is entered when the field is full, the last character in the field will be deleted). To delete the character under the cursor, press the O button. To move the cursor to a new position, tap the display or rotate the main command dial. To complete entry and return to the previous menu, press X. To exit without completing text entry, press G. Text display area

(defaults to Auto) Choose how new photos will be processed. Select according to the type of scene or your creative intent.

Manage Picture Control Save/edit Rename Delete Load/save Color space sRGB Adobe RGB Active D-Lighting Auto Extra high High Normal Low Off Long exposure NR On Off High ISO NR High Normal Low Off Vignette control High Normal Low Off Diffraction compensation On Off

Create custom Picture Controls.

(defaults to sRGB) Choose a color space for photographs. (defaults to Off) Preserve details in highlights and shadows, creating photographs with natural contrast.

(defaults to Off) Reduce “noise” (bright spots or fog) in photos taken at slow shutter speeds. (defaults to Normal) Reduce “noise” (randomly-spaced bright pixels) in photos taken at high ISO sensitivities. (defaults to Normal) Reduce the drop in brightness at the edges of photographs. The effect is most noticeable at maximum aperture. (defaults to On) Reduce the effects of diffraction in photos taken at small apertures (high f/-numbers).

Auto distortion control On

Flicker reduction shooting On Off Metering Matrix metering Center-weighted metering Spot metering Highlight-weighted metering Flash control Flash control mode Wireless flash options Remote flash control Radio remote flash info Flash mode Fill flash Red-eye reduction Slow sync + red-eye Slow sync Rear-curtain sync Flash off Flash compensation −3.0 – +1.0

(defaults to On) Reduce barrel distortion when shooting with wide-angle lenses and reduce pincushion distortion when shooting with long lenses (note that On may be selected automatically with some lenses, in which case the Auto distortion control option will be grayed out and unavailable). (defaults to Off) Reduce the effects of flicker under fluorescent or mercury vapor lighting. (defaults to Matrix metering) Choose how the camera meters light levels to set exposure.

Choose a flash control mode for optional flash units and adjust settings for remote wireless flash units. The options available vary with the flash unit or accessory used. (defaults to Fill flash) Choose the flash mode.

(defaults to 0.0) Adjust flash compensation.

Focus mode Single AF Continuous AF Manual focus AF-area mode Pinpoint AF Single-point AF Dynamic-area AF Wide-area AF (S) Wide-area AF (L) Auto-area AF Vibration reduction On Normal Sport Off Auto bracketing Auto bracketing set Number of shots Increment Amount Multiple exposure Multiple exposure mode Number of shots Overlay mode Keep all exposures Overlay shooting Select first exposure (NEF) HDR (high dynamic range) HDR mode Exposure differential Smoothing Save individual images (NEF)

(defaults to Single AF) Choose how the camera focuses.

(defaults to Single-point AF) Choose how the camera selects the focus point for autofocus.

Reduce blur caused by camera shake. The options available vary with the lens.

Adjust auto bracketing settings.

Record from two to ten NEF (RAW) exposures as a single photograph.

Preserve details in highlights and shadows when photographing highcontrast scenes.

Interval timer shooting Start Choose start day/time Interval Intervals×shots/interval Exposure smoothing Silent photography Interval priority Starting storage folder Time-lapse movie Start Interval Shooting time Exposure smoothing Silent photography Choose image area Frame size/frame rate Interval priority Focus shift shooting Start No. of shots Focus step width Interval until next shot First-frame exposure lock Peaking stack image Silent photography Starting storage folder Silent photography On Off

Take photographs at the selected interval until the specified number of shots has been recorded.

The camera automatically takes photos at selected intervals to create a silent time-lapse movie.

Automatically vary focus over a series of photographs.

(defaults to Off) Eliminate the sound of the shutter.

1 The Movie Shooting Menu: Movie Shooting Options Reset movie shooting menu Yes No File naming

Choose image area FX DX Frame size/frame rate 3840×2160; 30p 3840×2160; 25p 3840×2160; 24p 1920×1080; 120p 1920×1080; 100p 1920×1080; 60p 1920×1080; 50p 1920×1080; 30p 1920×1080; 25p 1920×1080; 24p 1920×1080; 30p ×4 (slow-mo) 1920×1080; 25p ×4 (slow-mo) 1920×1080; 24p ×5 (slow-mo)

Select Yes to reset movie shooting menu options to their default values. Choose the three-letter prefix used in naming the image files in which movies are stored. The default prefix is “DSC”. (defaults to FX) Choose the image area (crop) for movies. (defaults to 1920×1080; 60p) Choose movie frame size (measured in pixels) and frame rate.

Movie quality High quality Normal Movie file type MOV MP4 ISO sensitivity settings Maximum sensitivity Auto ISO control (mode M) ISO sensitivity (mode M) White balance Same as photo settings Auto Natural light auto Direct sunlight Cloudy Shade Incandescent Fluorescent Choose color temperature Preset manual

(defaults to High quality) Choose movie quality. (defaults to MOV) Choose the movie file type.

Adjust ISO sensitivity settings for movies. (defaults to Same as photo settings) Choose the white balance for movies. Select Same as photo settings to use the option currently selected for photos.

Set Picture Control Same as photo settings Auto Standard Neutral Vivid Monochrome Portrait Landscape Flat Dream Morning Pop Sunday Somber Dramatic Silence Bleached Melancholic Pure Denim Toy Sepia Blue Red Pink Charcoal Graphite Binary Carbon

(defaults to Same as photo settings) Choose a Picture Control for movies. Select Same as photo settings to use the option currently selected for photos.

Manage Picture Control Save/edit Rename Delete Load/save Active D-Lighting Same as photo settings Extra high High Normal Low Off High ISO NR High Normal Low Off Vignette control Same as photo settings High Normal Low Off Diffraction compensation On Off

Create custom Picture Controls.

(defaults to Off) Preserve details in highlights and shadows, creating movies with natural contrast. Select Same as photo settings to use the option currently selected for photos. (defaults to Normal) Reduce “noise” (randomly-spaced bright pixels) in movies recorded at high ISO sensitivities. (defaults to Normal) Reduce the drop in brightness at the edges of the frame. Select Same as photo settings to use the option currently selected for photos. (defaults to On) Reduce the effects of diffraction in movies taken at small apertures (high f/-numbers).

Auto distortion control On

Flicker reduction Auto 50 Hz 60 Hz Metering Matrix metering Center-weighted metering Highlight-weighted metering Focus mode Single AF Continuous AF Full-time AF Manual focus AF-area mode Single-point AF Wide-area AF (S) Wide-area AF (L) Auto-area AF Vibration reduction Same as photo settings On Normal Sport Off

(defaults to On) Reduce barrel distortion when shooting with wide-angle lenses and reduce pincushion distortion when shooting with long lenses (note that On may be selected automatically with some lenses, in which case the Auto distortion control option will be grayed out and unavailable). (defaults to Auto) Reduce flicker and banding caused by fluorescent or mercury-vapor lighting during movie recording. (defaults to Matrix metering) Choose how the camera meters light levels to set exposure when filming movies. (defaults to Full-time AF) Choose how the camera focuses.

(defaults to Auto-area AF) Choose how the camera selects the focus point for autofocus.

(defaults to Same as photo settings) Reduce blur caused by camera shake. The options available vary with the lens. Select Same as photo settings to use the option currently selected for photos.

Electronic VR On Off Microphone sensitivity Auto Manual Microphone off Attenuator Enable Disable Frequency response Wide range Vocal range Wind noise reduction On Off Headphone volume 0–30 Timecode Record timecodes Count-up method Timecode origin Drop frame

(defaults to Off) Choose whether to enable electronic vibration reduction in movie mode. (defaults to Auto) Turn the built-in or external microphones on or off or adjust microphone sensitivity. (defaults to Disable) Reduce microphone gain and prevent audio distortion when recording movies in loud environments. (defaults to Wide range) Choose the frequency response for the built-in and external microphones. (defaults to Off) Choose whether to enable the built-in microphone’s low-cut filter to reduce wind noise. (defaults to 15) Adjust volume for third-party headphones. Adjust time code settings and choose whether to record time codes with movies.

A Custom Settings: Fine-Tuning Camera Settings Reset custom settings Yes No a Autofocus a1 AF-C priority selection Release Focus a2 AF-S priority selection Release Focus a3 Focus tracking with lock-on Blocked shot AF response

a4 Auto-area AF face detection On Off a5 Focus points used All points Every other point a6 Store points by orientation Yes No

Select Yes to reset Custom Settings to their default values. (defaults to Release) Choose whether photos can be taken before the camera has focused in focus mode AF-C. (defaults to Focus) Choose whether photos can be taken before the camera has focused in focus mode AF-S. (defaults to 3) Choose how autofocus responds to changes in the distance to the subject in focus mode AF-C. (defaults to On) Choose whether the camera detects and focuses on faces in auto-area AF AFarea mode. (defaults to All points) Choose the number of focus points available for manual focus-point selection. (defaults to No) Choose whether the camera stores the focus points for “tall” and “wide” orientations separately.

(defaults to Shutter/AF-ON) Choose whether the camera focuses when the shutter-release button is pressed halfway. If AF-ON only is selected, the camera will not focus when the shutter-release button is pressed halfway. Choose the options that can be selected by rotating the sub-command dial when AF-area mode is assigned to the i menu or a camera control.

(defaults to No wrap) Choose whether focus-point selection “wraps around” from one edge of the display to another. Adjust settings for the focus-point display. (defaults to Off) Choose On for more accurate (if sometimes slower) focus in low light when AF-S is selected for focus mode. (defaults to On) Choose whether the AF-assist illuminator lights to assist focus when lighting is poor.

a13 Manual focus ring in AF mode Enable Disable b Metering/exposure b1 EV steps for exposure cntrl 1/3 step 1/2 step b2 Easy exposure compensation On (Auto reset) On Off b3 Center-weighted area  12 mm Average b4 Fine-tune optimal exposure Matrix metering Center-weighted metering Spot metering Highlight-weighted metering c Timers/AE lock c1 Shutter-release button AE-L On (half press) On (burst mode) Off c2 Self-timer Self-timer delay Number of shots Interval between shots

(defaults to Enable) This option is available with compatible lenses. Select Disable to prevent the focus ring being used for focus in autofocus mode. (defaults to 1/3 step) Select the size of the increment for adjustments to shutter speed, aperture, ISO sensitivity, and exposure and flash bracketing and compensation. (defaults to Off) Choose whether exposure compensation can be adjusted solely by rotating a command dial, without pressing the E button. (defaults to  12 mm) Choose the size of the area given the most weight in center-weighted metering. Fine-tune exposure for each metering method. Higher values produce brighter exposures, lower values darker exposures.

(defaults to Off) Choose whether exposure locks when the shutter-release button is pressed.

Choose the length of the shutter release delay, the number of shots taken, and the interval between shots in self-timer mode.

c3 Power off delay Playback Menus Image review Standby timer d Shooting/display d1 CL mode shooting speed 5 fps–1 fps

Choose how long the control panel and camera displays remain on when no operations are performed.

(defaults to 3 fps) Choose the frame advance rate for lowspeed continuous release mode. d2 Max. continuous release (defaults to 200) 1–200 Choose the maximum number of shots that can be taken in a single burst in continuous release modes. d3 Sync. release mode options (defaults to Sync) Sync Choose whether the shutter releases on remote cameras synchronize with the No sync shutter release on the master camera. d4 Exposure delay mode (defaults to Off) 3 s–0.2 s, Off In situations in which the slightest camera movement can blur pictures, shutter release can be delayed until approximately 0.2 to 3 seconds after the shutter-release button is pressed. d5 Electronic front-curtain shutter (defaults to Disable) Enable Enable the electronic front-curtain to eliminate blur caused by the motion of Disable the mechanical shutter. d6 Limit selectable image area FX (36 × 24) Choose the options available when image-area selection is assigned to the DX (24 × 16) i menu or to the command dials and a 5 : 4 (30 × 24) camera control. 5 : 4 (30 × 24) is 1 : 1 (24 × 24) available with the Z 7 only. 16 : 9 (36 × 20)

d7 File number sequence On Off Reset d8 Apply settings to live view On Off d9 Framing grid display On Off d10 Peaking highlights Peaking level Peaking highlight color d11 View all in continuous mode On Off e Bracketing/flash e1 Flash sync speed 1/200 s (Auto FP)–1/60 s e2 Flash shutter speed 1/60 s–30 s e3 Exposure comp. for flash Entire frame Background only

(defaults to On) Choose how the camera assigns file numbers. (defaults to On) When On is selected, the effects of camera settings on color and brightness can be previewed in the viewfinder or monitor shooting display. (defaults to Off) Choose On to display a grid for reference when framing shots. Adjust settings for the manual focus peaking display, which uses outlines to show objects that are in focus. (defaults to On) If Off is selected, the display will go blank during burst photography. (defaults to 1/200 s) Choose a flash sync speed. (defaults to 1/60 s) Choose the slowest shutter available when the flash is used in modes P and A. (defaults to Entire frame) Choose how the camera adjusts flash level when exposure compensation is used.

e4 Auto c ISO sensitivity control Subject and background Subject only e5 Modeling flash On Off e6 Auto bracketing (mode M) Flash/speed Flash/speed/aperture Flash/aperture Flash only e7 Bracketing order MTR > under > over Under > MTR > over

(defaults to Subject and background) Choose whether auto ISO sensitivity control for flash photography is adjusted to correctly expose both the subject and background or the main subject only. (defaults to On) Choose On to preview lighting effects when using optional flash units compatible with the Nikon Creative Lighting System. (defaults to Flash/speed) Choose the settings affected when exposure and/or flash bracketing is enabled in mode M. (defaults to MTR > under > over) Choose the bracketing order for exposure, flash, and white balance bracketing.

D Fixing Shutter Speed at the Flash Sync Speed Limit To fix shutter speed at the sync speed limit in mode S or M, choose a speed one setting slower than the slowest speed possible (30 s or Time). A flash sync indicator (“X”) will appear in the display and control panel together with the flash sync speed.

D Auto FP High-Speed Sync Auto FP high-speed sync allows the flash to be used at the highest shutter speed supported by the camera, making it possible to choose the maximum aperture for reduced depth of field even in bright sunlight. The flash information display shows “FP” when 1/200 s (Auto FP) is selected.

f Controls f1 Customize i menu Choose image area Image quality Image size Exposure compensation ISO sensitivity settings White balance Set Picture Control Color space Active D-Lighting Long exposure NR High ISO NR Metering Flash mode Flash compensation Focus mode AF-area mode Vibration reduction Auto bracketing Multiple exposure HDR (high dynamic range) Silent photography Release mode Custom control assignment Exposure delay mode Electronic front-curtain shutter Apply settings to live view Split-screen display zoom Peaking highlights Monitor/viewfinder brightness Bluetooth connection Wi-Fi connection

Choose the functions performed by camera controls in photo mode.

Choose the role assigned to the J button during shooting (photo mode) and playback. Lock shutter speed at the value currently selected in mode S or M, or aperture at the value currently selected in mode A or M. Customize the operation of the main and sub-command dials.

(defaults to No) Selecting Yes allows adjustments that are normally made by holding a button and rotating a command dial to be made by rotating the command dial after the button is released. (defaults to ) Choose whether the exposure indicator is displayed with positive values at the right and negative values at the left or vice-versa.

g Movie g1 Customize i menu Choose image area Frame size and rate/Image quality Exposure compensation ISO sensitivity settings White balance Set Picture Control Active D-Lighting Metering Focus mode AF-area mode Vibration reduction Electronic VR Microphone sensitivity Attenuator Frequency response Wind noise reduction Headphone volume Peaking highlights Highlight display Monitor/viewfinder brightness Bluetooth connection Wi-Fi connection g2 Custom control assignment Fn1 button Fn2 button AF-ON button Sub-selector center Shutter-release button Lens control ring

Choose the options displayed in the i menu for movie mode.

Choose the functions performed by camera controls in movie mode. Note that if Record movies is selected for Shutter-release button, the shutterrelease button cannot be used for any operation other than recording movies.

g3 OK button Select center focus point Zoom on/off Record movies None g4 AF speed −5 – +5 When to apply g5 AF tracking sensitivity 1–7 g6 Highlight display Display pattern Highlight display threshold

(defaults to Select center focus point) Choose the role assigned to the J button in movie mode.

Choose the focus speed for movie mode. (defaults to 4) Choose the speed of the focus response in movie mode. Choose how highlights (bright areas of the frame) are shown in movie mode.

B The Setup Menu: Camera Setup Format memory card Select Yes to format the memory card. Note that formatting permanently deletes all pictures and other data on the card. Be sure to make backup copies before formatting. Save user settings Save to U1 Save to U2 Save to U3 Reset user settings Reset U1 Reset U2 Reset U3

Save current settings to the selected mode dial position.

Reset settings for the selected mode dial position to default values.

Language Choose a language for camera menus and messages. The languages available vary with the country or region in which the camera was originally purchased. Time zone and date Time zone Date and time Date format Daylight saving time Monitor brightness −5 – +5 Monitor color balance Viewfinder brightness Auto Manual Viewfinder color balance Control panel brightness Auto Manual Off Limit monitor mode selection Automatic display switch Viewfinder only Monitor only Prioritize viewfinder Information display Dark on light Light on dark

Set the camera clock.

(defaults to 0) Adjust monitor brightness. Adjust monitor color balance. (defaults to Auto) Adjust viewfinder brightness.

Adjust viewfinder color balance. (defaults to Auto) Adjust control panel brightness.

Choose the monitor modes that can be selected using the monitor mode button. (defaults to Dark on light) Adjust the information display for different viewing conditions.

AF fine-tune AF fine-tune (On/Off) Saved value Default List saved values Non-CPU lens data Lens number Focal length (mm) Maximum aperture Clean image sensor Clean now Automatic cleaning Image Dust Off ref photo Start Clean sensor and then start Image comment Attach comment Input comment Copyright information Attach copyright information Artist Copyright Beep options Beep on/off Volume Pitch Touch controls Enable/disable touch controls Full-frame playback flicks

Fine-tune focus for different lens types. Use only when required.

Record information on non-CPU lenses attached via a mount adapter.

Vibrate the image sensor to remove dust. Acquire reference data for the Image Dust Off option in Capture NX-D. Add a comment to new pictures as they are taken. Comments can be viewed as metadata in ViewNX-i or Capture NX-D. Add copyright information to new pictures as they are taken. Copyright information can be viewed as metadata in ViewNX-i or Capture NX-D. Choose the pitch and volume of beeps made by the camera.

Adjust touch control settings.

HDMI Output resolution Advanced Output range External recording control Output data depth N-Log setting View assist Location data Standby timer Position Set clock from satellite Wireless remote (WR) options LED lamp Link mode Assign remote (WR) Fn button AF-ON AF lock only AE lock (Reset on release) AE lock only AE/AF lock FV lock c Disable/enable Preview + NEF (RAW) None

Adjust settings for connection to HDMI devices.

Adjust location data settings.

Adjust LED lamp and link mode settings for optional wireless remote controllers. (defaults to None) Choose the role played by the Fn button on optional wireless remote controllers.

Airplane mode Enable

Connect to smart device Pairing (Bluetooth) Select to send (Bluetooth) Wi-Fi connection Send while off Connect to PC Wi-Fi connection Connection type Network settings Options MAC address

(defaults to Disable) Select Enable to disable the camera’s built-in Bluetooth and Wi-Fi functions. The Bluetooth and Wi-Fi functions of optional peripheral devices connected to the camera can only be disabled by disconnecting the devices. Connect to a smart phone or tablet and adjust settings once connected. See SnapBridge online help or the Network Guide. Adjust settings for connection to computers using the camera’s built-in Wi-Fi. For more information, see the Network Guide.

A Wireless Connections For information on establishing wireless connections to computers or smart devices, see the Network Guide, available from the Nikon Download Center: Z 7: https://downloadcenter.nikonimglib.com/en/products/ 492/Z_7.html Z 6: https://downloadcenter.nikonimglib.com/en/products/ 493/Z_6.html

Wireless transmitter (WT-7) Wireless transmitter Choose hardware Network settings Options

Adjust settings for connection to computers or ftp servers via wireless or Ethernet networks using an optional WT-7 wireless transmitter. This option is available only when a WT-7 is connected.

Conformity marking View some of the standards with which the camera complies. Battery info

Slot empty release lock Release locked Enable release Save/load settings Save settings Load settings Reset all settings Reset Do not reset

View information on the battery currently inserted in the camera. (defaults to Enable release) Choose whether the shutter can be released when no memory card is inserted. Save camera settings to or load camera settings from a memory card. Settings files can be shared with other cameras of the same model. Reset all settings except Language and Time zone and date to their default values.

Firmware version View the current camera firmware version.

D “Reset All Settings” Copyright information and other user-generated entries are also reset. We recommend that you save settings using the Save/load settings option in the setup menu before performing a reset.

N The Retouch Menu: Creating Retouched Copies NEF (RAW) processing Select image(s) Select date Select all images Trim

Create JPEG copies of NEF (RAW) photographs.

Create a cropped copy of the selected photograph. Resize Select image(s) Choose size D-Lighting

Create small copies of selected photographs. Brighten shadows.

Red-eye correction Correct “red-eye” in photos taken with a flash. Straighten Create straightened copies. Copies can be straightened by up to 5° in increments of approximately 0.25°. Distortion control Auto Manual

Reduce barrel distortion in photos taken with wide-angle lenses or pincushion distortion in photos taken with telephoto lenses. Select Auto to let the camera correct distortion automatically.

Perspective control Reduce the effects of perspective in photos taken looking up from the base of a tall object.

Image overlay Combine two existing NEF (RAW) photos to create a single picture that is saved separately from the originals. This option is only available in the N tab. Trim movie Trim footage to create edited copies of movies. Side-by-side comparison Compare retouched copies to the originals. This option is only available if the retouch menu is displayed by pressing i and selecting Retouch in full-frame playback when a retouched image or original is displayed.

O My Menu/m Recent Settings Add items PLAYBACK MENU PHOTO SHOOTING MENU MOVIE SHOOTING MENU CUSTOM SETTING MENU SETUP MENU RETOUCH MENU Remove items

Create a custom menu of up to 20 items selected from the playback, photo shooting, movie shooting, Custom Setting, setup, and retouch menus.

Delete items from My Menu. Rank items

Choose tab MY MENU RECENT SETTINGS

Troubleshooting You may be able to resolve any issues with the camera by following the steps below. Check this list before consulting your retailer or Nikon-authorized service representative.

Check the common problems listed in the following sections: • “Problems and Solutions” (0 158) • “Indicators and Error Messages” (0 164)

Turn the camera off and remove the battery. After waiting for about a minute, re-insert the battery and turn the camera on. D If you have just finished shooting, wait at least a minute before removing the battery, as the camera may still be writing data to the memory card.

Search Nikon websites. For support information and answers to frequently asked questions, visit the website for your country or region (0 xxii). To download the latest firmware for your camera, visit: https://downloadcenter.nikonimglib.com

Consult a Nikon-authorized service representative.

STEP STEP D Restoring Default Settings Depending on current settings, some menu items and other features may be unavailable. To access menu items that are grayed out or features that are otherwise unavailable, try restoring default settings using the Reset all settings item in the setup menu (0 153). Note, however, that wireless network profiles, copyright information, and other user-generated entries will also be reset. We recommend that you save settings using the Save/load settings option in the setup menu before performing a reset.

Problems and Solutions Solutions to some common issues are listed below.

Battery/Display The camera is on but does not respond: Wait for recording to end. If the problem persists, turn the camera off. If the camera does not turn off, remove and reinsert the battery or, if you are using an AC adapter, disconnect and reconnect the AC adapter. Note that although any data currently being recorded will be lost, data that have already been recorded will not be affected by removing or disconnecting the power source. The viewfinder or monitor does not turn on: Choose a different monitor mode using the monitor mode button. The viewfinder is out of focus: Rotate the diopter adjustment control to focus the viewfinder. If this does not correct the problem, select AF-S, singlepoint AF, and the center focus point, and then frame a high-contrast subject in the center focus point and press the shutter-release button halfway to focus the camera. With the camera in focus, use the diopter adjustment control to bring the subject into clear focus in the viewfinder. The displays turn off without warning: Choose longer delays for Custom Setting c3 (Power off delay). The control panel is unresponsive and dim: Control panel response times and brightness vary with temperature.

Shooting The camera takes time to turn on: Delete files or folders. The shutter-release is disabled: • The memory card is full. • Release locked is selected for Slot empty release lock in the setup menu and no memory card is inserted. • Mode S selected with Bulb or Time chosen for shutter speed. The camera is slow to respond to the shutter-release button: Select Off for Custom Setting d4 (Exposure delay mode). Only one shot is taken each time the shutter-release button is pressed in continuous release modes: Turn HDR off. Photos are out of focus: To focus using autofocus, select AF-S, AF-C, or AF-F for focus mode. If the camera is unable to focus using autofocus (0 54), use manual focus or focus lock. Beeps do not sound: • Off is selected for Beep options > Beep on/off in the setup menu. • AF-C is selected for focus mode. • On is selected for Silent photography in the photo shooting menu. The full range of shutter speeds is not available: A flash in use. Flash sync speed can be selected using Custom Setting e1 (Flash sync speed); when using compatible flash units, choose 1/200 s (Auto FP) to access the full range of shutter speeds. Focus does not lock when the shutter-release button is pressed halfway: When AF-C is selected for focus mode, focus can be locked by pressing the center of the sub-selector. The focus point cannot be changed: Focus-point selection is unavailable in auto-area AF; choose another AF-area mode. The camera is slow to record photos: Turn long exposure noise reduction off.

Photographs and movies do not appear to have the same exposure as the preview shown in the display: To preview the effects of changes to settings that affect exposure and color, select On for Custom Setting d8 (Apply settings to live view). Note that changes to Monitor brightness and Viewfinder brightness have no effect on images recorded with the camera. Flicker or banding appears in movie mode: Select Flicker reduction in the movie shooting menu and choose an option that matches the frequency of the local AC power supply. Bright regions or bands appear in the view through the lens: The shot is being framed under flashing sign, flash, or other light source with brief duration. Smudges appear in photographs: Clean the front and rear lens elements. If the problem persists, perform image sensor cleaning. Shooting ends unexpectedly or does not start: Shooting may end automatically to prevent damage to the camera’s internal circuits if the ambient temperature is high or the camera has been used extensively for burst shooting, movie recording, or the like. If you are unable to shoot because the camera has overheated, wait for the internal circuits to cool and then try again. Note that the camera may feel warm to the touch, but this does not indicate a malfunction. Image artifacts appear in the display during shooting: “Noise” (randomly-spaced bright pixels, fog, or lines) and unexpected colors may appear if you zoom in on the view through the lens. Randomly-spaced bright pixels, fog, or bright spots may also arise as a result of increases in the temperature of the camera’s internal circuits during shooting; turn the camera off when it is not in use. At high ISO sensitivities, noise may become more noticeable in long exposures or in pictures recorded when the camera temperature is elevated. Note that the distribution of noise in the display may differ from that in the final picture. To reduce noise, adjust settings such as ISO sensitivity, shutter speed, or Active D-Lighting.

The camera cannot measure white balance: The subject is too dark or too bright. Images cannot be selected as source for preset white balance: The images in question were created with a different model of camera. White balance bracketing is unavailable: • An NEF (RAW) or NEF+JPEG image quality option is selected for image quality. • Multiple exposure shooting is on. The effects of Picture Controls differ from image to image: Auto is selected for Set Picture Control, a Picture Control based on Auto is selected, or A (auto) is selected for Quick sharp, contrast, or saturation. For consistent results over a series of photographs, choose another setting. Metering cannot be changed: Autoexposure lock is in effect. Exposure compensation cannot be used: Choose mode P, S, or A. Noise (colored splotches or other artifacts) appears in long time-exposures: Enable long exposure noise reduction. The AF-assist illuminator does not light: • Select On for Custom Setting a12 (Built-in AF-assist illuminator). • The illuminator does not light in movie mode or when AF-C or MF is selected for focus mode. Sound is not recorded with movies: Microphone off is selected for Microphone sensitivity in the movie shooting menu.

Playback NEF (RAW) images are not played back: The pictures were taken at image qualities of NEF + JPEG. The camera does not display pictures recorded with other cameras: Pictures recorded with other makes of camera may not be displayed correctly. Some photos are not displayed during playback: Select All for Playback folder. “Tall” (portrait) orientation photos are displayed in “wide” (landscape) orientation: • Select On for Rotate tall in the playback menu. • The photos are displayed in image review. • The camera was pointed up or down when photo was taken.

Pictures cannot be deleted: The pictures are protected. Remove protection. Pictures cannot be retouched: The picture cannot be edited with this camera. The camera displays a message stating that the folder contains no images: Select All for Playback folder. Pictures cannot be printed: NEF (RAW) and TIFF photos cannot be printed by direct USB connection. Transfer the photos to a computer and print them using Capture NX-D. NEF (RAW) photos can be saved in JPEG format using the NEF (RAW) processing option in the retouch menu. Pictures are not displayed on HDMI devices: Confirm that an HDMI cable (available separately) is connected. Output to HDMI devices does not function as expected: • Check that the HDMI cable is correctly connected. • Select Off for HDMI > Advanced > External recording control in the setup menu. • Check again after selecting Reset all settings in the setup menu. The Image Dust Off option in Capture NX-D does not have desired effect: Image sensor cleaning changes the position of dust on the image sensor. Dust off reference data recorded before image sensor cleaning is performed cannot be used with photographs taken after image sensor cleaning is performed; similarly, dust off reference data recorded after image sensor cleaning is performed cannot be used with photographs taken before image sensor cleaning is performed. Computers do not display NEF (RAW) images the same way as the camera does: Thirdparty software does not display effects of Picture Controls, Active D-Lighting, vignette control, or the like. Use Capture NX-D or ViewNX-i. Pictures cannot be transferred to a computer: The computer operating system is not compatible with the camera or image transfer software. Use a card reader or card slot to copy the pictures to a computer.

Bluetooth and Wi-Fi (Wireless Networks) Smart devices do not display the camera SSID (network name): • Confirm that Disable is selected for Airplane mode in the camera setup menu. • Confirm that Enable is selected for Connect to smart device > Pairing (Bluetooth) > Bluetooth connection in the camera setup menu. • Try turning the smart device Wi-Fi off and then on again. The camera cannot connect to wireless printers and other wireless devices: This camera can connect only to computers and smart devices.

Miscellaneous The date of recording is not correct: The camera clock is less accurate than most watches and household clocks. Check the clock regularly against more accurate timepieces and reset as necessary. Some menu items cannot be selected: Some options are not available at certain combinations of settings or when no memory card is inserted.

Indicators and Error Messages This section lists the indicators and error messages that appear in the control panel and camera display.

Indicators The following indicators appear in the control panel and/or camera display: Indicator Camera Control display panel

F–– Bulb (flashes) Time (flashes) Busy (flashes)

Solution Ready a fully-charged spare Low battery. battery. Battery exhausted. Recharge or replace battery. Battery cannot be used. Battery info Contact Nikon-authorized unavailable. service representative. Battery not supported. Replace with Nikon battery. Battery temperature Remove battery and wait for it high. to cool. Camera unable to focus Change composition or focus using autofocus. manually. Lens is not correctly Ensure that lens is correctly attached. attached. Bulb selected in mode S. Time selected in mode S. Processing in progress.

Change shutter speed or select mode M. Wait until processing is complete.

Indicator Camera Control display panel

Problem Flash has fired at full power; photo may be underexposed.

Solution Check photo in display; if c — underexposed, adjust settings (flashes) and try again. • Decrease ISO sensitivity. • Use optional ND filter. In Subject too bright; mode: photo will be S Increase shutter speed (Exposure overexposed. A Choose a smaller aperture indicators and (higher f-number) shutter speed or aperture display • Increase ISO sensitivity. flash) • Use optional flash. In mode: Subject too dark; photo S Lower shutter speed will be underexposed. A Choose larger aperture (lower f-number) Memory insufficient to • Reduce quality or size. record further pictures • Delete pictures after copying Full at current settings, or important images to (flashes) camera has run out of computer or other device. file or folder numbers. • Insert new memory card. Release shutter. If error persists Err or appears frequently, consult Camera malfunction. (flashes) Nikon-authorized service representative.

Error Messages Error messages in the camera display are sometimes accompanied by indicators in the control panel. Message

Solution Turn camera off and No memory card. confirm that card is correctly inserted. • Use Nikon-approved card. • If error persists after card has been repeatedly Error accessing ejected and reinserted, memory card. card may be damaged. Cannot access this Card, Contact retailer or memory card. Err Nikon-authorized Insert another card. (flashes) service representative. Delete files or insert new memory card after Unable to create copying important new folder. pictures to computer or other device. Memory card has This card is not For not been Format memory card or formatted. (flashes) formatted for use insert new memory card. Format the card. in camera. The internal Wait for the internal Unable to start live temperature of — circuits to cool before view. Please wait. the camera is resuming shooting. high. No viewable Insert memory card pictures on containing viewable memory card. pictures. Folder contains no — No viewable Use Playback folder item images. pictures in in playback menu to select folder(s) selected folder containing for playback. viewable pictures.

Problem Camera cannot [–E–] detect memory card.

Problem File was edited on computer or does not comply with DCF standards, or file is corrupt. Selected picture cannot be retouched.

Solution File cannot be viewed on camera.

Pictures created with other devices cannot be retouched. • Movies created with other devices cannot be This movie cannot Selected movie edited. — be edited. cannot be edited. • Movies must be at least two seconds long. Check printer. To resume, Check printer. — Printer error. select Continue (if available) *. Paper in printer is Insert paper of correct size Check paper. — not of selected and select Continue *. size. Paper is jammed Clear jam and select Paper jam. — in printer. Continue *. Printer is out of Insert paper of selected Out of paper. — paper. size and select Continue *. Check ink. To resume, Check ink supply. — Ink error. select Continue *. Printer is out of Replace ink and select Out of ink. — ink. Continue *. * See printer manual for more information. Cannot select this file.

Technical Notes Read this chapter for information on the camera display, compatible accessories, cleaning and storing the camera, and device specifications.

The Camera Display and Control Panel Refer to this section for information on the indicators in the camera display (monitor and viewfinder) and control panel. For illustrative purposes, the displays are shown with all indicators lit.

The Monitor: Photo Mode The following indicators appear in the monitor in photo mode.

2 4 6 8 10 15 1 3 5 7 9 11 12 13 14 16 17 18 19 20 21

D Temperature Warnings If the camera temperature becomes elevated, a temperature warning will be displayed together with a count-down timer (the timer turns red when the thirty second mark is reached). In some cases, the timer may be displayed immediately after the camera is turned on. When the timer reaches zero, the shooting display will turn off automatically to protect the camera’s internal circuits.

The Monitor: Movie Mode The following indicators appear in the monitor in movie mode.

The Viewfinder: Photo Mode The following indicators appear in the viewfinder in photo mode.

The Viewfinder: Movie Mode The following indicators appear in the viewfinder in movie mode.

1 Shutter-speed lock icon 146 8 Number of exposures remaining 34, 234 2 Shutter speed 70, 71 9 Release mode83 3 Exposure compensation indicator81 10 ISO sensitivity78 Exposure compensation value81 11 Flash compensation indicator.... 130 “Flash off” icon 107 4 Aperture lock icon 146 5 Aperture71 12 Flash sync indicator 144 6 Battery indicator 34 7 “k” (appears when memory remains for over 1000 exposures) 34

The Nikon Creative Lighting System Nikon’s advanced Creative Lighting System (CLS) offers improved communication between the camera and compatible flash units for improved flash photography.

CLS-Compatible Flash Units The following features are available with CLS-compatible flash units: SB-R200

Master Remote Optical Advanced Wireless Lighting

Not available with spot metering. Can also be selected with flash unit. qA/A mode selection performed on flash unit using custom settings. Can only be selected using the camera Flash control option. Available only during close-up photography. Choice of qA and A depends on the option selected with the master flash. Supports the same features as remote flash units with optical AWL. Available only in i-TTL, qA, A, GN, and M flash-control modes. Available only in i-TTL flash control mode or when the flash is set to emit monitor pre-flashes in qA or A flash control mode. 10 Firmware updates for the SB-910 and SB-900 can be performed from the camera.

The SU-800 Wireless Speedlight Commander When mounted on a CLS-compatible camera, the SU-800 can be used as a commander for SB-5000, SB-910, SB-900, SB-800, SB-700, SB-600, SB-500, or SB-R200 flash units in up to three groups. The SU-800 itself is not equipped with a flash.

A Modeling Illumination Pressing the control to which Preview has been assigned using Custom Setting f2 (Custom control assignment) causes CLScompatible flash units to emit a modeling flash. This feature can be used with Advanced Wireless Lighting to preview the total lighting effect achieved with multiple flash units; the effect is best viewed by looking directly at the subject rather than at the camera display. Modeling illumination can be turned off using Custom Setting e5 (Modeling flash).

D Flash Compensation In i-TTL and auto aperture (qA) flash control modes, the flash compensation selected with the optional flash unit or the camera Flash control option is added to the flash compensation selected with the Flash compensation option in the photo shooting menu.

D Other Flash Units The following flash units can be used in non-TTL auto and manual modes. SB-80DX, SB-30, SB-27 1, SB-28DX, SB-28, SB-50DX, SB-23, SB-22S, SB-22, SB-26, SB-25, SB-29, SB-21B, SB-20, SB-16B, SB-24 SB-15 SB-29S Flash mode A Non-TTL auto ✔ — ✔ M Manual ✔ ✔ ✔ G Repeating flash ✔ — — REAR Rear-curtain sync 2 ✔ ✔ ✔ 1 Flash mode is automatically set to TTL and shutter-release is disabled. Set flash unit to A (non-TTL auto flash). 2 Available when camera is used to select flash mode. Flash unit

D Using FV Lock with Optional Flash Units FV lock is available with optional flash units in TTL and (where supported) monitor pre-flash qA and monitor pre-flash A flash control modes (see the manual provided with the flash unit for more information). Note that when Advanced Wireless Lighting is used to control remote flash units, you will need to set the flash control mode for the master or at least one remote group to TTL, qA, or A. The area metered for FV lock is as follows: Flash unit Stand-alone flash unit Used with other flash units (Advanced Wireless Lighting)

Flash mode i-TTL qA i-TTL

qA A Metered area 6-mm circle in center of frame Area metered by flash exposure meter Entire frame Area metered by flash exposure meter

D Notes on Optional Flash Units Refer to the flash unit manual for detailed instructions. If the unit supports CLS, refer to the section on CLS-compatible digital SLR cameras. Note that this camera is not included in the “digital SLR” category in the SB-80DX, SB-28DX, and SB-50DX manuals. i-TTL flash control can be used at ISO sensitivities between 64 and 12800 (Z 7) or between 100 and 12800 (Z 6). At values over 12800, the desired results may not be achieved at some ranges or aperture settings. If the flash-ready indicator (c) flashes for about three seconds after a photograph is taken in i-TTL or non-TTL auto mode, the flash has fired at full power and the photograph may be underexposed (CLScompatible flash units only). When an SC-series 17, 28, or 29 sync cable is used for off-camera flash photography, correct exposure may not be achieved in i-TTL mode. We recommend that you select standard i-TTL fill-flash. Take a test shot and view the results in the camera display. In i-TTL, use the flash panel or bounce adapter provided with the flash unit. Do not use other panels such as diffusion panels, as this may produce incorrect exposure. In mode P, the maximum aperture (minimum f-number) is limited according to ISO sensitivity, as shown below: 64 3.5

If the maximum aperture of the lens is smaller than given above, the maximum value for aperture will be the maximum aperture of the lens. AF-assist illumination is provided by the camera, not the flash unit; the SB-5000, SB-910, SB-900, SB-800, SB-700, SB-600, SB-500, and SB-400 do, however, provide red-eye reduction. Noise in the form of lines may appear in flash photographs taken with an SD-9 or SD-8A high-performance battery pack attached directly to the camera. Reduce ISO sensitivity or increase the distance between the camera and the power pack.

Other Accessories A variety of accessories are available for your Nikon camera. Power sources • EN-EL15b Rechargeable Li-ion Battery: Additional EN-EL15b batteries are available from local retailers and Nikon service representatives. EN-EL15a/EN-EL15 batteries can also be used, but note that you may not be able to take as many pictures on a single charge (0 236). • MH-25a Battery Charger: The MH-25a can be used to recharge EN-EL15b batteries. MH-25 battery chargers can also be used. • EH-7P Charging AC Adapter: The EH-7P can be used to charge EN-EL15b batteries inserted in the camera (the battery only charges when the camera is off ). It cannot be used to charge EN-EL15a/EN-EL15 batteries. • EP-5B Power Connector, EH-5c and EH-5b AC Adapters: These accessories can be used to power the camera for extended periods. The EP-5B is required to connect the camera to the EH-5c/EH-5b; see “Attaching a Power Connector and AC Adapter” (0 189) for details. Filters • Neutral Color (NC) filters can be used to protect the lens. • To prevent ghosting, avoid using filters when the subject is framed against a bright light, or when a bright light source is in the frame. • Center-weighted metering is recommended if matrix metering fails to produce the desired results for filters with exposure factors (filter factors) over 1× (Y44, Y48, Y52, O56, R60, X0, X1, C-PL, ND2S, ND4, ND4S, ND8, ND8S, ND400, A2, A12, B2, B8, B12). See the filter manual for details. • Filters intended for special-effects photography may interfere with autofocus or the in-focus indicator (I). Mount FTZ Mount Adapter (0 226) adapters

Remote cords MC-DC2 Remote Cord (length 1 m/3 ft 4 in.): When connected to the camera accessory terminal, the MC-DC2 can be used to release the shutter remotely. GPS units GP-1/GP-1A GPS Unit: When connected to the camera accessory terminal, existing GP-1/GP-1A units can be used to record the current latitude, longitude, altitude, and UTC (Universal Coordinated Time) with pictures taken with the camera. Note that production of GP-1/ GP-1A units has ended. USB cables • UC-E24 USB cable: A USB cable with a type C connector for connection to the camera. • UC-E25 USB cable: A USB cable with two type C connectors. HDMI cables HC-E1 HDMI Cable: An HDMI cable with a type C connector for connection to the camera and a type A connector for connection to HDMI devices. Accessory shoe BS-1 Accessory Shoe Cover: A cover protecting the accessory covers shoe when no flash unit is attached. Body caps BF-N1 Body Cap: The body cap prevents dust entering the camera when a lens is not in place. Wireless WT-7 Wireless Transmitter: Use the WT-7 to upload pictures transmitters over a wireless network, to control the camera from a computer running Camera Control Pro 2 (available separately), or to take and browse pictures remotely from a computer or smart device. Note: A wireless network and some basic network knowledge is required when using a wireless transmitter. Be sure to update the wireless transmitter software to the latest version.

Wireless remote controllers

Viewfinder eyepiece accessories

• WR-R10 Wireless Remote Controller/WR-T10 Wireless Remote Controller: When a WR-R10 wireless remote controller is attached to the accessory terminal, the camera can be controlled wirelessly using a WR-T10 wireless remote controller (when connecting the WR-R10, be sure the cover for the accessory terminal and the USB and HDMI connectors is fully open). The WR-R10 can also be used to control radio-controlled flash units. For synchronized release involving more than one camera, ready multiple cameras with paired WR-R10 units attached. • WR-1 Wireless Remote Controller: WR-1 units are used with WR-R10 or WR-T10 wireless remote controllers or with other WR-1 remote controllers, with the WR-1 units functioning as either transmitters or receivers. As a transmitter, the WR-1 can be used to control the camera and take pictures via signals transmitted to a receiver (a WR-R10 or a second WR-1) connected to the camera accessory terminal, while as a receiver it receives remote commands from a WR-T10 or a separate WR-1 transmitter. Note: Be sure the firmware for the WR-R10 and WR-1 has been updated to the latest version (WR-R10 firmware version 3.0 or later and WR-1 firmware version 1.0.1 or later). For information on firmware updates, see the Nikon website for your area. DK-29 Rubber Eyecup: The DK-29 makes the image in the viewfinder easier to see, preventing eye fatigue.

• ME-1 Stereo Microphone: Connect the ME-1 to the camera microphone jack to record stereo sound and reduce the chance of picking up equipment noise (such as the sounds produced by the lens during autofocus). • ME-W1 Wireless Microphone: Use this wireless Bluetooth microphone for off-camera recording. Camera Control Pro 2: Control the camera remotely from a computer and save photographs directly to the computer hard disk. When Camera Control Pro 2 is used to capture photographs directly to the computer, a PC connection indicator (PC) will appear in the control panel.

Note: Use the latest versions of Nikon software; see the Nikon website for your region for the latest information on supported operating systems. At default settings, Nikon Message Center 2 will periodically check for updates to Nikon software and firmware while you are logged in to an account on the computer and the computer is connected to the Internet. A message is automatically displayed when an update is found. Availability may vary with country or region. See our website or brochures for the latest information.

D Attaching and Removing the Accessory Shoe Cover The BS-1 accessory shoe cover slides into the accessory shoe as shown. To remove the cover, hold the camera firmly, press the cover down with a thumb and slide it in the direction shown.

D The HDMI/USB Cable Clip To prevent accidental disconnection, attach the supplied clip to HDMI cables or to the supplied USB cable as shown (the illustration shows the USB cable; note that the clip may not fit all third-party HDMI cables). Keep the monitor in the storage position when using the cable clip.

HDMI cable goes here

Insert tab into matching slot on camera and attach cable clip

HDMI cable and USB cable used simultaneously

Attaching a Power Connector and AC Adapter Turn the camera off before attaching an optional power connector and AC adapter.

1 Ready the camera. Open the battery-chamber (q) and power connector (w) covers.

2 Insert the EP-5B power connector. Be sure to insert the connector in the orientation shown, using the connector to keep the orange battery latch pressed to one side. The latch locks the connector in place when the connector is fully inserted.

3 Close the batterychamber cover. Position the power connector cable so that it passes through the power connector slot and close the battery-chamber cover.

4 Connect the EH-5c/EH-5b AC adapter. Connect the AC adapter power cable to the AC socket on the AC adapter (e) and the power cable to the DC socket (r). A P icon is displayed when the camera is powered by the AC adapter and power connector.

Caring for the Camera Learn how to store, clean, and care for your camera.

Storage When the camera will not be used for an extended period, remove the battery and store it in a cool, dry area with the terminal cover in place. To prevent mold or mildew, store the camera in a dry, well-ventilated area. Do not store your camera with naphtha or camphor moth balls or in locations that: • are poorly ventilated or subject to humidities of over 60%, • are next to equipment that produces strong electromagnetic fields, such as televisions or radios, or • are exposed to temperatures above 50 °C (122 °F) or below –10 °C (14 °F)

Cleaning Do not use alcohol, thinner, or other volatile chemicals. • Camera body: Use a blower to remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or seaside, wipe off sand or salt with a cloth lightly dampened in distilled water and dry thoroughly. Important: Dust or other foreign matter inside the camera may cause damage not covered under warranty. • Lenses, viewfinder: Glass surfaces are easily damaged. Remove dust and lint with a blower. If using an aerosol blower, keep the can vertical to prevent the discharge of liquid. To remove fingerprints and other stains, apply a small amount of lens cleaner to a soft cloth and clean with care. • Monitor: Remove dust and lint with a blower. When removing fingerprints and other stains, wipe the surface lightly with a soft cloth or chamois leather. Do not apply pressure, as this could result in damage or malfunction.

Image Sensor Cleaning If you suspect that dirt or dust on the image sensor is appearing in photographs, you can clean the sensor using the Clean image sensor option in the setup menu. The sensor can be cleaned at any time using the Clean now option, or cleaning can be performed automatically when the camera is turned off. If image sensor cleaning fails to resolve the problem, contact a Nikonauthorized service representative.

❚❚ “Clean Now” Holding the camera base down, select Clean image sensor in the setup menu, then highlight Clean now and press J. The camera will check and clean the image sensor. No other operations can be performed until cleaning is complete; do not remove or disconnect the power source until cleaning ends and the setup menu is displayed.

D Image Sensor Cleaning Using camera controls during shutdown interrupts image sensor cleaning. If image sensor cleaning is performed several times in succession, image sensor cleaning may be temporarily disabled to protect the camera’s internal circuitry. Cleaning can be performed again after a short wait.

❚❚ “Automatic Cleaning” Choose from the following options:

6 Clean at shutdown Cleaning off

The image sensor is automatically cleaned during shutdown each time the camera is turned off. Automatic image sensor cleaning off.

1 Select Automatic Cleaning. Display the Clean image sensor menu as described in ‘“Clean Now”’ (0 192). Highlight Automatic Cleaning and press 2.

2 Select an option. Highlight an option and press J.

Manual Cleaning If foreign matter cannot be removed from the image sensor using image sensor cleaning, the sensor can be cleaned manually as described below. Note, however, that the sensor is extremely delicate and easily damaged; we recommend that manual cleaning be performed only by a Nikon-authorized service representative.

1 Remove the lens. Turn the camera off and remove the lens or body cap.

2 Examine the image sensor. Holding the camera so that light falls on the image sensor, examine the sensor for dust or lint. If no foreign objects are present, proceed to Step 4.

3 Clean the sensor. Remove any dust and lint from the sensor with a blower. Do not use a blower-brush, as the bristles could damage the sensor. Dirt that cannot be removed with a blower can only be removed by Nikon-authorized service personnel. Under no circumstances should you touch or wipe the sensor.

4 Replace the lens or body cap.

D Foreign Matter on the Image Sensor Foreign matter entering the camera when lenses or body caps are removed or exchanged (or in rare circumstances lubricant or fine particles from the camera itself) may adhere to the image sensor, where it may appear in photographs taken under certain conditions. To protect the camera when no lens is in place, be sure to replace the body cap provided with the camera, being careful to first remove all dust and other foreign matter that may be adhering to the camera mount, lens mount, and body cap. Avoid attaching the body cap or exchanging lenses in dusty environments. Should foreign matter find its way onto the image sensor, use the image sensor cleaning option as described in “Image Sensor Cleaning”(0 192). If the problem persists, clean the sensor manually (0 195) or have the sensor cleaned by authorized Nikon service personnel. Photographs affected by the presence of foreign matter on the sensor can be retouched using the clean image options available in some imaging applications.

D Servicing the Camera and Accessories The camera is a precision device and requires regular servicing. Nikon recommends that the camera be inspected by the original retailer or a Nikon-authorized service representative once every one to two years, and that it be serviced once every three to five years (note that fees apply to these services). Frequent inspection and servicing are particularly recommended if the camera is used professionally. Any accessories regularly used with the camera, such as lenses or optional flash units, should be included when the camera is inspected or serviced.

Caring for the Camera and Battery: Cautions Do not drop: The product may malfunction if subjected to strong shocks or vibration. Keep dry: This product is not waterproof, and may malfunction if immersed in water or exposed to high levels of humidity. Rusting of the internal mechanism can cause irreparable damage. Avoid sudden changes in temperature: Sudden changes in temperature, such as those that occur when entering or leaving a heated building on a cold day, can cause condensation inside the device. To prevent condensation, place the device in a carrying case or plastic bag before exposing it to sudden changes in temperature. Keep away from strong magnetic fields: Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the display, damage data stored on the memory card, or affect the product’s internal circuitry. Do not leave the lens pointed at the sun: Do not leave the lens pointed at the sun or other strong light source for an extended period. Intense light may cause the image sensor to deteriorate or produce a white blur effect in photographs. Turn the product off before removing or disconnecting the power source: Do not unplug the product or remove the battery while the product is on or while images are being recorded or deleted. Forcibly cutting power in these circumstances could result in loss of data or in damage to product memory or internal circuitry. To prevent an accidental interruption of power, avoid carrying the product from one location to another while an AC adapter is connected.

Cleaning: When cleaning the camera body, use a blower to gently remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or seaside, wipe off any sand or salt using a cloth lightly dampened in pure water and then dry the camera thoroughly. In rare instances, static electricity may cause the LCD displays to light up or go dark. This does not indicate a malfunction, and the display will soon return to normal. Lenses, viewfinders, and other glass elements are easily damaged. Dust and lint should be gently removed with a blower. When using an aerosol blower, keep the can vertical to prevent discharge of liquid. To remove fingerprints and other stains from glass surfaces, apply a small amount of lens cleaner to a soft cloth and wipe the glass carefully. Do not touch the image sensor: Under no circumstances should you exert pressure on the image sensor, poke it with cleaning tools, or subject it to powerful air currents from a blower. These actions could scratch or otherwise damage the sensor. For information on cleaning the image sensor, see “Image Sensor Cleaning” (0 192).

Lens contacts: Keep the lens contacts clean and be careful not to touch them with your fingers or with tools or other objects. Storage: To prevent mold or mildew, store the camera in a dry, wellventilated area. If you are using an AC adapter, unplug the adapter to prevent fire. If the product will not be used for an extended period, remove the battery to prevent leakage and store the camera in a plastic bag containing a desiccant. Do not, however, store the camera case in a plastic bag, as this may cause the material to deteriorate. Note that desiccant gradually loses its capacity to absorb moisture and should be replaced at regular intervals. To prevent mold or mildew, take the camera out of storage at least once a month. Turn the camera on and release the shutter a few times before putting it away. Store the battery in a cool, dry place. Replace the terminal cover before putting the battery away.

Notes on the monitor and viewfinder: These displays are constructed with extremely high precision; at least 99.99% of pixels are effective, with no more than 0.01% being missing or defective. Hence while these displays may contain pixels that are always lit (white, red, blue, or green) or always off (black), this is not a malfunction and has no effect on images recorded with the device. Images in the monitor may be difficult to see in a bright light. Do not apply pressure to the monitor, as this could cause damage or malfunction. Dust or lint can be removed with a blower. Stains can be removed by wiping lightly with a soft cloth or chamois leather. Should the monitor break, care should be taken to avoid injury from broken glass and to prevent liquid crystal from the monitor touching the skin or entering the eyes and mouth. Should you feel unwell or experience any of the following symptoms while framing shots in the viewfinder, discontinue use until your condition improves: nausea, eye pain, eye fatigue, dizziness, headache, stiffness in your neck or shoulders, carsickness, or loss of hand-eye coordination. The same applies should you start to feel unwell when watching the shooting display flicker rapidly on and off during burst photography. Noise in the form of lines may in rare cases appear in pictures that include bright lights or back-lit subjects. The battery and charger: Batteries may leak or explode if improperly handled. Observe the following precautions when handling batteries and chargers: • Use only batteries approved for use in this equipment. • Do not expose the battery to flame or excessive heat. • Keep the battery terminals clean. • Turn the product off before replacing the battery. • The battery may become hot while in use. Observe caution when handling the battery immediately after use.

• Remove the battery from the camera or charger when not in use and replace the terminal cover. These devices draw minute amounts of charge even when off and could draw the battery down to the point that it will no longer function. If the battery will not be used for some time, insert it in the camera and run it flat before removing it from the camera for storage. The battery should be stored in a cool location with an ambient temperature of 15 °C to 25 °C (59 °F to 77 °F; avoid hot or extremely cold locations). Repeat this process at least once every six months. • Turning the camera on or off repeatedly when the battery is fully discharged will shorten battery life. Batteries that have been fully discharged must be charged before use. • The internal temperature of the battery may rise while the battery is in use. Attempting to charge the battery while the internal temperature is elevated will impair battery performance, and the battery may not charge or charge only partially. Wait for the battery to cool before charging. • Charge the battery indoors at ambient temperatures of 5 °C to 35 °C (41 °F to 95 °F). Do not use the battery at ambient temperatures below 0 °C (32 °F) or above 40 °C (104 °F); failure to observe this precaution could damage the battery or impair its performance. Capacity may be reduced and charging times increase at battery temperatures from 0 °C (32 °F) to 15 °C (59 °F) and from 45 °C (113 °F) to 60 °C (140 °F). The battery will not charge if its temperature is below 0 °C (32 °F) or above 60 °C (140 °F). • If the CHARGE lamp flashes quickly (about eight times a second) during charging, confirm that the temperature is in the correct range and then unplug the charger and remove and reinsert the battery. If the problem persists, cease use immediately and take battery and charger to your retailer or a Nikon-authorized service representative. • Do not move the charger or touch the battery during charging. Failure to observe this precaution could in very rare instances result in the charger showing that charging is complete when the battery is only partially charged. Remove and reinsert the battery to begin charging again.

• Battery capacity may temporarily drop if the battery is charged at low temperatures or used at a temperature below the temperature at which it was charged. If the battery is charged at a temperature below 5 °C (41 °F), the battery life indicator in the Battery info display may show a temporary decrease. • Continuing to charge the battery after it is fully charged can impair battery performance. • A marked drop in the time a fully charged battery retains its charge when used at room temperature indicates that it requires replacement. Purchase a new EN-EL15b battery. • The supplied power cable and AC wall adapter are for use with the MH-25a only. Use the charger with compatible batteries only. Unplug when not in use. • Do not short the charger terminals. Failure to observe this precaution could result in overheating and damage to the charger. • Charge the battery before use. When taking photographs on important occasions, ready a spare battery and keep it fully charged. Depending on your location, it may be difficult to purchase replacement batteries on short notice. Note that on cold days, the capacity of batteries tends to decrease. Be sure the battery is fully charged before taking photographs outside in cold weather. Keep a spare battery in a warm place and exchange the two as necessary. Once warmed, a cold battery may recover some of its charge. • Recycle rechargeable batteries in accord with local regulations, being sure to first insulate the terminals with tape. The charging AC adapter: Observe the precautions below when using the charging AC adapter. • Do not move the camera during charging. Failure to observe this precaution could in very rare instances result in the camera showing that charging is complete when the battery is only partially charged. Disconnect and reconnect the adapter to begin charging again. • Do not short the adapter terminals. Failure to observe this precaution could result in overheating and damage to the adapter. • Unplug the adapter when it is not in use.

Frame coverage Magnification

• NEF (RAW): 12 or 14 bit (lossless compressed, compressed, or uncompressed); large, medium, and small available (medium and small images are recorded at a bit depth of 12 bits using lossless compression) • TIFF (RGB) • JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression; optimal quality compression available • NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats Auto, Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat, Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon); selected Picture Control can be modified; storage for custom Picture Controls XQD memory cards DCF 2.0, Exif 2.31, PictBridge 1.27-cm/0.5-in. approx. 3690k-dot (Quad VGA) OLED with color balance and auto and 11-level manual brightness controls Approx. 100% horizontal and 100% vertical Approx. 0.8× (50 mm lens at infinity, −1.0 m −1)

Viewfinder Eyepoint Diopter adjustment Eye sensor Shutter Type

Speed Flash sync speed

21 mm (−1.0 m −1; from center surface of viewfinder eyepiece lens) −4 – +2 m −1 Automatically switches between monitor and viewfinder displays Electronically-controlled vertical-travel focalplane mechanical shutter; electronic frontcurtain shutter; electronic shutter 1/8000 – 30 s in steps of 1/3 or 1/2 EV, bulb, time, X200 X= 1/200 s; synchronizes with shutter at 1/200 s or slower; Auto FP High-Speed sync supported

Release Release mode

Single frame, low-speed continuous, highspeed continuous, high-speed continuous (extended), self-timer Approximate maximum • Z 7: frame advance rate - Low-speed continuous: 1–5 fps (measured under Nikon- High-speed continuous: 5.5 fps (14-bit NEF/RAW: specified test conditions) 5 fps) - High-speed continuous (extended): 9 fps (14-bit NEF/RAW: 8 fps) • Z 6: - Low-speed continuous: 1–5 fps - High-speed continuous: 5.5 fps - High-speed continuous (extended): 12 fps (14-bit NEF/RAW: 9 fps) Self-timer 2 s, 5 s, 10 s, 20 s; 1–9 exposures at intervals of 0.5, 1, 2, or 3 s

Exposure Metering system Metering mode

TTL metering using camera image sensor • Matrix metering • Center-weighted metering: Weight of 75% given to 12 mm circle in center of frame; weighting can instead be based on average of entire frame • Spot metering: Meters 4 mm circle (about 1.5% of frame) centered on selected focus point • Highlight-weighted metering Range (ISO 100, f/2.0 lens, • Z 7: –3 – +17 EV 20 °C/68 °F) • Z 6: –4 – +17 EV Mode Auto (b); programmed auto with flexible program (P); shutter-priority auto (S); aperturepriority auto (A); manual (M); user settings (U1, U2, U3) Exposure compensation –5 – +5 EV in increments of 1/3 or 1/2 EV available in modes P, S, A, and M Exposure lock Luminosity locked at detected value ISO sensitivity • Z 7: ISO 64 – 25600 in steps of 1/3 or 1/2 EV. Can (Recommended Exposure also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO Index) 32 equivalent) below ISO 64 or to approx. 0.3, 0.5, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control available • Z 6: ISO 100 – 51200 in steps of 1/3 or 1/2 EV. Can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.5, 0.7, 1, or 2 EV (ISO 204800 equivalent) above ISO 51200; auto ISO sensitivity control available Active D-Lighting Can be selected from Auto, Extra high, High, Normal, Low, or Off Multiple exposure Add, average, lighten, darken Other options HDR (high dynamic range), photo mode flicker reduction

Focus Autofocus Detection range (singleservo AF/AF-S, photo shooting mode, ISO 100, f/2.0 lens, 20 °C/68 °F) Lens servo

Hybrid phase-detection/contrast AF with AF assist • Z 7: −1 – +19 EV • Z 6: −2 – +19 EV • With low-light AF: −4 – +19 EV • Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); full-time AF (AF-F; available only in movie mode); predictive focus tracking • Manual focus (M): Electronic rangefinder can be used • Z 7: 493 • Z 6: 273

Focus points (single-point AF, photo shooting mode, FX image area) AF-area mode Pinpoint, single-point, and dynamic-area AF (pinpoint and dynamic-area AF available in photo mode only); wide-area AF (S); wide-area AF (L); auto-area AF Focus lock Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing center of sub-selector Vibration reduction (VR) Camera VR Lens VR Flash Flash control

5-axis image sensor shift Lens shift (available with VR lenses) TTL: i-TTL flash control; i-TTL balanced fill-flash is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash with spot metering Front-curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, slow rear-curtain sync, off –3 – +1 EV in increments of 1/3 or 1/2 EV available

in modes P, S, A, and M Technical Notes 207

Flash Flash-ready indicator

Accessory shoe Nikon Creative Lighting System (CLS)

Bracketing Bracketing types Movie Metering system Metering mode Frame size (pixels) and frame rate

Lights when optional flash unit is fully charged; flashes as underexposure warning after flash is fired at full output ISO 518 hot-shoe with sync and data contacts and safety lock i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, Auto FP HighSpeed Sync, unified flash control Auto (3 types), natural light auto, direct sunlight, cloudy, shade, incandescent, fluorescent (7 types), flash, choose color temperature (2500 K–10,000 K), preset manual (up to 6 values can be stored), all except choose color temperature with fine-tuning Exposure, flash, white balance, and ADL TTL exposure metering using main image sensor Matrix, center-weighted, or highlight-weighted • 3840 × 2160 (4K UHD); 30p (progressive), 25p, 24p • 1920 × 1080; 120p, 100p, 60p, 50p, 30p, 25p, 24p • 1920×1080 (slow-mo); 30p ×4, 25p ×4, 24p ×5 Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively; quality selection available at all sizes except 3840 × 2160, 1920 × 1080 120p/100p, and 1920 × 1080 slow-mo, when quality is fixed at m (high)

Movie File format Video compression Audio recording format Audio recording device

MOV, MP4 H.264/MPEG-4 Advanced Video Coding Linear PCM, AAC Built-in stereo or external microphone with attenuator option; sensitivity adjustable ISO sensitivity • Z 7: (Recommended Exposure - b: Auto ISO sensitivity control (ISO 64 to Index) 25600) - P, S, A: Auto ISO sensitivity control (ISO 64 to Hi 2) with selectable upper limit - M: Auto ISO sensitivity control (ISO 64 to Hi 2) available with selectable upper limit; manual selection (ISO 64 to 25600 in steps of 1/3 or 1/2 EV) with additional options available equivalent to approximately 0.3, 0.5, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600 • Z 6: - b: Auto ISO sensitivity control (ISO 100 to 51200) - P, S, A: Auto ISO sensitivity control (ISO 100 to Hi 2) with selectable upper limit - M: Auto ISO sensitivity control (ISO 100 to Hi 2) available with selectable upper limit; manual selection (ISO 100 to 51200 in steps of 1/3 or 1/2 EV) with additional options available equivalent to approximately 0.3, 0.5, 0.7, 1, or 2 EV (ISO 204800 equivalent) above ISO 51200 Active D-Lighting Can be selected from Same as photo settings, Extra high, High, Normal, Low, or Off Other options Time-lapse movies, electronic vibration reduction, time codes, movie log output (N-Log)

8-cm/3.2-in., approx. 2100k-dot tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, and color balance and 11-level manual brightness controls Full-frame and thumbnail (4, 9, or 72 images) playback with playback zoom, playback zoom cropping, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, picture rating, and auto image rotation Type C connector (SuperSpeed USB); connection to built-in USB port is recommended Type C HDMI connector Can be used with MC-DC2 and other optional accessories Stereo mini-pin jack (3.5 mm diameter; plug-in power supported) Stereo mini-pin jack (3.5 mm diameter) • Standards: IEEE 802.11b/g/n • Operating frequency: 2412–2462 MHz (channel 11) • Maximum output power (EIRP): - Z 7: 2.4 GHz band: 7.0 dBm - Z 6: 2.4 GHz band: 7.4 dBm

• Authentication: Open system, WPA2-PSK Wi-Fi/Bluetooth Bluetooth

Range (line of sight)

Power source Battery

Charging AC adapter AC adapter Tripod socket Tripod socket Dimensions/weight Dimensions (W × H × D) Weight

• Communication protocols: Bluetooth Specification Version 4.2 • Operating frequency: Bluetooth: 2402–2480 MHz Bluetooth Low Energy: 2402–2480 MHz • Maximum output power (EIRP): - Z 7: Bluetooth: 1.5 dBm Bluetooth Low Energy: 0 dBm - Z 6: Bluetooth: 1.9 dBm Bluetooth Low Energy: 0.4 dBm Approximately 10 m (32 ft) without interference; range may vary with signal strength and presence or absence of obstacles One EN-EL15b rechargeable Li-ion battery (0 236); EN-EL15a/EN-EL15 can also be used, but note that you may not be able to take as many pictures on a single charge and that charging AC adapter can be used to charge EN-EL15b batteries only EH-7P charging AC adapter (supplied with the Z 7 only) EH-5c/EH-5b AC adapter (requires EP-5B power connector, which is available separately)

Approx. 134 × 100.5 × 67.5 mm (5.3 × 4 × 2.7 in.) Approx. 675 g (1 lb. 7.9 oz.) with battery and memory card but without body cap; approx. 585 g/1 lb. 4.7 oz. (camera body only)

Operating environment Temperature Humidity

0 °C–40 °C (+32 °F–104 °F) 85% or less (no condensation)

• Unless otherwise stated, all measurements are performed in conformity with Camera and Imaging Products Association (CIPA) standards or guidelines. • All figures are for a camera with a fully-charged battery. • The sample images displayed on the camera and the images and illustrations in the manuals are for expository purposes only. • Nikon reserves the right to change the appearance and specifications of the hardware and software described in this manual at any time and without prior notice. Nikon will not be held liable for damages that may result from any mistakes that this manual may contain.

❚❚ MH-25a Battery Charger Rated input Rated output Supported batteries Charging time

Operating temperature Dimensions (W × H × D) Length of power cable Weight

AC 100–240 V, 50/60 Hz, 0.23–0.12 A DC 8.4 V/1.2 A Nikon EN-EL15b rechargeable Li-ion batteries Approx. 2 hours and 35 minutes at an ambient temperature of 25 °C (77 °F) when no charge remains 0 °C–40 °C (+32 °F–104 °F) Approx. 95 × 33.5 × 71 mm (3.7 × 1.3 × 2.8 in.), excluding projections Approx. 1.5 m (4.9 ft), if supplied Approx. 115 g (4.1 oz), excluding supplied power connector (power cable or AC wall adapter)

The symbols on this product represent the following: m AC, p DC, q Class II equipment (The construction of the product is double-insulated.)

❚❚ EH-7P Charging AC Adapter (Supplied with the Z 7 Only) Rated input Rated output Supported batteries Operating temperature Dimensions (W × H × D) Weight

AC 100–240 V, 50/60 Hz, MAX 0.5 A DC 5.0 V/3.0 A Nikon EN-EL15b rechargeable Li-ion batteries 0 °C–40 °C (+32 °F–104 °F) Approx. 65.5 × 26.5 × 58.5 mm (2.6 × 1.1 × 2.4 in.), excluding plug adapter Approx. 125 g (4.5 oz), excluding plug adapter

The EH-7P comes with a plug adapter attached in countries or regions where required; the shape of the plug adapter varies with the country of sale. Do not attempt to remove the plug adapter, as this could damage the product. The symbols on this product represent the following: m AC, p DC, q Class II equipment (The construction of the product is double-insulated.)

❚❚ EN-EL15b Rechargeable Li-ion Battery Type Rated capacity Operating temperature Dimensions (W × H × D) Weight

Rechargeable lithium-ion battery 7.0 V/1900 mAh 0 °C–40 °C (+32 °F–104 °F) Approx. 40 × 56 × 20.5 mm (1.6 × 2.2 × 0.8 in.) Approx. 80 g (2.9 oz), excluding terminal cover

Nikon reserves the right to change the appearance and specifications of the hardware and software described in this manual at any time and without prior notice. Nikon will not be held liable for damages that may result from any mistakes that this manual may contain.

A Trademark Information IOS is a trademark or registered trademark of Cisco Systems, Inc., in the United States and/or other countries and is used under license. Windows is either a registered trademark or a trademark of Microsoft Corporation in the United States and/or other countries. Mac, macOS, OS X, Apple®, App Store®, the Apple logos, iPhone®, iPad®, and iPod touch® are trademarks of Apple Inc. registered in the U.S. and/or other countries. Android, Google Play and the Google Play logo are trademarks of Google LLC. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. The PictBridge logo is a trademark. XQD is a trademark of Sony Corporation. HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi Alliance. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Nikon Corporation is under license. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders. Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple products identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

A FreeType License (FreeType2) Portions of this software are copyright © 2012 The FreeType Project (https://www.freetype.org). All rights reserved.

A MIT License (HarfBuzz) Portions of this software are copyright © 2018 The HarfBuzz Project (https://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.

A AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE

http://www.mpegla.com

A Disposing of Data Storage Devices Please note that deleting images or formatting memory cards or other data storage devices does not completely erase the original image data. Deleted files can sometimes be recovered from discarded storage devices using commercially available software, potentially resulting in the malicious use of personal image data. Ensuring the privacy of such data is the user’s responsibility. Before discarding a data storage device or transferring ownership to another person, erase all data using commercial deletion software, or format the device and then completely refill it with images containing no private information (for example, pictures of empty sky). Care should be taken to avoid injury when physically destroying data storage devices. Before discarding the camera or transferring ownership to another person, you should also use the Reset all settings option in the camera setup menu to delete network settings and other personal information.

A Supported Standards • DCF Version 2.0: The Design Rule for Camera File System (DCF) is a standard widely used in the digital camera industry to ensure compatibility among different makes of camera. • Exif version 2.31: The camera supports Exif (Exchangeable Image File Format for Digital Still Cameras) version 2.31, a standard in which information stored with photographs is used for optimal color reproduction when the images are output on Exif-compliant printers. • PictBridge: A standard developed through cooperation with the digital camera and printer industries, allowing photographs to be output directly to a printer without first transferring them to a computer. • HDMI: High-Definition Multimedia Interface is a standard for multimedia interfaces used in consumer electronics and AV devices capable of transmitting audiovisual data and control signals to HDMIcompliant devices via a single cable connection.

NIKKOR Z 24–70mm f/4 S Lens User’s Manual This section is included as a lens manual for purchasers of the NIKKOR Z 24–70mm f/4 S lens kit. Note that lens kits may not be available in some countries or regions.

Using the Lens ❚❚ Parts of the Lens: Names and Functions 1

Lens hoods block stray light that would otherwise cause flare or ghosting. They also serve to protect the lens.

2 Lens hood lock mark 3 Lens hood alignment Use when attaching the lens hood. mark 4 Lens hood mounting Use when attaching the lens hood. mark Rotate to zoom in or out. Be sure to extend the 5 Zoom ring lens before use. 6 Focal length scale Determine the approximate focal length when zooming the lens in or out. 7 Focal length mark • Autofocus mode selected: In autofocus mode, you can rotate this customizable ring to perform a 8 Control ring function selected with the camera. • Manual focus mode selected: Rotate to focus. 9 Lens mounting mark Use when mounting the lens on the camera. 10 Rubber lens-mount — gasket 11 CPU contacts Used to transfer data to and from the camera. Choose A for autofocus, M for manual focus. Note that regardless of the setting chosen, focus must 12 Focus-mode switch be adjusted manually when manual focus mode is selected using camera controls. 13 Front lens cap — 14 Rear lens cap —

218 Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual

❚❚ Attachment and Removal Attaching the Lens

1 Turn the camera off, remove the body cap, and detach the rear lens cap.

2 Position the lens on the camera body, keeping the mounting mark on the lens aligned with the mounting mark on the camera body, and then rotate the lens counterclockwise until it clicks into place. Removing the Lens

1 Turn the camera off. 2 Press and hold the lens release button while turning the lens clockwise.

Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual 219

❚❚ Before Use The lens is retractable and must be extended before use. Rotate the zoom ring as shown until the lens clicks into the extended position. Pictures can only be taken when the focal length mark points to positions between 24 and 70 on the focal length scale. Pictures can be taken at these focal lengths

To retract the lens, rotate the zoom ring in the opposite direction, stopping when you reach the (I) position on the focal length scale. If the camera is turned on with the lens retracted, a warning will be displayed. Extend the lens before use.

220 Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual

❚❚ Attaching and Removing the Lens Hood Align the lens hood mounting mark (I) with the lens hood alignment mark (I) and then rotate the hood (w) until the I mark is aligned with the lens hood lock mark (K). To remove the hood, reverse the above steps.

When attaching or removing the hood, hold it near the I symbol on its base and avoid gripping it too tightly. The hood can be reversed and mounted on the lens when not in use.

❚❚ When the Lens Is Attached The focus position may change if you turn the camera off and then on again after focusing. Refocus before shooting. If you have focused on a pre-selected location while waiting for your subject to appear, we recommend that you do not turn the camera off until the picture is taken.

Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual 221

Precautions for Use • Do not pick up or hold the lens or camera using only the lens hood. • Keep the CPU contacts clean. • Should the rubber lens-mount gasket be damaged, cease use immediately and take the lens to a Nikon-authorized service center for repair. • Replace the front and rear lens caps when the lens is not in use. • To protect the interior of the lens, store it out of direct sunlight. • Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage. • Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic. • Rapid changes in temperature may cause damaging condensation inside and outside the lens. Before taking the lens from a warm to a cold environment or vice versa, place it in its case or a plastic bag to slow the change in temperature. • We recommend that you place the lens in its case to protect it from scratches during transport.

222 Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual

Lens Care • Removing dust is normally sufficient to clean the glass surfaces of the lens. • Smudges and fingerprints can be removed from fluorinecoated lens elements using a soft, clean cotton cloth or lens cleaning tissue; clean from the center outwards using a circular motion. To remove stubborn stains, wipe gently using a soft cloth lightly dampened with a small amount of distilled water, ethanol, or lens cleaner. Any drop-shaped marks left from this process on the water- and oil-repellent surface can subsequently be removed with a dry cloth. • When cleaning lens elements that are not fluorine-coated, remove smudges and fingerprints using a soft, clean cotton cloth or lens cleaning tissue lightly dampened with a small amount of ethanol or lens cleaner. Wipe gently from the center outwards in a circular motion, taking care not to leave smears or touch the lens with your fingers. • Never use organic solvents such as paint thinner or benzene to clean the lens. • Neutral Color (NC) filters (available separately) and the like can be used to protect the front lens element. • If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.

Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual 223

Accessories ❚❚ Supplied Accessories • LC-72B 72 mm snap-on Front Lens Cap • LF-N1 Rear Lens Cap • HB-85 Bayonet Hood • CL-C1 Lens Case D Using the Lens Case • The case is intended to protect the lens from scratches, not from falls or other physical shocks. • The case is not water resistant. • The material used in the case may fade, bleed, shrink, or change color when rubbed or wet. • Remove dust with a soft brush. • Water and stains can be removed from the surface with a soft, dry cloth. Do not use alcohol, benzene, thinner, or other volatile chemicals. • Do not store in locations exposed to direct sunlight or high temperatures or humidity. • Do not use the case to clean the monitor or lens elements. • Be careful that the lens does not fall from the case during transport. Material: Polyester

❚❚ Compatible Accessories 72 mm screw-on filters D Filters Use only one filter at a time. Remove the lens hood before attaching filters or rotating circular polarizing filters.

224 Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual

Specifications Mount Focal length Maximum aperture Lens construction

Angle of view Focal length scale Focusing system Minimum focus distance Diaphragm blades Aperture range Filter-attachment size Dimensions

Nikon Z mount 24 – 70 mm f/4 14 elements in 11 groups (including 1 ED lens element, 1 aspherical ED element, 3 aspherical elements, elements with Nano Crystal Coat, and a fluorine-coated front lens element) • FX format: 84° – 34° 20´ • DX format: 61° – 22° 50´ Graduated in millimeters (24, 28, 35, 50, 70) Internal focusing system 0.3 m (0.99 ft) from focal plane at all zoom positions 7 (rounded diaphragm opening) f/4 – 22 72 mm (P = 0.75 mm) Approx. 77.5 mm maximum diameter × 88.5 mm (distance from camera lens mount flange when lens is retracted) Approx. 500 g (1 lb 1.7 oz)

Nikon reserves the right to change the appearance, specifications, and performance of this product at any time and without prior notice.

Technical Notes ➜ NIKKOR Z 24–70mm f/4 S Lens User’s Manual 225

FTZ Mount Adapter User’s Manual This mount adapter allows Nikon F mount NIKKOR lenses to be mounted on Nikon Z mount mirrorless cameras. It cannot be mounted on F mount (Nikon digital SLR) or 1 mount cameras (Nikon 1 advanced cameras with interchangeable lenses) or used with 1 NIKKOR lenses. This section is included as a mountadapter manual for purchasers of the mount-adapter kit. Note that mount-adapter kits may not be available in some countries or regions. Note that depending on the lens, the adapter may limit autofocus or other camera features.

A Compatible F Mount Lenses For information on lenses that can be mounted on the FTZ mount adapter for use with Z mount cameras, see Compatible F Mount Lenses, available from the Nikon Download Center: https://downloadcenter.nikonimglib.com/en/products/491/FTZ.html

226 Technical Notes ➜ FTZ Mount Adapter User’s Manual

The Mount Adapter ❚❚ Parts of the Adapter Lens mount

Nikon F mount (attaches to lens) Lens signal contacts Lens mounting mark Lens release Tripod socket

6 Adapter mounting mark 7 Nikon Z mount (attaches to camera) 8 CPU contacts

Technical Notes ➜ FTZ Mount Adapter User’s Manual 227

❚❚ Attachment and Removal Turn the camera off before attaching the adapter to or removing it from the camera or attaching lenses to or removing lenses from the adapter. Choose a location out of direct sunlight and be careful to prevent dust from entering the devices. While attaching lenses, avoid pressing the camera or adapter lens release. Attaching the Adapter and Lens

1 Remove the body and rear lens caps from the adapter and the body cap from the camera.

2 Attach the adapter to the camera. Keeping the adapter mounting mark aligned with the mounting mark on the camera body (q), position the adapter on the camera and then rotate it counterclockwise until it clicks into place (w).

3 Remove the rear lens cap.

228 Technical Notes ➜ FTZ Mount Adapter User’s Manual

4 Attach the lens to the adapter. Keeping the lens mounting mark aligned with the lens mounting mark on the adapter (e), position the lens on the adapter and then rotate it counterclockwise until it clicks into place (r). Detaching the Lens and Adapter

1 Detach the lens. Press and hold the adapter lens release (q) while turning the lens clockwise (w). Attach the front and rear caps to the lens after removal.

2 Detach the adapter. Press and hold the camera lens release button (e) while turning the adapter clockwise (r). After removing the adapter, attach the body and rear caps to the adapter and the body cap to the camera.

Technical Notes ➜ FTZ Mount Adapter User’s Manual 229

D CPU Lenses with Aperture Rings Select minimum aperture (the highest f/-number) before attaching CPU lenses equipped with aperture rings.

D Incompatible Lenses and Accessories The following lenses and accessories cannot be used. Attempting to forcibly attach any of this equipment could damage the adapter or the lens. Individual variation may render lenses other than those listed below incompatible; do not use force if you encounter resistance when attempting to attach a lens. • Non-AI lenses • PC 35mm f/2.8 (serial numbers • IX-NIKKOR 851001–906200) • TC-16A AF Teleconverter • PC 35mm f/3.5 (old type) • Lenses that require the AU-1 • Reflex 1000mm f/6.3 (old type) focusing unit (400mm f/4.5, • NIKKOR-H Auto 2.8cm f/3.5 600mm f/5.6, 800mm f/8, (28mm f/3.5) lenses with serial 1200mm f/11) numbers below 362000 • Fisheye (6mm f/5.6, 7.5mm f/5.6, • NIKKOR-S Auto 3.5cm f/2.8 8mm f/8, OP 10mm f/5.6) (35mm f/2.8) lenses with serial • 2.1cm f/4 numbers below 928000 • K2 Extension Ring • NIKKOR-S Auto 5cm f/2 (50mm • 180–600mm f/8 ED (serial f/2) numbers 174041–174180) • NIKKOR-Q Auto 13.5cm f/3.5 • 360–1200mm f/11 ED (serial (135mm f/3.5) lenses with serial numbers 174031–174127) numbers below 753000 • 200–600mm f/9.5 (serial • Micro-NIKKOR 5.5cm f/3.5 numbers 280001–300490) • Medical-NIKKOR Auto 200mm • AF lenses for the F3AF (AF 80mm f/5.6 f/2.8, AF 200mm f/3.5 ED, TC-16 • Auto NIKKOR Telephoto-Zoom AF Teleconverter) 85–250mm f/4–4.5 • PC 28mm f/4 (serial number • Auto NIKKOR Telephoto-Zoom 180900 or earlier) 200–600mm f/9.5–10.5

230 Technical Notes ➜ FTZ Mount Adapter User’s Manual

Using the Mount Adapter • Autofocus may not function as expected when the adapter is used with an F mount NIKKOR lens. If the camera has trouble focusing, set the AF-area mode to single point and select the center focus area, or focus manually. • With some lenses, the camera vibration reduction feature may not function as expected or may cause vignetting or a drop in peripheral illumination.

Precautions for Use • When using the adapter with lenses weighing over 1300 g (2 lb 13.9 oz), support the lens when holding the camera and do not use the camera strap. Failure to observe these precautions could damage the camera lens mount. • When using telephoto lenses equipped with a tripod collar, attach the tripod to the lens tripod collar rather than to the adapter tripod socket. • Keep the CPU and lens signal contacts clean. • Keep the adapter dry. Rusting of the internal mechanism can cause irreparable damage. • Leaving the adapter in extremely hot locations could damage or warp parts made from reinforced plastic.

Technical Notes ➜ FTZ Mount Adapter User’s Manual 231

Caring for the Adapter • Do not touch the interior of the mount adapter. Use a blower or soft brush to remove dust, being careful not to rub or scratch the inside of the adapter. • When cleaning the adapter, use a blower to remove dust and lint and then wipe the adapter gently with a soft, dry cloth. • Never use organic solvents such as paint thinner or benzene to clean the adapter. • If the adapter will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.

Accessories ❚❚ Supplied Accessories • BF-1B Body Cap • LF-N1 Rear Lens Cap

Specifications Type Supported cameras Dimensions Weight

Mount adapter Nikon Z mount mirrorless cameras Approx. 70 mm diameter (excluding projections) × 80 mm Approx. 135 g (4.8 oz)

Nikon reserves the right to change the appearance, specifications, and performance of this product at any time and without prior notice.

232 Technical Notes ➜ FTZ Mount Adapter User’s Manual

Approved Memory Cards The camera can be used with XQD memory cards. Cards with write speeds of 45 MB/s (300×) or better are recommended for movie recording; slower speeds may interrupt recording or cause jerky, uneven playback. For information on compatibility and operation, contact the manufacturer.

Memory Card Capacity The following table shows the approximate number of pictures that can be stored on a 64 GB Sony G-series QD-G64E XQD card at different image quality and size settings when FX (36 × 24) is selected for Choose image area (as of July 2018). Z 7: Image quality

Compressed Uncompressed

Image size Large 12-bit Medium Small 14-bit 12-bit Large 14-bit 12-bit 14-bit Large Medium Small Large Medium Small Large Medium Small Large Medium Small

1.6 MB No. of images 1 748 1000 1400 654 1000 845 748 654 412 723 1500 1900 3200 6500 3700 6400 12,700 7500 12,300 24,100

Z 6: No. of Buffer images 1 capacity 2 Image size File size 1 Large 22.5 MB 1300 35 12-bit Medium 16.1 MB 1900 26 Lossless compressed Small 12.7 MB 2500 26 14-bit 28.2 MB 1100 43 12-bit 20.4 MB 1800 37 Compressed Large 14-bit 24.8 MB 1500 43 12-bit 38.5 MB 1300 33 Uncompressed 14-bit 44.1 MB 1100 34 Large 69.3 MB 759 27 TIFF (RGB) Medium 39.5 MB 1300 31 Small 18.4 MB 2800 35 Large 9.4 MB 3400 44 Fine Medium 6.6 MB 5600 50 Small 4.0 MB 10,400 51 Large 6.4 MB 6700 44 Normal Medium 3.9 MB 10,900 50 Small 2.1 MB 19,900 51 Large 2.3 MB 13,000 46 Basic Medium 1.7 MB 20,800 50 Small 1.2 MB 35,200 50 1 All figures are approximate. File size varies with scene recorded. 2 Maximum number of exposures that can be stored in memory buffer at ISO 100. May drop in some situations, for example at image qualities marked with a star (“m”) or if auto distortion control is on. 3 Figures assume size-priority JPEG compression. Selecting an image-quality option marked with a star (“m”; optimal compression) increases the file size of JPEG images; number of images and buffer capacity drop accordingly. Image quality

Battery Endurance The approximate length of footage or number of shots that can be recorded with a fully-charged EN-EL15b 1 battery varies with the monitor mode. The figures for photographs 2 are as follows: • Viewfinder only: 330 shots (Z 7), 310 shots (Z 6) • Monitor only: 400 shots (Z 7), 380 shots (Z 6) The figures for movies 3 are: • Viewfinder only: 85 minutes • Monitor only: 85 minutes Actions such as the following can reduce battery endurance: • Keeping the shutter-release button pressed halfway • Repeated autofocus operations • Taking NEF (RAW) photographs • Slow shutter speeds • Using camera Wi-Fi (wireless LAN) and Bluetooth features • Using the camera with optional accessories connected • Repeatedly zooming in and out To ensure that you get the most from rechargeable Nikon EN-EL15b batteries: • Keep the battery contacts clean. Soiled contacts can reduce battery performance. • Use batteries immediately after charging. Batteries will lose their charge if left unused. 1 EN-EL15a/EN-EL15 batteries can also be used, but note that you may not be able to take as many pictures on a single charge. Endurance varies with the condition of the battery, the temperature, the interval between shots, and the length of time menus are displayed. 2 CIPA standard. Measured at 23 °C/73.4 °F (±2 °C/3.6 °F) with a NIKKOR Z 24–70mm f/4 S lens under the following test conditions: one photograph taken at default settings once every 30 s. 3 Measured at 23 °C/73.4 °F (±2 °C/3.6 °F) with the camera at default settings and a NIKKOR Z 24–70mm f/4 S lens under conditions specified by the Camera and Imaging Products Association (CIPA). Individual movies can be up to 29 minutes 59 seconds in length; recording may end before these limits are reached if the camera temperature rises.

Bluetooth and Wi-Fi (Wireless LAN) This product is controlled by the United States Export Administration Regulations (EAR). The permission of the United States government is not required for export to countries other than the following, which as of this writing are subject to embargo or special controls: Cuba, Iran, North Korea, Sudan, and Syria (list subject to change). The use of wireless devices may be prohibited in some countries or regions. Contact a Nikon-authorized service representative before using the wireless features of this product outside the country of purchase. The Bluetooth transmitter in this device operates in the 2.4 GHz band.

Notices for Customers in Algeria, Tahiti, Qatar, and Egypt Hereby, Nikon Corporation declares that the radio equipment types Z 7 and Z 6 are in compliance with Directive 2014/53/EU. The full texts of the EU declarations of conformity are available at the following internet addresses: • Z 7: https://imaging.nikon.com/support/pdf/DoC_N1710.pdf • Z 6: https://imaging.nikon.com/support/pdf/DoC_N1711.pdf

Notice for Customers in Singapore Trade Name: Model: Z 7

Trade Name: Model: Z 6

This device complies with radio-frequency regulations. The content of certification labels not affixed to the device is given below. Complies with IMDA Standards DA103423

Notice for Customers in Nigeria Connection and use of this communications equipment is permitted by the Nigerian Communications Commission

Security Although one of the benefits of this product is that it allows others to freely connect for the wireless exchange of data anywhere within its range, the following may occur if security is not enabled: • Data theft: Malicious third-parties may intercept wireless transmissions to steal user IDs, passwords, and other personal information. • Unauthorized access: Unauthorized users may gain access to the network and alter data or perform other malicious actions. Note that due to the design of wireless networks, specialized attacks may allow unauthorized access even when security is enabled. • Unsecured networks: Connecting to open networks may result in unauthorized access. Use secure networks only.

A Conformity Marking The standards with which the camera complies can be viewed using the Conformity marking option in the setup menu.

b (Auto mode) 41, 45, 69 P (Programmed auto) 69, 70 S (Shutter-priority auto) 69, 70 A (Aperture-priority auto)69, 71 M (Manual) 69, 71 U1/U2/U3 69, 73 U (Single frame) 83, 86, 111 V (Continuous L) 83, 111 W (Continuous H) 83, 111 X (Continuous H (extended)) ...84, 111 E (Self-timer) 84, 86, 111 3 (Pinpoint AF) 55, 113 d (Single-point AF) 55, 113, 121 e (Dynamic-area AF) 55, 113 f (Wide-area AF (S))56, 113, 121 g (Wide-area AF (L)) 56, 113, 121 h (Auto-area AF) 56, 113, 121 L (Matrix) 108 M (Center-weighted) 108 N (Spot) 108 t (Highlight-weighted) 108 J (Red-eye reduction) 107 L (Slow sync) 107 M (Rear-curtain sync) 107 E (Exposure compensation) 81 K button 49 O button 51 G button18 c (E) button 83 S button 78, 80 W (Q) button 20 i button 21, 91 J button 18 I (In-focus indicator) 60 c (Flash-ready indicator) 183

Delete 51 Delete current image 51 Diopter adjustment control8 Direct sunlight (White balance).... 63, 98 DISP button 15 Download center ii DX 106 DX format 119 Dynamic-area AF55, 113

R Rear-curtain sync 107 Recent settings 156 Rechargeable Li-ion battery. 28, 184, 213 Red-eye reduction 107 Release mode 83, 111 Remote cord 76, 185 Removing the lens from the camera 37

Reset user settings 74 Restoring default settings 157 Retouch menu 154 RGB104

S S (small)106 Same as photo settings 114 Save user settings 73 Self-timer 84, 86, 111 Sensitivity 78 Set Picture Control 93 Setup menu 148 Shade (White balance) 98 Shutter speed 70, 71 Shutter-priority auto 70 Shutter-release button 43, 44 Silent photography 66 Single frame83, 86, 111 Single-point AF 55, 113, 121 Size106 Slow sync 107 Slow-motion movies117 Smart device40, 109 SnapBridge 40 Specifications 202 Spot108 Standard (Set Picture Control) 93 Standard i-TTL fill-flash 179 Standby timer 44 Sub-command dial 17 Subject tracking 57 Sub-selector 17, 88

V Vibration reduction 112 Viewfinder 8, 175 Viewfinder eyepiece 8, 186 Viewfinder eyepiece cap 186 Viewfinder focus 8 ViewNX-i67 Virtual horizon15, 16 Vivid (Set Picture Control)93 Volume50

W WB (White balance)62, 98 White balance 62, 98 Wide-area AF 56, 113, 121 Wi-Fi 109 Wireless remote controller 186 Wireless transmitter (WT-7) 185

X XQD memory card 233

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

DIGITAL CAMERA User's Manual

Printed in Singapore

• Read this manual thoroughly before using the camera. • To ensure proper use of the camera, be sure to read “For Your Safety” (page xvi). • After reading this manual, keep it in a readily accessible place for future reference.
