OFFICE 4656 - Multifunction Printer HP - Free user manual and instructions

Product Type	Color inkjet multifunction printer
Main functions	Print, copy, scan, fax (optional), wireless printing, automatic duplex printing (with accessory)
Dimensions (W × D × H)	Approximately 455 × 408 × 206 mm (without accessories)
Weight	Approximately 6.2 kg (without consumables)
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Max 30 W (printing), 4.5 W (standby), 0.2 W (off)
Maximum print resolution	Up to 4800 × 1200 optimized dpi (color)
Print speed	Up to 22 ppm (black), 18 ppm (color) in draft mode
Paper capacity (tray 1)	Up to 80 sheets of plain paper
Paper capacity (tray 2 optional)	Up to 250 sheets of plain paper
Supported media types	Plain paper, photo paper, envelopes, cards, labels, transparencies
Paper sizes	A4, A5, A6, B5, Letter, Legal, 10 × 15 cm, 13 × 18 cm, envelopes (DL, C5, etc.)
Connectivity	USB 2.0, Ethernet 10/100 Base-T, Wi-Fi 802.11 b/g/n, HP ePrint
Scanning	Flatbed scanner with optical resolution up to 1200 dpi
Copying	Reduction/enlargement 25-400%, multiple copies up to 99 copies
Fax	33.6 Kbps modem, 250 page memory
Ink cartridges	4 individual cartridges: black, cyan, magenta, yellow
Display	2-line monochrome LCD display
Security	Auto-off, sleep mode, firewall settings, MAC filtering
Maintenance	External cleaning with soft cloth, print head cleaning and alignment via software
Spare parts and repairability	Ink cartridges, print head, accessories (tray 2, duplex module)
Warranty	HP limited warranty, 1 year (depending on country)

Frequently Asked Questions - OFFICE 4656 HP

How do I set up wireless printing on my HP OfficeJet 4656?

To set up wireless, use the HP software provided on your computer. Make sure the printer is on and the wireless button is lit. Follow the on-screen instructions to connect the printer to your Wi-Fi network. You can also use WPS (push button or PIN code) if your router supports it.

How do I replace the ink cartridges?

Open the front cover of the printer. Wait until the carriage stops. Gently press down on the cartridge to be replaced to unlock it, then remove it. Unpack the new cartridge, remove the protective tape, insert it into the slot until it clicks. Close the cover and follow alignment instructions if necessary.

What to do in case of a paper jam?

Open the rear cover or access door to gently remove the jammed paper. Always pull in the direction of the paper path. Check for any small pieces. Close all covers. If the error persists, refer to the 'Clearing jams' section in the manual.

How do I print automatic duplex?

Automatic duplex printing requires the optional accessory (duplex module). In the printer driver (Windows or Mac), select the 'Layout' or 'Duplex' tab and choose 'Flip on long edge' or 'Flip on short edge'. Make sure the module is properly installed.

Why is the printer printing blank pages?

This may be due to empty or clogged ink cartridges. Check ink levels via the control panel or HP software. Run a print head cleaning from the 'Toolbox' (Windows) or 'HP Utility' (Mac). If the problem persists, replace the affected cartridges.

How do I set up HP ePrint?

Make sure the printer is connected to the Internet (Ethernet or Wi-Fi). Open the Embedded Web Server (EWS) by typing the printer's IP address in a browser. Go to the 'Web Services' tab, click 'Set up', and follow the instructions to accept the terms. Once activated, the printer will print a page with its email address.

How do I clean the exterior of the printer?

Unplug the printer. Use a soft, lint-free cloth slightly dampened with water. Gently wipe the casing. Avoid any liquid inside and on the control panel. Do not use abrasive products or solvents.

What do the flashing lights on the control panel mean?

The lights indicate the printer status: the 'Resume' light flashes in case of error (jam, empty paper). The 'Wireless' light indicates network connection. The 'ePrint' light turns on when the service is active. Refer to the 'Understanding the indicator lights' section of the manual for a full description.

How do I scan a document to a computer?

Place the document on the scanner glass (face down). From the HP software on your computer, select 'Scan' or use the printer control panel. Choose the destination (computer, email, etc.) and scanning settings (color, resolution). Press Start.

The printer is not connecting to the Wi-Fi network, what should I do?

Check that Wi-Fi is enabled on the printer (light on). Make sure the router is working and you are using the correct password. Reset the printer's network settings via the control panel (press the 'Cancel' and 'Wireless' buttons simultaneously to print a configuration page). Reinstall the HP software if necessary.

USER MANUAL OFFICE 4656 HP

© 2014 Copyright Hewlett-Packard

Development Company, L.P.

Edition 2, 1/2014

Product model number: CM752A

Product serial number: CN11HTH54305MX

Service ID: 21202

Firmware Version: TSM1FN1122AR

Pages printed: Tray 1=541, Tray 2=0, Total=541, Auto-duplex unit=0

Ink cartridge level*: K=60, Y=60, M=80, C=20

*Estimates only. Actual ink levels may vary.

Test Pattern 1

If the lines are not straight and connected, align the printheads.

Test Pattern 2

If you see thin white lines across any of the colored blocks, clean the printheads.

C:\Ping 123.123.123.123

30-watt printing (Fast Draft mode)

The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

For further information, contact:

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, CA 94304

[phone]

Modifications (part 15.21)

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by HP may void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC, Ecodesign Directive 2009/125/EC, when applicable

R&TTE Directive 1999/5/EC

Exposure to radio frequency radiation

Caution: The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. This product and any attached external antenna, if supported, shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

For Indoor Use. This digital apparatus does not exceed the Class B limits for radio noise emissions from the digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The internal wireless radio complies with RSS 210 and RSS GEN of Industry Canada.

www.hp.com/hpinfo/globalcitizenship/environment/index.html

www.hp.com/hpinfo/globalcitizenship/environment/recycle/

www.hp.com/hpinfo/globalcitizenship/environment/recycle/

www.hp.com/go/energystar

Please recycle waste batteries.

5 European Union Battery Directive

This product contains a battery that is used to maintain data integrity of real time clock or product settings and is designed to last the life of the product. Any attempt to service or replace this battery should be performed by a qualified service technician.

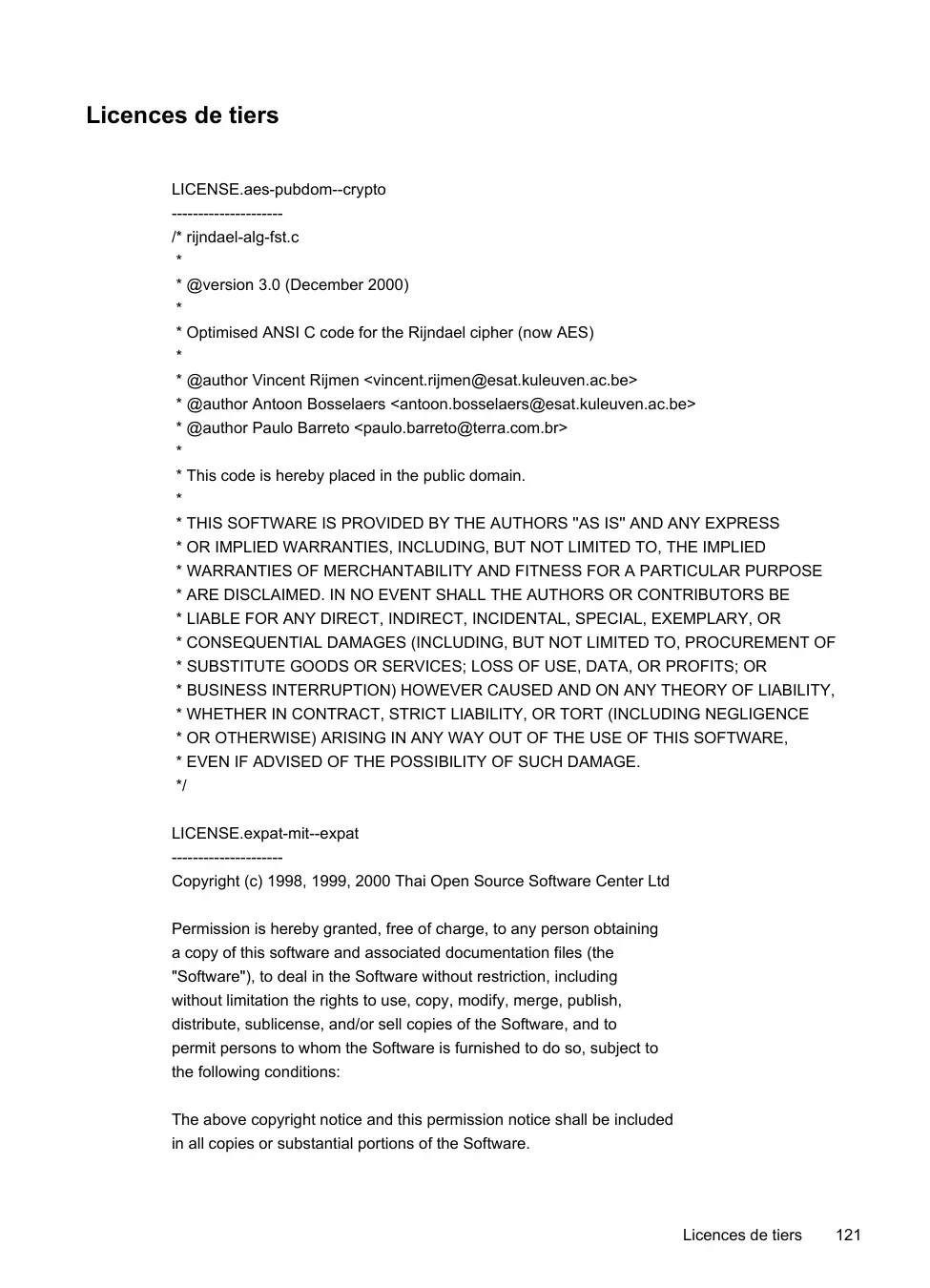

Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

/ HMAC-SHA-224/256/384/512 implementation Last update: 06/15/2005 Issue date: 06/15/2005 Copyright (C) 2005 Olivier Gay [e-mail] All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of the project nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE PROJECT AND CONTRIBUTORS 'AS IS' AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE PROJECT OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (C) 1995-1998 Eric Young ([e-mail])

All rights reserved.

This package is an SSL implementation written

by Eric Young ([e-mail]).

The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed.

If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used.

This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

"This product includes cryptographic software written by

Eric Young ([e-mail])"

The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-).

1. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:

"This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG 'AS IS' AND

ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

Copyright (c) 1998-2001 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT 'AS IS' AND ANY

EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]).

Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment:

"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS COLLABORATORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]).

Copyright 2002 Sun Microsystems, Inc. ALL RIGHTS RESERVED. ECC cipher suite support in OpenSSL originally developed by SUN MICROSYSTEMS, INC., and contributed to the OpenSSL project.

LICENSEsha2-bsd--nos_crypto

/* FIPS 180-2 SHA-224/256/384/512 implementation

• Last update: 02/02/2007
• Issue date: 04/30/2005 *
• Copyright (C) 2005, 2007 Olivier Gay [e-mail]
• All rights reserved. *
• Redistribution and use in source and binary forms, with or without
• modification, are permitted provided that the following conditions
• are met:
• Redistributions of source code must retain the above copyright
• notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright
• notice, this list of conditions and the following disclaimer in the
• documentation and/or other materials provided with the distribution.
• Neither the name of the project nor the names of its contributors
• may be used to endorse or promote products derived from this software
• without specific prior written permission.
• THIS SOFTWARE IS PROVIDED BY THE PROJECT AND COLLECTORS 'AS IS' AND
• ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE
• IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
• ARE DISCLAIMED. IN NO EVENT SHALL THE PROJECT OR CONTRIBUTORS BE LIABLE
• FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
• DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
• OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
• HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
• LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
• OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
• SUCH DAMAGE.

*/

LICENSE.zlib--zlib

zlib.h -- interface of the 'zlib' general purpose compression library version 1.2.3, July 18th, 2005

Copyright (C) 1995-2005 Jean-Loup Gailly and Mark Adler

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly Mark Adler

[e-mail] [e-mail]

The data format used by the zlib library is described by RFCs (Request for

Comments) 1950 to 1952 in the files http://www.ietf.org/rfc/rfc1950.txt

(zlib format), rfc1951.txt (deflate format) and rfc1952.txt (gzip format).

B Supplies and accessories HP

HP Utility program (Mac OS X)

technical support 49

HP Utility program 142

maintenance

replacement of

HP Utility program (Mac OS X)

opening 142

R

specifications support

specifications
