FMO1221X - Microwave Oven HOTPOINT - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	Hotpoint
Model	FMO1221X
Rated Voltage	230 V~50 Hz
Input Power (Microwave)	1250 W
Output Power (Microwave)	800 W
Grill Power	1000 W
Oven Capacity	20 L
Turntable Diameter	245 mm
External Dimensions (W x H x D)	594 x 343.5 x 388 mm
Net Weight	Approx. 15.4 kg
Main Functions	Microwave, grill, combination, defrost by weight or time, auto menu (10 programs), multi-stage cooking, timer, clock, quick start
Care and Cleaning	Interior with damp cloth; accessories with soapy water; door frame, seal and sealing surfaces cleaned with a damp cloth
Safety	Child lock, automatic shut-off in case of problem, door with safety lock system, warnings against sealed containers and hard-boiled eggs
Spare Parts and Repairability	Parts not specified; for replacement of glass tray or support, contact authorized after-sales service
General Information	Household use only; built-in installation mandatory; short power cord; do not operate without food

Frequently Asked Questions - FMO1221X HOTPOINT

How to set the clock of the microwave oven?

After plugging in the oven, press the /Ⓛ button once. Turn the knob to set the hours (24h format), press the same button again to switch to minutes, then turn to set the minutes. Confirm with START.

Which utensils are suitable for this microwave?

Use microwave-safe utensils: heat-resistant glass, suitable plastic, parchment paper, cling film. Avoid metal, aluminum (except small strips), wood, paper bags. Test your utensils by placing 250 ml of water at max power for 1 minute: if the utensil becomes hot, do not use it.

How to use the grill or combination function?

Press the grill button until 'G' (grill only), 'C-1' (55% microwave + 45% grill) or 'C-2' (36% microwave + 64% grill) appears. Confirm with START, set the duration (up to 95 min), then start. Halfway through cooking, the oven beeps: turn the food over for even grilling.

How to defrost food?

Two options: by weight (press / ✱ once, select 'dEF1', turn the knob to select weight between 100 and 2000 g) or by time (press the same button twice, 'dEF2', set the time). The power is fixed at 30%.

What to do if the oven does not heat?

First check that the door is properly closed (common cause). Then make sure the cord is plugged in correctly, the fuse has not blown, and the outlet works. If the problem persists, contact a qualified technician.

How to clean the inside of the oven?

Unplug the appliance. Clean the interior with a slightly damp cloth. For accessories (tray, support), use soapy water. The door seal and sealing surfaces should be cleaned with a damp cloth when dirty. Do not use a steam cleaner or abrasive products.

Can I use aluminum containers?

No, aluminum containers or metal handles can cause electric arcs. Only use small pieces of aluminum foil to cover thin slices of meat, placing them at least 2.5 cm from the walls.

How to activate the child lock?

On the oven in standby, press and hold the PAUSE STOP button for 3 seconds. A long beep sounds and the display shows the time or '::' if the clock is not set. To unlock, press the same button again for 3 seconds.

Why does steam accumulate on the door?

This is normal. During cooking, steam released by food exits through the ventilation holes, but some may condense on cold surfaces like the door. This phenomenon is harmless.

Is it possible to cook hard-boiled or soft-boiled eggs?

No, soft-boiled and hard-boiled eggs should not be cooked in the microwave as they may explode, even after cooking. For egg-based dishes, pierce the yolk before cooking.

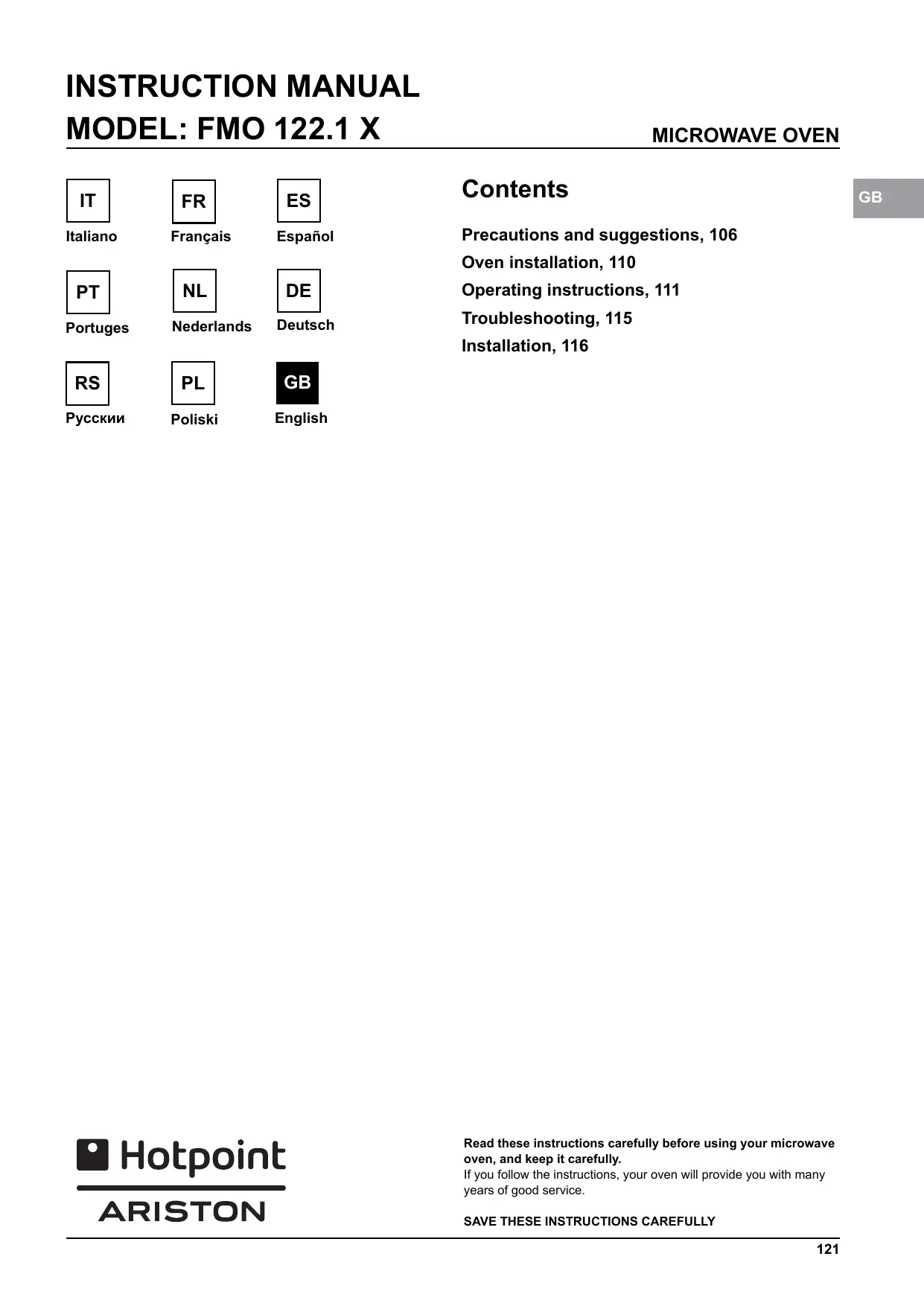

USER MANUAL FMO1221X HOTPOINT

Three-panel image showing bread slices, a glass of golden liquid, and a dessert with red ruffles and mint leaves (no text or symbols)

IT

Italiano

Français

Español

Portuges

Nederlands

Deutsch

Русский

Poliski

English

Hotpoint

ARISTON

“P50”, “P30” o “P10”. Quindi premere “START”

Simple line drawing of a 3D rectangular box with no text or symbols

Line drawing of a closed storage cabinet with an open door and directional arrow indicating flow (no text or symbols)

staffa

Technical diagram showing a closed storage cabinet with an arrow indicating direction and a supporting component labeled 'support'

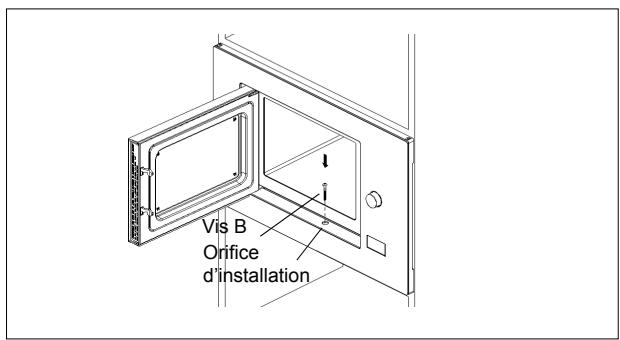

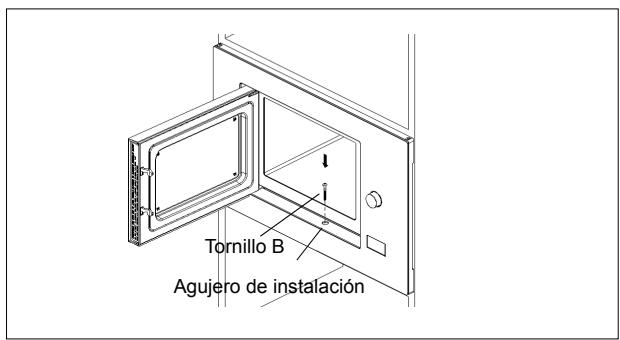

Vis B Orifice d'installation

A F E D C B G

Technical diagram showing a closed storage cabinet with an arrow indicating direction and a close-up of the interior space labeled 'soporte'.

PARAFUSO A SUPORTE LINHA CENTRAL

PARAFUSO A SUPORTE

Technical diagram showing a closed storage cabinet with an arrow indicating direction and a bracket labeled 'bracket' pointing to a small component.

Technical drawing of a 3D cube with an inset showing its internal structure and dimensions.

SCHROEF A STEUN CENTRALE LIJN

SCHROEF A STEUN

Technical diagram showing a door open and a cross-section of a steun with labeled components

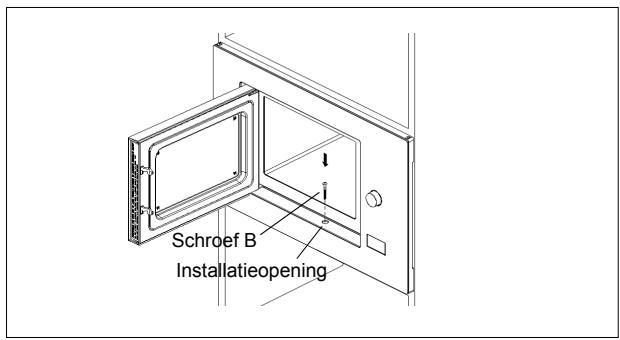

Schroef B Installatieopening

Technical drawing of a 3D cube with an inset diagram showing a labeled component layout.

Technical diagram showing a door open and a door with a halterung component labeled in German.

Schraube B Installationsloch

Technical drawing of a 3D cube with an inset diagram showing a window frame and labeled dimensions.

Line drawing of a 3D cube with an adjacent diagram showing a labeled box (no text or symbols on the cube itself)

Technical diagram showing a door open and its internal structure with wspornik component labeled

Precautions and suggestions, 106

Oven installation, 110

Operating instructions, 111

Troubleshooting, 115

Installation, 116

Hotpoint

ARISTON

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

GB

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	FMO 122.1 X
Rated Voltage:	230V~50Hz
Rated Input Power (Microwave):	1250W
Rated Output Power (Microwave):	800W
Rated Input Power (Grill):	1000W
Oven Capacity:	20 L
Turntable Diameter:	∅ 245mm
External Dimensions:	594x343.5x388mm
Net Weight:	Approx. 15.4Kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series).
5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

25. Children should be supervised to ensure that they do not play with the appliance.
26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
29. Accessible parts may become hot during use. Young children should be kept away.
30. Steam cleaner is not to be used.
31. Surface of a storage drawer can get hot.

32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

33. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

34. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
35. During the first use there is a particular smell due to production oils to protect some components.
36. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

37. Keep the appliance and its cord out of reach of children less than 8 years.

38. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses;

-bed and breakfast type environments.

1. WARNING: The appliance and its accessibleparts become hot during use.Care should be taken to avoid touching heating elementsChildren less than 8 years of age shall be kept away unless continuously supervised.

READ CAREFULLY AND KEEP FOR FUTUREREFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

UTENSILS

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Materials you can use in microwave oven Utensils Remarks

GB

Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven coking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A F E D C B G

Grill Rack( Only for Grill series )

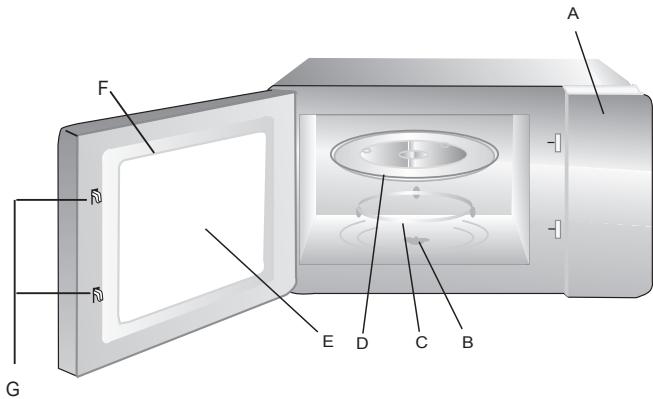

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

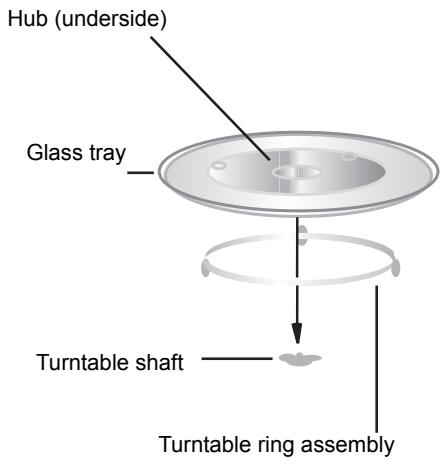

Hub (underside) Glass tray Turntable shaft Turntable ring assembly

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.

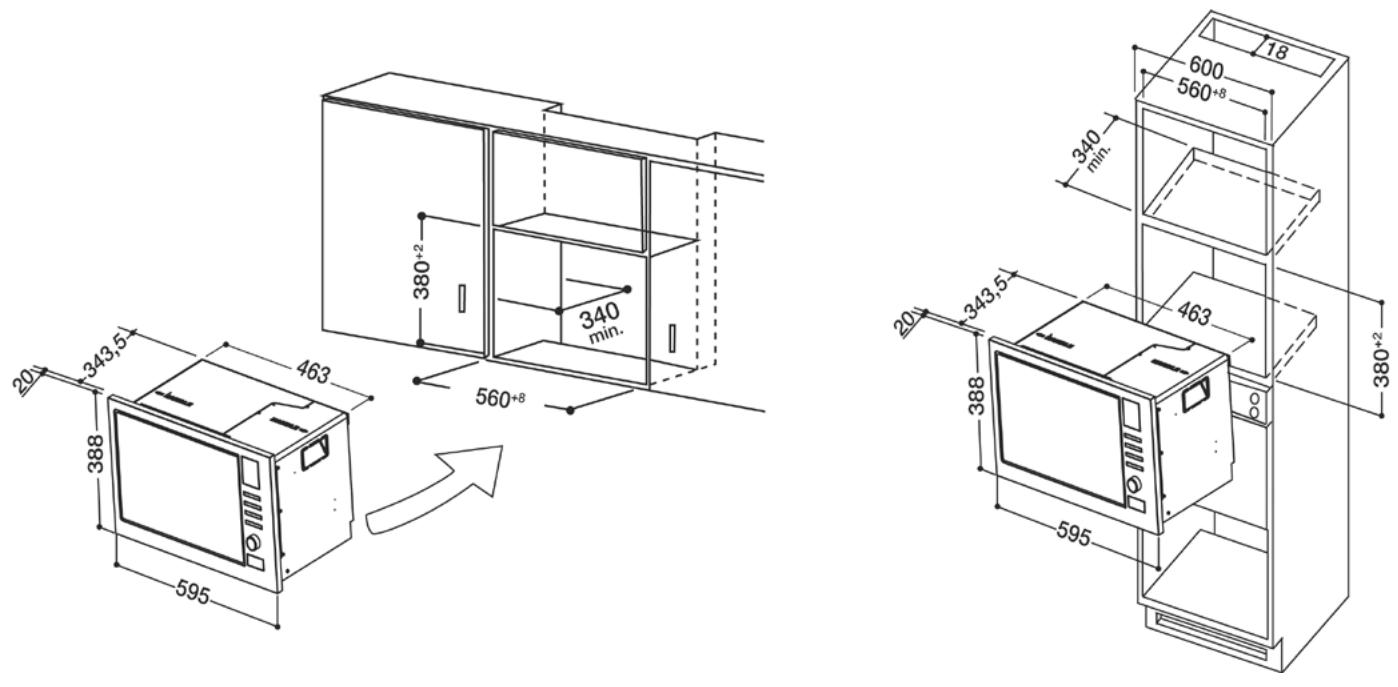

4. The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press “ 📋/ Ⓛ ” once. “00:00” displays.
2) Turn “☐” to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press “ 🔒 / Ⓛ ”, the minute figures will flash.
4) Turn “☐” to adjust the minute figures, the input time should be within 0--59.
5) Press “ ☑/☐” to finish clock setting. “:” will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press “ PAUSE STOP ”, the oven will go back to the previous status automatically.

2. Microwave Cooking

Press “ 🐘️ 🐘️ ” the LED will display

“P100”. Press “ ≈ ≈ ≈ ≈ ” for times or

turn “ 🔍 ” to choose the power you want, and “P100”, “P80” “P50”, “P30” or “P10” will display for each added press. Then press “ 🎩 ” to confirm, and turn “ 🔍 ” to set cooking time from 0:05 to 95:00.

Press “ START ” again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press “ START ” once, the screen display “P100”.
2) Press “ ≈ ≈ ≈ ≈ ” once again or turn
“” to choose 80% microwave power.
3) Press “START” to confirm, and the screen displays “P 80”.
4) Turn “☐” to adjust the cooking time until the oven displays “20:00”.
5) Press “START” to start cooking.

3. Grill or Combi. Cooking

Press “ ≈ ≈ ≈ ≈ ” the LED will display

“G”, and press the same button for times or turn the

“” to choose the power you want, and “G”, “C-1” or

"C-2" will display for each added press. Then press

“START” to confirm, and turn “h” to set

cooking time from 0:05 to 95:00. Press “START” again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press “ ≈ ≈ ≈ ” once, the screen display “P100”.
2) Press “ ” for timers or turn “ ” to
choose combi. 1 mode.
3) Press “C-1”. START ” to confirm, and the screen displays
4) Turn “h” to adjust the cooking time until the oven displays “10:00”.
5) Press “ START” to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over close the door, and then press

“START” to continue cooking. If no operation, the oven will continue working.

4. Quick Start

1. Quick Start 1) In waiting state, Press “START” to start cooking
   with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
   2) In microwave cooking or time defrost state, each press of “START” can increase 30 seconds of cooking time.
   3) In waiting state, turn “h” left to set cooking time with 100% microwave power, then press “START” to start cooking.

5. Defrost By Weight

1) Press “☐/☐ ☐” once, and the oven will display “dEF1”.
2) Turn “☐” to select the weight of food from 100 to 2000 g.
3) Press “ START ” to start defrosting.

“ ”Pad instructions

Order	Display	Microwave Power	Grill Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%
6	G	0%	100%
7	C-1	55%	45%
8	C-2	36%	64%

6. Defrost By Time

1) Press “/” twice, and the oven will display “dEF2”.
2) Turn “☐” to select the defrost time. The MAX time is 95 minutes.
3) Press “ START ” to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

(1) Press “ ☑/☐” twice, LED will display 00:00, timer indicator will light.
(2) Turn “” to enter the correct time.(The maximum cooking time is 95 minutes.)
(3) Press “START” to confirm setting, timer indicator will be lighted.
(4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set (24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system. Kitchen Timer is a timer.

8. Inquiring Function

(1) In states of microwave, grill and combination cooking, press “ ≈ ≈ ≈ ”, the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
(2) In cooking state, press “ ☑/☐” to inquire the time and the time will display for 3 seconds.

9. Auto Menu

1) Turn “☐” right to choose the menu, and “A-1” to “A-10” will display.
2) Press “ START” to confirm.
3) Turn “,” to choose the default weight as the menu chart.
4) Press “START” to start cooking. Example: If you want to use “Auto Menu” to cook fish for 350g.
1) Turn “ ” clockwise till “A-4” display.
2) Press “ START ” to confirm.
3) Turn “ ” to select the weight of fish till “350” display.
4) Press “ START” to start cooking.

10. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press “ dEF2”.
2) Turn “ ” to select the defrost time till “5:00” display.
3) Press “ P100”.
4) Press “\~\~\~\~” once again or turn “●” to choose 80% microwave power.

5) Press “ START ” to confirm, and the screen displays “P 80”.
6) Turn “☐” to adjust the cooking time till the oven displays “7:00”.
7) Press “START” to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

11. Lock-out Function for Children

Lock: In waiting state, press “ PAUSE STOP ” for 3 seconds, there will be a long beep denoting entering the children-lock state and current time will display if the time has been set, otherwise, the LED will display “[::].” Lock quitting: In locked state, press “ PAUSE STOP ” for 3 seconds, there will be a long “beep” denoting that the lock is released.

The menu chart:

Menu	Weight (g)	Display
A1PIZZA	200 g	200
	400 g	400
A2Potato	200 g	200
	400 g	400
	600 g	600
A3Meat	250 g	250
	350 g	350
	450 g	450
A4Fish	250 g	250
	350 g	350
	450 g	450
A5Vegetable	200 g	200
	300 g	300
	400 g	400
A6Beverage	1 cup (120 ml)	1
	2 cups (240 ml)	2
	3 cups (360ml)	3
A7Pasta	50g(with 450 ml cold water)	50
	100g(with 800 ml cold water)	100
A8 Popcorn	50 g	50
	100 g	100
A9Chicken	400	400
	800	800
	1200	1200
A-10Reheat	200	200
	400	400
	600	600
Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may can out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started	(1) Power cord not plugged in tightly	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuits breaker works.	Replace fuse or reset circuits breaker (repaired by professional personnel of your company)
	(3) Trouble with outlet	Test outlet with other electrical appliances.
Oven does not head	(4) Door not closed well	Close door well
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom	Refer to “Maintenance of Microwave” to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Please Read the Manual Carefully Before Installation

Please Note

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap at least 3mm.

The fitted cabinet must not have a back wall behind the appliance.

Minimum installation ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

A. Built-in furniture

380+2 340 min. 560+8 20 343,5 463 388 595 20 343,5 388 595 340 min. 463 380+2 600 560+8 18

B. Prepare the cabinet

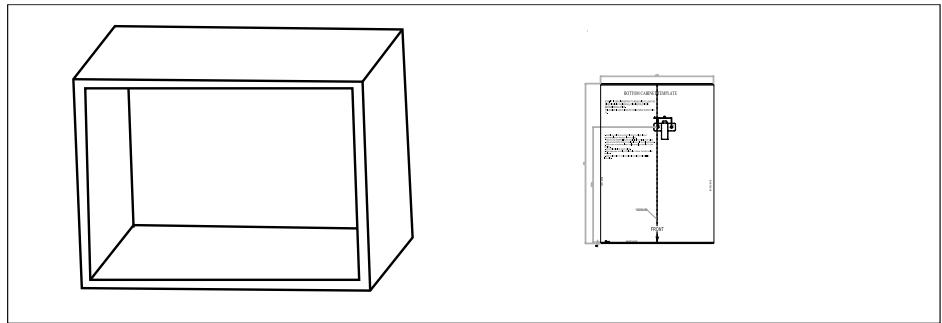

1. Read the instruction on the BOTTOM CANINET TEMPLATE, put the template on the bottom plane of cabinet.

1. Make the marks on the bottom plane of cabinet according to marks"a" of of the template

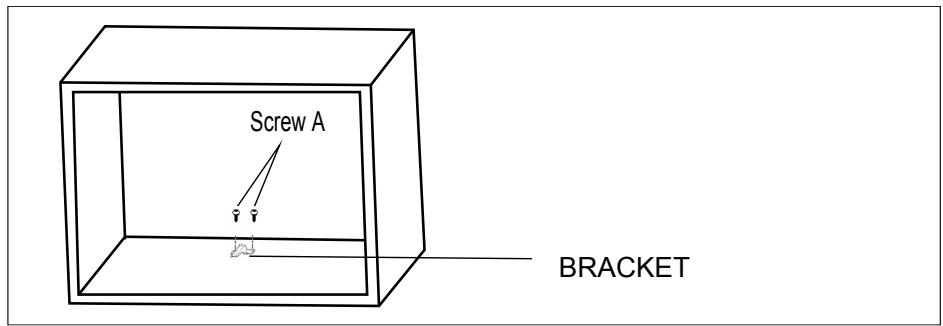

SCREW A BRACKET CENTRE LINE

1. Remove the bottom cabinet template and fix the bracket with screw A.

Screw A BRACKET

C. Install the oven

Technical line drawing of an open oven and its internal compartment, showing front view and side view with no text or symbols.

Screw B Installation Hole

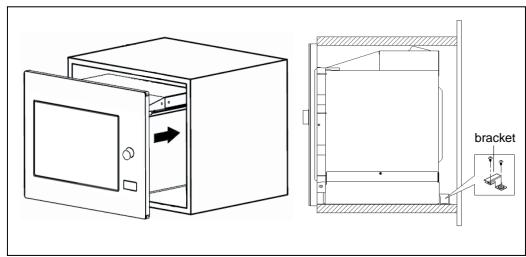

1. Install the oven to the cabinet

2. Make sure the back of the oven is locked by bracket.

3. Do not trap or kink the power cord.

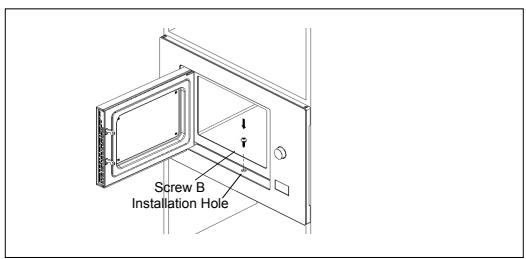

4. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.

PN:261800316293
