Product type	Microwave with grill
Brand	GORENJE
Model	MHO170SRM
Power supply voltage	230 V ~ 50 Hz
Microwave power	900 W
Grill power	1200 W
Microwave frequency	2450 MHz
External dimensions (W x H x D)	510 x 303 x 405 mm
Cavity dimensions (W x H x D)	330 x 212 x 330 mm
Oven volume	23 liters
Net weight	14.5 kg
Noise level	< 58 dB(A)
Main functions	Microwave, Grill (2 levels), Combination (2 modes), Automatic defrost, Automatic cooking (6 menus), Minute reheat, Clock, Delayed start programmer, Child safety
Microwave power levels	5 (100%, 70%, 50%, 30%, 10%)
Maximum defrost capacity	Less than 2 kg
Maximum cooking time	60 minutes
Control type	Electronic with buttons and digital display
Included accessories	Glass turntable, roller ring, grill trivet
Care and cleaning	Clean the interior with a damp sponge and mild detergent; turntable and roller ring dishwasher safe; do not use abrasive cleaners
Safety	Door lock, automatic shut-off, child safety, overload protection
Spare parts and repairability	Bulb replaceable by a retailer; turntable, roller ring, trivet available; repairs by qualified technician only
General information	Domestic use only; do not operate empty; observe ventilation clearances (8 cm sides, 10 cm rear)

Frequently Asked Questions - MHO170SRM GORENJE

How to set the clock on the Gorenje MHO170SRM microwave?

Press the Clock/Timer button until the display flashes. Use the 1 MIN and 10 SEC buttons to set the hours, then press Clock/Timer again to set the minutes. Press a third time to confirm.

How to use automatic cooking (Auto Menu)?

Press Micro...Auto menu repeatedly to select the desired menu (A-1 to A-6). Then set the weight by pressing 1 MIN and 10 SEC. Start with Start/Reset.

How to defrost food automatically?

Press Micro...Auto menu until DEF appears. Enter the food weight (max 2 kg) using 1 MIN and 10 SEC buttons, then press Start/Reset.

How to use the grill?

Press Micro...Auto menu to select G-1 (85%) or G-2 (50%). Set the duration (max 60 min) and press Start/Reset. Halfway through, the oven pauses to turn the food.

How to activate child safety lock?

Press and hold the Increase and Decrease cooking time buttons simultaneously for 2 seconds. Repeat to deactivate.

Which utensils should not be used in this microwave?

Do not use metal, melamine, airtight containers, narrow-necked bottles, or unsuitable plastic. Use microwave-safe glass or ceramic dishes.

How to clean the oven interior?

Unplug the appliance. Clean with a damp sponge and mild detergent. For odors, place a bowl of water with lemon and heat for 5 minutes. The turntable and roller ring are dishwasher safe.

What to do if the oven does not work?

Check the plug, fuse, and circuit breaker. Ensure the door is closed properly and the time is set. If still not working, contact customer service.

How to use minute reheat?

Place the food in the oven and close the door. Simply press Start/Reset: the oven heats at 100% for 1 minute. To extend, press again.

How to program a delayed start?

First set the clock. Press Clock/Timer and set the start time. Then select the power and cooking duration, then press Start/Reset.

USER MANUAL MHO170SRM GORENJE

GMO 23 ora-ïto

GMO 23 Ora-ïto W

Mikrovalovna pečica	Navodila za uporabo	SI
Mikrovalovna pećnica	Upute za uporabu	BIH HR
Mikrotalasna rerna	Uputstvo za upotrebu	BIH SRB MNE
Микробрановата печка	Упатства за употреба	MK
Microwave oven	Instruction manual	GB
Mikrowellengerät	Gebrauchsanweisung	D
Micro-ondes	Notice d'utilisation	F
Mikrohullámú sütő	Használati utasítás	H
Kuchenka mikrofalowa	Instrukcja obsługi	PL
Microunde	Manual de utilizare	RO
Mikrovlnná rúra	Návod na obsluhu	SK
Mikrovlnná trouba	Návod na použití	CZ
Микровълновата фурна	Инструкции за употреба	BG
Мікрохвильова піч	Інцтрукція з експлуатації	UA
Микроволновая печь	Инструкция по эксплуатации	RUS
Forno a microonde	Istruzioni d'uso	I
Mikrobřlgeovn	Brugsanvisning	DK
Mikrobřlgeoven	Bruksanvisning	SE
Mikrovígsugnen	Bruksanvisning	NO
Mikroaaltouuni	Käyttöohje	FI
Mikrovilnu krasnij	Lietotaja rokasgramata	LV
Mikrobangu krosnele	Naudojimo instrukcija	LT
Mikrolaineahi	Kasutusjuhend	EE
Microondas	Instrucciones para el uso	E

SI Navodila za uporabo 3 HR Upute za uporabu 10 SRB, MNE Uputstvo za upotrebu 17 MK Упатства за употреба 24 EN Instruction manual 32 DE Gebrauchsanweisung 39 FR Notice d'utilisation 47 HU Használati utasítás 54 PL Instrukcja obsługi 62 RO Manual de utilizare 70 SK Návod na obsluhu 77 CZ Návod na použití 84 BG Инструкции за употреба 91 UK Інструкція з експлуатації 99 RU Инструкция по эксплуатации 106 IT Istruzioni d'uso 113 DK Brugsanvisning 120 SE Bruksanvisning 127 NO Bruksanvisning 134 FI Käyttöopas 141 LV Lietošanas pamācības rokasgrāmata 148 LT Naudojimo instrukcija.... 155 EE Kasutusjuhend 162 ES Instrucciones para el uso.... 169

Read the instructions carefully and keep them!

Specifications

Power consumption: 230V~50Hz, 1280W

Output power: 900W

Grill heater: 1200W

Operating frequency: 2450MHz

External dimensions: 510mm (W) x 303mm (H) x 405mm (D)

Oven cavity dimensions: 330mm (W) x 212mm (H) x 330mm (D)

Oven capacity: 23 liters

Weight without packaging: approximately 14.5 kg

Noise level: Lc < 58 dB (A)

1. Time selection +
2. Time selection -
3. Cooking mode selection (microwave, defrost, grill and combination)
4. Display
5. Time setting and timer
6. Auto menu selection
7. Start and stop operation / Start – reset function
8. Door locking safety system
9. Oven window
10. Ventilation opening or ventilation fan
11. Bearing ring
12. Glass tray
13. Control panel
14. Grill rack

Operating instructions

1. ONE-TOUCH COOKING

1. Time selection +
2. Time selection -
3. Cooking mode selection (microwave, defrost, grill and combination)
4. Display
5. Time setting and timer
6. Auto menu selection
7. Start and stop function
8. Door safety interlock system
9. Oven window
10. Ventilation openings or ventilation fan
11. Rotating plate
12. Glass tray
13. Control panel
14. Grill rack

Operating instructions

1. Preparing food with a single press of a button

With just one press of a button, you can start simple cooking.

Read the instructions carefully and keep for future reference.

SPECIFICATIONS

Power consumption: 230V~50Hz, 1280W

Output: 900W

Grill heater: 1200W

Operating frequency: 2450MHz

Outside dimensions: 510mm(W) X 303mm(H) X 405mm(D)

Oven cavity dimensions: 330mm(W) X 212mm(H) X 330mm(D)

Oven capacity: 23 litres

Uncrated Weight: Approx. 14.5 kg

Noise level: Lc < 58 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Before you call for service

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.

b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

Radio interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven. b) Place the radio, TV, etc. as far away from your microwave oven as possible. c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

Installation

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity If any of the above are visible, DO NOT use the oven.
7. This Microwave Oven weighs 14.5 kg and must be placed on a horizontal surface strong enough to support this weight.
8. The oven must be placed away from high temperature and steam.
9. DO NOT place anything on top of the oven.
10. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from the rear wall to ensure correct ventilation.
11. DO NOT remove the turntable drive shaft.
12. As with any appliance, close supervision is necessary when used by children.

WARNING: THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord.
2. This oven requires 1.3 KVA for its input; consultation with a service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V, 10 Amp fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Important safety instructions

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

• The oven must have sufficient air flow. Keep 8 cm space at back; 10 cm at both sides and 10 cm from top of the oven. Do not remove the oven's feet, do not block air vents of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Safety instructions for general use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.
• There are thermometers available specifically for microwave cooking. These may be used.
• Microwave utensils should be used only in accordance with manufacturer's instructions.
• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking. Always test the temperature of cooked food yourself, especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid

straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

1. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
2. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
3. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
4. To reduce the risk of fire in the oven cavity: a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

Computer control panel

1. TIME UP
2. TIME DOWN
3. Micro/defrost/Grill/Double Grill/Comb
4. Display Window
5. Clock / Timers
6. AUTO / MENU
7. START / RESET

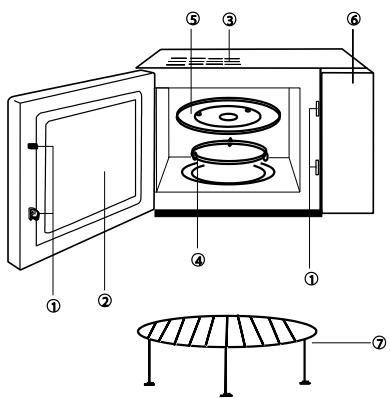

Feature diagram

1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Roller Ring
5. Glass Tray
6. Control Panel
7. Grill Rack

Operation Instruction

1. Single Button Heating

Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable and close the door. b) Press the button »Start/Reset«, the microwave oven will work on 100% power for 1 minute. c) You will hear 5 beeps when cooking is completed.

2. Microwave Heating

This function has two options.

a) Quick microwave heating (100% power)

Example: To heat food on 100% power for 5 minutes

1. Set time to »5:00«
2. Press »Start/Reset« b) Manual-operation microwave heating

Example: To heat food on 70% power for 10 minutes

1. Press "Micro...Auto menu" button, select »70%« power;
2. Set time to »10:00«
3. Press »Start/Reset«

There are 5 power levels and the longest microwave cooking time is 60 minutes.

Touching times "Micro"	Microwave power	Display
1	100%	P100
2	70%	P70
3	50%	P50
4	30%	P30
5	10%	P10

3. Auto weight defrost

Select the weight of the frozen food, it will automatically help you to adjust the power level and time.

Example: defrost 0.5 kg of frozen meat.

a) Press "Micro...Auto menu" to select "0,1". b) Imput weight by pressing "1min" (1kg) and "10 sec" (0.1kg) button. c) Press "Start/Reset".

Weight of frozen food must be less than 2 kg.

4. Grill

This function has two options. You may select between the two by pressing the "Micro...Auto menu" button (the longest cooking time is 60 minutes):

Option 1: 85% grill power, display G-1

Option 2: 50% grill power, display G-2

Example: Cooking food using the grill for 20 minutes

a) Press "Micro...Auto menu" until LED displayed "G-1". b) Set cooking time "20:00" c) Press "Start/Reset"

When grilling, food is not heated by microwaves. Heat is radiated from the metal heater at the top of the oven.

When grill is working, the cooking time is divided into 2 stages. After the 1st stage, program will automatically pause and sound 2 beeps, indicating you to open the oven and turn over the food. Close the door after turning the food. Press "Start/Reset" button and the cooking will continue for the 2nd stage. If you do not want to turn over the food, the oven will re-start automatically after 1 min pause.

5. Combination Cooking

With this appliance you can select between two options of combination cooking.

Option 1: Combination cooking (55% microwave + 45% grill)

LED will display "C-1"

Option 2: Combination cooking (30% microwave + 70% grill)

LED will display "C-2".

Example: Cooking food using option 2 for 15 minutes.

a) Press "Micro...Auto menu" until the LED displays "C-2" b) Set cooking time for "15:00" c) Press "Start/Reset"

6. Auto-Menu

You only need to select food type and weight, it will help you to automatically adjust power and time.

Example: Auto cooking 0.4 kg fish

a) Press the "Micro...Auto menu" button until "A-5" is displayed. b) Input the weight by pressing the "1 min" button (1 kg) and the "10 sec" button (0.1 kg). c) Press "Start/Reset".

Touching Times "1min"	Menu, Weight (kg)
	A-1 Rice	A-2 Vegetable	A-3 Noodles
1	0,1	0,1	1
2	0,2	0,2	2
3	0,3	0,3
4	0,4	0,4
5	0,5	0,5
6		0,6

The oven has a 24-hour digital clock. To set the time, for example to 4:30 pm:

a) Press the "Clock/Timer" button. The display will start flashing; adjust the hour with the "1 Min" and "10 Sec" buttons. b) Press "Clock/Timer" again, adjust the minutes with the "1 Min" and "10 Sec" buttons. c) Press "Clock/Timer" again and the clock will be set. d) If you want to change the time, repeat the procedure above.

8. Timer

This allows you to set the microwave oven to start and finish cooking at a pre-set time. The clock must be set before you use this feature.

Example: The current time is 16:30 and you want to start cooking at 18:15 on 70% power for 10 minutes:

a) Press "Clock/Timer", set the time to "18:15" by pressing the "1 Min" and "10 Sec" buttons (same procedure as setting the clock). b) Press "Micro...Auto menu" to select 70% power. c) Set cooking time to 10 minutes. d) Press "Start/Reset".

If you do not set the power and cooking time and directly press the start button once you have programmed the time, the appliance will only work as a clock.

At 18:15 there will be 10 bleeps and the appliance will switch off.

9. Child-safety-lock

To activate the child safety lock, press "Time up" and "Time down" at the same time for 2 seconds.

Press "Time up" and "Time down" at the same time for 2 seconds again to unlock the machine.

10. Start/Reset

a) During operation, pressing the "Start/Reset" button will stop operation. b) If any program was set before pressing start, pressing this button will cancel all the set programs.

Care of your microwave oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergents or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth. Do not use detergents, abrasives, or spray-on cleaners on the control panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water, or window cleaner and dry. The roller ring may be washed in mild sudsy water or dishwasher. Cooking vapors collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly, and dry with a soft cloth.
9. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

Additional recommendations for cooking with microwave, grill and useful advices can be found on web site:

http://microwave.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

1. TIME UP
2. TIME DOWN
3. Microwave / Defrost / Grill / Double grill
4. display window
5. Clock / Timer
6. AUTO / MENU
7. ON / CANCEL
8. Door locking system
9. Glass
10. Ventilation
11. Rotating ring
12. Tray
13. Control panel
14. Grill

Operating instructions

1. One-button heating

WARNING - THIS APPLIANCE MUST BE EARTHED.

1. ONE-BUTTON HEATING

You can start simple cooking with a single press of a button, which is particularly convenient if you want to quickly heat up, for example, a glass of water, etc.

Example: To heat up a glass of milk:

2. HEATING WITH MICROWAVES

Operation Instruction

1. Heating with one button

Important safety instructions
