BFAV550 - TV Wall Mount SANUS - Free user manual and instructions

Brand	SANUS
Model	BFAV550
Product Type	Wall TV mount with glass shelves
Load Capacity (top shelf)	57 kg
Load Capacity (middle and bottom shelves)	23 kg each
Shelf Material	Tempered glass
Frame Material	Steel and plastic
Wall Mounting	Optional (FMK056 wall mount kit not included)
Safety	Anti-tip strap included (ELM 701)
Care and Cleaning	Clean with a soft, non-abrasive cloth
Package Contents	Front panels (top, middle, bottom), left and right feet, back panel, glass shelves (3), hardware, transparent pads, M4 Allen key
TV Compatibility	Up to 65 inches (estimated based on capacity)
Repairability	Spare parts available upon request from the manufacturer
Warranty	Limited manufacturer warranty

Frequently Asked Questions - BFAV550 SANUS

What is the total load capacity of the stand?

The top shelf supports up to 57 kg, the middle and bottom shelves up to 23 kg each.

Can this stand be fixed to the wall?

Yes, a wall mount is possible with the FMK056 mounting kit (optional, not included). A mounting bracket and an M4 Allen key are provided in the kit.

What type of glass is used for the shelves?

The shelves are made of tempered glass, strong and safe.

Can I use this stand for a 75-inch TV?

It is not recommended to exceed the maximum load capacity of the top shelf (57 kg). A 75-inch TV may exceed this limit; check the weight of your TV.

How to clean the glass shelves?

Use a soft, non-abrasive cloth and glass cleaner. Avoid harsh chemicals.

Is the anti-tip strap included?

Yes, the ELM 701 anti-tip strap is provided. Mounting hardware is also included.

What are the exact dimensions of the stand?

Exact dimensions are not given in the manual. Estimate width at about 120 cm and height at 80 cm based on assembly photos.

How to assemble the stand?

Follow the illustrated steps on pages 6 to 9 of the manual: attach the feet, front and back panels, then place the glass shelves on the transparent pads.

Can I add extra shelves?

No, the design is intended for three shelves only. Adding non-standard shelves could compromise stability.

Where to find spare parts?

Contact SANUS customer service or visit the official website to order spare parts.

USER MANUAL BFAV550 SANUS

F O U N D A T I O N S

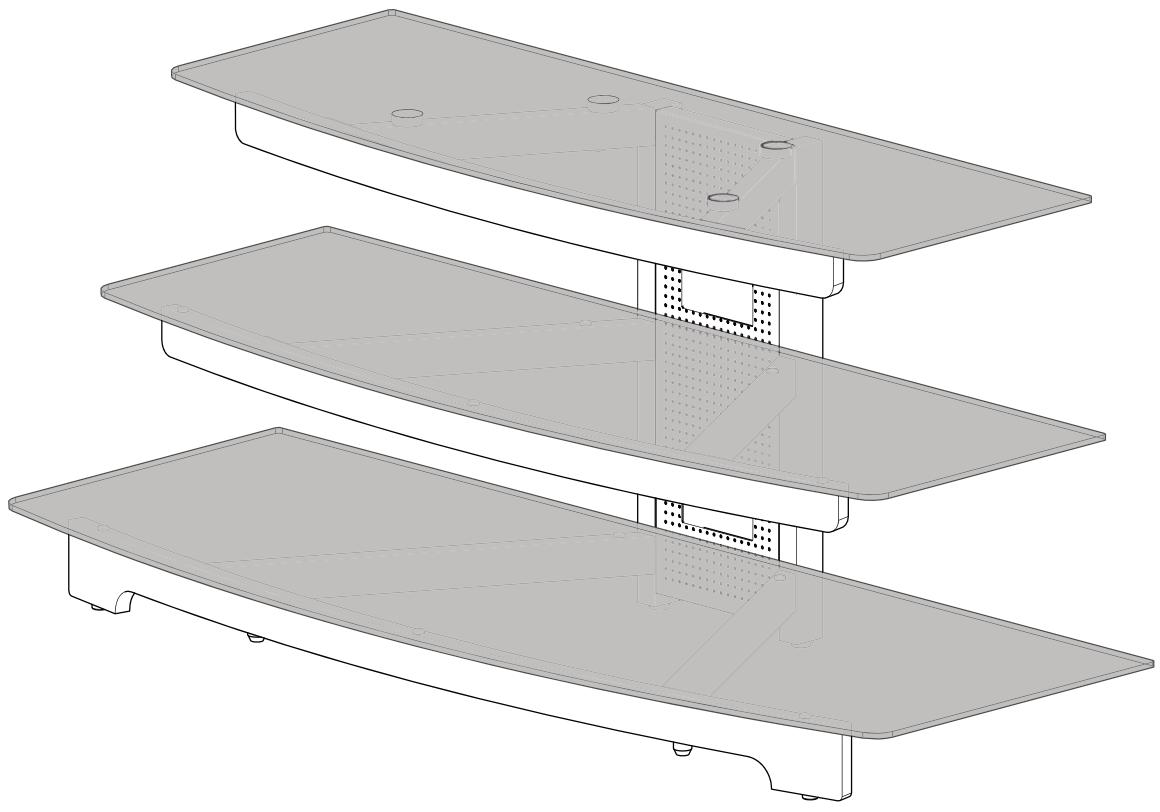

BFAV550

(6901-002054<01>)

Sanus Systems

2221 Hwy 36 West

Saint Paul, MN 55113 USA

Customer Service

Americas: 800-359-5520 • 651-484-7988 • [e-mail]

Europe, Middle East, and Africa: + 31 40 2324700 • [e-mail]

Asia Pacific: 86 755 8996 9226·[e-mail]

sanus.com

©2010 Milestone AV Technologies, a Duchossois Group Company.

All rights reserved. Sanus is a division of Milestone.

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

English WARNING: This product contains small items that could be a choking hazard.	CAUTION / WARNING
Français Ce produit contient de petites pièces qui peuvent représentier un risque d'étouffement.	ATTENTION/ AVERTISSEMENT!
Deutsch Dieses Produkt enthalt kleine Teile, die zum Erstickungstod führen können.	VORSICHT / WARNING
Espanol Este produit contiene piezas pequeñas que, si fuesen tragadas, podrián producir asfixia.	PRECAUCión /iADVERTENCIA!
Portuquès Este produit contém itens��enos que PODem ofecrer risco de sufocamento.	ATENÇÃO / AVISO!
Nederlands Dit product bevatkleine onderdelen die stikkingsgevaar kuren opleveren.	VOORZICTHIG/ WAARSCHUUNG
Italiano Questo prodotto comprende elementi di piccole dimensioni che potrebbero causare il suffocamento.	PRECAUZIONE/ AVVERTENZA
Ελλυκία To prooióν αυτό περιλαμβάνει μικρά αυτικέιμενα που μιροείνα αποτέλέσουν κύνδυν πυγμού.	ΠΡΟΣOXH/ ΠΡOEΙΔΟΝΟΙΗΕ
Norsk Dette produktin ineholder små elementer som kan utgjore kvelefare.	FORSIKTIG/ADVARSEL
Dansk Dette produktindeholder små dele, som kan forårsage kvælning, hvis de bliver slugt.	FORSIGTIG/ADVARSEL
Svenska Den härprodukten innehäller små delar som kan utgöra kvävningsrisik.	FÖRSIKTIGHT/VERNING
Russkii Виздени捶ь мелкіе детали, кOTOPbIe могут ссты причимою удишенья ррп поадани в дьхательные руtn.	ПРЕДУПЕЖДЕНЕ/ ПРЕДУПЕЖДЕНЕ
polski Produkt zawiera male elementy, któ moga grozić zakrzuszeniem.	UWAGA / OSTRZEŽENIE
Česky Tento vyrobek obsahuje malé součástky, které hroží rizikem zaduzeni.	POZOR / VAROVÁNI
Türkce Bu urün, boğulma tehlikesine neden olabilecek kùçuk parçalar icermektedir.	DİKKAT / UYARI
日本語 本製品のはは小さ部品が付属くださいます、窒息の危険性お願いいたします。	注意 / 警告
中文 此产品包含可能带来窒息危险的小组件。	小心 / 警告

SANUS

CAUTION:

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

Specifications

Weight capacities:

Top shelf:57 kg (125 lbs)
Middle shelf: 23kg (50 lbs)
Bottom shelf: 23kg (50 lbs)

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

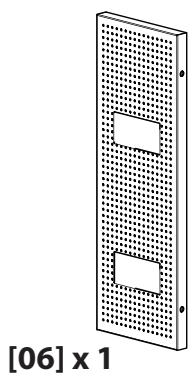

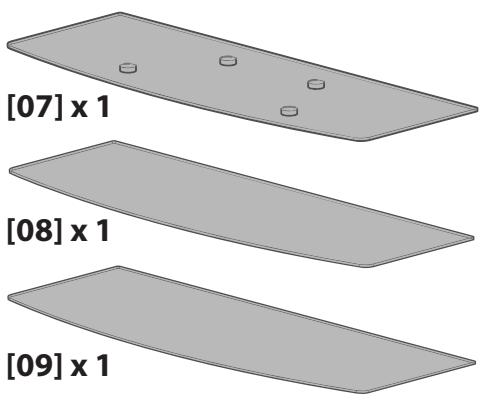

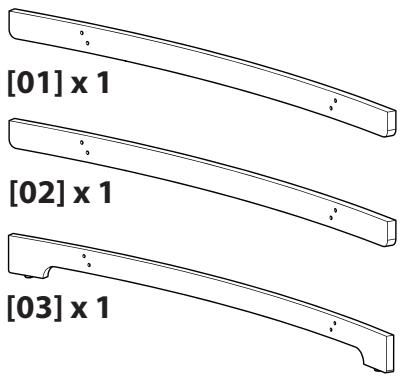

Supplied Parts and Hardware.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used

Begin with the top glass assembly [07] top-down on a soft surface on the floor. Pucks (p)should face upward.

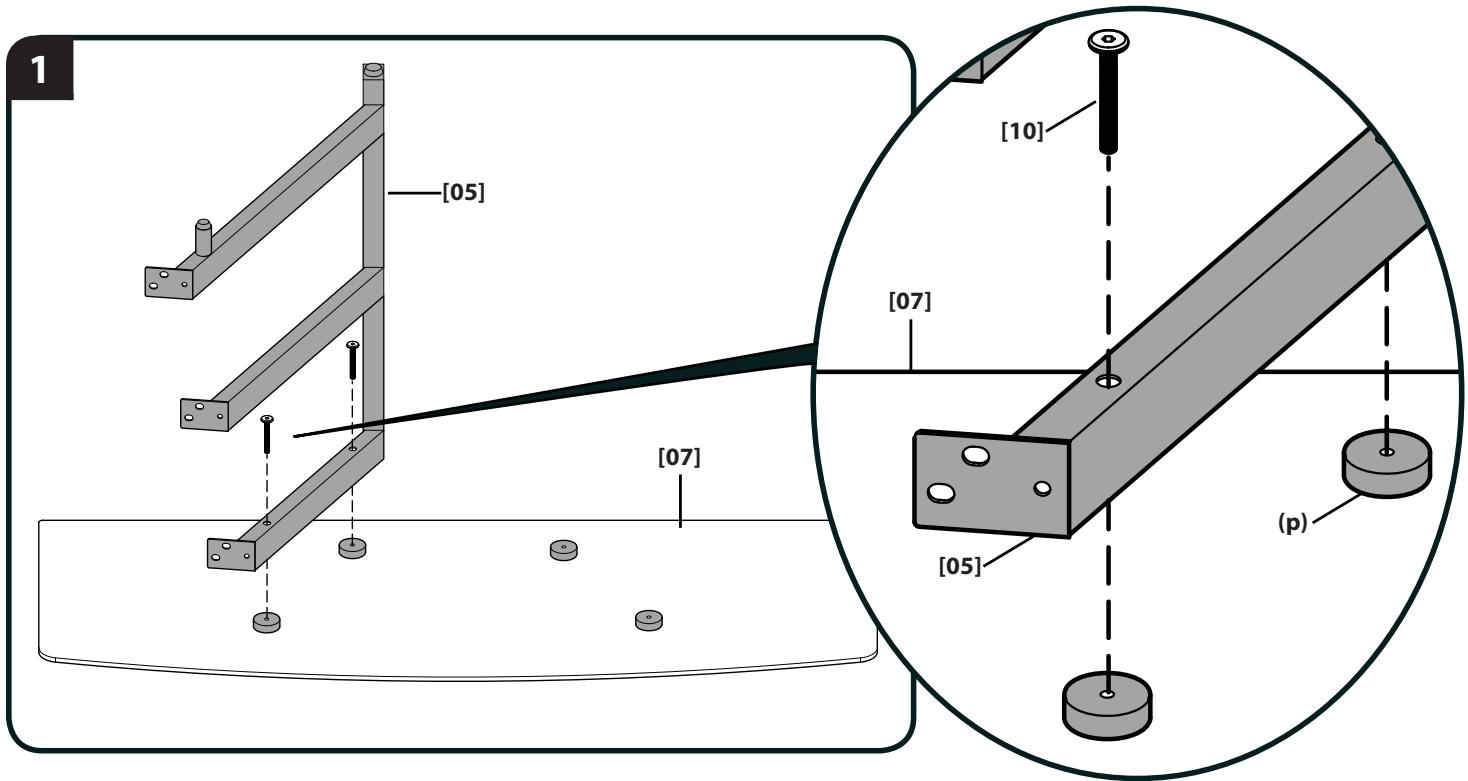

1. Attach right leg assembly [05] to the top glass assembly [07] using bolt [10].

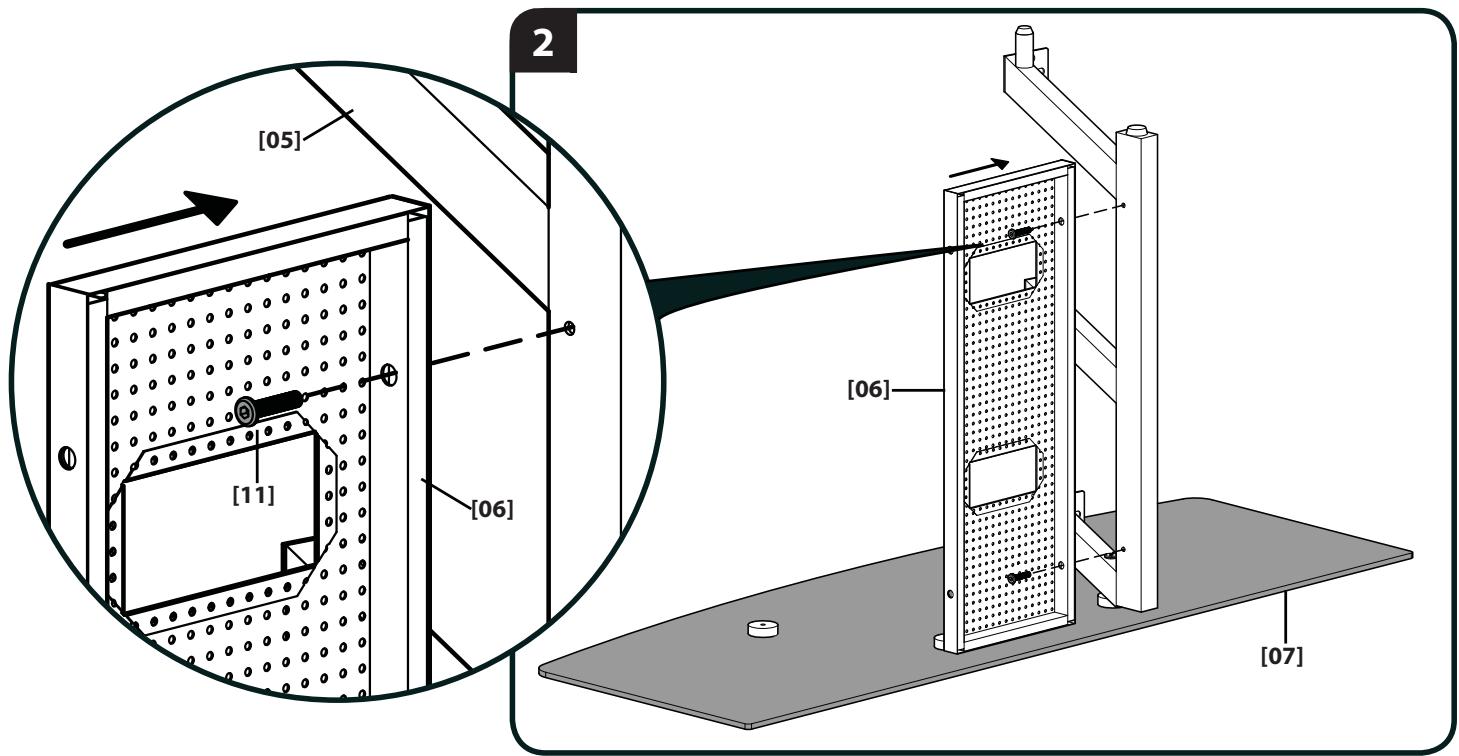

2. Attach the back panel [06] to the right leg assembly [05] using bolt [11].

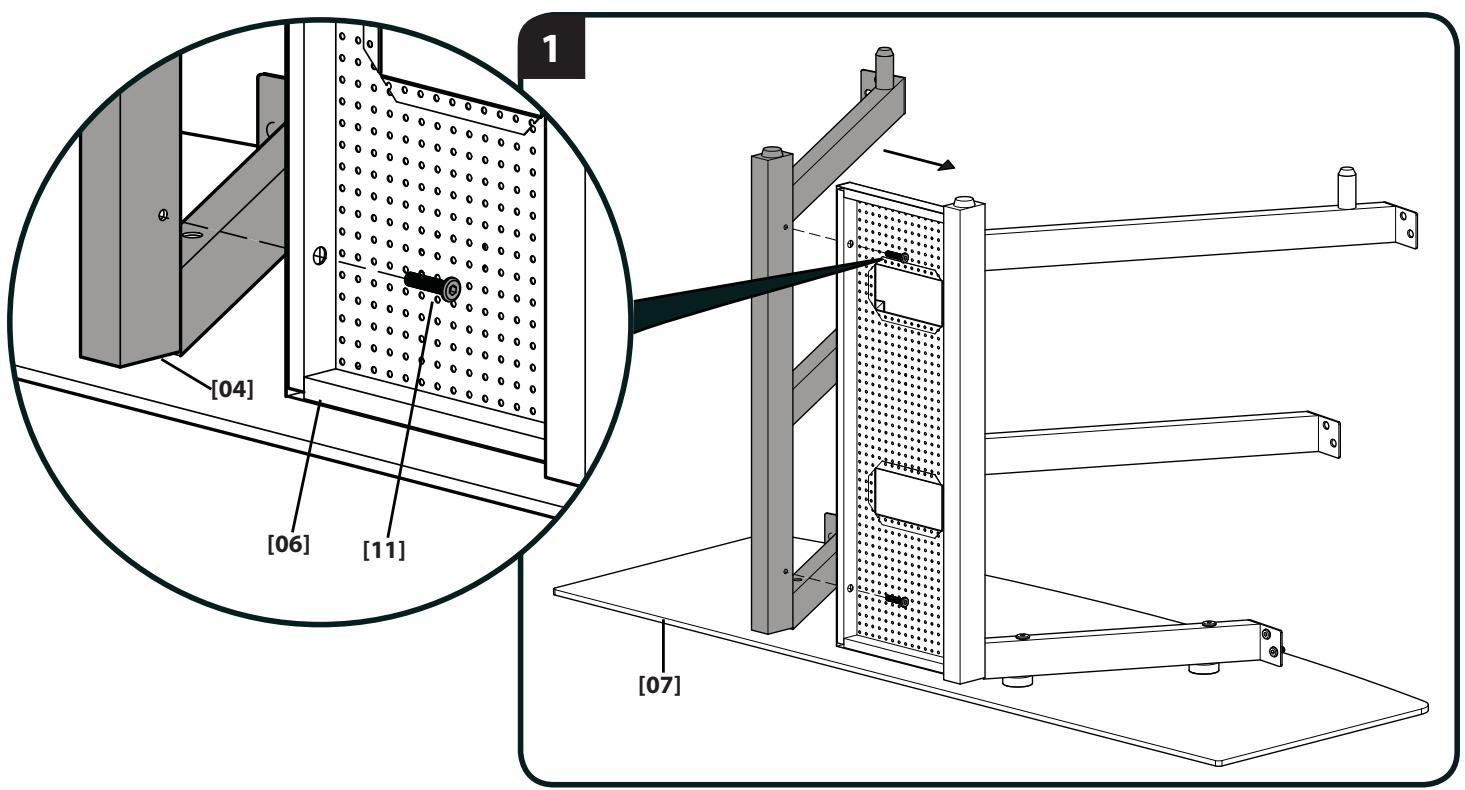

1. Attach left leg assembly [04] to the back panel [06] using bolt [11].

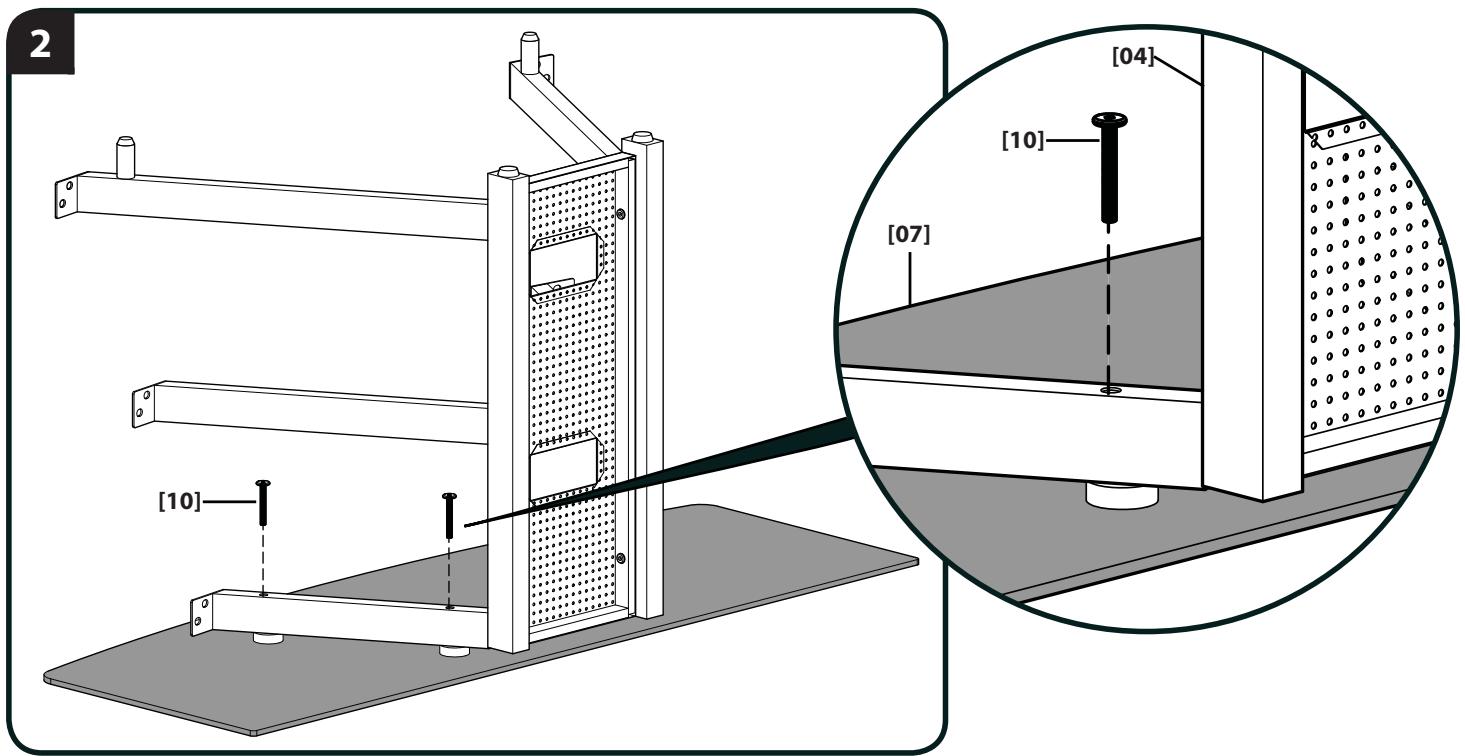

2. Attach the left leg assembly [04] to the top glass assembly [07] using bolt [10].

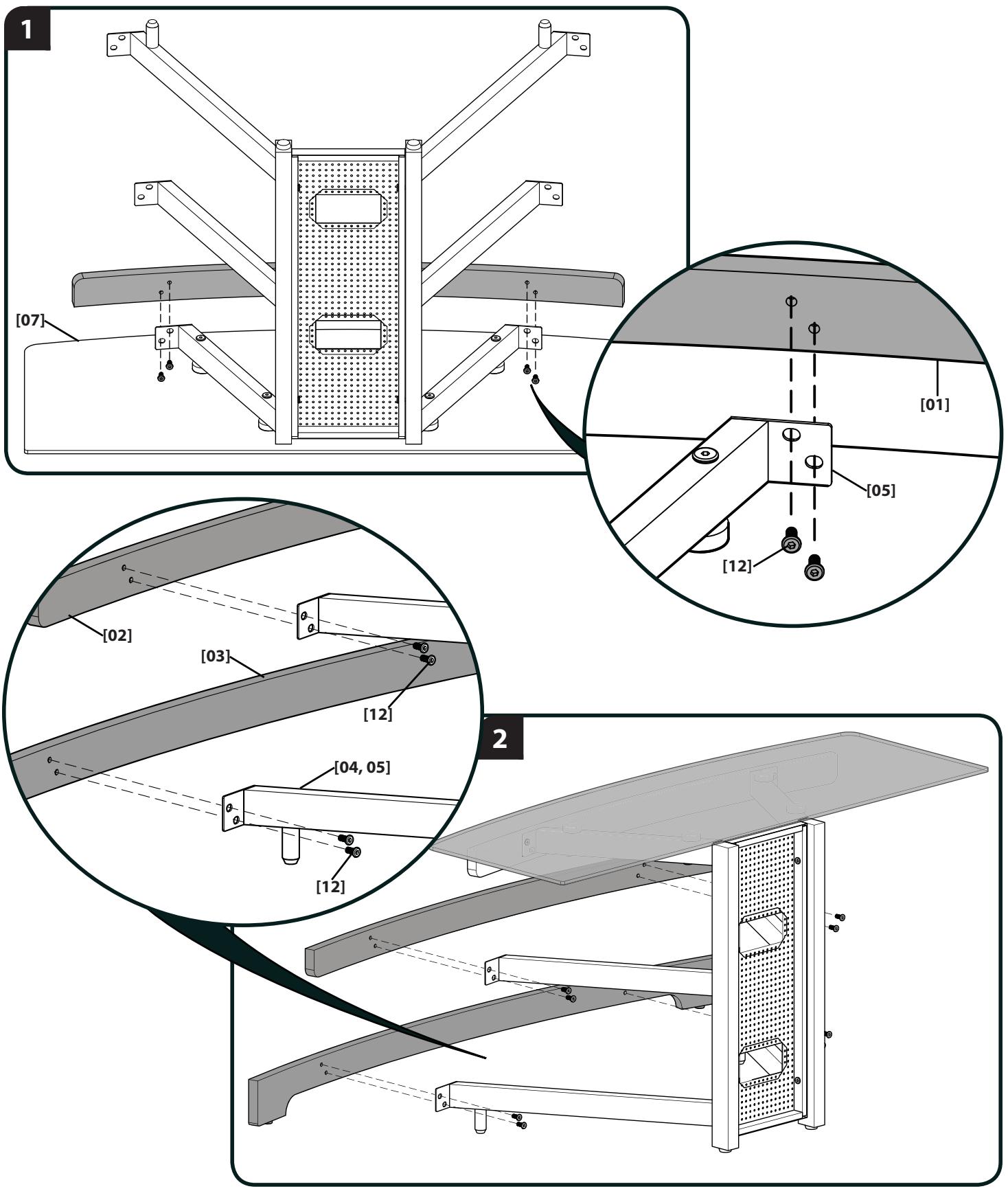

1. Attach the top front panel [01] to the leg assemblies [04, 05] using bolt [12], as shown.
2. Flip the unit right side up. Attach the middle and bottom front panels [02, 03] to the leg assemblies [04, 05] using bolt [12], as shown.

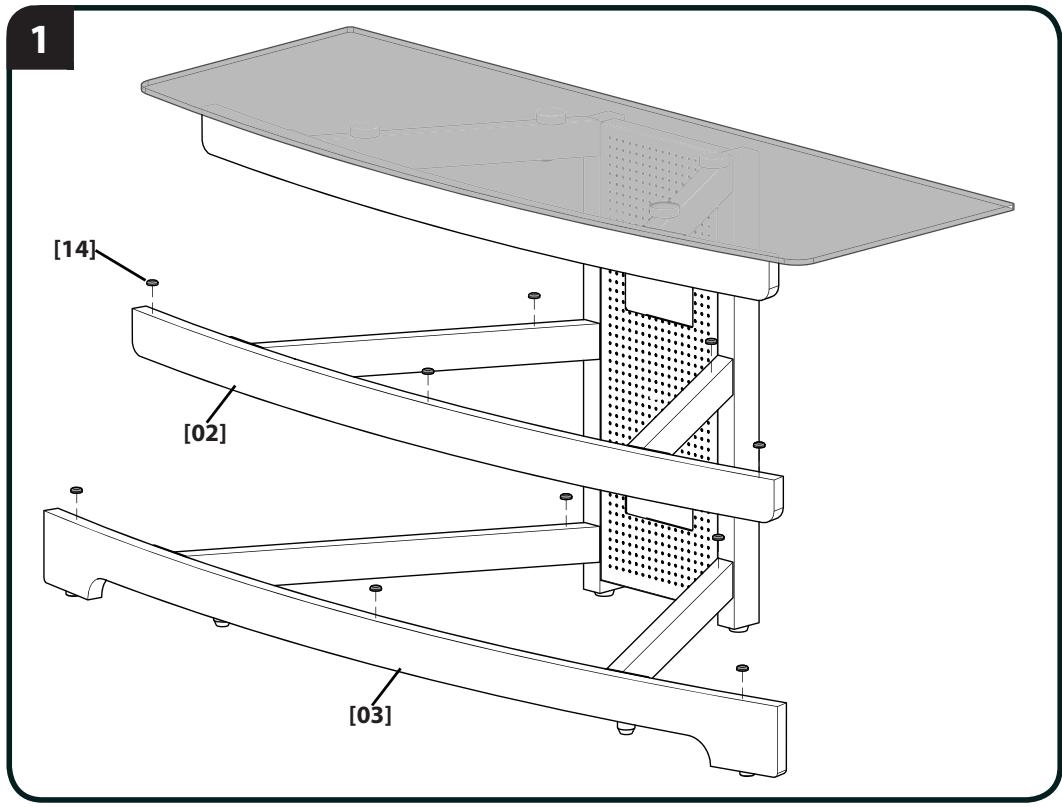

1. Attach the clear bumpers [14] to the front panels [02, 03] and the leg assemblies [04, 05] as shown.

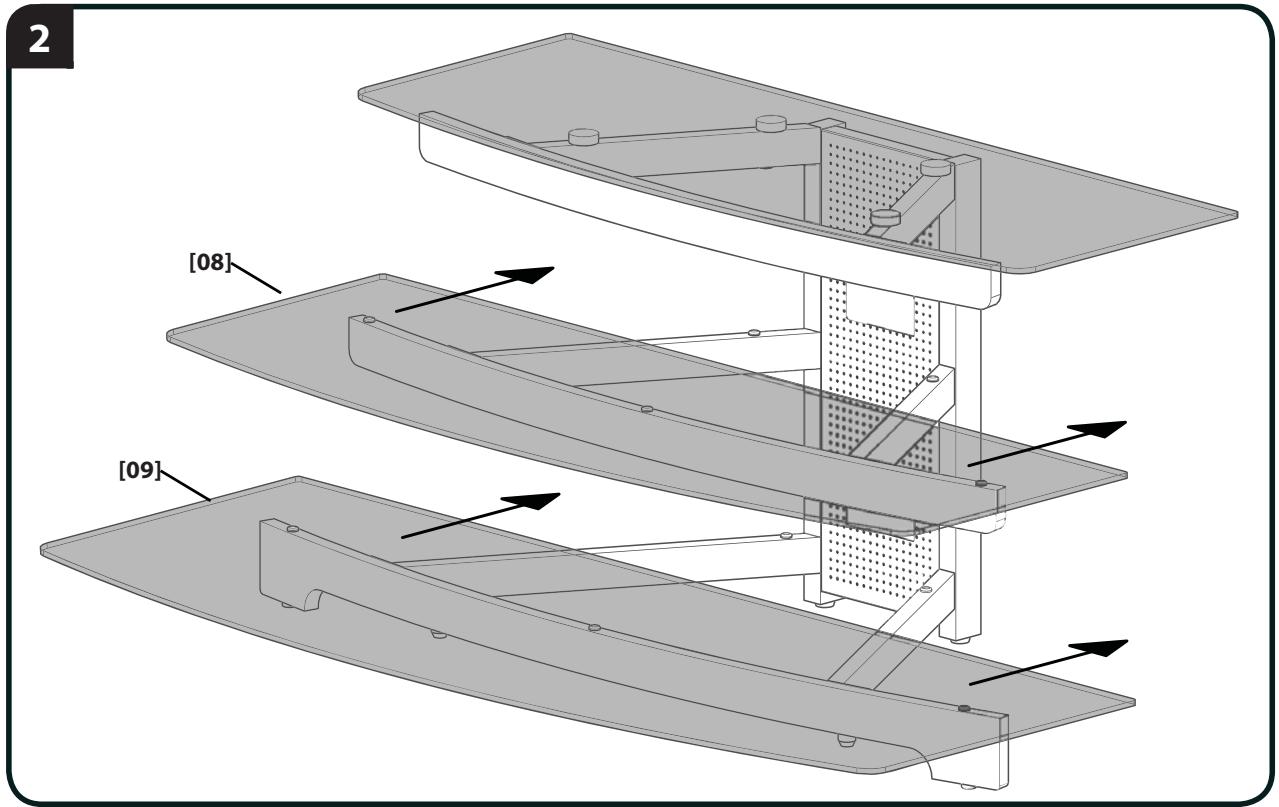

2. Gently place glass shelves [08, 09,] on top of the clear bumpers [14].

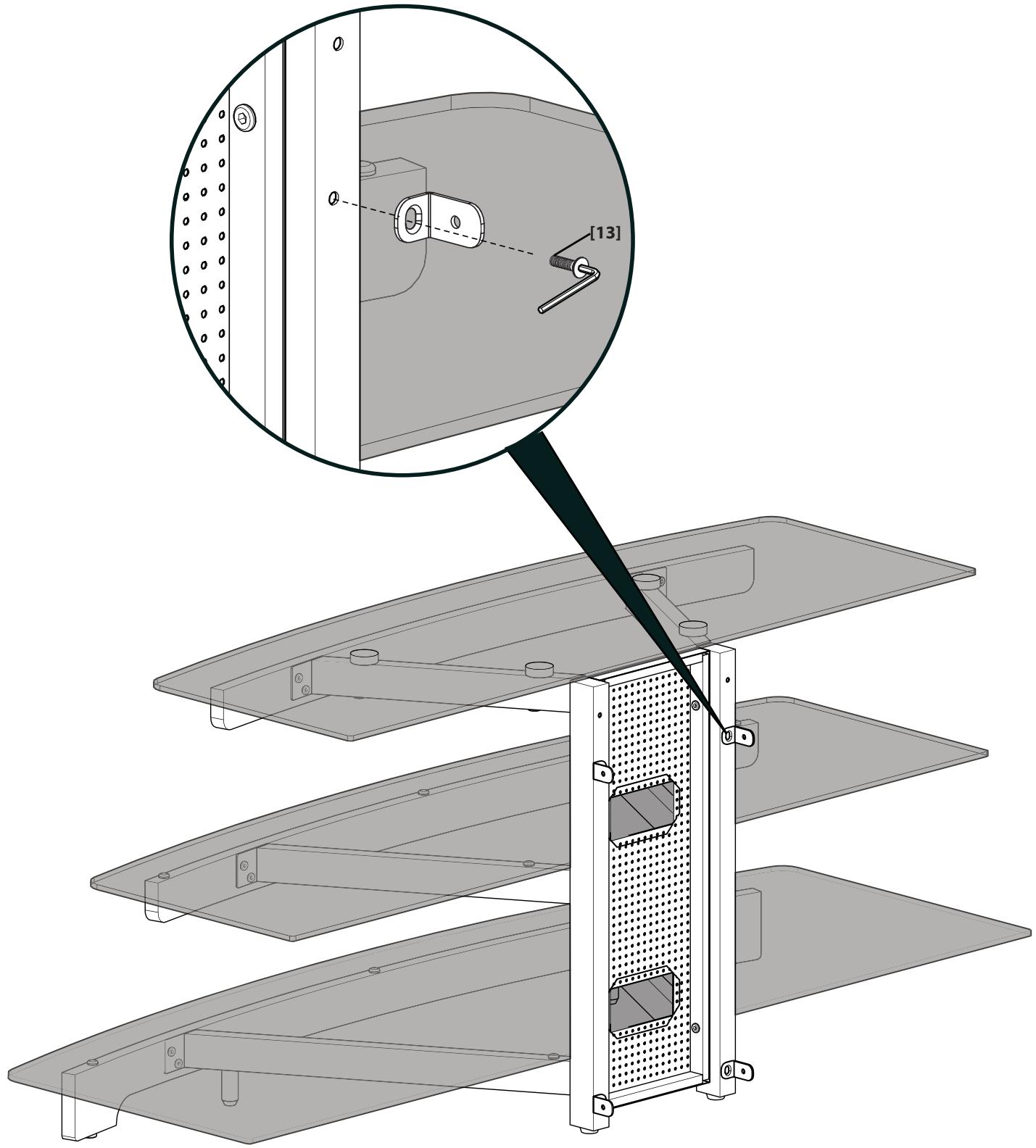

NOTE: The M4 allen key and pillar bracket are included with the FMK056 pillar kit mount.

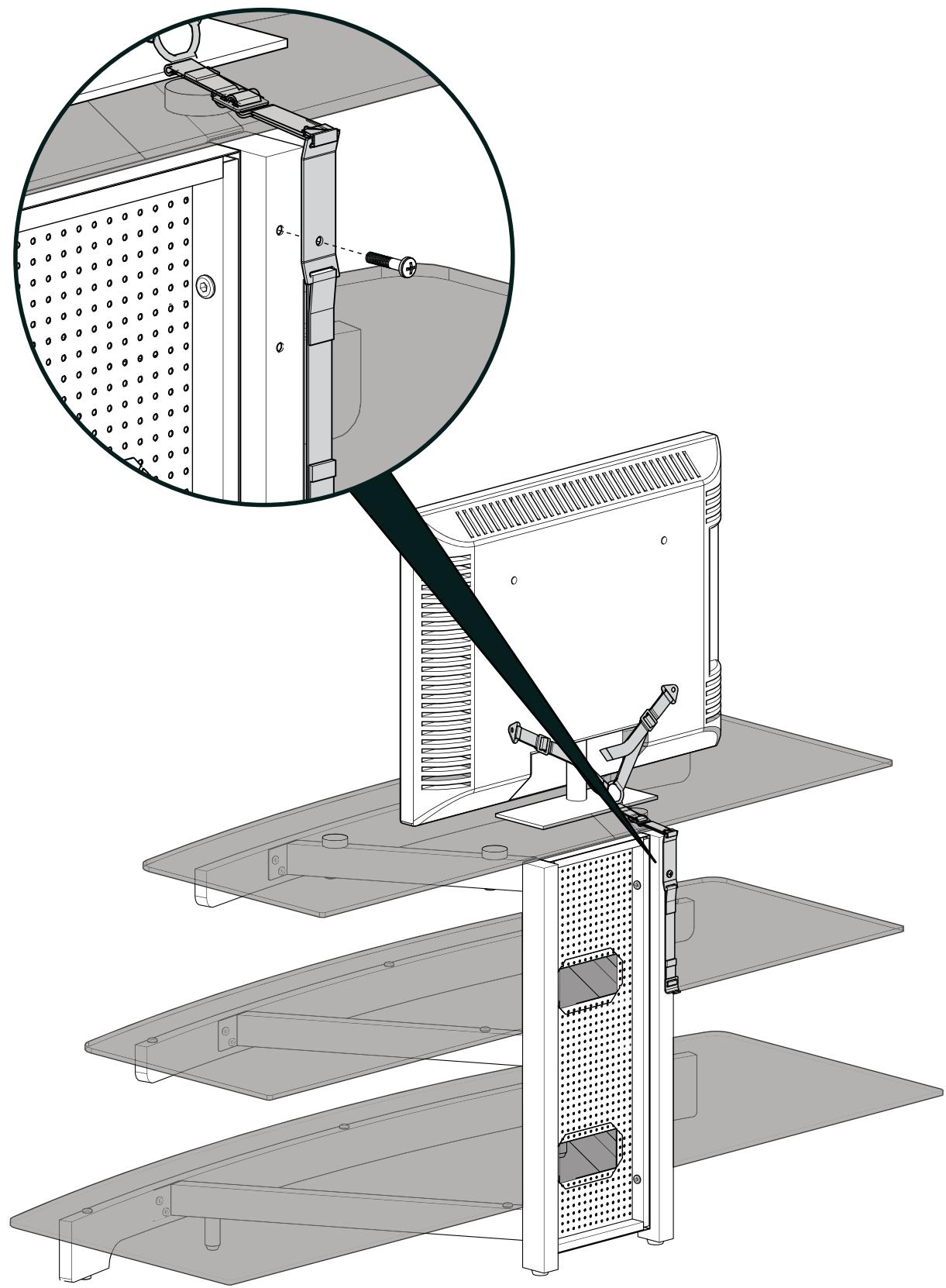

Attach the ELM701 Anti-tip Strap

NOTE: Hardware to attach the ELM701 Anti-Tip Strap is included with the strap.

ATTENTION:

INFORMATIONS IMPORTANTES CONCERNANT LA SECURITE - CONSERVEZ CES INSTRUCTIONS - VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

1. Attach the clear bumpers [14] to the front panels [02, 03] and the leg assemblies [04, 05] as shown.
2. Gently place glass shelves [08, 09,] on top of the clear bumpers [14].

Opt SUTUN DESTEGINI TAKIN 10. sayfadaki resimlere bakin

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
