Störungen, was tun? de

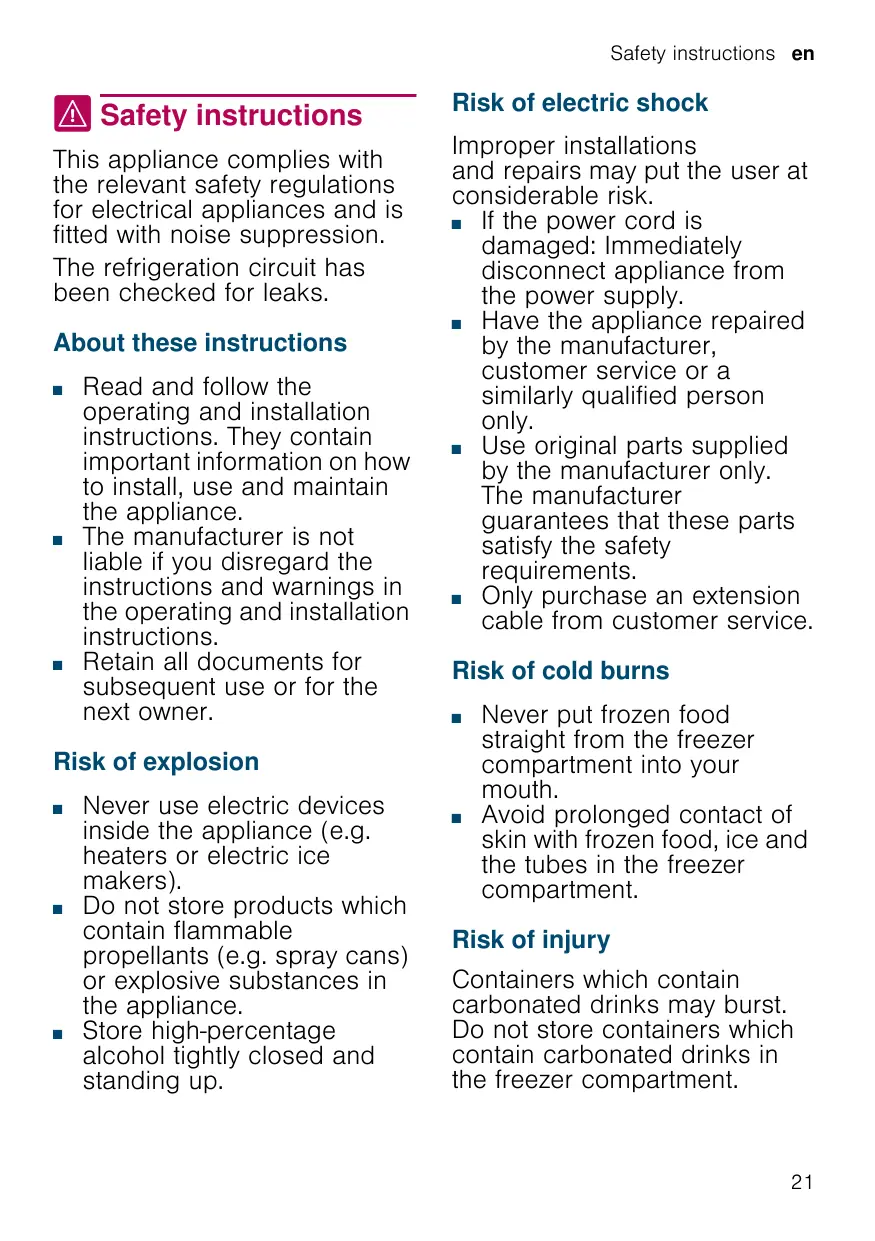

( Safety instructions This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression. The refrigeration circuit has been checked for leaks.

Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions. Retain all documents for subsequent use or for the next owner.

Risk of electric shock Improper installations and repairs may put the user at considerable risk. ■ If the power cord is damaged: Immediately disconnect appliance from the power supply. ■ Have the appliance repaired by the manufacturer, customer service or a similarly qualified person only. ■ Use original parts supplied by the manufacturer only. The manufacturer guarantees that these parts satisfy the safety requirements. ■ Only purchase an extension cable from customer service. Risk of cold burns ■

Never use electric devices inside the appliance (e.g. heaters or electric ice makers). Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Store high-percentage alcohol tightly closed and standing up.

Never put frozen food straight from the freezer compartment into your mouth. Avoid prolonged contact of skin with frozen food, ice and the tubes in the freezer compartment.

Risk of injury Containers which contain carbonated drinks may burst. Do not store containers which contain carbonated drinks in the freezer compartment.

en Safety instructions

Danger due to refrigerants The tubes of the refrigeration circuit contain a small quantity of the environmentally friendly but flammable refrigerant R600a. It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite. ■ Do not damage the tubes If the tubes are damaged: Keep naked flames and ignition sources away from the appliance. ■ Ventilate the room. ■ Switch off the appliance and pull out the mains plug. ■ Call the after-sales service. ■

Avoiding placing children and vulnerable people at risk At risk are: Children, ■ People who have limited physical, mental or sensory abilities, ■ People who have inadequate knowledge concerning safe operation of the appliance. ■

Measures: ■ Ensure that children and vulnerable people have understood the hazards. ■ Children or vulnerable people must be supervised by a responsible person when using the appliance. ■ Only children from 8 years and above may use the appliance. ■ Supervise children while the appliance is being cleaned or maintained. ■ Never allow children to play with the appliance. Risk of suffocation ■

If the appliance features a lock: keep the key out of the reach of children. Keep children away from the packaging and its parts.

Damage To prevent damage: ■ Do not stand or support yourself on the base, runners or doors. ■ Keep plastic parts and door seals free of oil and grease. ■ Pull the mains plug – not the power cord.

When installing and transporting the appliance, note that it may be very heavy. ~ "Installation location" on page 24

Valuable raw materials can be reclaimed by recycling old appliances.

8 Intended use Use this appliance ■ only for freezing food and making ice. ■ only in the home and in the home environment. ■ only according to these operating instructions.

e s u dedne t n I This appliance is intended for use up to a maximum height of 2000 metres above sea level.

7 Environmental protection

no i t ce t orp l a t nemnor i vnE

Children may become locked in the appliance and suffocate! ■ To prevent children from climbing in, leave shelves and containers in the appliance. ■ Keep children away from the redundant appliance. Caution! Refrigerant and harmful gases may escape. Do not damage the tubes of the refrigerant circuit and insulation. 1. Remove the mains plug. 2. Sever the power cord. 3. Have the appliance disposed of

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

All materials are environmentally safe and recyclable: ■ Dispose of packaging in an environmentally friendly manner. ■ Please ask your dealer or inquire at your local authority about current means of disposal.

en Installation and connection

5 Installation and connection

no i t c en o c dna no i t a l a t s n I After unpacking all parts, check for any damage in transit. If you have any complaints, contact the dealer from whom you purchased the appliance or our after-sales service. ~ "Customer service" on page 35 The delivery consists of the following parts: ■ Built-in appliance ■ Interior fittings (depending on model) ■ Bag containing installation materials ■ User manual ■ Installation instructions ■ Customer service booklet ■ Warranty enclosure ■ Information on the energy consumption and noises

Technical specifications Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. ~ "Getting to know your appliance" on page 27

Installing the appliance Installation location The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance. ~ "Getting to know your appliance" on page 27 The weight of the appliance may be up to 67 kg depending on the model. Permitted room temperature The permitted room temperature depends on the climatic class of the appliance. Information on the climatic class can be found on the rating plate. ~ "Getting to know your appliance" on page 27 Climatic category

Permitted room temperature

+16 °C ... 43 °C The appliance is fully functional within the permitted room temperature. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of +5 °C.

Installation and connection en

Side by-side installation

A cavity depth of 56 cm is recommended for the appliance. If the cavity depth is smaller – at least 55 cm – the energy consumption increases slightly.

If, in addition to this appliance, you wish to operate another appliance featuring a freezer compartment, you must maintain a distance of at least 15 cm. If the minimum distance is not observed, you can only set up this appliance alongside 556 mm-wide appliances that do not feature a freezer compartment.

Tips for saving energy If you follow the instructions below, your appliance will use less power. Note: The arrangement of the features does not affect the energy consumption of the appliance. Installing the appliance Keep the appliance out of direct sunlight. Install the appliance as far away as possible from heating elements, cooker and other heat sources: 3 cm to electric or gas cookers. 30 cm to an oil or solid-fuel cooker. Note: If this is not possible, attach an insulating plate between the appliance and heat source.

The appliance must cool less frequently at low ambient temperatures and therefore consumes less power.

Select an installation location at a room temperature of approx. 20 °C. Use a cavity depth of 56 cm. The air on the rear panel of the appliance does not warm up so intensely. The appliance consumes less Caution! power if the warm air can escape. Risk of burns! Individual parts of the appliance become hot during operation. Touching these parts may result in burns. Do not cover or block the ventilation openings. Ventilate the room daily.

en Installation and connection Using the appliance Open the appliance door only briefly. Transport purchased food in a cool bag and place quickly in the appliance.

The air in the appliance does not warm up so intensely. The appliance must cool less frequently and therefore consumes less power.

Allow warm food and drinks to cool down before placing in the appliance. Thaw frozen food in the refrigerator compartment in order to utilise the low temperature of the frozen food. Always leave a space between the food and the rear The air can circulate and the air humidity will panel. remain constant. The appliance must cool less frequently and therefore consumes less power. Pack food airtight. Vacuum the back of the appliance once a year. Do not cover or block the ventilation openings. --------

Before using your appliance for the first time 1. Remove leaflets, adhesive tape and

2. Clean the appliance.

~ "Cleaning" on page 32

Electrical connection Caution! Do not connect the appliance to electronic energy saver plugs. Note: You can connect the appliance to mains-controlled and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, which are not connected directly to the national grid.

The air on the rear panel of the appliance does not warm up so intensely. The appliance consumes less power if the warm air can escape. 1. After installing the appliance, wait at

least 1 hour before connecting it to prevent damaging the compressor. 2. Connect the appliance via a correctly installed socket. The socket must comply with the following data: Socket with 220 V ... 240 V Conductor 50 Hz Fuse 10 A ... 16 A Outside Europe: Check whether the indicated current type of the appliance corresponds with the values of your power supply. Appliance specifications are on the rating plate. ~ "Getting to know your appliance" on page 27 3. Connect the appliance to a socket near the appliance. The socket must be freely accessible even after the appliance has been installed.

Getting to know your appliance en

* Getting to know your

Fold out the last page with the diagrams. The appliance and diagrams may differ according to features.

ecna i l p a ruoy wonk o t gn i t eG Freezer compartment temperature display Indicates the set temperature in °C. Button alarm Switches the warning signal off.

Interior fittings (not all models) Freezer compartment flap ~ Fig. # You can remove the freezer compartment flap: ■ Open the freezer compartment flap and release from the holder.

Appliance ~ Fig. ! * Not all models. (...H Controls P NoFrost system X Shelf `* Freezer compartment flap h Freezer calendar )" Frozen food container (large) )* Frozen food container )2 Rating plate

Controls ~ Fig. " ( Button # Switches the appliance on or off. 0 Button super freezer compartment Switches Super freezing on or off. 8 Button –/+ freezer compartment Sets the temperature of the freezer compartment.

Shelf ~ Fig. $ You can vary the shelf: Pull out and remove the shelf.

Container ~ Fig. % You can remove the container: Pull out the container all the way, lift at the front and remove.

Freezer calendar ~ Fig. !/h The freezer calendar indicates the maximum storage duration in months at a constant temperature of –18 °C.

en Operating the appliance Ice cube tray You can make ice cubes: 1. Fill the ice cube tray 3/4 full with water and place in the freezer compartment. Note: If the ice cube tray is stuck to the freezer compartment, loosen with a blunt implement only (e.g. spoon handle). 2. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

Ice pack In the event of a power failure or a fault: ■ The ice pack delays the warming of the stored frozen food. Note: The longest storage time is obtained by placing the ice pack on the food in the top compartment. You can take out the ice pack for temporarily keeping food cool, e.g. in a cool bag.

Switching off and disconnecting the appliance Switching off the appliance ■

1 Operating the appliance

Switching on the appliance

ecna i l p a eh t gn i t arepO

1. Press the # button.

The appliance begins to cool. Warning signal, flashing temperature display on the freezer compartment and lit button alarm indicate that the freezer compartment is still too warm. 2. Press the alarm button. The warning signal switches off. 3. Setting the required temperature. ~ "Setting the temperature" on page 29

After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put in any food until the selected temperature has been reached. The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is not required. The sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal. If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised.

Press the # button. The appliance no longer cools.

Disconnecting the appliance If you do not use the appliance for a prolonged period: 1. Press the # button. The appliance no longer cools. 2. Pull out the mains plug or switch off the fuse. 3. Clean the appliance. 4. Leave the appliance open.

Setting the temperature

Recommended temperature Freezer compartment:

–18 °C Freezer compartment ■

Keep pressing the button –/+ until the display indicates the required temperature.

mr a l A The door opening alarm (continuous sound) switches on if the appliance door is open for longer than one minute. ■ Close the door or press button alarm. The warning signal is switched off.

Super freezing cools the freezer compartment as cold as possible.

If the freezer compartment becomes too warm, the temperature alarm (intermittent signal) switches on.

Switch on super freezing mode, e.g.: ■ to freeze food solid as quickly as possible: ■ 4–6 hours before placing food weighing 2 kg or more in the freezer compartment ■ to use the max. freezing capacity ~ "Maximum freezing capacity" on page 30 Note: When super freezing is switched on, increased operating noises may occur. After approx. 2 ^ days the appliance switches to normal operation. Switching Super freezing on/off: Press the super button. The button is lit when Super freezing is switched on.

Caution! During the thawing process, bacteria may occur and spoil the frozen food Do not refreeze thawing or thawed food. Refreeze food only after cooking. Do not store the frozen produce for the max. storage period. Note: The alarm may be actuated without risk to the frozen food in the following cases: ■ The appliance is switching on. ■ Large quantities of fresh food are put in. ■ The freezer compartment door has been open too long. Indicating warmest temperature and switching off warning signal: ■ Press the alarm button. The display briefly indicates the warmest temperature reached in the freezer compartment. Then the display indicates the set temperature again. From this time on the warmest temperature is recalculated and saved. Note: The button alarm remains lit until the set temperature has been reached again.

en Freezer compartment

W Freezer compartment

Prerequisites for max. freezing capacity

The freezer compartment is suitable for: ■ storing frozen food ■ making ice cubes ■ freezing food

1. Approx. 24 hours before inserting

t nemt rapmoc reze rF The temperature can be set from -16 °C to -26 °C. The freezer compartment can be used to store perishable foods long-term almost without any noticeable reduction in quality, as the low temperatures considerably slow down or stop deterioration. Appearance, flavour and all valuable ingredients are largely retained. Long-term storage of food should be at –18 °C or lower. The time between putting fresh food in the freezer compartment and it freezing solid depends on the following factors: ■ set temperature ■ type of food ■ amount of food in the freezer compartment ■ quantity and type of storage

Maximum freezing capacity The maximum freezing capacity indicates the quantity of food which can be frozen solid within 24 hours. Information on the max. freezing capacity can be found on the rating plate. ~ "Getting to know your appliance" on page 27 To use the maximum freezer capacity, switch on Super freeze 24 hours before placing the fresh food in the freezer compartment.

fresh produce: switch on Super freeze. ~ "Super freezing" on page 29 2. Take the container out of the freezer compartment and stack the food directly on the shelves and on the floor of the freezer compartment. 3. First fill the upper compartment with food. This is where the food will freeze most quickly. 4. If the top compartment is inadequate, store the remaining quantity in the compartment underneath.

Fully utilising the freezer volume To fit the maximum amount of frozen food into the freezer compartment: ■ Up to an appliance height of 1300 mm, remove all fittings apart from the uppermost fitting. ■ As of an appliance height of 1300 mm, remove all fittings. ■ Store food directly on the shelves and on the floor of the freezer compartment.

Purchasing frozen food ■ ■ ■ ■

Ensure the packaging is not damaged. Do not exceed the minimum sell-by date. The temperature in the supermarket freezer must be –18 °C or lower. If possible, transport frozen food in a cool bag and place quickly in the freezer compartment.

Freeze large quantities of food in the top compartment. This is where the food will freeze especially quickly and gently. Distribute food in the compartments or frozen food containers. Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers. Important for unrestricted air circulation in the appliance: push in frozen food container all the way.

Freezing fresh food Freeze only fresh and undamaged food. Food which is boiled, fried or baked is more suitable for freezing than food which is raw. Before freezing food, make preparations appropriate to the food in order to retain the best possible nutritional value, flavour and colour: ■ Vegetables: wash, chop, blanch. ■ Fruit: wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution. Information on how to do this can be found in the relevant literature. Suitable for freezing ■ ■ ■ ■ ■ ■ ■ ■

Baked goods Fish and seafood Meat Poultry and game Vegetables, fruit and herbs Eggs without shells Dairy products, e.g. cheese, butter and quark Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, soufflés and desserts

Not suitable for freezing ■

Types of vegetables which are usually eaten raw, e.g. lettuce or radishes Unpeeled or hard boiled eggs Grapes Whole apples, pears and peaches Yoghurt, soured milk, sour cream, creme fraiche and mayonnaise

Packing frozen food The correct type of packaging and material selection are decisive factors in the retention of the product quality and prevent the development of freezer burn. 1. Place food in packaging. 2. Remove air. 3. Pack food airtight to prevent it from

losing flavour and drying out.

4. Label packaging with contents and

Suitable packaging: ■ Plastic film ■ Tubular film made of polyethylene (PE) ■ Aluminium foil ■ Freezer containers Suitable locks: ■ Rubber bands ■ Plastic clips ■ Cold-resistant adhesive tape Not suitable packaging: ■ Wrapping paper ■ Greaseproof paper ■ Cellophane ■ Refuse bags and used shopping bags Shelf life of frozen food at –18 °C Fish, sausage, ready meals and cakes and pastries:

Thawing frozen food The thawing method must be adjusted to the food and application in order to retain the best possible product quality. Thawing methods: ■ in the refrigerator compartment (especially suitable for animal-based foods such as fish, meat, cheese, quark) ■ at room temperature (bread) ■ in the microwave (food for immediate consumption or immediate preparation) ■ in the oven/cooker (food for immediate consumption or immediate preparation) Caution! Do not refreeze thawing or thawed food. You can only refreeze the food when it has been used for a ready-to-eat meal (boiled or fried). The frozen food can no longer be stored for the maximum duration.

D Cleaning Caution! Avoid damaging the appliance and the fittings. ■ Do not use abrasive, chloride or acidic cleaning agents or solvents. ■ Do not use scouring or abrasive sponges. The metallic surfaces may corrode. ■ Never clean the shelves or containers in the dishwasher. The parts may become deformed.

gn i nae l C Proceed as follows:

1. Switch off the appliance. 2. Pull out the mains plug or switch off

3. Take out the food and store in a cool

= Defrosting Freezer compartment

The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.

location. If present: place ice pack on the food. If present: wait until the layer of frost has thawed. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid. Caution! The rinsing water must not run into the light or through the drainage hole into the evaporation area. Wipe door seal with clear water and dry thoroughly with a cloth. Reconnect and switch on appliance and put in food.

Cleaning the equipment To clean, take the variable parts out of the appliance. ~ "Interior fittings" on page 27

Cracking: Automatic thawing successful.

Droning: A motor is running, e.g. refrigerating unit, fan. Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes. Clicking: Motor, switches or solenoid valves are switching on and off.

Appliance is not level: Align appliance using a spirit level. If required, place a little packing underneath. Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required.

3 Faults – what to do? Before you call customer service, use this table to check whether you can rectify the fault yourself.

?od o t t ahw – s t l uaF Temperature differs greatly from the set value. Switch off appliance for 5 minutes. ~ "Switching off and disconnecting the appliance" on page 28 If the temperature is too warm, check temperature again after a couple of hours. If the temperature is too cold, check temperature again on the following day. Displays do not illuminate. The mains plug has not been inserted properly.

Connect the mains plug.

The fuse has tripped.

The power has failed.

Check whether the power is on.

Display indicates “E…”. Electronics have detected a fault.

Call the customer service. ~ "Customer service" on page 35

A warning signal sounds and the alarm button is lit. Press the alarm button. Alarm is switched off. Appliance door is open.

Close the appliance door.

en Faults – what to do? A warning signal sounds and the alarm button is lit. Ventilation openings have been covered.

Clear ventilation openings.

Large quantities of fresh food were placed in the appliance.

Do not exceed max. freezing capacity.

Display flashes, warning signal sounds and button alarm is lit. Press the alarm button. Alarm is switched off. Appliance door is open.

Close the appliance door.

Ventilation openings have been covered.

Clear ventilation openings.

Large quantities of fresh food were placed in the appliance.

Do not exceed max. freezing capacity.

Display flashes. The temperature in the freezer compartment was too warm.

When button alarm has been pressed, the warmest temperature reached in the freezer compartment is displayed for 5 seconds. Press the alarm button. The display stops flashing.

Appliance is not cooling, display and lighting are lit. Demo mode switched on.

Start the appliance self-test.~ "Customer service" on page 35 When the programme has ended, the appliance switches over to normal operation.

4 Customer service If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers. The contact information for your nearest customer service can be found here or on the enclosed customer service list. When calling, please state the product number (E-Nr.) and the production number (FD) which can be found on the rating plate. ~ "Getting to know your appliance" on page 27 Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.

ec i v res remo t suC Appliance self-test Your appliance features a self-test programme which displays the fault which your customer service can rectify. 1. Switch off the appliance and wait

5 minutes. 2. Switch on the appliance. 3. Within the first 10 seconds after switching on, press and hold the super button for 3 to5 seconds until an audible signal sounds. The self-test starts. While the self-test is running, a long audible signal sounds.

If a signal sounds twice and the set temperature is displayed again after the self-test has ended, your appliance is OK. If the freezer compartment super button flashes for 10 seconds and 5 signals sound, inform customer service.

When the programme has ended, the appliance switches over to normal operation.

Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list. GB 0344 892 8999

Calls charged at local or mobile rate.

Guarantee Detailed information on the warranty period and warranty conditions in your country are available from your customer service, your dealer and on our website.
