Product type	Kitchen hood
Brand	Franke
Model	FTC612
Installation	Minimum distance of 650 mm above the cooking surface
Material	Stainless steel
Grease filters	Metallic, dishwasher safe (every 2 months)
Charcoal filter	Active, replace every 4 months
Lighting	Incandescent lamp 40 W
Number of speeds	3
Control type	Electronic buttons with indicators
Rated voltage	220-240 V ~ 50 Hz
Air outlet diameter	150 mm (120 mm reducer included)
Electrical class	Class I (grounding required)
Maximum consumption	Not specified (estimated 200 W)
Net weight	Approximately 12 kg
Chimney height	Telescopic, adjustable
Electrical connection	Bipolar switch with 3 mm gap
Maintenance	Clean the grease filters, replace the charcoal filter
Safety	Do not use under open flame, do not flambé food
Use	Domestic, removal of cooking odors

Frequently Asked Questions - FTC612 FRANKE

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance between the cooking surface and the hood must be at least 650 mm. Refer to the "Dimensions" paragraph for models that can be installed lower.

How to clean the grease filters?

The metallic grease filters are dishwasher safe. They should be cleaned about every 2 months, or more frequently with heavy use. Let them dry before reassembling.

How to replace the charcoal filter?

The active charcoal filter is neither washable nor reusable. Replace it at least every 4 months, or more often with heavy use. To do this, first remove the grease filters, then replace the charcoal filter.

What to do if the lighting fails?

Replace the lamp with an incandescent lamp of 40 W of the same specifications. Unscrew the old lamp after removing the grease filters.

Can I use the hood without the charcoal filter?

Yes, if the hood is installed as extraction version (ducted outside). In recirculation version, the charcoal filter is essential to purify the air.

What type of electrical cable to use?

Connect the hood to the mains via a bipolar switch with a contact gap of at least 3 mm. Check that the voltage matches that indicated on the rating plate.

How to adjust the chimney height?

The chimney is telescopic. Slightly spread the lateral edges, hook it behind the fixing flanges and tighten it up to the stop, then secure it with the supplied screws.

Is the hood suitable for gas cooking?

Yes, but in this case, provide sufficient ventilation in the room to compensate for extracted air. An opening to the outside may be required.

What do the indicators on the buttons mean?

The lights turn on to indicate the selected speed. The T1 button turns off the motor by going through the first speed, while L turns the lighting on/off.

What to do if the hood no longer works?

First check the power supply and the fuse condition. Make sure that the power cord connector is properly plugged into the diffuser socket. If the problem persists, contact after-sales service.

USER MANUAL FTC612 FRANKE

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Dimensions

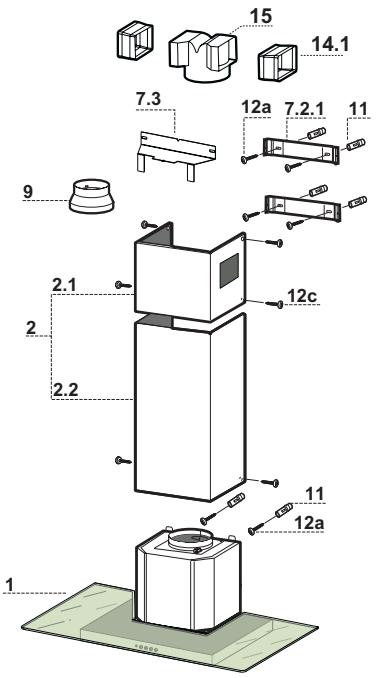

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
9	1	Reducer Flange ø 150-120 mm
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection
Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
7.3	1	Air Outlet Connection Support
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

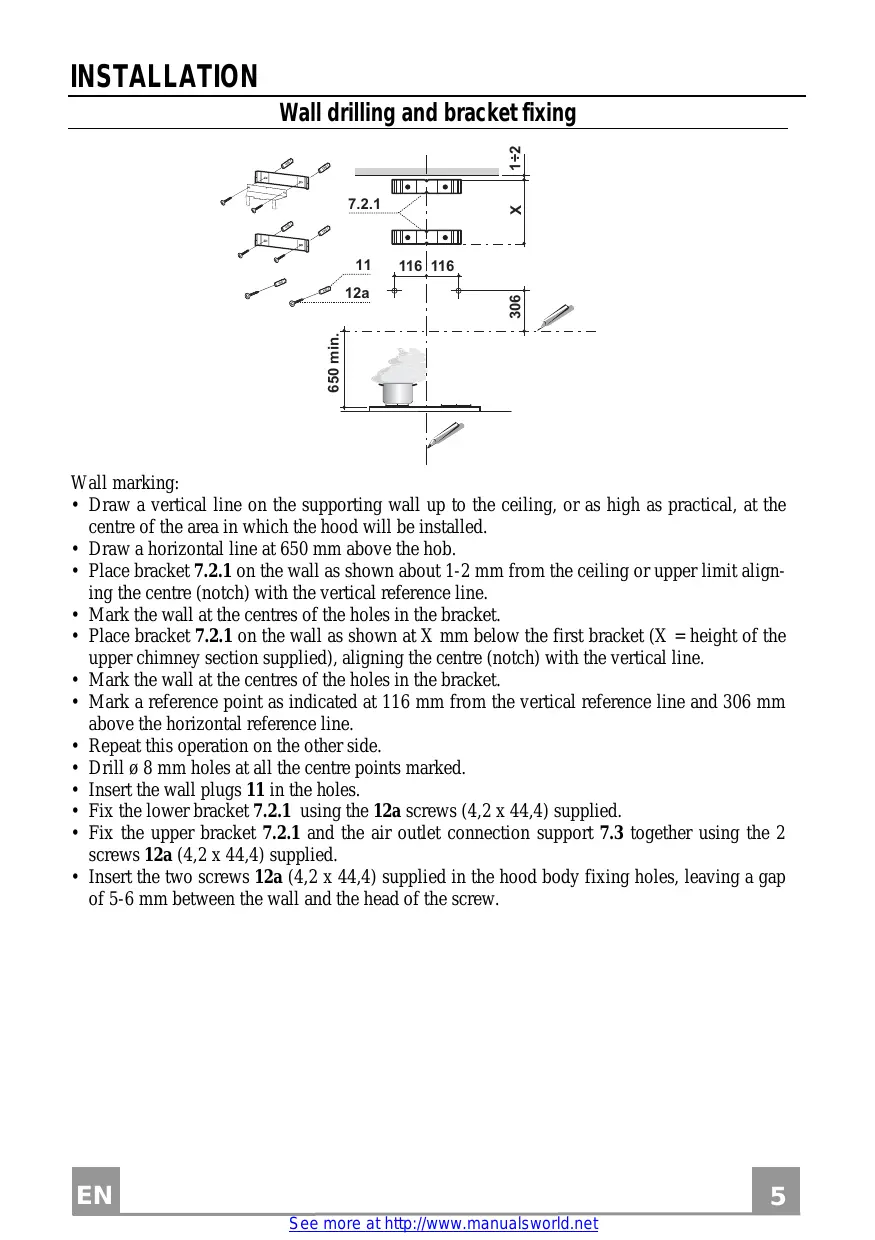

Wall drilling and bracket fixing

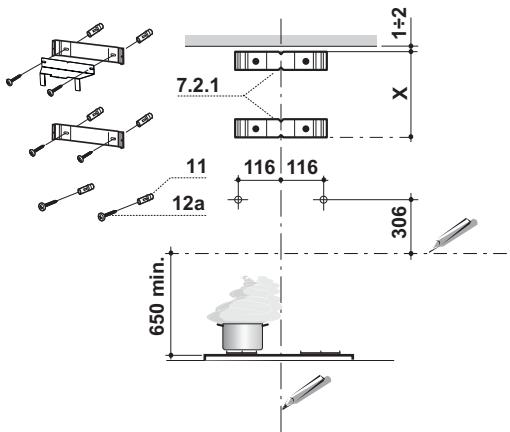

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1 - 2mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket ( X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116mm from the vertical reference line and 306mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  Fix the lower bracket 7.2.1 using the 12a screws (4,2× 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5 - 6mm between the wall and the head of the screw.

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

• Hook the hood body onto the screws 12a.
• Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120~mm the choice of which is left to the installer.

• To install a 120mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

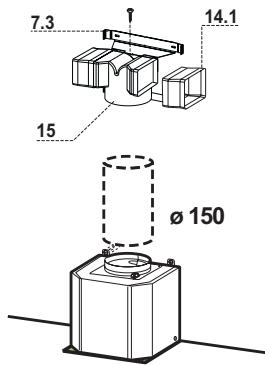

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe 150mm , the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

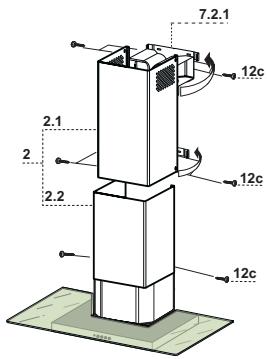

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
  Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

Control panel

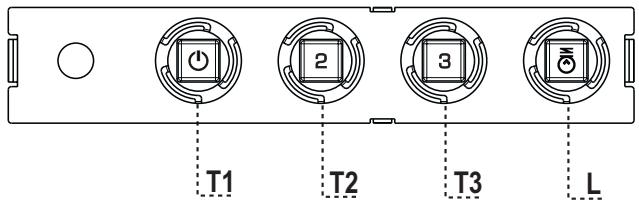

BUTTON	LED	FUNCTIONS
T1 Speed	On	Turns the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On	Turns the Motor on at Speed two.
T3 Speed	Fixed	When pressed briefly, turns the Motor on at Speed three.
L Light		Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

REEMPLACEMENT LAMPES
