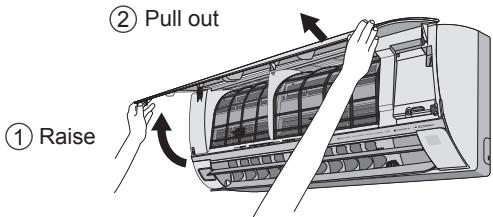

Front Panel Maintenance	Clean with a soft dry cloth, removable for washing
Safety	Residual current circuit breaker recommended; do not use solvents or flammable products
Supplied Accessories	Remote control, AAA batteries×2, remote control holder, screws×2
Temperature Range (cooling)	Indoor: 16-32 °C DB; Outdoor: -10-43 °C DB (depending on model)
Temperature Range (heating)	Indoor: 16-30 °C DB; Outdoor: -15-24 °C DB (depending on model)
Refrigerant	Specified type (consult an authorized dealer)
Weight and Dimensions	Not specified in the manual

Frequently Asked Questions - FZ 5 PANASONIC

How to clean the air filter?

The air filter must be cleaned every 2 weeks. Remove the filter, wash it gently with water, rinse and dry completely in the shade, away from fire or direct sunlight. If the filter is damaged, replace it immediately.

What to do if the TIMER indicator flashes?

Flashing of the TIMER indicator may indicate an error code. Use the remote control to retrieve the code: hold down the TIMER ON button for at least 5 seconds, then press the SET button until a beep is heard to note the error code. Then contact an authorized dealer.

How to use ECONAVI mode?

ECONAVI mode optimizes energy savings by detecting human activity and sunlight. Press the ECONAVI button on the remote control to activate it. The human activity sensor adjusts the temperature according to your activity level, and the sunlight sensor compensates for variations in sunlight.

Why does the indoor unit make a water flowing sound?

This noise is normal and comes from the circulation of refrigerant inside the unit. No action is required.

How to set the timer?

Press TIMER ON or OFF to select the mode (ON or OFF). Set the desired time using the ▲/▼ buttons, then press SET to confirm. To cancel, select the relevant timer and press CANCEL. The timer repeats daily.

What does the flashing POWER indicator mean?

Flashing of the POWER indicator may indicate that the unit is in HEATING mode and waiting for the temperature to rise, or that it is in defrost mode. In HEATING mode, the indicator flashes during start-up; if no warm air flows out, the unit is defrosting. If flashing continues, check the troubleshooting instructions.

How to deactivate the integrated nanoe-G filter?

Hold down the NANOE-G button until a short beep sounds. This deactivates the deactivation of the integrated filter, but the nanoe-G will continue to purify the air. To restore the function, hold down the button until a long beep.

What to do in case of an error code?

If an error code appears (e.g., 'H99'), use the remote control in test mode: hold down the TIMER ON button for 5 seconds, then press SET until a beep is heard and note the code. After checking, turn off the unit and give the code to an authorized dealer for repair.

How to use POWERFUL/QUIET mode?

Press the POWERFUL/QUIET button to switch between modes: POWERFUL, QUIET, and NORMAL. POWERFUL mode quickly reaches the desired temperature and stops automatically after 20 minutes (in single mode). QUIET mode reduces airflow noise.

What is the operating temperature range?

In COOLING mode, the indoor unit operates between 16 °C and 32 °C (dry bulb) and the outdoor unit between -10 °C and 43 °C. In HEATING mode, the indoor unit operates between 16 °C and 30 °C and the outdoor unit between -15 °C and 24 °C. These values may vary depending on the model.

USER MANUAL FZ 5 PANASONIC

Operating Instructions

Air Conditioner

Penscio

Model No.

Indoor Unit

INVERTER DELUXE

XE series

CS-XE7QKEW

CS-XE9QKEW

CS-XE12QKEW

CS-XE18QKEW

E series

CS-E7QKEW

CS-E9QKEW

CS-E12QKEW

CS-E15QKEW

CS-E18QKEW

CS-E21QKEW

CS-E24QKEW

Outdoor Unit

Single Split

CU-E7QKE

CU-E9QKE

CU-E12QKE

CU-E15QKE

CU-E18QKE

CU-E21QKE

CU-E24QKE

Multi Split

CU-2E15PBE

CU-2E18PBE

CU-3E18PBE

CU-4E23PBE

CU-4E27PBE

CU-5E34PBE

Operating Instructions

Air Conditioner

2-11

Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached.

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

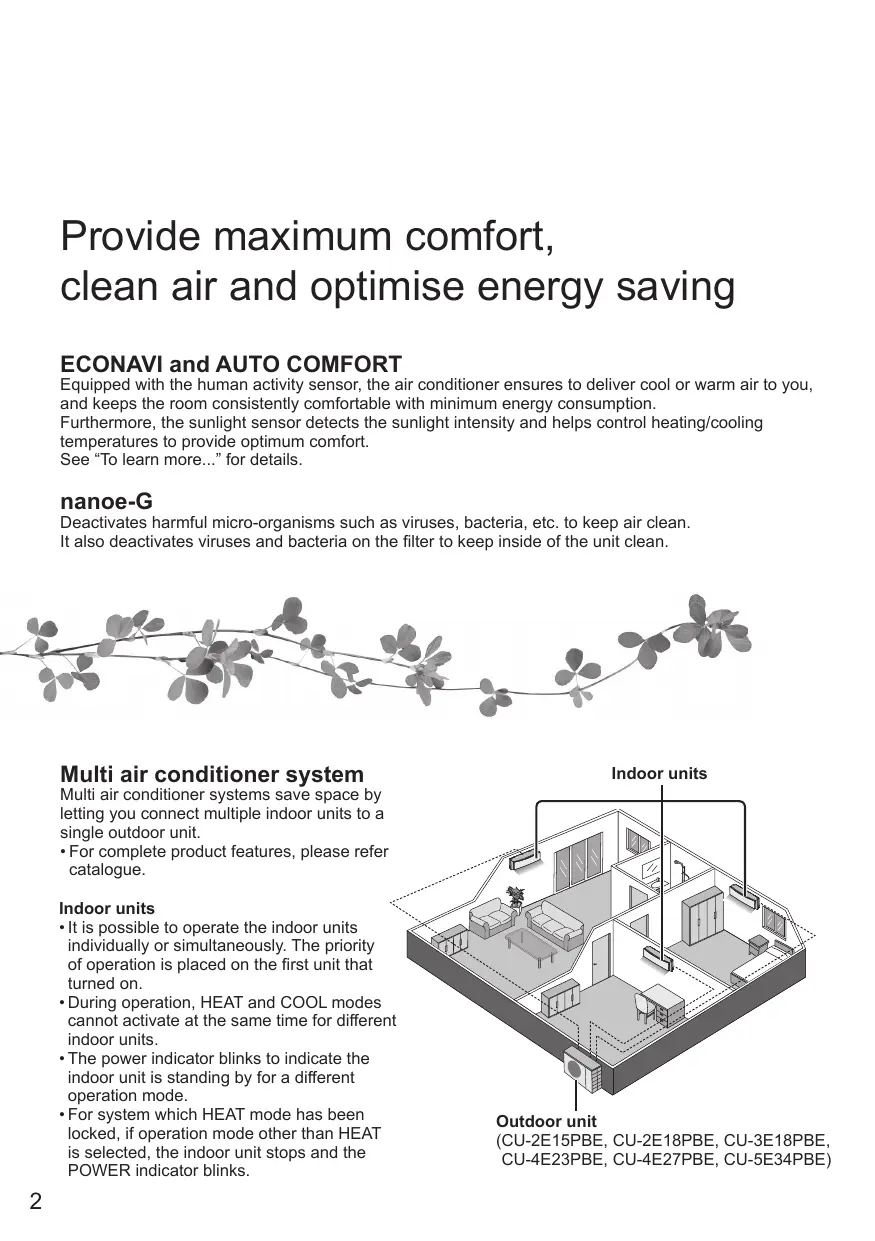

Provide maximum comfort, clean air and optimise energy saving

ECONAVI and AUTO COMFORT

Equipped with the human activity sensor, the air conditioner ensures to deliver cool or warm air to you, and keeps the room consistently comfortable with minimum energy consumption.

Furthermore, the sunlight sensor detects the sunlight intensity and helps control heating/cooling temperatures to provide optimum comfort.

See "To learn more..." for details.

nanoe-G

Deactivates harmful micro-organisms such as viruses, bacteria, etc. to keep air clean. It also deactivates viruses and bacteria on the filter to keep inside of the unit clean.

Black-and-white illustration of a leafy branch with five heart-shaped leaves (no text or symbols)

Multi air conditioner system

Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.

- For complete product features, please refer catalogue.

Indoor units

• It is possible to operate the indoor units individually or simultaneously. The priority of operation is placed on the first unit that turned on.
• During operation, HEAT and COOL modes cannot activate at the same time for different indoor units.
• The power indicator blinks to indicate the indoor unit is standing by for a different operation mode.
• For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks.

Indoor units nt

Outdoor unit

(CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

Quick guide

Diagram showing three labeled components of a battery or motor assembly, with arrows indicating direction and polarity.

Inserting the batteries

① Pull out the back cover of remote control
② Insert AAA or R03 batteries (can be used \~ 1 year)
③ Close the cover

TIMER ON 1 OFF SET 2 3 CANCEL SET CHECK CLOCK RESET Panasonic INVERTER

Clock setting

① Press CLOCK
② Set the time
③ Confirm

AIR CONDITIONER AUTO HEAT COOL DRY MILD DRY OFF/ON ECONAVI MODE WILD DRY COOLING POWERFUL/ QUIET TIMER ON 1 2 3 OFF AC RC RESET SET CHECK CLOCK AC FOR CLOCK SET FOR SWEED NANOE-G FAN SPEED AIR SWING AIR SWING FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SPEED FAN SWEED FAN SWEED FAN SWEED FAN SWEED FAN SWEED FAN SWEED FAN SWEED FAN SWEED FAN SWEED

Basic operation

② Start/stop the operation

- Please note that the OFF indication OFF is on to start.

③ Select the desired temperature

- Selection range: 16 °C \~ 30 °C. - Operating the unit within the recommended temperature may save energy. HEAT : 20 °C \~ 24 °C. COOL: 26 °C \~ 28 °C. DRY : 1 °C \~ 2 °C lower than room temperature.

8m

• To dim or restore the unit's indicator brightness, press and hold for 5 seconds.
• Use remote control within 8 m from the remote control receiver of the indoor unit.

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

Table of contents

Safety precautions....4-5

How to use......6-7

To learn more....8-9

Cleaning instructions .... 10

Troubleshooting 11

Information......62

Accessories

• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control holder × 2

To prevent personal injury, injury to others or property damage, please comply with the following:

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING	This sign warns of death or serious injury.
CAUTION	This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

	This symbol denotes an action that is PROHIBITED.
	These symbols denote actions COMPULSORY.

WARNING

Indoor unit and outdoor unit

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

Remote control

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

Power supply

Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire.

To prevent overheating, fire or electric shock:

• Insert the power plug properly.
• Dust on the power plug should be periodically wiped with a dry cloth.

Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure

• The ELCB trips frequently.
- Burning smell is observed.
- Abnormal noise or vibration of the unit is observed.
• Water leaks from the indoor unit.
- Power cord or plug becomes abnormally hot.
- Fan speed cannot be controlled.
- The unit stops running immediately even if it is switched on for operation.
- The fan does not stop even if the operation is stopped.

Contact your local dealer immediately for maintenance/repair.

This equipment must be earthed to prevent electrical shock or fire.

Prevent electric shock by switching off the power supply and unplug:

• Before cleaning or servicing,
• When extended non-use, or
• During abnormally strong lightning activity.

CAUTION

Indoor unit and outdoor unit

Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit.

Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.

Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation.

Do not expose plants or pet directly to airflow to avoid injury, etc.

Do not touch the sharp aluminium fin, sharp parts may cause injury.

Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.

Do not install the unit in oily and smoky areas to prevent damage to the unit.

Do not dismantle the unit for cleaning purpose to avoid injury.

Do not step onto an unstable bench when cleaning the unit to avoid injury.

Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.

Do not open window or door for long time during COOL/DRY mode operation.

Prevent water leakage by ensuring drainage pipe is:

• Connected properly,
• Kept clear of gutters and containers, or
• Not immersed in water

After a long period of use or use with any combustible equipment, aerate the room regularly.

After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.

Remote control

Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.

To prevent malfunction or damage of the remote control:

• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated.

Power supply

Do not disconnect the plug by pulling the cord to prevent electric shock.

POWER TIMER AUTO COMFORT NANOE-G POWERFUL QUIET nanoe-g ECONAVI (Green) (Orange) (Green) (Blue) (Orange) (Orange) (Green) ECONAVI To optimise energy saving ECONAVI MODE To select operation mode AUTO - For your convenience HEAT - To enjoy warm air COOL - To enjoy cool air DRY - To dehumidify the environment MILD DRY COOLING To improve humidity and moisture level Single This operation reduces air dryness and provides you with a comfortable living environment during COOL mode only. When vertical airflow direction is set to AUTO, it stops at lower position to avoid cold air contact. However, you can adjust the louver direction manually. Multi Function not applicable. POWERFUL/ QUIET To switch between powerful & quiet POWERFUL → QUIET → NORMAL POWERFUL: To reach temperature quickly POWERFUL Single This operation stops automatically after 20 minutes. Multi Press the button again or turn OFF the unit to stop this operation. QUIET: To enjoy quiet operation QUIET This operation reduces airflow noise. Indicator Human activity sensor Sunlight sensor and remote control receiver Remote control display AIR CONDITIONER AUTO HEAT COOL DRY MILD DRY OFF/ON® AUTO FAN SPEED MILD DRY COOLING TEMP POWERFUL/ QUIET FAN SPEED AIR SWING TIMER ON SET 1 2 3 OFF CANCEL AC RC SET CHECK CLOCK RESET Panasonic INVERTER Press and hold for approximately 10 seconds to show temperature setting in °C or °F. Press to restore the remote control to default setting. Not used in normal operations. FAN SPEED To select fan speed (Remote control display) AUTO → ■→ ■■→ ■■■→ ■■■■→ ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■

Auto OFF/ON button

AUTO OFF/ON

Use when remote control is misplaced or a malfunction occurs. Raise the front panel:

1. Press the button once to use in AUTO mode.
2. Press and hold the button until you hear 1 beep, then release to use in forced COOL mode.
3. Repeat step 2. Press and hold the button until you hear 2 beeps, then release to use in forced HEAT mode.
4. Press the button again to turn off.

To maximise comfort

AUTO COMFORT

To purify the air

NANOE-G

- nanoe-G starts automatically when the unit is turned on with OFF/ON ^1

- Can be activated even when the unit is turned off. In this condition, the unit will operate as a fan with AUTO fan speed and louver swing.

- This operation cannot be performed or will be stopped if other indoor unit is activating HEAT mode.

To deactivate viruses/bacteria on the filter

NANOE-G POWER

• After the unit is turned off, the nanoe-G in-filter deactivation may activate up to 150 minutes. Turning on the unit cancels this operation.
• To disable this operation in the future, press and hold □ until a short beep sound is heard. This will not disable the nanoe-G to purify the air.
• To restore the nanoe-G in-filter deactivation, press and hold NANOEG until a long beep sound is heard.

To adjust airflow direction

(Remote control display)

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swings left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver is fixed at the predetermined position. The vertical louver swings left/right after the temperature rises.
• Do not adjust the louver by hand.

To set the timer

2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times.

① Select ON or OFF timer

• Each time pressed:

Example:

OFF at 22:00

② Set the time

③ Confirm

• To cancel ON or OFF timer, press ON or OFF to select respective ⏻1 or ⏻2 then press CANCEL.
• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing ON or OFF to select respective ⊙1 or ⊕2 then press SET.
• The nearest timer setting will be displayed and will activate in sequence.
• When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide.

Note

ECONAVI POWERFUL/ QUIET AUTO COMFORT NANOE-G

- Can be activated in all modes and can be cancelled by pressing the respective button again.

• Cannot be selected at the same time.
• Cannot be activated during MILD DRY COOLING.

Operation mode

AUTO : During operation mode selection the POWER indicator blinks.

Single

- Unit selects operation mode every 10 minutes according to setting temperature and room temperature.

Multi

- Unit selects operation mode every 3 hours according to setting temperature, outdoor temperature and room temperature.

HEAT : Unit takes a while to warm up. The POWER indicator blinks during this operation.

COOL: Use curtains to screen off sunlight and outdoor heat to reduce power consumption during COOL mode.

DRY : Unit operates at low fan speed to give a gentle cooling operation.

- For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks.

nanoe-G in-filter deactivation

Depending on the unit's accumulated operation time, nanoe-G in-filter deactivation may activate only once a day after the unit turned off.

To remove the moisture left in the internal parts, the fan will operate for 30 minutes with louver opened slightly. This process only applicable when the unit is operated in COOL/DRY mode before turned off. Then, nanoe-G deactivates viruses/bacteria on the filter for 2 hours with fan stopped and louver closed.

Do not turn off the power supply during this operation. After power failure, this operation will not resume.

ECONAVI and AUTO COMFORT

ECONAVI

or

AUTO

COMFORT

The unit will start to initialise (for approximately 1 minute)

The human activity sensor and the sunlight sensor will start to detect.

Note

When manual AIR SWING is selected, the ECONAVI and AUTO COMFORT operations will be cancelled.

Human activity sensor operation

ECONAVI ; Detecting human presence and activity, the unit controls room temperature to save energy.

AUTO COMFORT ; Detecting human presence and activity, the unit controls room temperature to keep human comfortable consistently.

ECONAVI and AUTO COMFORT

Precise control of temperature during low activity to maximise energy saving.

ECONAVI and AUTO COMFORT take advantage of the human nature that human being takes time to feel the temperature rise during low activity level; the unit adjusts temperature to maximise energy saving without sacrificing the comfort.

* During low activity, fan speed 1 tap up for first 15 minutes or until set temperature is reached.
** During human absence, maximum fan speed for COOL/DRY mode is medium fan.

The human activity sensor will also scan for area of heat source and movement in a room.

Detection area

• Based on area activeness horizontal airflow direction louver will adjust either fix at predetermined position or swing left/right periodically.
• The human activity sensor performance is influenced by indoor unit location, movement speed, temperature range, etc.
  • The human activity sensor may:

- mistakenly detect an object with heat source & movement similar to human, such as pets, etc.

- mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.

- Do not place large objects near the sensor and keep away heating units or humidifier from the sensor's detection area. They may cause sensor malfunction.

120° 7m

Sunlight Sensor operation

ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy.

ECONAVI is activated, the unit maintains set temperature until a high sunlight intensity is detected. The sunlight sensor detects sunlight intensity during weather or day/night changes, and the unit adjusts temperature.

- In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.

Operation conditions

Use this air conditioner under the following temperature range.

DBT: Dry bulb temperature / WBT: Wet bulb temperature

Single split outdoor unit

CU-E7QKE, CU-E9QKE, CU-E12QKE, CU-E15QKE, CU-E18QKE, CU-E21QKE, CU-E24QKE		Indoor		Outdoor
		DBT	WBT	DBT	WBT
COOL	Max.	32	23	43	26
	Min.	16	11	-10	-
HEAT	Max.	30	-	24	18
	Min.	16	-	-15	-16

°C (temperature)

Multi split outdoor unit

CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE		Indoor		Outdoor
		DBT	WBT	DBT	WBT
COOL	Max.	32	23	46	26
	Min.	16	11	-10	-
HEAT	Max.	30	-	24	18
	Min.	16	-	-15	-16

°C (temperature)

To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see nanoe-G indicator blinks or error code "H99". Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household detergent.
• Do not use water hotter than 40^ .

Indoor unit

Wipe the unit gently with a soft, dry cloth.

Human activity sensor

Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction.

Front panel

Wash gently and dry.

Remove the front panel

① Raise ② Pull out

Close it securely

① Insert at both sides

② Close down
③ Press both ends of the front panel
④ For CS-XE18QKEW, CS-E18QKEW, CS-E21QKEW, CS-E24QKEW: Press at center of the front panel.

Indoor unit

Front panel Aluminium fin Human activity sensor Air filters nanoe-G Generator

nanoe-G Generator

Every 2 weeks

• Clean with dry cotton bud.
• Do not touch during operation.

Air filters

Every 2 weeks

• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Replace any damaged filters.

- Dry the filters thoroughly under shade, away from fire or direct sunlight.

Remove air filter

Illustration of a hand holding a grid-like panel mounted on a vehicle (no text or symbols visible)

Attach air filter

Diagram of a solar panel being held by hands, showing internal grid structure (no text or symbols)

Insert into the unit

For seasonal inspection after extended non-use

• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select COOL/HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:

COOL: ≥ 8 °C HEAT: ≥ 14 °C

For extended non-use

• Activate HEAT mode for 2\~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.

The following symptoms do not indicate malfunction.

Symptom	Cause
Mist emerges from indoor unit.	• Condensation effect due to cooling process.
Water flowing sound during operation.	• Refrigerant flow inside the unit.
The room has a peculiar odour.	• This may be due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	• This helps to remove the surrounding odour.
Airflow continues even after operation has stopped.	• Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after restarting.	• The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam.	• Condensation or evaporation occurs on pipes.
TIMER indicator is always on.	• The timer setting repeats daily once set.
POWER indicator blinks during HEAT mode with no warm air supply (and louver is closed).	• The unit is in defrost mode (and AIR SWING is set to AUTO).
Indoor fan stops occasionally during heating operation.	• To avoid unintended cooling effect.
POWER indicator blinks before the unit is switched on.	• This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation.	• Changes of temperature caused the expansion/contraction of the unit.
During COOL/DRY mode, the indoor unit stops and POWER indicator blinks.	• The system has locked to operate in HEAT model only.

Check the following before calling for servicing.

Symptom	Check
Operation in HEAT/COOL mode is not working efficiently.	Set the temperature correctly.Close all doors and windows.Clean or replace the filters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation.	Check if the unit has been installed at an incline.Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work.	Check if the circuit breaker is tripped.Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver is not obstructed.Certain fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND

UNPLUG then please consult authorised dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
  • Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.

The unit stops and the TIMER indicator blinks.

Use remote control to retrieve error code.

② Press until you hear beep sound, then write down the error code
④ Turn the unit off and reveal the error code to authorised dealer

- For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

Black and white illustration of a leafy branch with five heart-shaped leaves (no text or symbols)

(CU-2E15PBE, CU-2E18PBE, CU-3E18PBE,

CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

Guide Rapide

Diagram showing three labeled components of a device or component, with arrows indicating direction and polarity.

Insertion des piles

① Soulevez ② Retirez

Refermez bien

Illustration of a hand holding a curved panel mounted on a vehicle (no text or symbols visible)

Diagram of a solar panel being held by hands, showing grid structure and mounting points (no text or symbols)

Black-and-white illustration of a leafy branch with five heart-shaped leaves (no text or symbols)

(CU-2E15PBE, CU-2E18PBE, CU-3E18PBE,

CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

Guía rápida

Diagram showing three labeled components of a battery pack assembly, with arrows indicating direction and polarity.

Illustration of a hand holding a curved panel with a small inset showing a button, against a vehicle roof (no text or symbols)

Diagram of a solar panel being held by hands, showing grid structure and mounting points (no text or symbols)

Black-and-white illustration of a leafy branch with five heart-shaped leaves (no text or symbols)

(CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

Kurzanleitung

Diagram illustrating battery charging process with labeled components and directional arrows

Illustration of a hand holding a grid-mounted panel with an arrow indicating rotation (no text or symbols)

Diagram of a solar panel being held in a building (no text or symbols visible)

Im Gerät einhaken

Black-and-white illustration of a leafy branch with five heart-shaped leaves (no text or symbols)

(CU-2E15PBE, CU-2E18PBE, CU-3E18PBE,

CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

Guida rapida

Diagram of a battery pack assembly with numbered components and directional arrows indicating parts of the package.

Illustration of a hand holding a curved panel mounted on a vehicle roof (no text or symbols visible)

Illustration of a panel being held by hands, showing grid structure and control buttons (no text or symbols)

Inserire nell'unità

Black-and-white illustration of a leafy branch with five heart-shaped leaves (no text or symbols)

Free-multi systeem

(CU-2E15PBE, CU-2E18PBE, CU-3E18PBE,

CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

Snelle gids

Diagram showing three labeled components of a device or panel assembly, with arrows indicating direction and polarity.

Illustration of a hand holding a curved panel mounted on a vehicle (no text or symbols visible)

Luchtfilter bevestigen

Diagram of a solar panel being held by hands, showing grid structure and mounting points (no text or symbols)

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Français

© Panasonic Corporation 2013

Printed in Malaysia

Authorised representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany
