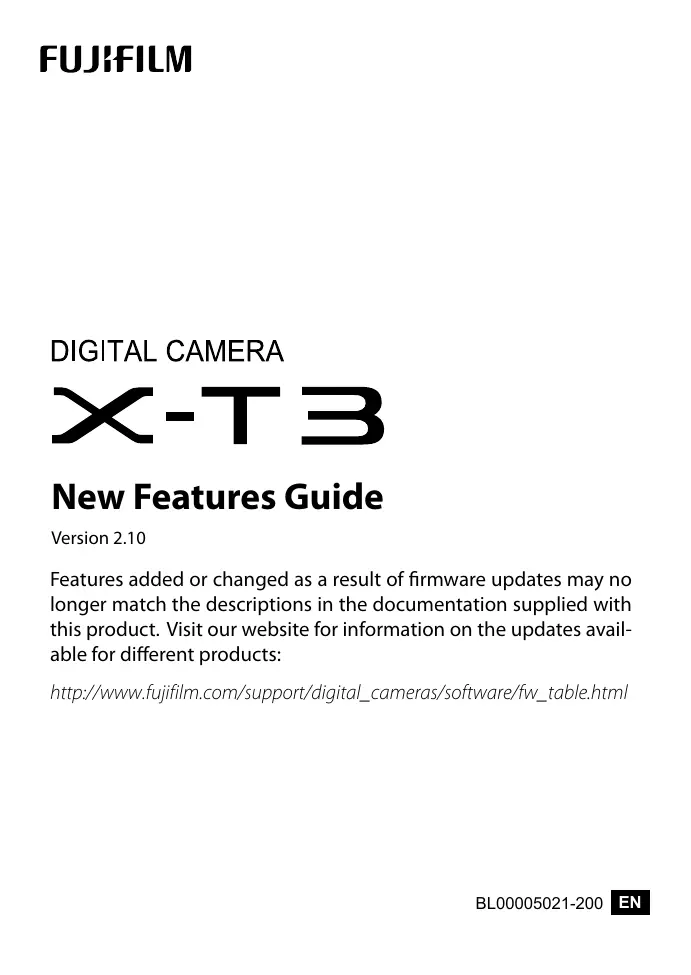

USER MANUAL X-T3 FUJIFILM
Features added or changed as a result of firmware updates may no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the updates available for different products:
http://www.fujifilm.com/support/digital_cameras/software/fw_table.html
Contents
X-T3 firmware version 2.10 adds or updates the features listed below. For information on earlier versions, visit the following website.
http://fujifilm-dsc.com/en/manual/
| No. | Description | X-T3 | See | Ver. |
| 1 | The chosen value is now displayed when a color temperature is selected for white balance. | 10, 12 | 1, 2 | 2.00 |
| 2 | The camera now displays a “charging” icon when powered via USB or by the AC-9VS AC adapter supplied with the VG-XT3 vertical battery grip. | 10, 12 | 1, 2 | 2.00 |
| 3 | The MOVIE SETTING > F-Log RECORDING item in the shooting menu has been renamed F-Log/HLG RECORDING. | 149 | 3 | 2.00 |
| 4 | Movies over 4 GB in size are now recorded to a single file. | 176, 261, 295 | 4 | 2.10 |
Changes and Additions
Changes and additions are as follows.
X-T3 Owner's Manual: 10 The Electronic Viewfinder
Ver. 2.00
⑤3 The camera now displays a "charging" icon when powered via USB or by the AC-9VS AC adapter supplied with the VG-XT3 vertical battery grip.

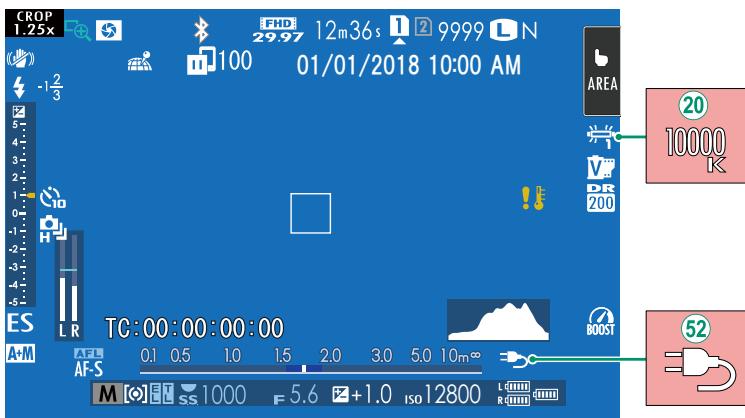

X-T3 Owner's Manual: 12 The LCD Monitor
Ver. 2.00
⑤2 The camera now displays a "charging" icon when powered via USB or by the AC-9VS AC adapter supplied with the VG-XT3 vertical battery grip.
Choose the destination for F-Log and HLG (Hybrid Log-Gamma) movies shot while the camera is connected to an HDMI device.
| Option | Description |
| The footage is processed using film simulation and both saved to the memory card and output to the HDMI device. | |
| The footage is recorded to the memory card and output to the HDMI device in F-Log format. | |
| The footage is output to the HDMI device in F-Log format but saved to the memory card with film simulation applied. | |
| The footage is recorded to the memory card in F-Log format but output to the HDMI device with film simulation applied. | |
| The footage is recorded to the memory card and output to the HDMI device in HLG format. |
- F-Log offers a gentle gamma curve with a wide gamut suitable for further processing post-production. Sensitivity is restricted to values between ISO 640 and ISO 12800.
- The HLG (Hybrid Log-Gamma) recording format conforms to the international ITU-R BT2100 standard. When viewed on HLG-compatible displays, high-quality HLG footage faithfully captures high-contrast scenes and vivid colors. Sensitivity is restricted to values between ISO 1000 and ISO 12800. HLG recording is available when H.265 (HEVC) is selected for MOVIE SETTING > H.265 (HEVC)/H.264 in the shooting menu.
- Film simulation (☐) footage is recorded using the option selected for ☐ MOVIE SETTING > ☐ FILM SIMULATION in the shooting menu.
-
Footage shot with SD 📄 HDMI F-Log or SD F-Log 📄️ cannot be recorded to the memory card and output to the HDMI at different frame sizes (4K, Full HD). In addition, the following 🧑️ MOVIE SETTING options are unavailable:
-
MOVIE MODE frame rate options of 59.94P and 50P
- FULL HD HIGH SPEED REC
- 4K INTERFRAME NR
- HDMI OUTPUT INFO DISPLAY
X-T3 Owner's Manual: 176 COPY
Ver. 2.10
- Copying ends when the destination is full.
- If you attempt to copy a file over 4 GB in size to a memory card with a capacity of 32 GB or less, copying will end and the file will not be copied.
X-T3 Owner's Manual: 261 Mac OS X/macOS
Ver. 2.10
Pictures can be copied to your computer using Image Capture (supplied with your computer) or other software.
Use a card reader to copy files over 4 GB in size.
X-T3 Owner's Manual: 295 Memory Card Capacity
Ver. 2.10
If the memory card has a capacity of over 32 GB, movies will be recorded in single files, regardless of size. If the card has a capacity of 32 GB or less, movies over 4 GB in size will be recorded uninterrupted across multiple files.
